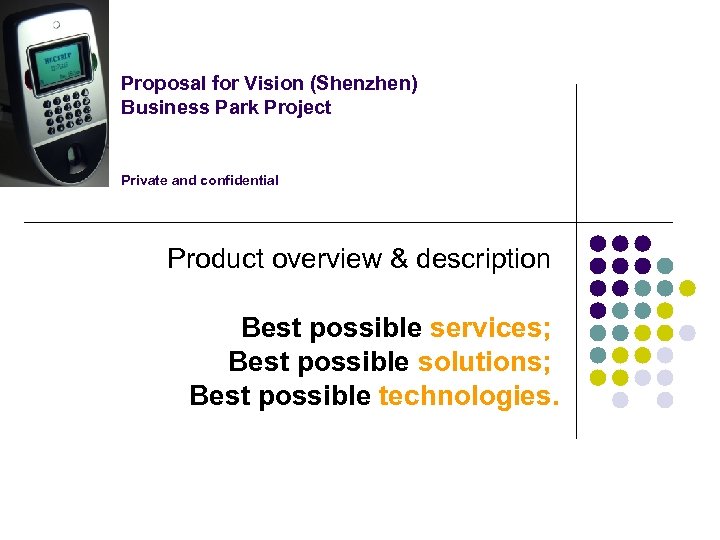

Proposal for Vision (Shenzhen) Business Park Project Private and confidential Product overview & description Best possible services; Best possible solutions; Best possible technologies.

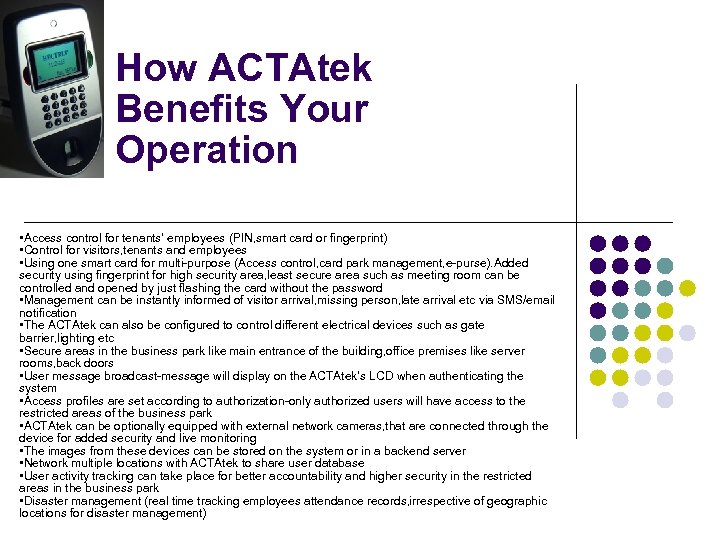

How ACTAtek Benefits Your Operation • Access control for tenants’ employees (PIN, smart card or fingerprint) • Control for visitors, tenants and employees • Using one smart card for multi-purpose (Access control, card park management, e-purse). Added security using fingerprint for high security area, least secure area such as meeting room can be controlled and opened by just flashing the card without the password • Management can be instantly informed of visitor arrival, missing person, late arrival etc via SMS/email notification • The ACTAtek can also be configured to control different electrical devices such as gate barrier, lighting etc • Secure areas in the business park like main entrance of the building, office premises like server rooms, back doors • User message broadcast-message will display on the ACTAtek’s LCD when authenticating the system • Access profiles are set according to authorization-only authorized users will have access to the restricted areas of the business park • ACTAtek can be optionally equipped with external network cameras, that are connected through the device for added security and live monitoring • The images from these devices can be stored on the system or in a backend server • Network multiple locations with ACTAtek to share user database • User activity tracking can take place for better accountability and higher security in the restricted areas in the business park • Disaster management (real time tracking employees attendance records, irrespective of geographic locations for disaster management)

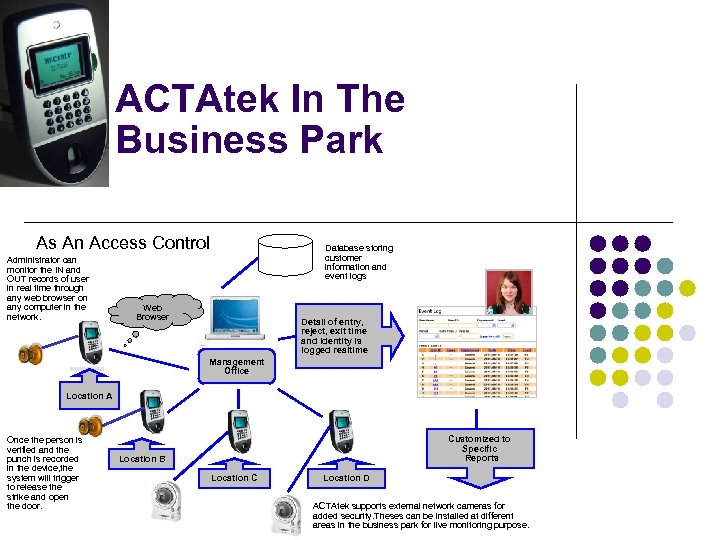

ACTAtek In The Business Park As An Access Control Administrator can monitor the IN and OUT records of user in real time through any web browser on any computer in the network. Database storing customer information and event logs Web Browser Detail of entry, reject, exit time and identity is logged realtime Management Office Location A Once the person is verified and the punch is recorded in the device, the system will trigger to release the strike and open the door. Customized to Specific Reports Location B Location C Location D ACTAtek supports external network cameras for added security. Theses can be installed at different areas in the business park for live monitoring purpose.
ACTAtek For Securing Restricted Areas In The Business Park ACTAtek is installed at the restricted areas in the business park or main entrance of the building Only anthorized user will have access to restricted areas of the business park Permises kept secure with access given only by smart card or fingerprint. Two-step verification (smart card + fingerprint) for higher security Can control access and monitor from anywhere at anytime through any web browser ACTAtek can be optionally equipped with external network cameras, that are connected through the device for added security The images from these devices can be stored on the system or in a backend server Authorized access is also recorded of who has accessed the rooms, and at what times, and how long they were in the room-to provide transparency and more accountability to the process
ACTAtek In The Business Park As An Intelligent Smart Card Car Park Management System Able to update information in real time through any web browser on any computer Long range RFID card Card Park Management System Software Web Browser Database System Capabilities: -Keep track of vehicles. IN and OUT using smart card authentication -Access control and season parker management -Vehicle counting with traffic flow statistics -Parking fee calculation -User-friendly Entrance Gate Barrier Exit Gate Barrier Live monitoring with the aid of external network camera. Video streaming can then be recorded and stored in the database

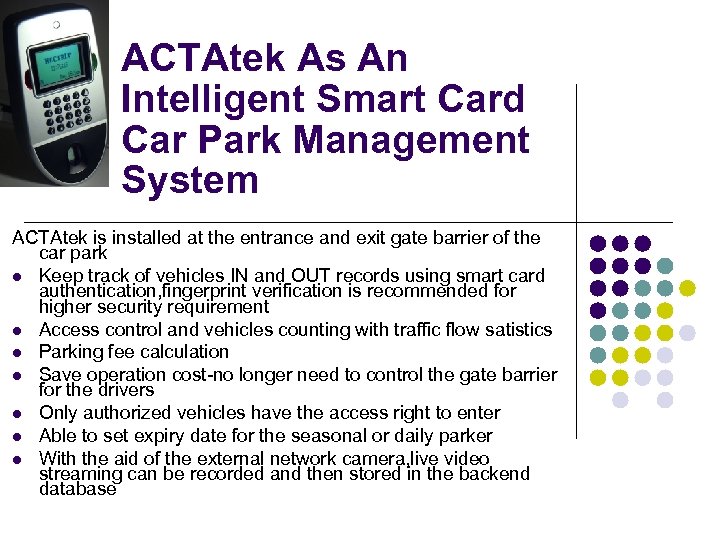

ACTAtek As An Intelligent Smart Card Car Park Management System ACTAtek is installed at the entrance and exit gate barrier of the car park Keep track of vehicles IN and OUT records using smart card authentication, fingerprint verification is recommended for higher security requirement Access control and vehicles counting with traffic flow satistics Parking fee calculation Save operation cost-no longer need to control the gate barrier for the drivers Only authorized vehicles have the access right to enter Able to set expiry date for the seasonal or daily parker With the aid of the external network camera, live video streaming can be recorded and then stored in the backend database

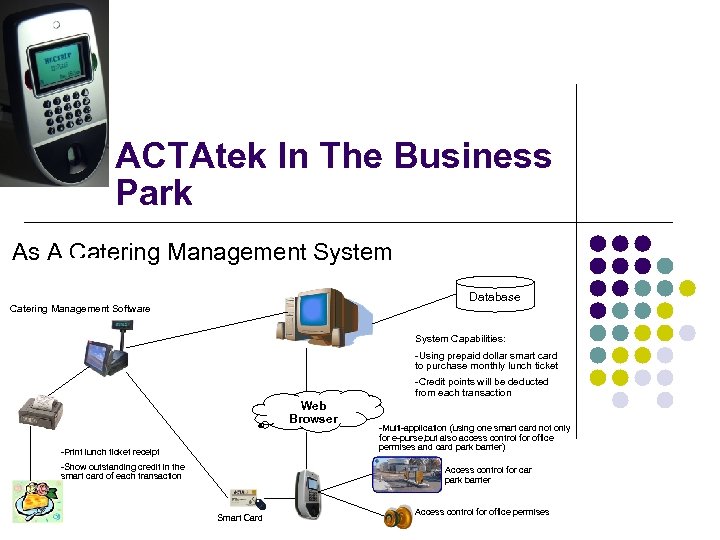

ACTAtek In The Business Park As A Catering Management System Database Catering Management Software System Capabilities: -Using prepaid dollar smart card to purchase monthly lunch ticket -Credit points will be deducted from each transaction Web Browser -Print lunch ticket receipt -Show outstanding credit in the smart card of each transaction -Multi-application (using one smart card not only for e-purse, but also access control for office permises and card park barrier) Access control for car park barrier Smart Card Access control for office permises

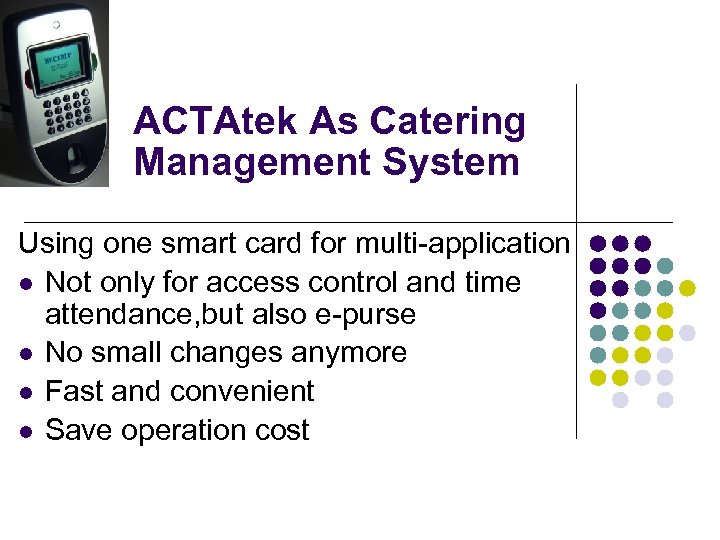

ACTAtek As Catering Management System Using one smart card for multi-application Not only for access control and time attendance, but also e-purse No small changes anymore Fast and convenient Save operation cost
Why Use ACTAtek? Web-based design-control, configure and administrate anytime anywhere through the web browser Modular design for easy integration and maintenance 3 Access Methods-Biometrics, Smart Card or PIN Modifications take effect in real time across multiple locations Easy to use, plug and play device Multi-application for door access control, e-purse and car park management system using one smart card only IP-rated casing allows ACTAtek to withstand whether conditions and vandal issues Economical and cost-saving with all software and hardware built-in Real time update of system or user configuration Remote monitoring via TCP/IP communication protocol SSL-protected Linux-based embedded web server Supports optional GPRS / Wi-Fi communication for high flexibility and convenience

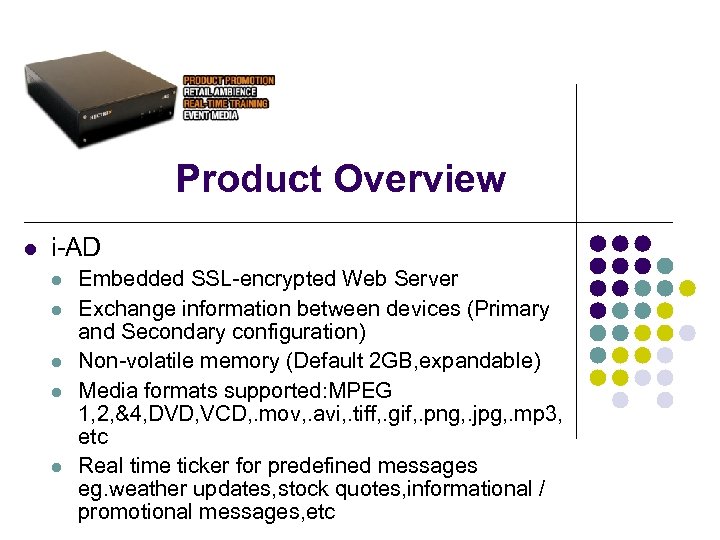

Product Overview i-AD Embedded SSL-encrypted Web Server Exchange information between devices (Primary and Secondary configuration) Non-volatile memory (Default 2 GB, expandable) Media formats supported: MPEG 1, 2, &4, DVD, VCD, . mov, . avi, . tiff, . gif, . png, . jpg, . mp 3, etc Real time ticker for predefined messages eg. weather updates, stock quotes, informational / promotional messages, etc

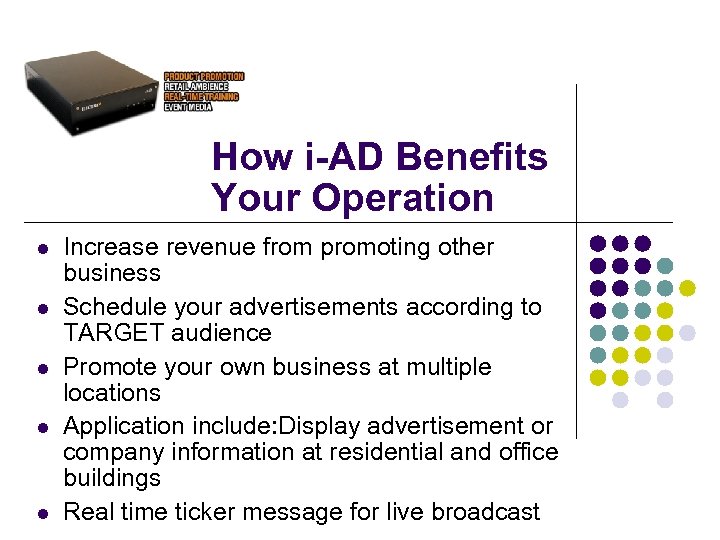

How i-AD Benefits Your Operation Increase revenue from promoting other business Schedule your advertisements according to TARGET audience Promote your own business at multiple locations Application include: Display advertisement or company information at residential and office buildings Real time ticker message for live broadcast

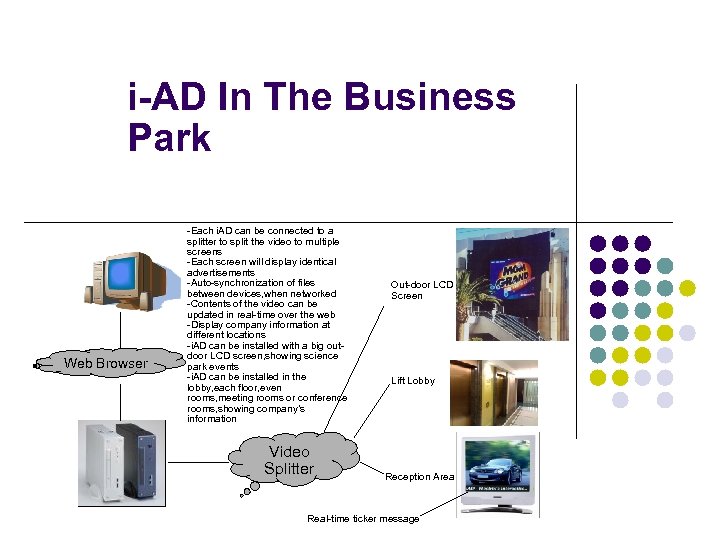

i-AD In The Business Park Web Browser -Each i. AD can be connected to a splitter to split the video to multiple screens -Each screen will display identical advertisements -Auto-synchronization of files between devices, when networked -Contents of the video can be updated in real-time over the web -Display company information at different locations -i. AD can be installed with a big outdoor LCD screen, showing science park events -i. AD can be installed in the lobby, each floor, even rooms, meeting rooms or conference rooms, showing company’s information Video Splitter Out-door LCD Screen Lift Lobby Reception Area Real-time ticker message
Why Use i-AD? Fully encrypted web-based advertising system-easy to upload the advertisement media over the web from anywhere anytime Increase revenue from promoting other business Schedule your advertisements according to target audience to promote your own business, eg. office rental Minimal technical expertise needed Easy to use and install Plug and play device with wireless capabilities Real time ticker message for live broadcast Supports multiple media formats and various screens and sizes Convenience, economical and cost saving Built-in software and hardware Real-time upload/download and synchronization/configuration of media files Wide applications eg, . event/promotion display, business park information display, conferences(upload media files for presentation), canteen’s menu……etc

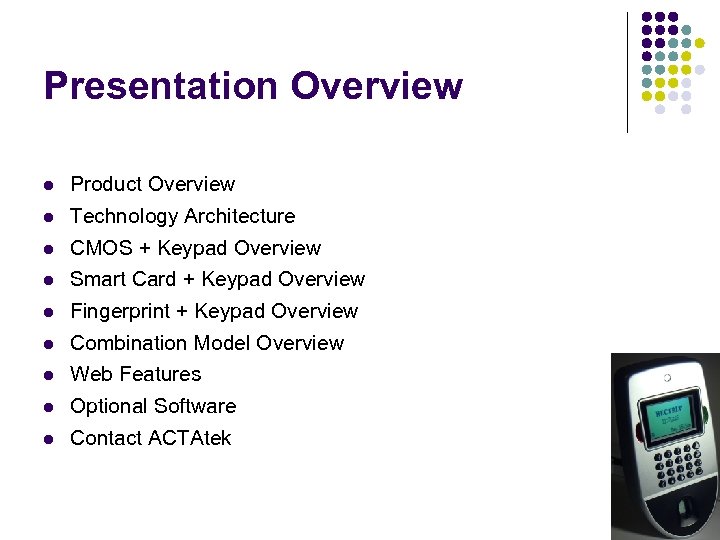

Presentation Overview Product Overview Technology Architecture CMOS + Keypad Overview Smart Card + Keypad Overview Fingerprint + Keypad Overview Combination Model Overview Web Features Optional Software Contact ACTAtek

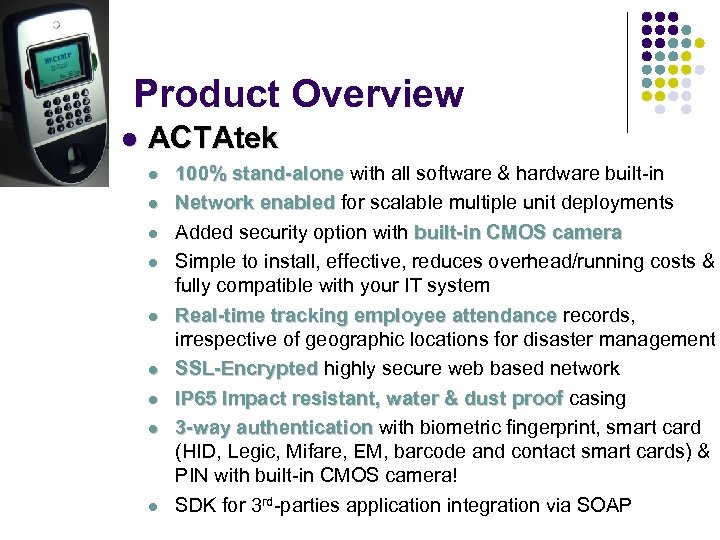

Product Overview ACTAtek 100% stand-alone with all software & hardware built-in Network enabled for scalable multiple unit deployments Added security option with built-in CMOS camera Simple to install, effective, reduces overhead/running costs & fully compatible with your IT system Real-time tracking employee attendance records, irrespective of geographic locations for disaster management SSL-Encrypted highly secure web based network IP 65 Impact resistant, water & dust proof casing 3 -way authentication with biometric fingerprint, smart card (HID, Legic, Mifare, EM, barcode and contact smart cards) & PIN with built-in CMOS camera! SDK for 3 rd-parties application integration via SOAP

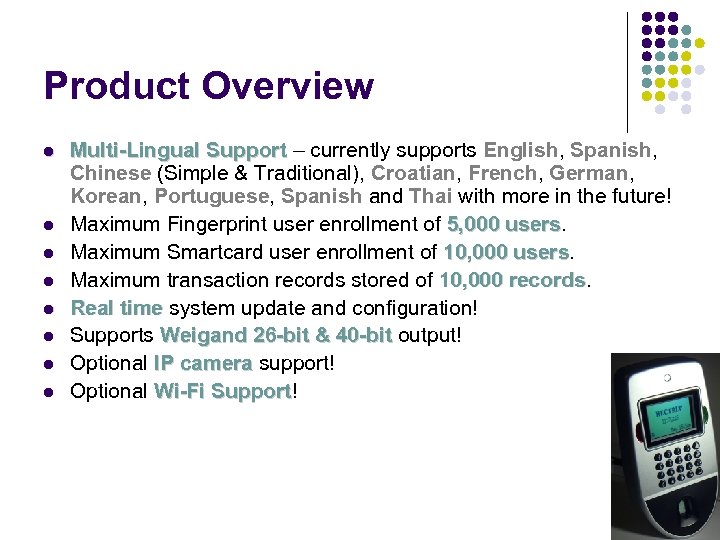

Product Overview Multi-Lingual Support – currently supports English, Spanish, Chinese (Simple & Traditional), Croatian, French, German, Korean, Portuguese, Spanish and Thai with more in the future! Maximum Fingerprint user enrollment of 5, 000 users Maximum Smartcard user enrollment of 10, 000 users Maximum transaction records stored of 10, 000 records Real time system update and configuration! Supports Weigand 26 -bit & 40 -bit output! Optional IP camera support! Optional Wi-Fi Support! Support

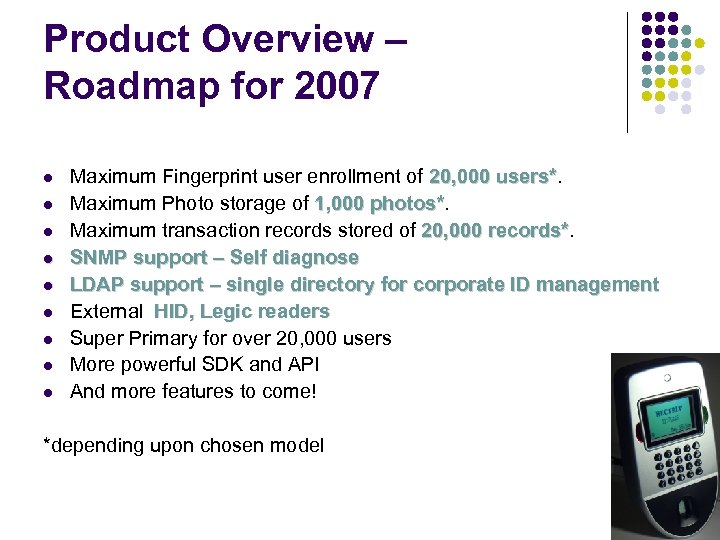

Product Overview – Roadmap for 2007 Maximum Fingerprint user enrollment of 20, 000 users* Maximum Photo storage of 1, 000 photos* Maximum transaction records stored of 20, 000 records* SNMP support – Self diagnose LDAP support – single directory for corporate ID management External HID, Legic readers Super Primary for over 20, 000 users More powerful SDK and API And more features to come! *depending upon chosen model

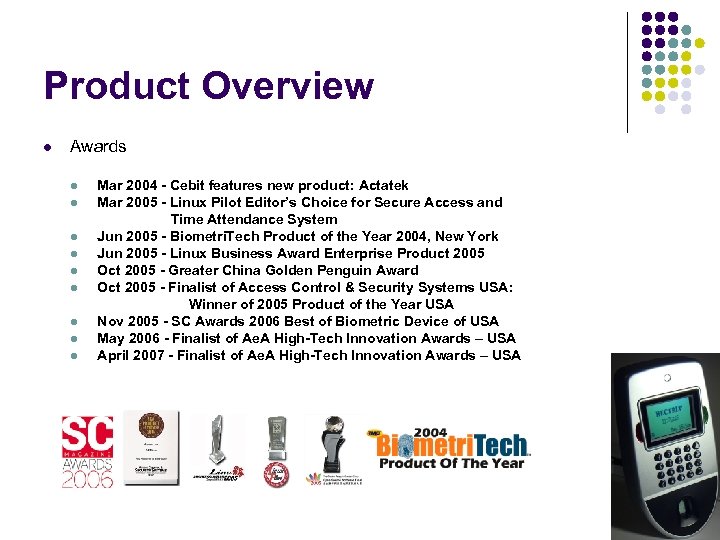

Product Overview Awards Mar 2004 - Cebit features new product: Actatek Mar 2005 - Linux Pilot Editor’s Choice for Secure Access and Time Attendance System Jun 2005 - Biometri. Tech Product of the Year 2004, New York Jun 2005 - Linux Business Award Enterprise Product 2005 Oct 2005 - Greater China Golden Penguin Award Oct 2005 - Finalist of Access Control & Security Systems USA: Winner of 2005 Product of the Year USA Nov 2005 - SC Awards 2006 Best of Biometric Device of USA May 2006 - Finalist of Ae. A High-Tech Innovation Awards – USA April 2007 - Finalist of Ae. A High-Tech Innovation Awards – USA

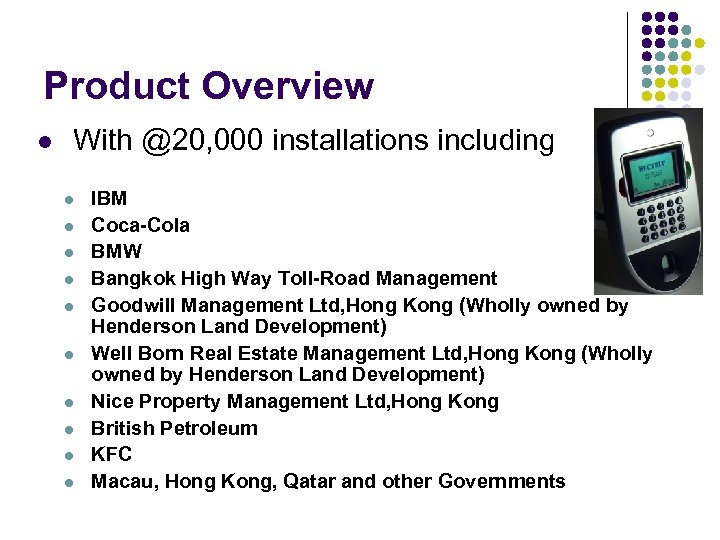

Product Overview With @20, 000 installations including IBM Coca-Cola BMW Bangkok High Way Toll-Road Management Goodwill Management Ltd, Hong Kong (Wholly owned by Henderson Land Development) Well Born Real Estate Management Ltd, Hong Kong (Wholly owned by Henderson Land Development) Nice Property Management Ltd, Hong Kong British Petroleum KFC Macau, Hong Kong, Qatar and other Governments

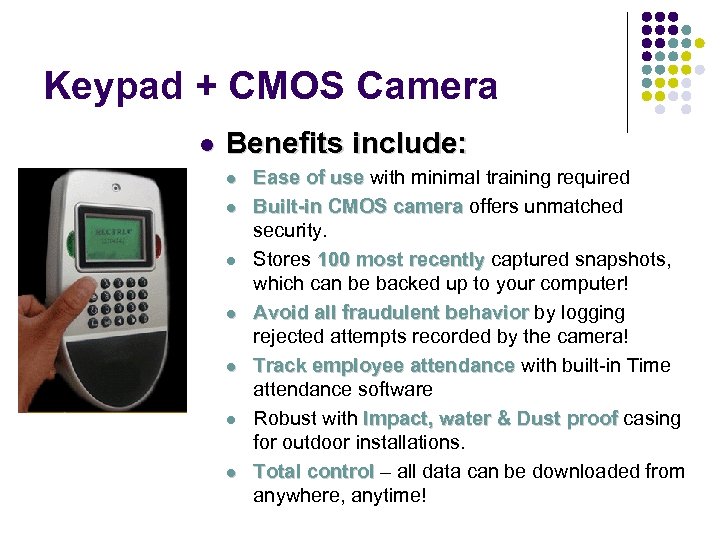

Keypad + CMOS Camera Benefits include: Ease of use with minimal training required Built-in CMOS camera offers unmatched security. Stores 100 most recently captured snapshots, which can be backed up to your computer! Avoid all fraudulent behavior by logging rejected attempts recorded by the camera! Track employee attendance with built-in Time attendance software Robust with Impact, water & Dust proof casing for outdoor installations. Total control – all data can be downloaded from anywhere, anytime!

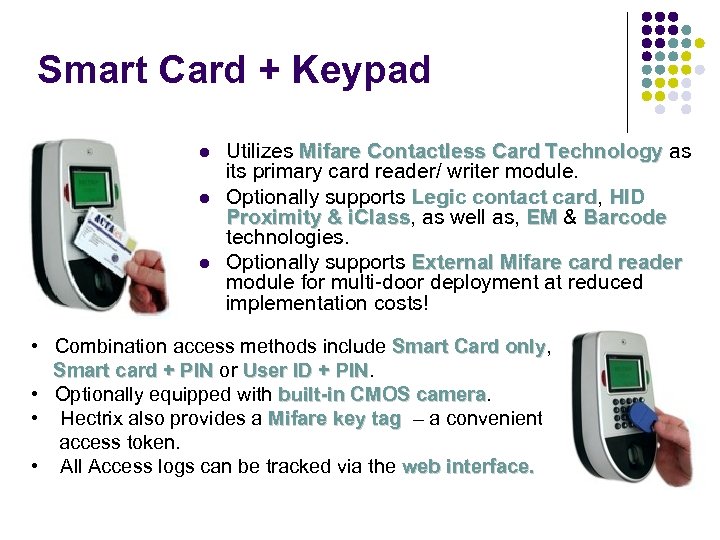

Smart Card + Keypad Utilizes Mifare Contactless Card Technology as its primary card reader/ writer module. Optionally supports Legic contact card, HID card Proximity & i. Class, as well as, EM & Barcode i. Class technologies. Optionally supports External Mifare card reader module for multi-door deployment at reduced implementation costs! • Combination access methods include Smart Card only, only Smart card + PIN or User ID + PIN • Optionally equipped with built-in CMOS camera • Hectrix also provides a Mifare key tag – a convenient access token. • All Access logs can be tracked via the web interface.

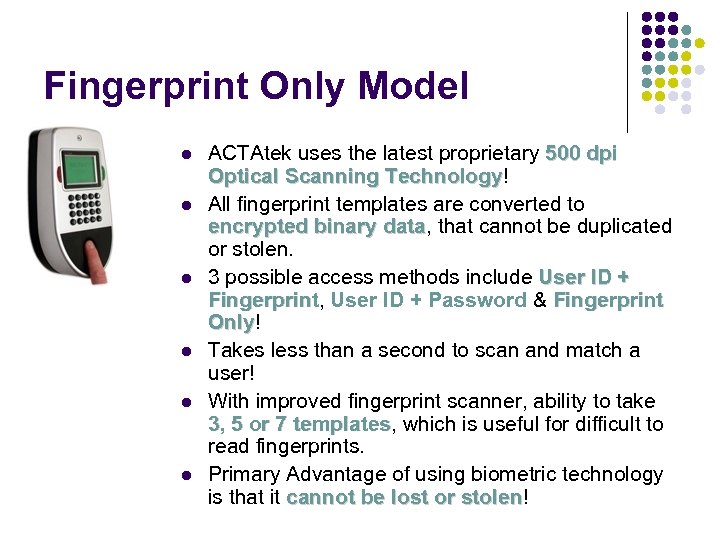

Fingerprint Only Model ACTAtek uses the latest proprietary 500 dpi Optical Scanning Technology! Technology All fingerprint templates are converted to encrypted binary data, that cannot be duplicated data or stolen. 3 possible access methods include User ID + Fingerprint, User ID + Password & Fingerprint Only! Only Takes less than a second to scan and match a user! With improved fingerprint scanner, ability to take 3, 5 or 7 templates, which is useful for difficult to templates read fingerprints. Primary Advantage of using biometric technology is that it cannot be lost or stolen! stolen

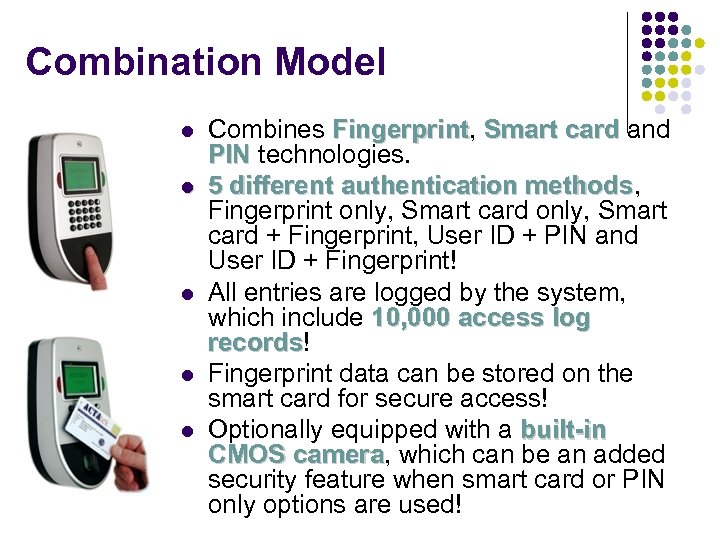

Combination Model Combines Fingerprint, Smart card and Fingerprint PIN technologies. 5 different authentication methods, methods Fingerprint only, Smart card + Fingerprint, User ID + PIN and User ID + Fingerprint! All entries are logged by the system, which include 10, 000 access log records! records Fingerprint data can be stored on the smart card for secure access! Optionally equipped with a built-in CMOS camera, which can be an added camera security feature when smart card or PIN only options are used!

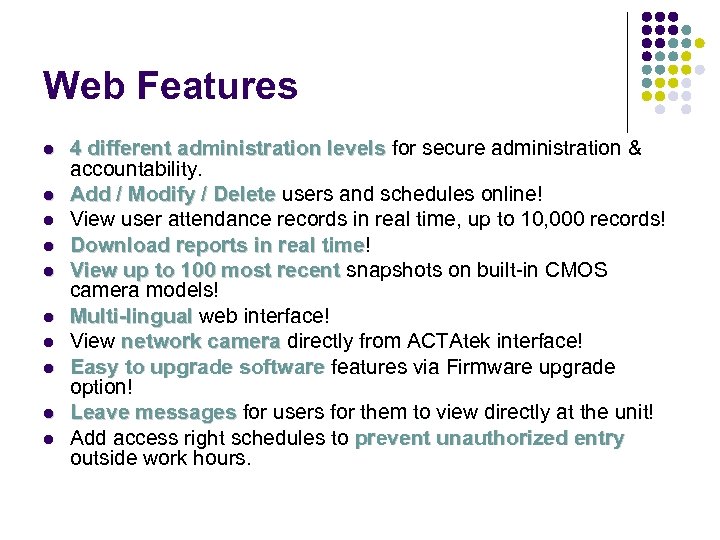

Web Features 4 different administration levels for secure administration & accountability. Add / Modify / Delete users and schedules online! View user attendance records in real time, up to 10, 000 records! Download reports in real time! time View up to 100 most recent snapshots on built-in CMOS camera models! Multi-lingual web interface! View network camera directly from ACTAtek interface! Easy to upgrade software features via Firmware upgrade option! Leave messages for users for them to view directly at the unit! Add access right schedules to prevent unauthorized entry outside work hours.

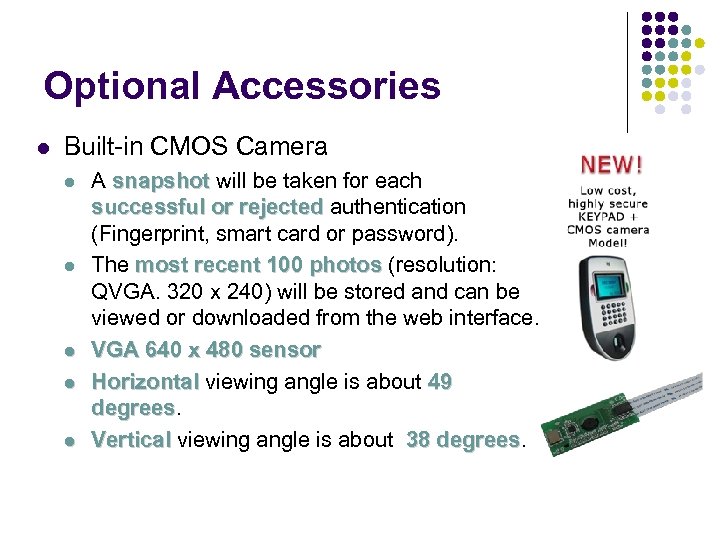

Optional Accessories Built-in CMOS Camera A snapshot will be taken for each successful or rejected authentication (Fingerprint, smart card or password). The most recent 100 photos (resolution: QVGA. 320 x 240) will be stored and can be viewed or downloaded from the web interface. VGA 640 x 480 sensor Horizontal viewing angle is about 49 degrees Vertical viewing angle is about 38 degrees

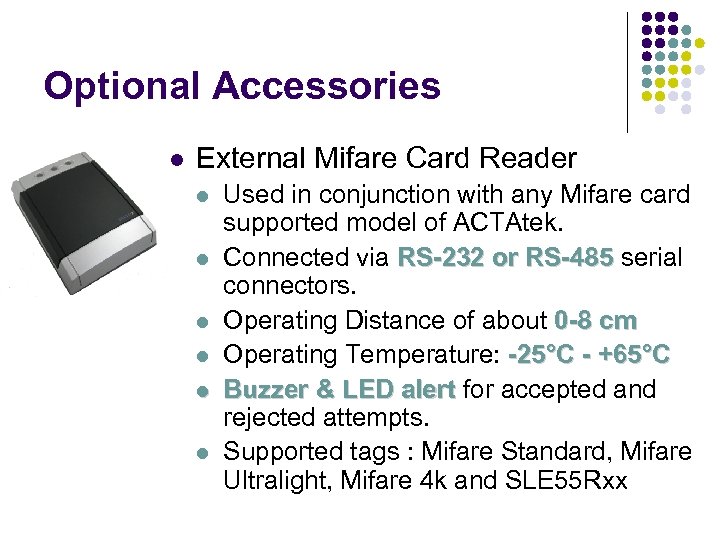

Optional Accessories External Mifare Card Reader Used in conjunction with any Mifare card supported model of ACTAtek. Connected via RS-232 or RS-485 serial connectors. Operating Distance of about 0 -8 cm Operating Temperature: -25°C - +65°C Buzzer & LED alert for accepted and rejected attempts. Supported tags : Mifare Standard, Mifare Ultralight, Mifare 4 k and SLE 55 Rxx

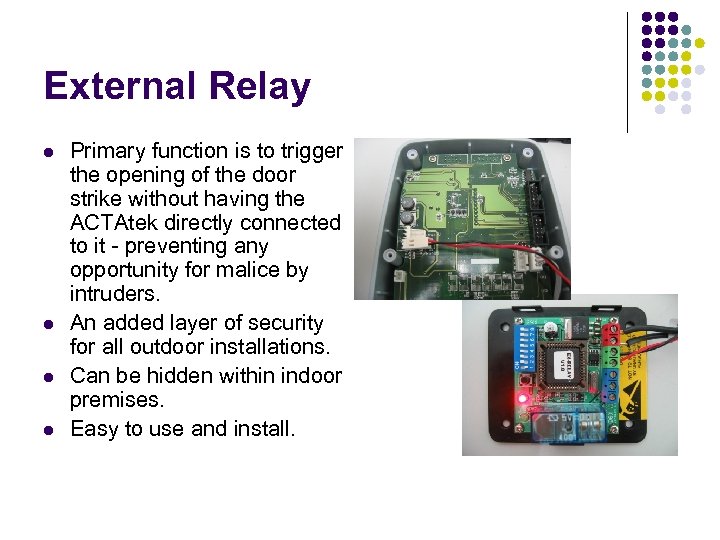

External Relay Primary function is to trigger the opening of the door strike without having the ACTAtek directly connected to it - preventing any opportunity for malice by intruders. An added layer of security for all outdoor installations. Can be hidden within indoor premises. Easy to use and install.

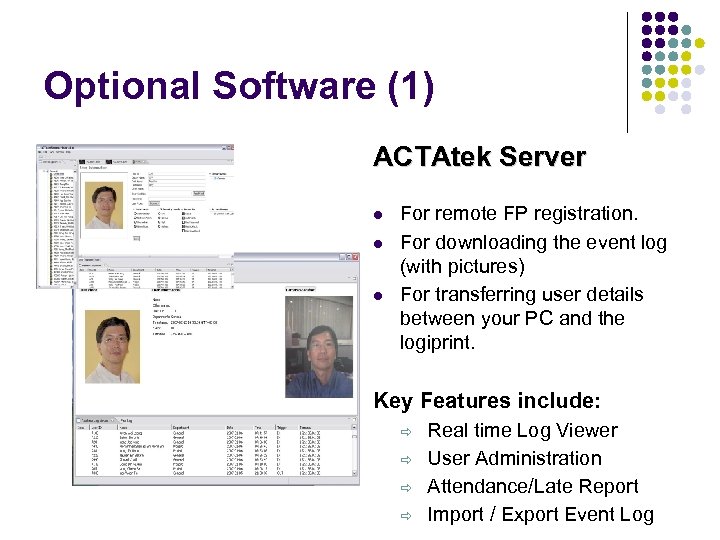

Optional Software (1) ACTAtek Server For remote FP registration. For downloading the event log (with pictures) For transferring user details between your PC and the logiprint. Key Features include: Real time Log Viewer User Administration Attendance/Late Report Import / Export Event Log

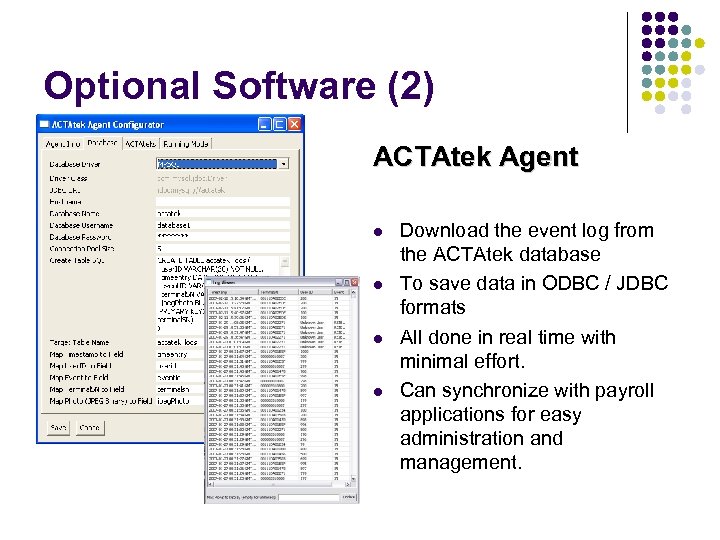

Optional Software (2) ACTAtek Agent Download the event log from the ACTAtek database To save data in ODBC / JDBC formats All done in real time with minimal effort. Can synchronize with payroll applications for easy administration and management.

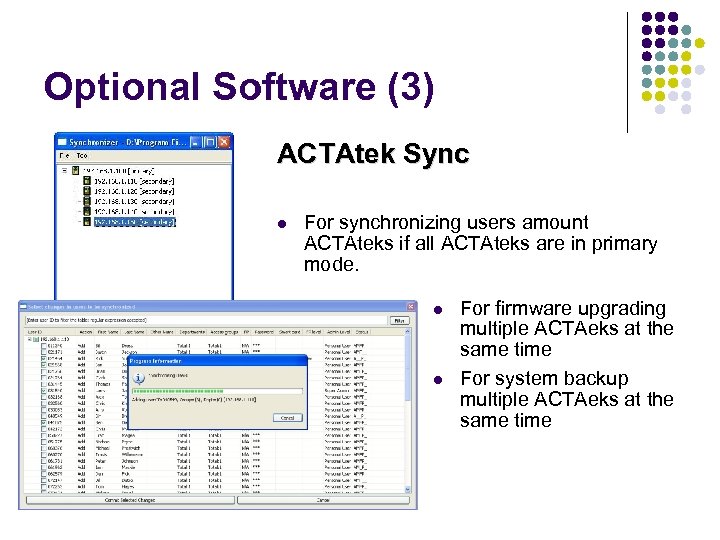

Optional Software (3) ACTAtek Sync For synchronizing users amount ACTAteks if all ACTAteks are in primary mode. For firmware upgrading multiple ACTAeks at the same time For system backup multiple ACTAeks at the same time

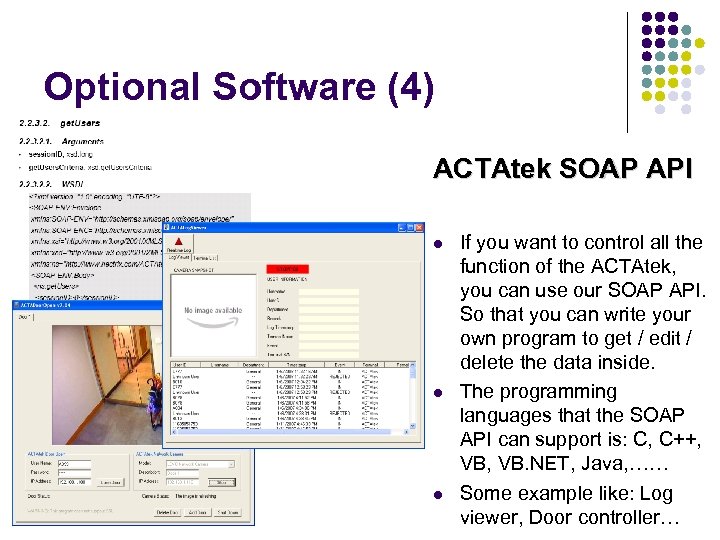

Optional Software (4) ACTAtek SOAP API If you want to control all the function of the ACTAtek, you can use our SOAP API. So that you can write your own program to get / edit / delete the data inside. The programming languages that the SOAP API can support is: C, C++, VB. NET, Java, …… Some example like: Log viewer, Door controller…

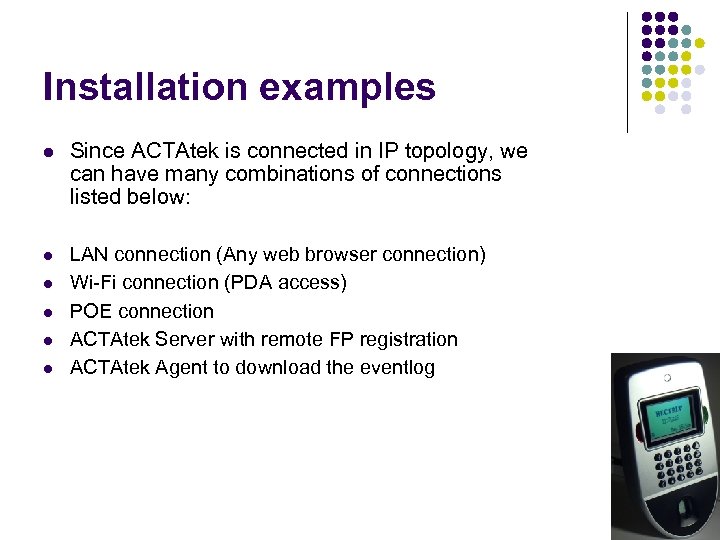

Installation examples Since ACTAtek is connected in IP topology, we can have many combinations of connections listed below: LAN connection (Any web browser connection) Wi-Fi connection (PDA access) POE connection ACTAtek Server with remote FP registration ACTAtek Agent to download the eventlog
A Standard Connection:

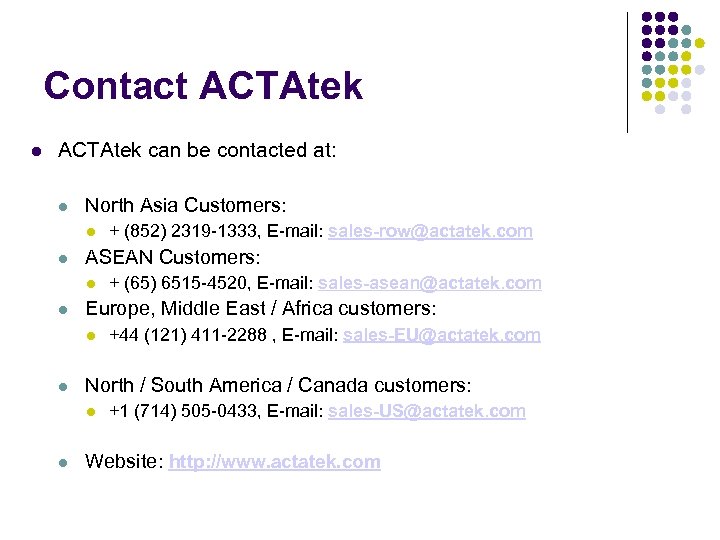

Contact ACTAtek can be contacted at: North Asia Customers: ASEAN Customers: +44 (121) 411 -2288 , E-mail: sales-EU@actatek. com North / South America / Canada customers: + (65) 6515 -4520, E-mail: sales-asean@actatek. com Europe, Middle East / Africa customers: + (852) 2319 -1333, E-mail: sales-row@actatek. com +1 (714) 505 -0433, E-mail: sales-US@actatek. com Website: http: //www. actatek. com
Q & A Session
