Project Comenius Czech Power Network Presentation of

Project Comenius

Czech Power Network Presentation of 2. A, 2. G and 3. D Secondary School of Electrical Engineering Michal Pánovec, Petr Časta, Lucie Halas, Martin Maur, Jan Polák and Jakub Tichý

History of electricity in the Czech republic František Křižík (1847 -1941) - improvement of arc lamp - electrical tram establishment in Prag - The first electrical train between Bechyně and Tábor

History of electricity in the Czech republic Emil Kolben (1862 - 1943) - earned huge experience in Europe and in USA - projected power station Holešovice -> the first production of alternate machine

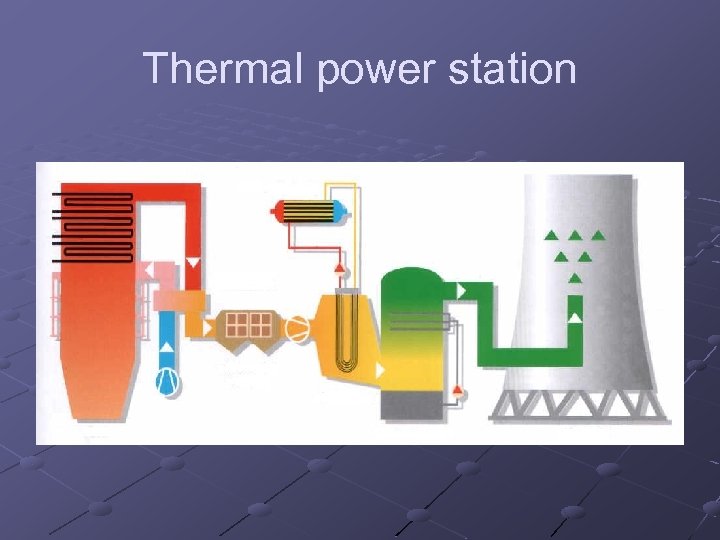

Thermal power station

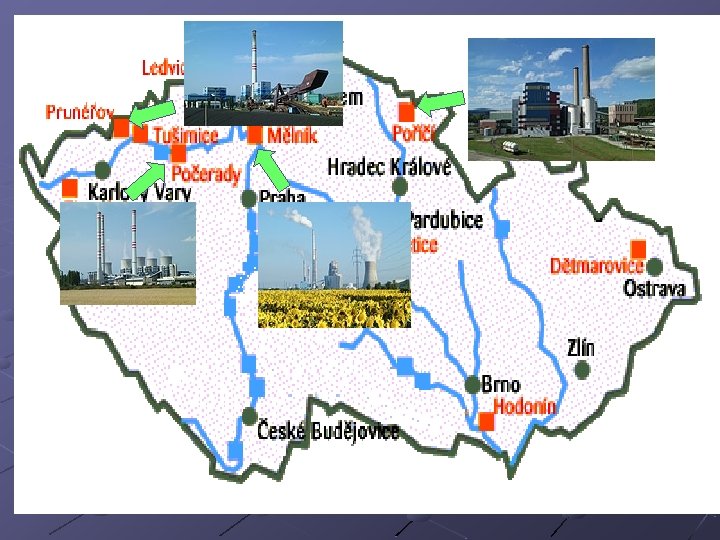

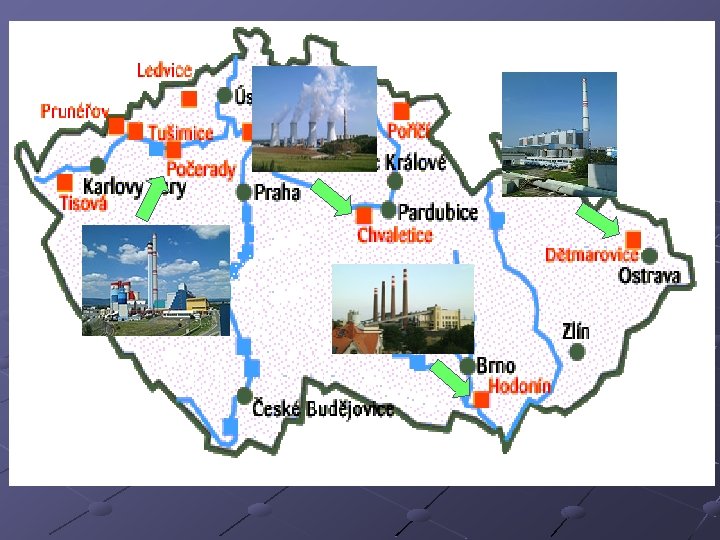

DĚTMAROVICE The Dětmarovice Power Station was built between 1972 -1976, it is the largest classic power station in Moravia. Is situated near the town of Ostrava. Installed capacity: 4 x 200 MW

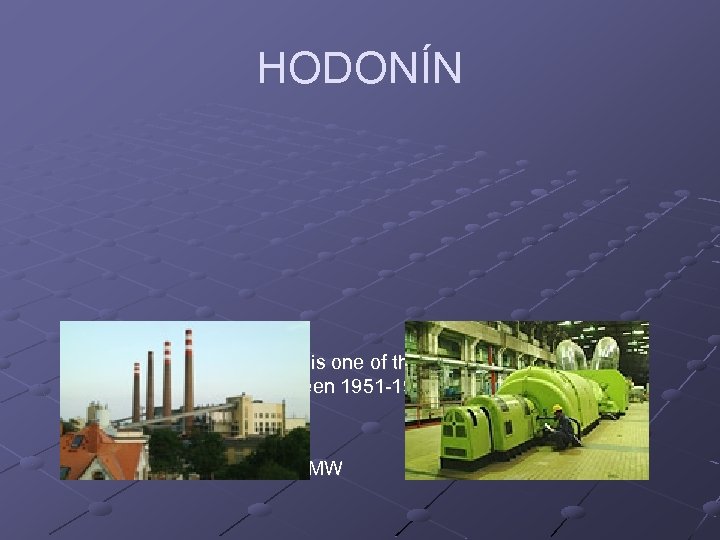

HODONÍN The Hodonín Power Station is one of the oldest in the Czech Republic. It was built between 1951 -1957. Is situated near town Brno. Installed capacity: 95, 60 MW

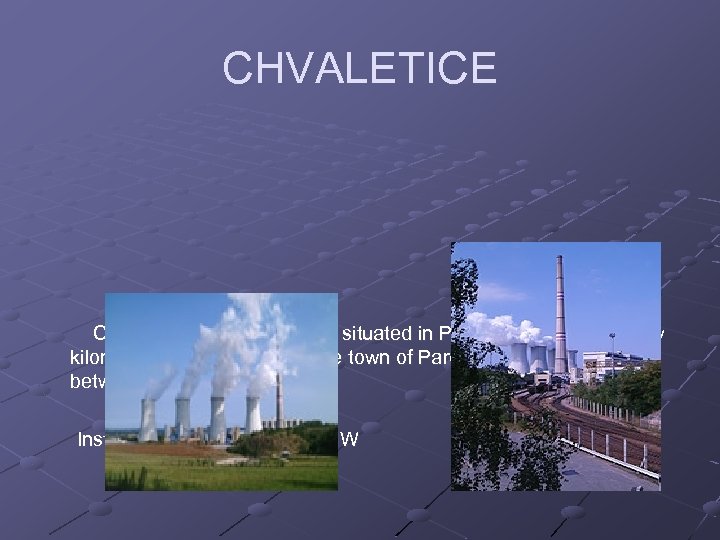

CHVALETICE Chvaletice Power Station is situated in Polabi area, about twenty kilometers to the west from the town of Pardubice. It was built between 1973 -1979. Installed capacity: 4 x 200 MW

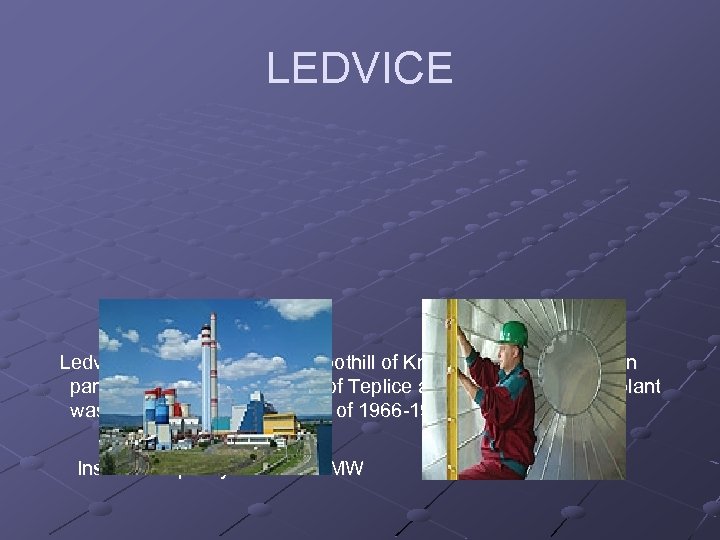

LEDVICE Ledvice PS is situated at the foothill of Krušné Mountains eastern part, between the spa towns of Teplice and Bilina. The power plant was constructed in the period of 1966 -1969. Installed capacity: 2 x 110 MW

MĚLNÍK Power Plant Mělník is near the capital city Prague. The power plant was constructed between 1960 -1970. Installed capacity: 4 x 110 MW

POČERADY Power Plant Počerady is situated in the north-west part of the Czech Republic, nearly in the middle among the towns of Louny, Žatec, and Most. The power plant was constructed between 19701977. Installed capacity: 5 x 200 MW

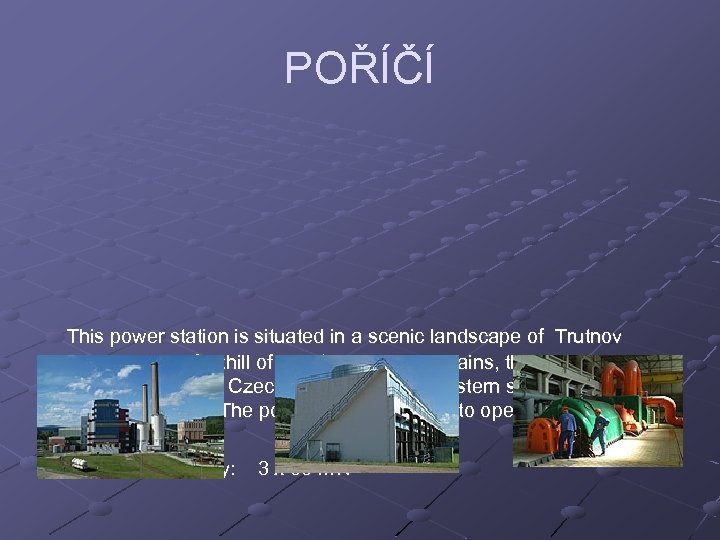

POŘÍČÍ This power station is situated in a scenic landscape of Trutnov region, at the foothill of the Krkonoše Mountains, the highest mountains in the Czech Republic, in the eastern side of the town of Trutnov. The power plant was put into operation in 1957. Installed capacity: 3 x 55 MW

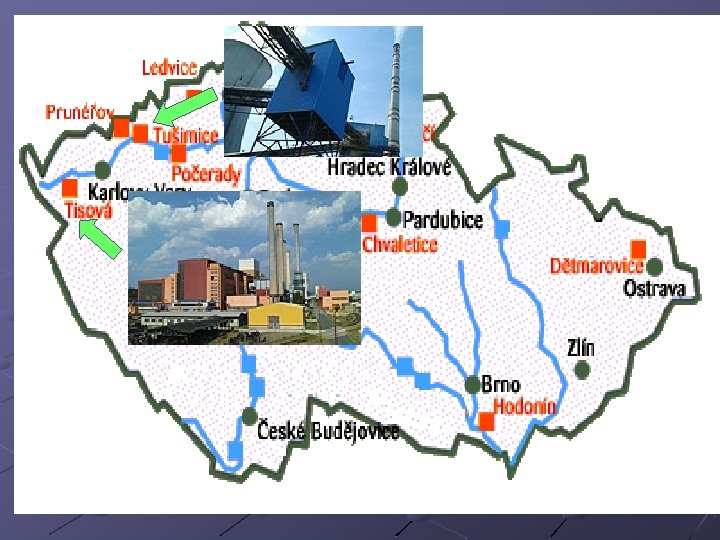

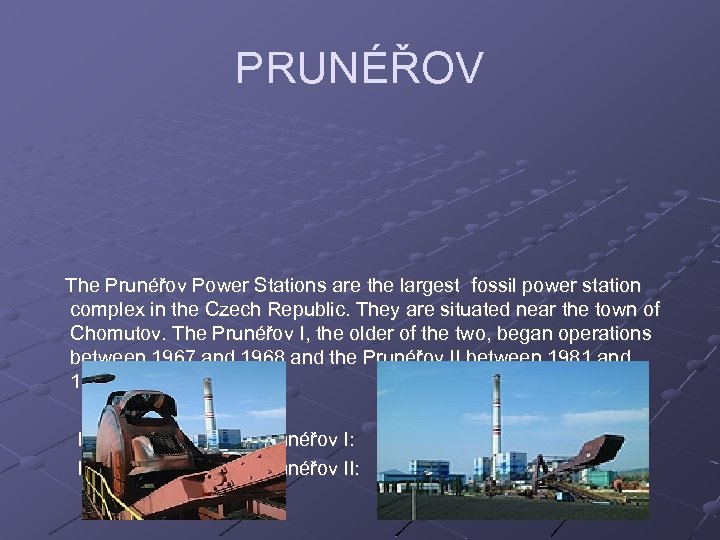

PRUNÉŘOV The Prunéřov Power Stations are the largest fossil power station complex in the Czech Republic. They are situated near the town of Chomutov. The Prunéřov I, the older of the two, began operations between 1967 and 1968 and the Prunéřov II between 1981 and 1982. Installed capacity in Prunéřov I: Installed capacity in Prunéřov II: 4 x 110 MW 5 x 210 MW

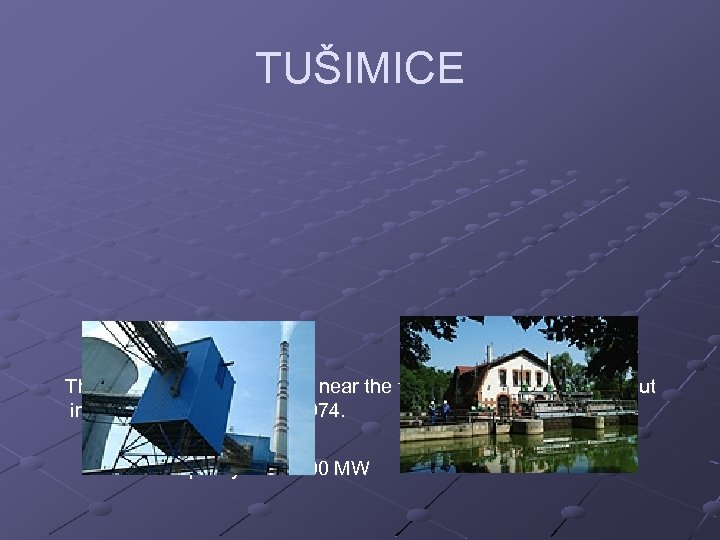

TUŠIMICE The PP Tušimice is situated near the town of Chomutov. It was put into operation in the year 1974. Installed capacity: 4 x 200 MW

TISOVÁ The PP Tisová is situated in the west side of Sokolská Basin between Krušné Mountains and Slavkovský Wood. The power plant was constructed between 1954 - 1958. Installed capacity: 4 x 50 MW

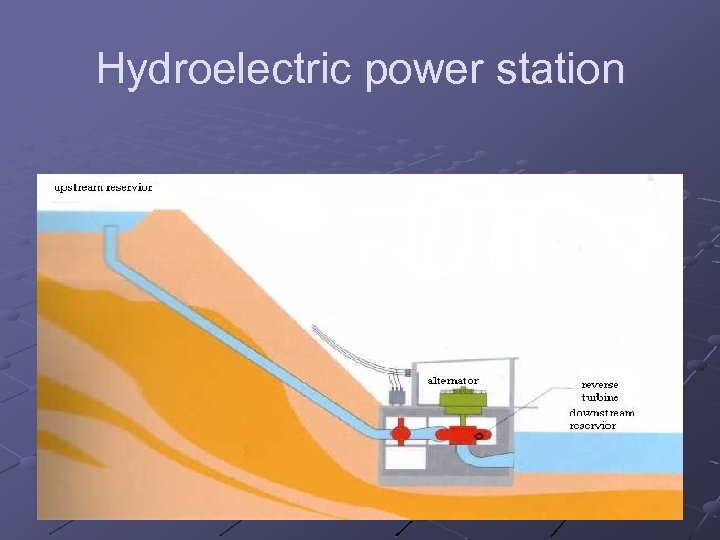

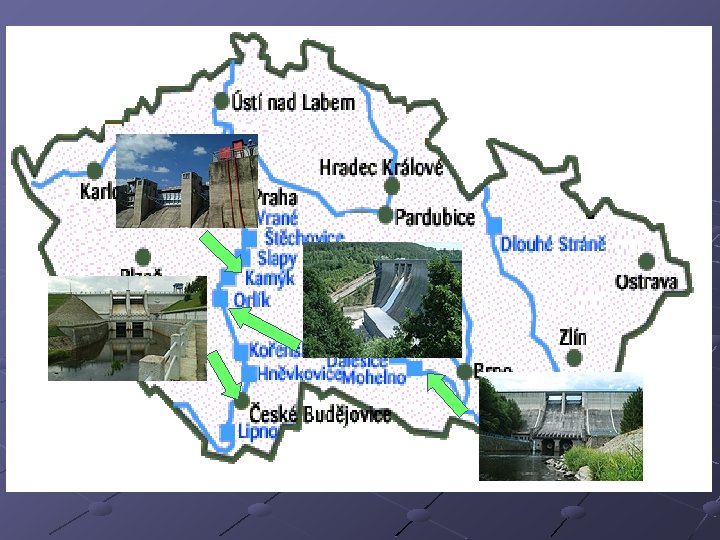

Hydroelectric power station Pumping power station

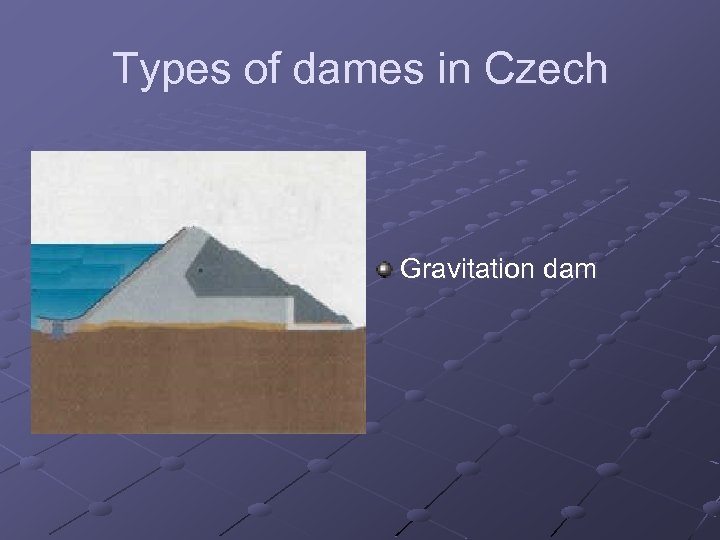

Types of dames in Czech Gravitation dam

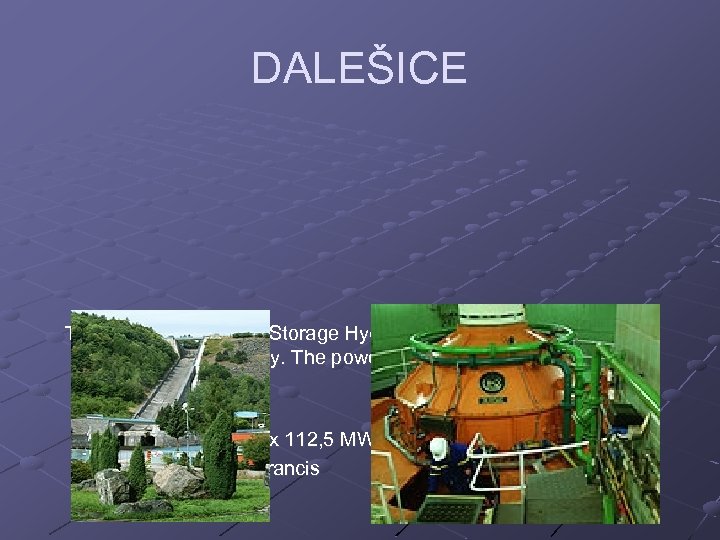

DALEŠICE The Dalešice Pumped-Storage Hydroelectric Power Station is situated near Dukovany. The power plant was constructed between 1970 -1978. Installed capacity: 4 x 112, 5 MW Type of turbine: Francis

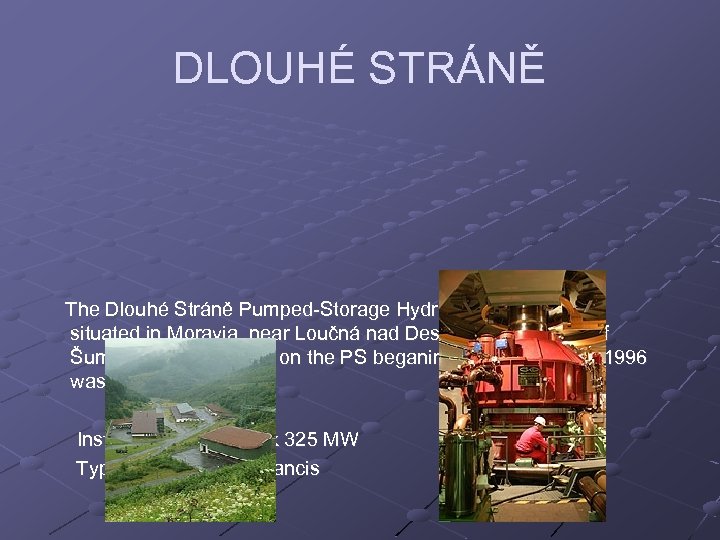

DLOUHÉ STRÁNĚ The Dlouhé Stráně Pumped-Storage Hydro Power Station is situated in Moravia, near Loučná nad Desnou in the distric of Šumperk. Construction on the PS beganin May 1978 and in 1996 was put into operation. Installed capacity: 2 x 325 MW Type of turbine. Francis

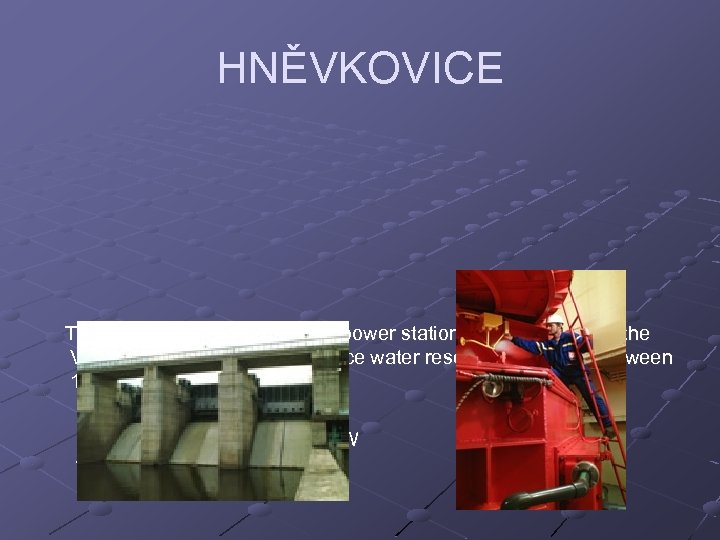

HNĚVKOVICE The PP Hněvkovice is a small power station and is situated at the Vltava Cascade. The Hněvkovice water reservoir was build between 1986 and 1992. Installed capacity: Type of turbine: 2 x 4, 8 MW Kaplan

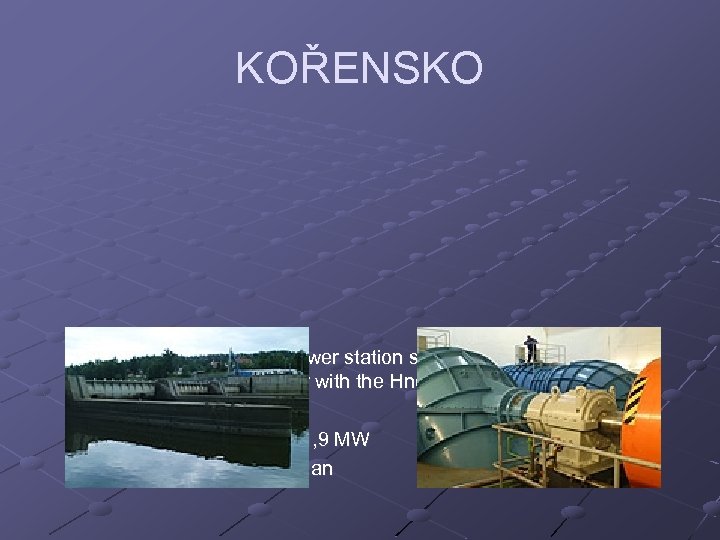

KOŘENSKO The Kořensko is a small power station situated at the Vltava Cascade and built together with the Hněvkovice power station. Installed capacity: Type of turbine: 2 x 1, 9 MW Kaplan

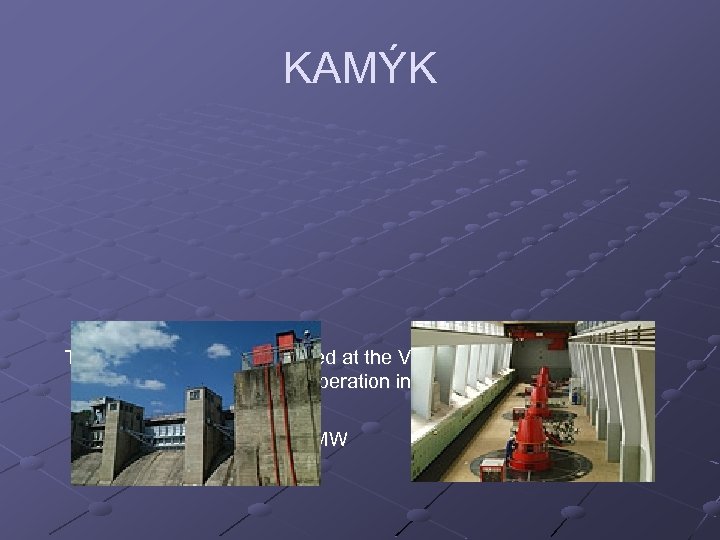

KAMÝK The PP Kamýk is also situated at the Vltava Cascade. The power station was put into operation in the year 1961. Installed capacity: 4 x 10 MW Type of turbine: Francis

LIPNO It is situated at the Vltava Cascade. Lipno I was built between 19531958, and put into operation in the year 1959. Lipno II was put into operation in the year 1957. Installed capacity Lipno I: 2 x 60 MW Lipno II: 1 x 1, 5 MW Type of turbine: Lipno I: Francis Lipno II: Kaplan

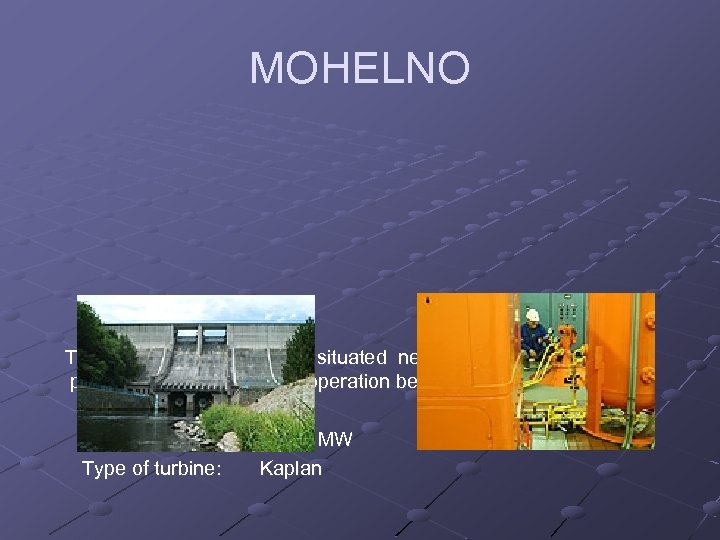

MOHELNO The Mohelno power plant is situated near the town Dalešice. The power station was put into operation between 1961 -1962. Installed capacity: 2 x 91 MW Type of turbine: Kaplan

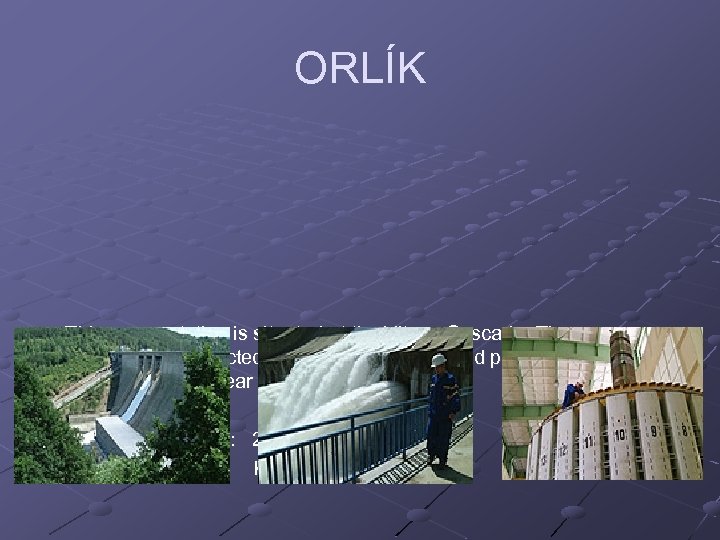

ORLÍK This power station is situated at the Vltava Cascade. The power plant was constructed between 1954 -1961 and put into operation in the year 1962. Installed capacity: 2 x 91 MW Type of turbine: Kaplan

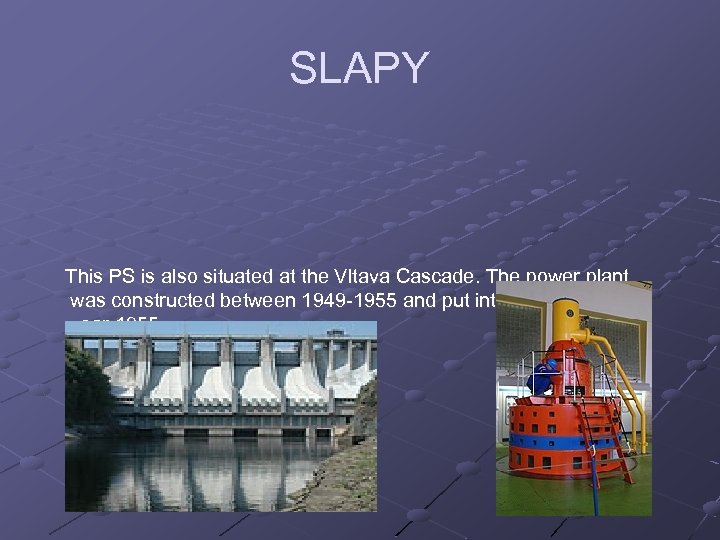

SLAPY This PS is also situated at the Vltava Cascade. The power plant was constructed between 1949 -1955 and put into operation in the year 1955. Installed capacity: 3 x 48 MW Type of turbine: Kaplan

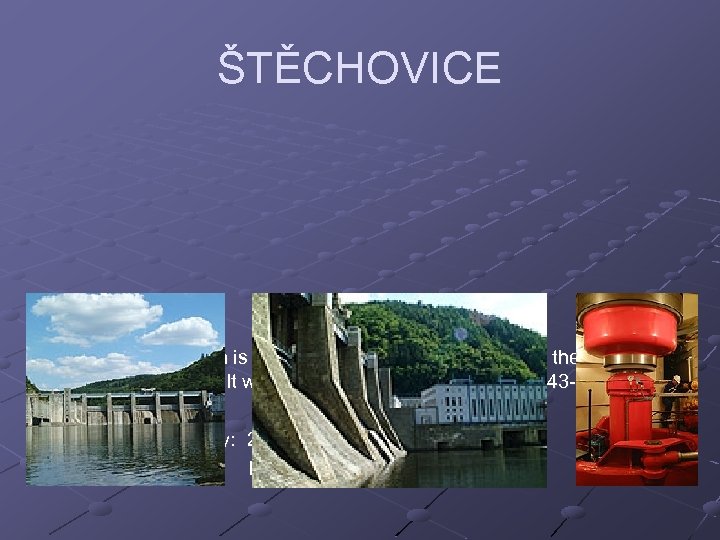

ŠTĚCHOVICE This power station is situated at the Vltava Cascade at the end of the World War II. It was put into operation between 1943 -1944. Installed capacity: 2 x 11, 25 MW Type of turbine: Kaplan

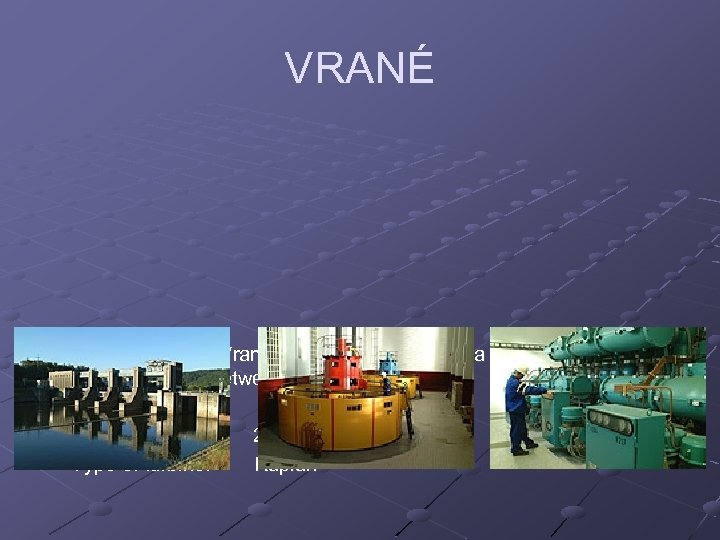

VRANÉ The power station Vraná is situated at the Vltava Cascade and was constructed between 1930 -1936. Installed capacity: Type of turbine: 2 x 6, 94 MW Kaplan

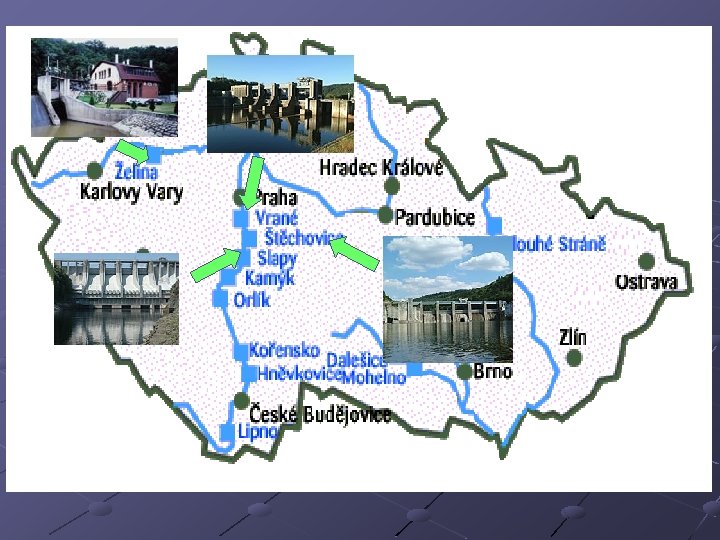

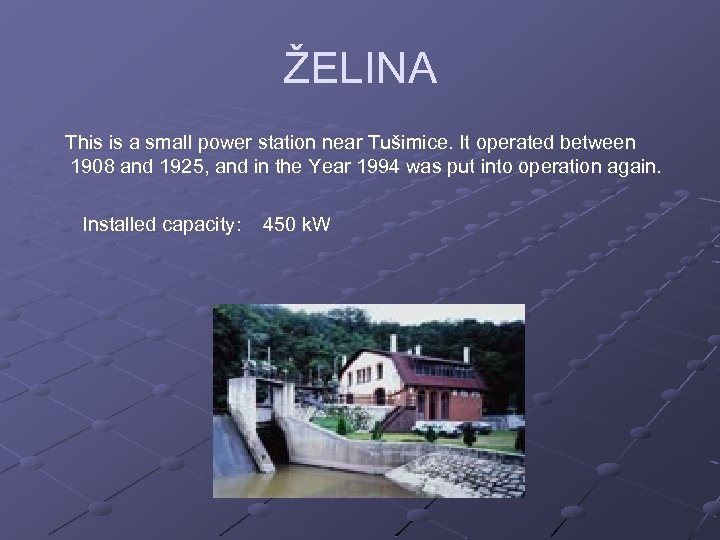

ŽELINA This is a small power station near Tušimice. It operated between 1908 and 1925, and in the Year 1994 was put into operation again. Installed capacity: 450 k. W

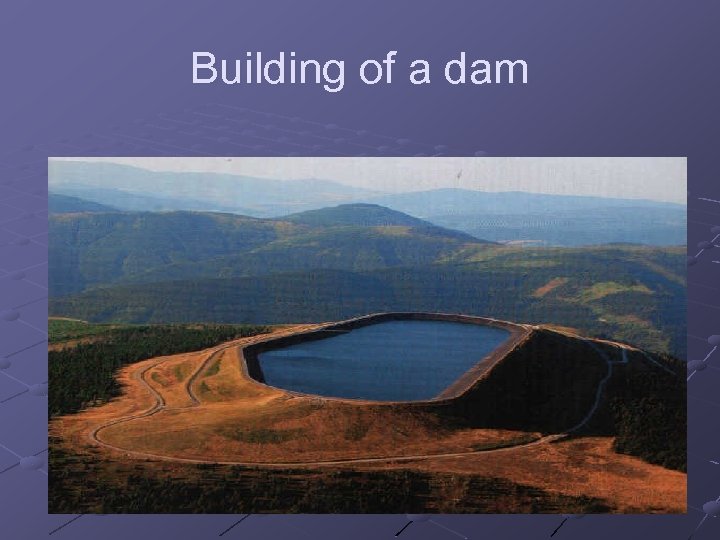

Building of a dam

Nuclear reactor

Fission reaction

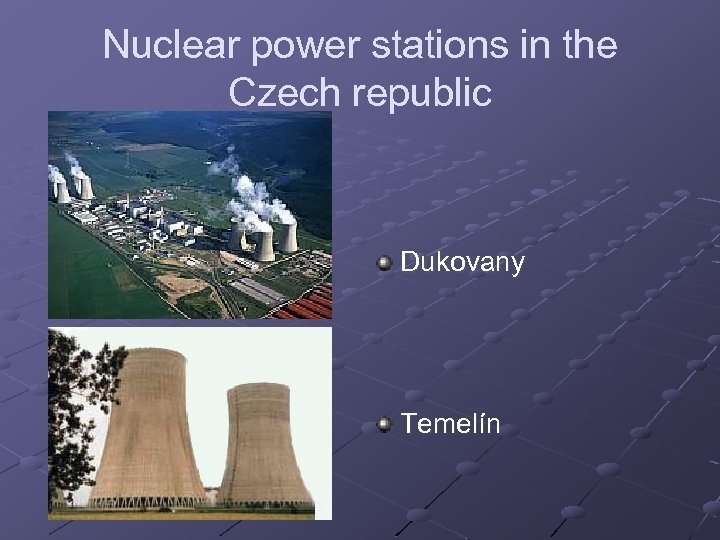

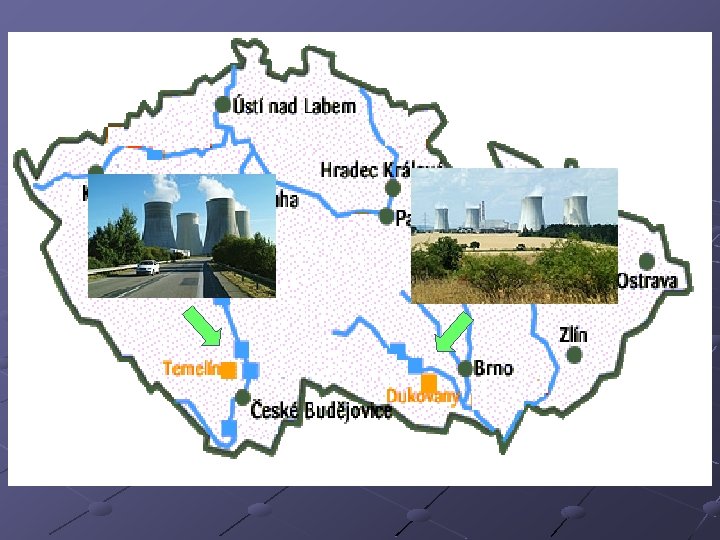

Nuclear power stations in the Czech republic Dukovany Temelín

DUKOVANY The Dukovany Nuclear Power Station is situated approximately 30 km southeast of Třebíč. The construction was started in 1974 and was finished in the year 1978. The first reactor was put into operation on 4 May 1985, and the last (the fourth) unit on 20 July 1987. Installed capacity: 4 x 400 MW Type of reactor: VVER 440

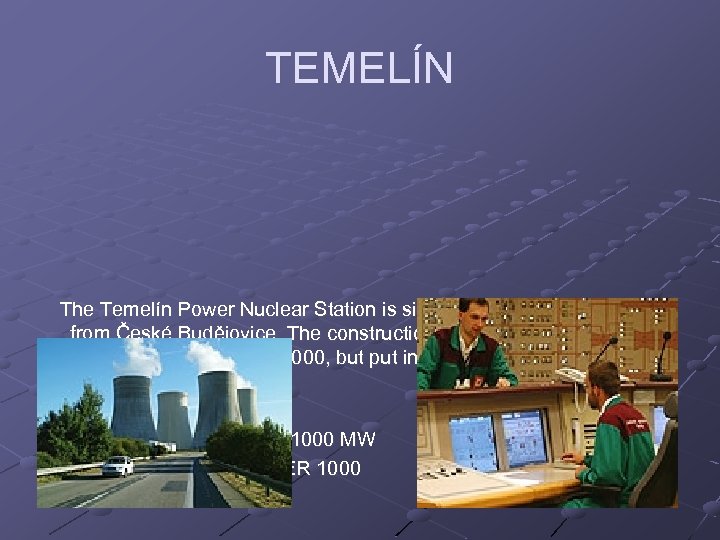

TEMELÍN The Temelín Power Nuclear Station is situated about 24 km away from České Budějovice. The construction was started 1987 and has been completed in July 2000, but put into the operation was in the year 2002. Installed capacity: 2 x 1000 MW Reactor type: VVER 1000

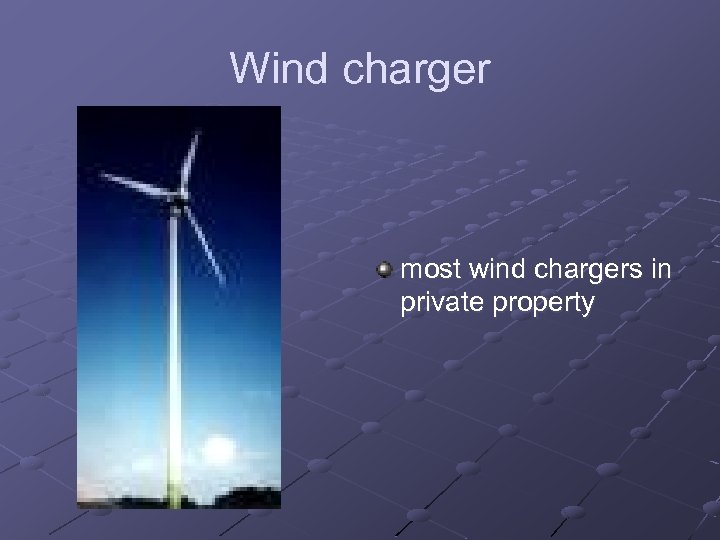

Wind charger most wind chargers in private property

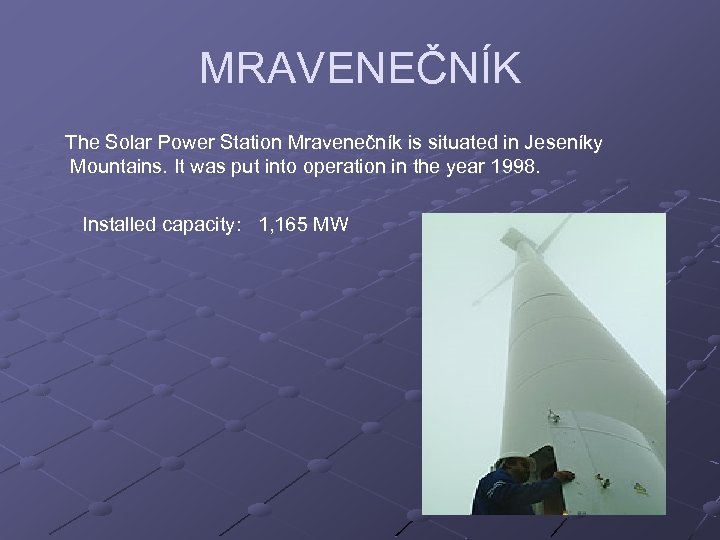

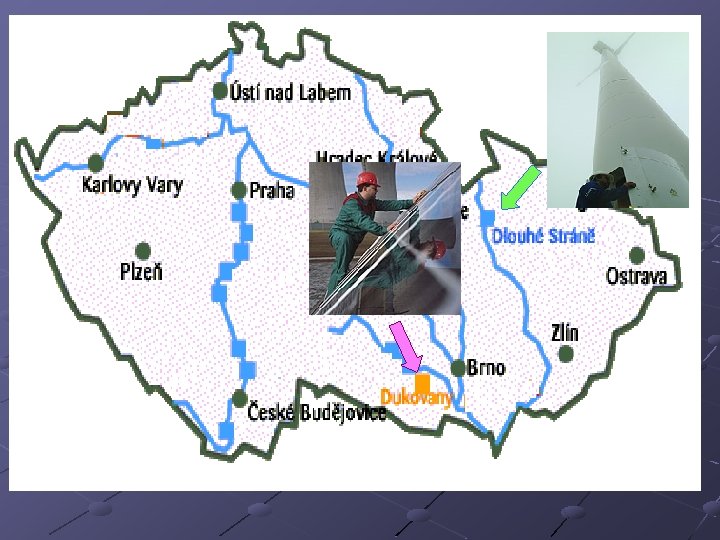

MRAVENEČNÍK The Solar Power Station Mravenečník is situated in Jeseníky Mountains. It was put into operation in the year 1998. Installed capacity: 1, 165 MW

Solar power station Only one power station, which uses solar energy Minimal share on power supply

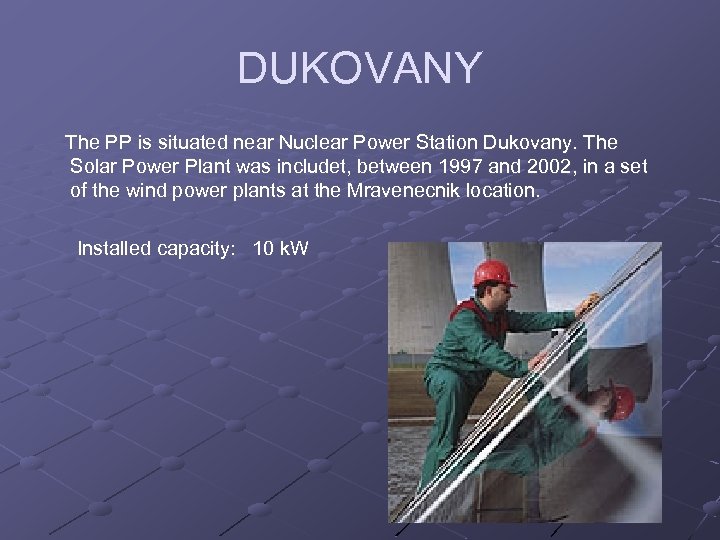

DUKOVANY The PP is situated near Nuclear Power Station Dukovany. The Solar Power Plant was includet, between 1997 and 2002, in a set of the wind power plants at the Mravenecnik location. Installed capacity: 10 k. W

The most important power stations in Czech, power in MW - Prunéřov Tušimice Mělník Tisová Hodonín Poříčí Chvaletice Dukovany 440 550 440 222 210 165 800 1760 - Dětmarovice 800 Ledvice 200 Počerady 1200 Lipno I+II 122 Orlík 364 Slapy 144 Štěchovice 63 Dalešice 450

Interest

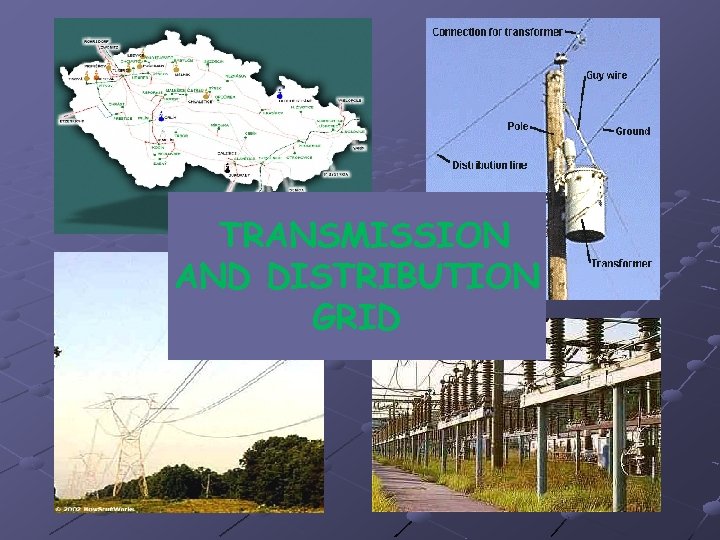

TRANSMISSION AND DISTRIBUTION GRID

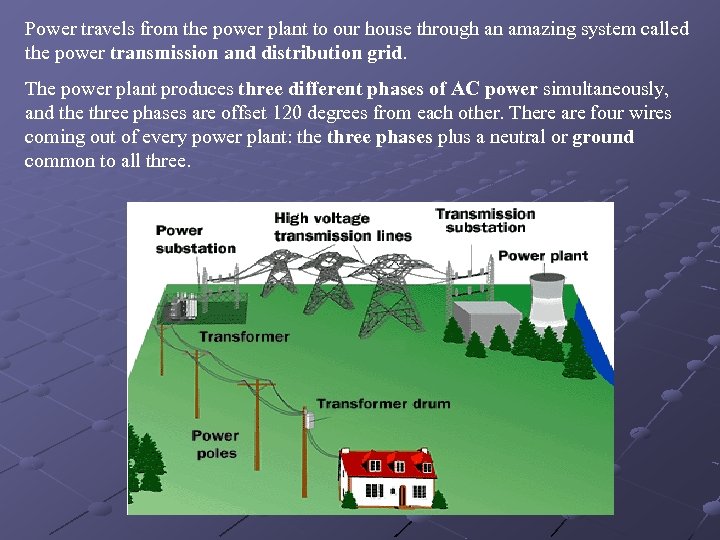

Power travels from the power plant to our house through an amazing system called the power transmission and distribution grid. The power plant produces three different phases of AC power simultaneously, and the three phases are offset 120 degrees from each other. There are four wires coming out of every power plant: the three phases plus a neutral or ground common to all three.

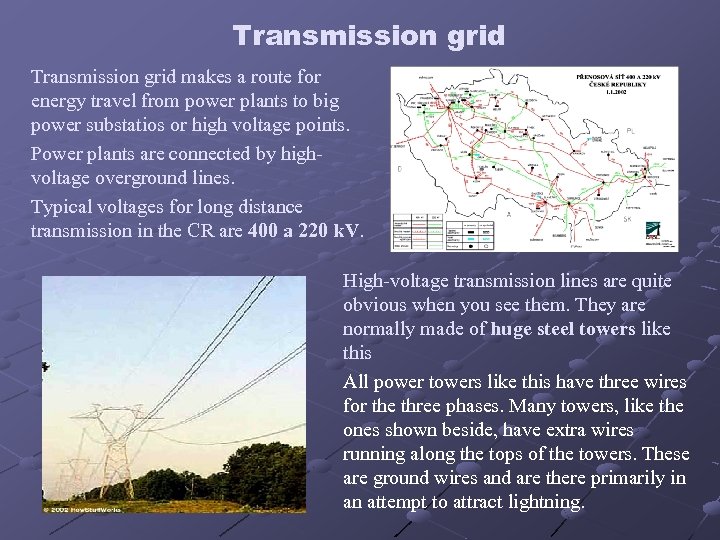

Transmission grid makes a route for energy travel from power plants to big power substatios or high voltage points. Power plants are connected by highvoltage overground lines. Typical voltages for long distance transmission in the CR are 400 a 220 k. V. High-voltage transmission lines are quite obvious when you see them. They are normally made of huge steel towers like this All power towers like this have three wires for the three phases. Many towers, like the ones shown beside, have extra wires running along the tops of the towers. These are ground wires and are there primarily in an attempt to attract lightning.

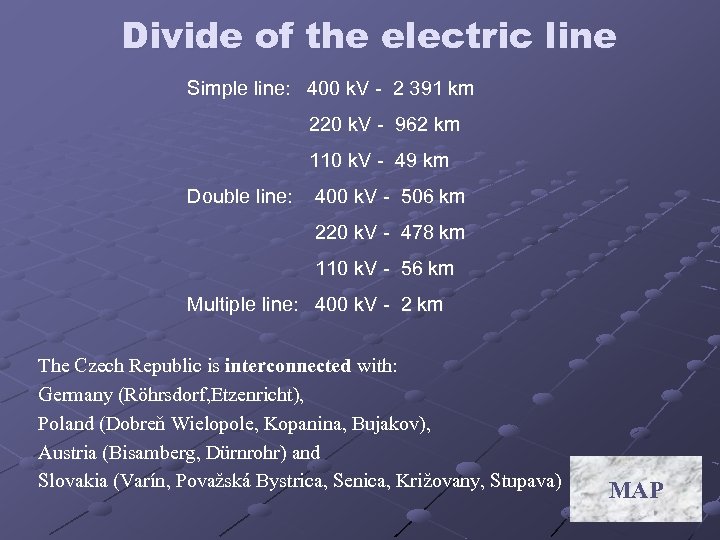

Divide of the electric line Simple line: 400 k. V - 2 391 km 220 k. V - 962 km 110 k. V - 49 km Double line: 400 k. V - 506 km 220 k. V - 478 km 110 k. V - 56 km Multiple line: 400 k. V - 2 km The Czech Republic is interconnected with: Germany (Röhrsdorf, Etzenricht), Poland (Dobreň Wielopole, Kopanina, Bujakov), Austria (Bisamberg, Dürnrohr) and Slovakia (Varín, Považská Bystrica, Senica, Križovany, Stupava) MAP

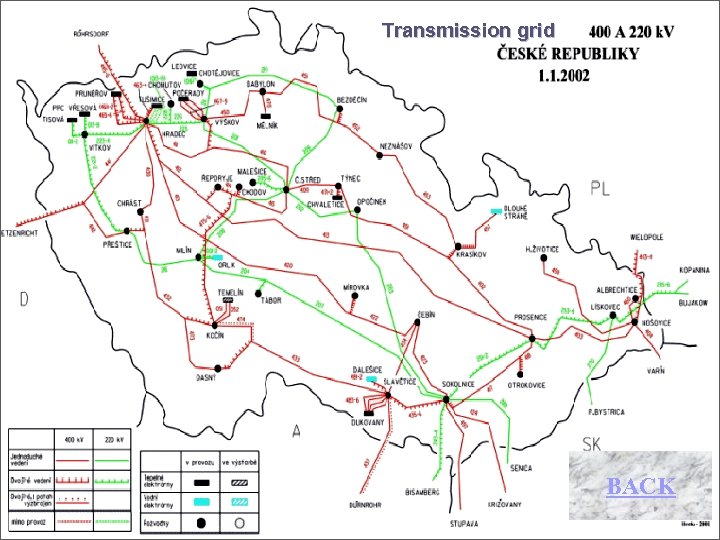

Transmission grid BACK

Types of the poles Delta Donau Cat Portal 220 k. V Portal Keg

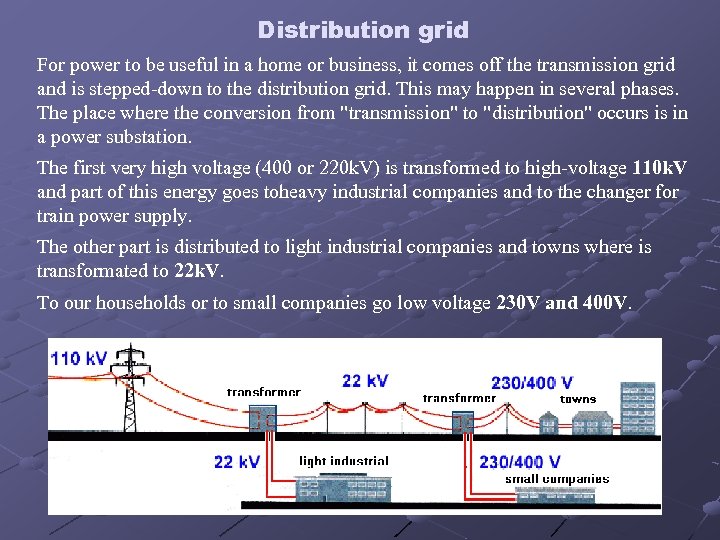

Distribution grid For power to be useful in a home or business, it comes off the transmission grid and is stepped-down to the distribution grid. This may happen in several phases. The place where the conversion from "transmission" to "distribution" occurs is in a power substation. The first very high voltage (400 or 220 k. V) is transformed to high-voltage 110 k. V and part of this energy goes toheavy industrial companies and to the changer for train power supply. The other part is distributed to light industrial companies and towns where is transformated to 22 k. V. To our households or to small companies go low voltage 230 V and 400 V.

Transformation stations are junction points between transmission grid and distribution grid. The power plants produce three-phase power with typical voltage 15, 75 k. V and this power is changed in transmission substation at the power plant. This substation uses large transformers 240 MVA; 15, 75/400 k. V. Then power is transformered down to 110 k. V, 22 k. V (10 k. V) in smaller power substations throughout republic. The last transformation to low voltage 230 V and 400 V runs in concrete small companies, villages and town quarters.

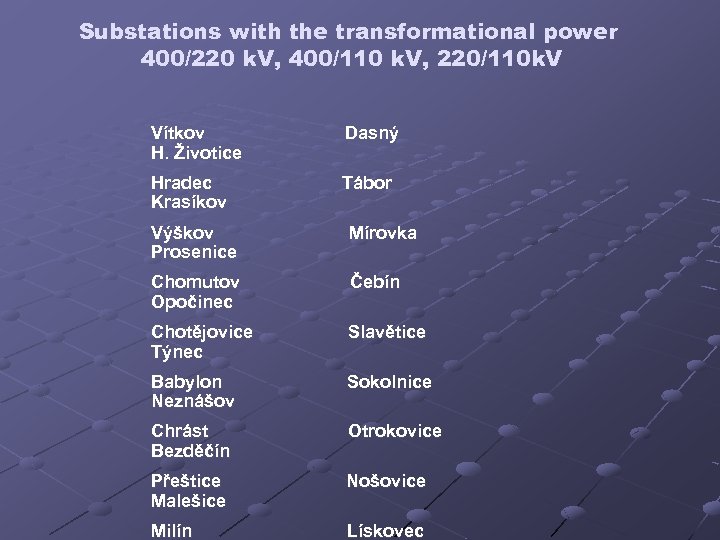

Substations with the transformational power 400/220 k. V, 400/110 k. V, 220/110 k. V Vítkov H. Životice Dasný Hradec Krasíkov Tábor Výškov Prosenice Mírovka Chomutov Opočinec Čebín Chotějovice Týnec Slavětice Babylon Neznášov Sokolnice Chrást Bezděčín Otrokovice Přeštice Malešice Nošovice Milín Lískovec

Safety This power substations has one another function: it often has circuit breakers and switches so that the substation can be disconnected from the transmission grid or separate distribution lines can be disconnected from the substation when necessary.

THE, THE The End!!
