Programming in Java Getting Started 蔡文能交通大學資訊程學系

Programming in Java Getting Started 蔡文能交通大學資訊程學系 tsaiwn@csie. nctu. edu. tw 交通大學資訊程學系

Java Getting Started Outline Language Basics of C/C++/Java History … Java vs. C++ Compilation and Interpretation Java Platform Java Applications Java Applets Inside the Applets Applications using GUI More about Applets 交通大學資訊程學系蔡文能第 2頁

Java Getting Started Language Basics (C/C++/Java) Variables and Data types Operators - 任何高階電腦語言都該有的指述: ü /* 註解 */ //也是註解 ü宣告/定義變數和常數 Arithmetic Operators Relational and Conditional Operators ü運算符號與運算式和 Assignment = Shift and Logical Operators • 算術, 關係運算, 邏輯 Assignment Operators ü{ compound statements; } Other Operators Expressions, Statements, and Blocks ü控制指述(control statements) Control Flow Statements - The while and do-while Statements The for Statement The if/else Statements The switch Statement Exception Handling Statements Branching Statements 交通大學資訊程學系蔡文能 ØSequence ØAlternative (selection) • if-else, switch ØLoop: for, while, do while ØFunction/procedure call 第 3頁

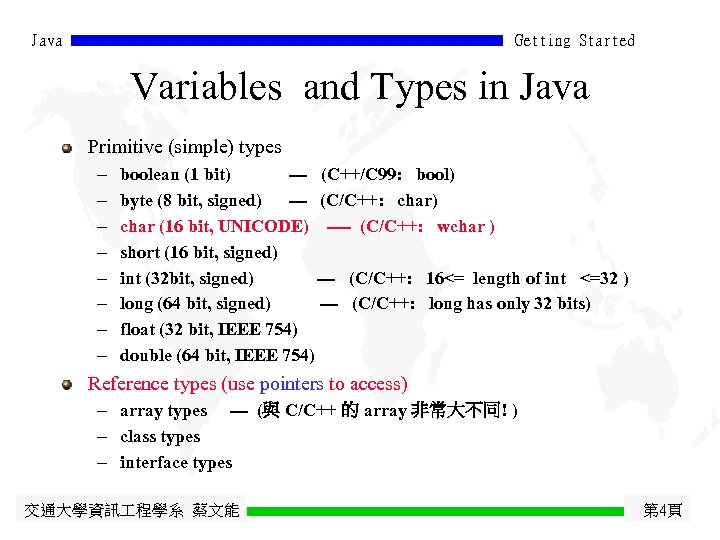

Java Getting Started Variables and Types in Java Primitive (simple) types - boolean (1 bit) --- (C++/C 99: bool) byte (8 bit, signed) --- (C/C++: char) char (16 bit, UNICODE) ---- (C/C++: wchar ) short (16 bit, signed) int (32 bit, signed) --- (C/C++: 16<= length of int <=32 ) long (64 bit, signed) --- (C/C++: long has only 32 bits) float (32 bit, IEEE 754) double (64 bit, IEEE 754) Reference types (use pointers to access) - array types --- (與 C/C++ 的 array 非常大不同! ) - class types - interface types 交通大學資訊程學系蔡文能第 4頁

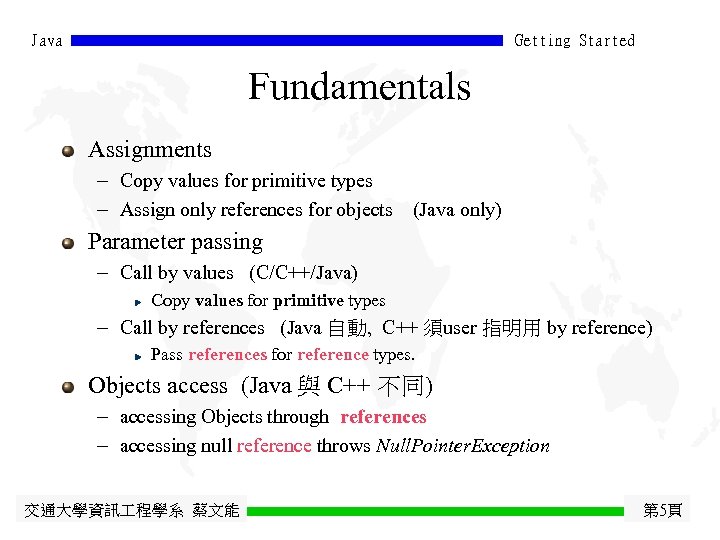

Java Getting Started Fundamentals Assignments - Copy values for primitive types - Assign only references for objects (Java only) Parameter passing - Call by values (C/C++/Java) Copy values for primitive types - Call by references (Java 自動, C++ 須user 指明用 by reference) Pass references for reference types. Objects access (Java 與 C++ 不同) - accessing Objects through references - accessing null reference throws Null. Pointer. Exception 交通大學資訊程學系蔡文能第 5頁

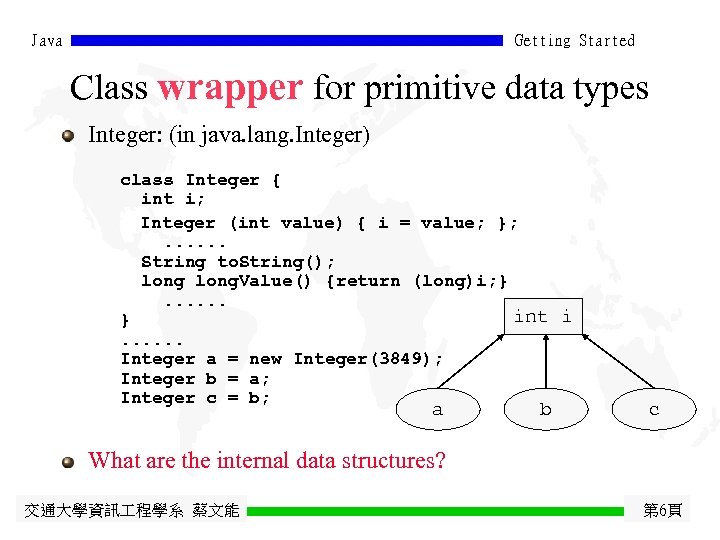

Java Getting Started Class wrapper for primitive data types Integer: (in java. lang. Integer) class Integer { int i; Integer (int value) { i = value; }; . . . String to. String(); long. Value() {return (long)i; }. . . int i }. . . Integer a = new Integer(3849); Integer b = a; Integer c = b; a b c What are the internal data structures? 交通大學資訊程學系蔡文能第 6頁

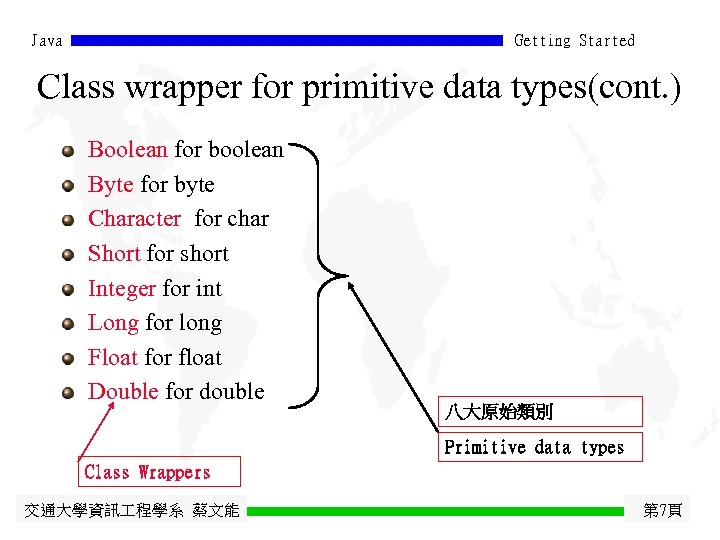

Java Getting Started Class wrapper for primitive data types(cont. ) Boolean for boolean Byte for byte Character for char Short for short Integer for int Long for long Float for float Double for double 八大原始類別 Primitive data types Class Wrappers 交通大學資訊程學系蔡文能第 7頁

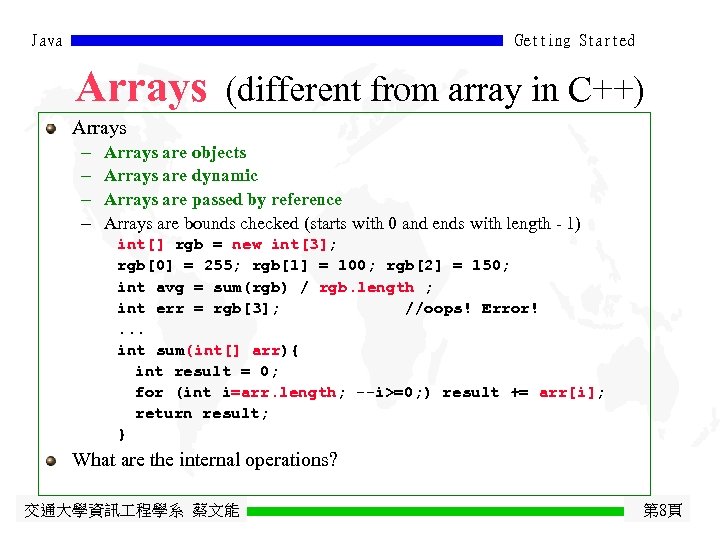

Java Getting Started Arrays (different from array in C++) Arrays - Arrays are objects Arrays are dynamic Arrays are passed by reference Arrays are bounds checked (starts with 0 and ends with length - 1) int[] rgb = new int[3]; rgb[0] = 255; rgb[1] = 100; rgb[2] = 150; int avg = sum(rgb) / rgb. length ; int err = rgb[3]; //oops! Error!. . . int sum(int[] arr){ int result = 0; for (int i=arr. length; --i>=0; ) result += arr[i]; return result; } What are the internal operations? 交通大學資訊程學系蔡文能第 8頁

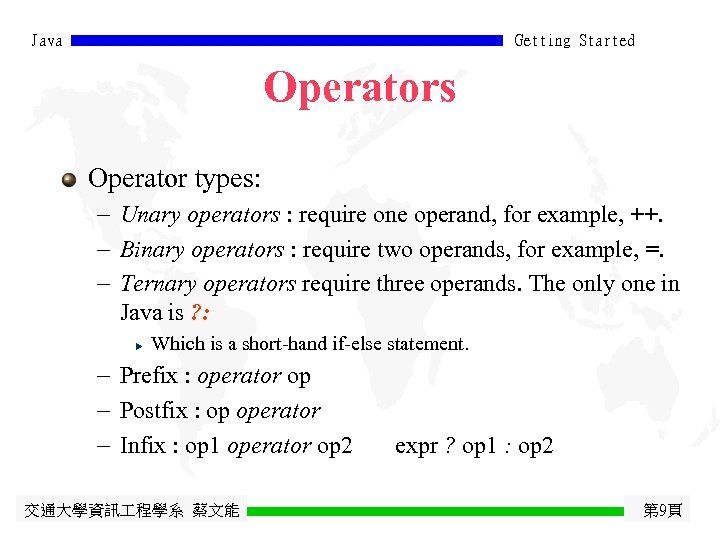

Java Getting Started Operators Operator types: - Unary operators : require one operand, for example, ++. - Binary operators : require two operands, for example, =. - Ternary operators require three operands. The only one in Java is ? : Which is a short-hand if-else statement. - Prefix : operator op - Postfix : op operator - Infix : op 1 operator op 2 expr ? op 1 : op 2 交通大學資訊程學系蔡文能第 9頁

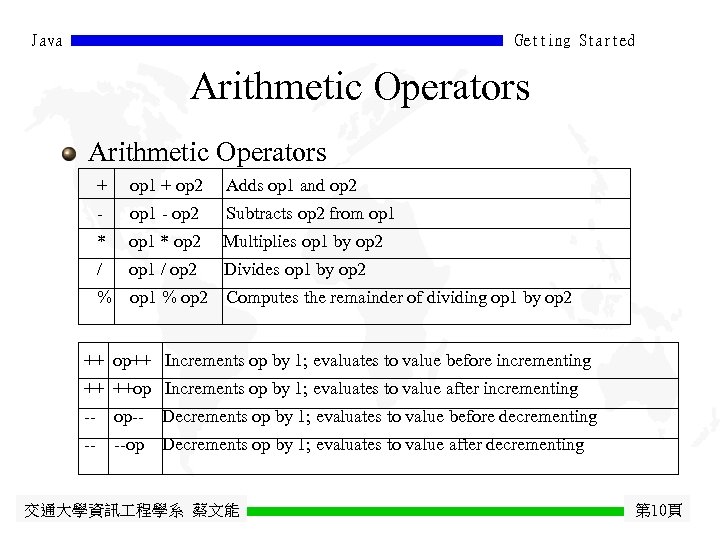

Java Getting Started Arithmetic Operators + op 1 + op 2 Adds op 1 and op 2 - op 1 - op 2 Subtracts op 2 from op 1 * op 1 * op 2 Multiplies op 1 by op 2 / op 1 / op 2 Divides op 1 by op 2 % op 1 % op 2 Computes the remainder of dividing op 1 by op 2 ++ op++ Increments op by 1; evaluates to value before incrementing ++ ++op Increments op by 1; evaluates to value after incrementing -- op-- Decrements op by 1; evaluates to value before decrementing --op Decrements op by 1; evaluates to value after decrementing 交通大學資訊程學系蔡文能第 10頁

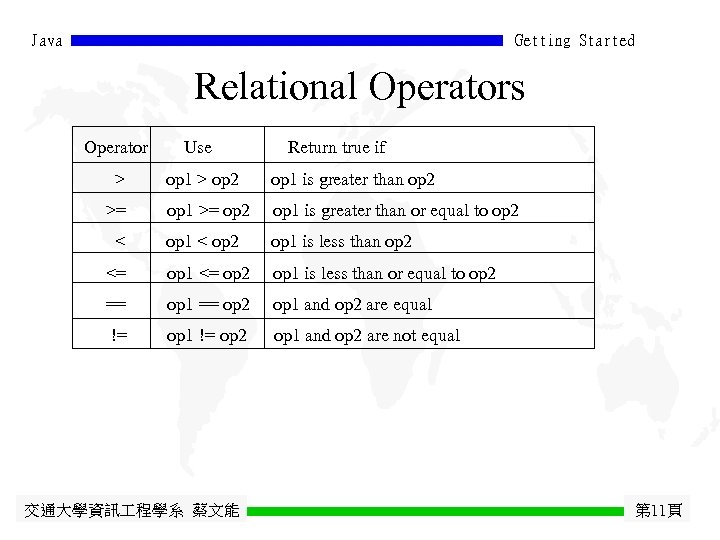

Java Getting Started Relational Operators Operator Use Return true if > op 1 > op 2 op 1 is greater than op 2 >= op 1 >= op 2 op 1 is greater than or equal to op 2 < op 1 < op 2 op 1 is less than op 2 <= op 1 <= op 2 op 1 is less than or equal to op 2 == op 1 == op 2 op 1 and op 2 are equal != op 1 != op 2 op 1 and op 2 are not equal 交通大學資訊程學系蔡文能第 11頁

Java Getting Started Conditional Operators 交通大學資訊程學系蔡文能第 12頁

Java Getting Started Bitwise Operators 交通大學資訊程學系蔡文能第 13頁

Java Getting Started Assignment Operators 交通大學資訊程學系蔡文能第 14頁

Java Getting Started Expressions Definition: An expression is a series of variables, operators, and method calls that evaluates to a single value. - The data type of the result of an expression depends on the elements used in the expression. - A method call expression evaluates to the return value of the method. 交通大學資訊程學系蔡文能第 15頁

Java Getting Started Operator Precedence 交通大學資訊程學系蔡文能第 16頁

Java Getting Started Control Flow Statements Control flow statements in Java Block - A statement block is a series of statements within '{' and '}'. if (na < nb) { temp = na; na = nb; nb = temp; } 交通大學資訊程學系蔡文能第 17頁

Java Getting Started if-else Statements The if-else Statement - The simple form of if can be written like this if ( boolean. Expression ) statement - The else block is executed if the if part is false. …… if (response == OK) { …… // code to perform OK action } else { …… // code to perform Cancel action } 交通大學資訊程學系蔡文能第 18頁

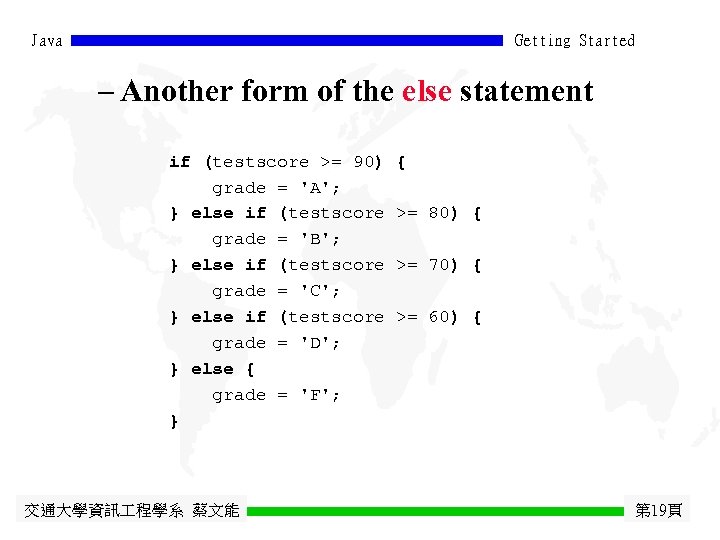

Java Getting Started - Another form of the else statement if (testscore >= 90) grade = 'A'; } else if (testscore grade = 'B'; } else if (testscore grade = 'C'; } else if (testscore grade = 'D'; } else { grade = 'F'; } 交通大學資訊程學系蔡文能 { >= 80) { >= 70) { >= 60) { 第 19頁

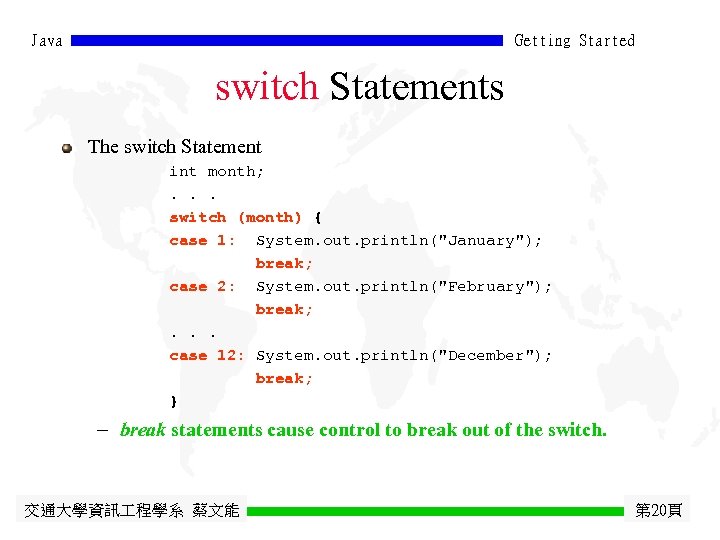

Java Getting Started switch Statements The switch Statement int month; . . . switch (month) { case 1: System. out. println("January"); break; case 2: System. out. println("February"); break; . . . case 12: System. out. println("December"); break; } - break statements cause control to break out of the switch. 交通大學資訊程學系蔡文能第 20頁

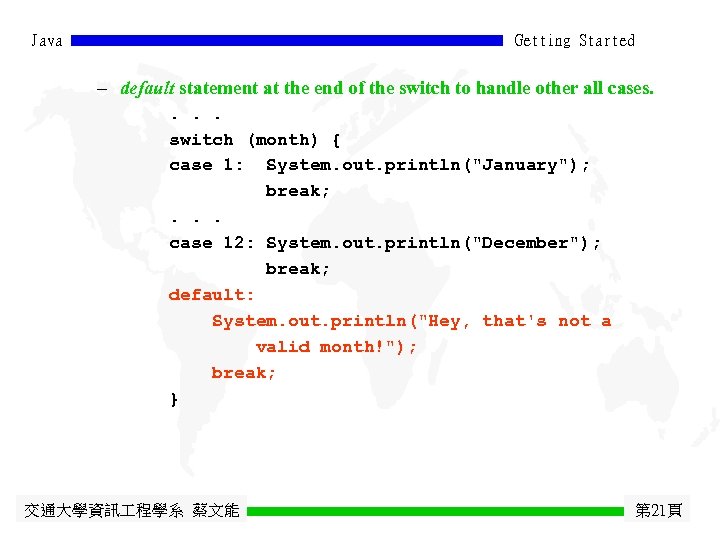

Java Getting Started - default statement at the end of the switch to handle other all cases. . switch (month) { case 1: System. out. println("January"); break; . . . case 12: System. out. println("December"); break; default: System. out. println("Hey, that's not a valid month!"); break; } 交通大學資訊程學系蔡文能第 21頁

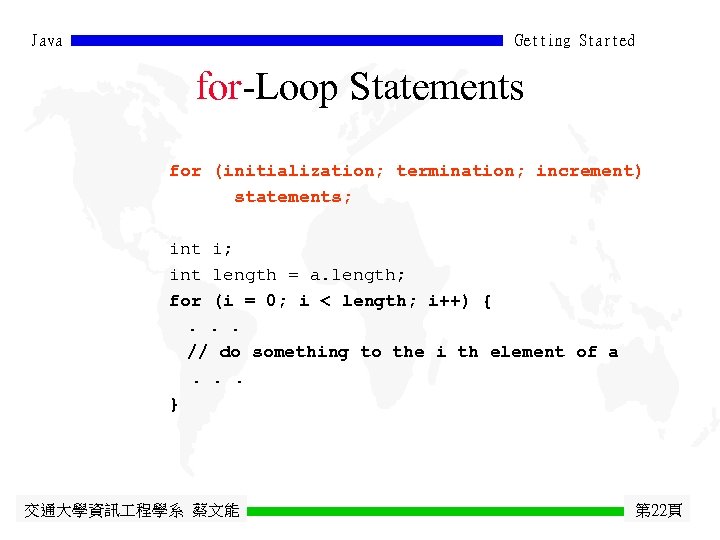

Java Getting Started for-Loop Statements for (initialization; termination; increment) statements; int i; int length = a. length; for (i = 0; i < length; i++) {. . . // do something to the i th element of a. . . } 交通大學資訊程學系蔡文能第 22頁

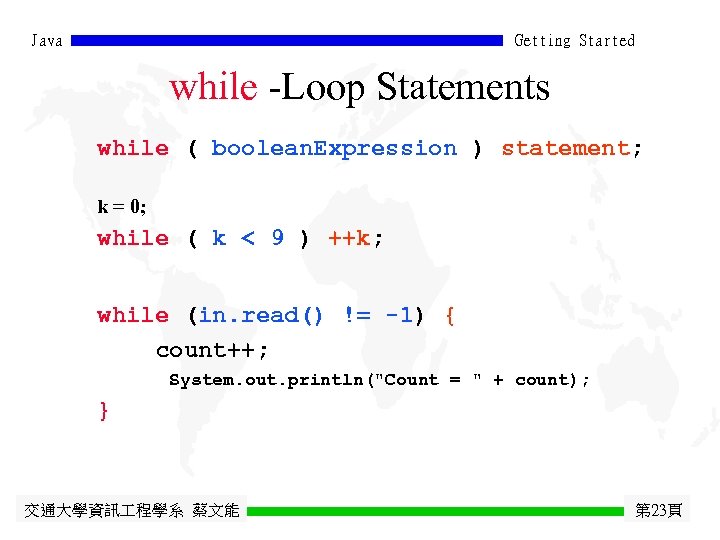

Java Getting Started while -Loop Statements while ( boolean. Expression ) statement; k = 0; while ( k < 9 ) ++k; while (in. read() != -1) { count++; System. out. println("Count = " + count); } 交通大學資訊程學系蔡文能第 23頁

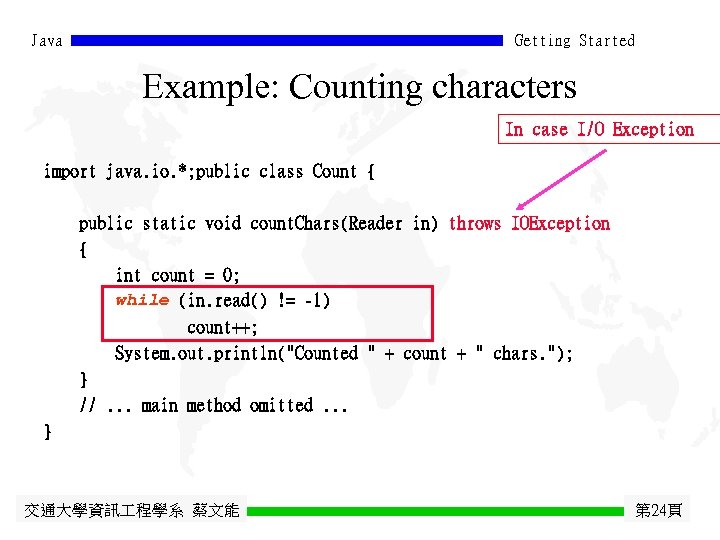

Java Getting Started Example: Counting characters In case I/O Exception import java. io. *; public class Count { public static void count. Chars(Reader in) throws IOException { int count = 0; while (in. read() != -1) count++; System. out. println("Counted " + count + " chars. "); } //. . . main method omitted. . . } 交通大學資訊程學系蔡文能第 24頁

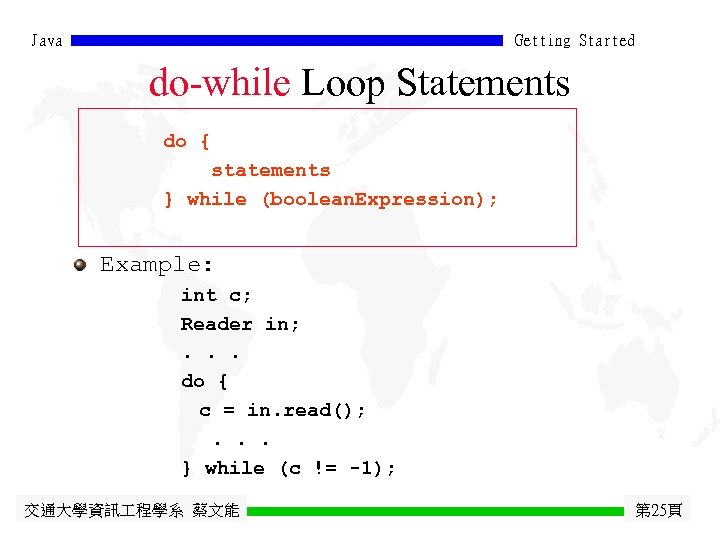

Java Getting Started do-while Loop Statements do { statements } while (boolean. Expression); Example: int c; Reader in; . . . do { c = in. read(); . . . } while (c != -1); 交通大學資訊程學系蔡文能第 25頁

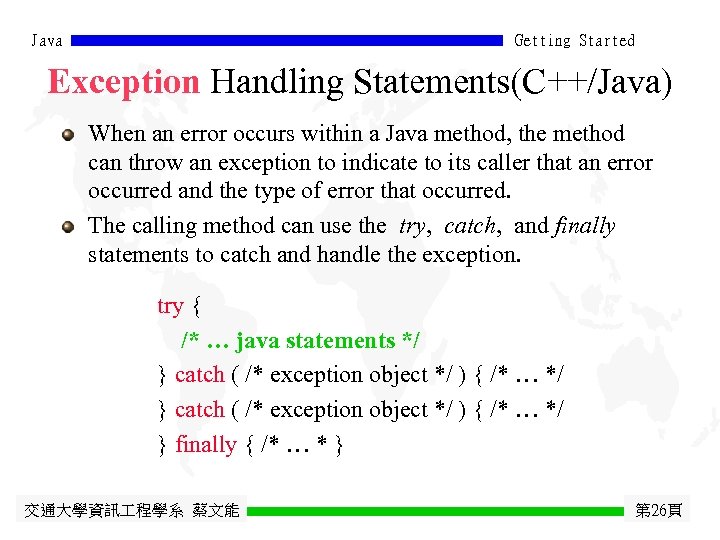

Java Getting Started Exception Handling Statements(C++/Java) When an error occurs within a Java method, the method can throw an exception to indicate to its caller that an error occurred and the type of error that occurred. The calling method can use the try, catch, and finally statements to catch and handle the exception. try { /* … java statements */ } catch ( /* exception object */ ) { /* … */ } finally { /* … * } 交通大學資訊程學系蔡文能第 26頁

Java Getting Started Branching Statements Another form of the break statement (Java only) statement. Name_Label: . . . some Java Statements break statement. Name_Label; The continue statement - The unlabelled form. if( boolean. Expression ) continue; - The labeled form. continue statement. Name_Label; The return statement - Return a value. return; - Does not return a value. return a+b; 交通大學資訊程學系蔡文能第 27頁

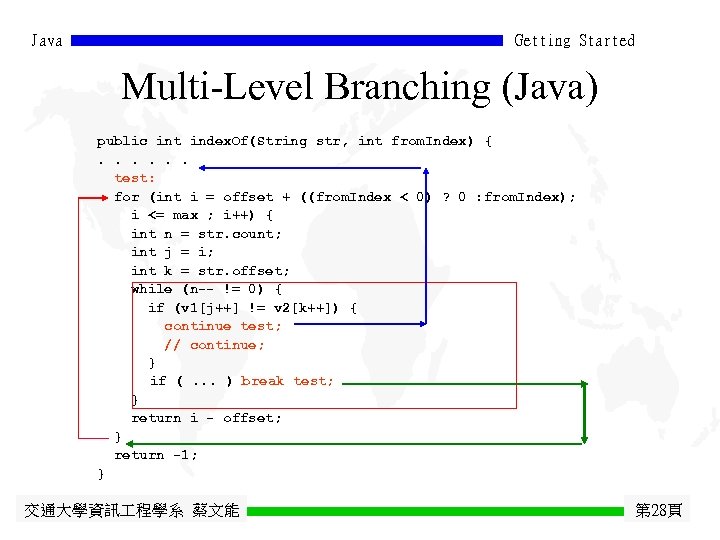

Java Getting Started Multi-Level Branching (Java) public int index. Of(String str, int from. Index) {. . . test: for (int i = offset + ((from. Index < 0) ? 0 : from. Index); i <= max ; i++) { int n = str. count; int j = i; int k = str. offset; while (n-- != 0) { if (v 1[j++] != v 2[k++]) { continue test; // continue; } if (. . . ) break test; } return i - offset; } return -1; } 交通大學資訊程學系蔡文能第 28頁

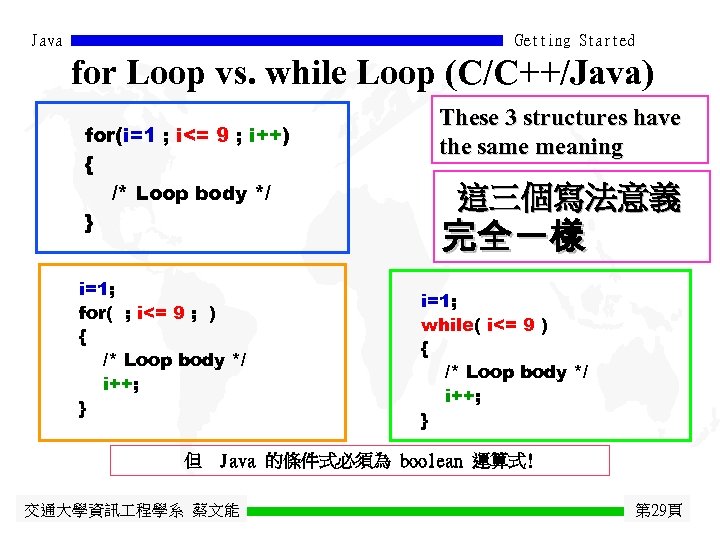

Java Getting Started for Loop vs. while Loop (C/C++/Java) for(i=1 ; i<= 9 ; i++) { /* Loop body */ } i=1; for( ; i<= 9 ; ) { /* Loop body */ i++; } 但 These 3 structures have the same meaning 這三個寫法意義完全一樣 i=1; while( i<= 9 ) { /* Loop body */ i++; } Java 的條件式必須為 boolean 運算式! 交通大學資訊程學系蔡文能第 29頁

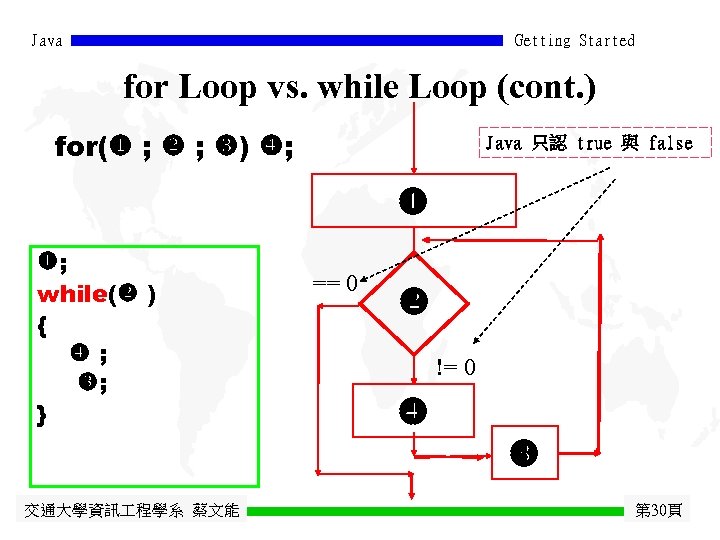

Java Getting Started for Loop vs. while Loop (cont. ) for( ; ; ) ; Java 只認 true 與 false ; while( ) { ; ; } == 0 != 0 交通大學資訊程學系蔡文能第 30頁

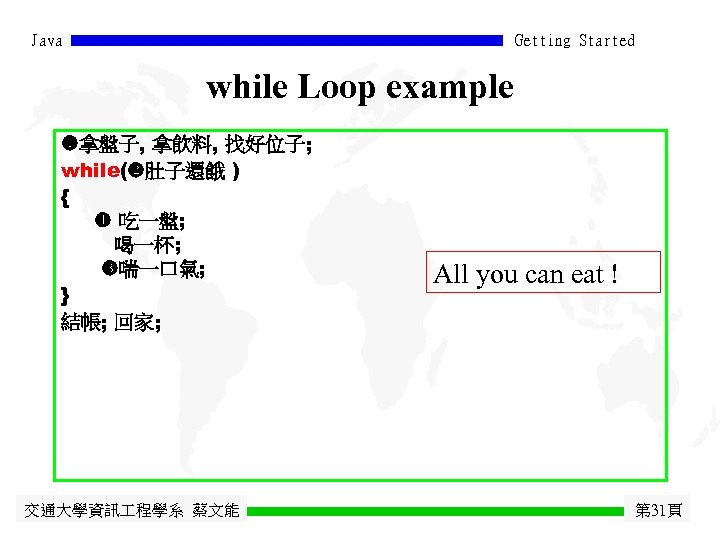

Java Getting Started while Loop example 拿盤子, 拿飲料, 找好位子; while( 肚子還餓 ) { 吃一盤; 喝一杯; 喘一口氣; } 結帳; 回家; 交通大學資訊程學系蔡文能 All you can eat ! 第 31頁

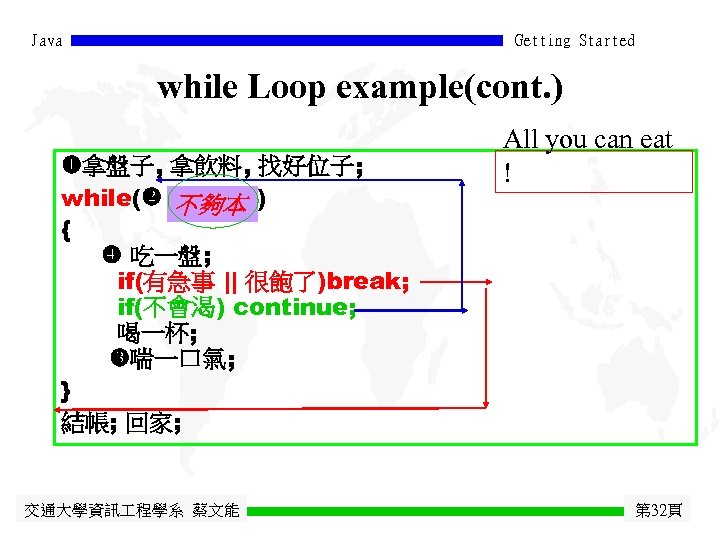

Java Getting Started while Loop example(cont. ) 拿盤子, 拿飲料, 找好位子; while( 肚子還餓 ) 不夠本 { 吃一盤; if(有急事 || 很飽了)break; if(不會渴) continue; 喝一杯; 喘一口氣; } 結帳; 回家; 交通大學資訊程學系蔡文能 All you can eat ! 第 32頁

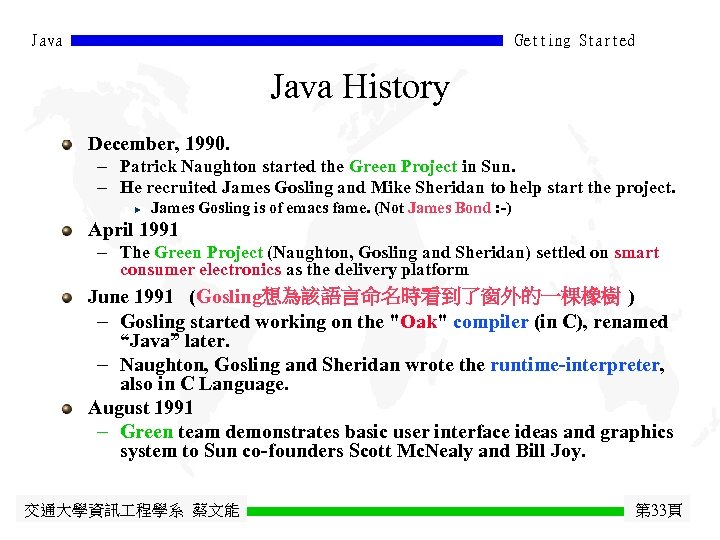

Java Getting Started Java History December, 1990. - Patrick Naughton started the Green Project in Sun. - He recruited James Gosling and Mike Sheridan to help start the project. James Gosling is of emacs fame. (Not James Bond : -) April 1991 - The Green Project (Naughton, Gosling and Sheridan) settled on smart consumer electronics as the delivery platform June 1991 (Gosling想為該語言命名時看到了窗外的一棵橡樹 ) - Gosling started working on the "Oak" compiler (in C), renamed “Java” later. - Naughton, Gosling and Sheridan wrote the runtime-interpreter, also in C Language. August 1991 - Green team demonstrates basic user interface ideas and graphics system to Sun co-founders Scott Mc. Nealy and Bill Joy. 交通大學資訊程學系蔡文能第 33頁

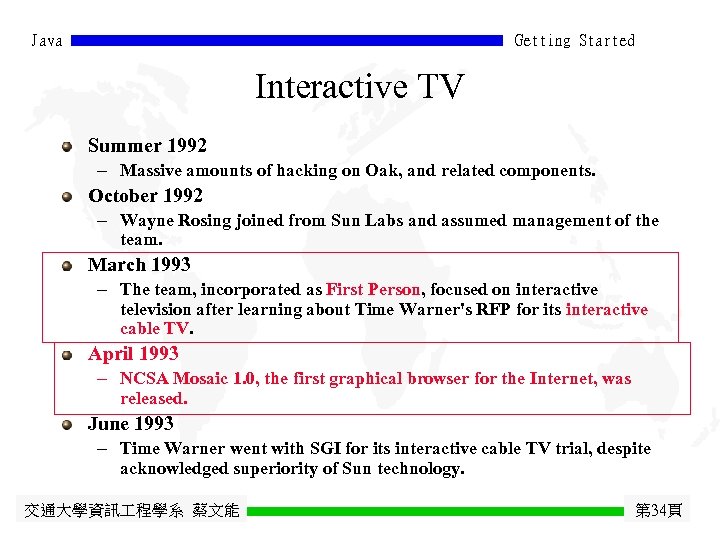

Java Getting Started Interactive TV Summer 1992 - Massive amounts of hacking on Oak, and related components. October 1992 - Wayne Rosing joined from Sun Labs and assumed management of the team. March 1993 - The team, incorporated as First Person, focused on interactive television after learning about Time Warner's RFP for its interactive cable TV. April 1993 - NCSA Mosaic 1. 0, the first graphical browser for the Internet, was released. June 1993 - Time Warner went with SGI for its interactive cable TV trial, despite acknowledged superiority of Sun technology. 交通大學資訊程學系蔡文能第 34頁

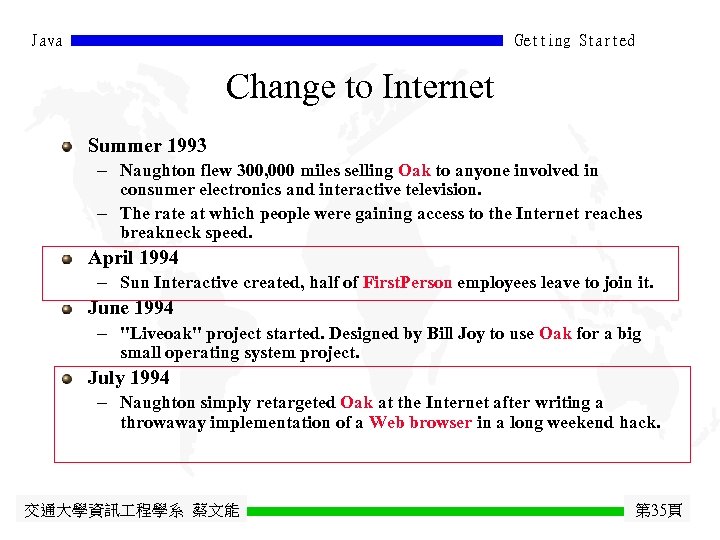

Java Getting Started Change to Internet Summer 1993 - Naughton flew 300, 000 miles selling Oak to anyone involved in consumer electronics and interactive television. - The rate at which people were gaining access to the Internet reaches breakneck speed. April 1994 - Sun Interactive created, half of First. Person employees leave to join it. June 1994 - "Liveoak" project started. Designed by Bill Joy to use Oak for a big small operating system project. July 1994 - Naughton simply retargeted Oak at the Internet after writing a throwaway implementation of a Web browser in a long weekend hack. 交通大學資訊程學系蔡文能第 35頁

Java Getting Started Start Licensing September 1994 - Jonathon Payne and Naughton start writing "Web. Runner, " a Mosaic-like browser later renamed "Hot. Java“. - Hot. Java prototype is first demonstrated to Sun executives. May 1995 - Sun formally announces Java and Hot. Java at Sun. World '95. - Netscape announces its intention to license Java for use in Netscape browser. September 1995 - Sun-sponsored Java development conference held in New York City. - Sunsoft announces suite of business-oriented development products incorporating Java. 交通大學資訊程學系蔡文能第 36頁

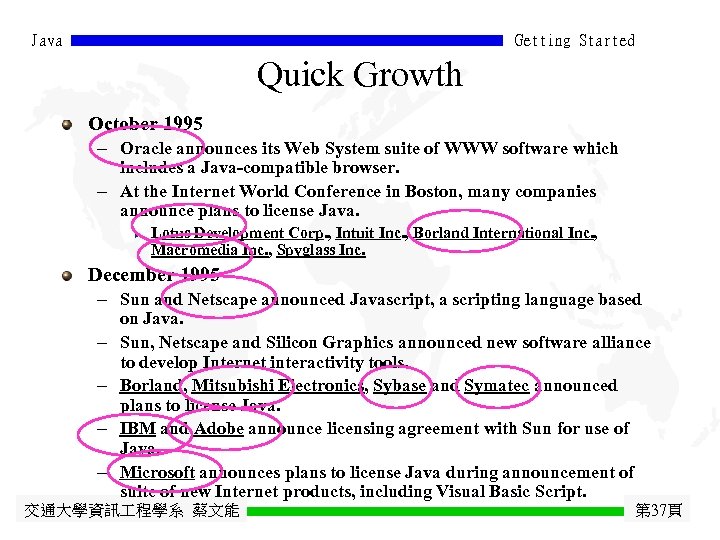

Java Getting Started Quick Growth October 1995 - Oracle announces its Web System suite of WWW software which includes a Java-compatible browser. - At the Internet World Conference in Boston, many companies announce plans to license Java. Lotus Development Corp. , Intuit Inc. , Borland International Inc. , Macromedia Inc. , Spyglass Inc. December 1995 - Sun and Netscape announced Javascript, a scripting language based on Java. - Sun, Netscape and Silicon Graphics announced new software alliance to develop Internet interactivity tools. - Borland, Mitsubishi Electronics, Sybase and Symatec announced plans to license Java. - IBM and Adobe announce licensing agreement with Sun for use of Java. - Microsoft announces plans to license Java during announcement of suite of new Internet products, including Visual Basic Script. 交通大學資訊程學系蔡文能第 37頁

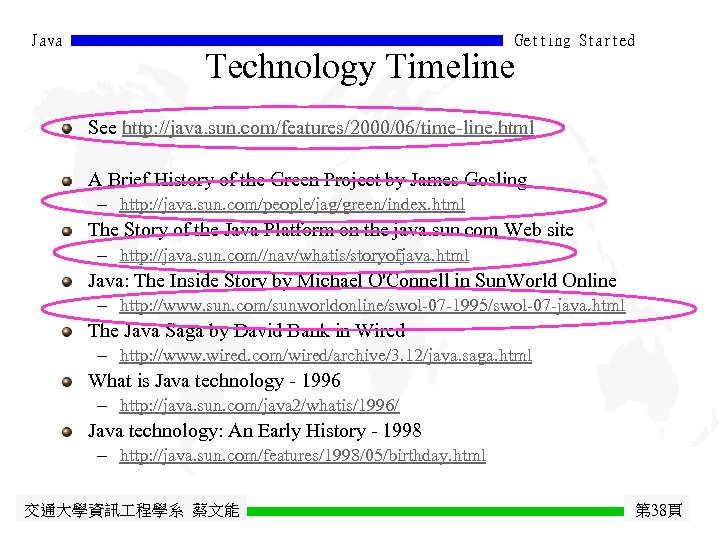

Java Getting Started Technology Timeline See http: //java. sun. com/features/2000/06/time-line. html A Brief History of the Green Project by James Gosling - http: //java. sun. com/people/jag/green/index. html The Story of the Java Platform on the java. sun. com Web site - http: //java. sun. com//nav/whatis/storyofjava. html Java: The Inside Story by Michael O'Connell in Sun. World Online - http: //www. sun. com/sunworldonline/swol-07 -1995/swol-07 -java. html The Java Saga by David Bank in Wired - http: //www. wired. com/wired/archive/3. 12/java. saga. html What is Java technology - 1996 - http: //java. sun. com/java 2/whatis/1996/ Java technology: An Early History - 1998 - http: //java. sun. com/features/1998/05/birthday. html 交通大學資訊程學系蔡文能第 38頁

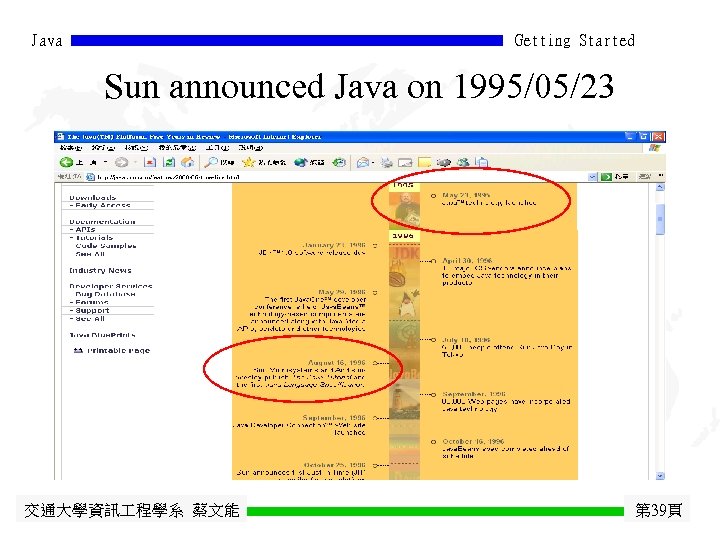

Java Getting Started Sun announced Java on 1995/05/23 交通大學資訊程學系蔡文能第 39頁

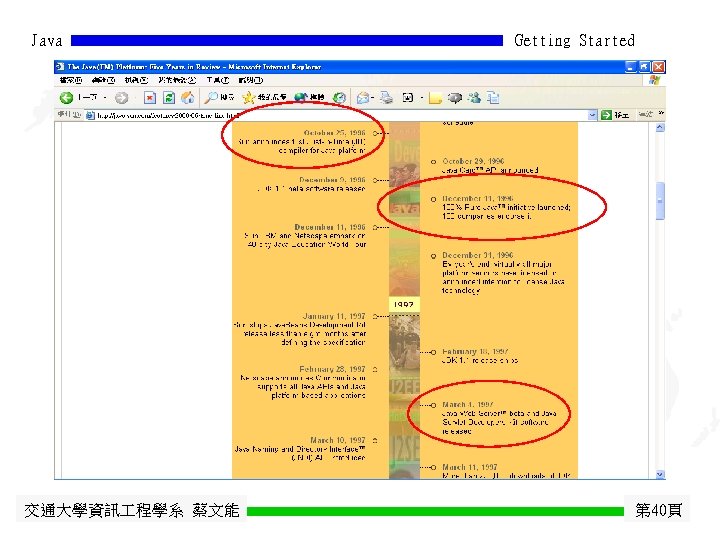

Java 交通大學資訊程學系蔡文能 Getting Started 第 40頁

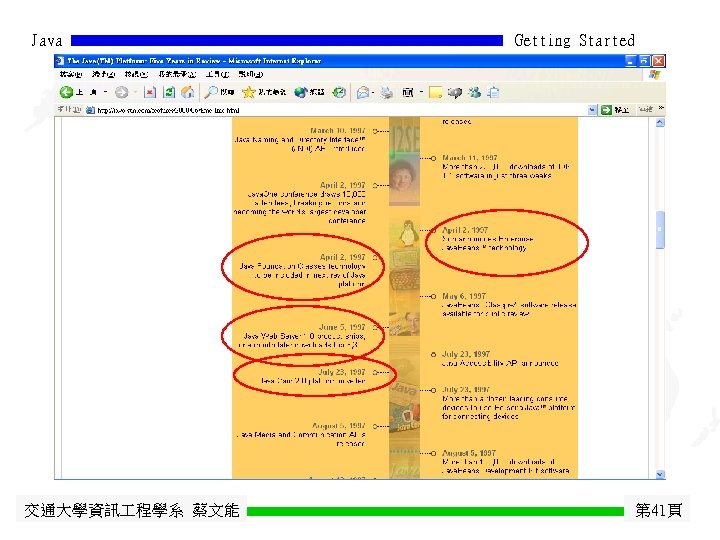

Java 交通大學資訊程學系蔡文能 Getting Started 第 41頁

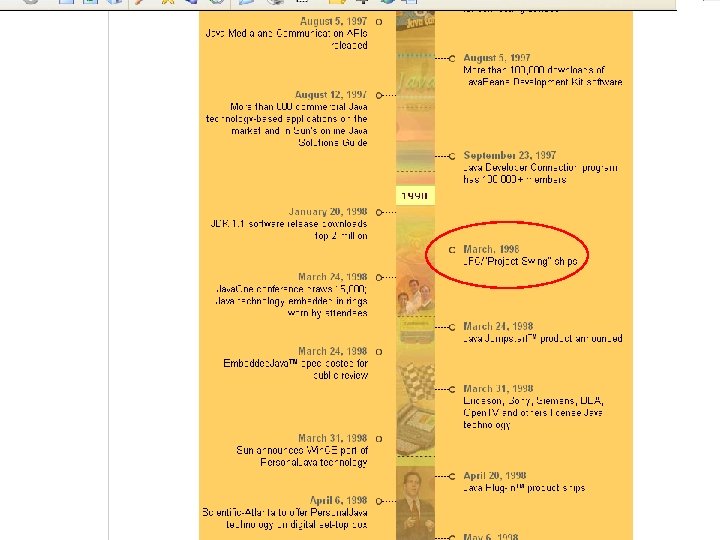

Java 交通大學資訊程學系蔡文能 Getting Started 第 42頁

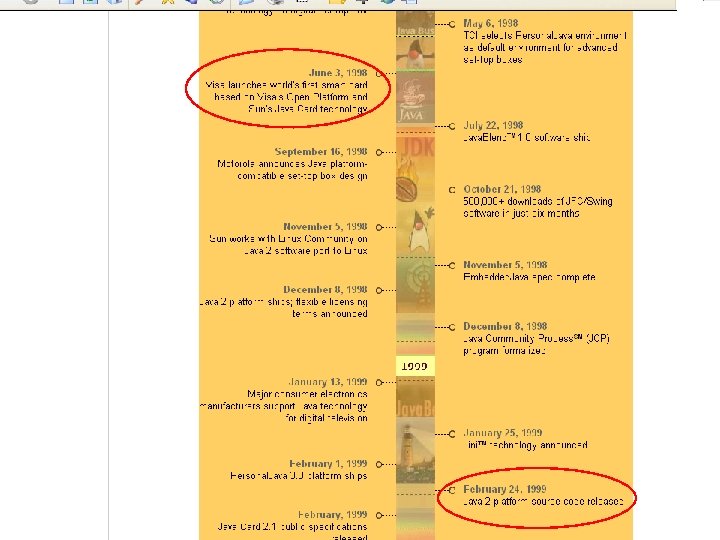

Java 交通大學資訊程學系蔡文能 Getting Started 第 43頁

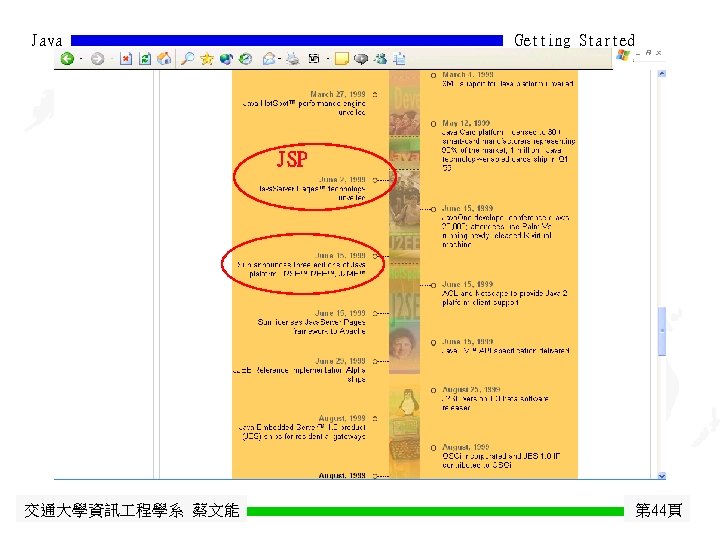

Java Getting Started JSP 交通大學資訊程學系蔡文能第 44頁

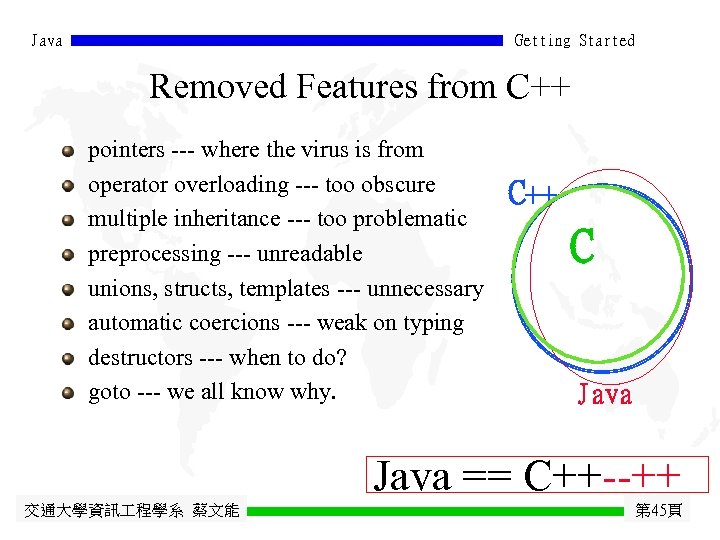

Java Getting Started Removed Features from C++ pointers --- where the virus is from operator overloading --- too obscure multiple inheritance --- too problematic preprocessing --- unreadable unions, structs, templates --- unnecessary automatic coercions --- weak on typing destructors --- when to do? goto --- we all know why. C++ C Java == C++--++ 交通大學資訊程學系蔡文能第 45頁

Java == C++--++ Getting Started Added Features Types: (8 primitive types and their class wrappers) - boolean (1 bit), byte (8 bit signed), char (16 bit, Unicode), - short (16 bit), int (32 bit), long (64 bit), float, double, - String, Array (as object) Multi-level break 從此真的可以不必用 goto (拿掉了) Interfaces 不可多重繼承; 但可implement多個介面 Packages 把相關的 class 集合在同一個子目錄 Automatic garbage collection 不再有 memory leaking Multithread and synchronization Exception handling (做得比 C++ 好) (C只有signal和longjmp) Runtime type checking 交通大學資訊程學系蔡文能第 46頁

Java Getting Started Compilation and Interpretation Compilation - Source code Bytecode My. Program. java My. Program. class (注意大小寫) Interpretation - Bytecode the machine code instructions for the Java Virtual Machine. the platform-independent codes interpreted by the Java interpreter. 交通大學資訊程學系蔡文能第 47頁

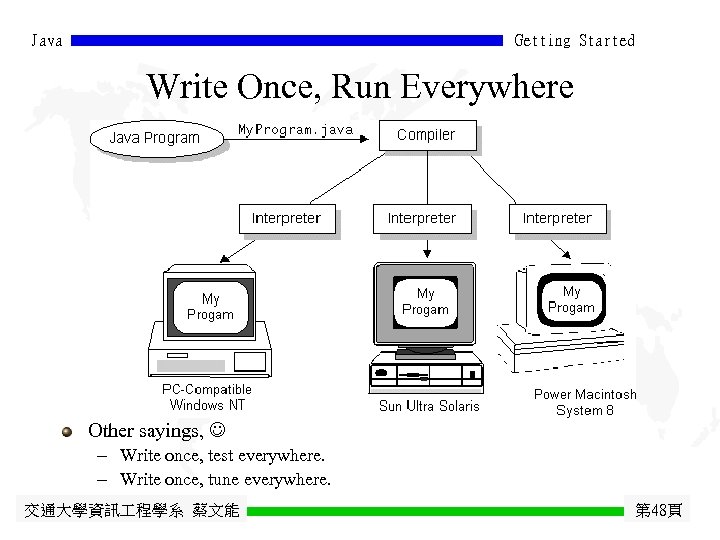

Java Getting Started Write Once, Run Everywhere Other sayings, - Write once, test everywhere. - Write once, tune everywhere. 交通大學資訊程學系蔡文能第 48頁

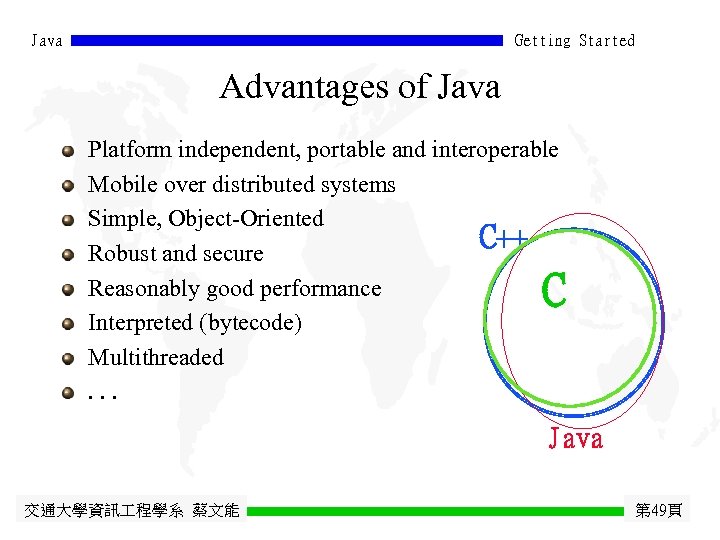

Java Getting Started Advantages of Java Platform independent, portable and interoperable Mobile over distributed systems Simple, Object-Oriented C++ Robust and secure Reasonably good performance Interpreted (bytecode) Multithreaded. . . C Java 交通大學資訊程學系蔡文能第 49頁

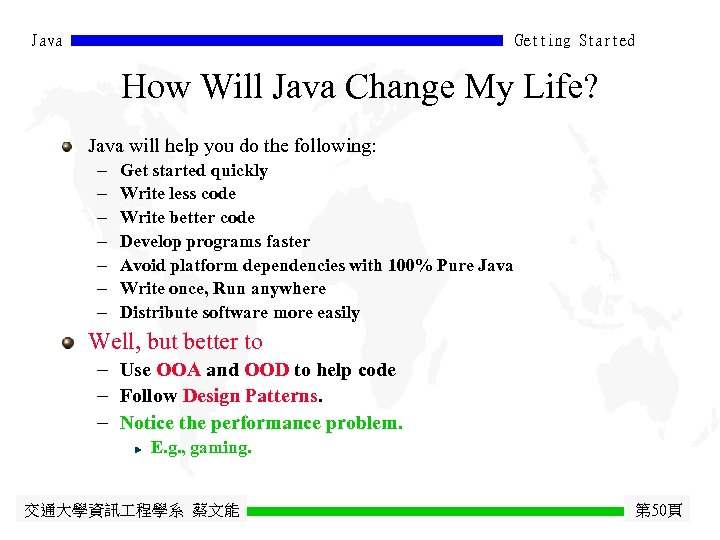

Java Getting Started How Will Java Change My Life? Java will help you do the following: - Get started quickly Write less code Write better code Develop programs faster Avoid platform dependencies with 100% Pure Java Write once, Run anywhere Distribute software more easily Well, but better to - Use OOA and OOD to help code - Follow Design Patterns. - Notice the performance problem. E. g. , gaming. 交通大學資訊程學系蔡文能第 50頁

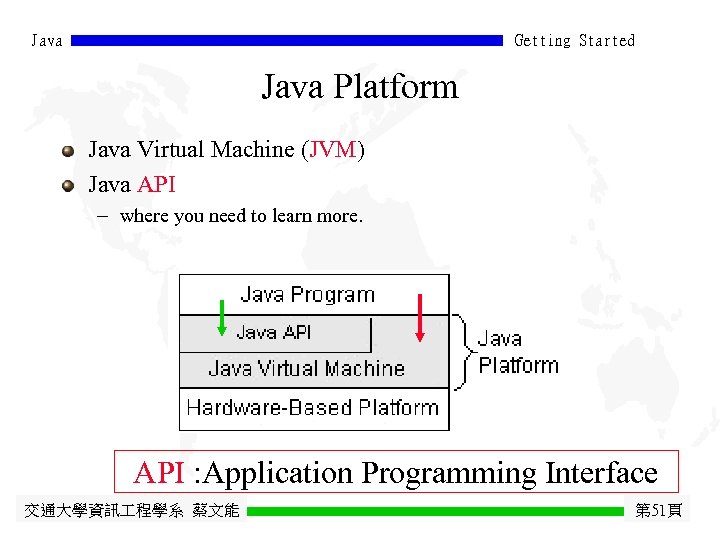

Java Getting Started Java Platform Java Virtual Machine (JVM) Java API - where you need to learn more. API : Application Programming Interface 交通大學資訊程學系蔡文能第 51頁

Java Getting Started Java Editions J 2 EE, J 2 SE, J 2 ME 交通大學資訊程學系蔡文能第 52頁

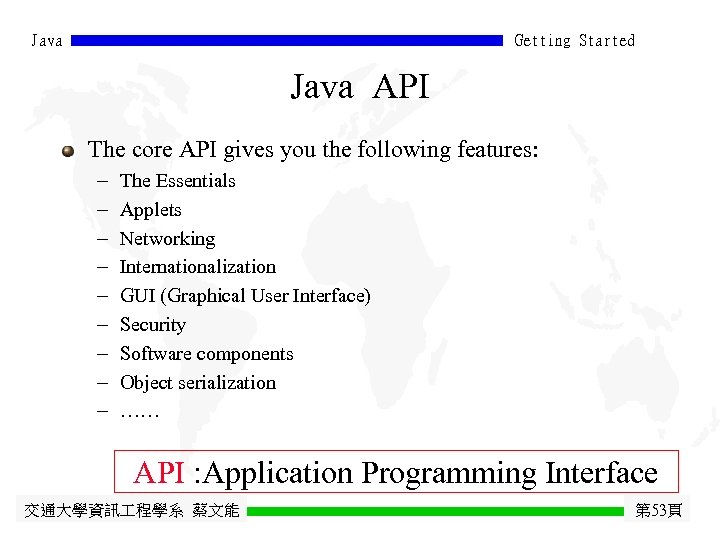

Java Getting Started Java API The core API gives you the following features: - The Essentials Applets Networking Internationalization GUI (Graphical User Interface) Security Software components Object serialization …… API : Application Programming Interface 交通大學資訊程學系蔡文能第 53頁

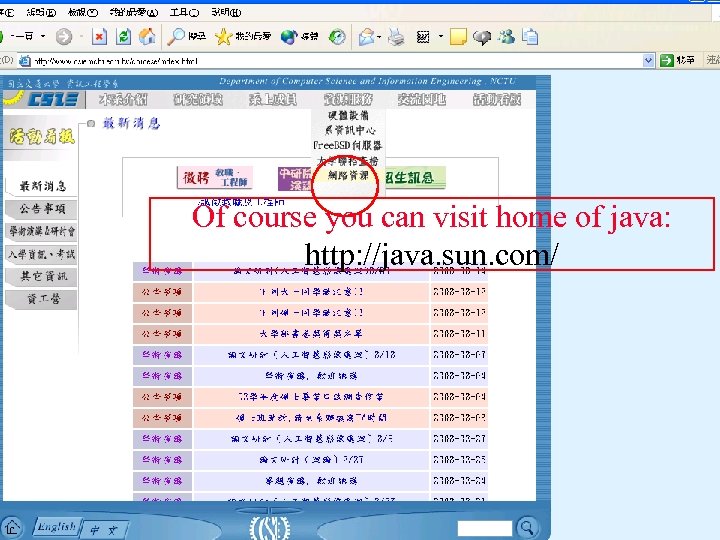

Java Getting Started Of course you can visit home of java: http: //java. sun. com/ 交通大學資訊程學系蔡文能第 54頁

Java Getting Started Of course you can visit home of java: http: //java. sun. com/ 交通大學資訊程學系蔡文能第 55頁

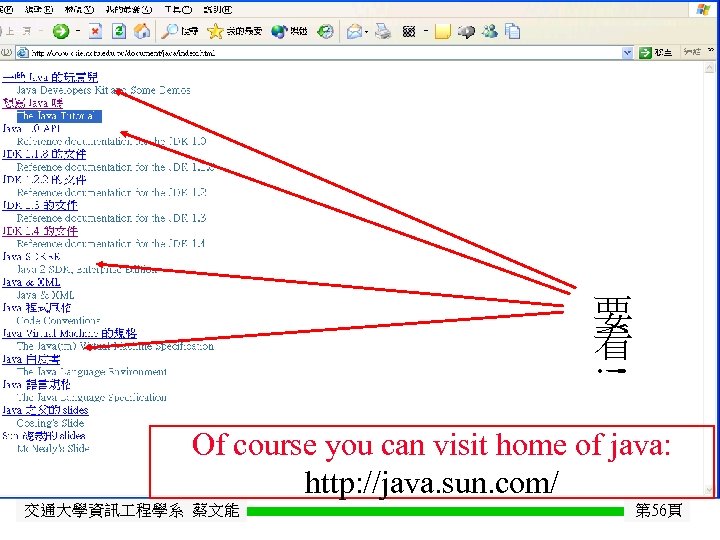

Java Getting Started ! 要看 Of course you can visit home of java: http: //java. sun. com/ 交通大學資訊程學系蔡文能第 56頁

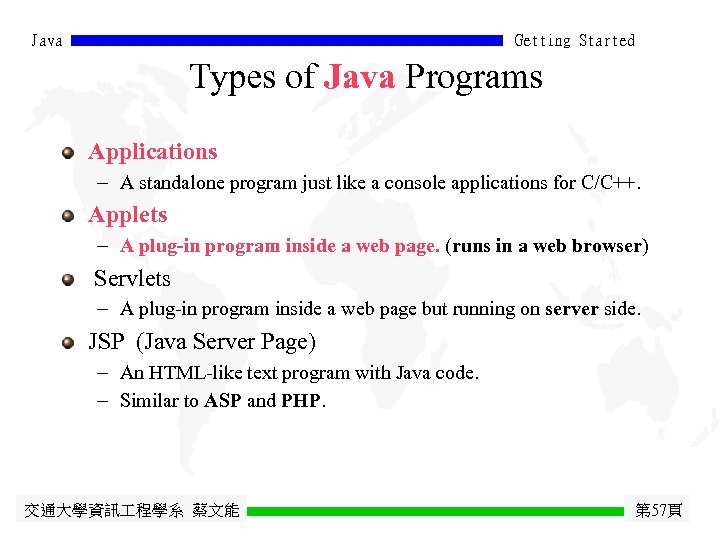

Java Getting Started Types of Java Programs Applications - A standalone program just like a console applications for C/C++. Applets - A plug-in program inside a web page. (runs in a web browser) Servlets - A plug-in program inside a web page but running on server side. JSP (Java Server Page) - An HTML-like text program with Java code. - Similar to ASP and PHP. 交通大學資訊程學系蔡文能第 57頁

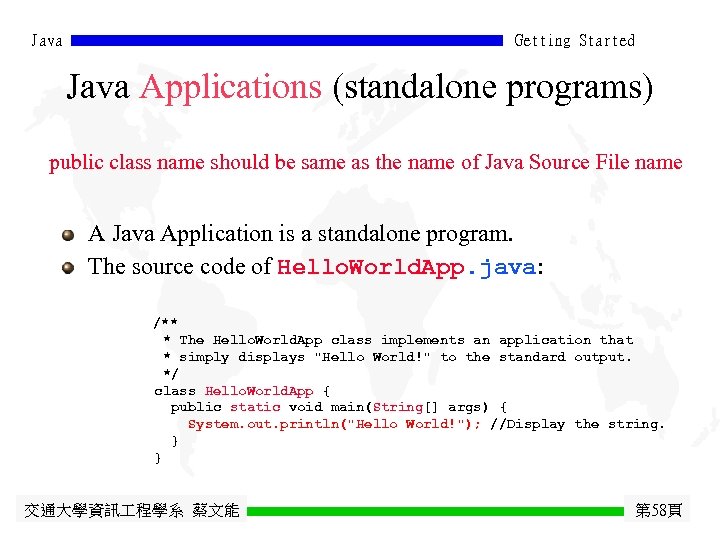

Java Getting Started Java Applications (standalone programs) public class name should be same as the name of Java Source File name A Java Application is a standalone program. The source code of Hello. World. App. java: /** * The Hello. World. App class implements an application that * simply displays "Hello World!" to the standard output. */ class Hello. World. App { public static void main(String[] args) { System. out. println("Hello World!"); //Display the string. } } 交通大學資訊程學系蔡文能第 58頁

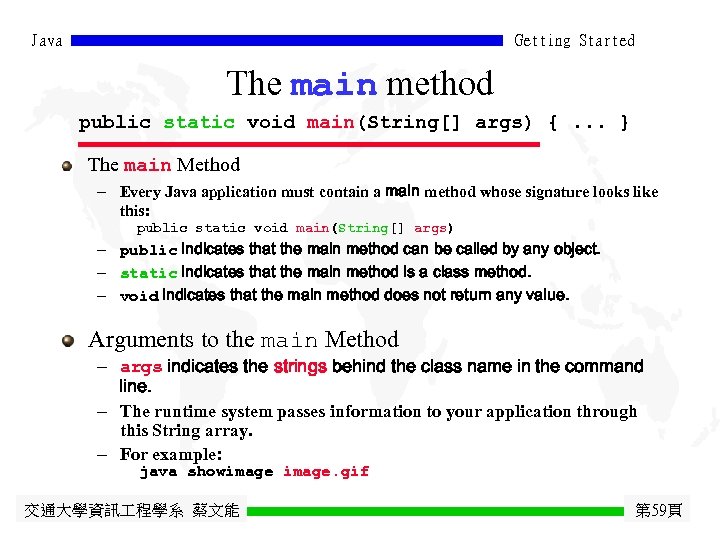

Java Getting Started The main method public static void main(String[] args) {. . . } The main Method - Every Java application must contain a main method whose signature looks like this: public static void main(String[] args) - public indicates that the main method can be called by any object. - static indicates that the main method is a class method. - void indicates that the main method does not return any value. Arguments to the main Method - args indicates the strings behind the class name in the command line. - The runtime system passes information to your application through this String array. - For example: java showimage. gif 交通大學資訊程學系蔡文能第 59頁

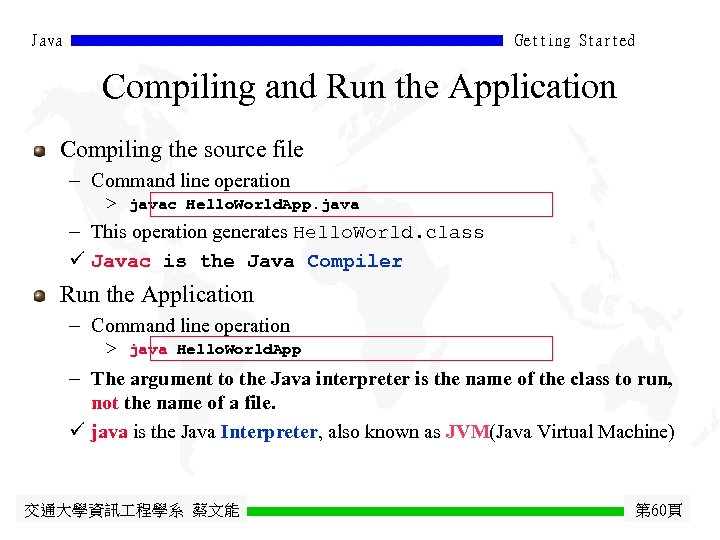

Java Getting Started Compiling and Run the Application Compiling the source file - Command line operation > javac Hello. World. App. java - This operation generates Hello. World. class ü Javac is the Java Compiler Run the Application - Command line operation > java Hello. World. App - The argument to the Java interpreter is the name of the class to run, not the name of a file. ü java is the Java Interpreter, also known as JVM(Java Virtual Machine) 交通大學資訊程學系蔡文能第 60頁

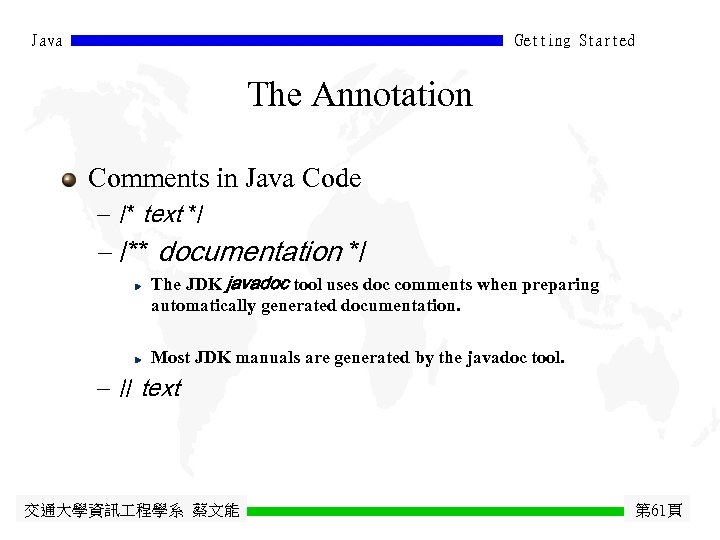

Java Getting Started The Annotation Comments in Java Code - /* text */ - /** documentation */ The JDK javadoc tool uses doc comments when preparing automatically generated documentation. Most JDK manuals are generated by the javadoc tool. - // text 交通大學資訊程學系蔡文能第 61頁

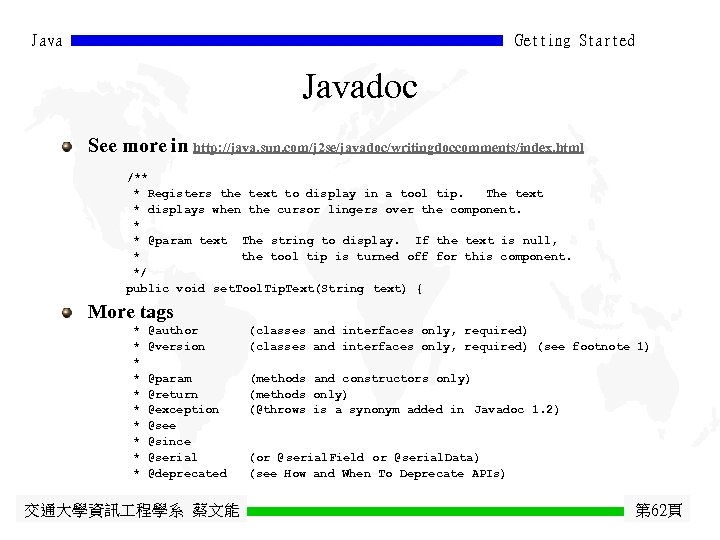

Java Getting Started Javadoc See more in http: //java. sun. com/j 2 se/javadoc/writingdoccomments/index. html /** * Registers the text to display in a tool tip. The text * displays when the cursor lingers over the component. * * @param text The string to display. If the text is null, * the tool tip is turned off for this component. */ public void set. Tool. Tip. Text(String text) { More tags * * * * * @author @version (classes and interfaces only, required) (see footnote 1) @param @return @exception @see @since @serial @deprecated (methods and constructors only) (methods only) (@throws is a synonym added in Javadoc 1. 2) 交通大學資訊程學系蔡文能 (or @serial. Field or @serial. Data) (see How and When To Deprecate APIs) 第 62頁

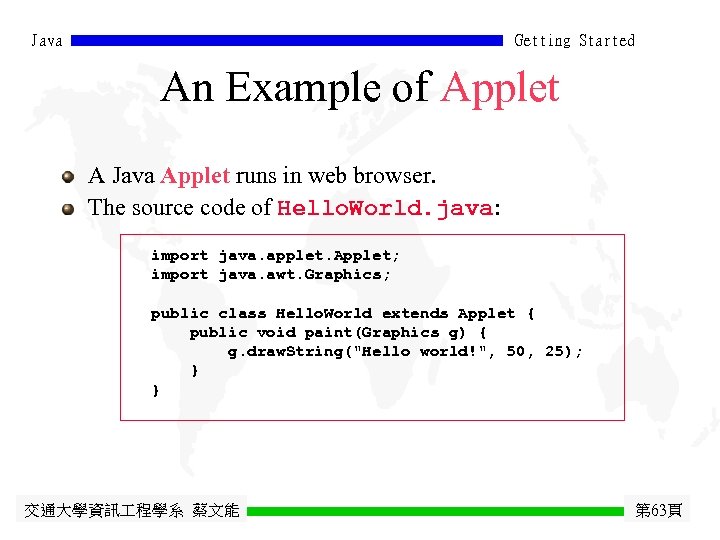

Java Getting Started An Example of Applet A Java Applet runs in web browser. The source code of Hello. World. java: import java. applet. Applet; import java. awt. Graphics; public class Hello. World extends Applet { public void paint(Graphics g) { g. draw. String("Hello world!", 50, 25); } } 交通大學資訊程學系蔡文能第 63頁

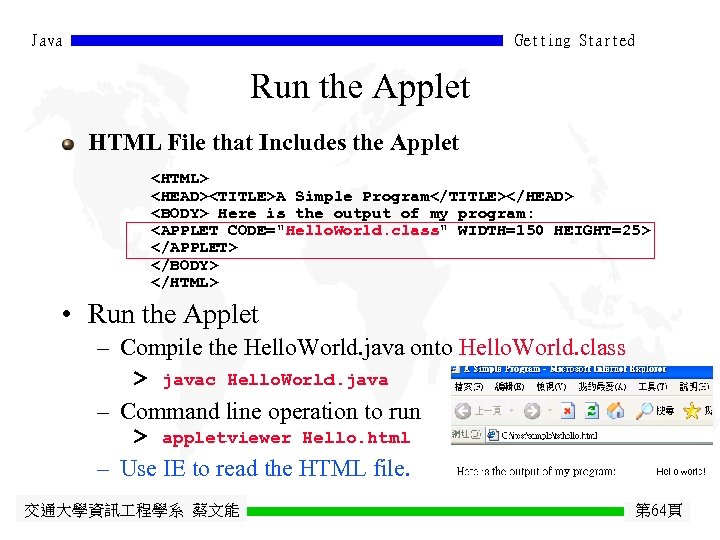

Java Getting Started Run the Applet HTML File that Includes the Applet <HTML> <HEAD><TITLE>A Simple Program</TITLE></HEAD> <BODY> Here is the output of my program: <APPLET CODE="Hello. World. class" WIDTH=150 HEIGHT=25> </APPLET> </BODY> </HTML> • Run the Applet – Compile the Hello. World. java onto Hello. World. class > javac Hello. World. java – Command line operation to run > appletviewer Hello. html – Use IE to read the HTML file. 交通大學資訊程學系蔡文能第 64頁

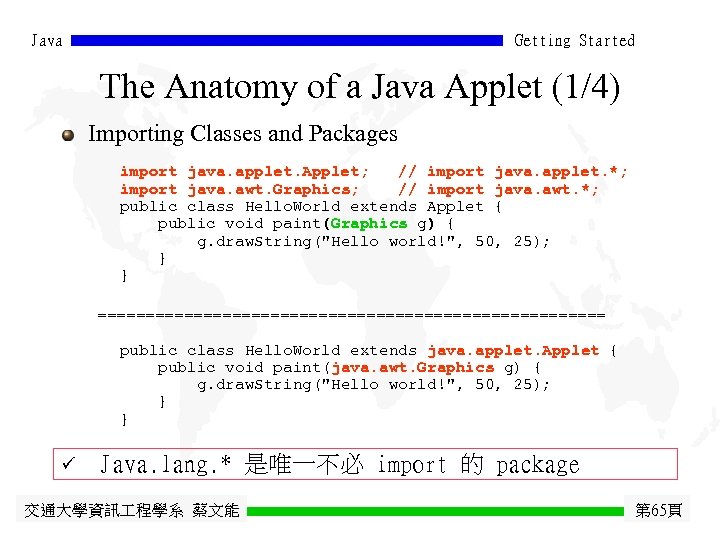

Java Getting Started The Anatomy of a Java Applet (1/4) Importing Classes and Packages import java. applet. Applet; // import java. applet. *; import java. awt. Graphics; // import java. awt. *; public class Hello. World extends Applet { public void paint(Graphics g) { g. draw. String("Hello world!", 50, 25); } } =========================== public class Hello. World extends java. applet. Applet { public void paint(java. awt. Graphics g) { g. draw. String("Hello world!", 50, 25); } } ü Java. lang. * 是唯一不必 import 的 package 交通大學資訊程學系蔡文能第 65頁

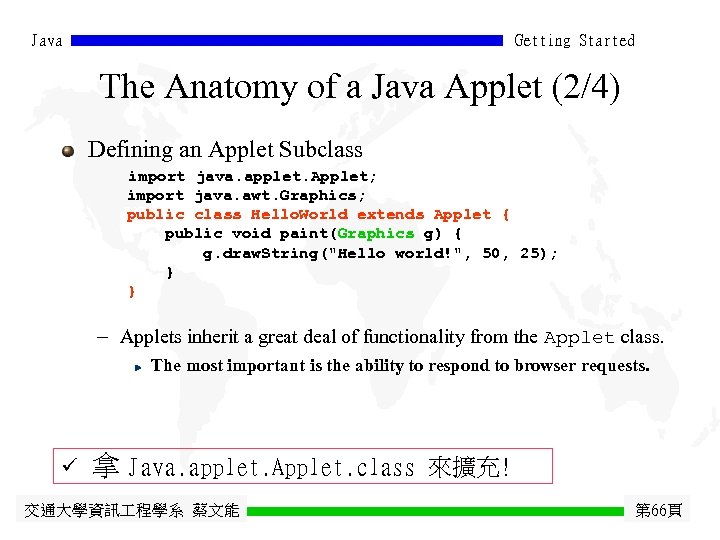

Java Getting Started The Anatomy of a Java Applet (2/4) Defining an Applet Subclass import java. applet. Applet; import java. awt. Graphics; public class Hello. World extends Applet { public void paint(Graphics g) { g. draw. String("Hello world!", 50, 25); } } - Applets inherit a great deal of functionality from the Applet class. The most important is the ability to respond to browser requests. ü 拿 Java. applet. Applet. class 來擴充! 交通大學資訊程學系蔡文能第 66頁

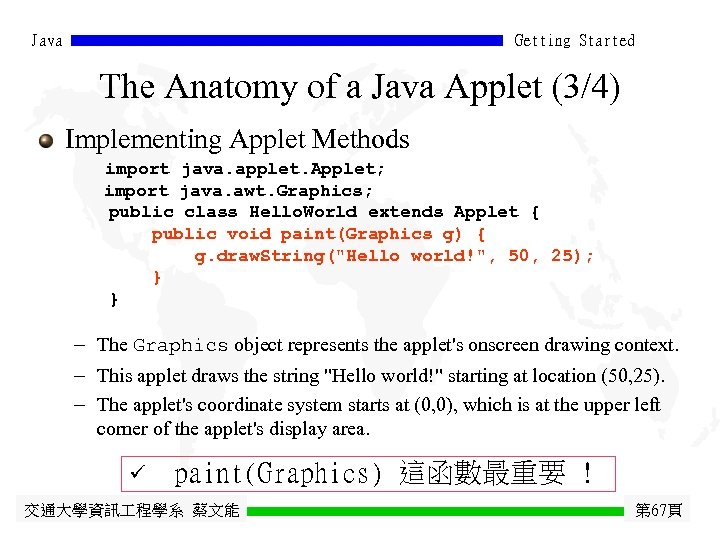

Java Getting Started The Anatomy of a Java Applet (3/4) Implementing Applet Methods import java. applet. Applet; import java. awt. Graphics; public class Hello. World extends Applet { public void paint(Graphics g) { g. draw. String("Hello world!", 50, 25); } } - The Graphics object represents the applet's onscreen drawing context. - This applet draws the string "Hello world!" starting at location (50, 25). - The applet's coordinate system starts at (0, 0), which is at the upper left corner of the applet's display area. ü paint(Graphics) 這函數最重要 ! 交通大學資訊程學系蔡文能第 67頁

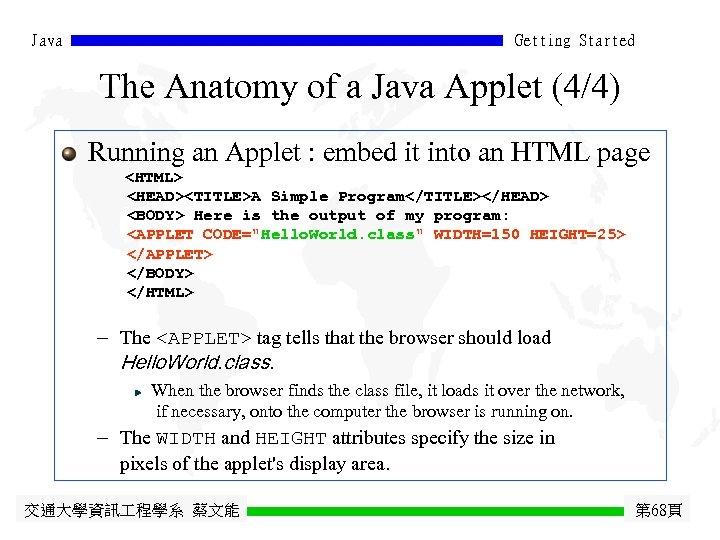

Java Getting Started The Anatomy of a Java Applet (4/4) Running an Applet : embed it into an HTML page <HTML> <HEAD><TITLE>A Simple Program</TITLE></HEAD> <BODY> Here is the output of my program: <APPLET CODE="Hello. World. class" WIDTH=150 HEIGHT=25> </APPLET> </BODY> </HTML> - The <APPLET> tag tells that the browser should load Hello. World. class. When the browser finds the class file, it loads it over the network, if necessary, onto the computer the browser is running on. - The WIDTH and HEIGHT attributes specify the size in pixels of the applet's display area. 交通大學資訊程學系蔡文能第 68頁

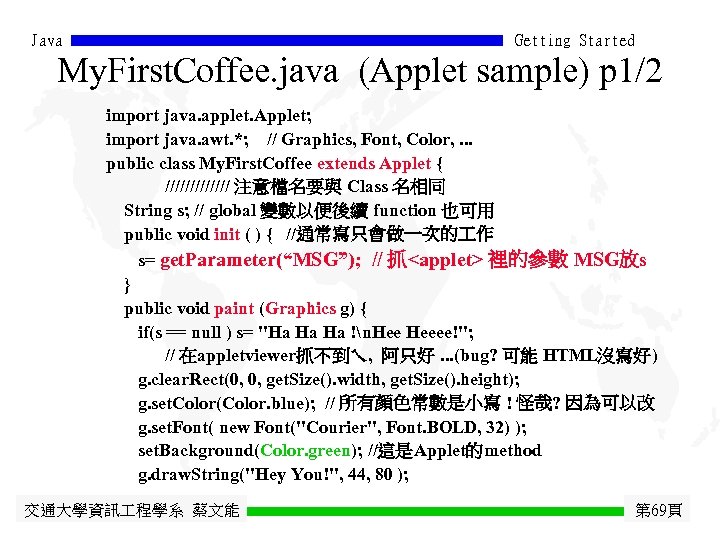

Java Getting Started My. First. Coffee. java (Applet sample) p 1/2 import java. applet. Applet; import java. awt. *; // Graphics, Font, Color, . . . public class My. First. Coffee extends Applet { /////// 注意檔名要與 Class 名相同 String s; // global 變數以便後續 function 也可用 public void init ( ) { //通常寫只會做一次的作 s= get. Parameter(“MSG”); // 抓<applet> 裡的參數 MSG放s } public void paint (Graphics g) { if(s == null ) s= "Ha Ha Ha !n. Heeee!"; // 在appletviewer抓不到ㄟ, 阿只好. . . (bug? 可能 HTML沒寫好) g. clear. Rect(0, 0, get. Size(). width, get. Size(). height); g. set. Color(Color. blue); // 所有顏色常數是小寫 ! 怪哉? 因為可以改 g. set. Font( new Font("Courier", Font. BOLD, 32) ); set. Background(Color. green); //這是Applet的method g. draw. String("Hey You!", 44, 80 ); 交通大學資訊程學系蔡文能第 69頁

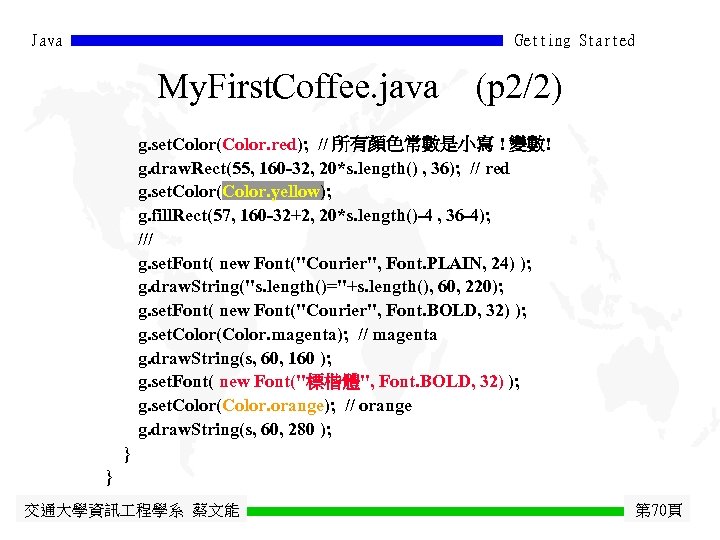

Java Getting Started My. First. Coffee. java (p 2/2) g. set. Color(Color. red); // 所有顏色常數是小寫 ! 變數! g. draw. Rect(55, 160 -32, 20*s. length() , 36); // red g. set. Color(Color. yellow); g. fill. Rect(57, 160 -32+2, 20*s. length()-4 , 36 -4); /// g. set. Font( new Font("Courier", Font. PLAIN, 24) ); g. draw. String("s. length()="+s. length(), 60, 220); g. set. Font( new Font("Courier", Font. BOLD, 32) ); g. set. Color(Color. magenta); // magenta g. draw. String(s, 60, 160 ); g. set. Font( new Font("標楷體", Font. BOLD, 32) ); g. set. Color(Color. orange); // orange g. draw. String(s, 60, 280 ); } } 交通大學資訊程學系蔡文能第 70頁

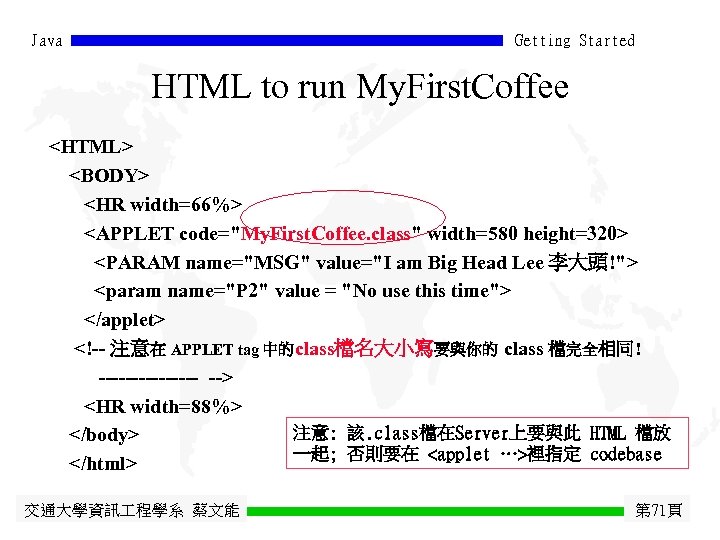

Java Getting Started HTML to run My. First. Coffee <HTML> <BODY> <HR width=66%> <APPLET code="My. First. Coffee. class" width=580 height=320> <PARAM name="MSG" value="I am Big Head Lee 李大頭!"> <param name="P 2" value = "No use this time"> </applet>  <HR width=88%> 注意: 該. class檔在Server上要與此 HTML 檔放 </body> 一起; 否則要在 <applet …>裡指定 codebase </html> 交通大學資訊程學系蔡文能第 71頁

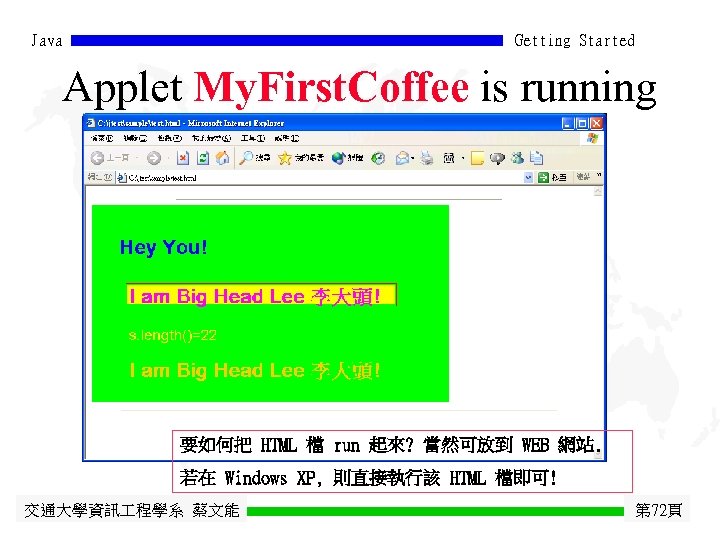

Java Getting Started Applet My. First. Coffee is running 要如何把 HTML 檔 run 起來? 當然可放到 WEB 網站. 若在 Windows XP, 則直接執行該 HTML 檔即可! 交通大學資訊程學系蔡文能第 72頁

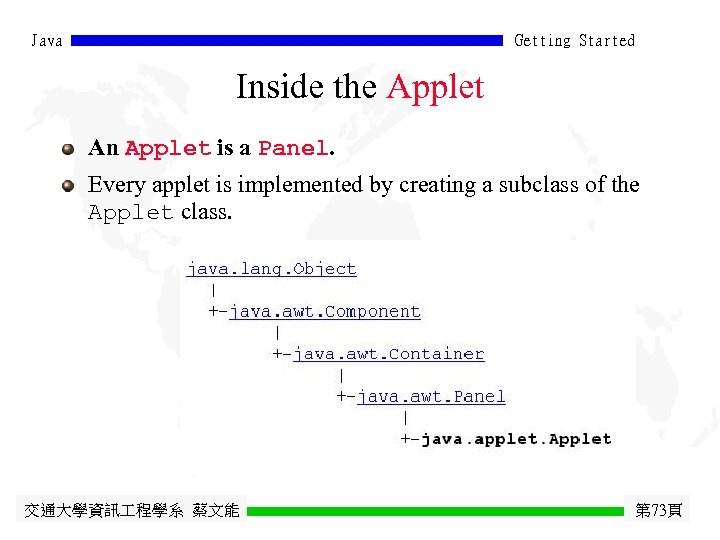

Java Getting Started Inside the Applet An Applet is a Panel. Every applet is implemented by creating a subclass of the Applet class. 交通大學資訊程學系蔡文能第 73頁

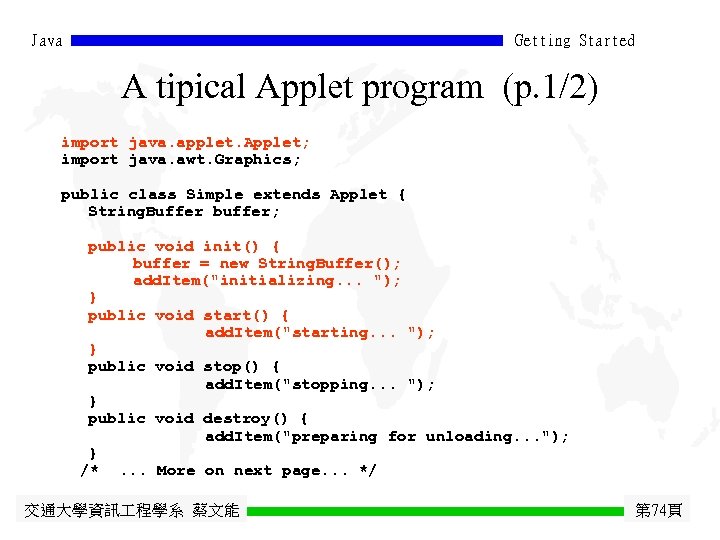

Java Getting Started A tipical Applet program (p. 1/2) import java. applet. Applet; import java. awt. Graphics; public class Simple extends Applet { String. Buffer buffer; public void init() { buffer = new String. Buffer(); add. Item("initializing. . . "); } public void start() { add. Item("starting. . . "); } public void stop() { add. Item("stopping. . . "); } public void destroy() { add. Item("preparing for unloading. . . "); } /*. . . More on next page. . . */ 交通大學資訊程學系蔡文能第 74頁

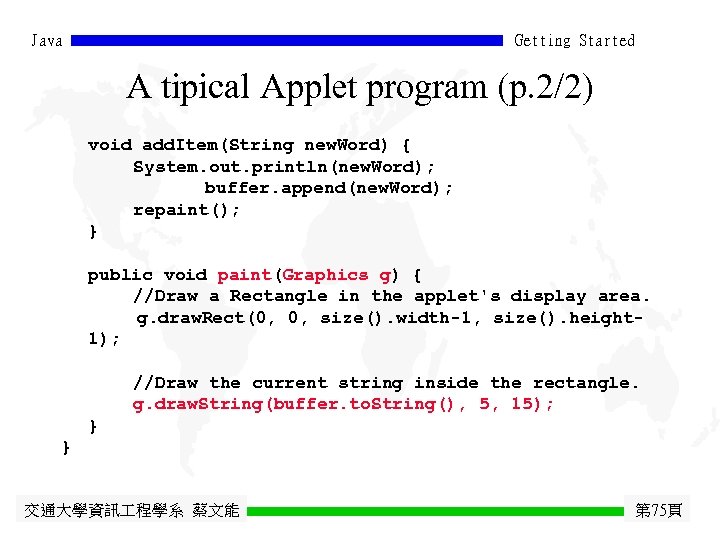

Java Getting Started A tipical Applet program (p. 2/2) void add. Item(String new. Word) { System. out. println(new. Word); buffer. append(new. Word); repaint(); } public void paint(Graphics g) { //Draw a Rectangle in the applet's display area. g. draw. Rect(0, 0, size(). width-1, size(). height 1); //Draw the current string inside the rectangle. g. draw. String(buffer. to. String(), 5, 15); } } 交通大學資訊程學系蔡文能第 75頁

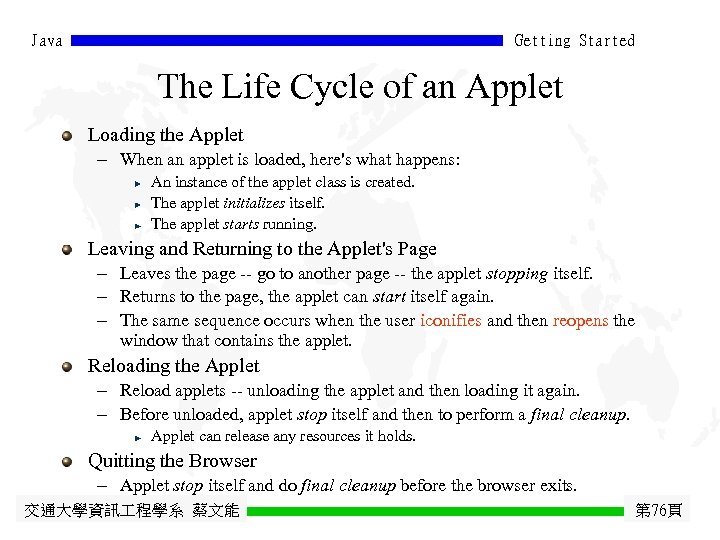

Java Getting Started The Life Cycle of an Applet Loading the Applet - When an applet is loaded, here's what happens: An instance of the applet class is created. The applet initializes itself. The applet starts running. Leaving and Returning to the Applet's Page - Leaves the page -- go to another page -- the applet stopping itself. - Returns to the page, the applet can start itself again. - The same sequence occurs when the user iconifies and then reopens the window that contains the applet. Reloading the Applet - Reload applets -- unloading the applet and then loading it again. - Before unloaded, applet stop itself and then to perform a final cleanup. Applet can release any resources it holds. Quitting the Browser - Applet stop itself and do final cleanup before the browser exits. 交通大學資訊程學系蔡文能第 76頁

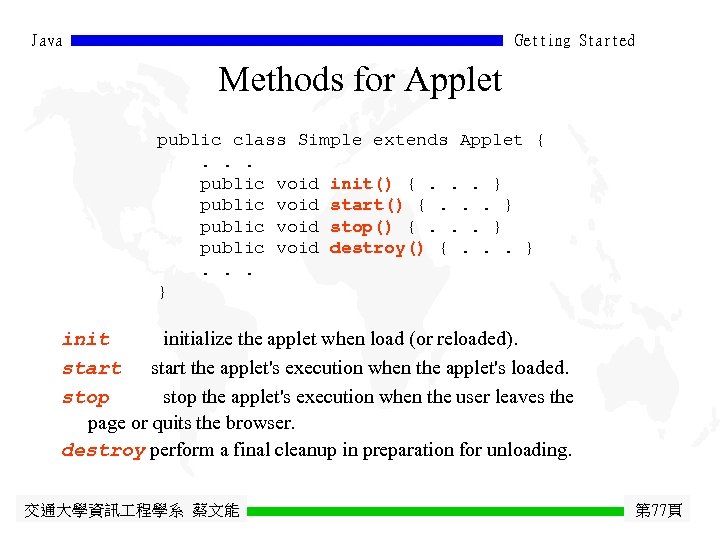

Java Getting Started Methods for Applet public class Simple extends Applet {. . . public void init() {. . . } public void start() {. . . } public void stop() {. . . } public void destroy() {. . . } initialize the applet when load (or reloaded). start the applet's execution when the applet's loaded. stop the applet's execution when the user leaves the page or quits the browser. destroy perform a final cleanup in preparation for unloading. 交通大學資訊程學系蔡文能第 77頁

Java Getting Started Drawing and Event Handling class Simple extends Applet {. . . public void paint(Graphics g) {. . . } paint - The basic display method. update - A method you can use along with paint to improve drawing performance. - The default one will clear the screen and then call paint(). So, this may cause blinking. 交通大學資訊程學系蔡文能第 78頁

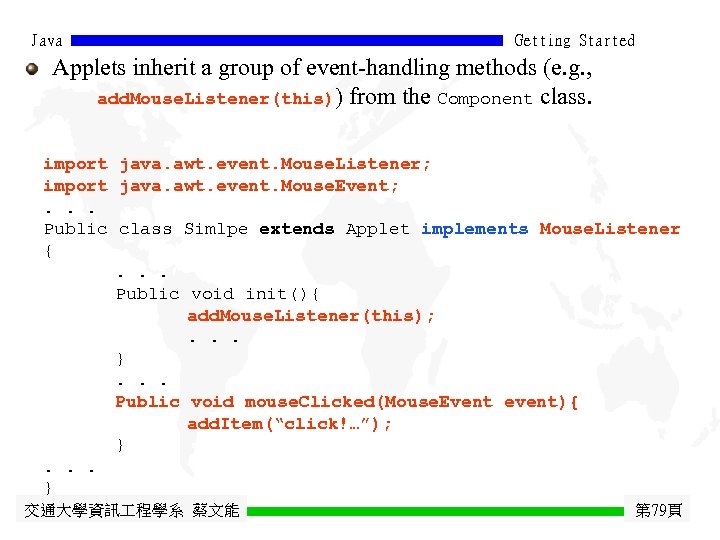

Java Getting Started Applets inherit a group of event-handling methods (e. g. , add. Mouse. Listener(this)) from the Component class. import java. awt. event. Mouse. Listener; import java. awt. event. Mouse. Event; . . . Public class Simlpe extends Applet implements Mouse. Listener {. . . Public void init(){ add. Mouse. Listener(this); . . . }. . . Public void mouse. Clicked(Mouse. Event event){ add. Item(“click!…”); }. . . } 交通大學資訊程學系蔡文能第 79頁

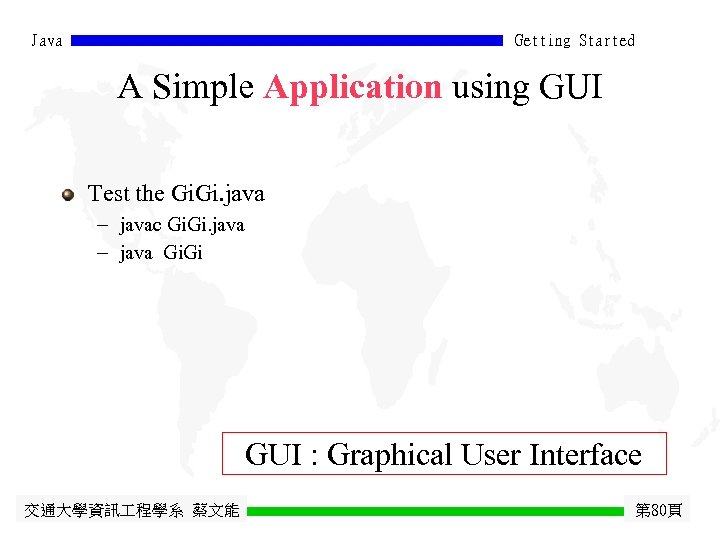

Java Getting Started A Simple Application using GUI Test the Gi. java - javac Gi. java - java Gi. Gi GUI : Graphical User Interface 交通大學資訊程學系蔡文能第 80頁

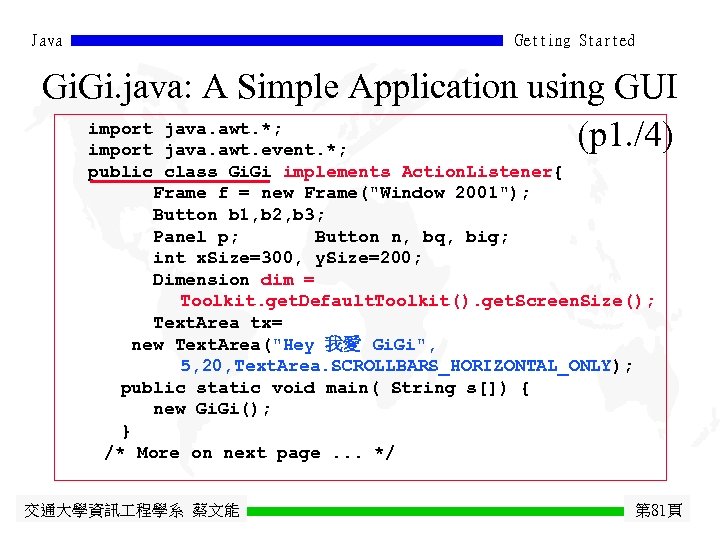

Java Getting Started Gi. java: A Simple Application using GUI import java. awt. *; (p 1. /4) import java. awt. event. *; public class Gi. Gi implements Action. Listener{ Frame f = new Frame("Window 2001"); Button b 1, b 2, b 3; Panel p; Button n, bq, big; int x. Size=300, y. Size=200; Dimension dim = Toolkit. get. Default. Toolkit(). get. Screen. Size(); Text. Area tx= new Text. Area("Hey 我愛 Gi. Gi", 5, 20, Text. Area. SCROLLBARS_HORIZONTAL_ONLY); public static void main( String s[]) { new Gi. Gi(); } /* More on next page. . . */ 交通大學資訊程學系蔡文能第 81頁

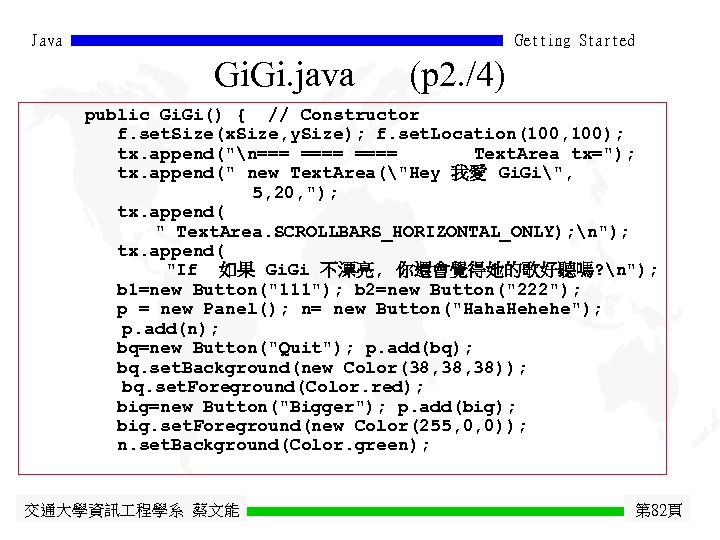

Java Getting Started Gi. java (p 2. /4) public Gi. Gi() { // Constructor f. set. Size(x. Size, y. Size); f. set. Location(100, 100); tx. append("n=== ==== Text. Area tx="); tx. append(" new Text. Area("Hey 我愛 Gi. Gi", 5, 20, "); tx. append( " Text. Area. SCROLLBARS_HORIZONTAL_ONLY); n"); tx. append( "If 如果 Gi. Gi 不漂亮, 你還會覺得她的歌好聽嗎? n"); b 1=new Button("111"); b 2=new Button("222"); p = new Panel(); n= new Button("Haha. Hehehe"); p. add(n); bq=new Button("Quit"); p. add(bq); bq. set. Background(new Color(38, 38)); bq. set. Foreground(Color. red); big=new Button("Bigger"); p. add(big); big. set. Foreground(new Color(255, 0, 0)); n. set. Background(Color. green); 交通大學資訊程學系蔡文能第 82頁

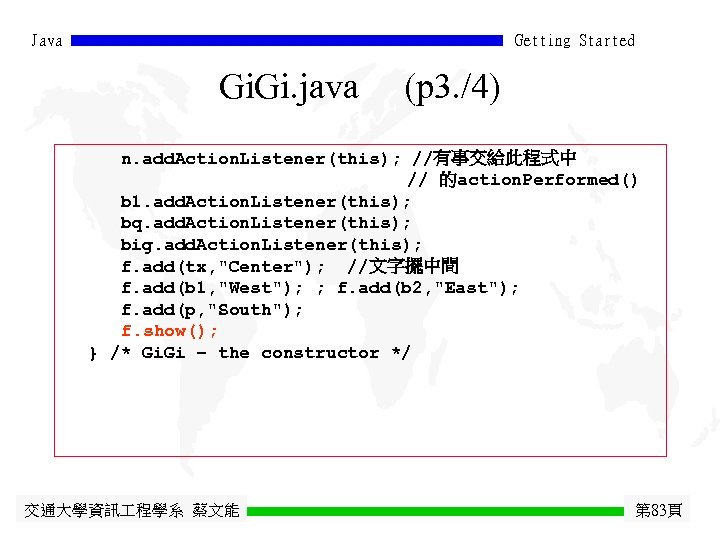

Java Getting Started Gi. java (p 3. /4) n. add. Action. Listener(this); //有事交給此程式中 // 的action. Performed() b 1. add. Action. Listener(this); bq. add. Action. Listener(this); big. add. Action. Listener(this); f. add(tx, "Center"); //文字擺中間 f. add(b 1, "West"); ; f. add(b 2, "East"); f. add(p, "South"); f. show(); } /* Gi. Gi – the constructor */ 交通大學資訊程學系蔡文能第 83頁

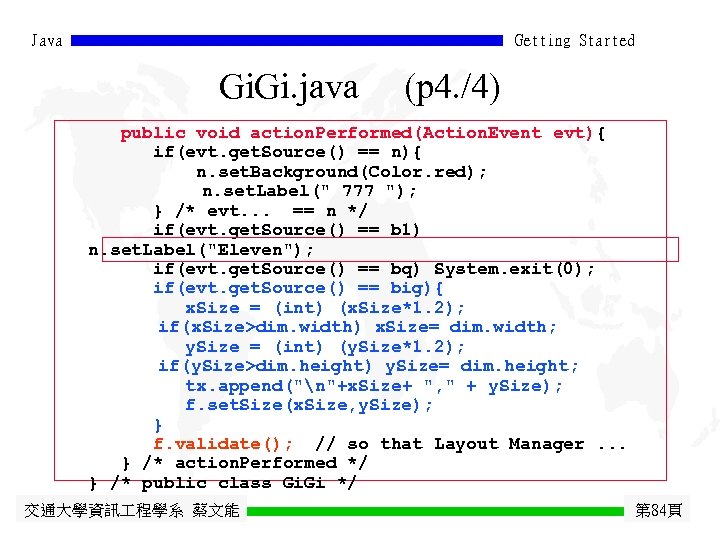

Java Getting Started Gi. java (p 4. /4) public void action. Performed(Action. Event evt){ if(evt. get. Source() == n){ n. set. Background(Color. red); n. set. Label(" 777 "); } /* evt. . . == n */ if(evt. get. Source() == b 1) n. set. Label("Eleven"); if(evt. get. Source() == bq) System. exit(0); if(evt. get. Source() == big){ x. Size = (int) (x. Size*1. 2); if(x. Size>dim. width) x. Size= dim. width; y. Size = (int) (y. Size*1. 2); if(y. Size>dim. height) y. Size= dim. height; tx. append("n"+x. Size+ ", " + y. Size); f. set. Size(x. Size, y. Size); } f. validate(); // so that Layout Manager. . . } /* action. Performed */ } /* public class Gi. Gi */ 交通大學資訊程學系蔡文能第 84頁

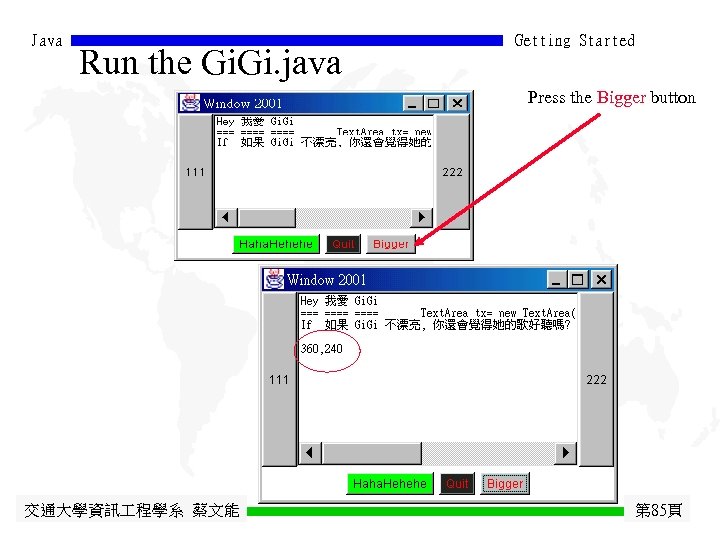

Java Run the Gi. java Getting Started Press the Bigger button 交通大學資訊程學系蔡文能第 85頁

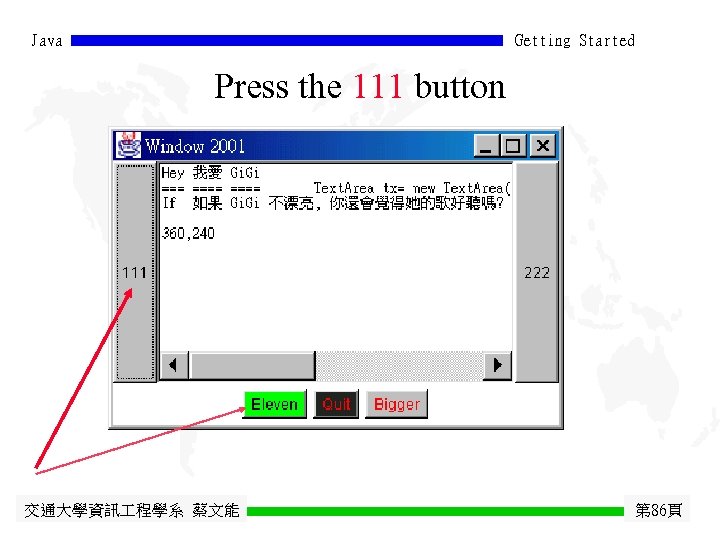

Java Getting Started Press the 111 button 交通大學資訊程學系蔡文能第 86頁

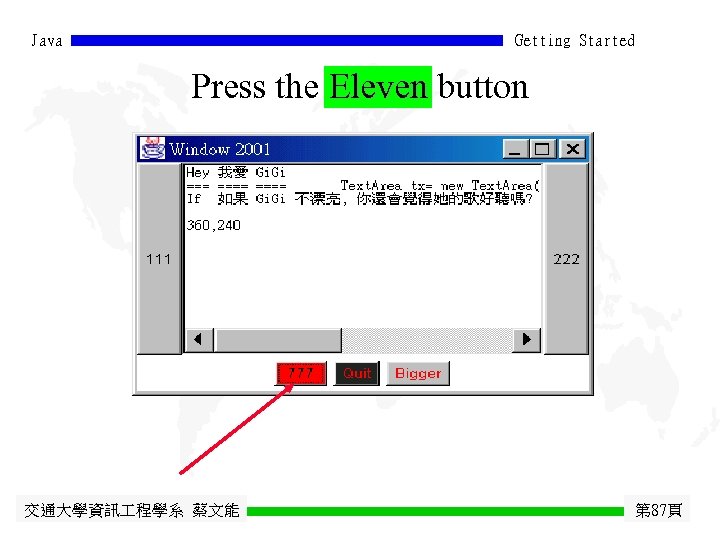

Java Getting Started Press the Eleven button Eleven 交通大學資訊程學系蔡文能第 87頁

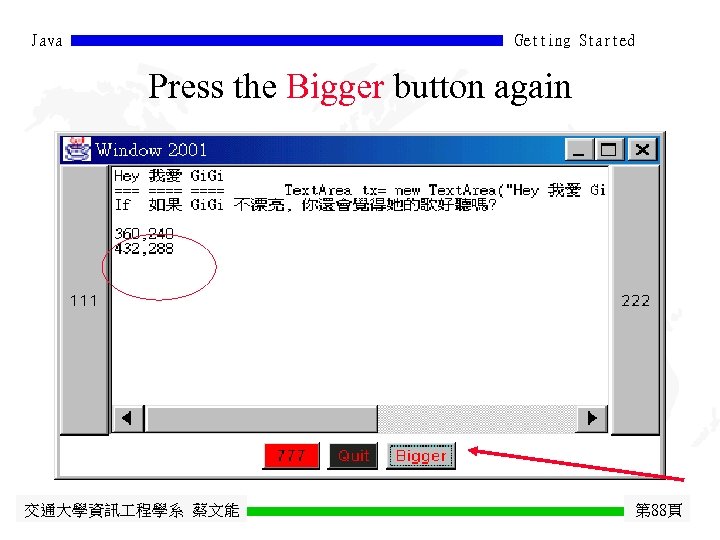

Java Getting Started Press the Bigger button again 交通大學資訊程學系蔡文能第 88頁

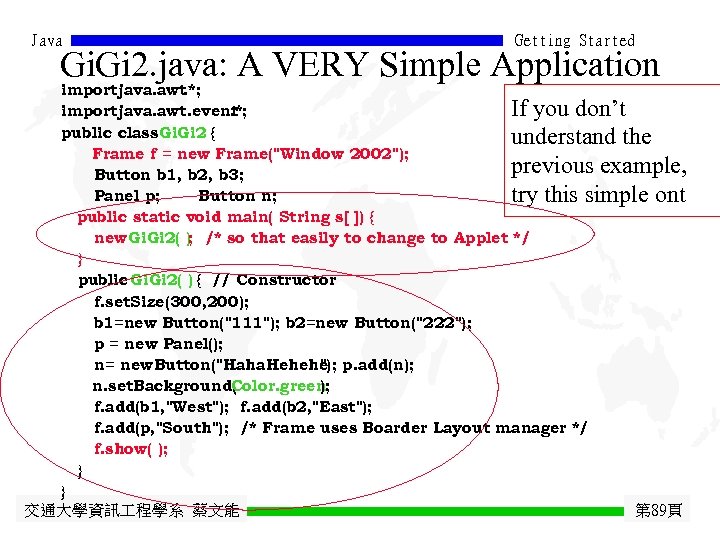

Java Getting Started Gi. Gi 2. java: A VERY Simple Application importjava. awt. *; If you don’t importjava. awt. event. *; public class Gi. Gi 2 { understand the Frame f = new Frame("Window 2002"); previous example, Button b 1, b 2, b 3; Panel p; Button n; try this simple ont public static void main( String s[ ]) { new Gi. Gi 2( ); /* so that easily to change to Applet */ } public Gi. Gi 2( ) { // Constructor f. set. Size(300, 200); b 1=new Button("111"); b 2=new Button("222"); p = new Panel(); n= new Button("Haha. Hehehe); p. add(n); " n. set. Background( olor. green C ); f. add(b 1, "West"); f. add(b 2, "East"); f. add(p, "South"); /* Frame uses Boarder Layout manager */ f. show( ); } } 交通大學資訊程學系蔡文能第 89頁

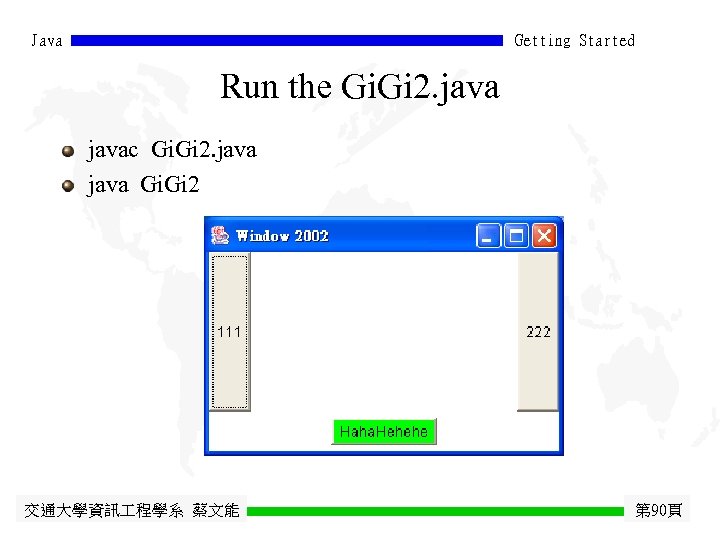

Java Getting Started Run the Gi. Gi 2. javac Gi. Gi 2. java Gi. Gi 2 交通大學資訊程學系蔡文能第 90頁

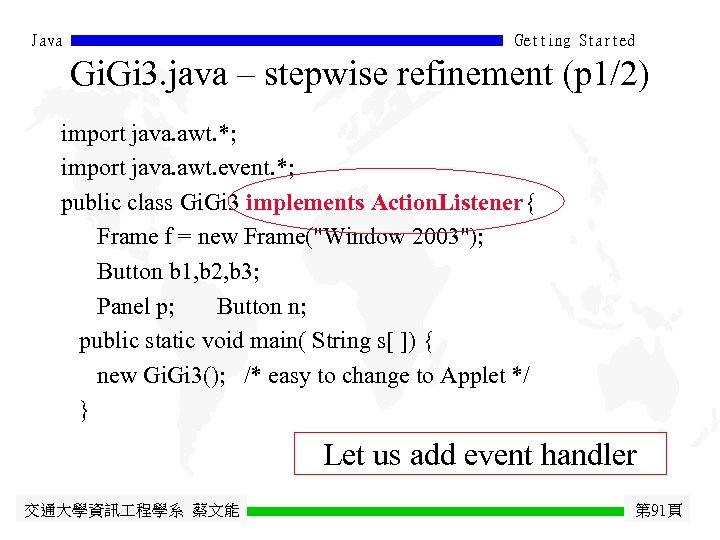

Java Getting Started Gi. Gi 3. java – stepwise refinement (p 1/2) import java. awt. *; import java. awt. event. *; public class Gi. Gi 3 implements Action. Listener{ Frame f = new Frame("Window 2003"); Button b 1, b 2, b 3; Panel p; Button n; public static void main( String s[ ]) { new Gi. Gi 3(); /* easy to change to Applet */ } Let us add event handler 交通大學資訊程學系蔡文能第 91頁

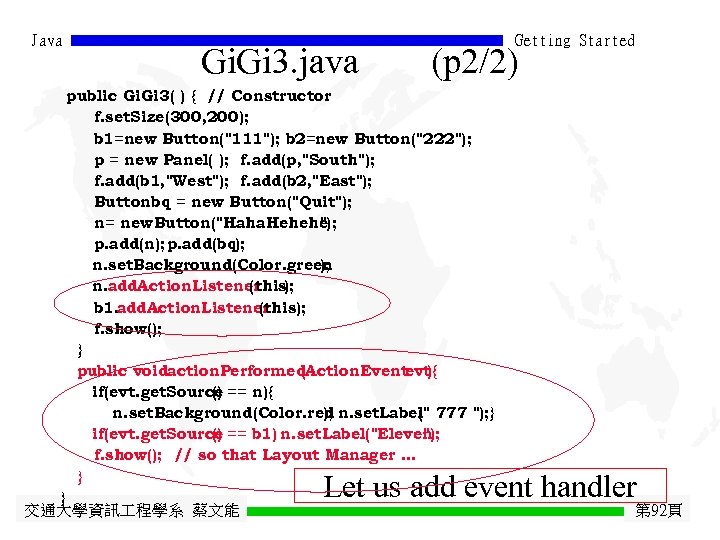

Java Getting Started Gi. Gi 3. java (p 2/2) public Gi. Gi 3( ) { // Constructor f. set. Size(300, 200); b 1=new Button("111"); b 2=new Button("222"); p = new Panel( ); f. add(p, "South"); f. add(b 1, "West"); f. add(b 2, "East"); Buttonbq = new Button("Quit"); n= new Button("Haha. Hehehe); " p. add(n); p. add(bq); n. set. Background(Color. green ); n. add. Action. Listener (this); b 1. add. Action. Listener (this); f. show(); } public voidaction. Performed (Action. Event ){ evt if(evt. get. Source == n){ () n. set. Background(Color. red n. set. Label" 777 "); } ); ( if(evt. get. Source == b 1) n. set. Label("Eleven); () " f. show(); // so that Layout Manager. . . } } 交通大學資訊程學系蔡文能 Let us add event handler 第 92頁

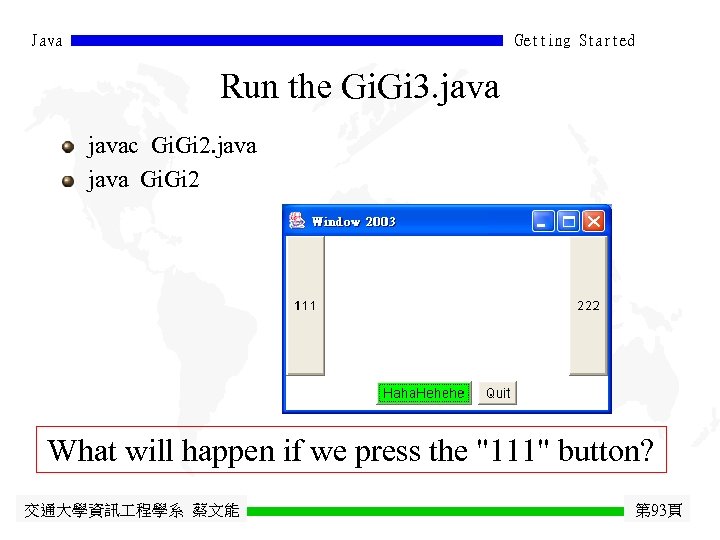

Java Getting Started Run the Gi. Gi 3. javac Gi. Gi 2. java Gi. Gi 2 What will happen if we press the "111" button? 交通大學資訊程學系蔡文能第 93頁

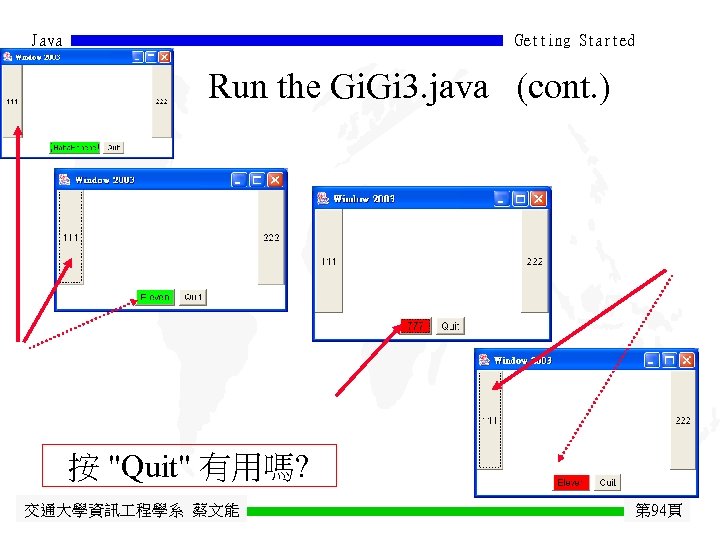

Java Getting Started Run the Gi. Gi 3. java (cont. ) 按 "Quit" 有用嗎? 交通大學資訊程學系蔡文能第 94頁

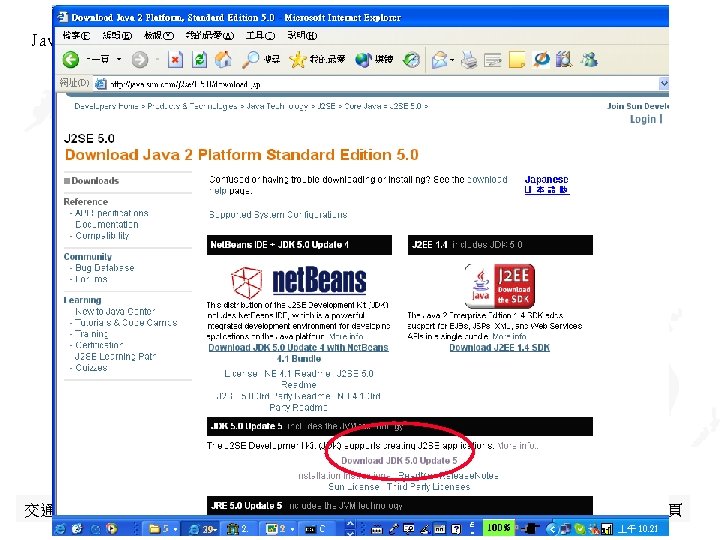

Java JDK : J 2 SDK Getting Started http: //java. sun. com/j 2 se/ 交通大學資訊程學系蔡文能第 95頁

Java 交通大學資訊程學系蔡文能 Getting Started 第 96頁

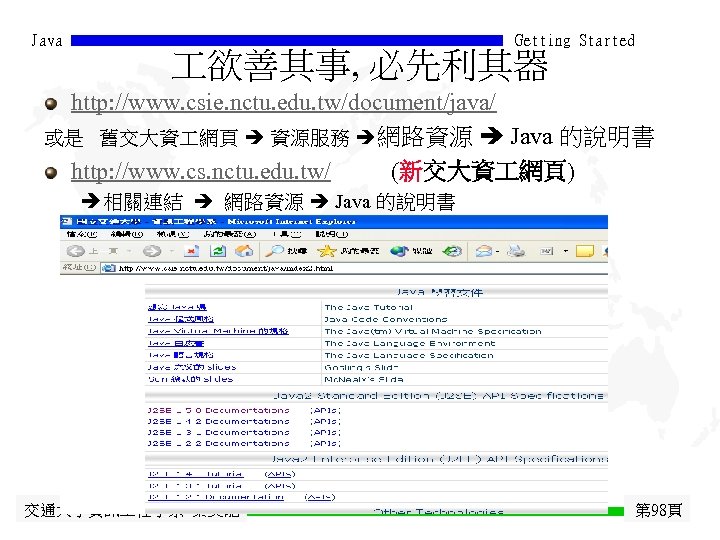

Java Getting Started 欲善其事, 必先利其器 http: //www. csie. nctu. edu. tw/document/java/ 或是舊交大資網頁資源服務網路資源 Java 的說明書 http: //www. cs. nctu. edu. tw/ (新交大資網頁) 相關連結網路資源 Java 的說明書交通大學資訊程學系蔡文能第 98頁

Java Getting Started Introduction to Java Programming 謝謝捧場 http: //www. csie. nctu. edu. tw/~tsaiwn/course/java/ 蔡文能 http: //tsaiwn. net/course/java/ 交通大學資訊程學系蔡文能第 99頁

Java Take a break Started Take a break Getting 交通大學資訊程學系蔡文能江蕙_一嘴乾一杯第 100頁
