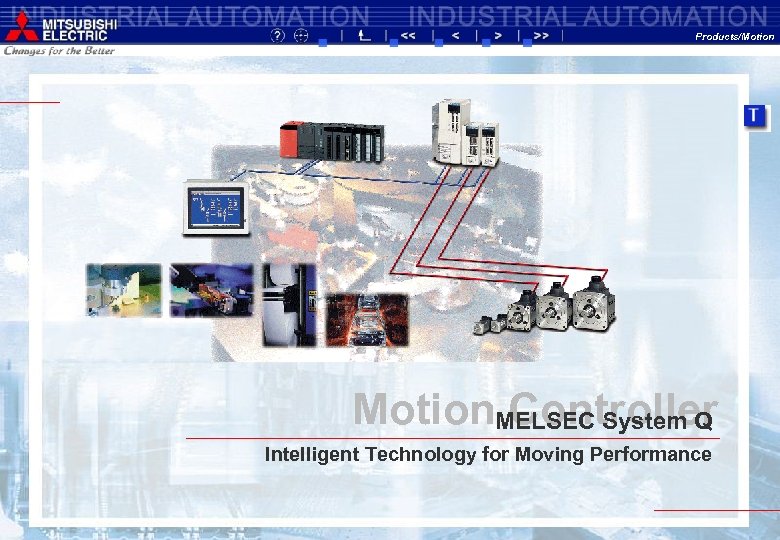

Products Motion MELSEC System Q Controller Intelligent Technology for

Products/Motion. MELSEC System Q Controller Intelligent Technology for Moving Performance

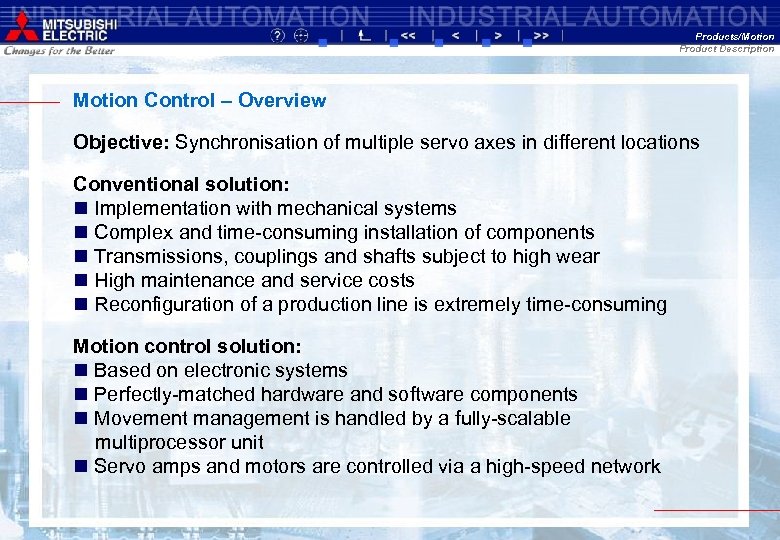

Products/Motion Product Description Motion Control – Overview Objective: Synchronisation of multiple servo axes in different locations Conventional solution: n Implementation with mechanical systems n Complex and time-consuming installation of components n Transmissions, couplings and shafts subject to high wear n High maintenance and service costs n Reconfiguration of a production line is extremely time-consuming Motion control solution: n Based on electronic systems n Perfectly-matched hardware and software components n Movement management is handled by a fully-scalable multiprocessor unit n Servo amps and motors are controlled via a high-speed network

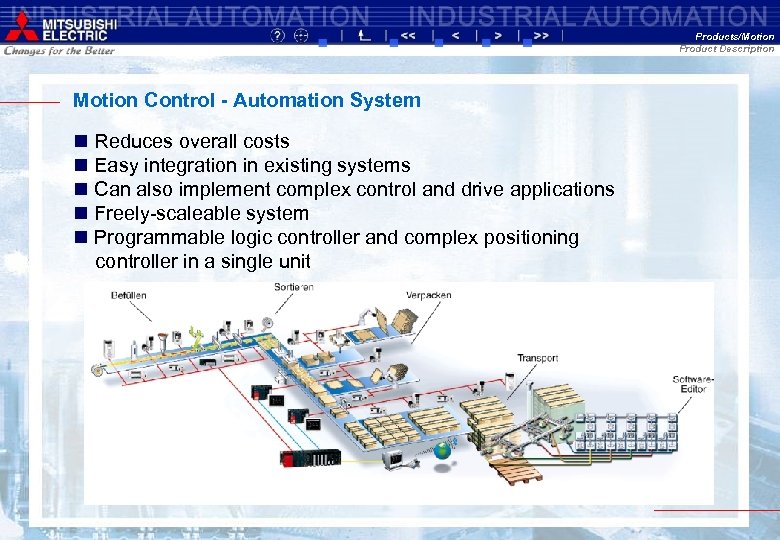

Products/Motion Product Description Motion Control - Automation System n Reduces overall costs n Easy integration in existing systems n Can also implement complex control and drive applications n Freely-scaleable system n Programmable logic controller and complex positioning controller in a single unit

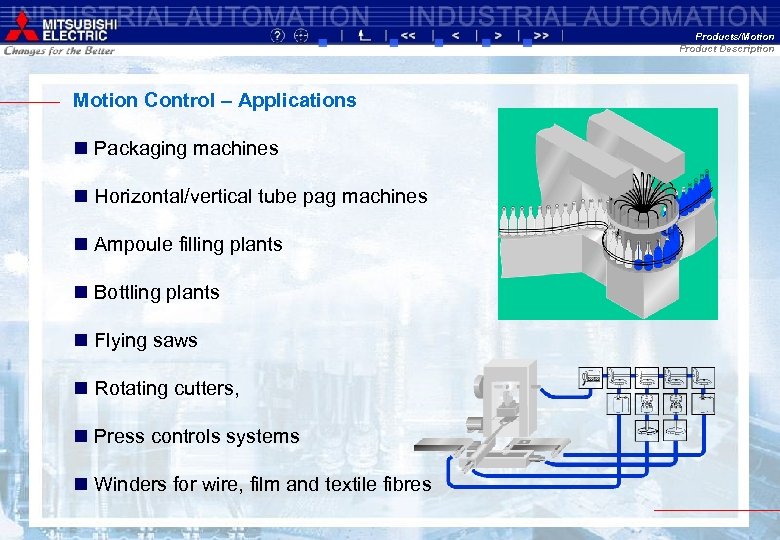

Products/Motion Product Description Motion Control – Applications n Packaging machines n Horizontal/vertical tube pag machines n Ampoule filling plants n Bottling plants n Flying saws n Rotating cutters, n Press controls systems n Winders for wire, film and textile fibres

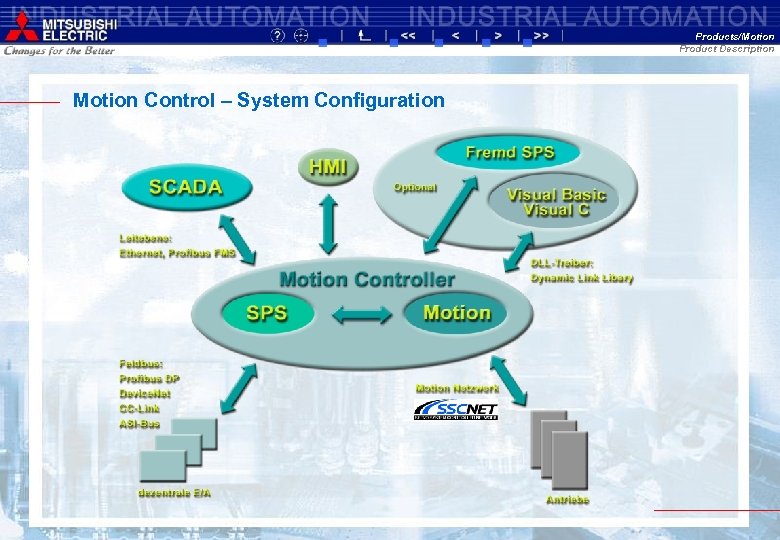

Products/Motion Product Description Motion Control – System Configuration

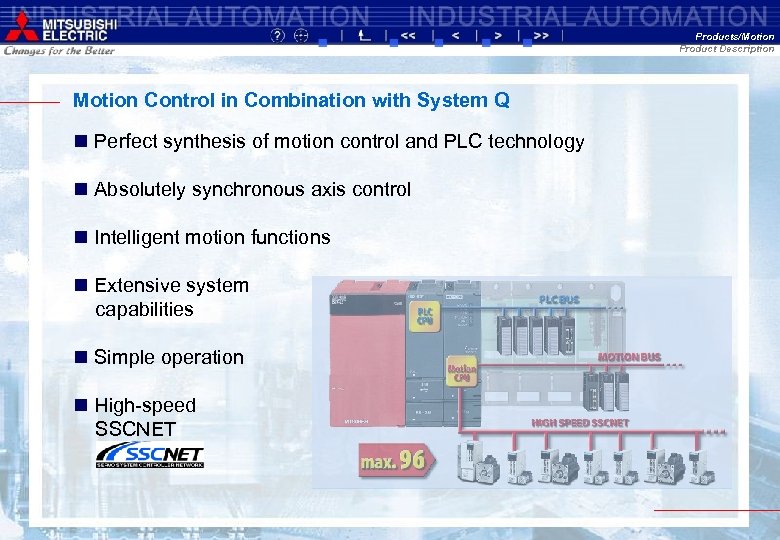

Products/Motion Product Description Motion Control in Combination with System Q n Perfect synthesis of motion control and PLC technology n Absolutely synchronous axis control n Intelligent motion functions n Extensive system capabilities n Simple operation n High-speed SSCNET

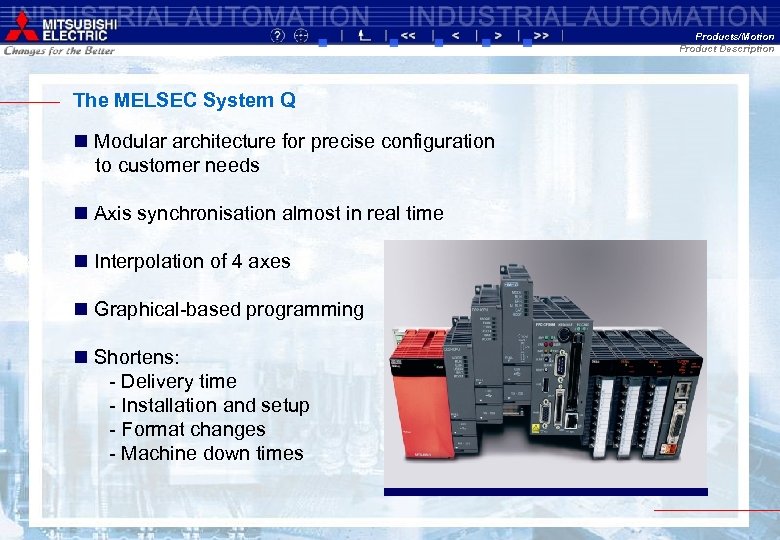

Products/Motion Product Description The MELSEC System Q n Modular architecture for precise configuration to customer needs n Axis synchronisation almost in real time n Interpolation of 4 axes n Graphical-based programming n Shortens: - Delivery time - Installation and setup - Format changes - Machine down times

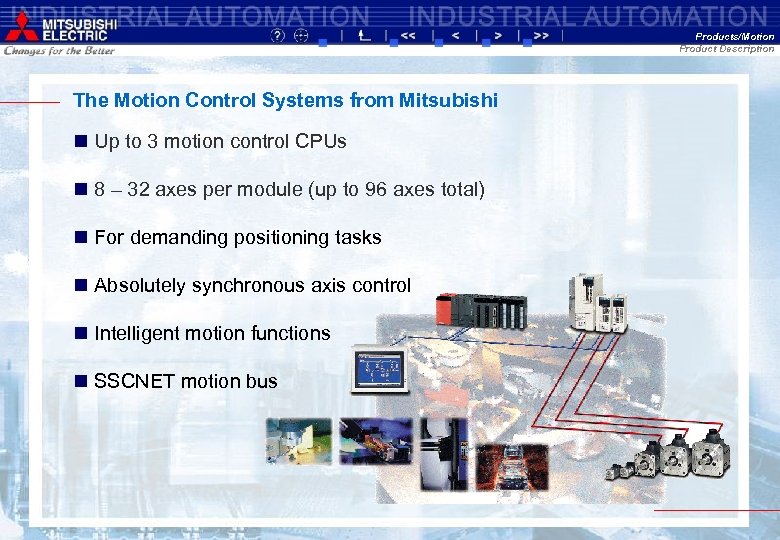

Products/Motion Product Description The Motion Control Systems from Mitsubishi n Up to 3 motion control CPUs n 8 – 32 axes per module (up to 96 axes total) n For demanding positioning tasks n Absolutely synchronous axis control n Intelligent motion functions n SSCNET motion bus

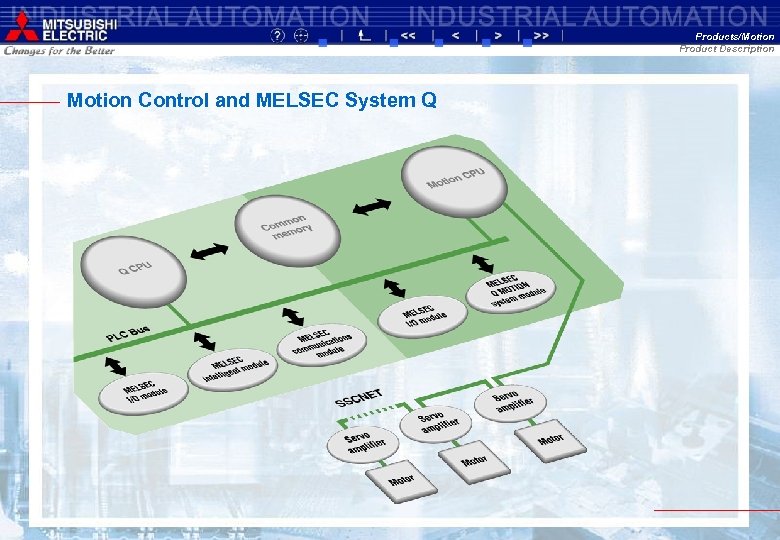

Products/Motion Product Description Motion Control and MELSEC System Q

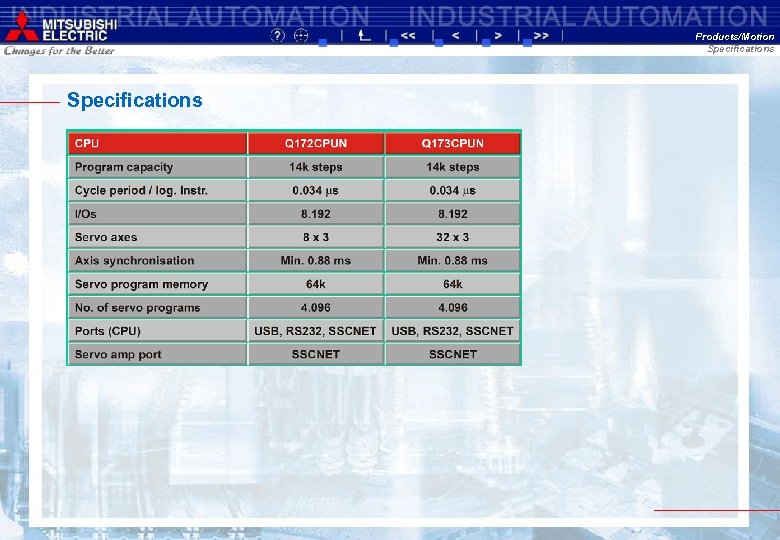

Products/Motion Specifications

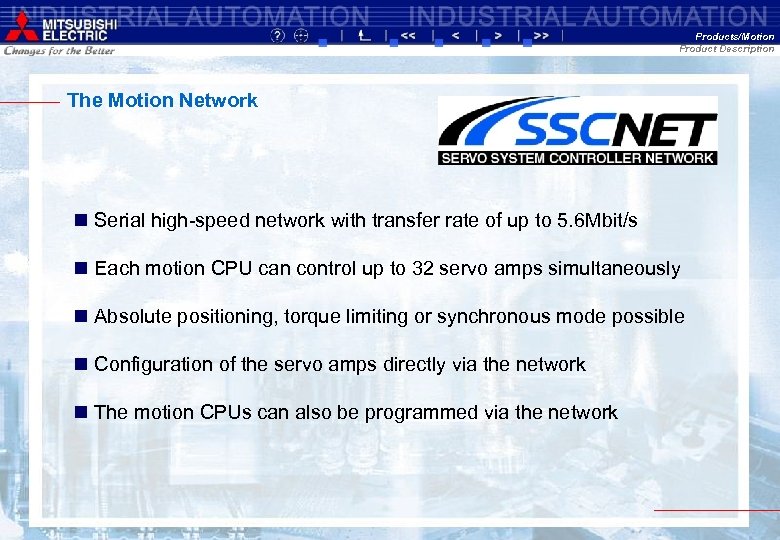

Products/Motion Product Description The Motion Network n Serial high-speed network with transfer rate of up to 5. 6 Mbit/s n Each motion CPU can control up to 32 servo amps simultaneously n Absolute positioning, torque limiting or synchronous mode possible n Configuration of the servo amps directly via the network n The motion CPUs can also be programmed via the network

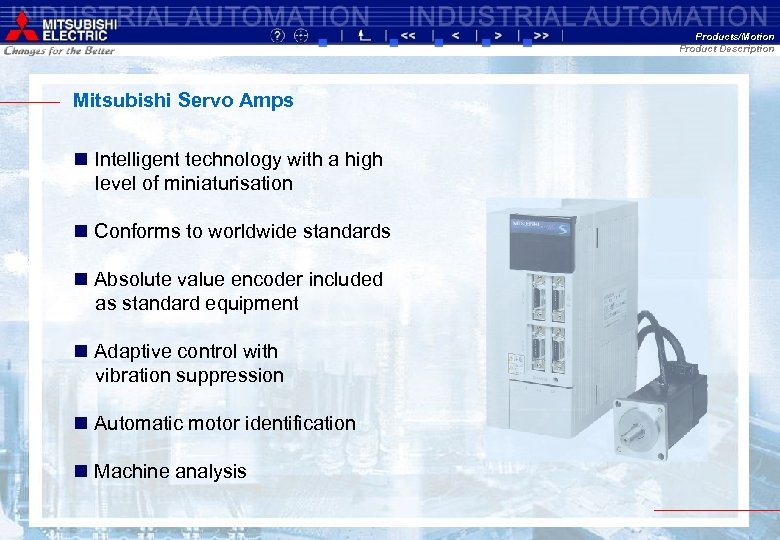

Products/Motion Product Description Mitsubishi Servo Amps n Intelligent technology with a high level of miniaturisation n Conforms to worldwide standards n Absolute value encoder included as standard equipment n Adaptive control with vibration suppression n Automatic motor identification n Machine analysis

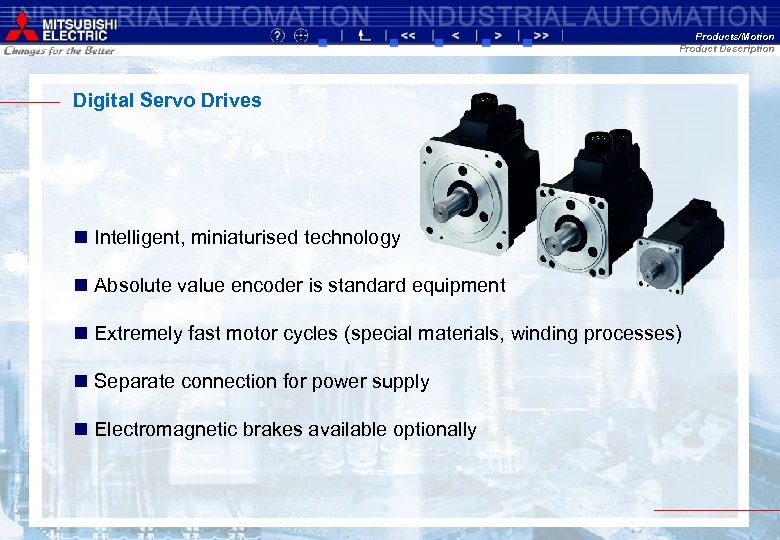

Products/Motion Product Description Digital Servo Drives n Intelligent, miniaturised technology n Absolute value encoder is standard equipment n Extremely fast motor cycles (special materials, winding processes) n Separate connection for power supply n Electromagnetic brakes available optionally

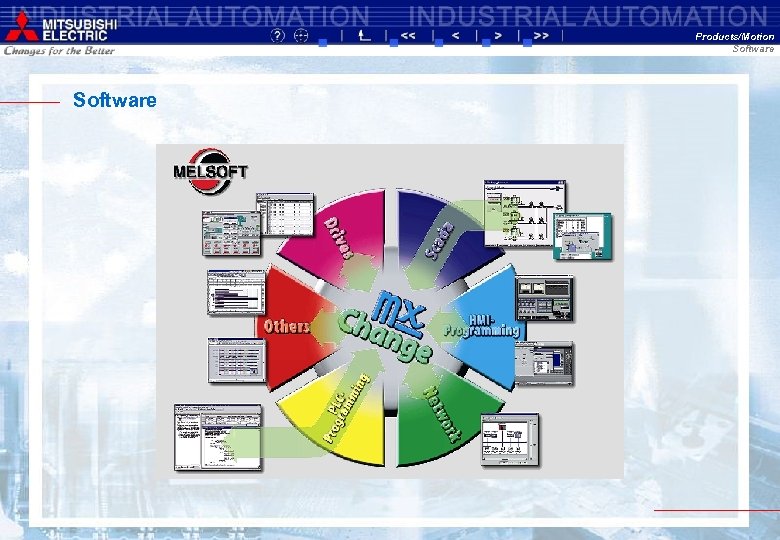

Products/Motion Software

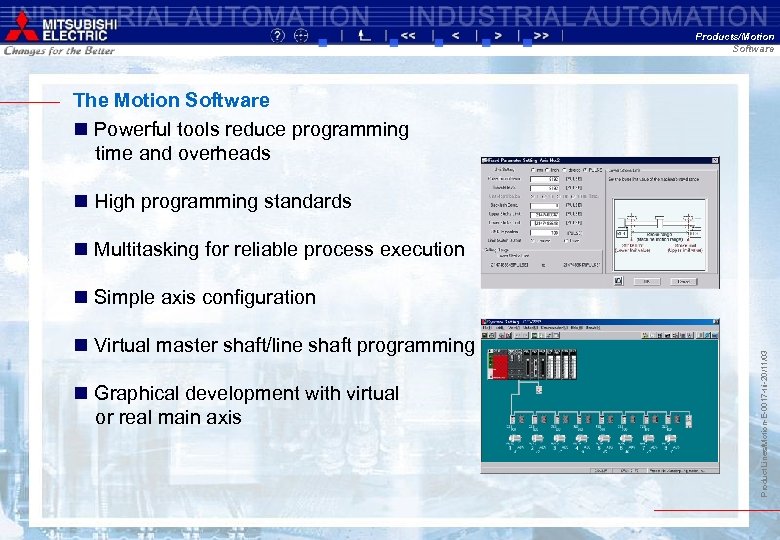

Products/Motion Software The Motion Software n Powerful tools reduce programming time and overheads n High programming standards n Multitasking for reliable process execution n Virtual master shaft/line shaft programming n Graphical development with virtual or real main axis Product Lines/Motion-E-0017 -tri-20/11/03 n Simple axis configuration

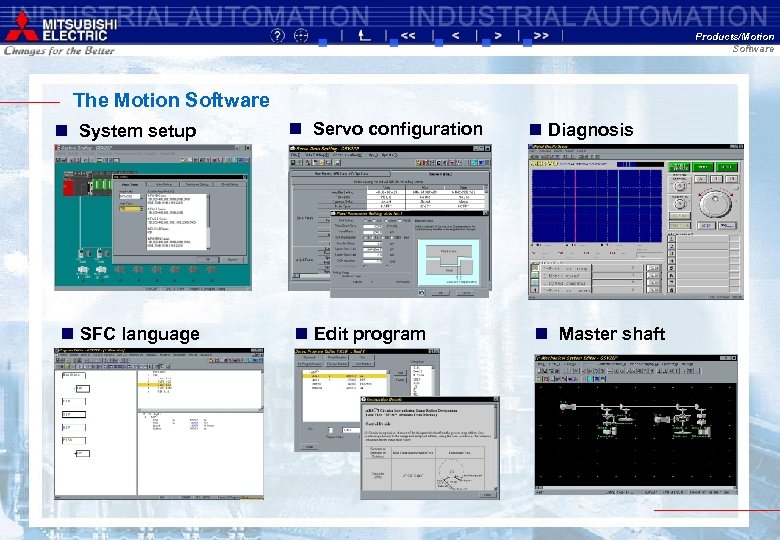

Products/Motion Software The Motion Software n System setup n SFC language n Servo configuration n Edit program n Diagnosis n Master shaft
