Productivity, scalability and professional image quality, all-in-one. Xerox® Color 560/570 Printer © 2013 Xerox Corporation. All rights reserved. Xerox® and Xerox and Design ® are trademarks of Xerox Corporation in the United States and/or other countries. 7/13 BR 6907 X 56 PA-01 UC

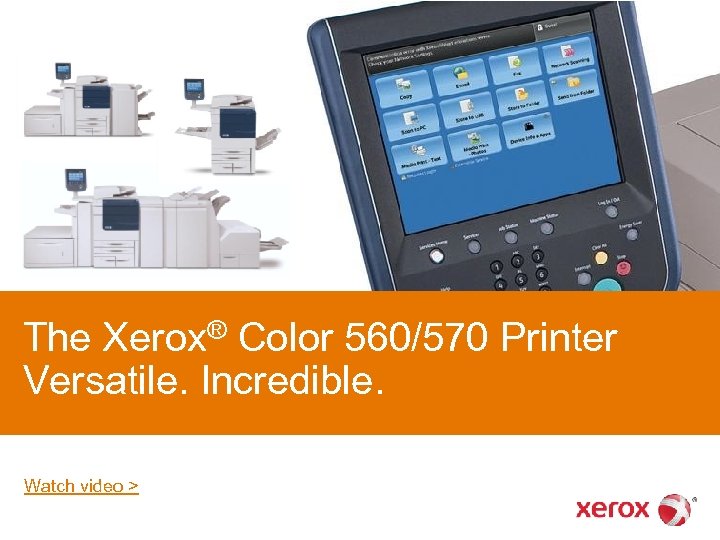

The Xerox® Color 560/570 Printer Versatile. Incredible. Watch video >

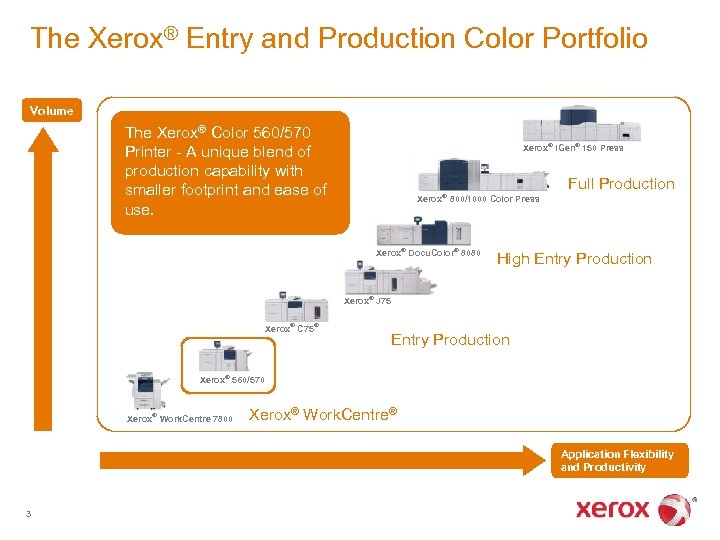

The Xerox® Entry and Production Color Portfolio Volume The Xerox® Color 560/570 Printer - A unique blend of production capability with smaller footprint and ease of use. Xerox® i. Gen® 150 Press Full Production Xerox® 800/1000 Color Press Xerox® Docu. Color® 8080 High Entry Production Xerox® J 75 Xerox® C 75® Entry Production Xerox® 560/570 Xerox® Work. Centre 7800 Xerox® Work. Centre® Application Flexibility and Productivity 3
The Xerox® Color 560/570 Printer The perfect fit for every environment. • Flexibility and productivity of a multifunction device. Creative and Production teams demand a higher level of quality and finishing. • Enterprise workflows reduce costs, improve productivity and security. • Superb image quality for high-value applications. • Flexible feeding and finishing options with modular design. • Production-level speed and media handling with outstanding color. • Affordably priced, it’s a great value for any business. • Highly Reliable – Certified by Buyer’s Laboratory International (BLI) - 1 misfeed / jam in 300, 000 reliability test. 4

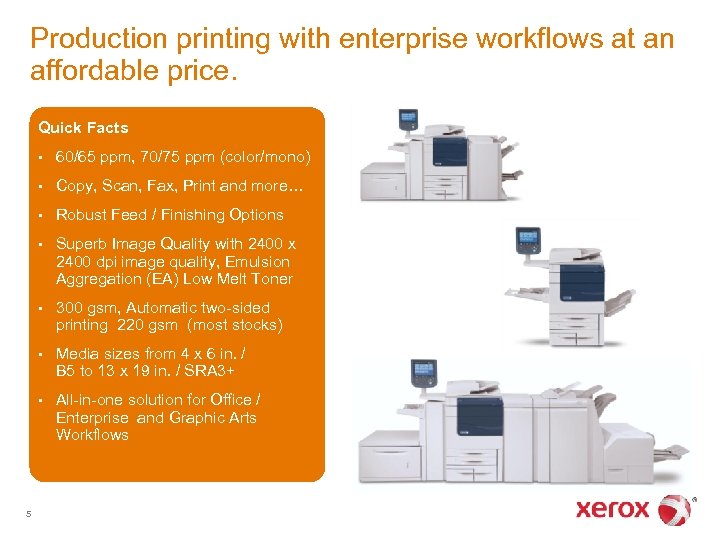

Production printing with enterprise workflows at an affordable price. Quick Facts • • Copy, Scan, Fax, Print and more… • Robust Feed / Finishing Options • Superb Image Quality with 2400 x 2400 dpi image quality, Emulsion Aggregation (EA) Low Melt Toner • 300 gsm, Automatic two-sided printing 220 gsm (most stocks) • Media sizes from 4 x 6 in. / B 5 to 13 x 19 in. / SRA 3+ • 5 60/65 ppm, 70/75 ppm (color/mono) All-in-one solution for Office / Enterprise and Graphic Arts Workflows

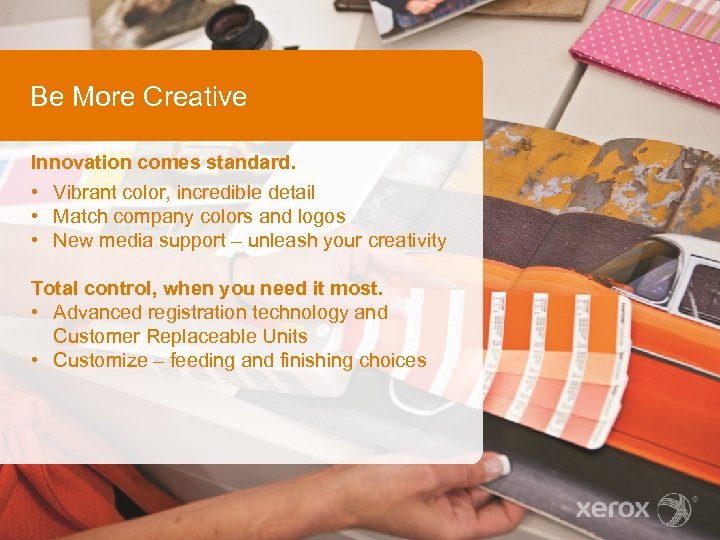

Be More Creative Innovation comes standard. • Vibrant color, incredible detail • Match company colors and logos • New media support – unleash your creativity Total control, when you need it most. • Advanced registration technology and Customer Replaceable Units • Customize – feeding and finishing choices

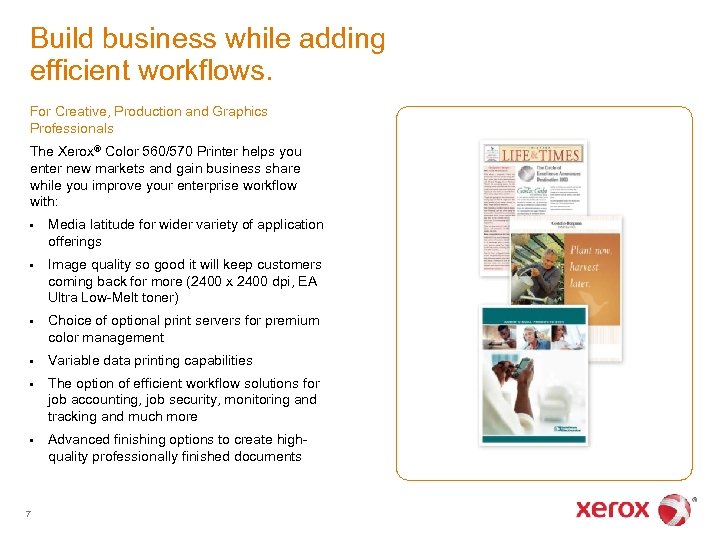

Build business while adding efficient workflows. For Creative, Production and Graphics Professionals The Xerox® Color 560/570 Printer helps you enter new markets and gain business share while you improve your enterprise workflow with: • Media latitude for wider variety of application offerings • Image quality so good it will keep customers coming back for more (2400 x 2400 dpi, EA Ultra Low-Melt toner) • Choice of optional print servers for premium color management • Variable data printing capabilities • The option of efficient workflow solutions for job accounting, job security, monitoring and tracking and much more • Advanced finishing options to create highquality professionally finished documents 7

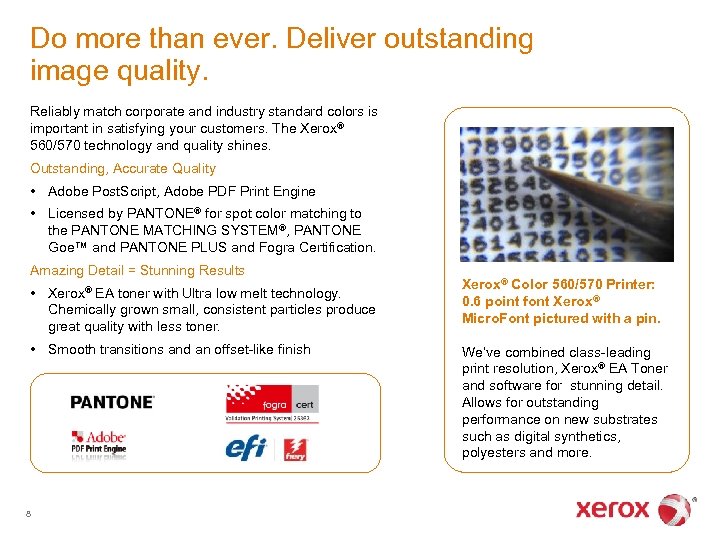

Do more than ever. Deliver outstanding image quality. Reliably match corporate and industry standard colors is important in satisfying your customers. The Xerox® 560/570 technology and quality shines. Outstanding, Accurate Quality • Adobe Post. Script, Adobe PDF Print Engine • Licensed by PANTONE® for spot color matching to the PANTONE MATCHING SYSTEM®, PANTONE Goe™ and PANTONE PLUS and Fogra Certification. Amazing Detail = Stunning Results • Xerox® EA toner with Ultra low melt technology. Chemically grown small, consistent particles produce great quality with less toner. • Smooth transitions and an offset-like finish 8 Xerox® Color 560/570 Printer: 0. 6 point font Xerox® Micro. Font pictured with a pin. We’ve combined class-leading print resolution, Xerox® EA Toner and software for stunning detail. Allows for outstanding performance on new substrates such as digital synthetics, polyesters and more.

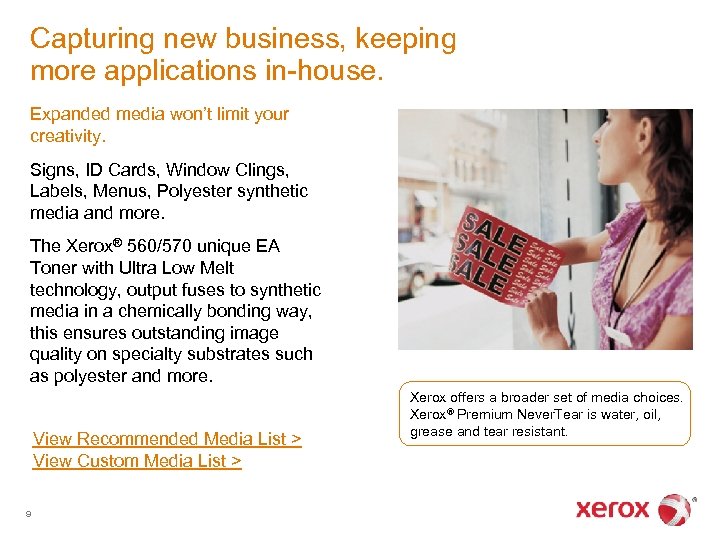

Capturing new business, keeping more applications in-house. Expanded media won’t limit your creativity. Signs, ID Cards, Window Clings, Labels, Menus, Polyester synthetic media and more. The Xerox® 560/570 unique EA Toner with Ultra Low Melt technology, output fuses to synthetic media in a chemically bonding way, this ensures outstanding image quality on specialty substrates such as polyester and more. View Recommended Media List > View Custom Media List > 9 Xerox offers a broader set of media choices. Xerox® Premium Never. Tear is water, oil, grease and tear resistant.

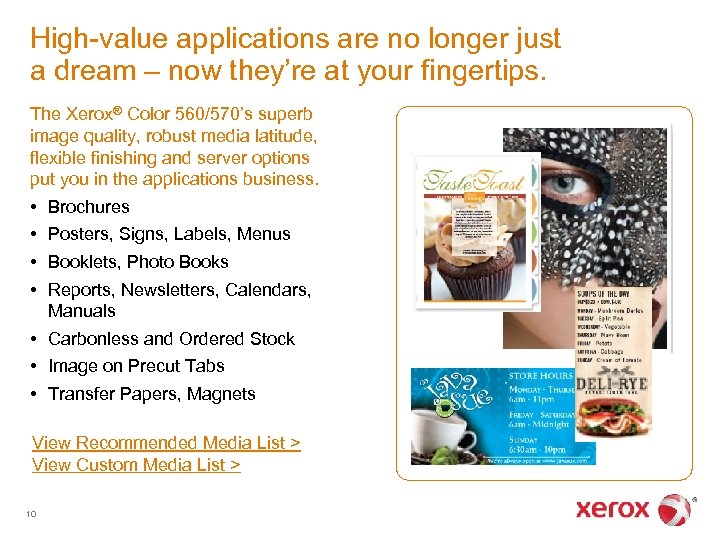

High-value applications are no longer just a dream – now they’re at your fingertips. The Xerox® Color 560/570’s superb image quality, robust media latitude, flexible finishing and server options put you in the applications business. • • Brochures Posters, Signs, Labels, Menus Booklets, Photo Books Reports, Newsletters, Calendars, Manuals • Carbonless and Ordered Stock • Image on Precut Tabs • Transfer Papers, Magnets View Recommended Media List > View Custom Media List > 10
Productivity starts with media. Four Internal Paper Trays* • Feed coated and uncoated media up to 220 gsm • Auto duplex coated and uncoated paper up to 65 lb. cover / 176 gsm all stocks, 80 lb. / 220 gsm most others) • Tray 1: 500 sheets, 5. 5 x 8. 5 in. / A 5 to 12 x 18 in. / SRA 3 • Tray 2: 500 sheets, 5. 5 x 8. 5 in. / A 5 to 11 x 17 in. / A 3 • Tray 3: 870 sheets, 8. 5 x 11 / A 4 plus 7. 25 x 10. 5 in. / B 5 • Tray 4: 1, 140 sheets, 8. 5 x 11 in. / A 4 plus 7. 25 x 10. 5 in. / B 5 Bypass Tray: 250 Sheets • Feeds up to 110 lb. cover / 300 gsm • Maximum sheet size 13 x 19. 2 in. / SRA 3+ • Designed for specialty media Optional High-Capacity Feeder (Letter / A 4 HCF) • 8. 5 x 11 in. / A 4 • 2, 000 sheets up to 80 lb. cover / 220 gsm * Based on 24 lb. /90 gsm bond Standard feed capacity of 3, 260 sheets (8. 5 x 11 in. / A 4) Optional capacity 7, 260
Oversized High Capacity Feeders (OHCF) More media and longer run times. Production trays bring longer unattended run time and more media for high-value, mixed media jobs. • Up for 4, 000 sheets (2, 000 per tray) • 18 lb. bond to 110 lb. cover / 64 to 300 gsm uncoated • 70 lb. text to 110 lb. cover / 106 to 300 gsm coated • Recommended when running large quantities of coated paper • Available with one or two trays 12 • Paper stabilizers minimize skew for custom size paper • Four blowers help feeding and improve reliability, roller system to prevent misfeeds

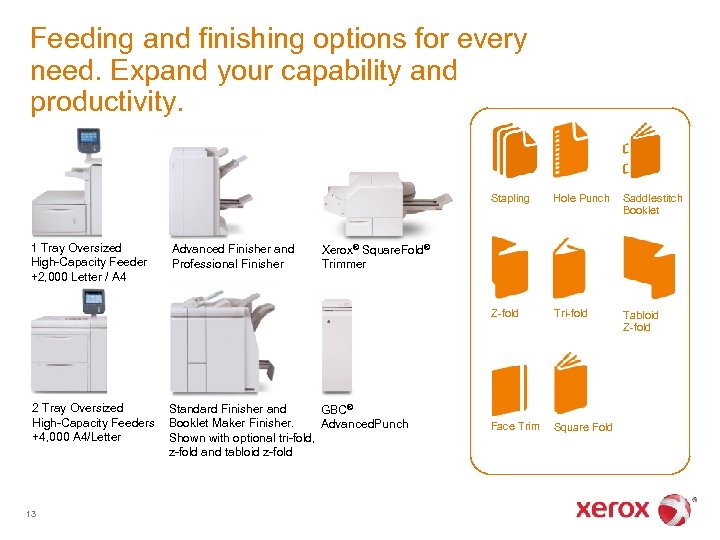

Feeding and finishing options for every need. Expand your capability and productivity. Stapling 2 Tray Oversized High-Capacity Feeders +4, 000 A 4/Letter 13 Advanced Finisher and Professional Finisher Saddlestitch Booklet Z-fold 1 Tray Oversized High-Capacity Feeder +2, 000 Letter / A 4 Hole Punch Tri-fold Tabloid Z-fold Face Trim Square Fold Xerox® Square. Fold® Trimmer Standard Finisher and GBC® Booklet Maker Finisher. Advanced. Punch Shown with optional tri-fold, z-fold and tabloid z-fold
More choices expand your capabilities. A perfect fit for your challenges. Xerox® Integrated Servers • • • 14 Latest Adobe® PDF Print Engine Fogra, PANTONE® PMS, PLUS, Goe™ certified Latest Color Management Latest Workflow and OS Xerox® Specialty Imaging Technology available Xerox® EXi Integrated Fiery ® Color Server Ideal for high-end office applications, you will be delighted with unrivaled simplicity. Xerox® External Servers Xerox® Integrated Color Server World-class color and workflow tools that put you in command. Xerox® Free. Flow® Print Server Xerox® EX Print Server Powered by Fiery®

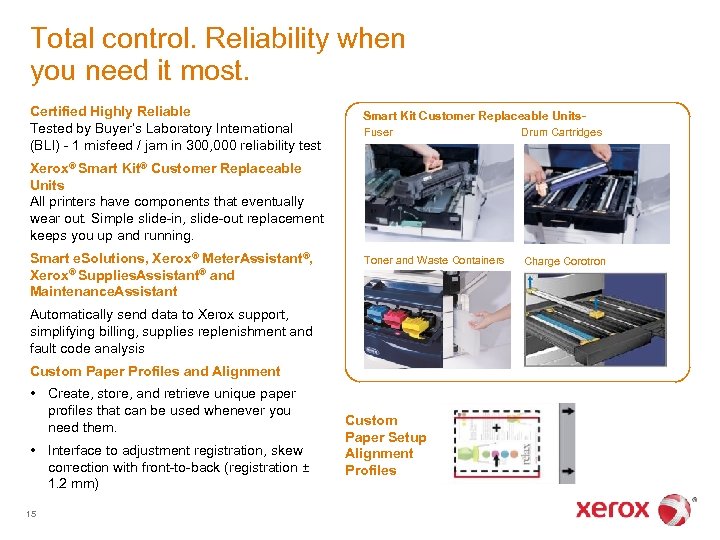

Total control. Reliability when you need it most. Certified Highly Reliable Tested by Buyer’s Laboratory International (BLI) - 1 misfeed / jam in 300, 000 reliability test Smart Kit Customer Replaceable Units. Fuser Drum Cartridges Toner and Waste Containers Charge Corotron Xerox® Smart Kit® Customer Replaceable Units All printers have components that eventually wear out. Simple slide-in, slide-out replacement keeps you up and running. Smart e. Solutions, Xerox® Meter. Assistant®, Xerox® Supplies. Assistant® and Maintenance. Assistant Automatically send data to Xerox support, simplifying billing, supplies replenishment and fault code analysis Custom Paper Profiles and Alignment • Create, store, and retrieve unique paper profiles that can be used whenever you need them. • Interface to adjustment registration, skew correction with front-to-back (registration ± 1. 2 mm) 15 Custom Paper Setup Alignment Profiles
Transform – and work simpler, smarter. Simplify, Save Time, Streamline • Copy, Scan, print, fax • Scan to nearly anywhere Secure Confidence • Benchmark security Common Criteria Certification • Industry leading security Extend Your Possibilities • With Xerox® Enterprise Solutions

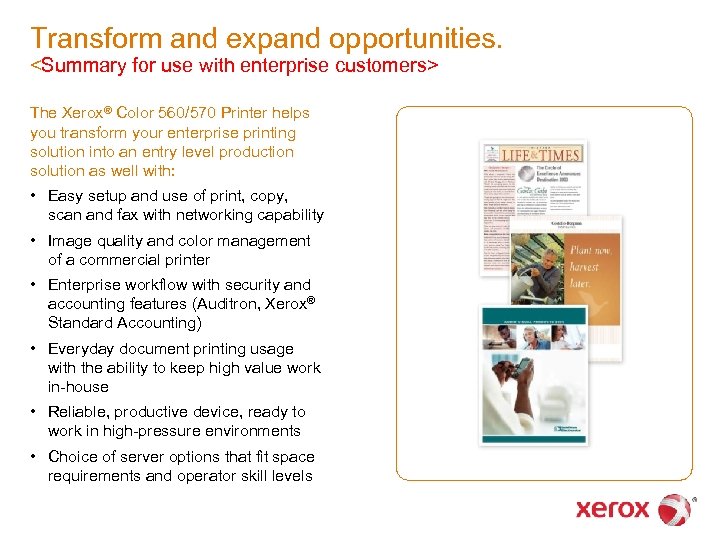

Transform and expand opportunities. <Summary for use with enterprise customers> The Xerox® Color 560/570 Printer helps you transform your enterprise printing solution into an entry level production solution as well with: • Easy setup and use of print, copy, scan and fax with networking capability • Image quality and color management of a commercial printer • Enterprise workflow with security and accounting features (Auditron, Xerox® Standard Accounting) • Everyday document printing usage with the ability to keep high value work in-house • Reliable, productive device, ready to work in high-pressure environments • Choice of server options that fit space requirements and operator skill levels

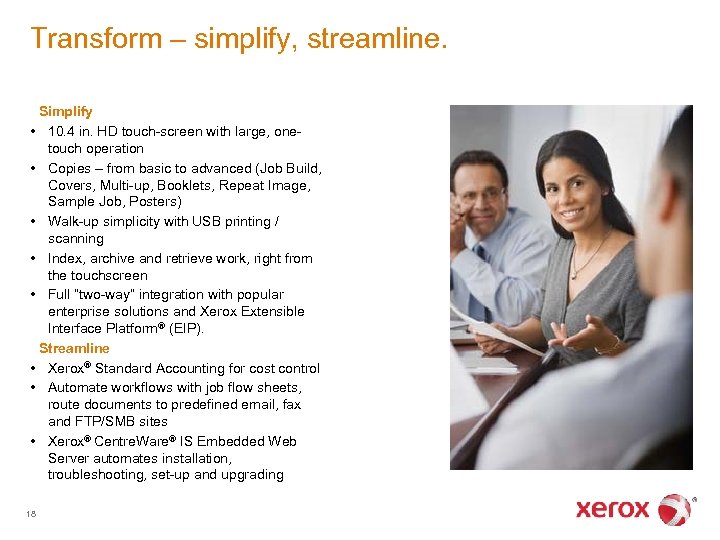

Transform – simplify, streamline. Simplify • 10. 4 in. HD touch-screen with large, onetouch operation • Copies – from basic to advanced (Job Build, Covers, Multi-up, Booklets, Repeat Image, Sample Job, Posters) • Walk-up simplicity with USB printing / scanning • Index, archive and retrieve work, right from the touchscreen • Full “two-way” integration with popular enterprise solutions and Xerox Extensible Interface Platform® (EIP). Streamline • Xerox® Standard Accounting for cost control • Automate workflows with job flow sheets, route documents to predefined email, fax and FTP/SMB sites • Xerox® Centre. Ware® IS Embedded Web Server automates installation, troubleshooting, set-up and upgrading 18

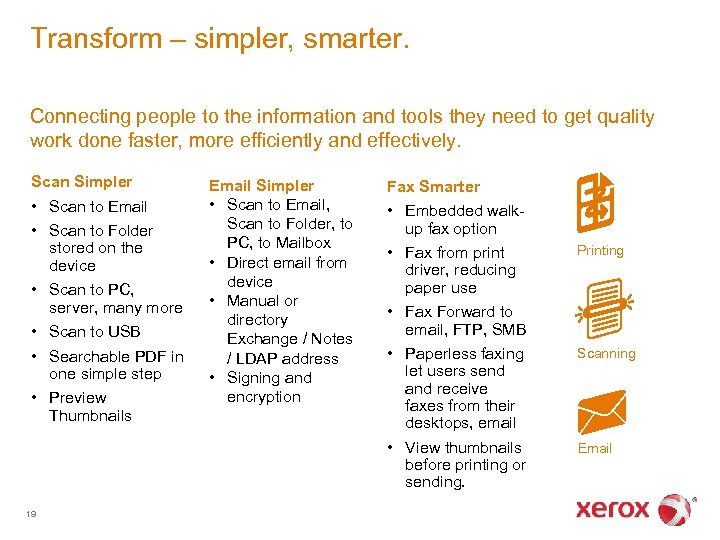

Transform – simpler, smarter. Connecting people to the information and tools they need to get quality work done faster, more efficiently and effectively. Scan Simpler • Scan to Email • Scan to Folder stored on the device • Scan to PC, server, many more • Scan to USB • Searchable PDF in one simple step • Preview Thumbnails 19 Email Simpler • Scan to Email, Scan to Folder, to PC, to Mailbox • Direct email from device • Manual or directory Exchange / Notes / LDAP address • Signing and encryption Fax Smarter • Embedded walkup fax option • Fax from print driver, reducing paper use • Fax Forward to email, FTP, SMB • Paperless faxing let users send and receive faxes from their desktops, email • View thumbnails before printing or sending. Printing Scanning Email

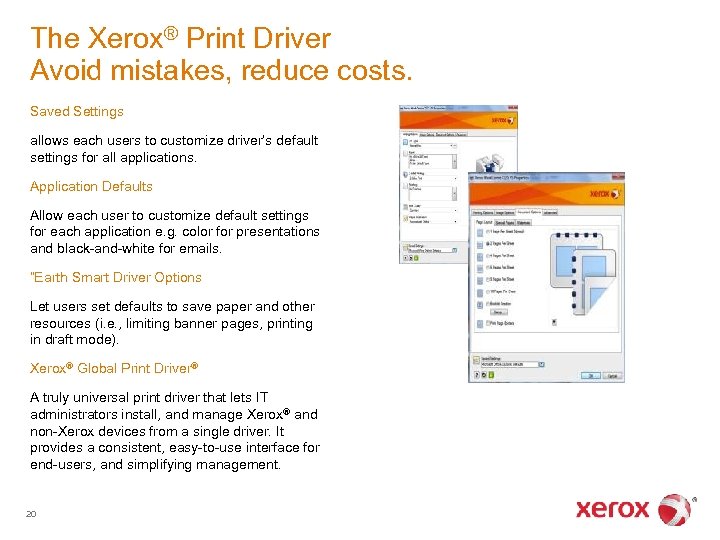

The Xerox® Print Driver Avoid mistakes, reduce costs. Saved Settings allows each users to customize driver’s default settings for all applications. Application Defaults Allow each user to customize default settings for each application e. g. color for presentations and black-and-white for emails. “Earth Smart Driver Options Let users set defaults to save paper and other resources (i. e. , limiting banner pages, printing in draft mode). Xerox® Global Print Driver® A truly universal print driver that lets IT administrators install, and manage Xerox® and non-Xerox devices from a single driver. It provides a consistent, easy-to-use interface for end-users, and simplifying management. 20

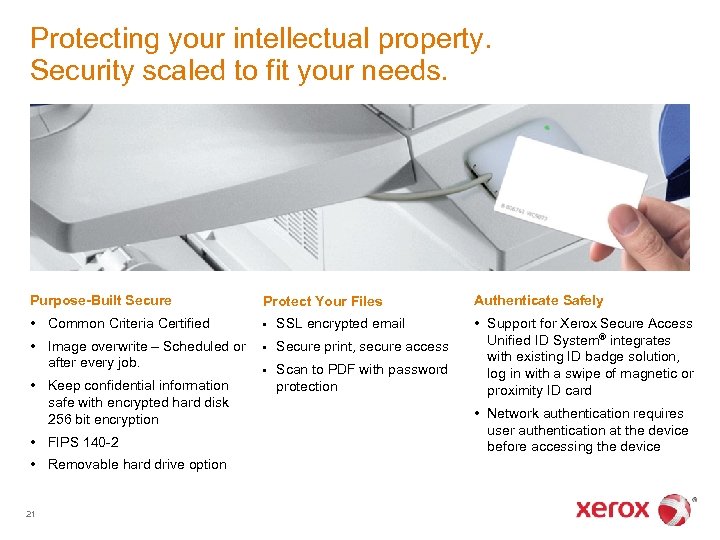

Protecting your intellectual property. Security scaled to fit your needs. Purpose-Built Secure Protect Your Files • Common Criteria Certified • SSL encrypted email • Image overwrite – Scheduled or after every job. • Secure print, secure access • Scan to PDF with password protection • Keep confidential information safe with encrypted hard disk 256 bit encryption • FIPS 140 -2 • Removable hard drive option 21 Authenticate Safely • Support for Xerox Secure Access Unified ID System® integrates with existing ID badge solution, log in with a swipe of magnetic or proximity ID card • Network authentication requires user authentication at the device before accessing the device
Business-ready solutions that answer your needs. Connect. Control. Enable. Xerox Secure Access Unified ID System® • Integrates with your current ID badge solution for flexible, convenient authentication via proximity or swiping • Tracks data for accounting and regulatory purposes ® YSoft Safe. Q ® • Integrated print management solution that offers accounting, security and access control • Control document costs while ensuring the security of sensitive documents Equitrac Office® • Provides a secure, convenient, mobile print workflow while controlling costs and simplifying administration • Gives you greater control over document costs, user accountability and an audit trail for your most important information 22 Mobility Solutions • Xerox® Mobile Print Solution • Xerox® Mobile Print Cloud • EFI® Print. Me® Mobile Scan Workflows • Nuance® e. Copy® Share. Scan®, Scan. Flow. Store® • Xerox® Scan to PC Desktop® • Xerox® SMARTdocument Travel® • Xerox® Connect. Key. TM for Share. Point® Xerox® Live. Key® Business Process Connector

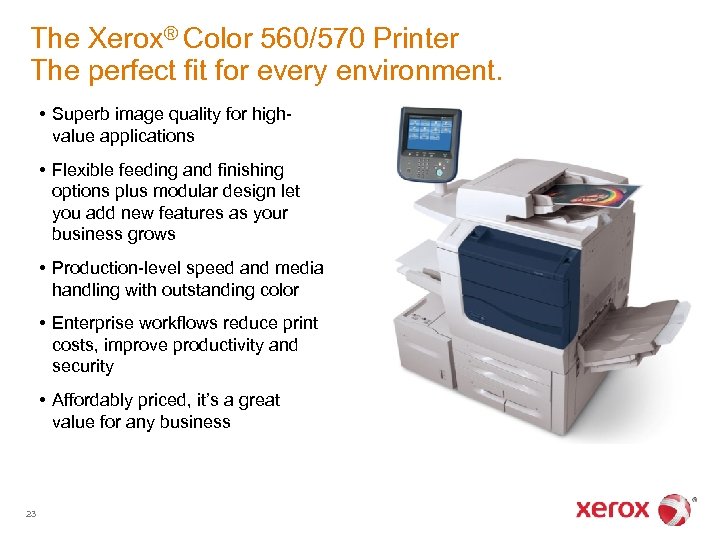

The Xerox® Color 560/570 Printer The perfect fit for every environment. • Superb image quality for highvalue applications • Flexible feeding and finishing options plus modular design let you add new features as your business grows • Production-level speed and media handling with outstanding color • Enterprise workflows reduce print costs, improve productivity and security • Affordably priced, it’s a great value for any business 23
Thank You! 24

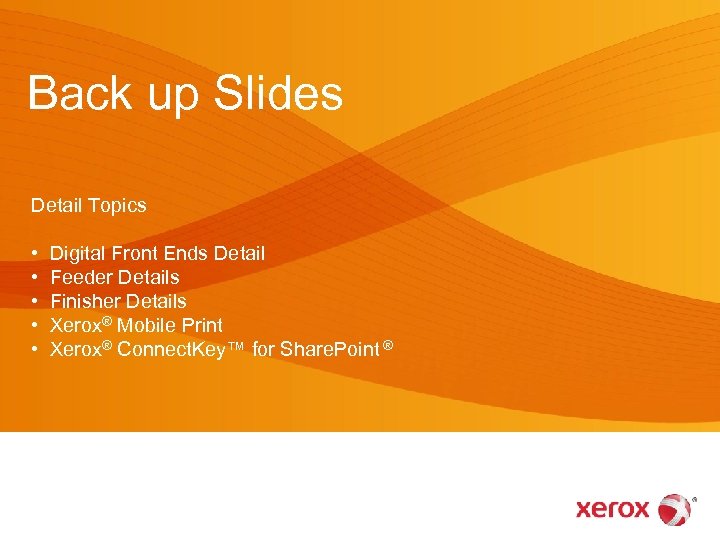

Back up Slides Detail Topics • • • Digital Front Ends Detail Feeder Details Finisher Details Xerox® Mobile Print Xerox® Connect. Key™ for Share. Point ®

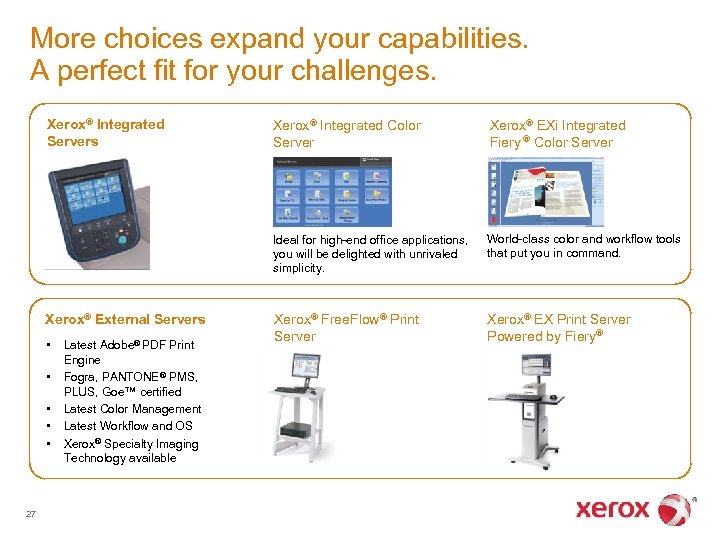

More choices expand your capabilities. A perfect fit for your challenges. Xerox® Integrated Servers • • • 27 Latest Adobe® PDF Print Engine Fogra, PANTONE® PMS, PLUS, Goe™ certified Latest Color Management Latest Workflow and OS Xerox® Specialty Imaging Technology available Xerox® EXi Integrated Fiery ® Color Server Ideal for high-end office applications, you will be delighted with unrivaled simplicity. Xerox® External Servers Xerox® Integrated Color Server World-class color and workflow tools that put you in command. Xerox® Free. Flow® Print Server Xerox® EX Print Server Powered by Fiery®

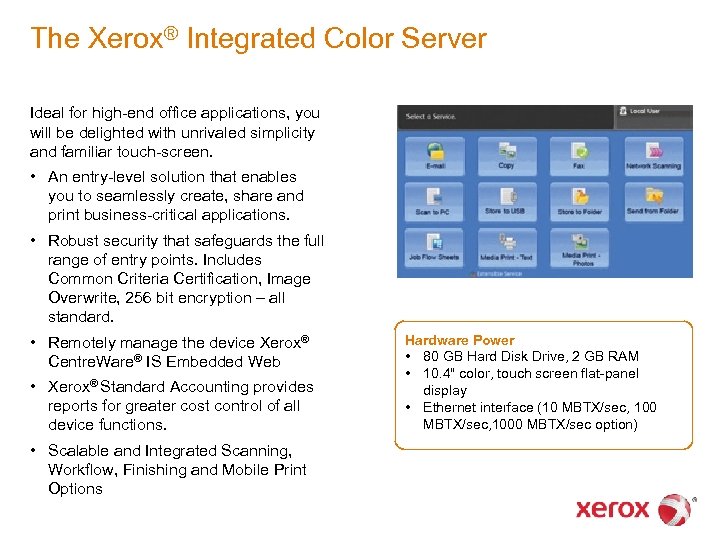

The Xerox® Integrated Color Server Ideal for high-end office applications, you will be delighted with unrivaled simplicity and familiar touch-screen. • An entry-level solution that enables you to seamlessly create, share and print business-critical applications. • Robust security that safeguards the full range of entry points. Includes Common Criteria Certification, Image Overwrite, 256 bit encryption – all standard. • Remotely manage the device Xerox® Centre. Ware® IS Embedded Web • Xerox® Standard Accounting provides reports for greater cost control of all device functions. • Scalable and Integrated Scanning, Workflow, Finishing and Mobile Print Options Hardware Power • 80 GB Hard Disk Drive, 2 GB RAM • 10. 4" color, touch screen flat-panel display • Ethernet interface (10 MBTX/sec, 1000 MBTX/sec option)
Xerox® Integrated Fiery® EXi Color Server for the Xerox® Color 560/570 Printer World-class color and workflow tools that put you in command. Quick and Efficient. RIP/Process large or complex documents and color-critical PDFs accurately and quickly. Get the color right. Produce precise, exact color from all applications, platforms and formats with Fiery color management tools Create professional materials easily. Make booklets and other documents directly on your desktop with Fiery VUE, a 3 -D “visual print application” that guides you through an interactive and intuitive workflow. . Create professional printed materials quickly and easily. Make booklets and other documents directly on your desktop with Fiery VUE, a 3 -D “visual print application” that guides you through an interactive and intuitive workflow Hardware E 200 Intel® Pentium® Processor G 850 2. 9 GHz 3 M Cache, 2 Cores 500 GB SATA HD 2 GB RAM USB 2. 0, 4 rear ports Standard Fiery FS 100 Software Options Fiery Impose Hub kit Color Profiler Suite 4 with ES-2000

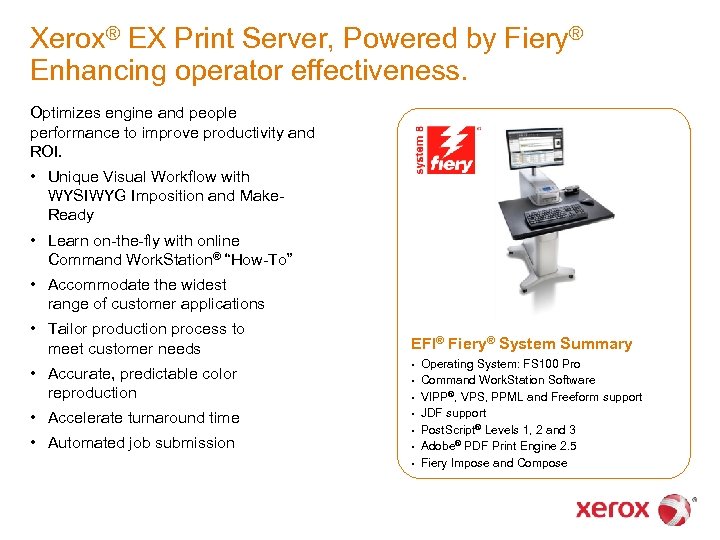

Xerox® EX Print Server, Powered by Fiery® Enhancing operator effectiveness. Optimizes engine and people performance to improve productivity and ROI. • Unique Visual Workflow with WYSIWYG Imposition and Make. Ready • Learn on-the-fly with online Command Work. Station® “How-To” • Accommodate the widest range of customer applications • Tailor production process to meet customer needs EFI® Fiery® System Summary • Accurate, predictable color reproduction • • Accelerate turnaround time • • Automated job submission • • • Operating System: FS 100 Pro Command Work. Station Software VIPP®, VPS, PPML and Freeform support JDF support Post. Script® Levels 1, 2 and 3 Adobe® PDF Print Engine 2. 5 Fiery Impose and Compose

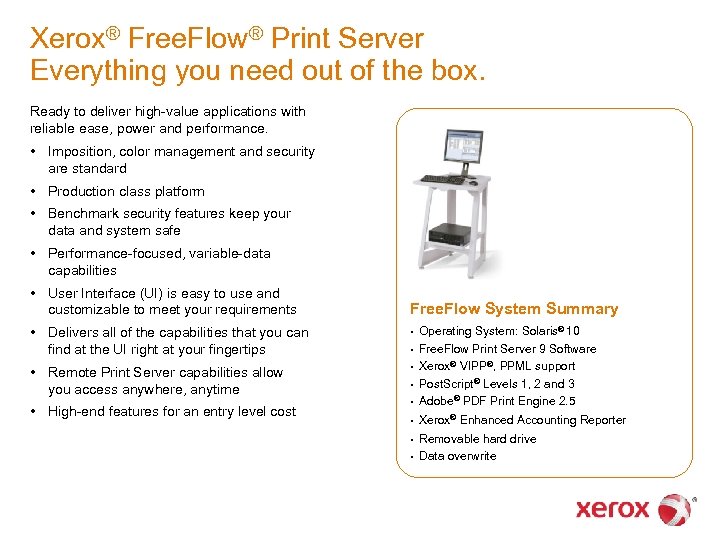

Xerox® Free. Flow® Print Server Everything you need out of the box. Ready to deliver high-value applications with reliable ease, power and performance. • Imposition, color management and security are standard • Production class platform • Benchmark security features keep your data and system safe • Performance-focused, variable-data capabilities • User Interface (UI) is easy to use and customizable to meet your requirements Free. Flow System Summary • Delivers all of the capabilities that you can find at the UI right at your fingertips • • Remote Print Server capabilities allow you access anywhere, anytime • • High-end features for an entry level cost • Operating System: Solaris® 10 Free. Flow Print Server 9 Software Xerox® VIPP®, PPML support Post. Script® Levels 1, 2 and 3 Adobe® PDF Print Engine 2. 5 • Xerox® Enhanced Accounting Reporter • Removable hard drive Data overwrite • • •

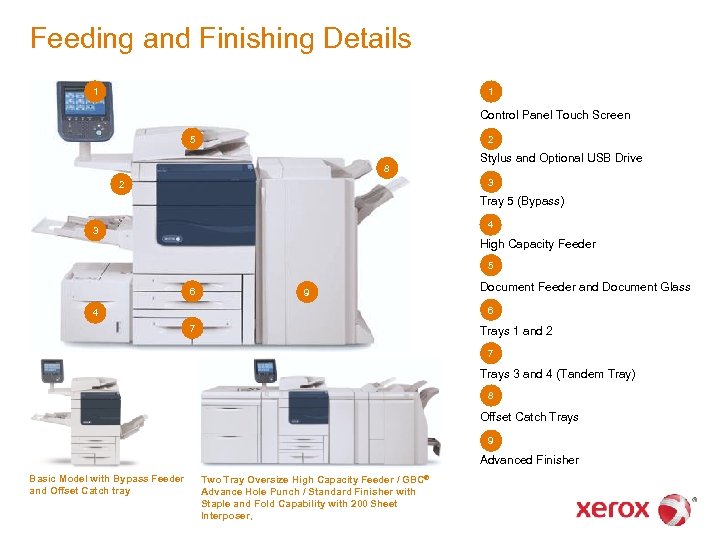

Feeding and Finishing Details 1 1 Control Panel Touch Screen 5 2 Stylus and Optional USB Drive 8 3 2 Tray 5 (Bypass) 4 3 High Capacity Feeder 5 6 Document Feeder and Document Glass 9 6 4 7 Trays 1 and 2 7 Trays 3 and 4 (Tandem Tray) 8 Offset Catch Trays 9 Advanced Finisher Basic Model with Bypass Feeder and Offset Catch tray GBC® Two Tray Oversize High Capacity Feeder / Advance Hole Punch / Standard Finisher with Staple and Fold Capability with 200 Sheet Interposer,
Productivity starts with the paper tray. Four Internal Paper Trays* • Feed coated and uncoated media up to 220 gsm • Auto duplex coated and uncoated paper up to 65 lb. cover / 176 gsm all stocks, 80 lb. / 220 gsm most others) • Tray 1: 500 sheets, 5. 5 x 8. 5 in. / A 5 to 12 x 18 in. / SRA 3 • Tray 2: 500 sheets, 5. 5 x 8. 5 in. / A 5 to 11 x 17 in. / A 3 • Tray 3: 870 sheets, 8. 5 x 11 / A 4 plus 7. 25 x 10. 5 in. / B 5 • Tray 4: 1, 140 sheets, 8. 5 x 11 in. / A 4 plus 7. 25 x 10. 5 in. / B 5 Bypass Tray: 250 Sheets • Feeds up to 110 lb. cover / 300 gsm • Maximum sheet size 13 x 19. 2 in. / SRA 3+ • Designed for specialty media Optional High-Capacity Feeder (Letter / A 4 HCF) • 8. 5 x 11 in. / A 4 • 2, 000 sheets up to 80 lb. cover / 220 gsm * Based on 24 lb. /90 gsm bond Total standard feeding capacity of 3, 260 sheets (8. 5" x 11"/A 4)

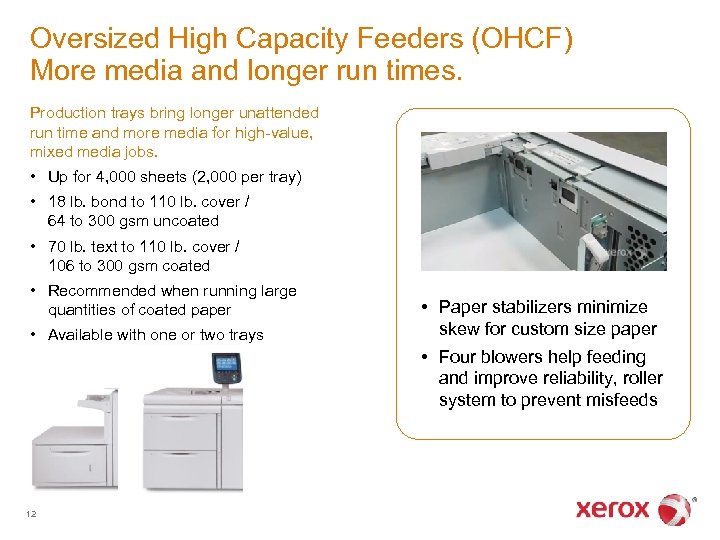

Oversized High Capacity Feeder (OHCF) More media and longer run times. Production trays bring longer unattended run time and more media for high-value, mixed media jobs. • Up for 4, 000 sheets (2, 000 per tray) • 18 lb. bond to 110 lb. cover / 64 to 300 gsm uncoated • 70 lb. text to 110 lb. cover / 106 to 300 gsm coated • Recommended when running large quantities of coated paper • Available with one or two trays • Paper stabilizers minimize skew for custom size paper • Four blowers help feeding and improve reliability, roller system to prevent misfeeds

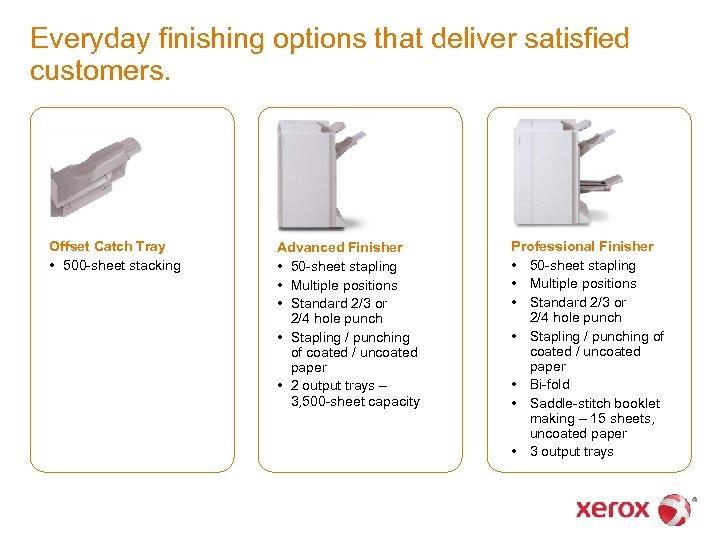

Everyday finishing options that deliver satisfied customers. Offset Catch Tray • 500 -sheet stacking Advanced Finisher • 50 -sheet stapling • Multiple positions • Standard 2/3 or 2/4 hole punch • Stapling / punching of coated / uncoated paper • 2 output trays – 3, 500 -sheet capacity Professional Finisher • 50 -sheet stapling • Multiple positions • Standard 2/3 or 2/4 hole punch • Stapling / punching of coated / uncoated paper • Bi-fold • Saddle-stitch booklet making – 15 sheets, uncoated paper • 3 output trays

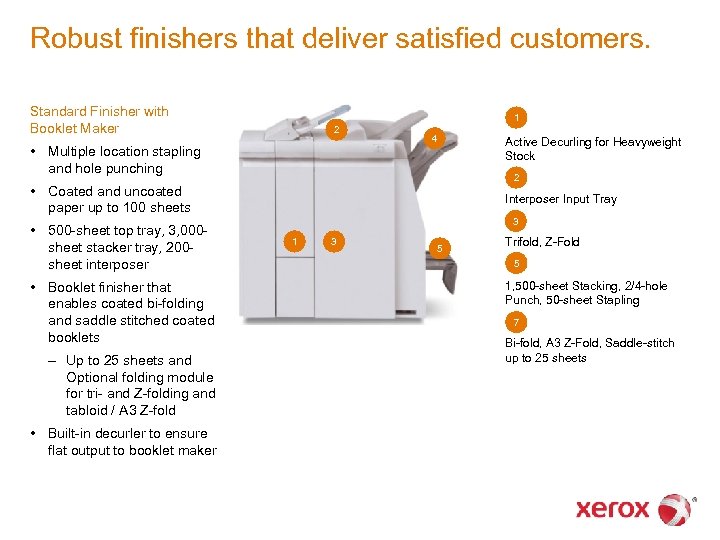

Robust finishers that deliver satisfied customers. Standard Finisher with Booklet Maker 1 2 • Multiple location stapling and hole punching 4 2 • Coated and uncoated paper up to 100 sheets • 500 -sheet top tray, 3, 000 sheet stacker tray, 200 sheet interposer • Booklet finisher that enables coated bi-folding and saddle stitched coated booklets – Up to 25 sheets and Optional folding module for tri- and Z-folding and tabloid / A 3 Z-fold • Built-in decurler to ensure flat output to booklet maker Active Decurling for Heavyweight Stock Interposer Input Tray 3 1 3 5 Trifold, Z-Fold 5 1, 500 -sheet Stacking, 2/4 -hole Punch, 50 -sheet Stapling 7 Bi-fold, A 3 Z-Fold, Saddle-stitch up to 25 sheets

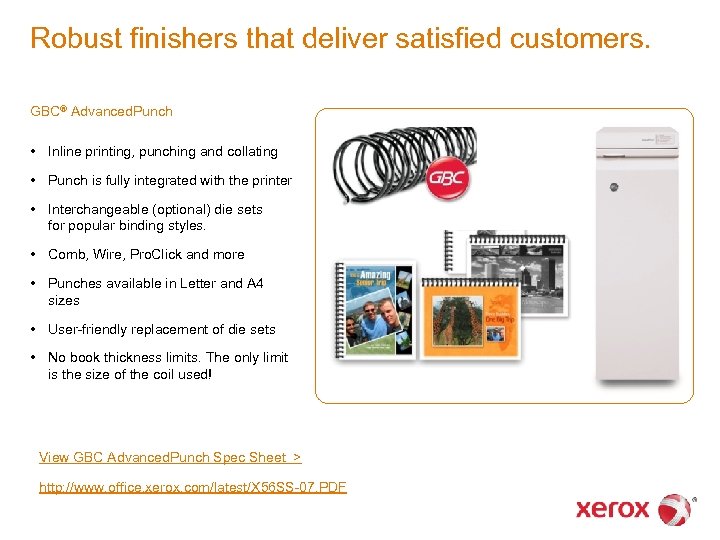

Robust finishers that deliver satisfied customers. GBC® Advanced. Punch • Inline printing, punching and collating • Punch is fully integrated with the printer • Interchangeable (optional) die sets for popular binding styles. • Comb, Wire, Pro. Click and more • Punches available in Letter and A 4 sizes • User-friendly replacement of die sets • No book thickness limits. The only limit is the size of the coil used! View GBC Advanced. Punch Spec Sheet > http: //www. office. xerox. com/latest/X 56 SS-07. PDF

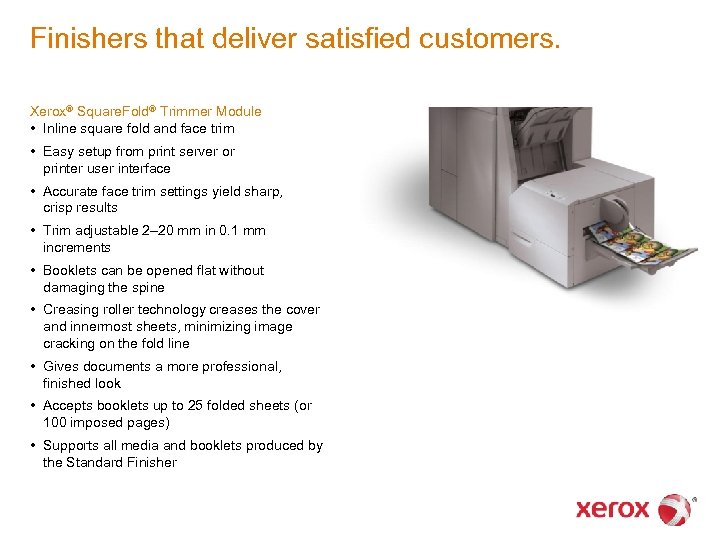

Finishers that deliver satisfied customers. Xerox® Square. Fold® Trimmer Module • Inline square fold and face trim • Easy setup from print server or printer user interface • Accurate face trim settings yield sharp, crisp results • Trim adjustable 2– 20 mm in 0. 1 mm increments • Booklets can be opened flat without damaging the spine • Creasing roller technology creases the cover and innermost sheets, minimizing image cracking on the fold line • Gives documents a more professional, finished look • Accepts booklets up to 25 folded sheets (or 100 imposed pages) • Supports all media and booklets produced by the Standard Finisher

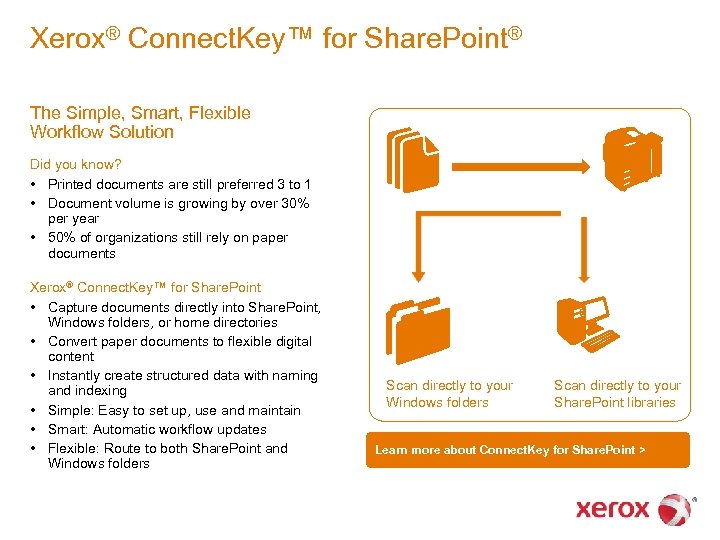

Xerox® Connect. Key™ for Share. Point® Index The Simple, Smart, Flexible Workflow Solution Did you know? • Printed documents are still preferred 3 to 1 • Document volume is growing by over 30% per year • 50% of organizations still rely on paper documents Xerox® Connect. Key™ for Share. Point • Capture documents directly into Share. Point, Windows folders, or home directories • Convert paper documents to flexible digital content • Instantly create structured data with naming and indexing • Simple: Easy to set up, use and maintain • Smart: Automatic workflow updates • Flexible: Route to both Share. Point and Windows folders Scan directly to your Share. Point libraries Learn more about Connect. Key for Share. Point >

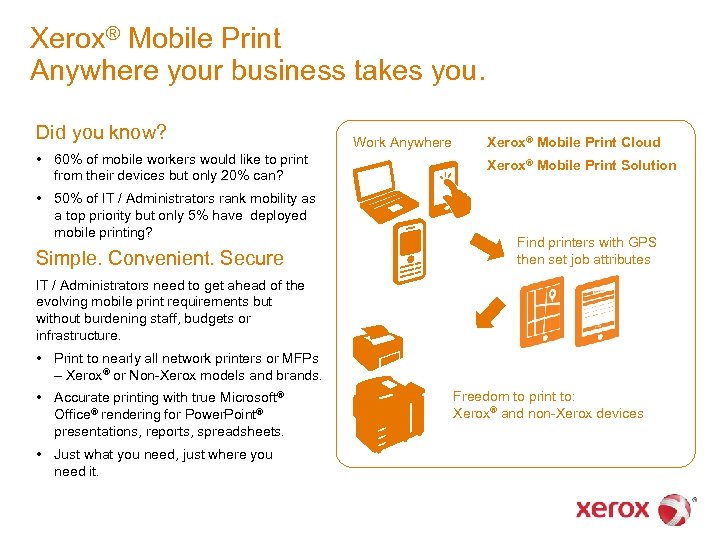

Xerox® Mobile Print Anywhere your business takes you. Did you know? • 60% of mobile workers would like to print from their devices but only 20% can? • 50% of IT / Administrators rank mobility as a top priority but only 5% have deployed mobile printing? Simple. Convenient. Secure Work Anywhere Xerox® Mobile Print Cloud Xerox® Mobile Print Solution Find printers with GPS then set job attributes IT / Administrators need to get ahead of the evolving mobile print requirements but without burdening staff, budgets or infrastructure. • Print to nearly all network printers or MFPs – Xerox® or Non-Xerox models and brands. • Accurate printing with true Microsoft® Office® rendering for Power. Point® presentations, reports, spreadsheets. • Just what you need, just where you need it. Freedom to print to: Xerox® and non-Xerox devices
