PRODUCT PRESENTATION QUANTUM 2 EVOLIS QUANTUM MODULAR

PRODUCT PRESENTATION QUANTUM 2

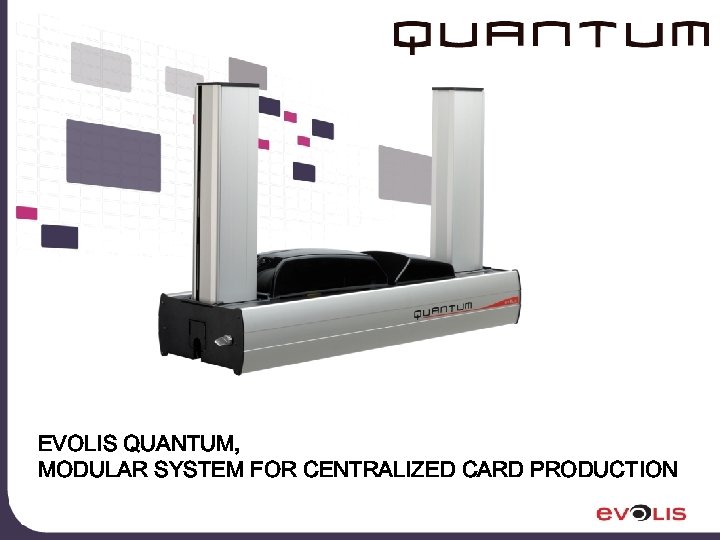

EVOLIS QUANTUM, MODULAR SYSTEM FOR CENTRALIZED CARD PRODUCTION

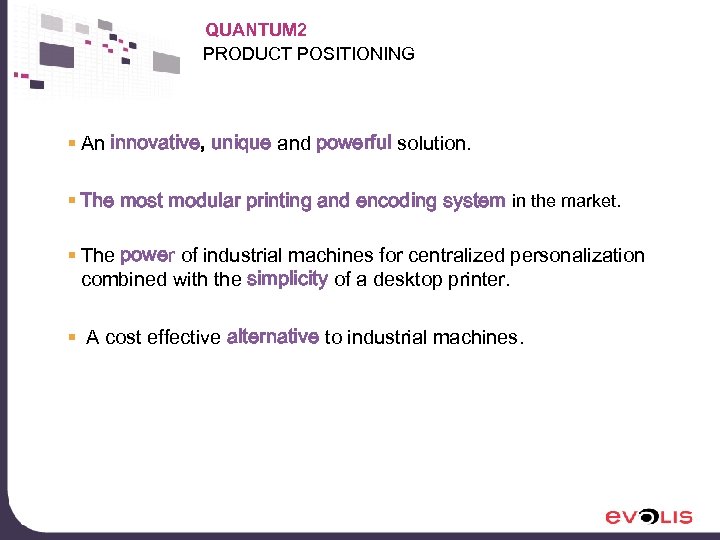

QUANTUM 2 PRODUCT POSITIONING § An innovative, unique and powerful solution. § The most modular printing and encoding system in the market. § The power of industrial machines for centralized personalization combined with the simplicity of a desktop printer. § A cost effective alternative to industrial machines.

QUANTUM 2 TARGETED MARKETS All organizations needing to personalize cards in large quantities. § 3 main targeted customers § § § Bureau services Card manufacturers Large companies, universities, banks, events companies § What are their needs in terms of card personalization ? § § Dual-sided personalization Monochrome and color printing (barcodes, signatures, texts and pictures) Magnetic encoding Smart contact & contactless chip encoding

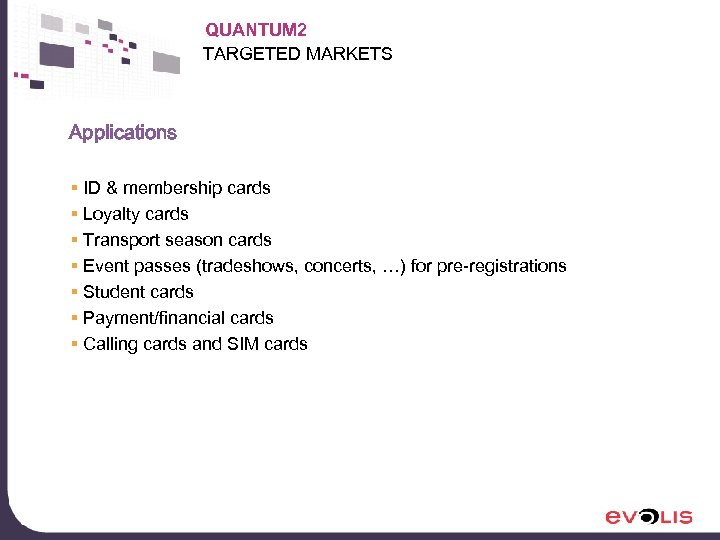

QUANTUM 2 TARGETED MARKETS Applications § ID & membership cards § Loyalty cards § Transport season cards § Event passes (tradeshows, concerts, …) for pre-registrations § Student cards § Payment/financial cards § Calling cards and SIM cards

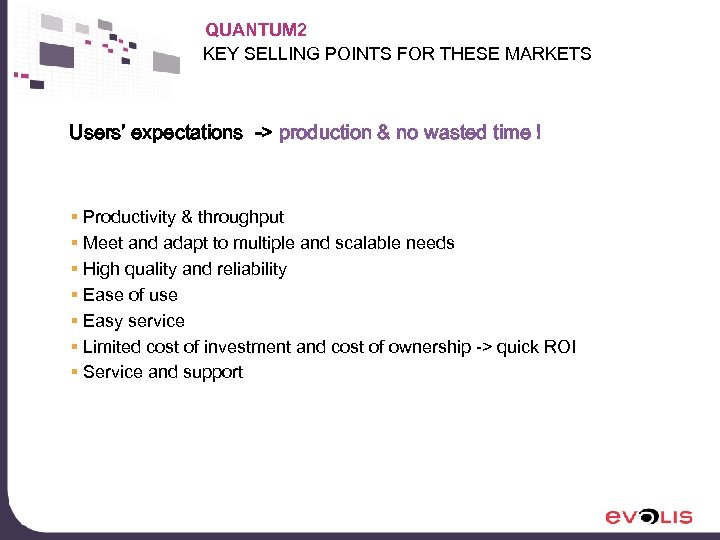

QUANTUM 2 KEY SELLING POINTS FOR THESE MARKETS Users’ expectations -> production & no wasted time ! § Productivity & throughput § Meet and adapt to multiple and scalable needs § High quality and reliability § Ease of use § Easy service § Limited cost of investment and cost of ownership -> quick ROI § Service and support

QUANTUM 2 PRODUCT OVERVIEW OUTPUT HOPPER INPUT HOPPER Reject Tray FLIPOVER PRINTING MODULE ENCODING MODULE

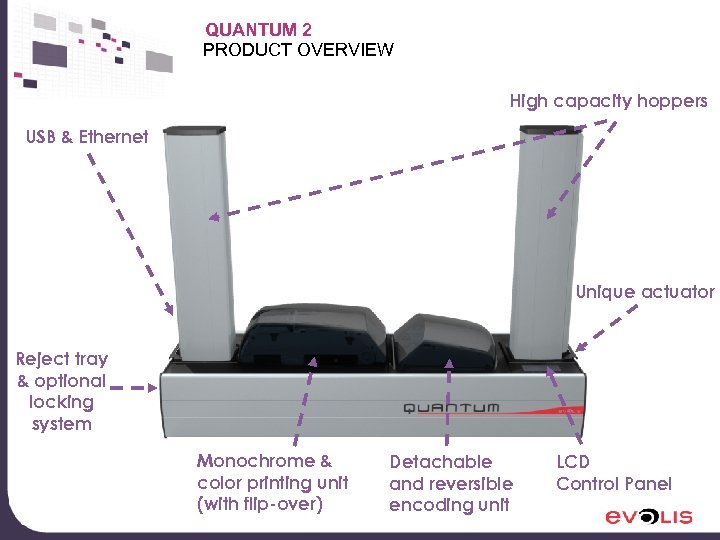

QUANTUM 2 PRODUCT OVERVIEW High capacity hoppers USB & Ethernet Unique actuator Reject tray & optional locking system Monochrome & color printing unit (with flip-over) Detachable and reversible encoding unit LCD Control Panel

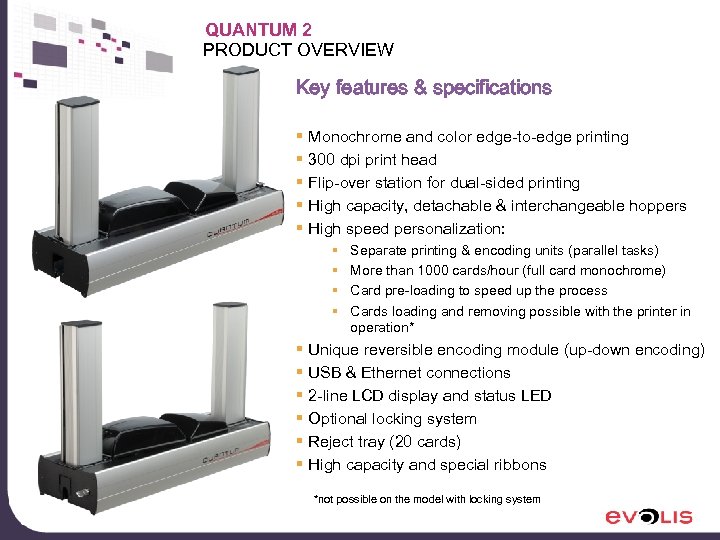

QUANTUM 2 PRODUCT OVERVIEW Key features & specifications § Monochrome and color edge-to-edge printing § 300 dpi print head § Flip-over station for dual-sided printing § High capacity, detachable & interchangeable hoppers § High speed personalization: § § Separate printing & encoding units (parallel tasks) More than 1000 cards/hour (full card monochrome) Card pre-loading to speed up the process Cards loading and removing possible with the printer in operation* § Unique reversible encoding module (up-down encoding) § USB & Ethernet connections § 2 -line LCD display and status LED § Optional locking system § Reject tray (20 cards) § High capacity and special ribbons *not possible on the model with locking system

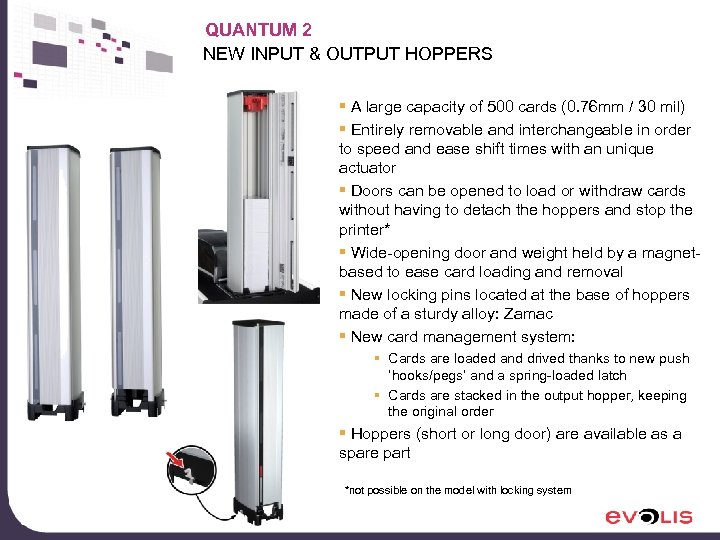

QUANTUM 2 NEW INPUT & OUTPUT HOPPERS § A large capacity of 500 cards (0. 76 mm / 30 mil) § Entirely removable and interchangeable in order to speed and ease shift times with an unique actuator § Doors can be opened to load or withdraw cards without having to detach the hoppers and stop the printer* § Wide-opening door and weight held by a magnetbased to ease card loading and removal § New locking pins located at the base of hoppers made of a sturdy alloy: Zamac § New card management system: § Cards are loaded and drived thanks to new push ‘hooks/pegs’ and a spring-loaded latch § Cards are stacked in the output hopper, keeping the original order § Hoppers (short or long door) are available as a spare part *not possible on the model with locking system

QUANTUM 2 ENCODING MODULE § A unit dedicated to encoding, apart from the printing module § Up to 3 encoding technologies can be combined (MAG + SMART + CTLESS) § Delivered standard with Mag encoder, Smart contact station and contactless antenna bracket § Reversible for MAG & Smart applications: top & bottom encoding in order to avoid flipping the card and save time § Upgradable on-site: plug your own coupler thanks to the electronic board & mounting area accessible to the operator.

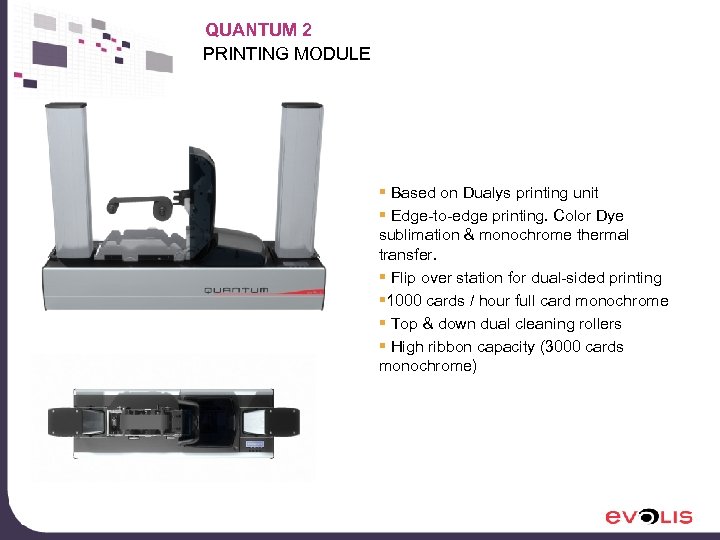

QUANTUM 2 PRINTING MODULE § Based on Dualys printing unit § Edge-to-edge printing. Color Dye sublimation & monochrome thermal transfer. § Flip over station for dual-sided printing § 1000 cards / hour full card monochrome § Top & down dual cleaning rollers § High ribbon capacity (3000 cards monochrome)

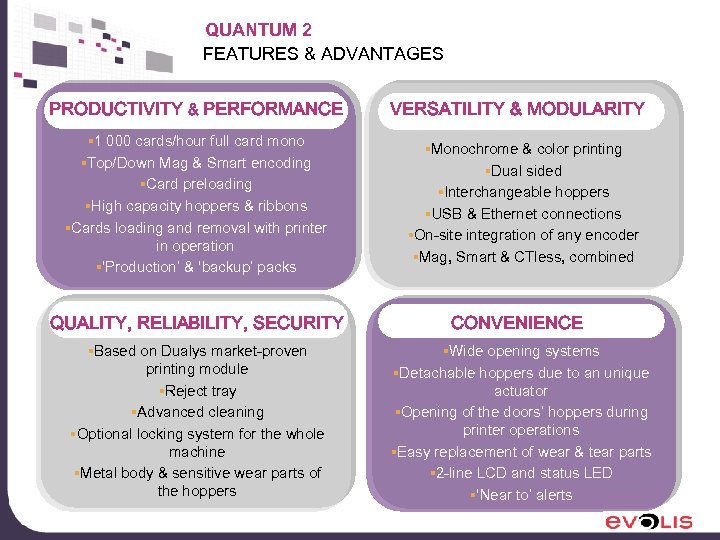

QUANTUM 2 FEATURES & ADVANTAGES PRODUCTIVITY & PERFORMANCE § 1 000 cards/hour full card mono §Top/Down Mag & Smart encoding §Card preloading §High capacity hoppers & ribbons §Cards loading and removal with printer in operation §‘Production’ & ‘backup’ packs VERSATILITY & MODULARITY §Monochrome & color printing §Dual sided §Interchangeable hoppers §USB & Ethernet connections §On-site integration of any encoder §Mag, Smart & CTless, combined QUALITY, RELIABILITY, SECURITY CONVENIENCE §Based on Dualys market-proven printing module §Reject tray §Advanced cleaning §Optional locking system for the whole machine §Metal body & sensitive wear parts of the hoppers §Wide opening systems §Detachable hoppers due to an unique actuator §Opening of the doors’ hoppers during printer operations §Easy replacement of wear & tear parts § 2 -line LCD and status LED §‘Near to’ alerts

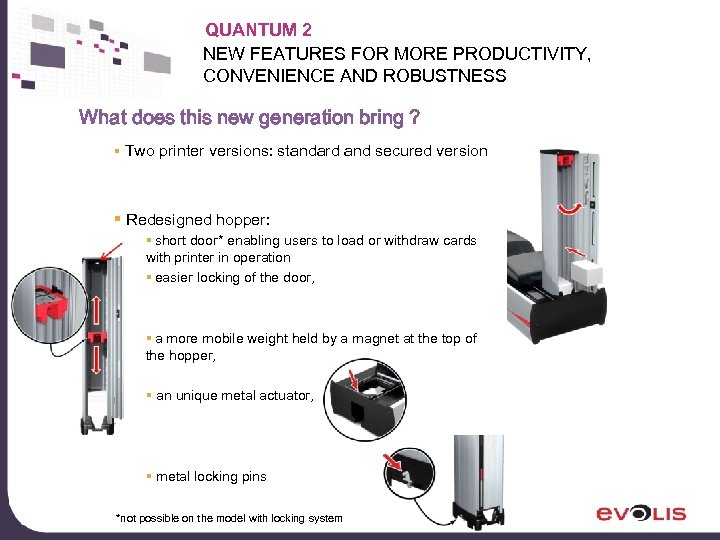

QUANTUM 2 NEW FEATURES FOR MORE PRODUCTIVITY, CONVENIENCE AND ROBUSTNESS What does this new generation bring ? § Two printer versions: standard and secured version § Redesigned hopper: § short door* enabling users to load or withdraw cards with printer in operation § easier locking of the door, § a more mobile weight held by a magnet at the top of the hopper, § an unique metal actuator, § metal locking pins *not possible on the model with locking system

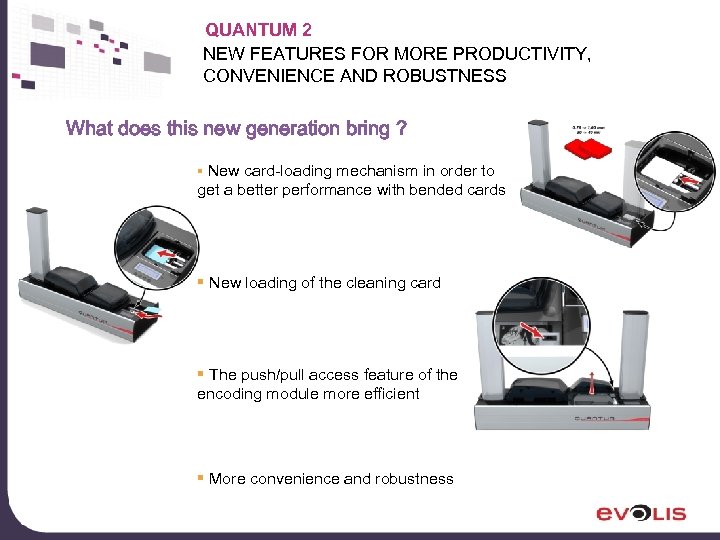

QUANTUM 2 NEW FEATURES FOR MORE PRODUCTIVITY, CONVENIENCE AND ROBUSTNESS What does this new generation bring ? § New card-loading mechanism in order to get a better performance with bended cards § New loading of the cleaning card § The push/pull access feature of the encoding module more efficient § More convenience and robustness

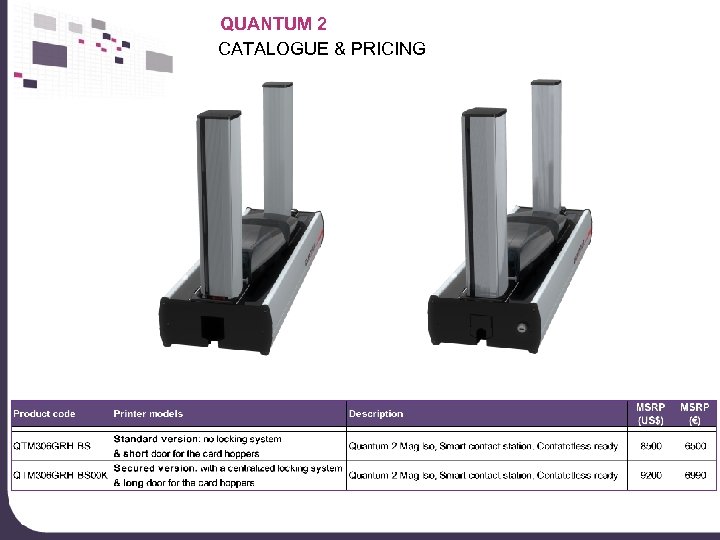

QUANTUM 2 CATALOGUE & PRICING

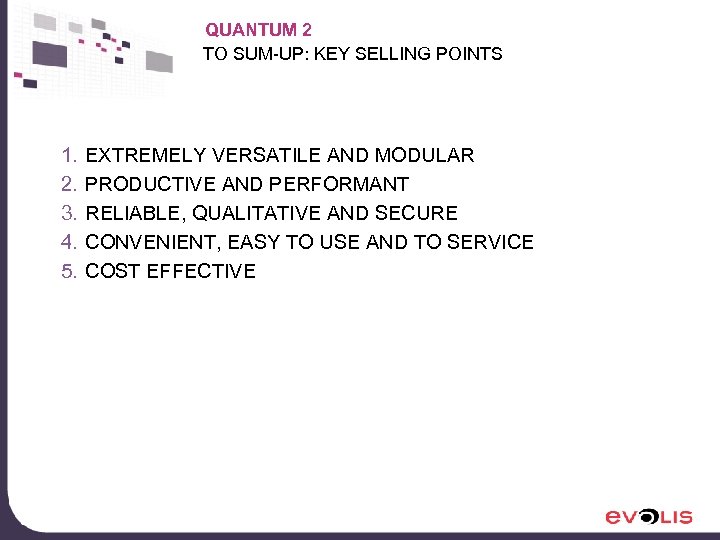

QUANTUM 2 TO SUM-UP: KEY SELLING POINTS 1. 2. 3. 4. 5. EXTREMELY VERSATILE AND MODULAR PRODUCTIVE AND PERFORMANT RELIABLE, QUALITATIVE AND SECURE CONVENIENT, EASY TO USE AND TO SERVICE COST EFFECTIVE
