Product Manager Individual Weapons Briefing to NDIA PM Individual Weapons Activated 4 November 2002 LTC Matthew T. Clarke Product Manager Individual Weapons (973) 724 -4695 mclarke@pica. army. mil 12 May 03
Product Manager Individual Weapons R. Lindquist (C ) Non-Co-Located (Liaison) DOT, Ft. Benning, GA DSN: 835 -3848 PM Individual Weapons LTC Matthew T. Clarke DEPUTY PM Barbara Muldowney Secretary June Miller APM Integration O-4 Vacant ASARC Engineering Larry Artman (C) EVM Engineering Chris Owens (C) Program Support Mike Tauber (C) Legacy Systems Div Chief Tom Miskovich Product Mgmt Engr Tom Vass Product Mgmt Engr Vacant Business Manager Jim Lilly XM 29 Div Chief Andrew Cline Weapon Engineer Vincent Barbato Fire Control Engineer Bob Volz Ammo Engineer. Ralph Mazeski System Test Tom Hartmann Product Management Engineer- Supportability Vacant Log Mgmt Specialist Jaxon Teck Electronics Engineer Tom Howell Program Analyst Deb Tully Future Systems Div Chief Dave Ahmad Weapon Engineer Kevin Bauer Test Engineer Nelson Pineda Engineer- QA Vacant

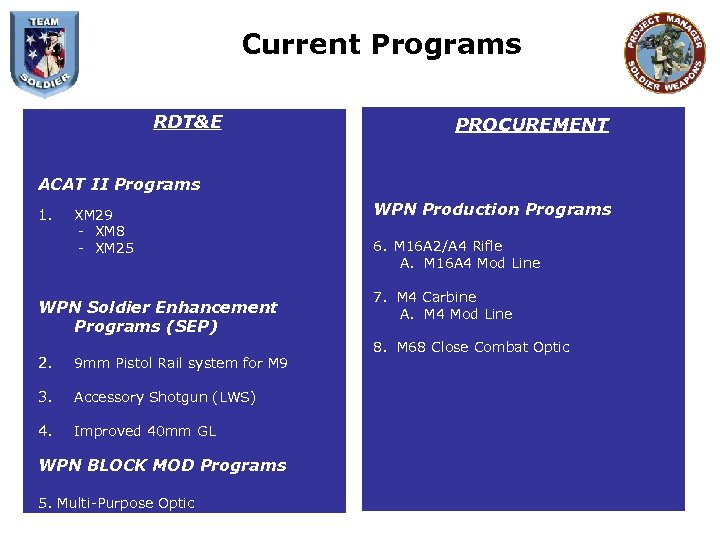

Current Programs RDT&E PROCUREMENT ACAT II Programs 1. XM 29 - XM 8 - XM 25 WPN Soldier Enhancement Programs (SEP) 2. 9 mm Pistol Rail system for M 9 3. Accessory Shotgun (LWS) 4. Improved 40 mm GL WPN BLOCK MOD Programs 5. Multi-Purpose Optic WPN Production Programs 6. M 16 A 2/A 4 Rifle A. M 16 A 4 Mod Line 7. M 4 Carbine A. M 4 Mod Line 8. M 68 Close Combat Optic

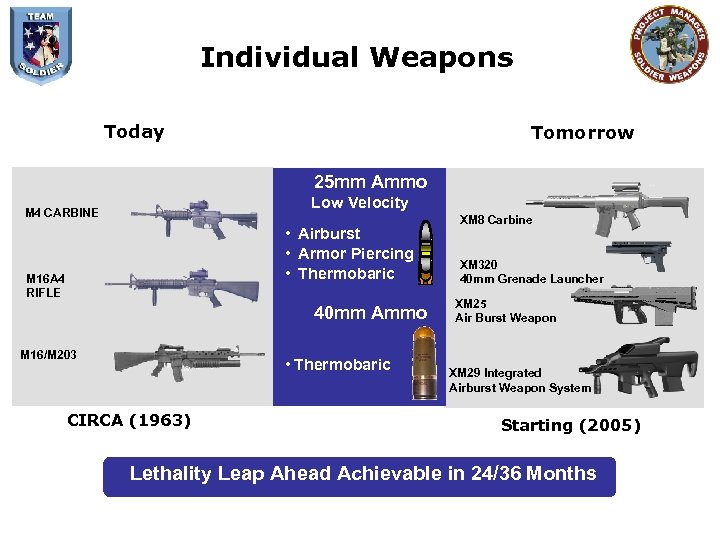

Individual Weapons Today Tomorrow 25 mm Ammo Low Velocity M 4 CARBINE • Airburst • Armor Piercing • Thermobaric M 16 A 4 RIFLE 40 mm Ammo M 16/M 203 • Thermobaric CIRCA (1963) XM 8 Carbine XM 320 40 mm Grenade Launcher XM 25 Air Burst Weapon XM 29 Integrated Airburst Weapon System Starting (2005) Lethality Leap Ahead Achievable in 24/36 Months

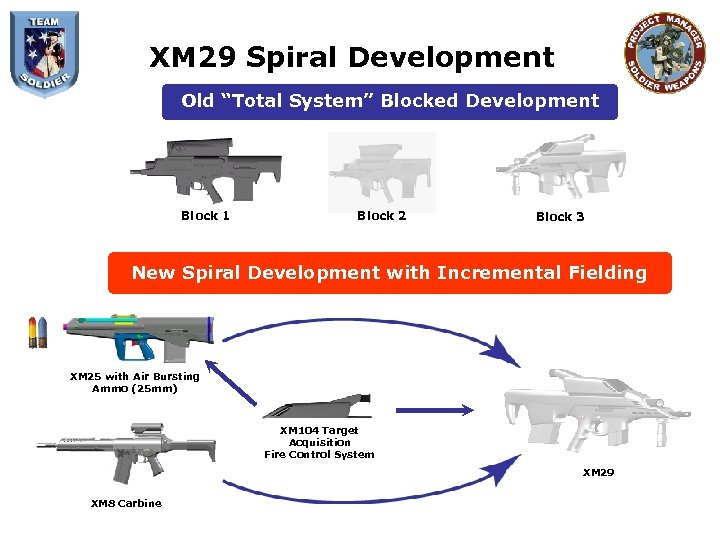

XM 29 Spiral Development Old “Total System” Blocked Development Block 1 Block 2 Block 3 New Spiral Development with Incremental Fielding XM 25 with Air Bursting Ammo (25 mm) XM 104 Target Acquisition Fire Control System XM 29 XM 8 Carbine
XM 25 Concept XM 29 Subsystem Spin Offs Available for Testing in FY 05 XM 25 with Air Bursting Ammo (25 mm)

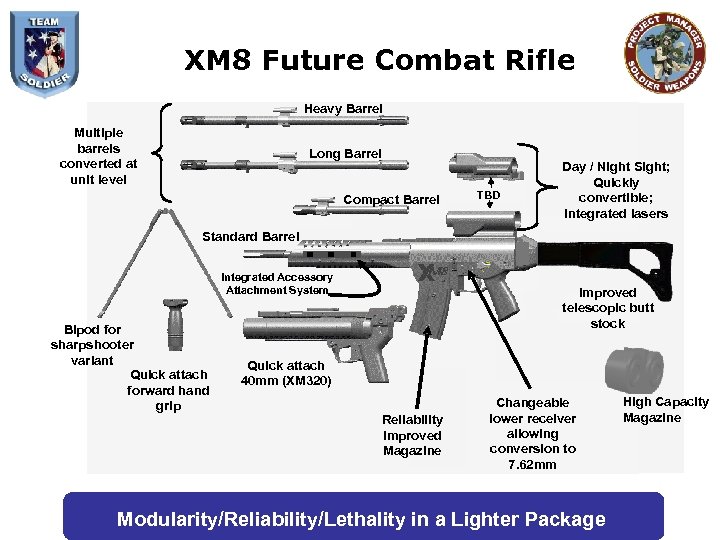

XM 8 Future Combat Rifle Heavy Barrel Multiple barrels converted at unit level Long Barrel Compact Barrel TBD Day / Night Sight; Quickly convertible; Integrated lasers Standard Barrel Integrated Accessory Attachment System Bipod for sharpshooter variant Quick attach forward hand grip Improved telescopic butt stock Quick attach 40 mm (XM 320) Reliability Improved Magazine Changeable lower receiver allowing conversion to 7. 62 mm Modularity/Reliability/Lethality in a Lighter Package High Capacity Magazine
XM 29 Integrated Airburst Weapon System Dual Munition System • High Explosive Air Bursting (HEAB) • 5. 56 mm Kinetic Energy Target Acquisition/Fire Control (TA/FC) • Direct View Optics • Uncooled Thermal Sight • Compass (Bearing, Cant, & Tilt) • Laser Range Finder • Fuze Setter • Ballistic Computer • Display PRIMARY WEAPON: HEAB SECONDARY WEAPON: 5. 56 MM KE TARGET ACQUISITION/FIRE CONTROL Bursting Munition Concept • Commonality with XM 307 • 25 mm
Airburst Munitions Firings
“Soldiers are the Centerpiece of our Formations” GEN Shinseki The Soldier “America’s Most Deployed Weapon System” We Can Deliver
