Product Introduction The LEADER in Long-Range, Business & Consumer Class Wireless Data/Telecom Solutions
Agenda • En. Genius Technologies • Corporate Overview • Leader in Long Range Cordless Solutions • Product Portfolio • New Free. Styl 1 Product Introduction • Target Markets • Free. Styl 1 Features • Technical Specifications
Corporate Overview Senao International Co. , Ltd. , • Founded in 1979 • Taiwan Fortune 200 Company • Listed on the Taiwan Stock Exchange • Largest cellular phone distributor in Taiwan • ISO 9001 / ISO 9002 / TL 9000 certified manufacturing facilities En. Genius Technologies, Inc. • Established in 1999 • Wholly owned subsidiary of Senao International • Consumer & Industrial Voice & Wireless Data products • Provides Long-Range wireless communications for business & consumer

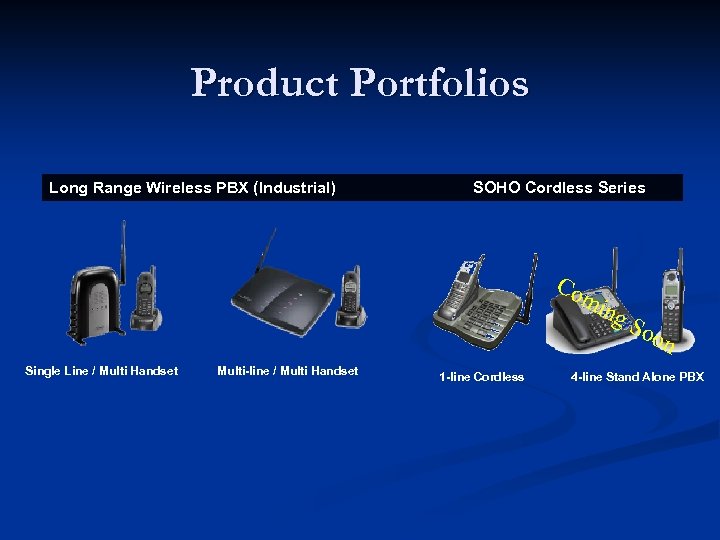

Product Portfolios Long Range Wireless PBX (Industrial) SOHO Cordless Series Co mi Single Line / Multi Handset Multi-line / Multi Handset 1 -line Cordless ng So on 4 -line Stand Alone PBX
Introducing …… Free. Styl 1 Long Range Cordless Telephones Douglas Bowersox Sept. /2009
Why Free. Styl 1 Long Range

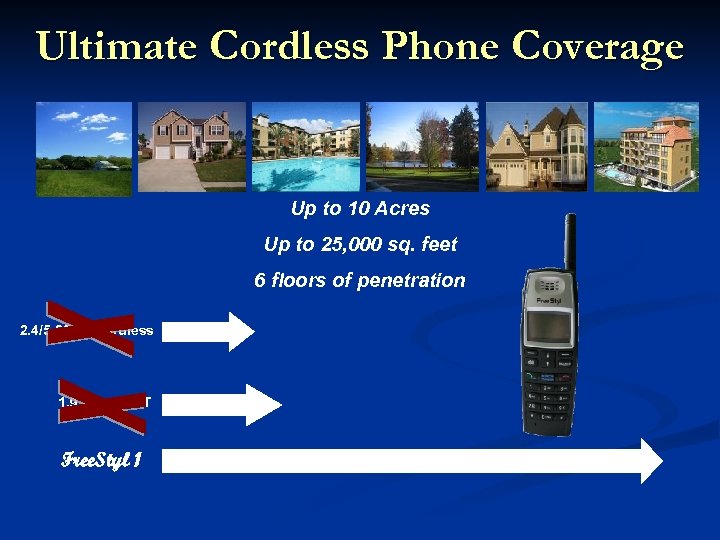

Ultimate Cordless Phone Coverage Up to 10 Acres Up to 25, 000 sq. feet 6 floors of penetration 2. 4/5. 8 GHz Cordless 1. 9 GHz DECT Free. Styl 1
Target Users – Maximum Residential Coverage Ø Consumer § § § Large Home/Estate Mountain Resorts Planned Community Apartment Complex Lake Home Ranch/Farm Home
Free. Styl 1 Expandability Free. Styl 1 system can support up to (9) cordless handsets
Wireless Intercom Private & Secure Instant Communications Private Wireless Intercom Handset to Handset or Handset to Base

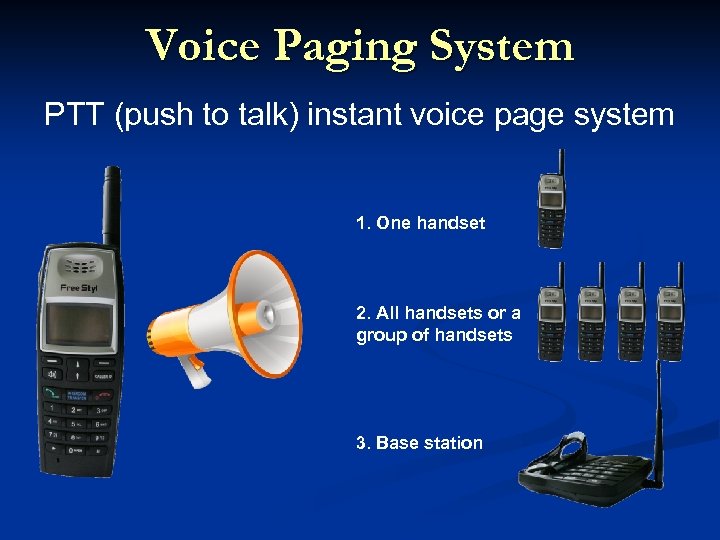

Voice Paging System PTT (push to talk) instant voice page system 1. One handset 2. All handsets or a group of handsets 3. Base station
Speakerphone Hands Free Operation from either the Free. Styl handset or Free. Styl base
Free. Styl 1 Advantage Extreme Outdoor Coverage up to 10 acres of coverage Superior Multi Floor Coverage up Complete Large Property Coverage to 6 floors of in-building penetration up to 25, 000 sq. ft. • Long Range • Slim Handset Design • Multi-Language Secure & Private Cordless Technology will not interfere with Wi. Fi networks or other 2. 4 GHz, 5. 8 GHz or DECT phones Wireless Intercom System No Base/Power Required • Speakerphone
Features List Phone book: 50 entries n Speakerphone n Intercom n Key Guard n Call Logs n Call Transfer n Call on Hold n Mute n Any Key Answer n Adjustable Flash Time n Expandable Handset n Ringer/ Vibrate n Type I/II Caller ID n Soft Menu Key n Voice Page n User Friendly MMI n Transmit Power Control n 4 -line LCD Display n Rapid Charging n Headset Jack w/Call Control n

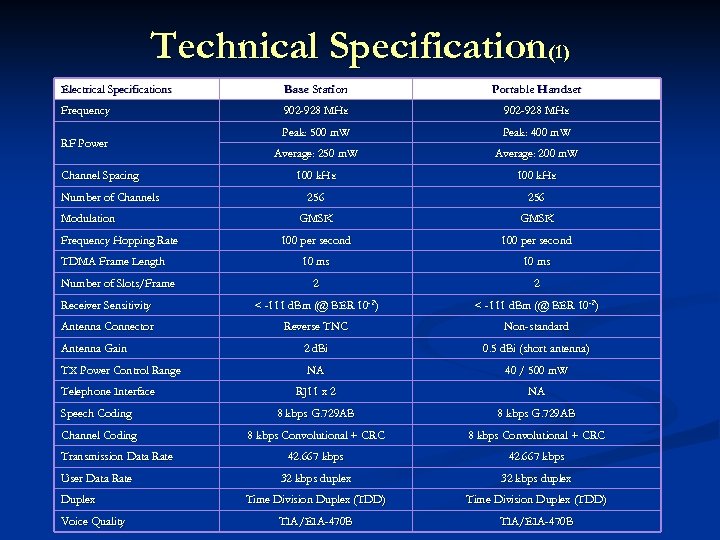

Technical Specification(1) Electrical Specifications Base Station Portable Handset Frequency 902 -928 MHz Peak: 500 m. W Peak: 400 m. W Average: 250 m. W Average: 200 m. W 100 k. Hz 256 GMSK 100 per second 10 ms 2 2 Receiver Sensitivity < -111 d. Bm (@ BER 10 -2) Antenna Connector Reverse TNC Non-standard 2 d. Bi 0. 5 d. Bi (short antenna) NA 40 / 500 m. W RJ 11 x 2 NA Speech Coding 8 kbps G. 729 AB Channel Coding 8 kbps Convolutional + CRC 42. 667 kbps 32 kbps duplex Time Division Duplex (TDD) TIA/EIA-470 B RF Power Channel Spacing Number of Channels Modulation Frequency Hopping Rate TDMA Frame Length Number of Slots/Frame Antenna Gain TX Power Control Range Telephone Interface Transmission Data Rate User Data Rate Duplex Voice Quality

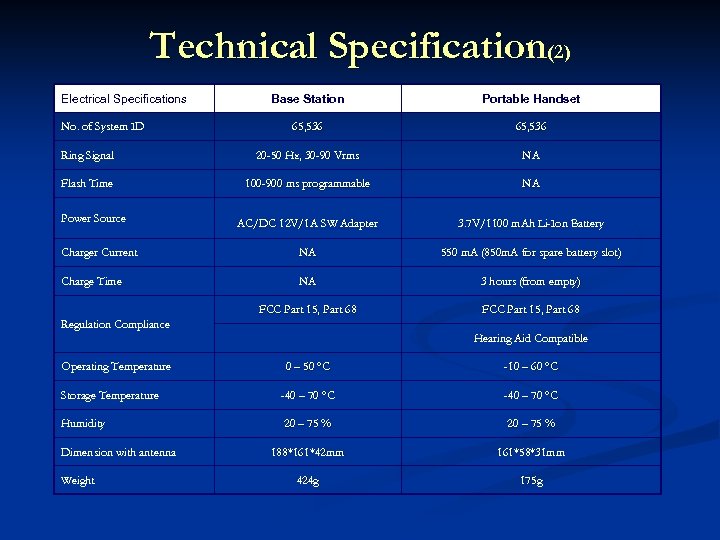

Technical Specification(2) Electrical Specifications Base Station Portable Handset 65, 536 Ring Signal 20 -50 Hz, 30 -90 Vrms NA Flash Time 100 -900 ms programmable NA AC/DC 12 V/1 A SW Adapter 3. 7 V/1100 m. Ah Li-Ion Battery Charger Current NA 550 m. A (850 m. A for spare battery slot) Charge Time NA 3 hours (from empty) FCC Part 15, Part 68 Hearing Aid Compatible 0 – 50 °C -10 – 60 °C Storage Temperature -40 – 70 °C Humidity 20 – 75 % 188*161*42 mm 161*58*31 mm 424 g 175 g No. of System ID Power Source Regulation Compliance Operating Temperature Dimension with antenna Weight
Free. Styl 1 – Go Long Range End
