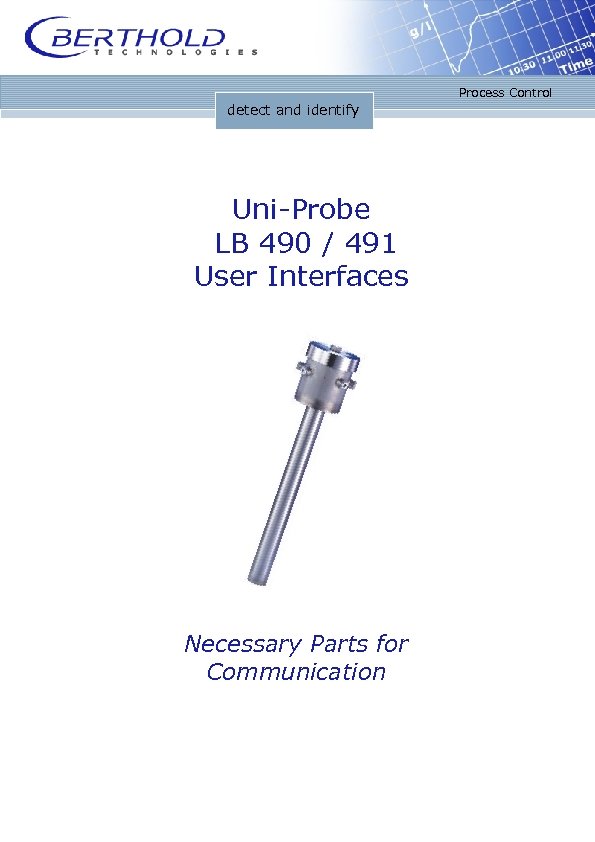

Process Control detect and identify Uni-Probe LB 490 / 491 User Interfaces Necessary Parts for Communication

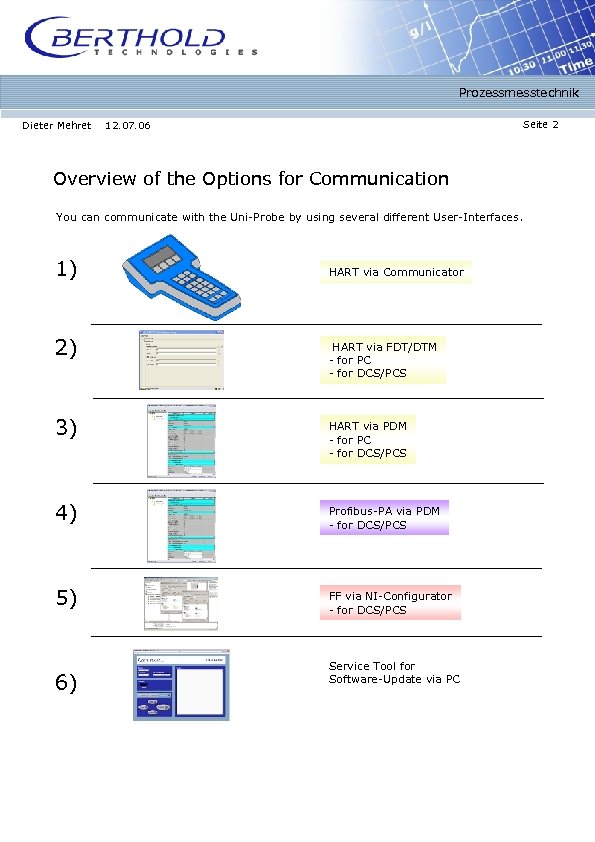

Prozessmesstechnik Dieter Mehret Seite 2 12. 07. 06 Overview of the Options for Communication You can communicate with the Uni-Probe by using several different User-Interfaces. 1) 2) 3) 4) 5) 6) HART via Communicator HART via FDT/DTM - for PC - for DCS/PCS HART via PDM - for PC - for DCS/PCS Profibus-PA via PDM - for DCS/PCS FF via NI-Configurator - for DCS/PCS Service Tool for Software-Update via PC
Prozessmesstechnik Dieter Mehret Seite 3 12. 07. 06 1) HART via Communicator Necessary Parts: 1. 1) HART-Communicator part no. 43070 (Model 375 only) Model 275 - not available any more - DDs must be loaded by the supplier of the communicator, at the owner's expense! Model 375 - current type - DDs downloadable via Internet also for FF! Note: In order to load DDs via Internet, you need a so called Upgrade Toolkit. You can order this Toolkit together with the communicator. If you order the communicator from Berthold, then you can download DD's from the Internet for 3 years. After 3 years you can extend it if you wish. 1. 2) DD für HART-Communicator (Software) obtainable see above If you buy the communicator 375 from Berthold, all Berthold DD's are installed in the communicator. Note: The DD revision of the communicator must be ≤ than the "Field Device Version" of the Uni-Probe. Due to this it is worthwhile to load all available revisions in the communicator. Up to now there are: 3 DD revisions for the LB 490 2 DD revisions for the LB 491
Prozessmesstechnik Dieter Mehret Seite 4 12. 07. 06 2) HART via FDT/DTM = Device Type Manager It is a instrument specific software, which must be integrated in the FDT system software, e. g. PACTware. The software is Windows based. Necessary Parts: 2. 1) Uni-Probe with newest software ≥Rev. 14 for LB 490 ≥Rev. 8 for LB 491 Is in series since May 2006. 2. 2) PC with RS 232 or USB Interface or DCS/PCS(with FDT-Container and HARTinterface) 2. 3) HART Modem part no. 37844 (RS 232) part no. 45159 (USB) not necessary for DCS/PCS, because already installed 2. 4) FDT Software FDT = Field Device Tool e. g. "PACTware" - download cost free via Internet (http: //www. pactware. com/english/PACTware/swdownload. htm) - must be installed on the PC 2. 5) DTM Software e. g. "PACTware HART Communication DTM (3. 0)" - download cost free via Internet (http: //www. pactware. com/english/PACTware/swdownload. htm) - must be installed on the PC 2. 6) DTM Software part no. : 47975
Prozessmesstechnik Dieter Mehret Seite 5 12. 07. 06 3) HART via PDM = Process Device Manager The Siemens Simatic PDM can be integrated on HART or on Profibus PA. The following case describes the connection for HART. Necessary Parts: 3. 1) Uni-Probe with newest software ≥Rev. 14 for LB 490 ≥Rev. 8 for LB 491 Is in series since May 2006. 3. 2) PC with RS 232 or USB Interface or Siemens Simatic DCS/PCS with HART interface 3. 3) HART Modem part no. 37844 (RS 232) part no. 45159 (USB) not necessary for Siemens DCS/PCS, because already installed 3. 4) Simatic PDM Software (Revision ≥ 5. 2) part no. 45160 not necessary for Siemens DCS/PCS, because usually already installed 3. 5) DD (Software) part no. 38466 (LB 490 DD Revision ≥ 3) part no. 40053 (LB 491 DD Revision ≥ 2)

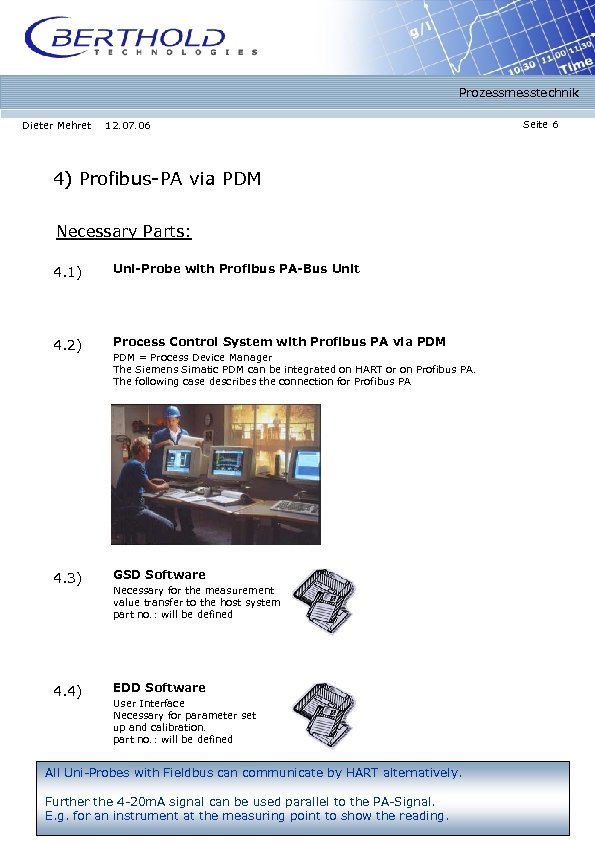

Prozessmesstechnik Dieter Mehret 12. 07. 06 4) Profibus-PA via PDM Necessary Parts: 4. 1) Uni-Probe with Profibus PA-Bus Unit 4. 2) Process Control System with Profibus PA via PDM 4. 3) GSD Software 4. 4) EDD Software PDM = Process Device Manager The Siemens Simatic PDM can be integrated on HART or on Profibus PA. The following case describes the connection for Profibus PA Necessary for the measurement value transfer to the host system part no. : will be defined User Interface Necessary for parameter set up and calibration. part no. : will be defined All Uni-Probes with Fieldbus can communicate by HART alternatively. Further the 4 -20 m. A signal can be used parallel to the PA-Signal. E. g. for an instrument at the measuring point to show the reading. Seite 6

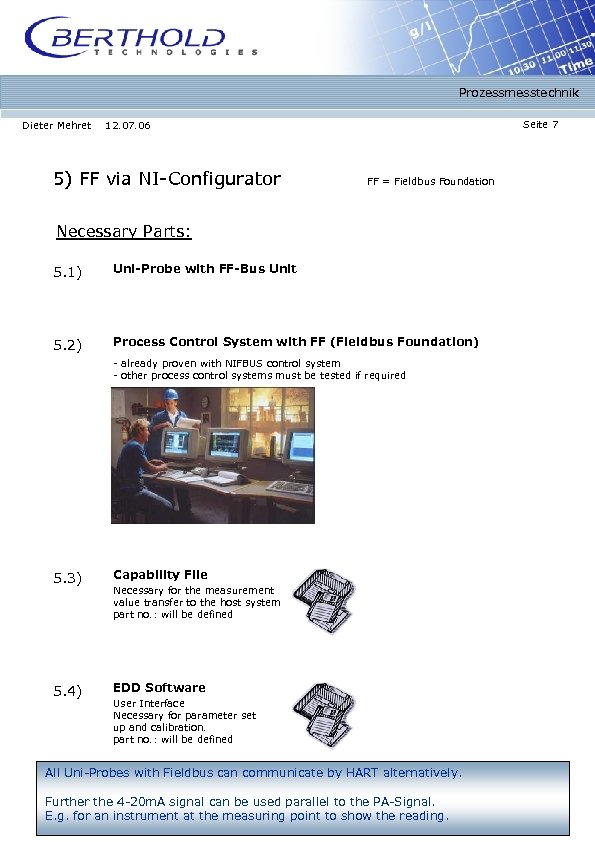

Prozessmesstechnik Dieter Mehret Seite 7 12. 07. 06 5) FF via NI-Configurator FF = Fieldbus Foundation Necessary Parts: 5. 1) Uni-Probe with FF-Bus Unit 5. 2) Process Control System with FF (Fieldbus Foundation) - already proven with NIFBUS control system - other process control systems must be tested if required 5. 3) Capability File 5. 4) EDD Software Necessary for the measurement value transfer to the host system part no. : will be defined User Interface Necessary for parameter set up and calibration. part no. : will be defined All Uni-Probes with Fieldbus can communicate by HART alternatively. Further the 4 -20 m. A signal can be used parallel to the PA-Signal. E. g. for an instrument at the measuring point to show the reading.

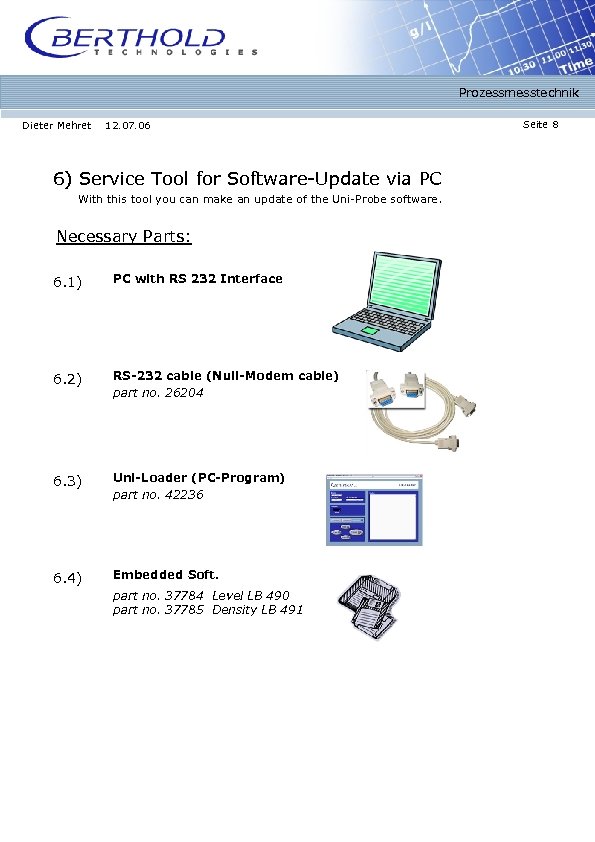

Prozessmesstechnik Dieter Mehret 12. 07. 06 6) Service Tool for Software-Update via PC With this tool you can make an update of the Uni-Probe software. Necessary Parts: 6. 1) PC with RS 232 Interface 6. 2) RS-232 cable (Null-Modem cable) part no. 26204 6. 3) Uni-Loader (PC-Program) part no. 42236 6. 4) Embedded Soft. part no. 37784 Level LB 490 part no. 37785 Density LB 491 Seite 8
