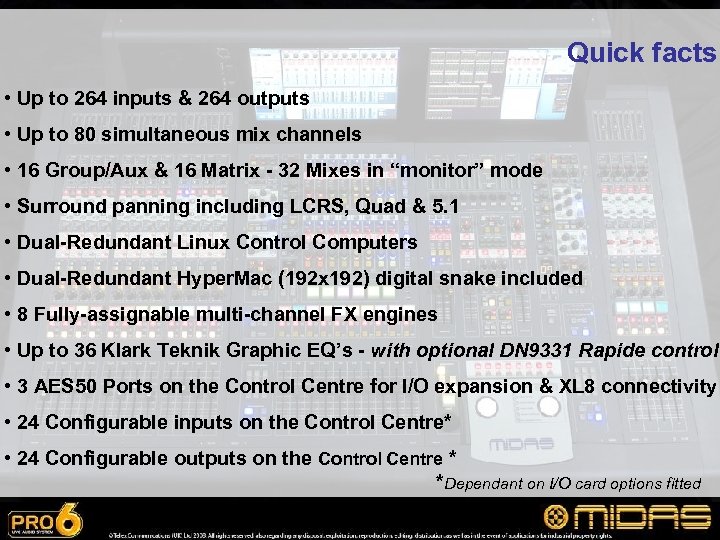

Quick facts • Up to 264 inputs & 264 outputs • Up to 80 simultaneous mix channels • 16 Group/Aux & 16 Matrix - 32 Mixes in “monitor” mode • Surround panning including LCRS, Quad & 5. 1 • Dual-Redundant Linux Control Computers • Dual-Redundant Hyper. Mac (192 x 192) digital snake included • 8 Fully-assignable multi-channel FX engines • Up to 36 Klark Teknik Graphic EQ’s - with optional DN 9331 Rapide control • 3 AES 50 Ports on the Control Centre for I/O expansion & XL 8 connectivity • 24 Configurable inputs on the Control Centre* • 24 Configurable outputs on the Control Centre * *Dependant on I/O card options fitted

Dual “Daylight Visible” Screens with 3 -way KVM switch

XL 8 -Style “Fast access zones”

XL 8 -Style dual “Channel Strips”

10 VCA’s

6 POPulation Groups

Configurable “Area B” Crucial “must have” inputs can be “stuck” to area B

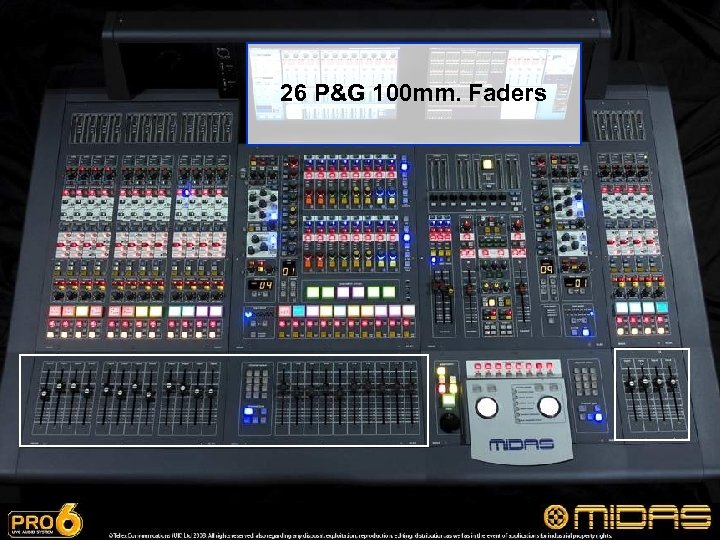

26 P&G 100 mm. Faders

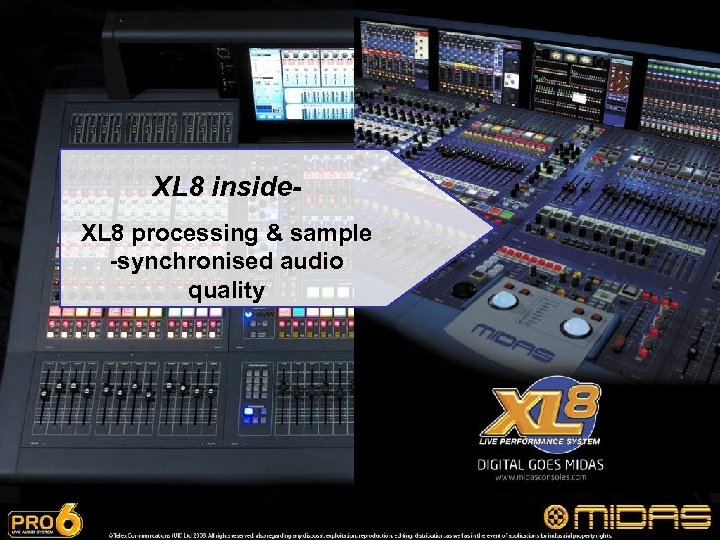

XL 8 inside. XL 8 processing & sample -synchronised audio quality

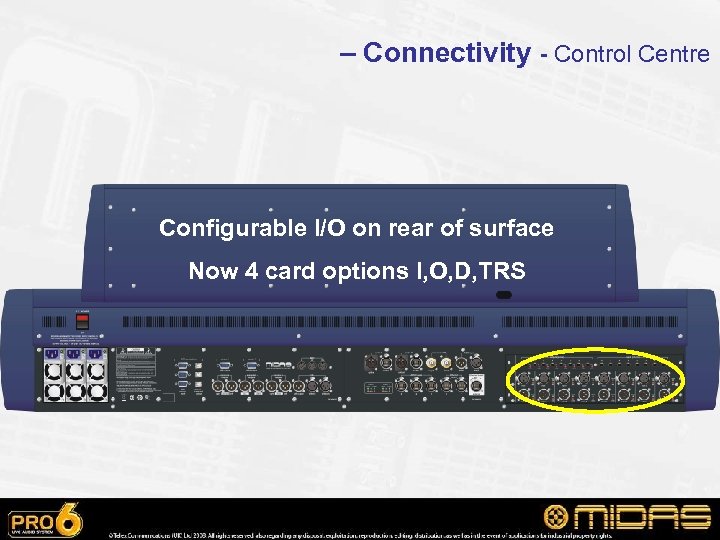

– Connectivity - Control Centre Configurable I/O on rear of surface Now 4 card options I, O, D, TRS

– Connectivity - Control Centre Dual-redundant digital snake (Cat-5 e or optical)

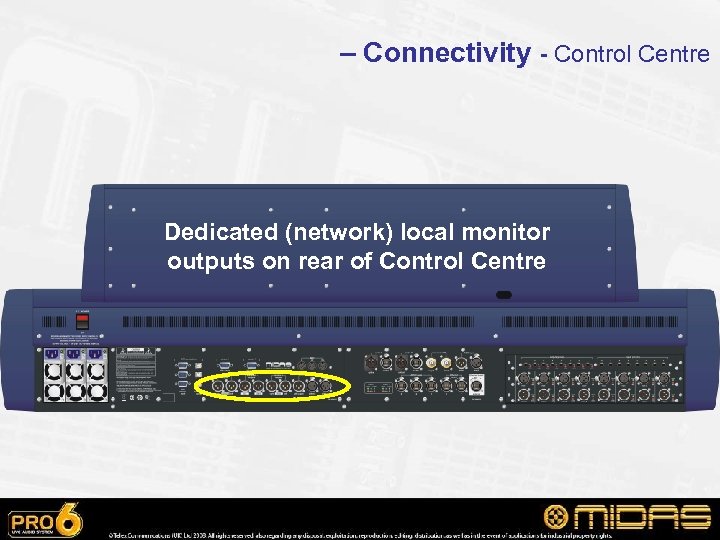

– Connectivity - Control Centre Dedicated (network) local monitor outputs on rear of Control Centre

– Connectivity - Control Centre 3 -way KVM connections & VGA video outputs

– Connectivity - Control Centre Redundant PSU included Same PSU as DSP engine rack! (Interchangeable)

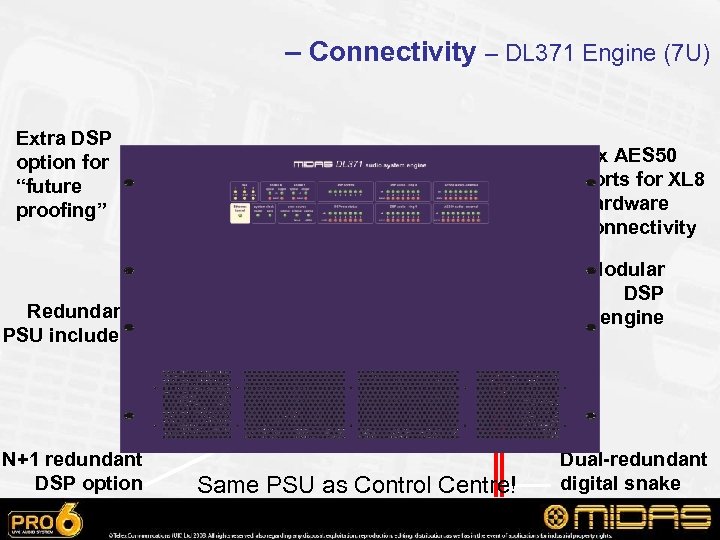

– Connectivity – DL 371 Engine (7 U) Extra DSP option for “future proofing” 8 x AES 50 ports for XL 8 hardware connectivity Modular DSP engine Redundant PSU included N+1 redundant DSP option Same PSU as Control Centre! Dual-redundant digital snake

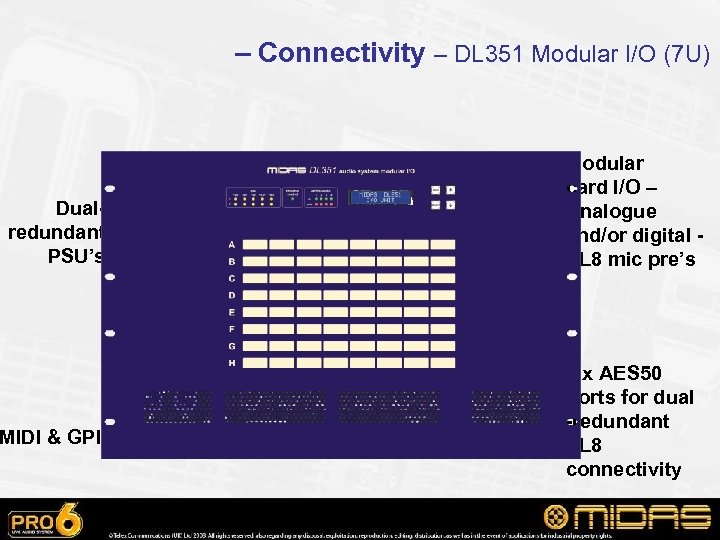

– Connectivity – DL 351 Modular I/O (7 U) Dualredundant PSU’s MIDI & GPIO Modular card I/O – Analogue and/or digital XL 8 mic pre’s 4 x AES 50 ports for dual -redundant XL 8 connectivity

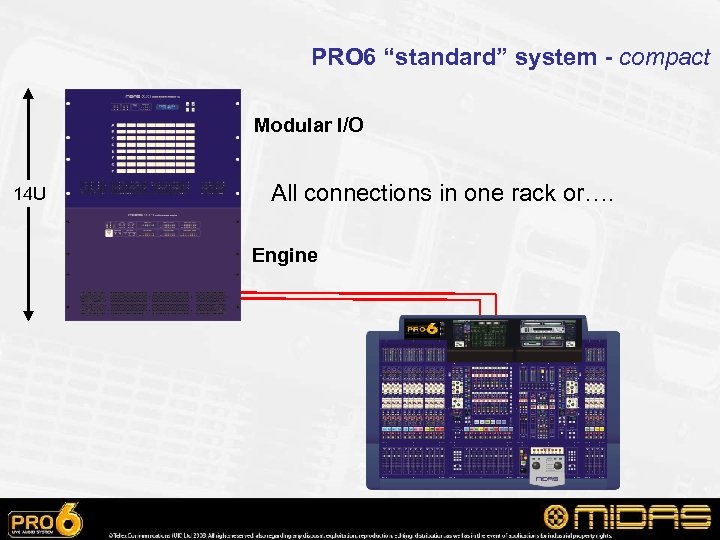

PRO 6 “standard” system - compact Modular I/O 14 U All connections in one rack or…. Engine

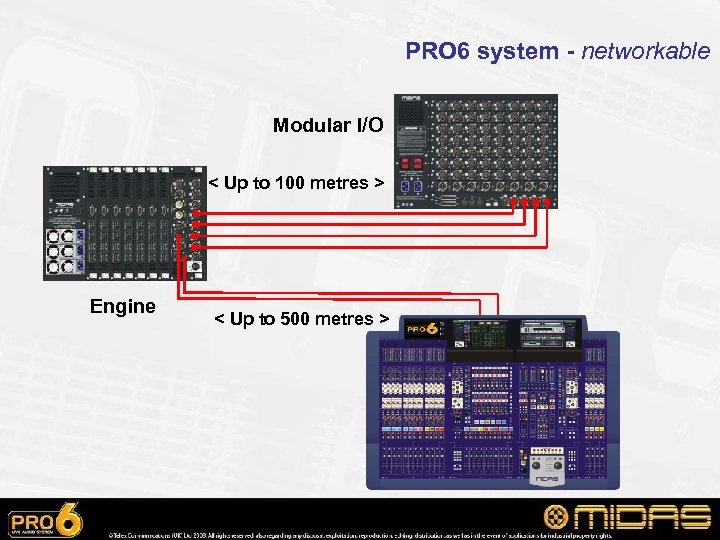

PRO 6 system - networkable Modular I/O < Up to 100 metres > Engine < Up to 500 metres >

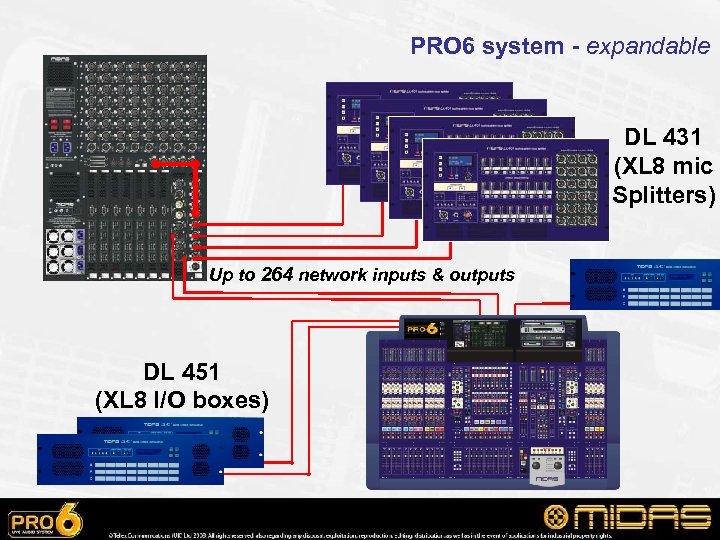

PRO 6 system - expandable DL 431 (XL 8 mic Splitters) Up to 264 network inputs & outputs DL 451 (XL 8 I/O boxes)

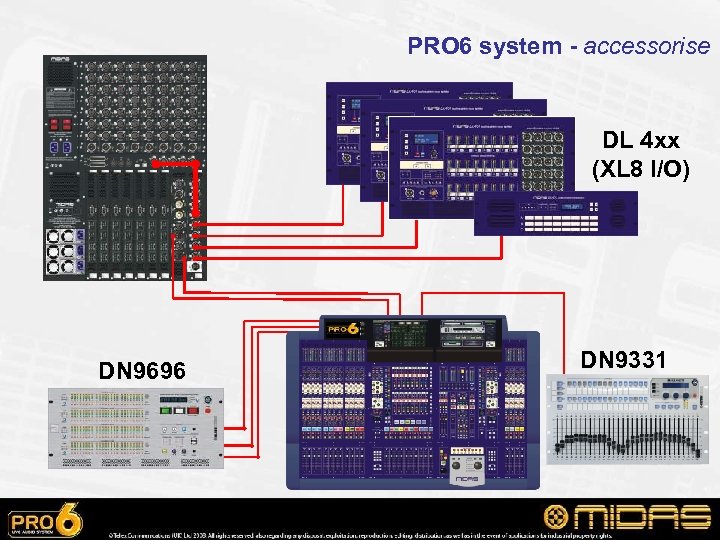

PRO 6 system - accessorise DL 4 xx (XL 8 I/O) DN 9696 DN 9331

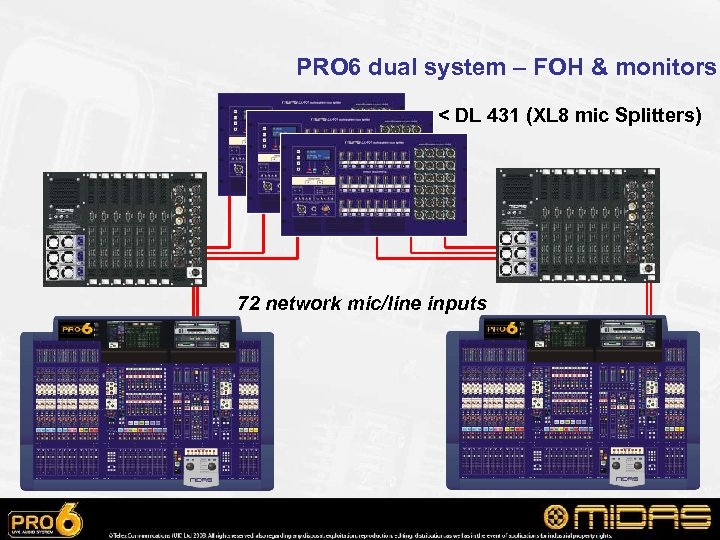

PRO 6 dual system – FOH & monitors < DL 431 (XL 8 mic Splitters) 72 network mic/line inputs

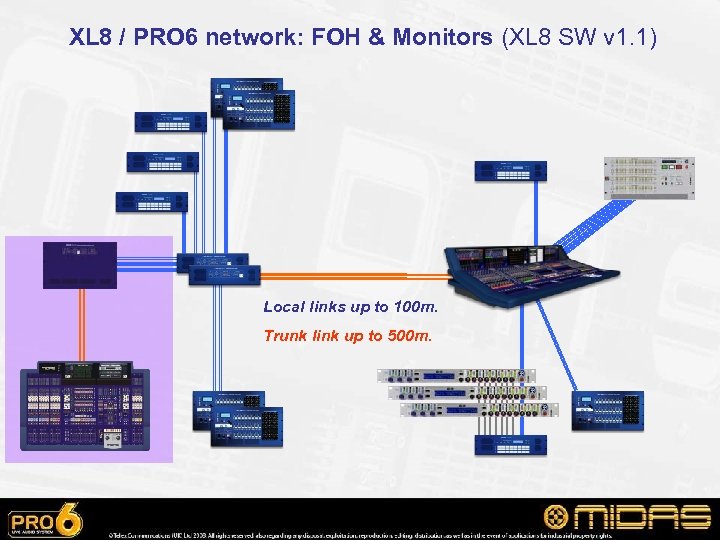

XL 8 / PRO 6 network: FOH & Monitors (XL 8 SW v 1. 1) Local links up to 100 m. Trunk link up to 500 m.

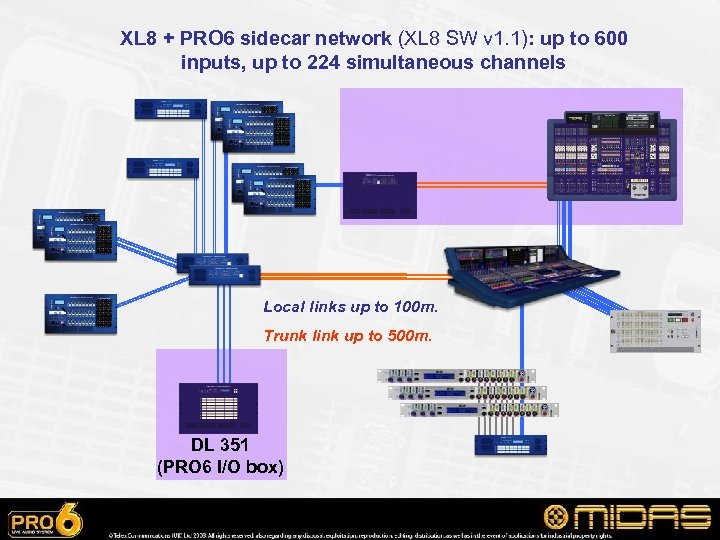

XL 8 + PRO 6 sidecar network (XL 8 SW v 1. 1): up to 600 inputs, up to 224 simultaneous channels Local links up to 100 m. Trunk link up to 500 m. DL 351 (PRO 6 I/O box)

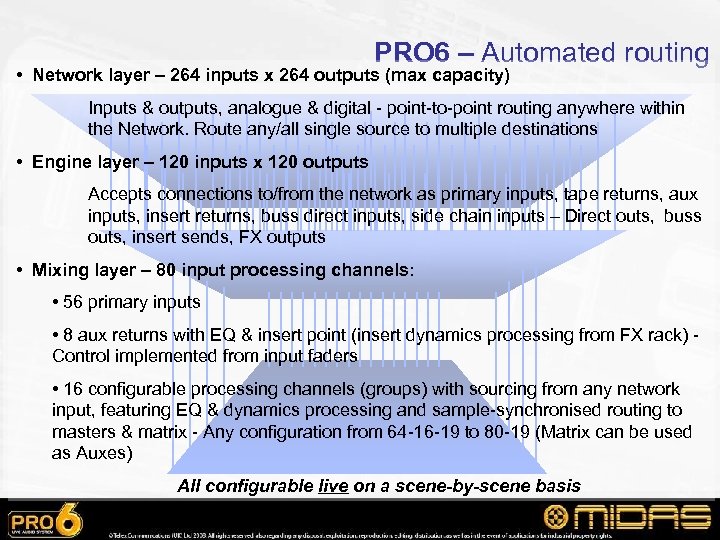

PRO 6 – Automated routing • Network layer – 264 inputs x 264 outputs (max capacity) Inputs & outputs, analogue & digital - point-to-point routing anywhere within the Network. Route any/all single source to multiple destinations • Engine layer – 120 inputs x 120 outputs Accepts connections to/from the network as primary inputs, tape returns, aux inputs, insert returns, buss direct inputs, side chain inputs – Direct outs, buss outs, insert sends, FX outputs • Mixing layer – 80 input processing channels: • 56 primary inputs • 8 aux returns with EQ & insert point (insert dynamics processing from FX rack) Control implemented from input faders • 16 configurable processing channels (groups) with sourcing from any network input, featuring EQ & dynamics processing and sample-synchronised routing to masters & matrix - Any configuration from 64 -16 -19 to 80 -19 (Matrix can be used as Auxes) All configurable live on a scene-by-scene basis

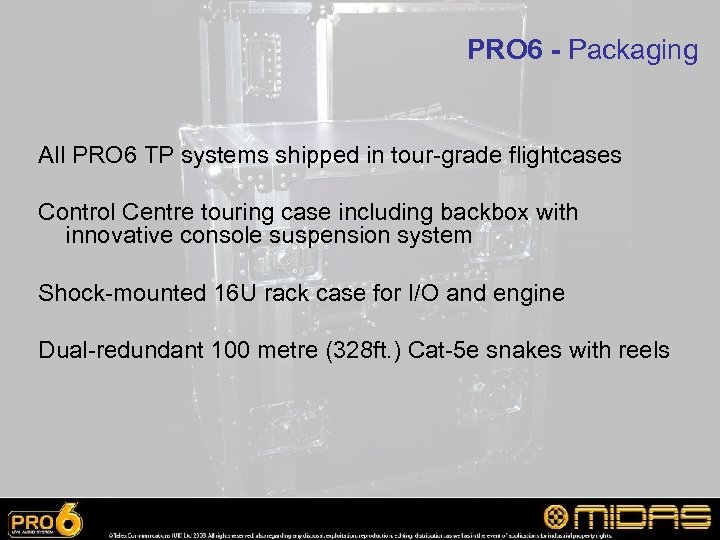

PRO 6 - Packaging All PRO 6 TP systems shipped in tour-grade flightcases Control Centre touring case including backbox with innovative console suspension system Shock-mounted 16 U rack case for I/O and engine Dual-redundant 100 metre (328 ft. ) Cat-5 e snakes with reels

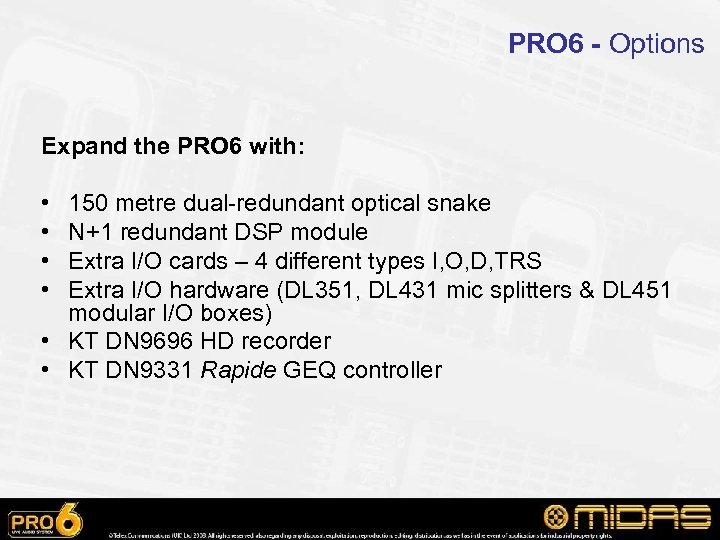

PRO 6 - Options Expand the PRO 6 with: • • 150 metre dual-redundant optical snake N+1 redundant DSP module Extra I/O cards – 4 different types I, O, D, TRS Extra I/O hardware (DL 351, DL 431 mic splitters & DL 451 modular I/O boxes) • KT DN 9696 HD recorder • KT DN 9331 Rapide GEQ controller
