Printar Ltd. Advanced Digital PCB Inkjet Legend Printing System May 2007 Printar Confidential and Printar Ltd. Advanced Digital PCB Inkjet Legend Printing System May 2007 Printar Confidential and Proprietary Information

Digital Printing Vs. Analogue - Workflow One step, short, LGP 809 Digital Legend Printing Digital Printing Vs. Analogue - Workflow One step, short, LGP 809 Digital Legend Printing Traditional, long, Multi steps, Legend Screen printing Minimum human intervention No need for expert handling Printar Confidential and Proprietary Information

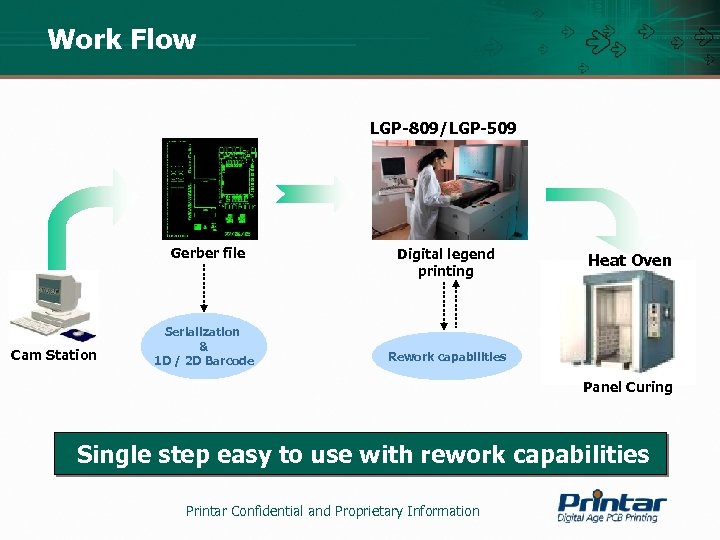

Work Flow LGP-809/LGP-509 Gerber file Cam Station Serialization & 1 D / 2 D Work Flow LGP-809/LGP-509 Gerber file Cam Station Serialization & 1 D / 2 D Barcode Digital legend printing Heat Oven Rework capabilities Panel Curing Single step easy to use with rework capabilities Printar Confidential and Proprietary Information

LGP-809 - Product Specifications § Number of print heads: 6 § Net printing time LGP-809 - Product Specifications § Number of print heads: 6 § Net printing time (18’’x 24’’) § Normal resolution (375 x 375 dpi): 19 sec/side § High resolution (750 x 750 dpi): 35 sec/side § Input: Gerber file § Panel dimensions: 24’’x 30’’ § Panel thickness: <10 mm § Panel types: cured & semi-cured (tack free) solder mask, Rigid-flex and Flex (Kapton) § Ink: White heat-curable § Options: § 1 D Barcode § 2 D Barcode Printar Confidential and Proprietary Information

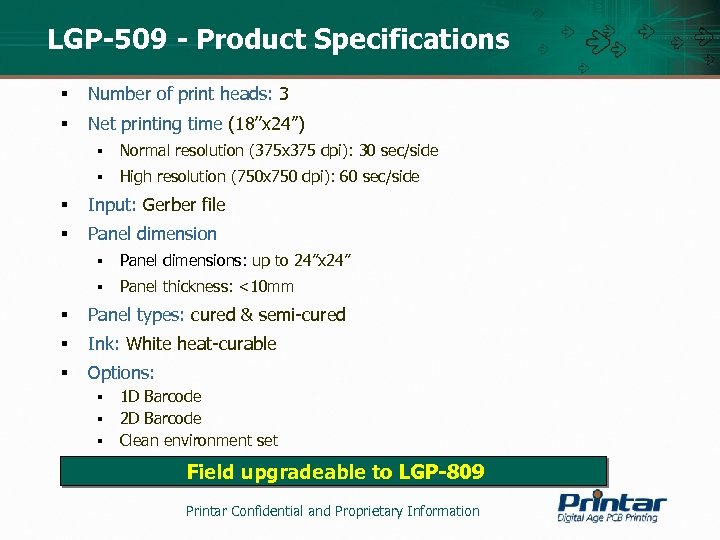

LGP-509 - Product Specifications § Number of print heads: 3 § Net printing time LGP-509 - Product Specifications § Number of print heads: 3 § Net printing time (18’’x 24’’) § Normal resolution (375 x 375 dpi): 30 sec/side § High resolution (750 x 750 dpi): 60 sec/side § Input: Gerber file § Panel dimensions: up to 24’’x 24’’ § Panel thickness: <10 mm § Panel types: cured & semi-cured § Ink: White heat-curable § Options: § § § 1 D Barcode 2 D Barcode Clean environment set Field upgradeable to LGP-809 Printar Confidential and Proprietary Information

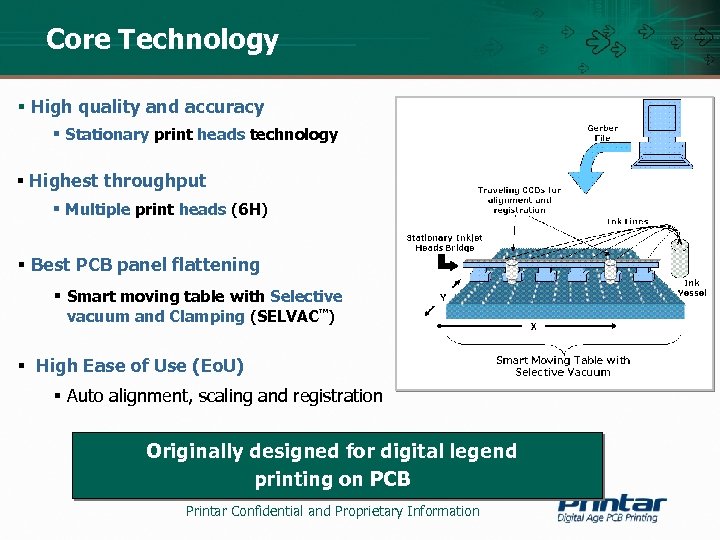

Core Technology § High quality and accuracy § Stationary print heads technology § Highest Core Technology § High quality and accuracy § Stationary print heads technology § Highest throughput § Multiple print heads (6 H) § Best PCB panel flattening § Smart moving table with Selective vacuum and Clamping (SELVAC™) § High Ease of Use (Eo. U) § Auto alignment, scaling and registration Originally designed for digital legend printing on PCB Printar Confidential and Proprietary Information

Printar Ink Solution § “In house” ink development § Enable customization and R&D flexibility Printar Ink Solution § “In house” ink development § Enable customization and R&D flexibility § No dependency on outside suppliers § Best digital ink prices § Heat curable ink § Compatible for Cured and Semi-cured (tack free) solder mask § Printed on Rigid, Rigid-Flex and Flex panels (Kapton and Polyimide) § Best adhesion and resistance § Used for all applications including the most demanding military, medical, aerospace applications Heat Curable Ink Unsurpassed DURABILITY Printar Confidential and Proprietary Information

Printar Ink Approvals § MIL – 55110 F (Marking inks) – APPROVED. § A-A- Printar Ink Approvals § MIL – 55110 F (Marking inks) – APPROVED. § A-A- 56032 D (performance test) – APPROVED. § UL 94 -V Flammability tests – APPROVED as UL 94 -V-0. § Ro. HS regulations – COMPLIED. § Out Gassing – ASTM E 595 – APPROVED. § Martin Marieta M 50 GB 3361 – Fluid Susceptibility Test - APPROVED § Halogen Free – APPROVED § Electromigration Testing - APPROVED Printar Confidential and Proprietary Information

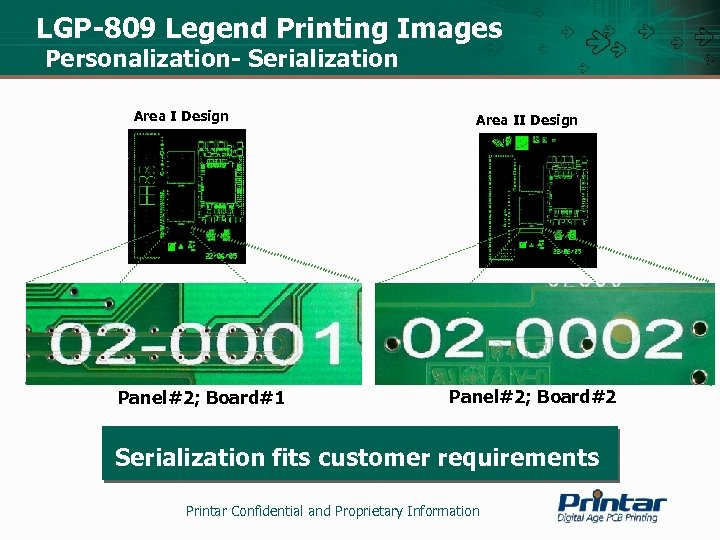

LGP-809 Legend Printing Images Personalization- Serialization Area I Design Panel#2; Board#1 Area II Design LGP-809 Legend Printing Images Personalization- Serialization Area I Design Panel#2; Board#1 Area II Design Panel#2; Board#2 Serialization fits customer requirements Printar Confidential and Proprietary Information

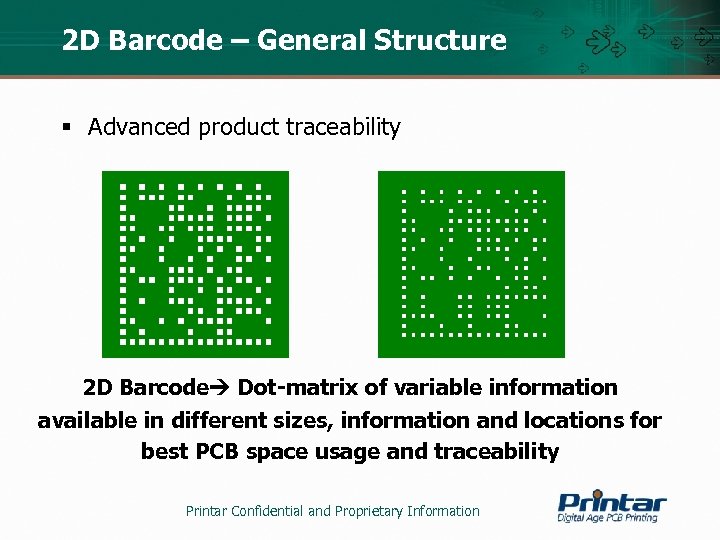

2 D Barcode – General Structure § Advanced product traceability 2 D Barcode Dot-matrix 2 D Barcode – General Structure § Advanced product traceability 2 D Barcode Dot-matrix of variable information available in different sizes, information and locations for best PCB space usage and traceability Printar Confidential and Proprietary Information

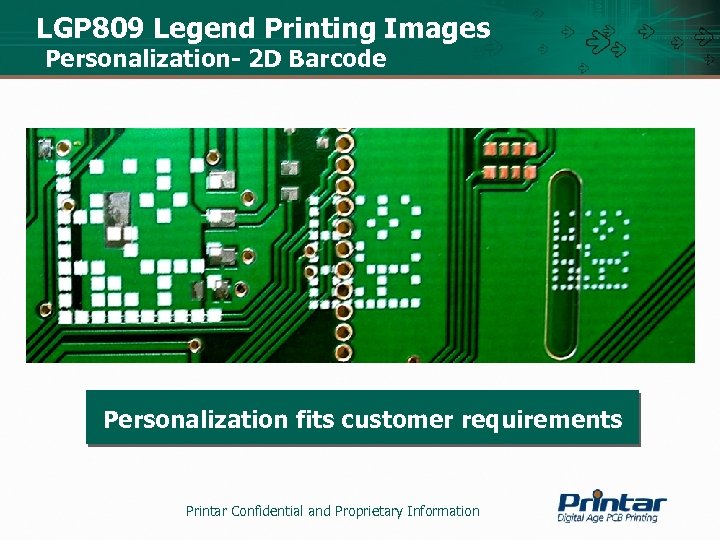

LGP 809 Legend Printing Images Personalization- 2 D Barcode Personalization fits customer requirements Printar LGP 809 Legend Printing Images Personalization- 2 D Barcode Personalization fits customer requirements Printar Confidential and Proprietary Information

Legend Printing Images Personalization- Serialization on Flex Circuits Printar Confidential and Proprietary Information Legend Printing Images Personalization- Serialization on Flex Circuits Printar Confidential and Proprietary Information
