Principles of Radiation Oncology in (advanced stage) NSCLC Stephan Bodis Kantonsspital Aarau Principles of Radiation Oncology in (advanced stage) NSCLC Stephan Bodis Kantonsspital Aarau

The Tools for the Radiation Oncologist n Sophisticated treatment machines (dual energies, multileaf-collimator, 3 The Tools for the Radiation Oncologist n Sophisticated treatment machines (dual energies, multileaf-collimator, 3 paired laser beams for patient set-up, integrated CT, IMRT, stereotactic treatment) n Tumor volume definition: CT-MRI-PET fusion imaging, dedicated planing CT (lasersystem, large diameter) n Treatment planing: Standardized dose prescription to tumor (maximal) and to normal tissue (minimal), dose-volume histogram for tumor and each organ at risk n Treatment delivery: fix RT-field, moving RT-field (infield movement = IMRT), image guidance, respiration correction n Fractionated (daily) radiotherapy to a defined total dose

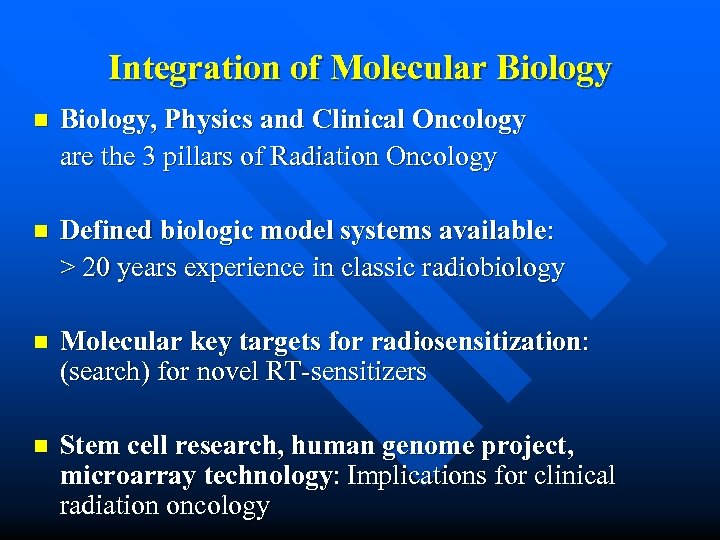

Integration of Molecular Biology n Biology, Physics and Clinical Oncology are the 3 pillars Integration of Molecular Biology n Biology, Physics and Clinical Oncology are the 3 pillars of Radiation Oncology n Defined biologic model systems available: > 20 years experience in classic radiobiology n Molecular key targets for radiosensitization: (search) for novel RT-sensitizers n Stem cell research, human genome project, microarray technology: Implications for clinical radiation oncology

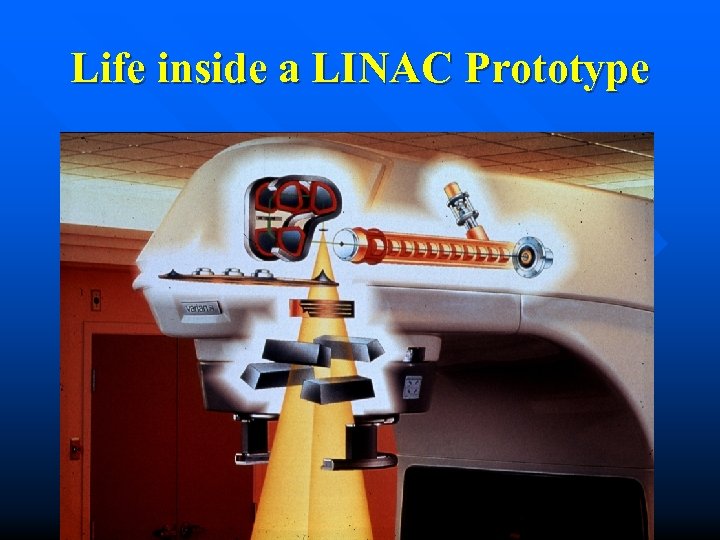

Life inside a LINAC Prototype Life inside a LINAC Prototype

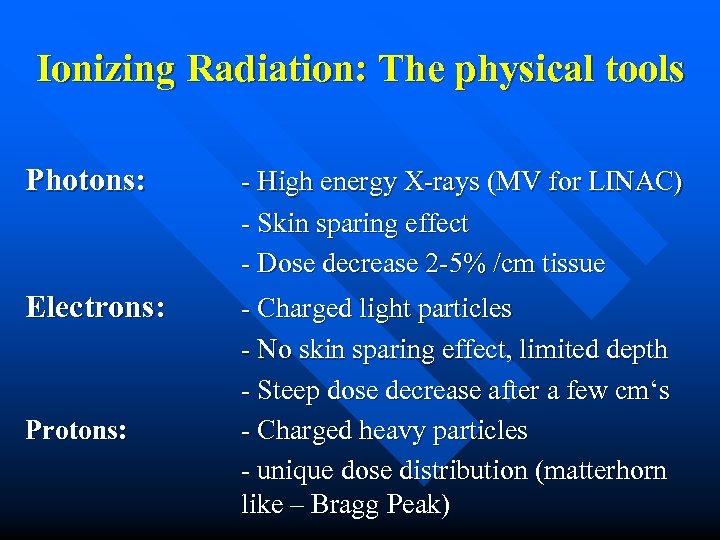

Ionizing Radiation: The physical tools Photons: - High energy X-rays (MV for LINAC) - Ionizing Radiation: The physical tools Photons: - High energy X-rays (MV for LINAC) - Skin sparing effect - Dose decrease 2 -5% /cm tissue Electrons: - Charged light particles - No skin sparing effect, limited depth - Steep dose decrease after a few cm‘s - Charged heavy particles - unique dose distribution (matterhorn like – Bragg Peak) Protons:

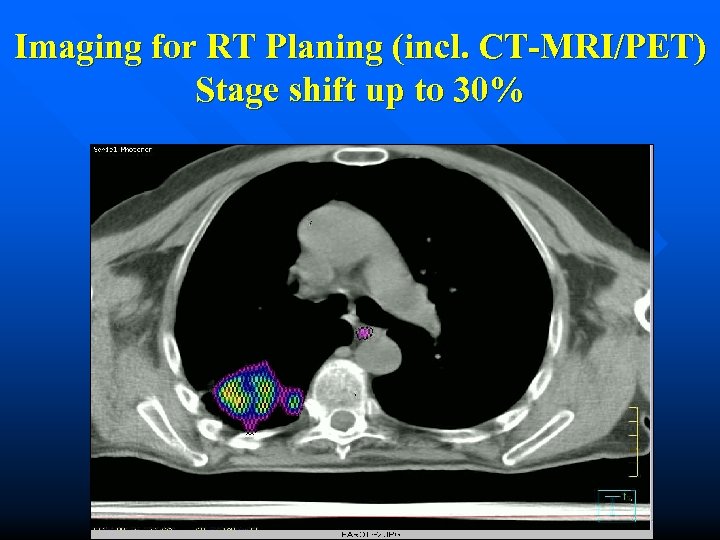

Imaging for RT Planing (incl. CT-MRI/PET) Stage shift up to 30% Imaging for RT Planing (incl. CT-MRI/PET) Stage shift up to 30%

Preclinical research: Metabolic image guided RT (m. IGRT) with repeated FDG-PET during RT? Preclinical research: Metabolic image guided RT (m. IGRT) with repeated FDG-PET during RT?

Intensity modulated RT (IMRT) Voxel by voxel RT for complex volumes (high/low dose) Intensity modulated RT (IMRT) Voxel by voxel RT for complex volumes (high/low dose)

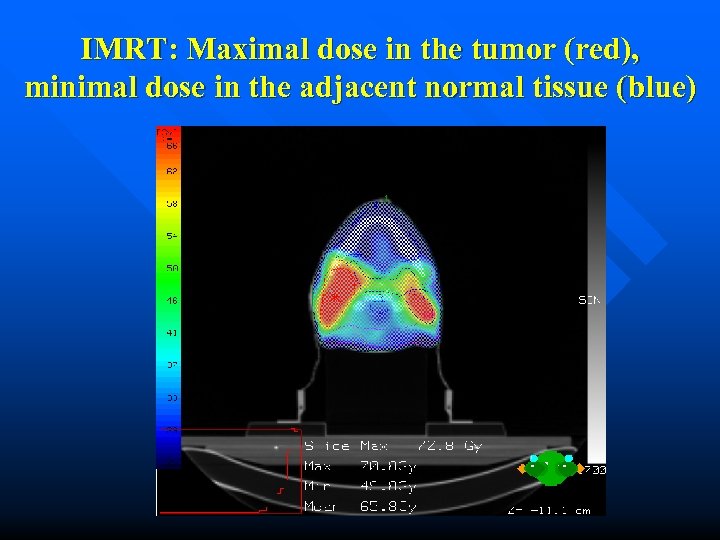

IMRT: Maximal dose in the tumor (red), minimal dose in the adjacent normal tissue IMRT: Maximal dose in the tumor (red), minimal dose in the adjacent normal tissue (blue)

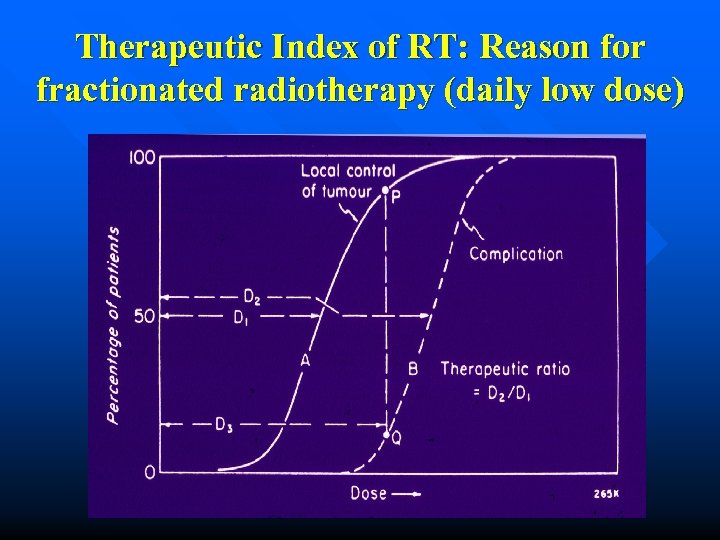

Therapeutic Index of RT: Reason for fractionated radiotherapy (daily low dose) Therapeutic Index of RT: Reason for fractionated radiotherapy (daily low dose)

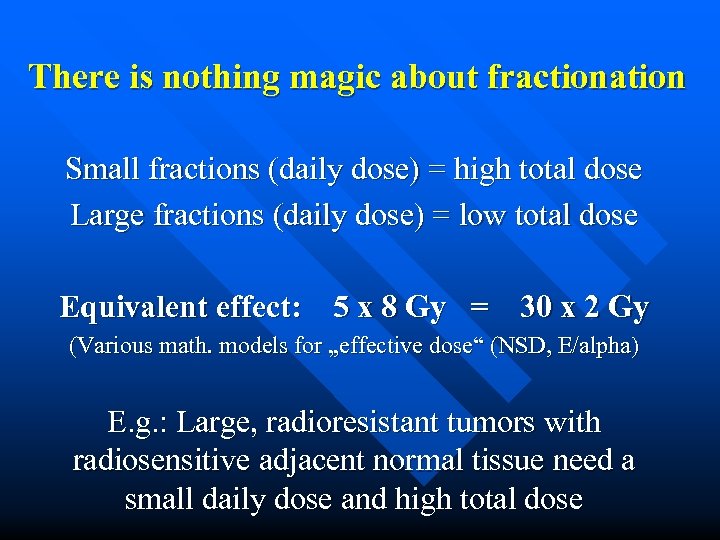

There is nothing magic about fractionation Small fractions (daily dose) = high total dose There is nothing magic about fractionation Small fractions (daily dose) = high total dose Large fractions (daily dose) = low total dose Equivalent effect: 5 x 8 Gy = 30 x 2 Gy (Various math. models for „effective dose“ (NSD, E/alpha) E. g. : Large, radioresistant tumors with radiosensitive adjacent normal tissue need a small daily dose and high total dose

Radiotherapy in NSCLC 75 % of lung cancer patients need radiotherapy Primary radical radiotherapy Radiotherapy in NSCLC 75 % of lung cancer patients need radiotherapy Primary radical radiotherapy (Stage I – IIIB) Adjuvant, radical radiotherapy (Stage IIB – IIIA) Radical radiotherapy in local recurrence (Stage I – III) Palliative radiotherapy (Any stage)

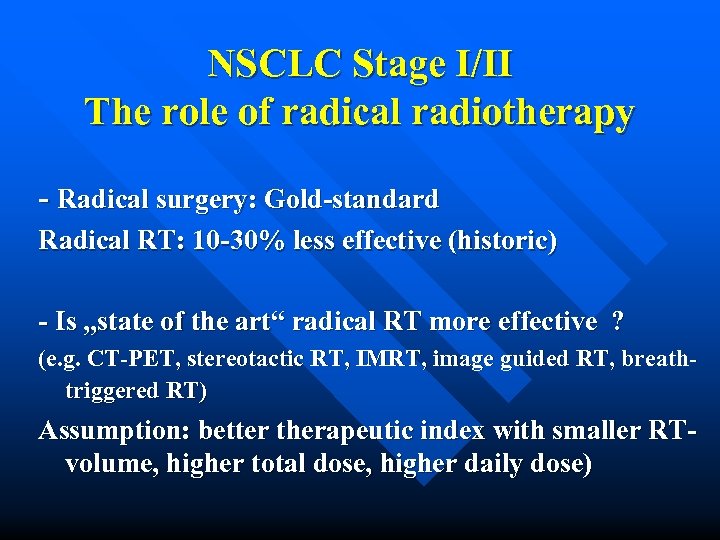

NSCLC Stage I/II The role of radical radiotherapy - Radical surgery: Gold-standard Radical RT: NSCLC Stage I/II The role of radical radiotherapy - Radical surgery: Gold-standard Radical RT: 10 -30% less effective (historic) - Is „state of the art“ radical RT more effective ? (e. g. CT-PET, stereotactic RT, IMRT, image guided RT, breathtriggered RT) Assumption: better therapeutic index with smaller RTvolume, higher total dose, higher daily dose)

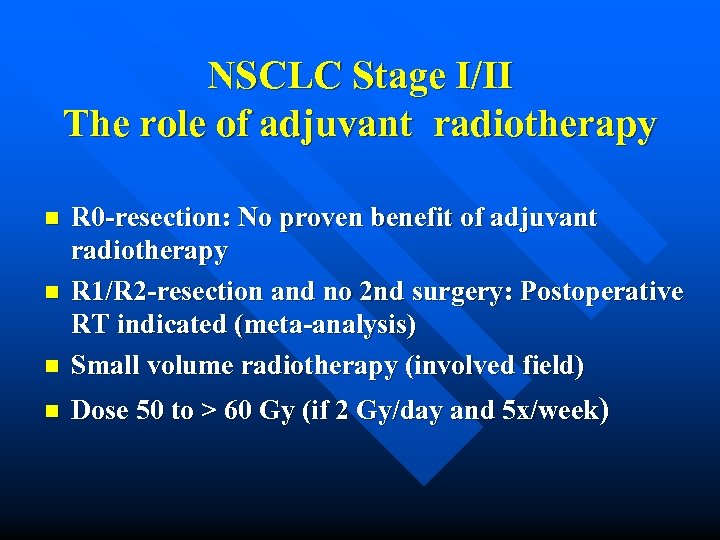

NSCLC Stage I/II The role of adjuvant radiotherapy n R 0 -resection: No proven NSCLC Stage I/II The role of adjuvant radiotherapy n R 0 -resection: No proven benefit of adjuvant radiotherapy R 1/R 2 -resection and no 2 nd surgery: Postoperative RT indicated (meta-analysis) Small volume radiotherapy (involved field) n Dose 50 to > 60 Gy (if 2 Gy/day and 5 x/week) n n

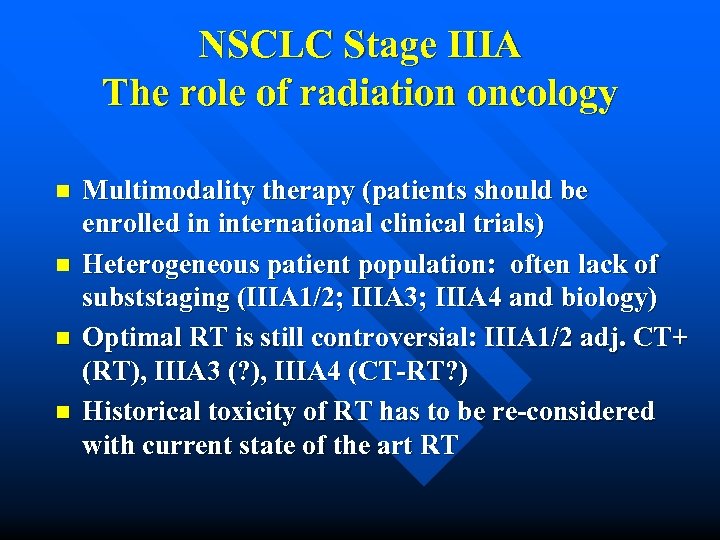

NSCLC Stage IIIA The role of radiation oncology n n Multimodality therapy (patients should NSCLC Stage IIIA The role of radiation oncology n n Multimodality therapy (patients should be enrolled in international clinical trials) Heterogeneous patient population: often lack of subststaging (IIIA 1/2; IIIA 3; IIIA 4 and biology) Optimal RT is still controversial: IIIA 1/2 adj. CT+ (RT), IIIA 3 (? ), IIIA 4 (CT-RT? ) Historical toxicity of RT has to be re-considered with current state of the art RT

NSCLC Stage IIIA The role of radiation oncology n n Phase III trials: RT NSCLC Stage IIIA The role of radiation oncology n n Phase III trials: RT + Surgery OR Surgery + RT vs. Surgery: same or worse OS, more toxicity (NCI; LCSG-Weisenberger 1985, Dautzenberg 1999) Benefit for preop. RT for Pancoast Tumors (Paulson 1995) Postop. phase III trials (EORTC, Villejuif) S w/wo CT + RT vs. S w/wo CT: lower OS with older trials using RT, same OS with recent trials; more toxity - „reason“ for lower OS in metanalyis; better LC with most recent studies)

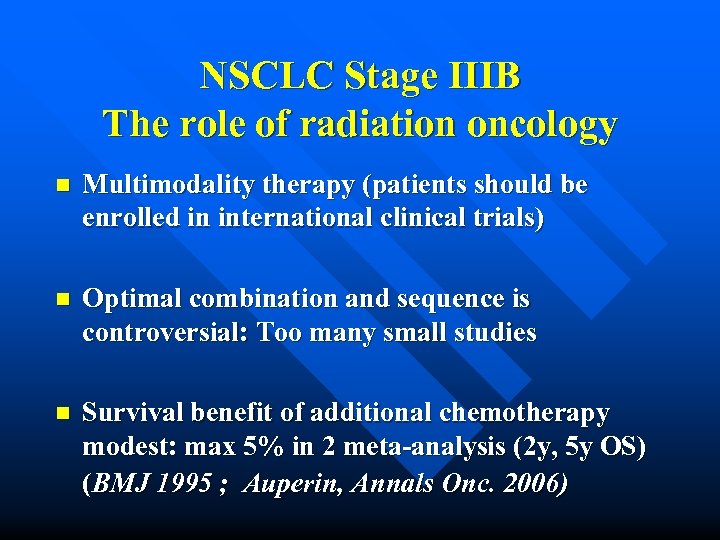

NSCLC Stage IIIB The role of radiation oncology n Multimodality therapy (patients should be NSCLC Stage IIIB The role of radiation oncology n Multimodality therapy (patients should be enrolled in international clinical trials) n Optimal combination and sequence is controversial: Too many small studies n Survival benefit of additional chemotherapy modest: max 5% in 2 meta-analysis (2 y, 5 y OS) (BMJ 1995 ; Auperin, Annals Onc. 2006)

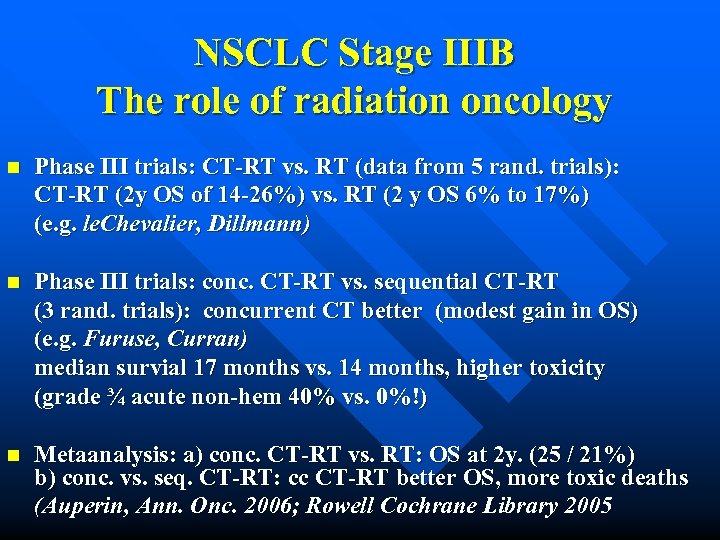

NSCLC Stage IIIB The role of radiation oncology n Phase III trials: CT-RT vs. NSCLC Stage IIIB The role of radiation oncology n Phase III trials: CT-RT vs. RT (data from 5 rand. trials): CT-RT (2 y OS of 14 -26%) vs. RT (2 y OS 6% to 17%) (e. g. le. Chevalier, Dillmann) n Phase III trials: conc. CT-RT vs. sequential CT-RT (3 rand. trials): concurrent CT better (modest gain in OS) (e. g. Furuse, Curran) median survial 17 months vs. 14 months, higher toxicity (grade ¾ acute non-hem 40% vs. 0%!) n Metaanalysis: a) conc. CT-RT vs. RT: OS at 2 y. (25 / 21%) b) conc. vs. seq. CT-RT: cc CT-RT better OS, more toxic deaths (Auperin, Ann. Onc. 2006; Rowell Cochrane Library 2005

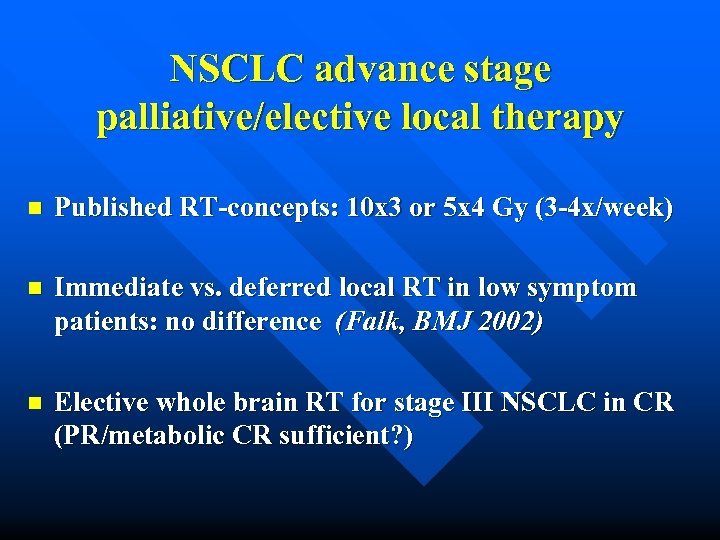

NSCLC advance stage palliative/elective local therapy n Published RT-concepts: 10 x 3 or 5 NSCLC advance stage palliative/elective local therapy n Published RT-concepts: 10 x 3 or 5 x 4 Gy (3 -4 x/week) n Immediate vs. deferred local RT in low symptom patients: no difference (Falk, BMJ 2002) n Elective whole brain RT for stage III NSCLC in CR (PR/metabolic CR sufficient? )

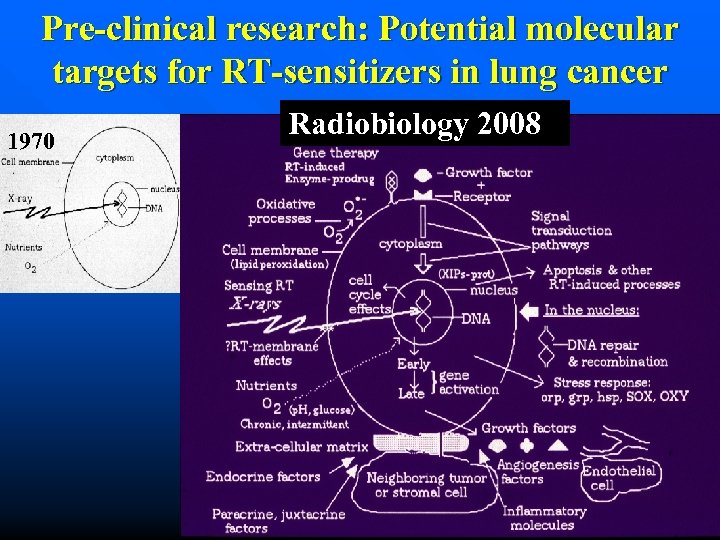

Pre-clinical research: Potential molecular targets for RT-sensitizers in lung cancer 1970 Radiobiology 2008 Pre-clinical research: Potential molecular targets for RT-sensitizers in lung cancer 1970 Radiobiology 2008
