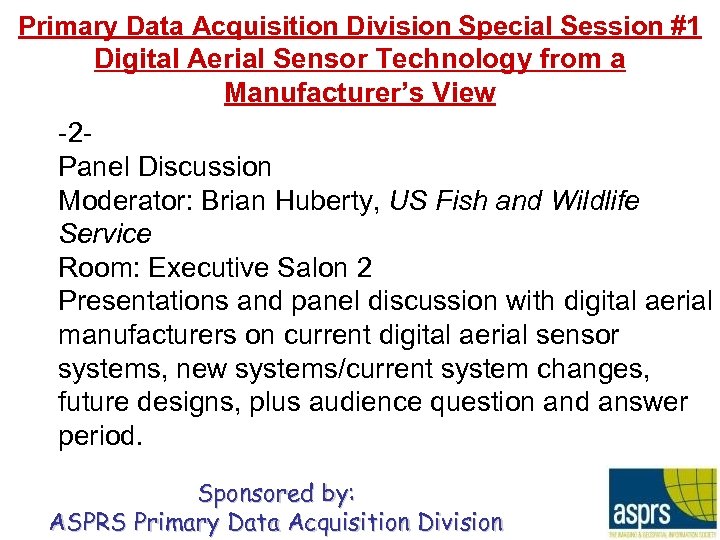

Primary Data Acquisition Division Special Session #1 Digital Aerial Sensor Technology from a Manufacturer’s View -2 Panel Discussion Moderator: Brian Huberty, US Fish and Wildlife Service Room: Executive Salon 2 Presentations and panel discussion with digital aerial manufacturers on current digital aerial sensor systems, new systems/current system changes, future designs, plus audience question and answer period. Sponsored by: ASPRS Primary Data Acquisition Division

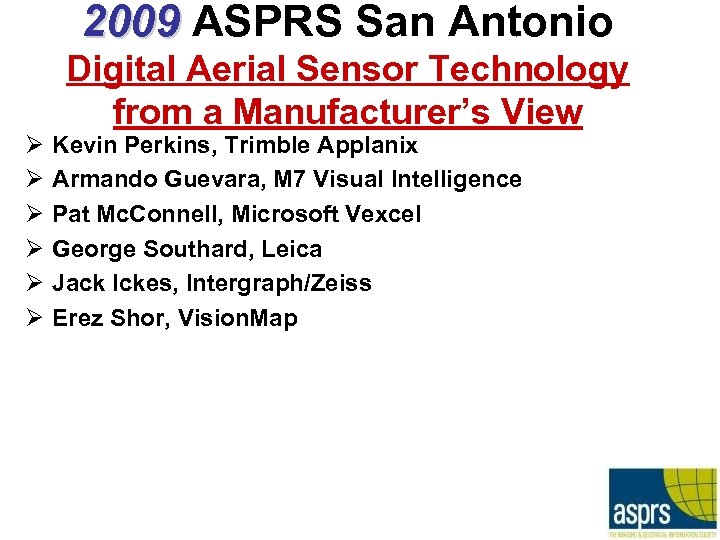

2009 ASPRS San Antonio Ø Ø Ø Digital Aerial Sensor Technology from a Manufacturer’s View Kevin Perkins, Trimble Applanix Armando Guevara, M 7 Visual Intelligence Pat Mc. Connell, Microsoft Vexcel George Southard, Leica Jack Ickes, Intergraph/Zeiss Erez Shor, Vision. Map

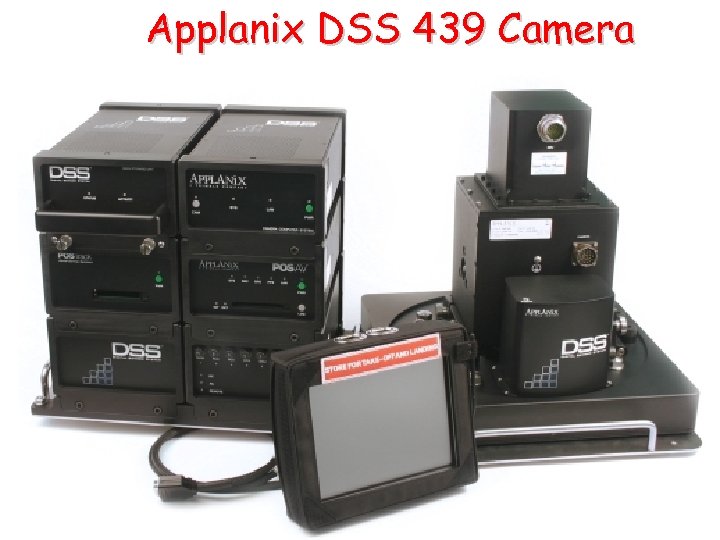

Applanix DSS 439 Camera

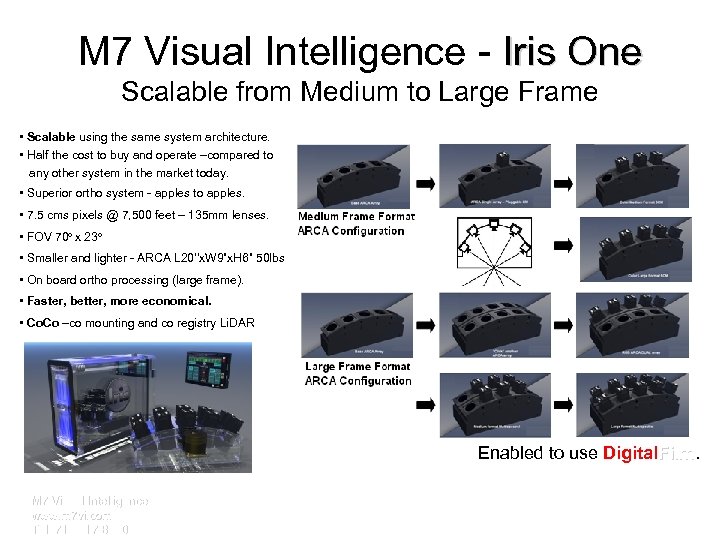

M 7 Visual Intelligence - Iris One Scalable from Medium to Large Frame • Scalable using the same system architecture. • Half the cost to buy and operate –compared to any other system in the market today. • Superior ortho system - apples to apples. • 7. 5 cms pixels @ 7, 500 feet – 135 mm lenses. • FOV 70 o x 23 o • Smaller and lighter - ARCA L 20’’x. W 9”x. H 6” 50 lbs • On board ortho processing (large frame). • Faster, better, more economical. • Co. Co –co mounting and co registry Li. DAR Enabled to use Digital. Film M 7 Visual Intelligence www. m 7 vi. com Tel. 713. 917. 8300

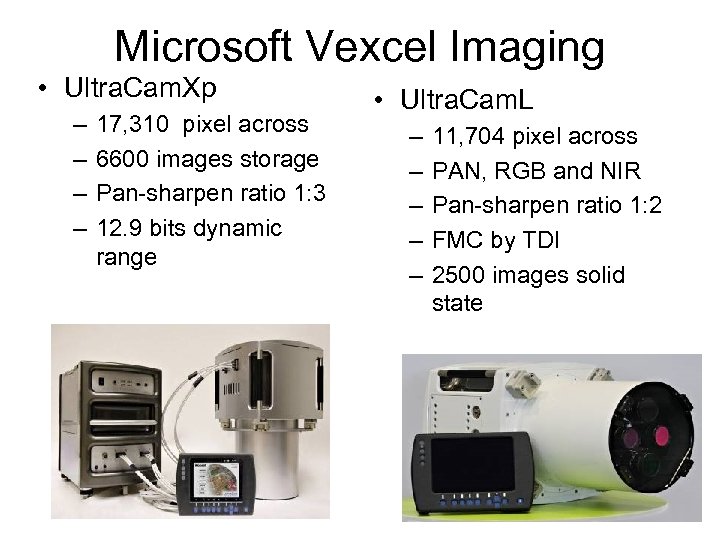

Microsoft Vexcel Imaging • Ultra. Cam. Xp – – 17, 310 pixel across 6600 images storage Pan-sharpen ratio 1: 3 12. 9 bits dynamic range • Ultra. Cam. L – – – 11, 704 pixel across PAN, RGB and NIR Pan-sharpen ratio 1: 2 FMC by TDI 2500 images solid state

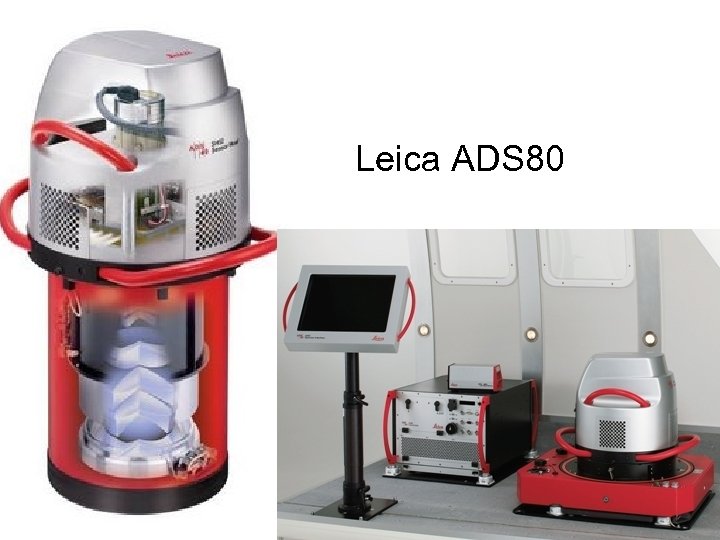

Leica ADS 80

LEICA RCD 105

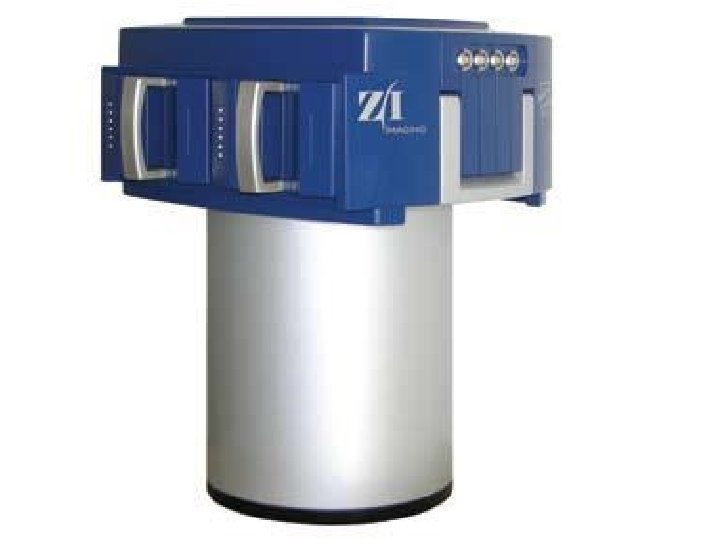

Zeiss/Intergraph

Spectra-View 9 W

2009 ASPRS San Antonio Digtial Aerial Sensor Technology from a Manufacturer’s View ØUnconfirmed Panelists: ØBen Burford, Air. Carto ØKevin Toerne, Spectrum Instruments ØJanne Sarkeala, Storaenso ØGreg Wehrli, Wehrli & Associates ØJulien Losseau, Di. MAC systems Sponsored by: ASPRS Primary Data Acquisition Division

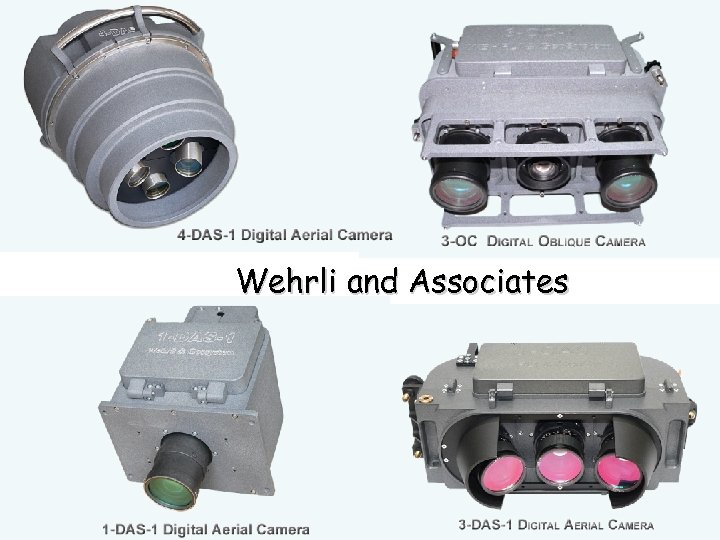

Wehrli and Associates

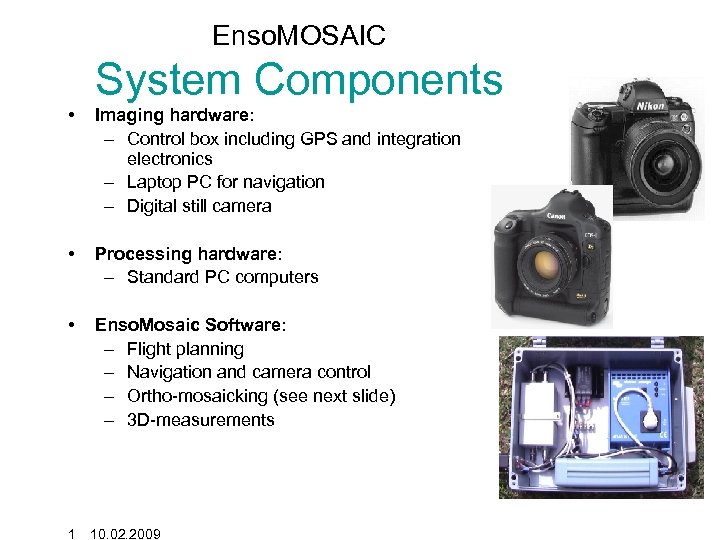

Enso. MOSAIC System Components • Imaging hardware: – Control box including GPS and integration electronics – Laptop PC for navigation – Digital still camera • Processing hardware: – Standard PC computers • Enso. Mosaic Software: – Flight planning – Navigation and camera control – Ortho-mosaicking (see next slide) – 3 D-measurements 1 10. 02. 2009

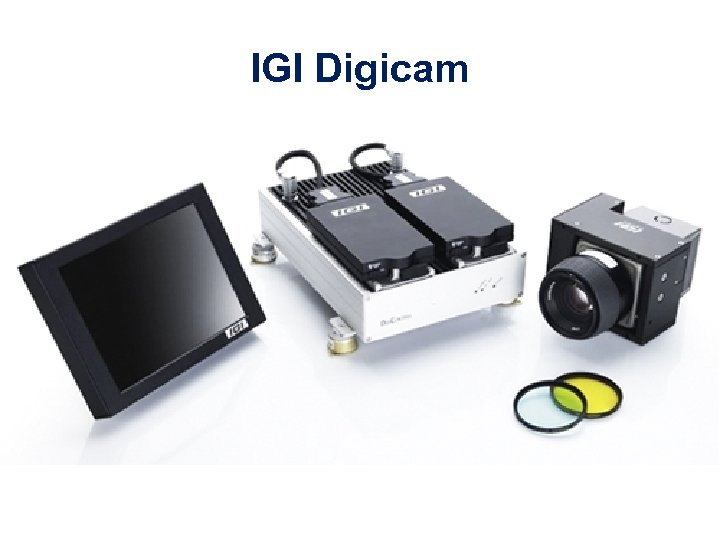

IGI Digicam

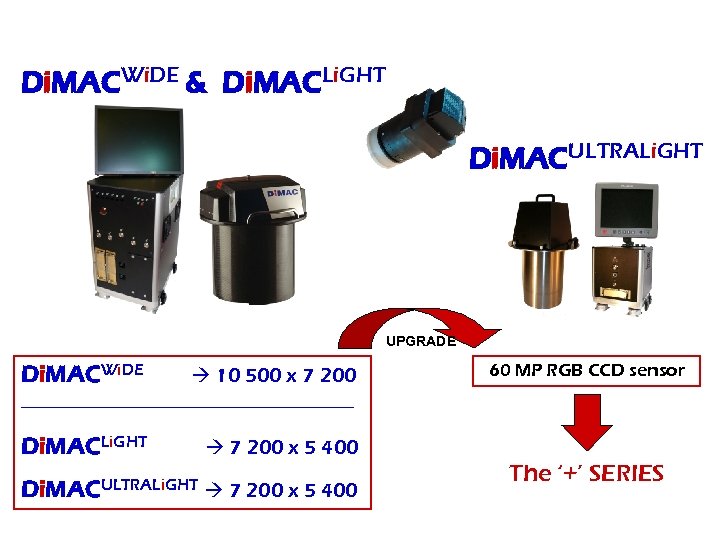

Di. MACWi. DE & Di. MACLi. GHT Di. MACULTRALi. GHT UPGRADE Di. MACWi. DE 10 500 x 7 200 60 MP RGB CCD sensor _____________________ Di. MACLi. GHT 7 200 x 5 400 Di. MACULTRALi. GHT 7 200 x 5 400 The ‘+’ SERIES
