Preventive Maintenance Course PN: TM 001017 rev: 3 Preventive Maintenance Course PN: TM 001017 rev: 3

Course Overview • Consumables & Accessories • Basic Plasmagram Theory • Maintenance Log On Course Overview • Consumables & Accessories • Basic Plasmagram Theory • Maintenance Log On • Menu • Calibration • Preventive Maintenance PN: TM 001017 rev: 3

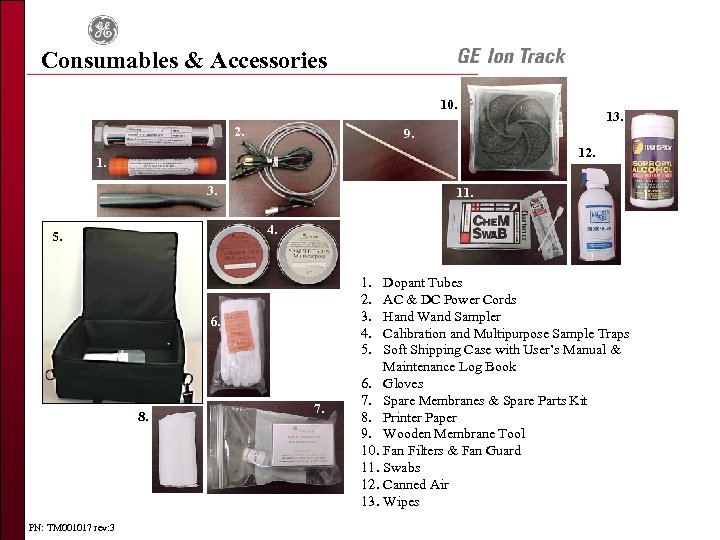

Consumables & Accessories 10. 2. 9. 12. 1. 3. 11. 4. 5. 1. 2. Consumables & Accessories 10. 2. 9. 12. 1. 3. 11. 4. 5. 1. 2. 3. 4. 5. 6. 8. PN: TM 001017 rev: 3 13. 7. Dopant Tubes AC & DC Power Cords Hand Wand Sampler Calibration and Multipurpose Sample Traps Soft Shipping Case with User’s Manual & Maintenance Log Book 6. Gloves 7. Spare Membranes & Spare Parts Kit 8. Printer Paper 9. Wooden Membrane Tool 10. Fan Filters & Fan Guard 11. Swabs 12. Canned Air 13. Wipes

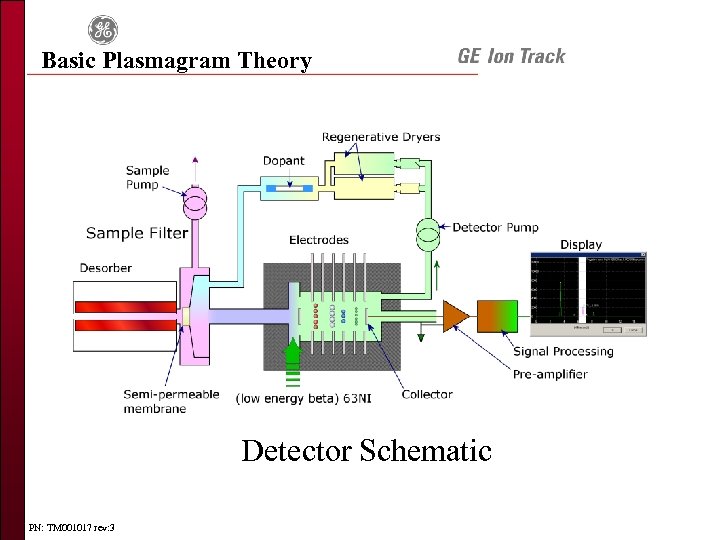

Basic Plasmagram Theory Detector Schematic PN: TM 001017 rev: 3 Basic Plasmagram Theory Detector Schematic PN: TM 001017 rev: 3

Maintenance Log On Log on: • Enter Maintenance PIN: • Select <Menu> PN: TM Maintenance Log On Log on: • Enter Maintenance PIN: • Select

PN: TM 001017 rev: 3

Menu PN: TM 001017 rev: 3 Menu PN: TM 001017 rev: 3

Menu Screen All maintenance procedures start at the Menu Screen. PN: TM 001017 rev: Menu Screen All maintenance procedures start at the Menu Screen. PN: TM 001017 rev: 3

Menus File Functions PN: TM 001017 rev: 3 Menus File Functions PN: TM 001017 rev: 3

Menu Screen Edit Functions: Options PN: TM 001017 rev: 3 Menu Screen Edit Functions: Options PN: TM 001017 rev: 3

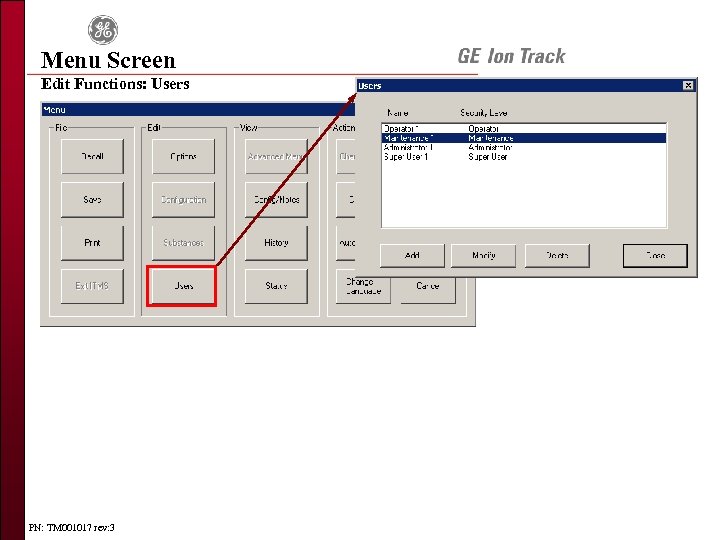

Menu Screen Edit Functions: Users PN: TM 001017 rev: 3 Menu Screen Edit Functions: Users PN: TM 001017 rev: 3

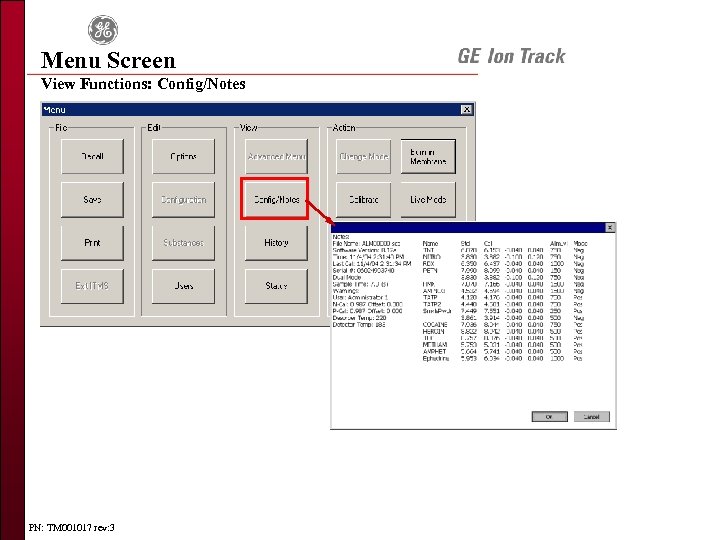

Menu Screen View Functions: Config/Notes PN: TM 001017 rev: 3 Menu Screen View Functions: Config/Notes PN: TM 001017 rev: 3

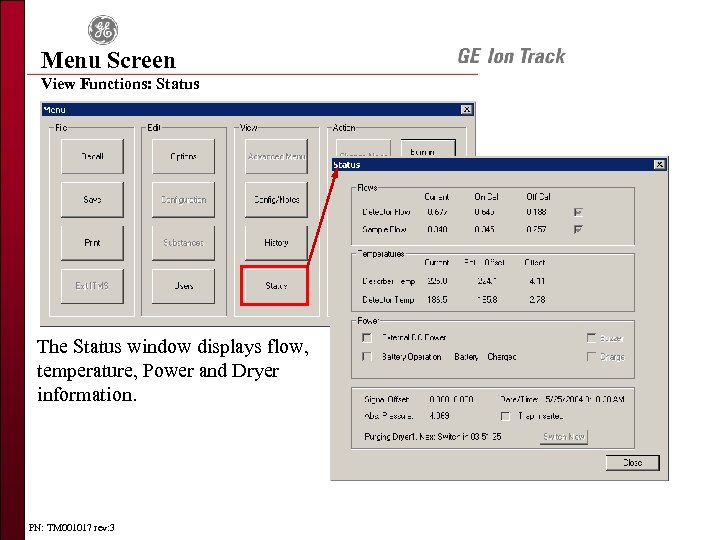

Menu Screen View Functions: Status The Status window displays flow, temperature, Power and Dryer Menu Screen View Functions: Status The Status window displays flow, temperature, Power and Dryer information. PN: TM 001017 rev: 3

Menu Screen Action Functions: Burn in Membrane • Increases Desorber and Detector temperatures to Menu Screen Action Functions: Burn in Membrane • Increases Desorber and Detector temperatures to accelerate cleaning of the membrane. The default burn-in time is four hours. PN: TM 001017 rev: 3

Menu Screen Action Functions: Live Mode PN: TM 001017 rev: 3 Menu Screen Action Functions: Live Mode PN: TM 001017 rev: 3

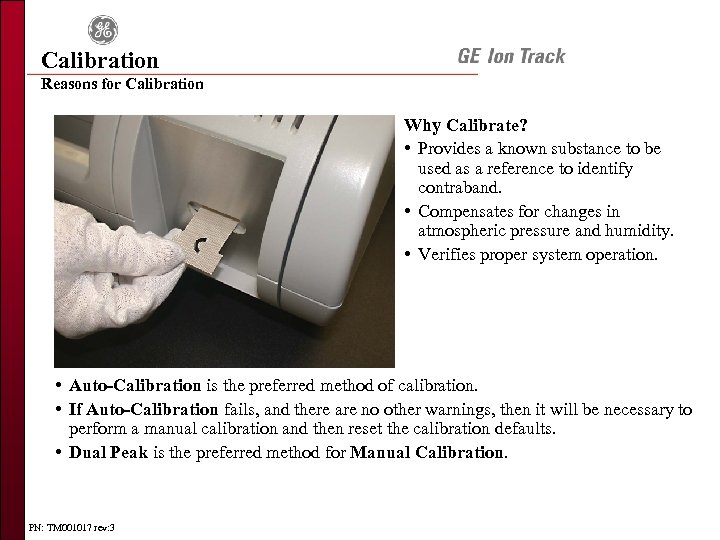

Calibration Reasons for Calibration Why Calibrate? • Provides a known substance to be used Calibration Reasons for Calibration Why Calibrate? • Provides a known substance to be used as a reference to identify contraband. • Compensates for changes in atmospheric pressure and humidity. • Verifies proper system operation. • Auto-Calibration is the preferred method of calibration. • If Auto-Calibration fails, and there are no other warnings, then it will be necessary to perform a manual calibration and then reset the calibration defaults. • Dual Peak is the preferred method for Manual Calibration. PN: TM 001017 rev: 3

Calibration Auto-Calibration • Auto-Calibration is the primary calibration method. • The procedure is shown Calibration Auto-Calibration • Auto-Calibration is the primary calibration method. • The procedure is shown here, but is usually performed by the operator. PN: TM 001017 rev: 3

Calibration Manual Calibration (Dual Peak) PN: TM 001017 rev: 3 Calibration Manual Calibration (Dual Peak) PN: TM 001017 rev: 3

Calibration Manual Calibration (Dual Peak) 1. Select Neg-CAL-1 and <OK>. 2. Insert the calibration Calibration Manual Calibration (Dual Peak) 1. Select Neg-CAL-1 and . 2. Insert the calibration trap. 4. 3. Remove and discard the trap when directed. 4. Select high peak in or near the white band. 5. Select . PN: TM 001017 rev: 3

Calibration Manual Calibration (Dual Peak) 6. Select Pos-CAL-1 and <OK>. 7. Select high peak Calibration Manual Calibration (Dual Peak) 6. Select Pos-CAL-1 and . 7. Select high peak in white band. 7. PN: TM 001017 rev: 3 8. Select .

Calibration Manual Calibration (Dual Peak) 9. Press <Yes> to accept the calibration 10. Press Calibration Manual Calibration (Dual Peak) 9. Press to accept the calibration 10. Press . PN: TM 001017 rev: 3

Calibration Manual Calibration (Dual Peak) PN: TM 001017 rev: 3 11. Press <Clear>. Calibration Manual Calibration (Dual Peak) PN: TM 001017 rev: 3 11. Press .

Preventive Maintenance PN: TM 001017 rev: 3 Preventive Maintenance PN: TM 001017 rev: 3

Preventive Maintenance Why Maintenance is Necessary • Optimize system performance • Keeps the sample Preventive Maintenance Why Maintenance is Necessary • Optimize system performance • Keeps the sample and detector tubing clear of contamination • Prevents nuisance alarms • Minimize down time • Reduce repair costs PN: TM 001017 rev: 3

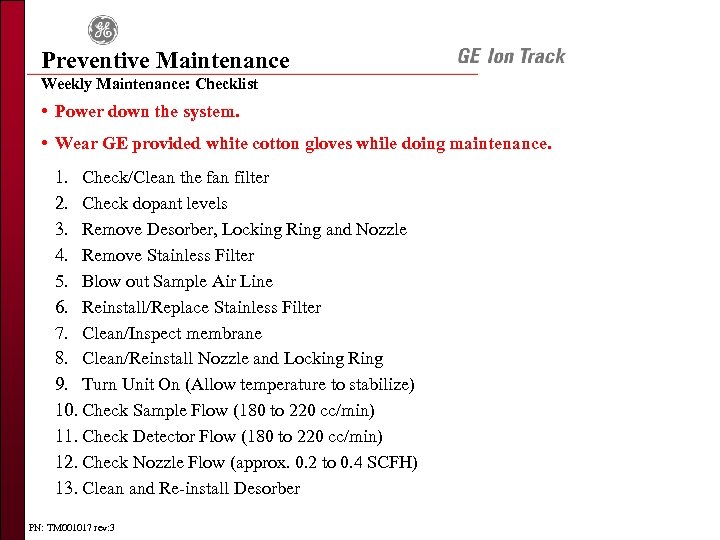

Preventive Maintenance Weekly Maintenance: Checklist • Power down the system. • Wear GE provided Preventive Maintenance Weekly Maintenance: Checklist • Power down the system. • Wear GE provided white cotton gloves while doing maintenance. 1. Check/Clean the fan filter 2. Check dopant levels 3. Remove Desorber, Locking Ring and Nozzle 4. Remove Stainless Filter 5. Blow out Sample Air Line 6. Reinstall/Replace Stainless Filter 7. Clean/Inspect membrane 8. Clean/Reinstall Nozzle and Locking Ring 9. Turn Unit On (Allow temperature to stabilize) 10. Check Sample Flow (180 to 220 cc/min) 11. Check Detector Flow (180 to 220 cc/min) 12. Check Nozzle Flow (approx. 0. 2 to 0. 4 SCFH) 13. Clean and Re-install Desorber PN: TM 001017 rev: 3

Preventive Maintenance Weekly Maintenance: Check/Clean Filter 1. a. Remove the plastic filter cover (snaps Preventive Maintenance Weekly Maintenance: Check/Clean Filter 1. a. Remove the plastic filter cover (snaps on and off). 1. b. Clean the fan filter with canned air. 1. c. Replace if damaged. PN: TM 001017 rev: 3

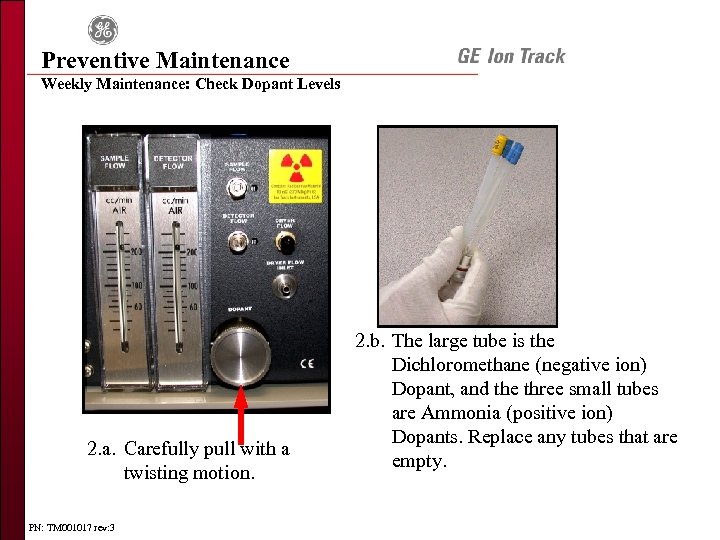

Preventive Maintenance Weekly Maintenance: Check Dopant Levels 2. a. Carefully pull with a twisting Preventive Maintenance Weekly Maintenance: Check Dopant Levels 2. a. Carefully pull with a twisting motion. PN: TM 001017 rev: 3 2. b. The large tube is the Dichloromethane (negative ion) Dopant, and the three small tubes are Ammonia (positive ion) Dopants. Replace any tubes that are empty.

Preventive Maintenance Weekly Maintenance: Remove Desorber, Locking Ring & Nozzle Caution: Desorber is hot Preventive Maintenance Weekly Maintenance: Remove Desorber, Locking Ring & Nozzle Caution: Desorber is hot 3. a. Remove Desorber and let cool 3. b. Unscrew locking ring 3. c. Remove nozzle PN: TM 001017 rev: 3

Weekly Maintenance: Remove Sample Filter 4. a. While the Desorber is out, unscrew the Weekly Maintenance: Remove Sample Filter 4. a. While the Desorber is out, unscrew the filter cover. PN: TM 001017 rev: 3 4. b. Remove filter with wooden tool.

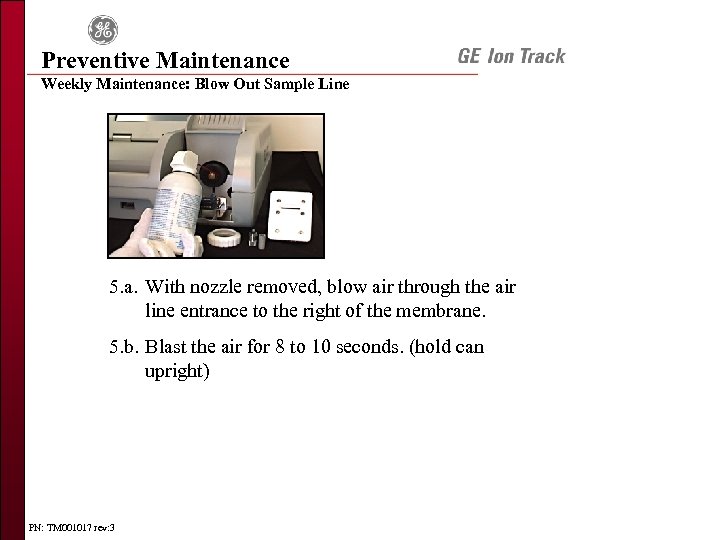

Preventive Maintenance Weekly Maintenance: Blow Out Sample Line 5. a. With nozzle removed, blow Preventive Maintenance Weekly Maintenance: Blow Out Sample Line 5. a. With nozzle removed, blow air through the air line entrance to the right of the membrane. 5. b. Blast the air for 8 to 10 seconds. (hold can upright) PN: TM 001017 rev: 3

Weekly Maintenance: Reinstall/Replace Sample Filter 6. a. Check the filter. Replace if discolored. 6. Weekly Maintenance: Reinstall/Replace Sample Filter 6. a. Check the filter. Replace if discolored. 6. b. Reinstall filter. PN: TM 001017 rev: 3 6. c. Reinstall the filter cover.

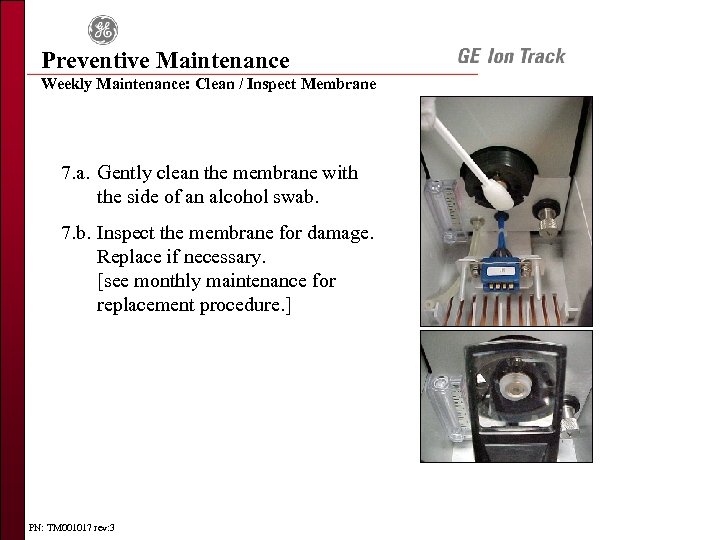

Preventive Maintenance Weekly Maintenance: Clean / Inspect Membrane 7. a. Gently clean the membrane Preventive Maintenance Weekly Maintenance: Clean / Inspect Membrane 7. a. Gently clean the membrane with the side of an alcohol swab. 7. b. Inspect the membrane for damage. Replace if necessary. [see monthly maintenance for replacement procedure. ] PN: TM 001017 rev: 3

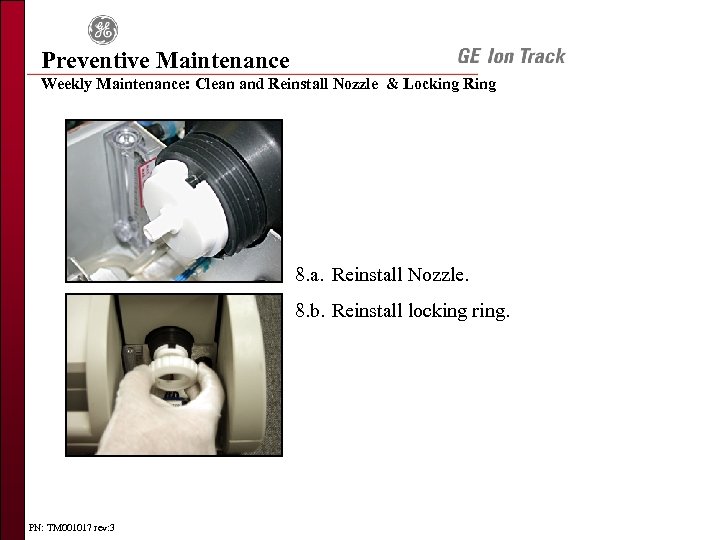

Preventive Maintenance Weekly Maintenance: Clean and Reinstall Nozzle & Locking Ring 8. a. Reinstall Preventive Maintenance Weekly Maintenance: Clean and Reinstall Nozzle & Locking Ring 8. a. Reinstall Nozzle. 8. b. Reinstall locking ring. PN: TM 001017 rev: 3

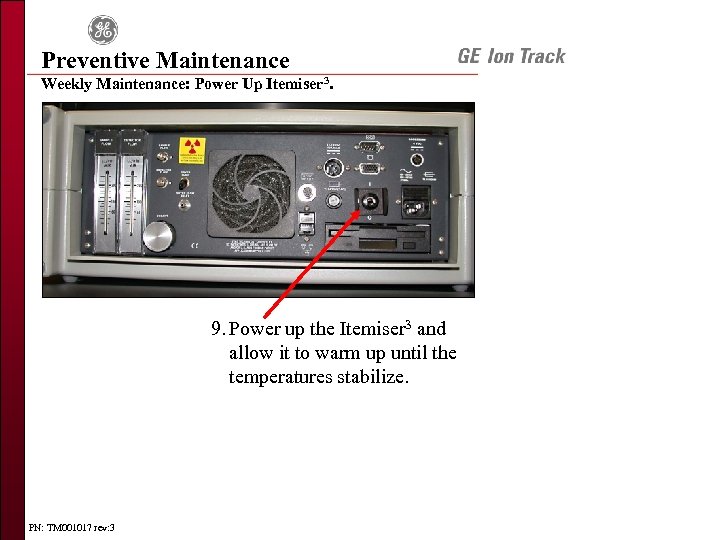

Preventive Maintenance Weekly Maintenance: Power Up Itemiser 3. 9. Power up the Itemiser 3 Preventive Maintenance Weekly Maintenance: Power Up Itemiser 3. 9. Power up the Itemiser 3 and allow it to warm up until the temperatures stabilize. PN: TM 001017 rev: 3

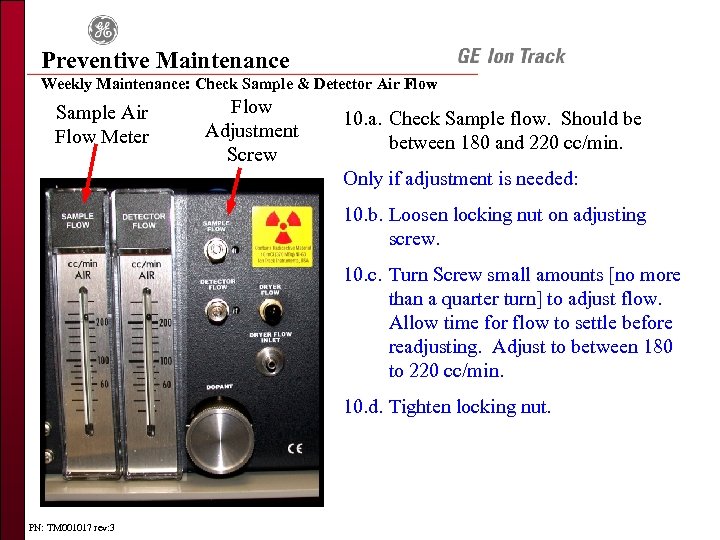

Preventive Maintenance Weekly Maintenance: Check Sample & Detector Air Flow Sample Air Flow Meter Preventive Maintenance Weekly Maintenance: Check Sample & Detector Air Flow Sample Air Flow Meter Flow Adjustment Screw 10. a. Check Sample flow. Should be between 180 and 220 cc/min. Only if adjustment is needed: 10. b. Loosen locking nut on adjusting screw. 10. c. Turn Screw small amounts [no more than a quarter turn] to adjust flow. Allow time for flow to settle before readjusting. Adjust to between 180 to 220 cc/min. 10. d. Tighten locking nut. PN: TM 001017 rev: 3

Preventive Maintenance Weekly Maintenance: Check Sample & Detector Air Flow Meter Flow Adjustment Screw Preventive Maintenance Weekly Maintenance: Check Sample & Detector Air Flow Meter Flow Adjustment Screw 11. a. Check Detector flow. It should be between 180 and 220 cc/min. Only if adjustment is needed: 11. b. Loosen locking nut on adjusting screw. 11. c. Turn Screw small amounts [no more than a quarter turn] to adjust flow. Allow time for flow to settle before readjusting. Adjust to between 180 to 220 cc/min. 11. d. Tighten locking nut. PN: TM 001017 rev: 3

Preventive Maintenance Weekly Maintenance: Verify Nozzle Flow 12. a. With Desorber removed, attach the Preventive Maintenance Weekly Maintenance: Verify Nozzle Flow 12. a. With Desorber removed, attach the plastic hose from the flow gauge to the nozzle. PN: TM 001017 rev: 3 12. b. Make sure the gauge reads 0. 2 to 0. 4 SCFH

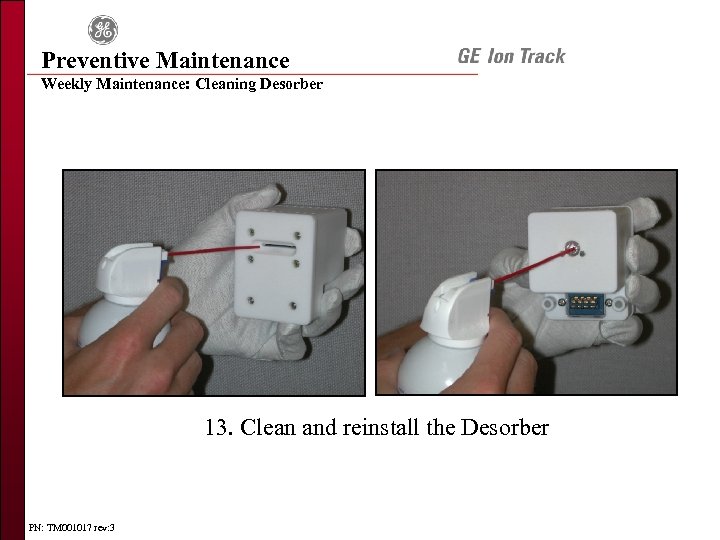

Preventive Maintenance Weekly Maintenance: Cleaning Desorber 13. Clean and reinstall the Desorber PN: TM Preventive Maintenance Weekly Maintenance: Cleaning Desorber 13. Clean and reinstall the Desorber PN: TM 001017 rev: 3

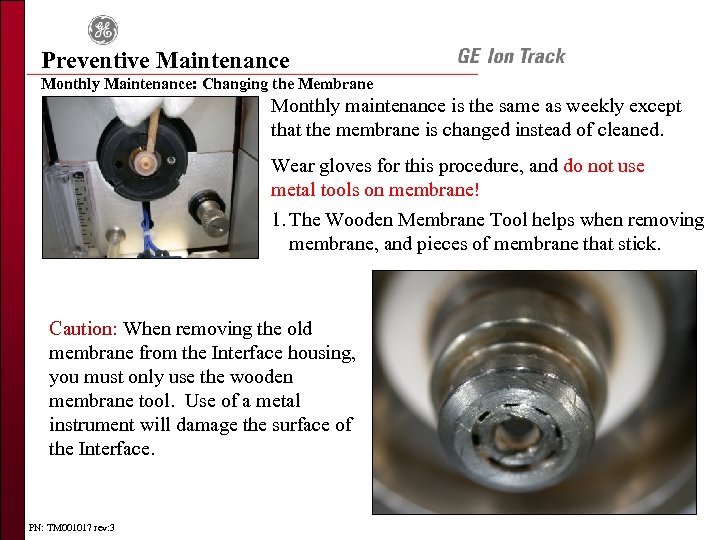

Preventive Maintenance Monthly Maintenance: Changing the Membrane Monthly maintenance is the same as weekly Preventive Maintenance Monthly Maintenance: Changing the Membrane Monthly maintenance is the same as weekly except that the membrane is changed instead of cleaned. Wear gloves for this procedure, and do not use metal tools on membrane! 1. The Wooden Membrane Tool helps when removing membrane, and pieces of membrane that stick. Caution: When removing the old membrane from the Interface housing, you must only use the wooden membrane tool. Use of a metal instrument will damage the surface of the Interface. PN: TM 001017 rev: 3

Preventive Maintenance Monthly Maintenance: Changing the Membrane 2. Install new membrane as shown. Carefully Preventive Maintenance Monthly Maintenance: Changing the Membrane 2. Install new membrane as shown. Carefully inspect membrane to ensure no tears occurred during installation. PN: TM 001017 rev: 3

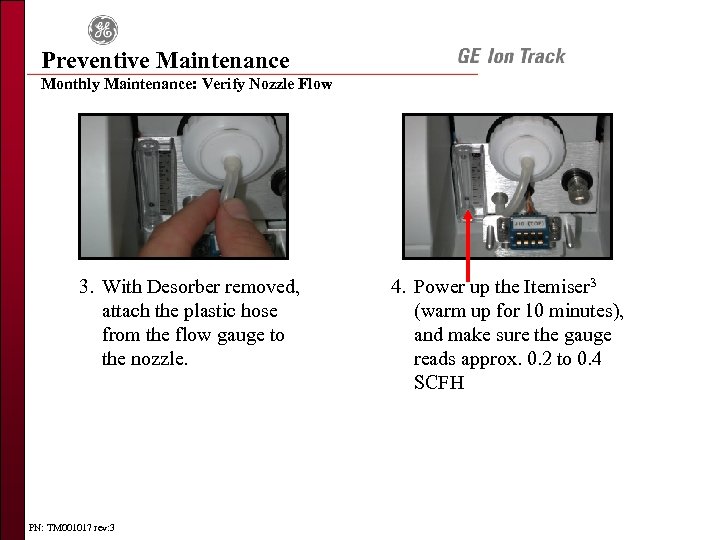

Preventive Maintenance Monthly Maintenance: Verify Nozzle Flow 3. With Desorber removed, attach the plastic Preventive Maintenance Monthly Maintenance: Verify Nozzle Flow 3. With Desorber removed, attach the plastic hose from the flow gauge to the nozzle. PN: TM 001017 rev: 3 4. Power up the Itemiser 3 (warm up for 10 minutes), and make sure the gauge reads approx. 0. 2 to 0. 4 SCFH

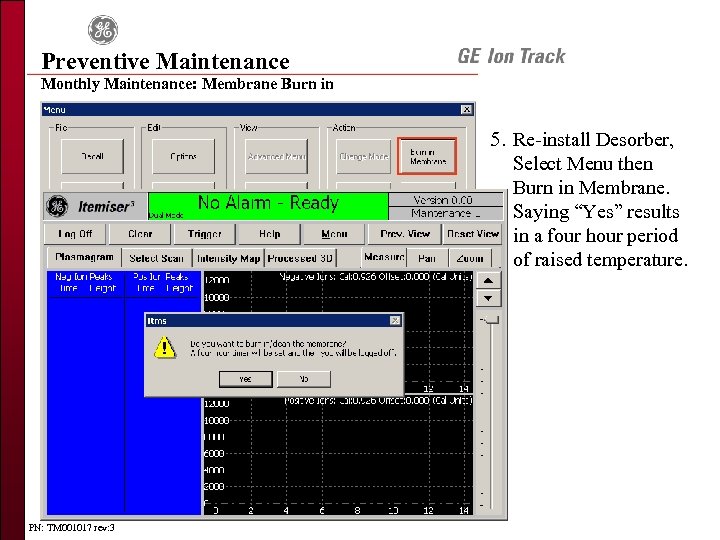

Preventive Maintenance Monthly Maintenance: Membrane Burn in 5. Re-install Desorber, Select Menu then Burn Preventive Maintenance Monthly Maintenance: Membrane Burn in 5. Re-install Desorber, Select Menu then Burn in Membrane. Saying “Yes” results in a four hour period of raised temperature. PN: TM 001017 rev: 3

Preventive Maintenance Annual Maintenance: Radiation Wipe Testing Radiation Wipe Test Locations Remove Desorber and Preventive Maintenance Annual Maintenance: Radiation Wipe Testing Radiation Wipe Test Locations Remove Desorber and wipe around the nozzle area. Wipe along seams of the instrument, particularly near the nozzle PN: TM 001017 rev: 3

Summary • Consumables & Accessories • Basic Plasmagram Theory • Maintenance Log On • Summary • Consumables & Accessories • Basic Plasmagram Theory • Maintenance Log On • Menu • Calibration • Preventive Maintenance PN: TM 001017 rev: 3
