Pressure support ventilation Dr Vincent Ioos Pulmonologist and

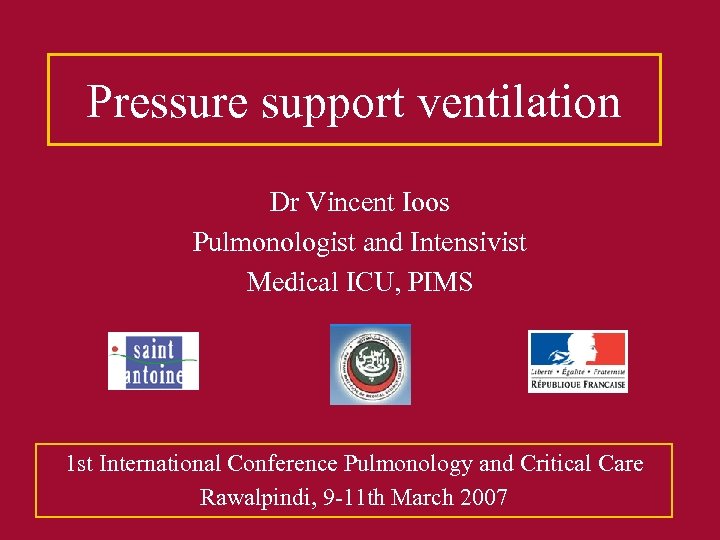

Pressure support ventilation Dr Vincent Ioos Pulmonologist and Intensivist Medical ICU, PIMS 1 st International Conference Pulmonology and Critical Care Rawalpindi, 9 -11 th March 2007

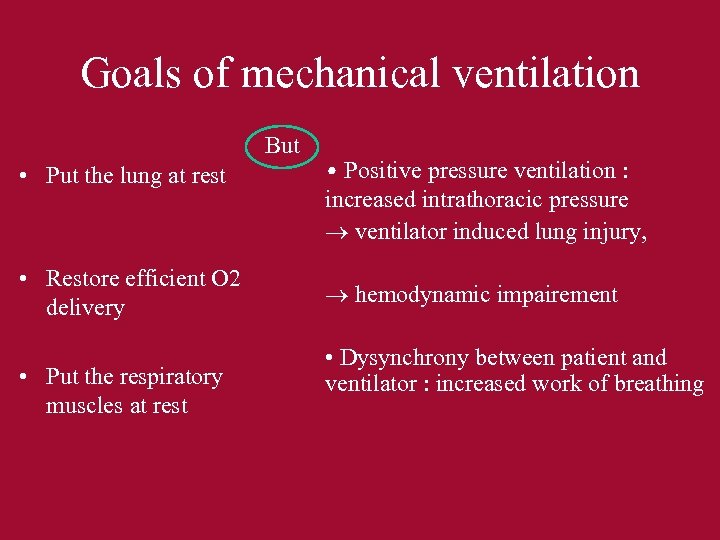

Goals of mechanical ventilation But • Put the lung at rest • Restore efficient O 2 delivery • Put the respiratory muscles at rest • Positive pressure ventilation : increased intrathoracic pressure ventilator induced lung injury, hemodynamic impairement • Dysynchrony between patient and ventilator : increased work of breathing

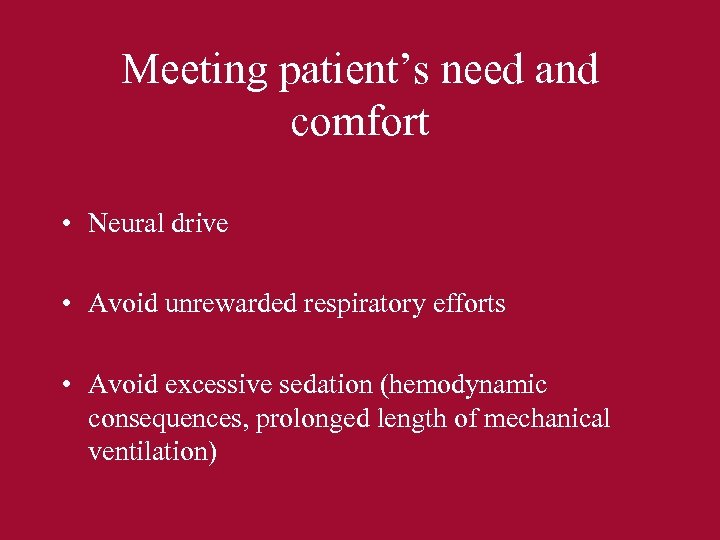

Meeting patient’s need and comfort • Neural drive • Avoid unrewarded respiratory efforts • Avoid excessive sedation (hemodynamic consequences, prolonged length of mechanical ventilation)

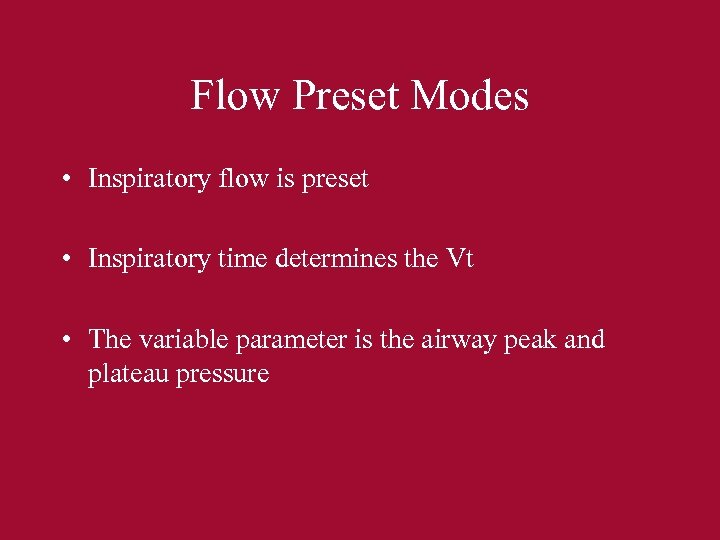

Flow Preset Modes • Inspiratory flow is preset • Inspiratory time determines the Vt • The variable parameter is the airway peak and plateau pressure

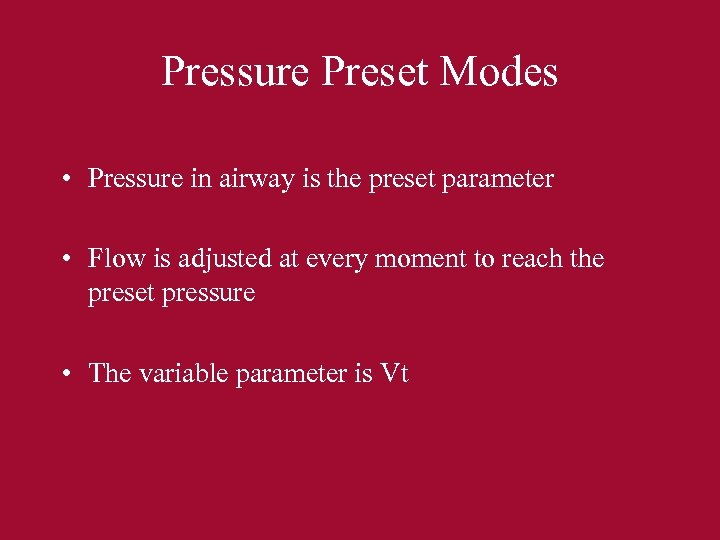

Pressure Preset Modes • Pressure in airway is the preset parameter • Flow is adjusted at every moment to reach the preset pressure • The variable parameter is Vt

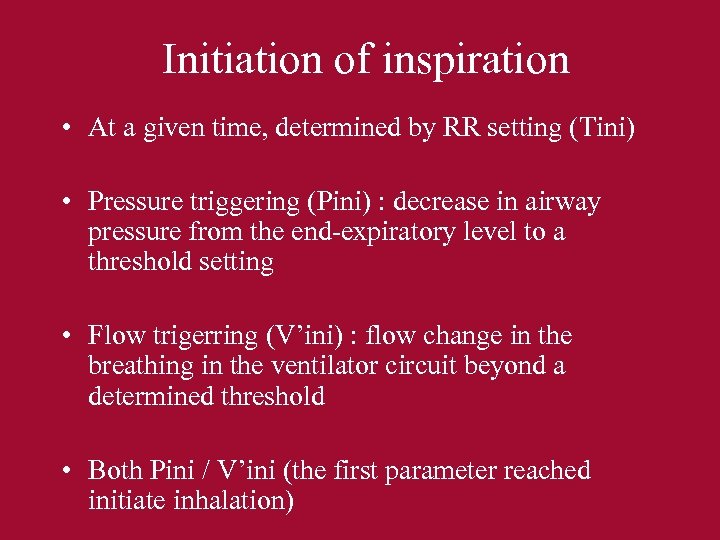

Initiation of inspiration • At a given time, determined by RR setting (Tini) • Pressure triggering (Pini) : decrease in airway pressure from the end-expiratory level to a threshold setting • Flow trigerring (V’ini) : flow change in the breathing in the ventilator circuit beyond a determined threshold • Both Pini / V’ini (the first parameter reached initiate inhalation)

Cycling from inspiration to expiration • At a given time : Tcyc • Flow cycling : V’cyc – Fixed absolute value – % of peak inspiratory flow (usually 25%) • Positive pressure between Paw and baseline pressure : Pcyc

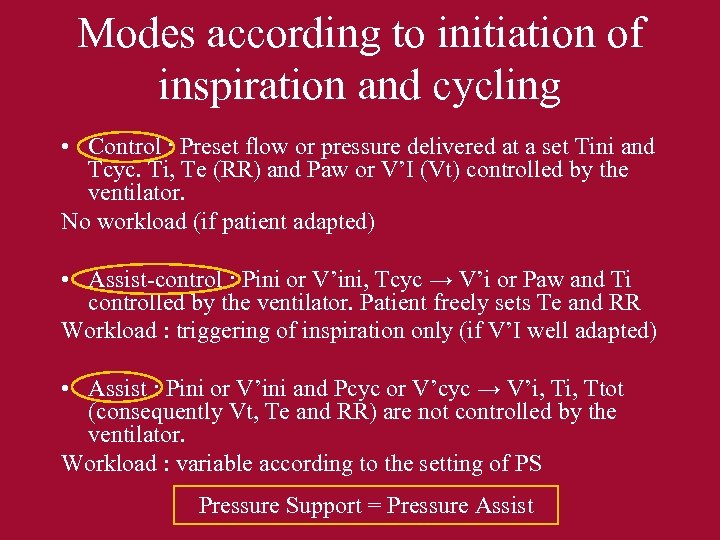

Modes according to initiation of inspiration and cycling • Control : Preset flow or pressure delivered at a set Tini and Tcyc. Ti, Te (RR) and Paw or V’I (Vt) controlled by the ventilator. No workload (if patient adapted) • Assist-control : Pini or V’ini, Tcyc → V’i or Paw and Ti controlled by the ventilator. Patient freely sets Te and RR Workload : triggering of inspiration only (if V’I well adapted) • Assist : Pini or V’ini and Pcyc or V’cyc → V’i, Ttot (consequently Vt, Te and RR) are not controlled by the ventilator. Workload : variable according to the setting of PS Pressure Support = Pressure Assist

Equation of insuflated gases in flow assist control ventilation • Describes interactions between the patient and the ventilator • Pressure required to deliver a volume of gas in the lungs is determined by elastic and resistive properties of the lung Paw = Vt/C + Vi’x. R + PEP

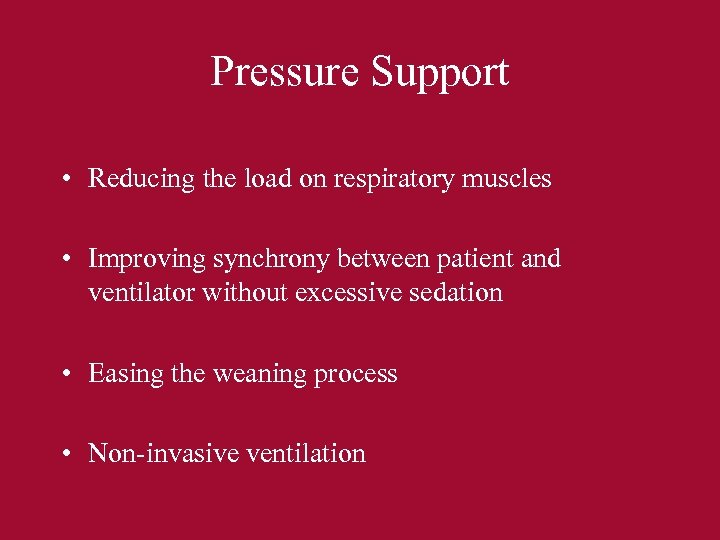

Pressure Support • Reducing the load on respiratory muscles • Improving synchrony between patient and ventilator without excessive sedation • Easing the weaning process • Non-invasive ventilation

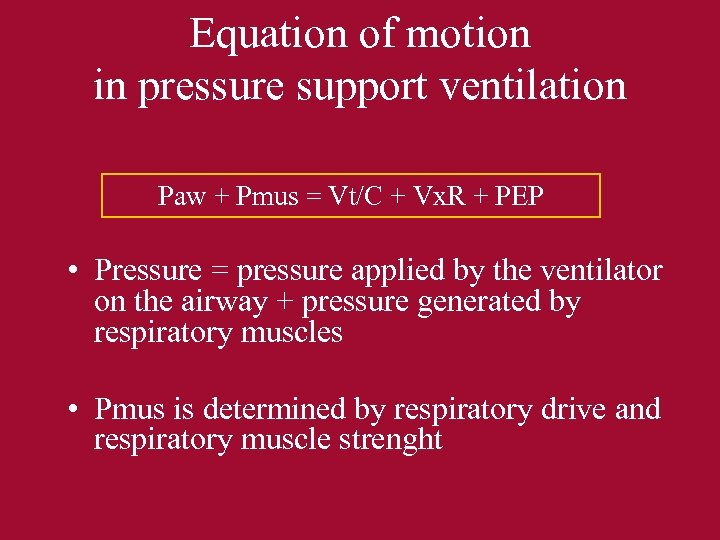

Equation of motion in pressure support ventilation Paw + Pmus = Vt/C + Vx. R + PEP • Pressure = pressure applied by the ventilator on the airway + pressure generated by respiratory muscles • Pmus is determined by respiratory drive and respiratory muscle strenght

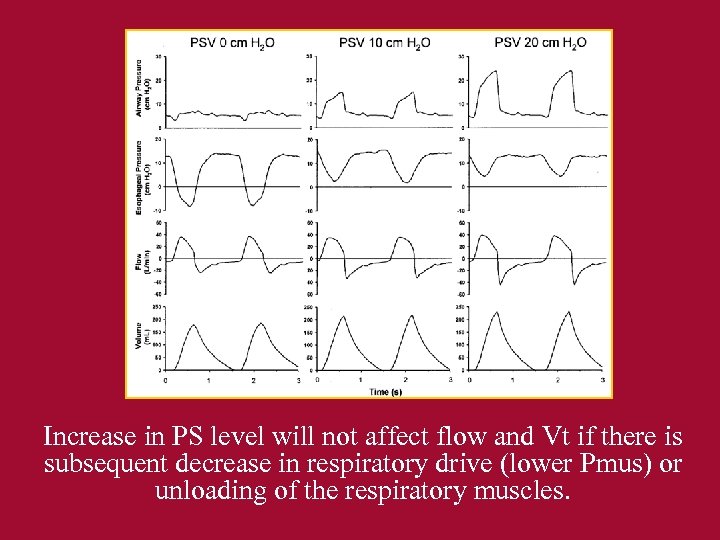

Increase in PS level will not affect flow and Vt if there is subsequent decrease in respiratory drive (lower Pmus) or unloading of the respiratory muscles.

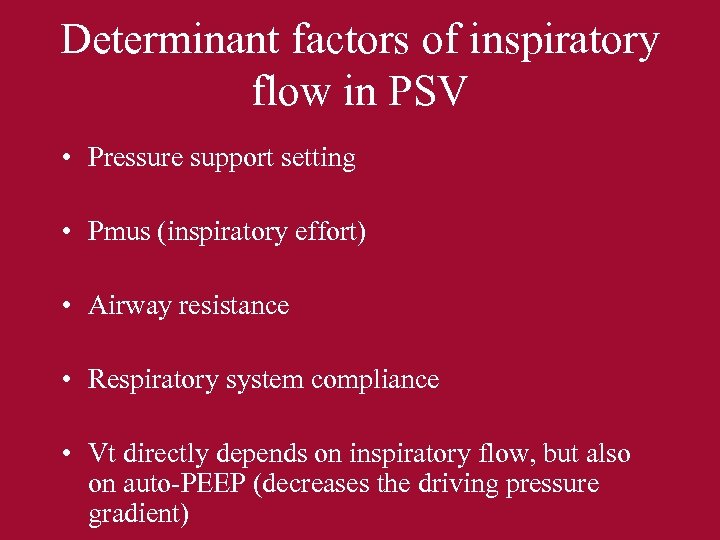

Determinant factors of inspiratory flow in PSV • Pressure support setting • Pmus (inspiratory effort) • Airway resistance • Respiratory system compliance • Vt directly depends on inspiratory flow, but also on auto-PEEP (decreases the driving pressure gradient)

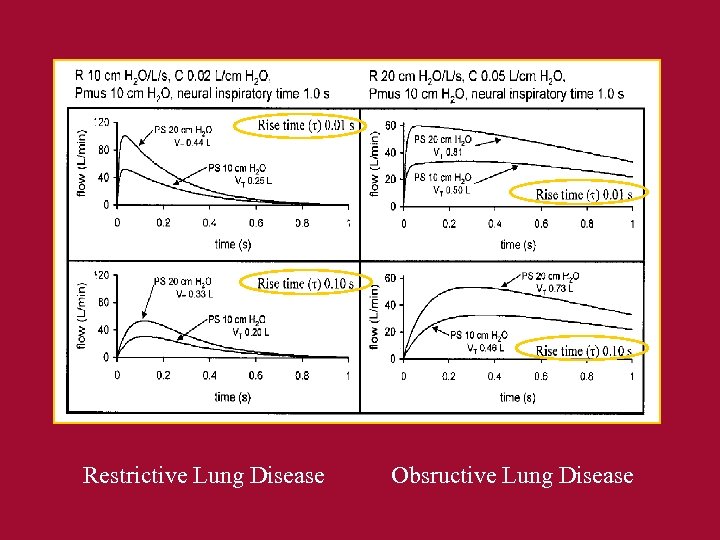

Restrictive Lung Disease Obsructive Lung Disease

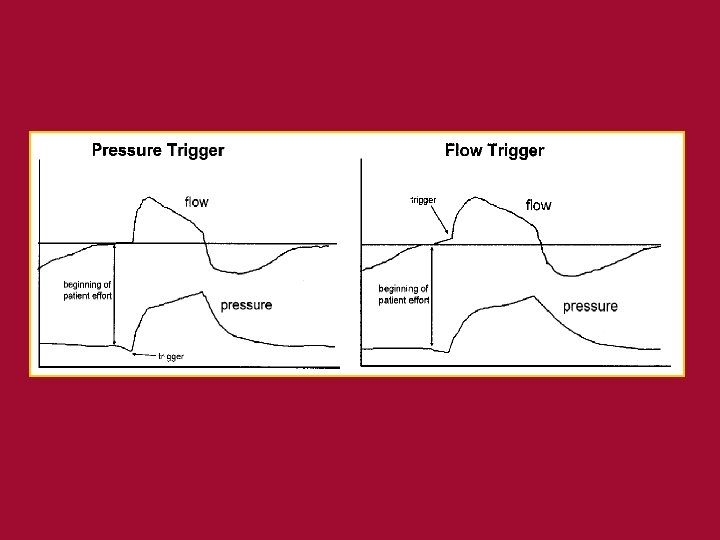

Pressure Support initiation • Patient should be able to initiate an inspiratory effort, detected by pressure or flow trigger • Pressure triggering : pressure sensitivity -2 cm H 20 to 0, 5 cm H 20 • Flow triggering : flow sensitivity 1 -5 l/mn

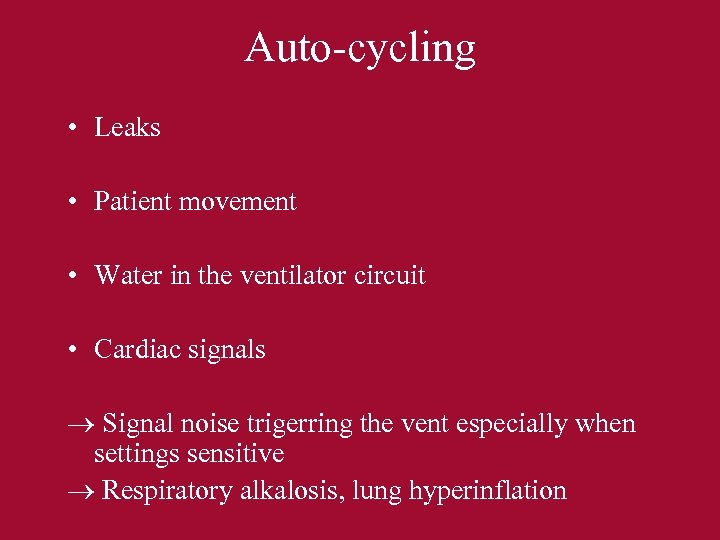

Auto-cycling • Leaks • Patient movement • Water in the ventilator circuit • Cardiac signals Signal noise trigerring the vent especially when settings sensitive Respiratory alkalosis, lung hyperinflation

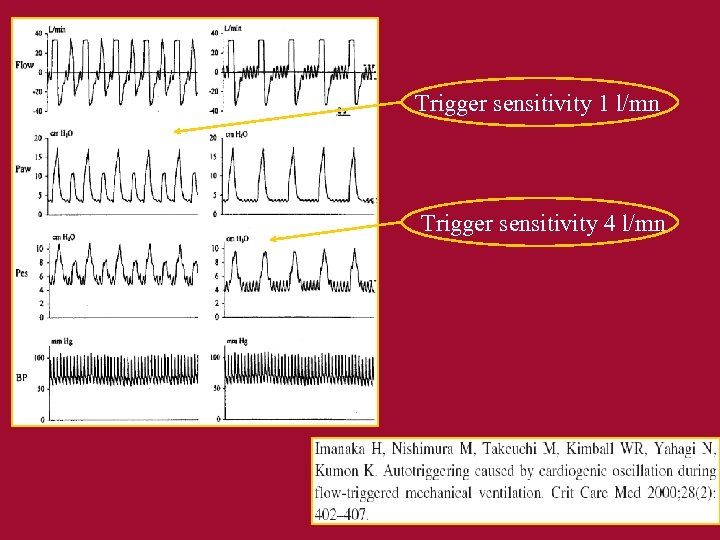

Trigger sensitivity 1 l/mn Trigger sensitivity 4 l/mn

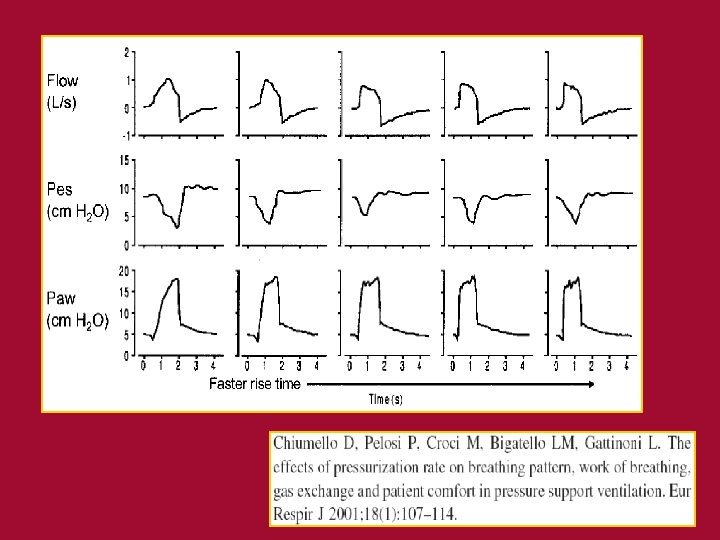

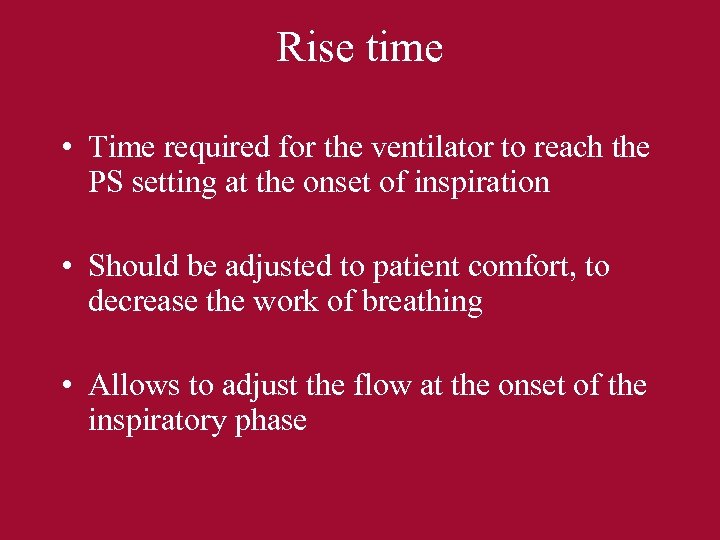

Rise time • Time required for the ventilator to reach the PS setting at the onset of inspiration • Should be adjusted to patient comfort, to decrease the work of breathing • Allows to adjust the flow at the onset of the inspiratory phase

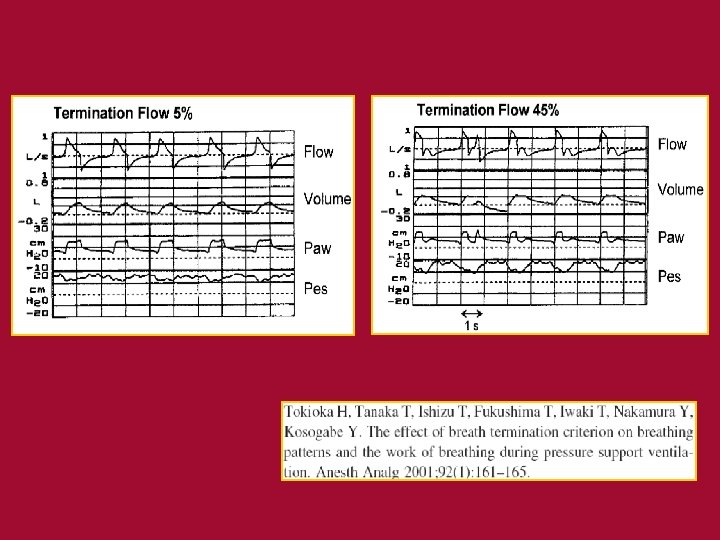

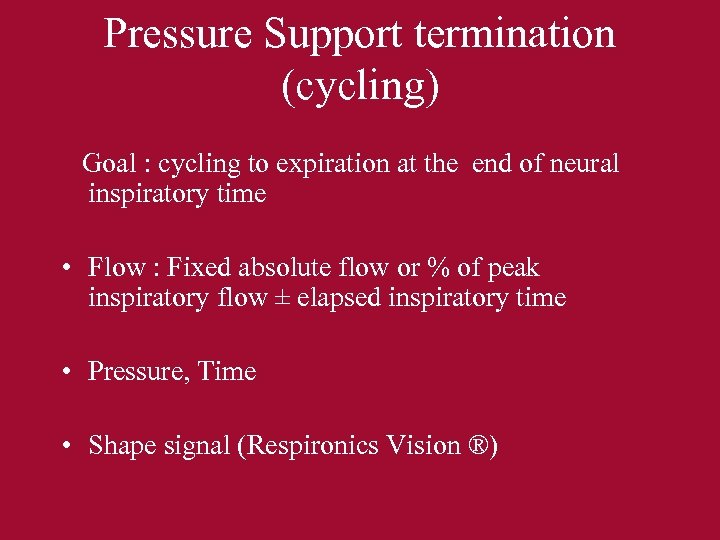

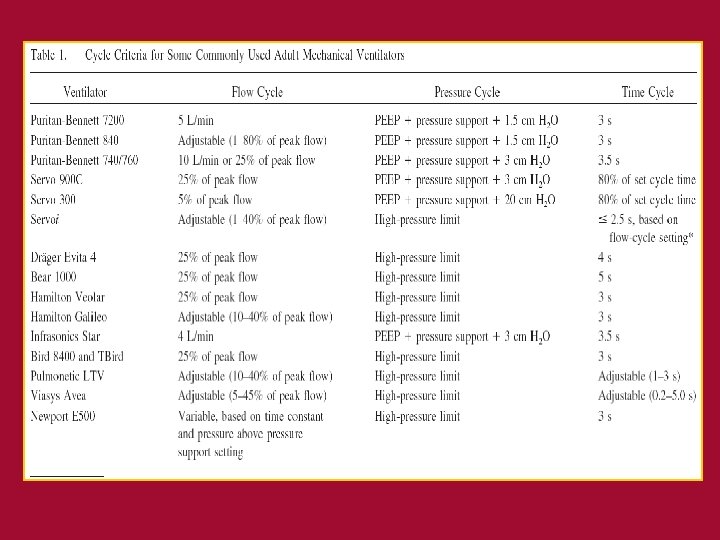

Pressure Support termination (cycling) Goal : cycling to expiration at the end of neural inspiratory time • Flow : Fixed absolute flow or % of peak inspiratory flow ± elapsed inspiratory time • Pressure, Time • Shape signal (Respironics Vision ®)

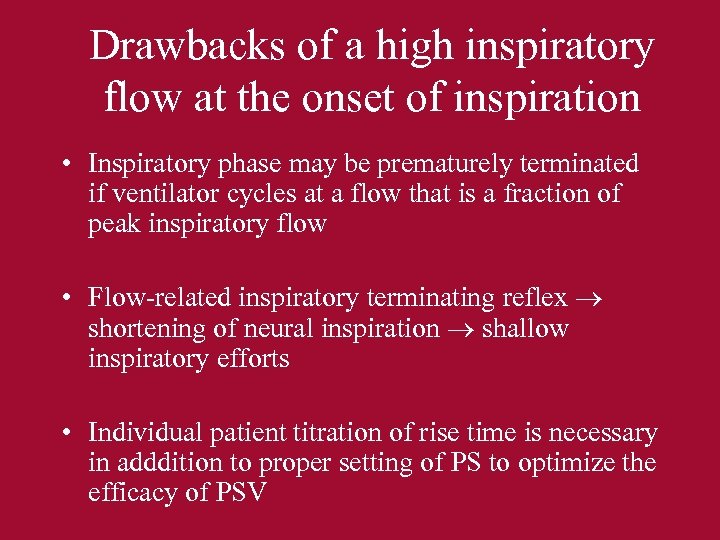

Drawbacks of a high inspiratory flow at the onset of inspiration • Inspiratory phase may be prematurely terminated if ventilator cycles at a flow that is a fraction of peak inspiratory flow • Flow-related inspiratory terminating reflex shortening of neural inspiration shallow inspiratory efforts • Individual patient titration of rise time is necessary in adddition to proper setting of PS to optimize the efficacy of PSV

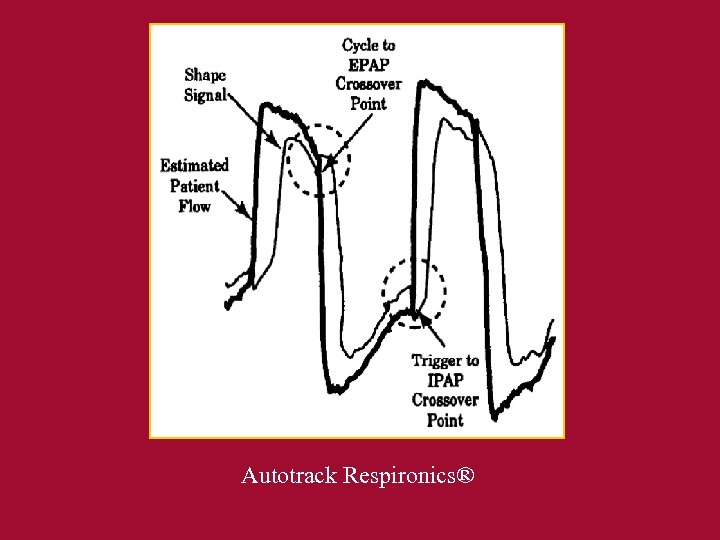

Autotrack Respironics®

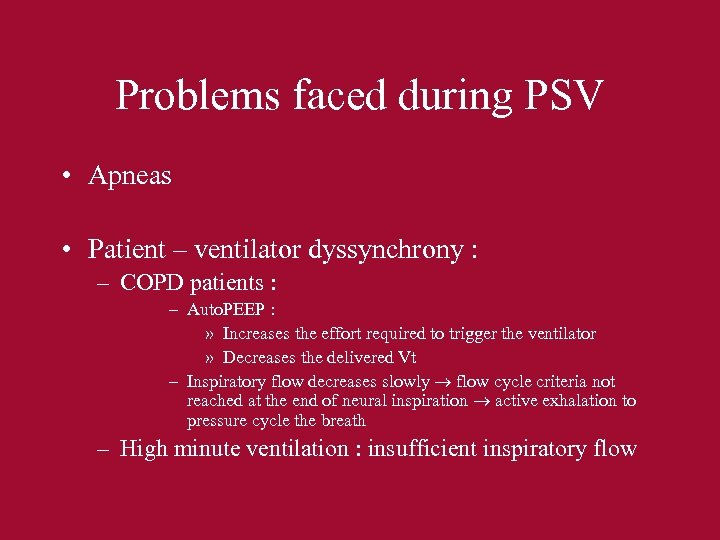

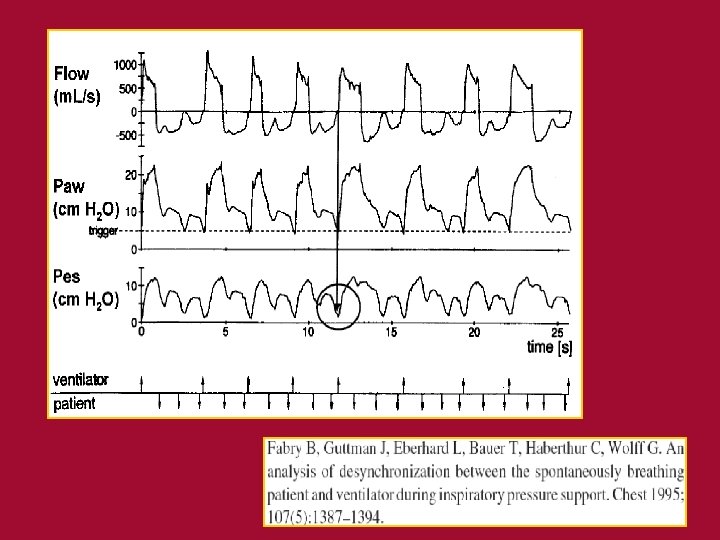

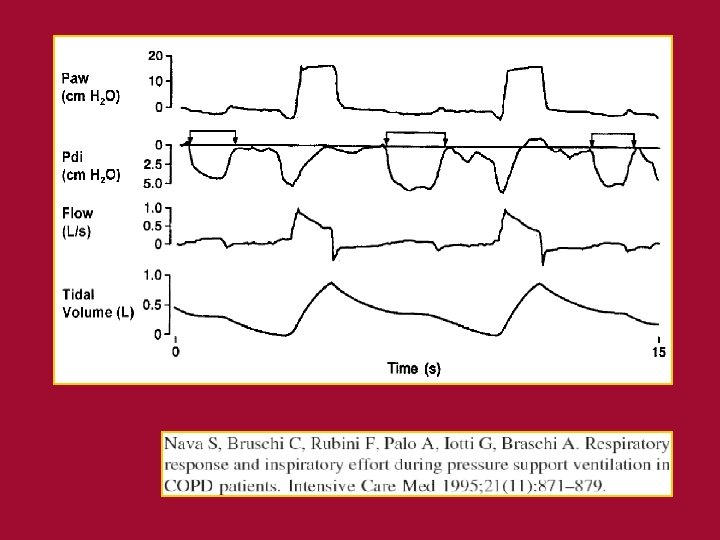

Problems faced during PSV • Apneas • Patient – ventilator dyssynchrony : – COPD patients : – Auto. PEEP : » Increases the effort required to trigger the ventilator » Decreases the delivered Vt – Inspiratory flow decreases slowly flow cycle criteria not reached at the end of neural inspiration active exhalation to pressure cycle the breath – High minute ventilation : insufficient inspiratory flow

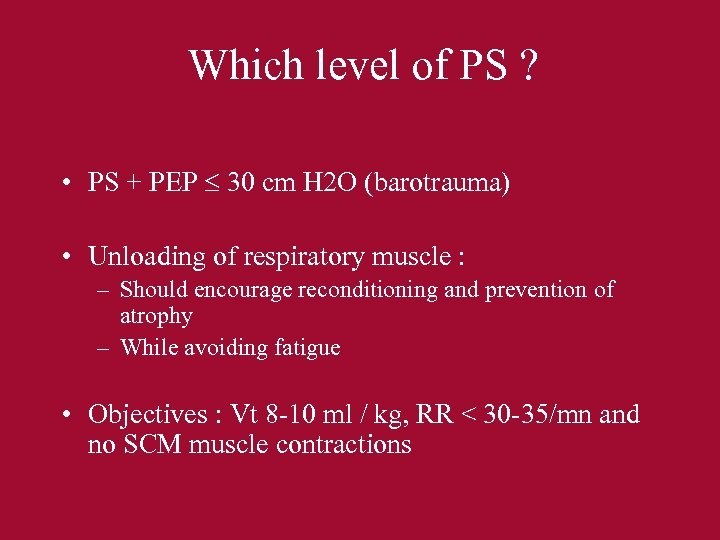

Which level of PS ? • PS + PEP 30 cm H 2 O (barotrauma) • Unloading of respiratory muscle : – Should encourage reconditioning and prevention of atrophy – While avoiding fatigue • Objectives : Vt 8 -10 ml / kg, RR < 30 -35/mn and no SCM muscle contractions

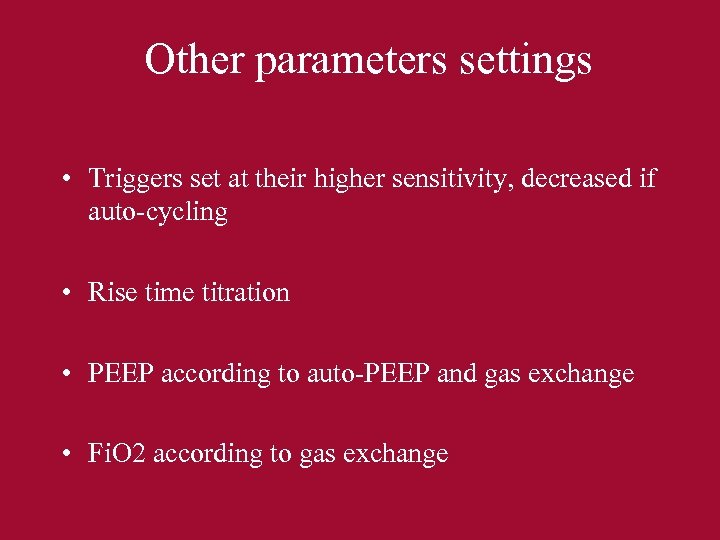

Other parameters settings • Triggers set at their higher sensitivity, decreased if auto-cycling • Rise time titration • PEEP according to auto-PEEP and gas exchange • Fi. O 2 according to gas exchange

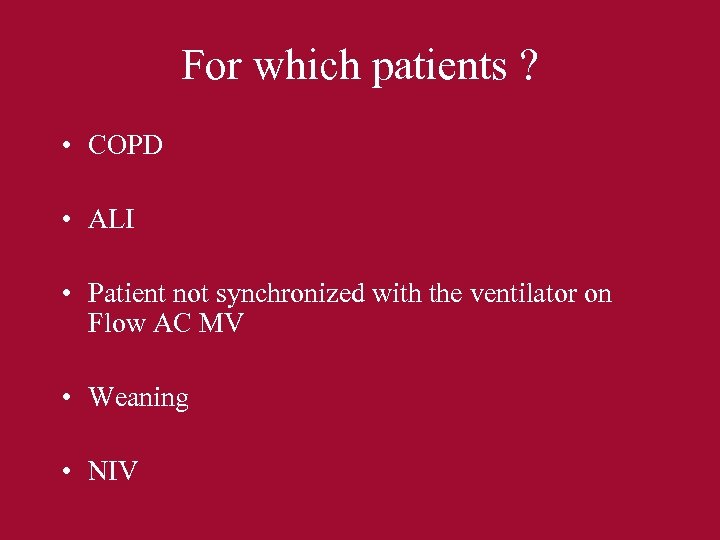

For which patients ? • COPD • ALI • Patient not synchronized with the ventilator on Flow AC MV • Weaning • NIV

Conclusions • Complexe ventilation modality, allows to get close to patient’s physiologic needs, though significant dyssynchrony may occur • Ventilators’ performance for PSV varies • Requires understanding of patient’s interaction with the ventilator • Ventilator waveforms are helpful for appropriate settings, however do not forget to look at the patient

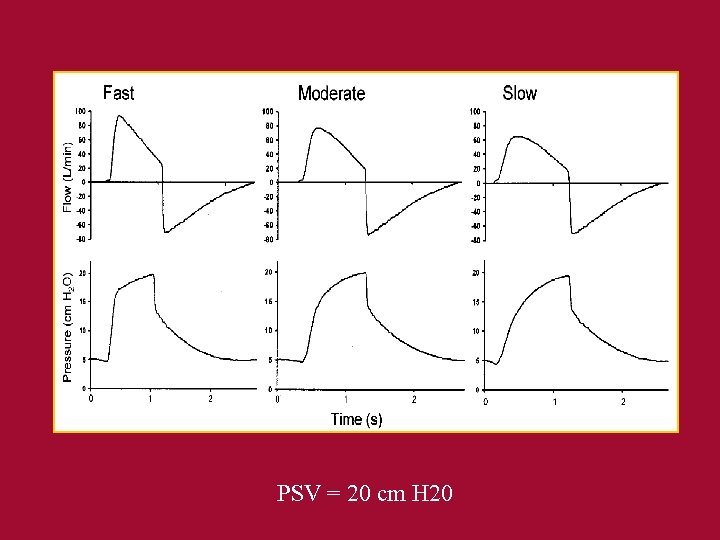

PSV = 20 cm H 20
