presents Antivandalism Sanitary Robotics

presents. . . ® Antivandalism Sanitary Robotics

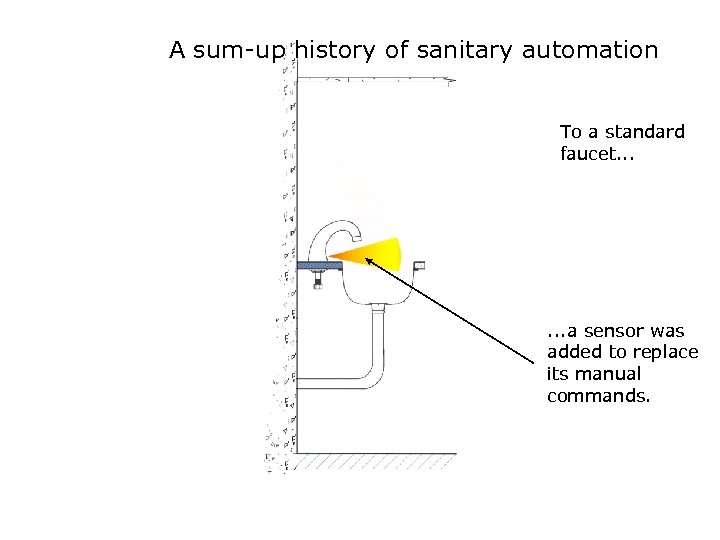

A sum-up history of sanitary automation To a standard faucet. . . a sensor was added to replace its manual commands.

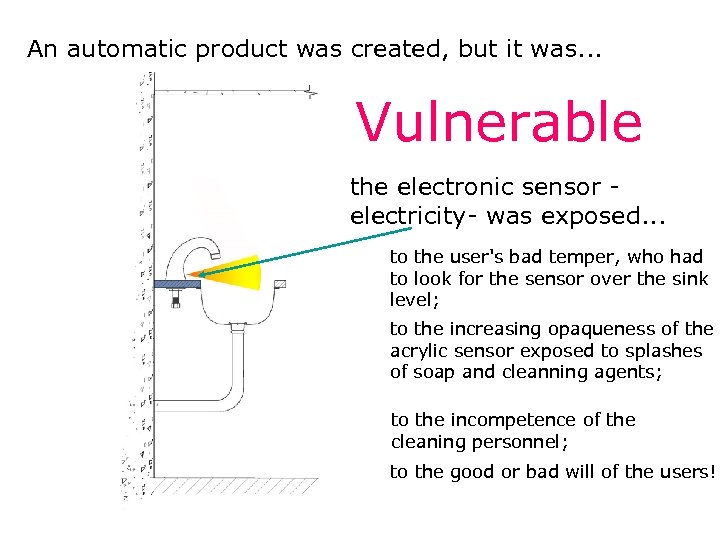

An automatic product was created, but it was. . . Vulnerable the electronic sensor electricity- was exposed. . . to the user's bad temper, who had to look for the sensor over the sink level; to the increasing opaqueness of the acrylic sensor exposed to splashes of soap and cleanning agents; to the incompetence of the cleaning personnel; to the good or bad will of the users!

In order to deal with these and other disadvantages, offers you. . .

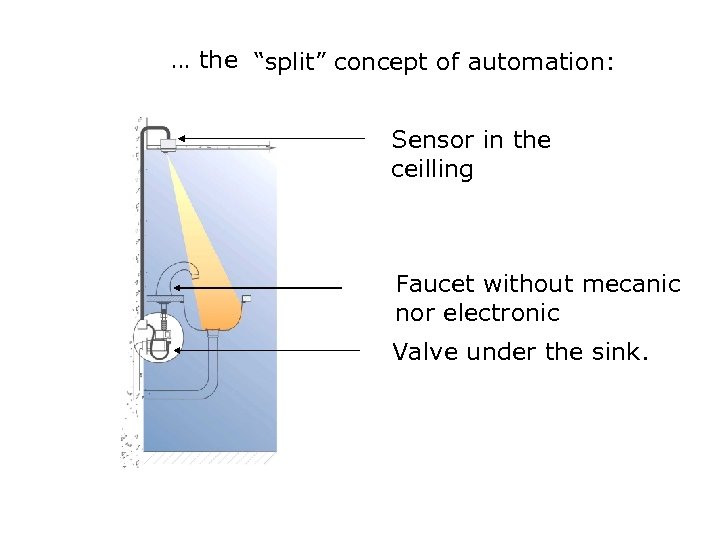

… the “split” concept of automation: Sensor in the ceilling Faucet without mecanic nor electronic Valve under the sink.

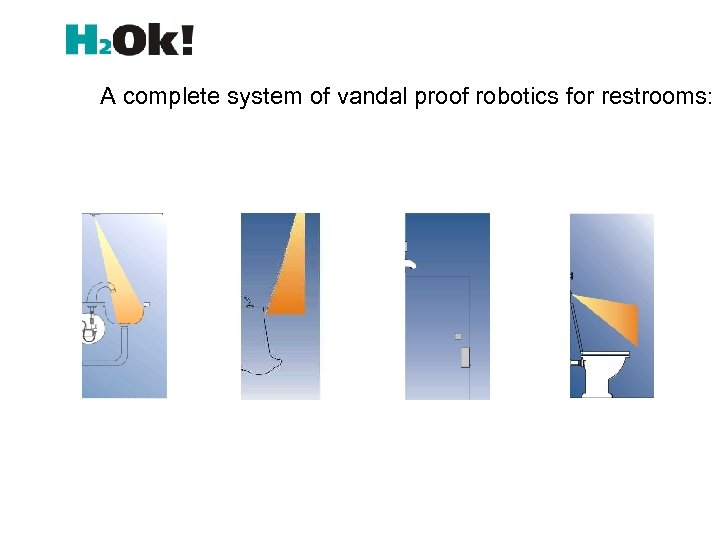

A complete system of vandal proof robotics for restrooms:

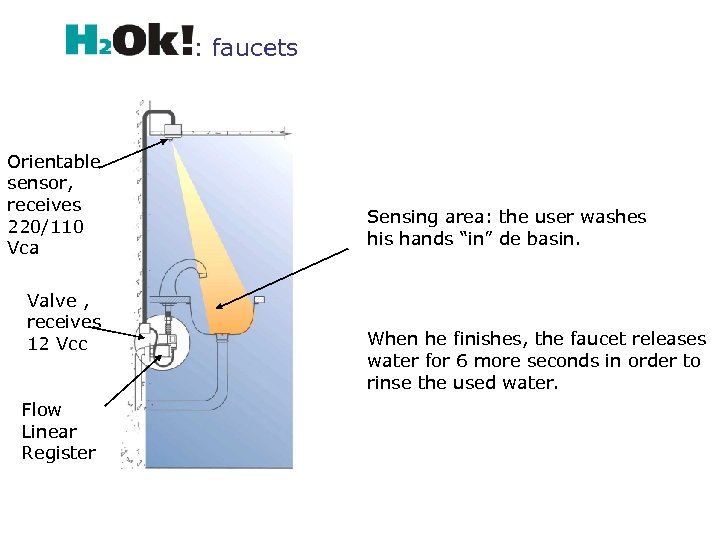

: faucets Orientable sensor, receives 220/110 Vca Valve , receives 12 Vcc Flow Linear Register Sensing area: the user washes his hands “in” de basin. When he finishes, the faucet releases water for 6 more seconds in order to rinse the used water.

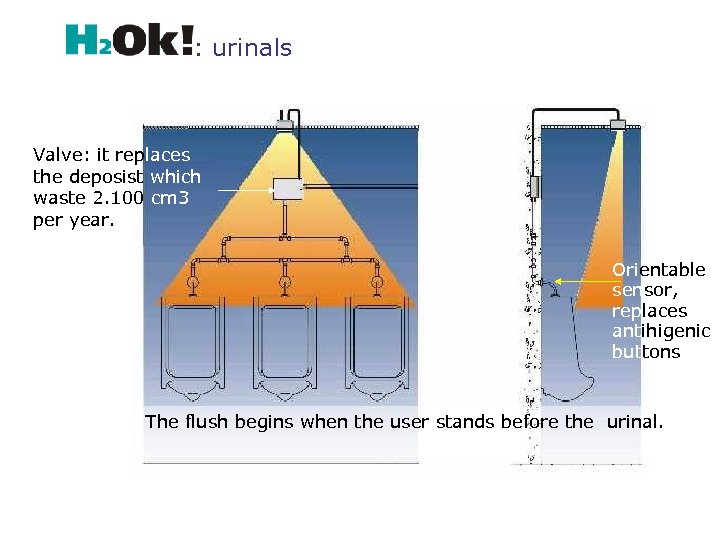

: urinals Valve: it replaces the deposist which waste 2. 100 cm 3 per year. Orientable sensor, replaces antihigenic buttons The flush begins when the user stands before the urinal.

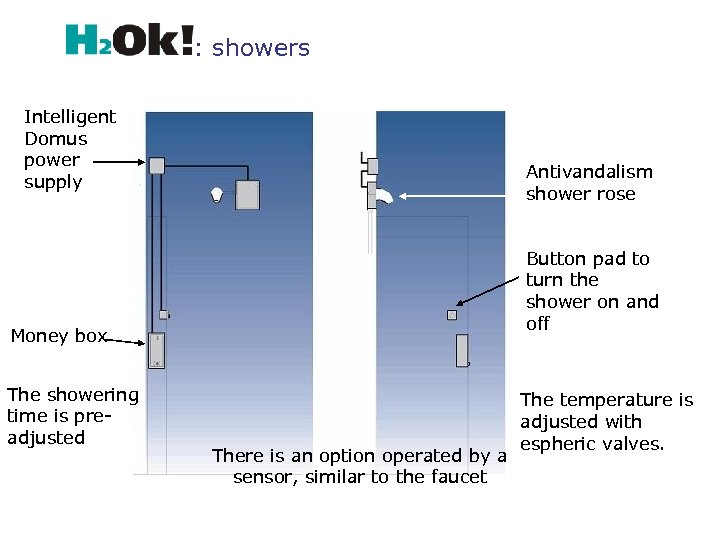

: showers Intelligent Domus power supply Antivandalism shower rose Button pad to turn the shower on and off Money box The showering time is preadjusted There is an option operated by a sensor, similar to the faucet The temperature is adjusted with espheric valves.

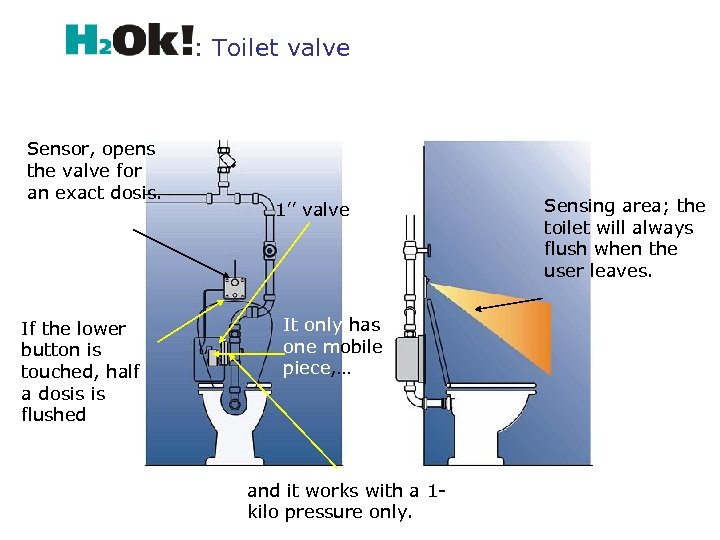

: Toilet valve Sensor, opens the valve for an exact dosis. If the lower button is touched, half a dosis is flushed 1’’ valve It only has one mobile piece, … and it works with a 1 kilo pressure only. Sensing area; the toilet will always flush when the user leaves.

: toilet recipient ½“ piping, with linear pressure The recipient is imbedded or. . …applied Sensor Sensing area; the toilet will always flush when the user leaves.

Other applications. . .

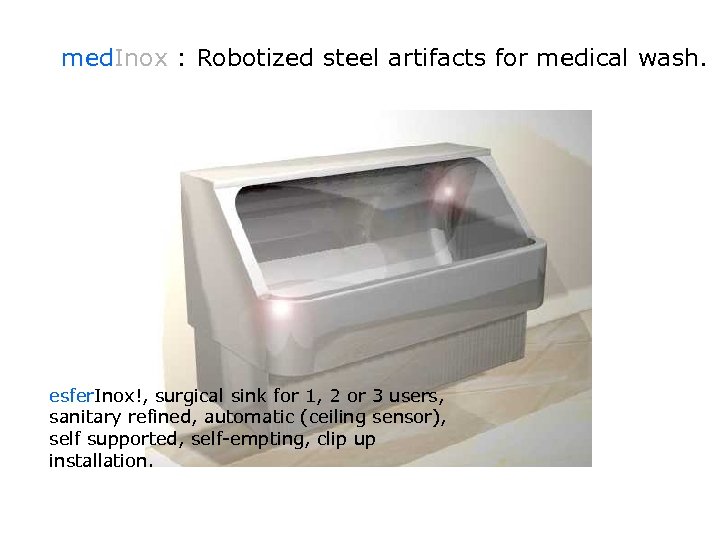

med. Inox : Robotized steel artifacts for medical wash. esfer. Inox!, surgical sink for 1, 2 or 3 users, sanitary refined, automatic (ceiling sensor), self supported, self-empting, clip up installation.

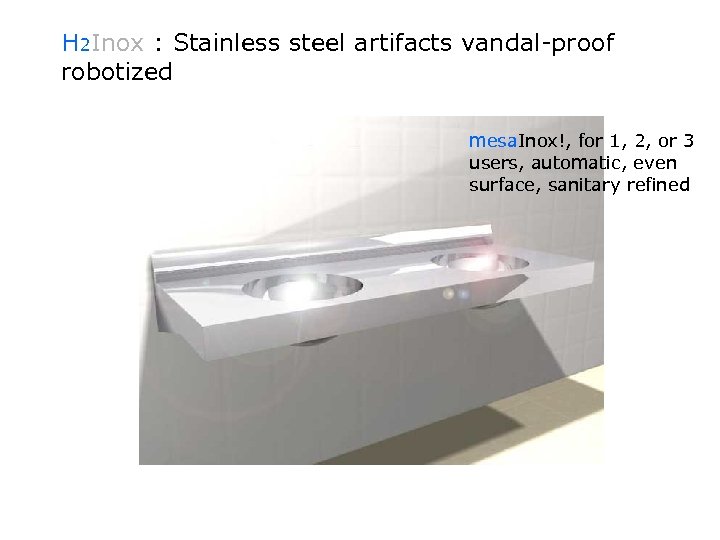

H 2 Inox : Stainless steel artifacts vandal-proof robotized mesa. Inox!, for 1, 2, or 3 users, automatic, even surface, sanitary refined

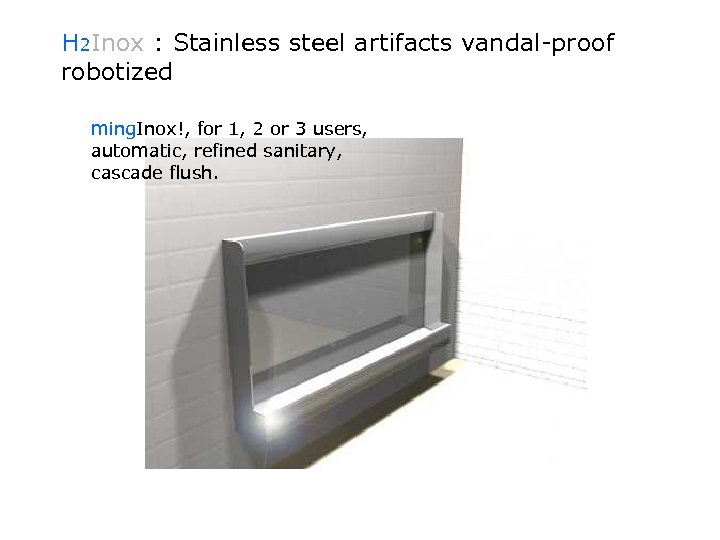

H 2 Inox : Stainless steel artifacts vandal-proof robotized ming. Inox!, for 1, 2 or 3 users, automatic, refined sanitary, cascade flush.

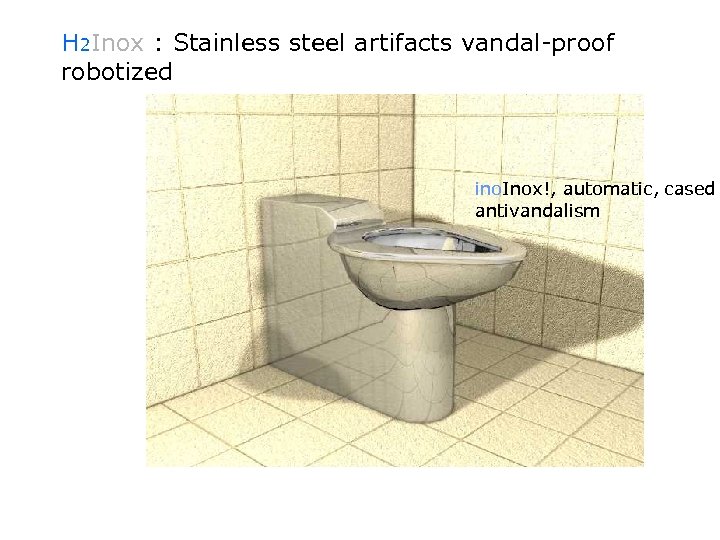

H 2 Inox : Stainless steel artifacts vandal-proof robotized ino. Inox!, automatic, cased antivandalism

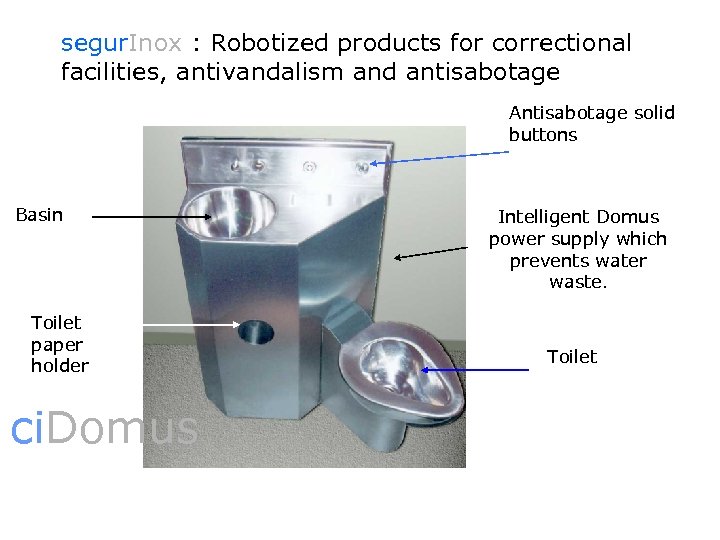

segur. Inox : Robotized products for correctional facilities, antivandalism and antisabotage Antisabotage solid buttons Basin Toilet paper holder ci. Domus Intelligent Domus power supply which prevents water waste. Toilet

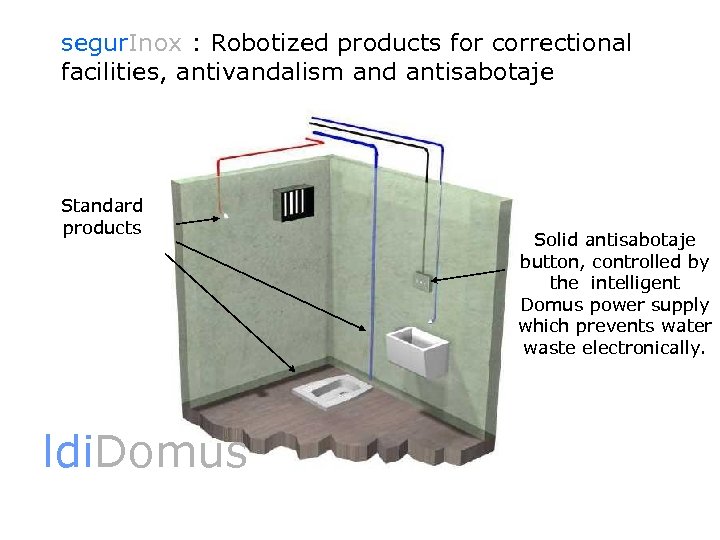

segur. Inox : Robotized products for correctional facilities, antivandalism and antisabotaje Standard products ldi. Domus Solid antisabotaje button, controlled by the intelligent Domus power supply which prevents water waste electronically.

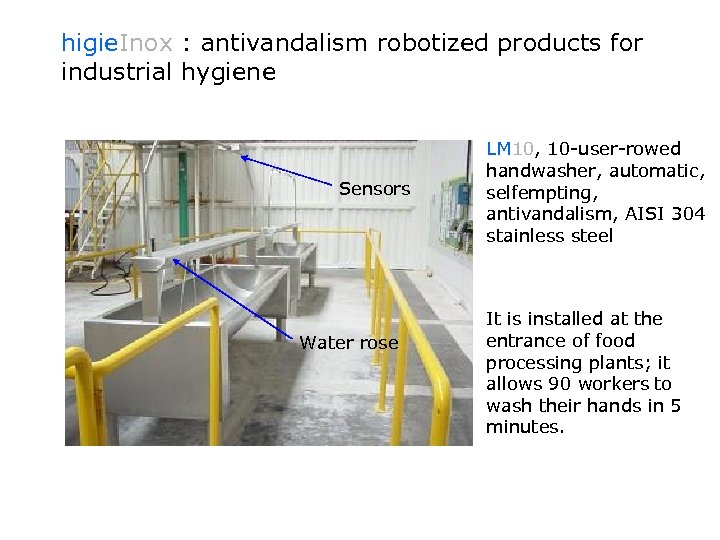

higie. Inox : antivandalism robotized products for industrial hygiene Sensors Water rose LM 10, 10 -user-rowed handwasher, automatic, selfempting, antivandalism, AISI 304 stainless steel It is installed at the entrance of food processing plants; it allows 90 workers to wash their hands in 5 minutes.

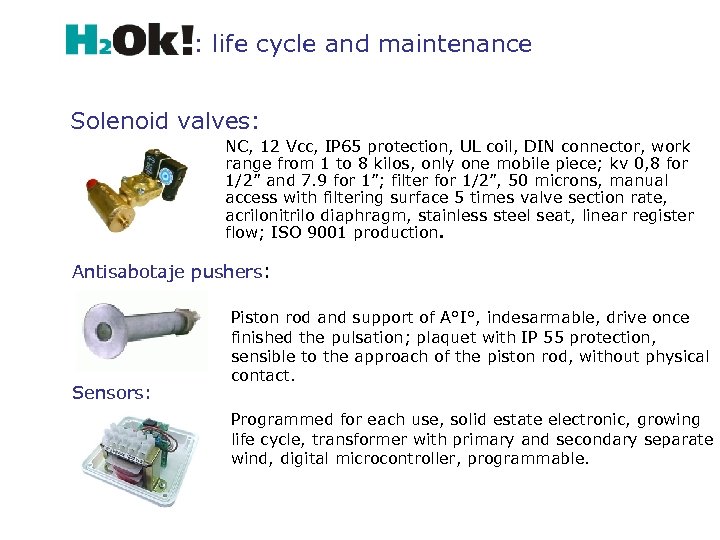

: life cycle and maintenance Solenoid valves: NC, 12 Vcc, IP 65 protection, UL coil, DIN connector, work range from 1 to 8 kilos, only one mobile piece; kv 0, 8 for 1/2” and 7. 9 for 1”; filter for 1/2”, 50 microns, manual access with filtering surface 5 times valve section rate, acrilonitrilo diaphragm, stainless steel seat, linear register flow; ISO 9001 production. Antisabotaje pushers: Sensors: Piston rod and support of A°I°, indesarmable, drive once finished the pulsation; plaquet with IP 55 protection, sensible to the approach of the piston rod, without physical contact. Programmed for each use, solid estate electronic, growing life cycle, transformer with primary and secondary separate wind, digital microcontroller, programmable.

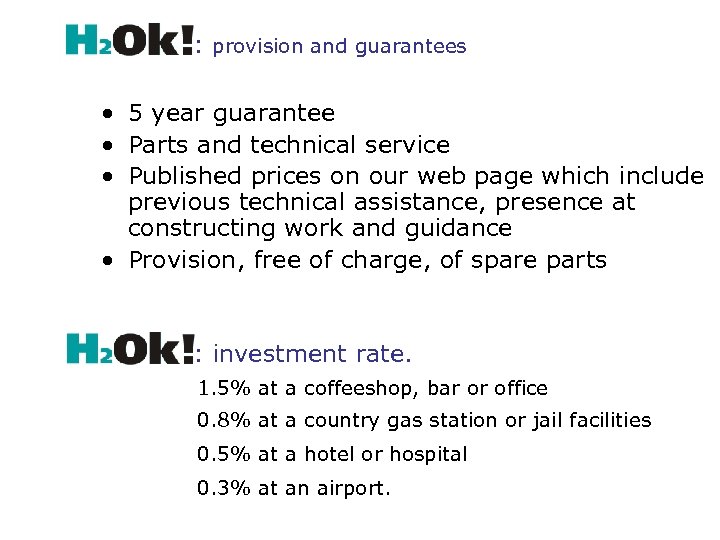

: provision and guarantees • 5 year guarantee • Parts and technical service • Published prices on our web page which include previous technical assistance, presence at constructing work and guidance • Provision, free of charge, of spare parts : investment rate. 1. 5% at a coffeeshop, bar or office 0. 8% at a country gas station or jail facilities 0. 5% at a hotel or hospital 0. 3% at an airport.

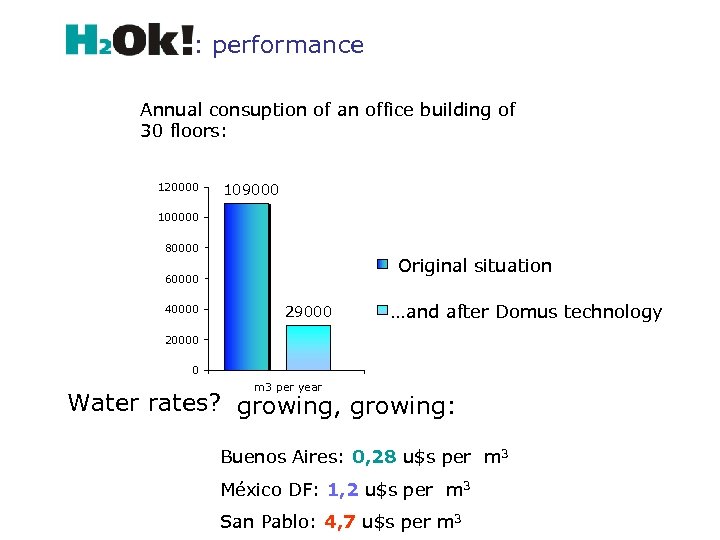

: performance Annual consuption of an office building of 30 floors: 120000 109000 100000 80000 Original situation 60000 40000 29000 …and after Domus technology 20000 0 m 3 per year Water rates? growing, growing: Buenos Aires: 0, 28 u$s per m 3 México DF: 1, 2 u$s per m 3 San Pablo: 4, 7 u$s per m 3

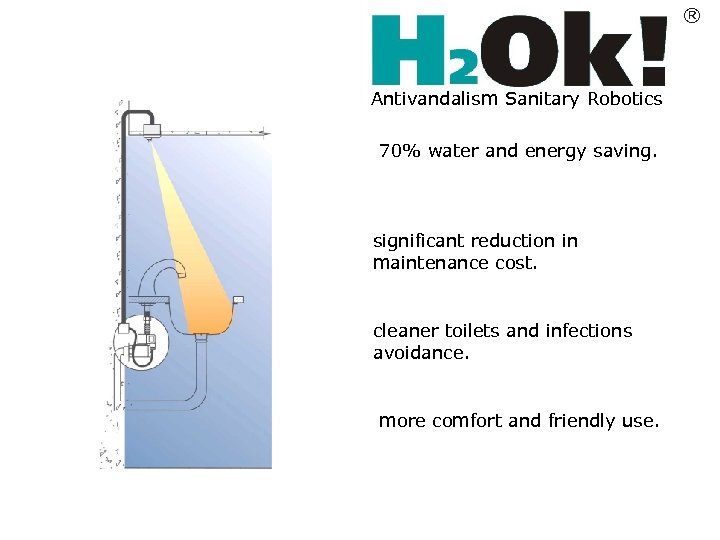

® Antivandalism Sanitary Robotics 70% water and energy saving. significant reduction in maintenance cost. cleaner toilets and infections avoidance. more comfort and friendly use.

: clients and segments Medicinal laboratories and surgery rooms subjected to extreme aspesy messures. (Givaudán, Hospital Alemán) Sluttery and food processing plants (Swift, Arcor) Private Universities of high fees (IAE -en Pilar-, UCA –Puerto Madero-) Technical boarding institutes for students in need (EPET n° 1 de Gral. Pico, La Pampa) Emblematic Coffee Stores and Restaurants of Buenos Aires (La Biela, La Richmond) Pizza places next to football stadiums (Pizza Boom) 5 -star Hotels (Sheraton, Accor) 5 bar jails (Alcaidía de Mendoza) Emblematic branches of big corporations (Fortabat, Monsanto) Personal dressrooms in industrial plants (Loma Negra, Monsanto)

: profitability Reduces corrective maintenance to null levels Reduces water waste to null levels Reduces energy waste to null levels The robotization amortize en them Enables handicaped without discriminating because. . . 18 water processing plants Makesmonth (average) efficient Guaranties that sanitary facilities don´t overflow because of uncontrolled waste Multiplies 3 times facilities life cicle Prevents hepatitis A and other illnesses infection Betters the user’s life quality Betters qualifications at insurance companies Is consistent with GMP, HACCP ant ISO standard requirements.

All in all, Mechanic faucets are paid for. . . • once they are installed, • when they spread bacteria, • when they come out of order and produce water and energy waste, • and every time they have to be changedy. • That means they are paid for many, many times! Instead, is paid only once

Thank you, very much. Domus Robótica Ambiental
