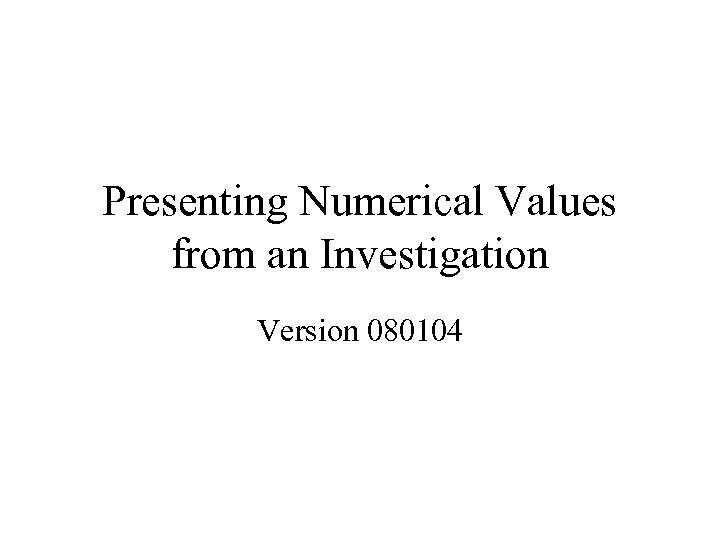

Presenting Numerical Values from an Investigation Version 080104 Presenting Numerical Values from an Investigation Version 080104

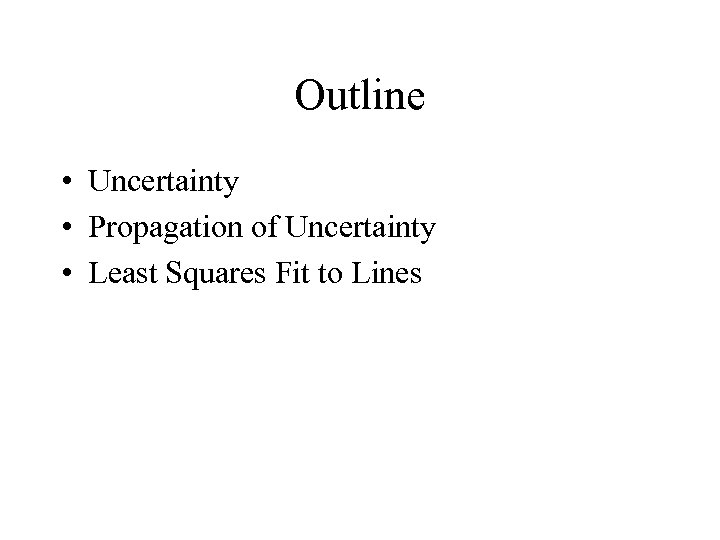

Outline • Uncertainty • Propagation of Uncertainty • Least Squares Fit to Lines Outline • Uncertainty • Propagation of Uncertainty • Least Squares Fit to Lines

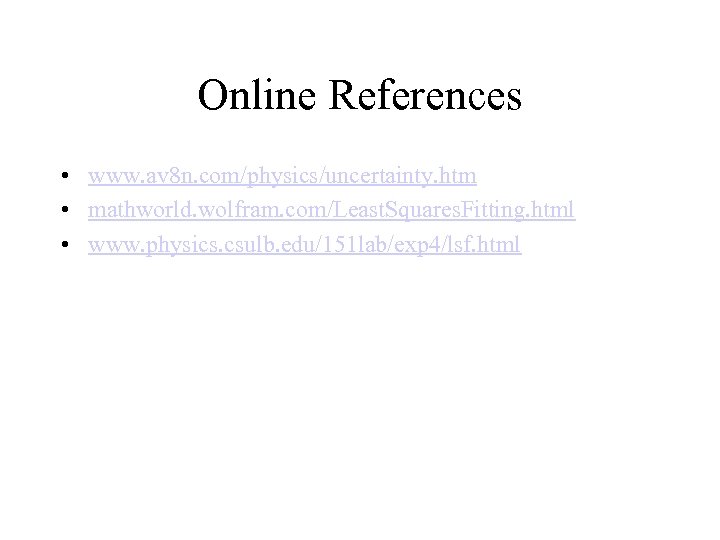

Online References • www. av 8 n. com/physics/uncertainty. htm • mathworld. wolfram. com/Least. Squares. Online References • www. av 8 n. com/physics/uncertainty. htm • mathworld. wolfram. com/Least. Squares. Fitting. html • www. physics. csulb. edu/151 lab/exp 4/lsf. html

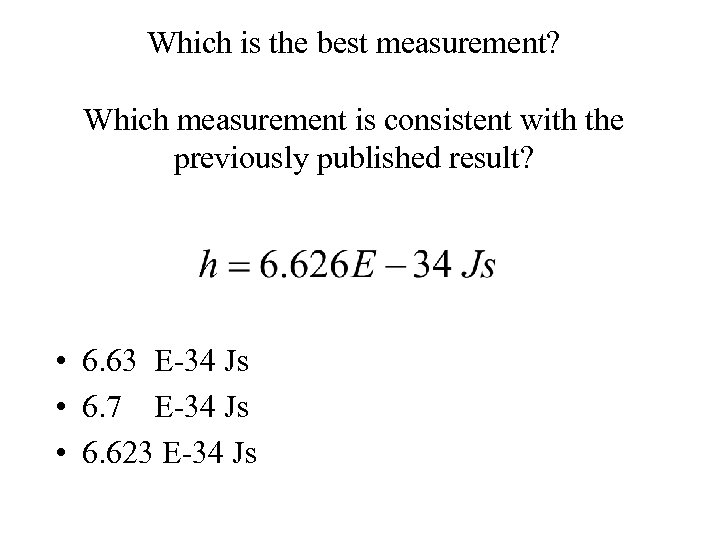

Which is the best measurement? Which measurement is consistent with the previously published result? Which is the best measurement? Which measurement is consistent with the previously published result? • 6. 63 E-34 Js • 6. 7 E-34 Js • 6. 623 E-34 Js

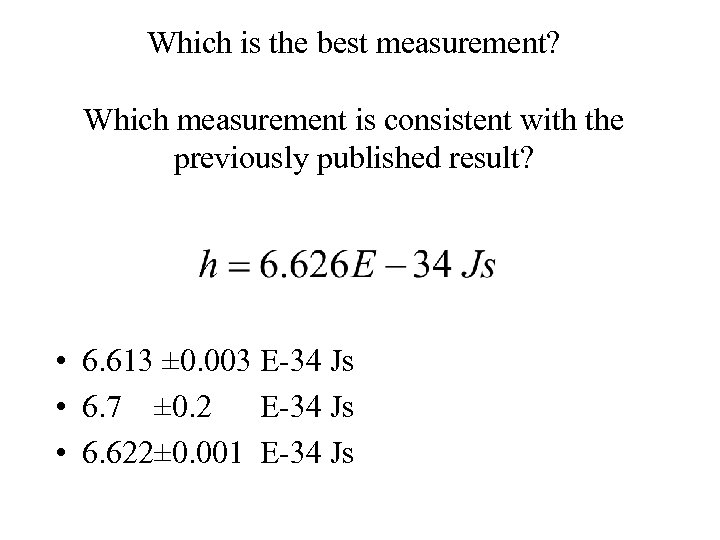

Which is the best measurement? Which measurement is consistent with the previously published result? Which is the best measurement? Which measurement is consistent with the previously published result? • 6. 613 ± 0. 003 E-34 Js • 6. 7 ± 0. 2 E-34 Js • 6. 622± 0. 001 E-34 Js

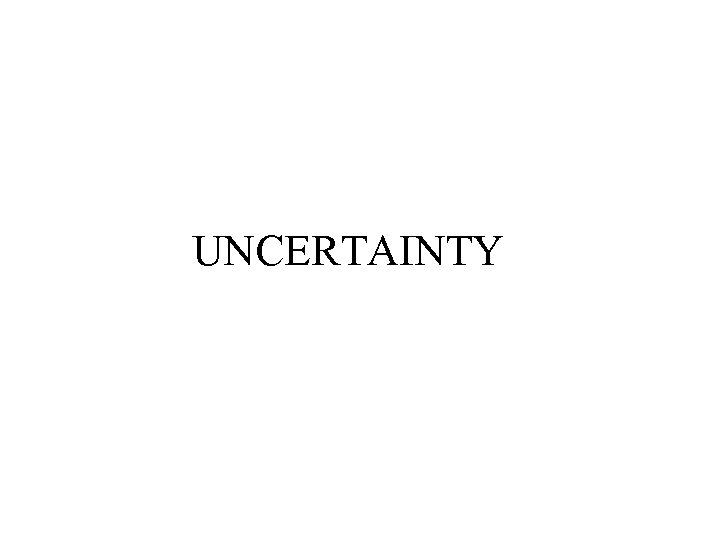

UNCERTAINTY UNCERTAINTY

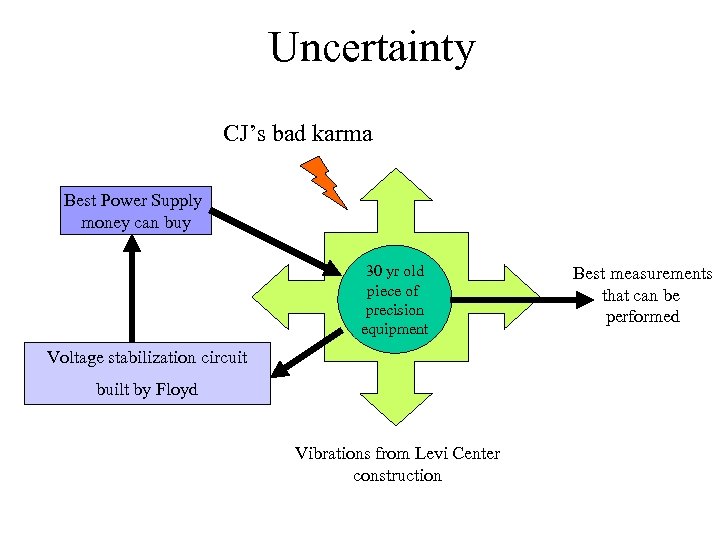

Uncertainty CJ’s bad karma Best Power Supply money can buy 30 yr old piece Uncertainty CJ’s bad karma Best Power Supply money can buy 30 yr old piece of precision equipment Voltage stabilization circuit built by Floyd Vibrations from Levi Center construction Best measurements that can be performed

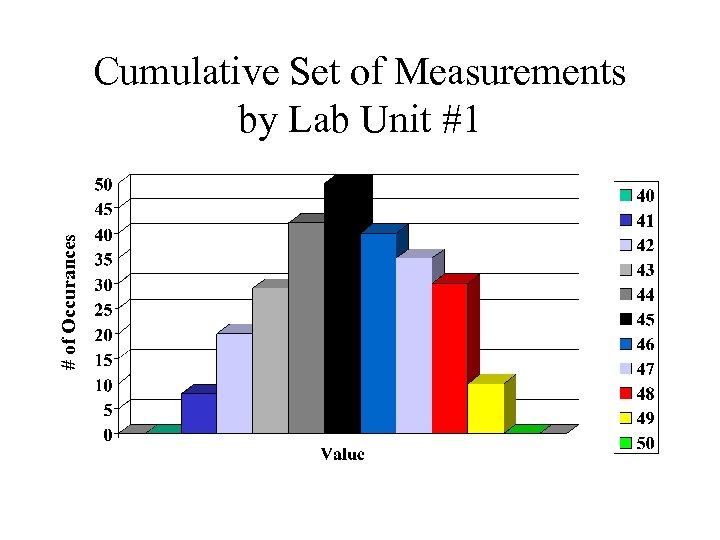

# of Occurances Cumulative Set of Measurements by Lab Unit #1 # of Occurances Cumulative Set of Measurements by Lab Unit #1

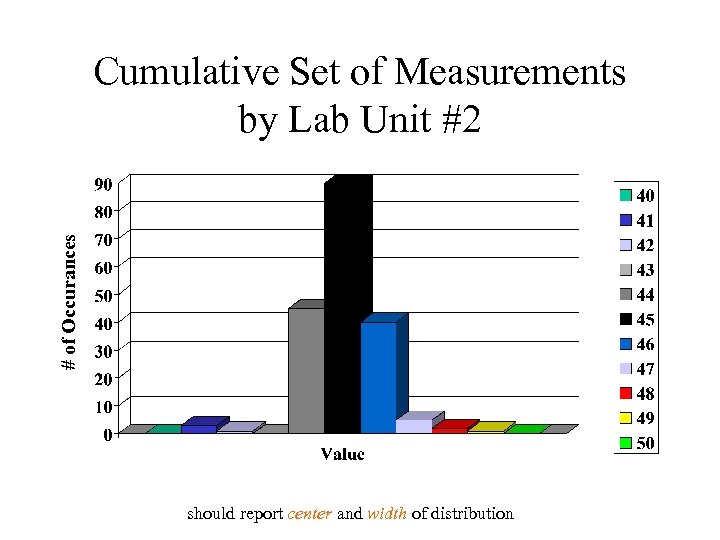

# of Occurances Cumulative Set of Measurements by Lab Unit #2 should report center # of Occurances Cumulative Set of Measurements by Lab Unit #2 should report center and width of distribution

45± 1 45± 2 may look like numbers, but they’re not. It’s a way 45± 1 45± 2 may look like numbers, but they’re not. It’s a way to specify a probability distribution

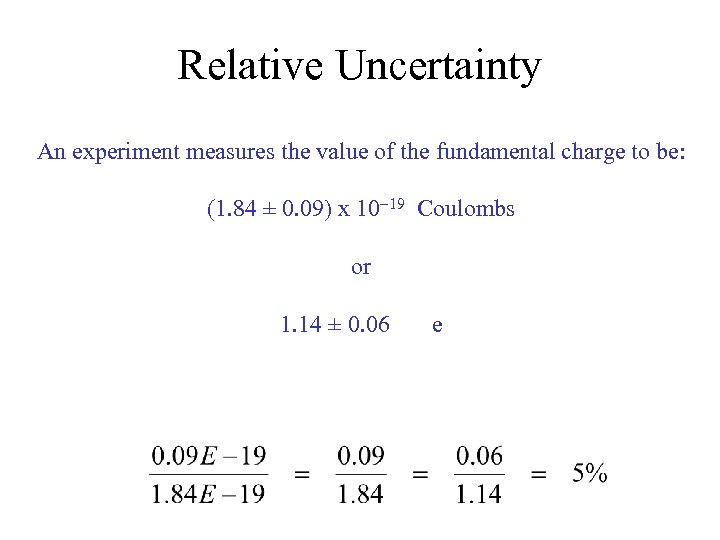

Relative Uncertainty An experiment measures the value of the fundamental charge to be: (1. Relative Uncertainty An experiment measures the value of the fundamental charge to be: (1. 84 ± 0. 09) x 10 -19 Coulombs or 1. 14 ± 0. 06 e

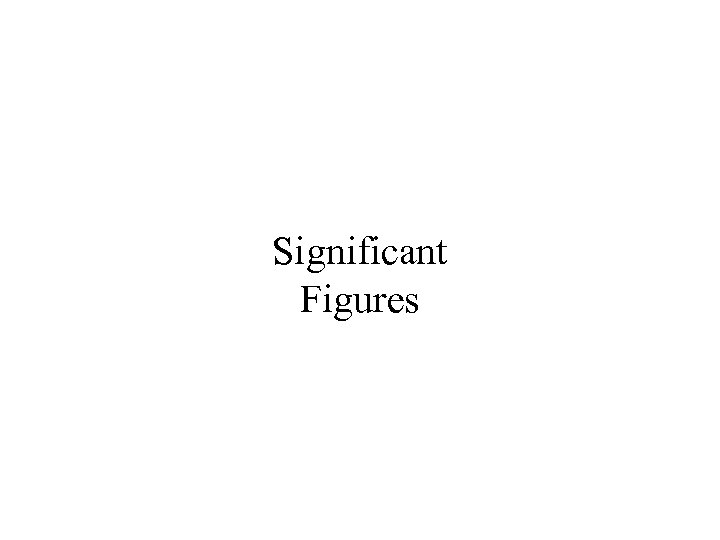

Significant Figures Significant Figures

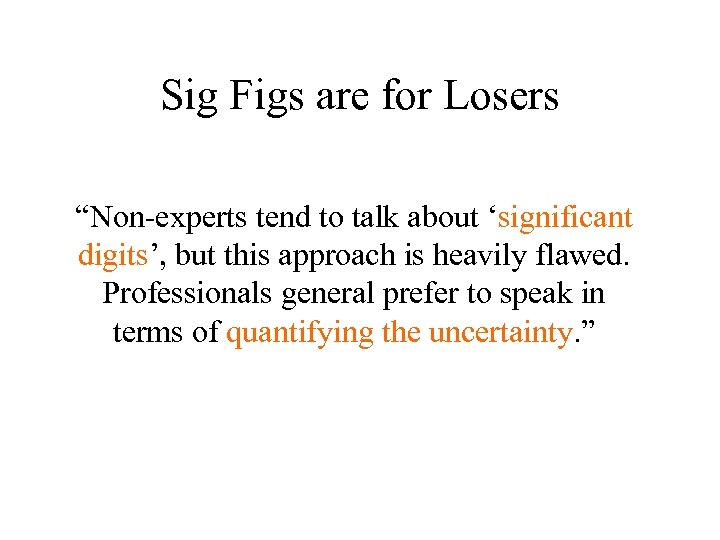

Sig Figs are for Losers “Non-experts tend to talk about ‘significant digits’, but this Sig Figs are for Losers “Non-experts tend to talk about ‘significant digits’, but this approach is heavily flawed. Professionals general prefer to speak in terms of quantifying the uncertainty. ”

Why Sig Fig approach is bad An experiment measures the value of the fundamental Why Sig Fig approach is bad An experiment measures the value of the fundamental charge to be: 1. 149 1. 1 e 1. 050 10% rel unc. is implied Sig Fig approach: 1) misrepresents the true uncertainty (actually the uncertainty is not specified) 2) throws away information 3) can produce erroneous results (see linear fits) Physicists present a ‘reasonable number’ of digits in published work, but many more digits in calculations.

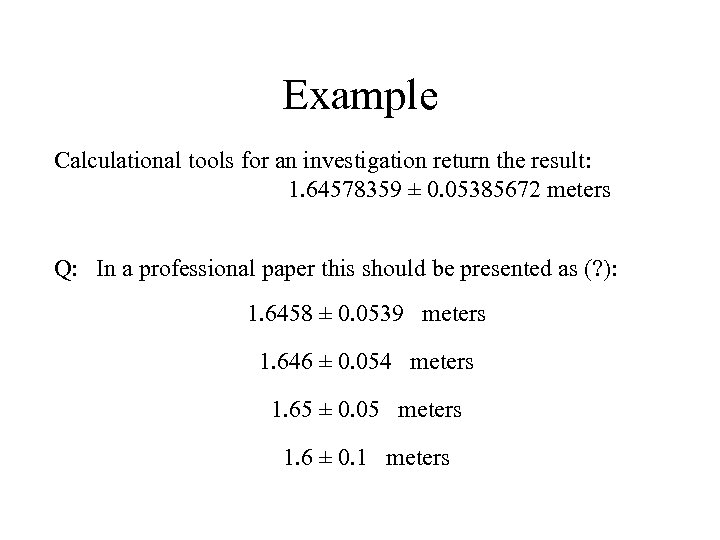

Example Calculational tools for an investigation return the result: 1. 64578359 ± 0. 05385672 Example Calculational tools for an investigation return the result: 1. 64578359 ± 0. 05385672 meters Q: In a professional paper this should be presented as (? ): 1. 6458 ± 0. 0539 meters 1. 646 ± 0. 054 meters 1. 65 ± 0. 05 meters 1. 6 ± 0. 1 meters

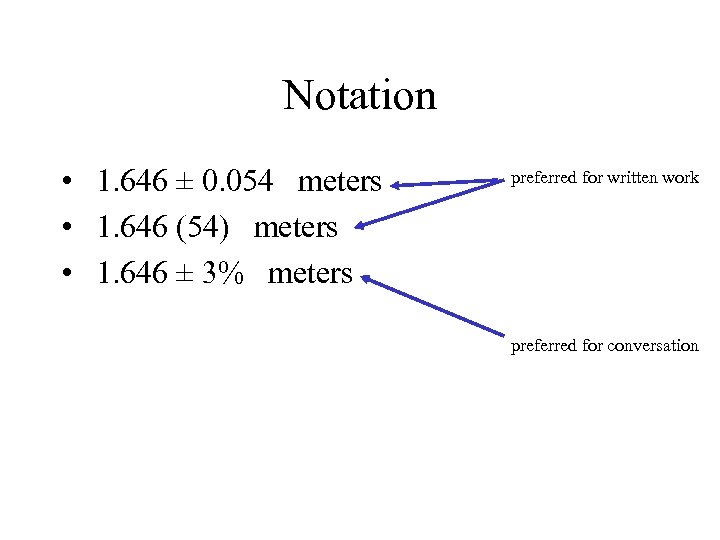

Notation • 1. 646 ± 0. 054 meters • 1. 646 (54) meters • Notation • 1. 646 ± 0. 054 meters • 1. 646 (54) meters • 1. 646 ± 3% meters preferred for written work preferred for conversation

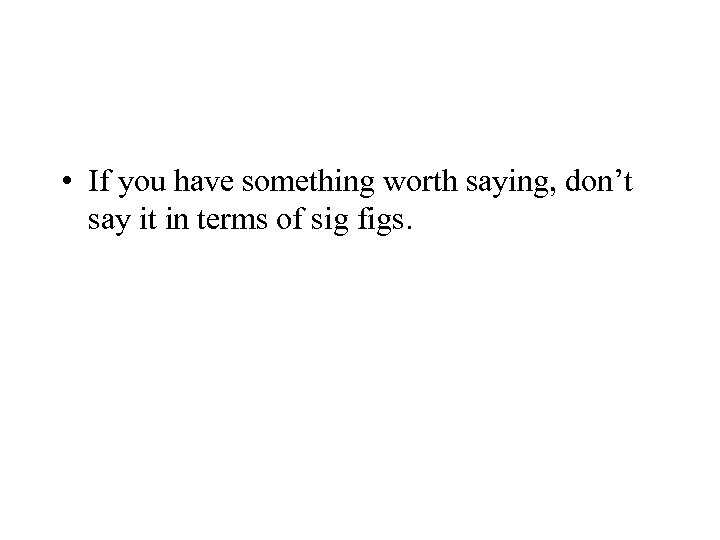

 • If you have something worth saying, don’t say it in terms of • If you have something worth saying, don’t say it in terms of sig figs.

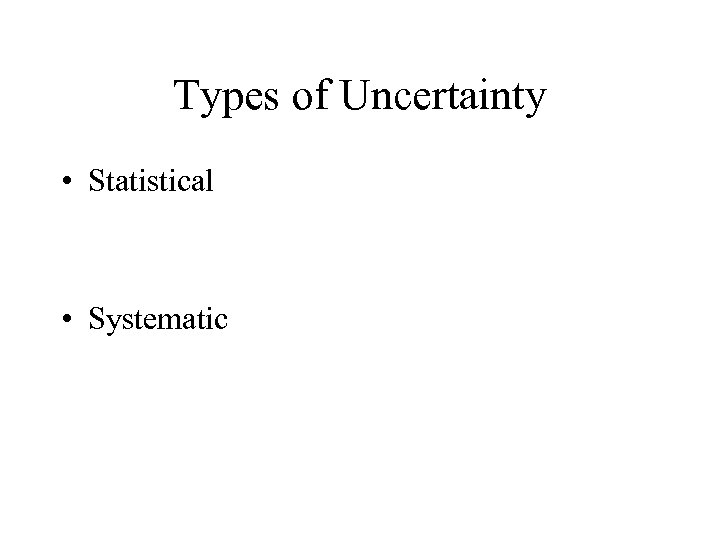

Types of Uncertainty • Statistical • Systematic Types of Uncertainty • Statistical • Systematic

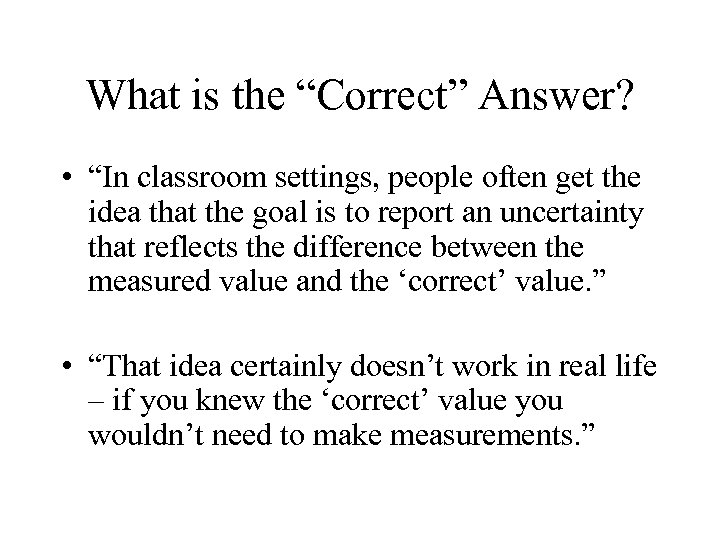

What is the “Correct” Answer? • “In classroom settings, people often get the idea What is the “Correct” Answer? • “In classroom settings, people often get the idea that the goal is to report an uncertainty that reflects the difference between the measured value and the ‘correct’ value. ” • “That idea certainly doesn’t work in real life – if you knew the ‘correct’ value you wouldn’t need to make measurements. ”

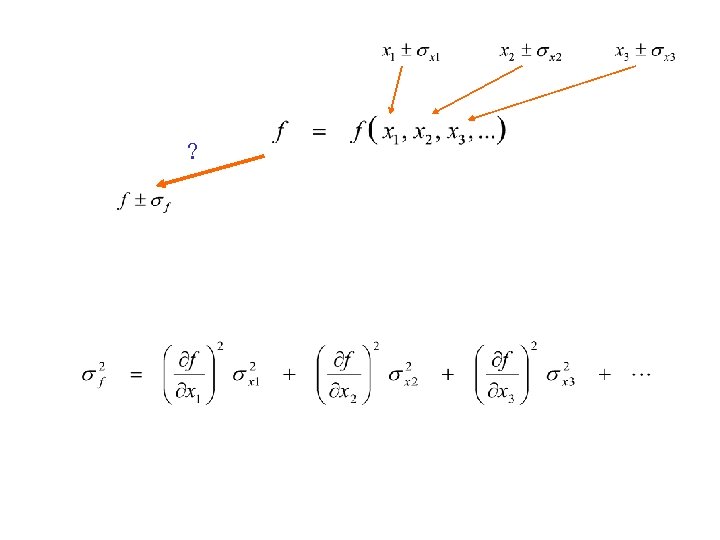

PROPAGATION OF UNCERTAINTY PROPAGATION OF UNCERTAINTY

? ?

LEAST SQUARES FITTING Figures and equations from: mathworld. wolfram. com/Least. Squares. Fitting. html LEAST SQUARES FITTING Figures and equations from: mathworld. wolfram. com/Least. Squares. Fitting. html

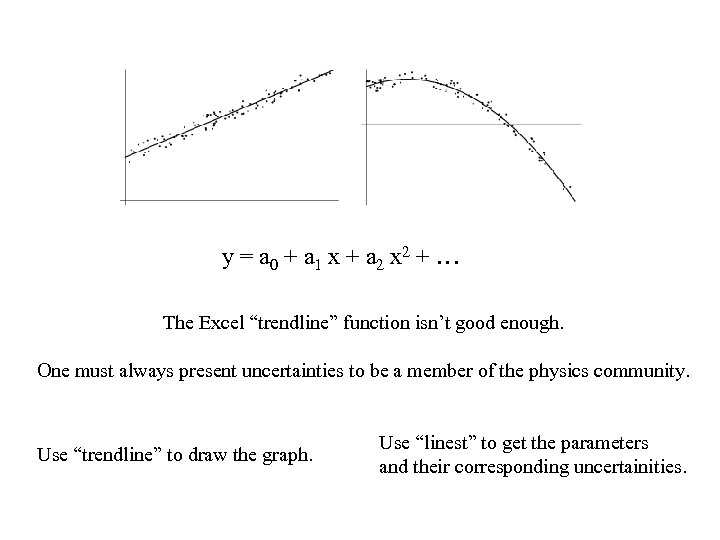

y = a 0 + a 1 x + a 2 x 2 + y = a 0 + a 1 x + a 2 x 2 + … The Excel “trendline” function isn’t good enough. One must always present uncertainties to be a member of the physics community. Use “trendline” to draw the graph. Use “linest” to get the parameters and their corresponding uncertainities.

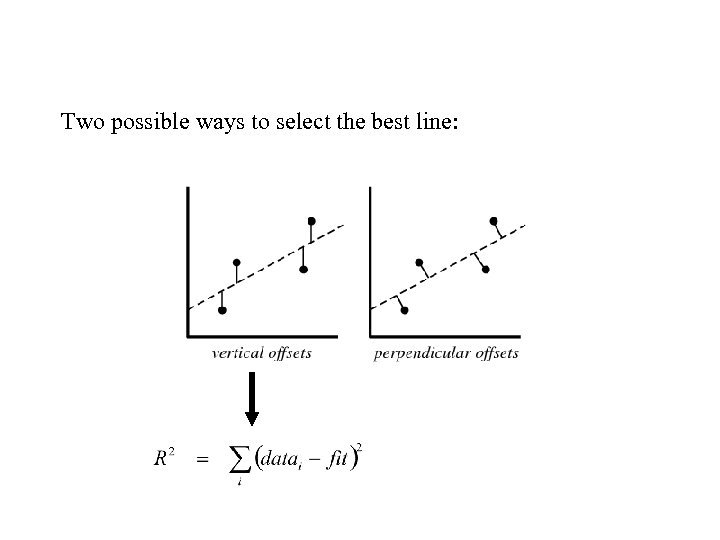

Two possible ways to select the best line: Two possible ways to select the best line:

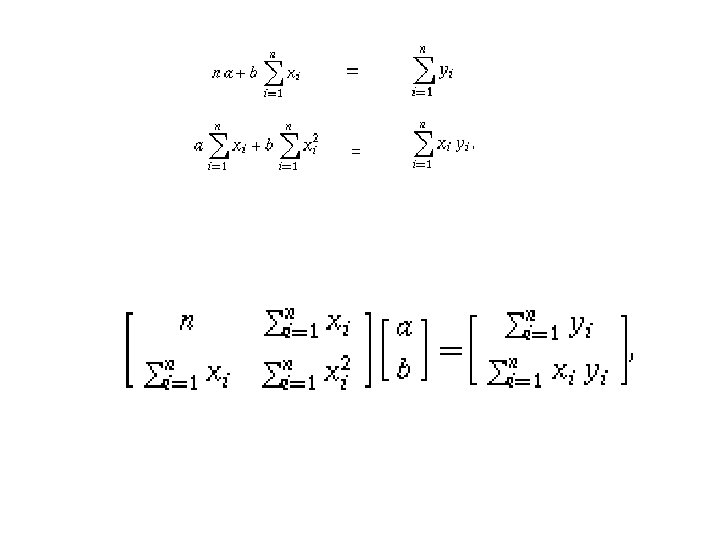

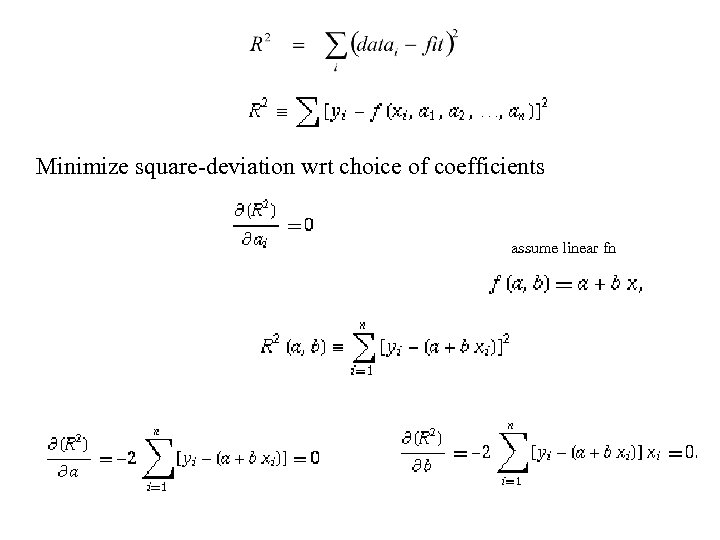

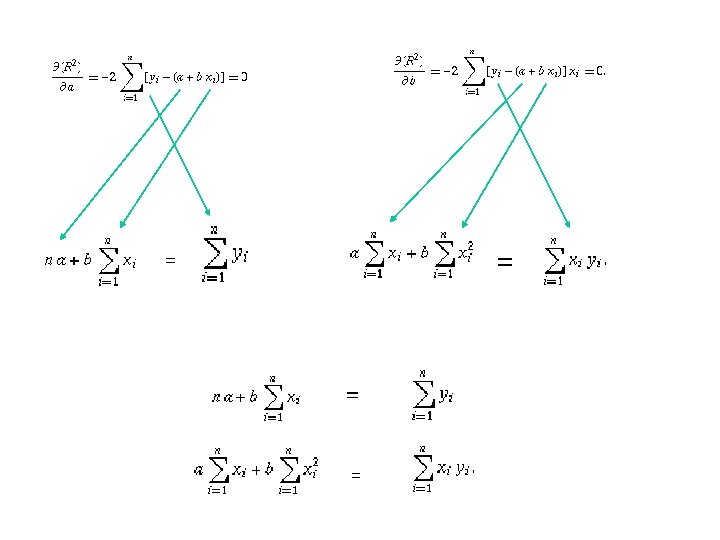

Minimize square-deviation wrt choice of coefficients assume linear fn Minimize square-deviation wrt choice of coefficients assume linear fn

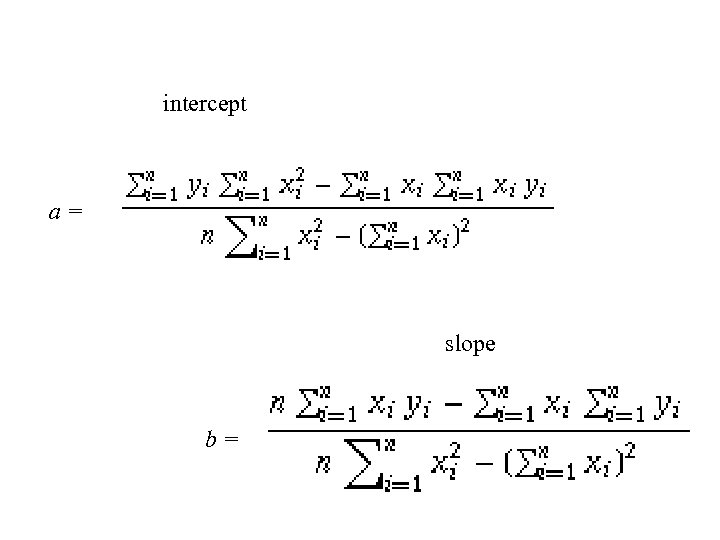

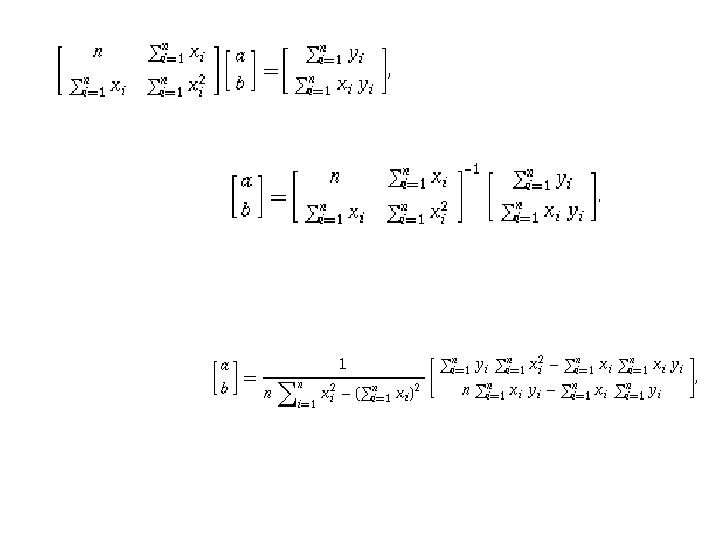

intercept a= slope b= intercept a= slope b=

Using the Excel function LINEST Slope = INDEX(LINEST(y-values, x-values, TRUE), 1, 1) Uncertainty in Using the Excel function LINEST Slope = INDEX(LINEST(y-values, x-values, TRUE), 1, 1) Uncertainty in Slope = INDEX(LINEST(y-values, x-values, TRUE), 2, 1) Intercept = INDEX(LINEST(y-values, x-values, TRUE), 1, 2) Uncertainty in Intercept = INDEX(LINEST(y-values, x-values, TRUE), 2, 2)
