Presentation on Spot Billing and Management System sales@ilexassociates. co. in www. ilexassociates. co. in
Requirement • The Spot Billing and Management System *Scan Consumer Number from Meters at Site. *Send the Data to Server by GPRS and Receive Calculated Bill. *Generation of Water Bill at Site *Print Bill and Provide to Customer. *Basic Report Generation

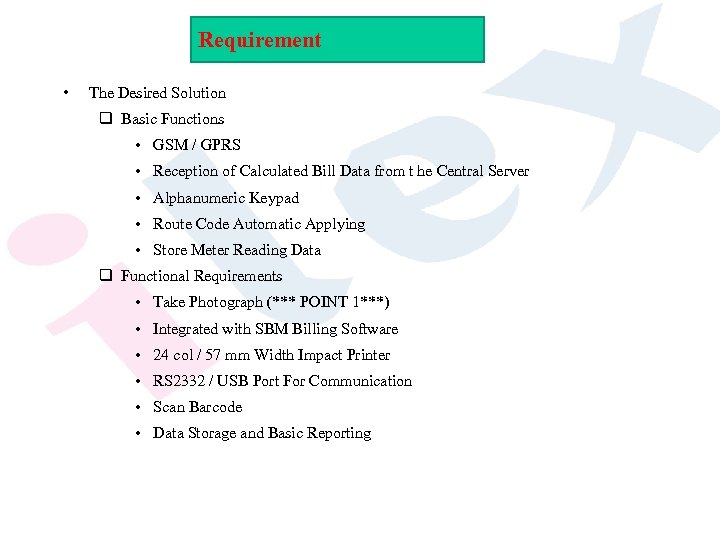

Requirement • The Desired Solution q Basic Functions • GSM / GPRS • Reception of Calculated Bill Data from t he Central Server • Alphanumeric Keypad • Route Code Automatic Applying • Store Meter Reading Data q Functional Requirements • Take Photograph (*** POINT 1***) • Integrated with SBM Billing Software • 24 col / 57 mm Width Impact Printer • RS 2332 / USB Port For Communication • Scan Barcode • Data Storage and Basic Reporting

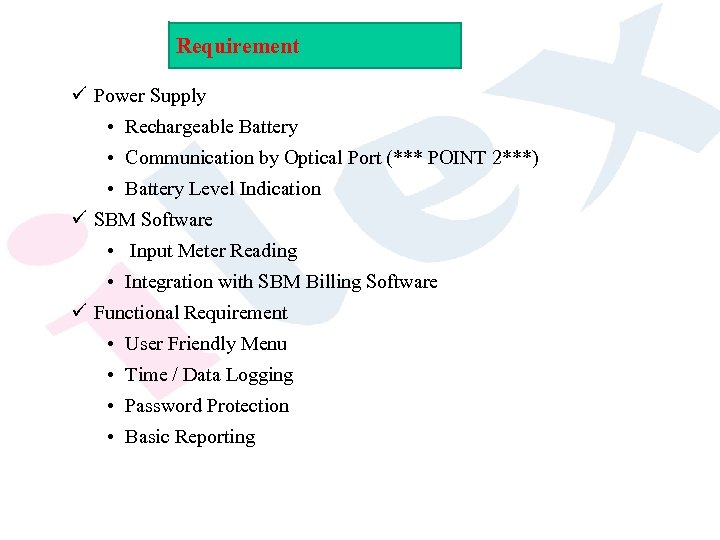

Requirement ü Power Supply • Rechargeable Battery • Communication by Optical Port (*** POINT 2***) • Battery Level Indication ü SBM Software • Input Meter Reading • Integration with SBM Billing Software ü Functional Requirement • User Friendly Menu • Time / Data Logging • Password Protection • Basic Reporting

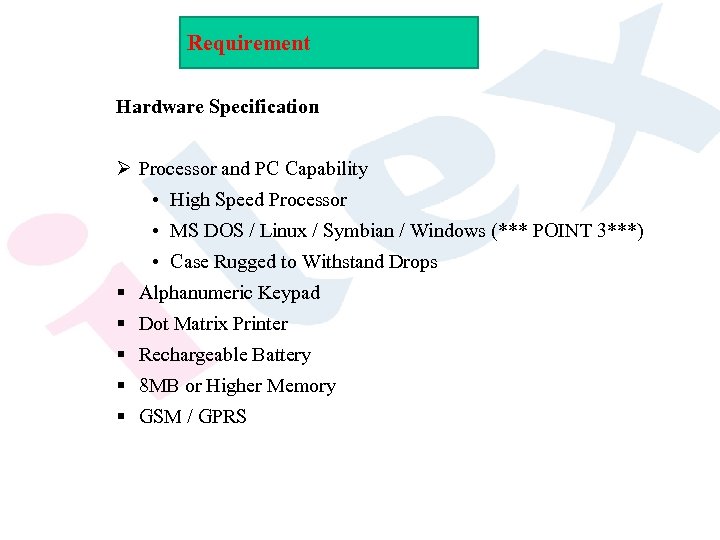

Requirement Hardware Specification Ø Processor and PC Capability • High Speed Processor • MS DOS / Linux / Symbian / Windows (*** POINT 3***) • Case Rugged to Withstand Drops § Alphanumeric Keypad § Dot Matrix Printer § Rechargeable Battery § 8 MB or Higher Memory § GSM / GPRS

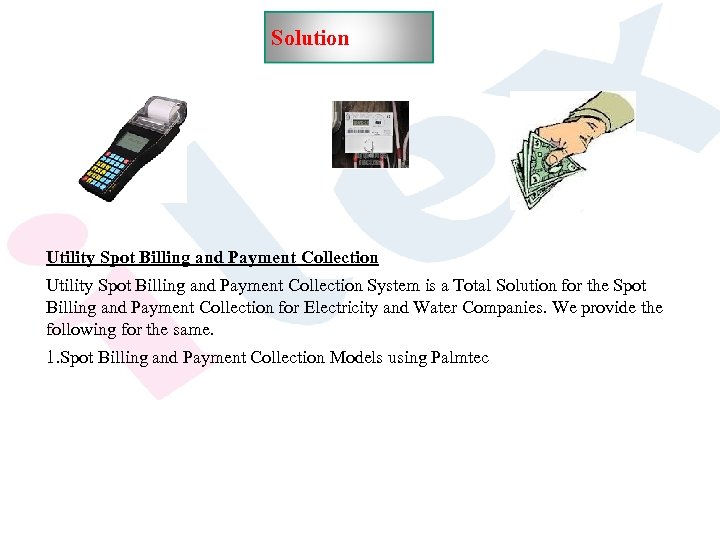

Solution Utility Spot Billing and Payment Collection System is a Total Solution for the Spot Billing and Payment Collection for Electricity and Water Companies. We provide the following for the same. 1. Spot Billing and Payment Collection Models using Palmtec

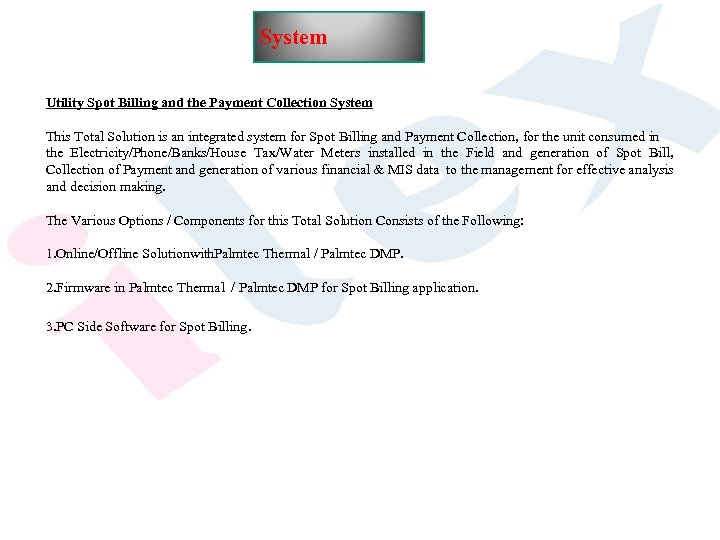

System Utility Spot Billing and the Payment Collection System This Total Solution is an integrated system for Spot Billing and Payment Collection, for the unit consumed in the Electricity/Phone/Banks/House Tax/Water Meters installed in the Field and generation of Spot Bill, Collection of Payment and generation of various financial & MIS data to the management for effective analysis and decision making. The Various Options / Components for this Total Solution Consists of the Following: 1. Online/Offline Solutionwith. Palmtec Thermal / Palmtec DMP. 2. Firmware in Palmtec Thermal / Palmtec DMP for Spot Billing application. 3. PC Side Software for Spot Billing.

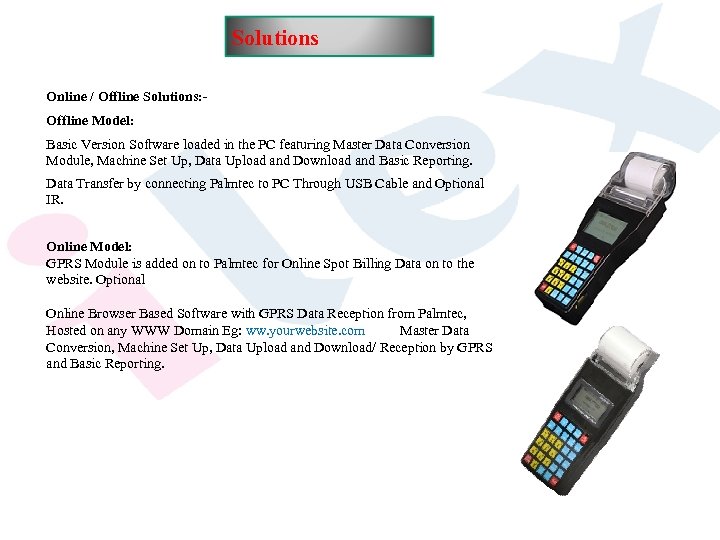

Solutions Online / Offline Solutions: Offline Model: Basic Version Software loaded in the PC featuring Master Data Conversion Module, Machine Set Up, Data Upload and Download and Basic Reporting. Data Transfer by connecting Palmtec to PC Through USB Cable and Optional IR. Online Model: GPRS Module is added on to Palmtec for Online Spot Billing Data on to the website. Optional Online Browser Based Software with GPRS Data Reception from Palmtec, Hosted on any WWW Domain Eg: ww. yourwebsite. com Master Data Conversion, Machine Set Up, Data Upload and Download/ Reception by GPRS and Basic Reporting.

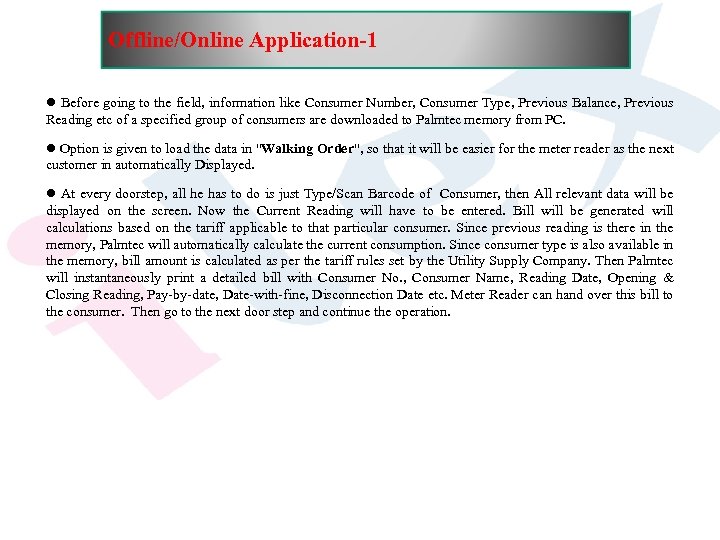

Offline/Online Application-1 Before going to the field, information like Consumer Number, Consumer Type, Previous Balance, Previous Reading etc of a specified group of consumers are downloaded to Palmtec memory from PC. Option is given to load the data in "Walking Order", so that it will be easier for the meter reader as the next customer in automatically Displayed. At every doorstep, all he has to do is just Type/Scan Barcode of Consumer, then All relevant data will be displayed on the screen. Now the Current Reading will have to be entered. Bill will be generated will calculations based on the tariff applicable to that particular consumer. Since previous reading is there in the memory, Palmtec will automatically calculate the current consumption. Since consumer type is also available in the memory, bill amount is calculated as per the tariff rules set by the Utility Supply Company. Then Palmtec will instantaneously print a detailed bill with Consumer No. , Consumer Name, Reading Date, Opening & Closing Reading, Pay-by-date, Date-with-fine, Disconnection Date etc. Meter Reader can hand over this bill to the consumer. Then go to the next door step and continue the operation.

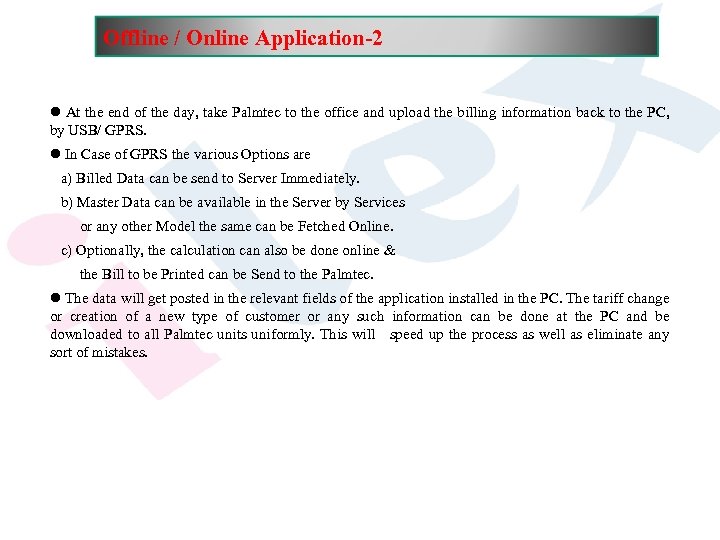

Offline / Online Application-2 At the end of the day, take Palmtec to the office and upload the billing information back to the PC, by USB/ GPRS. In Case of GPRS the various Options are a) Billed Data can be send to Server Immediately. b) Master Data can be available in the Server by Services or any other Model the same can be Fetched Online. c) Optionally, the calculation can also be done online & the Bill to be Printed can be Send to the Palmtec. The data will get posted in the relevant fields of the application installed in the PC. The tariff change or creation of a new type of customer or any such information can be done at the PC and be downloaded to all Palmtec units uniformly. This will speed up the process as well as eliminate any sort of mistakes.

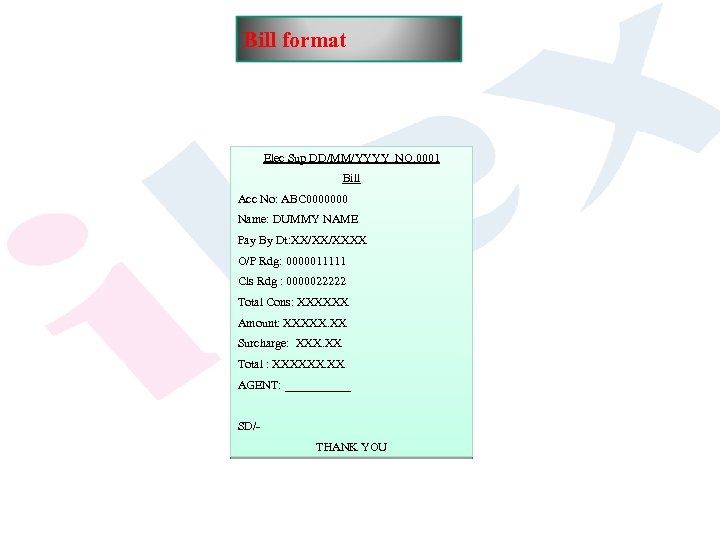

Bill format Elec Sup DD/MM/YYYY NO. 0001 Bill Acc No: ABC 0000000 Name: DUMMY NAME Pay By Dt: XX/XX/XXXX O/P Rdg: 0000011111 Cls Rdg : 0000022222 Total Cons: XXXXXX Amount: XXXXX. XX Surcharge: XXX. XX Total : XXXXXX. XX AGENT: ______ SD/THANK YOU
Working Layout Online Data Communication Through Mobile in GPRSMode

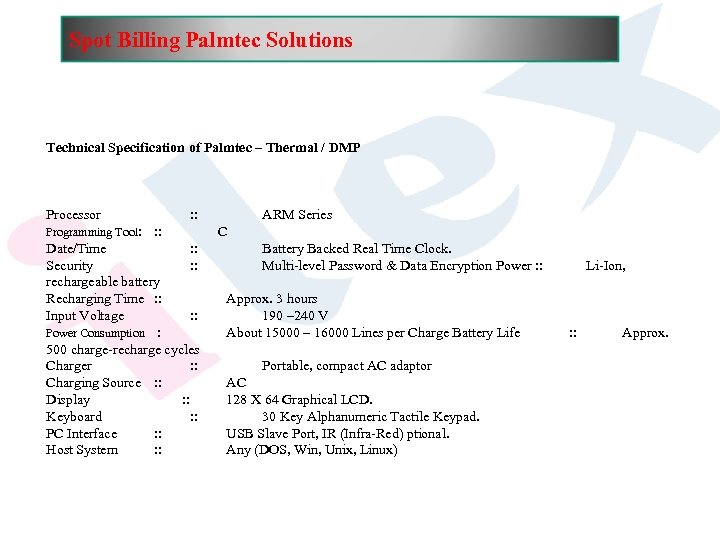

Spot Billing Palmtec Solutions Technical Specification of Palmtec – Thermal / DMP Processor Programming Tool: : : Date/Time : : Security : : rechargeable battery Recharging Time : : Input Voltage : : Power Consumption : 500 charge-recharge cycles Charger : : Charging Source : : Display : : Keyboard : : PC Interface : : Host System : : ARM Series C Battery Backed Real Time Clock. Multi-level Password & Data Encryption Power : : Approx. 3 hours 190 – 240 V About 15000 – 16000 Lines per Charge Battery Life Portable, compact AC adaptor AC 128 X 64 Graphical LCD. 30 Key Alphanumeric Tactile Keypad. USB Slave Port, IR (Infra-Red) ptional. Any (DOS, Win, Unix, Linux) Li-Ion, : : Approx.

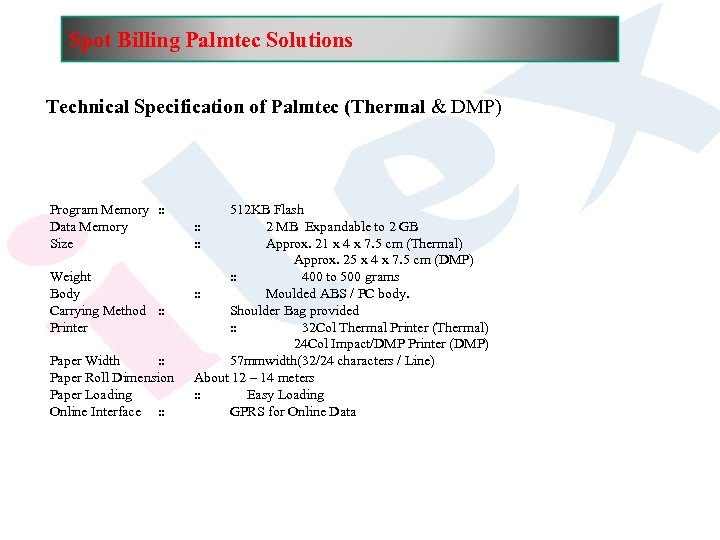

Spot Billing Palmtec Solutions Technical Specification of Palmtec (Thermal & DMP) Program Memory : : Data Memory Size Weight Body Carrying Method : : Printer Paper Width : : Paper Roll Dimension Paper Loading Online Interface : : 512 KB Flash : : 2 MB Expandable to 2 GB : : Approx. 21 x 4 x 7. 5 cm (Thermal) Approx. 25 x 4 x 7. 5 cm (DMP) : : 400 to 500 grams : : Moulded ABS / PC body. Shoulder Bag provided : : 32 Col Thermal Printer (Thermal) 24 Col Impact/DMP Printer (DMP) 57 mmwidth(32/24 characters / Line) About 12 – 14 meters : : Easy Loading GPRS for Online Data

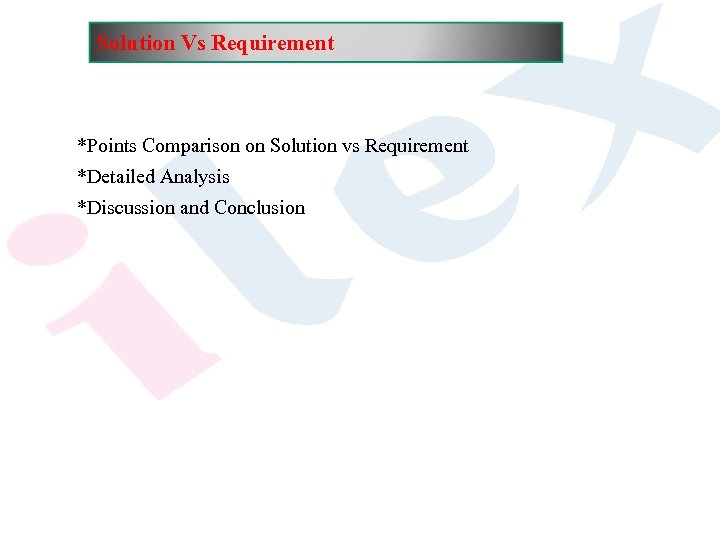

Solution Vs Requirement *Points Comparison on Solution vs Requirement *Detailed Analysis *Discussion and Conclusion
Contact us: - i. Lex Associates #13 2 nd Floor, AB Block, Dilippur Tower, Sapru Marg, Hazaratganj, Lucknow-01 +918188885151 +918188883636 info@ilexassociates. co. in www. ilexassociates. co. in
