PRESENTATION ON APPLICATION OF GIS IN BWSSB ON THE OCCASION OF WORLD WATER DAY By the GIS Cell of BWSSB
INTRODUCTION • General • BWSSB moved forward on developing a GEOGRAPHICAL INFORMATION SYSTEM (GIS) in 1998 -99. • BWSSB and other Civic Bodies of BANGALORE (BDA , BMP, BESCOM AND OTHERS) pooled resources for obtaining Aerial Photography of Bangalore from the NATIONAL REMOTE SENSING AGENCY (NRSA). • NRSA has supplied a photogrammetrically compiled Base Map to BWSSB covering an area of 290 Sq Kms.
INTRODUCTION contd • BWSSB under the Indo-French protocol in 1999 assigned the work of developing a GIS System to M/s SCE France. This led to the development of BISON (Bangalore Information System on Networks) applications for the operational activities of BWSSB. The GIS development was completed in the year 2002. • Genesys International Corporation Ltd, an internationally known, ISO 9001 -2000, GIS and mapping company, has taken charge of Implementation and Maintenance of GIS at BWSSB w. e. f Nov 2003.

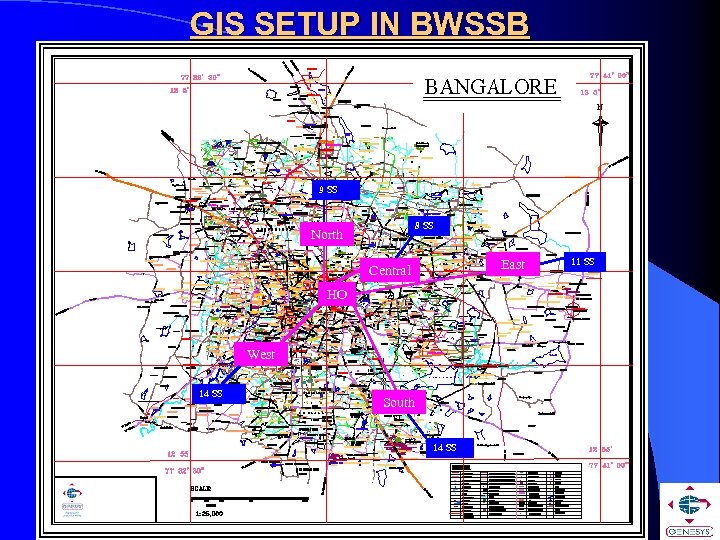

GIS SETUP IN BWSSB 9 SS 8 SS North East Central HO West 14 SS South 14 SS 11 SS
GIS SETUP IN BWSSB contd. . BWSSB Head Office is connected to all its Divisional Offices through LAN/WAN The GIS Hardware/Software setup at BWSSB is as below: Hardware / Software Head Office – One Server with 5 PIII workstations, One Plotter, Scanner and A 3 Colour Printer, with Arc. Info 8. 1, Arc SDE (Spatial Database Engine), Arc. View 8. 0, Arc. Press and Oracle 8 i RDBMS Divisional offices – One Server with 2 PIII workstations and A 3 Printer, Software - Arcview 3. 1 and Oracle RDBMS Service Stations – One Desktop PC with Printer

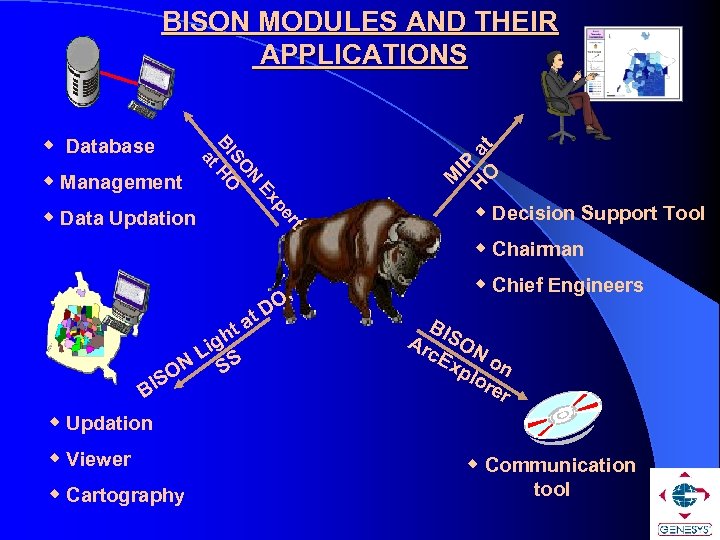

at Ex N SO BI HO Database Management rt pe Data Updation M IP H at O BISON MODULES AND THEIR APPLICATIONS Decision Support Tool Chairman at t igh L N SS O S BI D O, Chief Engineers BIS Ar c. E ON o xp lor n er Updation Viewer Cartography Communication tool

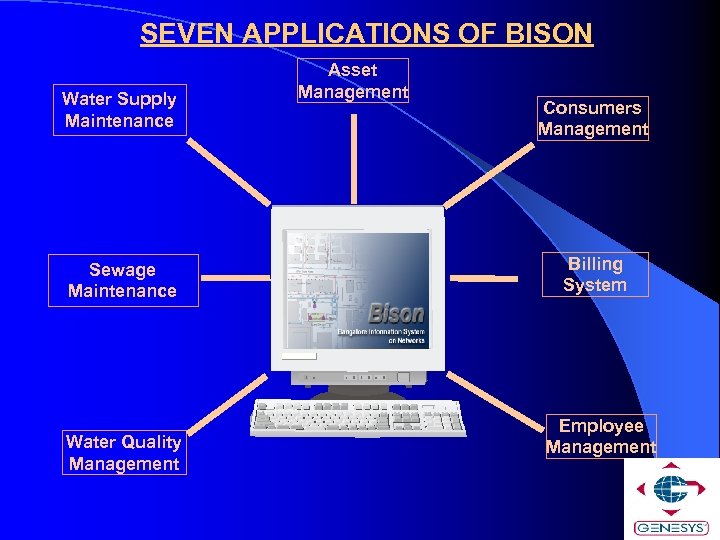

SEVEN APPLICATIONS OF BISON Water Supply Maintenance Sewage Maintenance Water Quality Management Asset Management Consumers Management Billing System Employee Management

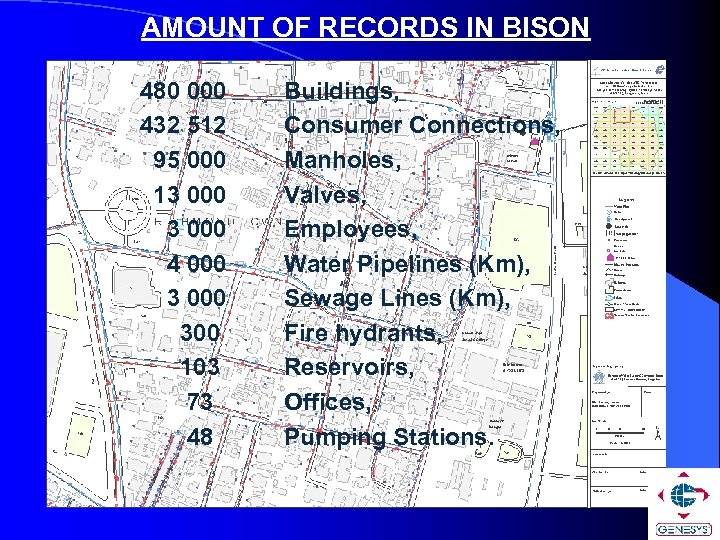

AMOUNT OF RECORDS IN BISON 480 000 432 512 95 000 13 000 4 000 300 103 73 48 Buildings, Consumer Connections, Manholes, Valves, Employees, Water Pipelines (Km), Sewage Lines (Km), Fire hydrants, Reservoirs, Offices, Pumping Stations.

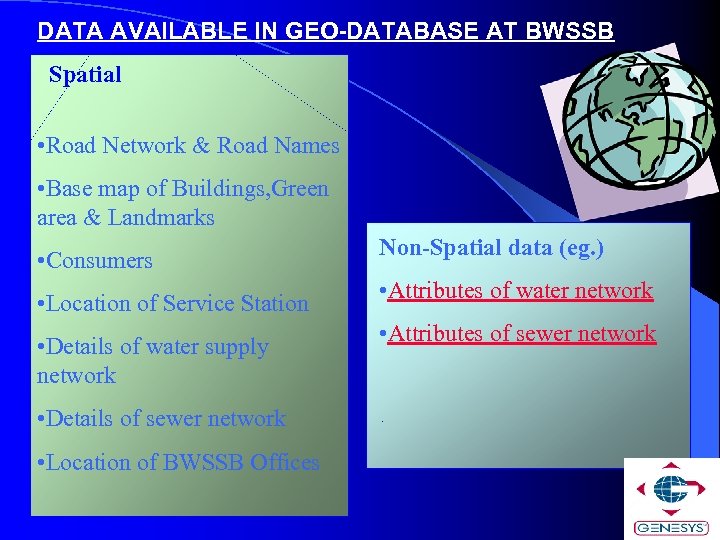

DATA AVAILABLE IN GEO-DATABASE AT BWSSB Spatial • Road Network & Road Names • Base map of Buildings, Green area & Landmarks • Consumers • Location of Service Station • Details of water supply network • Details of sewer network • Location of BWSSB Offices Non-Spatial data (eg. ) • Attributes of water network • Attributes of sewer network
USE OF GIS in BWSSB (Examples) 1. Planning Pipe Line Layout GIS data is being used in Planning Pipe Line Layout for New Wards and CMC areas. Planning is carried out by identifying the main feeder line or near by reservoir or near by main sewer line to lay a new pipeline network for the new layout. Water supply network
2. Linking of L-Sections with GIS L sections can be seen in GIS by clicking on any segment on the Network data in display.

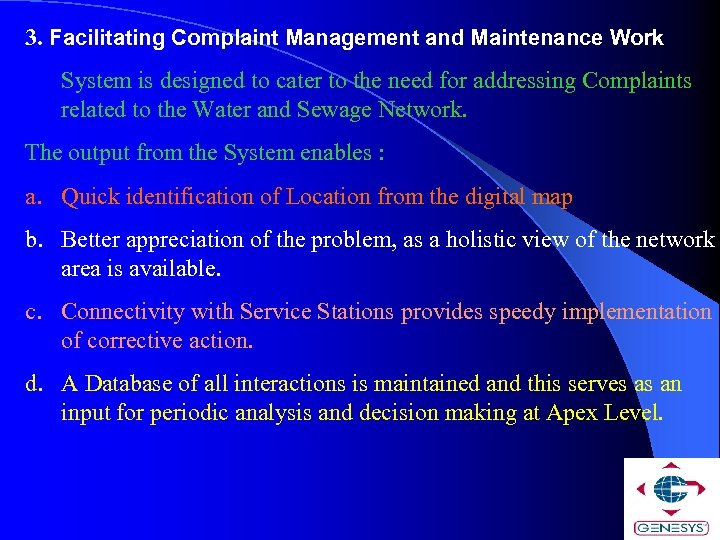

3. Facilitating Complaint Management and Maintenance Work System is designed to cater to the need for addressing Complaints related to the Water and Sewage Network. The output from the System enables : a. Quick identification of Location from the digital map b. Better appreciation of the problem, as a holistic view of the network area is available. c. Connectivity with Service Stations provides speedy implementation of corrective action. d. A Database of all interactions is maintained and this serves as an input for periodic analysis and decision making at Apex Level.

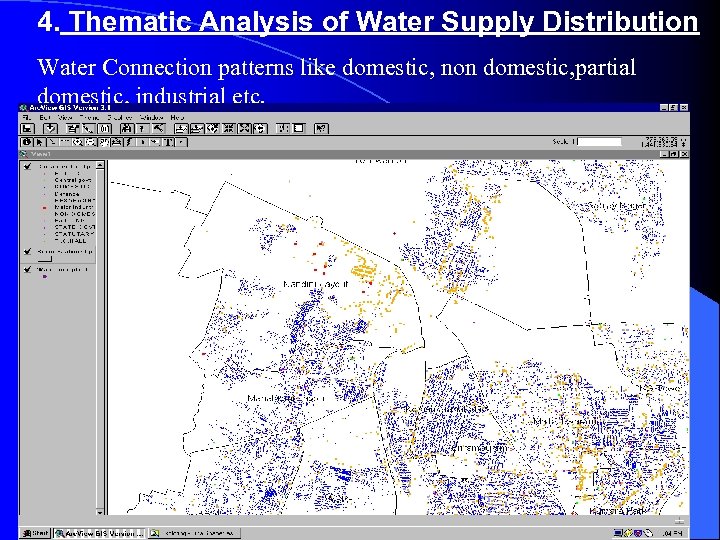

4. Thematic Analysis of Water Supply Distribution Water Connection patterns like domestic, non domestic, partial domestic, industrial etc.

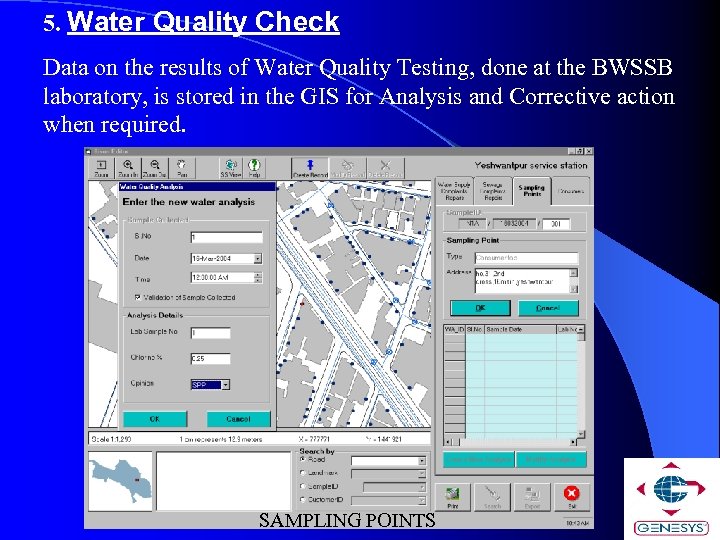

5. Water Quality Check Data on the results of Water Quality Testing, done at the BWSSB laboratory, is stored in the GIS for Analysis and Corrective action when required. SAMPLING POINTS
MIS EMBEDDED IN GIS STATISTICAL REPORTS Ø CONSUMERS Ø COMPLAINTS Ø MAINTENANCE MANAGEMENT INDICATOR PANEL (MIP)

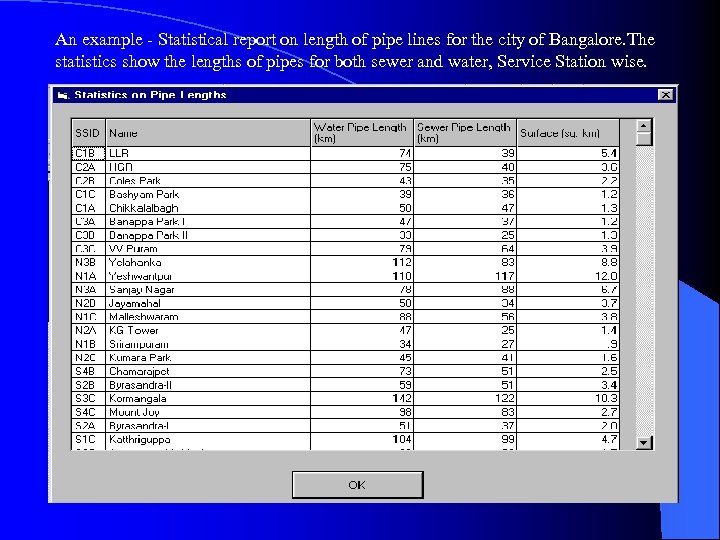

An example - Statistical report on length of pipe lines for the city of Bangalore. The statistics show the lengths of pipes for both sewer and water, Service Station wise.
List of functional areas of BWSSB for which a monthly report is generated

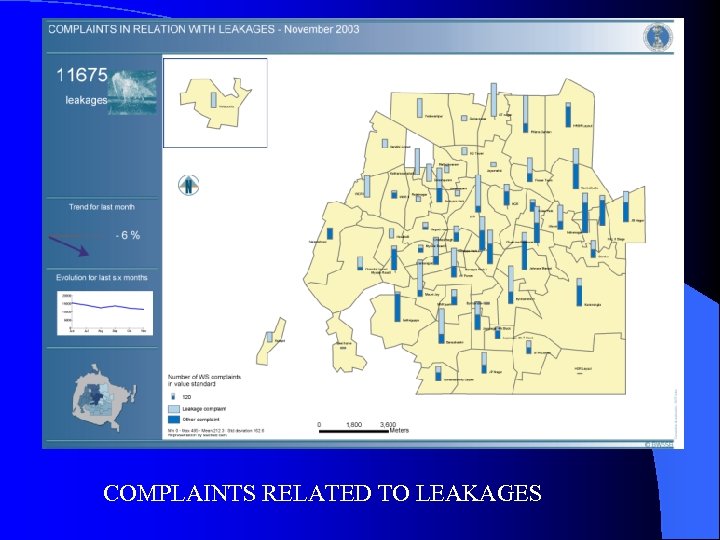

COMPLAINTS RELATED TO LEAKAGES

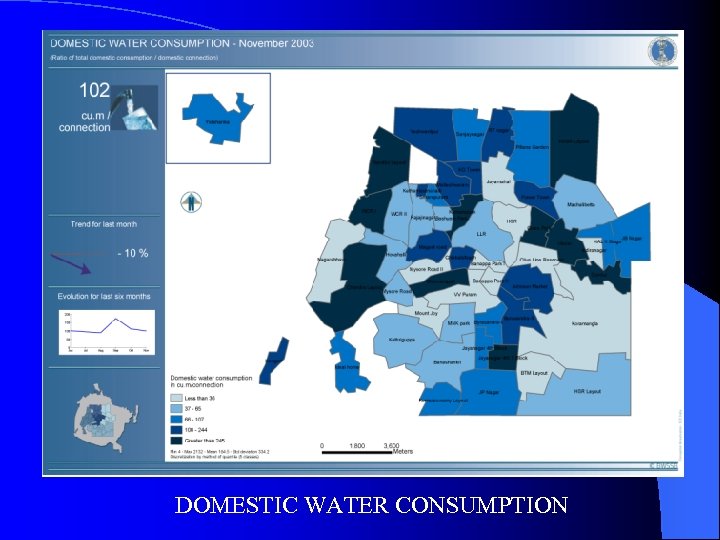

DOMESTIC WATER CONSUMPTION
LIVE APPLICATION OF (BISON LIGHT)
RECOMMENDATIONS FOR ENHANCEMENT OF GIS • WEB Hosting of GIS on intranet/internet. • Online registration of consumer complaints and linking with GIS through Internet. • Providing ortho-imagery (from satellite / aerial) as background. • Draped DEM attached to Maps, providing a better perception of Ground for Engineering Planning (New Connections, Network Planning, Replacements/Repairs). • Contour map generation from DEM to assist (Sewage route planning / Laying of Storm water drains, Network Planning , etc. ) • Connectivity with other civic bodies to share related information • GIS on a Hand held device
