NECO Group Ø We are Part of NECO Group of Industries. Ø We are Manufacturers of Industrial Valves – Gate, Globe, Check, Ball and Plug Valves – ½” to 80” size. Ø Manufacturing Plants at Italy , Qatar & Nagpur & Chennai (India). Ø More than 12500 employees.

NECO Group Established in 1976 Revenue over USD 620 million Founded by Mr. Jayaswal Basant Lal Shaw Chairman – Neco Group Leading manufacturer of Steel , Pig Iron, Castings, Automotive Components & Valves Known as “Master Caster” in the map of Ferrous Foundries in India. 175000 MT production 2010 -11

NECO Group NSSL LTD. NECO Heavy Engg. & Casting Division Valve Division Brass Valve Division Econo Valves Division Aluminum Foundry Division NSSL Italia OMP Valves Division Auto Component Division NSSL Al-Mana Middle East (Qatar) Jayaswals NECO Industries Ltd. NECO Ceramics Ltd. NECO Infrastructure Integrated Steel Plant Division Automotive Casting Division -I TERRA DEIFY Steel Foundry Division Mining Division TERRA Projects LTD. DEIFY Infrastructure Pvt Ltd. Engineering Casting Division. Centrifugal Casting Division. TERRA Infra Development Ltd. DEIFY Infra Projects Ltd Construction Casting Division. Automotive Casting Division -II

MANUFACTURING PLANTS

Manufacturing “NECO” BALL VALVES Size Range from ½” to 56” Pressure Class 150# to 2500#. Major Supplier to Chevron, KJO, GTCL Transmark, Petrovietnam, Ras Gas, Qatar Petroluim Petropars-Iran, Petronas etc q. ISO 9001 : 2008 q. API Spec Q 1 q. Fire Safe API 607 q. SIL 2 Certification q. CE Marking

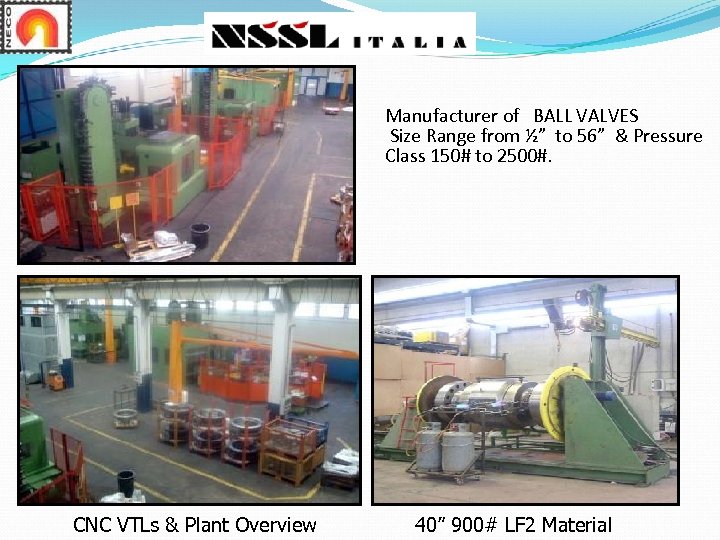

Manufacturer of BALL VALVES Size Range from ½” to 56” & Pressure Class 150# to 2500#. CNC VTLs & Plant Overview 40” 900# LF 2 Material

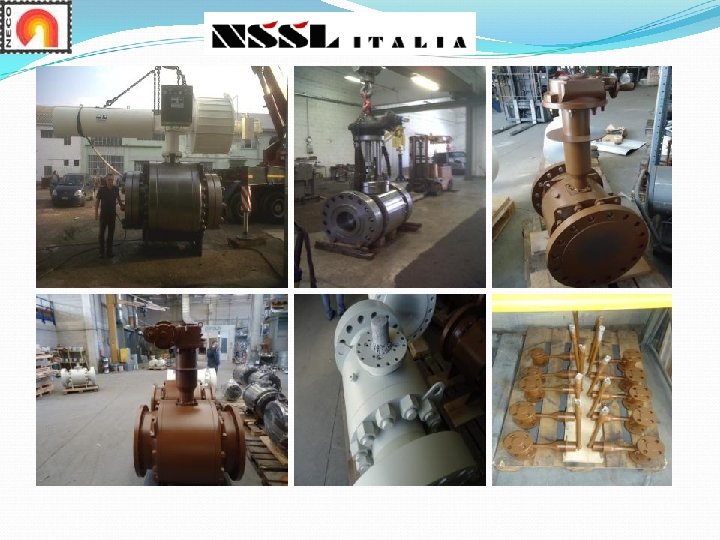

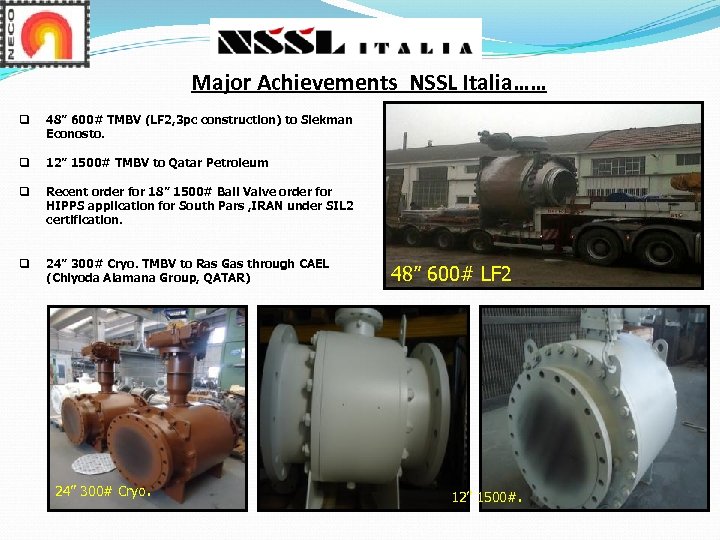

Major Achievements NSSL Italia…… q 48” 600# TMBV (LF 2, 3 pc construction) to Siekman Econosto. q 12” 1500# TMBV to Qatar Petroleum q Recent order for 18” 1500# Ball Valve order for HIPPS application for South Pars , IRAN under SIL 2 certification. q 24” 300# Cryo. TMBV to Ras Gas through CAEL (Chiyoda Alamana Group, QATAR) 24” 300# Cryo. 48” 600# LF 2 12” 1500#.

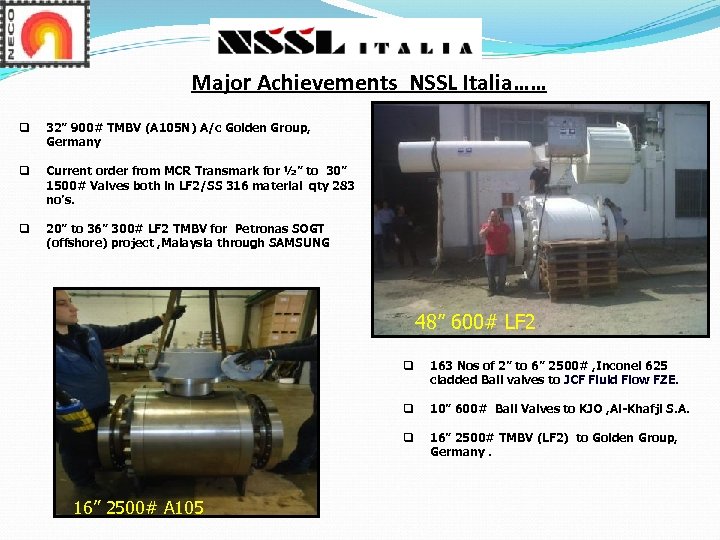

Major Achievements NSSL Italia…… q 32” 900# TMBV (A 105 N) A/c Golden Group, Germany q Current order from MCR Transmark for ½” to 30” 1500# Valves both in LF 2/SS 316 material qty 283 no’s. q 20” to 36” 300# LF 2 TMBV for Petronas SOGT (offshore) project , Malaysia through SAMSUNG 48” 600# LF 2 q q 10” 600# Ball Valves to KJO , Al-Khafji S. A. q 16” 2500# A 105 163 Nos of 2” to 6” 2500# , Inconel 625 cladded Ball valves to JCF Fluid Flow FZE. 16” 2500# TMBV (LF 2) to Golden Group, Germany.

Ball Valves Side Entry, Top-Entry, Spilt body, Fully Welded

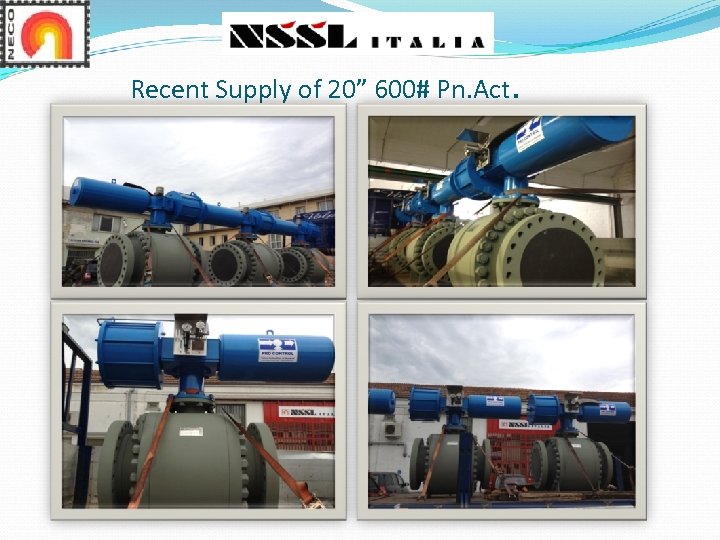

Recent Supply of 20” 600# Pn. Act.

Recent Supply of 30” 600# TOP Entry Pn. Act.

ECONO Valves Division, Chennai Manufacturing of “ECONO” Brand PLUG VALVES Size Range from ½” to 24” & Pressure Class 150# to 1500#. Approved with All Refineries in India. Internationally PDO Oman, Saudi Aramco, KNPC, etc. q. ISO 9001 : 2008 q. API 6 D Monogram

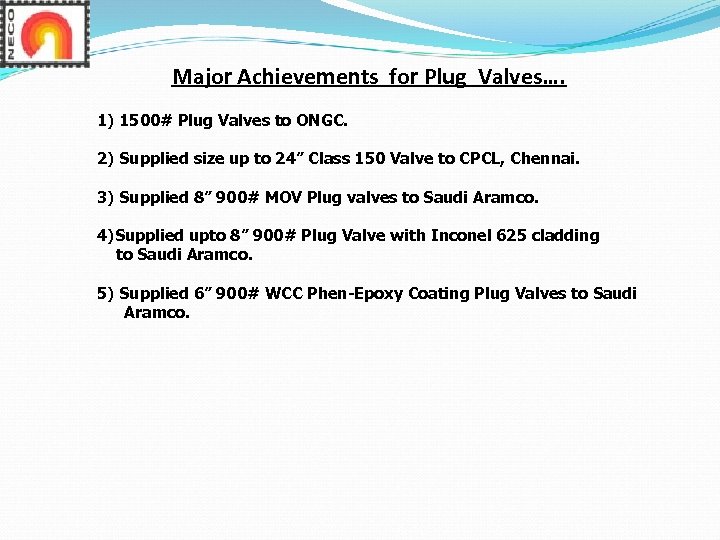

Major Achievements for Plug Valves…. 1) 1500# Plug Valves to ONGC. 2) Supplied size up to 24” Class 150 Valve to CPCL, Chennai. 3) Supplied 8” 900# MOV Plug valves to Saudi Aramco. 4)Supplied upto 8” 900# Plug Valve with Inconel 625 cladding to Saudi Aramco. 5) Supplied 6” 900# WCC Phen-Epoxy Coating Plug Valves to Saudi Aramco.

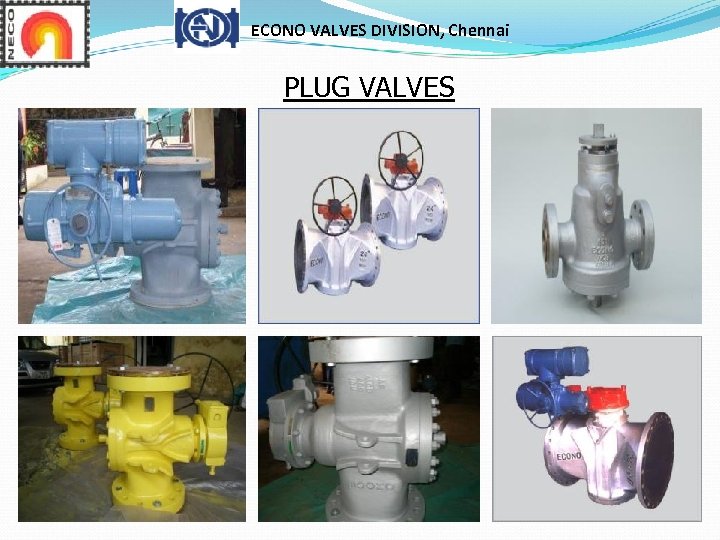

ECONO VALVES DIVISION, Chennai PLUG VALVES

Valve Division, Nagpur , India. Manufacturing “NECO” brand Gate, Globe, Check and Ball valves. Size Range from ½” to 80” & Pressure Class 150# to 2500#. Material: CS/AS/SS/Duplex/Super Duplex q. ISO 9001 : 2008 q. API Spec Q 1 q. API 6 D Monogram q. CE Marking q. ATEX Certification q. OHSAS 18001: 2007 certification q. ISO 14001: 2004 certification

EXPANSION NSSL’s new Green Field Valve Manufacturing Plant with an investment of 32 mn USD.

NEW PLANT OVERVIEW

CAPACITY -Increased in Manufacturing Capacity(from 25000 no’s to 100000 Valves PA) -Imported CNC VTLs from YOU-JI, HWACHEON, DOOSAN & DALIAN. -First time in India we brought the combination of Linear & Segmental Production. -Separate manufacturing bays for sizes 2” to 4”, 6” to 12”, 14” to 24” & 26” & above size. - Kone Cranes from 1 Ton to 10 Ton Capacity - Latest Technology Test Beds

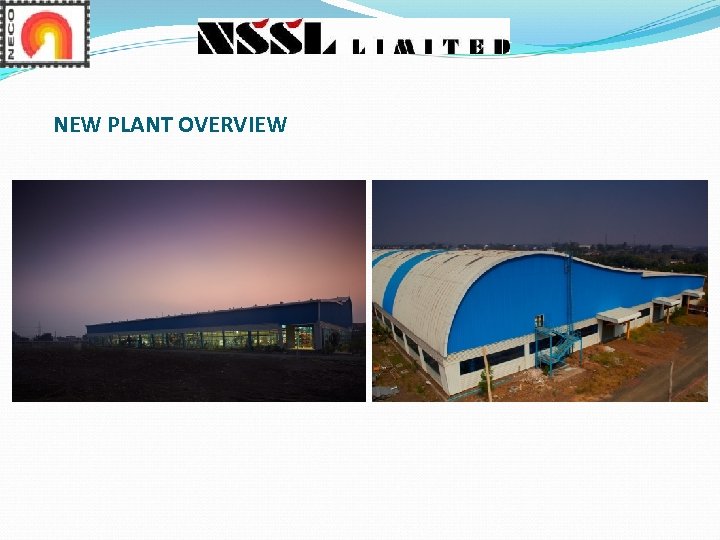

NEW PLANT OVERVIEW

NEW PLANT OVERVIEW

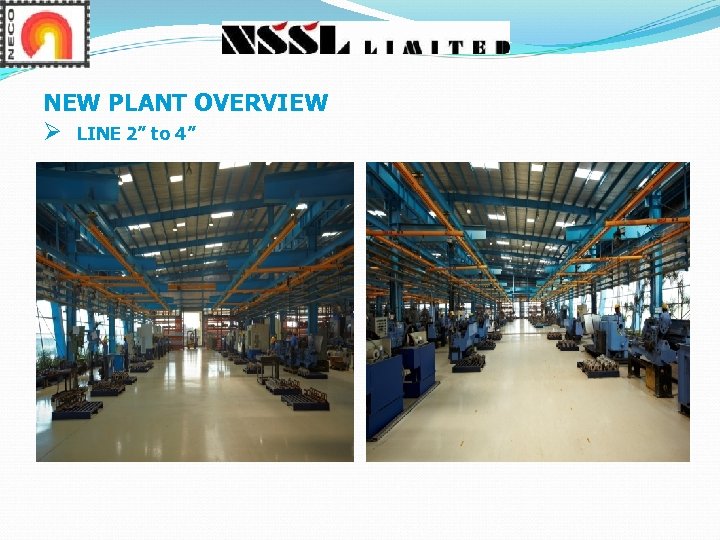

NEW PLANT OVERVIEW Ø LINE 2” to 4”

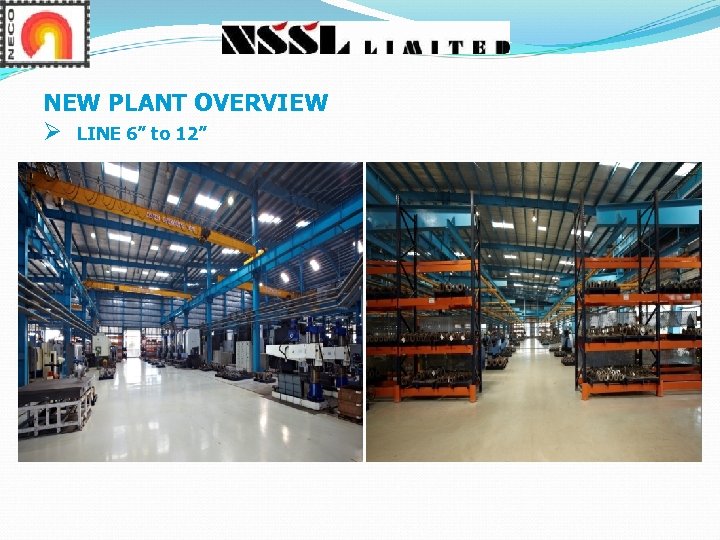

NEW PLANT OVERVIEW Ø LINE 6” to 12”

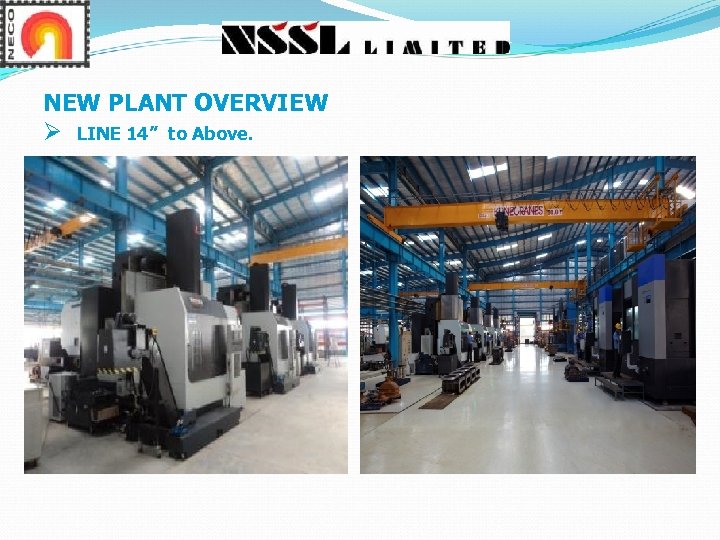

NEW PLANT OVERVIEW Ø LINE 14” to Above.

NEW PLANT OVERVIEW Ø VTL’s to cover sizes upto 48” size.

NEW PLANT OVERVIEW Ø CNC VTL’s to cover sizes upto 24” size.

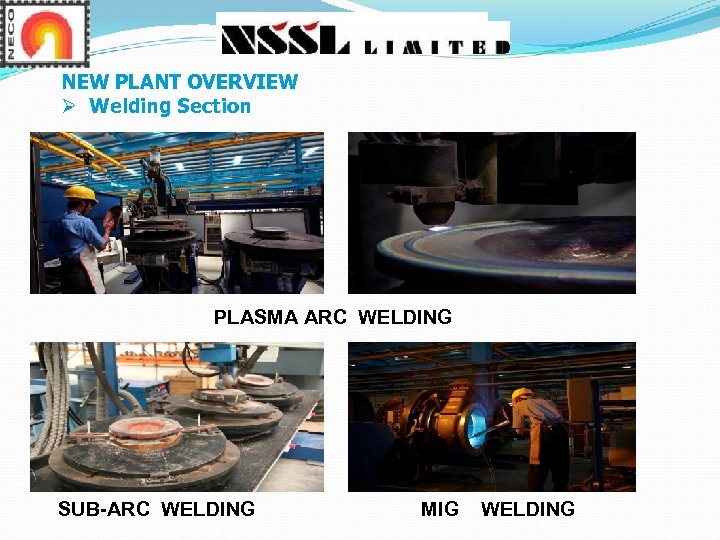

NEW PLANT OVERVIEW Ø Welding Section PLASMA ARC WELDING SUB-ARC WELDING MIG WELDING

NEW PLANT OVERVIEW Ø Modern Test Benches

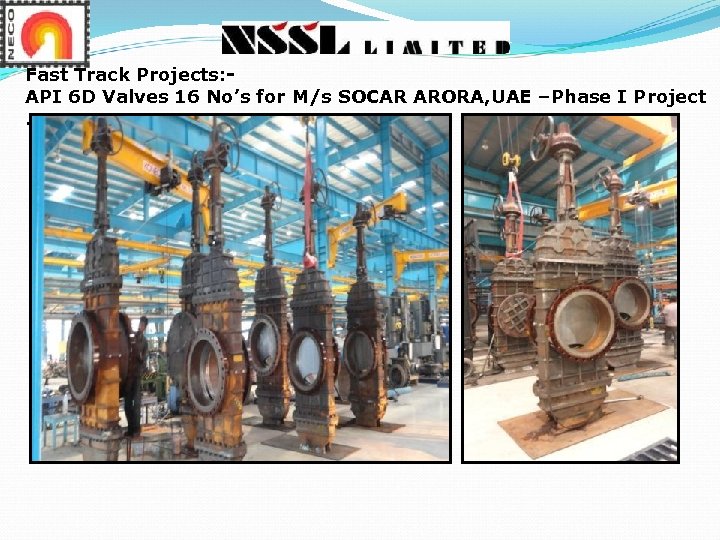

Fast Track Projects: API 6 D Valves 16 No’s for M/s SOCAR ARORA, UAE –Phase I Project.

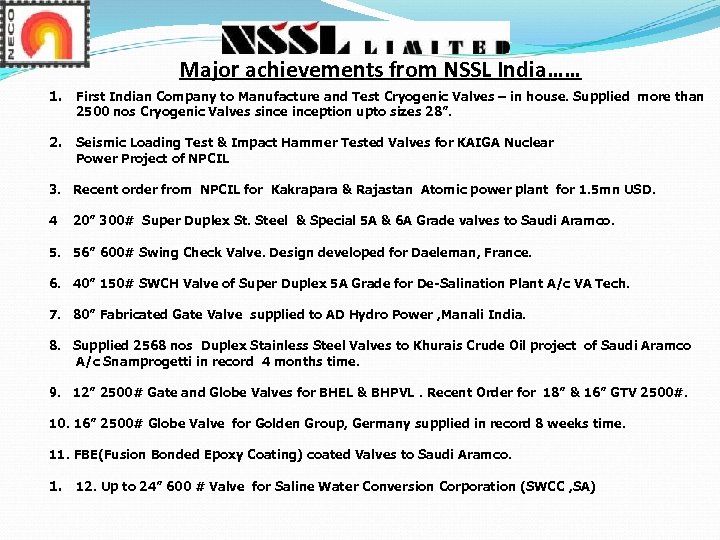

Major achievements from NSSL India…… 1. First Indian Company to Manufacture and Test Cryogenic Valves – in house. Supplied more than 2500 nos Cryogenic Valves sinception upto sizes 28”. 2. Seismic Loading Test & Impact Hammer Tested Valves for KAIGA Nuclear Power Project of NPCIL 3. Recent order from NPCIL for Kakrapara & Rajastan Atomic power plant for 1. 5 mn USD. 4 20” 300# Super Duplex St. Steel & Special 5 A & 6 A Grade valves to Saudi Aramco. 5. 56” 600# Swing Check Valve. Design developed for Daeleman, France. 6. 40” 150# SWCH Valve of Super Duplex 5 A Grade for De-Salination Plant A/c VA Tech. 7. 80” Fabricated Gate Valve supplied to AD Hydro Power , Manali India. 8. Supplied 2568 nos Duplex Stainless Steel Valves to Khurais Crude Oil project of Saudi Aramco A/c Snamprogetti in record 4 months time. 9. 12” 2500# Gate and Globe Valves for BHEL & BHPVL. Recent Order for 18” & 16” GTV 2500#. 10. 16” 2500# Globe Valve for Golden Group, Germany supplied in record 8 weeks time. 11. FBE(Fusion Bonded Epoxy Coating) coated Valves to Saudi Aramco. 12. Up to 24” 600 # Valve for Saline Water Conversion Corporation (SWCC , SA)

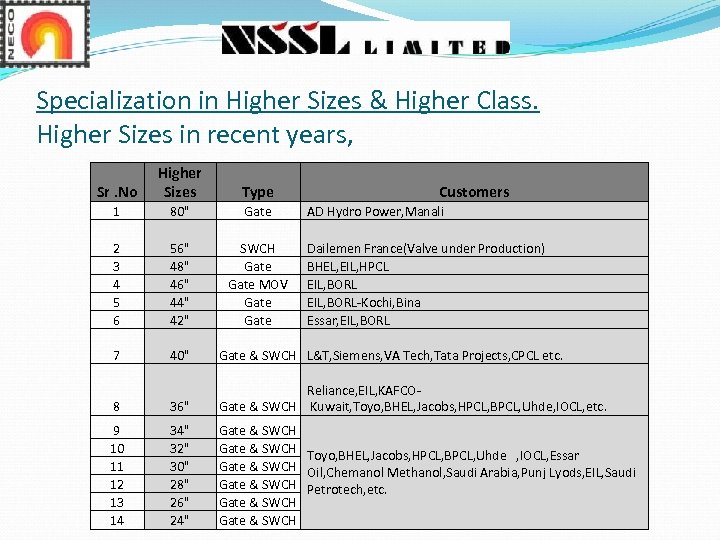

Specialization in Higher Sizes & Higher Class. Higher Sizes in recent years, Sr. No Higher Sizes Type 1 80" Gate 2 3 4 5 6 56" 48" 46" 44" 42" SWCH Gate MOV Gate 7 40" Gate & SWCH L&T, Siemens, VA Tech, Tata Projects, CPCL etc. 8 36" Reliance, EIL, KAFCOGate & SWCH Kuwait, Toyo, BHEL, Jacobs, HPCL, BPCL, Uhde, IOCL, etc. 9 10 11 12 13 14 34" 32" 30" 28" 26" 24" Gate & SWCH Toyo, BHEL, Jacobs, HPCL, BPCL, Uhde , IOCL, Essar Gate & SWCH Oil, Chemanol Methanol, Saudi Arabia, Punj Lyods, EIL, Saudi Gate & SWCH Petrotech, etc. Gate & SWCH Customers AD Hydro Power, Manali Dailemen France(Valve under Production) BHEL, EIL, HPCL EIL, BORL-Kochi, Bina Essar, EIL, BORL

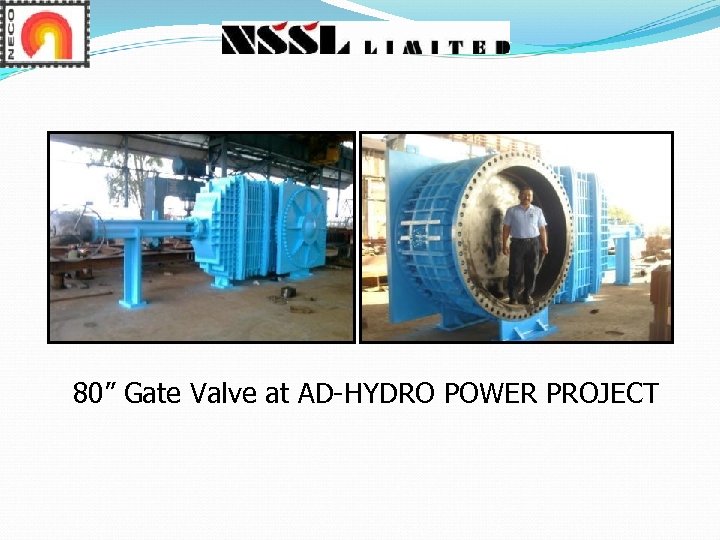

80” Gate Valve at AD-HYDRO POWER PROJECT

No limit for Size…. .

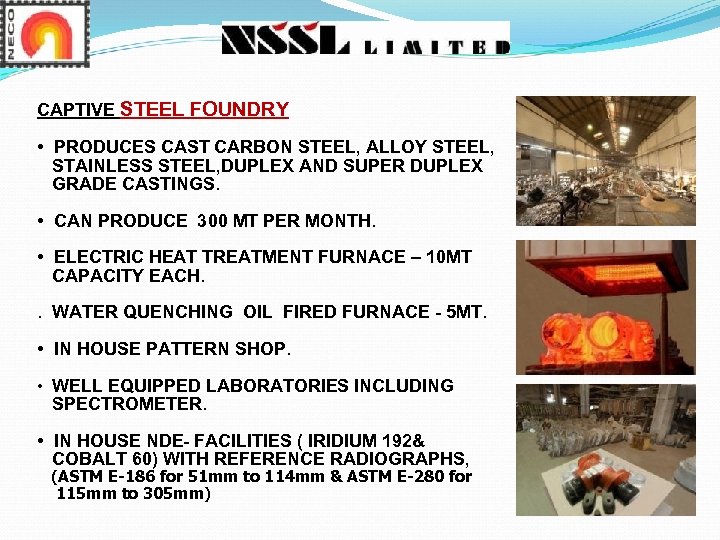

CAPTIVE STEEL FOUNDRY • PRODUCES CAST CARBON STEEL, ALLOY STEEL, STAINLESS STEEL, DUPLEX AND SUPER DUPLEX GRADE CASTINGS. • CAN PRODUCE 300 MT PER MONTH. • ELECTRIC HEAT TREATMENT FURNACE – 10 MT CAPACITY EACH. . WATER QUENCHING OIL FIRED FURNACE - 5 MT. • IN HOUSE PATTERN SHOP. • WELL EQUIPPED LABORATORIES INCLUDING SPECTROMETER. • IN HOUSE NDE- FACILITIES ( IRIDIUM 192& COBALT 60) WITH REFERENCE RADIOGRAPHS, (ASTM E-186 for 51 mm to 114 mm & ASTM E-280 for 115 mm to 305 mm)

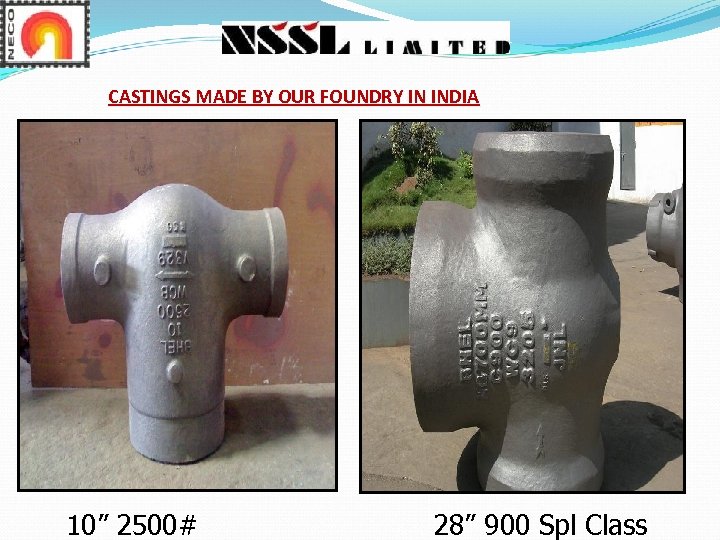

CASTINGS MADE BY OUR FOUNDRY IN INDIA 10” 2500# 28” 900 Spl Class

CASTINGS MADE BY OUR FOUNDRY FOR BHEL - TRICHY v 20” 2850# Spl. Class : -4. 9 T v 22” 2750# Spl. Class : -6. 5 T v 22” 3000# Spl. Class : -6. 8 T v 14” 3500# Spl. Class : -2. 2 T v 28” 900# Spl. Class : -3. 4 T v 18” 2500# Spl. Class : -3. 3 T 20” 2850#

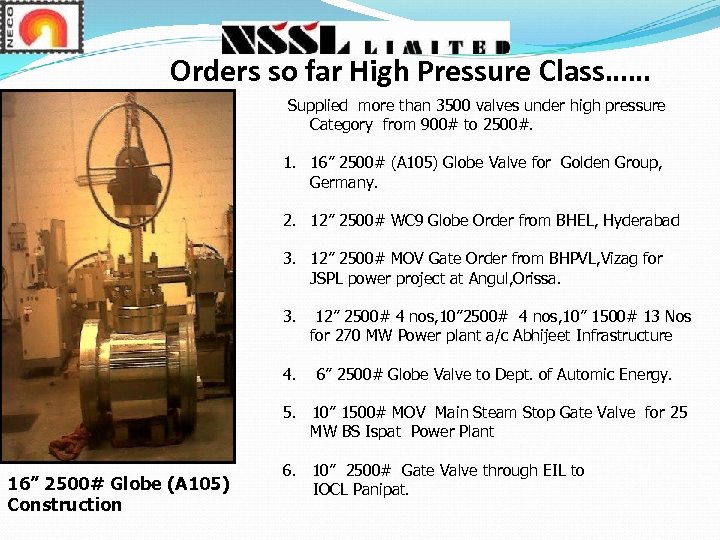

Orders so far High Pressure Class…… Supplied more than 3500 valves under high pressure Category from 900# to 2500#. 1. 16” 2500# (A 105) Globe Valve for Golden Group, Germany. 2. 12” 2500# WC 9 Globe Order from BHEL, Hyderabad 3. 12” 2500# MOV Gate Order from BHPVL, Vizag for JSPL power project at Angul, Orissa. 3. 4. 12” 2500# 4 nos, 10” 1500# 13 Nos for 270 MW Power plant a/c Abhijeet Infrastructure 6” 2500# Globe Valve to Dept. of Automic Energy. 5. 10” 1500# MOV Main Steam Stop Gate Valve for 25 MW BS Ispat Power Plant 16” 2500# Globe (A 105) Construction 6. 10” 2500# Gate Valve through EIL to IOCL Panipat.

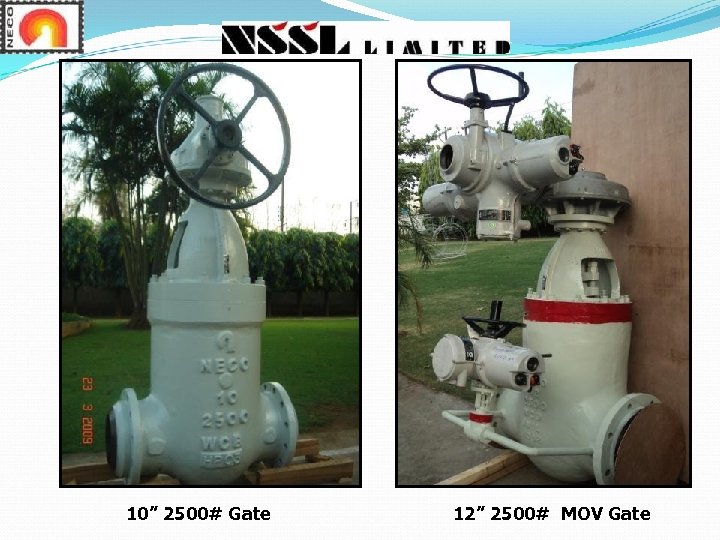

10” 2500# Gate 12” 2500# MOV Gate

Special Service Valves Manufactured … 1. Hydrogen Service 2. Sour Gas –NACE Services 3. Chlorine Services 4. Nuclear Application. 5. Cryogenic Service 6. Inconnel Cladding 7. FBE Coating 8. Belzona Coating 9. Fugitive Emission Std. Valves. 36” 150# API 6 D Gate Seismic Test Valves

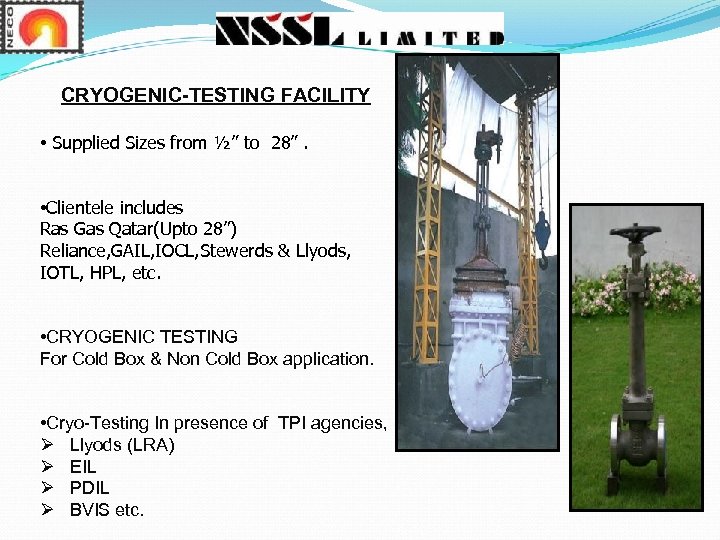

CRYOGENIC-TESTING FACILITY • SINCE 1992 -First Indian Company to Manufacture and Test Cryogenic Valves – in house • Supplied more than 2500 nos Cryogenic Valves sinception upto sizes 28”. • CRYOGENIC TESTING ((-)46 Deg. C & (-) 196 Deg. C) • Facility to conduct Cryogenic testing for Gate, Globe, Check & Ball Valves

CRYOGENIC-TESTING FACILITY • Supplied Sizes from ½” to 28”. • Clientele includes Ras Gas Qatar(Upto 28”) Reliance, GAIL, IOCL, Stewerds & Llyods, IOTL, HPL, etc. • CRYOGENIC TESTING For Cold Box & Non Cold Box application. • Cryo-Testing In presence of TPI agencies, Ø Llyods (LRA) Ø EIL Ø PDIL Ø BVIS etc.

Experience Overseas…… MAJOR CUSTOMERS : END USERS. 1) SAUDI ARAMCO – Saudi Arabia 2) Ras Gas & Qatar Petroleum through Chiyoda Almana Group(CAEL) - Qatar 3) Kuwait National Petroleum Company (KNPC) - Kuwait 4) Kuwait Aviation Fuel Co. (KAFCO)-Kuwait 5) Kuwait Oil Company (KOC)-Kuwait 6) Oman Refinery. -Oman 7) Konkola Copper Mines plc-Zambia 8) Dubai Petroleum Company – UAE 9) ADMA-OPCO-UAE 10)ORYX-Qatar 11)DOLPHIN ENERGY-Qatar 12)Meghadi Ash Plant-Kenya 13)Total Refinery –Mauritius 14)Indian Oil Tanking –Mauritius 15)Indo Jordan Chemicals Co. -Jordan 16)Saline Water Conversion Corporation (SWCC)-Saudi Arabia… etc.

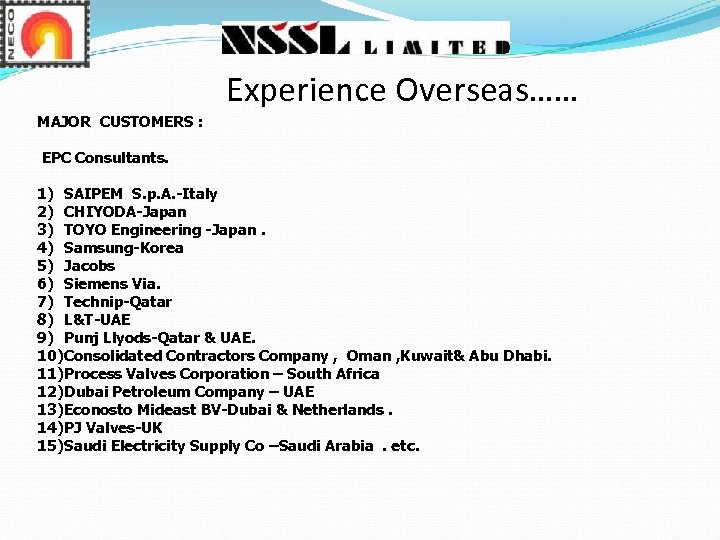

Experience Overseas…… MAJOR CUSTOMERS : EPC Consultants. 1) SAIPEM S. p. A. -Italy 2) CHIYODA-Japan 3) TOYO Engineering -Japan. 4) Samsung-Korea 5) Jacobs 6) Siemens Via. 7) Technip-Qatar 8) L&T-UAE 9) Punj Llyods-Qatar & UAE. 10)Consolidated Contractors Company , Oman , Kuwait& Abu Dhabi. 11)Process Valves Corporation – South Africa 12)Dubai Petroleum Company – UAE 13)Econosto Mideast BV-Dubai & Netherlands. 14)PJ Valves-UK 15)Saudi Electricity Supply Co –Saudi Arabia. etc.

Indian Customer List. … Refinery: All Refineries in India (IOCL, HPCL, BPCL, HMEL, Reliance, Essar, NOCL) Power: BHEL, NTPC, Essar Power, Reliance, Alstom, Avant Garde, Thermax, DFPS. etc. Steel : SAIL, RINL, Essar, JSPL, IISCO, ISPAT, Navbharat, Sterlite, etc. Oil & Natural Gas : ONGC, GAIL, Reliance, Gujarat Gas, Oil India. etc Water Desalination : CMWSSB, Reliance, VATech Wabagh, Doshi Ion, etc. Fertilizer: GNFC, GSFC, FACT, RCF, NFL, IGFL, IFFCO, Kribhco, Zuari. etc. Paper: ITC, TNPL, HPCL, BILT, Sirpur Paper Mills. etc. and many more sectors…. .

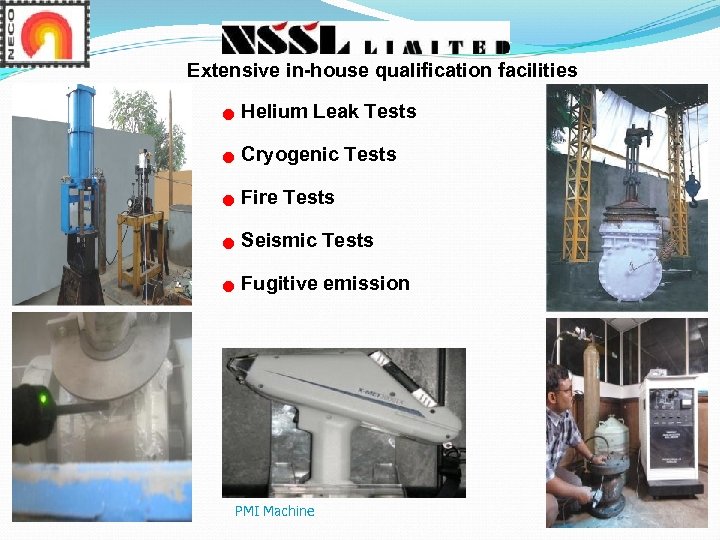

Extensive in-house qualification facilities n Helium Leak Tests n Cryogenic Tests n Fire Tests n Seismic Tests n Fugitive emission PMI Machine

NSSL “Power Valves” Design front: 1. Design Available, Pressure sealed: a) Gate Valve till 24” 2500# , b) Globe Valve till 16” 2500# , c) Swing Check upto 12” 2500 # 2. This year our target to complete design, prototype, stress analysis, upto 14” 3500#. Pr-Sealed Gate Valve Construction

Design Parameters Concurrent Engineering Principle Parametric Design Approach • Solid works Premium 2011 -Solid works Simulation Premium- FEA -Solid works Flow Simulation - CFD Stress Plot Displacement Plot 3 D View

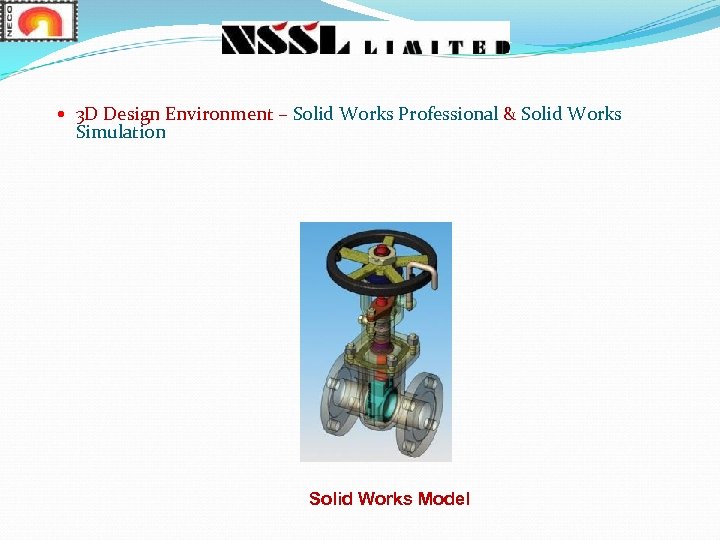

3 D Design Environment – Solid Works Professional & Solid Works Simulation Solid Works Model

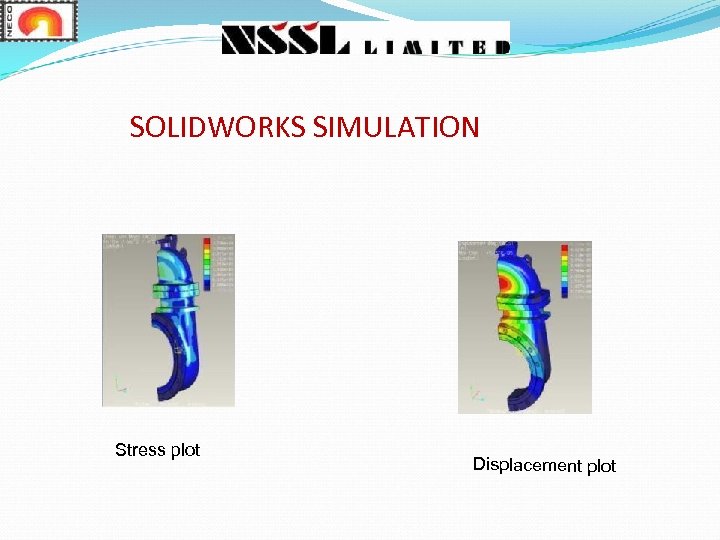

SOLIDWORKS SIMULATION Stress plot Displacement plot

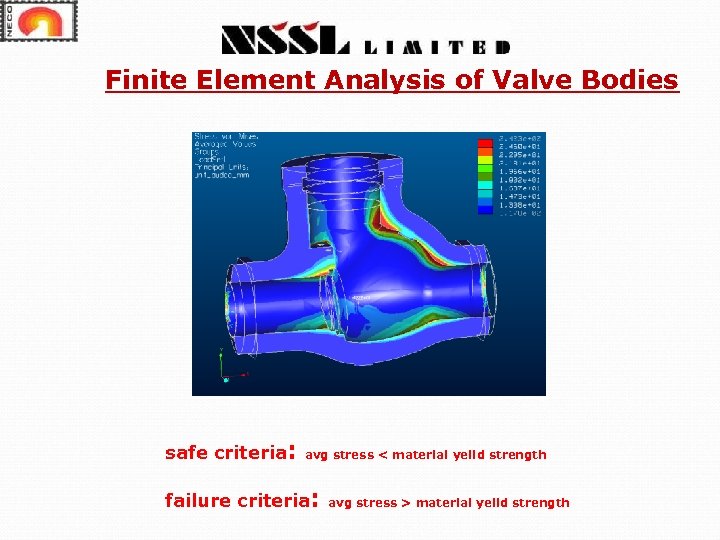

Finite Element Analysis of Valve Bodies safe criteria: avg stress < material yeild strength failure criteria: avg stress > material yeild strength

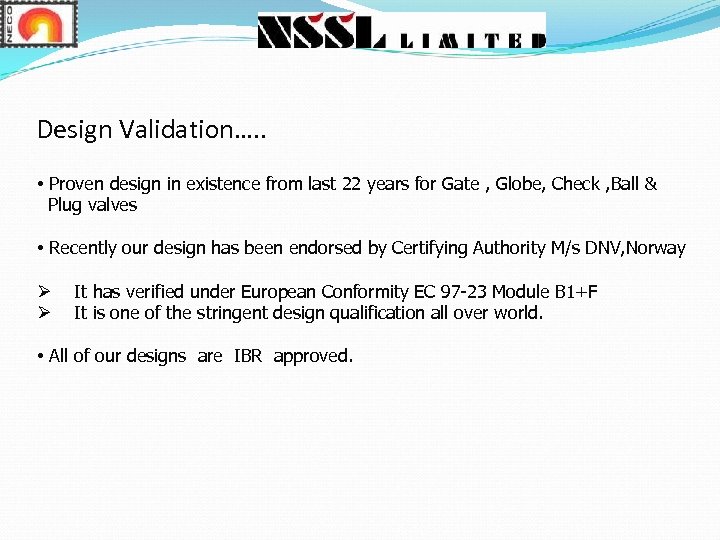

Design Validation…. . • Proven design in existence from last 22 years for Gate , Globe, Check , Ball & Plug valves • Recently our design has been endorsed by Certifying Authority M/s DNV, Norway Ø Ø It has verified under European Conformity EC 97 -23 Module B 1+F It is one of the stringent design qualification all over world. • All of our designs are IBR approved.

SOURCING OF STEEL CASTINGS FOUNDRY SELECTION & APPROVAL 1) ISO Certification 2) Spectrometer 3) Traceability 4) NDE & Welding procedures 5) Inspection & calibration facilities. METHODING / SAMPLE CASTINGS 1) Patterns provided / inspected by NSSL 2) Radiography check on samples BULK CASTINGS PROCUREMENT 1) Periodic audit 2) Audit Radiography 3) 100% pressure test at NSSL

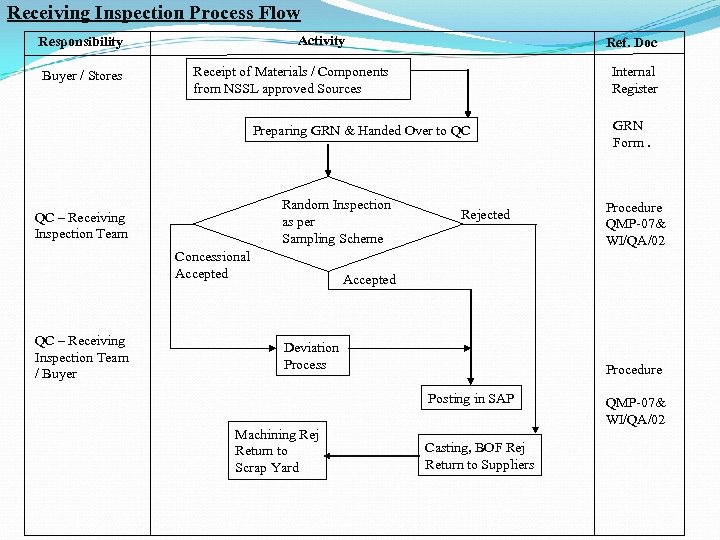

Receiving Inspection Process Flow Activity Responsibility Buyer / Stores Ref. Doc Receipt of Materials / Components from NSSL approved Sources Internal Register Preparing GRN & Handed Over to QC Random Inspection as per Sampling Scheme QC – Receiving Inspection Team Concessional Accepted QC – Receiving Inspection Team / Buyer Rejected GRN Form. Procedure QMP-07& WI/QA/02 Accepted Deviation Process Procedure Posting in SAP Machining Rej Return to Scrap Yard Casting, BOF Rej Return to Suppliers QMP-07& WI/QA/02

IT Backbone ü SAP system implemented from 2008 ü Customized to our process ü All The Plants are networked ü All activities from Order to Despatch are thru SAP ü All Quality Documents are in the System ü Download Test Certificates, Invoices ü Logistics and Field Support

NECO Group Corporate Social Responsibility(CSR) SOCIAL FRONT : Neco is doing different types of welfare activities for the various villages situated at near by areas of their units such as: v. Health Care • Raipur (6 villages), Raigarh (16 villages), Bhanupratappur (5 villages), v. Water reserve development Naraianpur (2 villages), v. Village Development Hazaribagh (7 villages) v. Drinking Water Facility v. Socio-cultural Activities

NECO Group Corporate Social Responsibility(CSR) ENVOIRMENT FRONT : Tree Plantation • Plantation completed of about 400000 of trees in an around the industrial areas so far. • Road side Tree Plantation/Maintenance in collaboration with Local Municipal Corporations. • Launching of Vriksha Mitra Abhiyan, educating children about the importance of tree plantation and distributing about 10, 000 saplings per year for plantation by the children in and around their areas.

NSSL Ltd. is equipped to provide reliable flow-control solutions We look forward to closer co-operation in the future.
