Presentation for Canadian Renovators Council CHBA October 22, 2010 www. cmhc. ca
EQuilibrium Update EQuilibrium. TM Housing § Status of the Initiative § EQuilibrium™ Housing In. Sights The Laebon CHESS Project Red Deer, AB EQuilibrium™ Communities § Status of the Initiative 2010 Canadian Housing Observer EQ Performance Indicators Avalon Discovery 3 Red Deer, AB CANADA MORTGAGE AND HOUSING CORPORATION

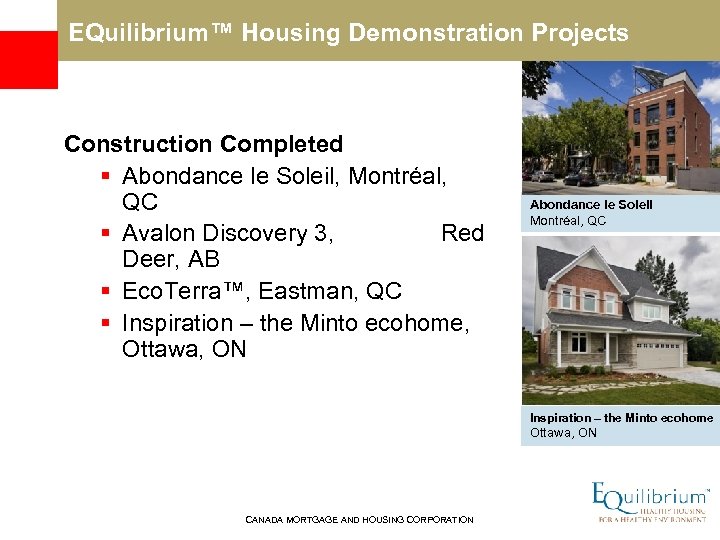

EQuilibrium™ Housing Demonstration Projects Construction Completed § Abondance le Soleil, Montréal, QC § Avalon Discovery 3, Red Deer, AB § Eco. Terra™, Eastman, QC § Inspiration – the Minto ecohome, Ottawa, ON Abondance le Soleil Montréal, QC Inspiration – the Minto ecohome Ottawa, ON CANADA MORTGAGE AND HOUSING CORPORATION

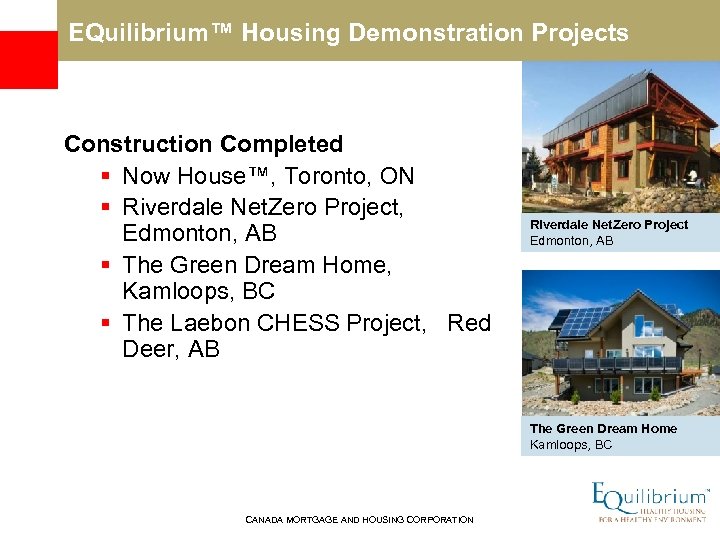

EQuilibrium™ Housing Demonstration Projects Construction Completed § Now House™, Toronto, ON § Riverdale Net. Zero Project, Edmonton, AB § The Green Dream Home, Kamloops, BC § The Laebon CHESS Project, Red Deer, AB Riverdale Net. Zero Project Edmonton, AB The Green Dream Home Kamloops, BC CANADA MORTGAGE AND HOUSING CORPORATION

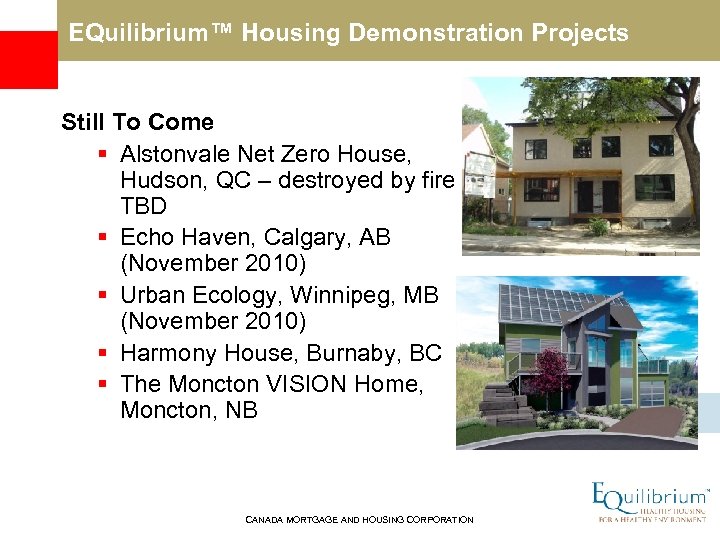

EQuilibrium™ Housing Demonstration Projects Still To Come § Alstonvale Net Zero House, Hudson, QC – destroyed by fire TBD § Echo Haven, Calgary, AB (November 2010) § Urban Ecology, Winnipeg, MB (November 2010) § Harmony House, Burnaby, BC § The Moncton VISION Home, Moncton, NB CANADA MORTGAGE AND HOUSING CORPORATION Urban Ecology Winnpeg, MB

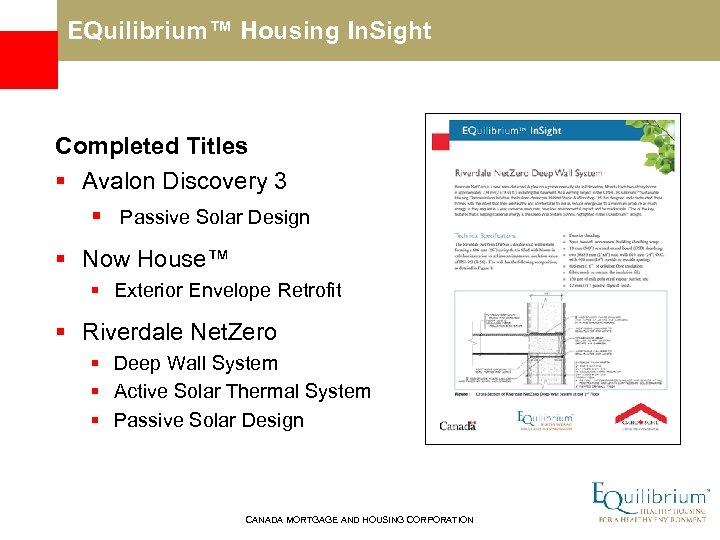

EQuilibrium™ Housing In. Sight Completed Titles § Avalon Discovery 3 § Passive Solar Design § Now House™ § Exterior Envelope Retrofit § Riverdale Net. Zero § Deep Wall System § Active Solar Thermal System § Passive Solar Design CANADA MORTGAGE AND HOUSING CORPORATION

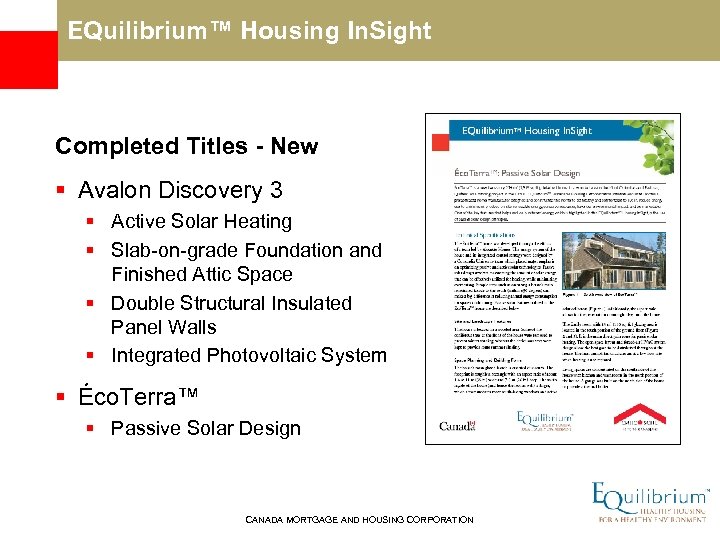

EQuilibrium™ Housing In. Sight Completed Titles - New § Avalon Discovery 3 § Active Solar Heating § Slab-on-grade Foundation and Finished Attic Space § Double Structural Insulated Panel Walls § Integrated Photovoltaic System § Éco. Terra™ § Passive Solar Design CANADA MORTGAGE AND HOUSING CORPORATION
Monitoring Results – General Trends § The EQ houses are performing well § Householders use more electricity than predicted by developers and energy modellers § PV output meets predictions in summer but is less than predicted in winter § Many assumptions in prediction process § Shading, snow effects are likely culprits

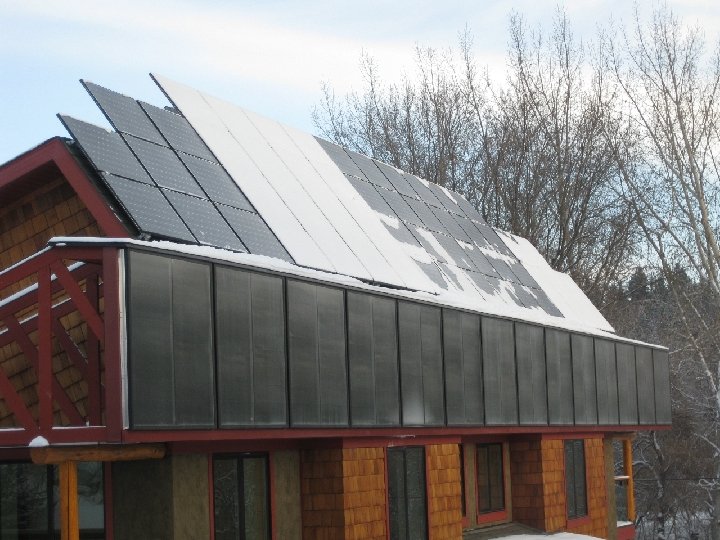

Eco. Terra

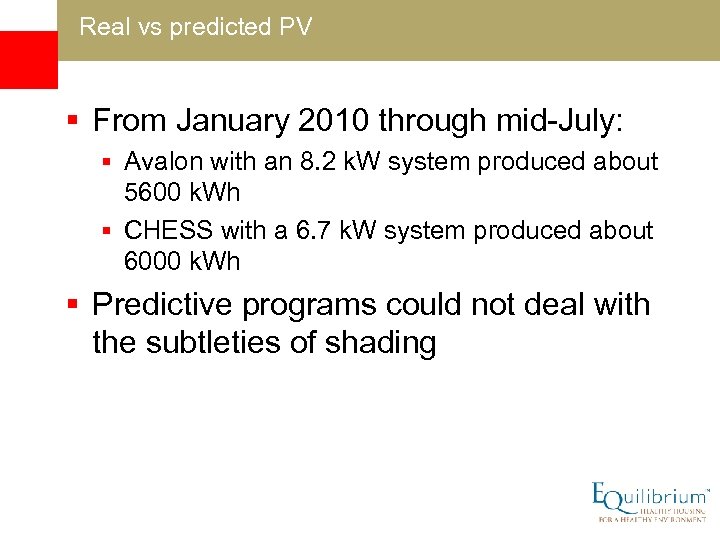

Real vs predicted PV § From January 2010 through mid-July: § Avalon with an 8. 2 k. W system produced about 5600 k. Wh § CHESS with a 6. 7 k. W system produced about 6000 k. Wh § Predictive programs could not deal with the subtleties of shading

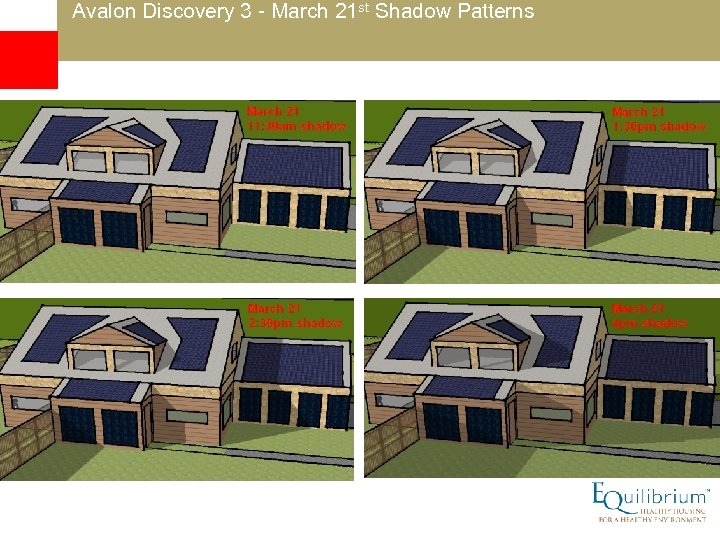

Avalon Discovery 3 - March 21 st Shadow Patterns

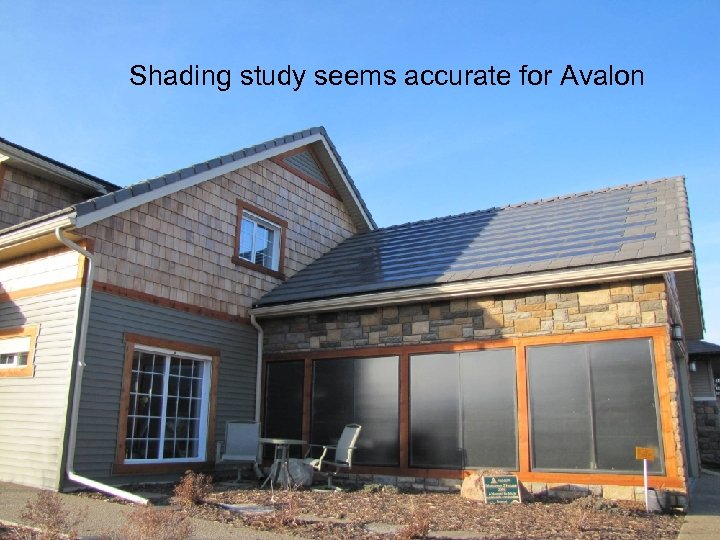

Shading study seems accurate for Avalon

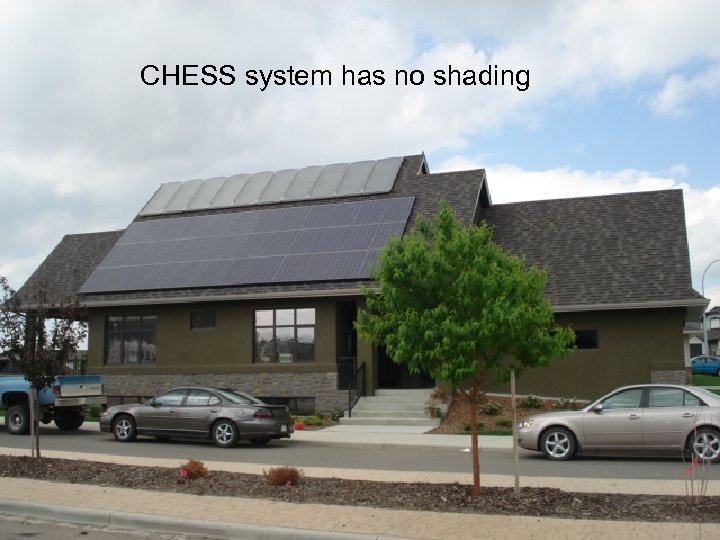

CHESS system has no shading
Electrical consumption for lights and appliances

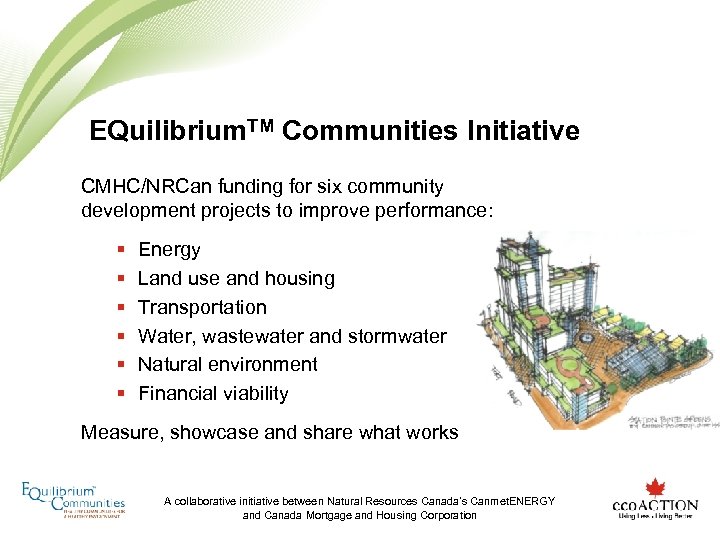

EQuilibrium. TM Communities Initiative CMHC/NRCan funding for six community development projects to improve performance: § § § Energy Land use and housing Transportation Water, wastewater and stormwater Natural environment Financial viability Measure, showcase and share what works A collaborative initiative between Natural Resources Canada’s Canmet. ENERGY and Canada Mortgage and Housing Corporation

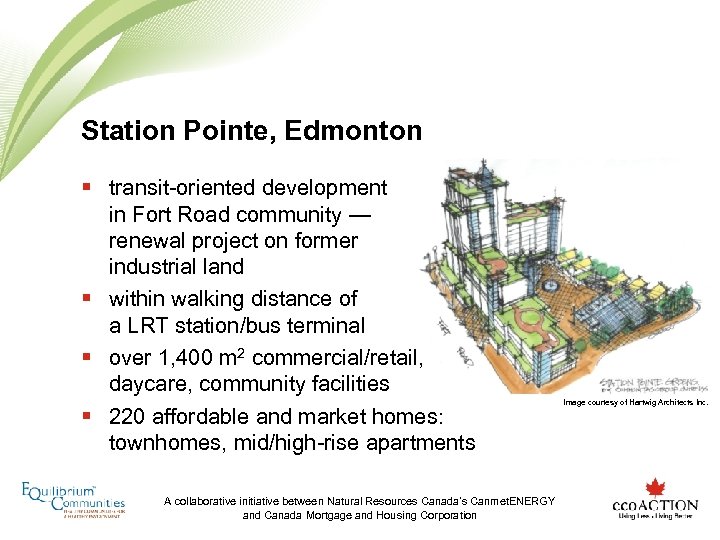

Station Pointe, Edmonton § transit-oriented development in Fort Road community — renewal project on former industrial land § within walking distance of a LRT station/bus terminal § over 1, 400 m 2 commercial/retail, daycare, community facilities § 220 affordable and market homes: townhomes, mid/high-rise apartments A collaborative initiative between Natural Resources Canada’s Canmet. ENERGY and Canada Mortgage and Housing Corporation Image courtesy of Hartwig Architects Inc.

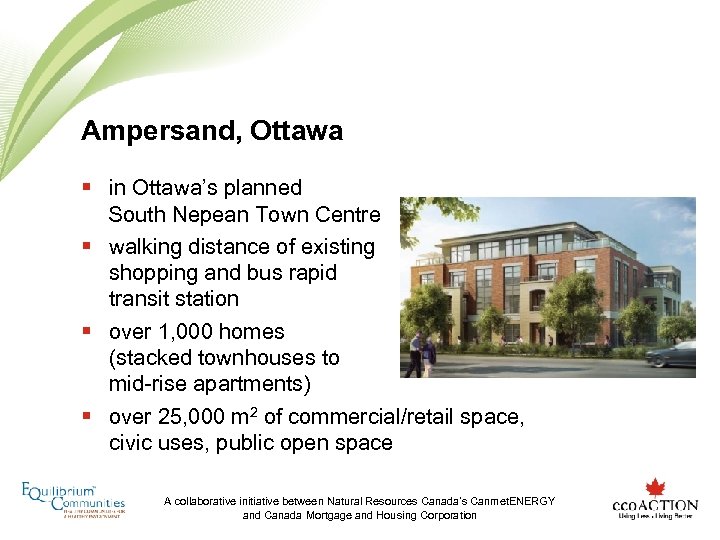

Ampersand, Ottawa § in Ottawa’s planned South Nepean Town Centre § walking distance of existing shopping and bus rapid transit station § over 1, 000 homes (stacked townhouses to mid-rise apartments) § over 25, 000 m 2 of commercial/retail space, civic uses, public open space A collaborative initiative between Natural Resources Canada’s Canmet. ENERGY and Canada Mortgage and Housing Corporation
CMHC On Builder’s Team Canadian Housing Observer § 2010 edition just released § Feature article Housing and the Economy § Online version data tables CANADA MORTGAGE AND HOUSING CORPORATION

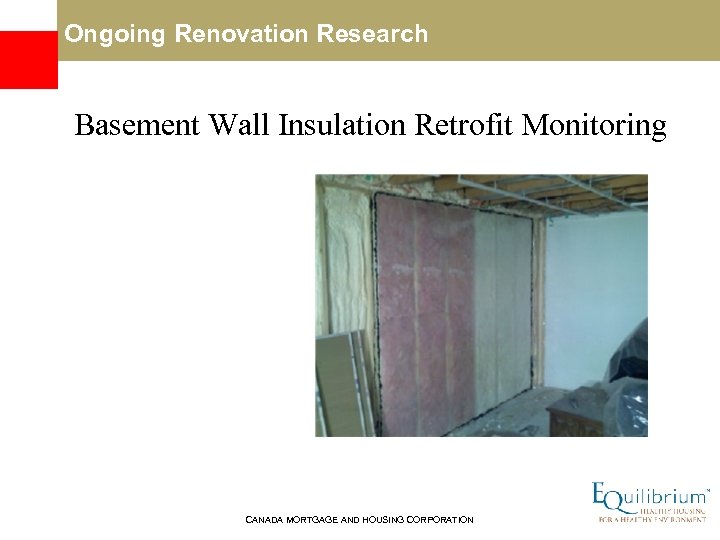

Ongoing Renovation Research Basement Wall Insulation Retrofit Monitoring CANADA MORTGAGE AND HOUSING CORPORATION

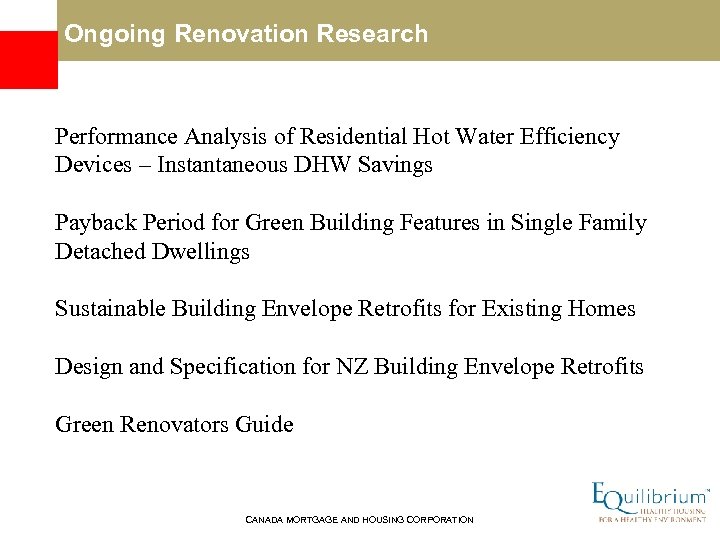

Ongoing Renovation Research Performance Analysis of Residential Hot Water Efficiency Devices – Instantaneous DHW Savings Payback Period for Green Building Features in Single Family Detached Dwellings Sustainable Building Envelope Retrofits for Existing Homes Design and Specification for NZ Building Envelope Retrofits Green Renovators Guide CANADA MORTGAGE AND HOUSING CORPORATION

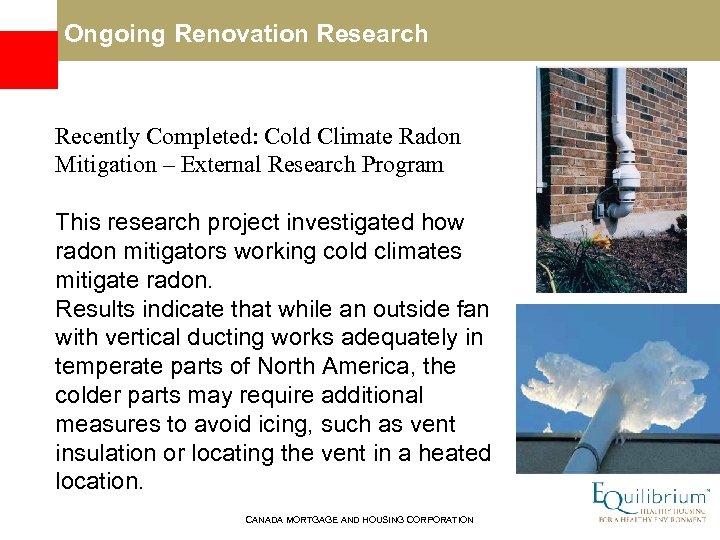

Ongoing Renovation Research Recently Completed: Cold Climate Radon Mitigation – External Research Program This research project investigated how radon mitigators working cold climates mitigate radon. Results indicate that while an outside fan with vertical ducting works adequately in temperate parts of North America, the colder parts may require additional measures to avoid icing, such as vent insulation or locating the vent in a heated location. CANADA MORTGAGE AND HOUSING CORPORATION

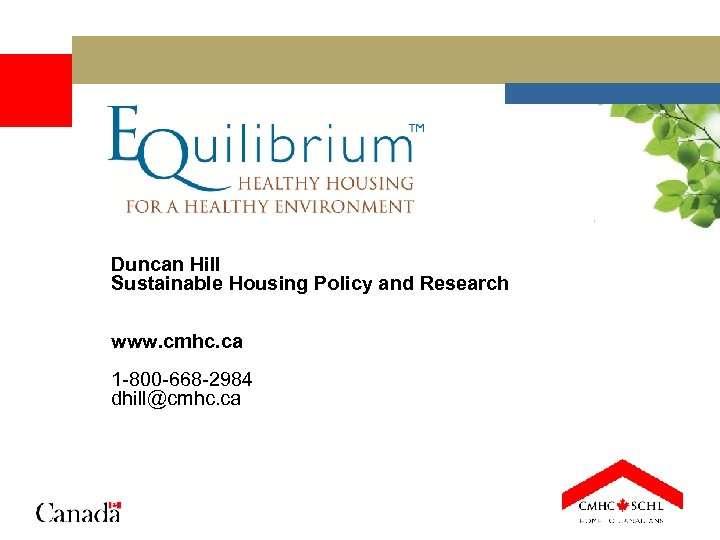

Duncan Hill Sustainable Housing Policy and Research www. cmhc. ca 1 -800 -668 -2984 dhill@cmhc. ca
