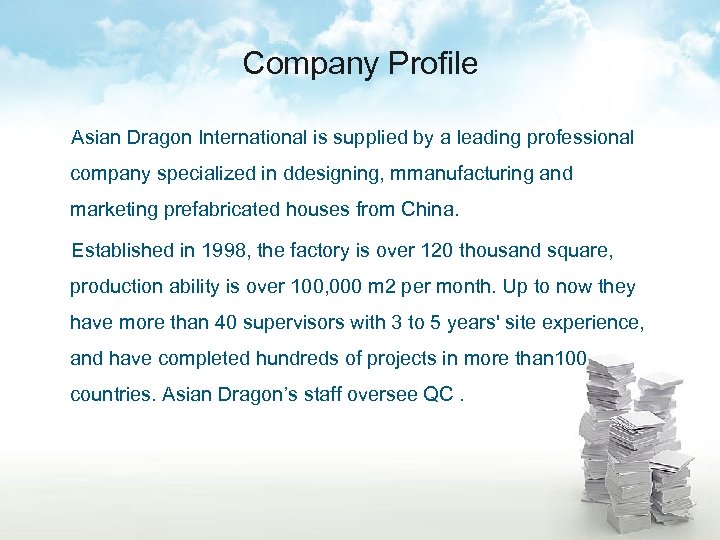

Company Profile Asian Dragon International is supplied by a leading professional company specialized in ddesigning, mmanufacturing and marketing prefabricated houses from China. Established in 1998, the factory is over 120 thousand square, production ability is over 100, 000 m 2 per month. Up to now they have more than 40 supervisors with 3 to 5 years' site experience, and have completed hundreds of projects in more than 100 countries. Asian Dragon’s staff oversee QC.

Prefabricated house-A Type house Modular design ◇Width = 5060 m, length= n*1. 224+2. 212 (m), Height= 2. 7/3. 75 Anticorrosive ◇ Galvanized structure Waterproof ◇Structure is waterproof. Patented technology. Quickest and easiest erection ◇ Four skilled workers can finish 120 sqm in 8 hours. Erection is quickest and easiest in todays market, making these ideal for disaster relief. Smallest volume ◇Packing volume is the smallest in market, 40 HQ can load 300 -350 sqm house body. Large house interior space ◇Large interior space, no need false ceiling. Life Span: 8 -12 year

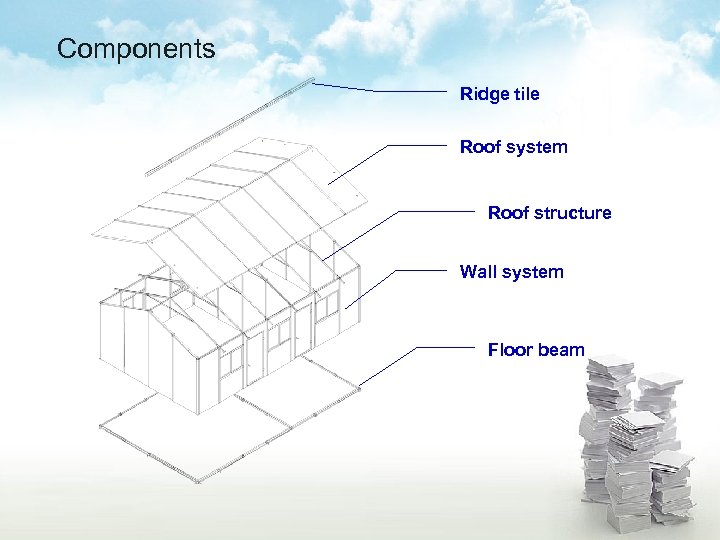

Components Ridge tile Roof system Roof structure Wall system Floor beam

Appearance of A Type

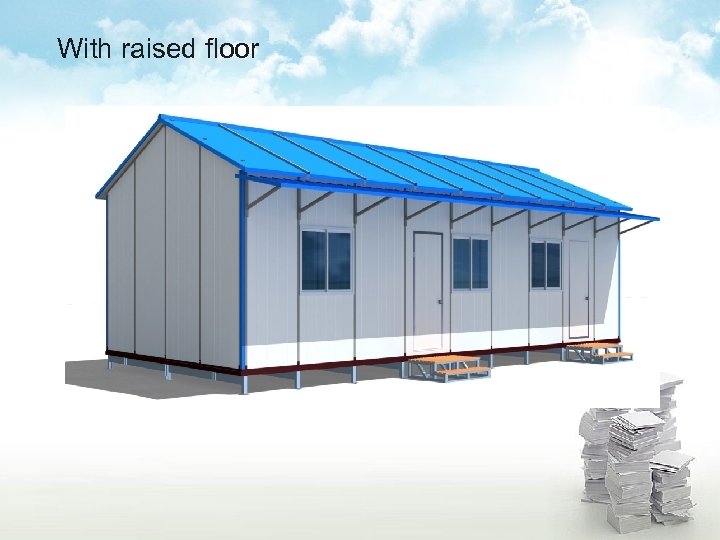

With raised floor

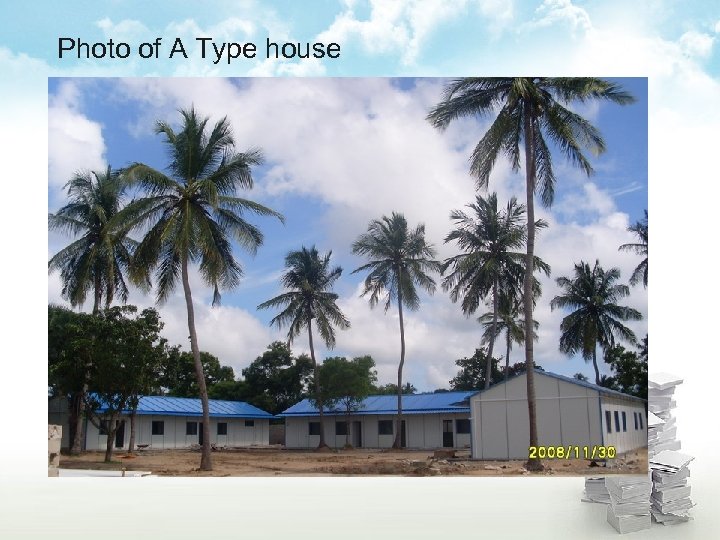

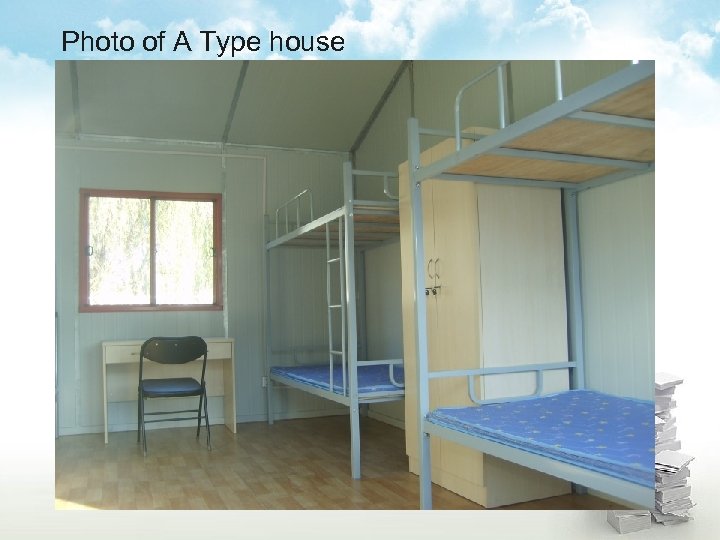

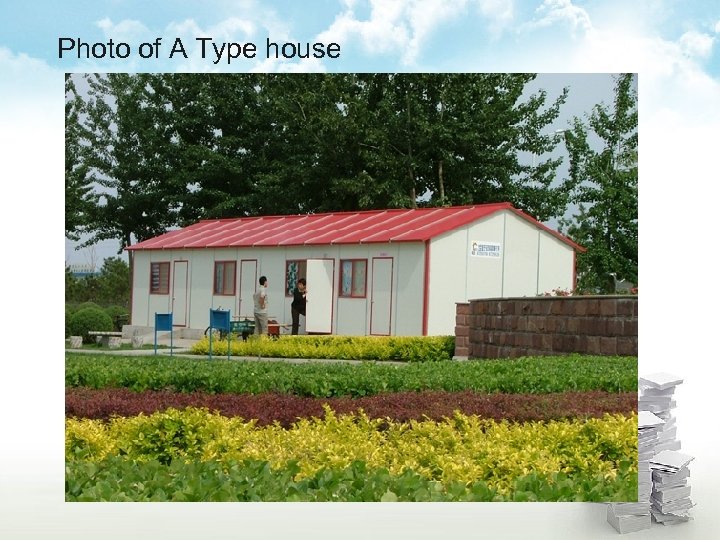

Photo of A Type house

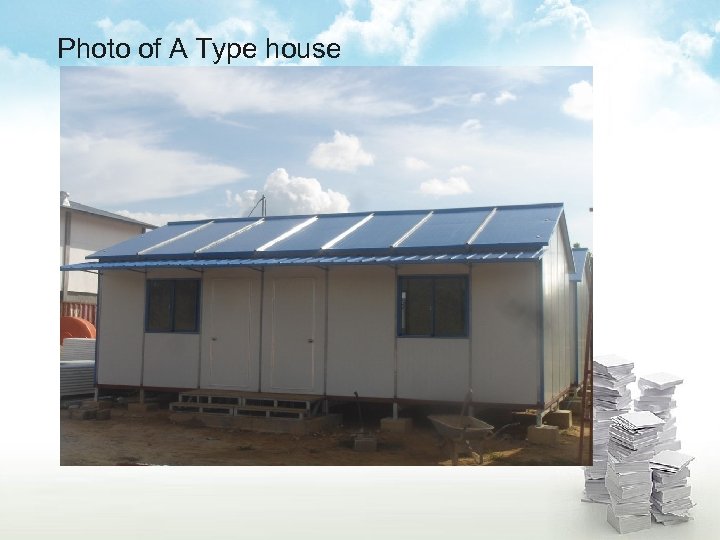

Photo of A Type house

Photo of A Type house

Photo of A Type house

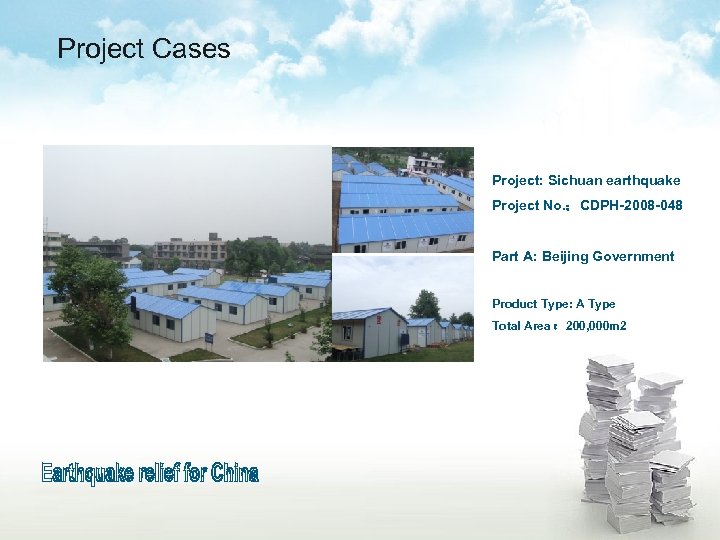

Project Cases Project: Sichuan earthquake Project No. ：CDPH-2008 -048 Part A: Beijing Government Product Type: A Type Total Area ： 200, 000 m 2

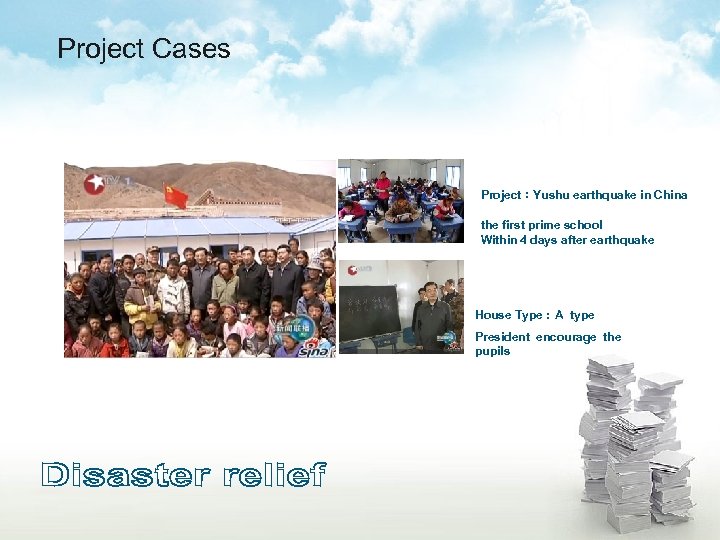

Project Cases Project：Yushu earthquake in China the first prime school Within 4 days after earthquake House Type：A type President encourage the pupils

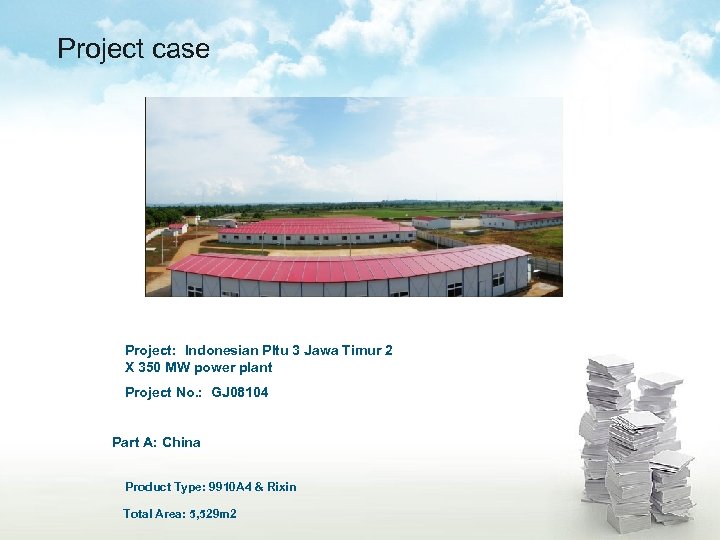

Project case Project: Indonesian Pltu 3 Jawa Timur 2 X 350 MW power plant Project No. : GJ 08104 Part A: China Product Type: 9910 A 4 & Rixin Total Area: 5, 529 m 2

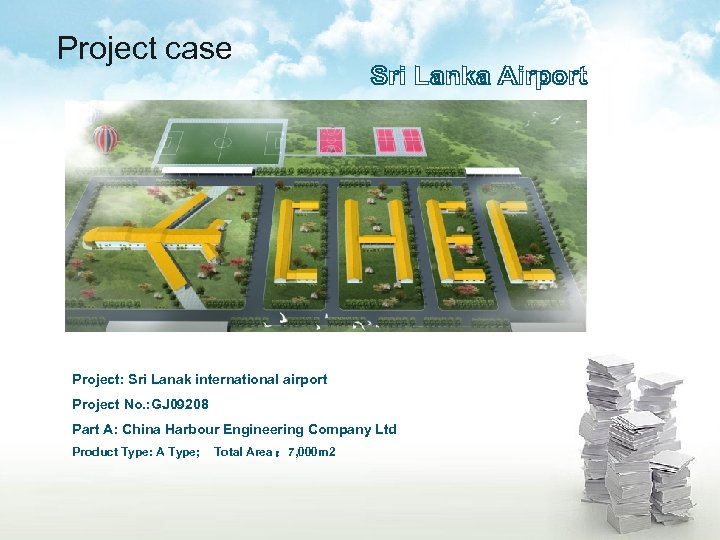

Project case Project: Sri Lanak international airport Project No. : GJ 09208 Part A: China Harbour Engineering Company Ltd Product Type: A Type; Total Area ： 7, 000 m 2

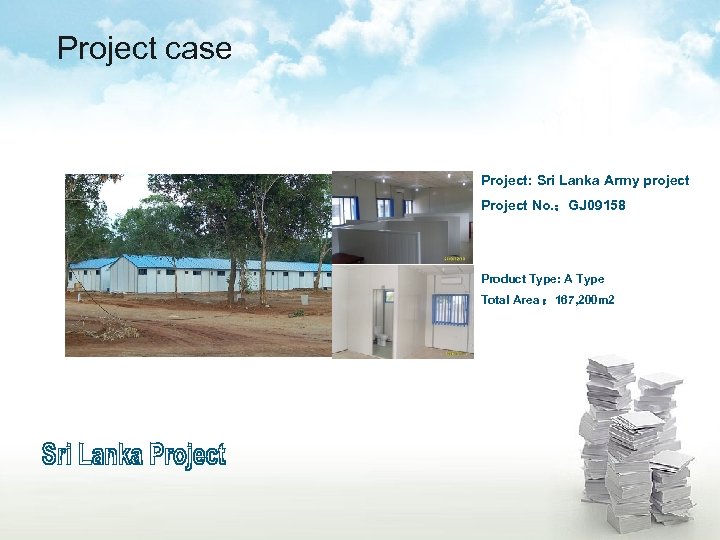

Project case Project: Sri Lanka Army project Project No. ：GJ 09158 Product Type: A Type Total Area ： 167, 200 m 2

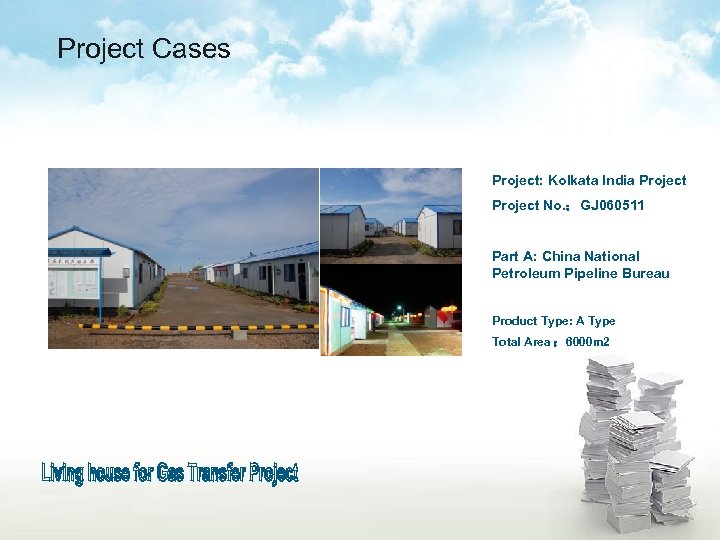

Project Cases Project: Kolkata India Project No. ：GJ 060511 Part A: China National Petroleum Pipeline Bureau Product Type: A Type Total Area ： 6000 m 2

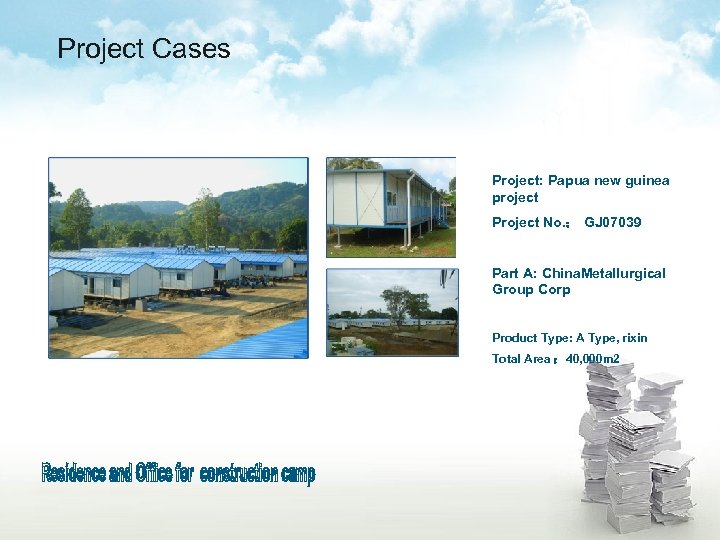

Project Cases Project: Papua new guinea project Project No. ： GJ 07039 Part A: China. Metallurgical Group Corp Product Type: A Type, rixin Total Area ： 40, 000 m 2

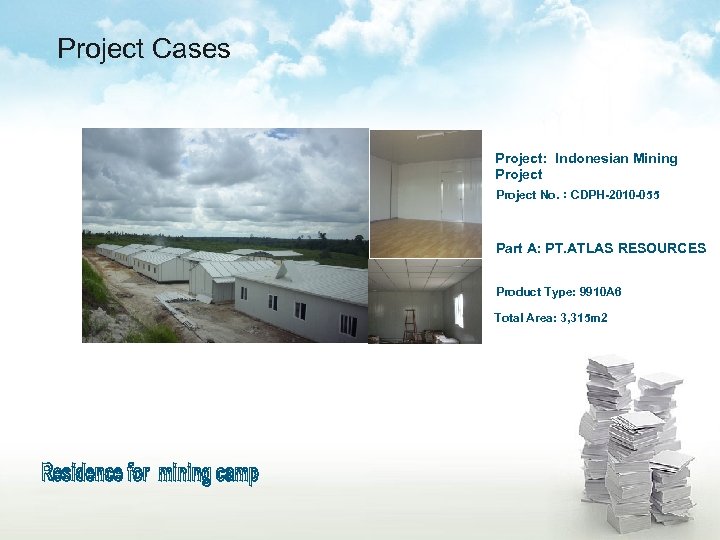

Project Cases Project: Indonesian Mining Project No. ：CDPH-2010 -055 Part A: PT. ATLAS RESOURCES Product Type: 9910 A 6 Total Area: 3, 315 m 2

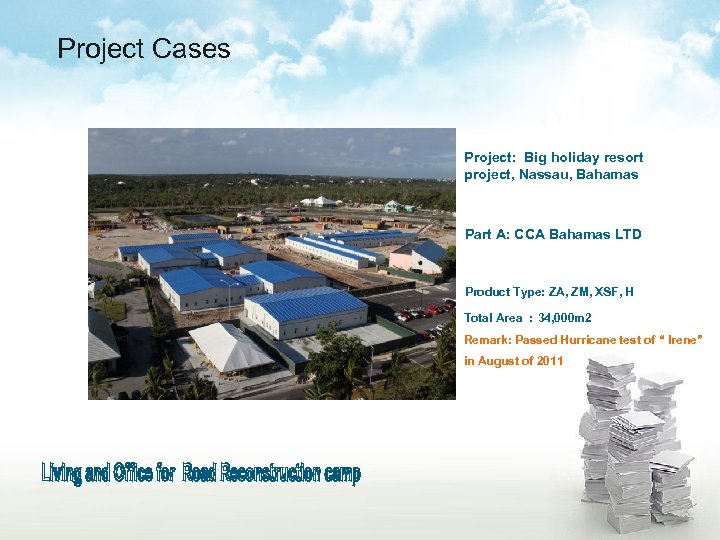

Project Cases Project: Big holiday resort project, Nassau, Bahamas Part A: CCA Bahamas LTD Product Type: ZA, ZM, XSF, H Total Area ： 34, 000 m 2 Remark: Passed Hurricane test of “ Irene” in August of 2011

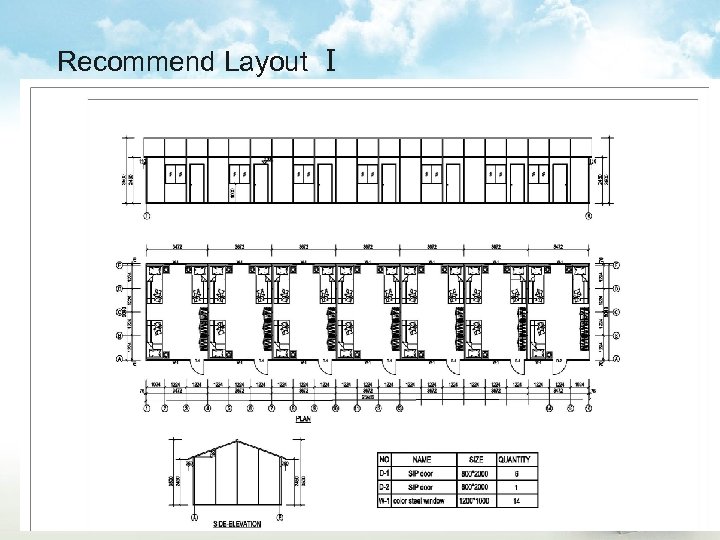

Recommend Layout Ⅰ

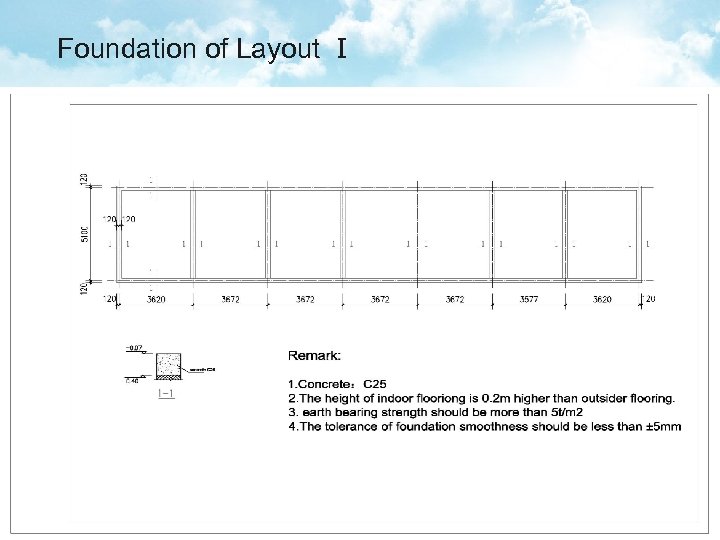

Foundation of Layout Ⅰ

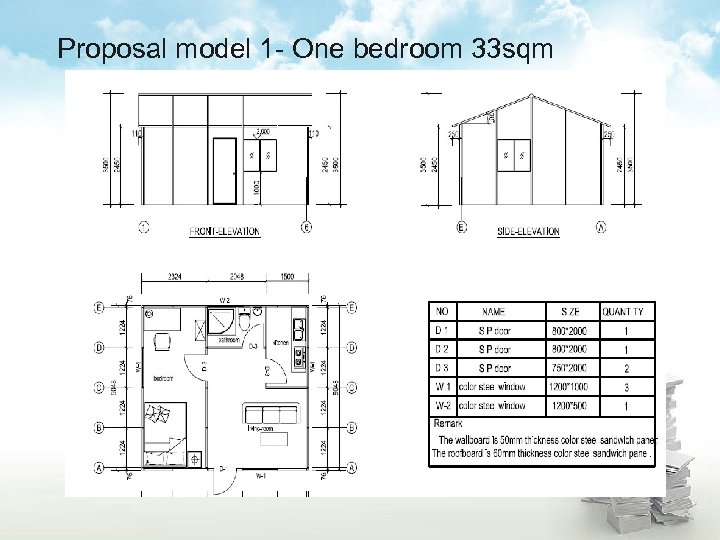

Proposal model 1 - One bedroom 33 sqm

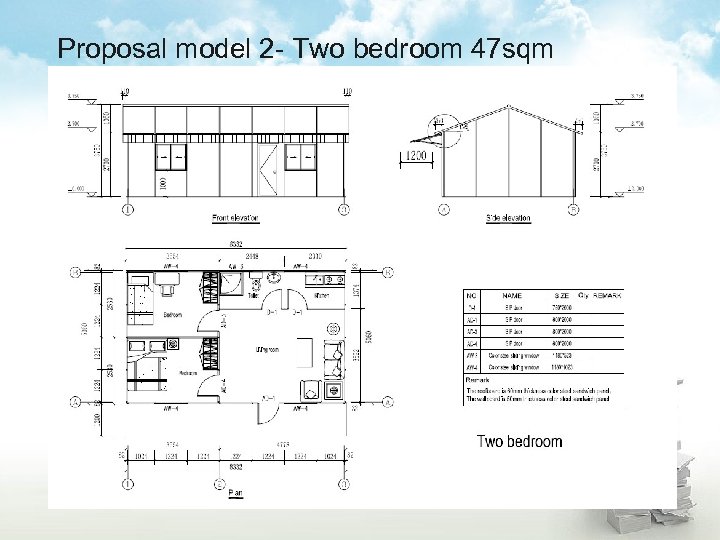

Proposal model 2 - Two bedroom 47 sqm

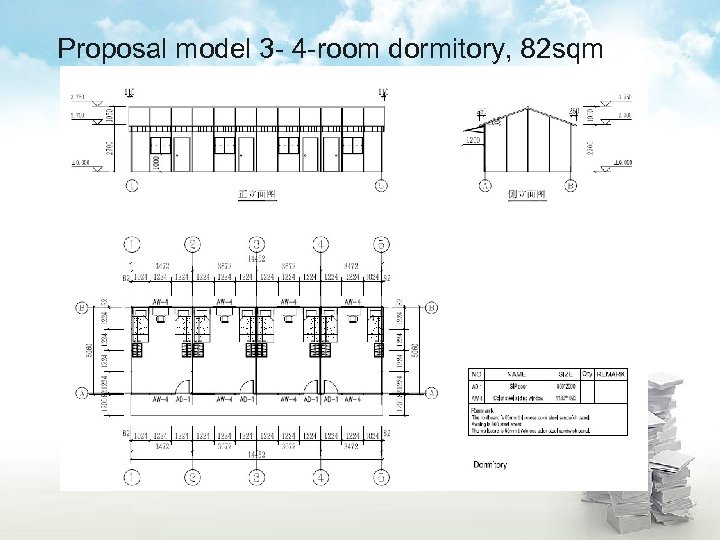

Proposal model 3 - 4 -room dormitory, 82 sqm

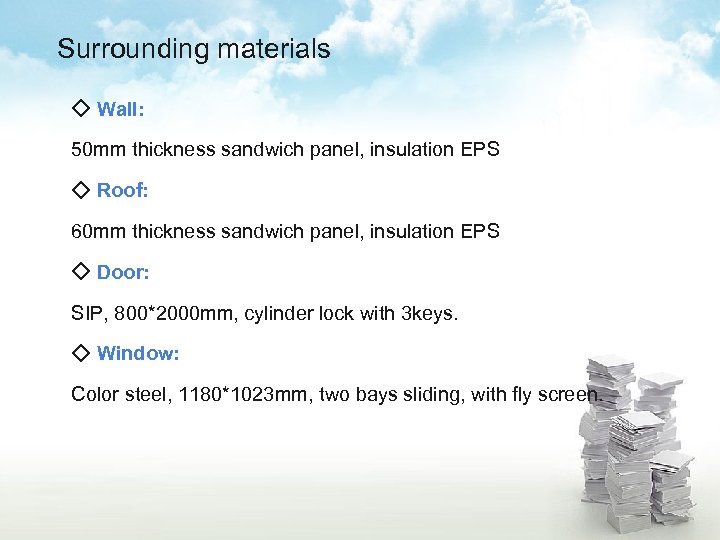

Surrounding materials ◇ Wall: 50 mm thickness sandwich panel, insulation EPS ◇ Roof: 60 mm thickness sandwich panel, insulation EPS ◇ Door: SIP, 800*2000 mm, cylinder lock with 3 keys. ◇ Window: Color steel, 1180*1023 mm, two bays sliding, with fly screen.

Specification of A Type house ◇ Live load: 0. 35 kg/m 2 ◇ Wind pressure: 0. 45 KN/M 2 ◇ Resistant temperature: -15℃to 50℃ ◇ The resistant earthquake grade: 7 fission activate.

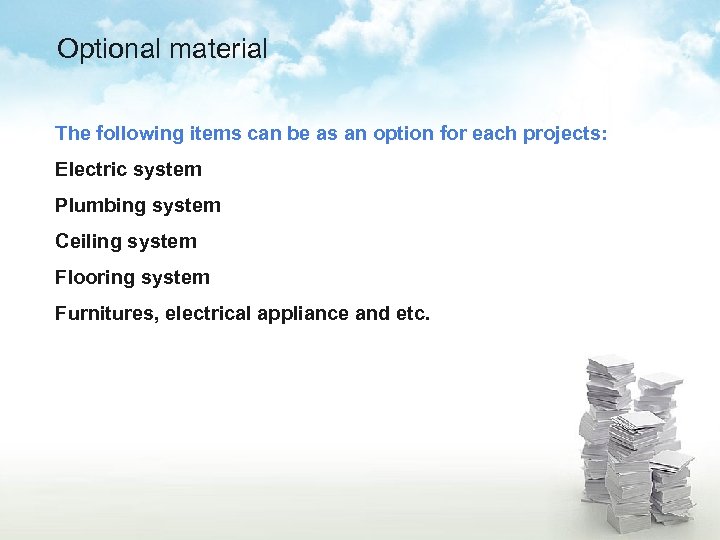

Optional material The following items can be as an option for each projects: Electric system Plumbing system Ceiling system Flooring system Furnitures, electrical appliance and etc.

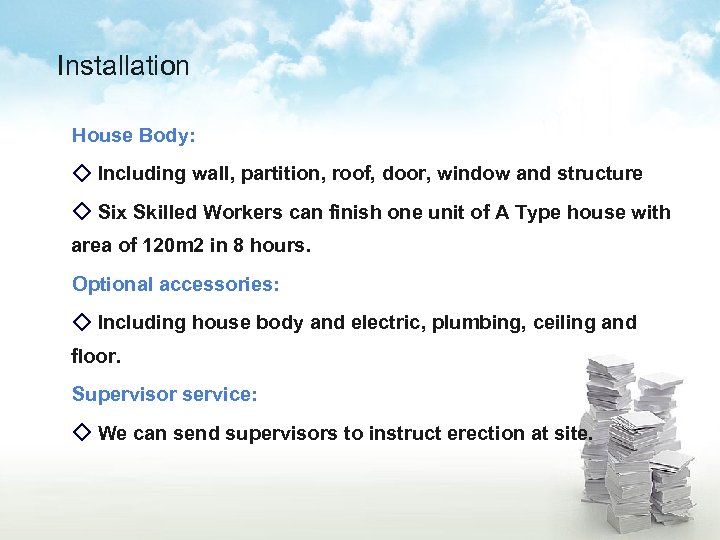

Installation House Body: ◇ Including wall, partition, roof, door, window and structure ◇ Six Skilled Workers can finish one unit of A Type house with area of 120 m 2 in 8 hours. Optional accessories: ◇ Including house body and electric, plumbing, ceiling and floor. Supervisor service: ◇ We can send supervisors to instruct erection at site.

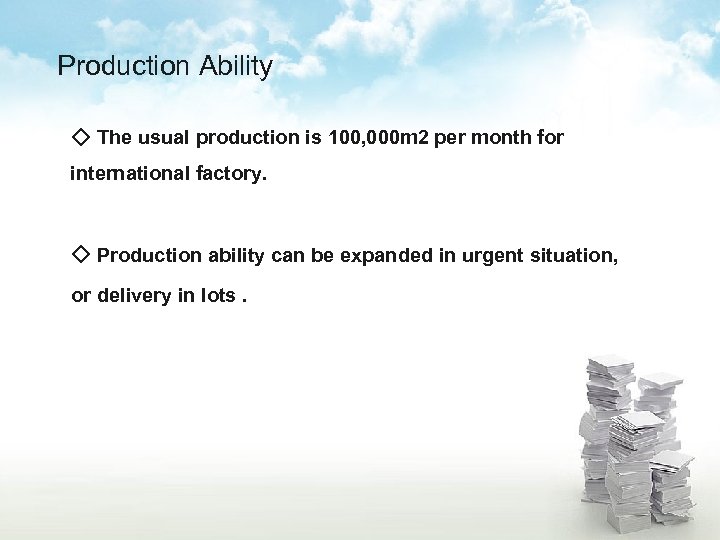

Production Ability ◇ The usual production is 100, 000 m 2 per month for international factory. ◇ Production ability can be expanded in urgent situation, or delivery in lots.

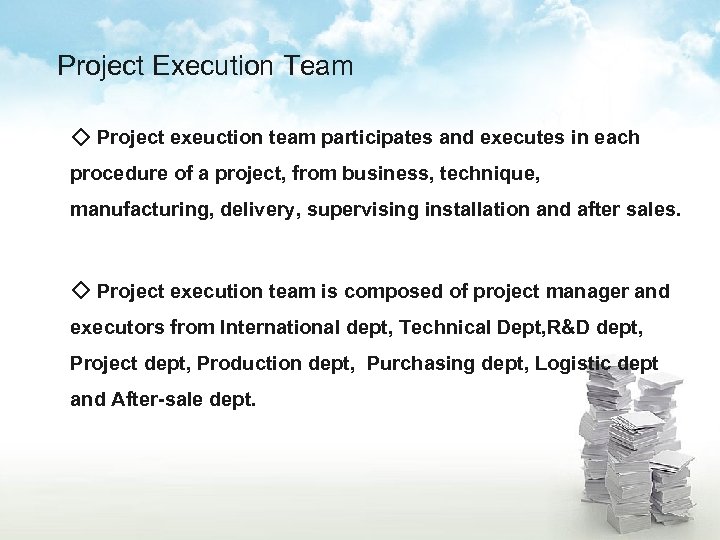

Project Execution Team ◇ Project exeuction team participates and executes in each procedure of a project, from business, technique, manufacturing, delivery, supervising installation and after sales. ◇ Project execution team is composed of project manager and executors from International dept, Technical Dept, R&D dept, Project dept, Production dept, Purchasing dept, Logistic dept and After-sale dept.

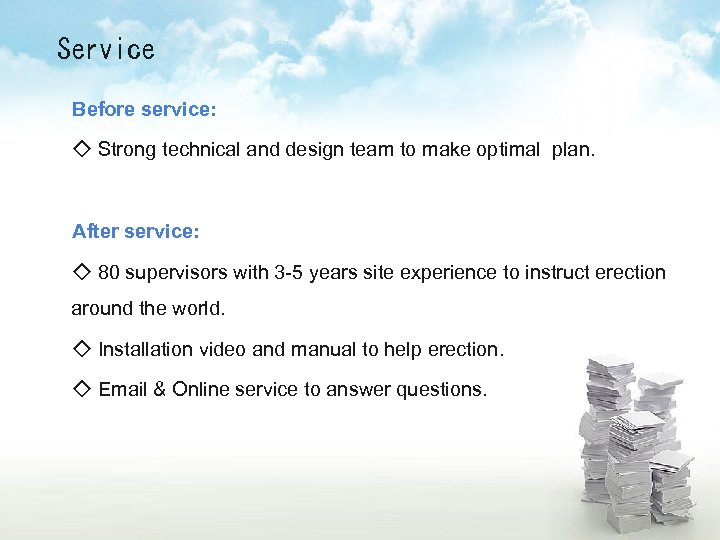

Service Before service: ◇ Strong technical and design team to make optimal plan. After service: ◇ 80 supervisors with 3 -5 years site experience to instruct erection around the world. ◇ Installation video and manual to help erection. ◇ Email & Online service to answer questions.

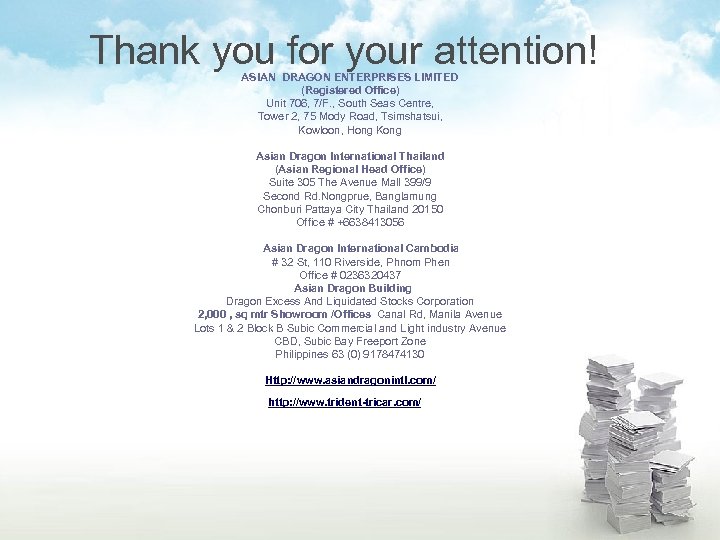

Thank you for your attention! ASIAN DRAGON ENTERPRISES LIMITED (Registered Office) Unit 706, 7/F. , South Seas Centre, Tower 2, 75 Mody Road, Tsimshatsui, Kowloon, Hong Kong Asian Dragon International Thailand (Asian Regional Head Office) Suite 305 The Avenue Mall 399/9 Second Rd. Nongprue, Banglamung Chonburi Pattaya City Thailand 20150 Office # +6638413056 Asian Dragon International Cambodia # 32 St, 110 Riverside, Phnom Phen Office # 0236320437 Asian Dragon Building Dragon Excess And Liquidated Stocks Corporation 2, 000 , sq mtr Showroom /Offices Canal Rd, Manila Avenue Lots 1 & 2 Block B Subic Commercial and Light industry Avenue CBD, Subic Bay Freeport Zone Philippines 63 (0) 9178474130 Http: //www. asiandragonintl. com/ http: //www. trident-tricar. com/
