Prerequisite Scanner Team Demo Prerequisite Scanner 1. 2. 0. 3 IBM Prerequisite Scanner Team February 21, 2013 © 2011 IBM Corporation

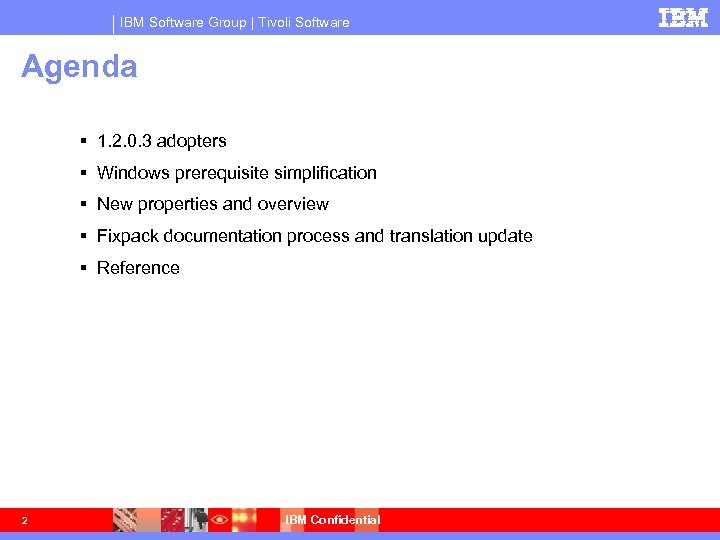

IBM Software Group | Tivoli Software Agenda 1. 2. 0. 3 adopters Windows prerequisite simplification New properties and overview Fixpack documentation process and translation update Reference 2 IBM Confidential

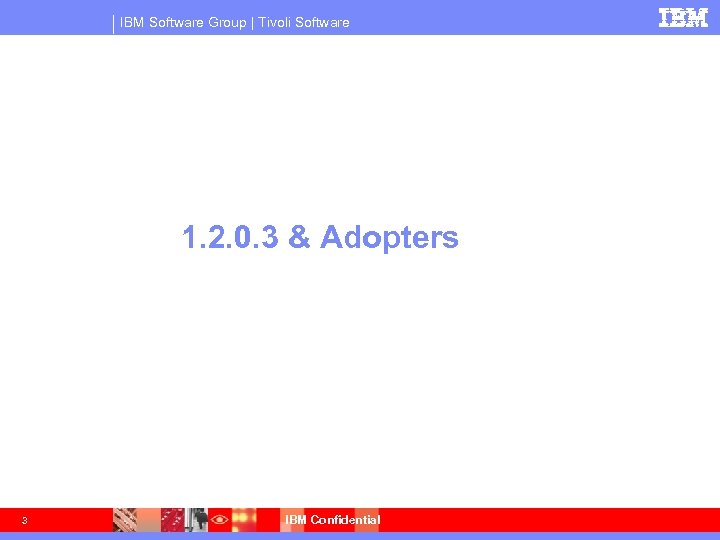

IBM Software Group | Tivoli Software 1. 2. 0. 3 & Adopters 3 IBM Confidential

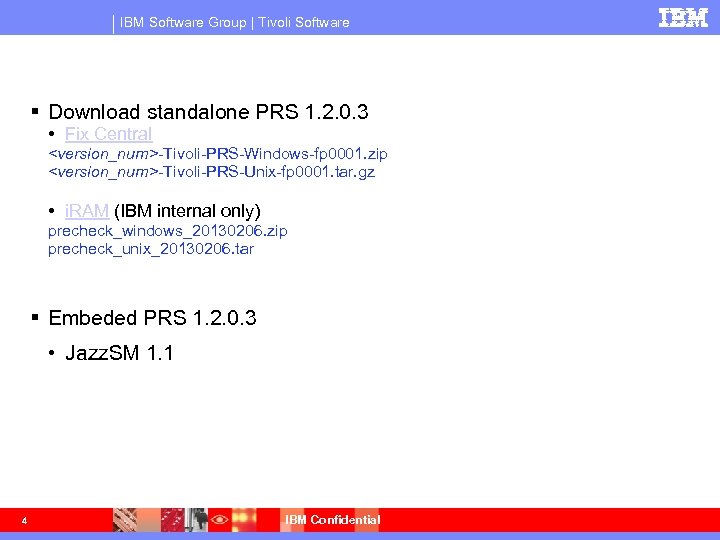

IBM Software Group | Tivoli Software Download standalone PRS 1. 2. 0. 3 • Fix Central

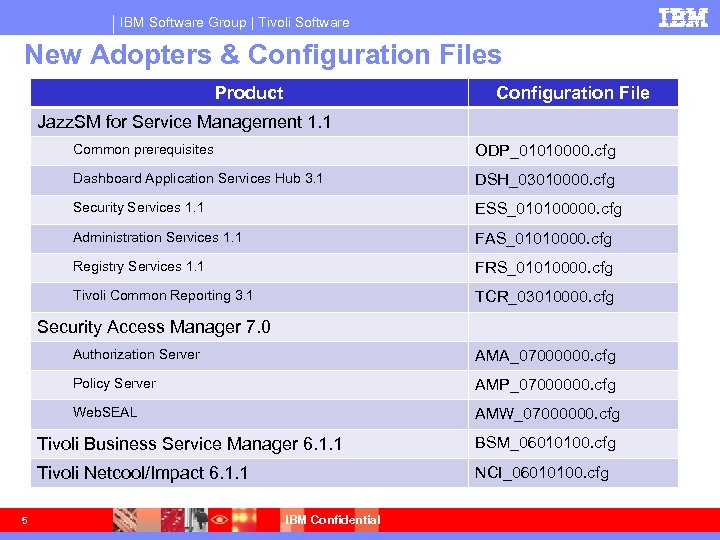

IBM Software Group | Tivoli Software New Adopters & Configuration Files Product Configuration File Jazz. SM for Service Management 1. 1 Common prerequisites ODP_01010000. cfg Dashboard Application Services Hub 3. 1 DSH_03010000. cfg Security Services 1. 1 ESS_010100000. cfg Administration Services 1. 1 FAS_01010000. cfg Registry Services 1. 1 FRS_01010000. cfg Tivoli Common Reporting 3. 1 TCR_03010000. cfg Security Access Manager 7. 0 Authorization Server AMA_07000000. cfg Policy Server AMP_07000000. cfg Web. SEAL AMW_07000000. cfg Tivoli Business Service Manager 6. 1. 1 Tivoli Netcool/Impact 6. 1. 1 5 BSM_06010100. cfg NCI_06010100. cfg IBM Confidential

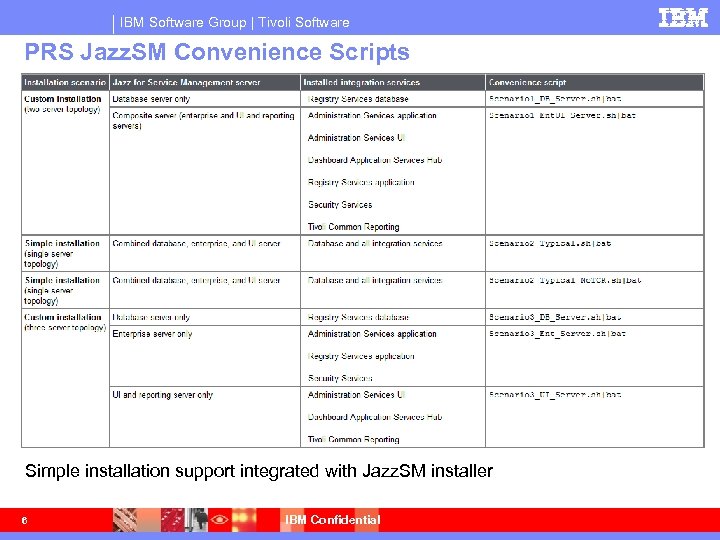

IBM Software Group | Tivoli Software PRS Jazz. SM Convenience Scripts Simple installation support integrated with Jazz. SM installer 6 IBM Confidential

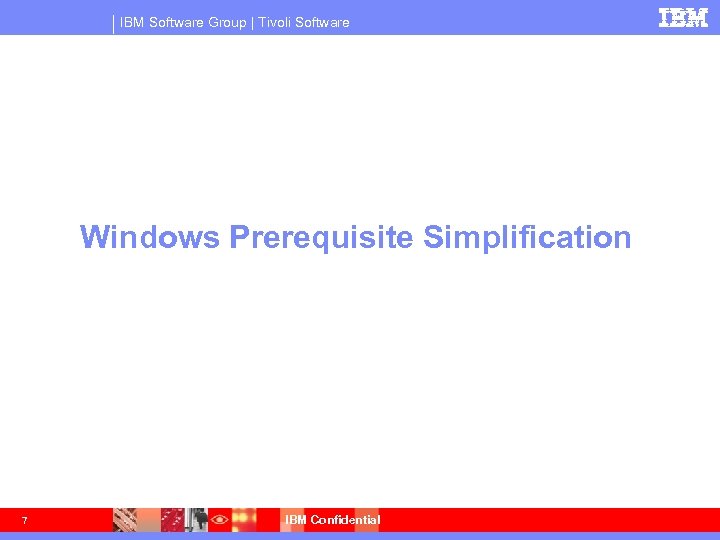

IBM Software Group | Tivoli Software Windows Prerequisite Simplification 7 IBM Confidential

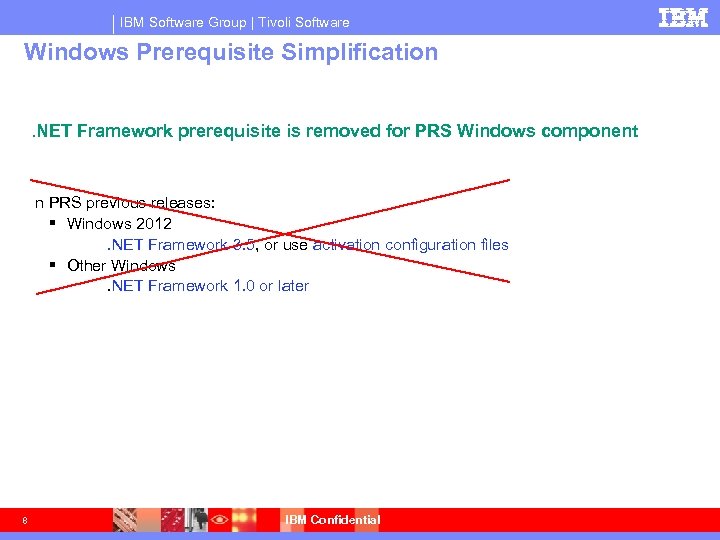

IBM Software Group | Tivoli Software Windows Prerequisite Simplification . NET Framework prerequisite is removed for PRS Windows component n PRS previous releases: Windows 2012 . NET Framework 3. 5, or use activation configuration files Other Windows . NET Framework 1. 0 or later 8 IBM Confidential

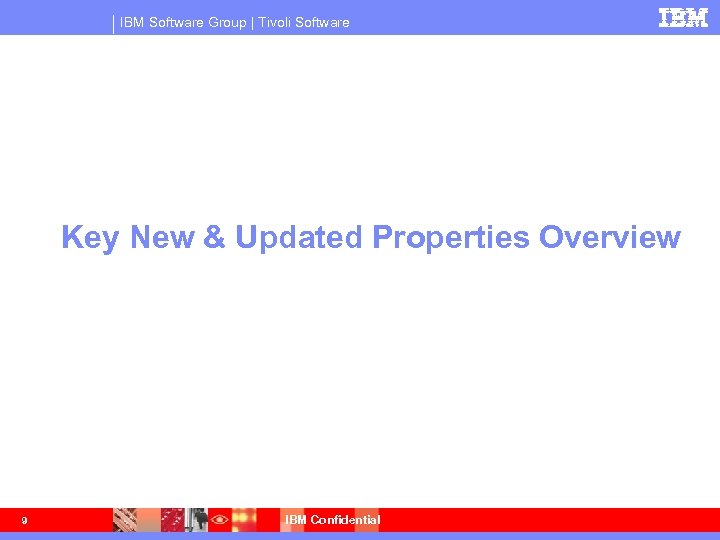

IBM Software Group | Tivoli Software Key New & Updated Properties Overview 9 IBM Confidential

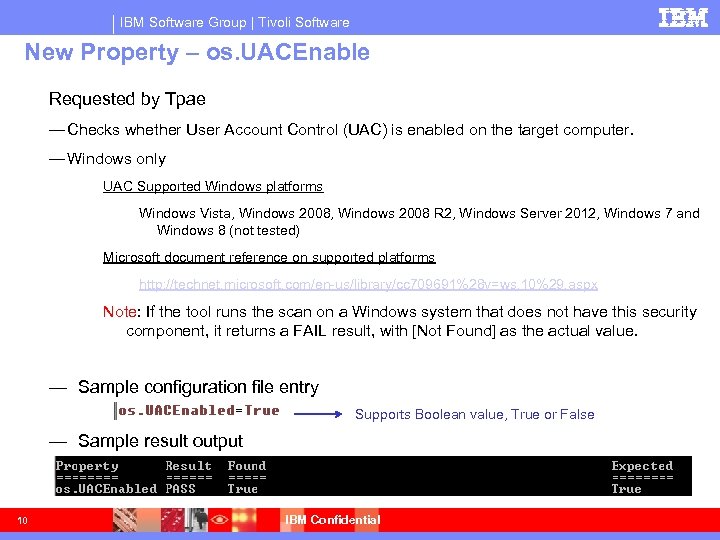

IBM Software Group | Tivoli Software New Property – os. UACEnable Requested by Tpae — Checks whether User Account Control (UAC) is enabled on the target computer. — Windows only UAC Supported Windows platforms Windows Vista, Windows 2008 R 2, Windows Server 2012, Windows 7 and Windows 8 (not tested) Microsoft document reference on supported platforms http: //technet. microsoft. com/en-us/library/cc 709691%28 v=ws. 10%29. aspx Note: If the tool runs the scan on a Windows system that does not have this security component, it returns a FAIL result, with [Not Found] as the actual value. — Sample configuration file entry Supports Boolean value, True or False — Sample result output 10 IBM Confidential

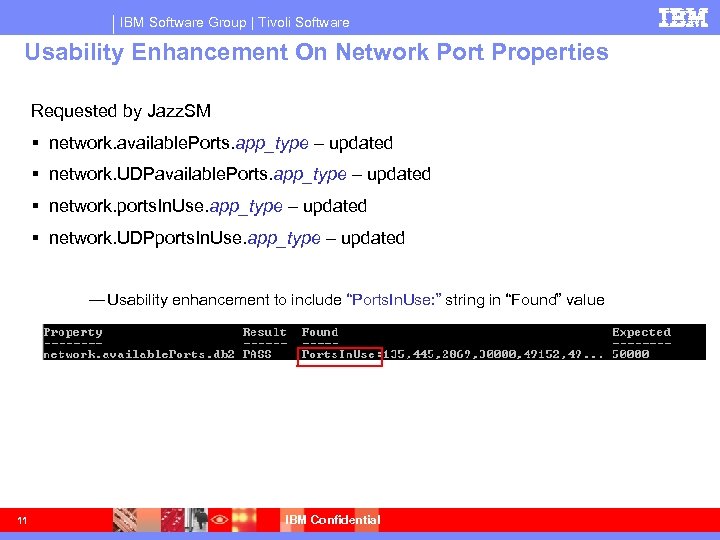

IBM Software Group | Tivoli Software Usability Enhancement On Network Port Properties Requested by Jazz. SM network. available. Ports. app_type – updated network. UDPavailable. Ports. app_type – updated network. ports. In. Use. app_type – updated network. UDPports. In. Use. app_type – updated — Usability enhancement to include “Ports. In. Use: ” string in “Found” value 11 IBM Confidential

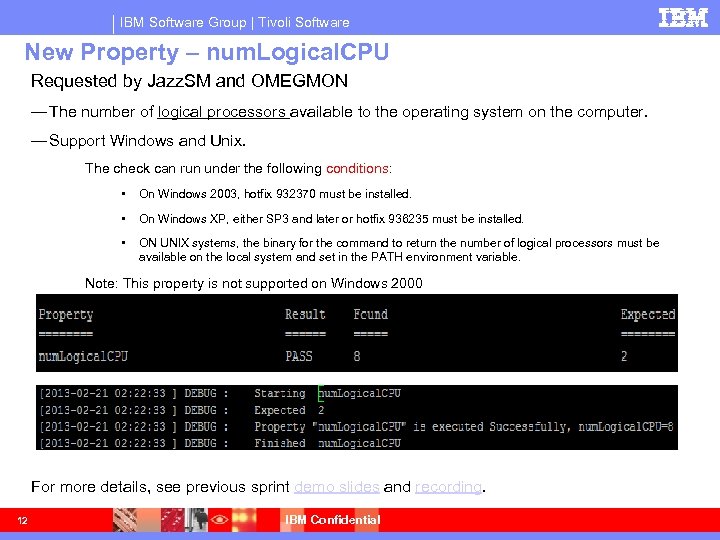

IBM Software Group | Tivoli Software New Property – num. Logical. CPU Requested by Jazz. SM and OMEGMON — The number of logical processors available to the operating system on the computer. — Support Windows and Unix. The check can run under the following conditions: • On Windows 2003, hotfix 932370 must be installed. • On Windows XP, either SP 3 and later or hotfix 936235 must be installed. • ON UNIX systems, the binary for the command to return the number of logical processors must be available on the local system and set in the PATH environment variable. Note: This property is not supported on Windows 2000 For more details, see previous sprint demo slides and recording. 12 IBM Confidential

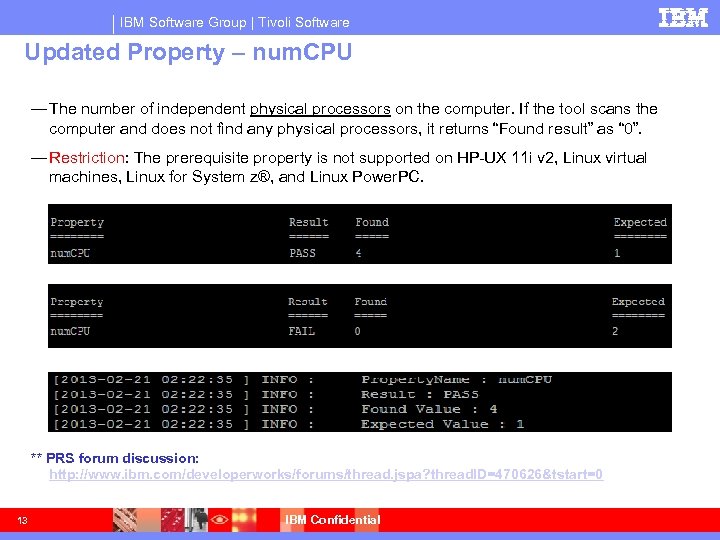

IBM Software Group | Tivoli Software Updated Property – num. CPU — The number of independent physical processors on the computer. If the tool scans the computer and does not find any physical processors, it returns “Found result” as “ 0”. — Restriction: The prerequisite property is not supported on HP-UX 11 i v 2, Linux virtual machines, Linux for System z®, and Linux Power. PC. ** PRS forum discussion: http: //www. ibm. com/developerworks/forums/thread. jspa? thread. ID=470626&tstart=0 13 IBM Confidential

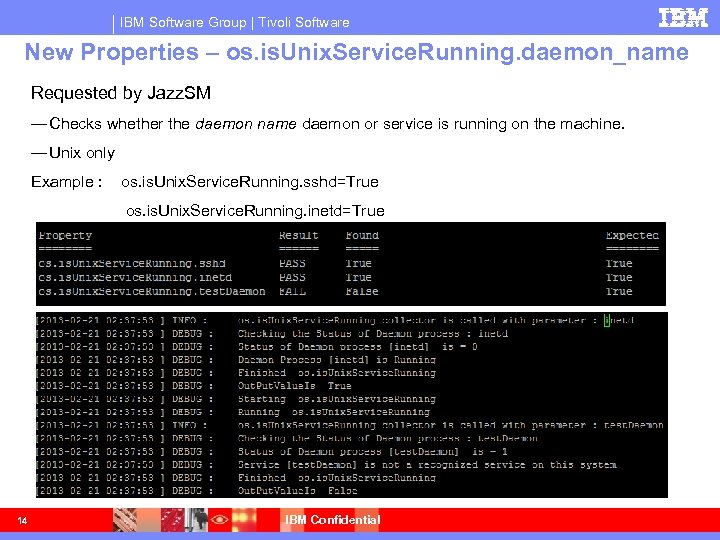

IBM Software Group | Tivoli Software New Properties – os. is. Unix. Service. Running. daemon_name Requested by Jazz. SM — Checks whether the daemon name daemon or service is running on the machine. — Unix only Example : os. is. Unix. Service. Running. sshd=True os. is. Unix. Service. Running. inetd=True 14 IBM Confidential

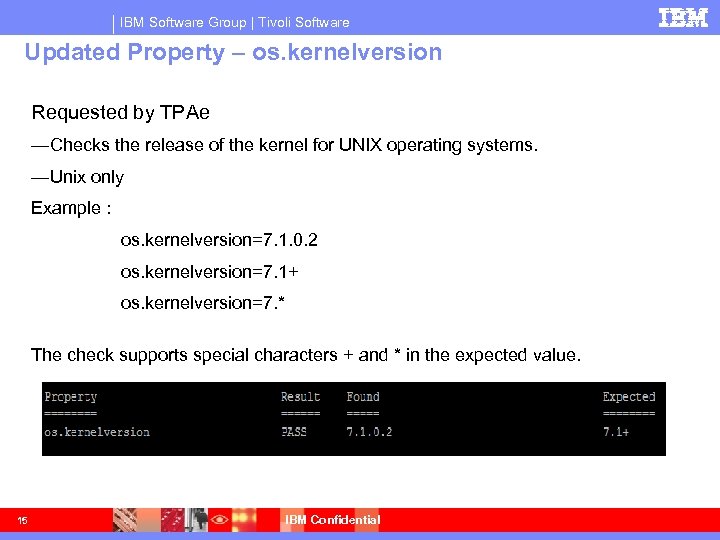

IBM Software Group | Tivoli Software Updated Property – os. kernelversion Requested by TPAe —Checks the release of the kernel for UNIX operating systems. —Unix only Example : os. kernelversion=7. 1. 0. 2 os. kernelversion=7. 1+ os. kernelversion=7. * The check supports special characters + and * in the expected value. 15 IBM Confidential

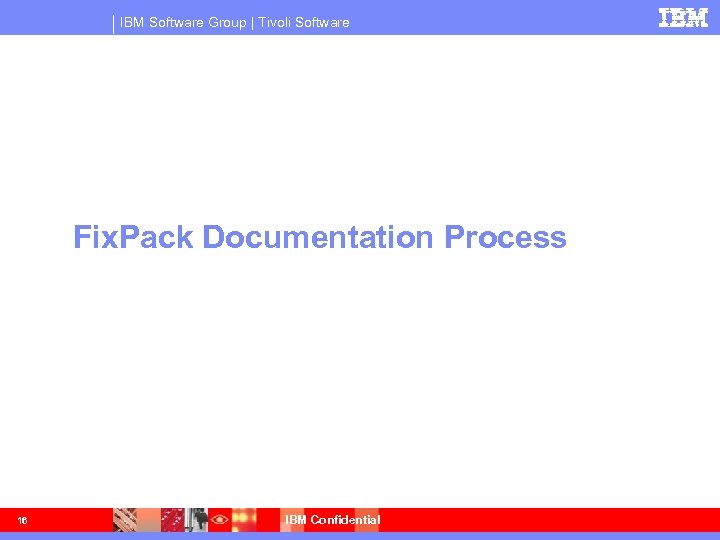

IBM Software Group | Tivoli Software Fix. Pack Documentation Process 16 IBM Confidential

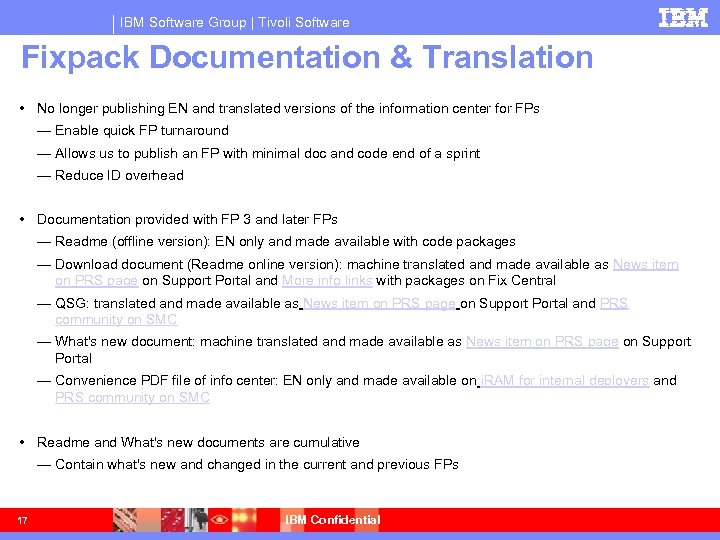

IBM Software Group | Tivoli Software Fixpack Documentation & Translation • No longer publishing EN and translated versions of the information center for FPs — Enable quick FP turnaround — Allows us to publish an FP with minimal doc and code end of a sprint — Reduce ID overhead • Documentation provided with FP 3 and later FPs — Readme (offline version): EN only and made available with code packages — Download document (Readme online version): machine translated and made available as News item on PRS page on Support Portal and More info links with packages on Fix Central — QSG: translated and made available as News item on PRS page on Support Portal and PRS community on SMC — What's new document: machine translated and made available as News item on PRS page on Support Portal — Convenience PDF file of info center: EN only and made available on i. RAM for internal deployers and PRS community on SMC • Readme and What's new documents are cumulative — Contain what's new and changed in the current and previous FPs 17 IBM Confidential
IBM Software Group | Tivoli Software References 1. 2. 0. 3 image download site — i. RAM — Fix Central PRS page on Support Portal SMC Prerequisite Scanner project dashboard Content is freezing. Waiting for new SMC update to refresh contents. Leverage IBM Prerequisite Scanner forum and mailing alias ips@us. ibm. com 1. 2 GO training — Playback Link (Password: IBMPSV 1. 2) — Presentation Link Field problems use formal PMR process – PRS PMRs queued to product first to validate. cfg file checks and values – PMR passed to PRS L 3 queue if check problems or framework issues – PRS PMR L 3 queue [PRSL 3, 13 K] 18 IBM Confidential
IBM Software Group | Tivoli Software 19 IBM Confidential

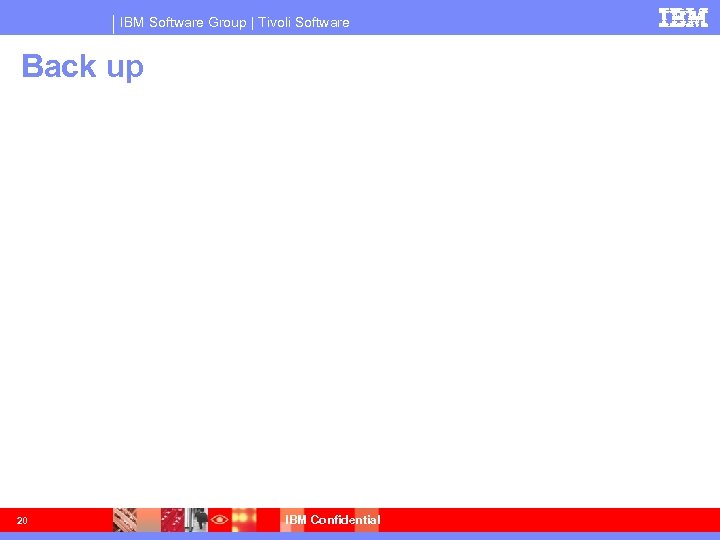

IBM Software Group | Tivoli Software Back up 20 IBM Confidential

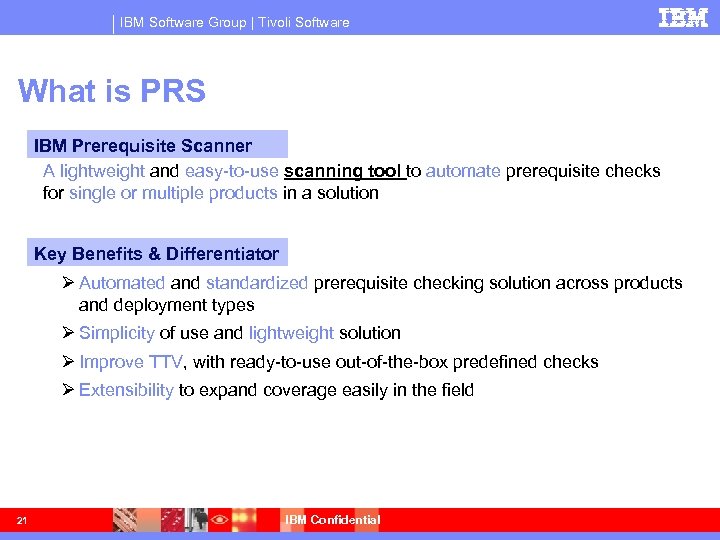

IBM Software Group | Tivoli Software What is PRS IBM Prerequisite Scanner A lightweight and easy-to-use scanning tool to automate prerequisite checks for single or multiple products in a solution Key Benefits & Differentiator Automated and standardized prerequisite checking solution across products and deployment types Simplicity of use and lightweight solution Improve TTV, with ready-to-use out-of-the-box predefined checks Extensibility to expand coverage easily in the field 21 IBM Confidential
IBM Software Group | Tivoli Software PRS GO Training Prerequisite Scanner 1. 1 TTEC GO training Time given: March, 2011 Recording and presentation deck on TTEC site URL: https: //de 202. centra. com: 443/GP/main/000001 a 9883 d 0000012 e 3428 1 f 5 f 9 d 84 USERNAME: Use your IBM intranet address PASSWORD: scanner NOTES: Playback link for the event. Prerequisite Scanner 1. 2 TTEC GO training Time given: Jan, 2013 Recording and presentation deck on TTEC site — Playback Link (Password: IBMPSV 1. 2) — Presentation Link 22 IBM Confidential

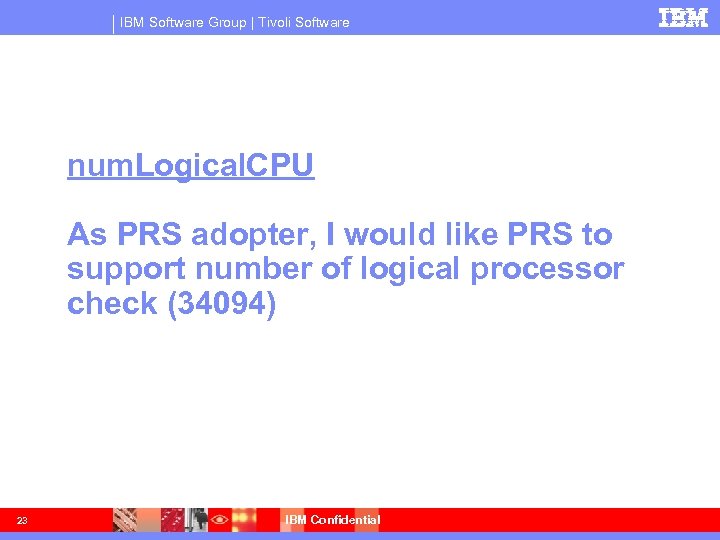

IBM Software Group | Tivoli Software num. Logical. CPU As PRS adopter, I would like PRS to support number of logical processor check (34094) 23 IBM Confidential

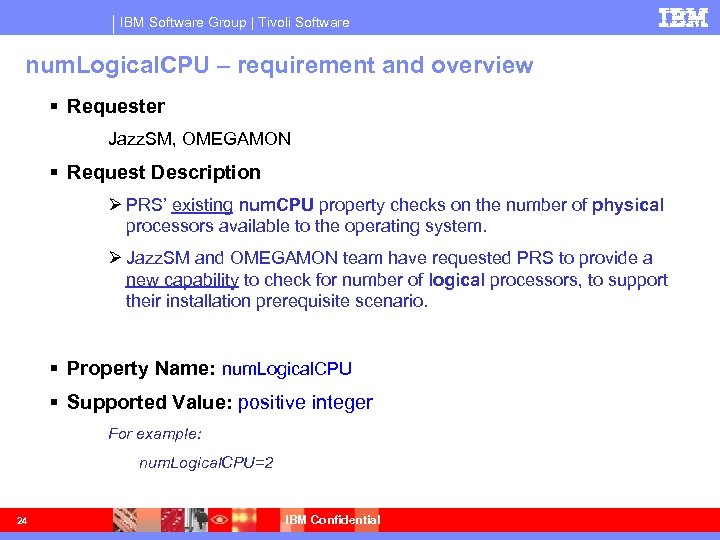

IBM Software Group | Tivoli Software num. Logical. CPU – requirement and overview Requester Jazz. SM, OMEGAMON Request Description PRS’ existing num. CPU property checks on the number of physical processors available to the operating system. Jazz. SM and OMEGAMON team have requested PRS to provide a new capability to check for number of logical processors, to support their installation prerequisite scenario. Property Name: num. Logical. CPU Supported Value: positive integer For example: num. Logical. CPU=2 24 IBM Confidential

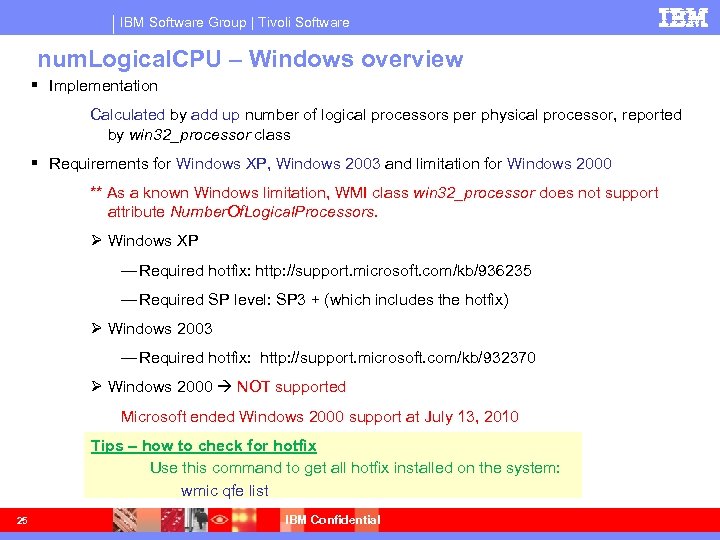

IBM Software Group | Tivoli Software num. Logical. CPU – Windows overview Implementation Calculated by add up number of logical processors per physical processor, reported by win 32_processor class Requirements for Windows XP, Windows 2003 and limitation for Windows 2000 ** As a known Windows limitation, WMI class win 32_processor does not support attribute Number. Of. Logical. Processors. Windows XP — Required hotfix: http: //support. microsoft. com/kb/936235 — Required SP level: SP 3 + (which includes the hotfix) Windows 2003 — Required hotfix: http: //support. microsoft. com/kb/932370 Windows 2000 NOT supported Microsoft ended Windows 2000 support at July 13, 2010 Tips – how to check for hotfix Use this command to get all hotfix installed on the system: wmic qfe list 25 IBM Confidential
IBM Software Group | Tivoli Software num. Logical. CPU – Windows error message 26 IBM Confidential

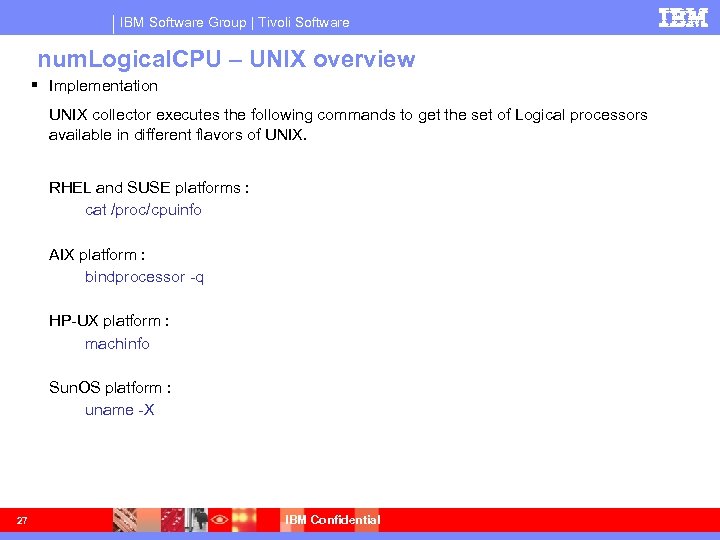

IBM Software Group | Tivoli Software num. Logical. CPU – UNIX overview Implementation UNIX collector executes the following commands to get the set of Logical processors available in different flavors of UNIX. RHEL and SUSE platforms : cat /proc/cpuinfo AIX platform : bindprocessor -q HP-UX platform : machinfo Sun. OS platform : uname -X 27 IBM Confidential
IBM Software Group | Tivoli Software num. Logical. CPU – UNIX output message 28 IBM Confidential
IBM Software Group | Tivoli Software num. Logical. CPU – UNIX Error message Precheck. log file 29 IBM Confidential
