Premi. Sys™ Product Overview

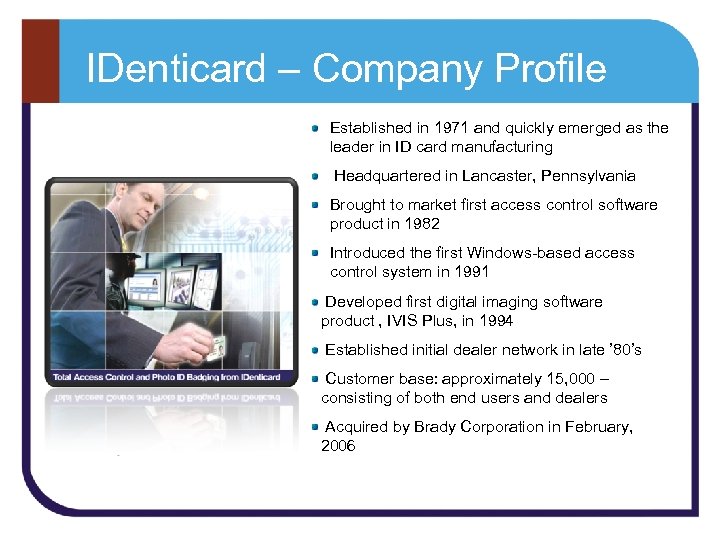

IDenticard – Company Profile Established in 1971 and quickly emerged as the leader in ID card manufacturing Headquartered in Lancaster, Pennsylvania Brought to market first access control software product in 1982 Introduced the first Windows-based access control system in 1991 Developed first digital imaging software product , IVIS Plus, in 1994 Established initial dealer network in late ’ 80’s Customer base: approximately 15, 000 – consisting of both end users and dealers Acquired by Brady Corporation in February, 2006

About Brady Corporation Founded in 1914 and is headquartered in Milwaukee, WI Operations in 26 countries with over 9000 employees Over $1. 5 Billion in Sales Revenue for fiscal ’ 11 Brady’s business – Identify & protect premises, products & people Major product lines provided include facility identification and security, safety & complementary products, wire identification products & people identification. Products provided to the OEM market include high performance identification products for printed circuit boards and precision die-cut components for mobile telecommunications devices and hard disk drives

Additional Brady Security Group Companies - Visitor Management Products – Self Expiring Badges – Badging Accessories Tiscor – Automated documentation of Life Safety equipment inspections

Premi. Sys™ Access Control and Premi. Sys ID™

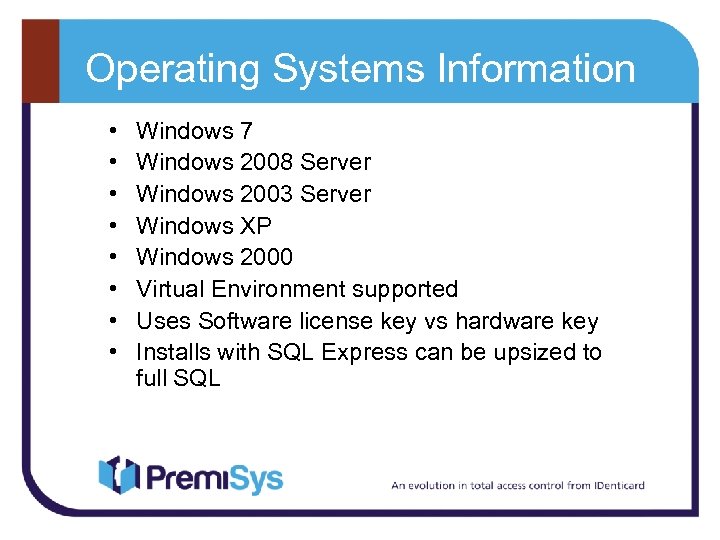

Operating Systems Information • • Windows 7 Windows 2008 Server Windows 2003 Server Windows XP Windows 2000 Virtual Environment supported Uses Software license key vs hardware key Installs with SQL Express can be upsized to full SQL

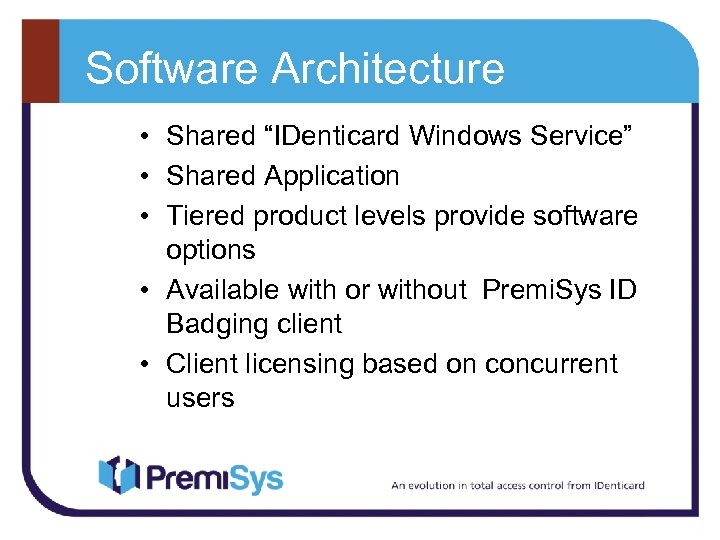

Software Architecture • Shared “IDenticard Windows Service” • Shared Application • Tiered product levels provide software options • Available with or without Premi. Sys ID Badging client • Client licensing based on concurrent users

Licensing • • A Premi. Sys. ID client is required for card printing A Premi. Sys client can perform all other functions allowed by the feature set of both Premi. Sys and Premi. Sys ID Badging Station Guard Station

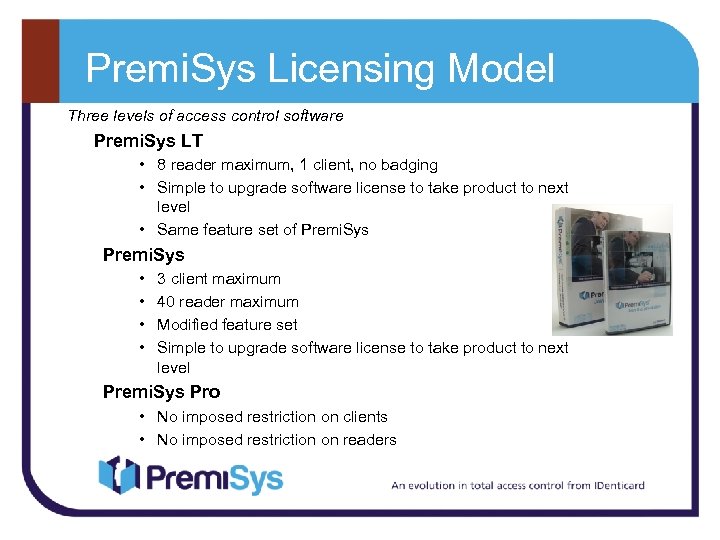

Premi. Sys Licensing Model Three levels of access control software Premi. Sys LT • 8 reader maximum, 1 client, no badging • Simple to upgrade software license to take product to next level • Same feature set of Premi. Sys • • 3 client maximum 40 reader maximum Modified feature set Simple to upgrade software license to take product to next level Premi. Sys Pro • No imposed restriction on clients • No imposed restriction on readers

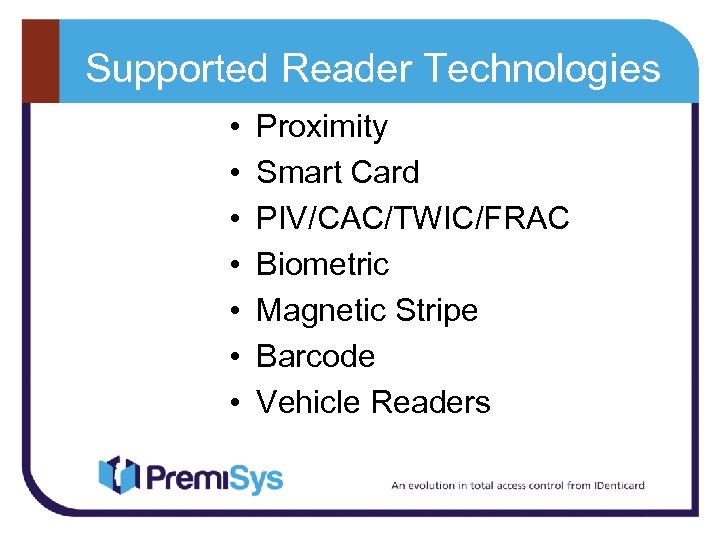

Supported Reader Technologies • • Proximity Smart Card PIV/CAC/TWIC/FRAC Biometric Magnetic Stripe Barcode Vehicle Readers

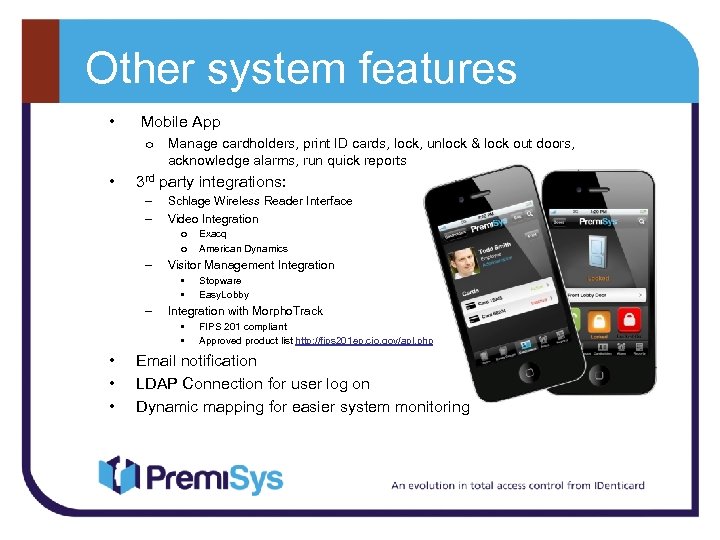

Other system features • Mobile App o Manage cardholders, print ID cards, lock, unlock & lock out doors, acknowledge alarms, run quick reports • 3 rd party integrations: – – Schlage Wireless Reader Interface Video Integration o o – Visitor Management Integration • • – Stopware Easy. Lobby Integration with Morpho. Track • • • Exacq American Dynamics FIPS 201 compliant Approved product list http: //fips 201 ep. cio. gov/apl. php Email notification LDAP Connection for user log on Dynamic mapping for easier system monitoring

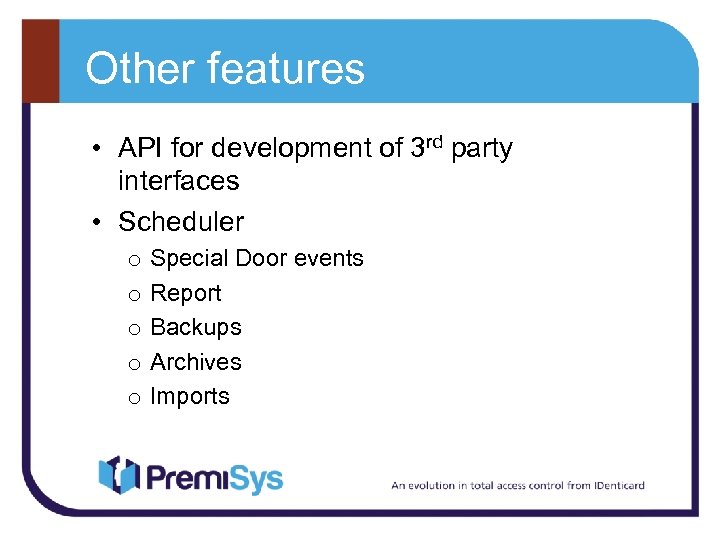

Other features • API for development of 3 rd party interfaces • Scheduler o o o Special Door events Report Backups Archives Imports

Hardware Overview There are two types of Hardware Controllers- Microprocessor board with on board ethernet connectivity, memory retains all cardholder access information and makes all decisions for devices connected to it SIO Boards- Serial interface boards connect to controllers via 2 wire 485 communications providing connections for readers, inputs and outputs

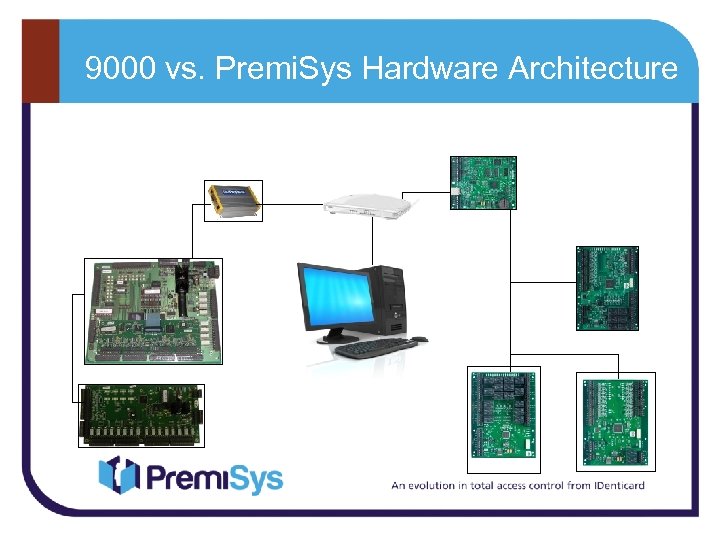

9000 vs. Premi. Sys Hardware Architecture

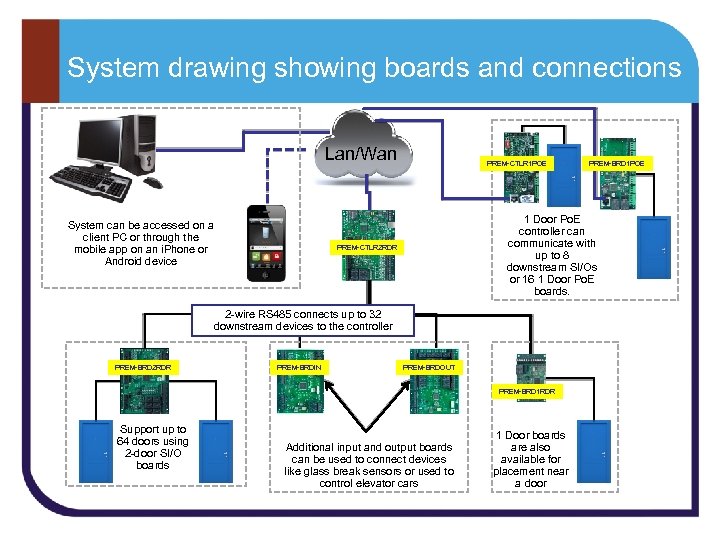

System drawing showing boards and connections Lan/Wan System can be accessed on a client PC or through the mobile app on an i. Phone or Android device PREM-CTLR 1 POE 1 Door Po. E controller can communicate with up to 8 downstream SI/Os or 16 1 Door Po. E boards. PREM-CTLR 2 RDR 2 -wire RS 485 connects up to 32 downstream devices to the controller PREM-BRD 2 RDR PREM-BRDIN PREM-BRDOUT PREM-BRD 1 RDR Support up to 64 doors using 2 -door SI/O boards PREM-BRD 1 POE Additional input and output boards can be used to connect devices like glass break sensors or used to control elevator cars 1 Door boards are also available for placement near a door

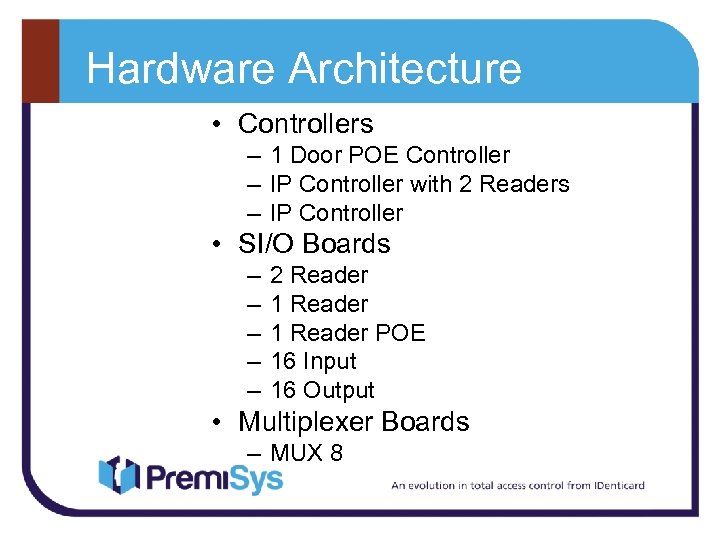

Hardware Architecture • Controllers – 1 Door POE Controller – IP Controller with 2 Readers – IP Controller • SI/O Boards – – – 2 Reader 1 Reader POE 16 Input 16 Output • Multiplexer Boards – MUX 8

One Door POE Controller • • • Communications with the host PC are via Category 5 Ethernet cable, through a network. The controller can communicate via RS-485 to 8 downstream I/O boards A total of 17 doors are supported (1 built in and 16 downstream) Includes 2 reader ports (controls 1 door) • The 2 nd reader port is used: • • To communicate with downstream I/O boards As an ‘Out’ reader Supports over 100, 000 active cardholders Can be utilized in upgrading existing IDenti. PASS systems supporting 16 downstream readers

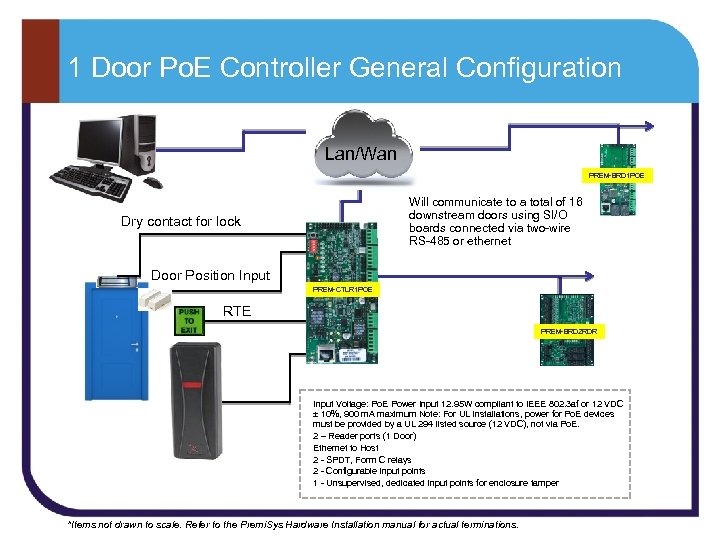

1 Door Po. E Controller General Configuration Lan/Wan PREM-BRD 1 POE Will communicate to a total of 16 downstream doors using SI/O boards connected via two-wire RS-485 or ethernet Dry contact for lock Door Position Input PREM-CTLR 1 POE RTE PREM-BRD 2 RDR Input Voltage: Po. E Power Input 12. 95 W compliant to IEEE 802. 3 af or 12 VDC ± 10%, 900 m. A maximum Note: For UL installations, power for Po. E devices must be provided by a UL 294 listed source (12 VDC), not via Po. E. 2 – Reader ports (1 Door) Ethernet to Host 2 - SPDT, Form C relays 2 - Configurable input points 1 - Unsupervised, dedicated input points for enclosure tamper *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations.

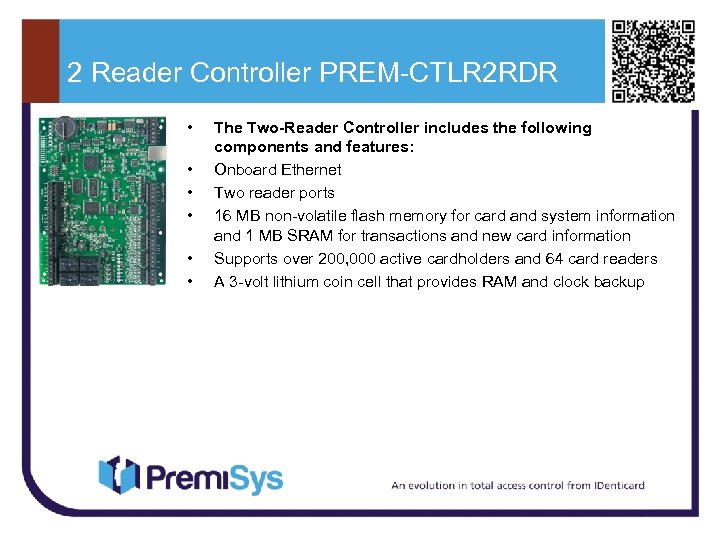

2 Reader Controller PREM-CTLR 2 RDR • • • The Two-Reader Controller includes the following components and features: Onboard Ethernet Two reader ports 16 MB non-volatile flash memory for card and system information and 1 MB SRAM for transactions and new card information Supports over 200, 000 active cardholders and 64 card readers A 3 -volt lithium coin cell that provides RAM and clock backup

2 Reader Controller General Configuration Lan/Wan Two-wire RS -485 to SI/O boards Dry contact for lock Door Position Input RTE PREM-CTLR 2 RDR Input Voltage: 12– 24 VDC± 10%, 500 m. A maximum(reader current not included) Card Reader Power: 12 VDC (10. 8 -13. 2 VDC) ± 10%, nominal or unregulated, current limited to 150 m. A for each reader OR 12 to 24 Vdc± 10%(pass-through voltage) current limited to 125 m. A for each reader 2 – Reader ports Ethernet or RS-232 to Host 4 - SPDT, Form C relays 8 - Input configurable input points 2 - Unsupervised, dedicated input points for enclosure tamper and power loss Supports up to 32 downstream SI/O boards *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations. PREM-BRD 2 RDR

IP Controller (PREM-CTLRIP) • • • The IP Controller includes the following components and features: Onboard Ethernet An alternate port for RS-232, RS-485 or a second Ethernet connection via a Network Card, allowing redundancy to the host in the event that the primary host-communications link is lost 16 MB non-volatile flash memory for card and system information and 1 MB SRAM for transactions and new card information Supports over 200, 000 active cardholders and 64 card readers 3 -volt lithium coin cell that provides RAM and clock backup

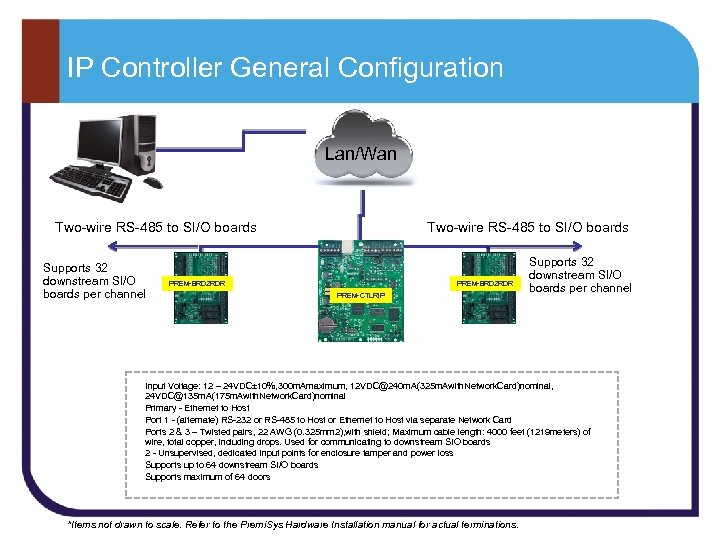

IP Controller General Configuration Lan/Wan Two-wire RS-485 to SI/O boards Supports 32 downstream SI/O boards per channel Two-wire RS-485 to SI/O boards PREM-BRD 2 RDR PREM-CTLRIP Supports 32 downstream SI/O boards per channel Input Voltage: 12 – 24 VDC± 10%, 300 m. Amaximum, 12 VDC@240 m. A(325 m. Awith. Network. Card)nominal, 24 VDC@135 m. A(175 m. Awith. Network. Card)nominal Primary - Ethernet to Host Port 1 - (alternate) RS-232 or RS-485 to Host or Ethernet to Host via separate Network Card Ports 2 & 3 – Twisted pairs, 22 AWG (0. 325 mm 2), with shield; Maximum cable length: 4000 feet (1219 meters) of wire, total copper, including drops. Used for communicating to downstream SIO boards 2 - Unsupervised, dedicated input points for enclosure tamper and power loss Supports up to 64 downstream SI/O boards Supports maximum of 64 doors *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations.

2 Reader Board (PREM-BRD 2 RDR) • • • Uses two-wire RS-485 to communicate upstream The Two-Reader Board can be housed in a sturdy and optionally lockable enclosure with its controller and/or other components The Two-Reader Board includes the following components: o Six relays configurable for normally open or normally closed operation o Eight general-purpose input points that can be supervised or not to serve as door-input points, request-to-exit points, etc. o Two dedicated input points for monitoring power loss to the board and enclosure tampering o A DIP switch for addressing the board and setting other parameters o LEDs to indicate board and relay status

2 Reader Board General Configuration Lan/Wan PREM-CTLR 2 RDR Two-wire RS-485 to controller PREM-BRD 2 RDR Input Voltage - 12 VDC ± 10%, 550 m. A peak (plus reader current), 450 m. A (plus Reader current) nominal 6 - SPDT, Form C relays 8 - Input configurable input points 2 - Unsupervised, dedicated input points for enclosure tamper and power loss *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations.

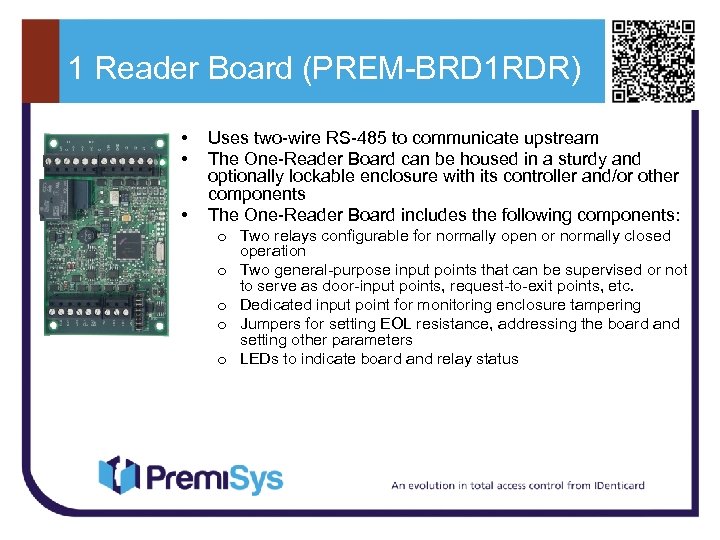

1 Reader Board (PREM-BRD 1 RDR) • • • Uses two-wire RS-485 to communicate upstream The One-Reader Board can be housed in a sturdy and optionally lockable enclosure with its controller and/or other components The One-Reader Board includes the following components: o Two relays configurable for normally open or normally closed operation o Two general-purpose input points that can be supervised or not to serve as door-input points, request-to-exit points, etc. o Dedicated input point for monitoring enclosure tampering o Jumpers for setting EOL resistance, addressing the board and setting other parameters o LEDs to indicate board and relay status

One Door Reader Board General Configuration Lan/Wan PREM-CTLR 2 RDR Two-wire RS-485 to controller PREM-BRD 1 RDR Input Voltage - 12 VDC ± 10%, 150 m. A peak (plus reader current), 110 m. A (plus reader current) nominal Card Reader Power - 12 VDC ± 10%(input voltage passed through) 2 Form C, SPDT Relays - K 1: 5 A at 28 VDC, K 2: 1 A at 28 VDC 2 input points - end-of-line (EOL) resistors, 1 K/2 K ohm 1%, ¼ watt standard 1 - Unsupervised, dedicated input points for enclosure tamper *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations.

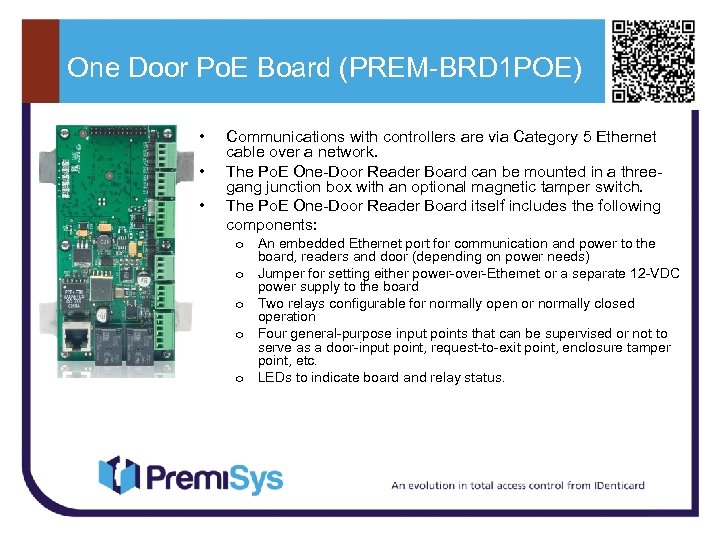

One Door Po. E Board (PREM-BRD 1 POE) • • • Communications with controllers are via Category 5 Ethernet cable over a network. The Po. E One-Door Reader Board can be mounted in a threegang junction box with an optional magnetic tamper switch. The Po. E One-Door Reader Board itself includes the following components: o An embedded Ethernet port for communication and power to the board, readers and door (depending on power needs) o Jumper for setting either power-over-Ethernet or a separate 12 -VDC power supply to the board o Two relays configurable for normally open or normally closed operation o Four general-purpose input points that can be supervised or not to serve as a door-input point, request-to-exit point, enclosure tamper point, etc. o LEDs to indicate board and relay status.

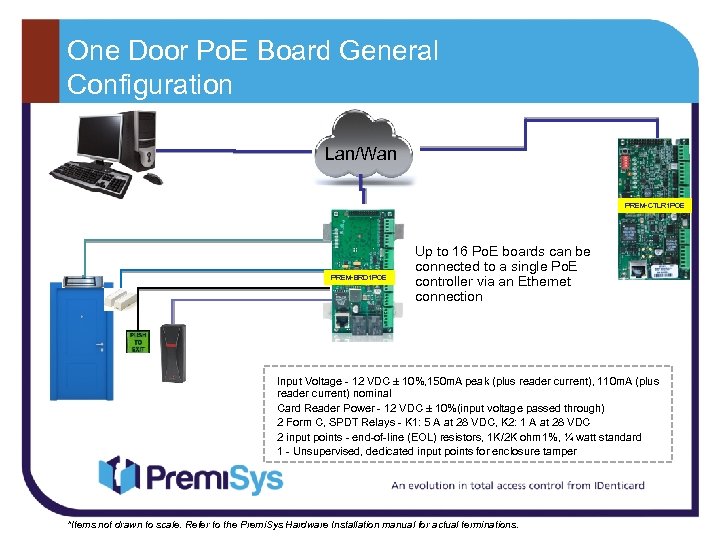

One Door Po. E Board General Configuration Lan/Wan PREM-CTLR 1 POE PREM-BRD 1 POE Up to 16 Po. E boards can be connected to a single Po. E controller via an Ethernet connection Input Voltage - 12 VDC ± 10%, 150 m. A peak (plus reader current), 110 m. A (plus reader current) nominal Card Reader Power - 12 VDC ± 10%(input voltage passed through) 2 Form C, SPDT Relays - K 1: 5 A at 28 VDC, K 2: 1 A at 28 VDC 2 input points - end-of-line (EOL) resistors, 1 K/2 K ohm 1%, ¼ watt standard 1 - Unsupervised, dedicated input points for enclosure tamper *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations.

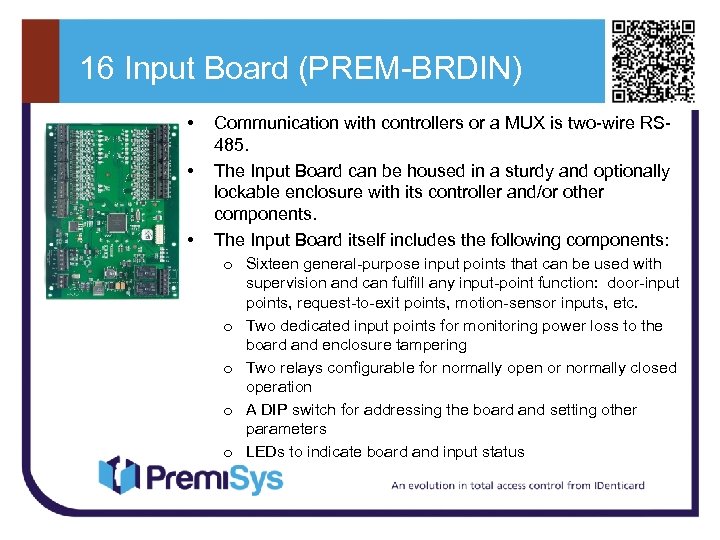

16 Input Board (PREM-BRDIN) • • • Communication with controllers or a MUX is two-wire RS 485. The Input Board can be housed in a sturdy and optionally lockable enclosure with its controller and/or other components. The Input Board itself includes the following components: o Sixteen general-purpose input points that can be used with supervision and can fulfill any input-point function: door-input points, request-to-exit points, motion-sensor inputs, etc. o Two dedicated input points for monitoring power loss to the board and enclosure tampering o Two relays configurable for normally open or normally closed operation o A DIP switch for addressing the board and setting other parameters o LEDs to indicate board and input status

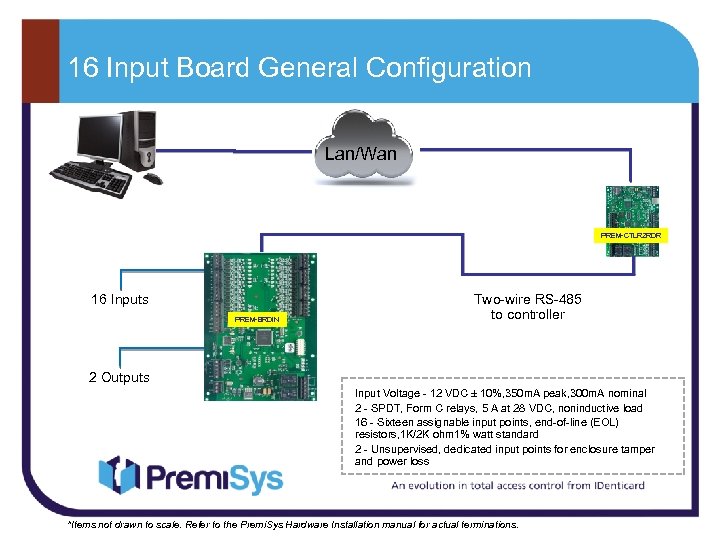

16 Input Board General Configuration Lan/Wan PREM-CTLR 2 RDR 16 Inputs PREM-BRDIN Two-wire RS-485 to controller 2 Outputs Input Voltage - 12 VDC ± 10%, 350 m. A peak, 300 m. A nominal 2 - SPDT, Form C relays, 5 A at 28 VDC, noninductive load 16 - Sixteen assignable input points, end-of-line (EOL) resistors, 1 K/2 K ohm 1% watt standard 2 - Unsupervised, dedicated input points for enclosure tamper and power loss *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations.

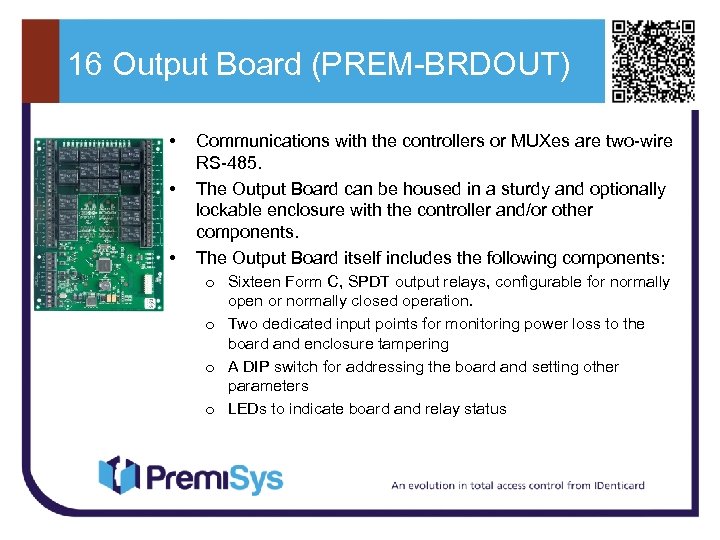

16 Output Board (PREM-BRDOUT) • • • Communications with the controllers or MUXes are two-wire RS-485. The Output Board can be housed in a sturdy and optionally lockable enclosure with the controller and/or other components. The Output Board itself includes the following components: o Sixteen Form C, SPDT output relays, configurable for normally open or normally closed operation. o Two dedicated input points for monitoring power loss to the board and enclosure tampering o A DIP switch for addressing the board and setting other parameters o LEDs to indicate board and relay status

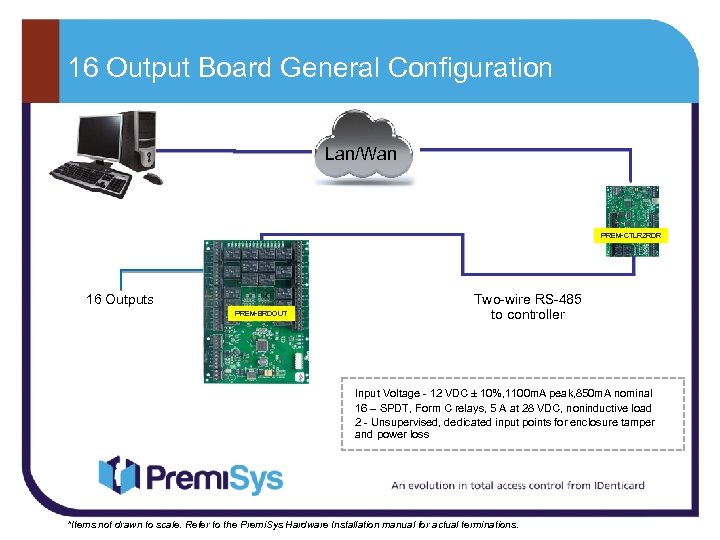

16 Output Board General Configuration Lan/Wan PREM-CTLR 2 RDR 16 Outputs PREM-BRDOUT Two-wire RS-485 to controller Input Voltage - 12 VDC ± 10%, 1100 m. A peak, 850 m. A nominal 16 – SPDT, Form C relays, 5 A at 28 VDC, noninductive load 2 - Unsupervised, dedicated input points for enclosure tamper and power loss *Items not drawn to scale. Refer to the Premi. Sys Hardware Installation manual for actual terminations.

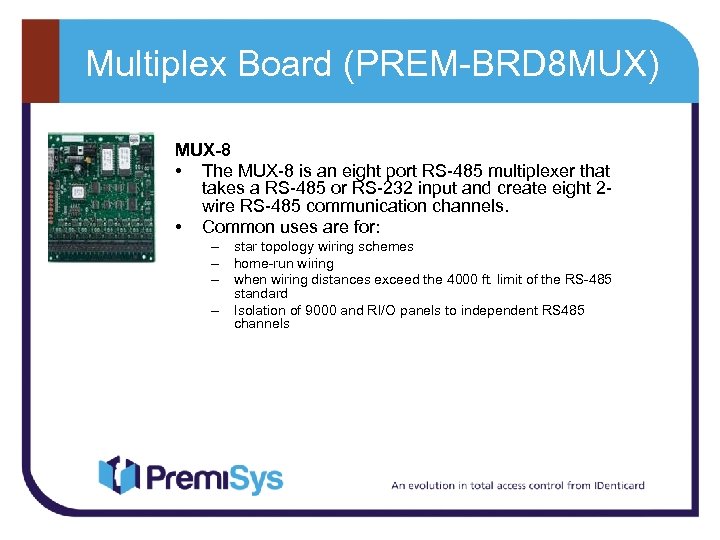

Multiplex Board (PREM-BRD 8 MUX) MUX-8 • The MUX-8 is an eight port RS-485 multiplexer that takes a RS-485 or RS-232 input and create eight 2 wire RS-485 communication channels. • Common uses are for: – star topology wiring schemes – home-run wiring – when wiring distances exceed the 4000 ft. limit of the RS-485 standard – Isolation of 9000 and RI/O panels to independent RS 485 channels

Controller – MUX – SI/O’s Lan/Wan PREM-CTLR 2 RDR PREM-BRD 8 MUX Use the MUX for up to 8 downstream 2 -wire RS 485 channels of communication.

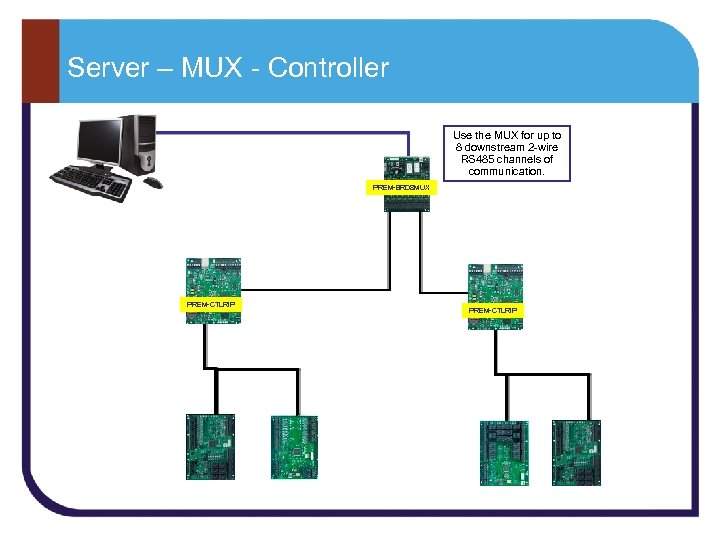

Server – MUX - Controller Use the MUX for up to 8 downstream 2 -wire RS 485 channels of communication. PREM-BRD 8 MUX PREM-CTLRIP

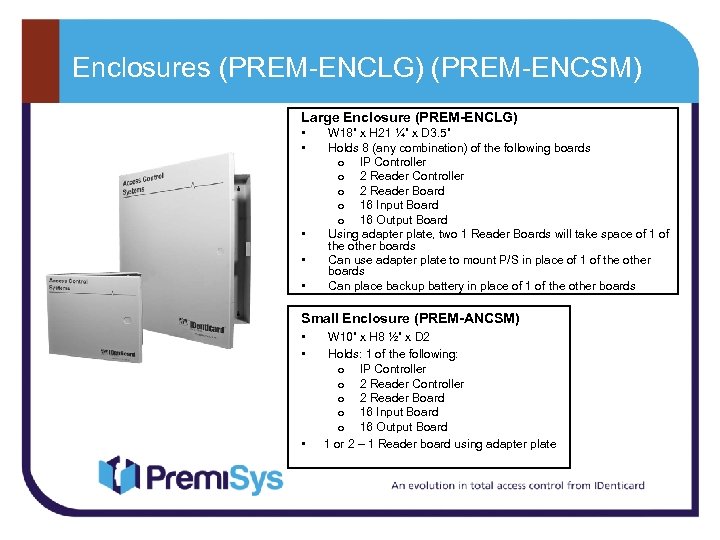

Enclosures (PREM-ENCLG) (PREM-ENCSM) Large Enclosure (PREM-ENCLG) • • • W 18” x H 21 ¼” x D 3. 5” Holds 8 (any combination) of the following boards o IP Controller o 2 Reader Board o 16 Input Board o 16 Output Board Using adapter plate, two 1 Reader Boards will take space of 1 of the other boards Can use adapter plate to mount P/S in place of 1 of the other boards Can place backup battery in place of 1 of the other boards Small Enclosure (PREM-ANCSM) • • • W 10” x H 8 ½” x D 2 Holds: 1 of the following: o IP Controller o 2 Reader Board o 16 Input Board o 16 Output Board 1 or 2 – 1 Reader board using adapter plate
