Practical development Illustrated using the GAIUS windtunnel automation system By: Evert van de Waal Practical development Illustrated using the GAIUS windtunnel automation system By: Evert van de Waal Imtech ICT Technical Systems NWERC 2008 22 nov 2008

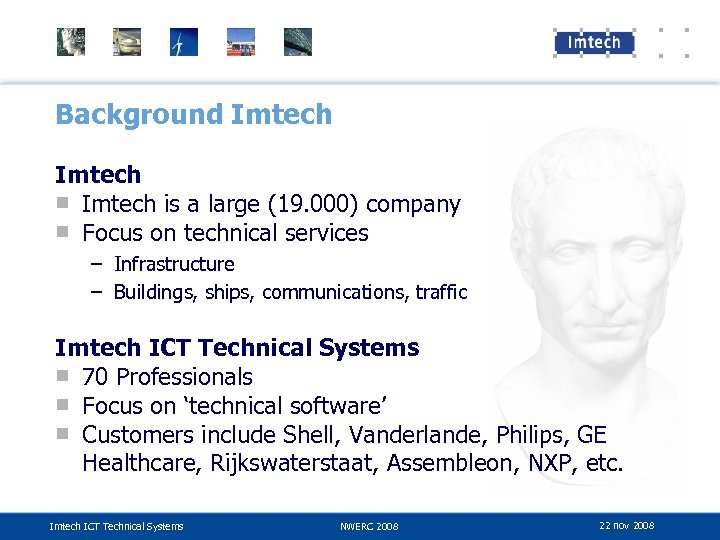

Background Imtech ■ Imtech is a large (19. 000) company ■ Focus on technical Background Imtech ■ Imtech is a large (19. 000) company ■ Focus on technical services – Infrastructure – Buildings, ships, communications, traffic Imtech ICT Technical Systems ■ 70 Professionals ■ Focus on ‘technical software’ ■ Customers include Shell, Vanderlande, Philips, GE Healthcare, Rijkswaterstaat, Assembleon, NXP, etc. Imtech ICT Technical Systems NWERC 2008 22 nov 2008

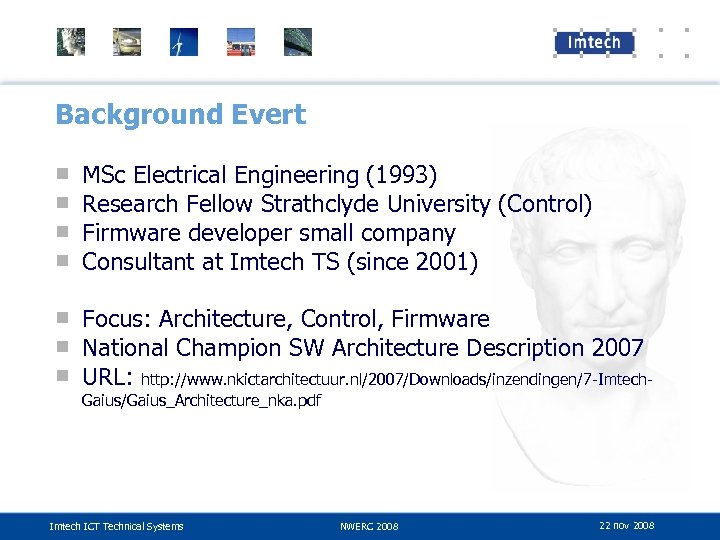

Background Evert ■ ■ MSc Electrical Engineering (1993) Research Fellow Strathclyde University (Control) Firmware Background Evert ■ ■ MSc Electrical Engineering (1993) Research Fellow Strathclyde University (Control) Firmware developer small company Consultant at Imtech TS (since 2001) ■ Focus: Architecture, Control, Firmware ■ National Champion SW Architecture Description 2007 ■ URL: http: //www. nkictarchitectuur. nl/2007/Downloads/inzendingen/7 -Imtech. Gaius/Gaius_Architecture_nka. pdf Imtech ICT Technical Systems NWERC 2008 22 nov 2008

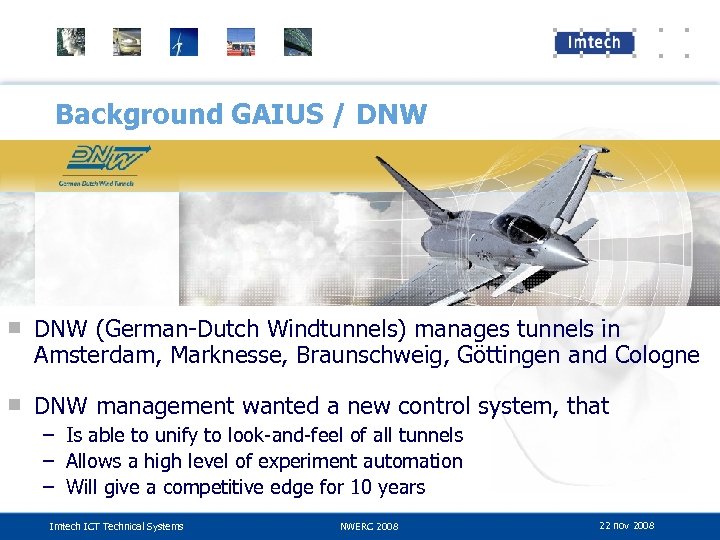

Background GAIUS / DNW ■ DNW (German-Dutch Windtunnels) manages tunnels in Amsterdam, Marknesse, Braunschweig, Background GAIUS / DNW ■ DNW (German-Dutch Windtunnels) manages tunnels in Amsterdam, Marknesse, Braunschweig, Göttingen and Cologne ■ DNW management wanted a new control system, that – Is able to unify to look-and-feel of all tunnels – Allows a high level of experiment automation – Will give a competitive edge for 10 years Imtech ICT Technical Systems NWERC 2008 22 nov 2008

Wind tunnel Structure Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Wind tunnel Structure Imtech ICT Technical Systems NWERC 2008 22 nov 2008

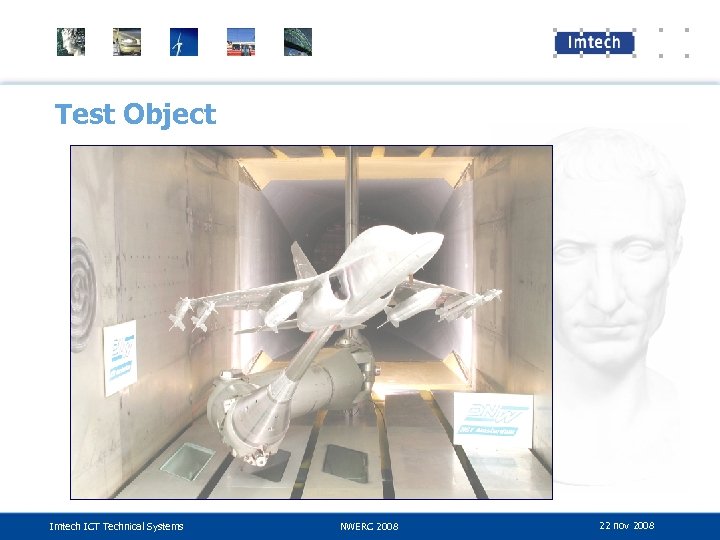

Test Object Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Test Object Imtech ICT Technical Systems NWERC 2008 22 nov 2008

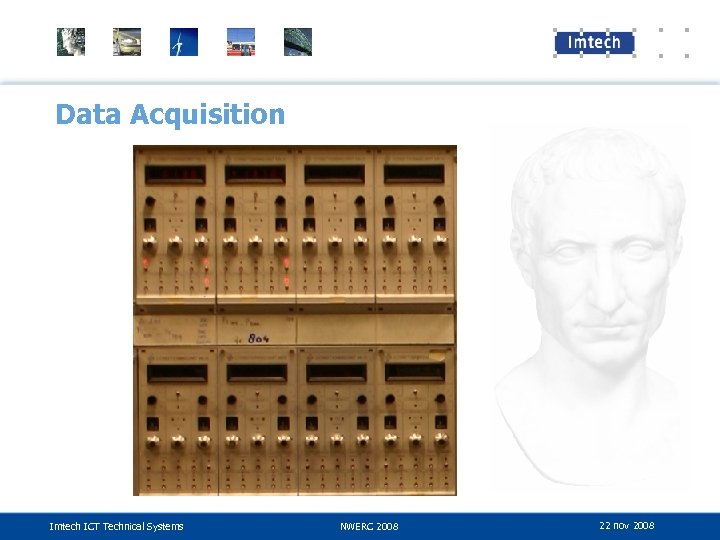

Data Acquisition Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Data Acquisition Imtech ICT Technical Systems NWERC 2008 22 nov 2008

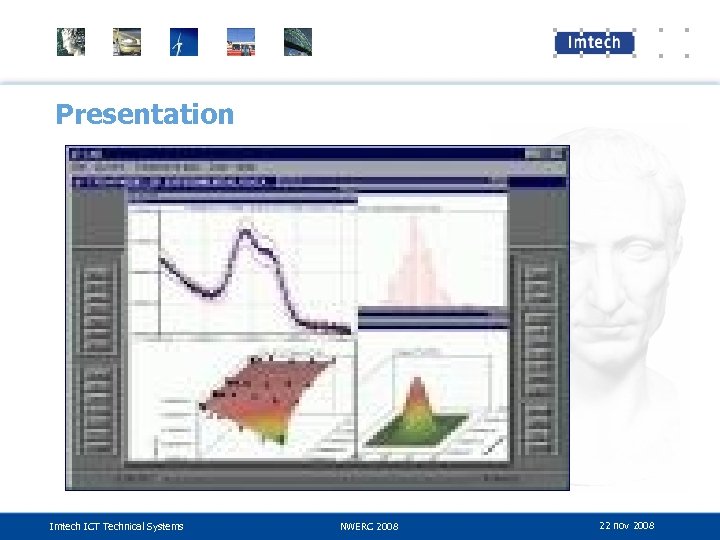

Presentation Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Presentation Imtech ICT Technical Systems NWERC 2008 22 nov 2008

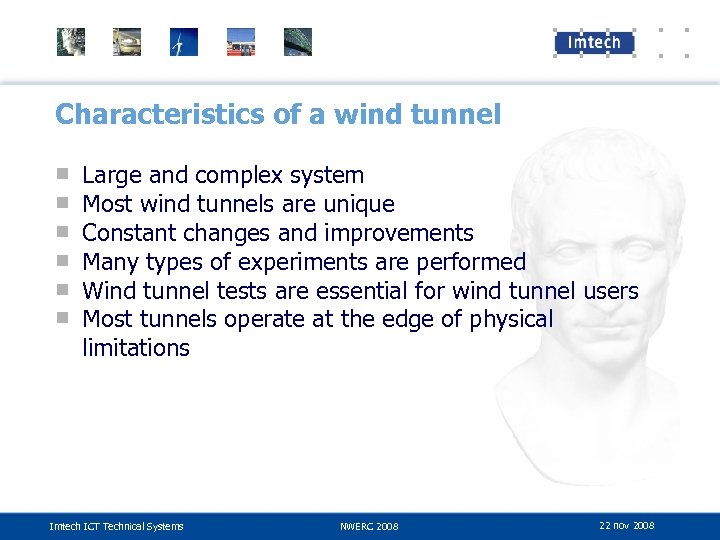

Characteristics of a wind tunnel ■ ■ ■ Large and complex system Most wind Characteristics of a wind tunnel ■ ■ ■ Large and complex system Most wind tunnels are unique Constant changes and improvements Many types of experiments are performed Wind tunnel tests are essential for wind tunnel users Most tunnels operate at the edge of physical limitations Imtech ICT Technical Systems NWERC 2008 22 nov 2008

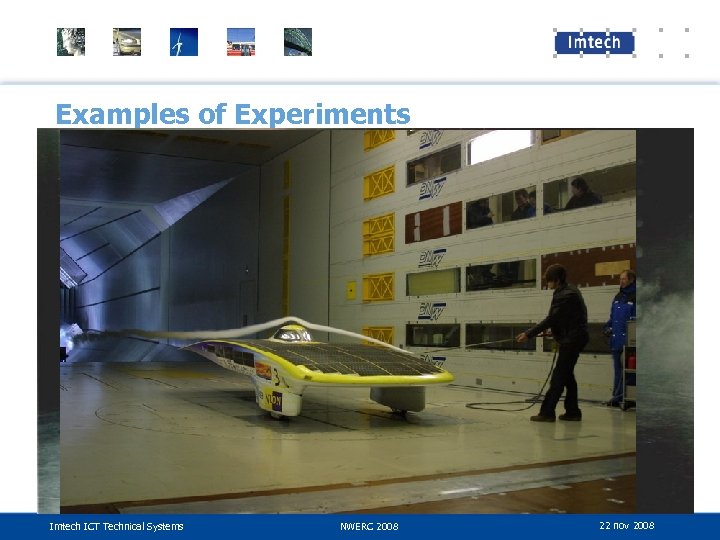

Examples of Experiments Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Examples of Experiments Imtech ICT Technical Systems NWERC 2008 22 nov 2008

Wind tunnel Characteristics: Dutch Tunnels: ■ Amsterdam HST: High Speed: 1. 3 M, 2. Wind tunnel Characteristics: Dutch Tunnels: ■ Amsterdam HST: High Speed: 1. 3 M, 2. 0 x 1. 8 m, 0. 25 to 4 Bar, 16 MW ■ N-O Polder LLF: Large Low Speed: 80 m/s, 9. 5 x 9. 5 m, 20 MW ■ N-O Polder LST: Low Speed: 80 m/s, 3 x 2. 25 m, 700 KW Auxilery systems: ■ Pressurized air: 5 kg/s at 80 Bar ■ Positioningsystems: better than 0. 01 graden at 70 KNm ■ Moving belt for ground effects Data Acquisitioning: ■ ■ 1000+ presure sensors Microphone array for locating sound sources Camera for measuring color changes in pressure sensitive paint Laser / camera systems that track movement of oil droplets Imtech ICT Technical Systems NWERC 2008 22 nov 2008

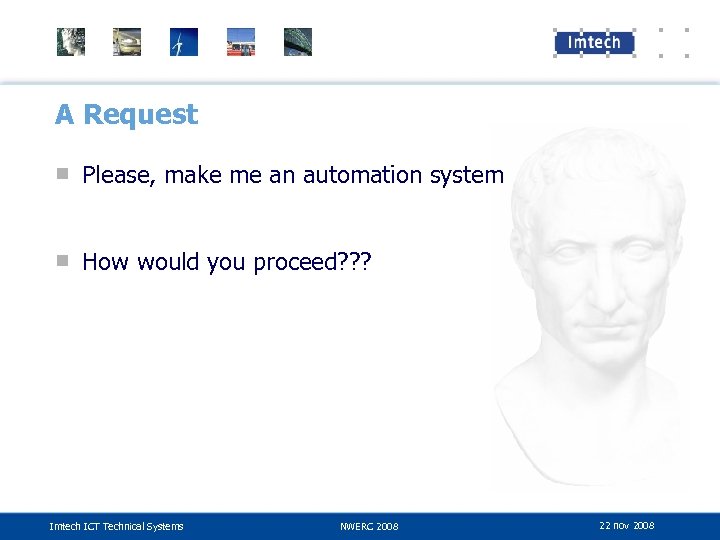

A Request ■ Please, make me an automation system ■ How would you proceed? A Request ■ Please, make me an automation system ■ How would you proceed? ? ? Imtech ICT Technical Systems NWERC 2008 22 nov 2008

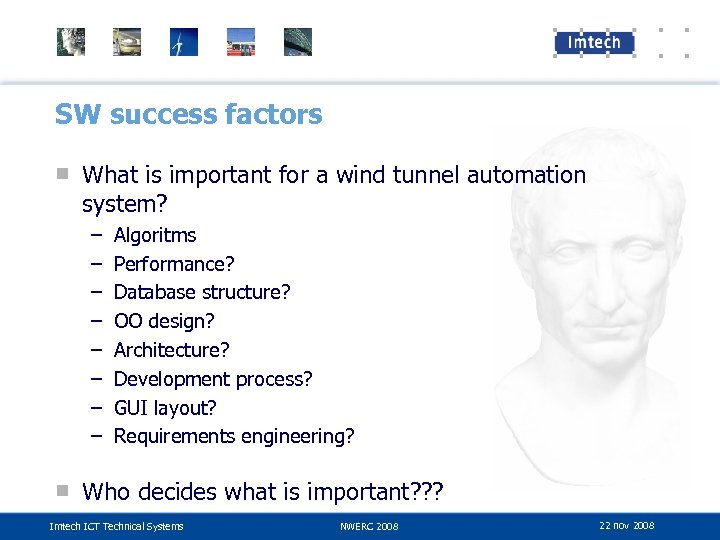

SW success factors ■ What is important for a wind tunnel automation system? – SW success factors ■ What is important for a wind tunnel automation system? – – – – Algoritms Performance? Database structure? OO design? Architecture? Development process? GUI layout? Requirements engineering? ■ Who decides what is important? ? ? Imtech ICT Technical Systems NWERC 2008 22 nov 2008

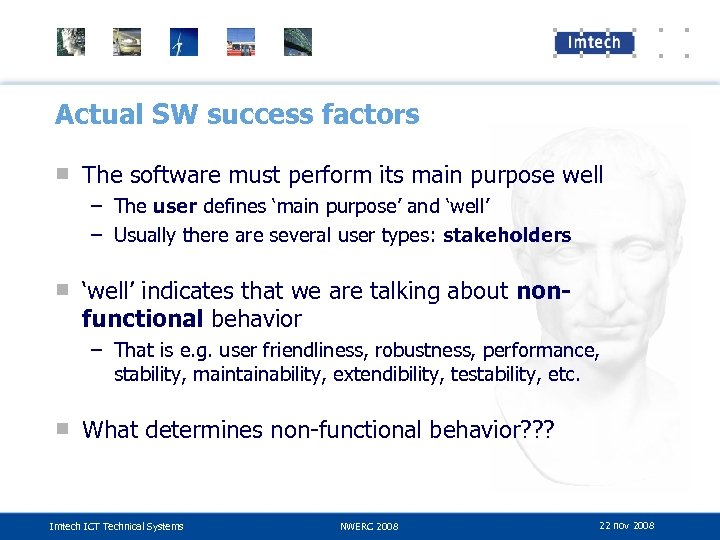

Actual SW success factors ■ The software must perform its main purpose well – Actual SW success factors ■ The software must perform its main purpose well – The user defines ‘main purpose’ and ‘well’ – Usually there are several user types: stakeholders ■ ‘well’ indicates that we are talking about nonfunctional behavior – That is e. g. user friendliness, robustness, performance, stability, maintainability, extendibility, testability, etc. ■ What determines non-functional behavior? ? ? Imtech ICT Technical Systems NWERC 2008 22 nov 2008

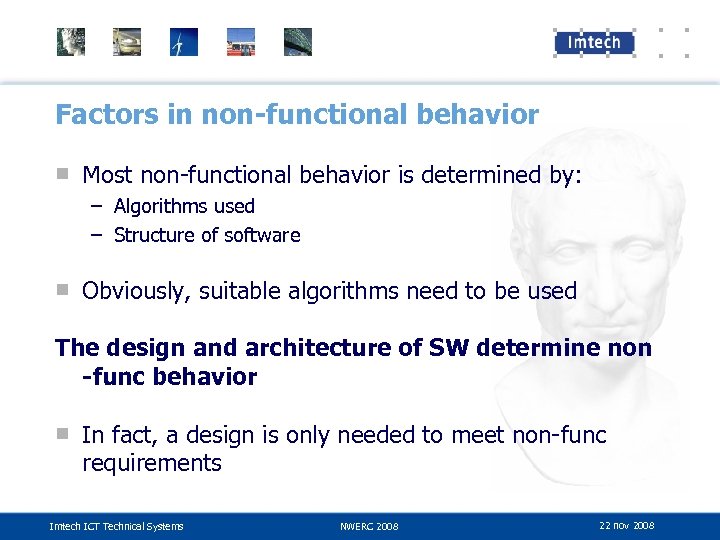

Factors in non-functional behavior ■ Most non-functional behavior is determined by: – Algorithms used Factors in non-functional behavior ■ Most non-functional behavior is determined by: – Algorithms used – Structure of software ■ Obviously, suitable algorithms need to be used The design and architecture of SW determine non -func behavior ■ In fact, a design is only needed to meet non-func requirements Imtech ICT Technical Systems NWERC 2008 22 nov 2008

Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Imtech ICT Technical Systems NWERC 2008 22 nov 2008

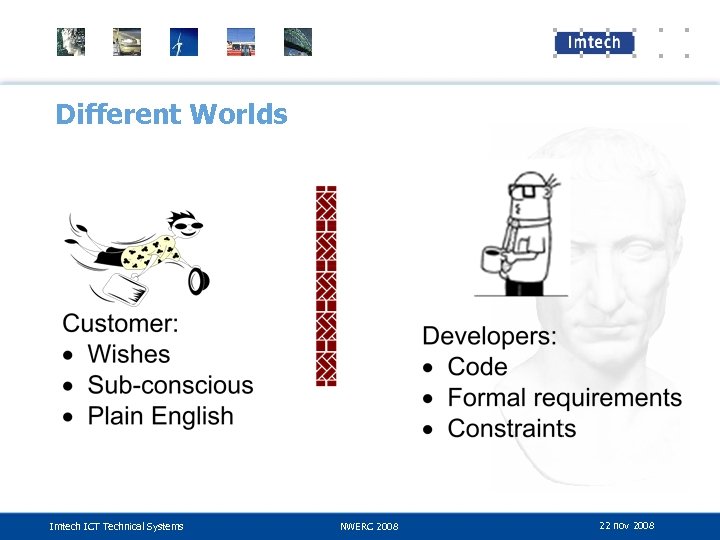

Different Worlds Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Different Worlds Imtech ICT Technical Systems NWERC 2008 22 nov 2008

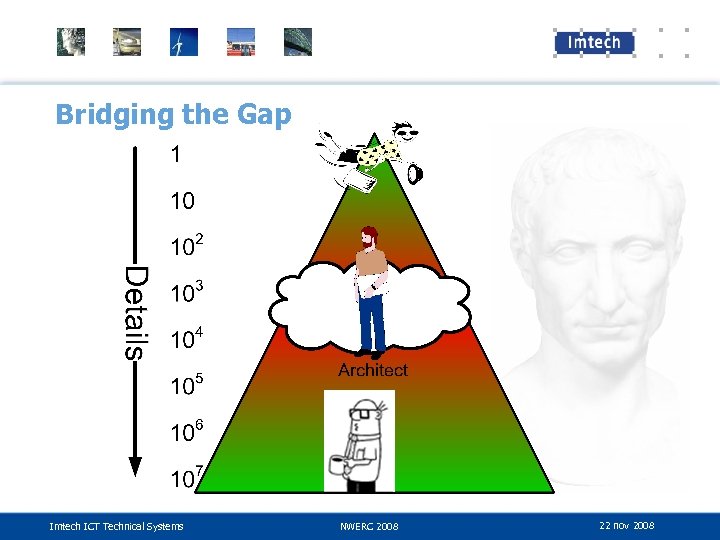

Bridging the Gap Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Bridging the Gap Imtech ICT Technical Systems NWERC 2008 22 nov 2008

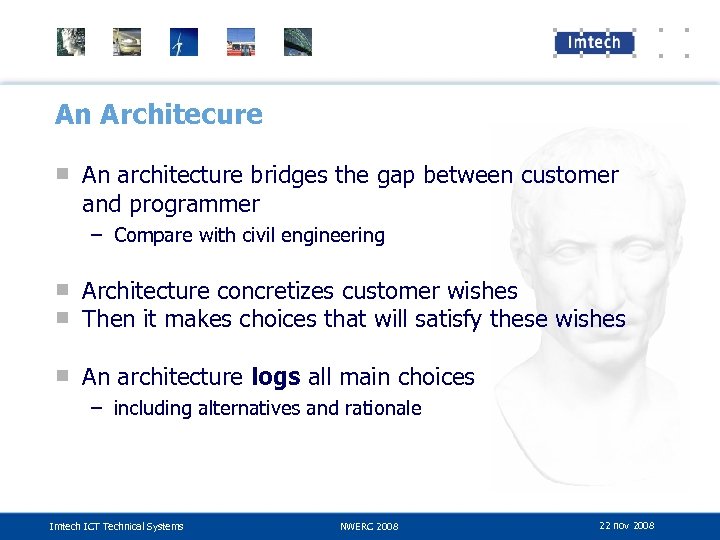

An Architecure ■ An architecture bridges the gap between customer and programmer – Compare An Architecure ■ An architecture bridges the gap between customer and programmer – Compare with civil engineering ■ Architecture concretizes customer wishes ■ Then it makes choices that will satisfy these wishes ■ An architecture logs all main choices – including alternatives and rationale Imtech ICT Technical Systems NWERC 2008 22 nov 2008

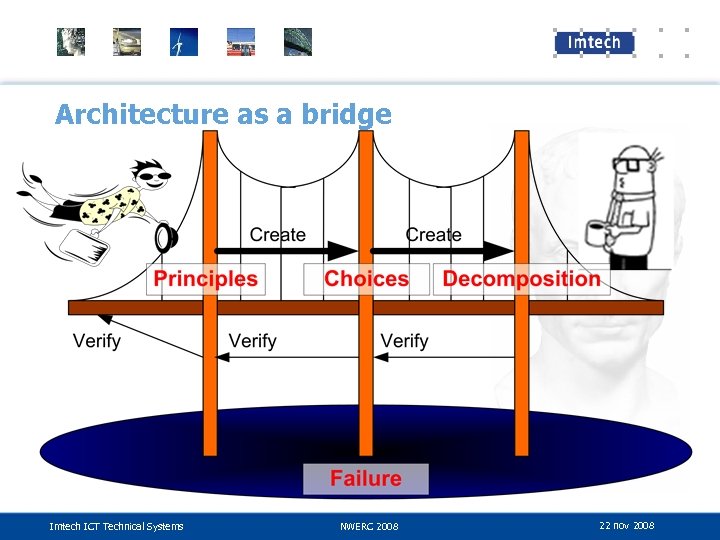

Architecture as a bridge Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Architecture as a bridge Imtech ICT Technical Systems NWERC 2008 22 nov 2008

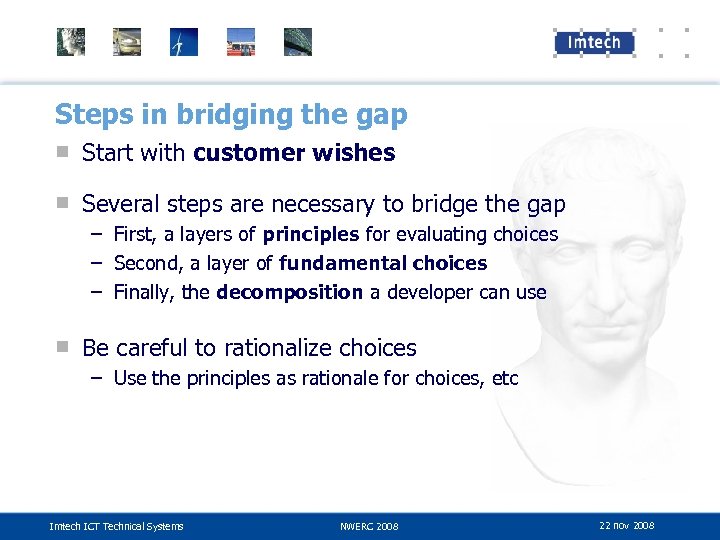

Steps in bridging the gap ■ Start with customer wishes ■ Several steps are Steps in bridging the gap ■ Start with customer wishes ■ Several steps are necessary to bridge the gap – First, a layers of principles for evaluating choices – Second, a layer of fundamental choices – Finally, the decomposition a developer can use ■ Be careful to rationalize choices – Use the principles as rationale for choices, etc Imtech ICT Technical Systems NWERC 2008 22 nov 2008

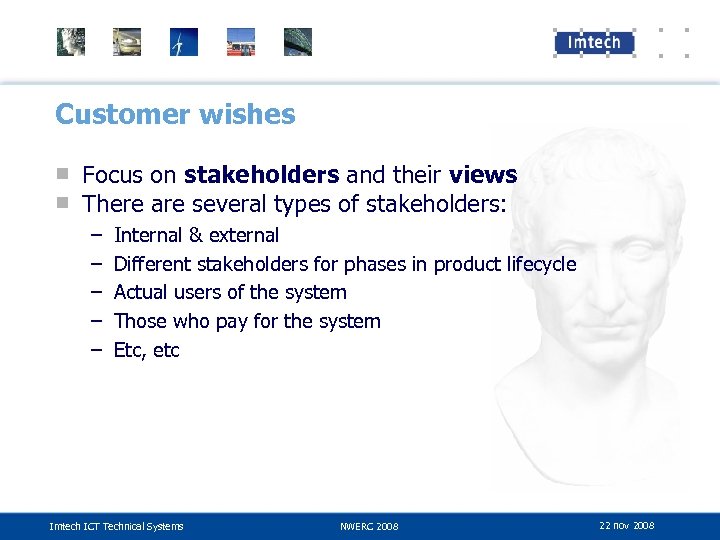

Customer wishes ■ Focus on stakeholders and their views ■ There are several types Customer wishes ■ Focus on stakeholders and their views ■ There are several types of stakeholders: – – – Internal & external Different stakeholders for phases in product lifecycle Actual users of the system Those who pay for the system Etc, etc Imtech ICT Technical Systems NWERC 2008 22 nov 2008

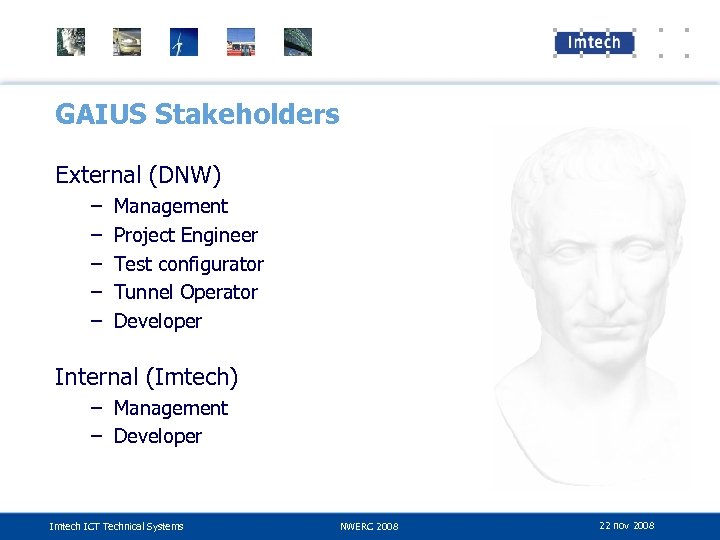

GAIUS Stakeholders External (DNW) – – – Management Project Engineer Test configurator Tunnel Operator GAIUS Stakeholders External (DNW) – – – Management Project Engineer Test configurator Tunnel Operator Developer Internal (Imtech) – Management – Developer Imtech ICT Technical Systems NWERC 2008 22 nov 2008

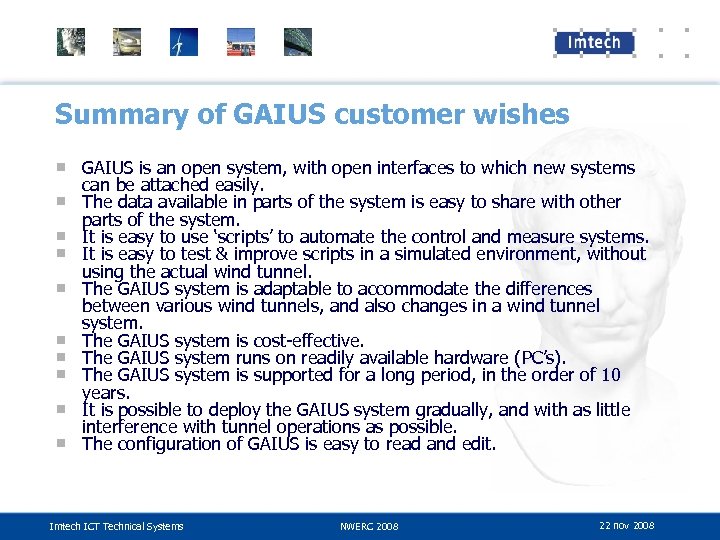

Summary of GAIUS customer wishes ■ GAIUS is an open system, with open interfaces Summary of GAIUS customer wishes ■ GAIUS is an open system, with open interfaces to which new systems can be attached easily. ■ The data available in parts of the system is easy to share with other parts of the system. ■ It is easy to use ‘scripts’ to automate the control and measure systems. ■ It is easy to test & improve scripts in a simulated environment, without using the actual wind tunnel. ■ The GAIUS system is adaptable to accommodate the differences between various wind tunnels, and also changes in a wind tunnel system. ■ The GAIUS system is cost-effective. ■ The GAIUS system runs on readily available hardware (PC’s). ■ The GAIUS system is supported for a long period, in the order of 10 years. ■ It is possible to deploy the GAIUS system gradually, and with as little interference with tunnel operations as possible. ■ The configuration of GAIUS is easy to read and edit. Imtech ICT Technical Systems NWERC 2008 22 nov 2008

GAIUS ? GAIUS refers to Gaius Julius Ceasar, one of the most famous dictators GAIUS ? GAIUS refers to Gaius Julius Ceasar, one of the most famous dictators in history. The ‘dictator’ (Latin for ‘someone who dictates orders’) was innovation in the Roman republic: a special magistrate with authority over regular magistrates. It was the most senior magistrate. The GAIUS software system was designed using this philosophy. Imtech ICT Technical Systems NWERC 2008 22 nov 2008

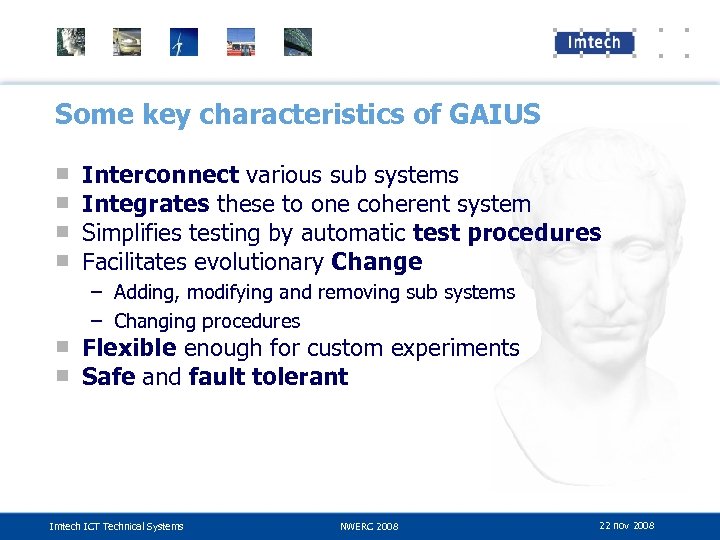

Some key characteristics of GAIUS ■ ■ Interconnect various sub systems Integrates these to Some key characteristics of GAIUS ■ ■ Interconnect various sub systems Integrates these to one coherent system Simplifies testing by automatic test procedures Facilitates evolutionary Change – Adding, modifying and removing sub systems – Changing procedures ■ Flexible enough for custom experiments ■ Safe and fault tolerant Imtech ICT Technical Systems NWERC 2008 22 nov 2008

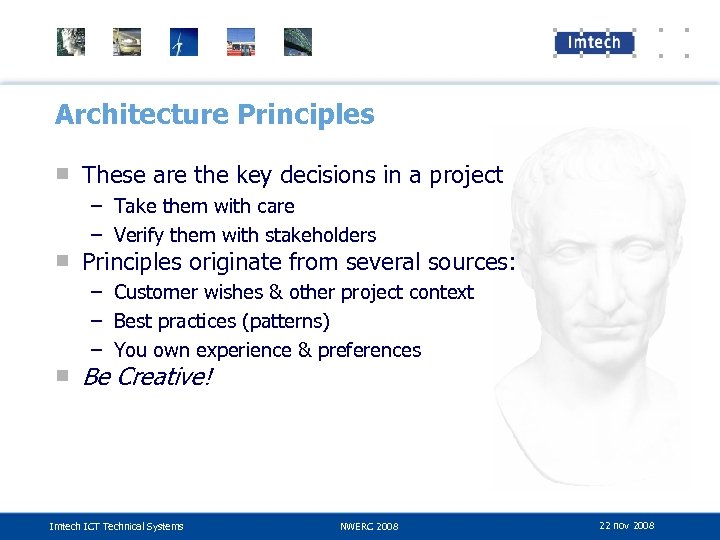

Architecture Principles ■ These are the key decisions in a project – Take them Architecture Principles ■ These are the key decisions in a project – Take them with care – Verify them with stakeholders ■ Principles originate from several sources: – Customer wishes & other project context – Best practices (patterns) – You own experience & preferences ■ Be Creative! Imtech ICT Technical Systems NWERC 2008 22 nov 2008

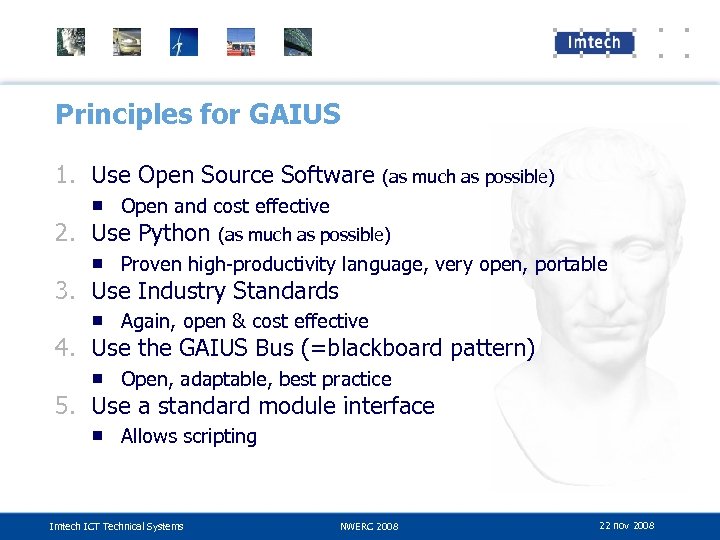

Principles for GAIUS 1. Use Open Source Software (as much as possible) ■ Open Principles for GAIUS 1. Use Open Source Software (as much as possible) ■ Open and cost effective 2. Use Python (as much as possible) ■ Proven high-productivity language, very open, portable 3. Use Industry Standards ■ Again, open & cost effective 4. Use the GAIUS Bus (=blackboard pattern) ■ Open, adaptable, best practice 5. Use a standard module interface ■ Allows scripting Imtech ICT Technical Systems NWERC 2008 22 nov 2008

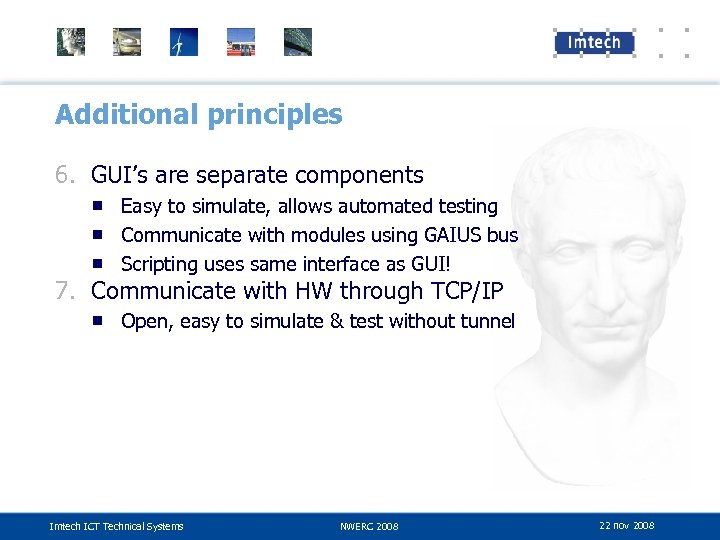

Additional principles 6. GUI’s are separate components ■ Easy to simulate, allows automated testing Additional principles 6. GUI’s are separate components ■ Easy to simulate, allows automated testing ■ Communicate with modules using GAIUS bus ■ Scripting uses same interface as GUI! 7. Communicate with HW through TCP/IP ■ Open, easy to simulate & test without tunnel Imtech ICT Technical Systems NWERC 2008 22 nov 2008

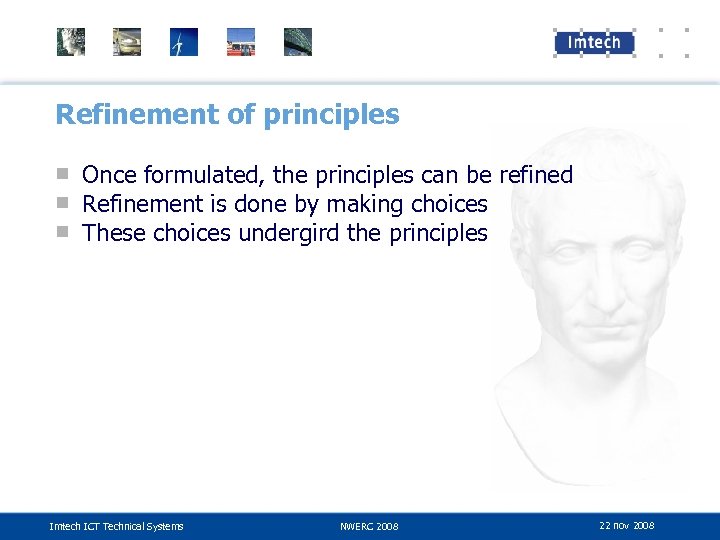

Refinement of principles ■ Once formulated, the principles can be refined ■ Refinement is Refinement of principles ■ Once formulated, the principles can be refined ■ Refinement is done by making choices ■ These choices undergird the principles Imtech ICT Technical Systems NWERC 2008 22 nov 2008

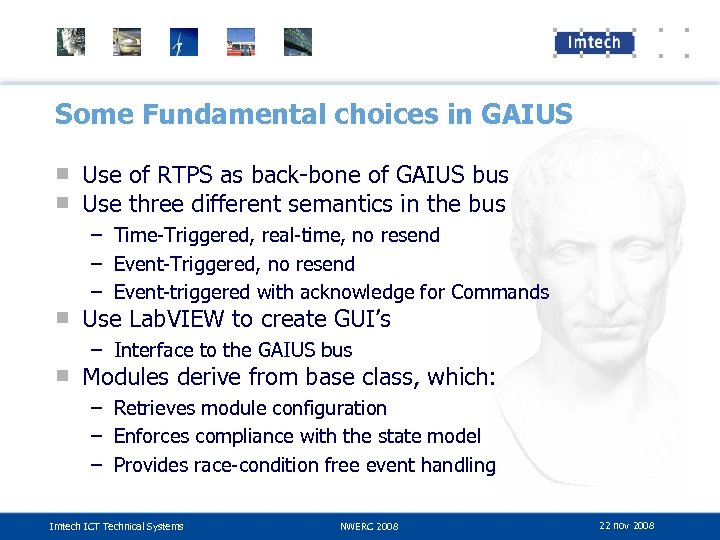

Some Fundamental choices in GAIUS ■ Use of RTPS as back-bone of GAIUS bus Some Fundamental choices in GAIUS ■ Use of RTPS as back-bone of GAIUS bus ■ Use three different semantics in the bus – Time-Triggered, real-time, no resend – Event-Triggered, no resend – Event-triggered with acknowledge for Commands ■ Use Lab. VIEW to create GUI’s – Interface to the GAIUS bus ■ Modules derive from base class, which: – Retrieves module configuration – Enforces compliance with the state model – Provides race-condition free event handling Imtech ICT Technical Systems NWERC 2008 22 nov 2008

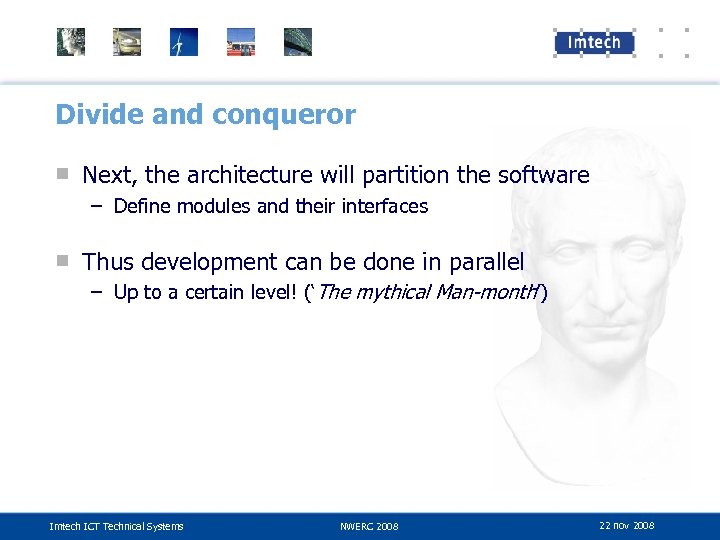

Divide and conqueror ■ Next, the architecture will partition the software – Define modules Divide and conqueror ■ Next, the architecture will partition the software – Define modules and their interfaces ■ Thus development can be done in parallel – Up to a certain level! (‘The mythical Man-month’) Imtech ICT Technical Systems NWERC 2008 22 nov 2008

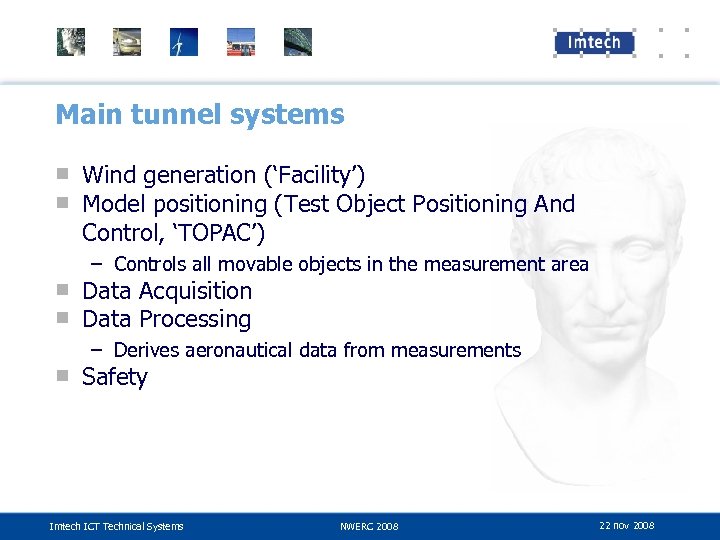

Main tunnel systems ■ Wind generation (‘Facility’) ■ Model positioning (Test Object Positioning And Main tunnel systems ■ Wind generation (‘Facility’) ■ Model positioning (Test Object Positioning And Control, ‘TOPAC’) – Controls all movable objects in the measurement area ■ Data Acquisition ■ Data Processing – Derives aeronautical data from measurements ■ Safety Imtech ICT Technical Systems NWERC 2008 22 nov 2008

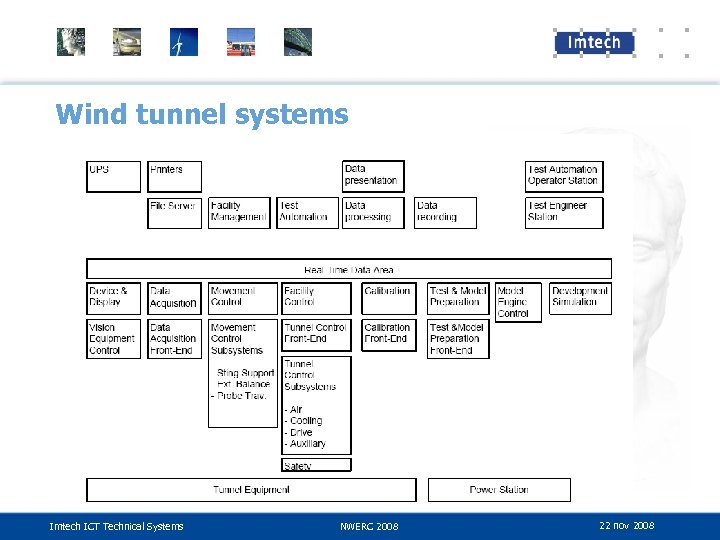

Wind tunnel systems Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Wind tunnel systems Imtech ICT Technical Systems NWERC 2008 22 nov 2008

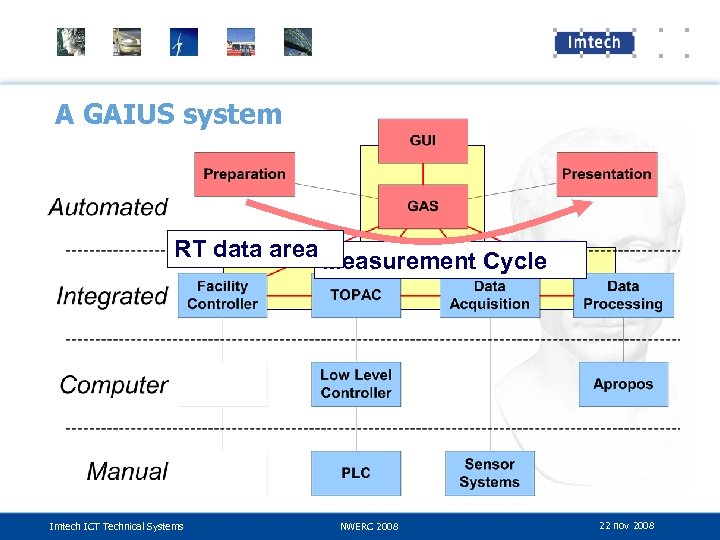

A GAIUS system RT data area Measurement Cycle Imtech ICT Technical Systems NWERC 2008 A GAIUS system RT data area Measurement Cycle Imtech ICT Technical Systems NWERC 2008 22 nov 2008

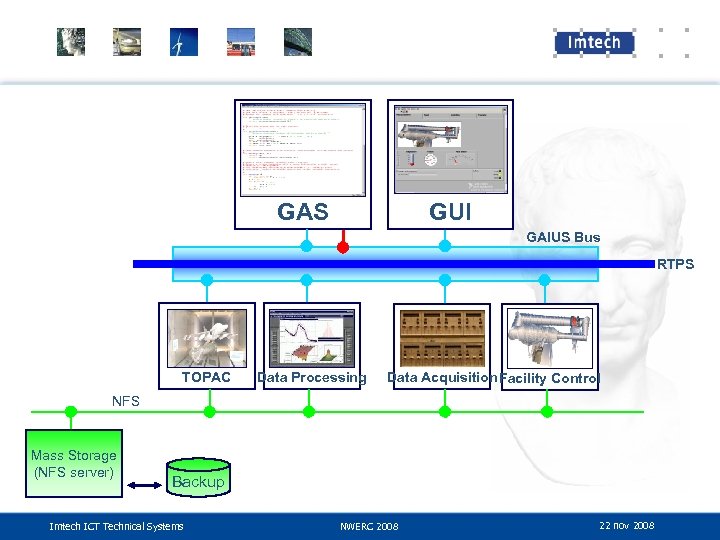

GAS GUI GAIUS Bus RTPS TOPAC Data Processing Data Acquisition Facility Control NFS Mass GAS GUI GAIUS Bus RTPS TOPAC Data Processing Data Acquisition Facility Control NFS Mass Storage (NFS server) Backup Imtech ICT Technical Systems NWERC 2008 22 nov 2008

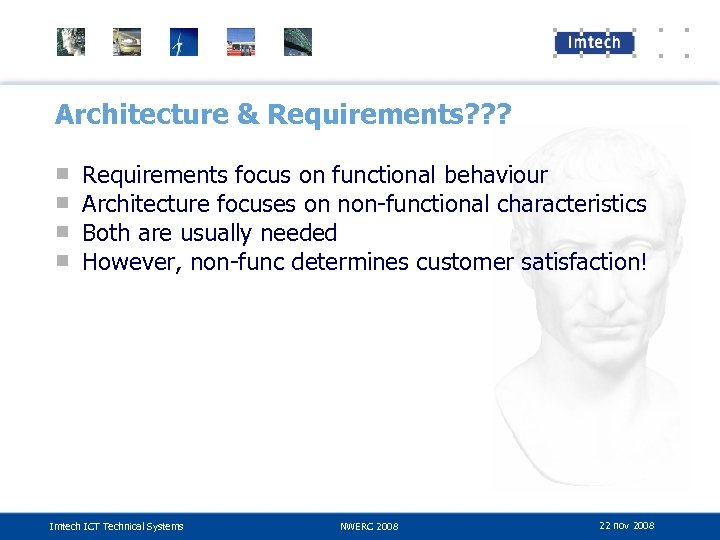

Architecture & Requirements? ? ? ■ ■ Requirements focus on functional behaviour Architecture focuses Architecture & Requirements? ? ? ■ ■ Requirements focus on functional behaviour Architecture focuses on non-functional characteristics Both are usually needed However, non-func determines customer satisfaction! Imtech ICT Technical Systems NWERC 2008 22 nov 2008

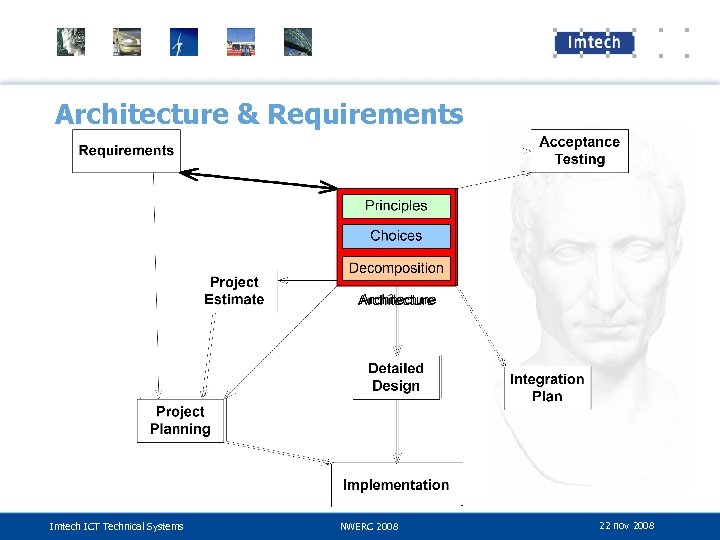

Architecture & Requirements Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Architecture & Requirements Imtech ICT Technical Systems NWERC 2008 22 nov 2008

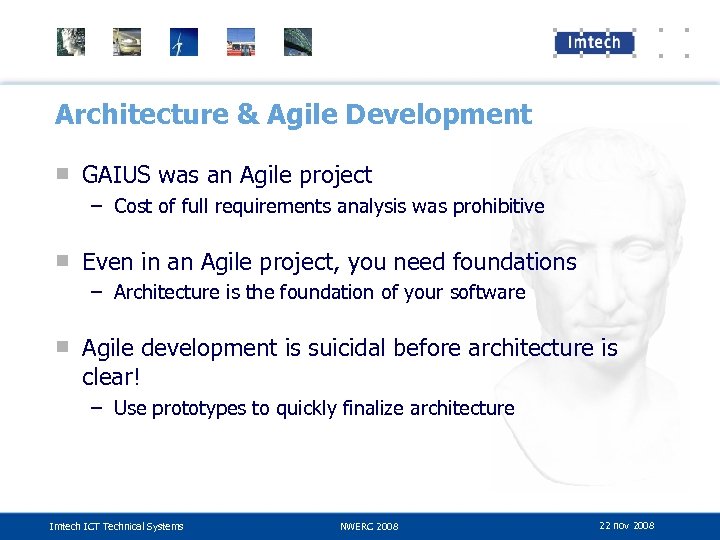

Architecture & Agile Development ■ GAIUS was an Agile project – Cost of full Architecture & Agile Development ■ GAIUS was an Agile project – Cost of full requirements analysis was prohibitive ■ Even in an Agile project, you need foundations – Architecture is the foundation of your software ■ Agile development is suicidal before architecture is clear! – Use prototypes to quickly finalize architecture Imtech ICT Technical Systems NWERC 2008 22 nov 2008

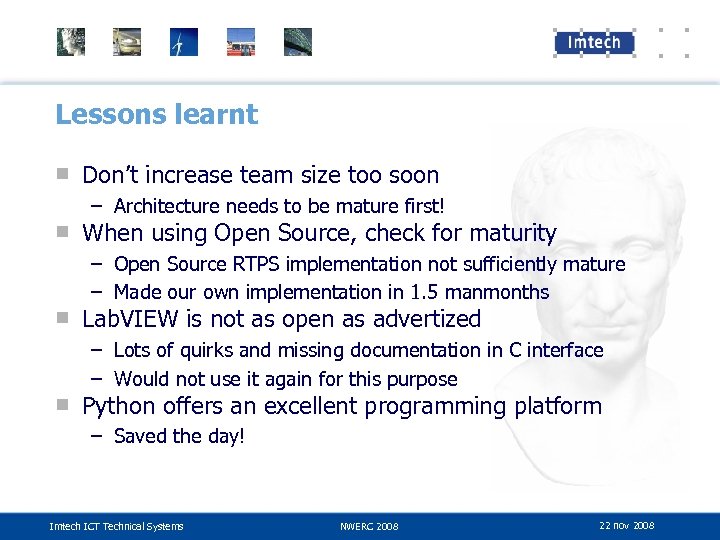

Lessons learnt ■ Don’t increase team size too soon – Architecture needs to be Lessons learnt ■ Don’t increase team size too soon – Architecture needs to be mature first! ■ When using Open Source, check for maturity – Open Source RTPS implementation not sufficiently mature – Made our own implementation in 1. 5 manmonths ■ Lab. VIEW is not as open as advertized – Lots of quirks and missing documentation in C interface – Would not use it again for this purpose ■ Python offers an excellent programming platform – Saved the day! Imtech ICT Technical Systems NWERC 2008 22 nov 2008

Questions? Imtech ICT Technical Systems NWERC 2008 22 nov 2008 Questions? Imtech ICT Technical Systems NWERC 2008 22 nov 2008
