Power from the Sun The ups and downs

Power from the Sun: The ups and downs of installing solar in Lethbridge Mark Goettel SACPA April 24, 2014

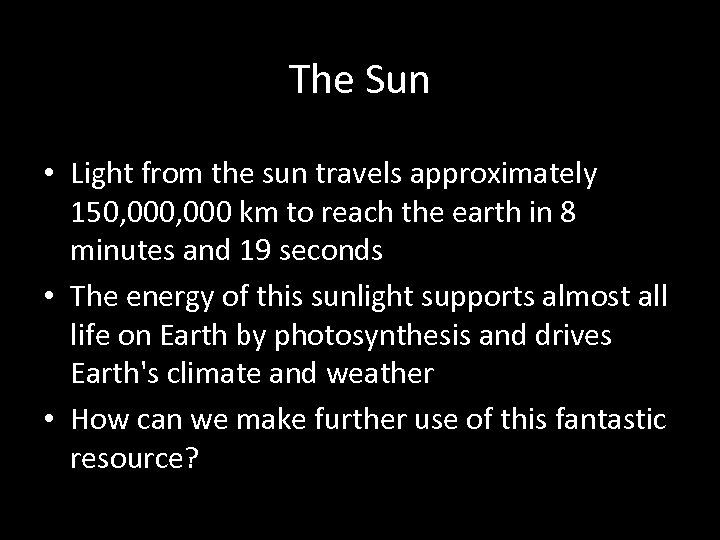

The Sun • Light from the sun travels approximately 150, 000 km to reach the earth in 8 minutes and 19 seconds • The energy of this sunlight supports almost all life on Earth by photosynthesis and drives Earth's climate and weather • How can we make further use of this fantastic resource?

Earth Body 2008

Outline • How does one capture the sun’s energy? • How does one go about installing a residential PV system in Lethbridge? • Economics – Comparison of 3 local installations • The future of solar

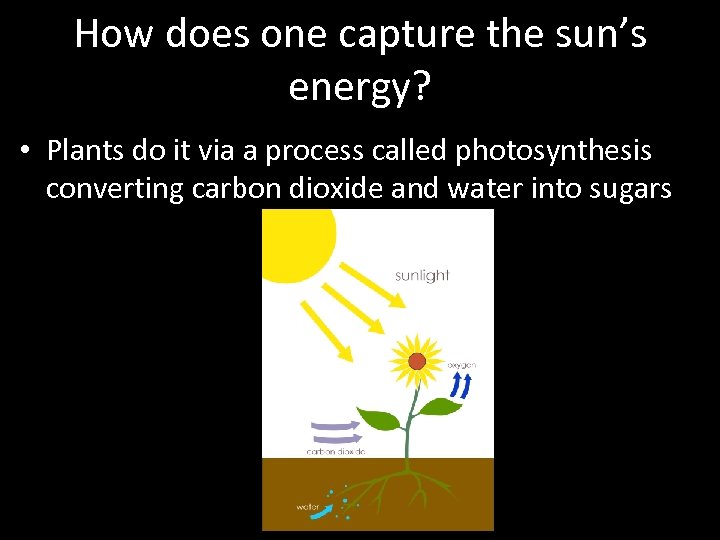

How does one capture the sun’s energy? • Plants do it via a process called photosynthesis converting carbon dioxide and water into sugars

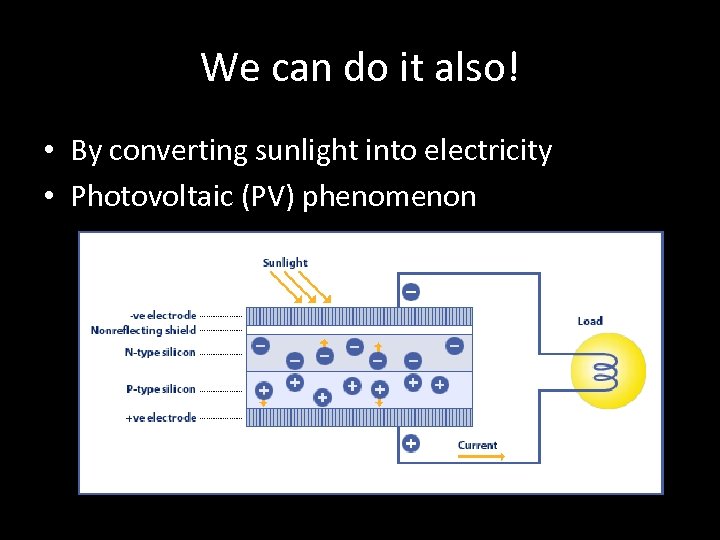

We can do it also! • By converting sunlight into electricity • Photovoltaic (PV) phenomenon

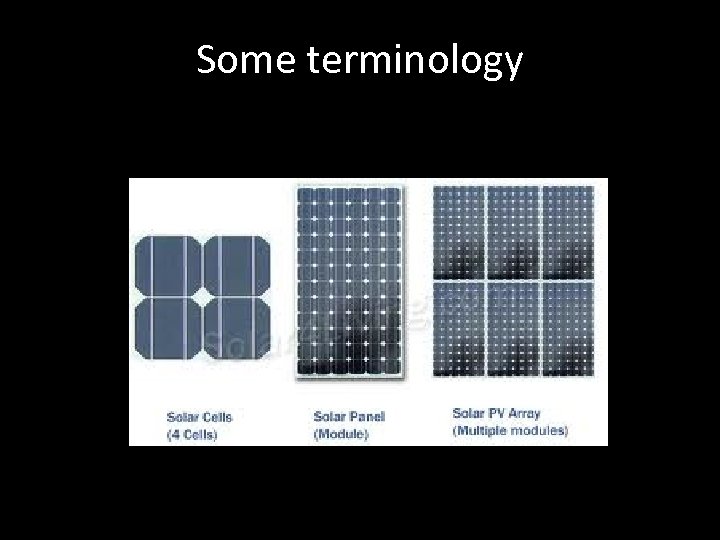

Some terminology

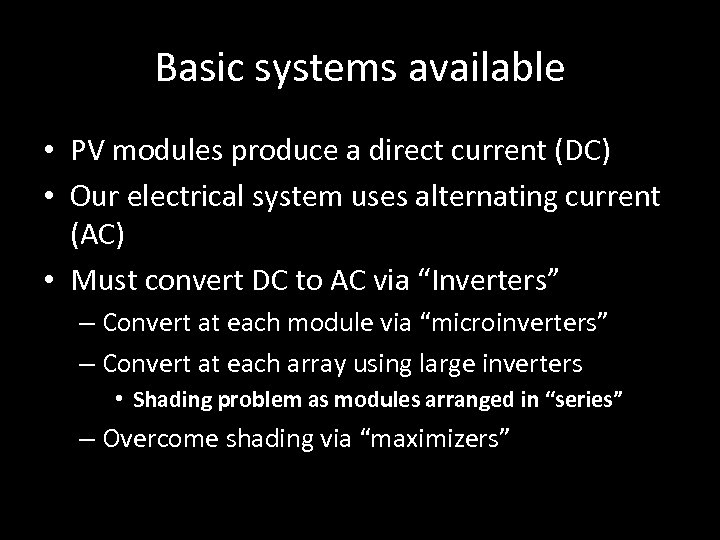

Basic systems available • PV modules produce a direct current (DC) • Our electrical system uses alternating current (AC) • Must convert DC to AC via “Inverters” – Convert at each module via “microinverters” – Convert at each array using large inverters • Shading problem as modules arranged in “series” – Overcome shading via “maximizers”

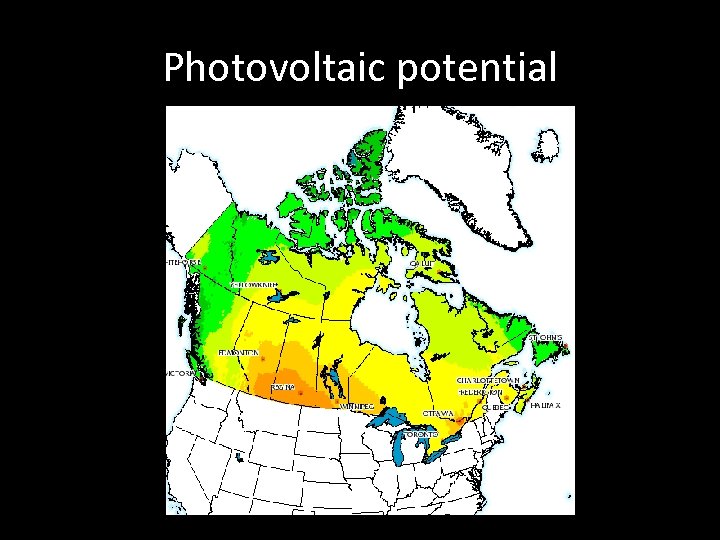

Photovoltaic potential

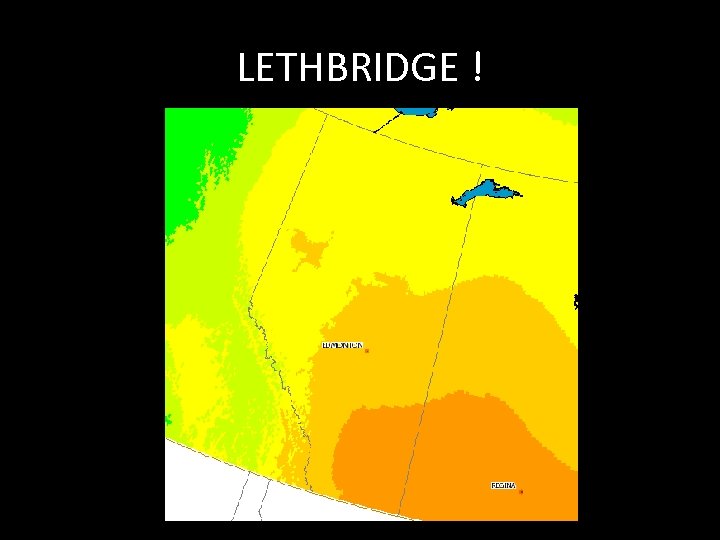

LETHBRIDGE !

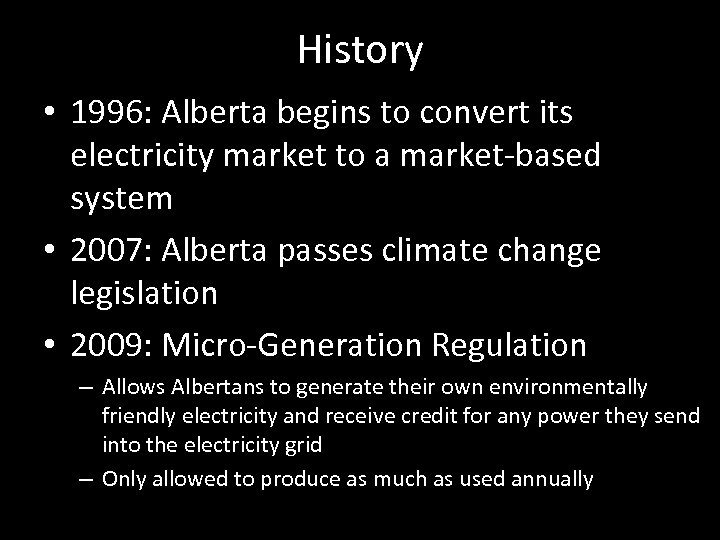

History • 1996: Alberta begins to convert its electricity market to a market-based system • 2007: Alberta passes climate change legislation • 2009: Micro-Generation Regulation – Allows Albertans to generate their own environmentally friendly electricity and receive credit for any power they send into the electricity grid – Only allowed to produce as much as used annually

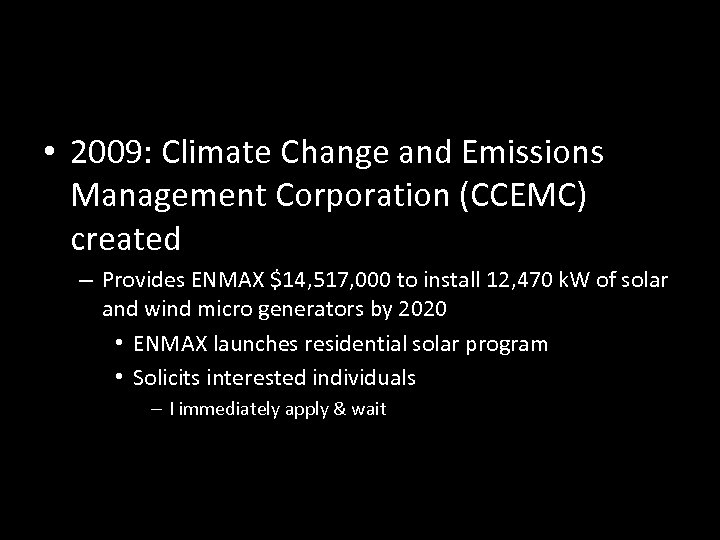

• 2009: Climate Change and Emissions Management Corporation (CCEMC) created – Provides ENMAX $14, 517, 000 to install 12, 470 k. W of solar and wind micro generators by 2020 • ENMAX launches residential solar program • Solicits interested individuals – I immediately apply & wait

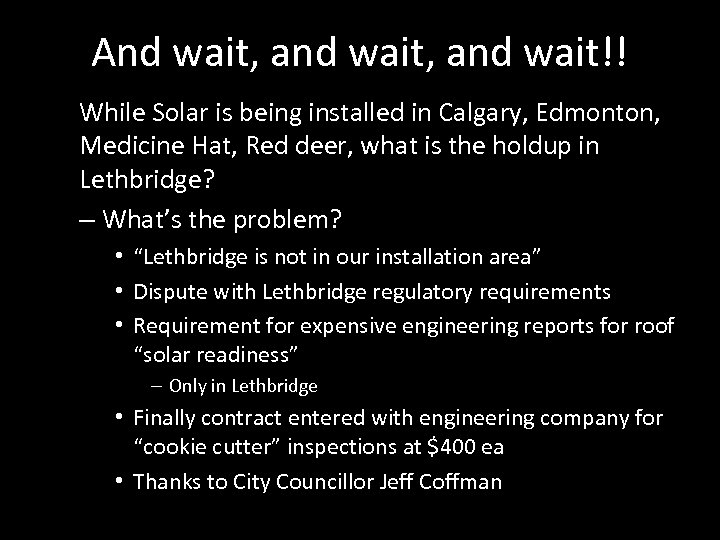

And wait, and wait!! While Solar is being installed in Calgary, Edmonton, Medicine Hat, Red deer, what is the holdup in Lethbridge? – What’s the problem? • “Lethbridge is not in our installation area” • Dispute with Lethbridge regulatory requirements • Requirement for expensive engineering reports for roof “solar readiness” – Only in Lethbridge • Finally contract entered with engineering company for “cookie cutter” inspections at $400 ea • Thanks to City Councillor Jeff Coffman

Finally! Installation III 2013

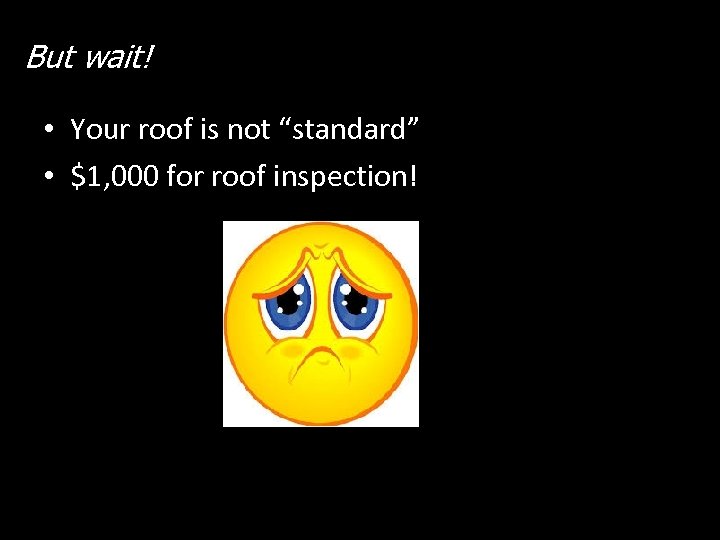

But wait! • Your roof is not “standard” • $1, 000 for roof inspection!

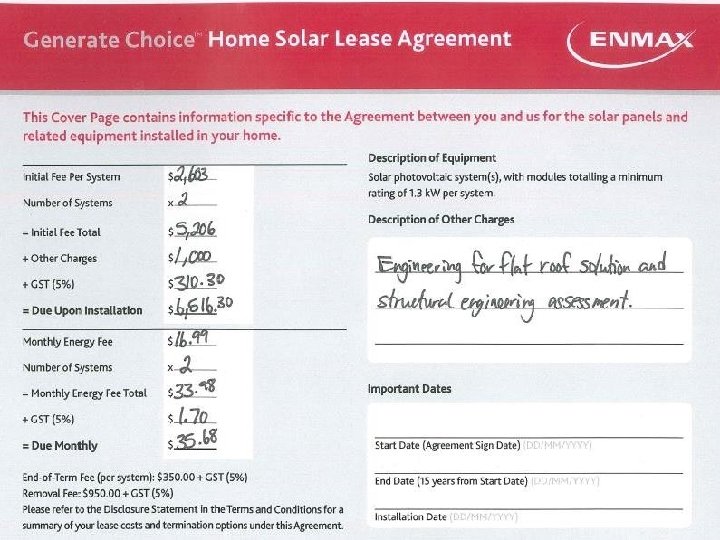

Untitled 2012

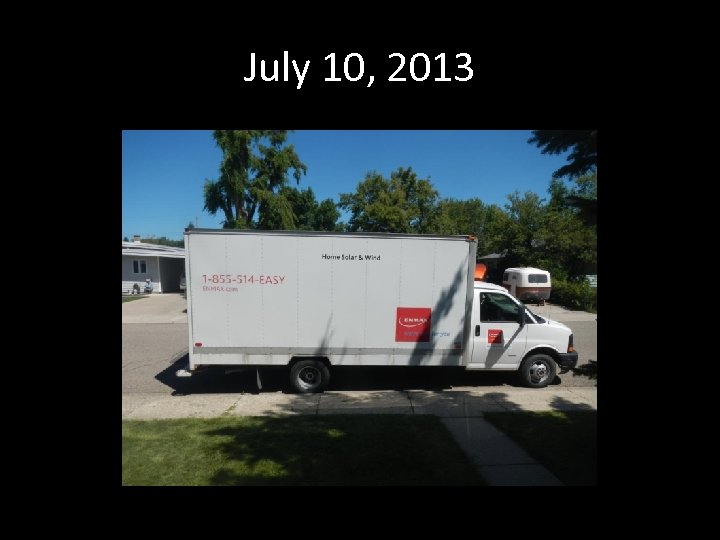

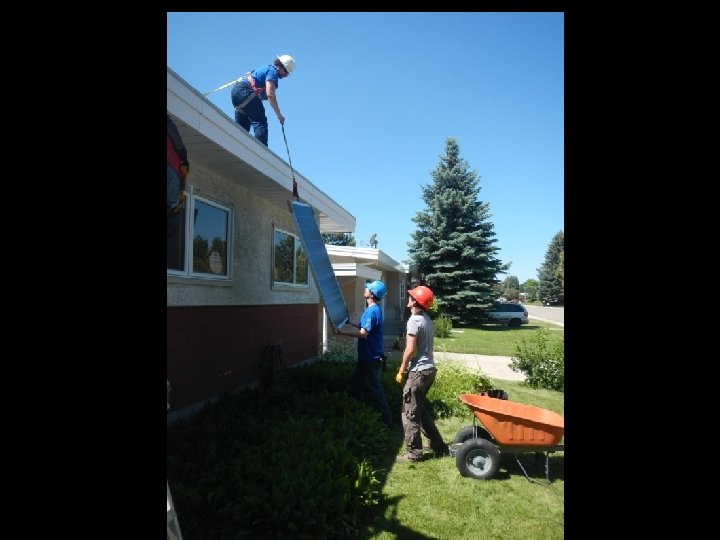

July 10, 2013

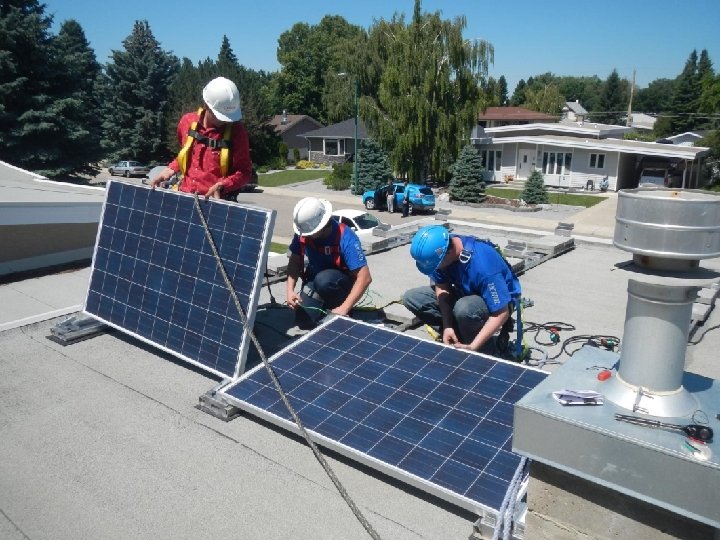

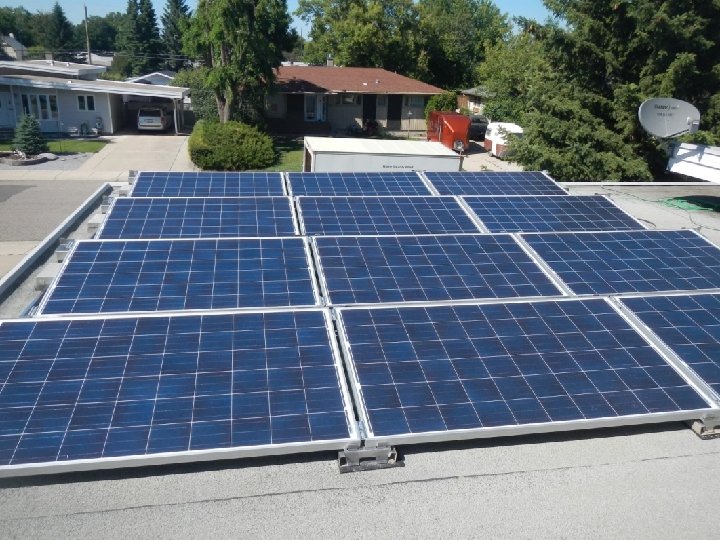

Ballast racking system

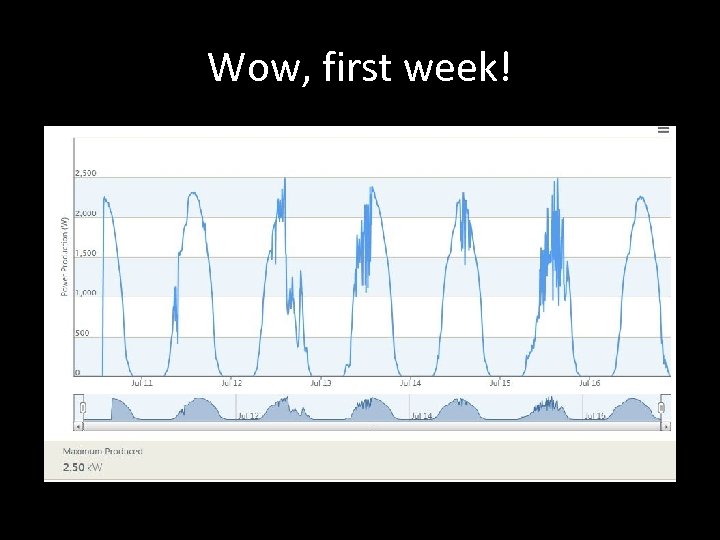

Wow, first week!

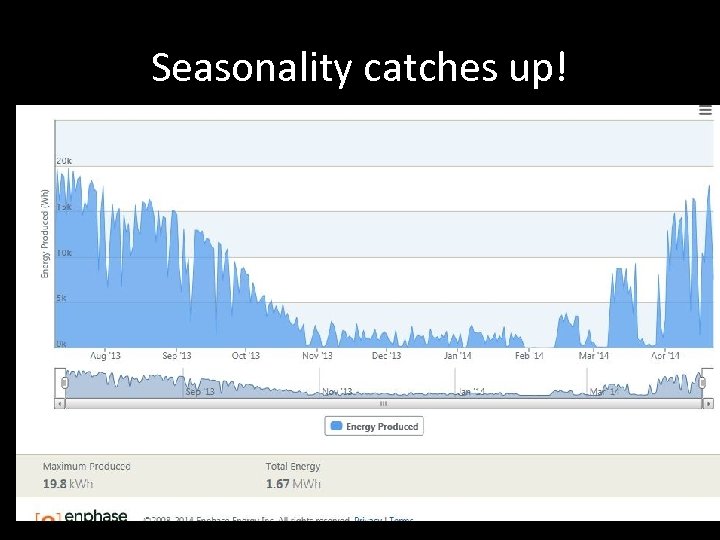

Seasonality catches up!

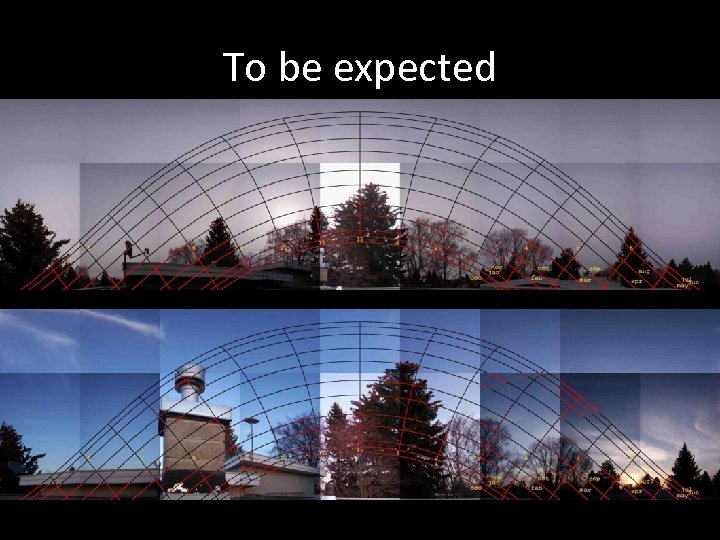

To be expected

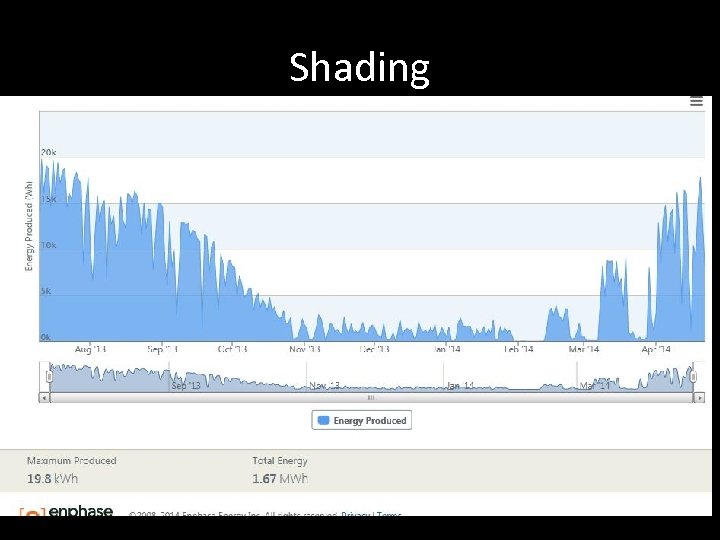

Shading

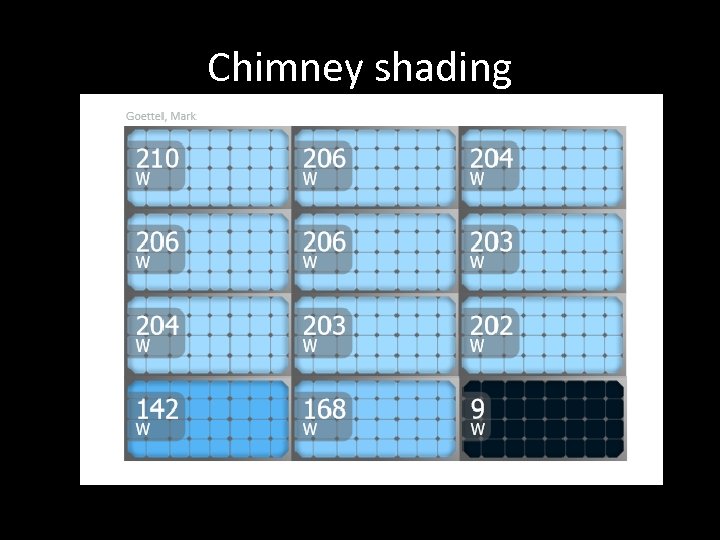

Chimney shading

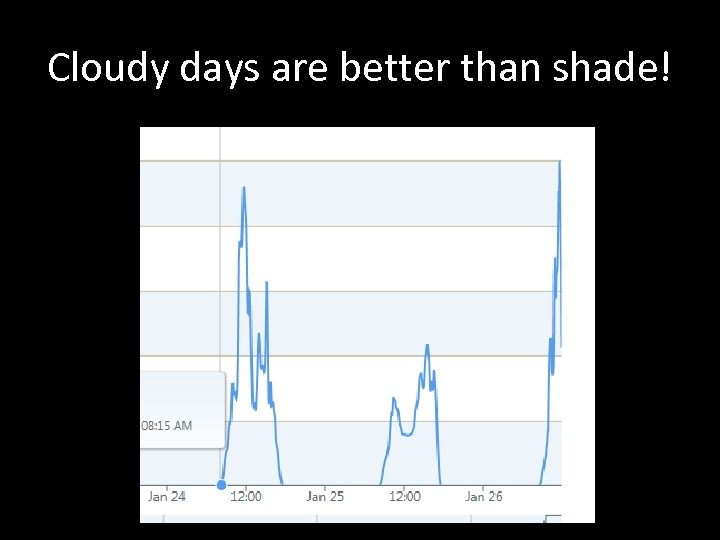

Cloudy days are better than shade!

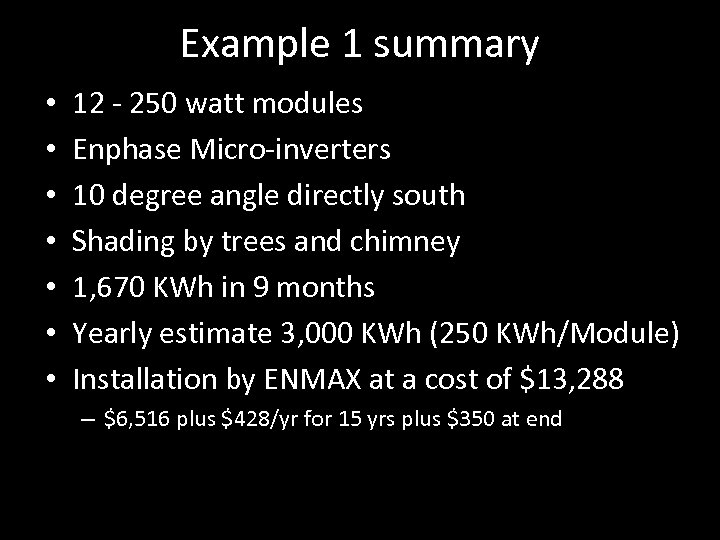

Example 1 summary • • 12 - 250 watt modules Enphase Micro-inverters 10 degree angle directly south Shading by trees and chimney 1, 670 KWh in 9 months Yearly estimate 3, 000 KWh (250 KWh/Module) Installation by ENMAX at a cost of $13, 288 – $6, 516 plus $428/yr for 15 yrs plus $350 at end

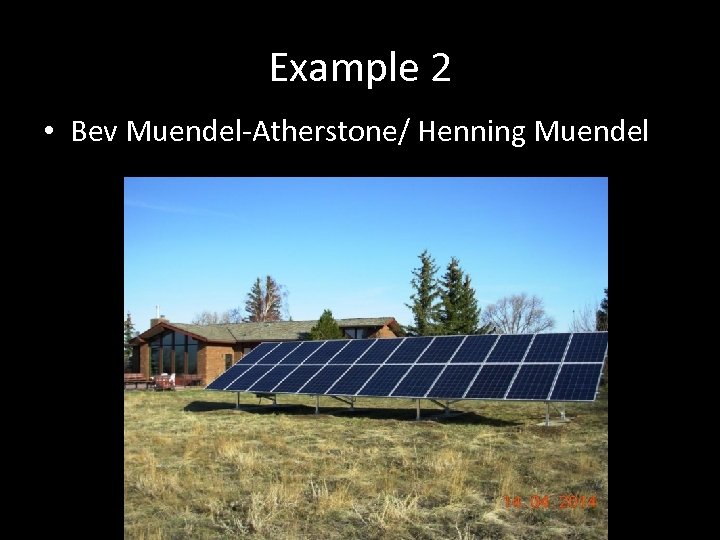

Example 2 • Bev Muendel-Atherstone/ Henning Muendel

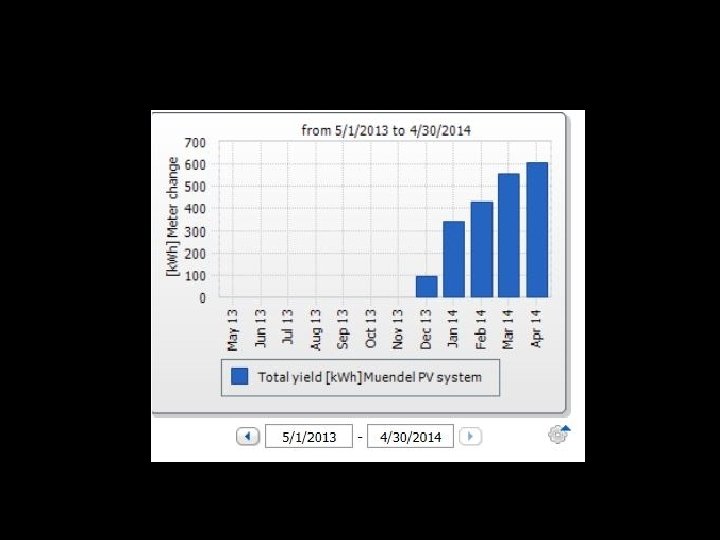

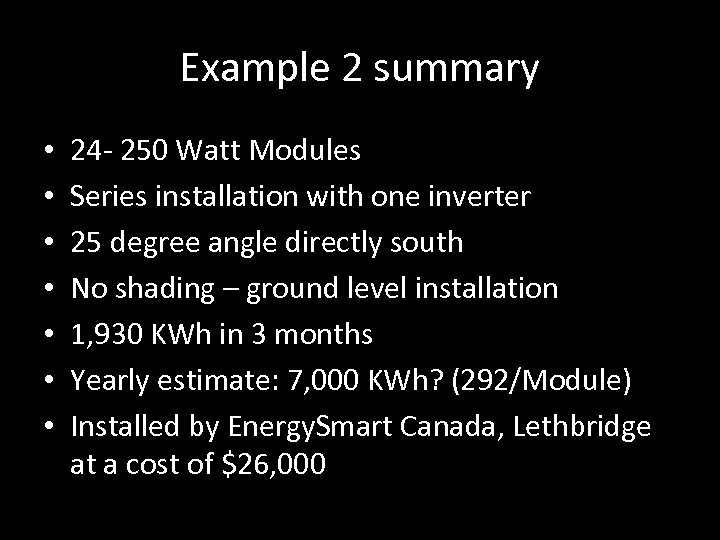

Example 2 summary • • 24 - 250 Watt Modules Series installation with one inverter 25 degree angle directly south No shading – ground level installation 1, 930 KWh in 3 months Yearly estimate: 7, 000 KWh? (292/Module) Installed by Energy. Smart Canada, Lethbridge at a cost of $26, 000

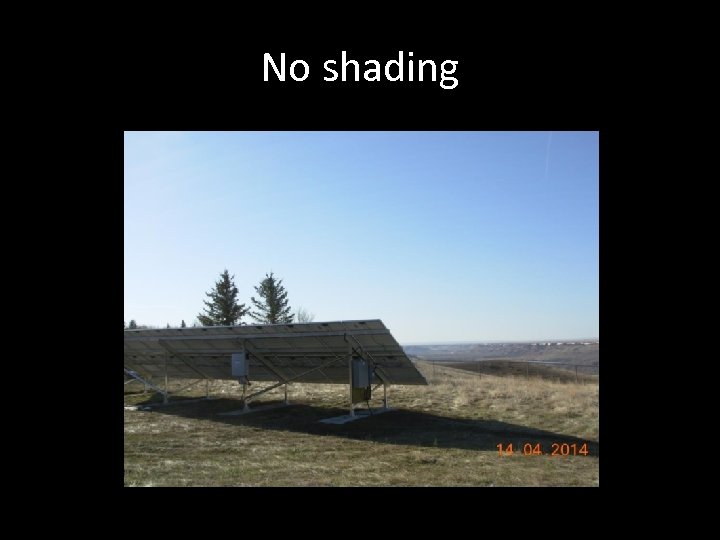

No shading

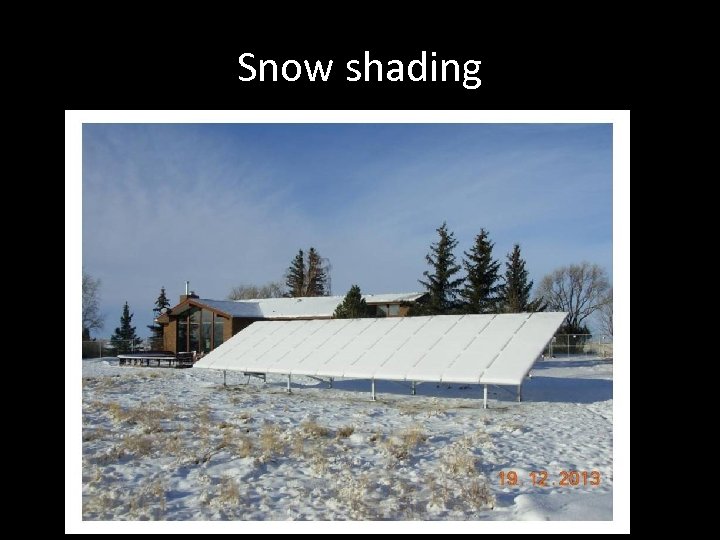

Snow shading

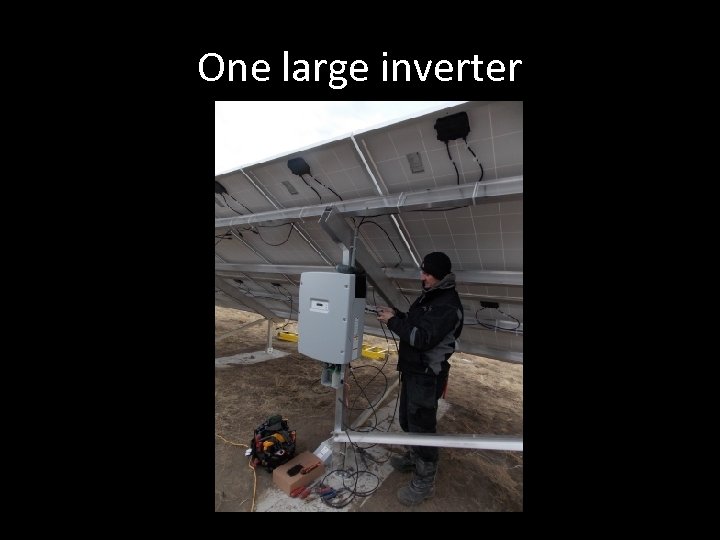

One large inverter

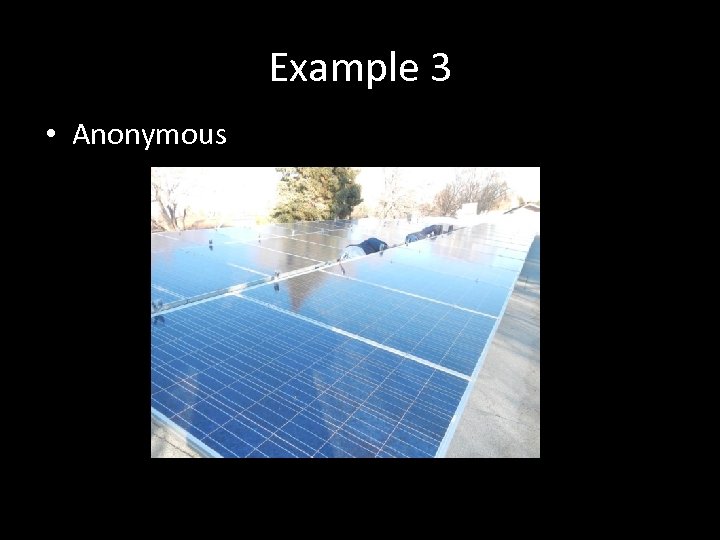

Example 3 • Anonymous

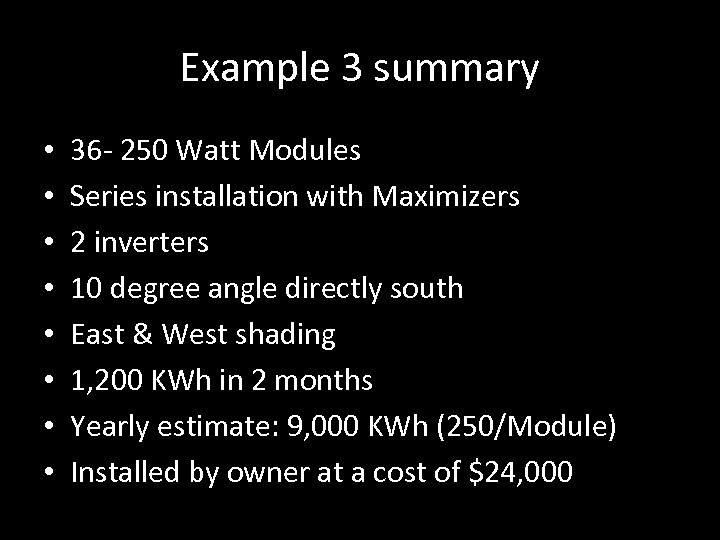

Example 3 summary • • 36 - 250 Watt Modules Series installation with Maximizers 2 inverters 10 degree angle directly south East & West shading 1, 200 KWh in 2 months Yearly estimate: 9, 000 KWh (250/Module) Installed by owner at a cost of $24, 000

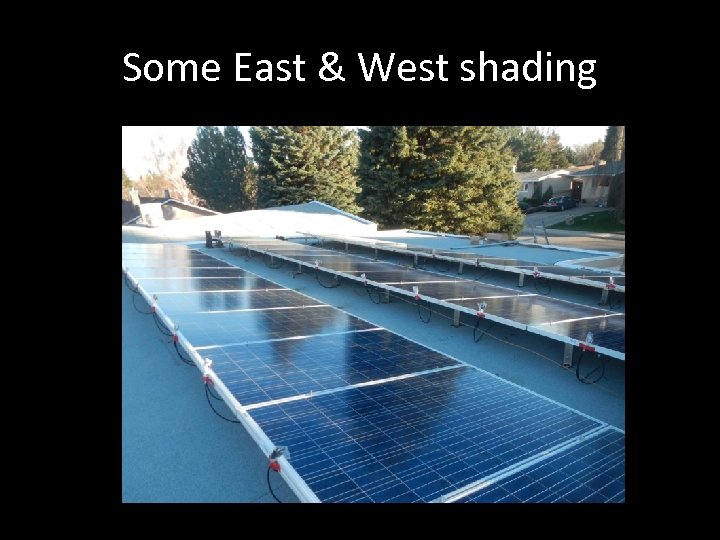

Some East & West shading

2 Inverters

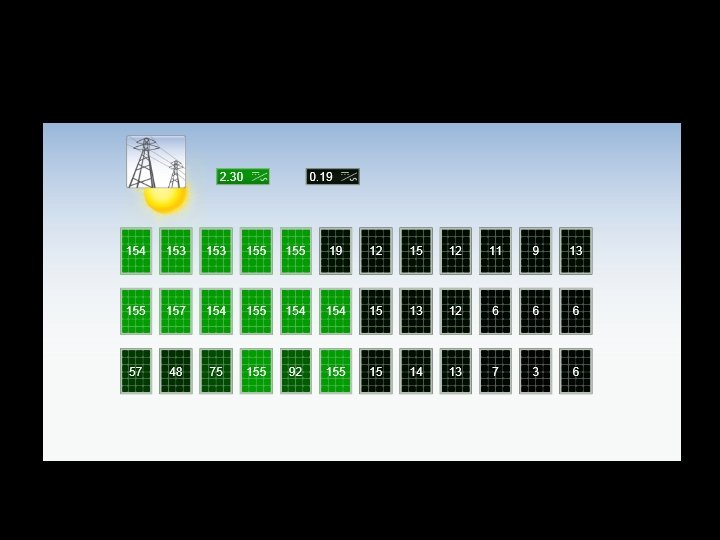

Maximizers

Angle makes a difference

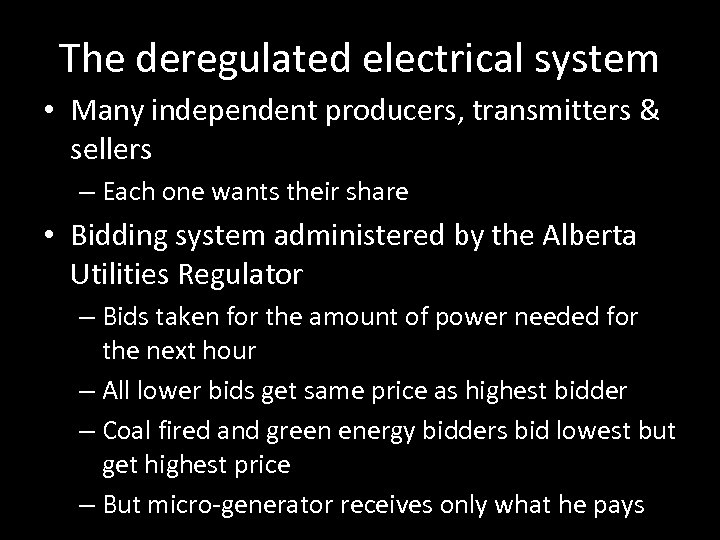

The deregulated electrical system • Many independent producers, transmitters & sellers – Each one wants their share • Bidding system administered by the Alberta Utilities Regulator – Bids taken for the amount of power needed for the next hour – All lower bids get same price as highest bidder – Coal fired and green energy bidders bid lowest but get highest price – But micro-generator receives only what he pays

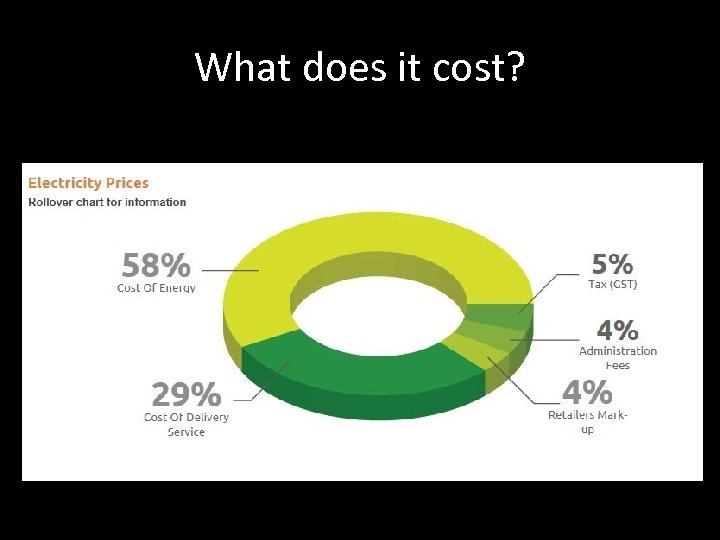

What does it cost?

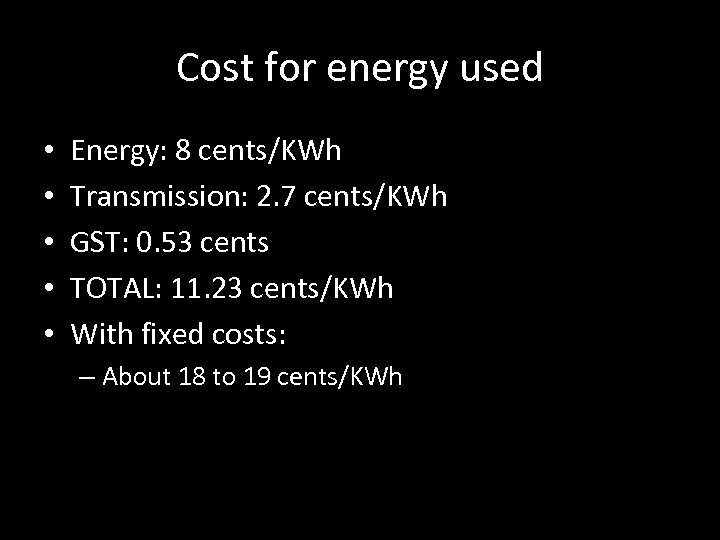

Cost for energy used • • • Energy: 8 cents/KWh Transmission: 2. 7 cents/KWh GST: 0. 53 cents TOTAL: 11. 23 cents/KWh With fixed costs: – About 18 to 19 cents/KWh

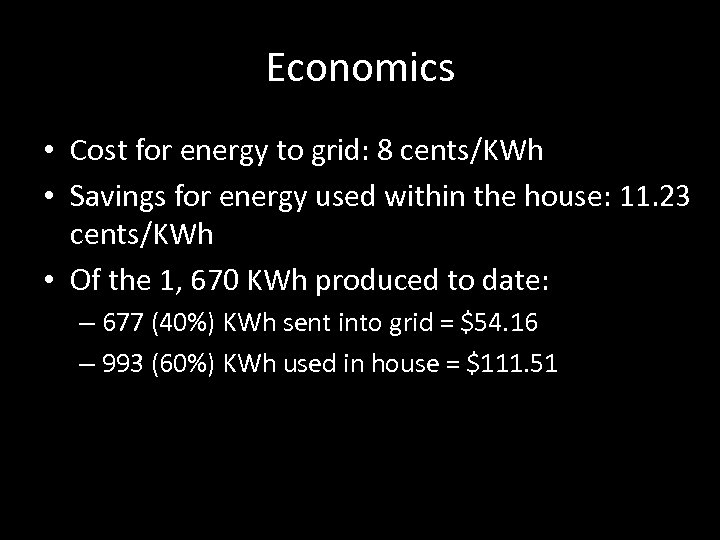

Economics • Cost for energy to grid: 8 cents/KWh • Savings for energy used within the house: 11. 23 cents/KWh • Of the 1, 670 KWh produced to date: – 677 (40%) KWh sent into grid = $54. 16 – 993 (60%) KWh used in house = $111. 51

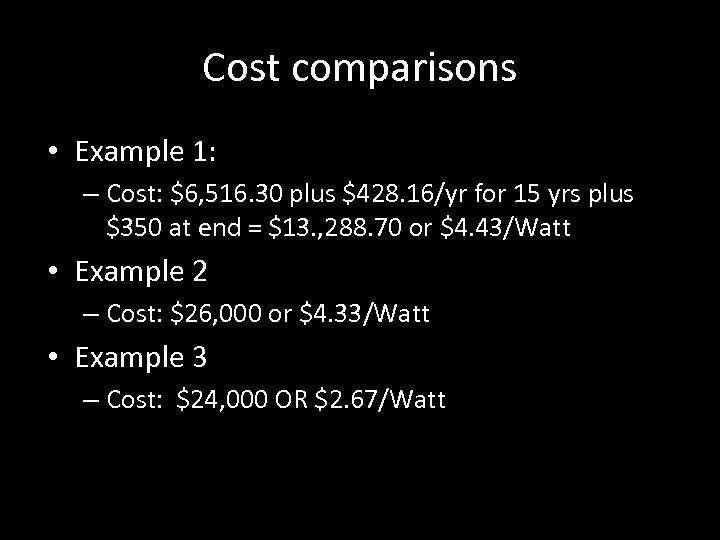

Cost comparisons • Example 1: – Cost: $6, 516. 30 plus $428. 16/yr for 15 yrs plus $350 at end = $13. , 288. 70 or $4. 43/Watt • Example 2 – Cost: $26, 000 or $4. 33/Watt • Example 3 – Cost: $24, 000 OR $2. 67/Watt

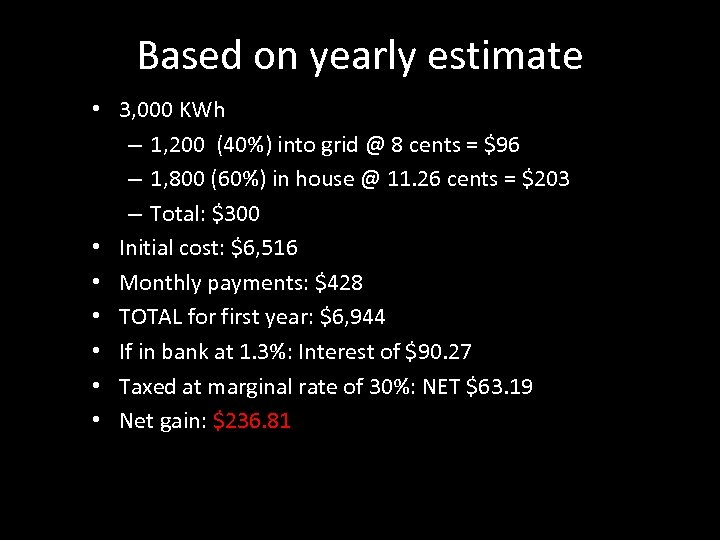

Based on yearly estimate • 3, 000 KWh – 1, 200 (40%) into grid @ 8 cents = $96 – 1, 800 (60%) in house @ 11. 26 cents = $203 – Total: $300 • Initial cost: $6, 516 • Monthly payments: $428 • TOTAL for first year: $6, 944 • If in bank at 1. 3%: Interest of $90. 27 • Taxed at marginal rate of 30%: NET $63. 19 • Net gain: $236. 81

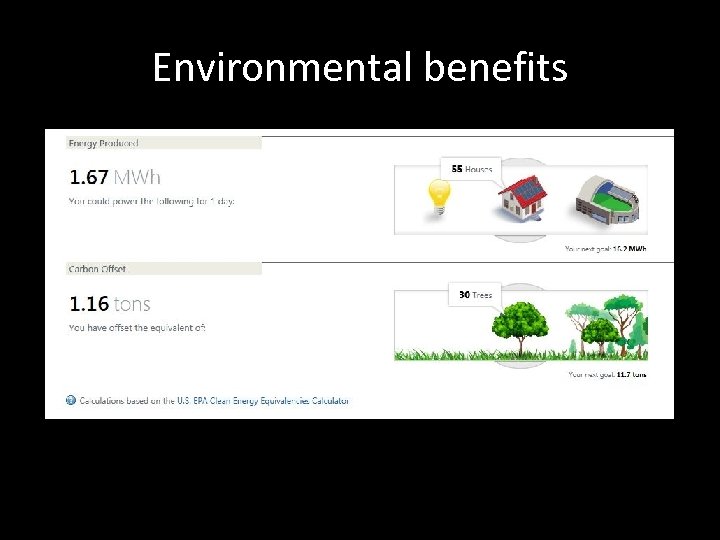

Environmental benefits

Instead of waiting • I’m doing something to decrease greenhouse gases!

Spin it any way you want

Makes me happy!

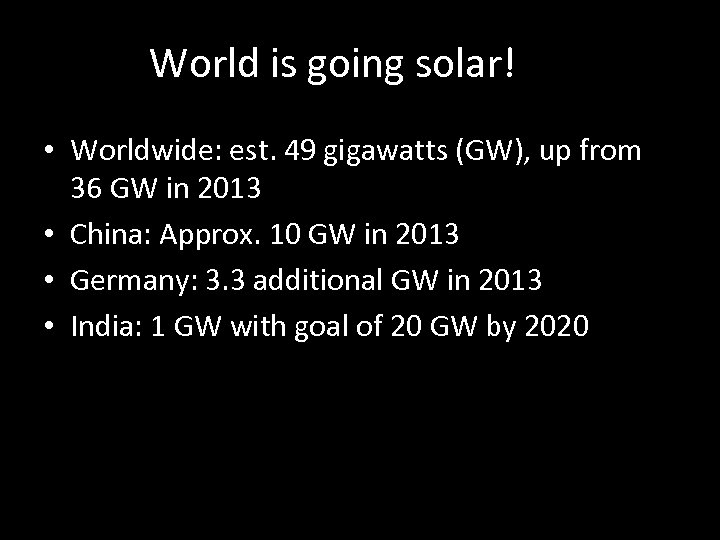

World is going solar! • Worldwide: est. 49 gigawatts (GW), up from 36 GW in 2013 • China: Approx. 10 GW in 2013 • Germany: 3. 3 additional GW in 2013 • India: 1 GW with goal of 20 GW by 2020

China

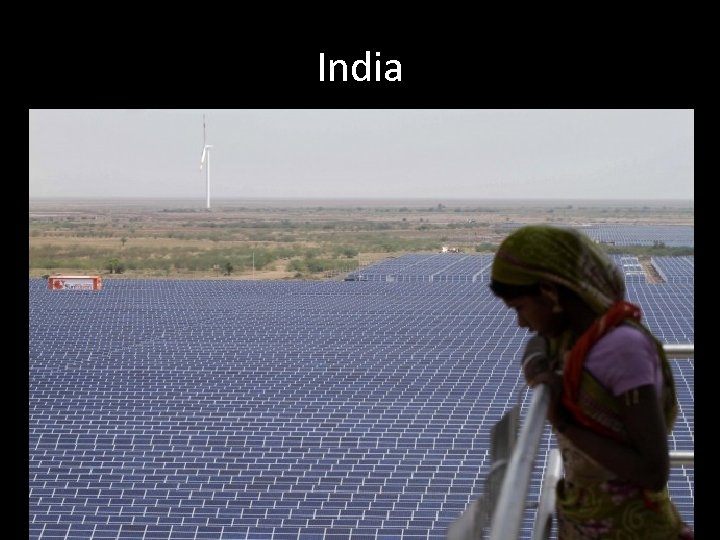

India

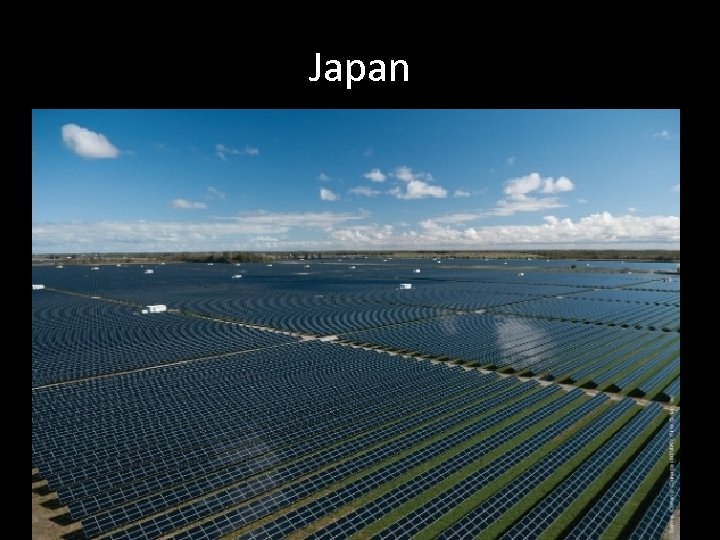

Japan

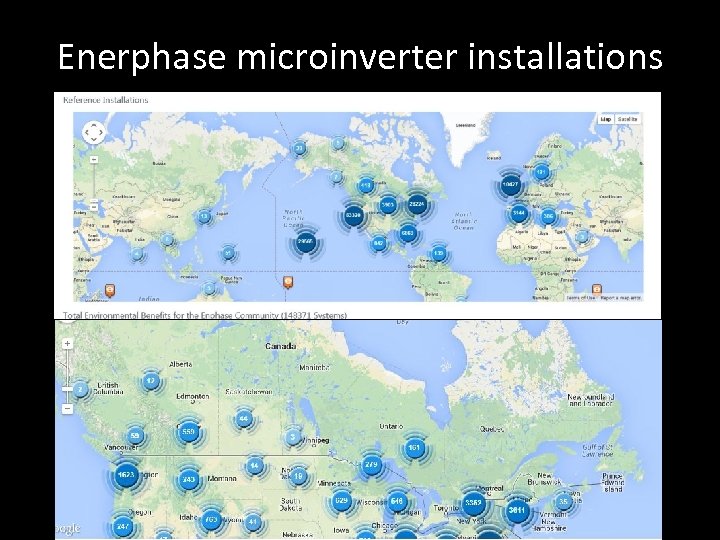

Enerphase microinverter installations

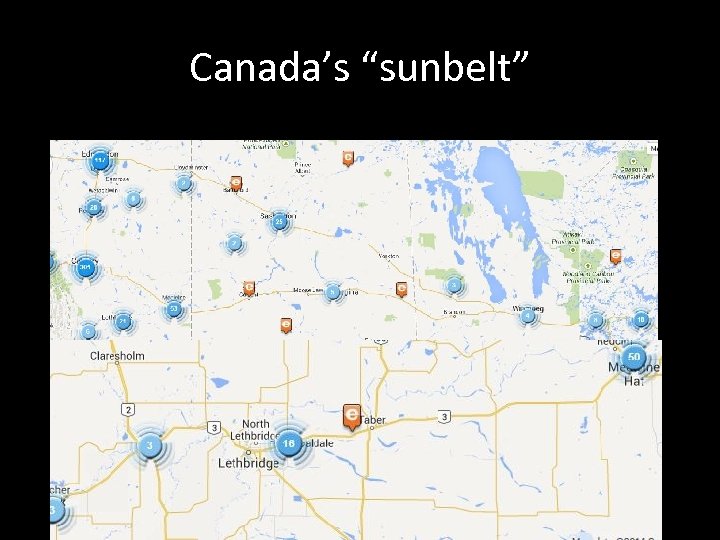

Canada’s “sunbelt”

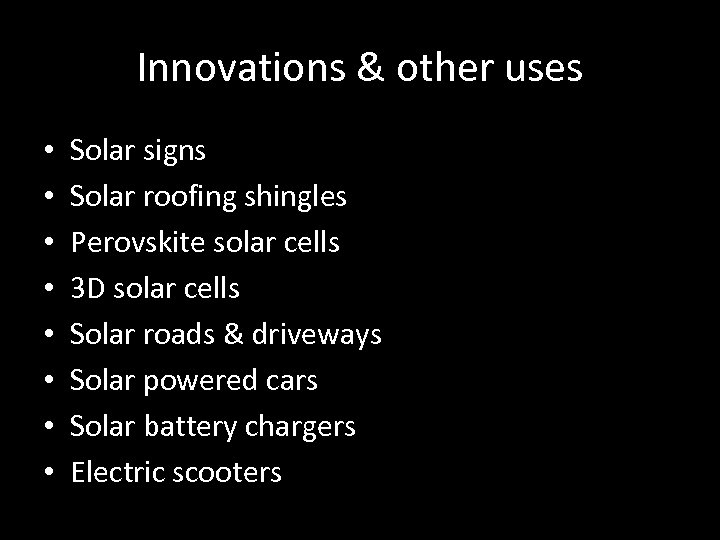

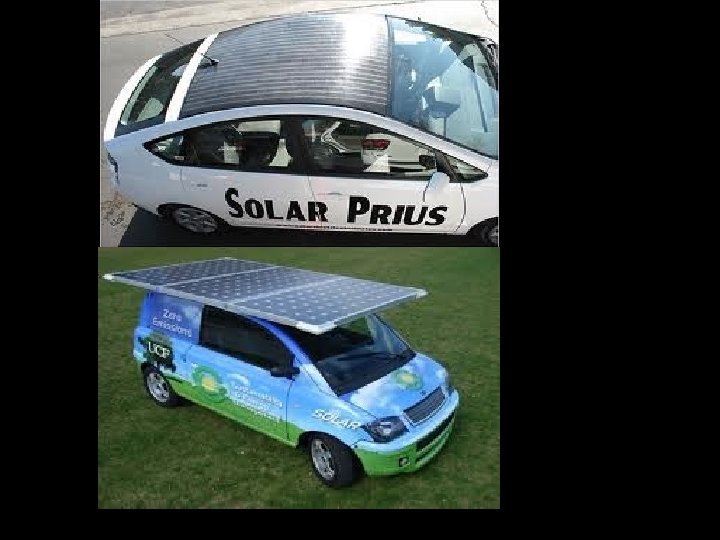

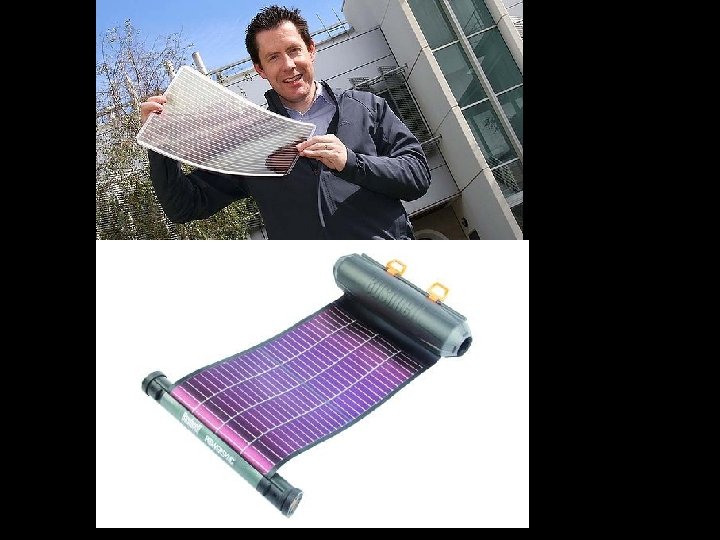

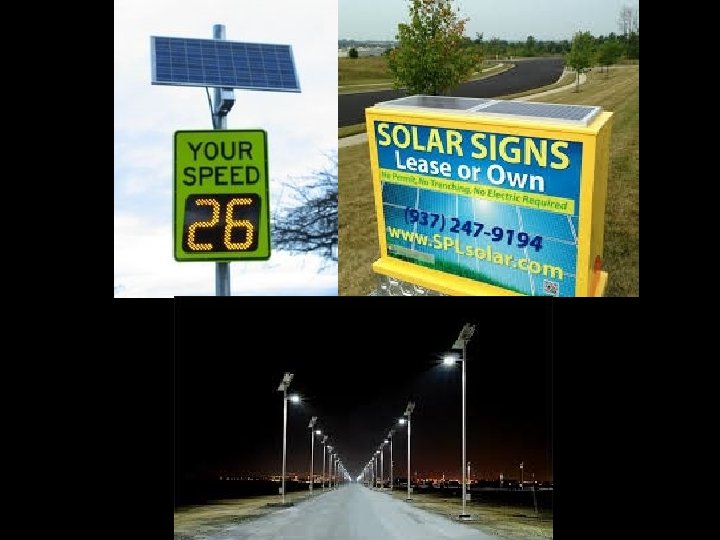

Innovations & other uses • • Solar signs Solar roofing shingles Perovskite solar cells 3 D solar cells Solar roads & driveways Solar powered cars Solar battery chargers Electric scooters

Think Green, If you know what I mean
