POSTEC Lecture Network Management Chapter 2 Architecture and

Скачать презентацию POSTEC Lecture Network Management Chapter 2 Architecture and

50a6fed0ca171158ed0adc70d38ac2a3.ppt

Количество слайдов: 114

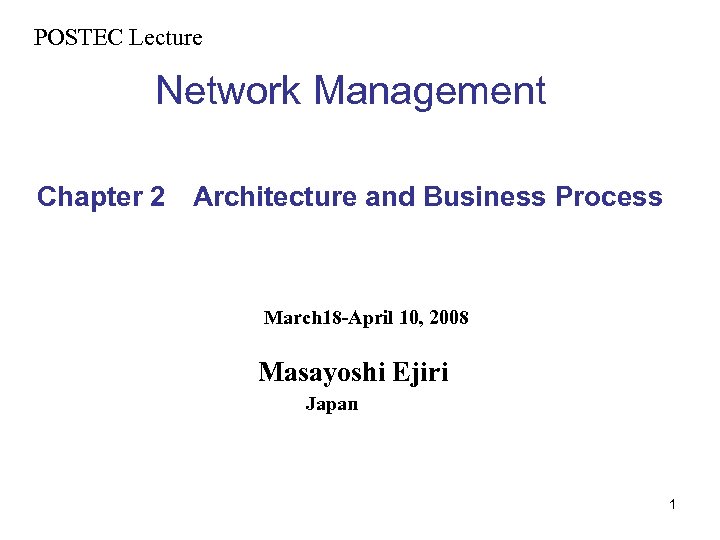

POSTEC Lecture　 Network Management Chapter 2 　Architecture and Business Process 　 March 18 -April 10, 2008 Masayoshi Ejiri Japan 1

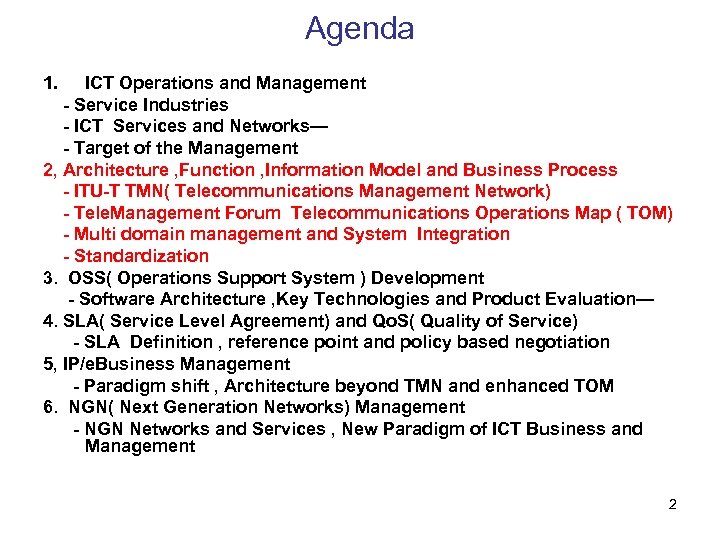

Agenda 1. ICT Operations and Management - Service Industries - ICT Services and Networks— - Target of the Management 2, Architecture , Function , Information Model and Business Process - ITU-T TMN( Telecommunications Management Network) - Tele. Management Forum Telecommunications Operations Map ( TOM) - Multi domain management and System Integration - Standardization 3. OSS( Operations Support System ) Development - Software Architecture , Key Technologies and Product Evaluation— 4. SLA( Service Level Agreement) and Qo. S( Quality of Service) - SLA Definition , reference point and policy based negotiation 5, IP/e. Business Management - Paradigm shift , Architecture beyond TMN and enhanced TOM 6. NGN( Next Generation Networks) Management - NGN Networks and Services , New Paradigm of ICT Business and Management 2

OSS Development -Individually without Ground Plan. Network Op. S DDX Network ISDN Network Op. S Free Dial Traffic Mass. Calling Service Op. S Personal Phone Mobile Op. SOp. S ISDN Services Op. S DDX Services Op. S Information Transmision Op. S Leased Line Network Services NE Op. S Op. S NE NE NE Switching　　　　　Transmission　　　　Cables　　　　　Power Supply Op. S=OSS 3

New Gen. Plug and Play Systems: Current Implementation Architecture • N 2 Complexity • New Services hard • Data Consistency • Heavy messages *Quote from TMF document 4

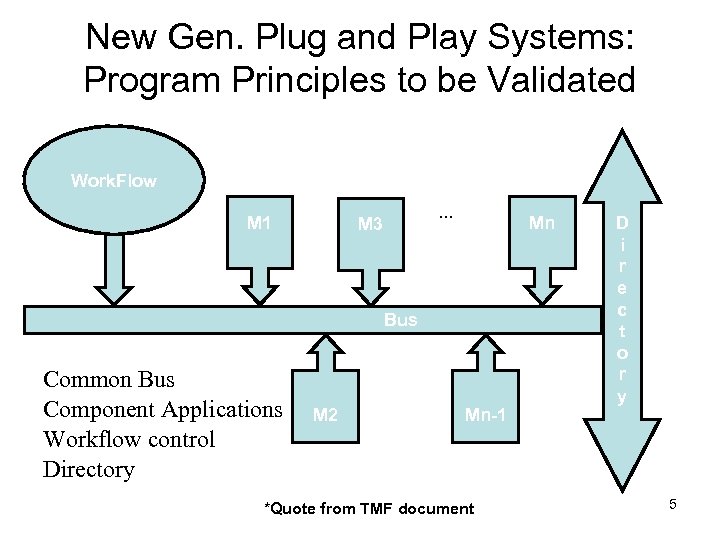

New Gen. Plug and Play Systems: Program Principles to be Validated Work. Flow M 1 . . . M 3 Mn Bus Common Bus Component Applications Workflow control Directory M 2 Mn-1 *Quote from TMF document D i r e c t o r y 5

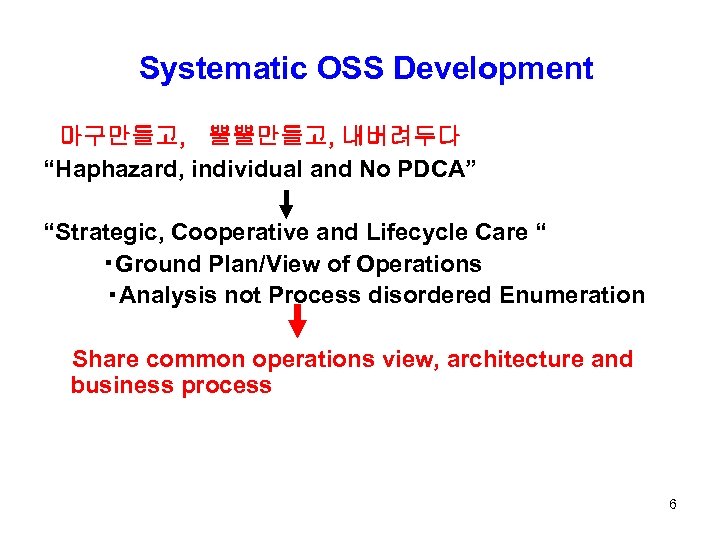

　Systematic OSS Development 　마구만들고, 　뿔뿔만들고, 내버려두다 “Haphazard, individual and No PDCA” “Strategic, Cooperative and Lifecycle Care “ ・Ground Plan/View of Operations 　　　　・Analysis not Process disordered Enumeration 　　　　 Share common operations view, architecture and business process　　　　　 6

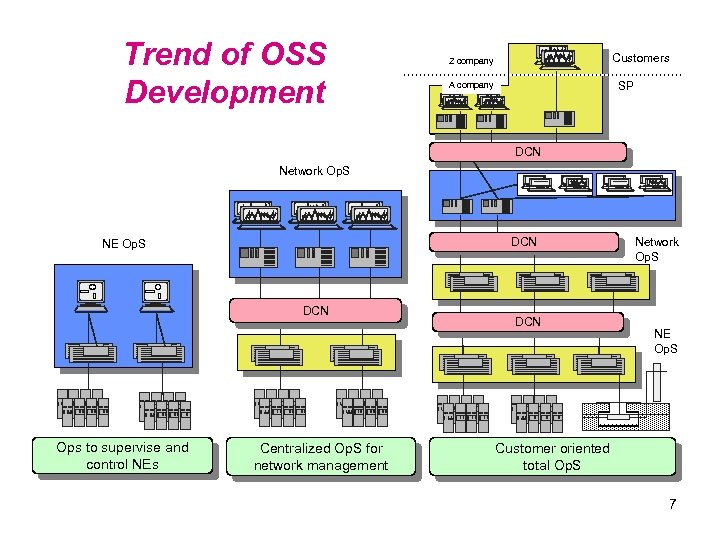

Trend of OSS Development Customers Z company SP A company DCN Network Op. S DCN NE Op. S DCN Ops to supervise and control NEs Centralized Op. S for network management DCN Network Op. S NE Op. S Customer oriented total Op. S 7

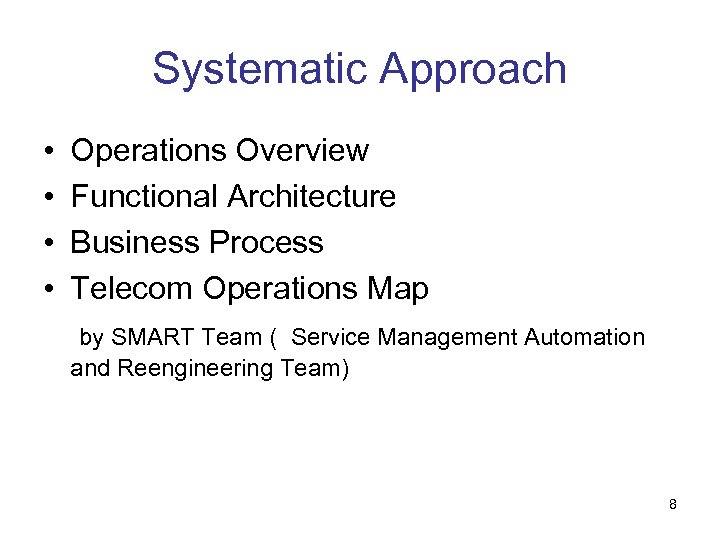

Systematic Approach • • Operations Overview Functional Architecture Business Process Telecom Operations Map by SMART Team ( Service Management Automation and Reengineering Team) 8

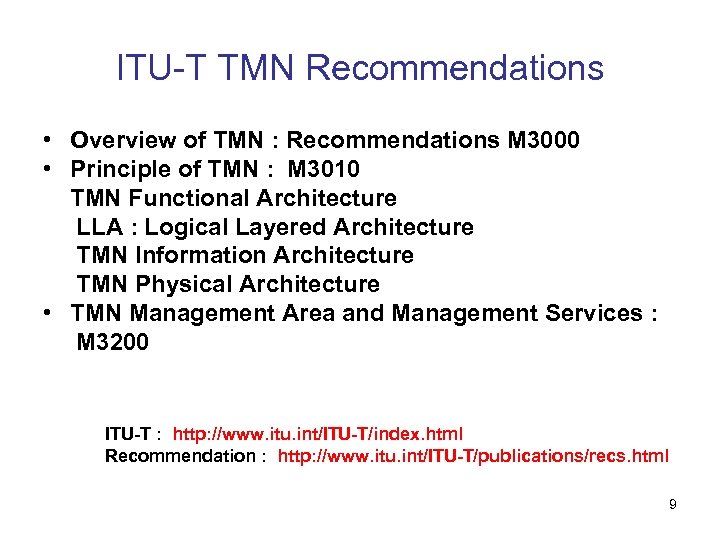

ITU-T TMN Recommendations • Overview of TMN : Recommendations M 3000 • Principle of TMN : M 3010 TMN Functional Architecture LLA : Logical Layered Architecture TMN Information Architecture TMN Physical Architecture • TMN Management Area and Management Services : M 3200 ITU-T : http: //www. itu. int/ITU-T/index. html Recommendation : http: //www. itu. int/ITU-T/publications/recs. html 9

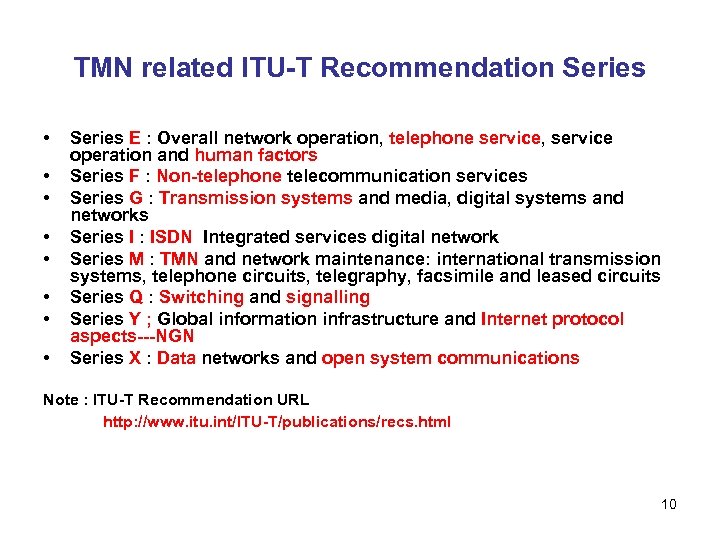

TMN related ITU-T Recommendation Series • • Series E : Overall network operation, telephone service, service operation and human factors Series F : Non-telephone telecommunication services Series G : Transmission systems and media, digital systems and networks Series I : ISDN Integrated services digital network Series M : TMN and network maintenance: international transmission systems, telephone circuits, telegraphy, facsimile and leased circuits Series Q : Switching and signalling Series Y ; Global information infrastructure and Internet protocol aspects---NGN Series X : Data networks and open system communications Note : ITU-T Recommendation URL 　　　　　http: //www. itu. int/ITU-T/publications/recs. html 10

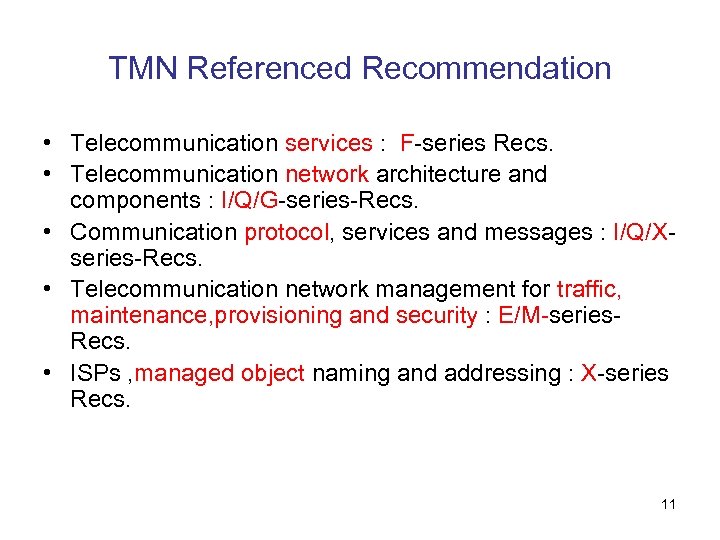

TMN Referenced Recommendation • Telecommunication services : F-series Recs. • Telecommunication network architecture and components : I/Q/G-series-Recs. • Communication protocol, services and messages : I/Q/Xseries-Recs. • Telecommunication network management for traffic, maintenance, provisioning and security : E/M-series. Recs. • ISPs , managed object naming and addressing : X-series Recs. 11

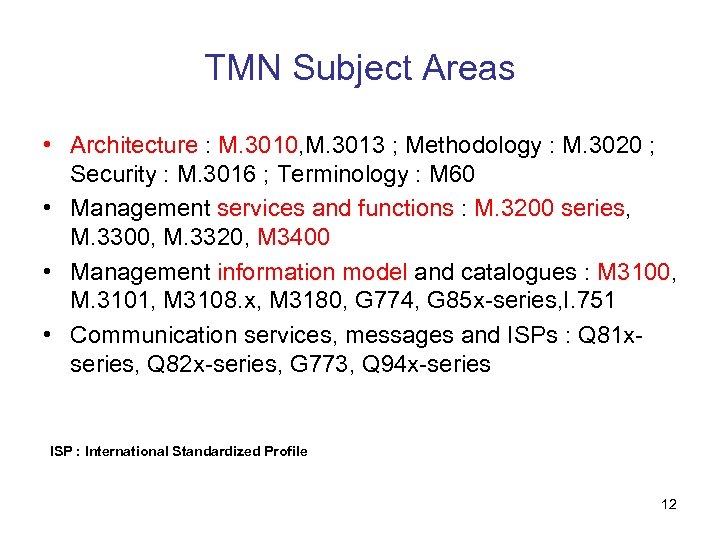

TMN Subject Areas • Architecture : M. 3010, M. 3013 ; Methodology : M. 3020 ; Security : M. 3016 ; Terminology : M 60 • Management services and functions : M. 3200 series, M. 3300, M. 3320, M 3400 • Management information model and catalogues : M 3100, M. 3101, M 3108. x, M 3180, G 774, G 85 x-series, I. 751 • Communication services, messages and ISPs : Q 81 xseries, Q 82 x-series, G 773, Q 94 x-series ISP : International Standardized Profile 12

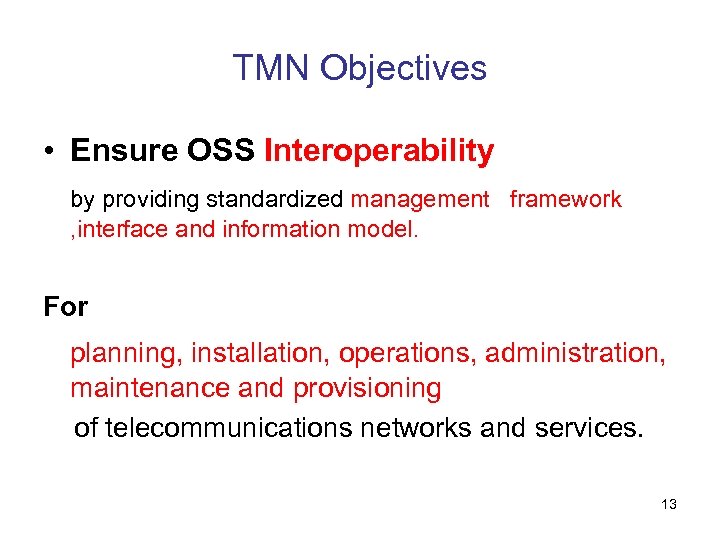

TMN Objectives • Ensure OSS Interoperability by providing standardized management framework , interface and information model. For planning, installation, operations, administration, maintenance and provisioning of telecommunications networks and services. 13

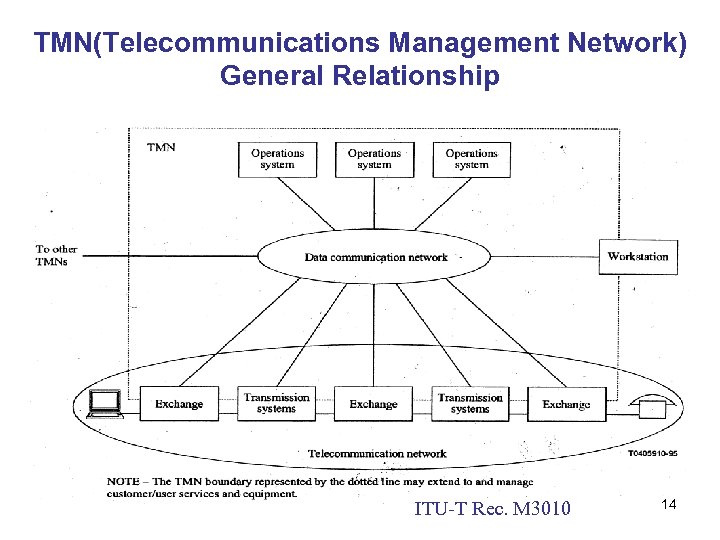

TMN(Telecommunications Management Network) General Relationship ITU-T Rec. M 3010 14

TMN function blocks M. 3010 15

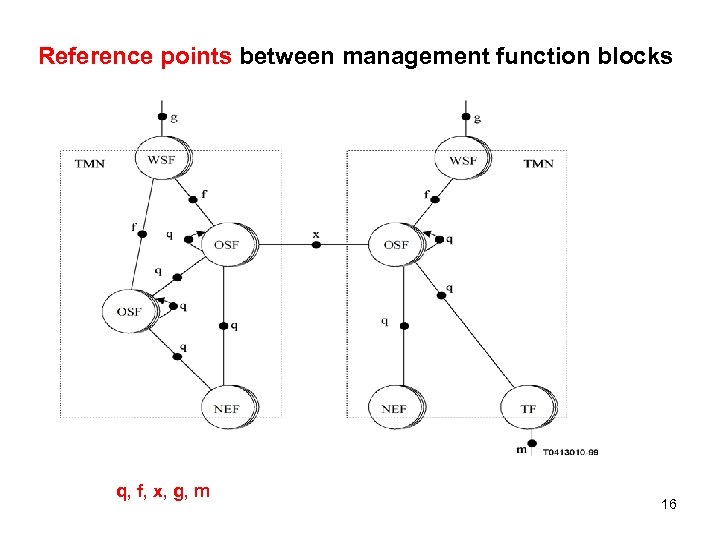

Reference points between management function blocks q, f, x, g, m 16

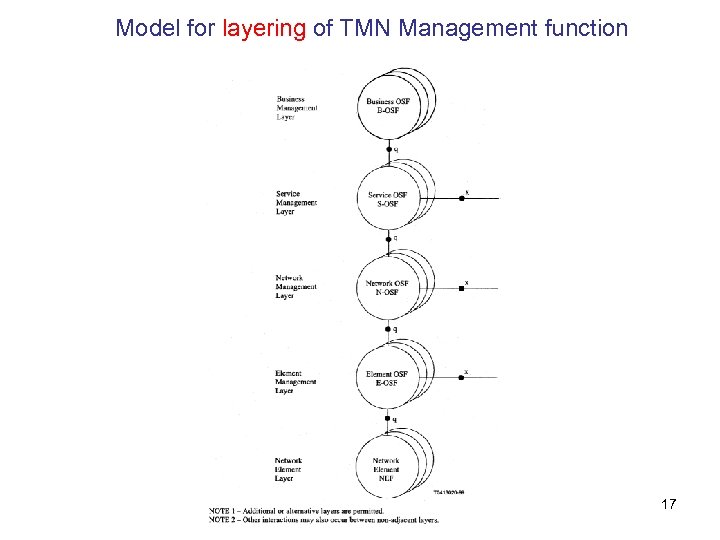

Model for layering of TMN Management function 17

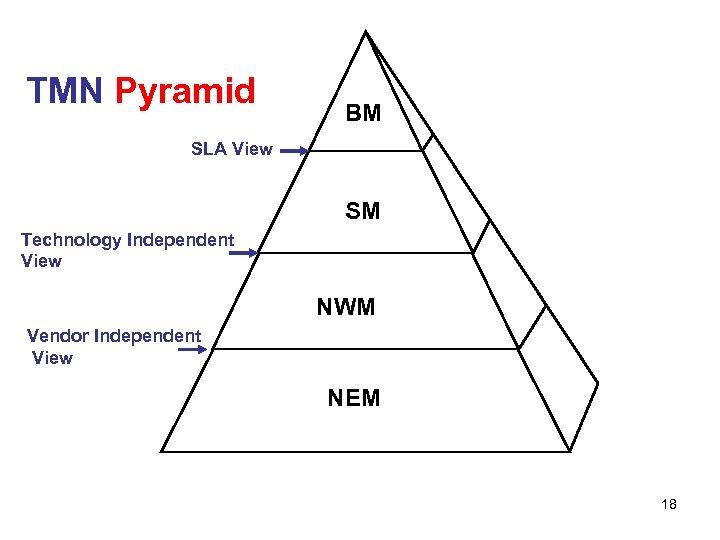

　 TMN Pyramid BM SLA View SM Technology Independent View NWM Vendor Independent View NEM 18

Business Management • A part of the overall management of the enterprise : goal setting tasks rather than goal achievement • Principle roles 1)supporting the decision-making process for the optimal investment and use of new telecommunications resources; 2)supporting the management of OA&M related budget; 3)supporting the supply and demand of OA&M related manpower; 4)maintaining aggregate data about the total enterprise. OA&M : Operations, Administration and Maintenance 19

TMN defines • Architecture Functional, Information , Physical • Management Layer : BM, SM, NEM • Management Functional Area: FCAPS • Management Platform • Management Information Model • Management Applications 20

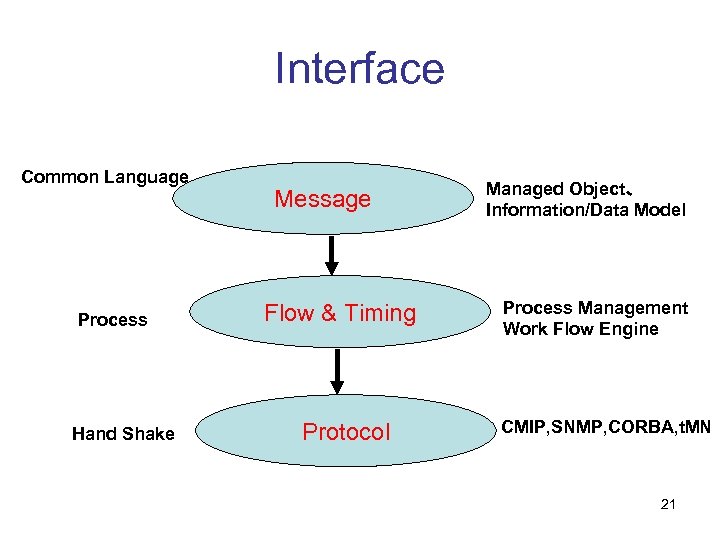

Interface Common Language Process Hand Shake Message Flow & Timing Protocol Managed Object、 Information/Data Model Process Management Work Flow Engine CMIP, SNMP, CORBA, t. MN 21

TMN Simplified Physical Architecture TMN Rec. M 3010, 2000 Operation System (OS) X/F/Q F X Data Communication Network (DCN) Workstation (WS) G Q Q-Mediation Device (QMD) Q Q Q-Adaptor (QA) M Q Network Element (NE) 22

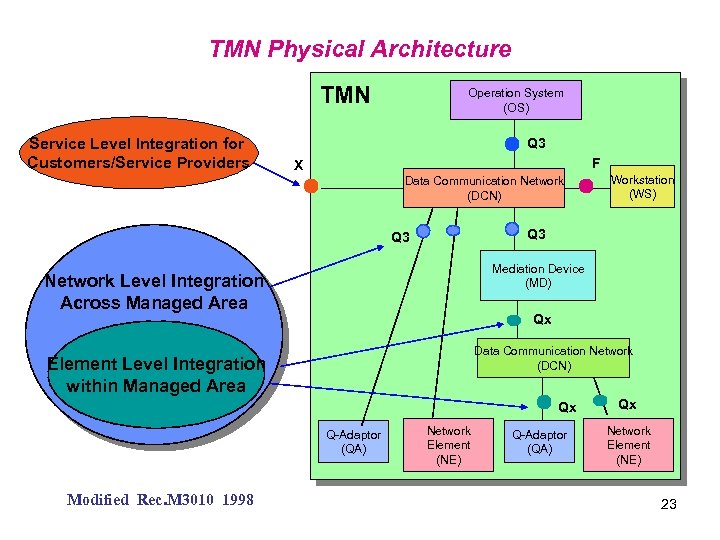

TMN Physical Architecture TMN Service Level Integration for Customers/Service Providers Operation System (OS) Q 3 F X Data Communication Network (DCN) Q 3 Mediation Device (MD) Network Level Integration Across Managed Area Qx Data Communication Network (DCN) Element Level Integration within Managed Area Qx Q-Adaptor (QA) Modified Rec. M 3010 1998 Workstation (WS) Network Element (NE) Q-Adaptor (QA) Qx Network Element (NE) 23

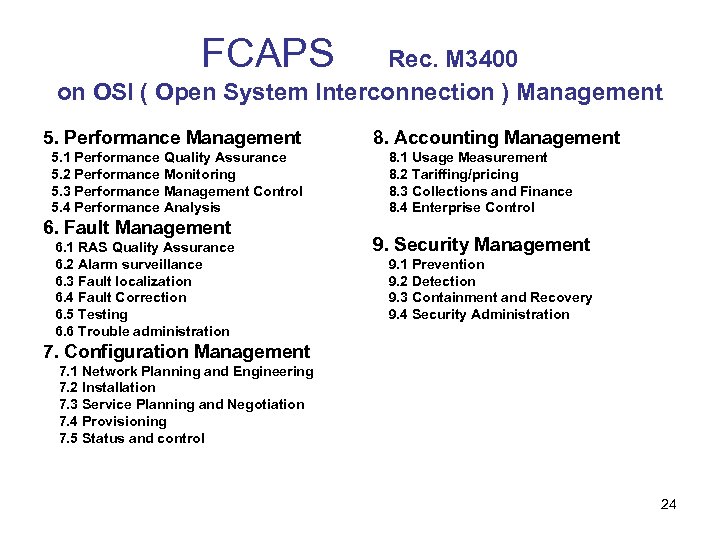

FCAPS　　Rec. M 3400 on OSI ( Open System Interconnection ) Management 5. Performance Management 5. 1 Performance Quality Assurance 5. 2 Performance Monitoring 5. 3 Performance Management Control 5. 4 Performance Analysis 6. Fault Management 6. 1 RAS Quality Assurance 6. 2 Alarm surveillance 6. 3 Fault localization 6. 4 Fault Correction 6. 5 Testing 6. 6 Trouble administration 8. Accounting Management 8. 1 Usage Measurement 8. 2 Tariffing/pricing 8. 3 Collections and Finance 8. 4 Enterprise Control 9. Security Management 9. 1 Prevention 9. 2 Detection 9. 3 Containment and Recovery 9. 4 Security Administration 7. Configuration Management 7. 1 Network Planning and Engineering 7. 2 Installation 7. 3 Service Planning and Negotiation 7. 4 Provisioning 7. 5 Status and control 24

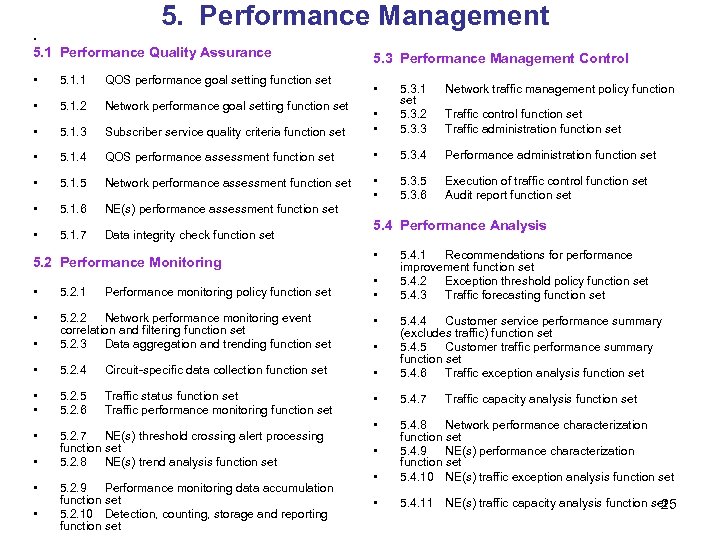

5. Performance Management • 5. 1 Performance Quality Assurance • 5. 1. 1 QOS performance goal setting function set • 5. 1. 2 Network performance goal setting function set • 5. 1. 3 • 5. 3 Performance Management Control • Network traffic management policy function Subscriber service quality criteria function set • • 5. 3. 1 set 5. 3. 2 5. 3. 3 5. 1. 4 QOS performance assessment function set • 5. 3. 4 Performance administration function set • 5. 1. 5 Network performance assessment function set • • 5. 3. 5 5. 3. 6 Execution of traffic control function set Audit report function set • 5. 1. 6 NE(s) performance assessment function set • 5. 1. 7 Data integrity check function set 5. 2 Performance Monitoring Traffic control function set Traffic administration function set 5. 4 Performance Analysis • • • 5. 4. 1 Recommendations for performance improvement function set 5. 4. 2 Exception threshold policy function set 5. 4. 3 Traffic forecasting function set • 5. 2. 1 • • • 5. 2. 2 Network performance monitoring event correlation and filtering function set 5. 2. 3 Data aggregation and trending function set • 5. 2. 4 Circuit-specific data collection function set • 5. 4. 4 Customer service performance summary (excludes traffic) function set 5. 4. 5 Customer traffic performance summary function set 5. 4. 6 Traffic exception analysis function set • • 5. 2. 5 5. 2. 6 Traffic status function set Traffic performance monitoring function set • 5. 4. 7 • 5. 2. 7 NE(s) threshold crossing alert processing function set 5. 2. 8 NE(s) trend analysis function set • • 5. 4. 8 Network performance characterization function set 5. 4. 9 NE(s) performance characterization function set 5. 4. 10 NE(s) traffic exception analysis function set • 5. 4. 11 NE(s) traffic capacity analysis function set 25 • • • Performance monitoring policy function set 5. 2. 9 Performance monitoring data accumulation function set 5. 2. 10 Detection, counting, storage and reporting function set • • Traffic capacity analysis function set

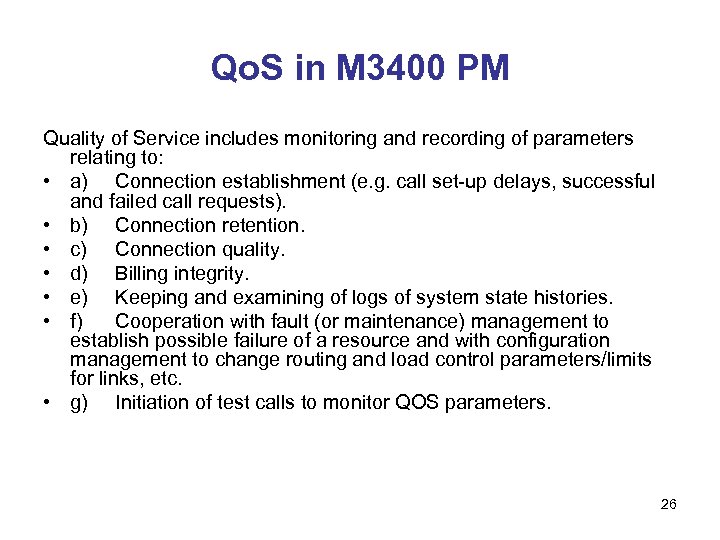

Qo. S in M 3400 PM Quality of Service includes monitoring and recording of parameters relating to: • a) Connection establishment (e. g. call set-up delays, successful and failed call requests). • b) Connection retention. • c) Connection quality. • d) Billing integrity. • e) Keeping and examining of logs of system state histories. • f) Cooperation with fault (or maintenance) management to establish possible failure of a resource and with configuration management to change routing and load control parameters/limits for links, etc. • g) Initiation of test calls to monitor QOS parameters. 26

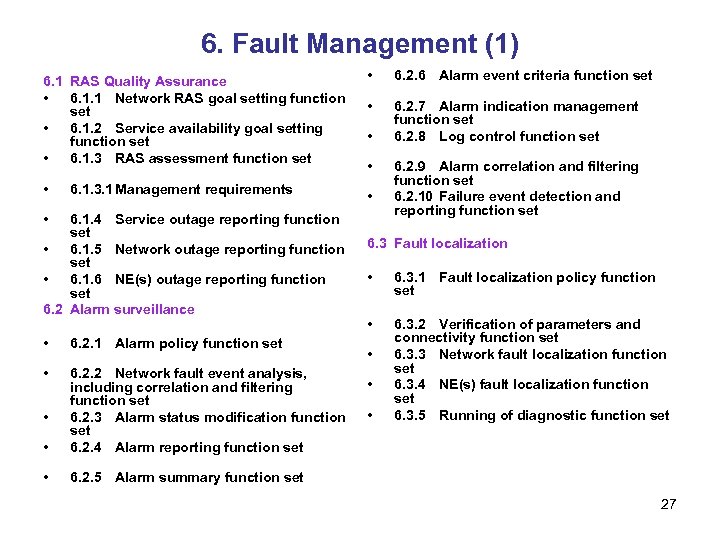

6. Fault Management (1) 6. 1 RAS Quality Assurance • 6. 1. 1 Network RAS goal setting function set • 6. 1. 2 Service availability goal setting function set • 6. 1. 3 RAS assessment function set • 6. 1. 3. 1 Management requirements • 6. 2. 6 Alarm event criteria function set • 6. 2. 7 Alarm indication management function set 6. 2. 8 Log control function set • • 6. 1. 4 Service outage reporting function set • 6. 1. 5 Network outage reporting function set • 6. 1. 6 NE(s) outage reporting function set 6. 2 Alarm surveillance • 6. 2. 1 Alarm policy function set • • 6. 2. 2 Network fault event analysis, including correlation and filtering function set 6. 2. 3 Alarm status modification function set 6. 2. 4 Alarm reporting function set • 6. 2. 9 Alarm correlation and filtering function set 6. 2. 10 Failure event detection and reporting function set 6. 3 Fault localization • 6. 3. 1 Fault localization policy function set • 6. 3. 2 Verification of parameters and connectivity function set 6. 3. 3 Network fault localization function set 6. 3. 4 NE(s) fault localization function set 6. 3. 5 Running of diagnostic function set 6. 2. 5 Alarm summary function set • • 27

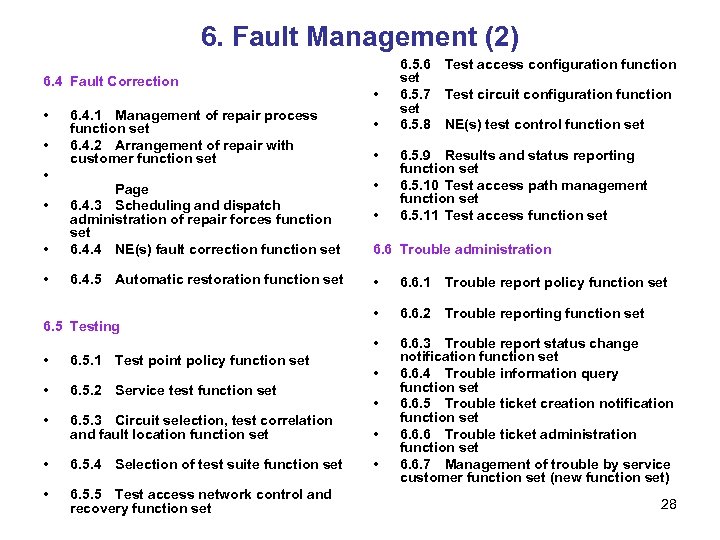

6. Fault Management (2) 6. 4 Fault Correction • • • 6. 4. 1 Management of repair process function set 6. 4. 2 Arrangement of repair with customer function set • • • 6. 5. 6 Test access configuration function set 6. 5. 7 Test circuit configuration function set 6. 5. 8 NE(s) test control function set 6. 5. 9 Results and status reporting function set 6. 5. 10 Test access path management function set 6. 5. 11 Test access function set • • Page 6. 4. 3 Scheduling and dispatch administration of repair forces function set 6. 4. 4 NE(s) fault correction function set • 6. 4. 5 Automatic restoration function set • 6. 6. 1 Trouble report policy function set • 6. 6. 2 Trouble reporting function set • 6. 6. 3 Trouble report status change notification function set 6. 6. 4 Trouble information query function set 6. 6. 5 Trouble ticket creation notification function set 6. 6. 6 Trouble ticket administration function set 6. 6. 7 Management of trouble by service customer function set (new function set) • 6. 5 Testing • 6. 6 Trouble administration • 6. 5. 1 Test point policy function set • 6. 5. 2 Service test function set • 6. 5. 3 Circuit selection, test correlation and fault location function set • • 6. 5. 4 Selection of test suite function set • • 6. 5. 5 Test access network control and recovery function set • • 28

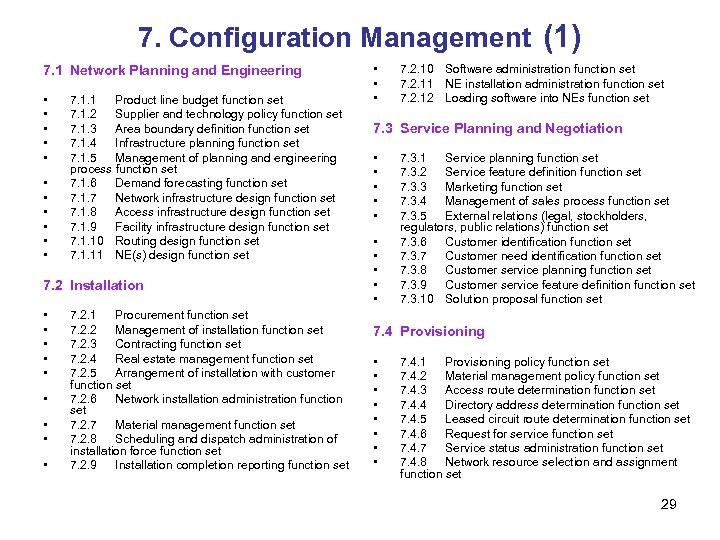

7. Configuration Management (1) 7. 1 Network Planning and Engineering • • • 7. 1. 1 Product line budget function set 7. 1. 2 Supplier and technology policy function set 7. 1. 3 Area boundary definition function set 7. 1. 4 Infrastructure planning function set 7. 1. 5 Management of planning and engineering process function set 7. 1. 6 Demand forecasting function set 7. 1. 7 Network infrastructure design function set 7. 1. 8 Access infrastructure design function set 7. 1. 9 Facility infrastructure design function set 7. 1. 10 Routing design function set 7. 1. 11 NE(s) design function set 7. 2 Installation • • • 7. 2. 1 Procurement function set 7. 2. 2 Management of installation function set 7. 2. 3 Contracting function set 7. 2. 4 Real estate management function set 7. 2. 5 Arrangement of installation with customer function set 7. 2. 6 Network installation administration function set 7. 2. 7 Material management function set 7. 2. 8 Scheduling and dispatch administration of installation force function set 7. 2. 9 Installation completion reporting function set • • • 7. 2. 10 Software administration function set 7. 2. 11 NE installation administration function set 7. 2. 12 Loading software into NEs function set 7. 3 Service Planning and Negotiation • • • 7. 3. 1 Service planning function set 7. 3. 2 Service feature definition function set 7. 3. 3 Marketing function set 7. 3. 4 Management of sales process function set 7. 3. 5 External relations (legal, stockholders, regulators, public relations) function set 7. 3. 6 Customer identification function set 7. 3. 7 Customer need identification function set 7. 3. 8 Customer service planning function set 7. 3. 9 Customer service feature definition function set 7. 3. 10 Solution proposal function set 7. 4 Provisioning • • 7. 4. 1 Provisioning policy function set 7. 4. 2 Material management policy function set 7. 4. 3 Access route determination function set 7. 4. 4 Directory address determination function set 7. 4. 5 Leased circuit route determination function set 7. 4. 6 Request for service function set 7. 4. 7 Service status administration function set 7. 4. 8 Network resource selection and assignment function set 29

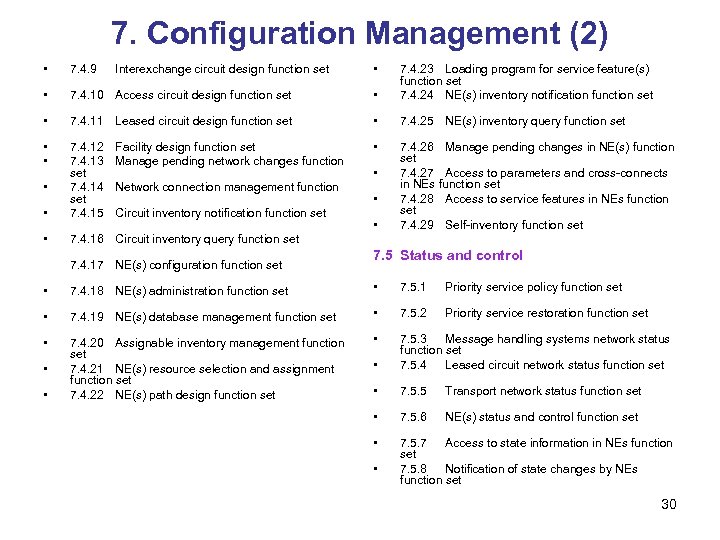

7. Configuration Management (2) • 7. 4. 9 • 7. 4. 10 Access circuit design function set • 7. 4. 23 Loading program for service feature(s) function set 7. 4. 24 NE(s) inventory notification function set • 7. 4. 11 Leased circuit design function set • 7. 4. 25 NE(s) inventory query function set • • 7. 4. 12 7. 4. 13 set 7. 4. 14 set 7. 4. 15 7. 4. 26 Manage pending changes in NE(s) function set 7. 4. 27 Access to parameters and cross-connects in NEs function set 7. 4. 28 Access to service features in NEs function set 7. 4. 29 Self-inventory function set • 7. 4. 16 Circuit inventory query function set • Interexchange circuit design function set Facility design function set Manage pending network changes function Network connection management function Circuit inventory notification function set 7. 4. 17 NE(s) configuration function set • • 7. 5 Status and control • 7. 4. 18 NE(s) administration function set • 7. 5. 1 Priority service policy function set • 7. 4. 19 NE(s) database management function set • 7. 5. 2 Priority service restoration function set • 7. 4. 20 Assignable inventory management function set 7. 4. 21 NE(s) resource selection and assignment function set 7. 4. 22 NE(s) path design function set • • 7. 5. 3 Message handling systems network status function set 7. 5. 4 Leased circuit network status function set • 7. 5. 5 Transport network status function set • 7. 5. 6 NE(s) status and control function set • 7. 5. 7 Access to state information in NEs function set 7. 5. 8 Notification of state changes by NEs function set • • • 30

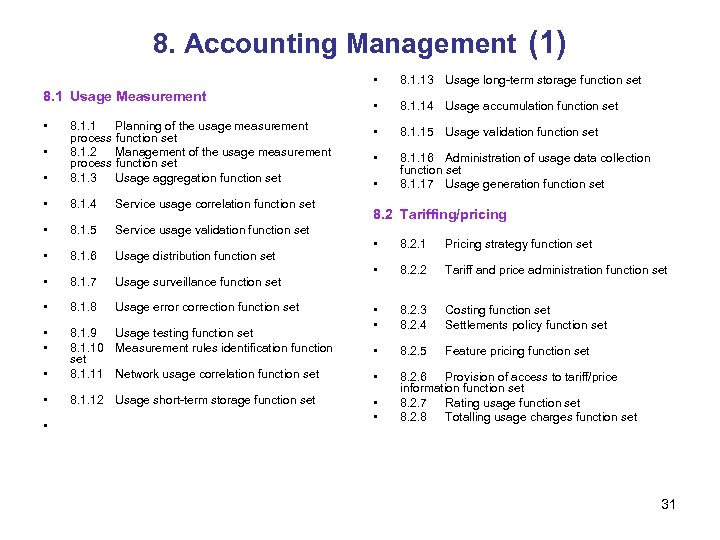

8. Accounting Management (1) • 8. 1 Usage Measurement • • 8. 1. 1 Planning of the usage measurement process function set 8. 1. 2 Management of the usage measurement process function set 8. 1. 3 Usage aggregation function set • 8. 1. 4 Service usage correlation function set • 8. 1. 5 8. 1. 6 Usage distribution function set • 8. 1. 7 Usage surveillance function set • 8. 1. 8 Usage error correction function set • • • 8. 1. 9 Usage testing function set 8. 1. 10 Measurement rules identification function set 8. 1. 11 Network usage correlation function set • 8. 1. 12 Usage short-term storage function set • 8. 1. 14 Usage accumulation function set • 8. 1. 15 Usage validation function set • 8. 1. 16 Administration of usage data collection function set 8. 1. 17 Usage generation function set Service usage validation function set • 8. 1. 13 Usage long-term storage function set • • • 8. 2 Tariffing/pricing • 8. 2. 1 Pricing strategy function set • 8. 2. 2 Tariff and price administration function set • • 8. 2. 3 8. 2. 4 Costing function set Settlements policy function set • 8. 2. 5 Feature pricing function set • 8. 2. 6 Provision of access to tariff/price information function set 8. 2. 7 Rating usage function set 8. 2. 8 Totalling usage charges function set • • 31

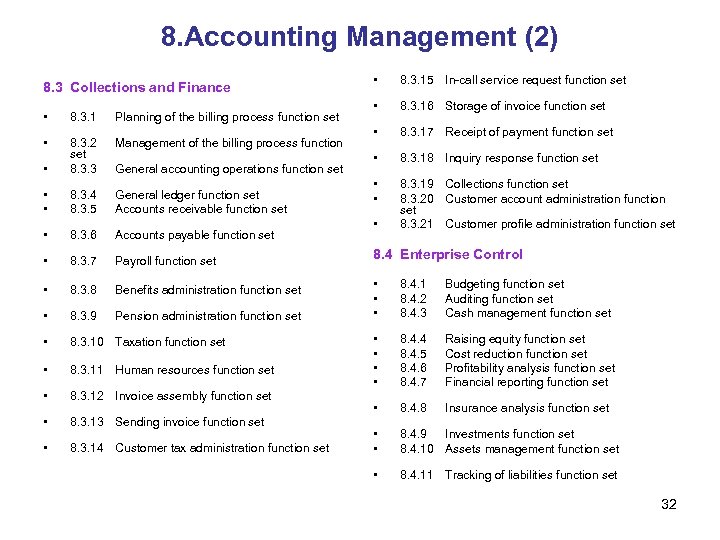

8. Accounting Management (2) 8. 3 Collections and Finance • 8. 3. 1 Planning of the billing process function set • Management of the billing process function • 8. 3. 2 set 8. 3. 3 • • 8. 3. 4 8. 3. 5 General ledger function set Accounts receivable function set • 8. 3. 6 Accounts payable function set • 8. 3. 7 Payroll function set • 8. 3. 8 Benefits administration function set • 8. 3. 9 Pension administration function set • 8. 3. 10 Taxation function set • 8. 3. 11 Human resources function set • 8. 3. 12 Invoice assembly function set • 8. 3. 13 Sending invoice function set • 8. 3. 14 Customer tax administration function set General accounting operations function set • 8. 3. 15 In-call service request function set • 8. 3. 16 Storage of invoice function set • 8. 3. 17 Receipt of payment function set • 8. 3. 18 Inquiry response function set • • 8. 3. 19 Collections function set 8. 3. 20 Customer account administration function set 8. 3. 21 Customer profile administration function set • 8. 4 Enterprise Control • • • 8. 4. 1 8. 4. 2 8. 4. 3 Budgeting function set Auditing function set Cash management function set • • 8. 4. 4 8. 4. 5 8. 4. 6 8. 4. 7 Raising equity function set Cost reduction function set Profitability analysis function set Financial reporting function set • 8. 4. 8 Insurance analysis function set • • 8. 4. 9 Investments function set 8. 4. 10 Assets management function set • 8. 4. 11 Tracking of liabilities function set 32

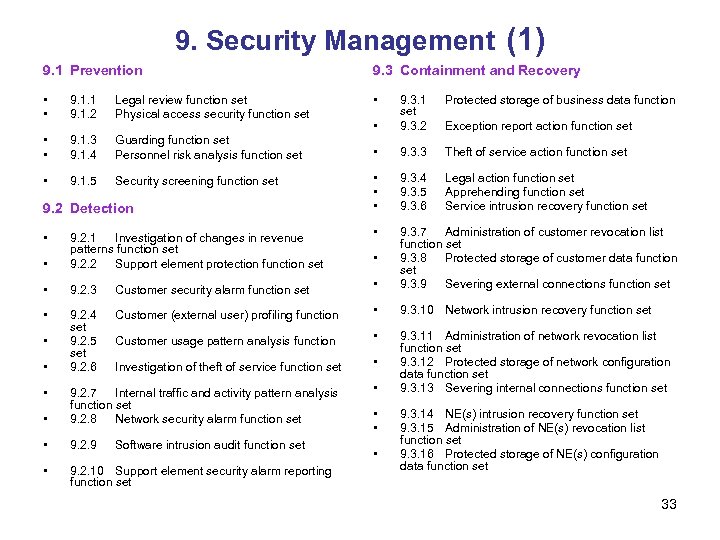

9. Security Management (1) 9. 1 Prevention 9. 3 Containment and Recovery • • 9. 1. 1 9. 1. 2 Legal review function set Physical access security function set • • • 9. 1. 3 9. 1. 4 Guarding function set Personnel risk analysis function set • 9. 1. 5 Security screening function set Protected storage of business data function • 9. 3. 1 set 9. 3. 2 • 9. 3. 3 Theft of service action function set 9. 2 Detection • • • 9. 3. 4 9. 3. 5 9. 3. 6 Legal action function set Apprehending function set Service intrusion recovery function set • • • 9. 2. 1 Investigation of changes in revenue patterns function set 9. 2. 2 Support element protection function set • 9. 2. 3 Customer security alarm function set • 9. 3. 7 Administration of customer revocation list function set 9. 3. 8 Protected storage of customer data function set 9. 3. 9 Severing external connections function set • 9. 2. 4 set 9. 2. 5 set 9. 2. 6 Customer (external user) profiling function • 9. 3. 10 Network intrusion recovery function set Customer usage pattern analysis function • Investigation of theft of service function set • • • 9. 2. 7 Internal traffic and activity pattern analysis function set 9. 2. 8 Network security alarm function set 9. 3. 11 Administration of network revocation list function set 9. 3. 12 Protected storage of network configuration data function set 9. 3. 13 Severing internal connections function set • 9. 2. 9 • 9. 2. 10 Support element security alarm reporting function set • • • Software intrusion audit function set • • Exception report action function set 9. 3. 14 NE(s) intrusion recovery function set 9. 3. 15 Administration of NE(s) revocation list function set 9. 3. 16 Protected storage of NE(s) configuration data function set 33

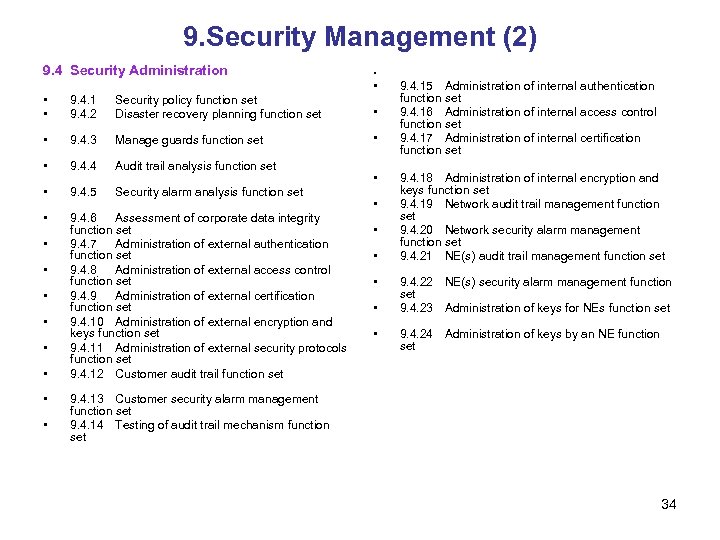

9. Security Management (2) 9. 4 Security Administration • • 9. 4. 1 9. 4. 2 Security policy function set Disaster recovery planning function set • • 9. 4. 3 Manage guards function set • • 9. 4. 4 Audit trail analysis function set • 9. 4. 5 Security alarm analysis function set • 9. 4. 6 Assessment of corporate data integrity function set 9. 4. 7 Administration of external authentication function set 9. 4. 8 Administration of external access control function set 9. 4. 9 Administration of external certification function set 9. 4. 10 Administration of external encryption and keys function set 9. 4. 11 Administration of external security protocols function set 9. 4. 12 Customer audit trail function set • • • • 9. 4. 15 Administration of internal authentication function set 9. 4. 16 Administration of internal access control function set 9. 4. 17 Administration of internal certification function set 9. 4. 18 Administration of internal encryption and keys function set 9. 4. 19 Network audit trail management function set 9. 4. 20 Network security alarm management function set 9. 4. 21 NE(s) audit trail management function set 9. 4. 22 NE(s) security alarm management function set 9. 4. 23 Administration of keys for NEs function set 9. 4. 24 Administration of keys by an NE function set 9. 4. 13 Customer security alarm management function set 9. 4. 14 Testing of audit trail mechanism function set 34

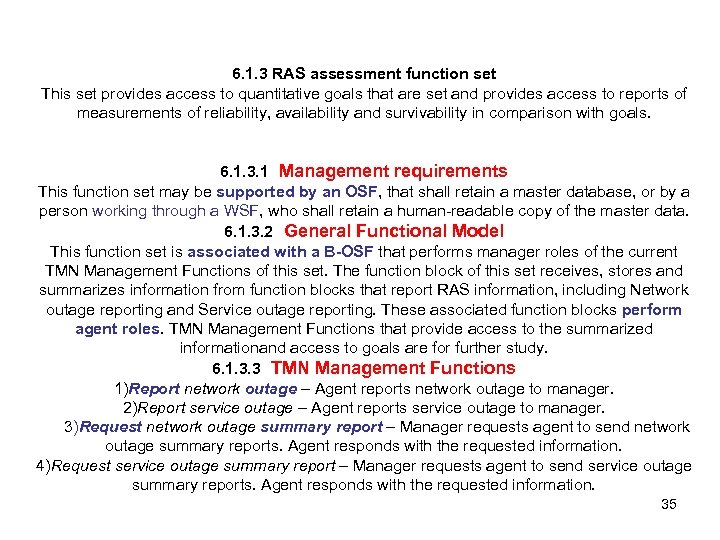

6. 1. 3 RAS assessment function set This set provides access to quantitative goals that are set and provides access to reports of measurements of reliability, availability and survivability in comparison with goals. 6. 1. 3. 1 Management requirements This function set may be supported by an OSF, that shall retain a master database, or by a person working through a WSF, who shall retain a human-readable copy of the master data. 6. 1. 3. 2 General Functional Model This function set is associated with a B-OSF that performs manager roles of the current TMN Management Functions of this set. The function block of this set receives, stores and summarizes information from function blocks that report RAS information, including Network outage reporting and Service outage reporting. These associated function blocks perform agent roles. TMN Management Functions that provide access to the summarized informationand access to goals are for further study. 6. 1. 3. 3 TMN Management Functions 1)Report network outage – Agent reports network outage to manager. 2)Report service outage – Agent reports service outage to manager. 3)Request network outage summary report – Manager requests agent to send network outage summary reports. Agent responds with the requested information. 4)Request service outage summary report – Manager requests agent to send service outage summary reports. Agent responds with the requested information. 35

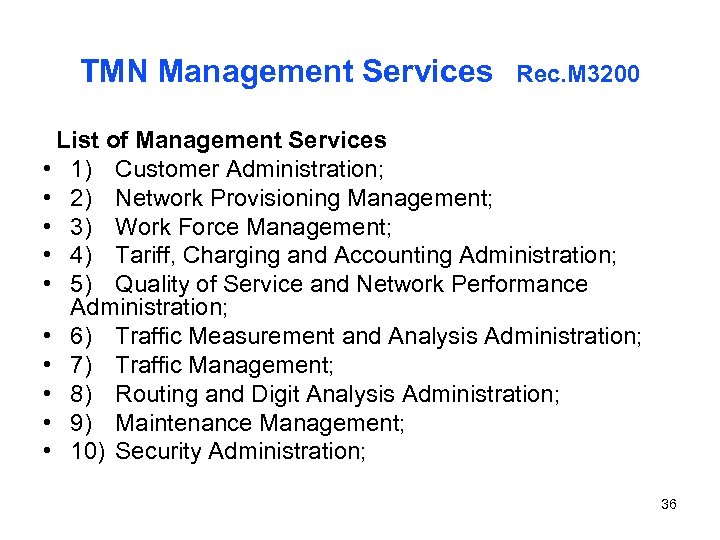

TMN Management Services Rec. M 3200 List of Management Services • 1) Customer Administration; • 2) Network Provisioning Management; • 3) Work Force Management; • 4) Tariff, Charging and Accounting Administration; • 5) Quality of Service and Network Performance Administration; • 6) Traffic Measurement and Analysis Administration; • 7) Traffic Management; • 8) Routing and Digit Analysis Administration; • 9) Maintenance Management; • 10) Security Administration; 36

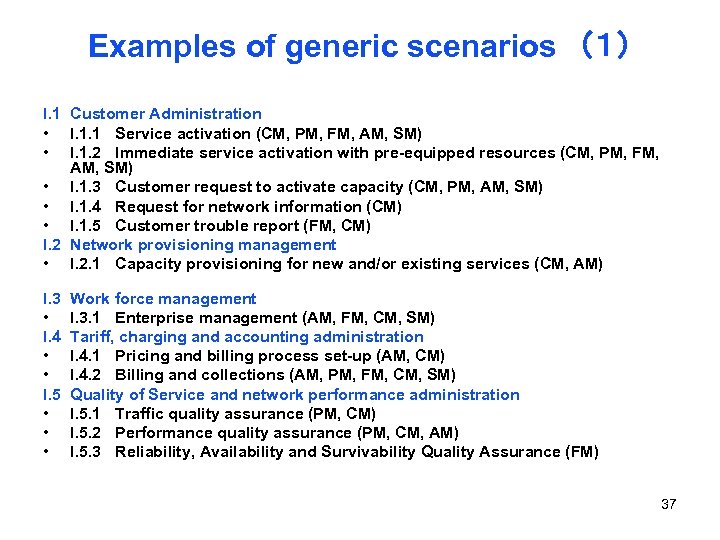

Examples of generic scenarios　（１） I. 1 Customer Administration • I. 1. 1 Service activation (CM, PM, FM, AM, SM) • I. 1. 2 Immediate service activation with pre-equipped resources (CM, PM, FM, AM, SM) • I. 1. 3 Customer request to activate capacity (CM, PM, AM, SM) • I. 1. 4 Request for network information (CM) • I. 1. 5 Customer trouble report (FM, CM) I. 2 Network provisioning management • I. 2. 1 Capacity provisioning for new and/or existing services (CM, AM) I. 3 • I. 4 • • I. 5 • • • Work force management I. 3. 1 Enterprise management (AM, FM, CM, SM) Tariff, charging and accounting administration I. 4. 1 Pricing and billing process set-up (AM, CM) I. 4. 2 Billing and collections (AM, PM, FM, CM, SM) Quality of Service and network performance administration I. 5. 1 Traffic quality assurance (PM, CM) I. 5. 2 Performance quality assurance (PM, CM, AM) I. 5. 3 Reliability, Availability and Survivability Quality Assurance (FM) 37

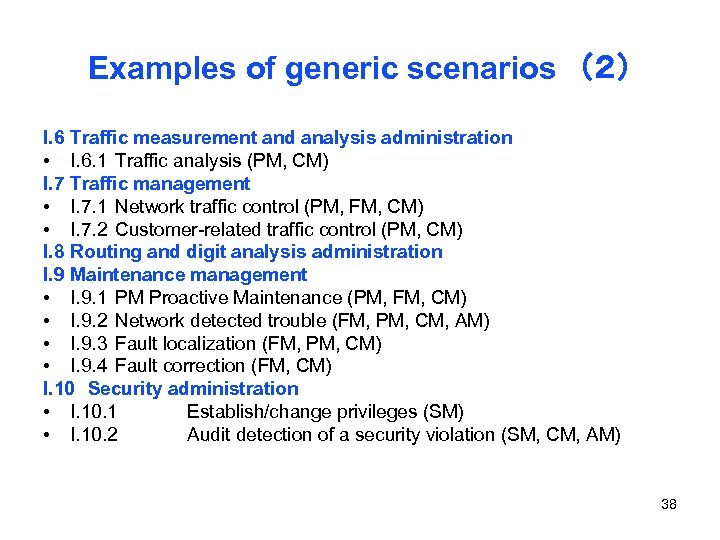

Examples of generic scenarios　（２） I. 6 Traffic measurement and analysis administration • I. 6. 1 Traffic analysis (PM, CM) I. 7 Traffic management • I. 7. 1 Network traffic control (PM, FM, CM) • I. 7. 2 Customer-related traffic control (PM, CM) I. 8 Routing and digit analysis administration I. 9 Maintenance management • I. 9. 1 PM Proactive Maintenance (PM, FM, CM) • I. 9. 2 Network detected trouble (FM, PM, CM, AM) • I. 9. 3 Fault localization (FM, PM, CM) • I. 9. 4 Fault correction (FM, CM) I. 10　Security administration • I. 10. 1 Establish/change privileges (SM) • I. 10. 2 Audit detection of a security violation (SM, CM, AM) 38

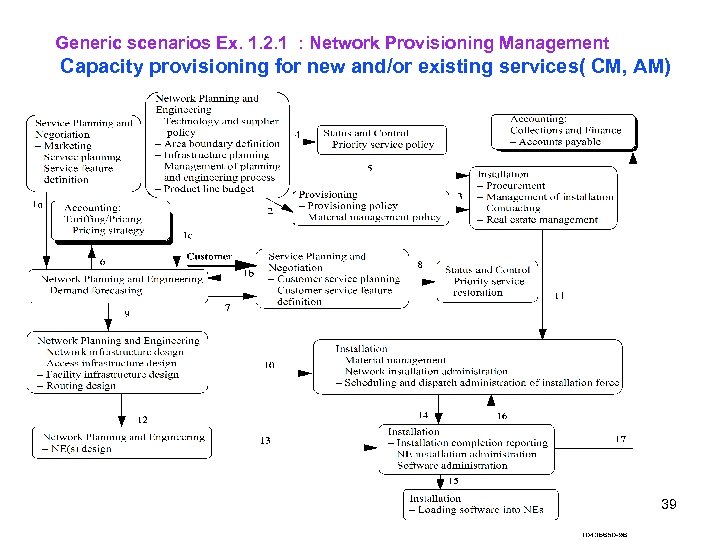

Generic scenarios Ex. 1. 2. 1 : Network Provisioning Management Capacity provisioning for new and/or existing services( CM, AM) 39

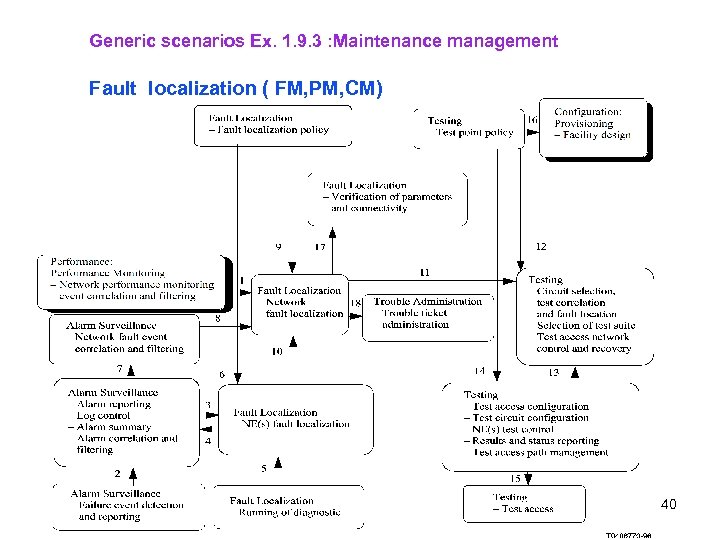

Generic scenarios Ex. 1. 9. 3 : Maintenance management Fault localization ( FM, PM, CM) 40

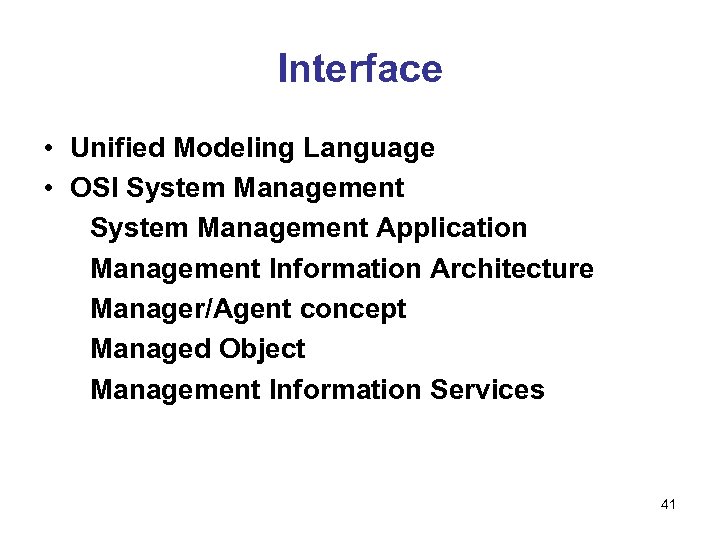

Interface • Unified Modeling Language • OSI System Management Application Management Information Architecture Manager/Agent concept Managed Object Management Information Services 41

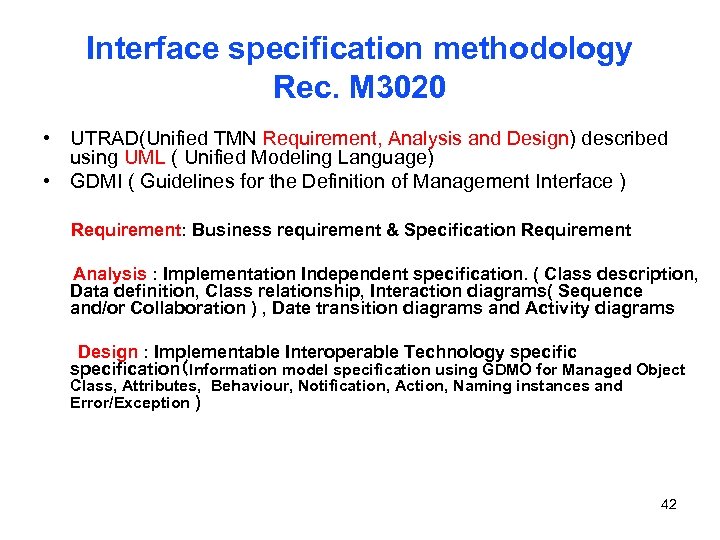

Interface specification methodology Rec. M 3020 • UTRAD(Unified TMN Requirement, Analysis and Design) described using UML ( Unified Modeling Language) • GDMI ( Guidelines for the Definition of Management Interface ) Requirement: Business requirement & Specification Requirement Analysis : Implementation Independent specification. ( Class description, Data definition, Class relationship, Interaction diagrams( Sequence and/or Collaboration ) , Date transition diagrams and Activity diagrams Design : Implementable Interoperable Technology specific 　　 specification（Information model specification using GDMO for Managed Object Class, Attributes, Behaviour, Notification, Action, Naming instances and Error/Exception ) 42

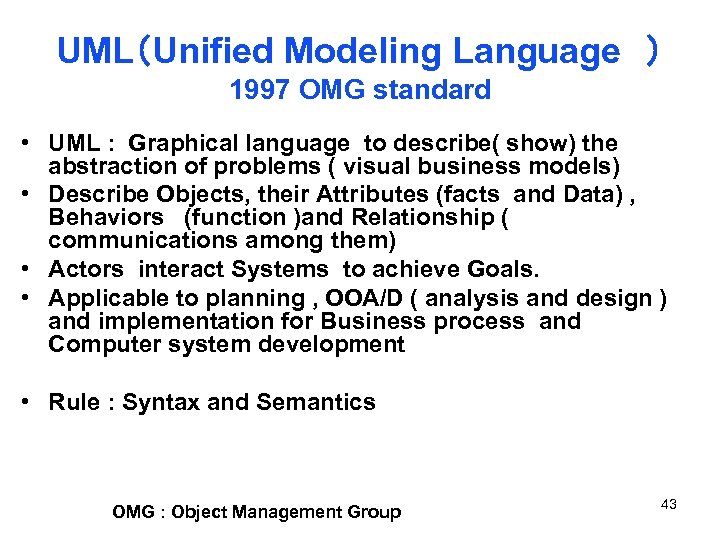

UML（Unified Modeling Language　） 1997 OMG standard • UML : Graphical language to describe( show) the abstraction of problems ( visual business models) • Describe Objects, their Attributes (facts and Data) , Behaviors (function )and Relationship ( communications among them) • Actors interact Systems to achieve Goals. • Applicable to planning , OOA/D ( analysis and design )　 and implementation for Business process and Computer system development • Rule : Syntax and Semantics OMG : Object Management Group 43

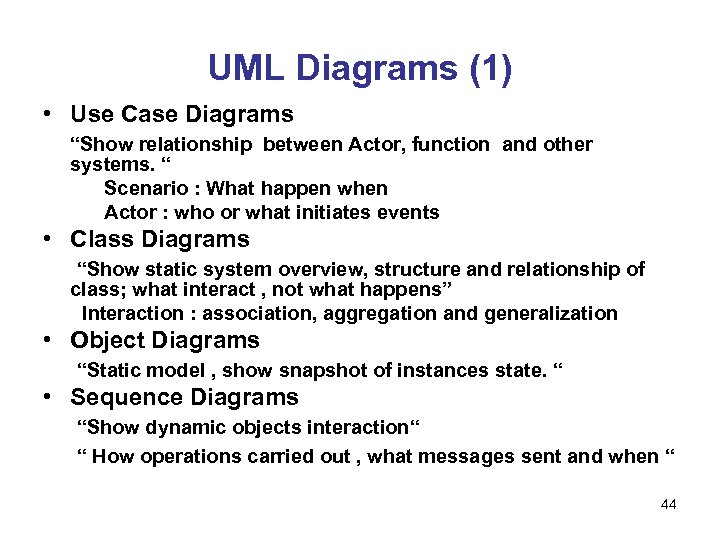

UML Diagrams (1) • Use Case Diagrams “Show relationship between Actor, function and other systems. “ Scenario : What happen when Actor : who or what initiates events • Class Diagrams “Show static system overview, structure and relationship of class; what interact , not what happens” Interaction : association, aggregation and generalization • Object Diagrams “Static model , show snapshot of instances state. “ • Sequence Diagrams “Show dynamic objects interaction“ “ How operations carried out , what messages sent and when “ 44

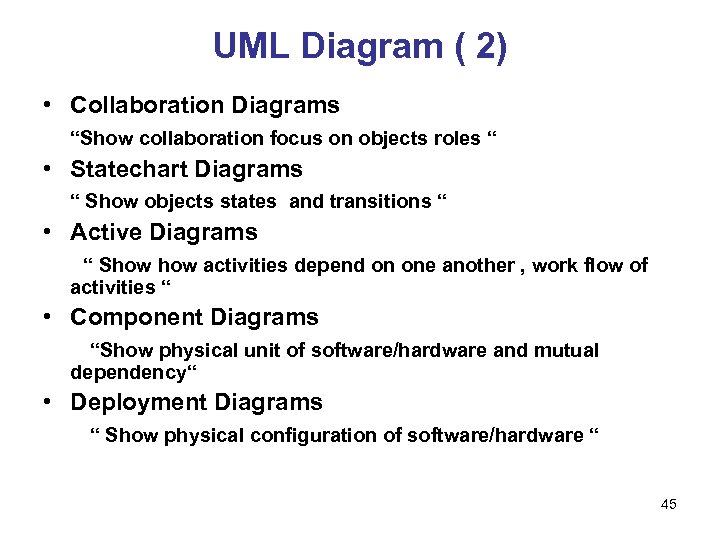

UML Diagram ( 2) • Collaboration Diagrams “Show collaboration focus on objects roles “ • Statechart Diagrams “ Show objects states and transitions “ • Active Diagrams “ Show activities depend on one another , work flow of activities “ • Component Diagrams “Show physical unit of software/hardware and mutual dependency“ • Deployment Diagrams “ Show physical configuration of software/hardware “ 45

M. 3020 – Customer Administration of LCS Use Case LCS : Leased Circuit Service 46

M. 3020 – Service Provisioning Use Case for CNM of LCS and Link Connections 47

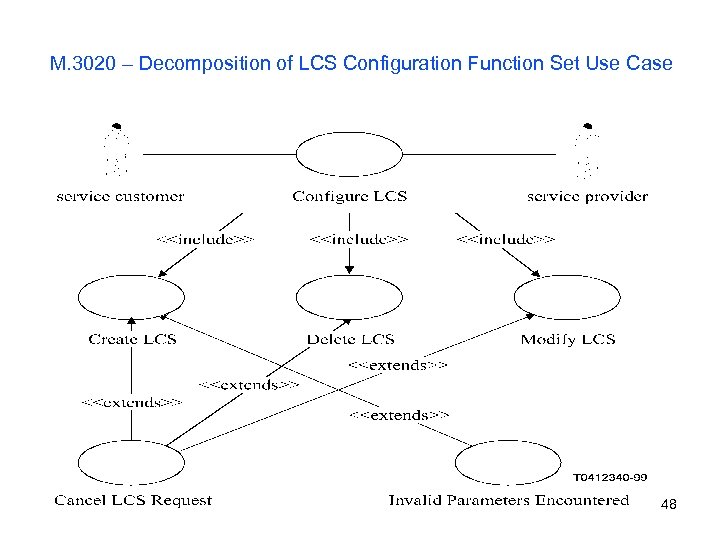

M. 3020 – Decomposition of LCS Configuration Function Set Use Case 48

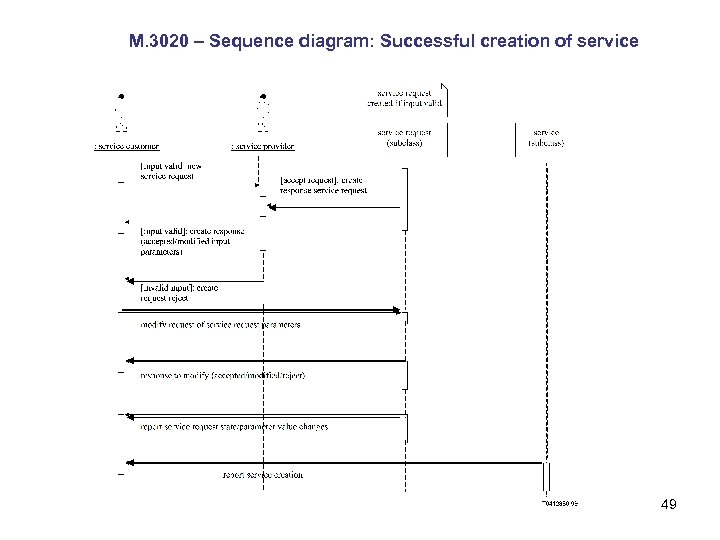

M. 3020 – Sequence diagram: Successful creation of service 49

Collaboration diagram: Successful creation of service Rec. M 3020 3: 4: Service Customer Service Provider 1: 6: 7: 8: 2: 5: Service Request 1: new service request 2: valid request, service request created 3: valid input parameters, respond with service request creation 4: invalid request parameters, respond with service request failure 5: modify service request 6: respond to modify service request ( accept/modify/reject) 7: report request state/parameter change 8: service creation report Service( subclass) 50

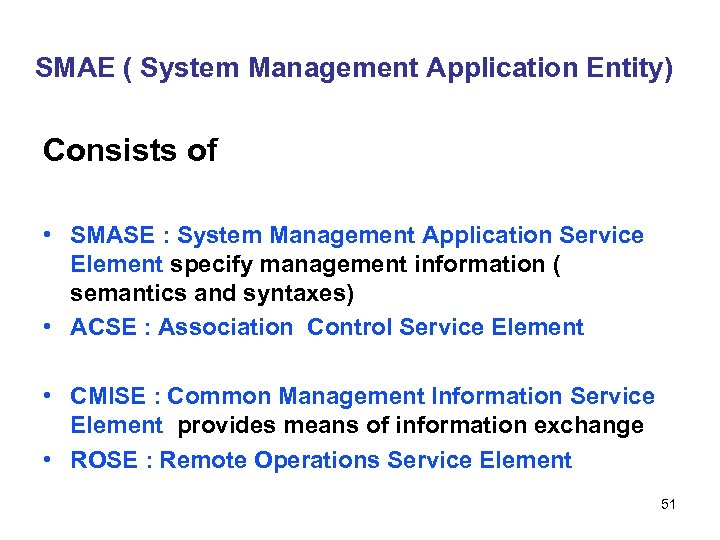

SMAE ( System Management Application Entity) Consists of • SMASE : System Management Application Service Element specify management information ( semantics and syntaxes) • ACSE : Association Control Service Element • CMISE : Common Management Information Service Element provides means of information exchange • ROSE : Remote Operations Service Element 51

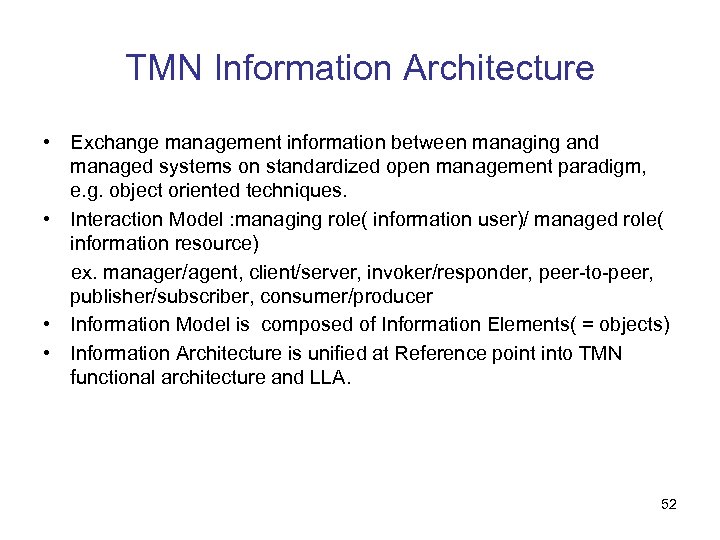

TMN Information Architecture • Exchange management information between managing and managed systems on standardized open management paradigm, e. g. object oriented techniques. • Interaction Model : managing role( information user)/ managed role( information resource) ex. manager/agent, client/server, invoker/responder, peer-to-peer, publisher/subscriber, consumer/producer • Information Model is composed of Information Elements( = objects) • Information Architecture is unified at Reference point into TMN functional architecture and LLA. 52

OSI System Management Overview System Management Managed System Manager Operations Managing Process Agent Process Managed Objects ( MIB) Notification Resource 53

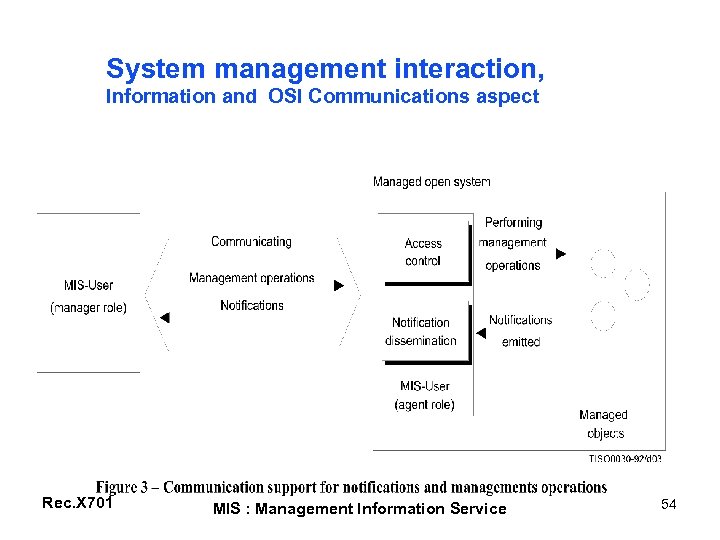

System management interaction, Information and OSI Communications aspect Rec. X 701 MIS : Management Information Service 54

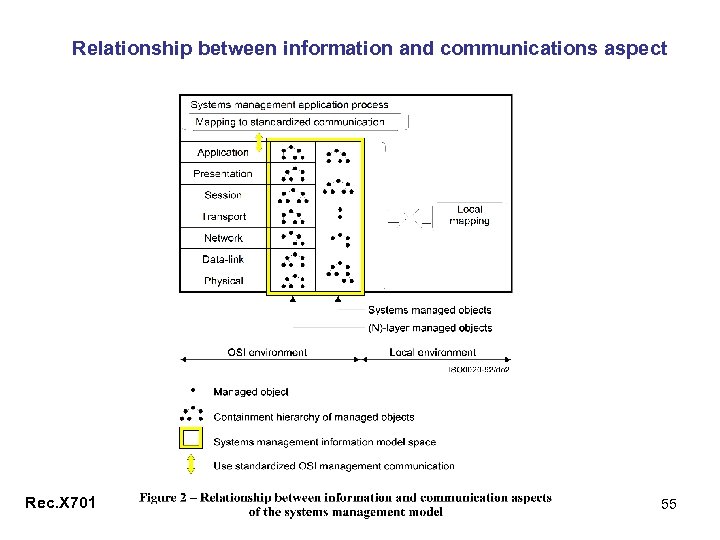

Relationship between information and communications aspect Rec. X 701 55

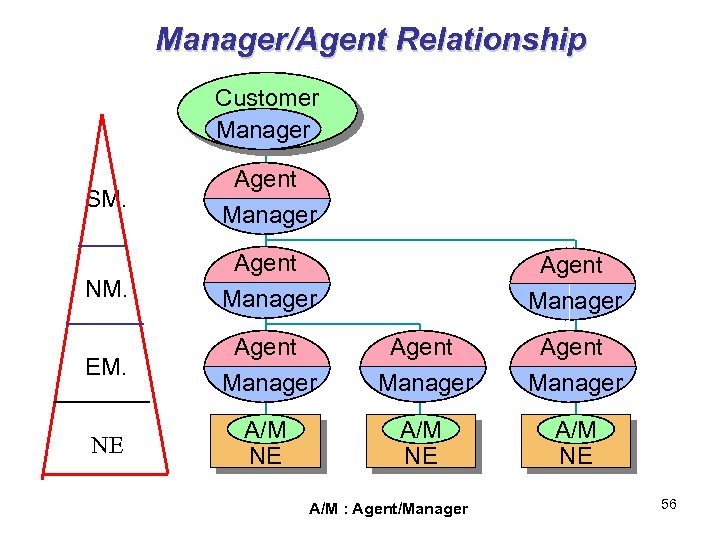

Manager/Agent Relationship Customer Manager SM. Agent Manager NM. Manager EM. Agent Manager NE A/M : Agent/Manager 56

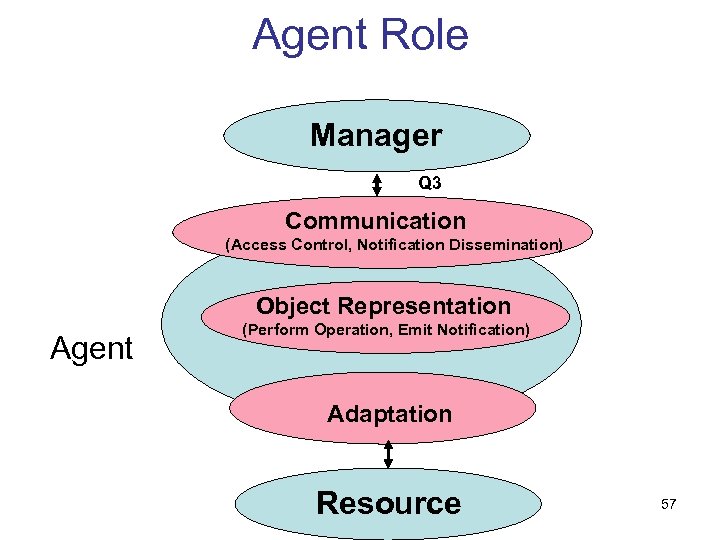

Agent Role Manager Q 3 Communication (Access Control, Notification Dissemination) Object Representation Agent (Perform Operation, Emit Notification) Adaptation Resource 57

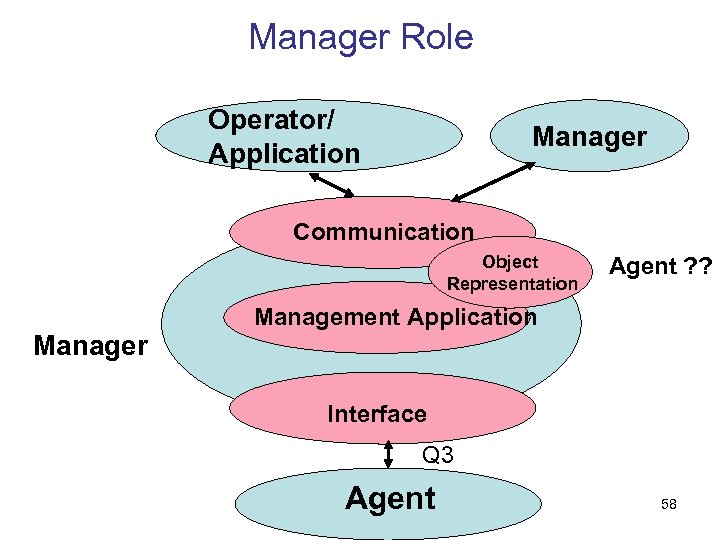

Manager Role Operator/ Application Manager Communication Object Representation Manager Agent ? ? Management Application Interface Q 3 Agent 58

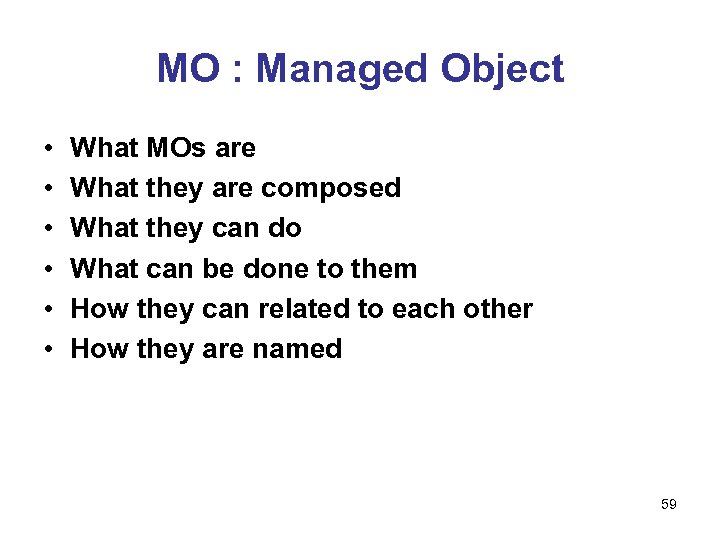

MO : Managed Object • • • What MOs are What they are composed What they can do What can be done to them How they can related to each other How they are named 59

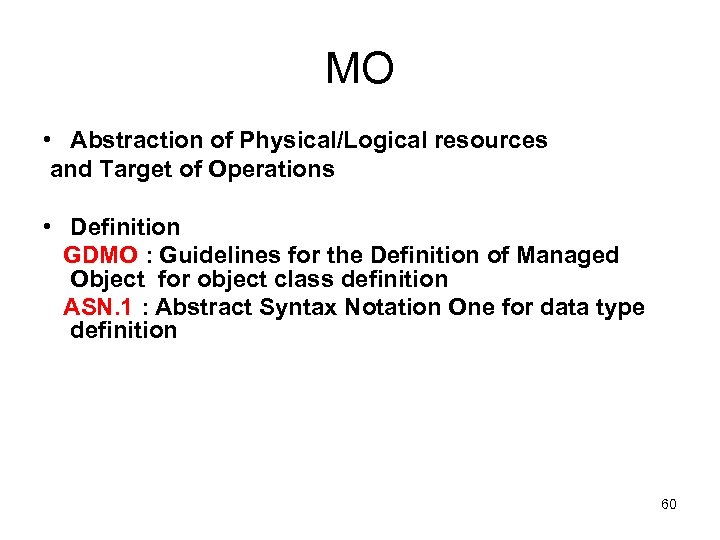

MO • Abstraction of Physical/Logical resources and Target of Operations • Definition GDMO : Guidelines for the Definition of Managed Object for object class definition ASN. 1 : Abstract Syntax Notation One for data type definition 60

MO features • Object composition Attributes Behaviors Actions Notifications Packages • Object class Class hierarchy : superclass, subclass Inheritance Polymorphism • Containment • Naming : Relative distinguished Name, Distinguished Name, Local Distinguished Name 61

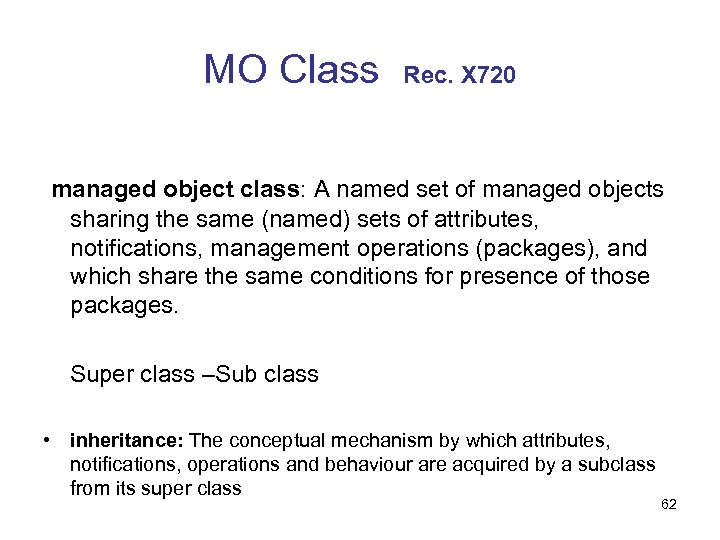

MO Class Rec. X 720 managed object class: A named set of managed objects sharing the same (named) sets of attributes, notifications, management operations (packages), and which share the same conditions for presence of those packages. Super class –Sub class • inheritance: The conceptual mechanism by which attributes, notifications, operations and behaviour are acquired by a subclass from its super class 62

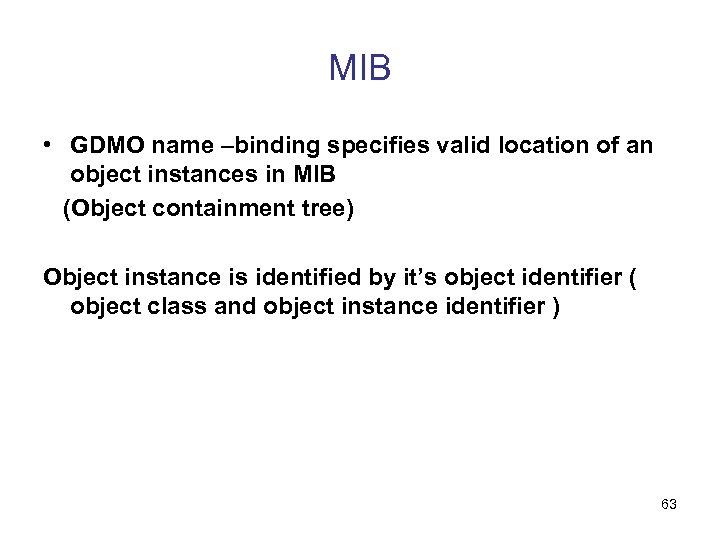

MIB • GDMO name –binding specifies valid location of an object instances in MIB (Object containment tree) Object instance is identified by it’s object identifier ( object class and object instance identifier ) 63

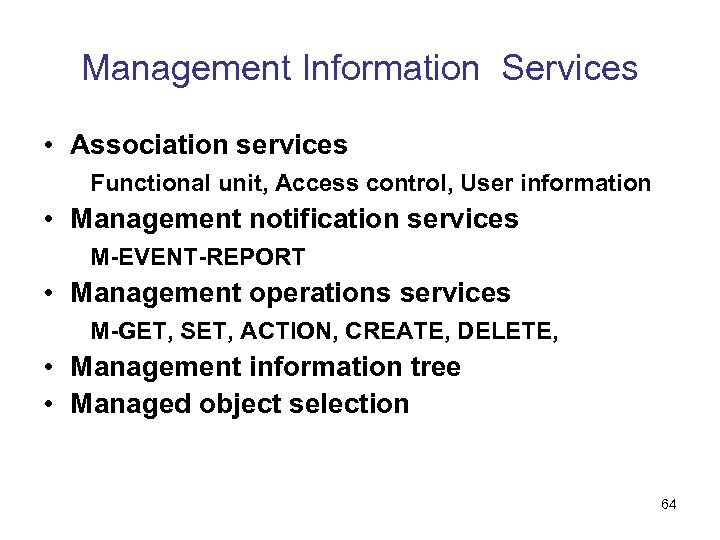

Management Information Services • Association services Functional unit, Access control, User information • Management notification services M-EVENT-REPORT • Management operations services M-GET, SET, ACTION, CREATE, DELETE, • Management information tree • Managed object selection 64

CMISE Services • • Rec. X 710 M-EVENT-REPORT report M-GET attribute value M-CANCEL-GET attribute value M-SET attribute value M-ACTION to other object M-CREATE objects class instances M-DELETE objects class instances 65

CMISE Service parameters example • • • • Invoke identifier Linked identifier Mode Base object class Base object instance Scope Filter Access control Synchronization Attribute identifier list Managed object class Managed object instance Current time Attribute list Error • • • Invoke identifier Mode Event type Event time Event information Managed object class Managed object instance Current time Eveny reply Error 66

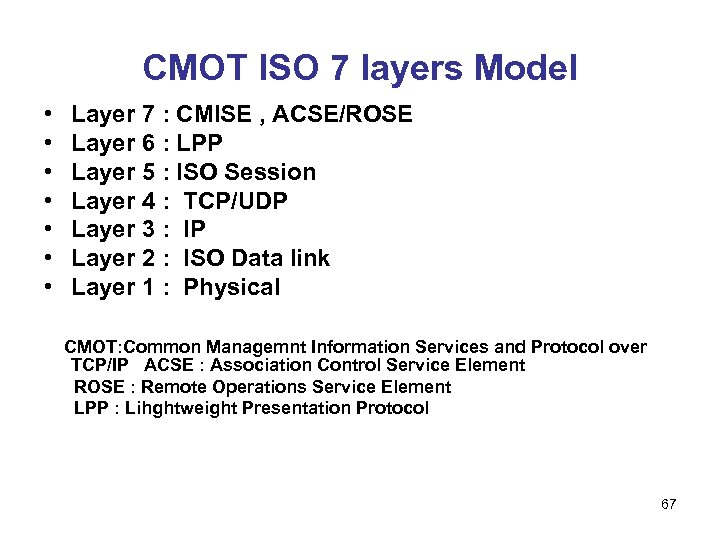

CMOT ISO 7 layers Model • • Layer 7 : CMISE , ACSE/ROSE Layer 6 : LPP Layer 5 : ISO Session Layer 4 : TCP/UDP Layer 3 : IP Layer 2 : ISO Data link Layer 1 : Physical CMOT: Common Managemnt Information Services and Protocol over TCP/IP ACSE : Association Control Service Element ROSE : Remote Operations Service Element LPP : Lihghtweight Presentation Protocol 67

SNMP messages • • • Get-Request Get-Response Get-Next-Request Set-Request Trap 68

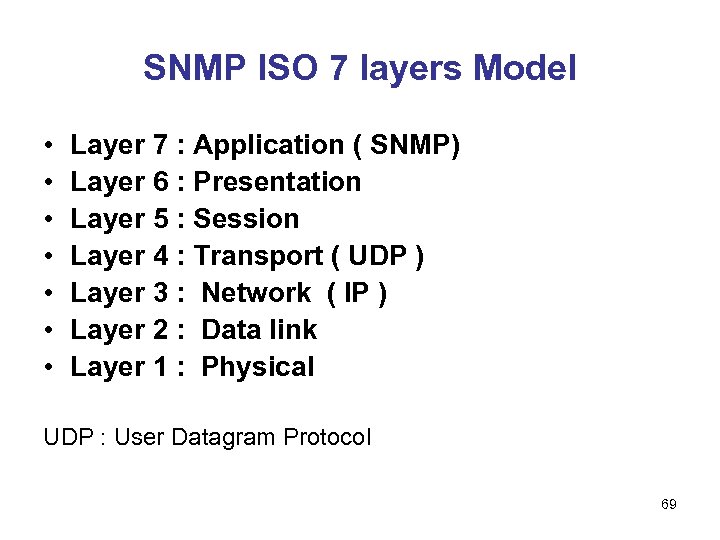

SNMP ISO 7 layers Model • • Layer 7 : Application ( SNMP) Layer 6 : Presentation Layer 5 : Session Layer 4 : Transport ( UDP ) Layer 3 : Network ( IP ) Layer 2 : Data link Layer 1 : Physical UDP : User Datagram Protocol 69

Shared management knowledge Rec. X 701 Share the Knowledge of • • • Protocol ( application context) Functions ( functions and functional unit ) Managed Object ( class, instance , identification , attribute ) Constraint ( functions , managed object, relationship ) Definition ( Managed Object class definition ) Repertoire (classes of managed object in given system) 70

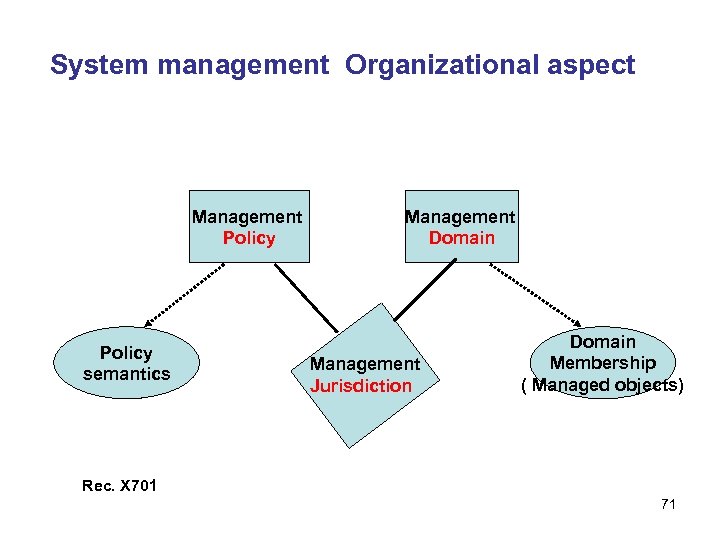

System management Organizational aspect Management Policy semantics Management Domain Management Jurisdiction Domain Membership ( Managed objects) Rec. X 701 71

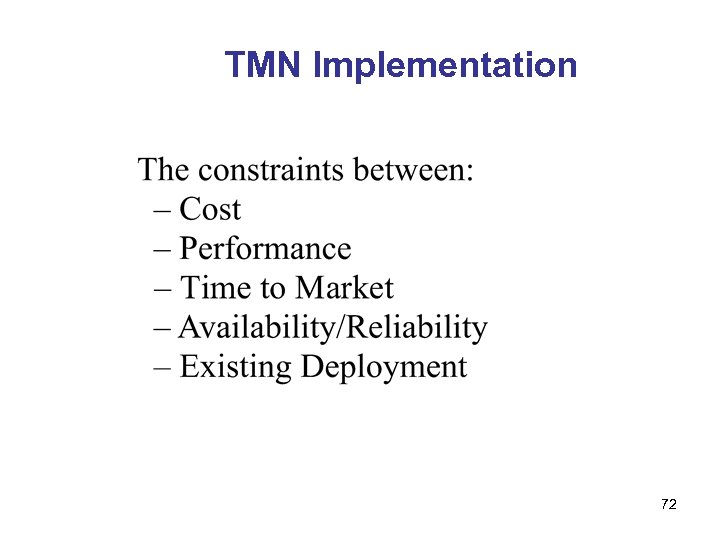

TMN Implementation 72

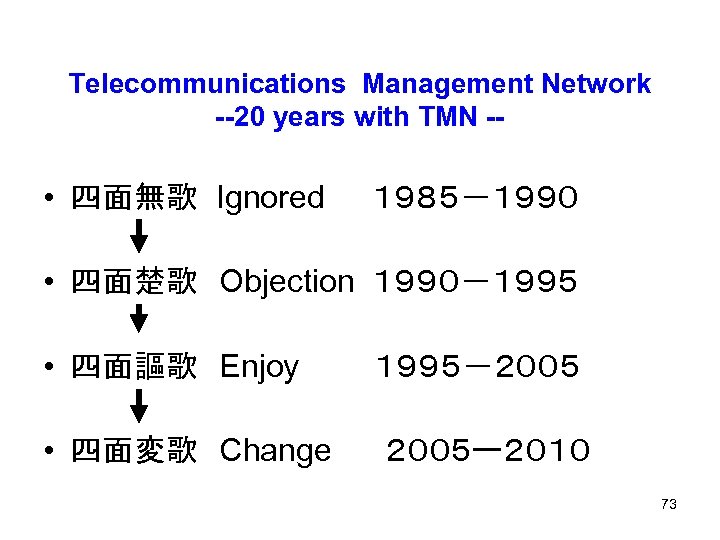

Telecommunications Management Network --20 years with TMN -- • 四面無歌 Ignored 　１９８５－１９９０ • 四面楚歌　Objection １９９０－１９９５ • 四面謳歌　Enjoy • 四面変歌　Change 　１９９５－２００５ー２０１０　　　 73

Gandhi • • First they ignore you. Then they laugh at you. Then they fight you. Then you win. 74

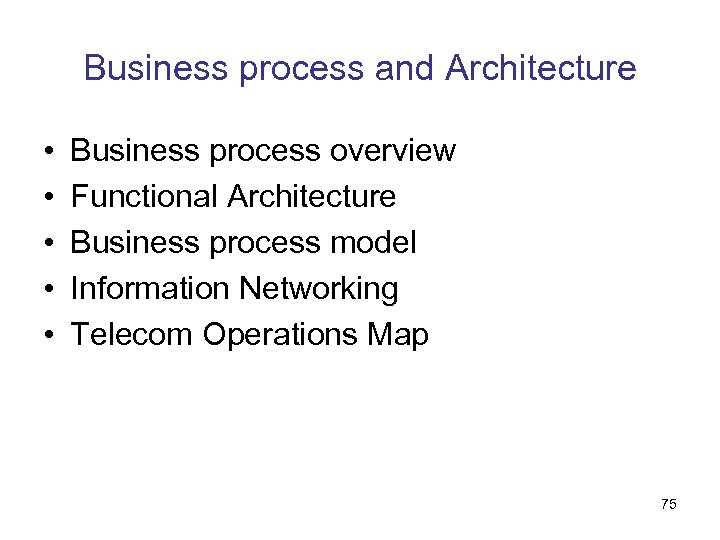

Business process and Architecture • • • Business process overview Functional Architecture Business process model Information Networking Telecom Operations Map 75

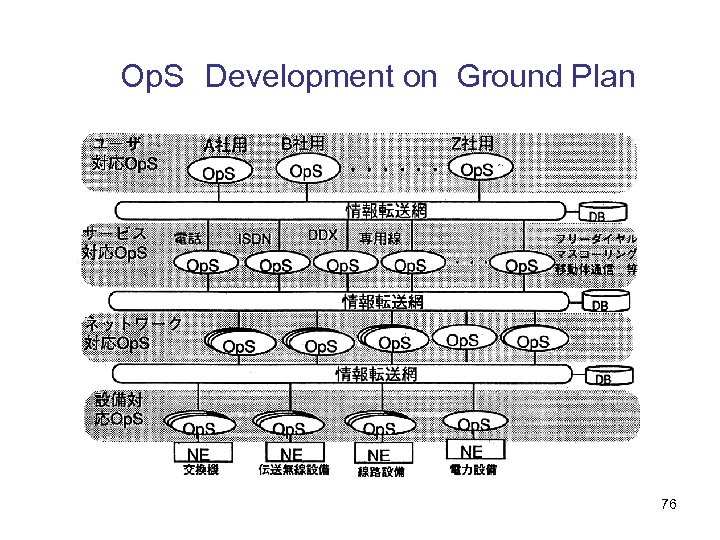

Op. S　Development on Ground Plan 76

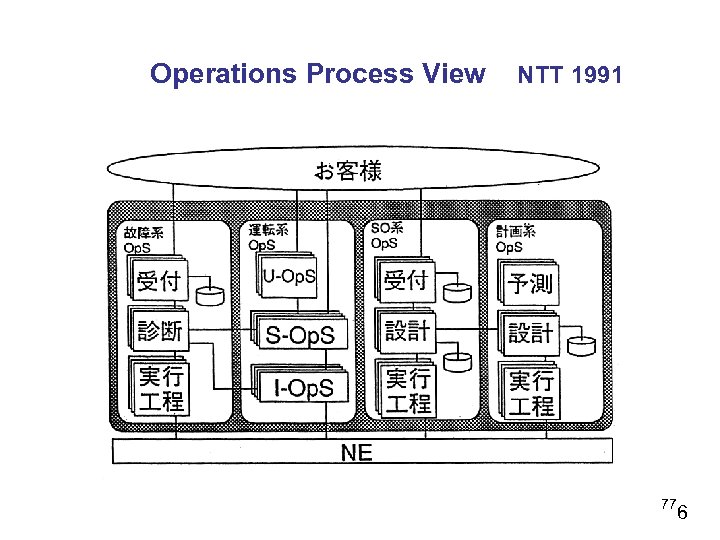

　Operations Process View NTT 1991 77 6

運転系Op. S Architecture 78

Performance Op. S Architecture U-Op. S User ＯｐＳ Service ＯｐＳ S-Op. S Leased line service ＯｐＳ Network Management ＯｐＳ I-Op. S Leased line ＮＥ Network ＯｐＳ Traffic ＯｐＳ Node Path Network ＯｐＳ Path NE Op. S Common NE for Services 79

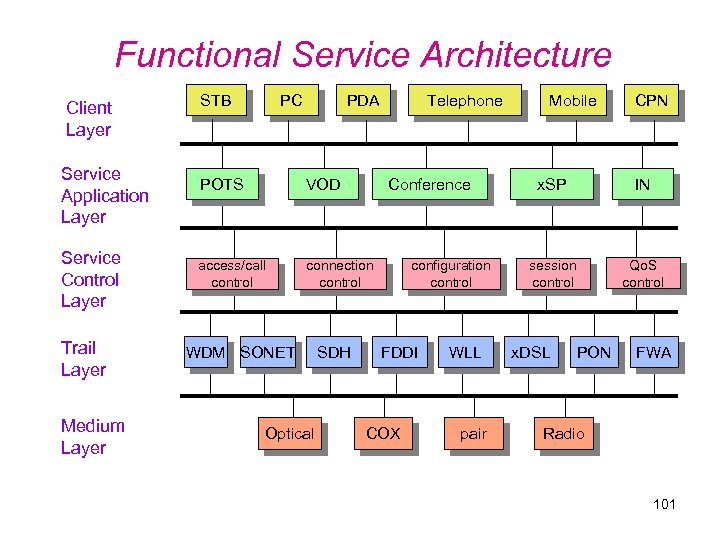

Functional Service Architecture Client Layer Service Application Layer Service Control Layer Trail Layer Medium Layer STB PC PDA POTS VOD access/call control Telephone connection control WDM SONET Optical SDH Conference configuration control FDDI COX WLL pair Mobile CPN x. SP IN session control Qo. S control x. DSL PON FWA Radio 80

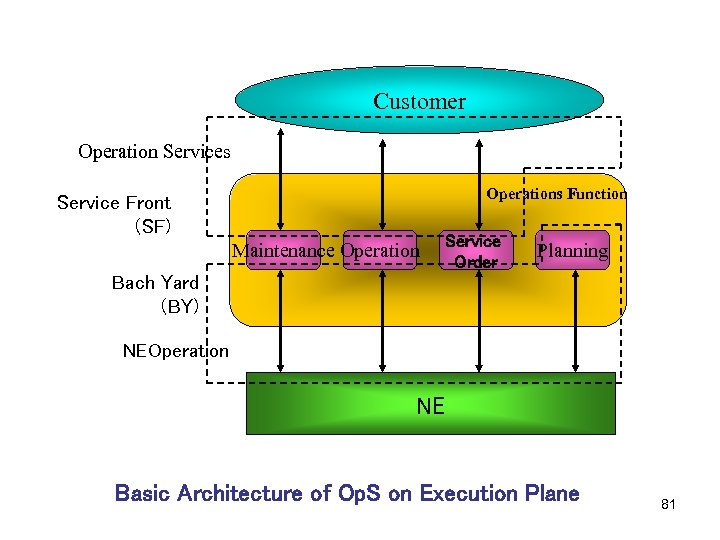

Customer Operation Services Operations Function Service Front （SF) Maintenance Operation Service Order Planning Bach Yard （BY) NEOperation NE Basic Architecture of Op. S on Execution Plane 81

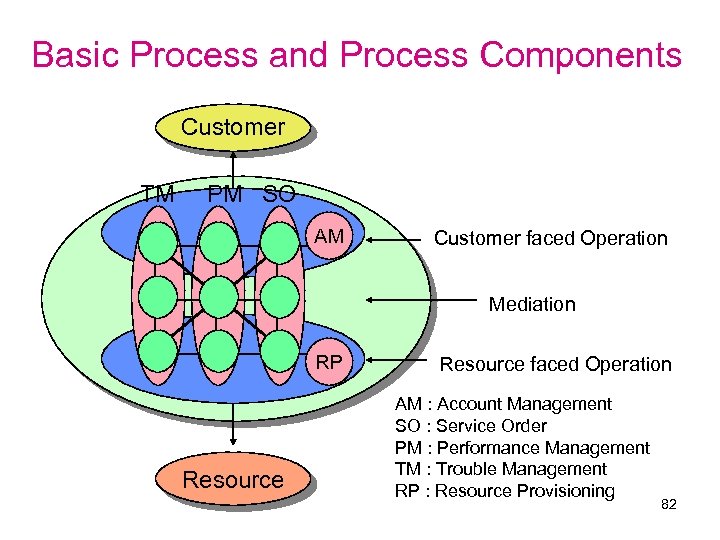

Basic Process and Process Components Customer TM PM SO AM Customer faced Operation Mediation RP Resource faced Operation AM : Account Management SO : Service Order PM : Performance Management TM : Trouble Management RP : Resource Provisioning 82

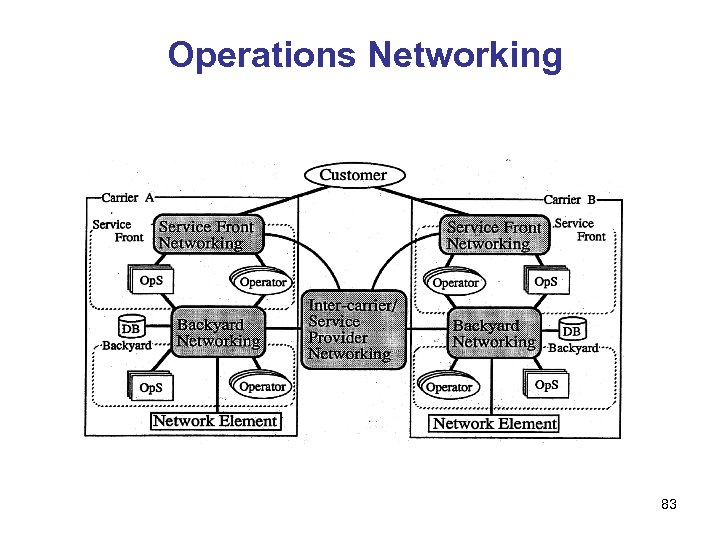

Operations Networking 83

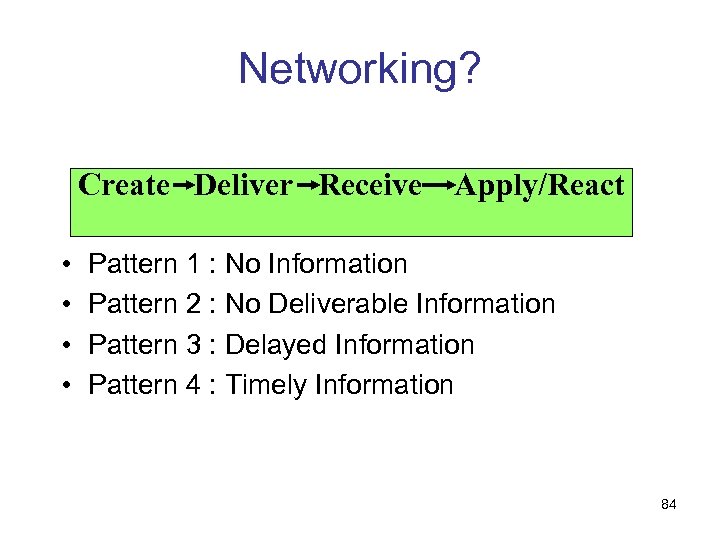

Networking? Create Deliver Receive • • Apply/React Pattern 1 : No Information Pattern 2 : No Deliverable Information Pattern 3 : Delayed Information Pattern 4 : Timely Information 84

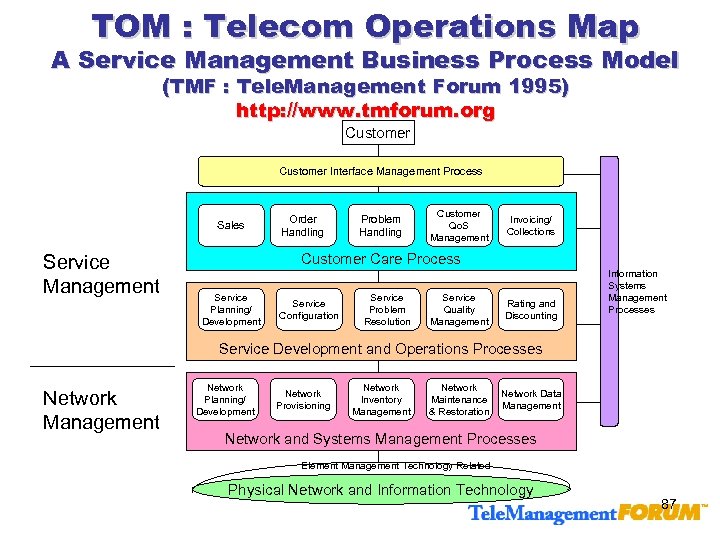

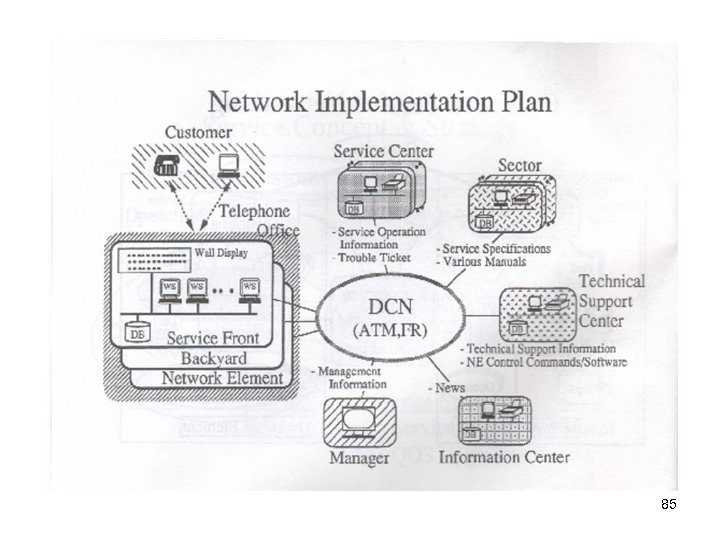

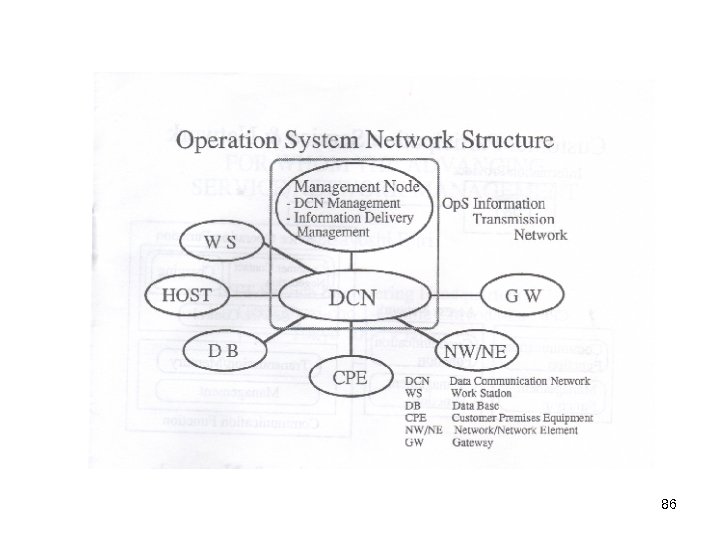

TOM : Telecom Operations Map A Service Management Business Process Model (TMF : Tele. Management Forum 1995) http: //www. tmforum. org Customer Interface Management Process Sales Service Management Order Handling Problem Handling Customer Qo. S Management Invoicing/ Collections Customer Care Process Service Planning/ Development Service Configuration Service Problem Resolution Service Quality Management Rating and Discounting Information Systems Management Processes Service Development and Operations Processes Network Management Network Planning/ Development Network Provisioning Network Inventory Management Network Maintenance & Restoration Network Data Management Network and Systems Management Processes Element Management Technology Related Physical Network and Information Technology 87

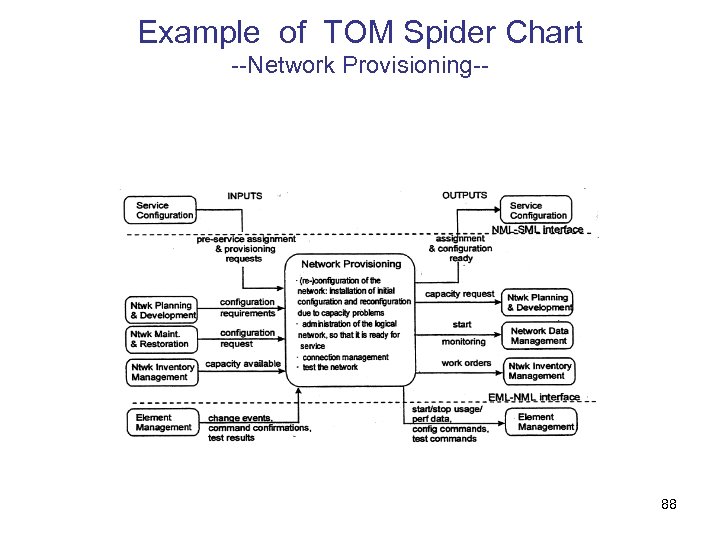

Example of TOM Spider Chart --Network Provisioning-- 88

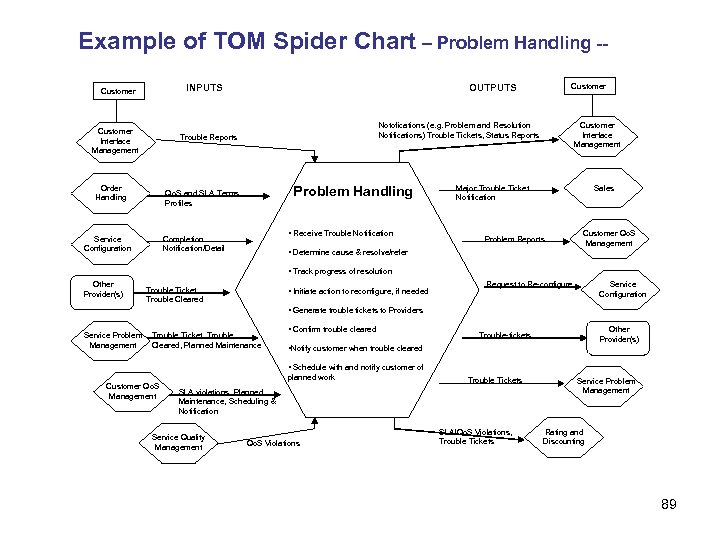

Example of TOM Spider Chart – Problem Handling -INPUTS Customer Interface Management Notofications (e. g. Problem and Resolution Notifications) Trouble Tickets, Status Reports Trouble Reports Order Handling Problem Handling Qo. S and SLA Terms Profiles • Receive Trouble Notification Completion Notification/Detail Service Configuration Customer OUTPUTS Customer Interface Management Major Trouble Ticket Notification Sales Problem Reports Customer Qo. S Management • Determine cause & resolve/refer • Track progress of resolution Other Provider(s) Trouble Ticket Trouble Cleared • Initiate action to reconfigure, if needed Service Configuration Request to Re-configure • Generate trouble tickets to Providers Service Problem Management Trouble Ticket, Trouble Cleared, Planned Maintenance • Confirm trouble cleared Other Provider(s) Trouble-tickets • Notify customer when trouble cleared • Schedule with and notify customer of planned work Customer Qo. S Management Trouble Tickets SLA violations, Planned Maintenance, Scheduling & Notification Service Quality Management Qo. S Violations SLA/Qo. S Violations, Trouble Tickets Service Problem Management Rating and Discounting 89

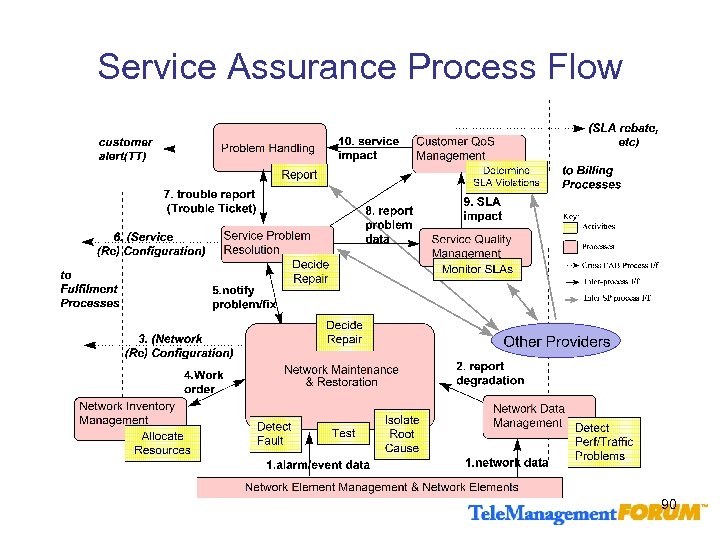

Service Assurance Process Flow 90

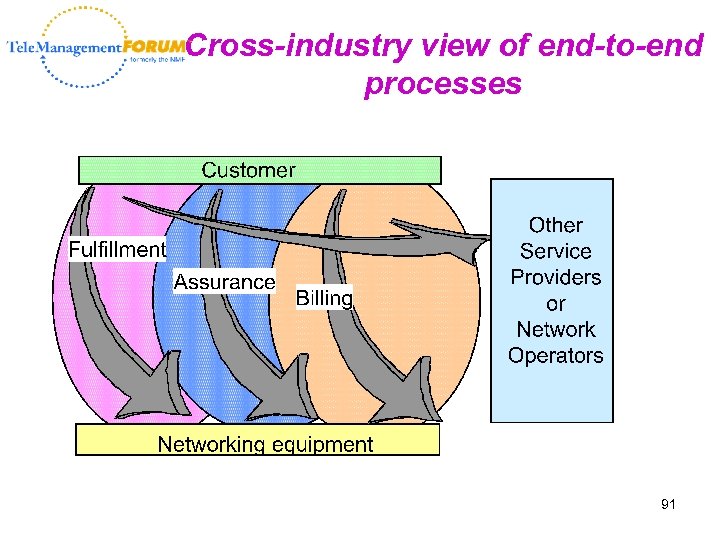

Cross-industry view of end-to-end processes 91

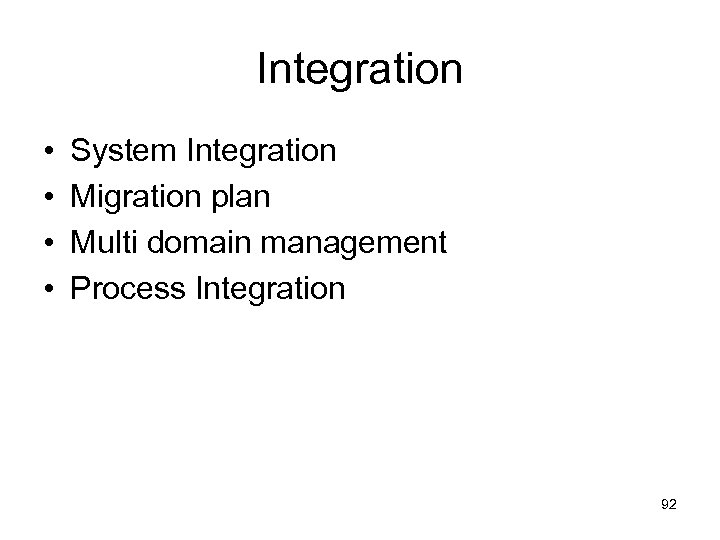

Integration • • System Integration Migration plan Multi domain management Process Integration 92

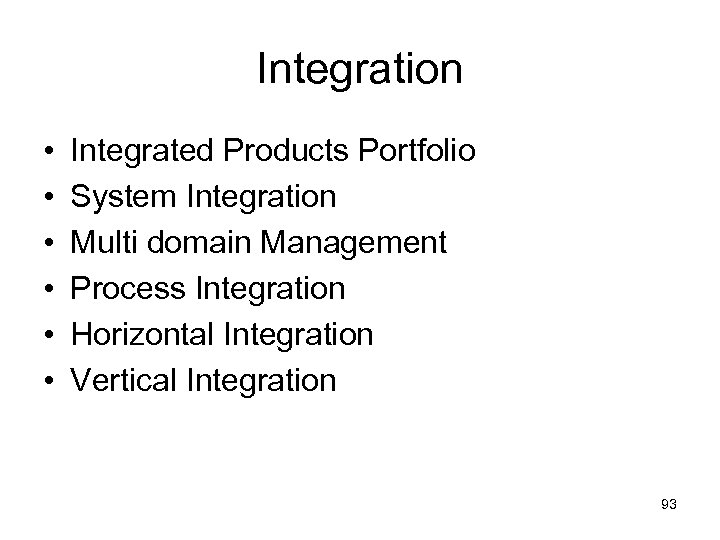

Integration • • • Integrated Products Portfolio System Integration Multi domain Management Process Integration Horizontal Integration Vertical Integration 93

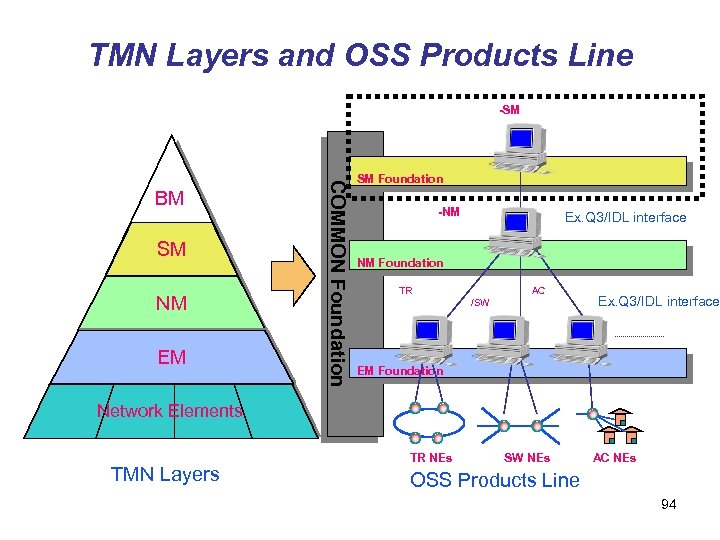

TMN Layers and OSS Products Line -SM SM NM EM COMMON Foundation BM SM Foundation -NM Ex. Q 3/IDL interface NM Foundation TR AC /SW Ex. Q 3/IDL interface EM Foundation Network Elements TMN Layers TR NEs SW NEs AC NEs OSS Products Line 94

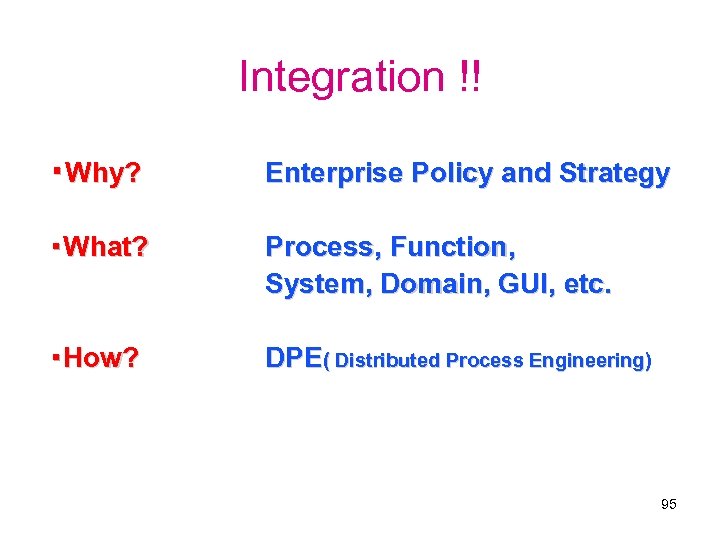

Integration !! ・Why? Enterprise Policy and Strategy ・What? Process, Function, System, Domain, GUI, etc. ・How? DPE( Distributed Process Engineering) 95

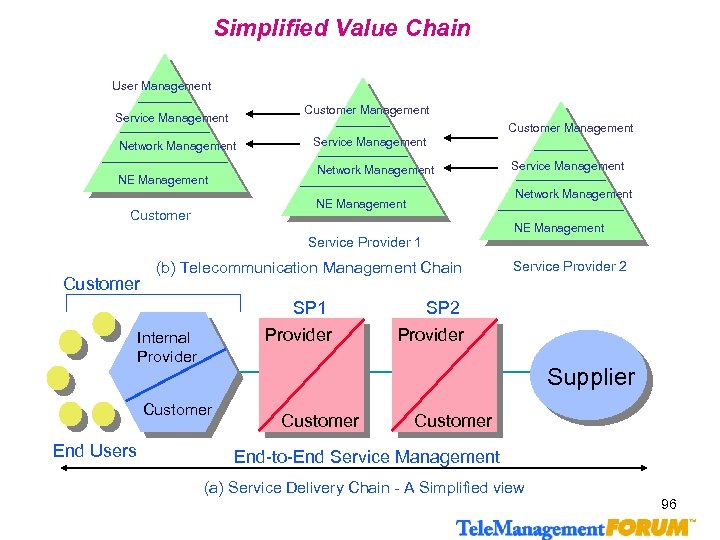

Simplified Value Chain User Management Customer Management Service Management Customer Management Network Management NE Management Service Management Network Management NE Management Customer Service Management NE Management Service Provider 1 Customer (b) Telecommunication Management Chain SP 1 Provider Supplier Customer End Users SP 2 Provider Internal Provider Service Provider 2 Customer End-to-End Service Management (a) Service Delivery Chain - A Simplified view 96

Example of Management Physical Architecture Customer End User Customer Mgmt. SM Service Mgmt. Network Mgmt. Service Dedicated Network Mgmt. NM Circuit Config. Mgmt. Traffic Mgmt. EM NE Circuit Performance Mgmt. Path Config. Mgmt. Switching NE Mgmt. POTS Service NE Path Performance Mgmt. Transport NE Service Provider Traffic Mgmt. NE Mgmt. Service Dedicated NE NE Mgmt. Customer Premises NE Customer/SP 97

System Integration NM OS Standard NM/EM Interface CORBA/IDL MDF SNMP MD CMISE Proprietary EM OS NE NE OS: Operations System MDF: Mediation Device Function 98

Scenarios for Mediation/Migration Case 2 Plug & Play Mediation NMS (Integrator) = Mediation Function Case 4 Add Mediation Ex. CORBA IDL SNMP CMIP Case 1 Mediation Box (Adaptor) yyy YYYY EMS XXXX Etc. . ZZZZ Case 3 Add Mediation Library www WWW EMS 99

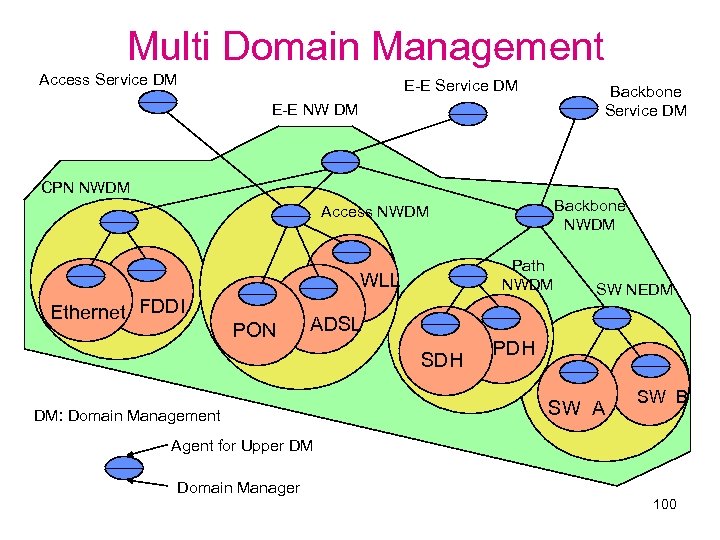

Multi Domain Management Access Service DM E-E Service DM Backbone Service DM E-E NW DM CPN NWDM Backbone NWDM Access NWDM Path NWDM WLL Ethernet FDDI PON SW NEDM ADSL SDH DM: Domain Management PDH SW A SW B Agent for Upper DM Domain Manager 100

Example of Domain Definition Domain Example Service Domain POTS, ISDN, Leased Line, FR, ATM Functional Domain Access, Backbone, CPN System Domain PON, ADSL, SDH, PDH NE Domain SW, Transmission, Cable, Power Vender Domain A Vendor, B Vendor, , , Area Domain Metropolitan, Northern Area, , , 102

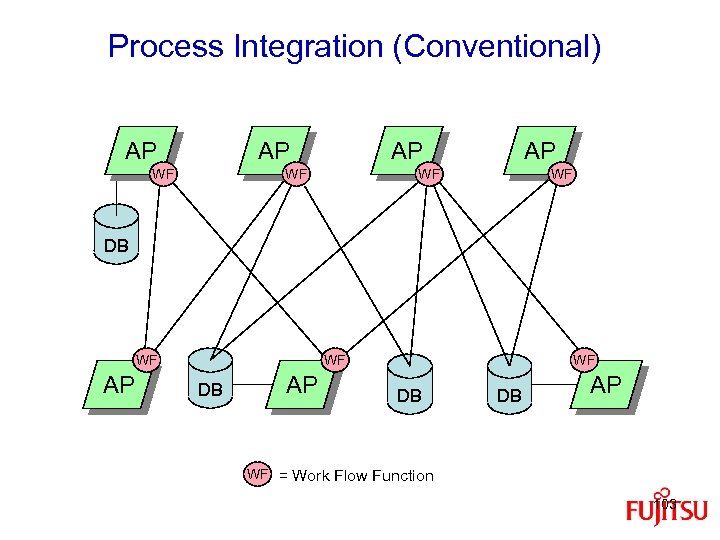

Process Integration (Conventional) AP AP WF WF DB WF AP WF DB DB AP WF = Work Flow Function 103

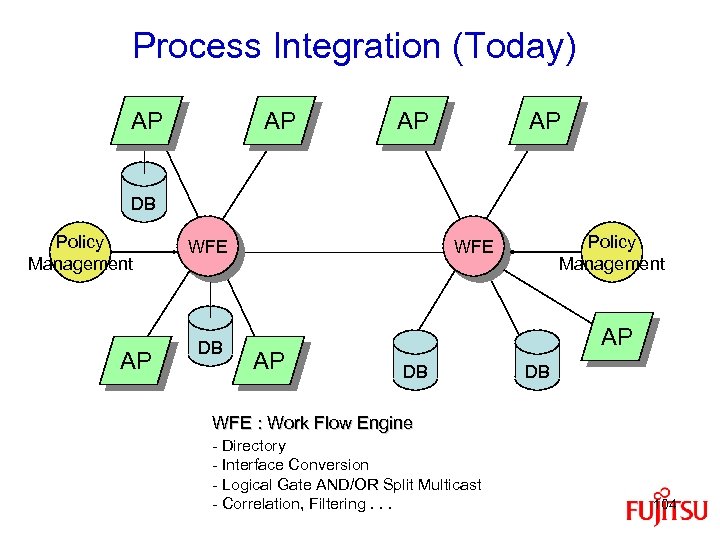

Process Integration (Today) AP AP DB Policy Management AP WFE DB Policy Management WFE AP AP DB DB WFE : Work Flow Engine - Directory - Interface Conversion - Logical Gate AND/OR Split Multicast - Correlation, Filtering. . . 104

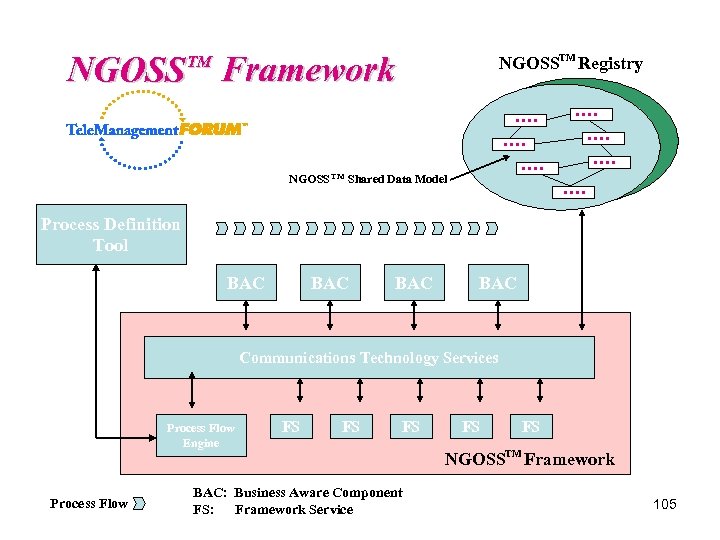

NGOSS Framework NGOSSTM Registry TM NGOSS TM Shared Data Model Process Definition Tool BAC BAC Communications Technology Services Process Flow Engine Process Flow FS FS FS BAC: Business Aware Component FS: Framework Service FS FS NGOSSTM Framework 105

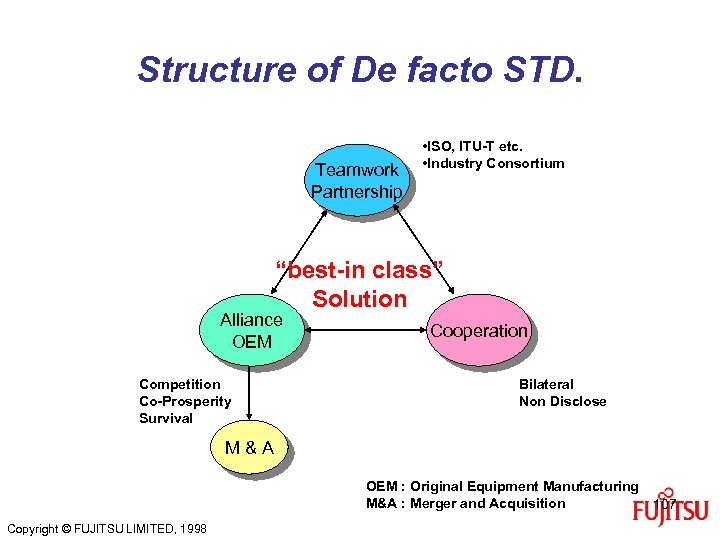

Structure of De facto STD. Teamwork Partnership • ISO, ITU-T etc. • Industry Consortium “best-in class” Solution Alliance OEM Competition Co-Prosperity Survival Cooperation Bilateral Non Disclose M&A OEM : Original Equipment Manufacturing M&A : Merger and Acquisition Copyright © FUJITSU LIMITED, 1998 107

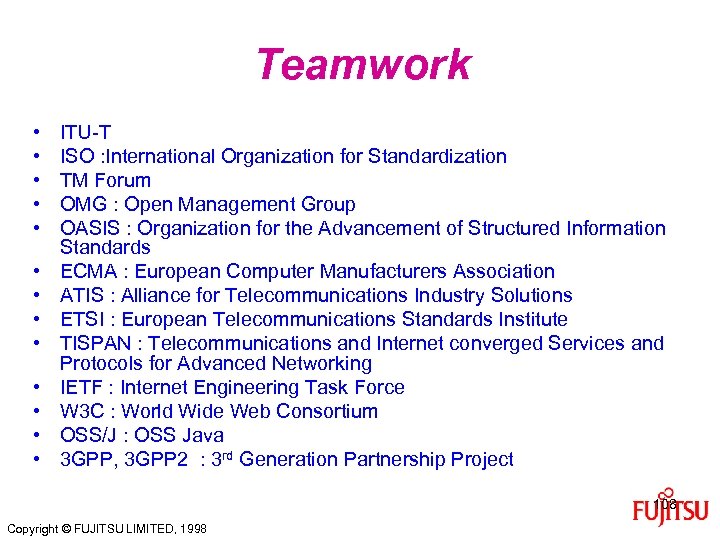

Teamwork • • • • ITU-T ISO : International Organization for Standardization TM Forum OMG : Open Management Group OASIS : Organization for the Advancement of Structured Information Standards ECMA : European Computer Manufacturers Association ATIS : Alliance for Telecommunications Industry Solutions ETSI : European Telecommunications Standards Institute TISPAN : Telecommunications and Internet converged Services and Protocols for Advanced Networking IETF : Internet Engineering Task Force W 3 C : World Wide Web Consortium OSS/J : OSS Java 3 GPP, 3 GPP 2 : 3 rd Generation Partnership Project 108 Copyright © FUJITSU LIMITED, 1998

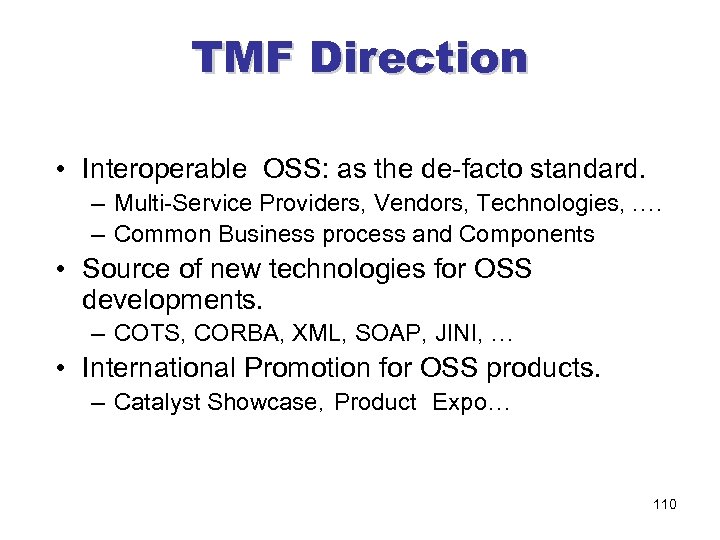

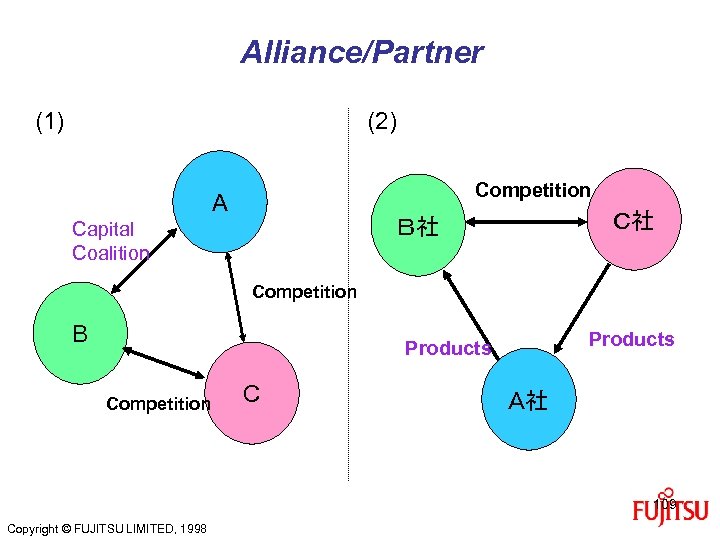

TMF Direction • Interoperable OSS: as the de-facto standard. – Multi-Service Providers, Vendors, Technologies, . … – Common Business process and Components • Source of new technologies for OSS developments. – COTS, CORBA, XML, SOAP, JINI, … • International Promotion for OSS products. – Catalyst Showcase，Product　Expo… 110

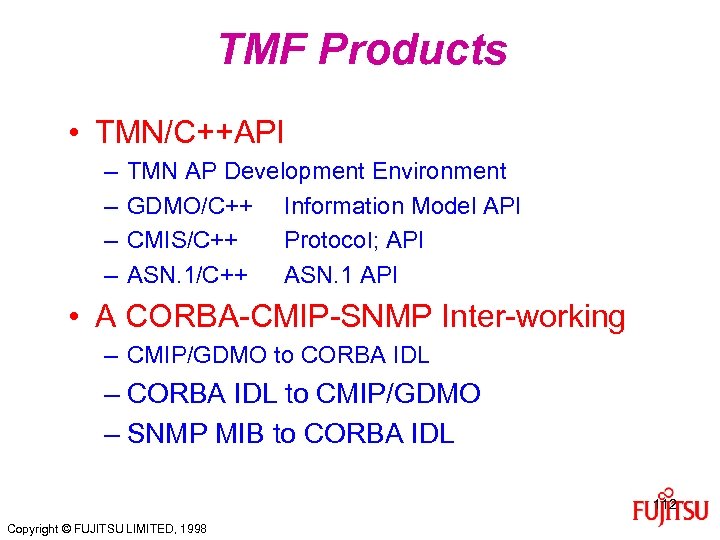

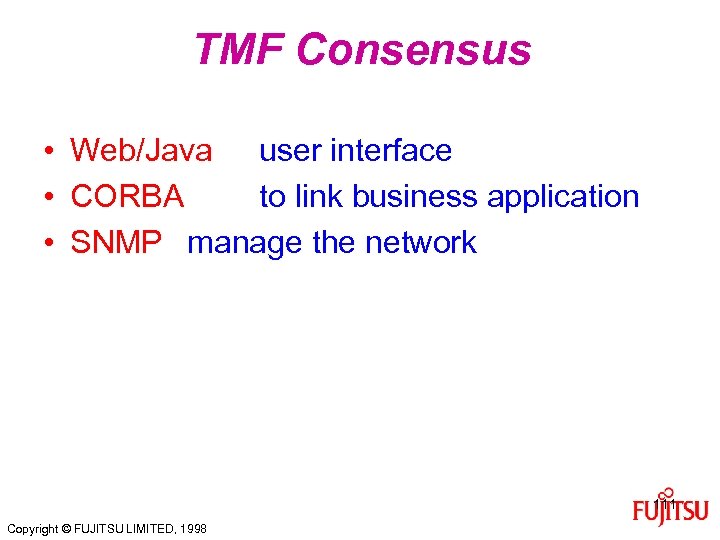

TMF Products • TMN/C++API – – TMN AP Development Environment GDMO/C++ Information Model API CMIS/C++ Protocoｌ; API ASN. 1/C++ ASN. 1 API • A CORBA-CMIP-SNMP Inter-working – CMIP/GDMO to CORBA IDL – CORBA IDL to CMIP/GDMO – SNMP MIB to CORBA IDL 112 Copyright © FUJITSU LIMITED, 1998

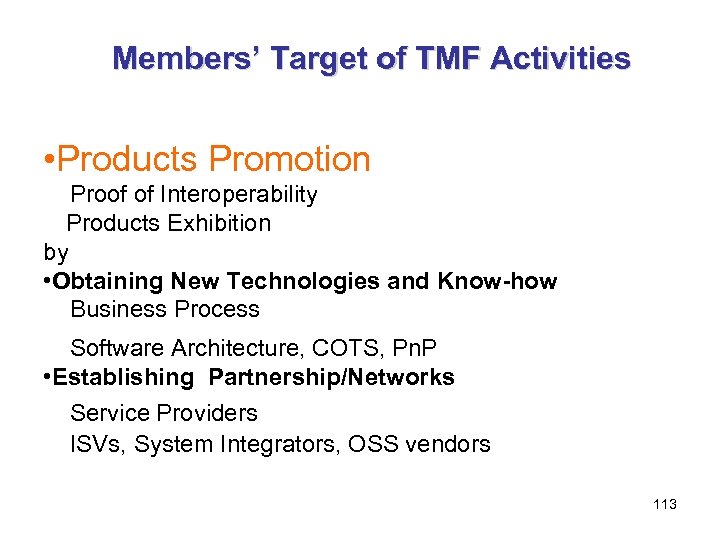

Members’ Target of TMF Activities • Products Promotion Proof of Interoperability 　 Products Exhibition by • Obtaining New Technologies and Know-how Business Process Software Architecture, COTS, Pn. P　 • Establishing Partnership/Networks Service Providers ISVs, System Integrators, OSS vendors 113

Academic Activities http: //www. comsoc. org/ NOMS : Network Operation and Management Symposium IEEE/IFIP(every even year) IM : Integrated Management IFIP/IEEE(every odd year) DSOM : Distributed Systems Operation and Management IFIP/IEEE(every year) IPOM : International Work Shop on IP Operations and Management IEEE ( every year) MMNS : International Conference on Management of Multimedia Networks and Services IFIP/IEEE(every year) Asia-Pacific Area APNOMS : Asia-Pacific Network Operations and Management Symposium IEICE, Japan KNOM, Korea (every year) 114
