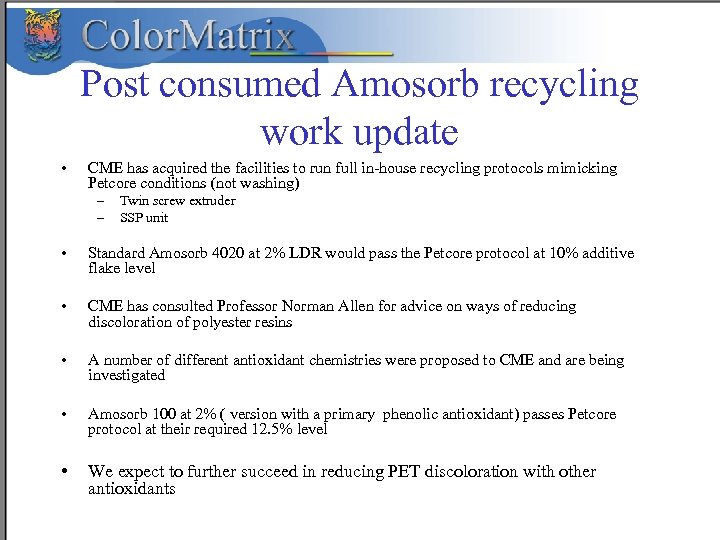

Post consumed Amosorb recycling work update • CME has acquired the facilities to run Post consumed Amosorb recycling work update • CME has acquired the facilities to run full in-house recycling protocols mimicking Petcore conditions (not washing) – – Twin screw extruder SSP unit • Standard Amosorb 4020 at 2% LDR would pass the Petcore protocol at 10% additive flake level • CME has consulted Professor Norman Allen for advice on ways of reducing discoloration of polyester resins • A number of different antioxidant chemistries were proposed to CME and are being investigated • Amosorb 100 at 2% ( version with a primary phenolic antioxidant) passes Petcore protocol at their required 12. 5% level • We expect to further succeed in reducing PET discoloration with other antioxidants

Petcore Protocol Petcore Protocol

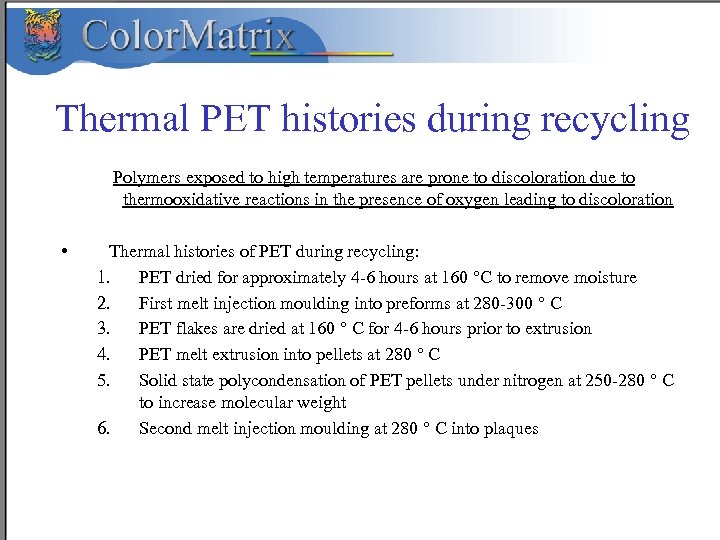

Thermal PET histories during recycling Polymers exposed to high temperatures are prone to discoloration Thermal PET histories during recycling Polymers exposed to high temperatures are prone to discoloration due to thermooxidative reactions in the presence of oxygen leading to discoloration • Thermal histories of PET during recycling: 1. PET dried for approximately 4 -6 hours at 160 °C to remove moisture 2. First melt injection moulding into preforms at 280 -300 ° C 3. PET flakes are dried at 160 ° C for 4 -6 hours prior to extrusion 4. PET melt extrusion into pellets at 280 ° C 5. Solid state polycondensation of PET pellets under nitrogen at 250 -280 ° C to increase molecular weight 6. Second melt injection moulding at 280 ° C into plaques

Polymer autoxidation Cycle Polymer autoxidation Cycle

Inhibited Autoxidation Cycle Inhibited Autoxidation Cycle

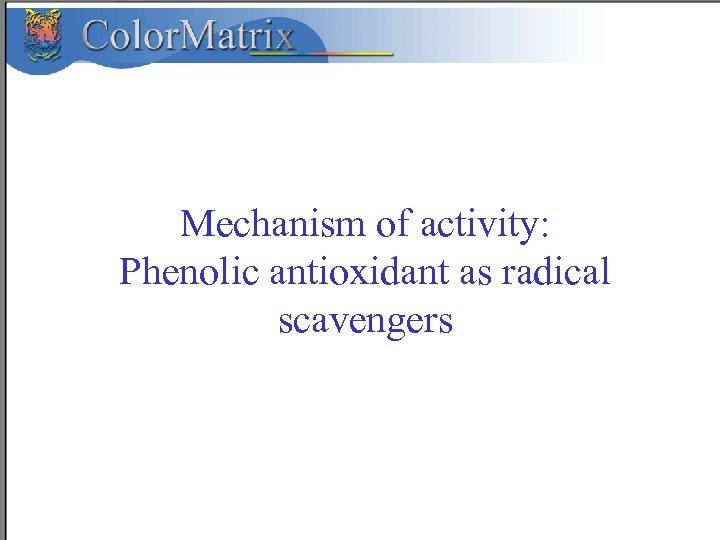

Mechanism of activity: Phenolic antioxidant as radical scavengers Mechanism of activity: Phenolic antioxidant as radical scavengers

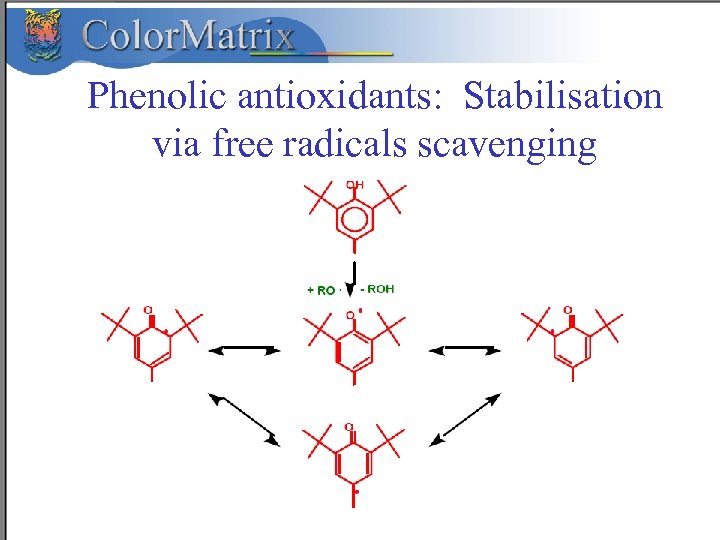

Phenolic antioxidants: Stabilisation via free radicals scavenging Phenolic antioxidants: Stabilisation via free radicals scavenging

Termination of Phenolic antioxidants Termination of Phenolic antioxidants

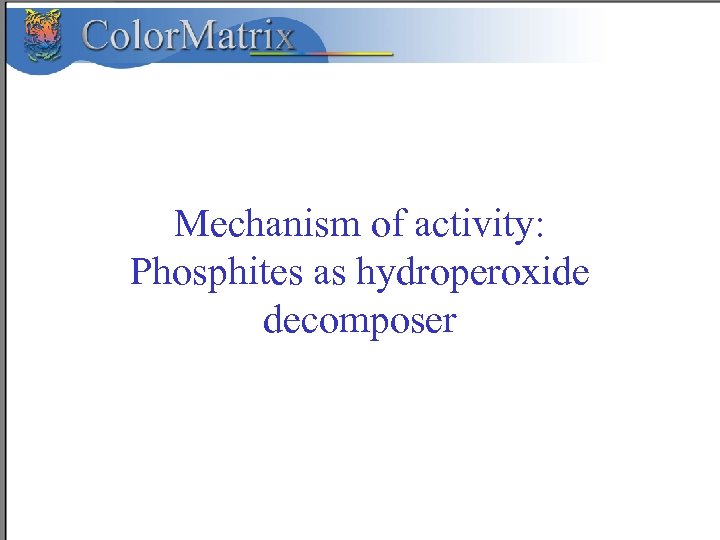

Mechanism of activity: Phosphites as hydroperoxide decomposer Mechanism of activity: Phosphites as hydroperoxide decomposer

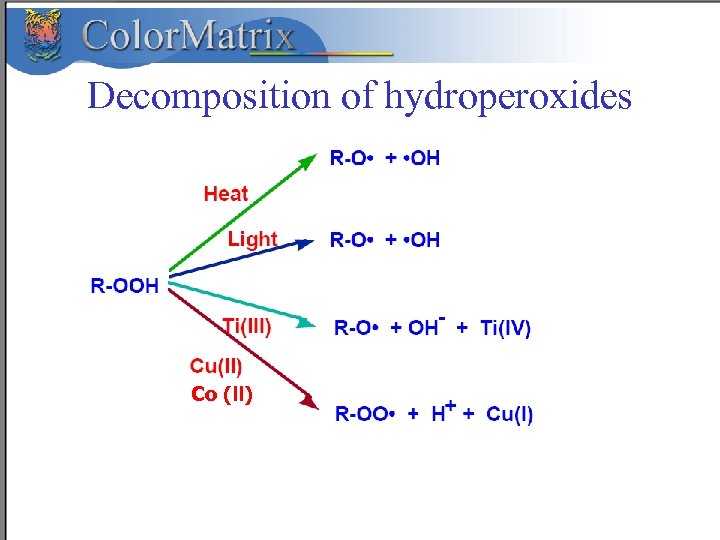

Decomposition of hydroperoxides Co (ll) Decomposition of hydroperoxides Co (ll)

Oxidation of Phosphites to phosphates Oxidation of Phosphites to phosphates

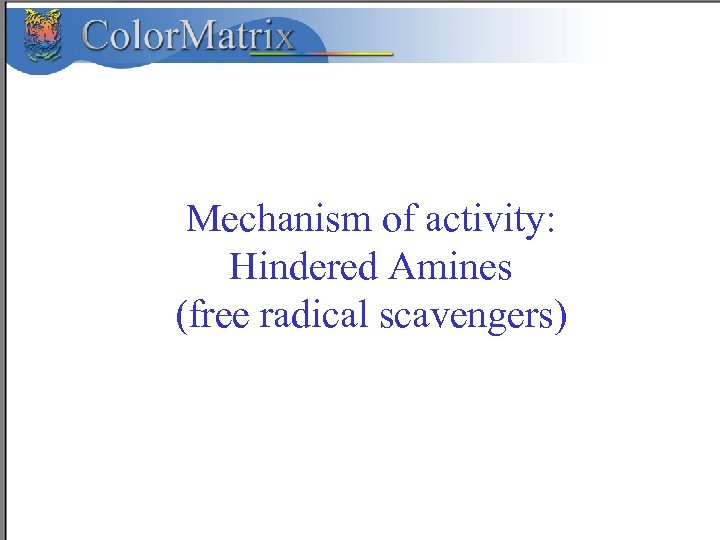

Mechanism of activity: Hindered Amines (free radical scavengers) Mechanism of activity: Hindered Amines (free radical scavengers)

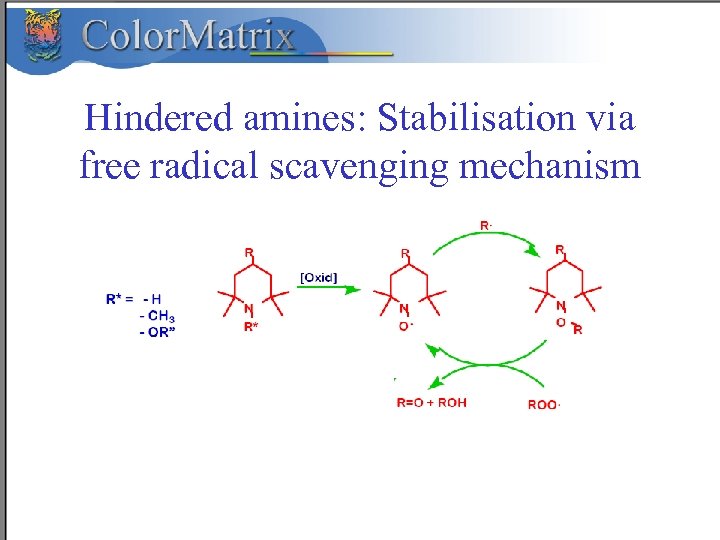

Hindered amines: Stabilisation via free radical scavenging mechanism Hindered amines: Stabilisation via free radical scavenging mechanism

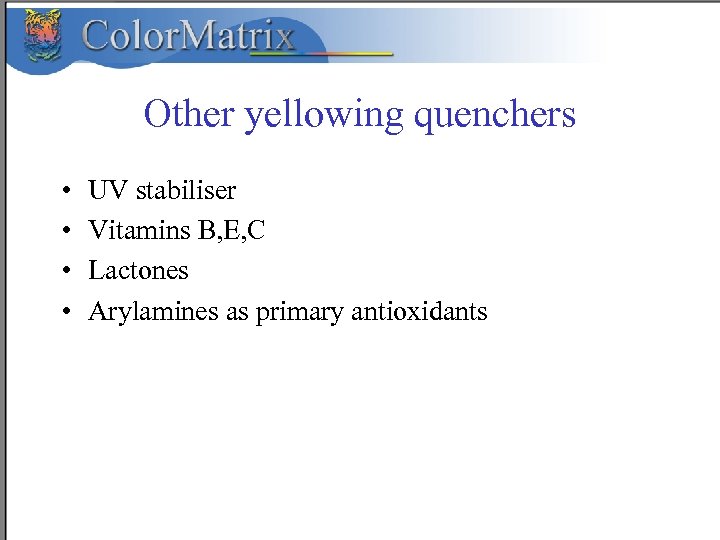

Other yellowing quenchers • • UV stabiliser Vitamins B, E, C Lactones Arylamines as Other yellowing quenchers • • UV stabiliser Vitamins B, E, C Lactones Arylamines as primary antioxidants

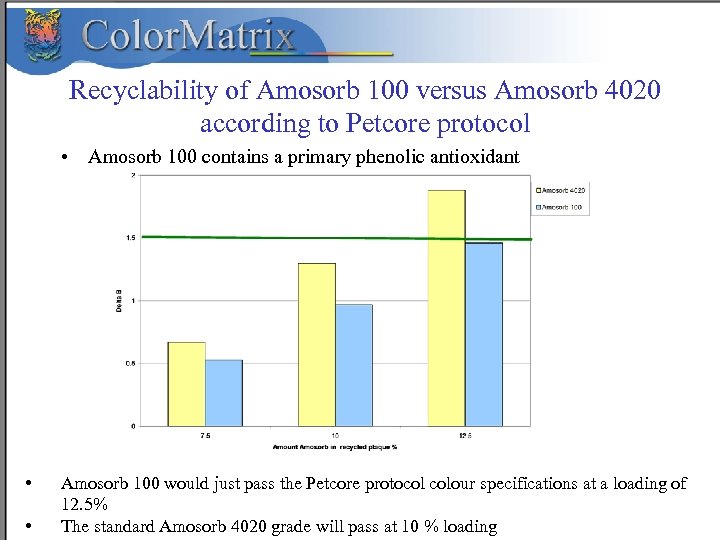

Recyclability of Amosorb 100 versus Amosorb 4020 according to Petcore protocol • Amosorb 100 Recyclability of Amosorb 100 versus Amosorb 4020 according to Petcore protocol • Amosorb 100 contains a primary phenolic antioxidant • • Amosorb 100 would just pass the Petcore protocol colour specifications at a loading of 12. 5% The standard Amosorb 4020 grade will pass at 10 % loading

Further work to improve Amosorb recyclability • Evaluate other Phenolic primary antioxidants (Cycle 1) Further work to improve Amosorb recyclability • Evaluate other Phenolic primary antioxidants (Cycle 1) • Investigate beneficial effect of hydroperoxide scavengers such as Phosphites-HALS (Cycle 2) • Try synergistic mixtures of the above suggested by Norman Allen • Try other materials with known benefit on colour: – Vitamin B, E – UV absorbers – Others

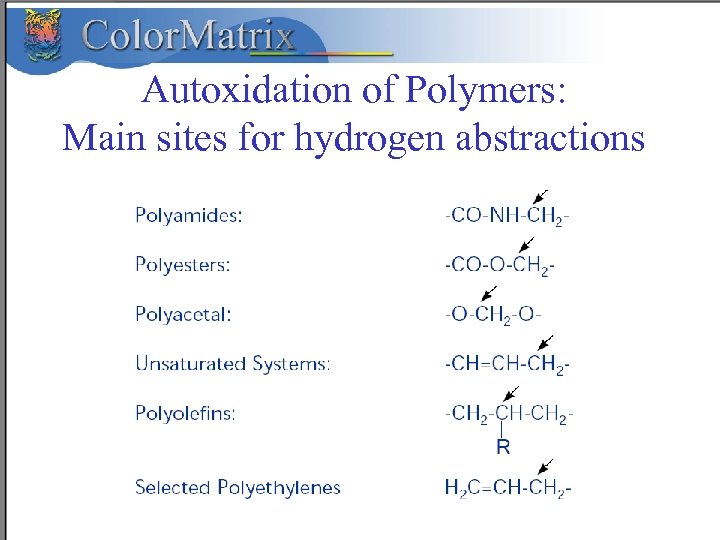

Autoxidation of Polymers: Main sites for hydrogen abstractions Autoxidation of Polymers: Main sites for hydrogen abstractions
