Point of Care Testing of Haemostasis in the Operating Room - Rapid Diagnosis and Targeted Therapy Dr Alastair Nimmo Dept of Anaesthesia, Royal Infirmary of Edinburgh

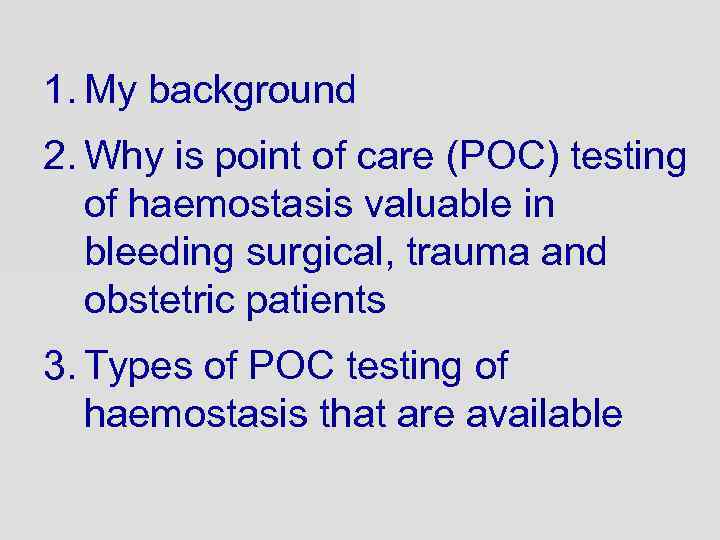

1. My background 2. Why is point of care (POC) testing of haemostasis valuable in bleeding surgical, trauma and obstetric patients 3. Types of POC testing of haemostasis that are available

My background • My main job is as an anaesthesiologist • I also work for the Scottish National Blood Transfusion Service to promote blood conservation and the safe and effective use of blood products

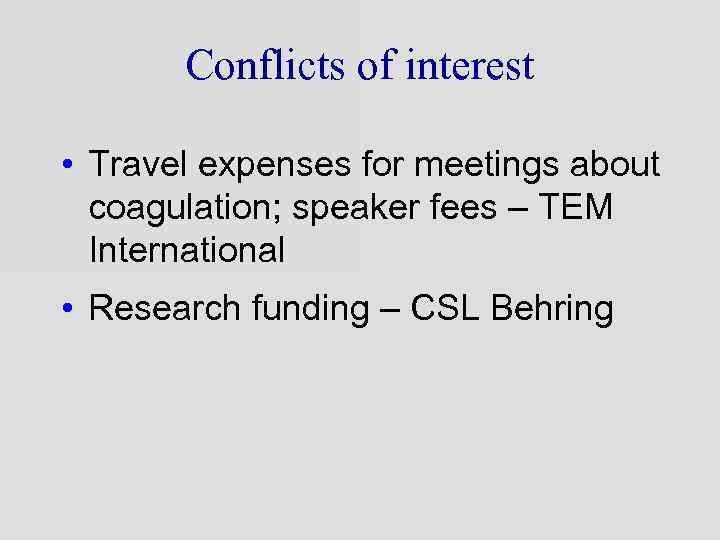

Conflicts of interest • Travel expenses for meetings about coagulation; speaker fees – TEM International • Research funding – CSL Behring

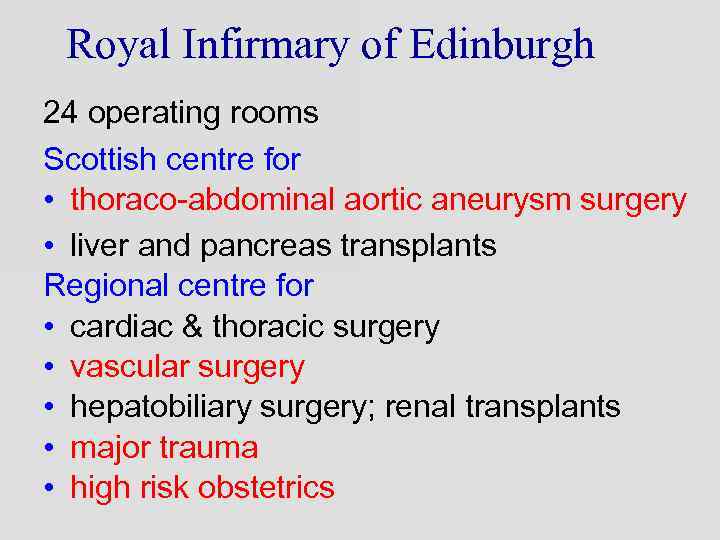

Royal Infirmary of Edinburgh 24 operating rooms Scottish centre (5 million population) for • thoraco-abdominal aortic aneurysm surgery • liver and pancreas transplants Regional centre for • cardiac & thoracic surgery • vascular surgery • hepatobiliary surgery; renal transplants • major trauma • high risk obstetrics

Royal Infirmary of Edinburgh 24 operating rooms Scottish centre for • thoraco-abdominal aortic aneurysm surgery • liver and pancreas transplants Regional centre for • cardiac & thoracic surgery • vascular surgery • hepatobiliary surgery; renal transplants • major trauma • high risk obstetrics

1. My background 2. Why is point of care (POC) testing of haemostasis valuable in bleeding surgical, trauma and obstetric patients 3. Types of POC testing of haemostasis that are available

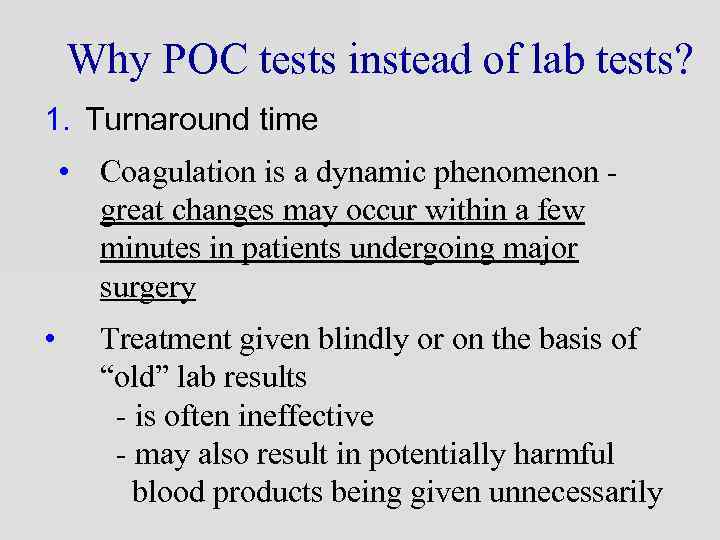

Why POC tests instead of lab tests? 1. Turnaround time • Coagulation is a dynamic phenomenon great changes may occur within a few minutes in patients undergoing major surgery • Treatment given blindly or on the basis of “old” lab results - is often ineffective - may also result in potentially harmful blood products being given unnecessarily

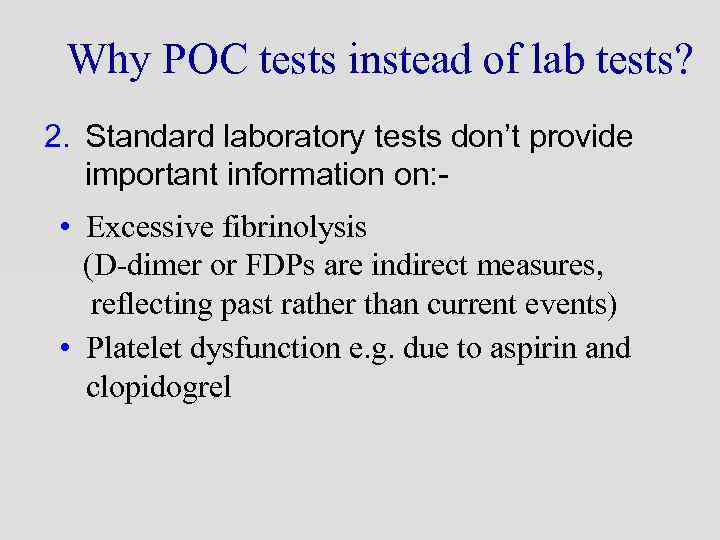

Why POC tests instead of lab tests? 2. Standard laboratory tests don’t provide important information on: • Excessive fibrinolysis (D-dimer or FDPs are indirect measures, reflecting past rather than current events) • Platelet dysfunction e. g. due to aspirin and clopidogrel

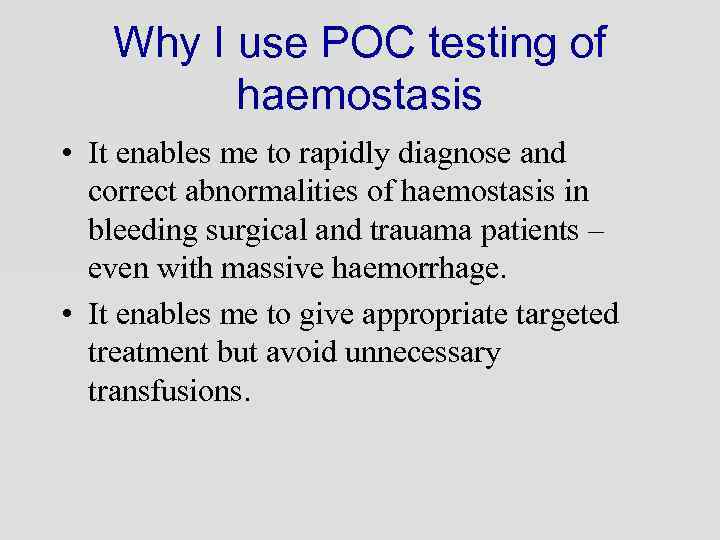

Why I use POC testing of haemostasis • It enables me to rapidly diagnose and correct abnormalities of haemostasis in bleeding surgical and trauama patients – even with massive haemorrhage. • It enables me to give appropriate targeted treatment but avoid unnecessary transfusions.

A clinical example AAA 02. ppt

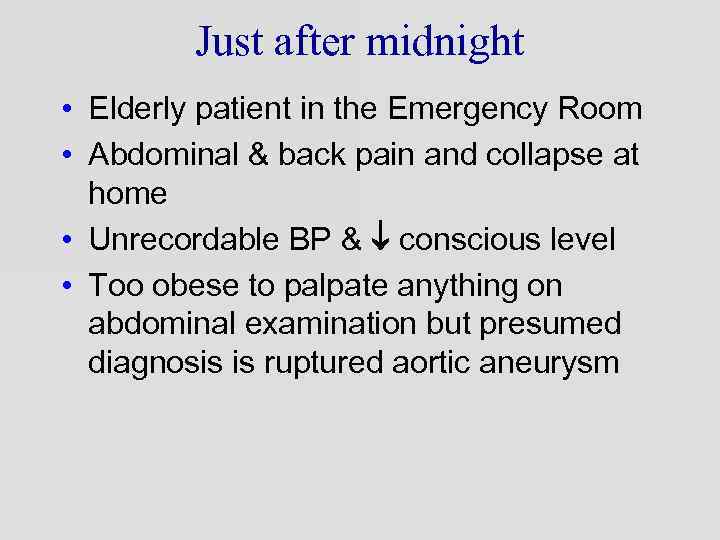

Just after midnight • Elderly patient in the Emergency Room • Abdominal & back pain and collapse at home • Unrecordable BP & conscious level • Too obese to palpate anything on abdominal examination but presumed diagnosis is ruptured aortic aneurysm

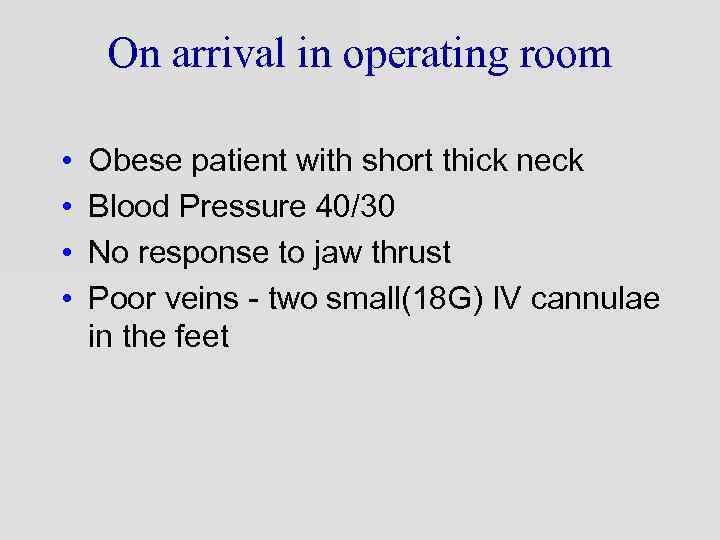

On arrival in operating room • • Obese patient with short thick neck Blood Pressure 40/30 No response to jaw thrust Poor veins - two small(18 G) IV cannulae in the feet

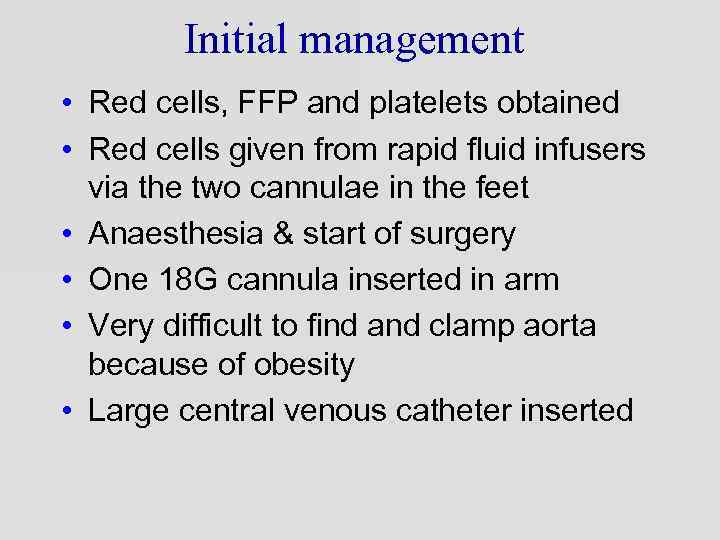

Initial management • Red cells, FFP and platelets obtained • Red cells given from rapid fluid infusers via the two cannulae in the feet • Anaesthesia & start of surgery • One 18 G cannula inserted in arm • Very difficult to find and clamp aorta because of obesity • Large central venous catheter inserted

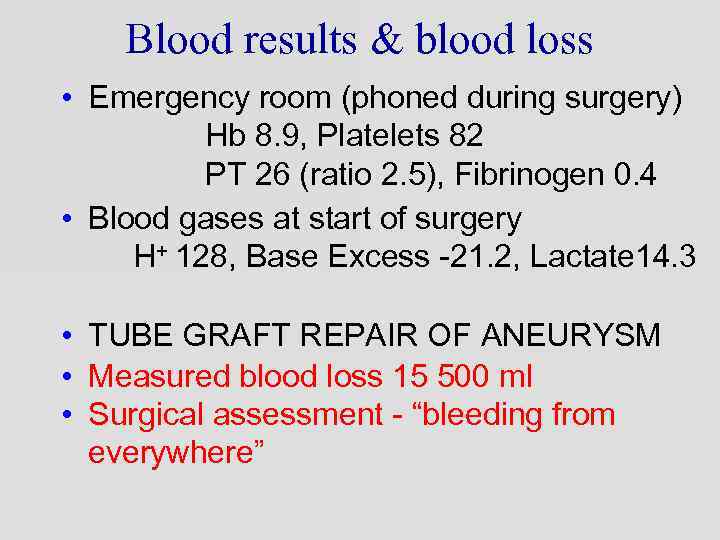

Blood results & blood loss • Emergency room (phoned during surgery) Hb 8. 9, Platelets 82 PT 26 (ratio 2. 5), Fibrinogen 0. 4 • Blood gases at start of surgery H+ 128, Base Excess -21. 2, Lactate 14. 3 • TUBE GRAFT REPAIR OF ANEURYSM • Measured blood loss 15 500 ml • Surgical assessment - “bleeding from everywhere”

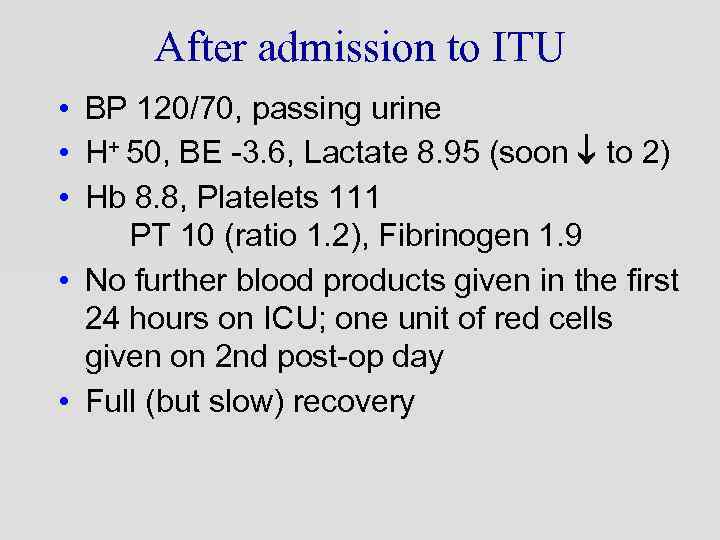

After admission to ITU • BP 120/70, passing urine • H+ 50, BE -3. 6, Lactate 8. 95 (soon to 2) • Hb 8. 8, Platelets 111 PT 10 (ratio 1. 2), Fibrinogen 1. 9 • No further blood products given in the first 24 hours on ICU; one unit of red cells given on 2 nd post-op day • Full (but slow) recovery

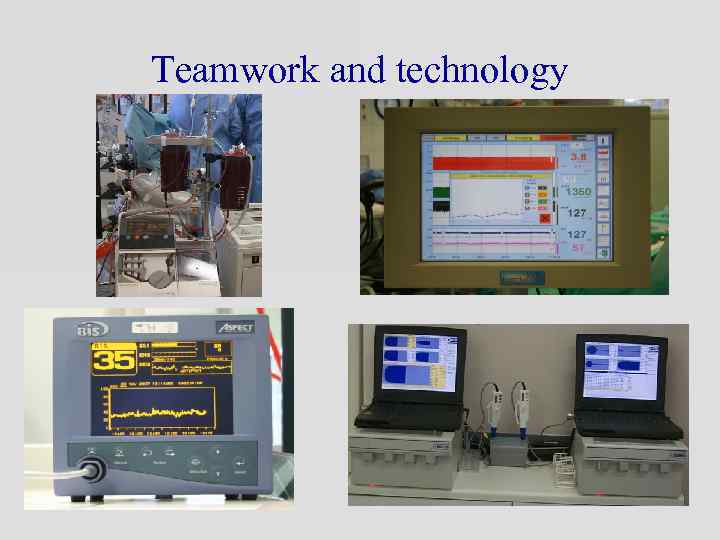

Teamwork and technology

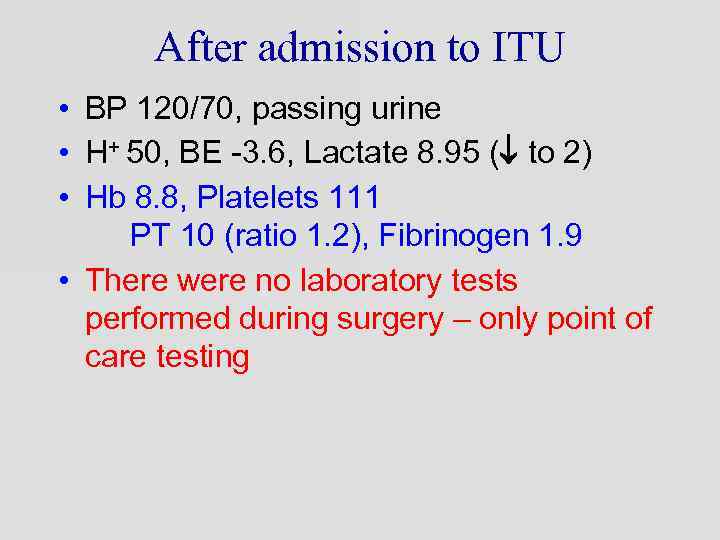

After admission to ITU • BP 120/70, passing urine • H+ 50, BE -3. 6, Lactate 8. 95 ( to 2) • Hb 8. 8, Platelets 111 PT 10 (ratio 1. 2), Fibrinogen 1. 9 • There were no laboratory tests performed during surgery – only point of care testing

1. My background 2. Why is point of care (POC) testing of haemostasis valuable in bleeding surgical, trauma and obstetric patients 3. Types of POC testing of haemostasis that are available

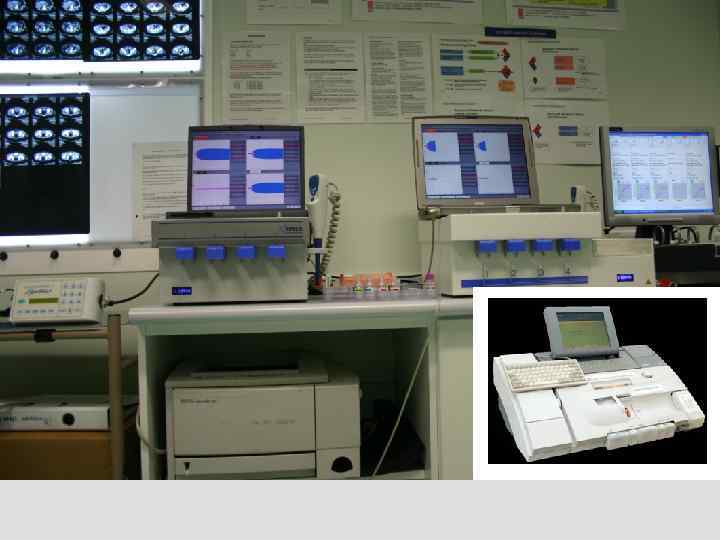

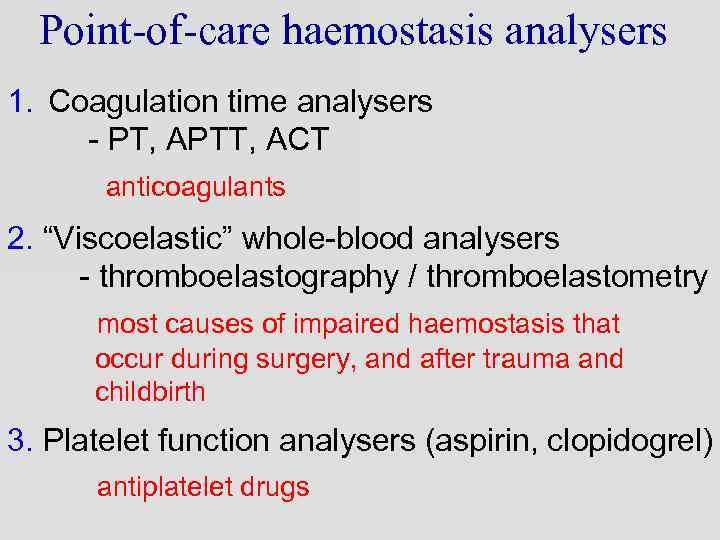

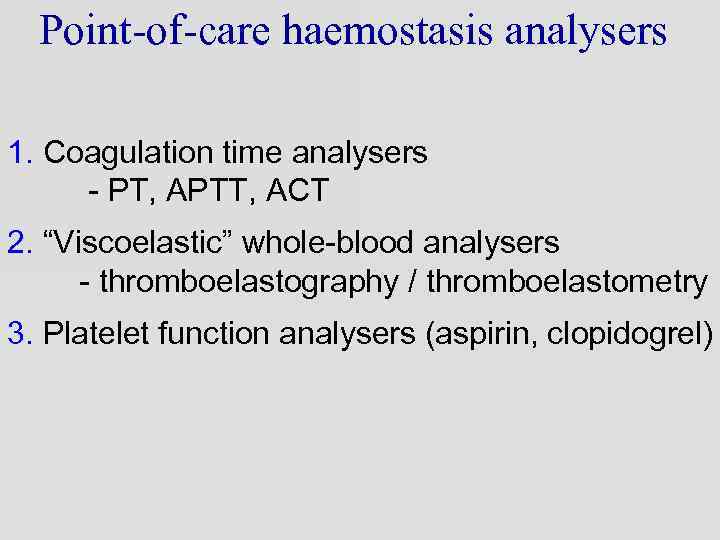

Point-of-care haemostasis analysers 1. Coagulation time analysers - PT, APTT, ACT 2. “Viscoelastic” whole-blood analysers - thromboelastography / thromboelastometry 3. Platelet function analysers (aspirin, clopidogrel)

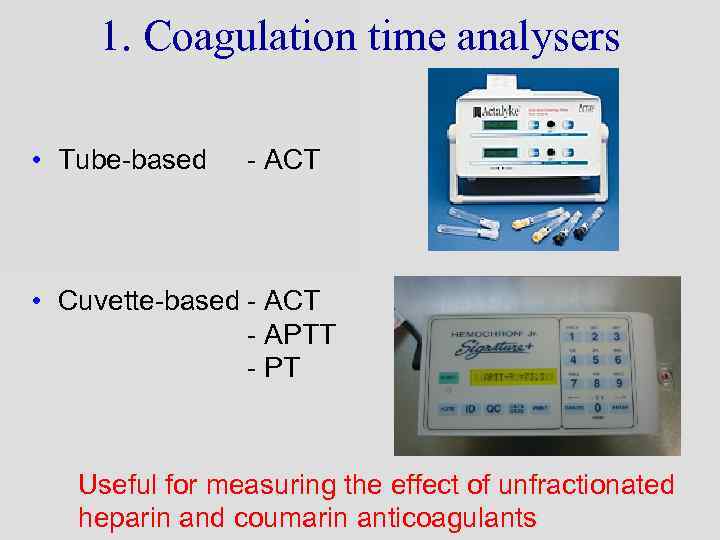

1. Coagulation time analysers • Tube-based - ACT • Cuvette-based - ACT - APTT - PT Useful for measuring the effect of unfractionated heparin and coumarin anticoagulants

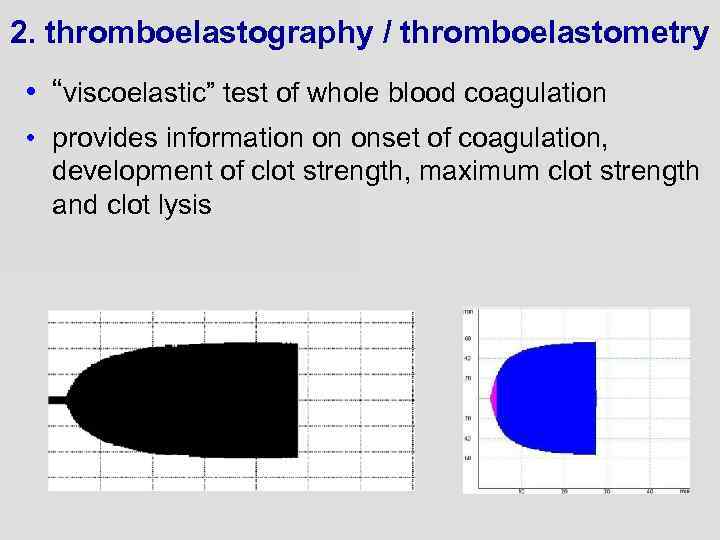

2. thromboelastography / thromboelastometry • “viscoelastic” test of whole blood coagulation • provides information on onset of coagulation, development of clot strength, maximum clot strength and clot lysis

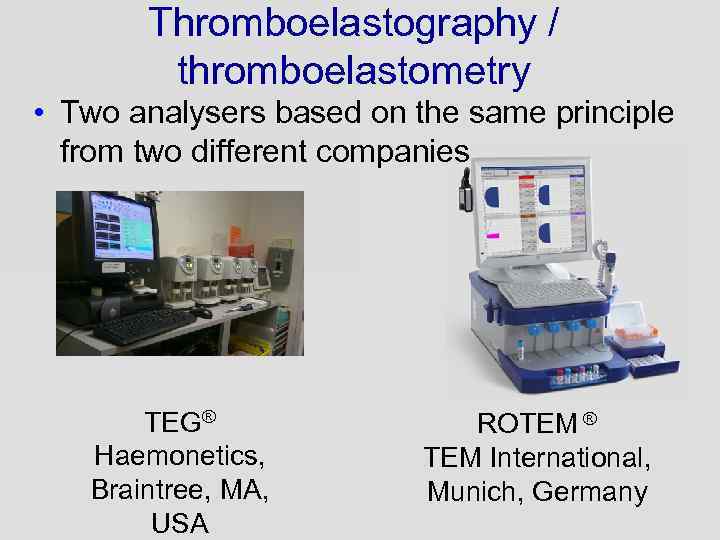

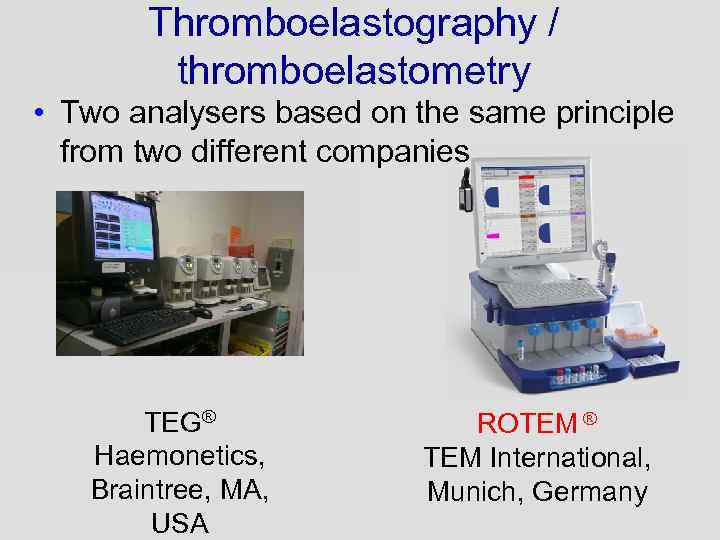

Thromboelastography / thromboelastometry • Two analysers based on the same principle from two different companies TEG® Haemonetics, Braintree, MA, USA ROTEM ® TEM International, Munich, Germany

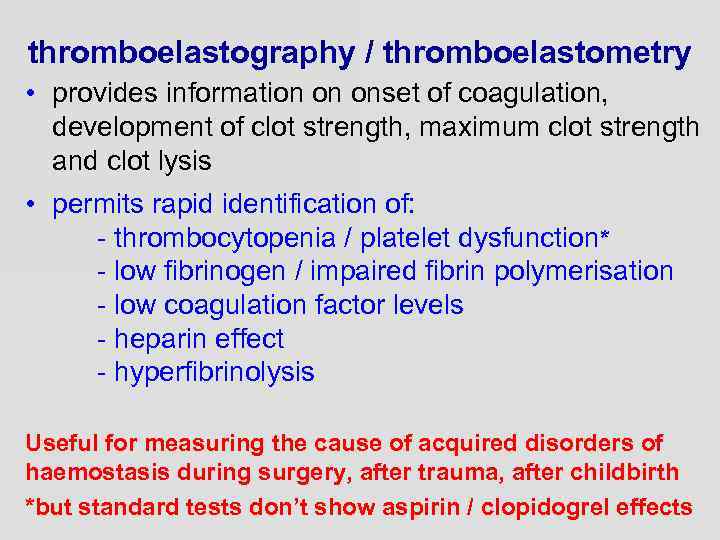

thromboelastography / thromboelastometry • provides information on onset of coagulation, development of clot strength, maximum clot strength and clot lysis • permits rapid identification of: - thrombocytopenia / platelet dysfunction* - low fibrinogen / impaired fibrin polymerisation - low coagulation factor levels - heparin effect - hyperfibrinolysis Useful for measuring the cause of acquired disorders of haemostasis during surgery, after trauma, after childbirth *but standard tests don’t show aspirin / clopidogrel effects

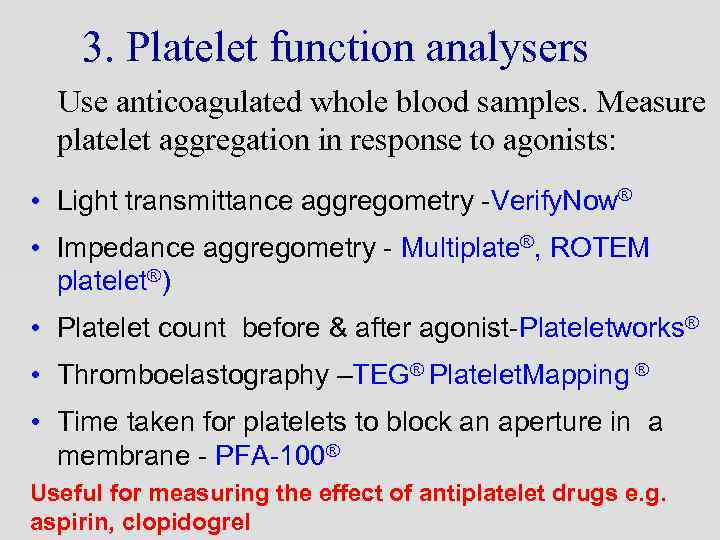

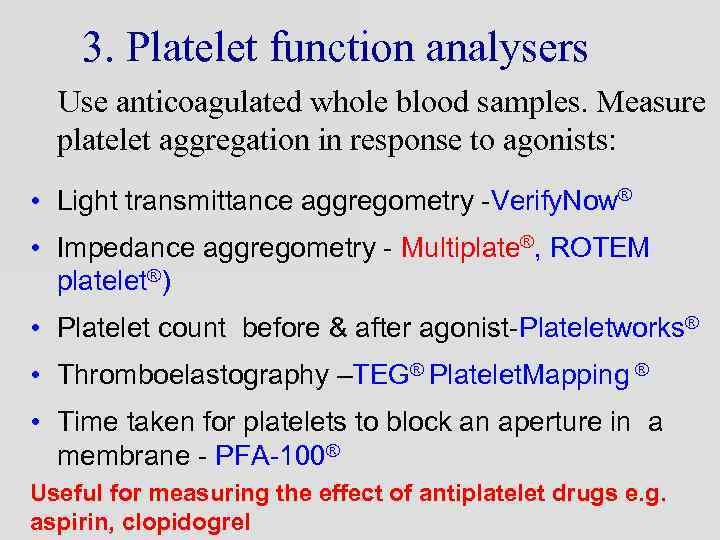

3. Platelet function analysers Use anticoagulated whole blood samples. Measure platelet aggregation in response to agonists: • Light transmittance aggregometry -Verify. Now® • Impedance aggregometry - Multiplate®, ROTEM platelet®) • Platelet count before & after agonist-Plateletworks® • Thromboelastography –TEG® Platelet. Mapping ® • Time taken for platelets to block an aperture in a membrane - PFA-100® Useful for measuring the effect of antiplatelet drugs e. g. aspirin, clopidogrel

Point-of-care haemostasis analysers 1. Coagulation time analysers - PT, APTT, ACT anticoagulants 2. “Viscoelastic” whole-blood analysers - thromboelastography / thromboelastometry most causes of impaired haemostasis that occur during surgery, and after trauma and childbirth 3. Platelet function analysers (aspirin, clopidogrel) antiplatelet drugs

Thromboelastography / thromboelastometry • Two analysers based on the same principle from two different companies TEG® Haemonetics, Braintree, MA, USA ROTEM ® TEM International, Munich, Germany

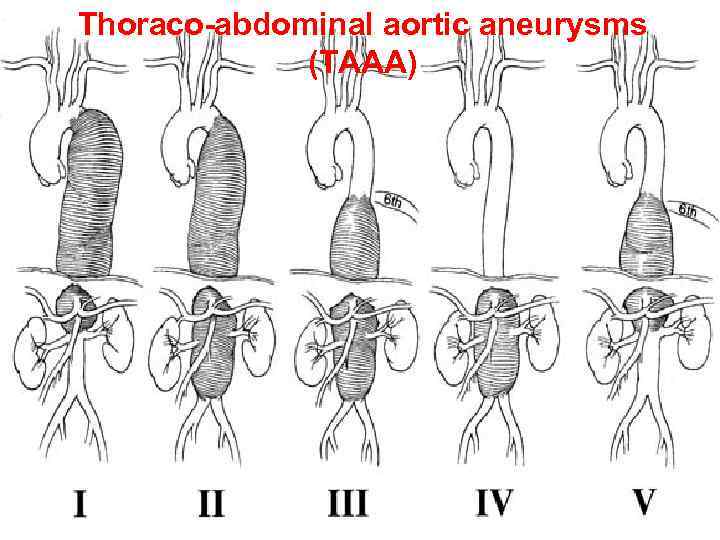

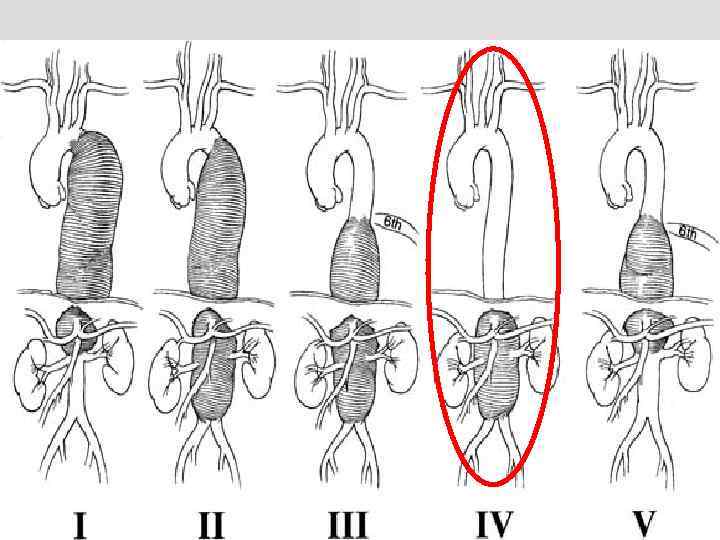

Thoraco-abdominal aortic aneurysms (TAAA)

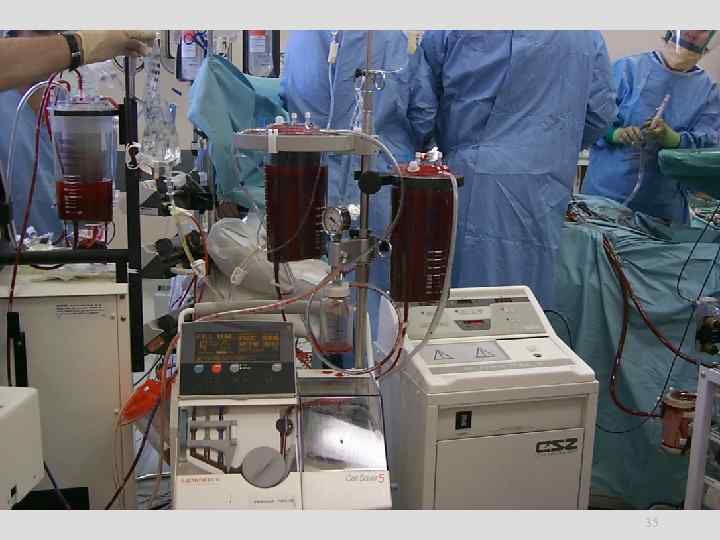

35

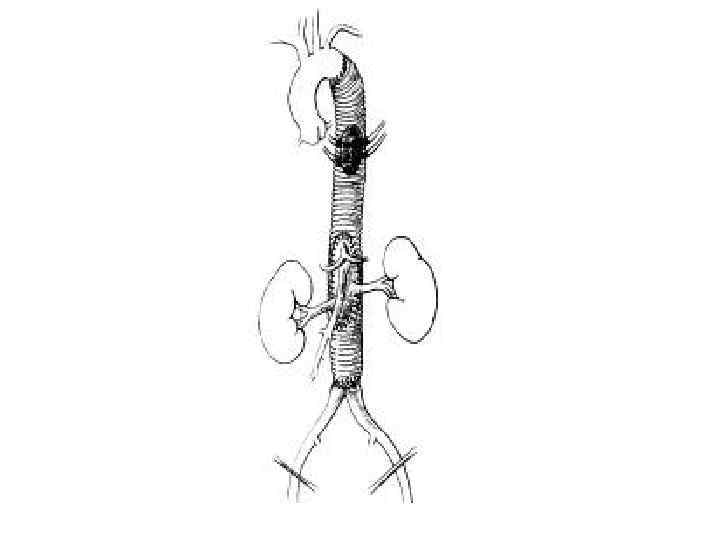

Management of haemostasis during TAAA repair Until 2001 • Use of standard laboratory tests and clinical judgement • Major difficulties with correcting haemostasis and with continued postoperative bleeding Since 2001 • Point of care testing with ROTEM® • Impaired haemostasis at the end of surgery rare “Like night and day”

10 consecutive Extent 4 TAAA repairs* Case Blood Given during surgery loss Red Platelets FFP Hb (ml) cells (pools) (units) Post-op blood results Platelet count Fibrinogen PT APTT (g/l) ratio (units) 1 11 300 2 1 8 105 89 1. 4 1. 2 0. 8 2 5 500 5 0 4 98 100 1. 6 1. 2 3 4 3 200 13 600 6 6 0 2 4 16 90 87 76 58 1. 4 1. 2 1. 3 1. 1 1. 0 5 11 800 5 3 8 78 71 1. 4 1. 1 6 7 200 6 3 12 93 70 1. 7 1. 2 1. 0 7 16 000 7 5 12 108 104 1. 8 1. 2 8 9 10 4 300 8 000 6 2 4 0 0 0 8 6 8 90 53 83 93 1. 6 1. 4 1. 6 1. 2 1. 4 1. 2 1. 0 1. 2 1. 0 86 83 *no laboratory tests were performed during surgery

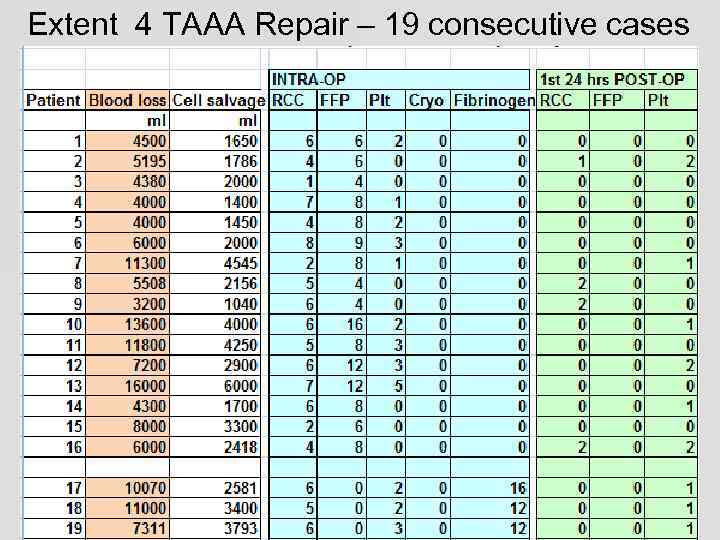

Extent 4 TAAA Repair – 19 consecutive cases

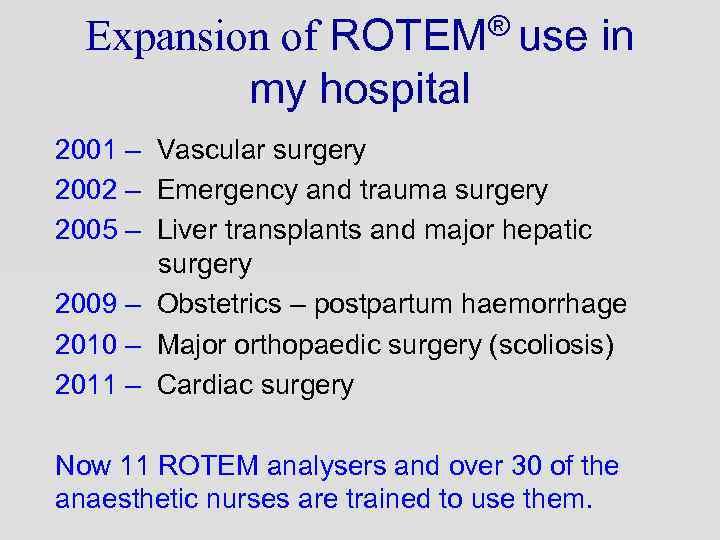

Expansion of ROTEM® use in my hospital 2001 – Vascular surgery 2002 – Emergency and trauma surgery 2005 – Liver transplants and major hepatic surgery 2009 – Obstetrics – postpartum haemorrhage 2010 – Major orthopaedic surgery (scoliosis) 2011 – Cardiac surgery Now 11 ROTEM analysers and over 30 of the anaesthetic nurses are trained to use them.

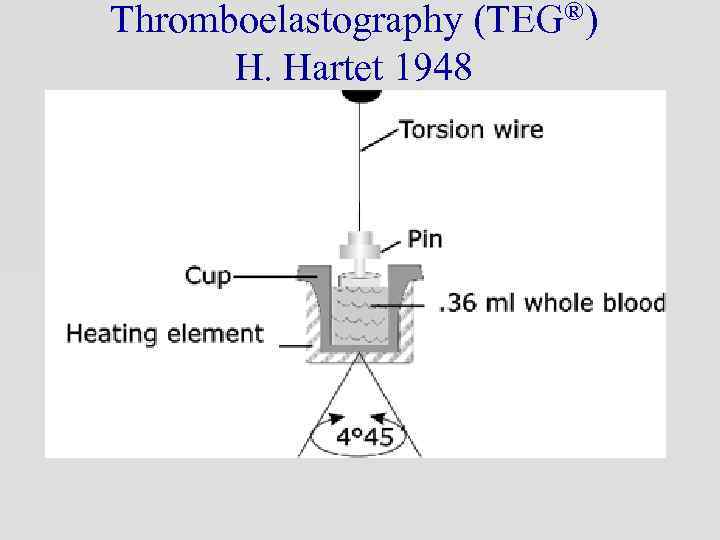

Thromboelastography (TEG®) H. Hartet 1948

Rotational thromboelastometry (rotational thromboelastography) ROTEM® A. Calatzis 1996

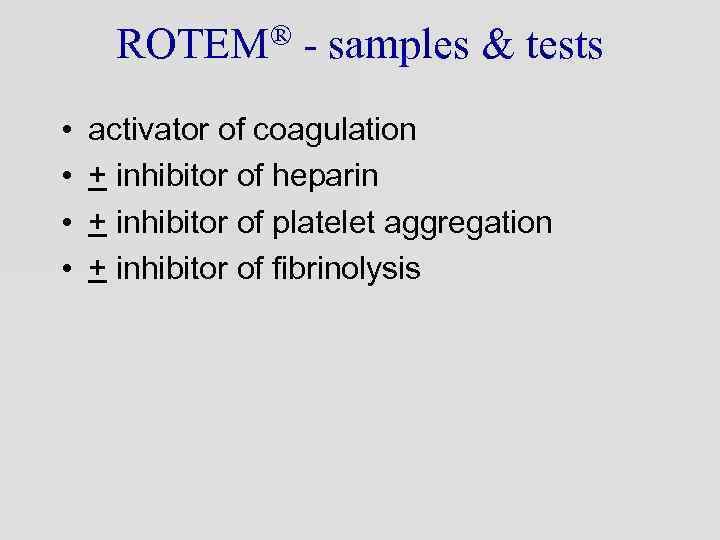

ROTEM® - samples & tests • • activator of coagulation + inhibitor of heparin + inhibitor of platelet aggregation + inhibitor of fibrinolysis

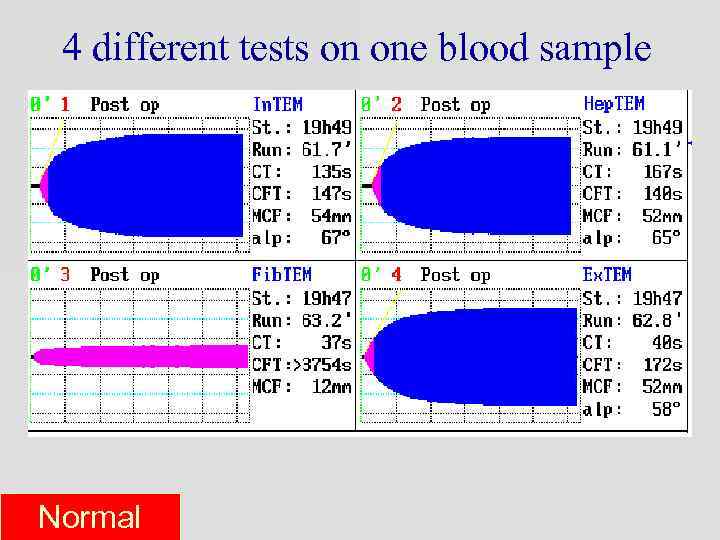

4 different tests on one blood sample Normal

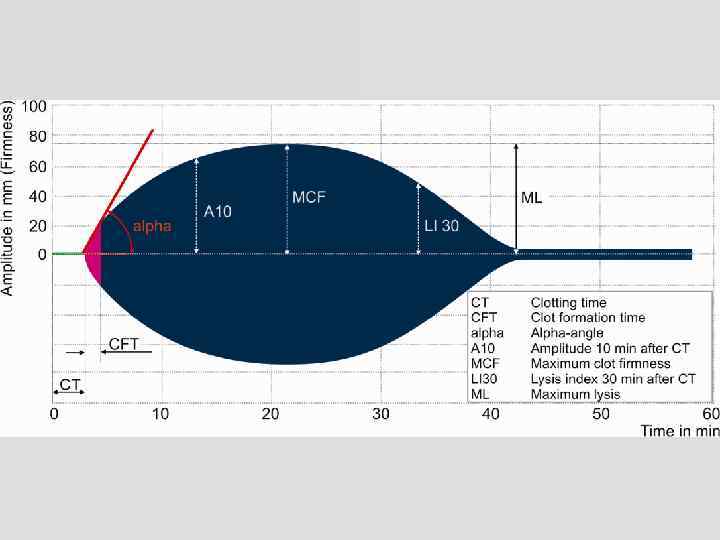

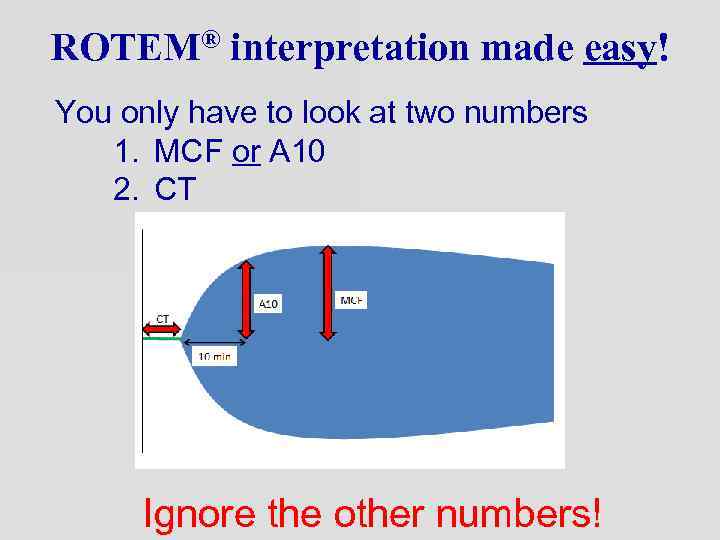

ROTEM® interpretation made easy! You only have to look at two numbers 1. MCF or A 10 2. CT Ignore the other numbers!

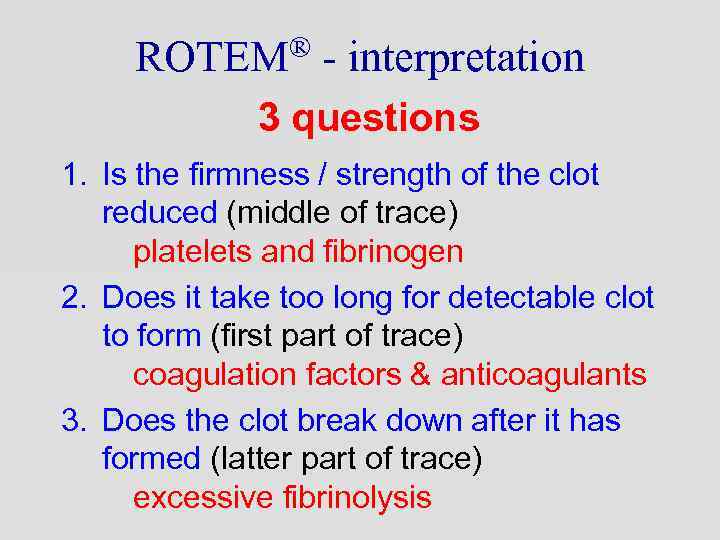

ROTEM® - interpretation 3 questions 1. Is the firmness / strength of the clot reduced (middle of trace) platelets and fibrinogen 2. Does it take too long for detectable clot to form (first part of trace) coagulation factors & anticoagulants 3. Does the clot break down after it has formed (latter part of trace) excessive fibrinolysis

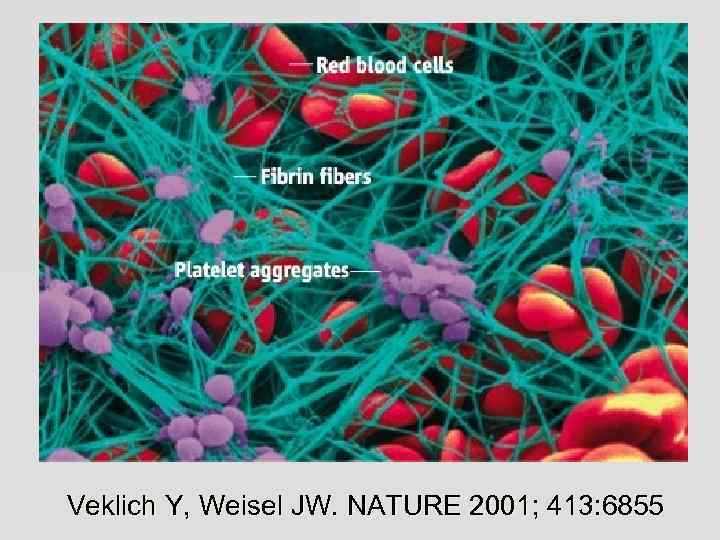

Veklich Y, Weisel JW. NATURE 2001; 413: 6855

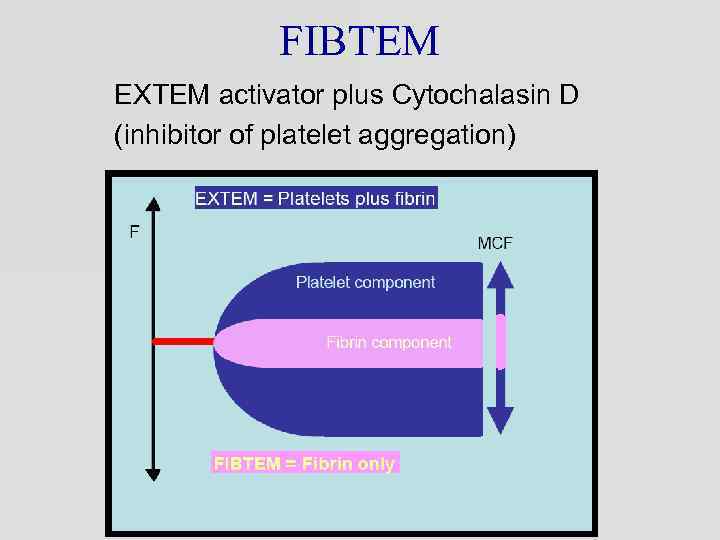

FIBTEM EXTEM activator plus Cytochalasin D (inhibitor of platelet aggregation)

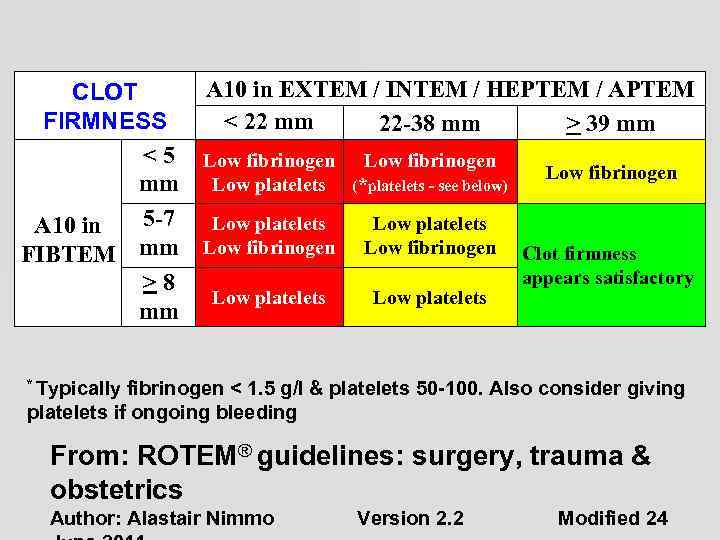

CLOT FIRMNESS <5 mm 5 -7 A 10 in FIBTEM mm >8 mm A 10 in EXTEM / INTEM / HEPTEM / APTEM < 22 mm 22 -38 mm > 39 mm Low fibrinogen Low platelets Low fibrinogen (*platelets - see below) Low platelets Low fibrinogen Clot firmness appears satisfactory * Typically fibrinogen < 1. 5 g/l & platelets 50 -100. Also consider giving platelets if ongoing bleeding From: ROTEM® guidelines: surgery, trauma & obstetrics Author: Alastair Nimmo Version 2. 2 Modified 24

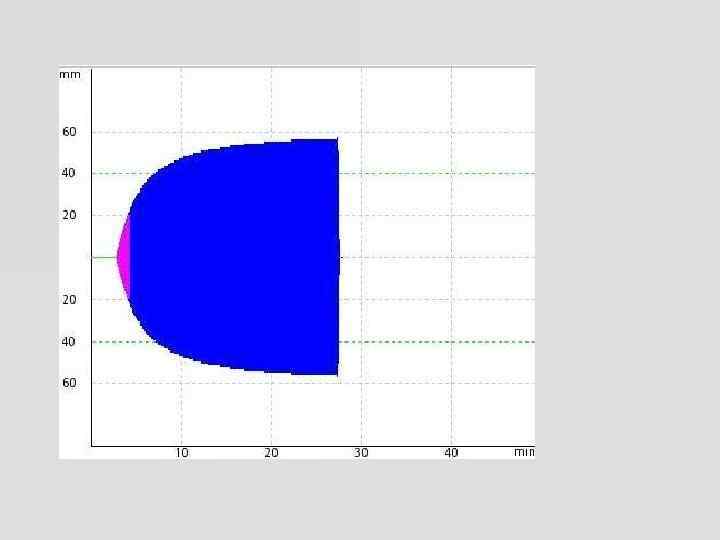

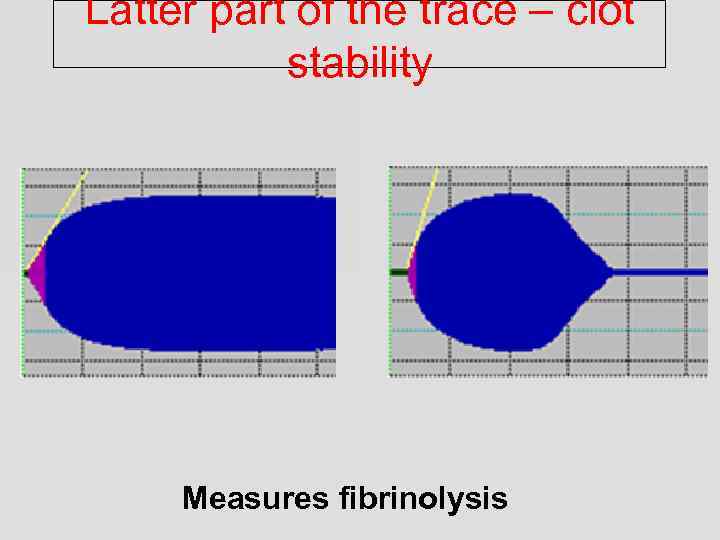

Latter part of the trace – clot stability Measures fibrinolysis

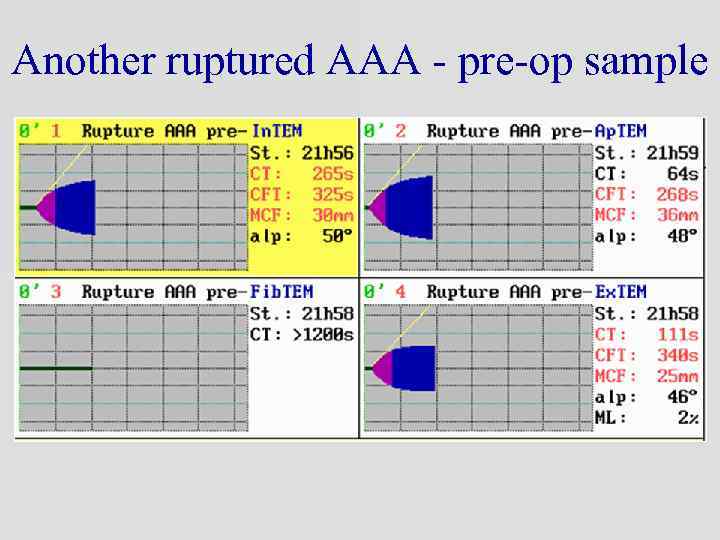

Another ruptured AAA - pre-op sample

5 minutes after aortic clamping

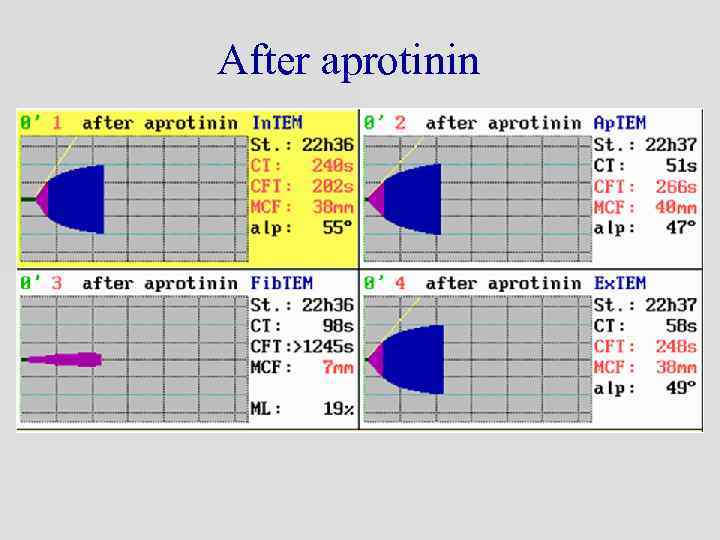

After aprotinin

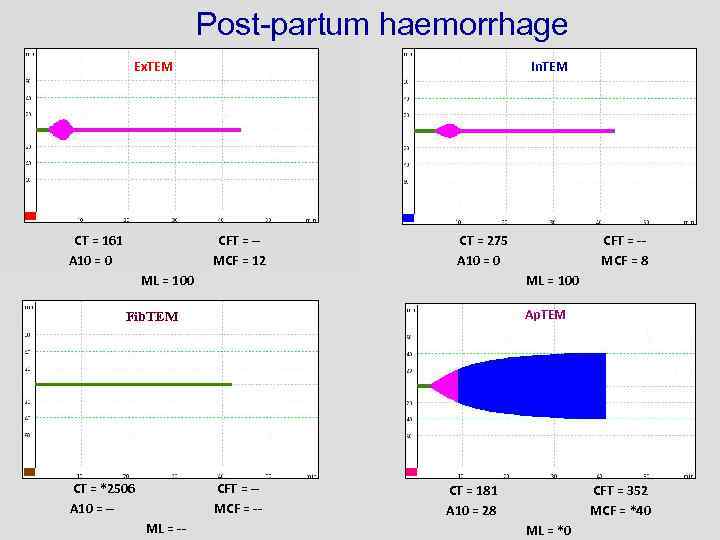

Post-partum haemorrhage Ex. TEM CT = 161 A 10 = 0 In. TEM CFT = -MCF = 12 CT = 275 A 10 = 0 ML = 100 Ap. TEM Fib. TEM CT = *2506 A 10 = -- CFT = -MCF = -ML = -- CFT = -MCF = 8 CT = 181 A 10 = 28 CFT = 352 MCF = *40 ML = *0

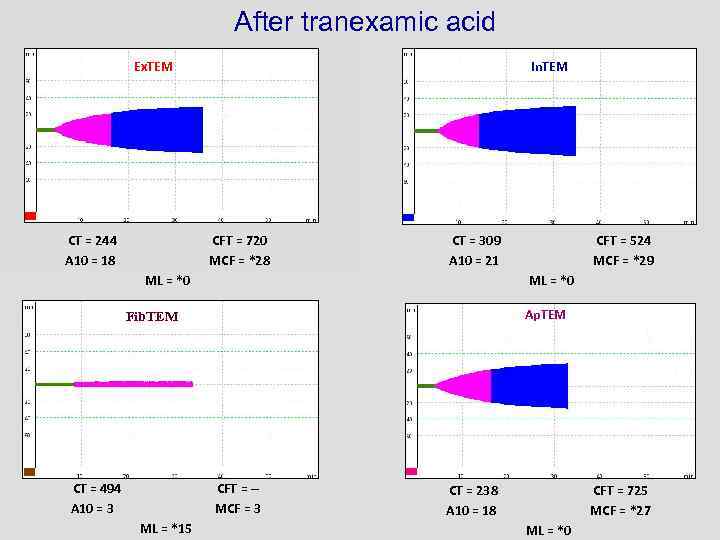

After tranexamic acid Ex. TEM CT = 244 A 10 = 18 In. TEM CFT = 720 MCF = *28 CT = 309 A 10 = 21 ML = *0 Ap. TEM Fib. TEM CT = 494 A 10 = 3 CFT = -MCF = 3 ML = *15 CFT = 524 MCF = *29 CT = 238 A 10 = 18 CFT = 725 MCF = *27 ML = *0

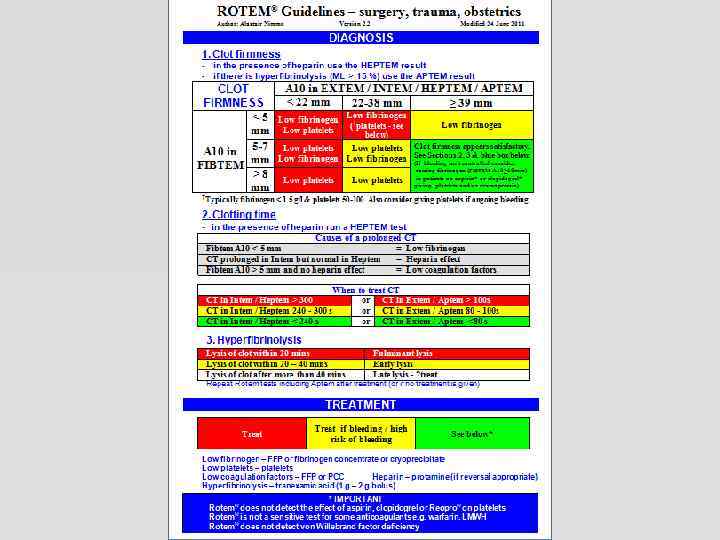

CLOT FIRMNESS <5 mm 5 -7 A 10 in FIBTEM mm >8 mm A 10 in EXTEM / INTEM / HEPTEM / APTEM < 22 mm 22 -38 mm > 39 mm Low fibrinogen Low platelets Low fibrinogen (*platelets - see below) Low platelets Low fibrinogen Clot firmness appears satisfactory * Typically fibrinogen < 1. 5 g/l & platelets 50 -100. Also consider giving platelets if ongoing bleeding From: ROTEM® guidelines: surgery, trauma & obstetrics Author: Alastair Nimmo Version 2. 2 Modified 24

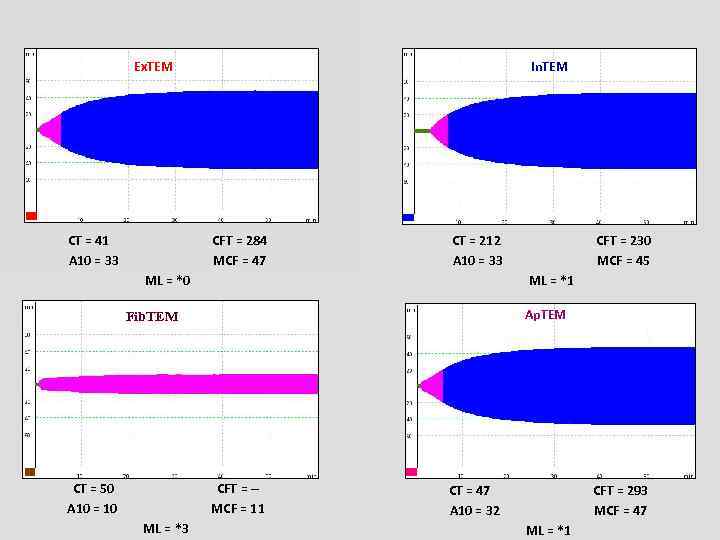

Ex. TEM CT = 41 A 10 = 33 In. TEM CFT = 284 MCF = 47 CT = 212 A 10 = 33 ML = *0 ML = *1 Ap. TEM Fib. TEM CT = 50 A 10 = 10 CFT = -MCF = 11 ML = *3 CFT = 230 MCF = 45 CT = 47 A 10 = 32 CFT = 293 MCF = 47 ML = *1

CLOT FIRMNESS <5 mm 5 -7 A 10 in FIBTEM mm >8 mm A 10 in EXTEM / INTEM / HEPTEM / APTEM < 22 mm 22 -38 mm > 39 mm Low fibrinogen Low platelets Low fibrinogen (*platelets - see below) Low platelets Low fibrinogen Clot firmness appears satisfactory * Typically fibrinogen < 1. 5 g/l & platelets 50 -100. Also consider giving platelets if ongoing bleeding From: ROTEM® guidelines: surgery, trauma & obstetrics Author: Alastair Nimmo Version 2. 2 Modified 24

3. Platelet function analysers Use anticoagulated whole blood samples. Measure platelet aggregation in response to agonists: • Light transmittance aggregometry -Verify. Now® • Impedance aggregometry - Multiplate®, ROTEM platelet®) • Platelet count before & after agonist-Plateletworks® • Thromboelastography –TEG® Platelet. Mapping ® • Time taken for platelets to block an aperture in a membrane - PFA-100® Useful for measuring the effect of antiplatelet drugs e. g. aspirin, clopidogrel

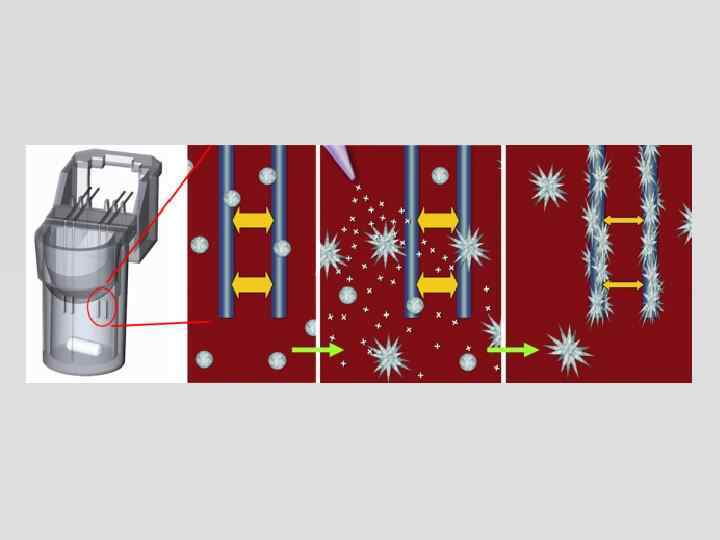

Multiplate® analyser multiple platelet function analyzer § Impedance aggregometry § 5 independent channels

TRAPtest ASPItest ADPtest HS normal aggregation 113 U 102 U 89 U 81 U 134 U 112 U 31 U 18 U 17 U 3 U 3 U 2 U 17 U 100 mg aspirin qd 139 U 75 mg clopidogrel qd 100 mg aspirin+ 75 mg clopidogrel qd 98 U 88 U 7 U Tirofiban i. v. 89 U

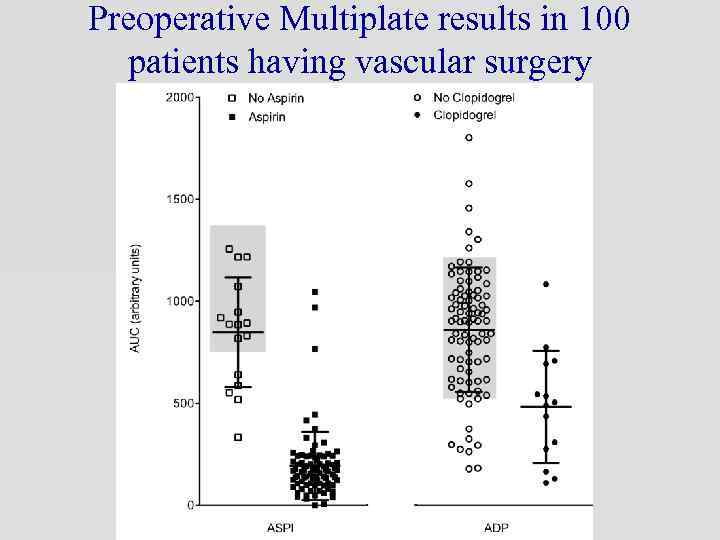

Preoperative Multiplate results in 100 patients having vascular surgery

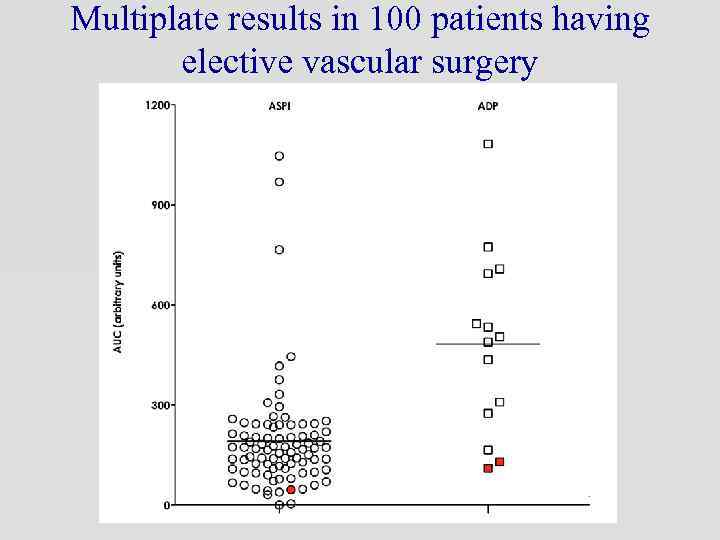

Multiplate results in 100 patients having elective vascular surgery

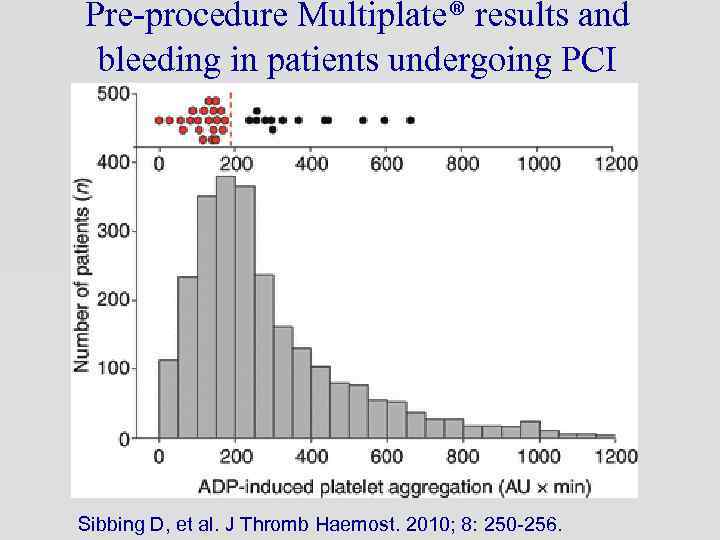

Pre-procedure Multiplate® results and bleeding in patients undergoing PCI Sibbing D, et al. J Thromb Haemost. 2010; 8: 250 -256.

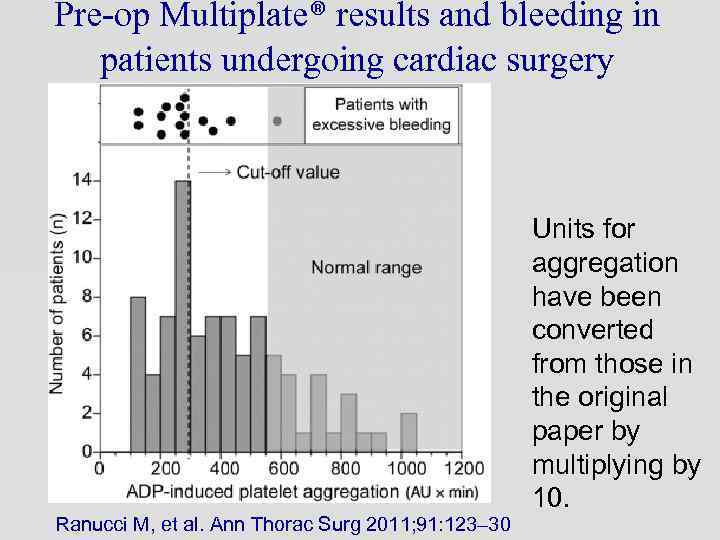

Pre-op Multiplate® results and bleeding in patients undergoing cardiac surgery Ranucci M, et al. Ann Thorac Surg 2011; 91: 123– 30 Units for aggregation have been converted from those in the original paper by multiplying by 10.

Suggested scheme for interpreting pre-op Multiplate® results in vascular surgery patients on clopidogrel ADP test result Platelet inhibition by clopidogrel Risk of excessive bleeding because of clopidogrel effect < 300 - 600 >600 High Marked Some Little or none Low Assumptions: • normal platelet count • hirudin anticoagulant used for the Multiplate®

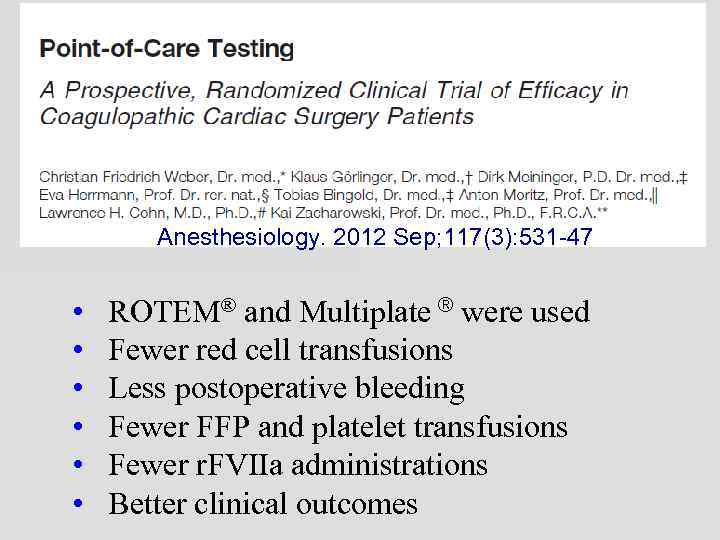

Anesthesiology. 2012 Sep; 117(3): 531 -47 • • • ROTEM® and Multiplate ® were used Fewer red cell transfusions Less postoperative bleeding Fewer FFP and platelet transfusions Fewer r. FVIIa administrations Better clinical outcomes
