PLCS — Delivering the Promise OASIS DEX Co-ordination

PLCS - Delivering the Promise OASIS DEX Co-ordination Sub-Committee 4 – 5 February 2004 © LSC Group 2002

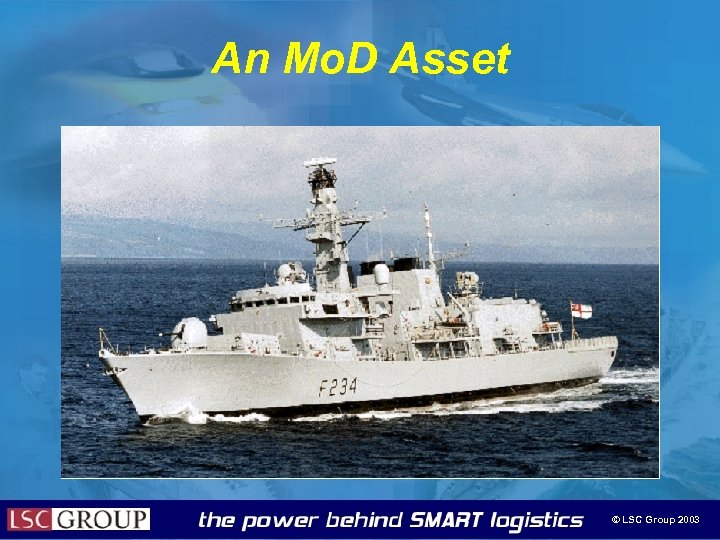

An Mo. D Asset © LSC Group 2003

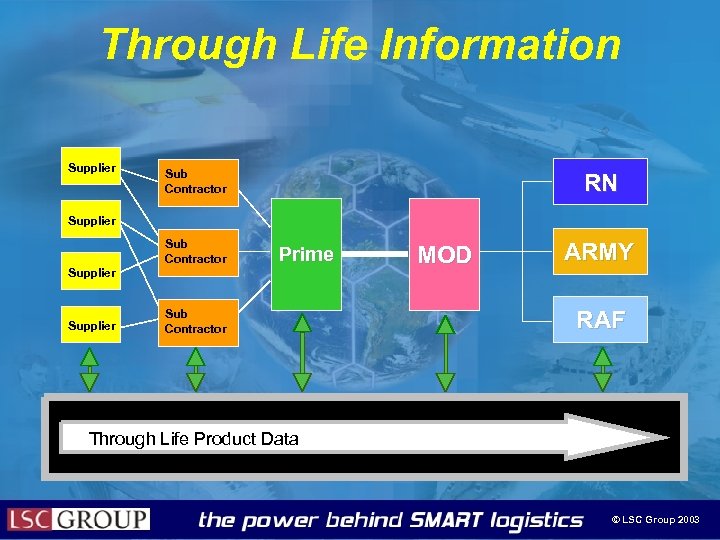

Through Life Information Supplier Sub Contractor RN Supplier Sub Contractor Supplier Prime Sub Contractor MOD ARMY RAF Through Life Product Data © LSC Group 2003

IS 10303 The Standard for the Exchange of Product Data © LSC Group 2002

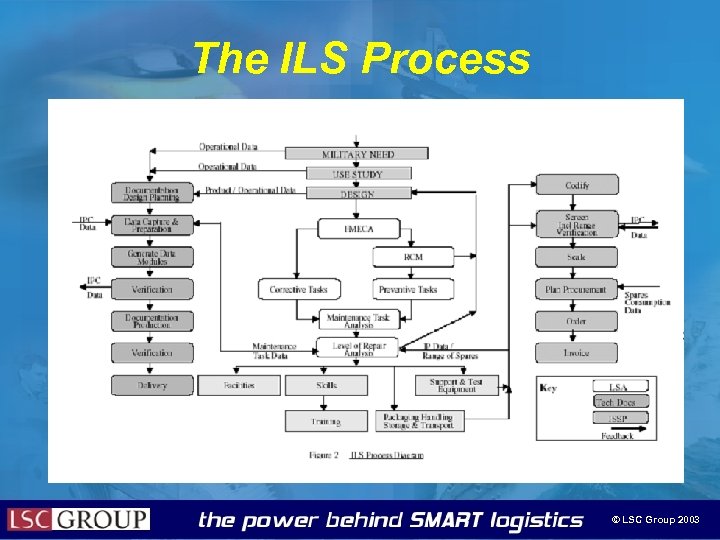

The ILS Process © LSC Group 2003

DEX 1 / 8 Configuration Statement • Development Team led by Rolls Royce • Scope is to enable the transfer of a statement of the product physical breakdown structure as designed, as built or as planned • WSA has conducted an assessment of DEX 1 against an existing automated exchange between the Submarine Design Definition System (SDD) and Devonport Dockyard’s Vessel Materiel Planning System (VMP) © LSC Group 2003

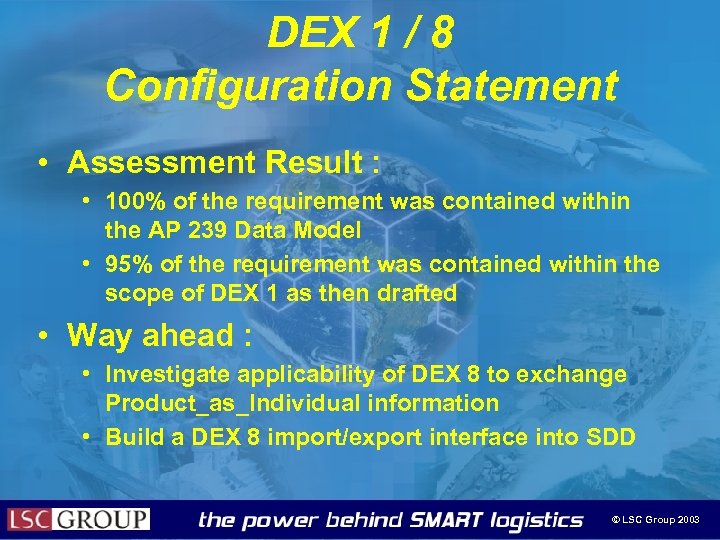

DEX 1 / 8 Configuration Statement • Assessment Result : • 100% of the requirement was contained within the AP 239 Data Model • 95% of the requirement was contained within the scope of DEX 1 as then drafted • Way ahead : • Investigate applicability of DEX 8 to exchange Product_as_Individual information • Build a DEX 8 import/export interface into SDD © LSC Group 2003

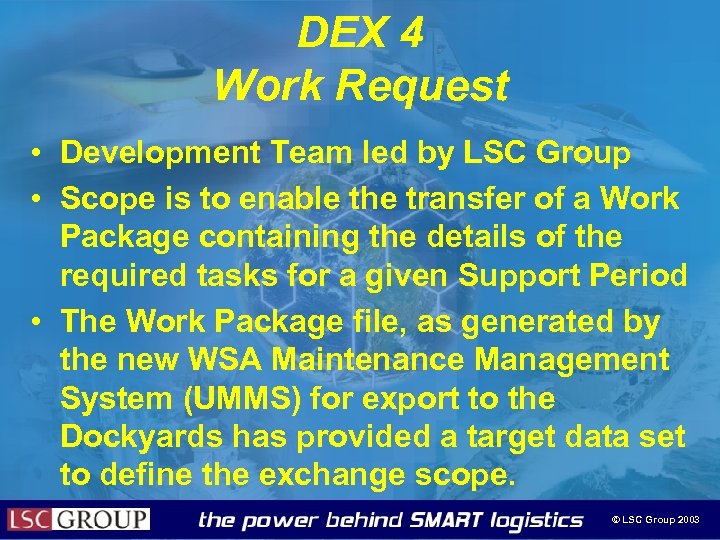

DEX 4 Work Request • Development Team led by LSC Group • Scope is to enable the transfer of a Work Package containing the details of the required tasks for a given Support Period • The Work Package file, as generated by the new WSA Maintenance Management System (UMMS) for export to the Dockyards has provided a target data set to define the exchange scope. © LSC Group 2003

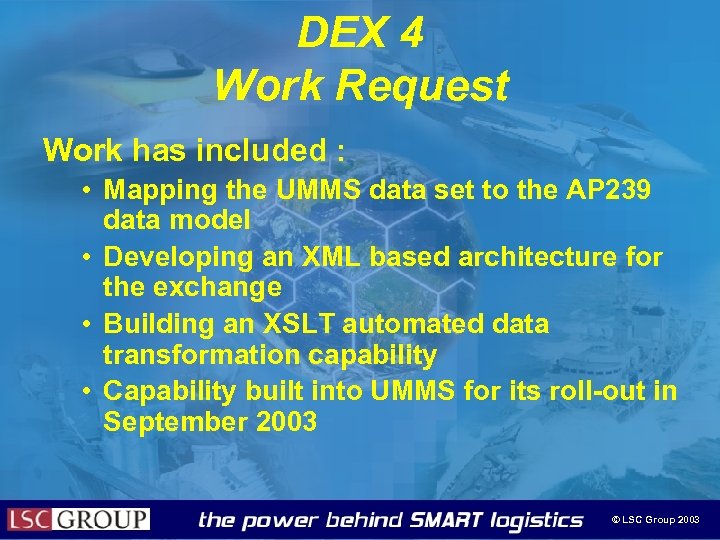

DEX 4 Work Request Work has included : • Mapping the UMMS data set to the AP 239 data model • Developing an XML based architecture for the exchange • Building an XSLT automated data transformation capability • Capability built into UMMS for its roll-out in September 2003 © LSC Group 2003

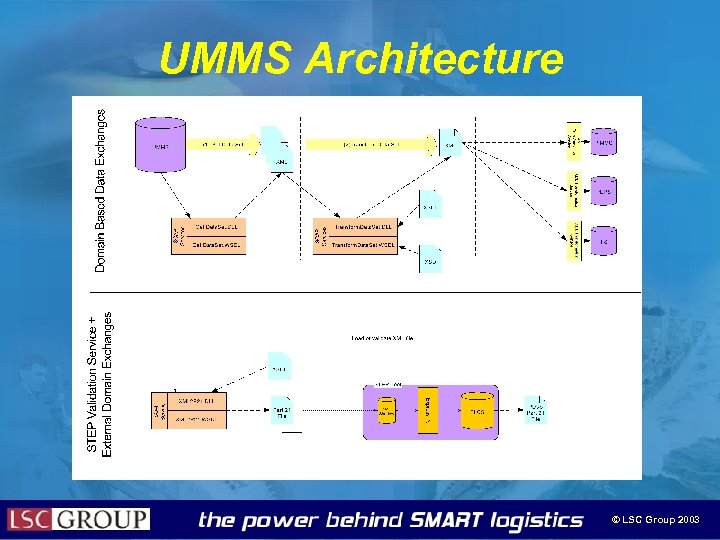

UMMS Architecture © LSC Group 2003

WSA STEP Adoption Proposed Road Map © LSC Group 2002

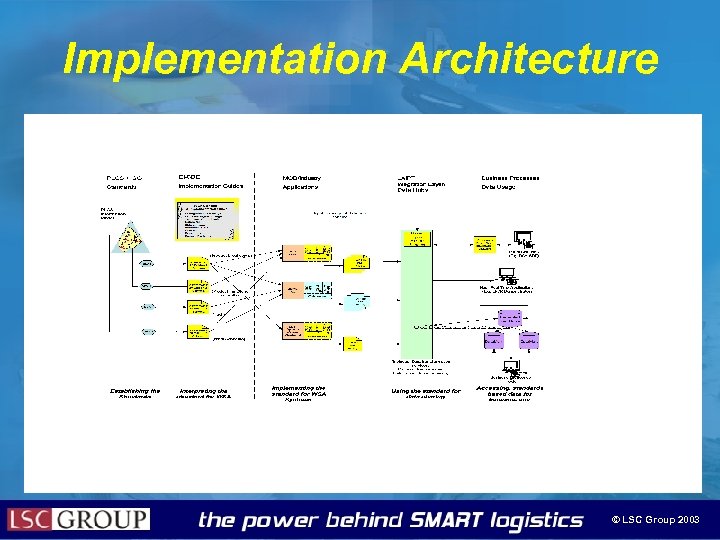

Implementation Architecture © LSC Group 2003

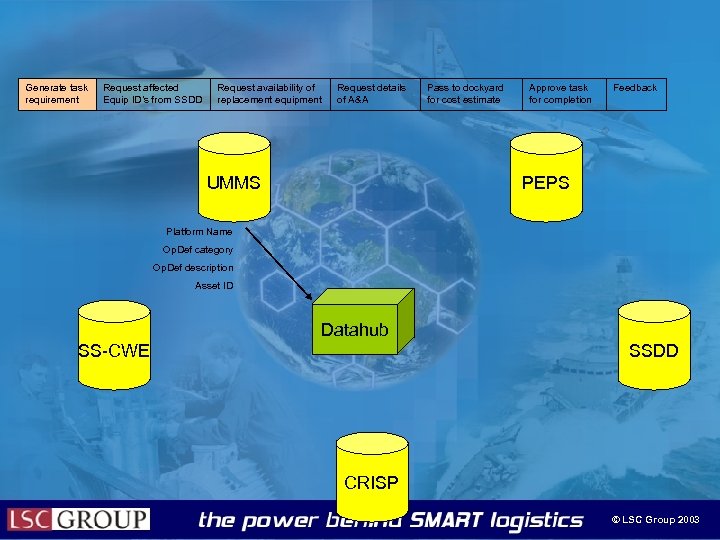

Generate task requirement Request affected Equip ID’s from SSDD Request availability of replacement equipment Request details of A&A UMMS Pass to dockyard for cost estimate Approve task for completion Feedback PEPS Platform Name Op. Def category Op. Def description Asset ID Datahub SS-CWE SSDD CRISP © LSC Group 2003

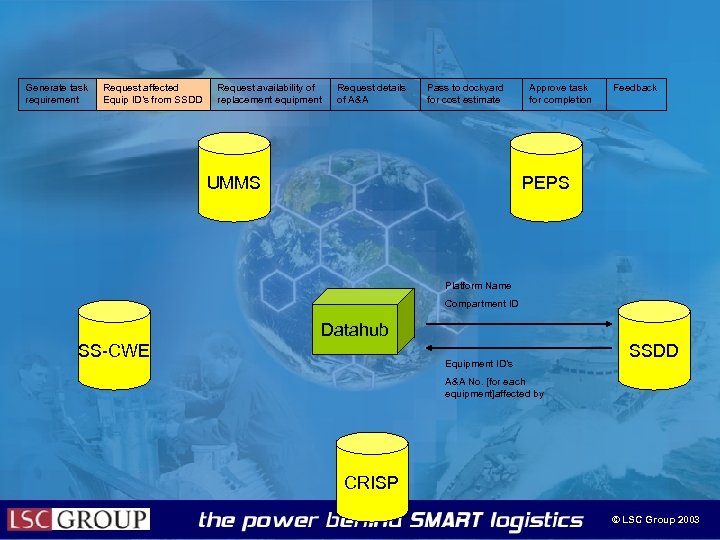

Generate task requirement Request affected Equip ID’s from SSDD Request availability of replacement equipment Request details of A&A Pass to dockyard for cost estimate UMMS Approve task for completion Feedback PEPS Platform Name Compartment ID Datahub SS-CWE Equipment ID’s SSDD A&A No. [for each equipment]affected by CRISP © LSC Group 2003

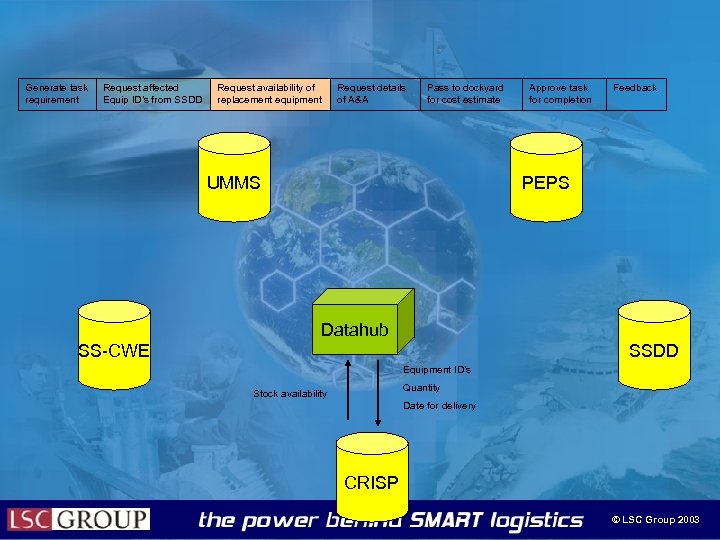

Generate task requirement Request affected Equip ID’s from SSDD Request availability of replacement equipment Request details of A&A Pass to dockyard for cost estimate UMMS Approve task for completion Feedback PEPS Datahub SS-CWE SSDD Equipment ID’s Quantity Stock availability Date for delivery CRISP © LSC Group 2003

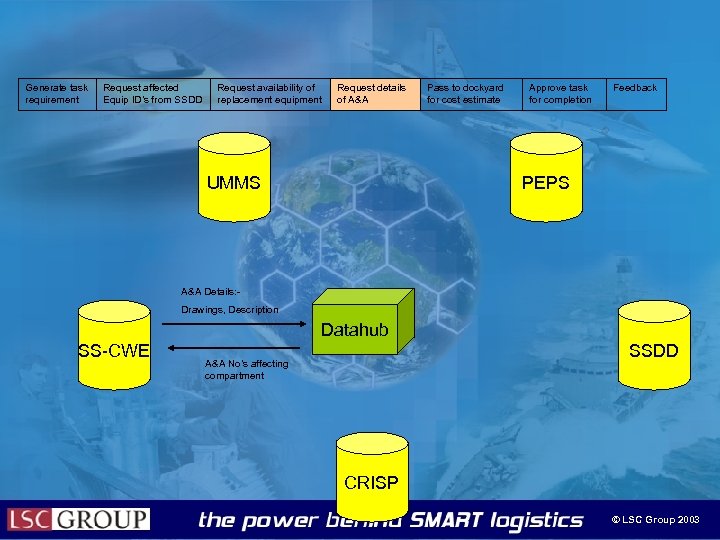

Generate task requirement Request affected Equip ID’s from SSDD Request availability of replacement equipment Request details of A&A UMMS Pass to dockyard for cost estimate Approve task for completion Feedback PEPS A&A Details: Drawings, Description Datahub SS-CWE SSDD A&A No’s affecting compartment CRISP © LSC Group 2003

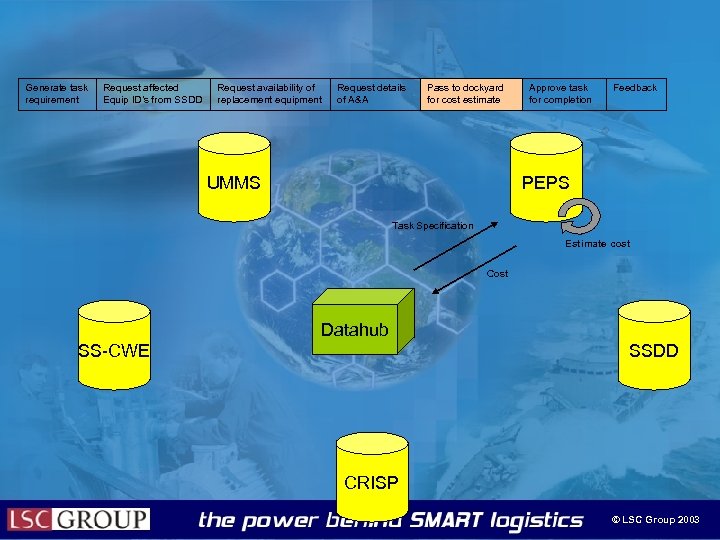

Generate task requirement Request affected Equip ID’s from SSDD Request availability of replacement equipment Request details of A&A Pass to dockyard for cost estimate UMMS Approve task for completion Feedback PEPS Task Specification Estimate cost Cost Datahub SS-CWE SSDD CRISP © LSC Group 2003

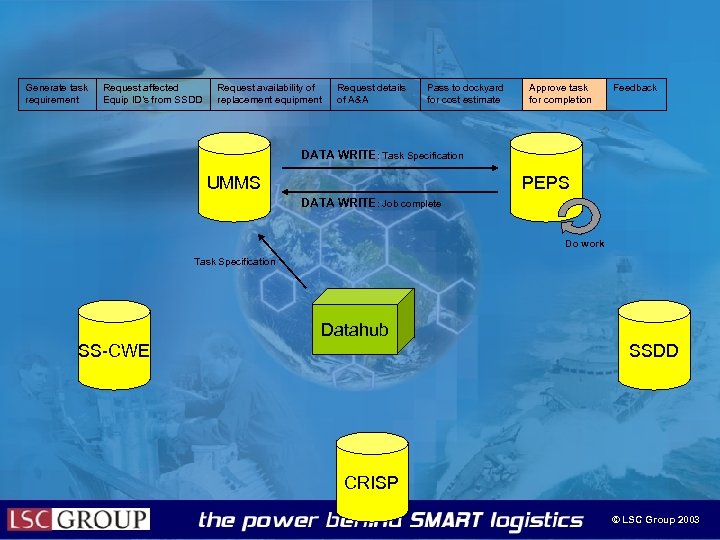

Generate task requirement Request affected Equip ID’s from SSDD Request availability of replacement equipment Request details of A&A Pass to dockyard for cost estimate Approve task for completion Feedback DATA WRITE: Task Specification UMMS PEPS DATA WRITE: Job complete Do work Task Specification Datahub SS-CWE SSDD CRISP © LSC Group 2003

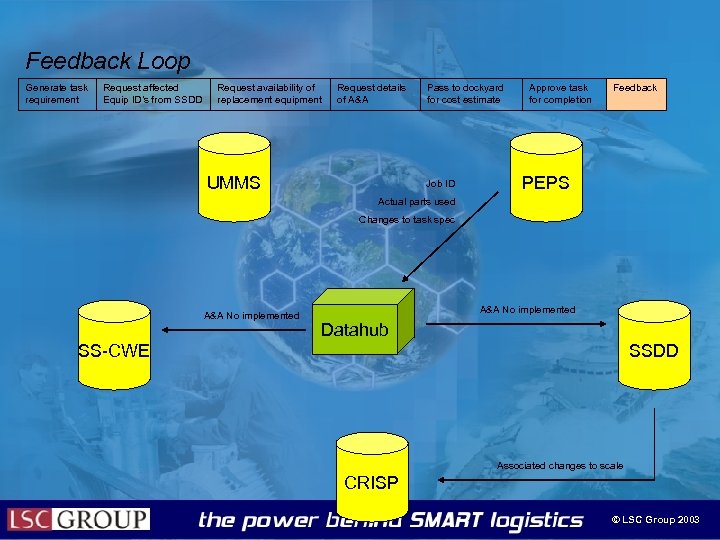

Feedback Loop Generate task requirement Request affected Equip ID’s from SSDD Request availability of replacement equipment Request details of A&A UMMS Pass to dockyard for cost estimate Job ID Approve task for completion Feedback PEPS Actual parts used Changes to task spec A&A No implemented Datahub SS-CWE SSDD Associated changes to scale CRISP © LSC Group 2003

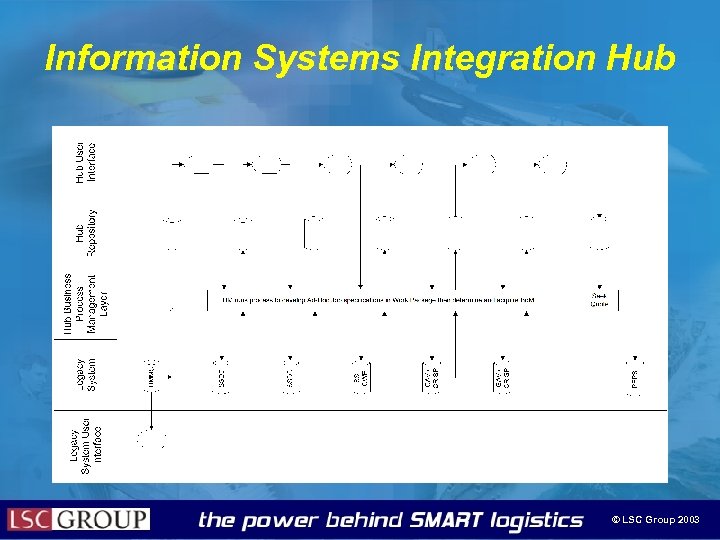

Information Systems Integration Hub © LSC Group 2003

Information Systems Integration Hub © LSC Group 2003
