Plasma Node: Use Case Analysis C. Jacquey, N. André, M. Gangloff, R. Hitier, E. Pallier, E. Budnik, V. Génot, B. Cecconi, C. Harvey, CDPP/CESR, Toulouse F. Topf, H. Rucker, M. Khodachenko , IWF, Graz Frascati, Euro. PLANET N 7 meeting, October 9, 2007

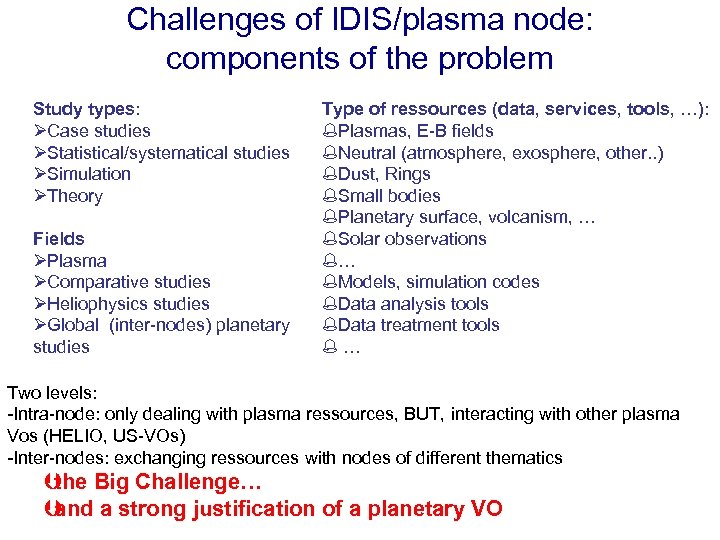

Challenges of IDIS/plasma node: components of the problem Study types: ØCase studies ØStatistical/systematical studies ØSimulation ØTheory Fields ØPlasma ØComparative studies ØHeliophysics studies ØGlobal (inter-nodes) planetary studies Type of ressources (data, services, tools, …): %Plasmas, E-B fields %Neutral (atmosphere, exosphere, other. . ) %Dust, Rings %Small bodies %Planetary surface, volcanism, … %Solar observations %… %Models, simulation codes %Data analysis tools %Data treatment tools % … Two levels: -Intra-node: only dealing with plasma ressources, BUT, interacting with other plasma Vos (HELIO, US-VOs) -Inter-nodes: exchanging ressources with nodes of different thematics Big Challenge… the and a strong justification of a planetary VO

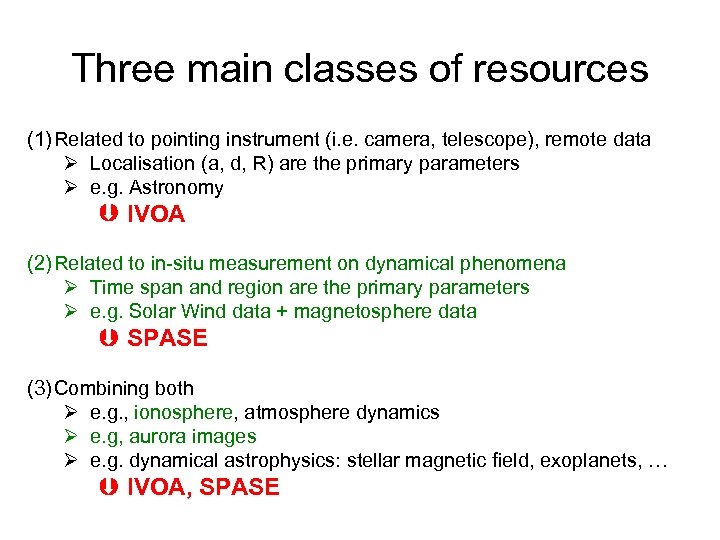

Three main classes of resources (1) Related to pointing instrument (i. e. camera, telescope), remote data Ø Localisation (a, d, R) are the primary parameters Ø e. g. Astronomy IVOA (2) Related to in-situ measurement on dynamical phenomena Ø Time span and region are the primary parameters Ø e. g. Solar Wind data + magnetosphere data SPASE (3) Combining both Ø e. g. , ionosphere, atmosphere dynamics Ø e. g, aurora images Ø e. g. dynamical astrophysics: stellar magnetic field, exoplanets, … IVOA, SPASE

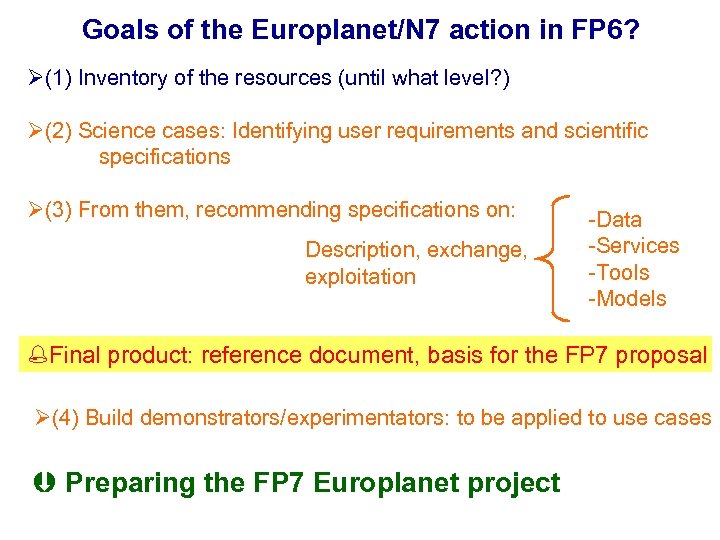

Goals of the Europlanet/N 7 action in FP 6? Ø(1) Inventory of the resources (until what level? ) Ø(2) Science cases: Identifying user requirements and scientific specifications Ø(3) From them, recommending specifications on: Description, exchange, exploitation -Data -Services -Tools -Models %Final product: reference document, basis for the FP 7 proposal Ø(4) Build demonstrators/experimentators: to be applied to use cases Preparing the FP 7 Europlanet project

We do not start from nothing… ■ SPASE ■ IVOA ■ PDS For building a VO, the basis of everything is a standard for describing the ressources, i. e. , - a data (resource) model + a dictionnary - or a model + several dictionnaries - or several [model+dictionary(ies)] + translation tools Defining the specifications on the data model(s) of the future planetology VO is one of the main goal of FP 6/N 7 In pratice, in regards of the user requirements : (i) Are SPASE, IVOA or PDS good basis? (ii) Which one – or combination - is the most adapted? (iii)Recommendations for FP 7 project?

Plasma node: the adopted method for science case analysis User requirement specifications Use case analysis ØAre there blocking points, incompatibilities in the model? ØWhat is missing? ØWhat is not appropriate? ØWhich extensions/modifications could be considered? Confrontation to the existing models: SPASE, IVOA, PDS Modified/extended models Specifications of the IDIS data model Prototypes/ Demonstrators Recommendations for selecting, modifying, extending the existing models – or combining some of them Recommendations for communicating with external VOs

Application: science case “Solar wind / saturn magnetosphere interaction and auroras” (1) Needed resources ØIn situ data -CASSINI B-field, plasma, particles -Heliospheric (ACE, WIND, ULYSSES, MEX) B-field, plasma, particles ØRemote data -Solar observations -CASSINI, ULYSSES radio -CASSINI aurora images -HST, FUSE saturn aurora images ØServices -Integrated analysis tools -Solar wind propagation simulation -Interplanetary disturbance (CME) propagation simulation In red, resources coming from IDIS In blue, resources coming from external VOs

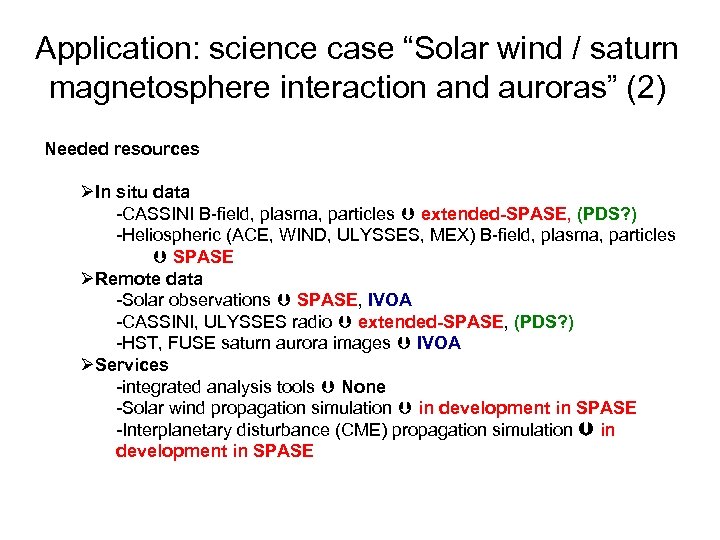

Application: science case “Solar wind / saturn magnetosphere interaction and auroras” (2) Needed resources ØIn situ data -CASSINI B-field, plasma, particles extended-SPASE, (PDS? ) -Heliospheric (ACE, WIND, ULYSSES, MEX) B-field, plasma, particles SPASE ØRemote data -Solar observations SPASE, IVOA -CASSINI, ULYSSES radio extended-SPASE, (PDS? ) -HST, FUSE saturn aurora images IVOA ØServices -integrated analysis tools None -Solar wind propagation simulation in development in SPASE -Interplanetary disturbance (CME) propagation simulation in development in SPASE

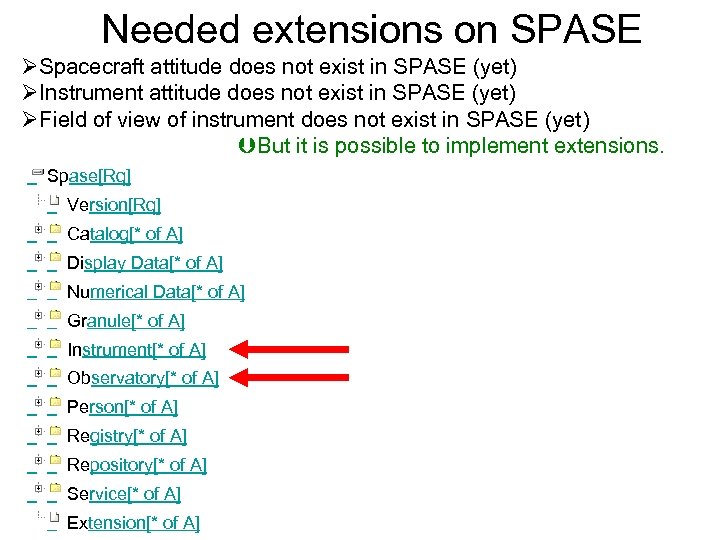

Needed extensions on SPASE ØSpacecraft attitude does not exist in SPASE (yet) ØInstrument attitude does not exist in SPASE (yet) ØField of view of instrument does not exist in SPASE (yet) But it is possible to implement extensions. Spase[Rq] Version[Rq] Catalog[* of A] Display Data[* of A] Numerical Data[* of A] Granule[* of A] Instrument[* of A] Observatory[* of A] Person[* of A] Registry[* of A] Repository[* of A] Service[* of A] Extension[* of A]

Extensions in observatory description

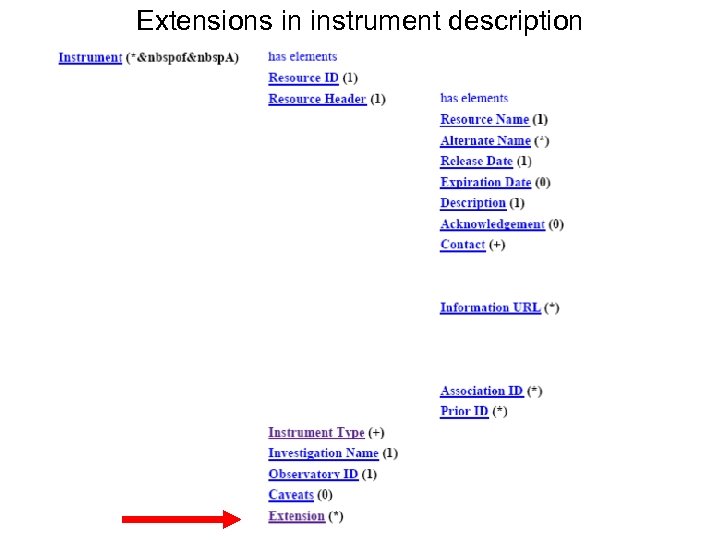

Extensions in instrument description

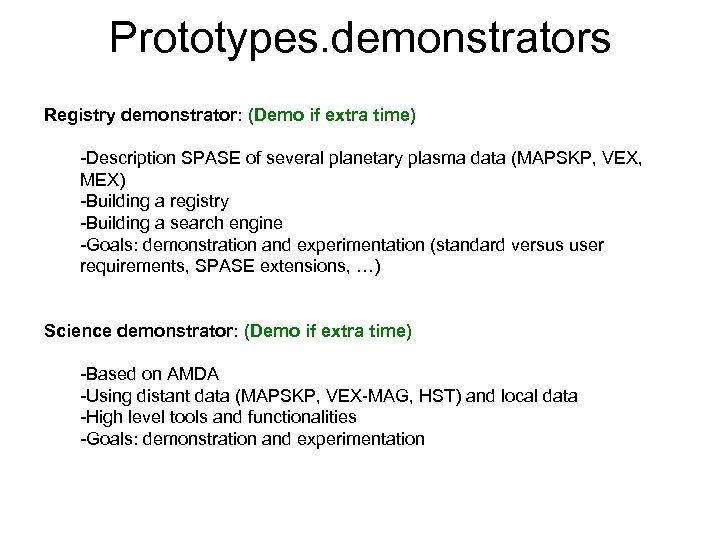

Prototypes. demonstrators Registry demonstrator: (Demo if extra time) -Description SPASE of several planetary plasma data (MAPSKP, VEX, MEX) -Building a registry -Building a search engine -Goals: demonstration and experimentation (standard versus user requirements, SPASE extensions, …) Science demonstrator: (Demo if extra time) -Based on AMDA -Using distant data (MAPSKP, VEX-MAG, HST) and local data -High level tools and functionalities -Goals: demonstration and experimentation

An example of registry for space physics: VSPO http: //vspo. gsfc. nasa. gov/websearch/dispatcher

AMDA, Automated Multi-Dataset Analysis (http: //cdpp-amda. cesr. fr) ØMulti-spacecraft and multi-instrument data -Visualisation -user defined parameter computation -Standard model computation -Data and computed parameter extraction -Event list production and management ØAutomated and semi-automated (visual) search on the content of the data ØAccess to external databases (now: CDAWeb, CDPP, next: MAPSKP, VEX-MAG, HST images, MEDOC solar data, …) AMDA System Local Database MAPSKP CDPP CDAWeb

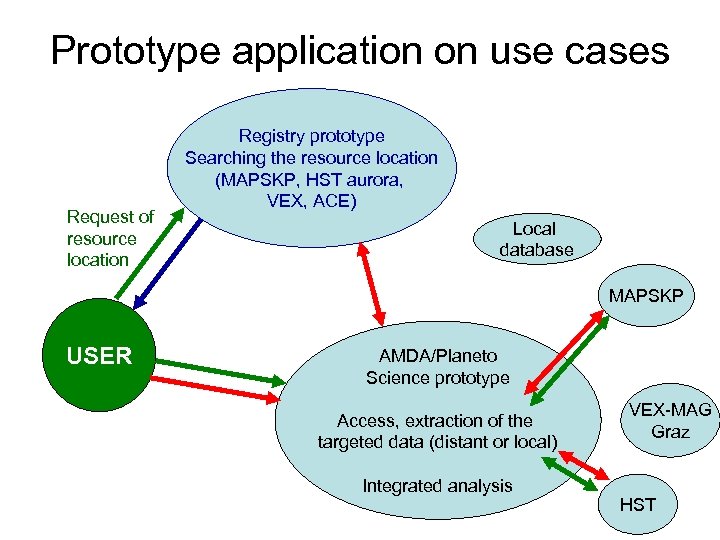

Prototype application on use cases Request of resource location Registry prototype Searching the resource location (MAPSKP, HST aurora, VEX, ACE) Local database MAPSKP USER AMDA/Planeto Science prototype Access, extraction of the targeted data (distant or local) Integrated analysis VEX-MAG Graz HST

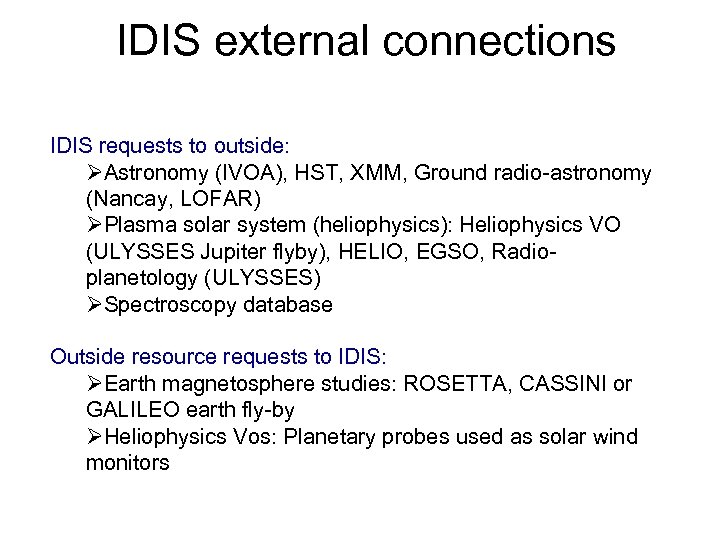

IDIS external connections IDIS requests to outside: ØAstronomy (IVOA), HST, XMM, Ground radio-astronomy (Nancay, LOFAR) ØPlasma solar system (heliophysics): Heliophysics VO (ULYSSES Jupiter flyby), HELIO, EGSO, Radioplanetology (ULYSSES) ØSpectroscopy database Outside resource requests to IDIS: ØEarth magnetosphere studies: ROSETTA, CASSINI or GALILEO earth fly-by ØHeliophysics Vos: Planetary probes used as solar wind monitors

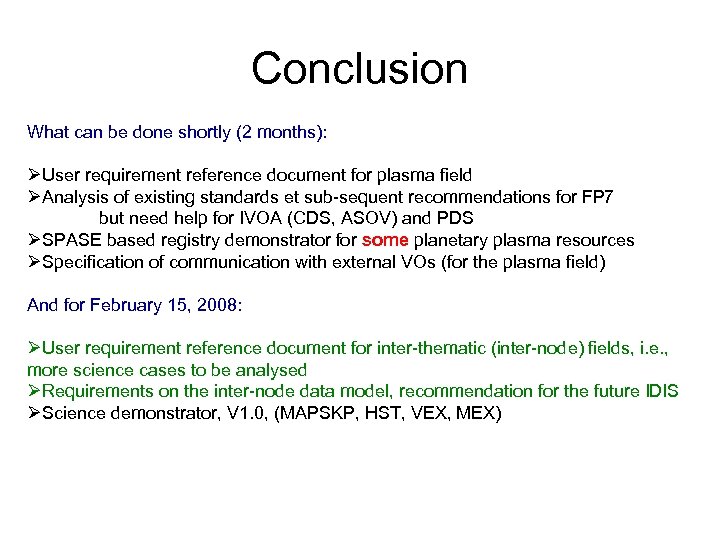

Conclusion What can be done shortly (2 months): ØUser requirement reference document for plasma field ØAnalysis of existing standards et sub-sequent recommendations for FP 7 but need help for IVOA (CDS, ASOV) and PDS ØSPASE based registry demonstrator for some planetary plasma resources ØSpecification of communication with external VOs (for the plasma field) And for February 15, 2008: ØUser requirement reference document for inter-thematic (inter-node) fields, i. e. , more science cases to be analysed ØRequirements on the inter-node data model, recommendation for the future IDIS ØScience demonstrator, V 1. 0, (MAPSKP, HST, VEX, MEX)

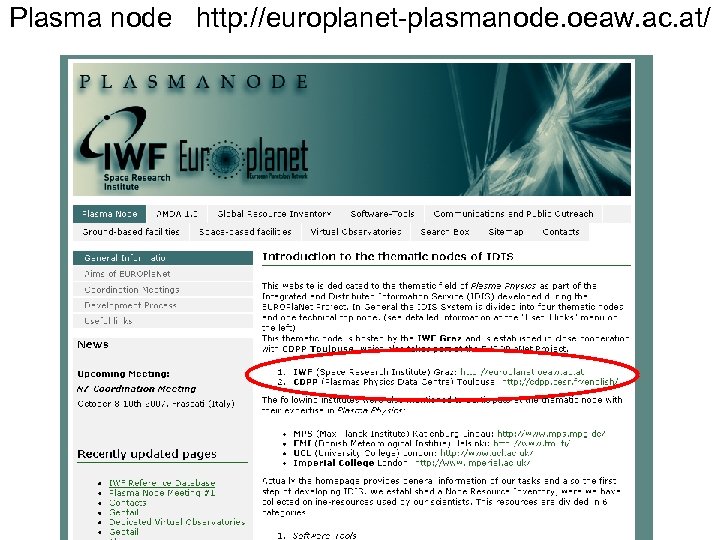

Plasma node http: //europlanet-plasmanode. oeaw. ac. at/

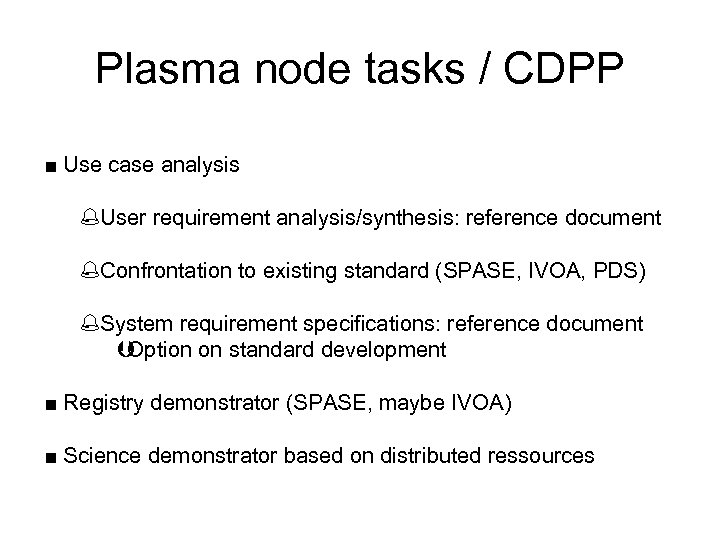

Plasma node tasks / CDPP ■ Use case analysis %User requirement analysis/synthesis: reference document %Confrontation to existing standard (SPASE, IVOA, PDS) %System requirement specifications: reference document Option on standard development ■ Registry demonstrator (SPASE, maybe IVOA) ■ Science demonstrator based on distributed ressources

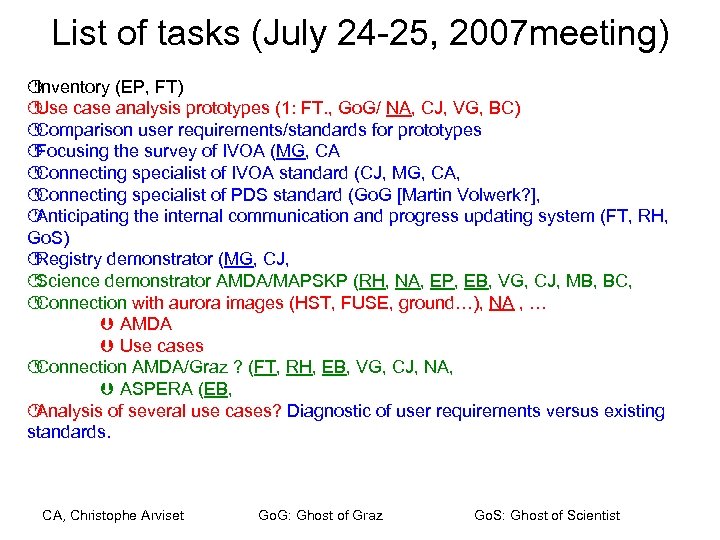

List of tasks (July 24 -25, 2007 meeting) · Inventory (EP, FT) · Use case analysis prototypes (1: FT. , Go. G/ NA, CJ, VG, BC) · Comparison user requirements/standards for prototypes · Focusing the survey of IVOA (MG, CA · Connecting specialist of IVOA standard (CJ, MG, CA, · Connecting specialist of PDS standard (Go. G [Martin Volwerk? ], · Anticipating the internal communication and progress updating system (FT, RH, Go. S) · Registry demonstrator (MG, CJ, · Science demonstrator AMDA/MAPSKP (RH, NA, EP, EB, VG, CJ, MB, BC, · Connection with aurora images (HST, FUSE, ground…), NA , … AMDA Use cases · Connection AMDA/Graz ? (FT, RH, EB, VG, CJ, NA, ASPERA (EB, · Analysis of several use cases? Diagnostic of user requirements versus existing standards. CA, Christophe Arviset Go. G: Ghost of Graz Go. S: Ghost of Scientist

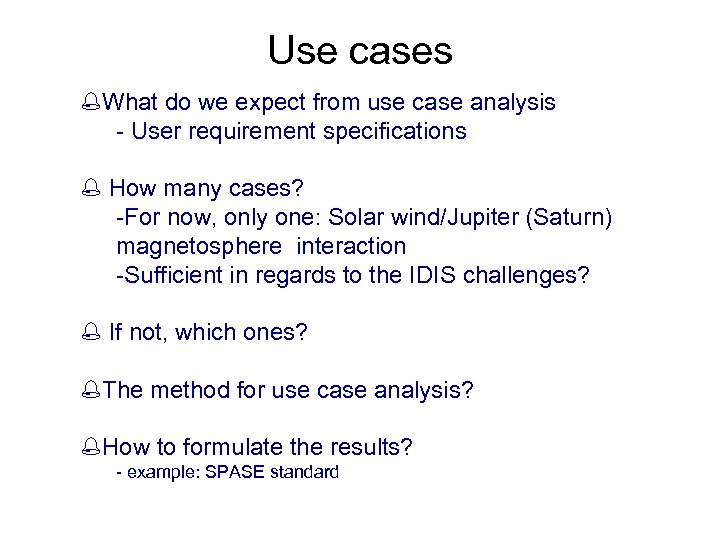

Use cases %What do we expect from use case analysis - User requirement specifications % How many cases? -For now, only one: Solar wind/Jupiter (Saturn) magnetosphere interaction -Sufficient in regards to the IDIS challenges? % If not, which ones? %The method for use case analysis? %How to formulate the results? - example: SPASE standard

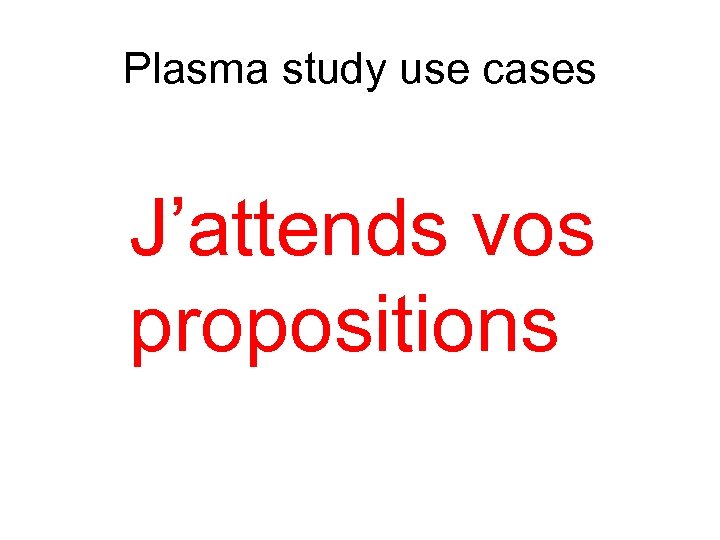

Plasma study use cases J’attends vos propositions

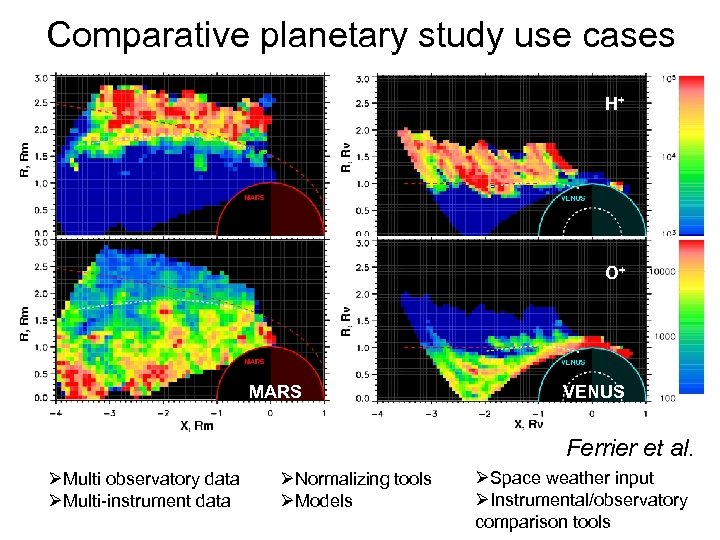

Comparative planetary study use cases H+ O+ MARS VENUS Ferrier et al. ØMulti observatory data ØMulti-instrument data ØNormalizing tools ØModels ØSpace weather input ØInstrumental/observatory comparison tools

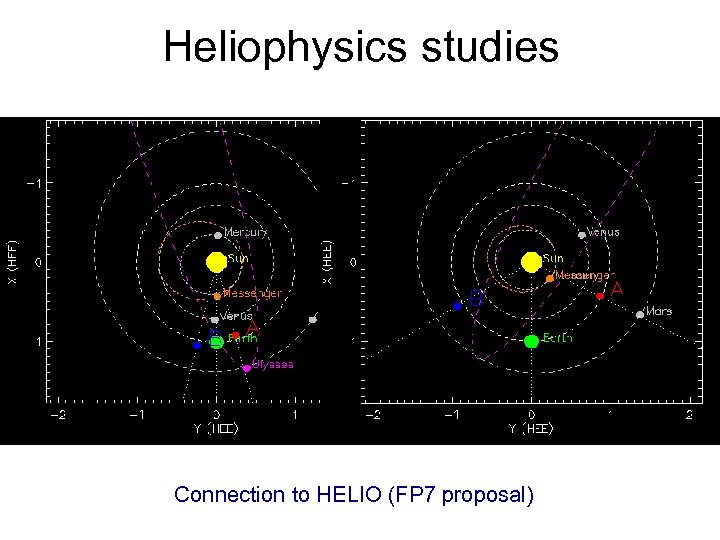

Heliophysics studies Connection to HELIO (FP 7 proposal)

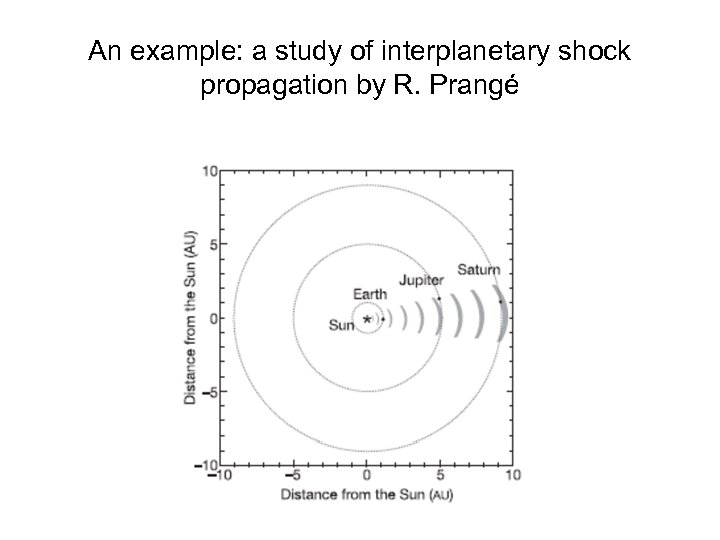

An example: a study of interplanetary shock propagation by R. Prangé

Used resources ØSOHO LASCO + EIT ØFUV HST ØRadio GALLILEO ØRadio CASSINI ØPOLAR VIS ØIMAGE FUV ØVersatile Advection Code + ACE data

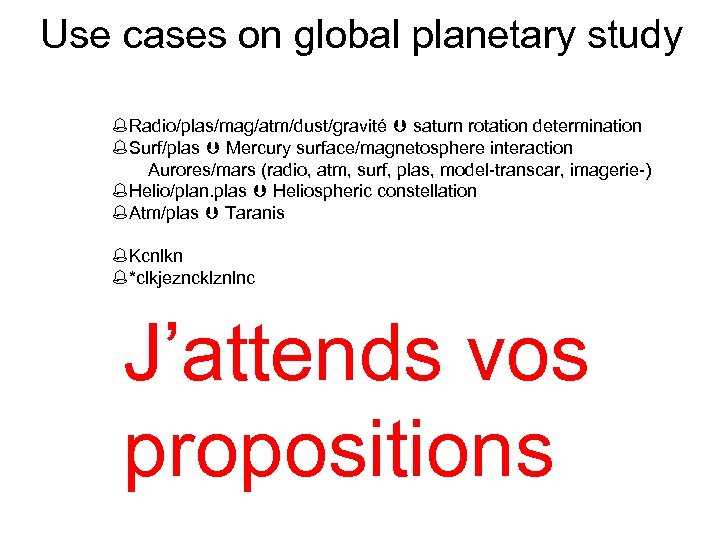

Use cases on global planetary study %Radio/plas/mag/atm/dust/gravité saturn rotation determination %Surf/plas Mercury surface/magnetosphere interaction Aurores/mars (radio, atm, surf, plas, model-transcar, imagerie-) %Helio/plan. plas Heliospheric constellation %Atm/plas Taranis %Kcnlkn %*clkjezncklznlnc J’attends vos propositions

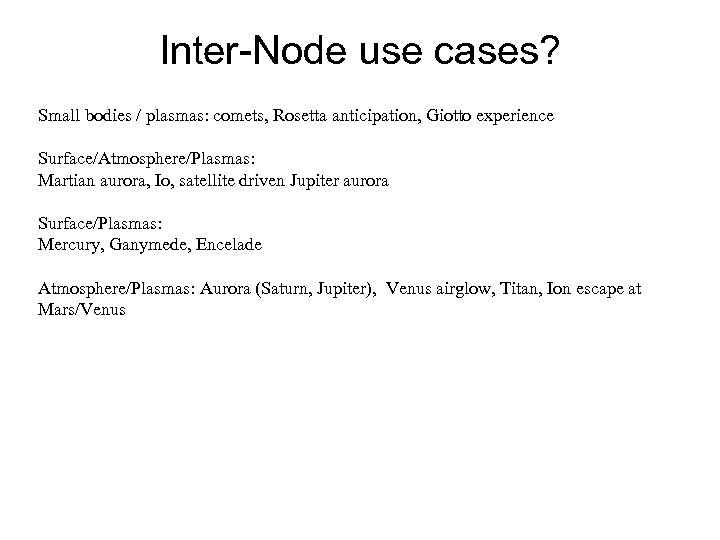

Inter-Node use cases? Small bodies / plasmas: comets, Rosetta anticipation, Giotto experience Surface/Atmosphere/Plasmas: Martian aurora, Io, satellite driven Jupiter aurora Surface/Plasmas: Mercury, Ganymede, Encelade Atmosphere/Plasmas: Aurora (Saturn, Jupiter), Venus airglow, Titan, Ion escape at Mars/Venus

Use case analysis ØGoals: -Specify/recommend the content of the data model -Specify/recommend an architecture ØGlobal method: First a prototype study for validating the method. -(1) Extracting user requirements from use case analysis • Formulating the results -(2) Defining an information system (data model + architecture) -(3) Scenarii for performing the user studies using the defined system and identifying the inconsistencies, bugs, etc… -Then, iterating (2) and (3) ØPractical approach: - (i) starting from SPASE and see what it is needed and missing - (ii) the same for IVOA, (iii) and PDS? ØRecommendation

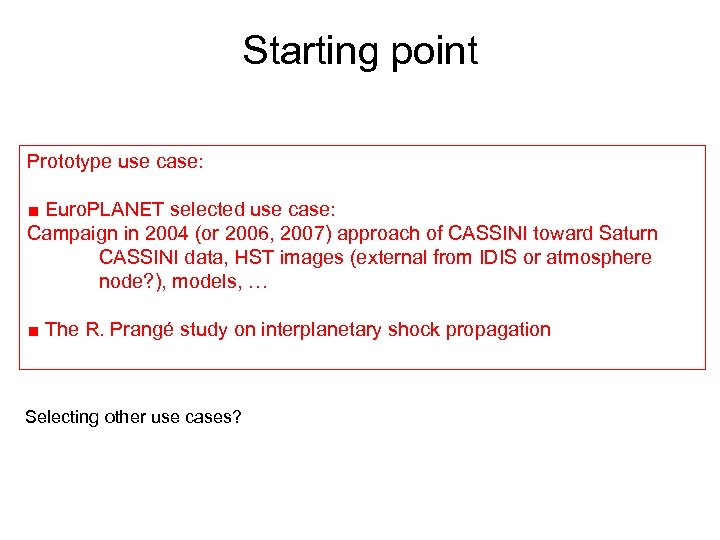

Starting point Prototype use case: ■ Euro. PLANET selected use case: Campaign in 2004 (or 2006, 2007) approach of CASSINI toward Saturn CASSINI data, HST images (external from IDIS or atmosphere node? ), models, … ■ The R. Prangé study on interplanetary shock propagation Selecting other use cases?

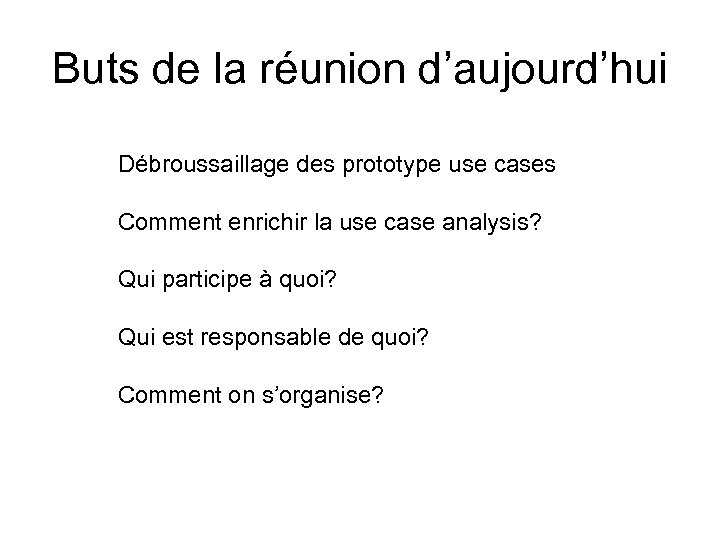

Buts de la réunion d’aujourd’hui Débroussaillage des prototype use cases Comment enrichir la use case analysis? Qui participe à quoi? Qui est responsable de quoi? Comment on s’organise?

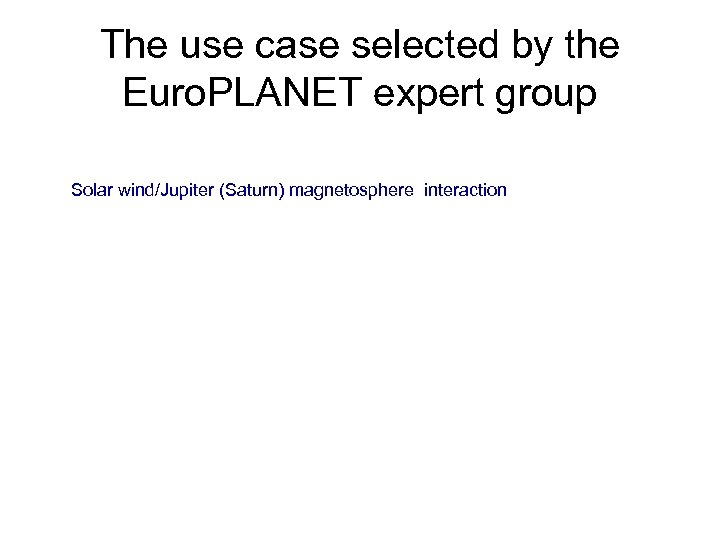

The use case selected by the Euro. PLANET expert group Solar wind/Jupiter (Saturn) magnetosphere interaction

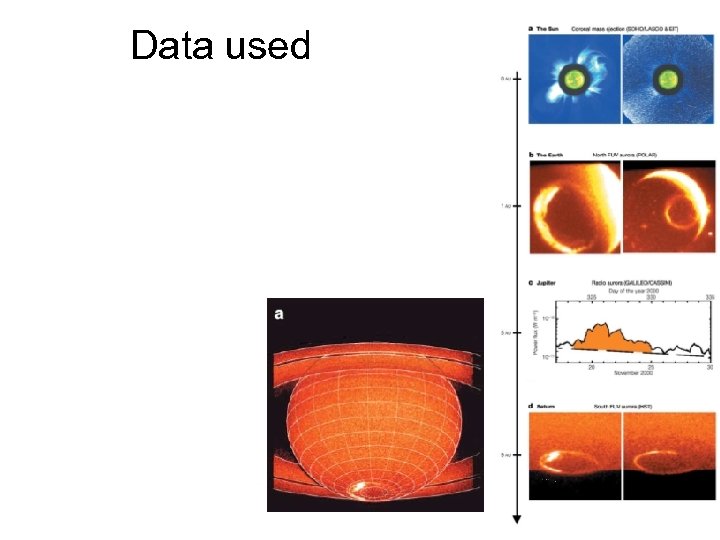

Data used
