  • Количество слайдов: 34

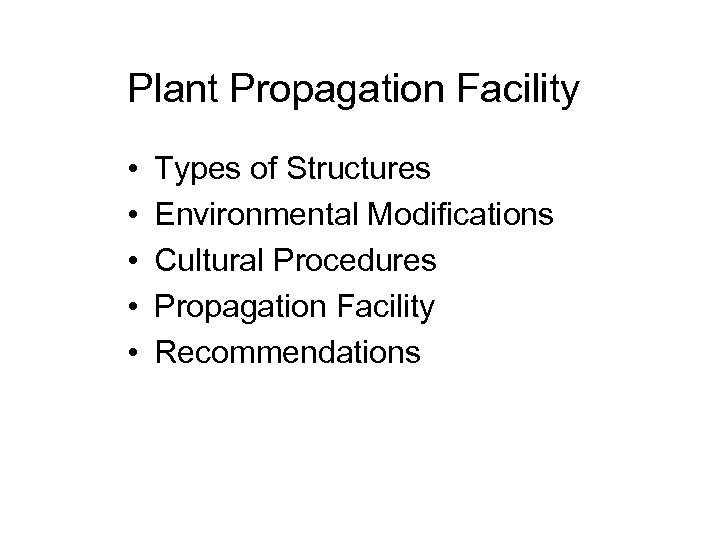

Plant Propagation Facility • • • Types of Structures Environmental Modifications Cultural Procedures Propagation Plant Propagation Facility • • • Types of Structures Environmental Modifications Cultural Procedures Propagation Facility Recommendations

Propagation Structures § Propagation requires controlled environment: § Light § Temperature § Moisture § Propagation Structures § Propagation requires controlled environment: § Light § Temperature § Moisture § Gasses (CO 2, O 2) § Types of Propagation Facility § Cold Frames § Hotbeds § Greenhouses § Shade Houses

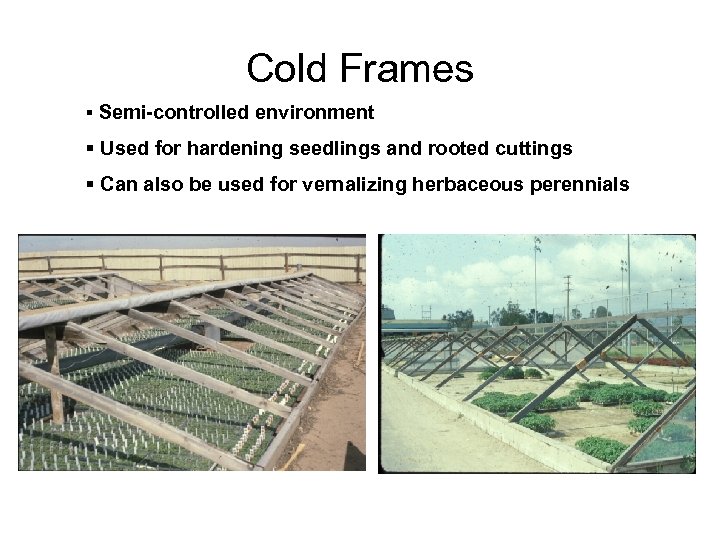

Cold Frames § Semi-controlled environment § Used for hardening seedlings and rooted cuttings § Cold Frames § Semi-controlled environment § Used for hardening seedlings and rooted cuttings § Can also be used for vernalizing herbaceous perennials

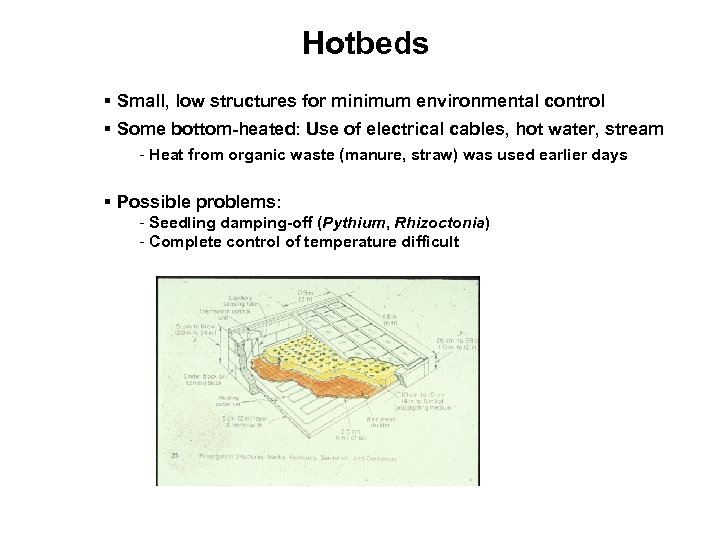

Hotbeds § Small, low structures for minimum environmental control § Some bottom-heated: Use of Hotbeds § Small, low structures for minimum environmental control § Some bottom-heated: Use of electrical cables, hot water, stream - Heat from organic waste (manure, straw) was used earlier days § Possible problems: - Seedling damping-off (Pythium, Rhizoctonia) - Complete control of temperature difficult

Structural Designs of Greenhouse 1. Lean-to Greenhouses 2. Single Span Greenhouses - Even-span greenhouses Structural Designs of Greenhouse 1. Lean-to Greenhouses 2. Single Span Greenhouses - Even-span greenhouses - Uneven-span greenhouses - Arch or curvilinear greenhouses 3. Ridge-and-Furrow Greenhouses - Gutter connected multi-span greenhouses

1. Lean-to Greenhouses Build against a side of an existing building Advantages: Disadvantages: Less 1. Lean-to Greenhouses Build against a side of an existing building Advantages: Disadvantages: Less heating costs Easy access to harvesting crops Humid air into the house Chemical spray health hazard (use biological control)

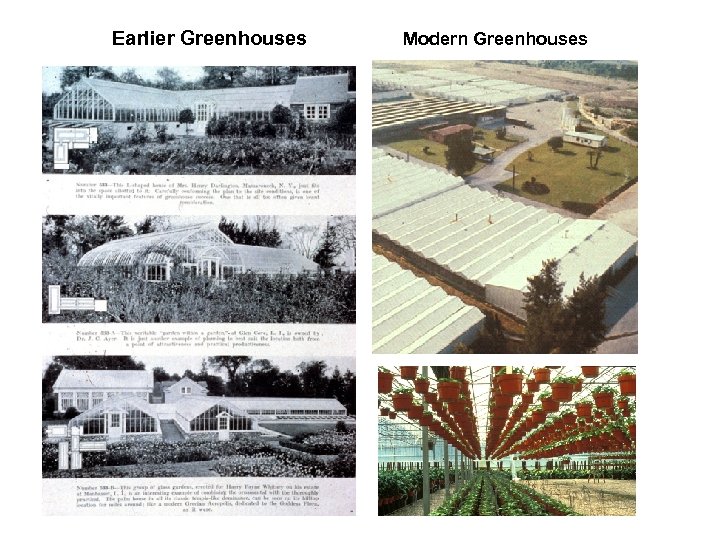

Earlier Greenhouses Modern Greenhouses Earlier Greenhouses Modern Greenhouses

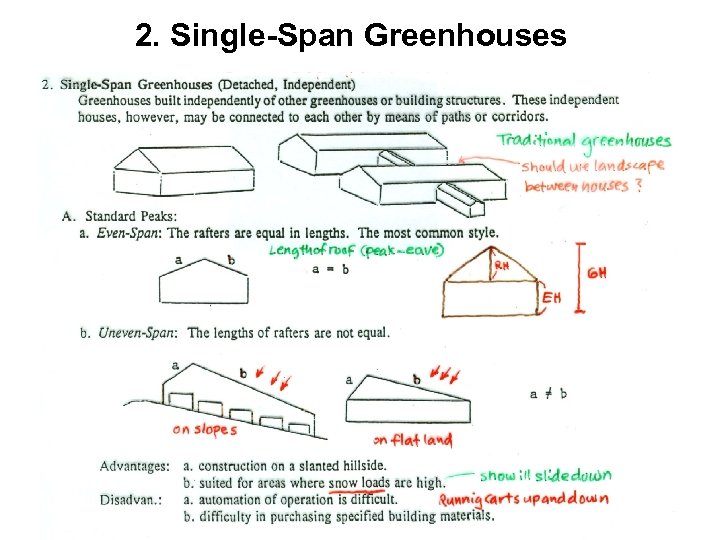

2. Single-Span Greenhouses 2. Single-Span Greenhouses

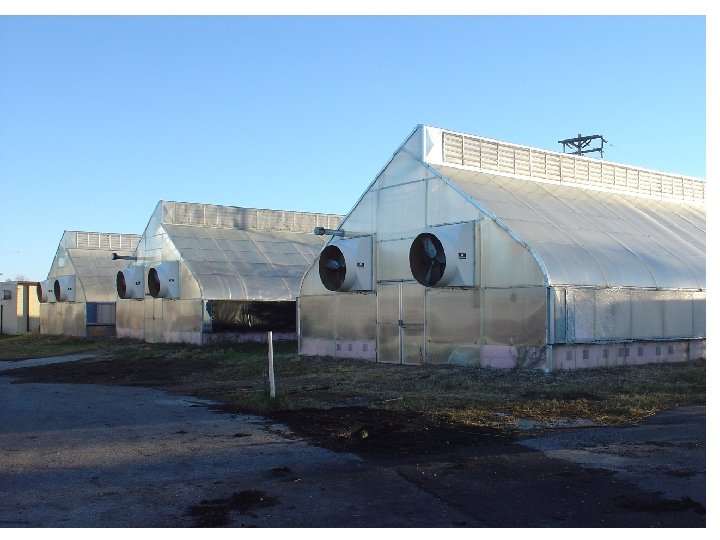

Standard Single-Span Greenhouses Standard Single-Span Greenhouses

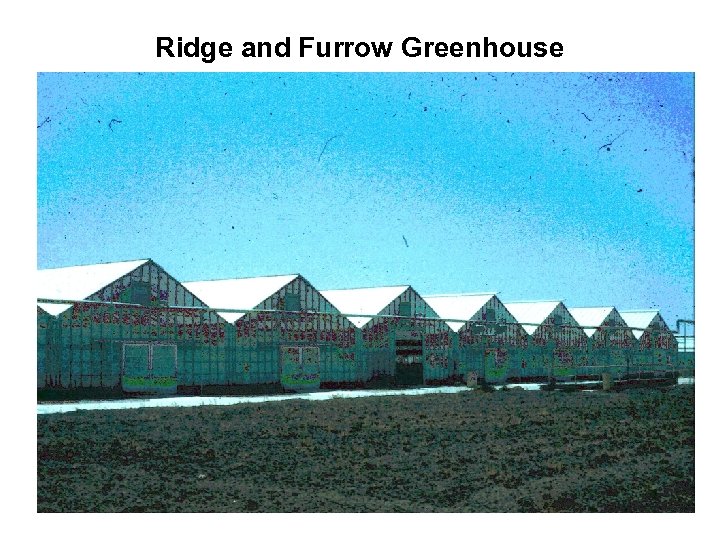

Ridge and Furrow Greenhouse Ridge and Furrow Greenhouse

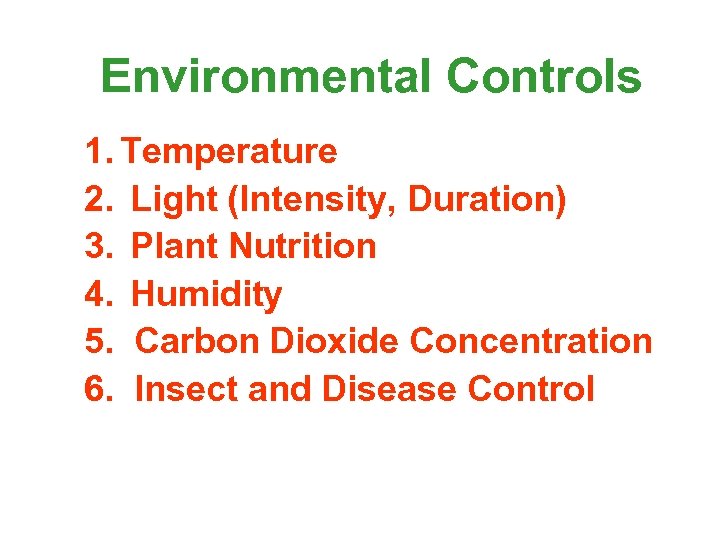

Environmental Controls 1. Temperature 2. Light (Intensity, Duration) 3. Plant Nutrition 4. Humidity 5. Environmental Controls 1. Temperature 2. Light (Intensity, Duration) 3. Plant Nutrition 4. Humidity 5. Carbon Dioxide Concentration 6. Insect and Disease Control

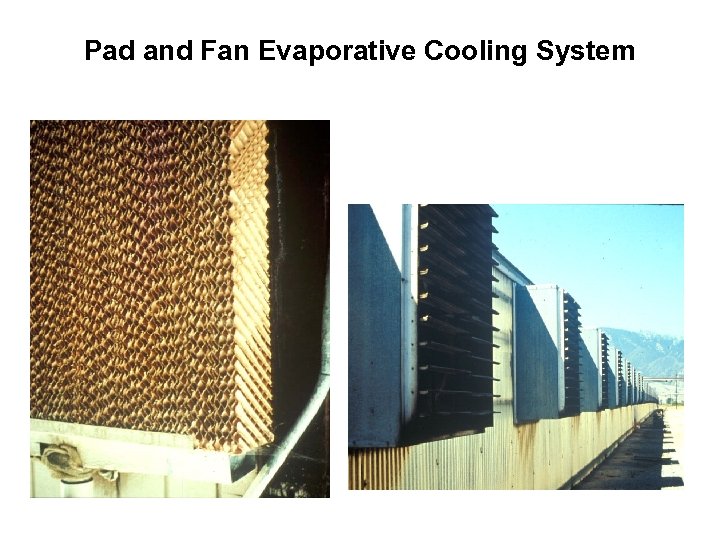

Pad and Fan Evaporative Cooling System Pad and Fan Evaporative Cooling System

Lighting for Photosynthesis Lighting for Photosynthesis

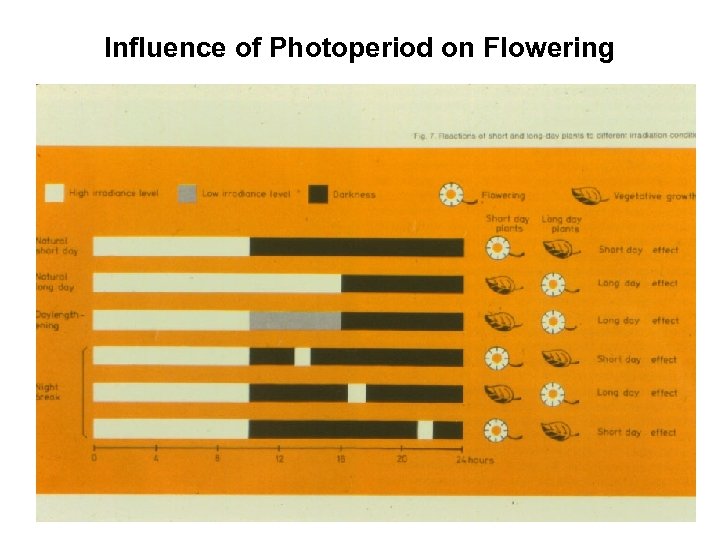

Influence of Photoperiod on Flowering Influence of Photoperiod on Flowering

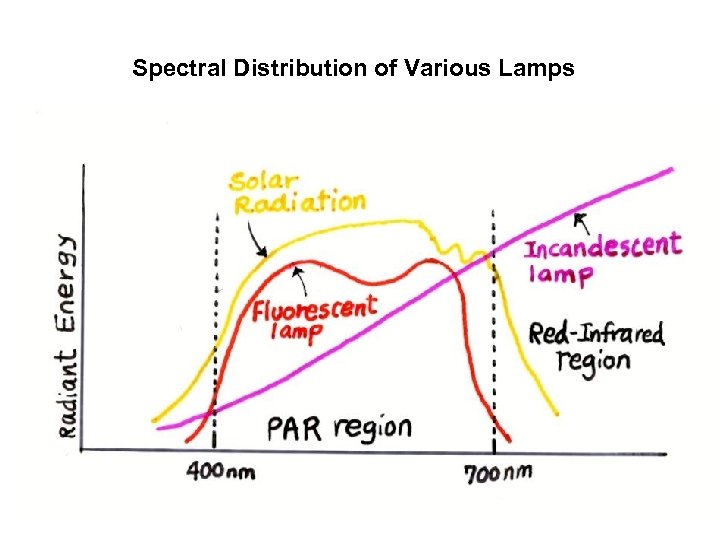

Spectral Distribution of Various Lamps Spectral Distribution of Various Lamps

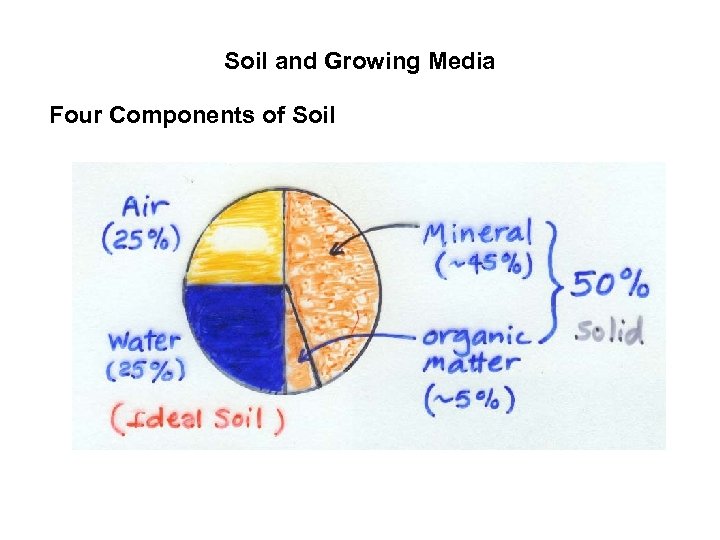

Soil and Growing Media Four Components of Soil Soil and Growing Media Four Components of Soil

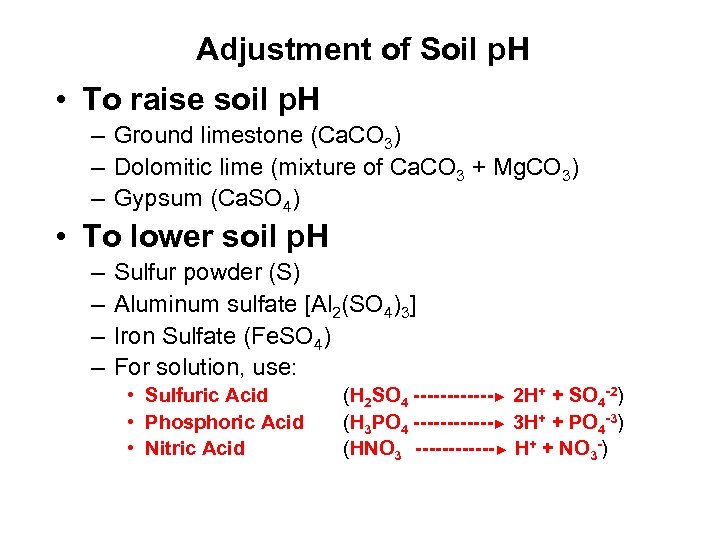

Adjustment of Soil p. H • To raise soil p. H – Ground limestone Adjustment of Soil p. H • To raise soil p. H – Ground limestone (Ca. CO 3) – Dolomitic lime (mixture of Ca. CO 3 + Mg. CO 3) – Gypsum (Ca. SO 4) • To lower soil p. H – – Sulfur powder (S) Aluminum sulfate [Al 2(SO 4)3] Iron Sulfate (Fe. SO 4) For solution, use: • Sulfuric Acid • Phosphoric Acid • Nitric Acid (H 2 SO 4 ------► 2 H+ + SO 4 -2) (H 3 PO 4 ------► 3 H+ + PO 4 -3) (HNO 3 ------► H+ + NO 3 -)

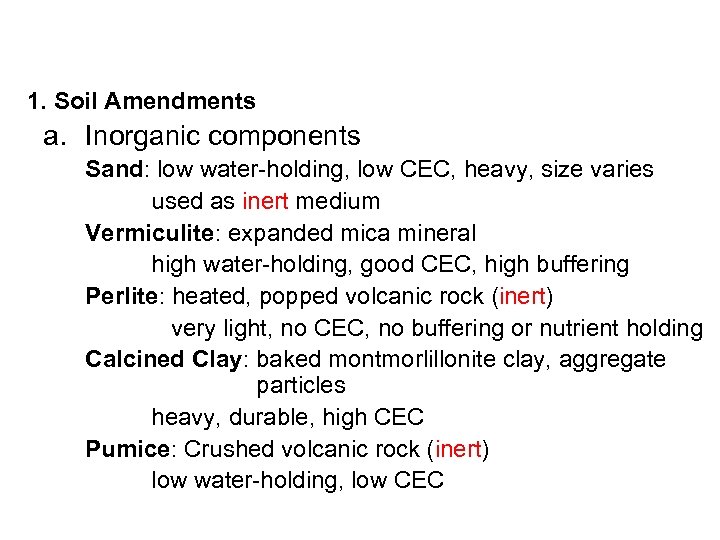

1. Soil Amendments a. Inorganic components Sand: low water-holding, low CEC, heavy, size varies 1. Soil Amendments a. Inorganic components Sand: low water-holding, low CEC, heavy, size varies used as inert medium Vermiculite: expanded mica mineral high water-holding, good CEC, high buffering Perlite: heated, popped volcanic rock (inert) very light, no CEC, no buffering or nutrient holding Calcined Clay: baked montmorlillonite clay, aggregate particles heavy, durable, high CEC Pumice: Crushed volcanic rock (inert) low water-holding, low CEC

Using Soil in Growing Media a. Heavy Texture Soil Use: 1 part clay loam Using Soil in Growing Media a. Heavy Texture Soil Use: 1 part clay loam 2 parts organic matter 2 parts coarse aggregate (amendments) b. Medium Texture Soil Use: 1 part silty loam 1 part organic matter 1 part coarse aggregate (amendments) c. Light Texture Soil Use: 1 part sandy loam 1 part organic matter

Artificial Growing Media a. The UC Mixes Mix A: 100% sand + 0% peat Artificial Growing Media a. The UC Mixes Mix A: 100% sand + 0% peat Mix B: 75% sand + 25% peat Mix C: 50% sand + 50% peat Mix D: 25% sand + 75% peat Mix E: 0% sand + 100% peat - All contain base fertilizers - Used mainly for nursery crops (more popular in California) b. Cornell Mixes (Peat-Lite Mix, Soil-less Mix) Mix A: 1 part sphagnum peat 1 part vermiculite Mix B: 1 part sphagnum peat 1 part perlite Foliage Plant Mix: 2 parts sphagnum peat 1 part vermiculite 1 part perlite - All mixes contain base fertilizers - Standardized with reproducible results - Extensively used for greenhouse crops

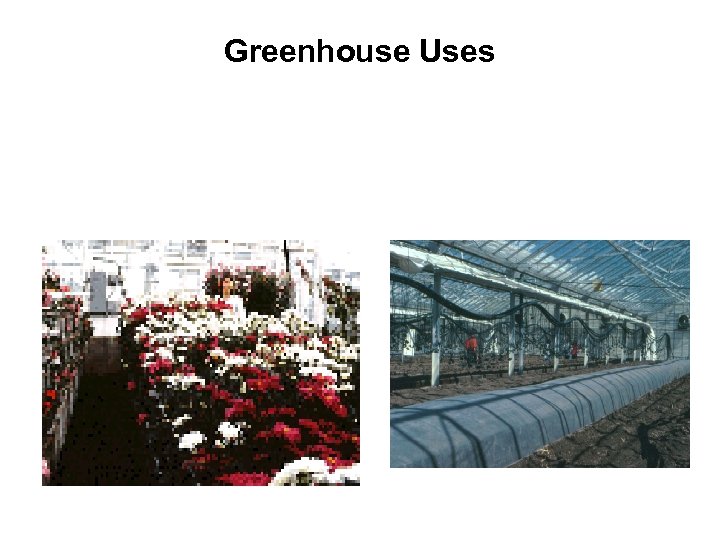

Greenhouse Uses Greenhouse Uses

Water-Holding Characteristics Influenced by Container Height Water-Holding Characteristics Influenced by Container Height

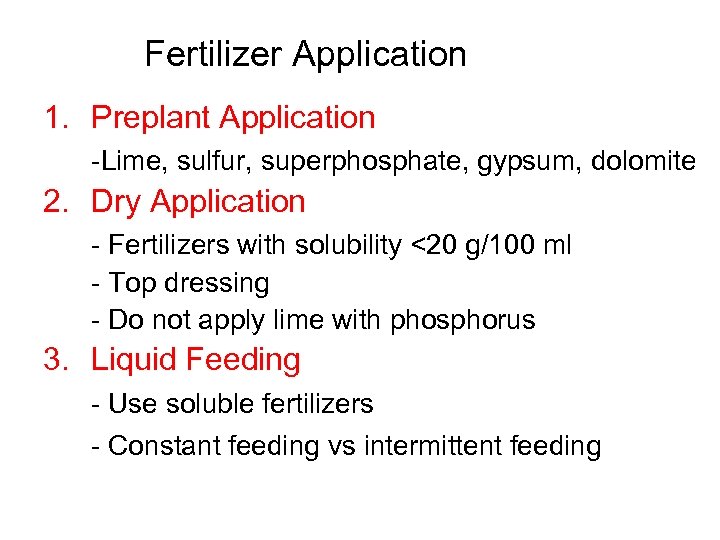

Fertilizer Application 1. Preplant Application -Lime, sulfur, superphosphate, gypsum, dolomite 2. Dry Application - Fertilizer Application 1. Preplant Application -Lime, sulfur, superphosphate, gypsum, dolomite 2. Dry Application - Fertilizers with solubility <20 g/100 ml - Top dressing - Do not apply lime with phosphorus 3. Liquid Feeding - Use soluble fertilizers - Constant feeding vs intermittent feeding

Fertilizer Application Fertilizer Application

Blossom End Rot of Tomato Calcium Deficiency Right-Hydroponic tomatoes grown in the greenhouse, Left-Blossom Blossom End Rot of Tomato Calcium Deficiency Right-Hydroponic tomatoes grown in the greenhouse, Left-Blossom end rot of tomato fruits induced by calcium (Ca++) deficiency

Purification of Water - Filtration - Reverse Osmosis (RO water) - Distillation (DI water) Purification of Water - Filtration - Reverse Osmosis (RO water) - Distillation (DI water)

Fluctuation of CO 2 Concentration Inside a Greenhouse in One Day Fluctuation of CO 2 Concentration Inside a Greenhouse in One Day
