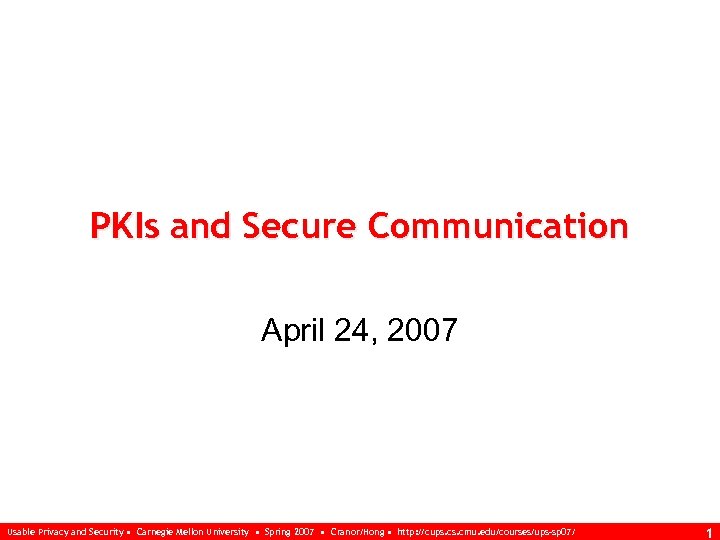

PKIs and Secure Communication April 24, 2007 Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 1

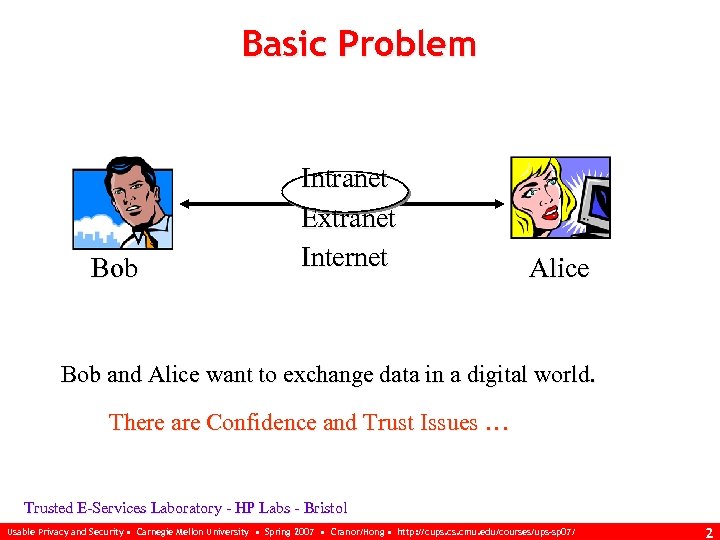

Basic Problem Bob Intranet Extranet Internet Alice Bob and Alice want to exchange data in a digital world. There are Confidence and Trust Issues … Trusted E-Services Laboratory - HP Labs - Bristol Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 2
Confidence and Trust Issues • In the Identity of an Individual or Application AUTHENTICATION • That the information will be kept Private CONFIDENTIALITY • That information cannot be Manipulated INTEGRITY Bob • That information cannot be Disowned NON-REPUDIATION Intranet Extranet Internet Trusted E-Services Laboratory - HP Labs - Bristol Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ Alice

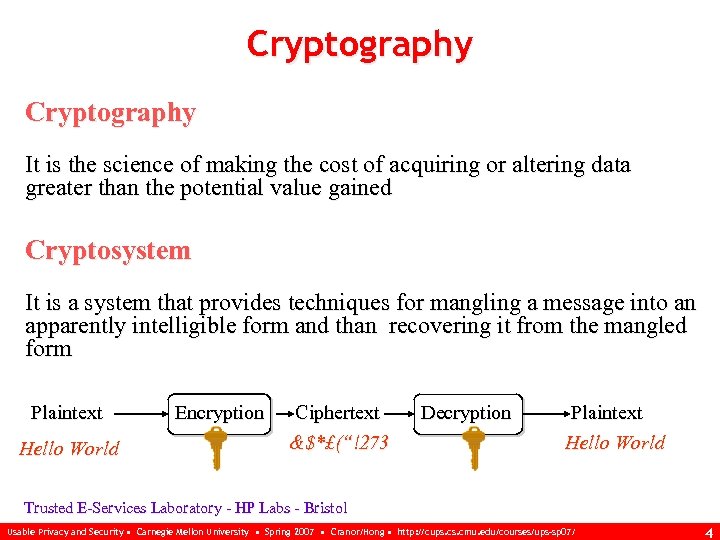

Cryptography It is the science of making the cost of acquiring or altering data greater than the potential value gained Cryptosystem It is a system that provides techniques for mangling a message into an apparently intelligible form and than recovering it from the mangled form Plaintext Hello World Encryption Ciphertext &$*£(“!273 Decryption Plaintext Hello World Trusted E-Services Laboratory - HP Labs - Bristol Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 4
Cryptographic Algorithms based on Private Key Plaintext Pros Encryption Ciphertext Private Key Decryption Plaintext Private Key • Efficient and fast Algorithm • Simple model Provides Integrity, Confidentiality Cons • The same secret key must be shared by all the entities involved in the data exchange • High risk • It doesn’t scale (proliferation of secrets) No Authentication, Non-Repudiation Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

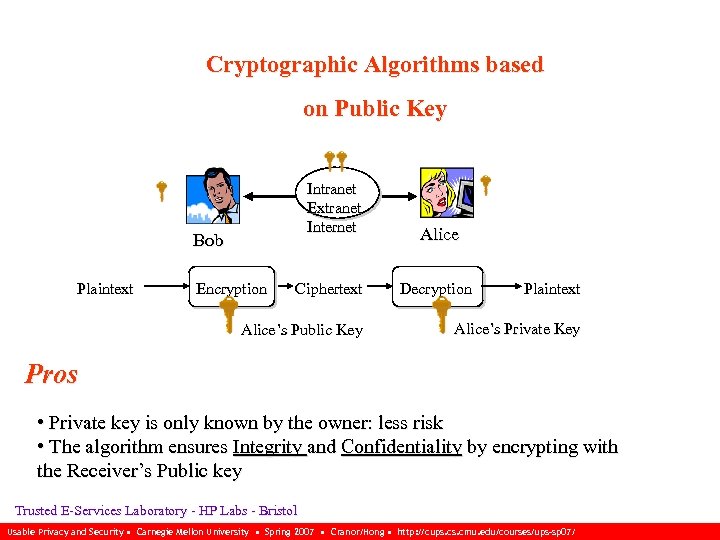

Cryptographic Algorithms based on Public Key Intranet Extranet Internet Bob Plaintext Encryption Ciphertext Alice’s Public Key Alice Decryption Plaintext Alice’s Private Key Pros • Private key is only known by the owner: less risk • The algorithm ensures Integrity and Confidentiality by encrypting with the Receiver’s Public key Trusted E-Services Laboratory - HP Labs - Bristol Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

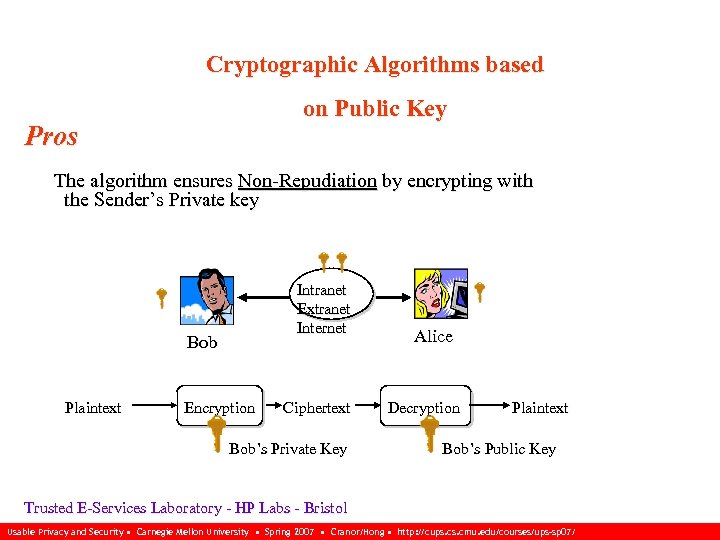

Cryptographic Algorithms based on Public Key Pros The algorithm ensures Non-Repudiation by encrypting with the Sender’s Private key Intranet Extranet Internet Bob Plaintext Encryption Ciphertext Bob’s Private Key Alice Decryption Plaintext Bob’s Public Key Trusted E-Services Laboratory - HP Labs - Bristol Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/
Cryptographic Algorithms based on Public Key Cons • Algorithms are 100 – 1000 times slower than secret key ones They are initially used in an initial phase of communication and then secrets keys are generated to deal with encryptions • How are Public keys made available to the other people? • There is still a problem of Authentication!!! Who ensures that the owner of a key pair is really the person whose real life name is “Alice”? Bob Intranet Extranet Internet Alice Moving towards PKI … Trusted E-Services Laboratory - HP Labs - Bristol Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

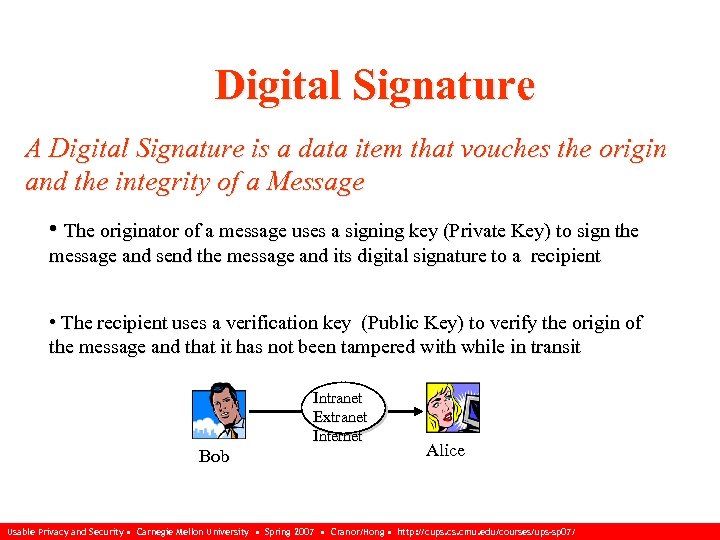

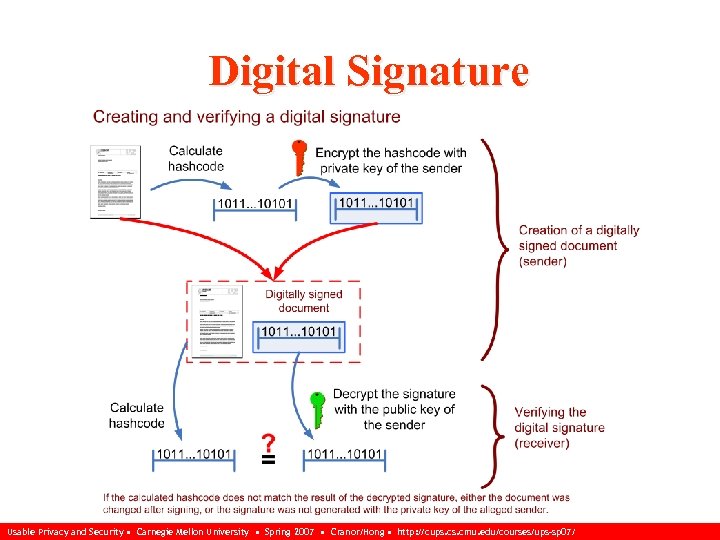

Digital Signature A Digital Signature is a data item that vouches the origin and the integrity of a Message • The originator of a message uses a signing key (Private Key) to sign the message and send the message and its digital signature to a recipient • The recipient uses a verification key (Public Key) to verify the origin of the message and that it has not been tampered with while in transit Bob Intranet Extranet Internet Alice Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/
Digital Signature Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/
Digital Signature There is still a problem linked to the “Real Identity” of the Signer. Why should I trust what the Sender claims to be? Moving towards PKI … Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

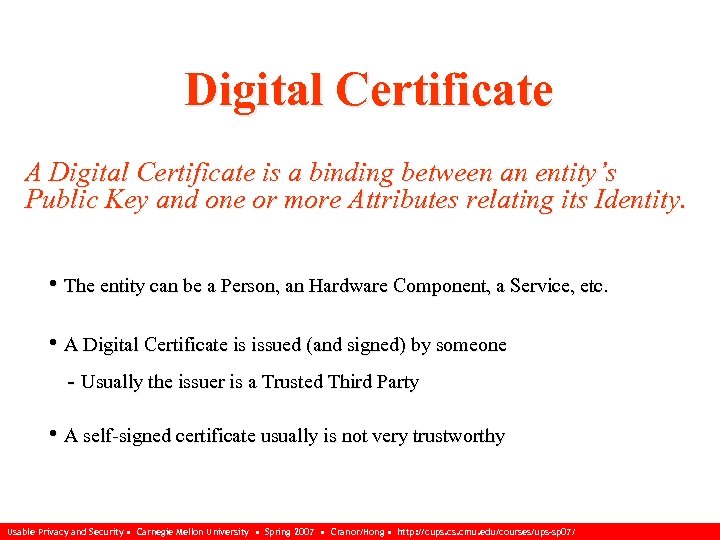

Digital Certificate A Digital Certificate is a binding between an entity’s Public Key and one or more Attributes relating its Identity. • The entity can be a Person, an Hardware Component, a Service, etc. • A Digital Certificate is issued (and signed) by someone - Usually the issuer is a Trusted Third Party • A self-signed certificate usually is not very trustworthy Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

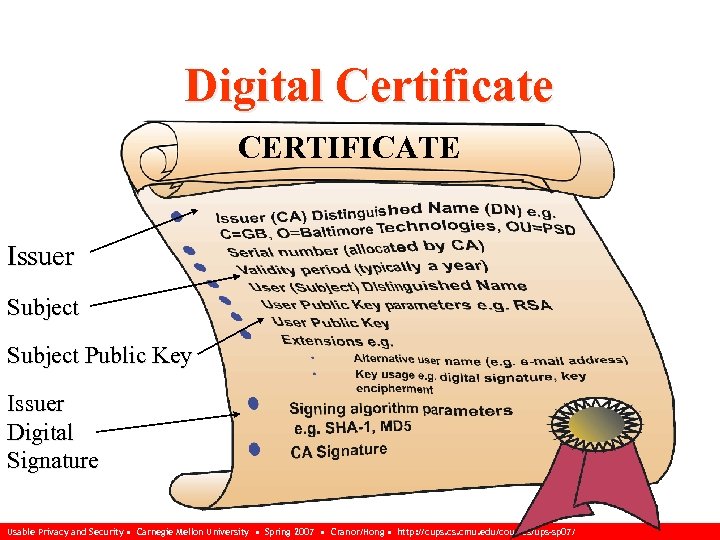

Digital Certificate CERTIFICATE Issuer Subject Public Key Issuer Digital Signature Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

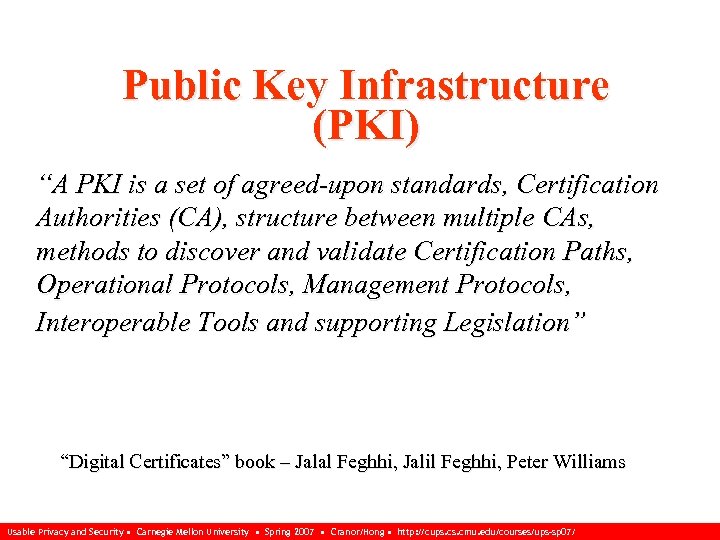

Public Key Infrastructure (PKI) “A PKI is a set of agreed-upon standards, Certification Authorities (CA), structure between multiple CAs, methods to discover and validate Certification Paths, Operational Protocols, Management Protocols, Interoperable Tools and supporting Legislation” “Digital Certificates” book – Jalal Feghhi, Jalil Feghhi, Peter Williams Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

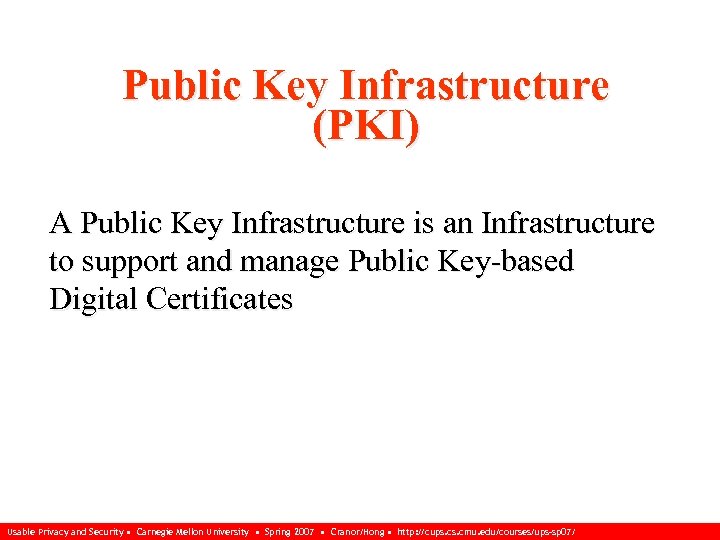

Public Key Infrastructure (PKI) A Public Key Infrastructure is an Infrastructure to support and manage Public Key-based Digital Certificates Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

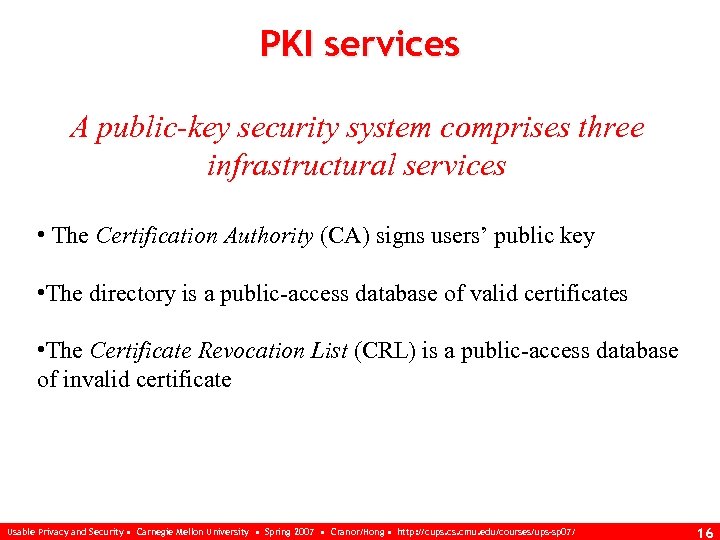

PKI services A public-key security system comprises three infrastructural services • The Certification Authority (CA) signs users’ public key • The directory is a public-access database of valid certificates • The Certificate Revocation List (CRL) is a public-access database of invalid certificate Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 16

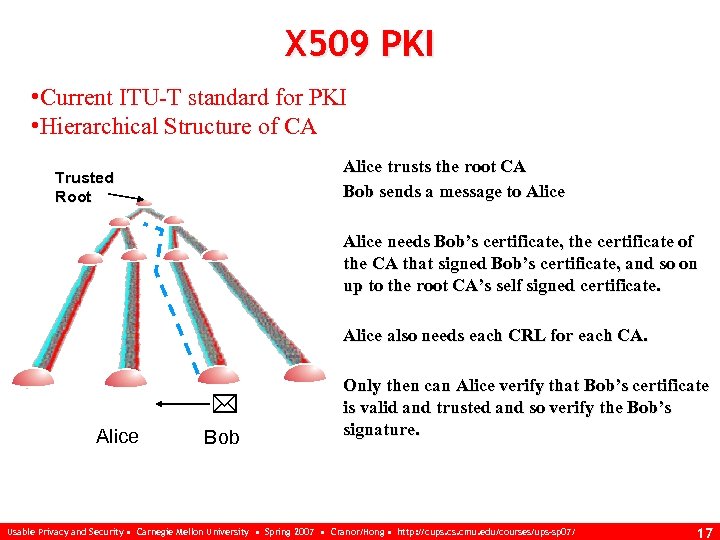

X 509 PKI • Current ITU-T standard for PKI • Hierarchical Structure of CA Alice trusts the root CA Bob sends a message to Alice Trusted Root Alice needs Bob’s certificate, the certificate of the CA that signed Bob’s certificate, and so on up to the root CA’s self signed certificate. Alice also needs each CRL for each CA. * Alice Bob Only then can Alice verify that Bob’s certificate is valid and trusted and so verify the Bob’s signature. Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 17

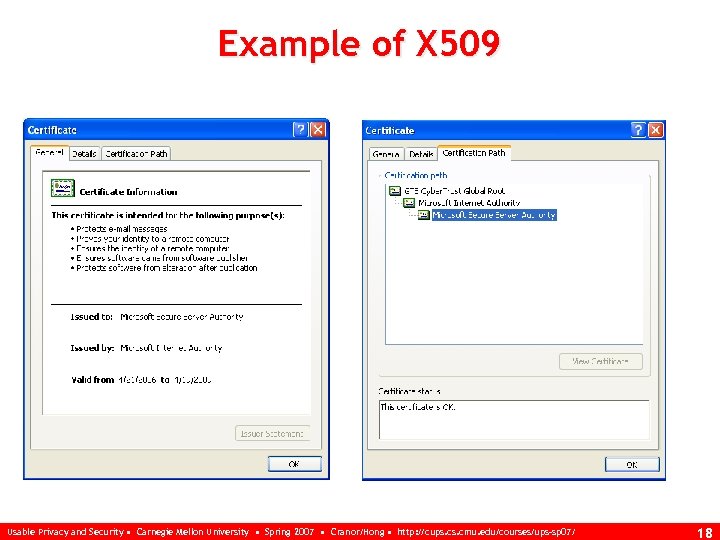

Example of X 509 Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 18

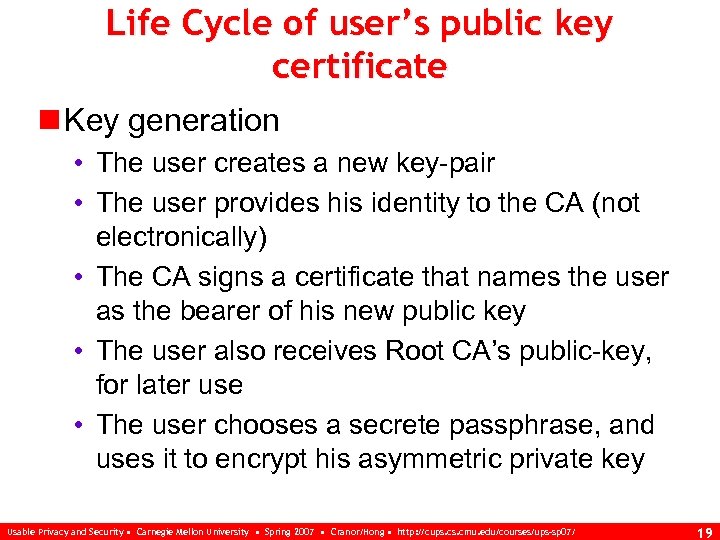

Life Cycle of user’s public key certificate n Key generation • The user creates a new key-pair • The user provides his identity to the CA (not electronically) • The CA signs a certificate that names the user as the bearer of his new public key • The user also receives Root CA’s public-key, for later use • The user chooses a secrete passphrase, and uses it to encrypt his asymmetric private key Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 19

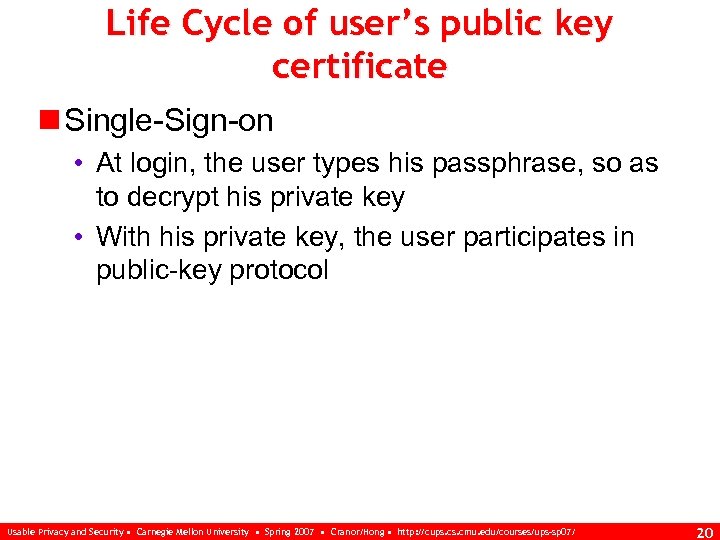

Life Cycle of user’s public key certificate n Single-Sign-on • At login, the user types his passphrase, so as to decrypt his private key • With his private key, the user participates in public-key protocol Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 20

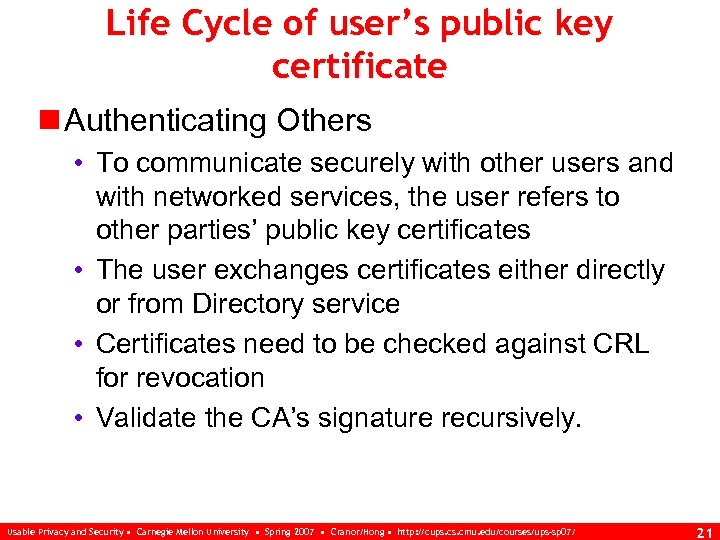

Life Cycle of user’s public key certificate n Authenticating Others • To communicate securely with other users and with networked services, the user refers to other parties’ public key certificates • The user exchanges certificates either directly or from Directory service • Certificates need to be checked against CRL for revocation • Validate the CA’s signature recursively. Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 21

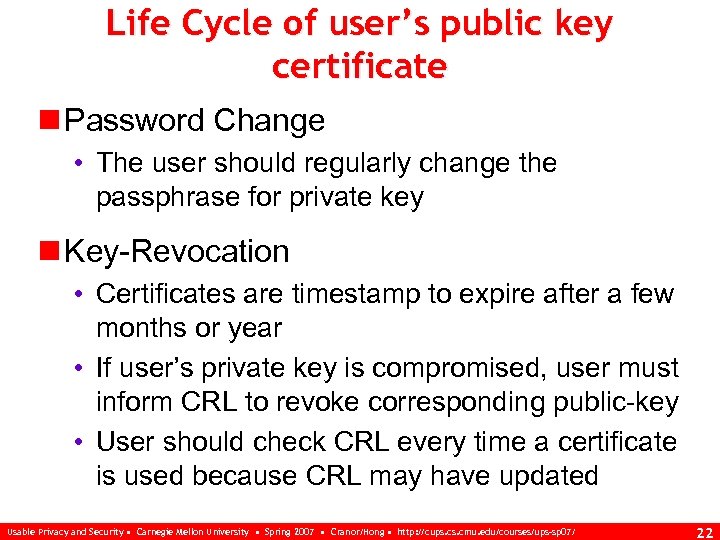

Life Cycle of user’s public key certificate n Password Change • The user should regularly change the passphrase for private key n Key-Revocation • Certificates are timestamp to expire after a few months or year • If user’s private key is compromised, user must inform CRL to revoke corresponding public-key • User should check CRL every time a certificate is used because CRL may have updated Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 22

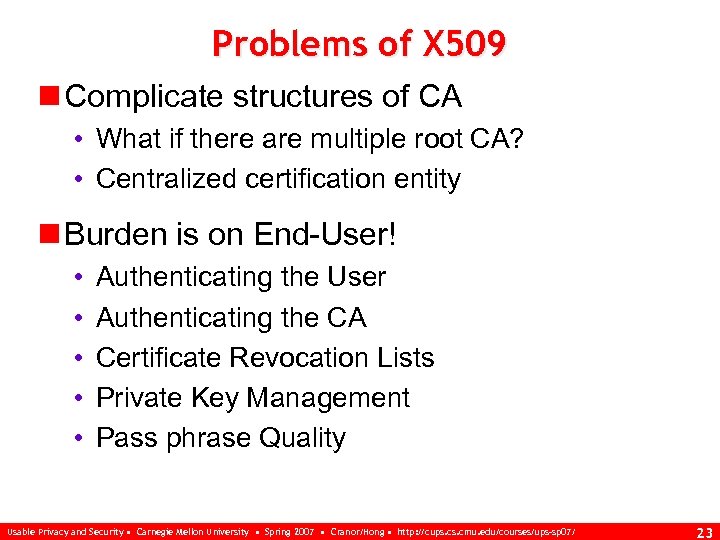

Problems of X 509 n Complicate structures of CA • What if there are multiple root CA? • Centralized certification entity n Burden is on End-User! • • • Authenticating the User Authenticating the CA Certificate Revocation Lists Private Key Management Pass phrase Quality Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 23

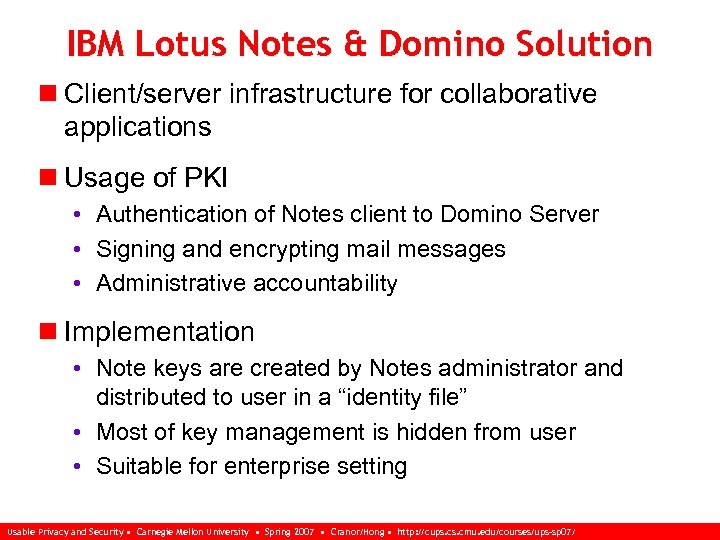

IBM Lotus Notes & Domino Solution n Client/server infrastructure for collaborative applications n Usage of PKI • Authentication of Notes client to Domino Server • Signing and encrypting mail messages • Administrative accountability n Implementation • Note keys are created by Notes administrator and distributed to user in a “identity file” • Most of key management is hidden from user • Suitable for enterprise setting Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

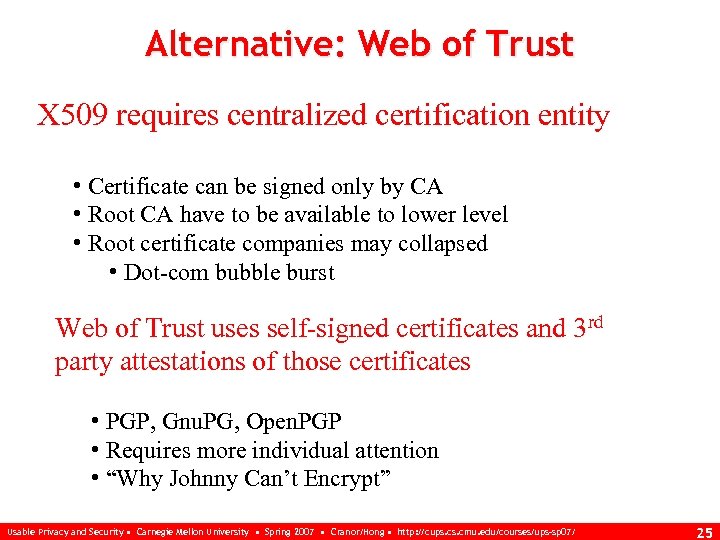

Alternative: Web of Trust X 509 requires centralized certification entity • Certificate can be signed only by CA • Root CA have to be available to lower level • Root certificate companies may collapsed • Dot-com bubble burst Web of Trust uses self-signed certificates and 3 rd party attestations of those certificates • PGP, Gnu. PG, Open. PGP • Requires more individual attention • “Why Johnny Can’t Encrypt” Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 25

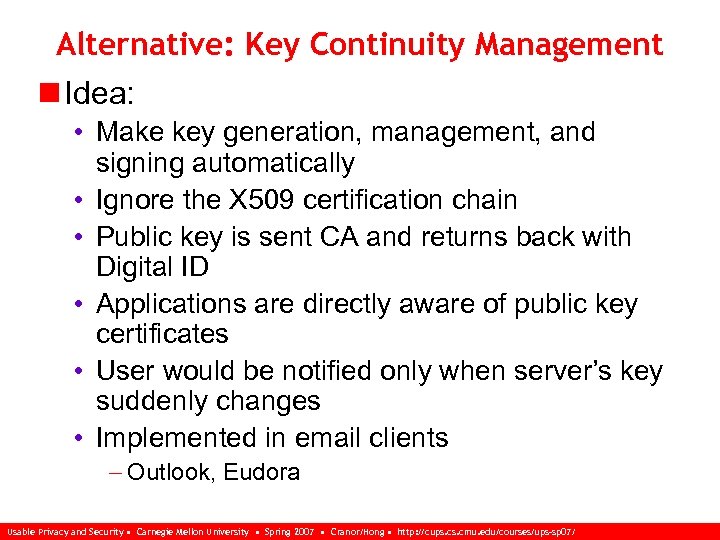

Alternative: Key Continuity Management n Idea: • Make key generation, management, and signing automatically • Ignore the X 509 certification chain • Public key is sent CA and returns back with Digital ID • Applications are directly aware of public key certificates • User would be notified only when server’s key suddenly changes • Implemented in email clients Outlook, Eudora Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

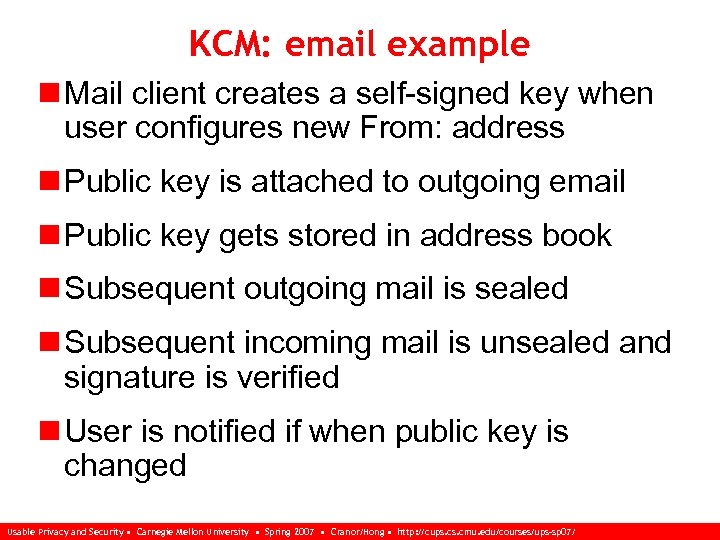

KCM: email example n Mail client creates a self-signed key when user configures new From: address n Public key is attached to outgoing email n Public key gets stored in address book n Subsequent outgoing mail is sealed n Subsequent incoming mail is unsealed and signature is verified n User is notified if when public key is changed Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/
Johnny 2 n Study conducted on KCM • Closely followed the setting of Johnny Study • Used same scenario • Added additional attacks that is close to Phishing • New Key Attack Participants are able to detect the impersonation • New Identity Attack No significant Result • Unsigned Message No significant Result Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

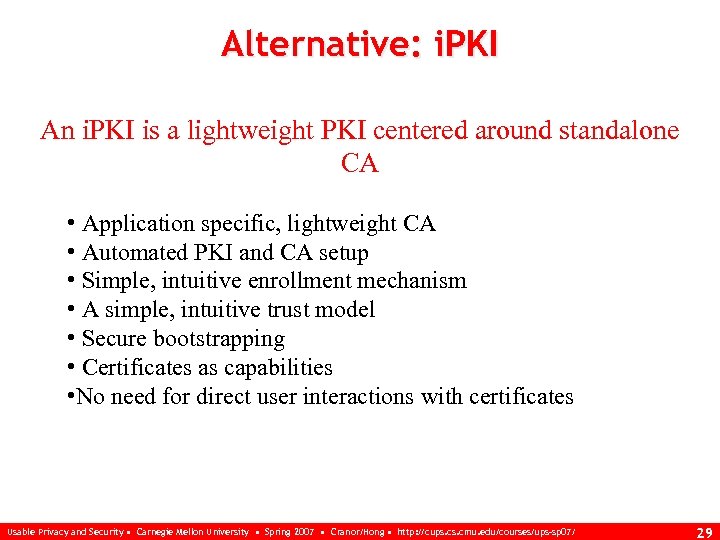

Alternative: i. PKI An i. PKI is a lightweight PKI centered around standalone CA • Application specific, lightweight CA • Automated PKI and CA setup • Simple, intuitive enrollment mechanism • A simple, intuitive trust model • Secure bootstrapping • Certificates as capabilities • No need for direct user interactions with certificates Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 29

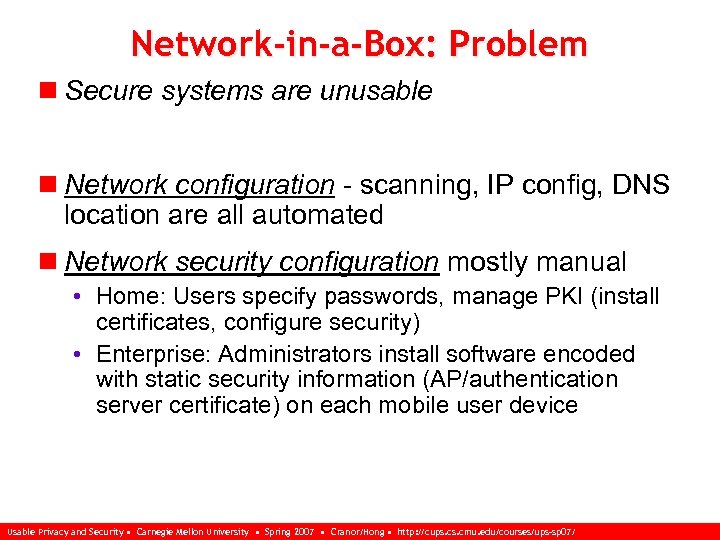

Network-in-a-Box: Problem n Secure systems are unusable n Network configuration - scanning, IP config, DNS location are all automated n Network security configuration mostly manual • Home: Users specify passwords, manage PKI (install certificates, configure security) • Enterprise: Administrators install software encoded with static security information (AP/authentication server certificate) on each mobile user device Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/
Idea n Establishing trust requires trust n Need secure communication w/o a priori infrastructure n Bootstrap using Location-limited Channels n Example: Infra-red port, passive USB, audio channels, touching two devices simultaneously n Gesture-based Automatic Configuration n Laptop and AP exchange public keys n Use it to perform full-fledged security auto-configuration Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

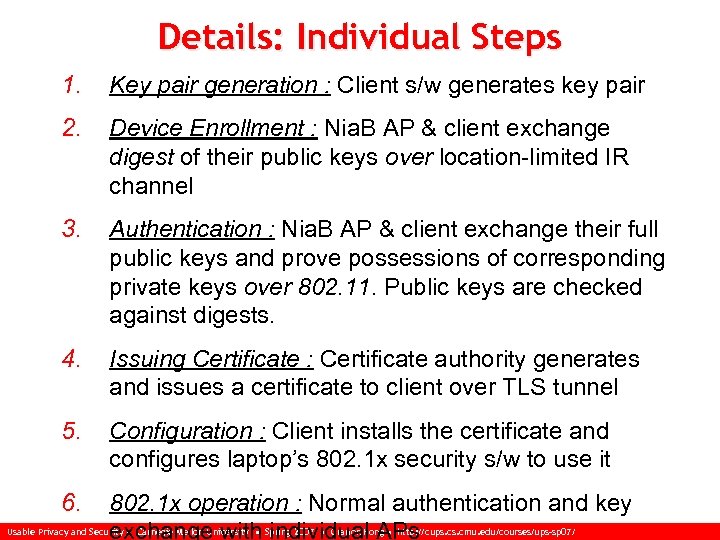

Details: Individual Steps 1. Key pair generation : Client s/w generates key pair 2. Device Enrollment : Nia. B AP & client exchange digest of their public keys over location-limited IR channel 3. Authentication : Nia. B AP & client exchange their full public keys and prove possessions of corresponding private keys over 802. 11. Public keys are checked against digests. 4. Issuing Certificate : Certificate authority generates and issues a certificate to client over TLS tunnel 5. Configuration : Client installs the certificate and configures laptop’s 802. 1 x security s/w to use it 6. 802. 1 x operation : Normal authentication and key exchange with individual APs Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/
Nia. B Architecture Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/
User Studies n Methodology – Different sets of users asked to connect laptop to a secure wireless network n Different skill-sets, different experimental ordering, 2 iterations: 5+ subjects in first iteration to find usability errors and refine interface n Results – Home Users Enterprise Users Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/

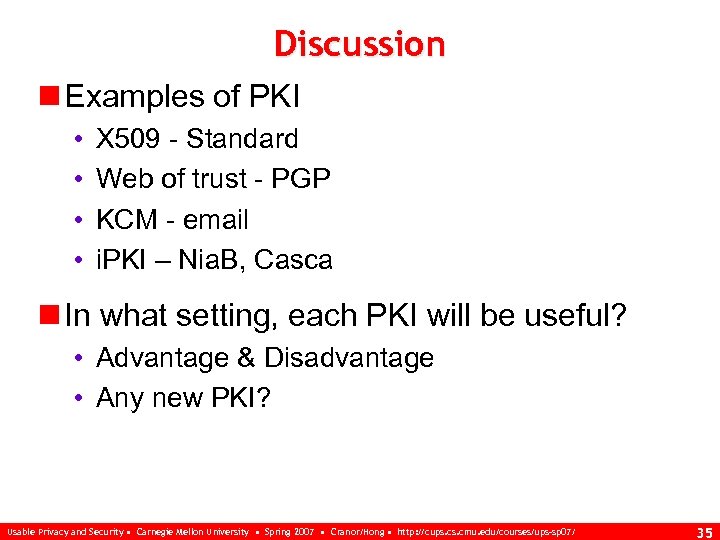

Discussion n Examples of PKI • • X 509 - Standard Web of trust - PGP KCM - email i. PKI – Nia. B, Casca n In what setting, each PKI will be useful? • Advantage & Disadvantage • Any new PKI? Usable Privacy and Security • Carnegie Mellon University • Spring 2007 • Cranor/Hong • http: //cups. cmu. edu/courses/ups-sp 07/ 35
