Pituitary Adenomas Chien Wei OMS IV September 14

Pituitary Adenomas Chien Wei OMS IV September 14, 2006

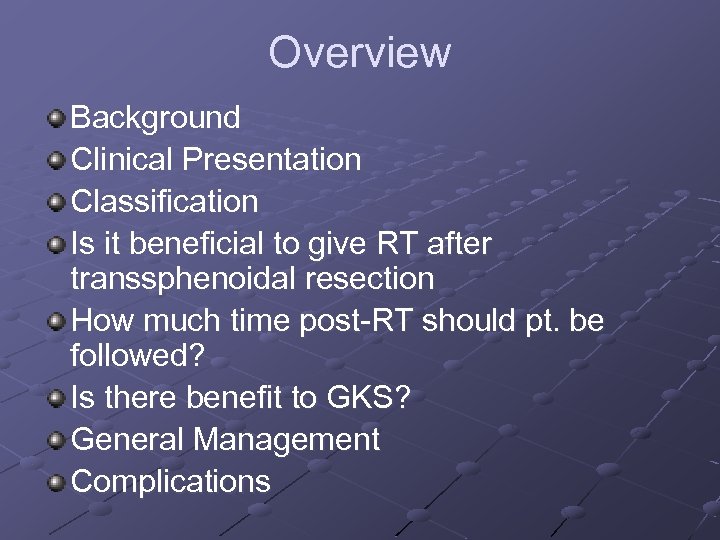

Overview Background Clinical Presentation Classification Is it beneficial to give RT after transsphenoidal resection How much time post-RT should pt. be followed? Is there benefit to GKS? General Management Complications

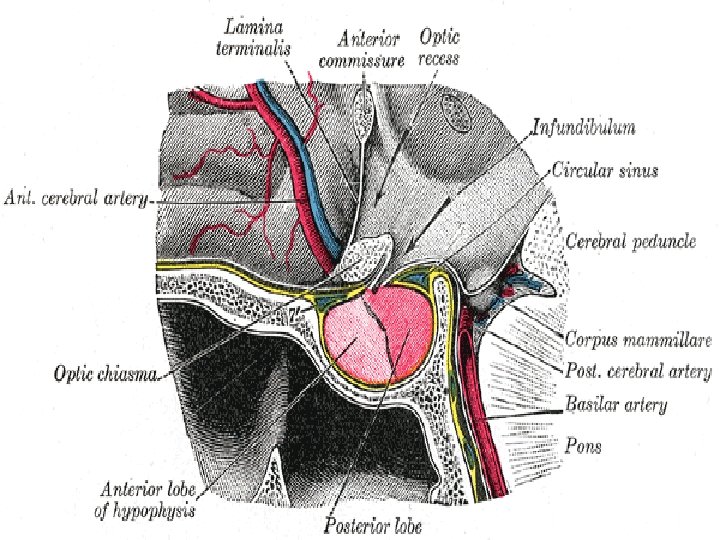

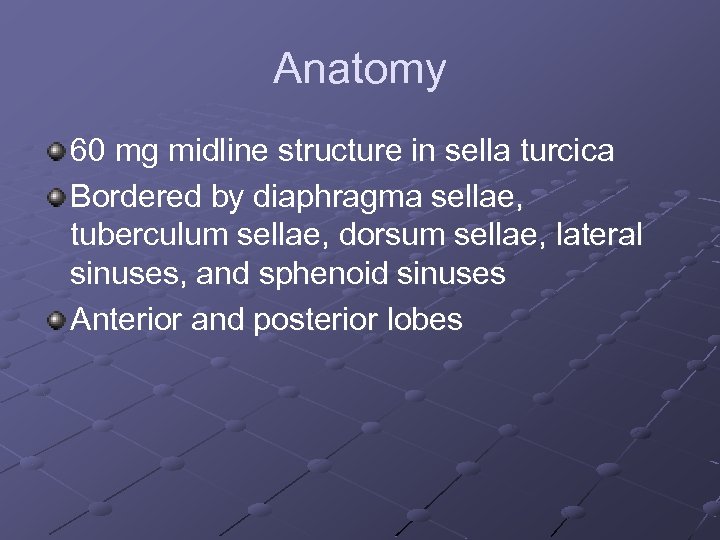

Anatomy 60 mg midline structure in sella turcica Bordered by diaphragma sellae, tuberculum sellae, dorsum sellae, lateral sinuses, and sphenoid sinuses Anterior and posterior lobes

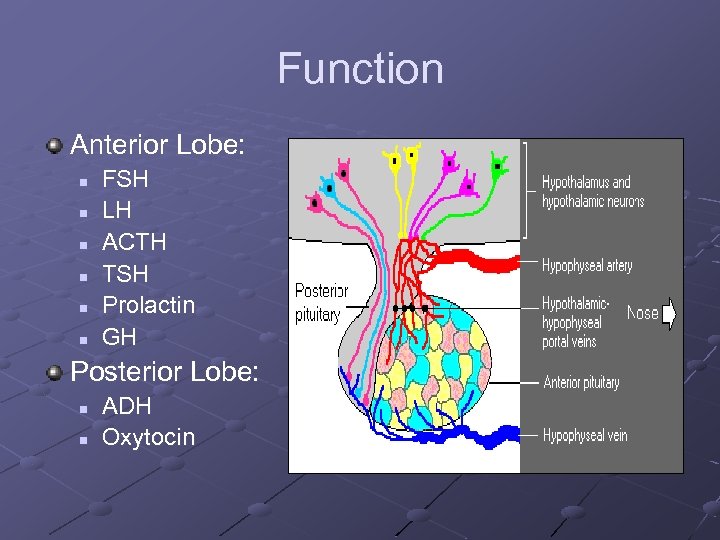

Function Anterior Lobe: n n n FSH LH ACTH TSH Prolactin GH Posterior Lobe: n n ADH Oxytocin

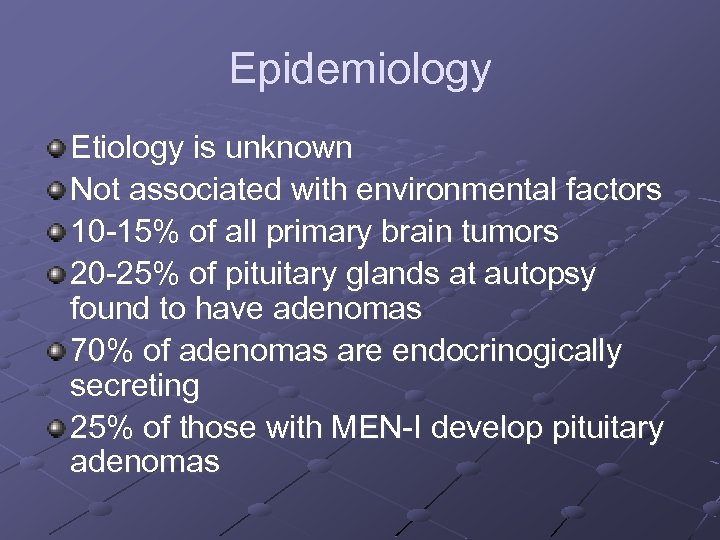

Epidemiology Etiology is unknown Not associated with environmental factors 10 -15% of all primary brain tumors 20 -25% of pituitary glands at autopsy found to have adenomas 70% of adenomas are endocrinogically secreting 25% of those with MEN-I develop pituitary adenomas

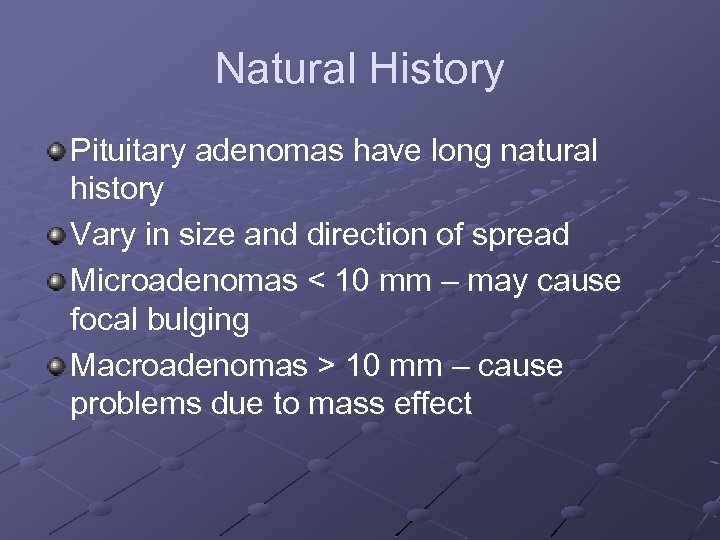

Natural History Pituitary adenomas have long natural history Vary in size and direction of spread Microadenomas < 10 mm – may cause focal bulging Macroadenomas > 10 mm – cause problems due to mass effect

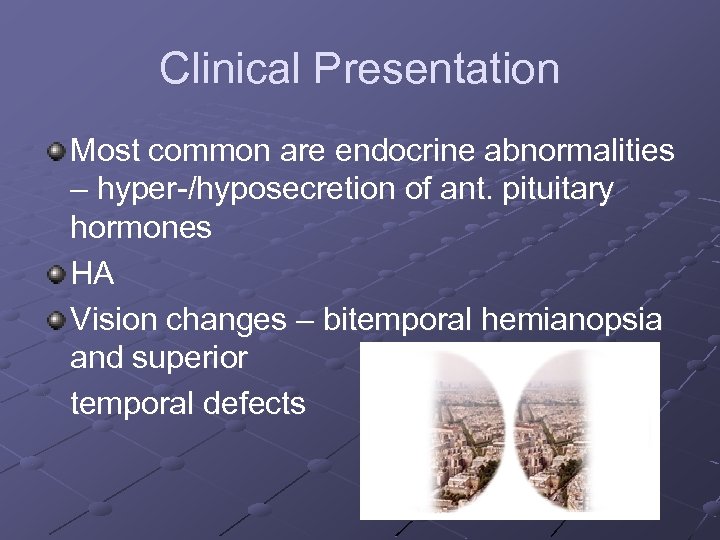

Clinical Presentation Most common are endocrine abnormalities – hyper-/hyposecretion of ant. pituitary hormones HA Vision changes – bitemporal hemianopsia and superior temporal defects

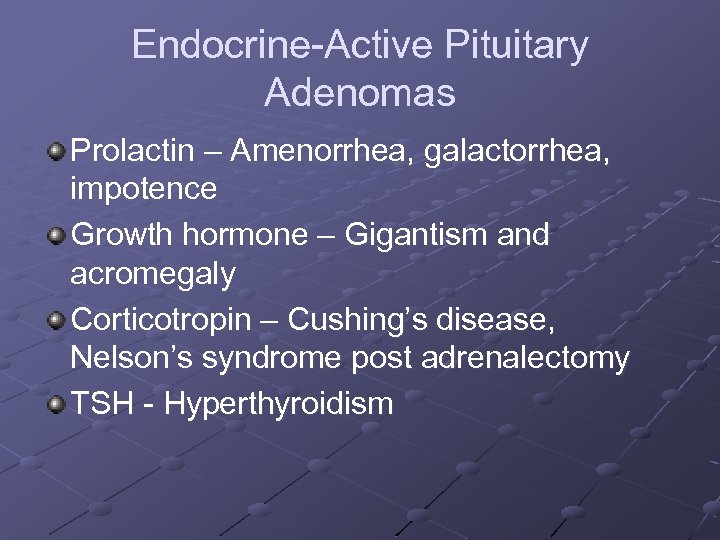

Endocrine-Active Pituitary Adenomas Prolactin – Amenorrhea, galactorrhea, impotence Growth hormone – Gigantism and acromegaly Corticotropin – Cushing’s disease, Nelson’s syndrome post adrenalectomy TSH - Hyperthyroidism

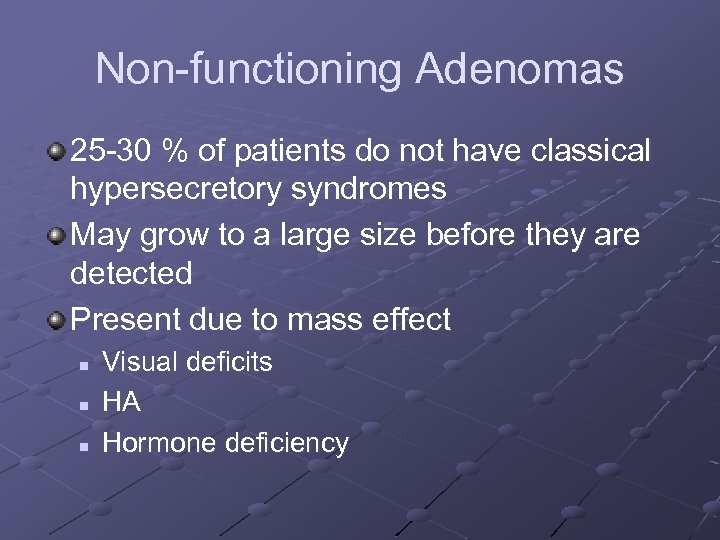

Non-functioning Adenomas 25 -30 % of patients do not have classical hypersecretory syndromes May grow to a large size before they are detected Present due to mass effect n n n Visual deficits HA Hormone deficiency

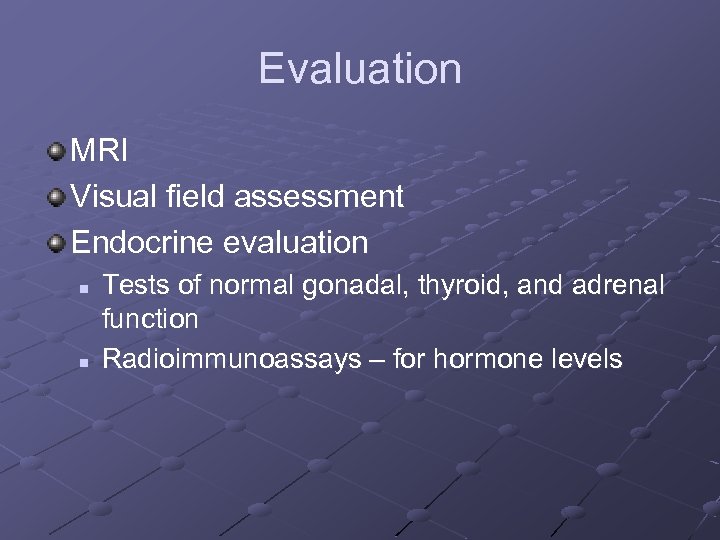

Evaluation MRI Visual field assessment Endocrine evaluation n n Tests of normal gonadal, thyroid, and adrenal function Radioimmunoassays – for hormone levels

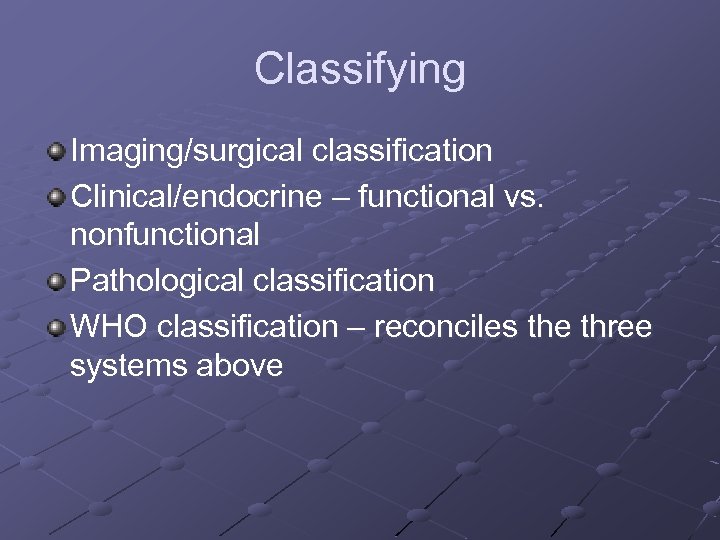

Classifying Imaging/surgical classification Clinical/endocrine – functional vs. nonfunctional Pathological classification WHO classification – reconciles the three systems above

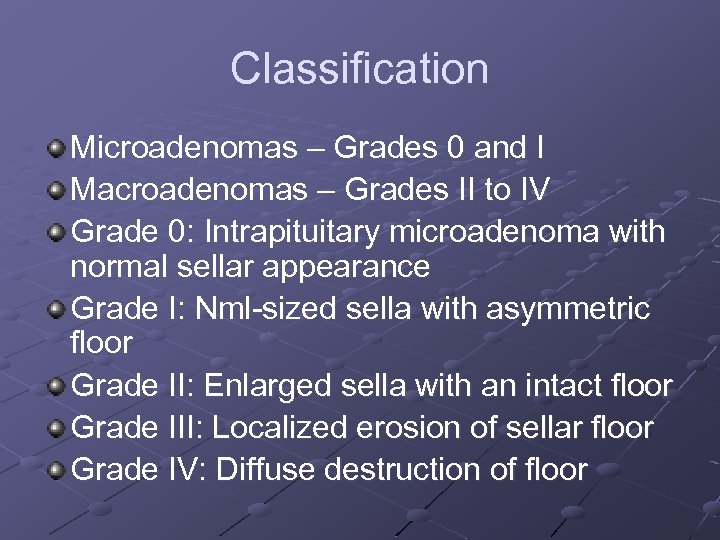

Classification Microadenomas – Grades 0 and I Macroadenomas – Grades II to IV Grade 0: Intrapituitary microadenoma with normal sellar appearance Grade I: Nml-sized sella with asymmetric floor Grade II: Enlarged sella with an intact floor Grade III: Localized erosion of sellar floor Grade IV: Diffuse destruction of floor

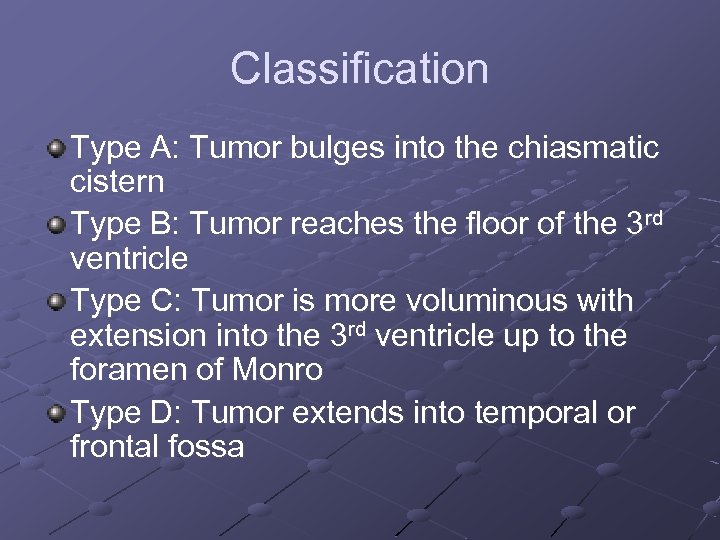

Classification Type A: Tumor bulges into the chiasmatic cistern Type B: Tumor reaches the floor of the 3 rd ventricle Type C: Tumor is more voluminous with extension into the 3 rd ventricle up to the foramen of Monro Type D: Tumor extends into temporal or frontal fossa

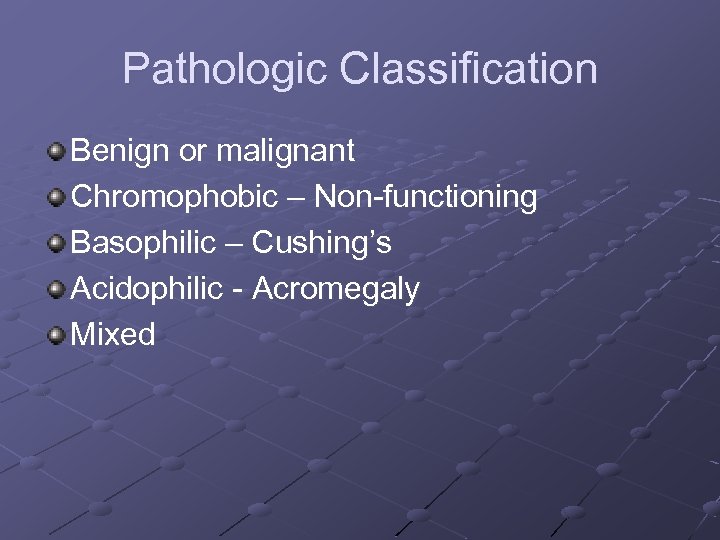

Pathologic Classification Benign or malignant Chromophobic – Non-functioning Basophilic – Cushing’s Acidophilic - Acromegaly Mixed

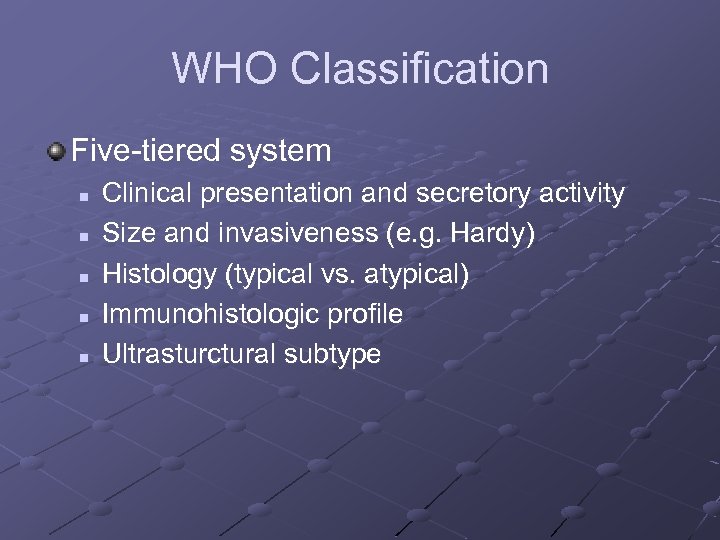

WHO Classification Five-tiered system n n n Clinical presentation and secretory activity Size and invasiveness (e. g. Hardy) Histology (typical vs. atypical) Immunohistologic profile Ultrasturctural subtype

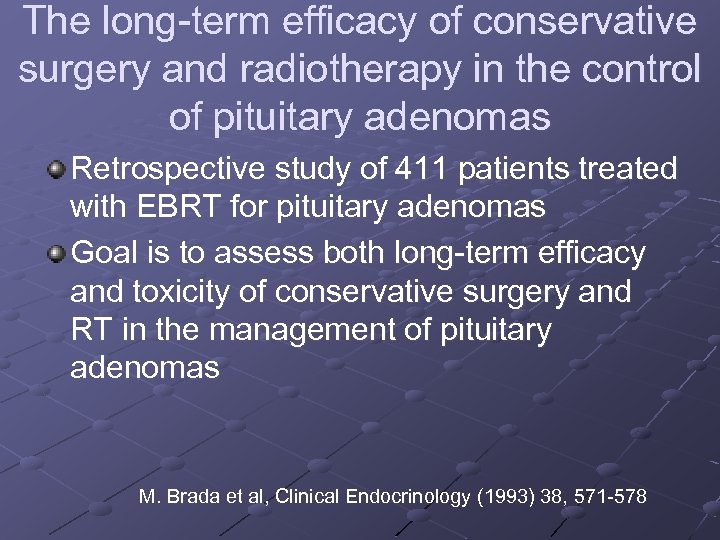

The long-term efficacy of conservative surgery and radiotherapy in the control of pituitary adenomas Retrospective study of 411 patients treated with EBRT for pituitary adenomas Goal is to assess both long-term efficacy and toxicity of conservative surgery and RT in the management of pituitary adenomas M. Brada et al, Clinical Endocrinology (1993) 38, 571 -578

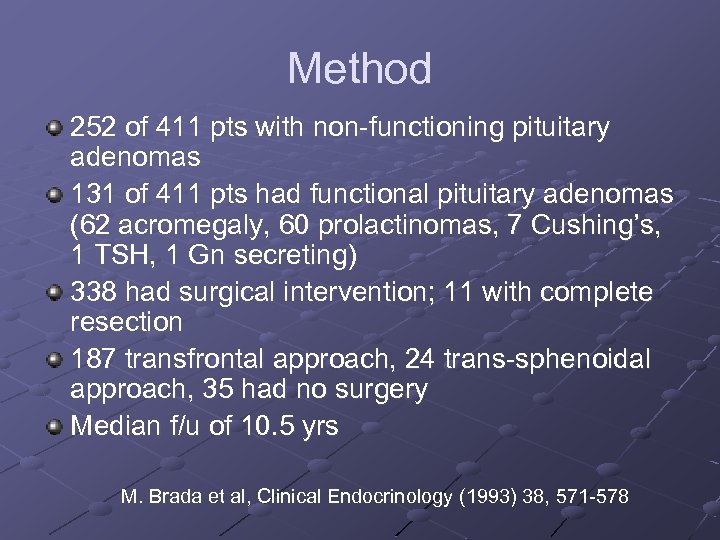

Method 252 of 411 pts with non-functioning pituitary adenomas 131 of 411 pts had functional pituitary adenomas (62 acromegaly, 60 prolactinomas, 7 Cushing’s, 1 TSH, 1 Gn secreting) 338 had surgical intervention; 11 with complete resection 187 transfrontal approach, 24 trans-sphenoidal approach, 35 had no surgery Median f/u of 10. 5 yrs M. Brada et al, Clinical Endocrinology (1993) 38, 571 -578

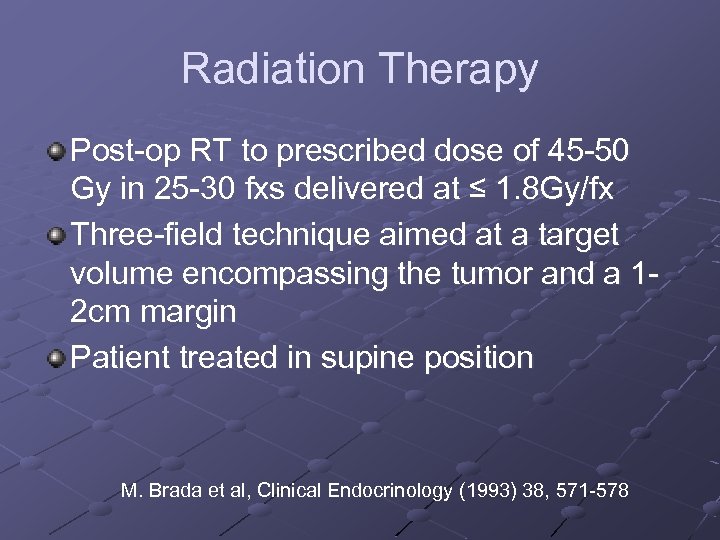

Radiation Therapy Post-op RT to prescribed dose of 45 -50 Gy in 25 -30 fxs delivered at ≤ 1. 8 Gy/fx Three-field technique aimed at a target volume encompassing the tumor and a 12 cm margin Patient treated in supine position M. Brada et al, Clinical Endocrinology (1993) 38, 571 -578

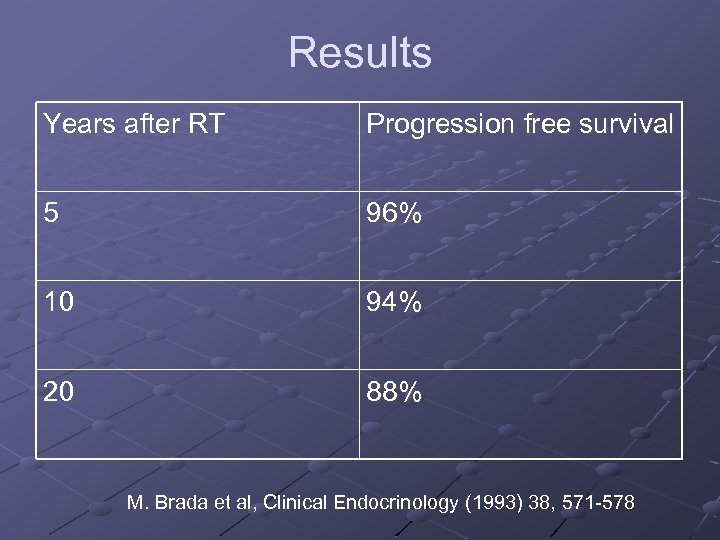

Results Years after RT Progression free survival 5 96% 10 94% 20 88% M. Brada et al, Clinical Endocrinology (1993) 38, 571 -578

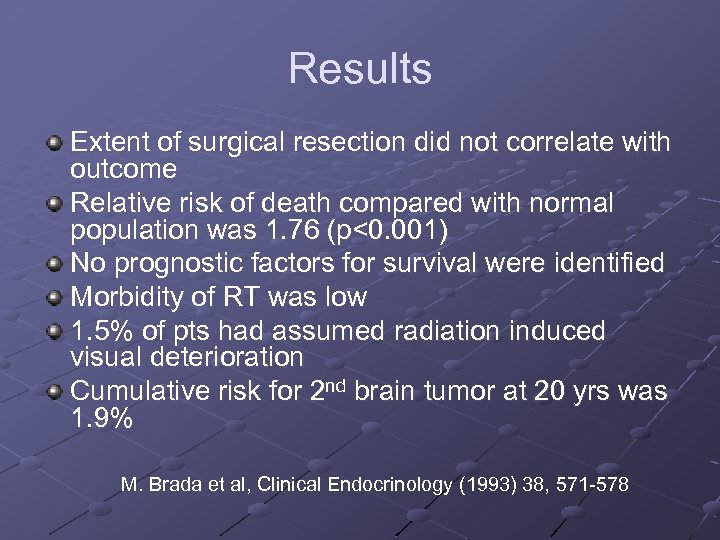

Results Extent of surgical resection did not correlate with outcome Relative risk of death compared with normal population was 1. 76 (p<0. 001) No prognostic factors for survival were identified Morbidity of RT was low 1. 5% of pts had assumed radiation induced visual deterioration Cumulative risk for 2 nd brain tumor at 20 yrs was 1. 9% M. Brada et al, Clinical Endocrinology (1993) 38, 571 -578

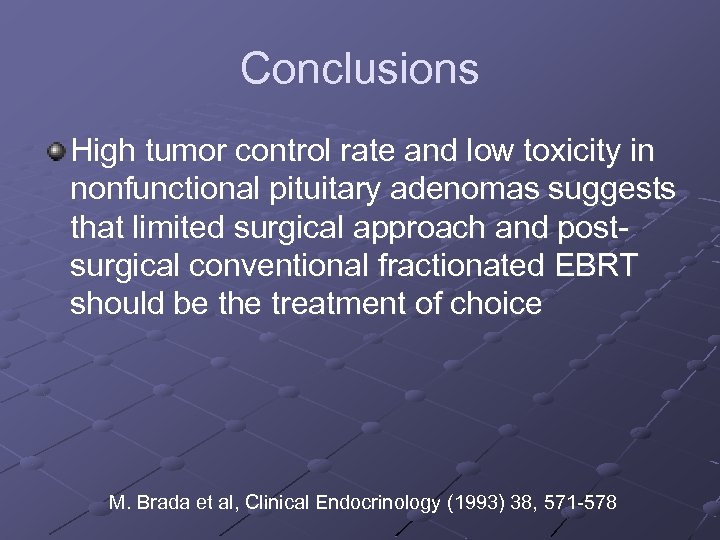

Conclusions High tumor control rate and low toxicity in nonfunctional pituitary adenomas suggests that limited surgical approach and postsurgical conventional fractionated EBRT should be the treatment of choice M. Brada et al, Clinical Endocrinology (1993) 38, 571 -578

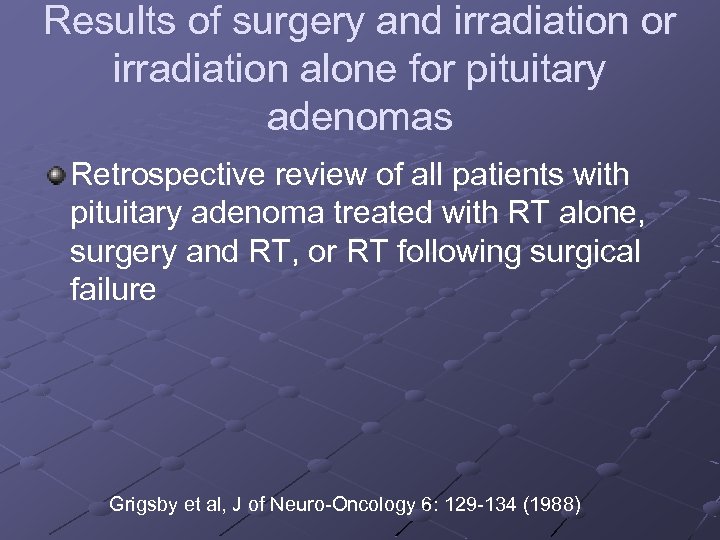

Results of surgery and irradiation or irradiation alone for pituitary adenomas Retrospective review of all patients with pituitary adenoma treated with RT alone, surgery and RT, or RT following surgical failure Grigsby et al, J of Neuro-Oncology 6: 129 -134 (1988)

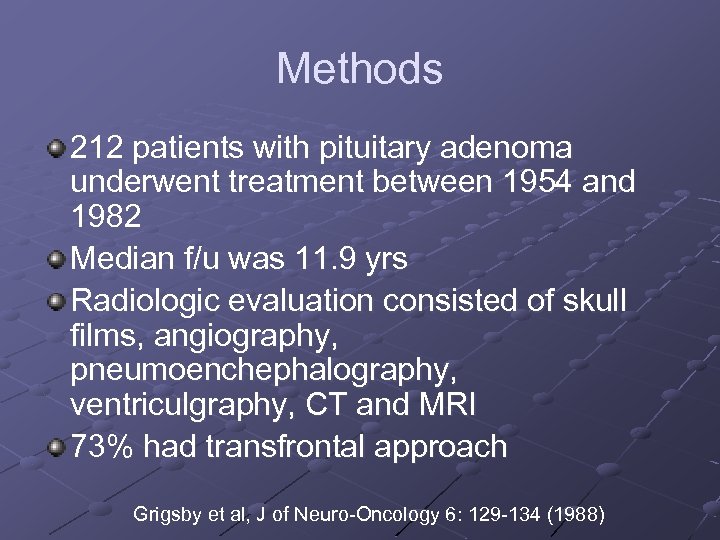

Methods 212 patients with pituitary adenoma underwent treatment between 1954 and 1982 Median f/u was 11. 9 yrs Radiologic evaluation consisted of skull films, angiography, pneumoenchephalography, ventriculgraphy, CT and MRI 73% had transfrontal approach Grigsby et al, J of Neuro-Oncology 6: 129 -134 (1988)

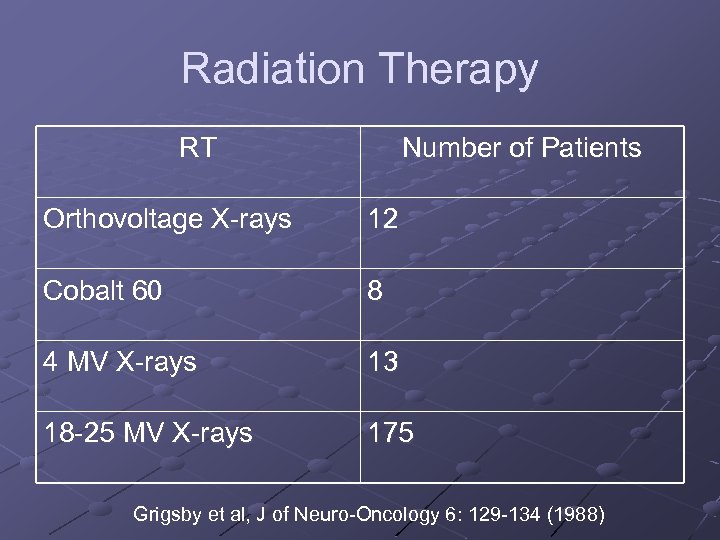

Radiation Therapy RT Number of Patients Orthovoltage X-rays 12 Cobalt 60 8 4 MV X-rays 13 18 -25 MV X-rays 175 Grigsby et al, J of Neuro-Oncology 6: 129 -134 (1988)

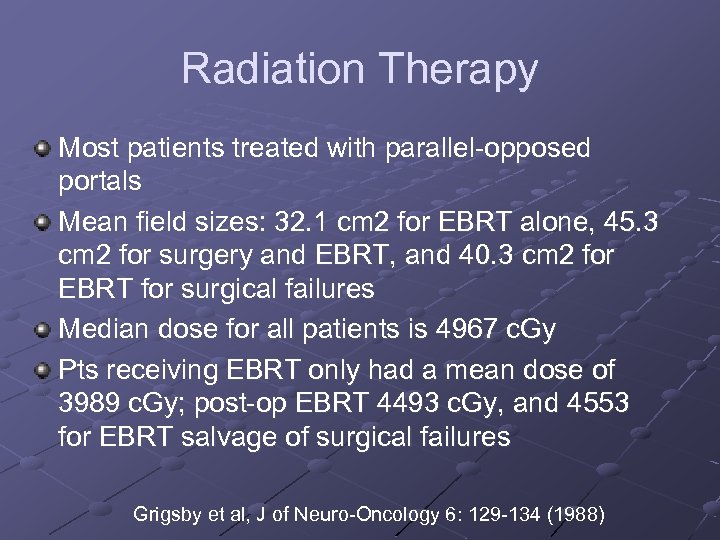

Radiation Therapy Most patients treated with parallel-opposed portals Mean field sizes: 32. 1 cm 2 for EBRT alone, 45. 3 cm 2 for surgery and EBRT, and 40. 3 cm 2 for EBRT for surgical failures Median dose for all patients is 4967 c. Gy Pts receiving EBRT only had a mean dose of 3989 c. Gy; post-op EBRT 4493 c. Gy, and 4553 for EBRT salvage of surgical failures Grigsby et al, J of Neuro-Oncology 6: 129 -134 (1988)

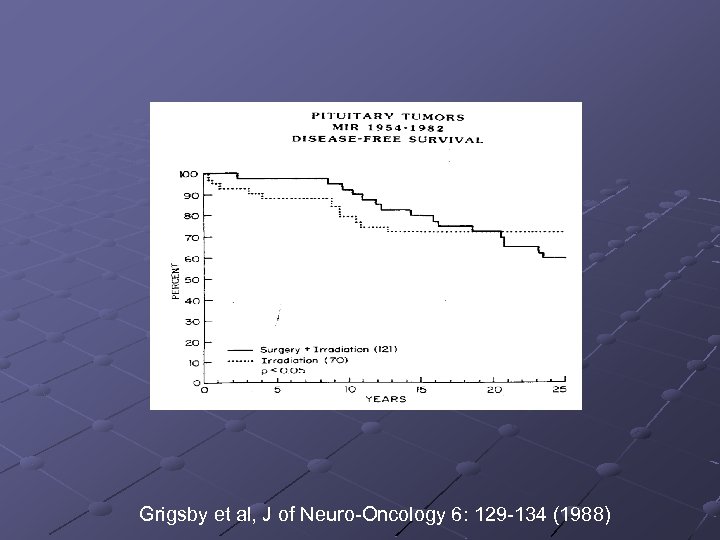

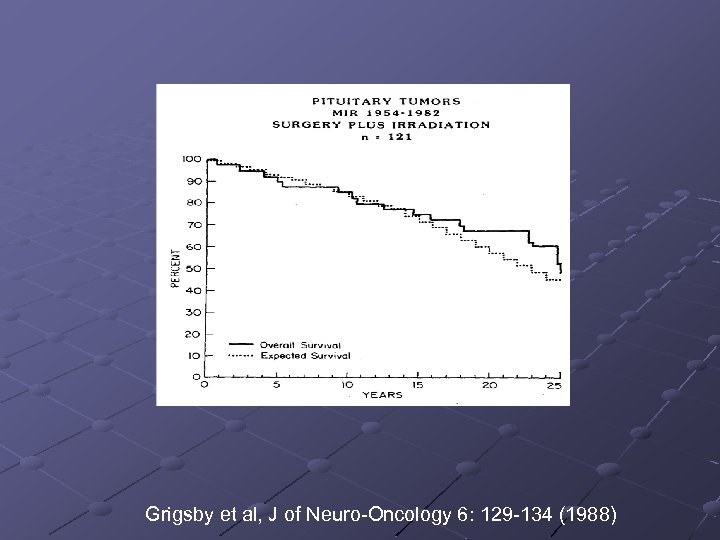

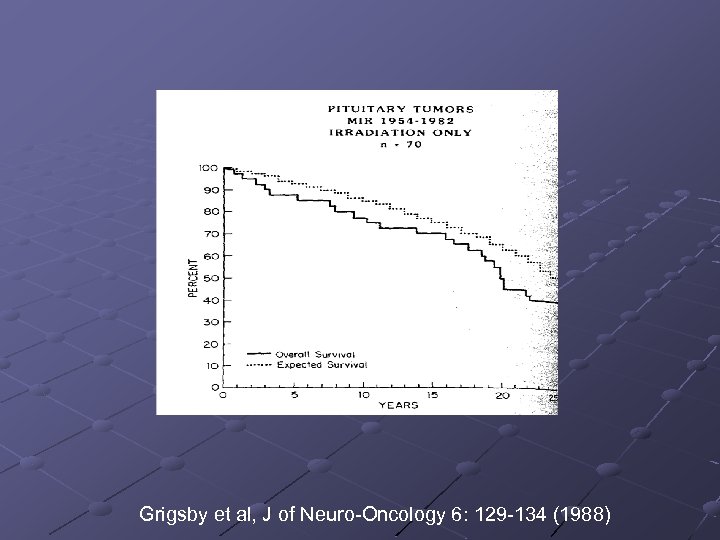

Grigsby et al, J of Neuro-Oncology 6: 129 -134 (1988)

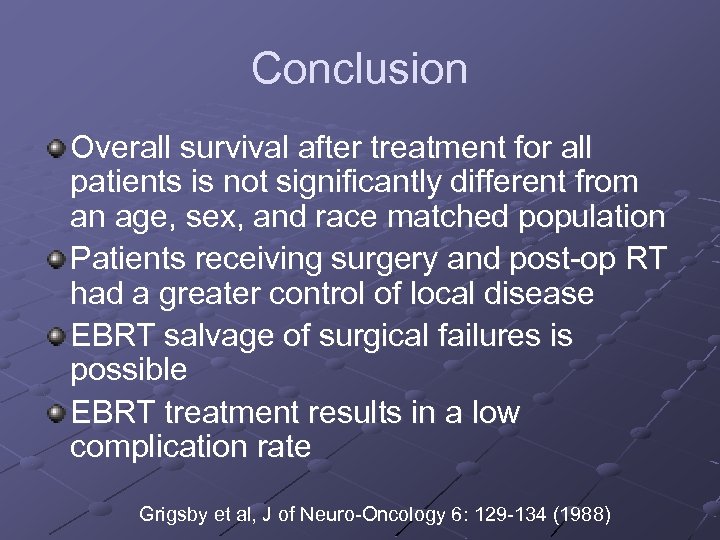

Conclusion Overall survival after treatment for all patients is not significantly different from an age, sex, and race matched population Patients receiving surgery and post-op RT had a greater control of local disease EBRT salvage of surgical failures is possible EBRT treatment results in a low complication rate Grigsby et al, J of Neuro-Oncology 6: 129 -134 (1988)

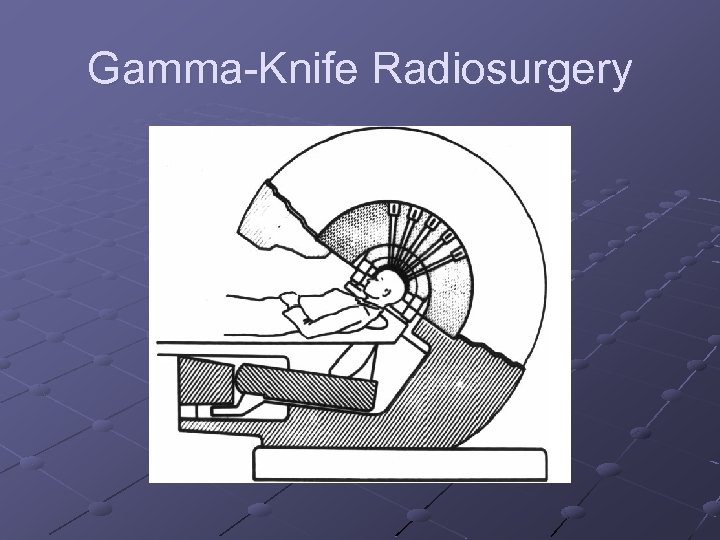

Gamma-Knife Radiosurgery

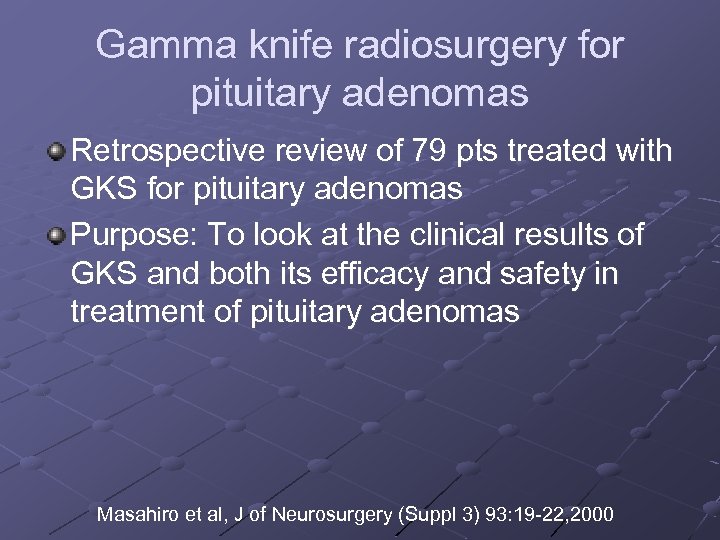

Gamma knife radiosurgery for pituitary adenomas Retrospective review of 79 pts treated with GKS for pituitary adenomas Purpose: To look at the clinical results of GKS and both its efficacy and safety in treatment of pituitary adenomas Masahiro et al, J of Neurosurgery (Suppl 3) 93: 19 -22, 2000

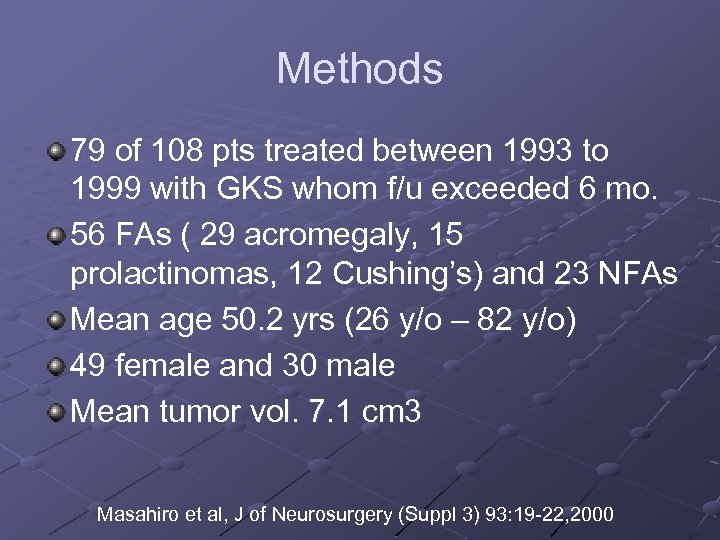

Methods 79 of 108 pts treated between 1993 to 1999 with GKS whom f/u exceeded 6 mo. 56 FAs ( 29 acromegaly, 15 prolactinomas, 12 Cushing’s) and 23 NFAs Mean age 50. 2 yrs (26 y/o – 82 y/o) 49 female and 30 male Mean tumor vol. 7. 1 cm 3 Masahiro et al, J of Neurosurgery (Suppl 3) 93: 19 -22, 2000

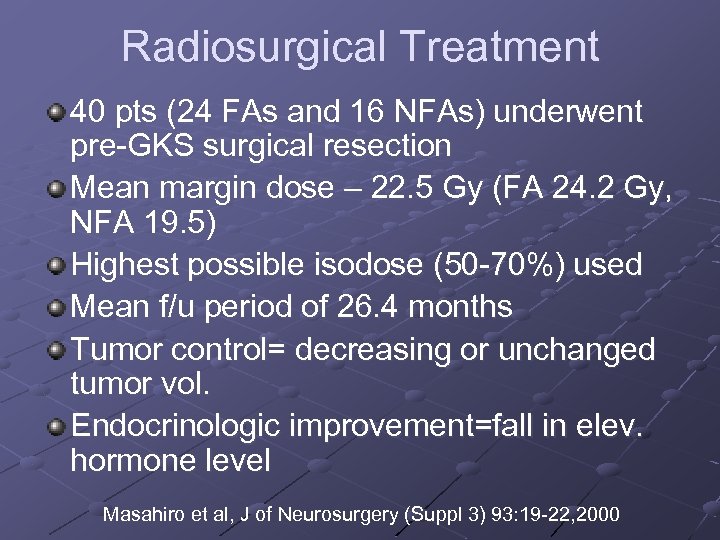

Radiosurgical Treatment 40 pts (24 FAs and 16 NFAs) underwent pre-GKS surgical resection Mean margin dose – 22. 5 Gy (FA 24. 2 Gy, NFA 19. 5) Highest possible isodose (50 -70%) used Mean f/u period of 26. 4 months Tumor control= decreasing or unchanged tumor vol. Endocrinologic improvement=fall in elev. hormone level Masahiro et al, J of Neurosurgery (Suppl 3) 93: 19 -22, 2000

Results Tumor control – 93. 6% (NFA 95. 6%, FA 92. 8%) Tumor shrinkage – 24. 1% (NFA 26. 1%, FA 23. 2%) Endocrinological improvement – 80. 3% Endocrinological normalization – 30. 3% 5/6 pts with preexisting visual field showed improvement 3 pts. developed complications Masahiro et al, J of Neurosurgery (Suppl 3) 93: 19 -22, 2000

$Conclusion Tumor growth control results achieved with GKS is similar to those for fractionated$

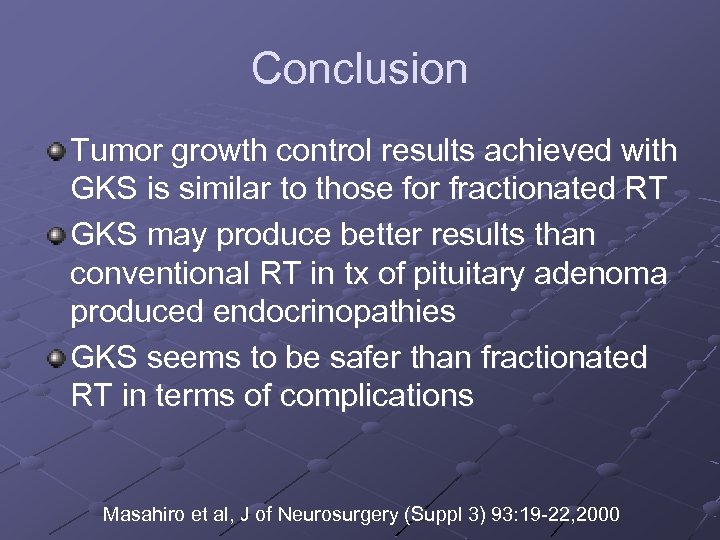

Conclusion Tumor growth control results achieved with GKS is similar to those for fractionated RT GKS may produce better results than conventional RT in tx of pituitary adenoma produced endocrinopathies GKS seems to be safer than fractionated RT in terms of complications Masahiro et al, J of Neurosurgery (Suppl 3) 93: 19 -22, 2000

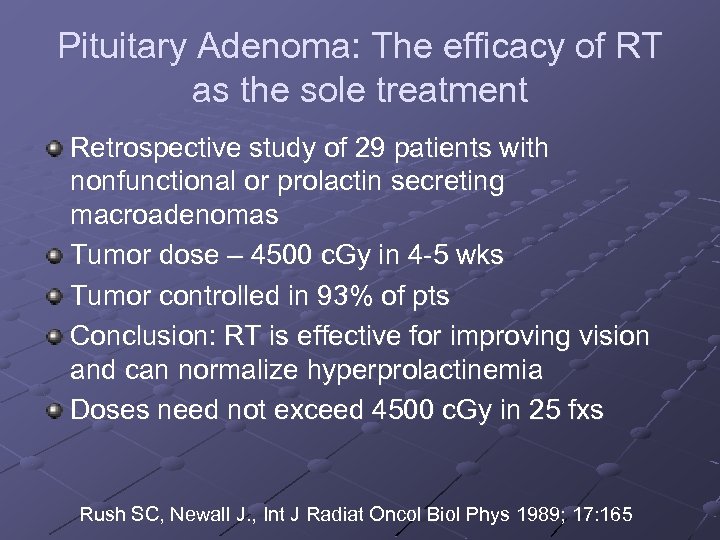

Pituitary Adenoma: The efficacy of RT as the sole treatment Retrospective study of 29 patients with nonfunctional or prolactin secreting macroadenomas Tumor dose – 4500 c. Gy in 4 -5 wks Tumor controlled in 93% of pts Conclusion: RT is effective for improving vision and can normalize hyperprolactinemia Doses need not exceed 4500 c. Gy in 25 fxs Rush SC, Newall J. , Int J Radiat Oncol Biol Phys 1989; 17: 165

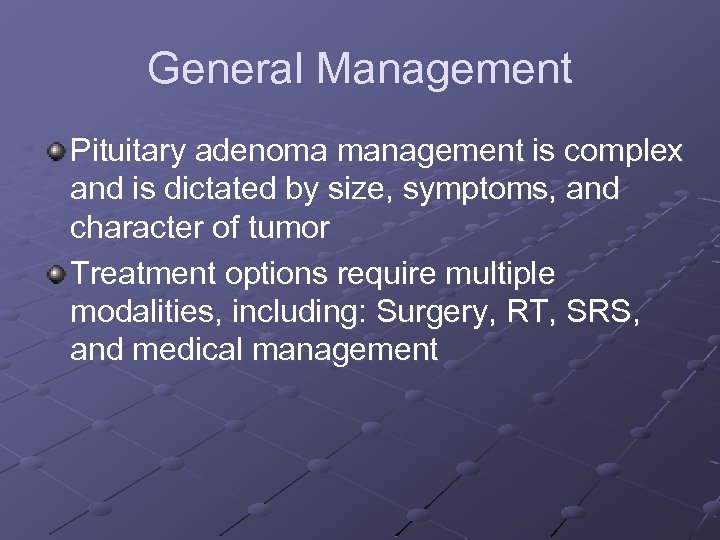

General Management Pituitary adenoma management is complex and is dictated by size, symptoms, and character of tumor Treatment options require multiple modalities, including: Surgery, RT, SRS, and medical management

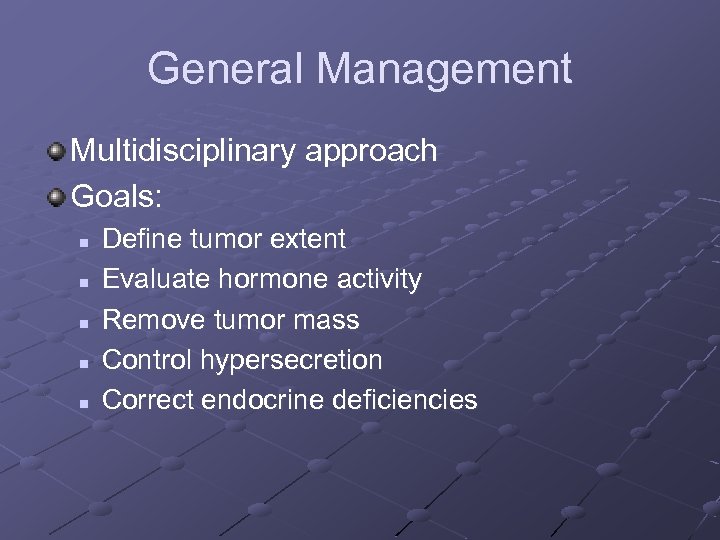

General Management Multidisciplinary approach Goals: n n n Define tumor extent Evaluate hormone activity Remove tumor mass Control hypersecretion Correct endocrine deficiencies

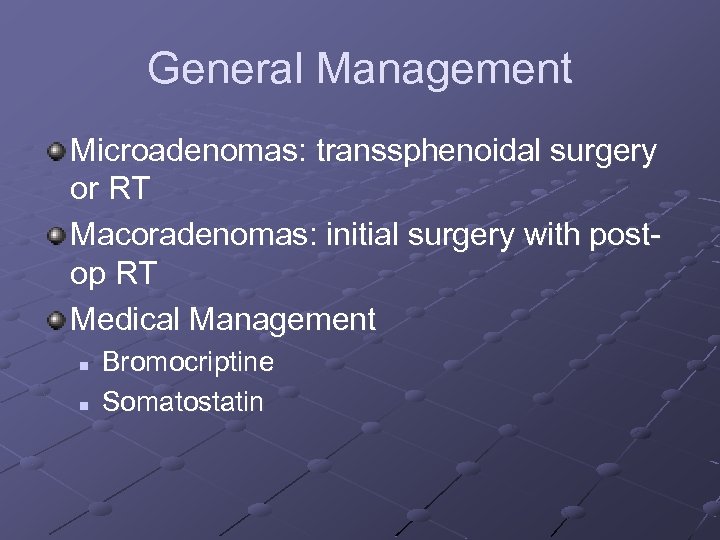

General Management Microadenomas: transsphenoidal surgery or RT Macoradenomas: initial surgery with postop RT Medical Management n n Bromocriptine Somatostatin

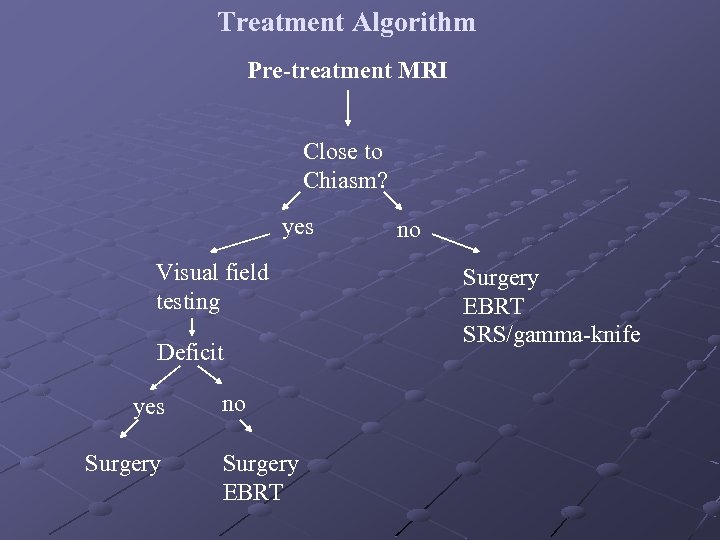

Treatment Algorithm Pre-treatment MRI Close to Chiasm? yes Visual field testing Deficit yes Surgery no Surgery EBRT SRS/gamma-knife

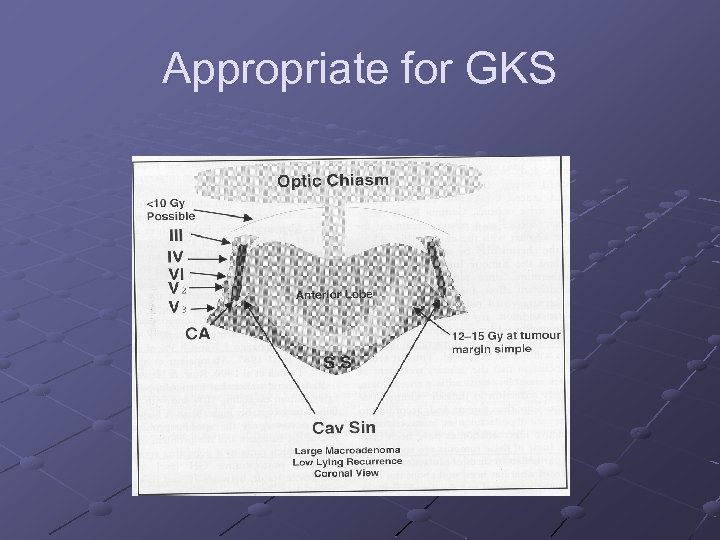

Appropriate for GKS

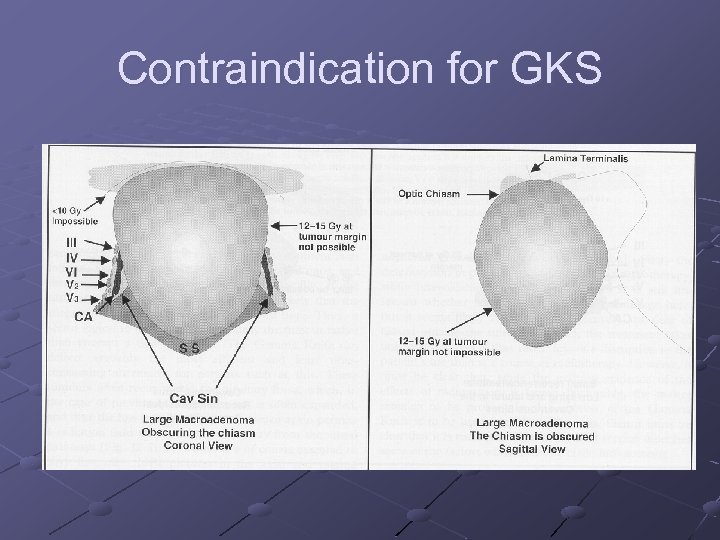

Contraindication for GKS

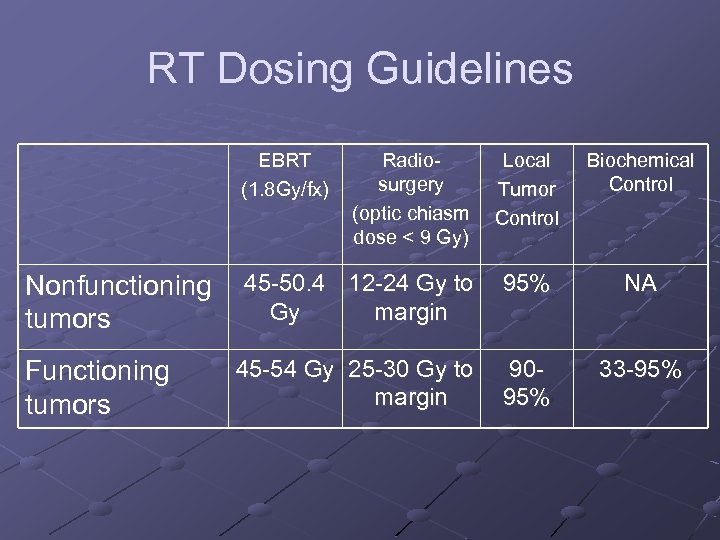

RT Dosing Guidelines EBRT (1. 8 Gy/fx) Nonfunctioning tumors Functioning tumors Radiosurgery (optic chiasm dose < 9 Gy) Local Tumor Control Biochemical Control 45 -50. 4 12 -24 Gy to Gy margin 95% NA 45 -54 Gy 25 -30 Gy to margin 9095% 33 -95%

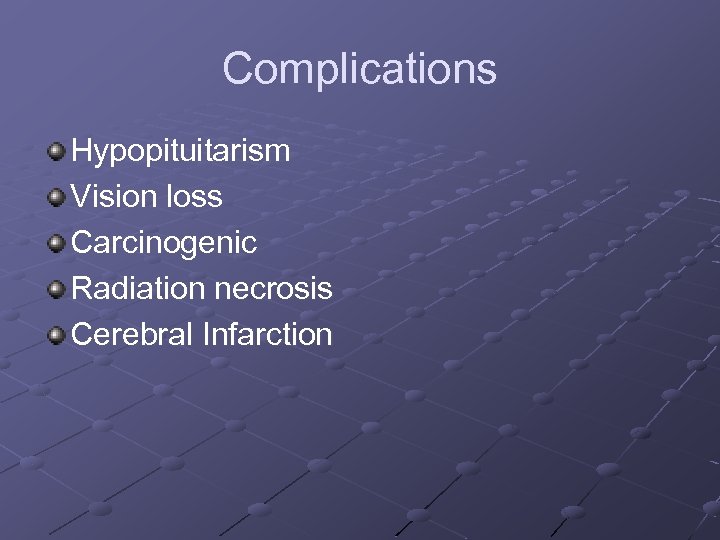

Complications Hypopituitarism Vision loss Carcinogenic Radiation necrosis Cerebral Infarction

Future Directions Profiles of toxicity in the 2 -D vs. 3 -D era

Thank You Faculty Residents
