Physical Security

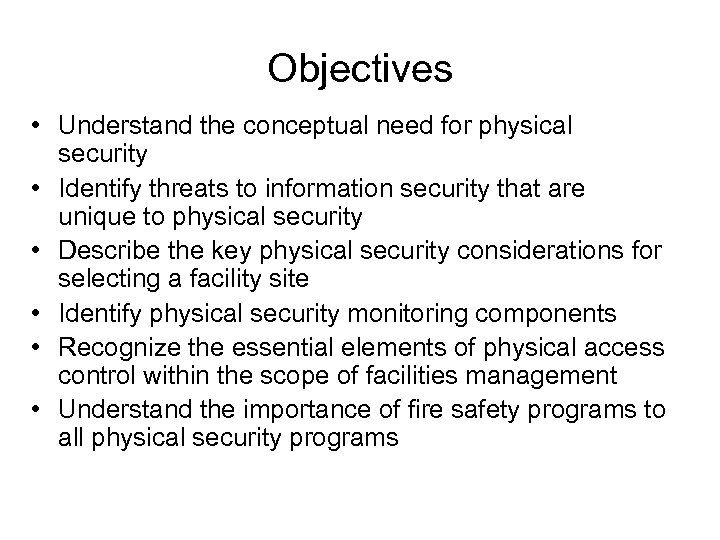

Objectives • Understand the conceptual need for physical security • Identify threats to information security that are unique to physical security • Describe the key physical security considerations for selecting a facility site • Identify physical security monitoring components • Recognize the essential elements of physical access control within the scope of facilities management • Understand the importance of fire safety programs to all physical security programs

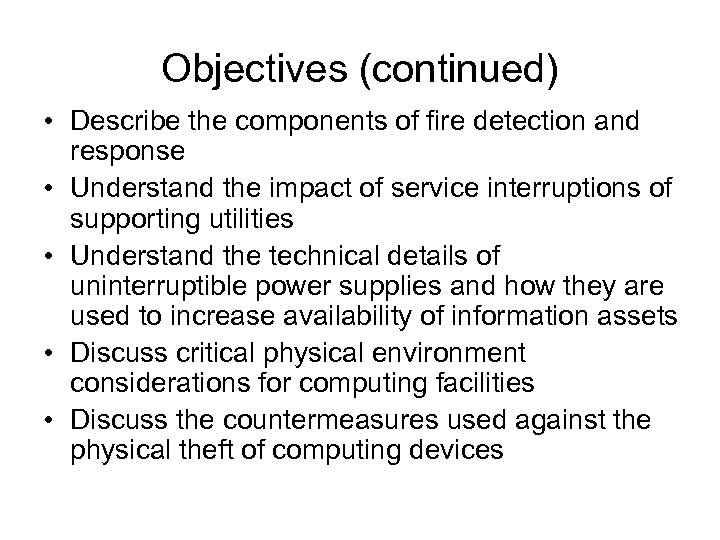

Objectives (continued) • Describe the components of fire detection and response • Understand the impact of service interruptions of supporting utilities • Understand the technical details of uninterruptible power supplies and how they are used to increase availability of information assets • Discuss critical physical environment considerations for computing facilities • Discuss the countermeasures used against the physical theft of computing devices

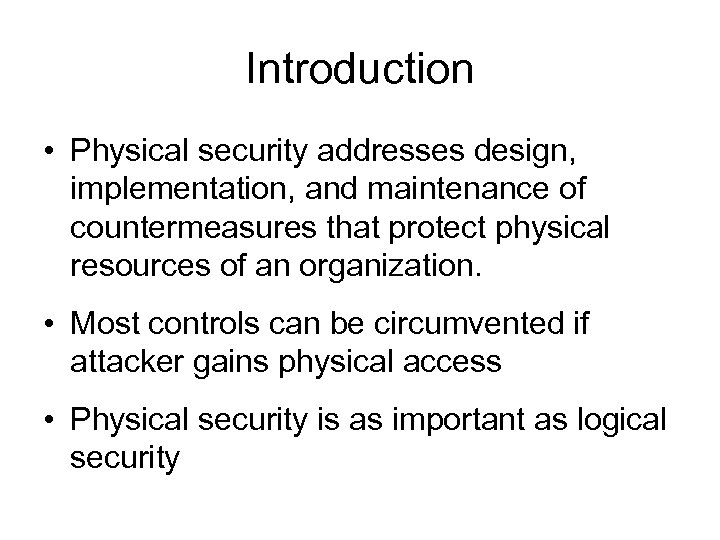

Introduction • Physical security addresses design, implementation, and maintenance of countermeasures that protect physical resources of an organization. • Most controls can be circumvented if attacker gains physical access • Physical security is as important as logical security

Introduction (continued) • Seven major sources of physical loss – Extreme temperature – Gases – Liquids – Living organisms – Projectiles – Movement – Energy anomalies

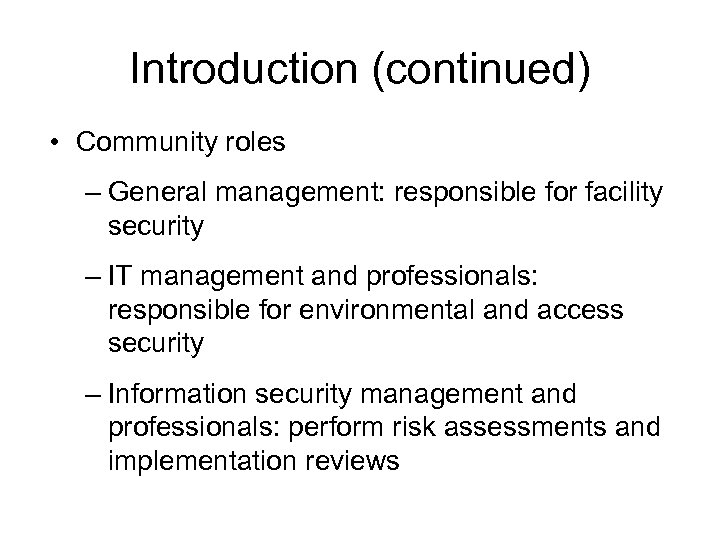

Introduction (continued) • Community roles – General management: responsible for facility security – IT management and professionals: responsible for environmental and access security – Information security management and professionals: perform risk assessments and implementation reviews

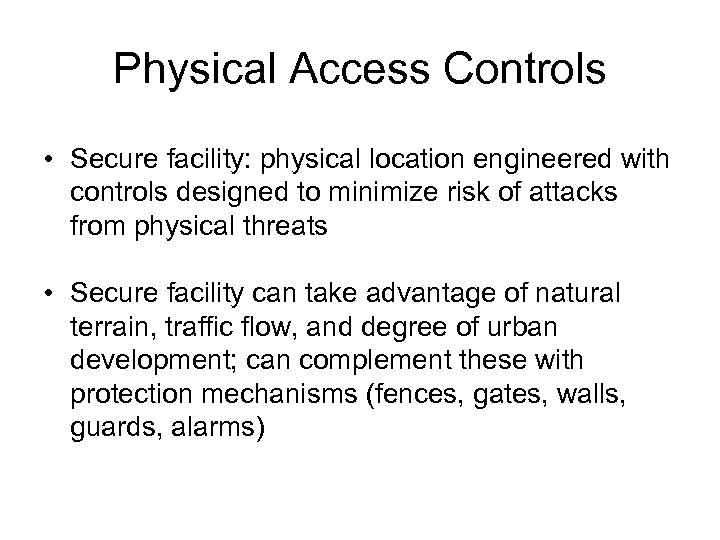

Physical Access Controls • Secure facility: physical location engineered with controls designed to minimize risk of attacks from physical threats • Secure facility can take advantage of natural terrain, traffic flow, and degree of urban development; can complement these with protection mechanisms (fences, gates, walls, guards, alarms)

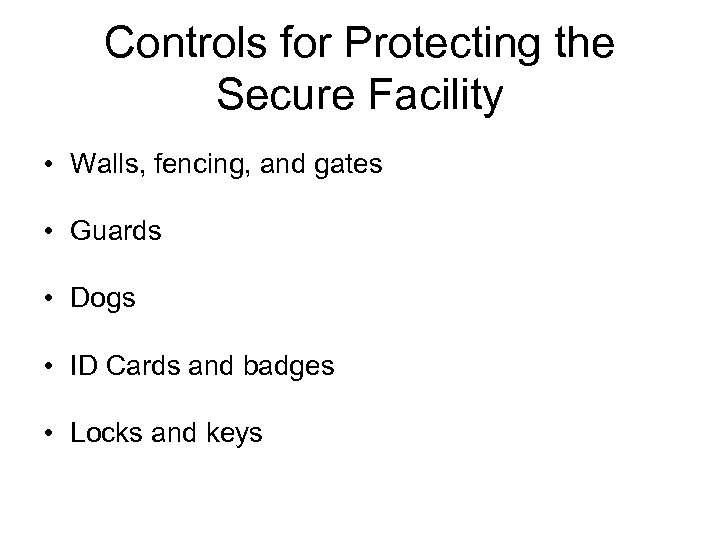

Controls for Protecting the Secure Facility • Walls, fencing, and gates • Guards • Dogs • ID Cards and badges • Locks and keys

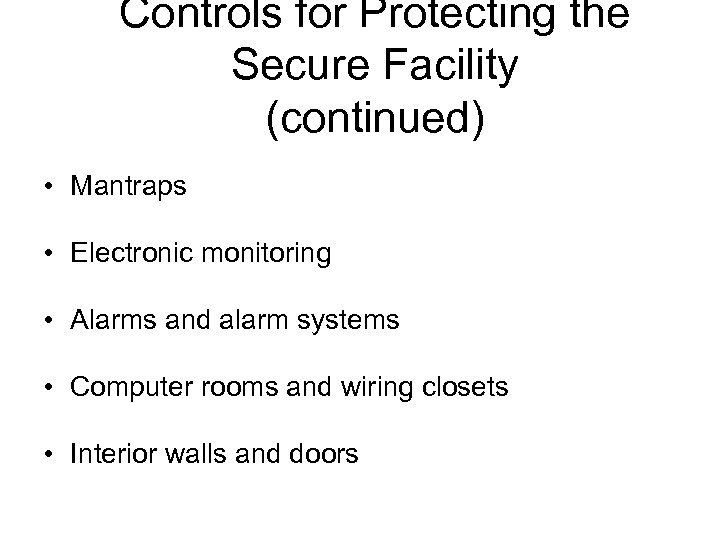

Controls for Protecting the Secure Facility (continued) • Mantraps • Electronic monitoring • Alarms and alarm systems • Computer rooms and wiring closets • Interior walls and doors

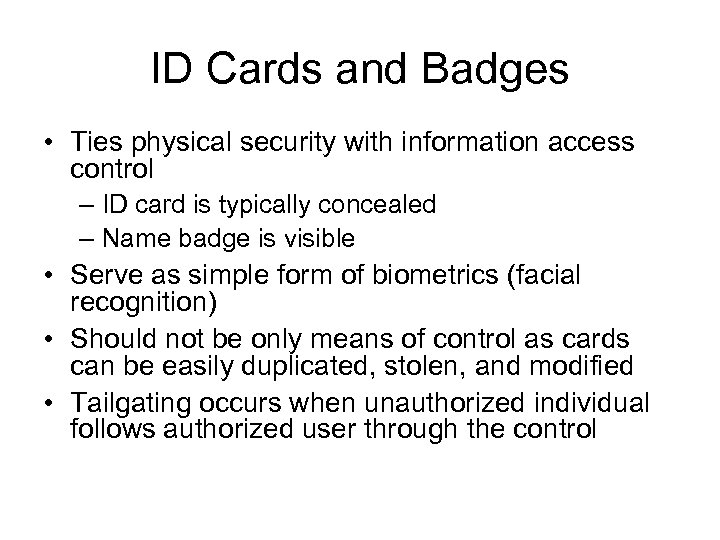

ID Cards and Badges • Ties physical security with information access control – ID card is typically concealed – Name badge is visible • Serve as simple form of biometrics (facial recognition) • Should not be only means of control as cards can be easily duplicated, stolen, and modified • Tailgating occurs when unauthorized individual follows authorized user through the control

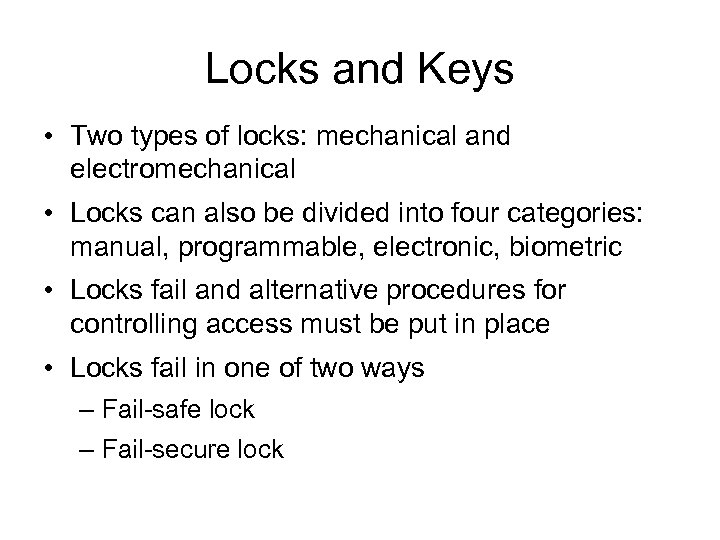

Locks and Keys • Two types of locks: mechanical and electromechanical • Locks can also be divided into four categories: manual, programmable, electronic, biometric • Locks fail and alternative procedures for controlling access must be put in place • Locks fail in one of two ways – Fail-safe lock – Fail-secure lock

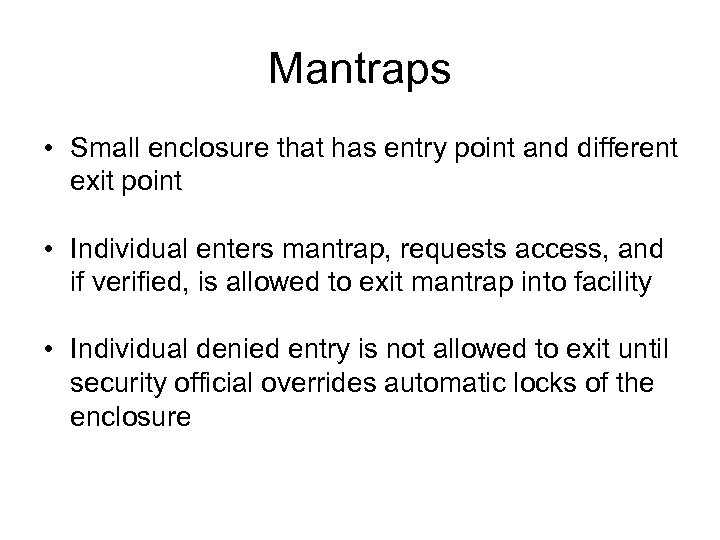

Mantraps • Small enclosure that has entry point and different exit point • Individual enters mantrap, requests access, and if verified, is allowed to exit mantrap into facility • Individual denied entry is not allowed to exit until security official overrides automatic locks of the enclosure

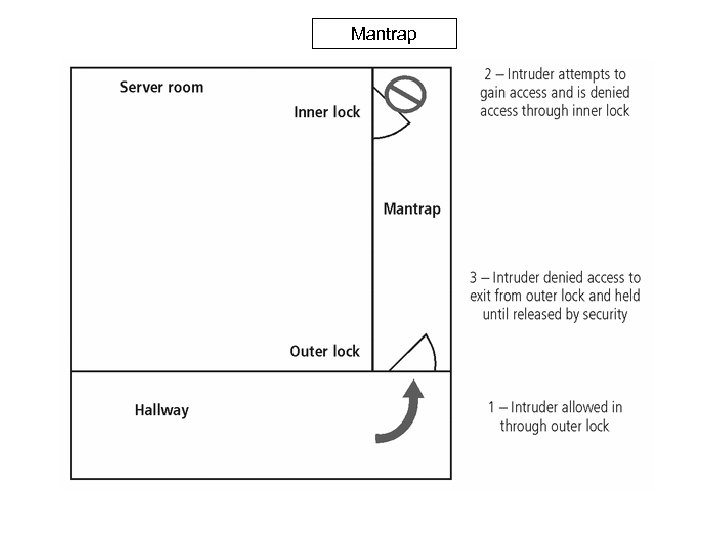

Mantrap Figure 9 -2 Mantraps

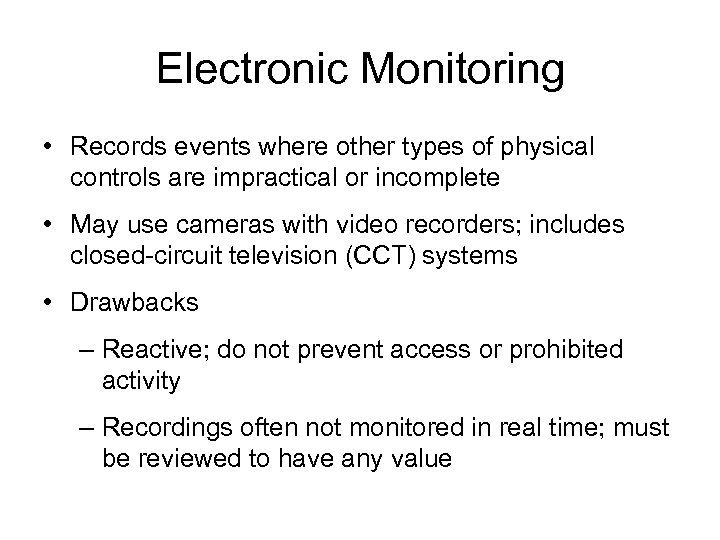

Electronic Monitoring • Records events where other types of physical controls are impractical or incomplete • May use cameras with video recorders; includes closed-circuit television (CCT) systems • Drawbacks – Reactive; do not prevent access or prohibited activity – Recordings often not monitored in real time; must be reviewed to have any value

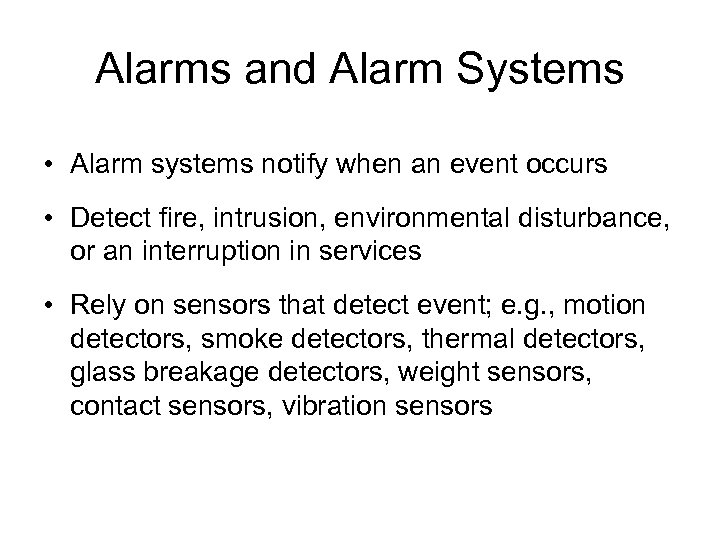

Alarms and Alarm Systems • Alarm systems notify when an event occurs • Detect fire, intrusion, environmental disturbance, or an interruption in services • Rely on sensors that detect event; e. g. , motion detectors, smoke detectors, thermal detectors, glass breakage detectors, weight sensors, contact sensors, vibration sensors

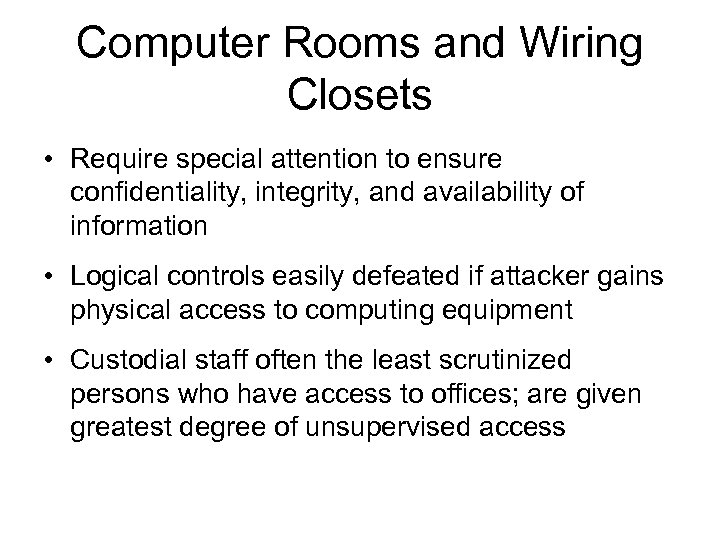

Computer Rooms and Wiring Closets • Require special attention to ensure confidentiality, integrity, and availability of information • Logical controls easily defeated if attacker gains physical access to computing equipment • Custodial staff often the least scrutinized persons who have access to offices; are given greatest degree of unsupervised access

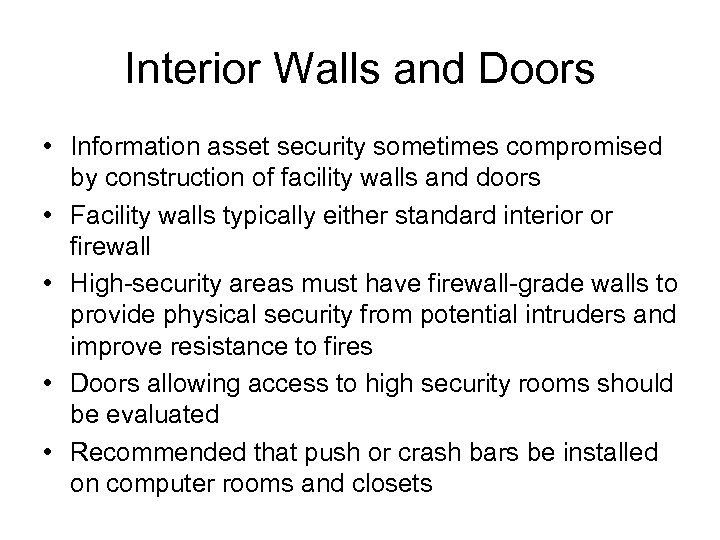

Interior Walls and Doors • Information asset security sometimes compromised by construction of facility walls and doors • Facility walls typically either standard interior or firewall • High-security areas must have firewall-grade walls to provide physical security from potential intruders and improve resistance to fires • Doors allowing access to high security rooms should be evaluated • Recommended that push or crash bars be installed on computer rooms and closets

Fire Security and Safety • Most serious threat to safety of people who work in an organization is possibility of fire • Fires account for more property damage, personal injury, and death than any other threat • Imperative that physical security plans examine and implement strong measures to detect and respond to fires

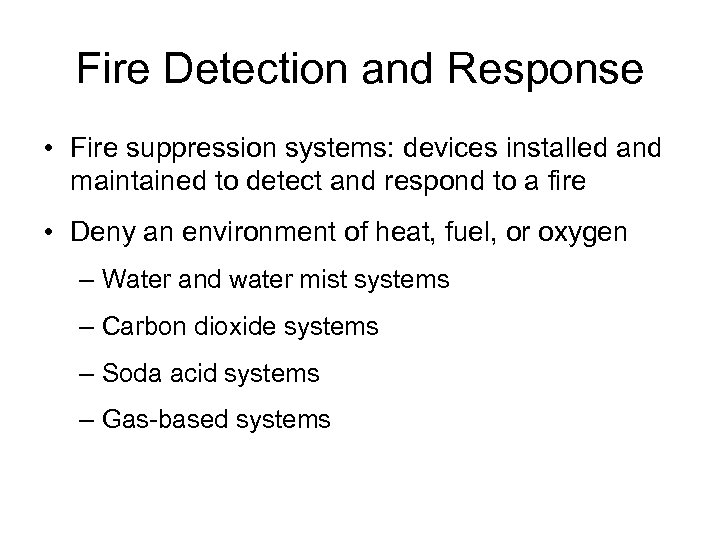

Fire Detection and Response • Fire suppression systems: devices installed and maintained to detect and respond to a fire • Deny an environment of heat, fuel, or oxygen – Water and water mist systems – Carbon dioxide systems – Soda acid systems – Gas-based systems

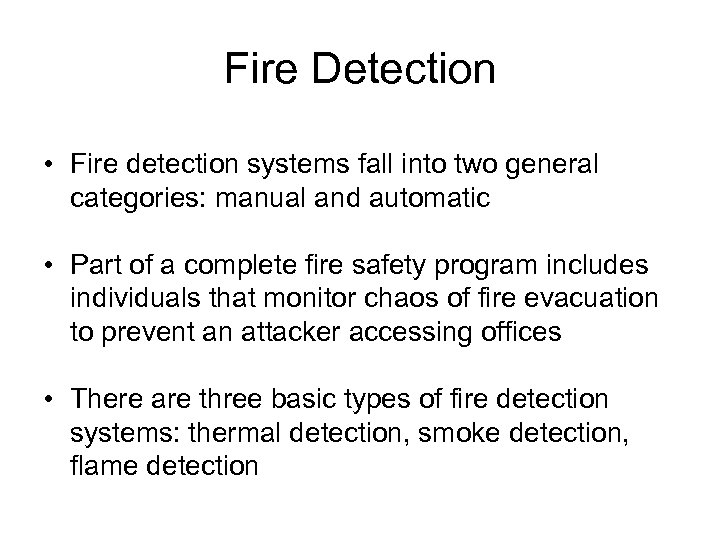

Fire Detection • Fire detection systems fall into two general categories: manual and automatic • Part of a complete fire safety program includes individuals that monitor chaos of fire evacuation to prevent an attacker accessing offices • There are three basic types of fire detection systems: thermal detection, smoke detection, flame detection

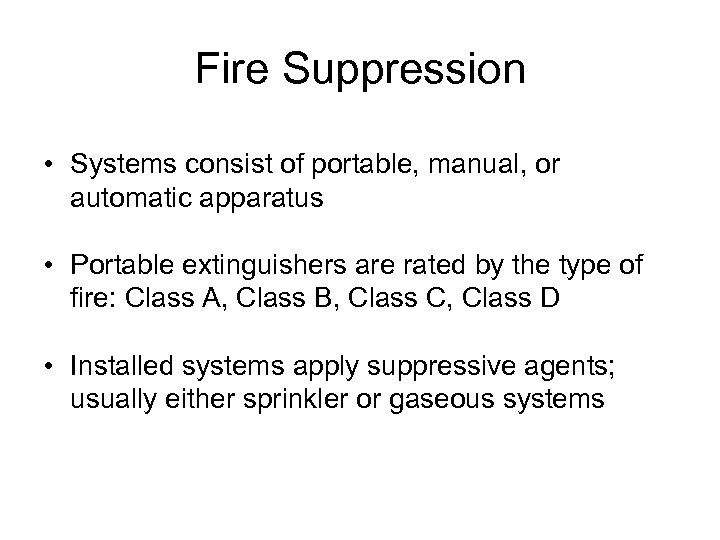

Fire Suppression • Systems consist of portable, manual, or automatic apparatus • Portable extinguishers are rated by the type of fire: Class A, Class B, Class C, Class D • Installed systems apply suppressive agents; usually either sprinkler or gaseous systems

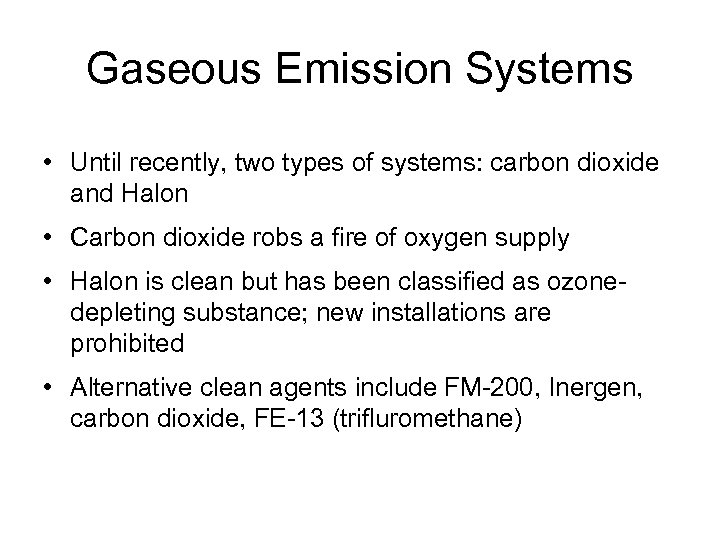

Gaseous Emission Systems • Until recently, two types of systems: carbon dioxide and Halon • Carbon dioxide robs a fire of oxygen supply • Halon is clean but has been classified as ozonedepleting substance; new installations are prohibited • Alternative clean agents include FM-200, Inergen, carbon dioxide, FE-13 (trifluromethane)

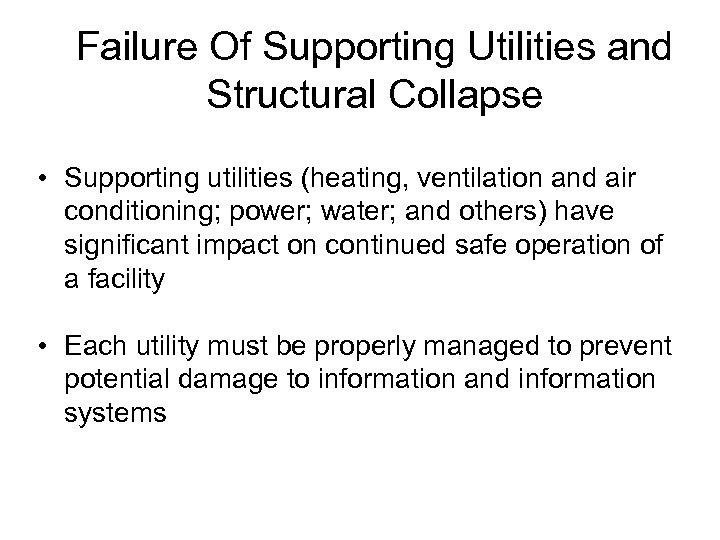

Failure Of Supporting Utilities and Structural Collapse • Supporting utilities (heating, ventilation and air conditioning; power; water; and others) have significant impact on continued safe operation of a facility • Each utility must be properly managed to prevent potential damage to information and information systems

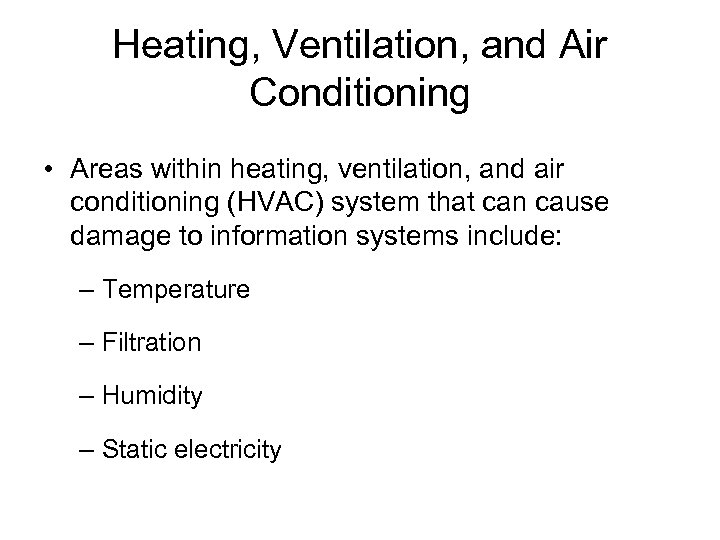

Heating, Ventilation, and Air Conditioning • Areas within heating, ventilation, and air conditioning (HVAC) system that can cause damage to information systems include: – Temperature – Filtration – Humidity – Static electricity

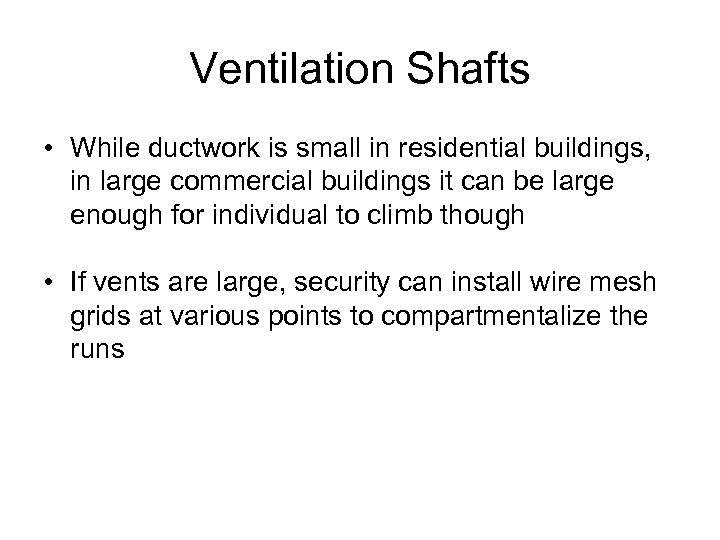

Ventilation Shafts • While ductwork is small in residential buildings, in large commercial buildings it can be large enough for individual to climb though • If vents are large, security can install wire mesh grids at various points to compartmentalize the runs

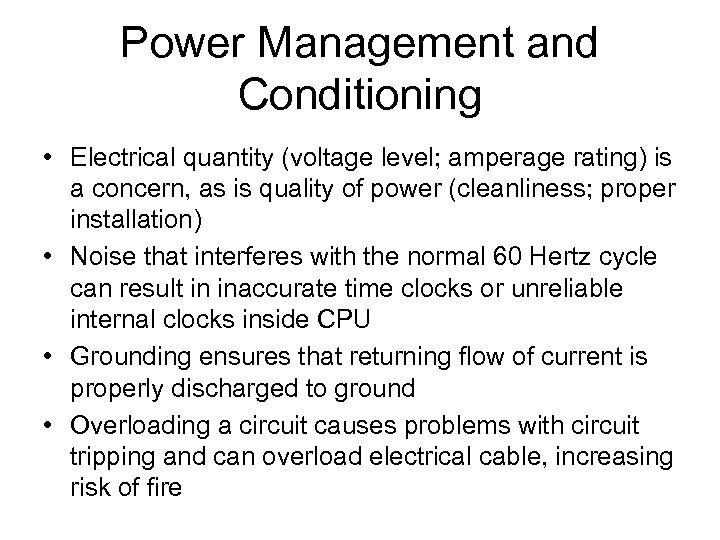

Power Management and Conditioning • Electrical quantity (voltage level; amperage rating) is a concern, as is quality of power (cleanliness; proper installation) • Noise that interferes with the normal 60 Hertz cycle can result in inaccurate time clocks or unreliable internal clocks inside CPU • Grounding ensures that returning flow of current is properly discharged to ground • Overloading a circuit causes problems with circuit tripping and can overload electrical cable, increasing risk of fire

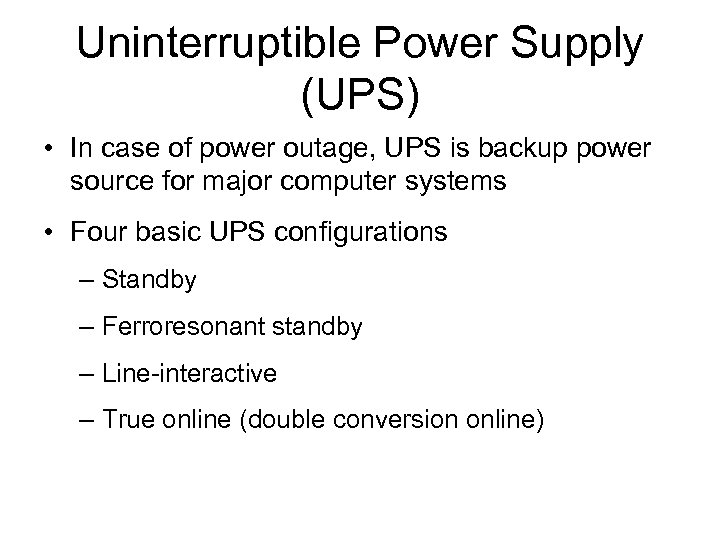

Uninterruptible Power Supply (UPS) • In case of power outage, UPS is backup power source for major computer systems • Four basic UPS configurations – Standby – Ferroresonant standby – Line-interactive – True online (double conversion online)

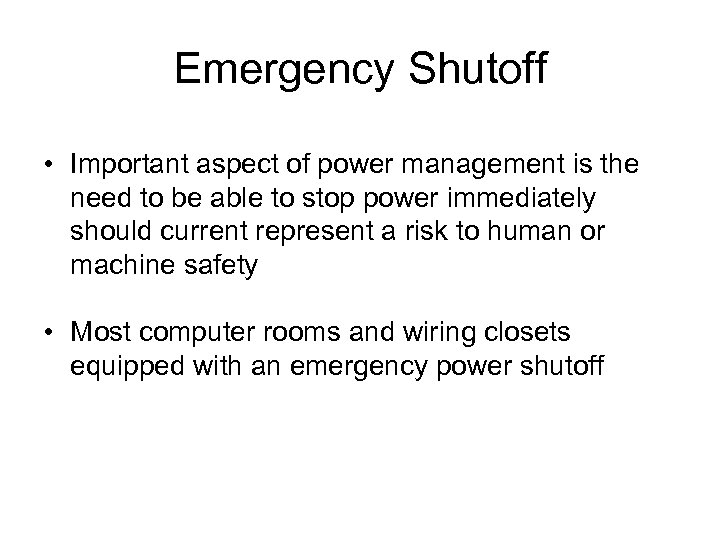

Emergency Shutoff • Important aspect of power management is the need to be able to stop power immediately should current represent a risk to human or machine safety • Most computer rooms and wiring closets equipped with an emergency power shutoff

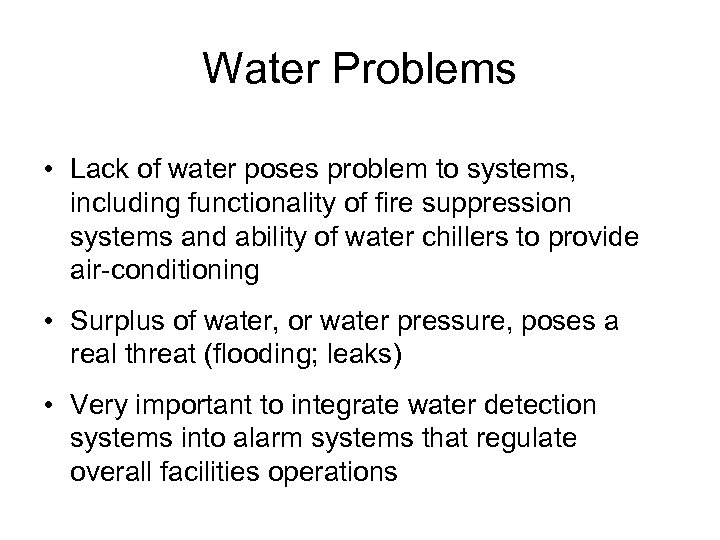

Water Problems • Lack of water poses problem to systems, including functionality of fire suppression systems and ability of water chillers to provide air-conditioning • Surplus of water, or water pressure, poses a real threat (flooding; leaks) • Very important to integrate water detection systems into alarm systems that regulate overall facilities operations

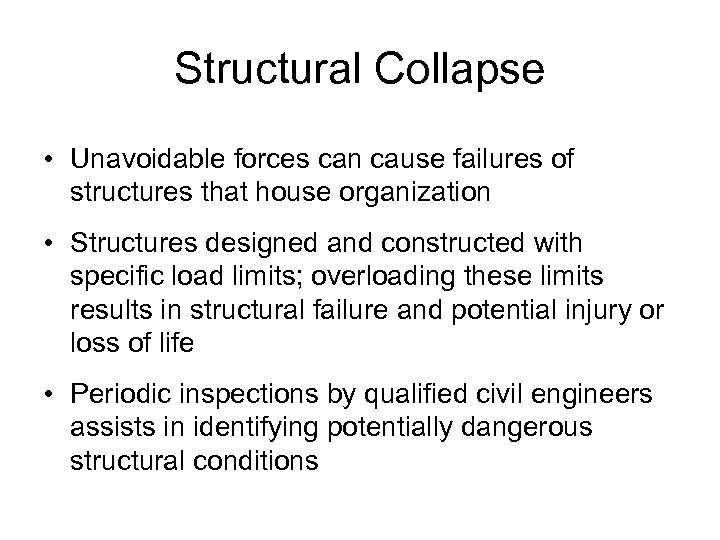

Structural Collapse • Unavoidable forces can cause failures of structures that house organization • Structures designed and constructed with specific load limits; overloading these limits results in structural failure and potential injury or loss of life • Periodic inspections by qualified civil engineers assists in identifying potentially dangerous structural conditions

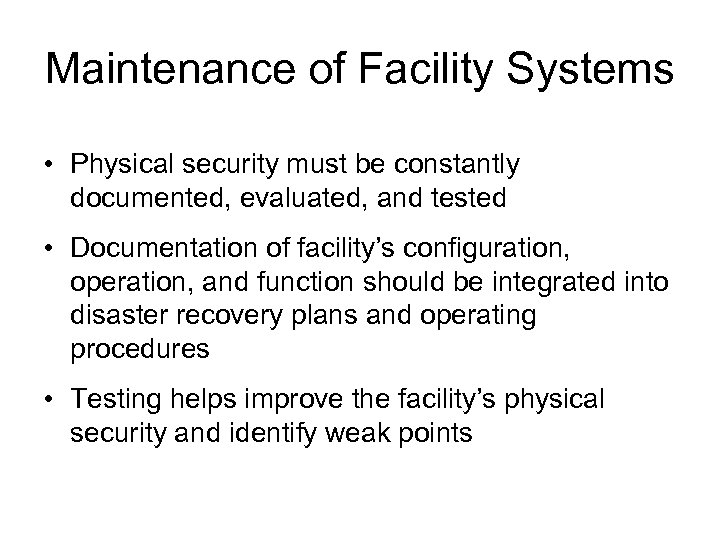

Maintenance of Facility Systems • Physical security must be constantly documented, evaluated, and tested • Documentation of facility’s configuration, operation, and function should be integrated into disaster recovery plans and operating procedures • Testing helps improve the facility’s physical security and identify weak points

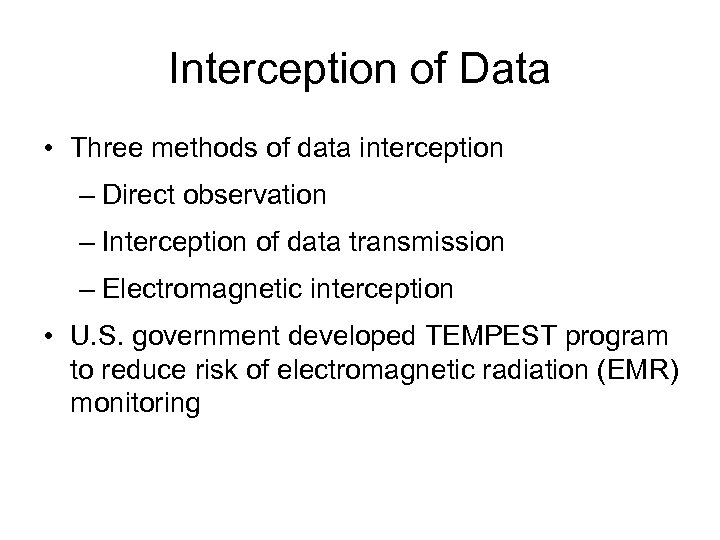

Interception of Data • Three methods of data interception – Direct observation – Interception of data transmission – Electromagnetic interception • U. S. government developed TEMPEST program to reduce risk of electromagnetic radiation (EMR) monitoring

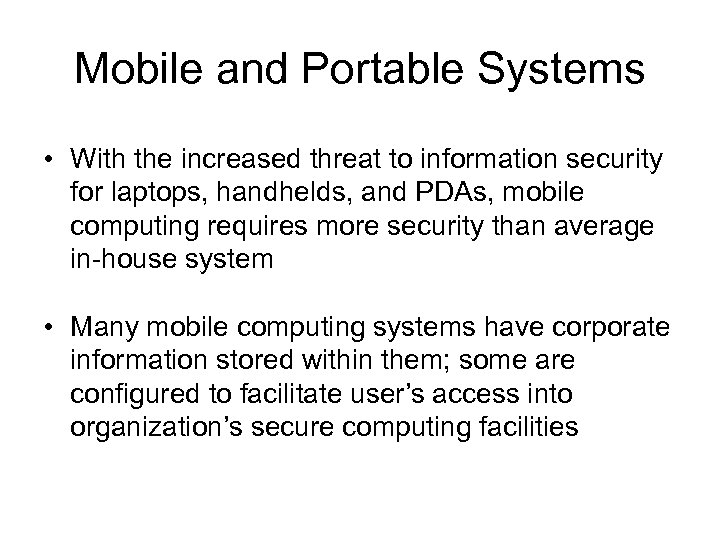

Mobile and Portable Systems • With the increased threat to information security for laptops, handhelds, and PDAs, mobile computing requires more security than average in-house system • Many mobile computing systems have corporate information stored within them; some are configured to facilitate user’s access into organization’s secure computing facilities

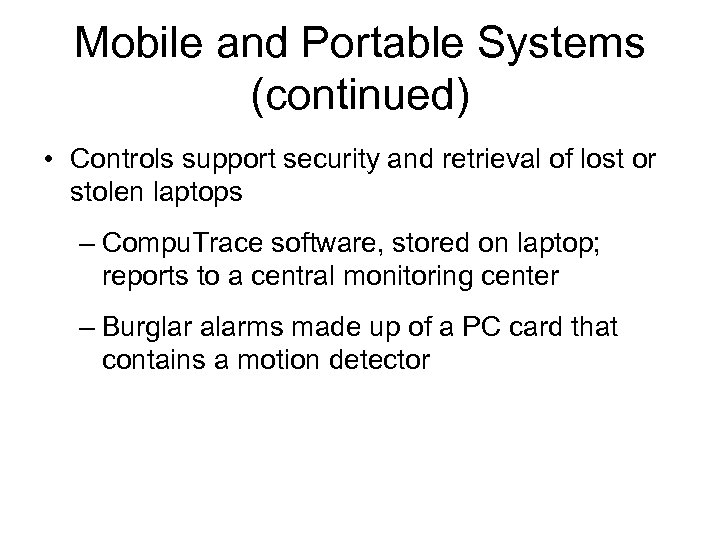

Mobile and Portable Systems (continued) • Controls support security and retrieval of lost or stolen laptops – Compu. Trace software, stored on laptop; reports to a central monitoring center – Burglar alarms made up of a PC card that contains a motion detector

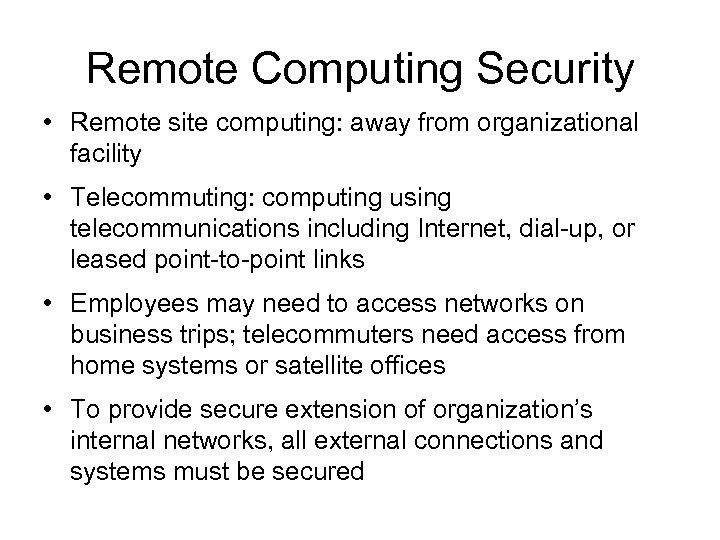

Remote Computing Security • Remote site computing: away from organizational facility • Telecommuting: computing using telecommunications including Internet, dial-up, or leased point-to-point links • Employees may need to access networks on business trips; telecommuters need access from home systems or satellite offices • To provide secure extension of organization’s internal networks, all external connections and systems must be secured

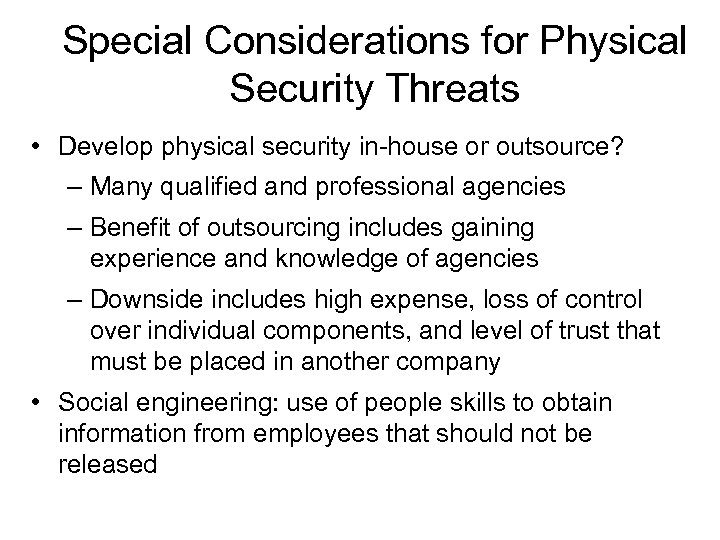

Special Considerations for Physical Security Threats • Develop physical security in-house or outsource? – Many qualified and professional agencies – Benefit of outsourcing includes gaining experience and knowledge of agencies – Downside includes high expense, loss of control over individual components, and level of trust that must be placed in another company • Social engineering: use of people skills to obtain information from employees that should not be released

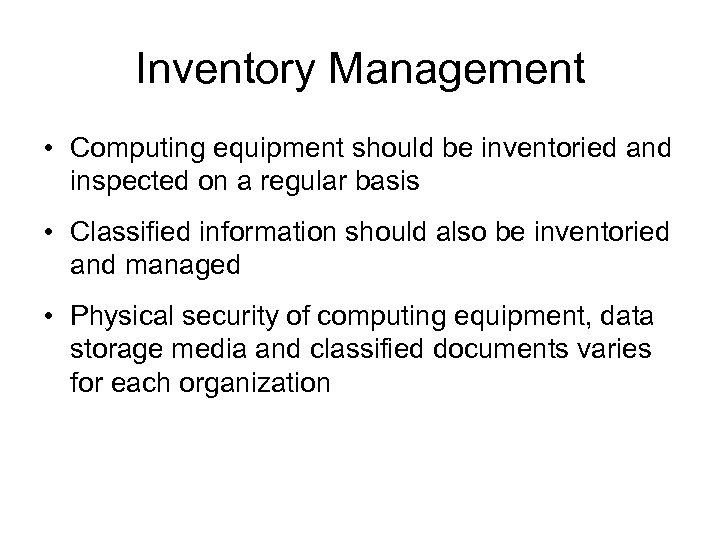

Inventory Management • Computing equipment should be inventoried and inspected on a regular basis • Classified information should also be inventoried and managed • Physical security of computing equipment, data storage media and classified documents varies for each organization

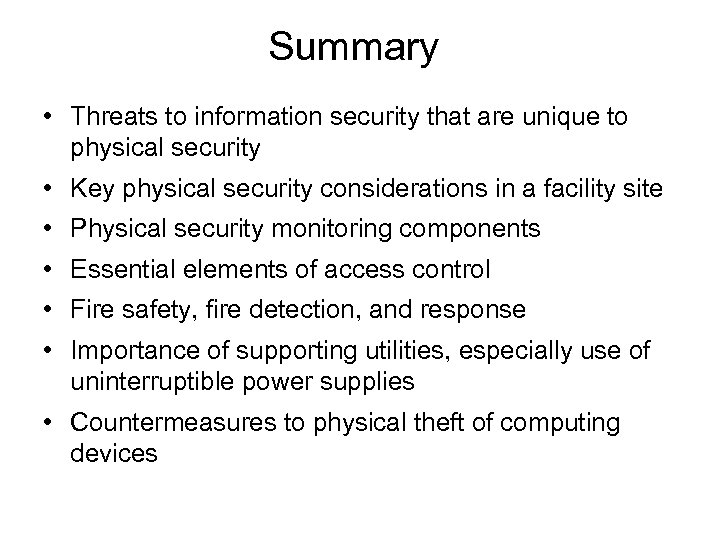

Summary • Threats to information security that are unique to physical security • Key physical security considerations in a facility site • Physical security monitoring components • Essential elements of access control • Fire safety, fire detection, and response • Importance of supporting utilities, especially use of uninterruptible power supplies • Countermeasures to physical theft of computing devices
