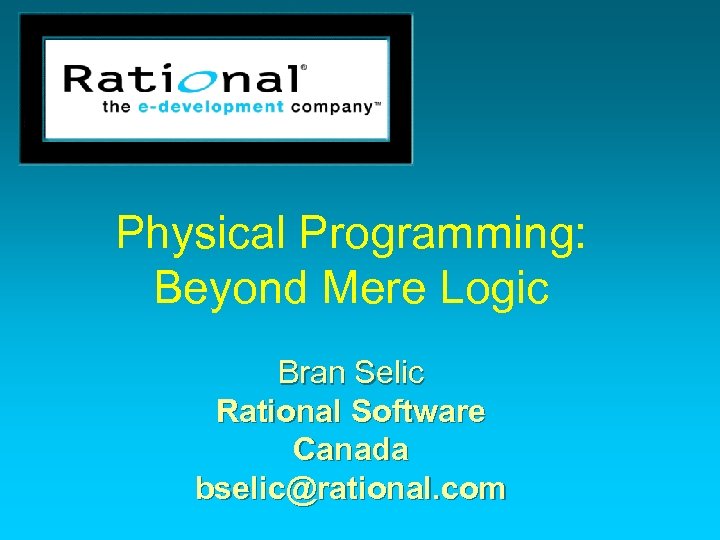

Physical Programming: Beyond Mere Logic Bran Selic Rational Software Canada bselic@rational. com

What I am Hoping For E THEORY AND PRACTICE OF SOFTWARE 2

The Ideal and the Real PLAT N ¨ By focussing on the imperfect world of physical reality we may miss the essence ¨ Software seems much closer to the “ideal” world 3

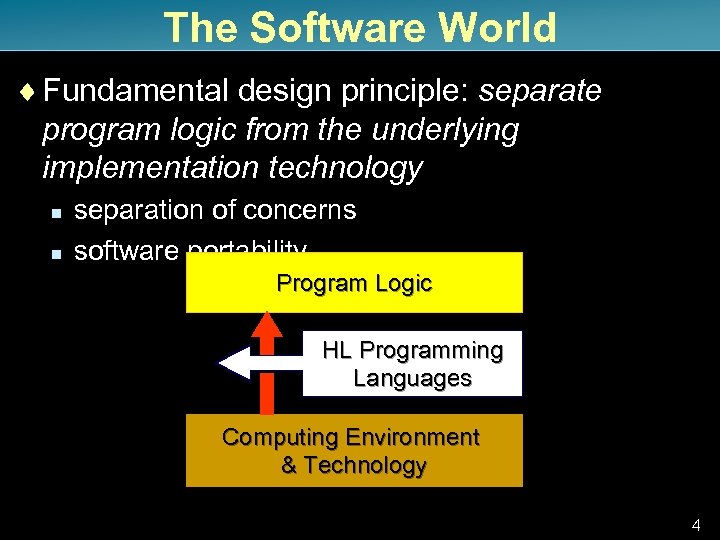

The Software World ¨ Fundamental design principle: separate program logic from the underlying implementation technology n n separation of concerns software portability Program Logic HL Programming Languages Computing Environment & Technology 4

The Real-Time Software World ¨ Key question: How long will it take? ¨ The quantitative characteristics of the computing environment encroach upon the purity of the logic n software design involves engineering tradeoffs Program Logic HL Programming Languages Computing Environment & Technology 5

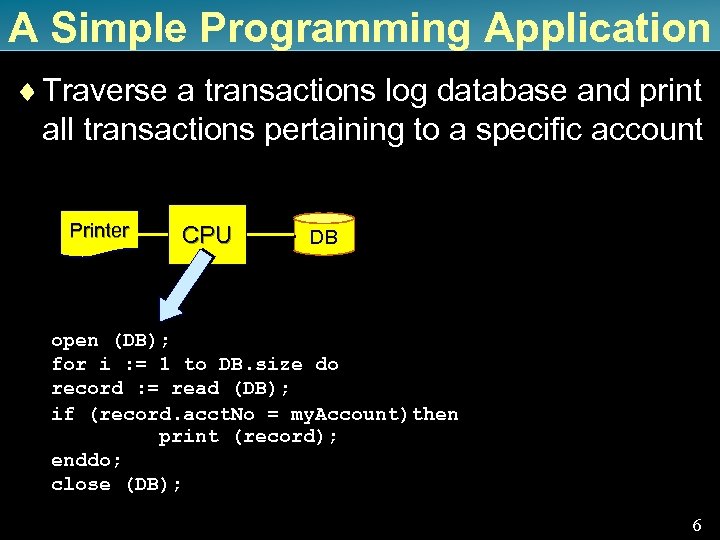

A Simple Programming Application ¨ Traverse a transactions log database and print all transactions pertaining to a specific account Printer CPU DB open (DB); for i : = 1 to DB. size do record : = read (DB); if (record. acct. No = my. Account)then print (record); enddo; close (DB); 6

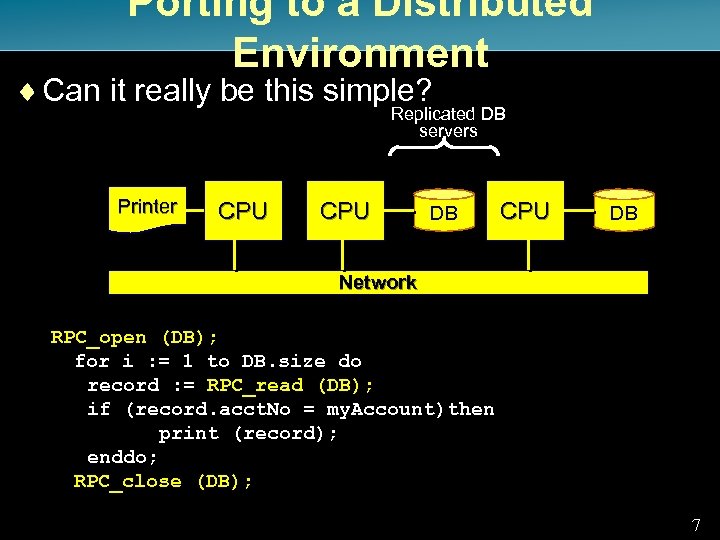

Porting to a Distributed Environment ¨ Can it really be this simple? Replicated DB servers Printer CPU DB Network RPC_open (DB); for i : = 1 to DB. size do record : = read (DB); RPC_read (DB); if (record. acct. No = my. Account)then print (record); enddo; RPC_close (DB); 7

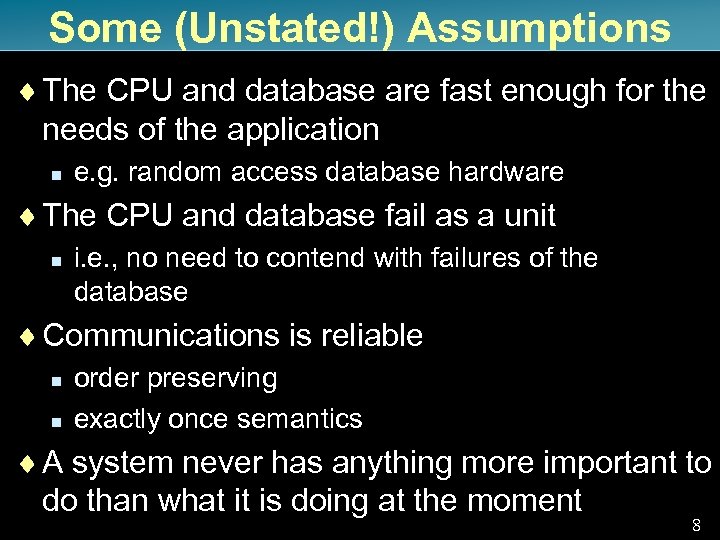

Some (Unstated!) Assumptions ¨ The CPU and database are fast enough for the needs of the application n e. g. random access database hardware ¨ The CPU and database fail as a unit n i. e. , no need to contend with failures of the database ¨ Communications is reliable n n order preserving exactly once semantics ¨ A system never has anything more important to do than what it is doing at the moment 8

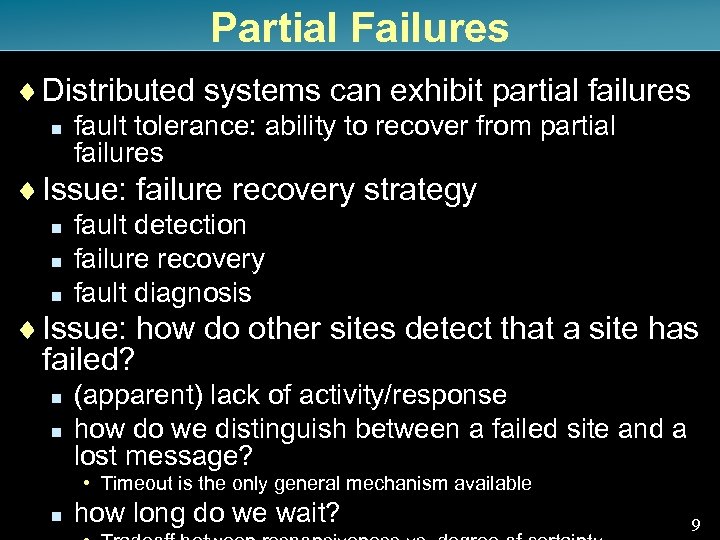

Partial Failures ¨ Distributed systems can exhibit partial failures n fault tolerance: ability to recover from partial failures ¨ Issue: failure recovery strategy n n n fault detection failure recovery fault diagnosis ¨ Issue: how do other sites detect that a site has failed? n n (apparent) lack of activity/response how do we distinguish between a failed site and a lost message? • Timeout is the only general mechanism available n how long do we wait? 9

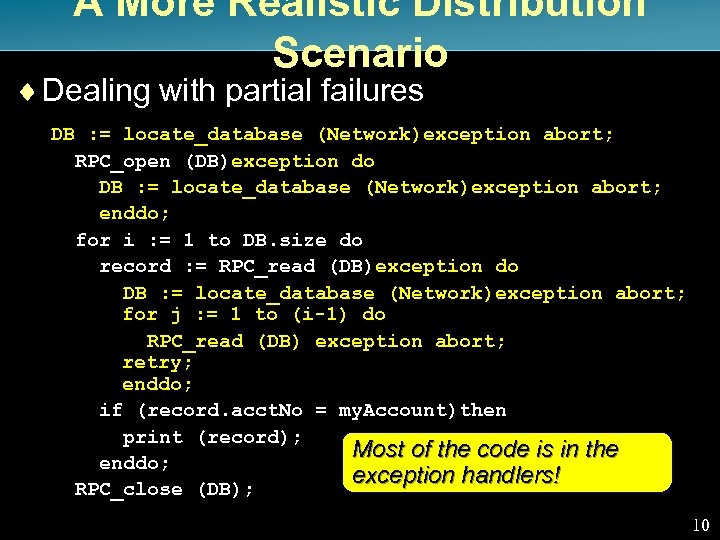

A More Realistic Distribution Scenario ¨ Dealing with partial failures DB : = locate_database (Network)exception abort; RPC_open (DB)exception do DB : = locate_database (Network)exception abort; enddo; for i : = 1 to DB. size do record : = RPC_read (DB)exception do DB : = locate_database (Network)exception abort; for j : = 1 to (i-1) do RPC_read (DB) exception abort; retry; enddo; if (record. acct. No = my. Account)then print (record); Most of the code is in the enddo; exception handlers! RPC_close (DB); 10

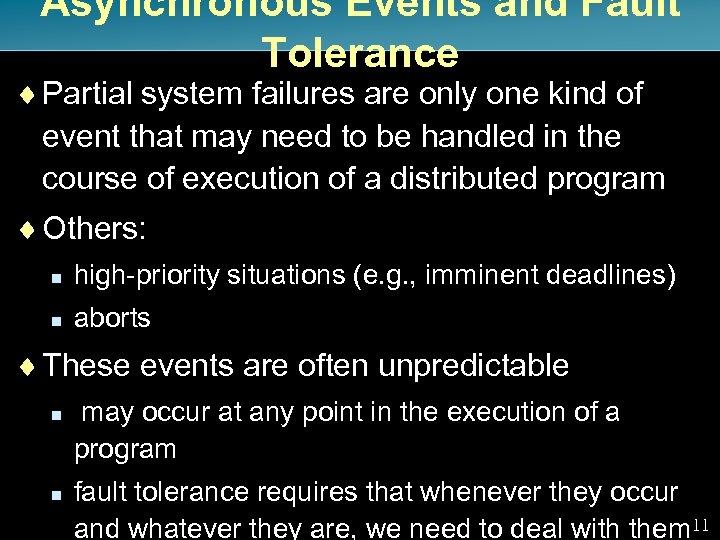

Asynchronous Events and Fault Tolerance ¨ Partial system failures are only one kind of event that may need to be handled in the course of execution of a distributed program ¨ Others: n high-priority situations (e. g. , imminent deadlines) n aborts ¨ These events are often unpredictable n n may occur at any point in the execution of a program fault tolerance requires that whenever they occur and whatever they are, we need to deal with them 11

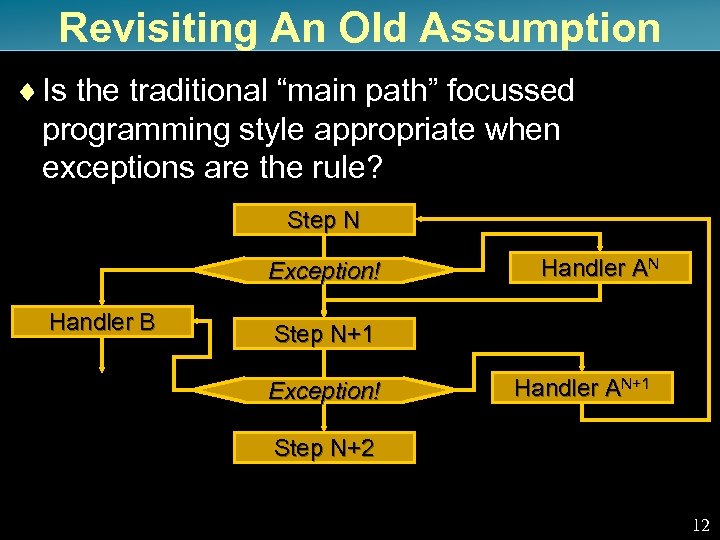

Revisiting An Old Assumption ¨ Is the traditional “main path” focussed programming style appropriate when exceptions are the rule? Step N Exception! Handler B Handler AN Step N+1 Exception! Handler AN+1 Step N+2 12

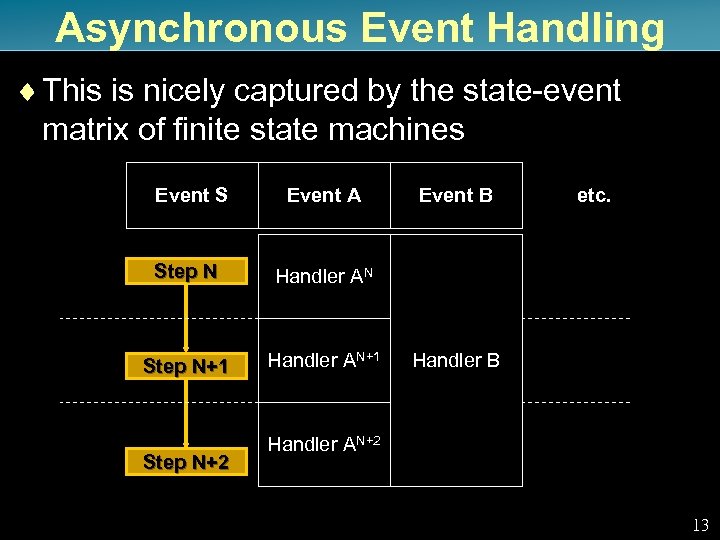

Asynchronous Event Handling ¨ This is nicely captured by the state-event matrix of finite state machines Event S Event A Step N Handler AN Step N+1 Handler AN+1 Step N+2 Event B etc. Handler B Handler AN+2 13

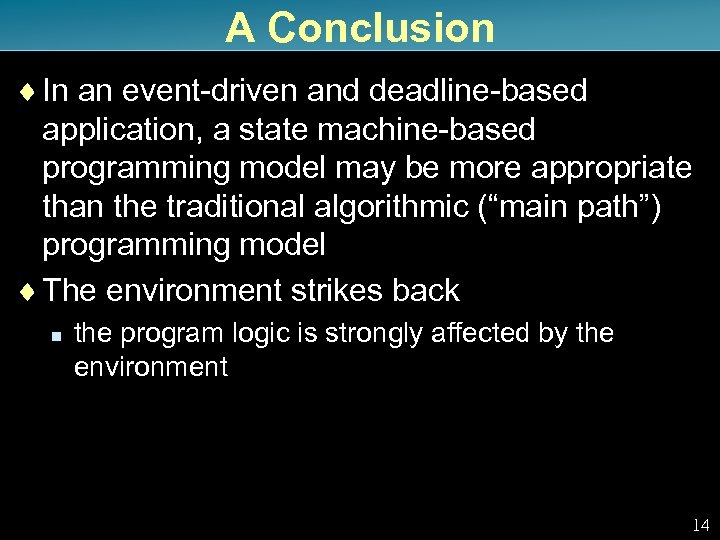

A Conclusion ¨ In an event-driven and deadline-based application, a state machine-based programming model may be more appropriate than the traditional algorithmic (“main path”) programming model ¨ The environment strikes back n the program logic is strongly affected by the environment 14

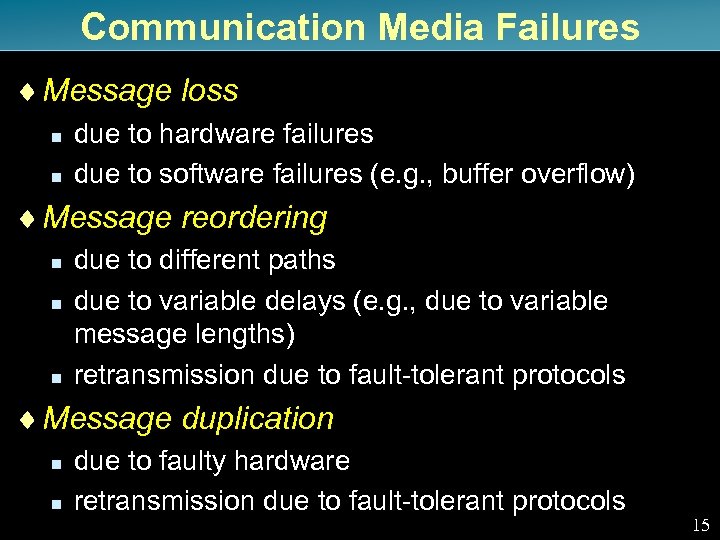

Communication Media Failures ¨ Message loss n n due to hardware failures due to software failures (e. g. , buffer overflow) ¨ Message reordering n n n due to different paths due to variable delays (e. g. , due to variable message lengths) retransmission due to fault-tolerant protocols ¨ Message duplication n n due to faulty hardware retransmission due to fault-tolerant protocols 15

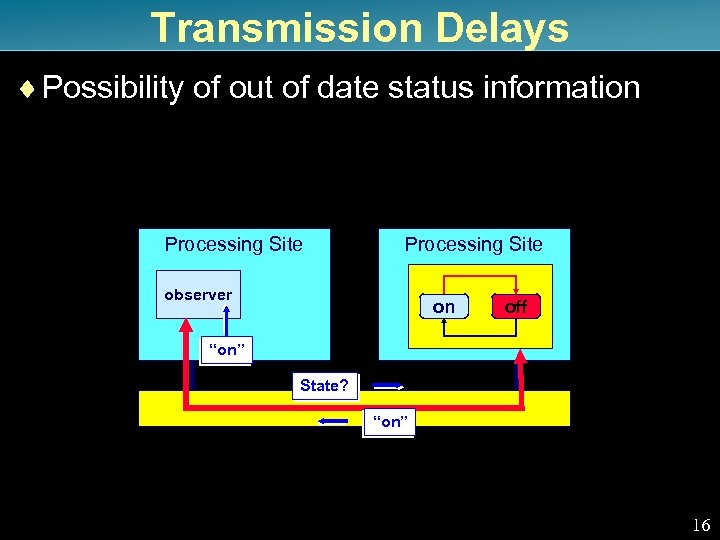

Transmission Delays ¨ Possibility of out of date status information Processing Site observer on off “on” State? “on” 16

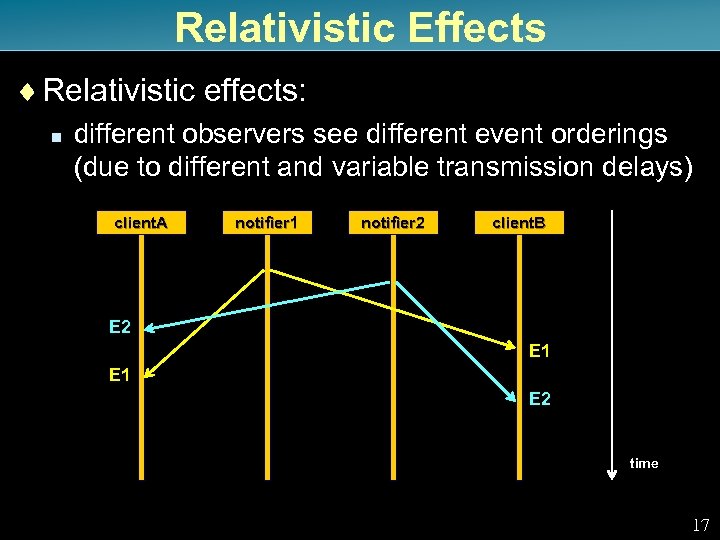

Relativistic Effects ¨ Relativistic effects: n different observers see different event orderings (due to different and variable transmission delays) client. A notifier 1 notifier 2 client. B E 2 E 1 E 2 time 17

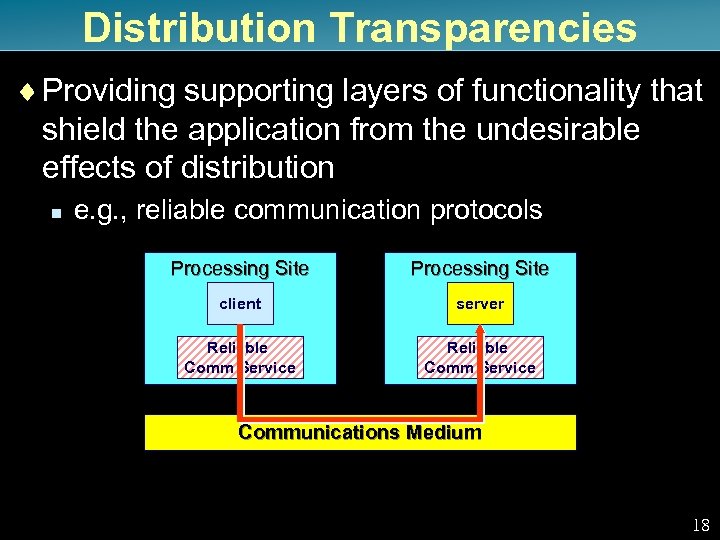

Distribution Transparencies ¨ Providing supporting layers of functionality that shield the application from the undesirable effects of distribution n e. g. , reliable communication protocols Processing Site client server Reliable Comm Service Communications Medium 18

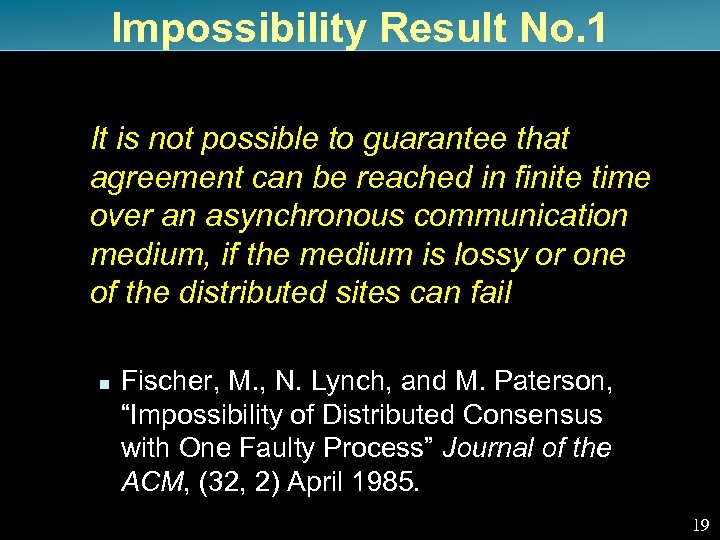

Impossibility Result No. 1 It is not possible to guarantee that agreement can be reached in finite time over an asynchronous communication medium, if the medium is lossy or one of the distributed sites can fail n Fischer, M. , N. Lynch, and M. Paterson, “Impossibility of Distributed Consensus with One Faulty Process” Journal of the ACM, (32, 2) April 1985. 19

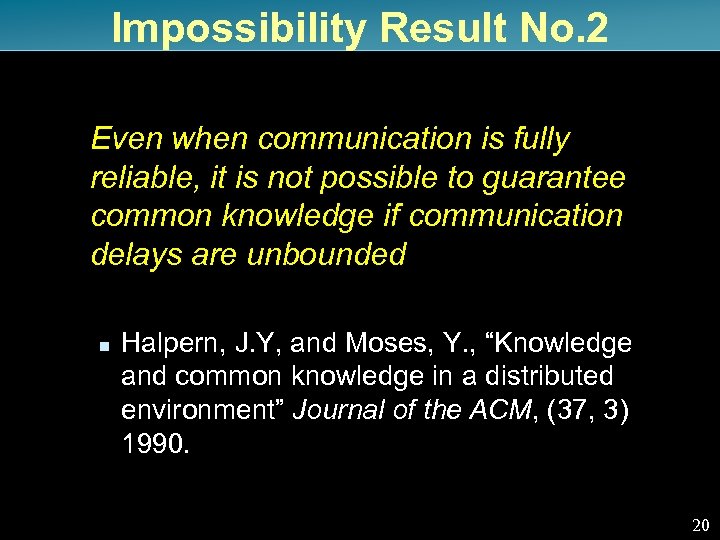

Impossibility Result No. 2 Even when communication is fully reliable, it is not possible to guarantee common knowledge if communication delays are unbounded n Halpern, J. Y, and Moses, Y. , “Knowledge and common knowledge in a distributed environment” Journal of the ACM, (37, 3) 1990. 20

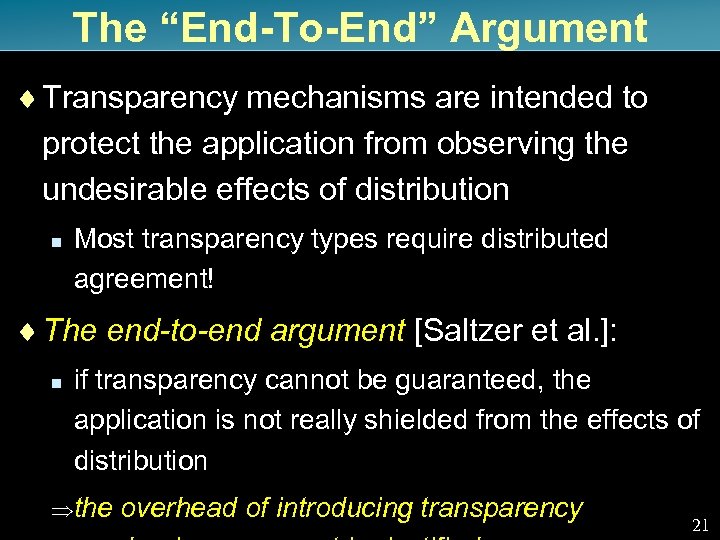

The “End-To-End” Argument ¨ Transparency mechanisms are intended to protect the application from observing the undesirable effects of distribution n Most transparency types require distributed agreement! ¨ The end-to-end argument [Saltzer et al. ]: n if transparency cannot be guaranteed, the application is not really shielded from the effects of distribution Þthe overhead of introducing transparency 21

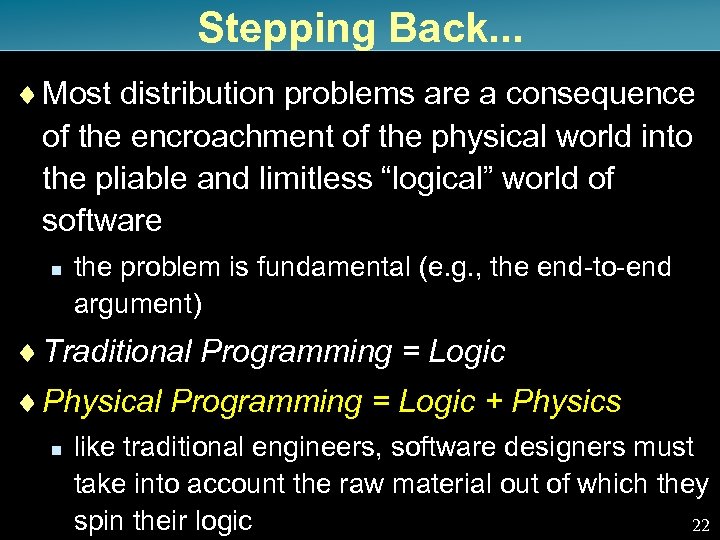

Stepping Back. . . ¨ Most distribution problems are a consequence of the encroachment of the physical world into the pliable and limitless “logical” world of software n the problem is fundamental (e. g. , the end-to-end argument) ¨ Traditional Programming = Logic ¨ Physical Programming = Logic + Physics n like traditional engineers, software designers must take into account the raw material out of which they spin their logic 22

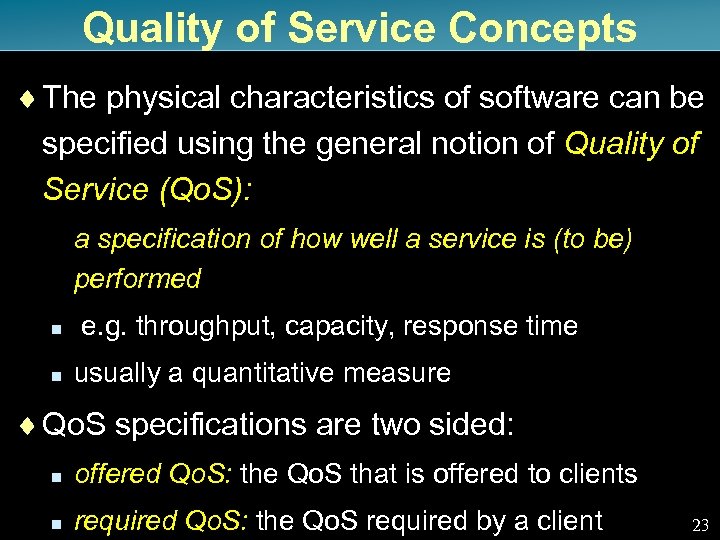

Quality of Service Concepts ¨ The physical characteristics of software can be specified using the general notion of Quality of Service (Qo. S): a specification of how well a service is (to be) performed n n e. g. throughput, capacity, response time usually a quantitative measure ¨ Qo. S specifications are two sided: n offered Qo. S: the Qo. S that is offered to clients n required Qo. S: the Qo. S required by a client 23

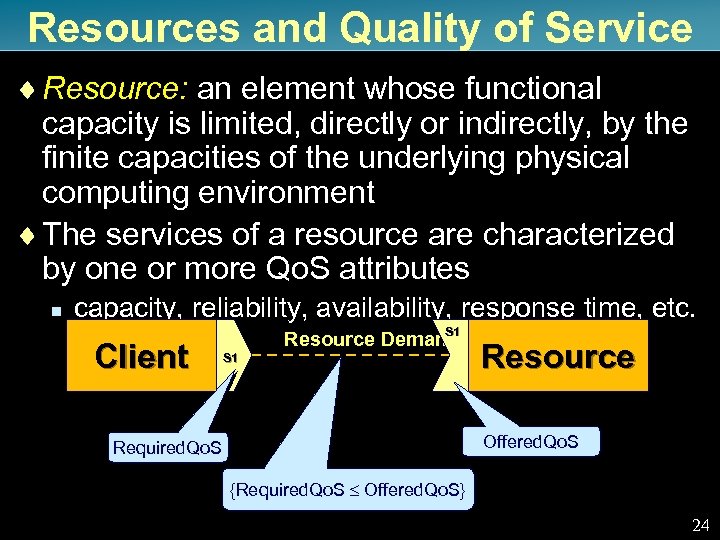

Resources and Quality of Service ¨ Resource: an element whose functional capacity is limited, directly or indirectly, by the finite capacities of the underlying physical computing environment ¨ The services of a resource are characterized by one or more Qo. S attributes n capacity, reliability, availability, response time, etc. Client S 1 Resource Demand S 1 Resource Offered. Qo. S Required. Qo. S {Required. Qo. S Offered. Qo. S} 24

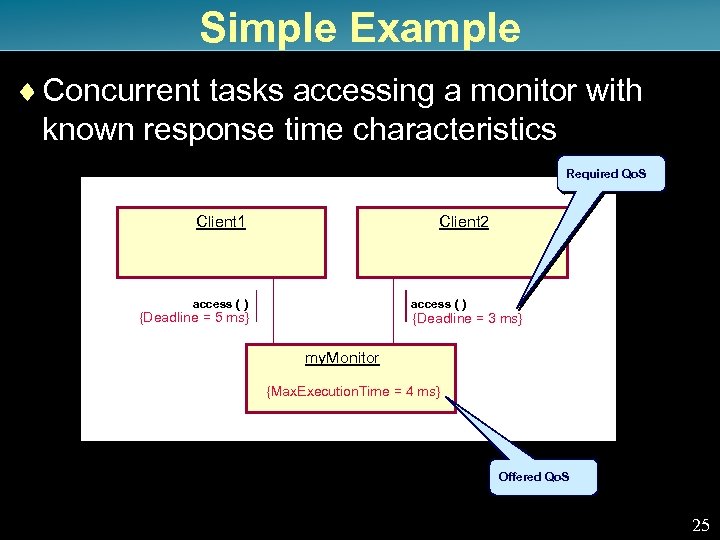

Simple Example ¨ Concurrent tasks accessing a monitor with known response time characteristics Required Qo. S Client 1 Client 2 access ( ) {Deadline = 5 ms} {Deadline = 3 ms} my. Monitor {Max. Execution. Time = 4 ms} Offered Qo. S 25

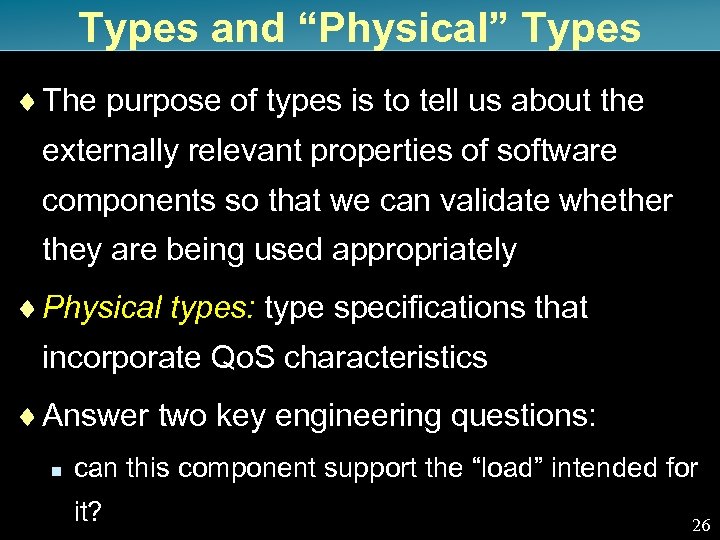

Types and “Physical” Types ¨ The purpose of types is to tell us about the externally relevant properties of software components so that we can validate whether they are being used appropriately ¨ Physical types: type specifications that incorporate Qo. S characteristics ¨ Answer two key engineering questions: n can this component support the “load” intended for it? 26

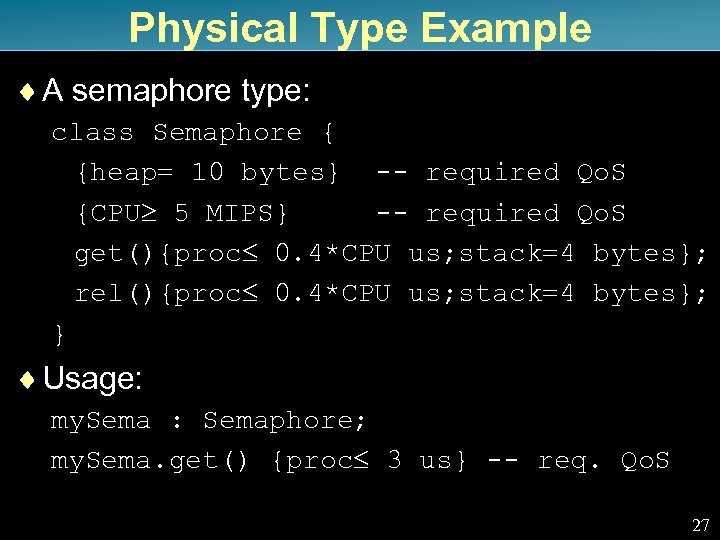

Physical Type Example ¨ A semaphore type: class Semaphore { {heap= 10 bytes} -- required Qo. S {CPU 5 MIPS} -- required Qo. S get(){proc 0. 4*CPU us; stack=4 bytes}; rel(){proc 0. 4*CPU us; stack=4 bytes}; } ¨ Usage: my. Sema : Semaphore; my. Sema. get() {proc 3 us} -- req. Qo. S 27

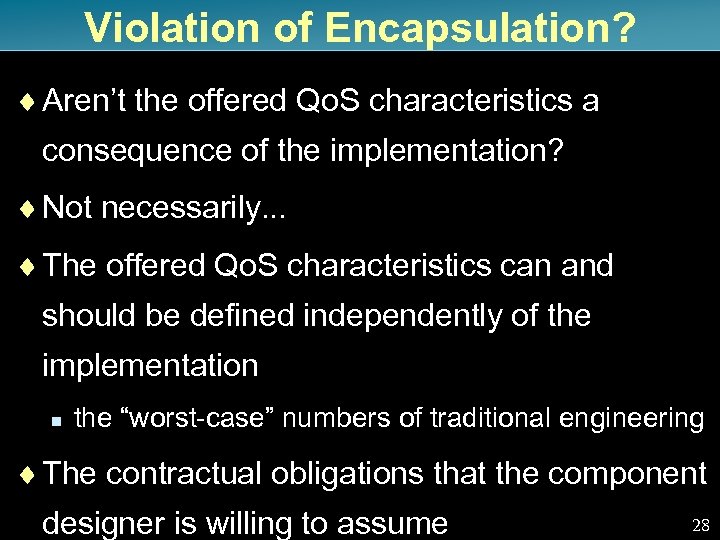

Violation of Encapsulation? ¨ Aren’t the offered Qo. S characteristics a consequence of the implementation? ¨ Not necessarily. . . ¨ The offered Qo. S characteristics can and should be defined independently of the implementation n the “worst-case” numbers of traditional engineering ¨ The contractual obligations that the component designer is willing to assume 28

Physical Type Checking ¨ Can physical types be statically checked? n n n The good news: Yes, they can (in most cases) The bad news: typically requires complex analysis methods (queueing network analysis, schedulability analysis, etc. ) but then, model checking and theorem proving is not simple either ¨ Some issues: n n n Typically, Qo. S-based analyses cannot be done incrementally -- the full system context is required but then, the same holds for many formal verification methods Each type of Qo. S (e. g. , bandwidth, CPU 29

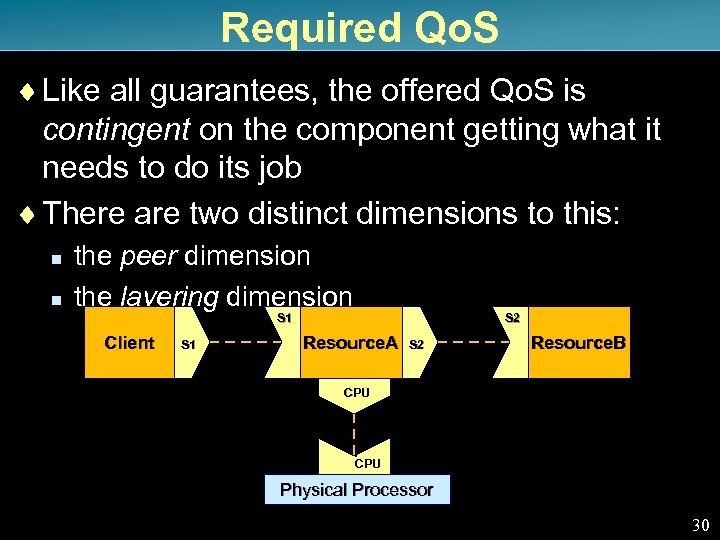

Required Qo. S ¨ Like all guarantees, the offered Qo. S is contingent on the component getting what it needs to do its job ¨ There are two distinct dimensions to this: n n the peer dimension the layering dimension S 2 S 1 Client S 1 Resource. A S 2 Resource. B CPU Physical Processor 30

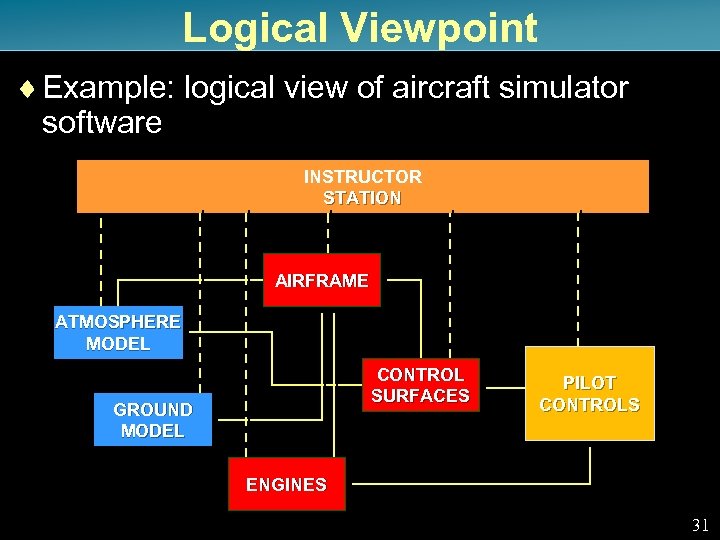

Logical Viewpoint ¨ Example: logical view of aircraft simulator software INSTRUCTOR STATION AIRFRAME ATMOSPHERE MODEL CONTROL SURFACES GROUND MODEL PILOT CONTROLS ENGINES 31

Engineering (Realization) Viewpoint ¨ The realization of a specific set of logical components using facilities of the run-time environment Processor OS process Processor Ethernet LAN OS process stack TCP/IP socket OS process stack 32

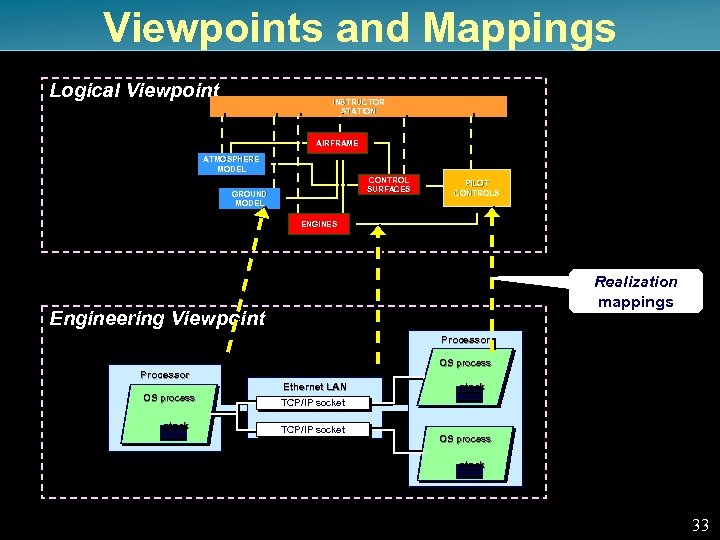

Viewpoints and Mappings Logical Viewpoint INSTRUCTOR STATION AIRFRAME ATMOSPHERE MODEL CONTROL SURFACES GROUND MODEL PILOT CONTROLS ENGINES Realization mappings Engineering Viewpoint Processor OS process stack Ethernet LAN stack TCP/IP socket OS process stack 33

The Engineering Viewpoint ¨ The engineering viewpoint represents the “raw material” out of which we construct the logical viewpoint n the quality of the outcome is only as good as the quality of the ingredients that are put in n as in all true engineering, the quantitative aspects of the logical model are often crucial (How long will it take? How much will be required? …) 34

Distributed Systems Dilemma ¨ Dilemma: How can we account for the engineering characteristics of the system without prematurely and possibly unnecessarily committing to a specific technology? ¨ Proposed solution: Include in the logical model a generic (technology-neutral) specification of the required/expected characteristics of the engineering environment 35

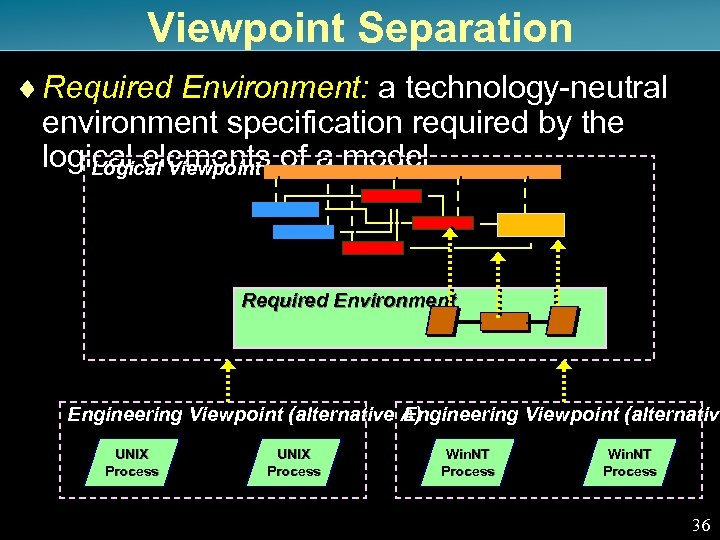

Viewpoint Separation ¨ Required Environment: a technology-neutral environment specification required by the logical elements of a model Logical Viewpoint Required Environment Engineering Viewpoint (alternative A) Engineering Viewpoint (alternative (alternativ UNIX Process Win. NT Process 36

Required Environment Specifications ¨ What a logical component needs in order to perform its function according to spec Airframe CPU : 3 MIPs Mem : 2 MB logical element (client) Bandw. : Bandw. 70 Mbit/s required Qo. S values realization mapping 3 MIPs 20 MB CPU 100 Mbit/s LAN offered Qo. S values engineering element (resource) 37

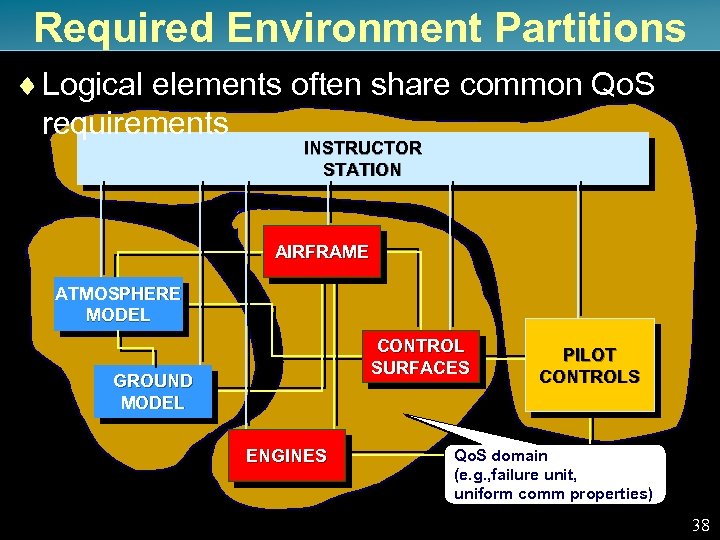

Required Environment Partitions ¨ Logical elements often share common Qo. S requirements INSTRUCTOR STATION AIRFRAME ATMOSPHERE MODEL CONTROL SURFACES GROUND MODEL ENGINES PILOT CONTROLS Qo. S domain (e. g. , failure unit, uniform comm properties) 38

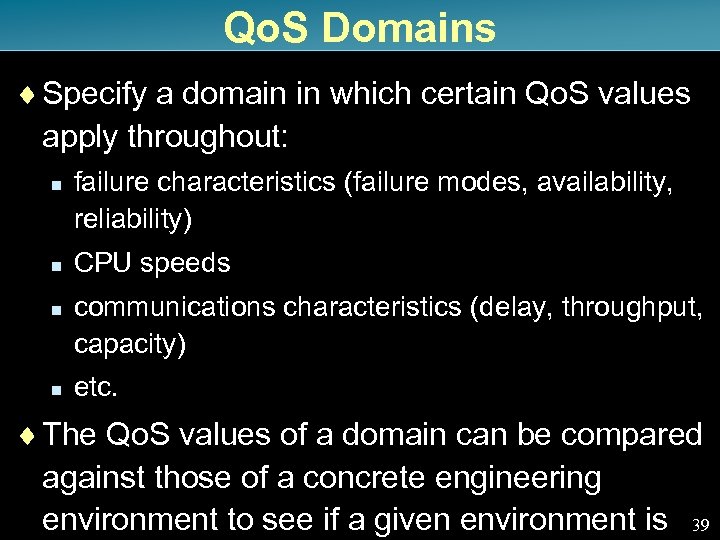

Qo. S Domains ¨ Specify a domain in which certain Qo. S values apply throughout: n n failure characteristics (failure modes, availability, reliability) CPU speeds communications characteristics (delay, throughput, capacity) etc. ¨ The Qo. S values of a domain can be compared against those of a concrete engineering environment to see if a given environment is 39

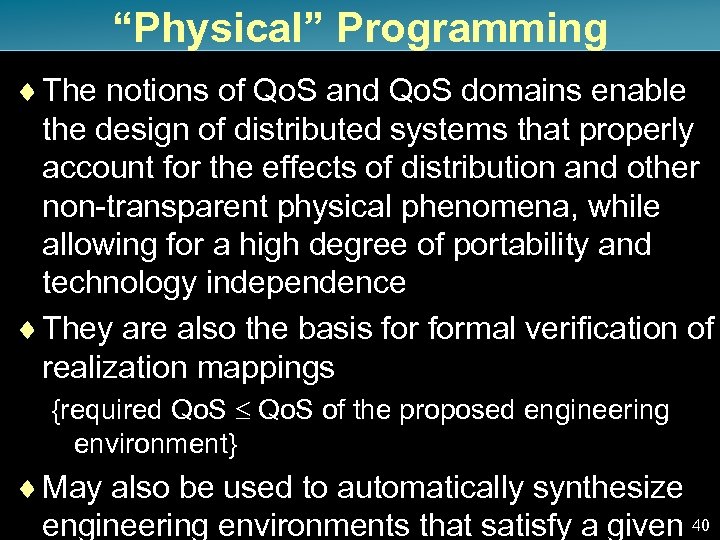

“Physical” Programming ¨ The notions of Qo. S and Qo. S domains enable the design of distributed systems that properly account for the effects of distribution and other non-transparent physical phenomena, while allowing for a high degree of portability and technology independence ¨ They are also the basis formal verification of realization mappings {required Qo. S of the proposed engineering environment} ¨ May also be used to automatically synthesize engineering environments that satisfy a given 40

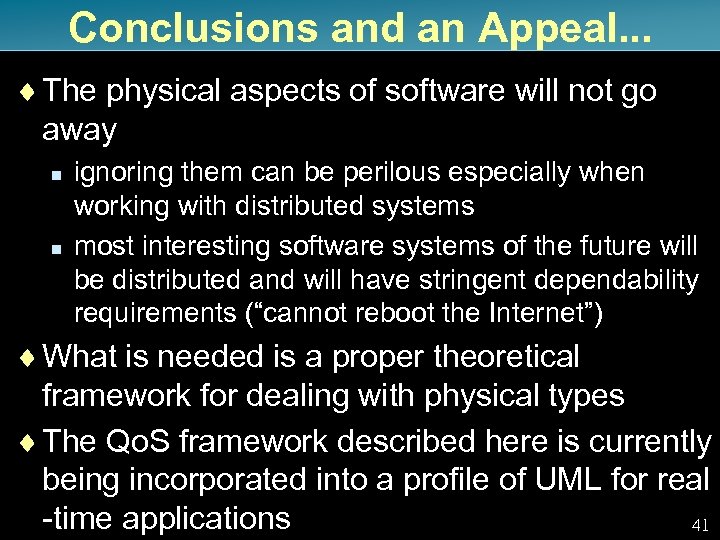

Conclusions and an Appeal. . . ¨ The physical aspects of software will not go away n n ignoring them can be perilous especially when working with distributed systems most interesting software systems of the future will be distributed and will have stringent dependability requirements (“cannot reboot the Internet”) ¨ What is needed is a proper theoretical framework for dealing with physical types ¨ The Qo. S framework described here is currently being incorporated into a profile of UML for real -time applications 41
