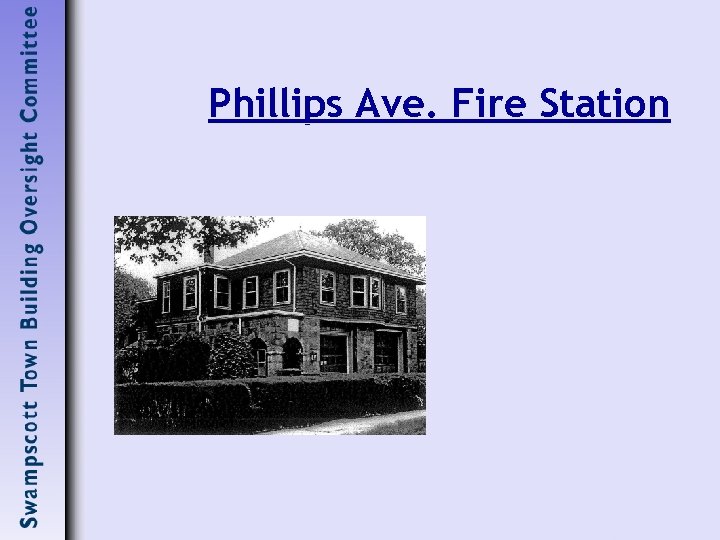

Phillips Ave. Fire Station Phillips Ave. Fire Station

The Fire Station: The Fire Station:

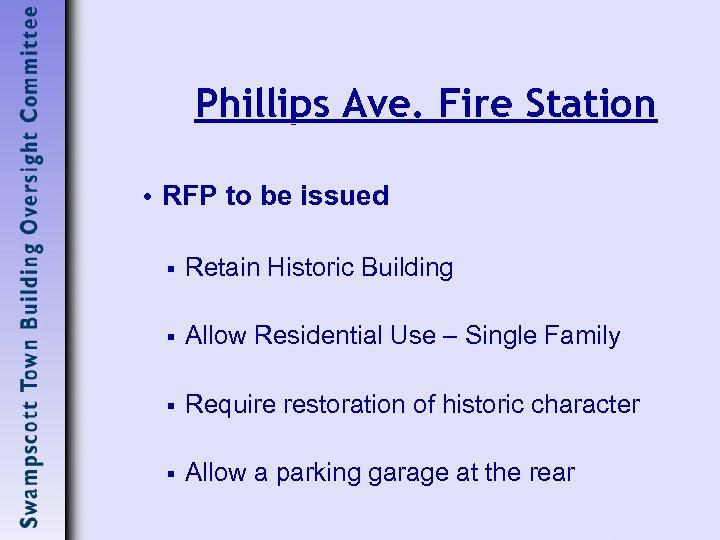

Phillips Ave. Fire Station • RFP to be issued § Retain Historic Building § Phillips Ave. Fire Station • RFP to be issued § Retain Historic Building § Allow Residential Use – Single Family § Require restoration of historic character § Allow a parking garage at the rear

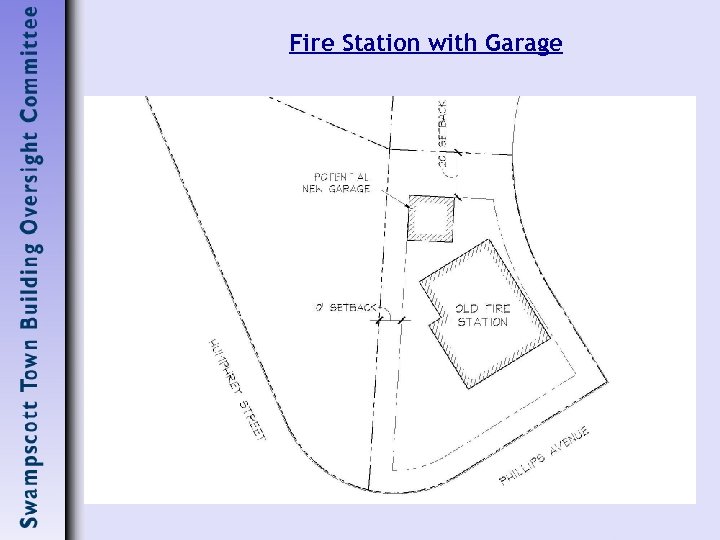

Fire Station with Garage Fire Station with Garage

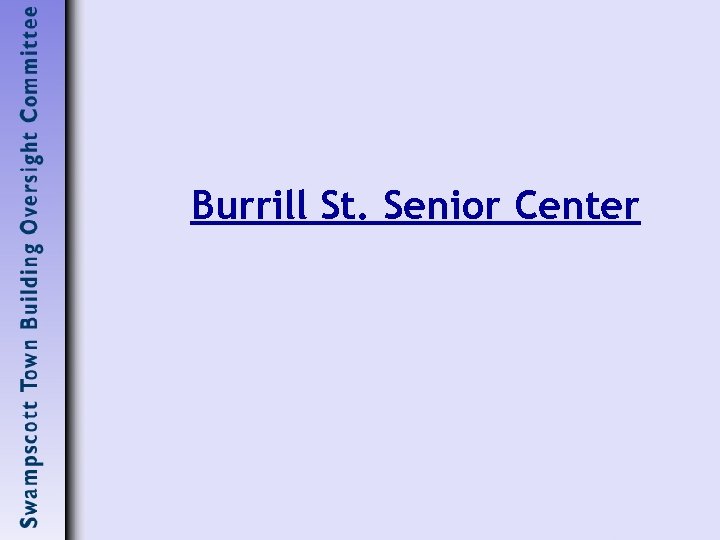

Burrill St. Senior Center Burrill St. Senior Center

Burrill St. Senior Center Built: 1885 Building – 4, 250 s. f. Lot Size Burrill St. Senior Center Built: 1885 Building – 4, 250 s. f. Lot Size – 9, 147 s. f. Assessed – $501, 300

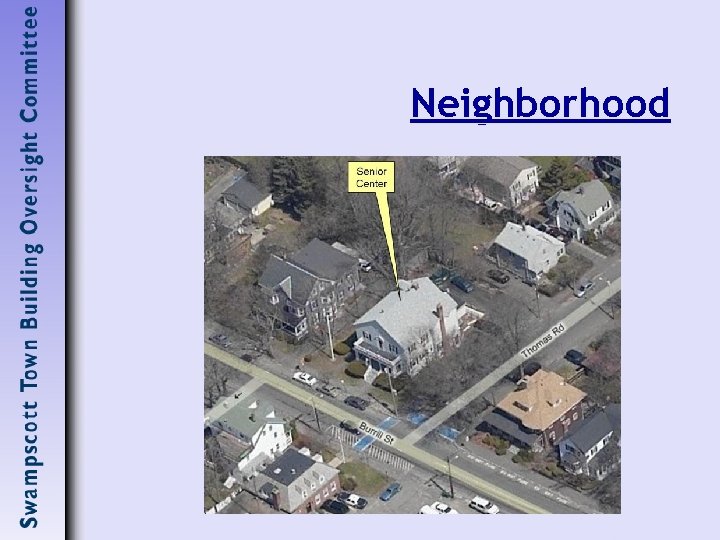

Neighborhood Neighborhood

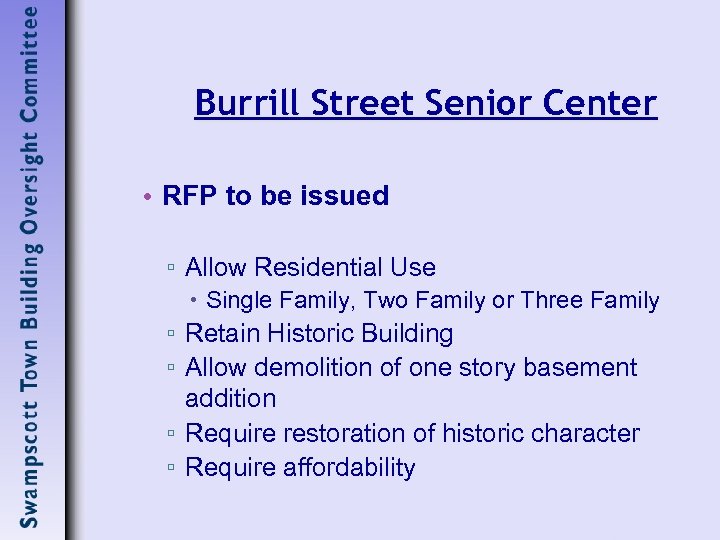

Burrill Street Senior Center • RFP to be issued ▫ Allow Residential Use Single Burrill Street Senior Center • RFP to be issued ▫ Allow Residential Use Single Family, Two Family or Three Family ▫ Retain Historic Building ▫ Allow demolition of one story basement addition ▫ Require restoration of historic character ▫ Require affordability

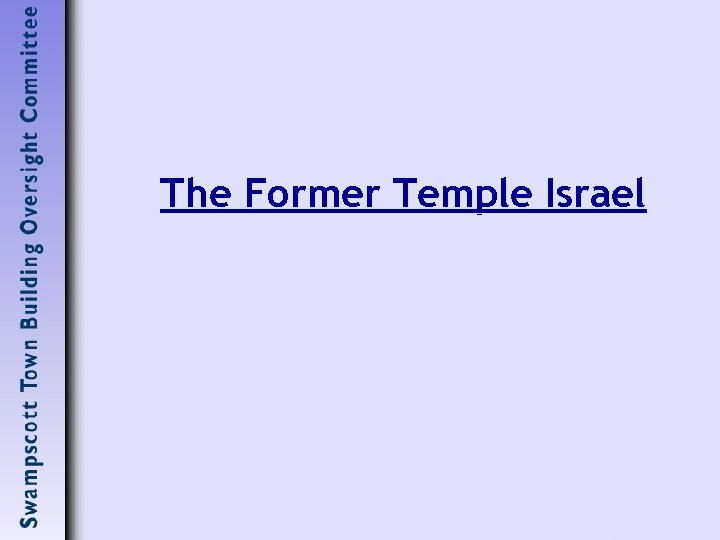

The Former Temple Israel The Former Temple Israel

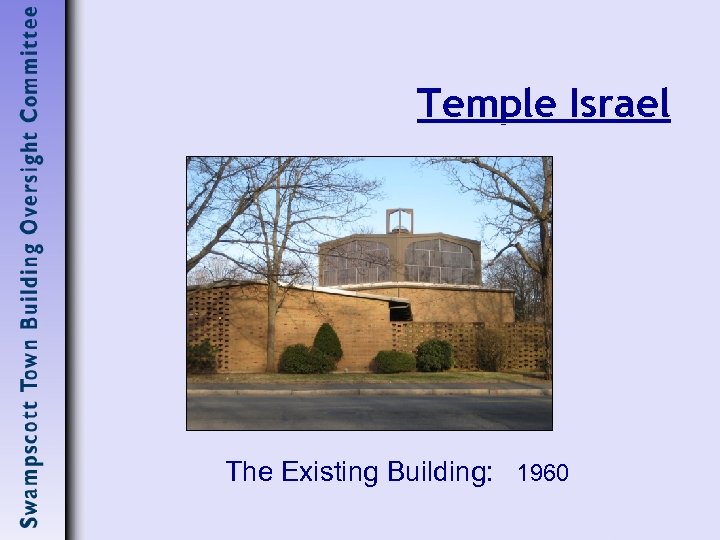

Temple Israel The Existing Building: 1960 Temple Israel The Existing Building: 1960

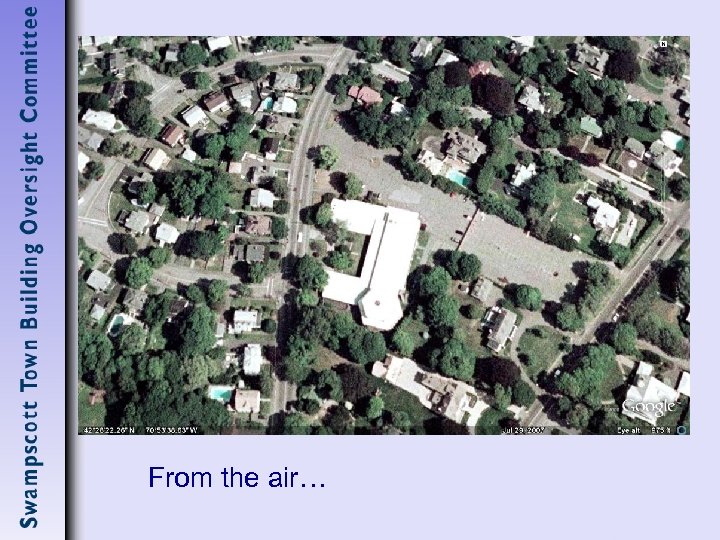

From the air… From the air…

Height - Sections Height - Sections

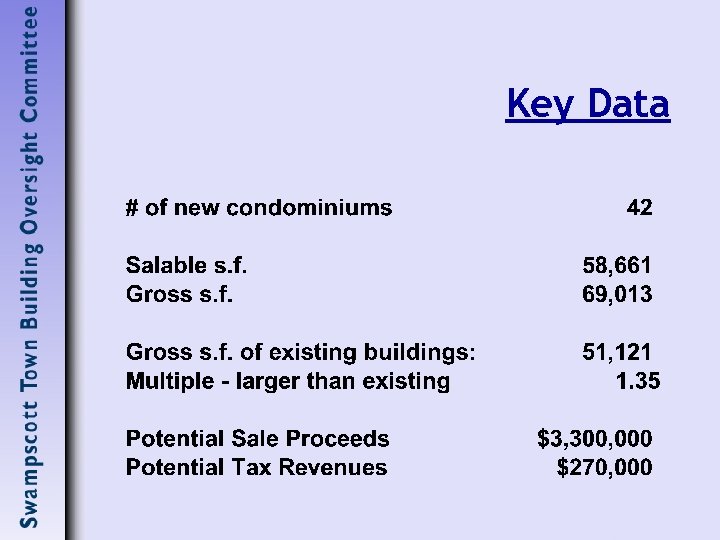

Key Data Key Data

Site Coverage Site Coverage

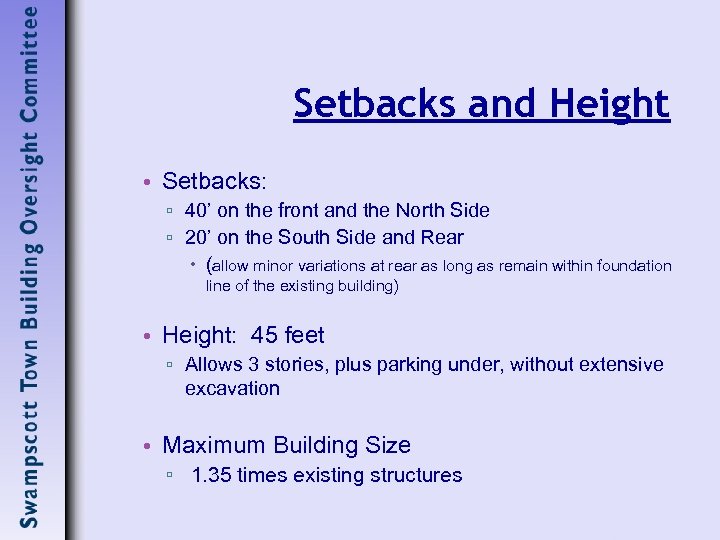

Setbacks and Height • Setbacks: ▫ 40’ on the front and the North Side Setbacks and Height • Setbacks: ▫ 40’ on the front and the North Side ▫ 20’ on the South Side and Rear (allow minor variations at rear as long as remain within foundation line of the existing building) • Height: 45 feet ▫ Allows 3 stories, plus parking under, without extensive excavation • Maximum Building Size ▫ 1. 35 times existing structures

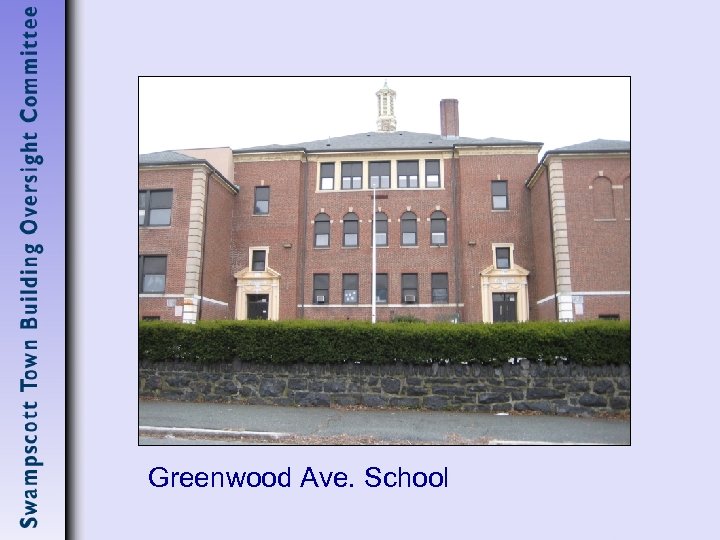

Greenwood Ave. School Greenwood Ave. School

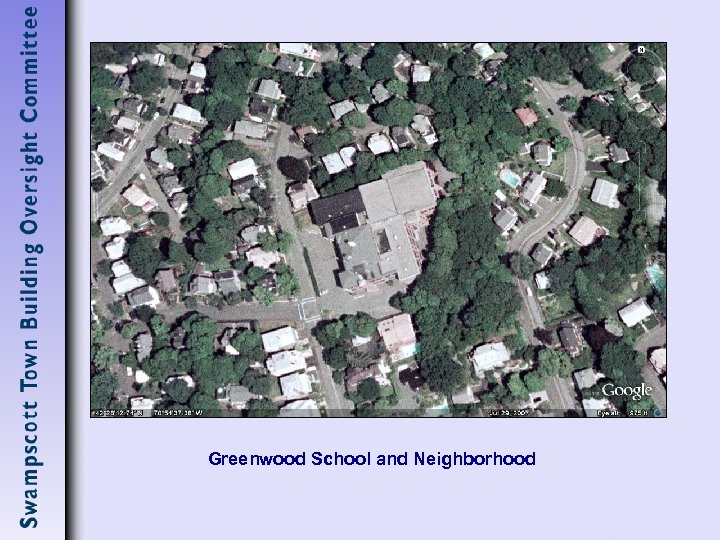

Greenwood School and Neighborhood Greenwood School and Neighborhood

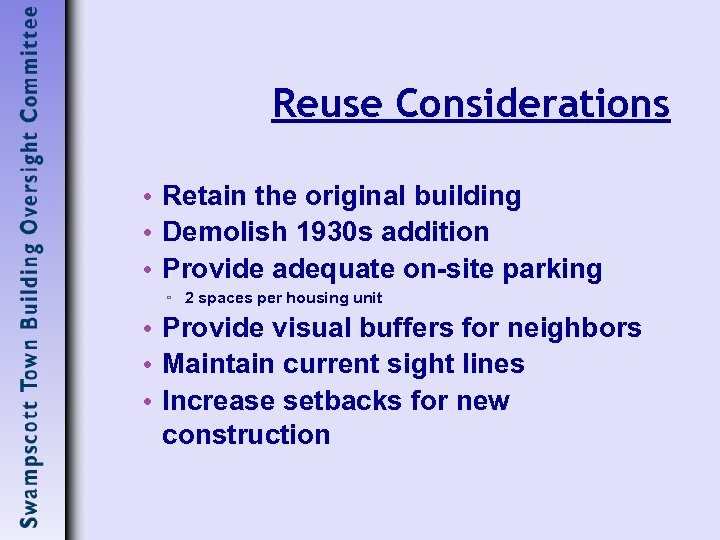

Reuse Considerations • Retain the original building • Demolish 1930 s addition • Provide Reuse Considerations • Retain the original building • Demolish 1930 s addition • Provide adequate on-site parking ▫ 2 spaces per housing unit • Provide visual buffers for neighbors • Maintain current sight lines • Increase setbacks for new construction

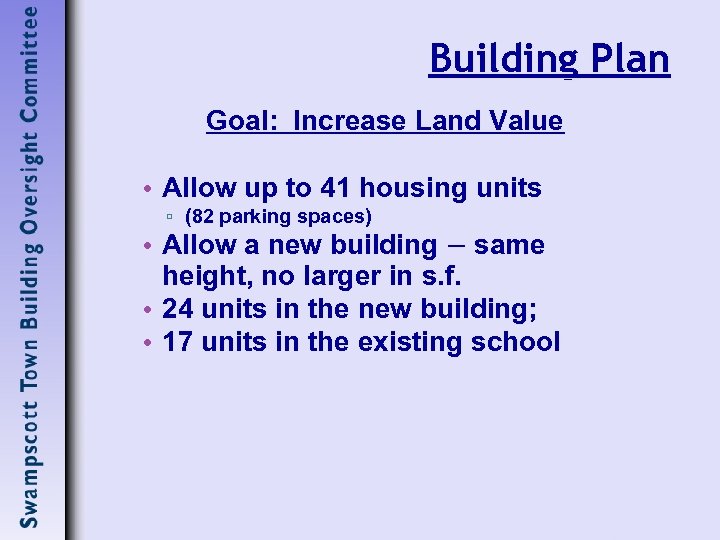

Building Plan Goal: Increase Land Value • Allow up to 41 housing units ▫ Building Plan Goal: Increase Land Value • Allow up to 41 housing units ▫ (82 parking spaces) • Allow a new building – same height, no larger in s. f. • 24 units in the new building; • 17 units in the existing school

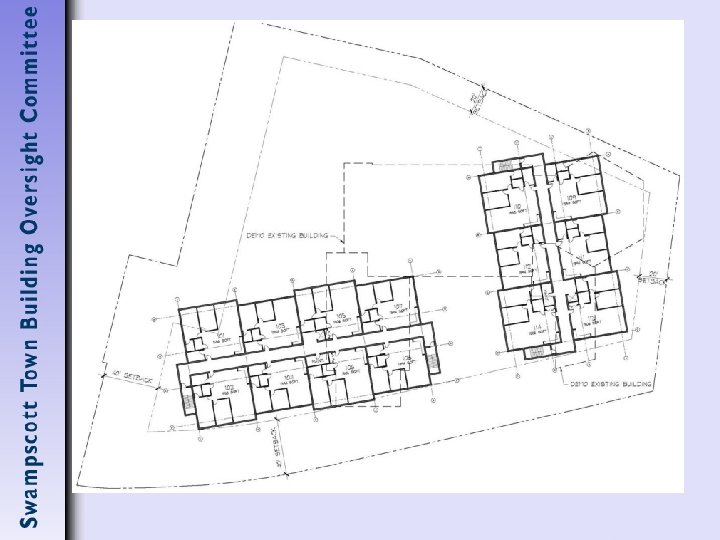

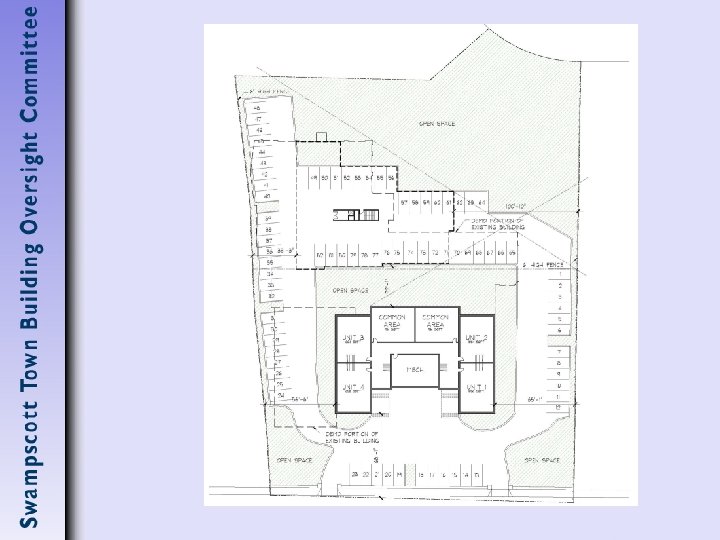

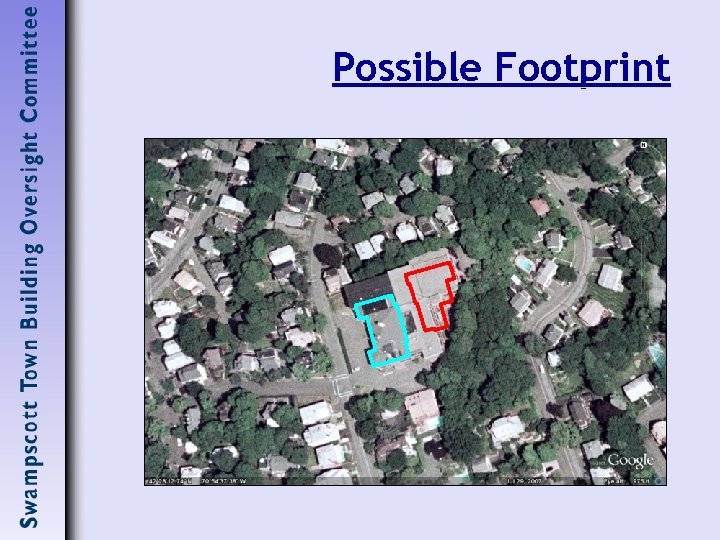

Possible Footprint Possible Footprint

Sections / Height Sections / Height
