Phase Technology FPA-70 Xi Freeze Point Analyzer

Phase. Technology FPA-70 Xi Freeze Point Analyzer

About Phase Technology § Expertise: Design & manufacture of analyzers to test cloud, pour and freeze point w Cold Flow is All We Do! w § Scientific Background: w § 29 year history of research; 30 patents Market Leader: 20 years of inter-laboratory “round robin” research w Phase ranks highest for repeatability, reproducibility, sensitivity and equivalency to reference manual test methods w

Phase Technology customers

Why do more companies in the world choo Phase Technology analyzers?

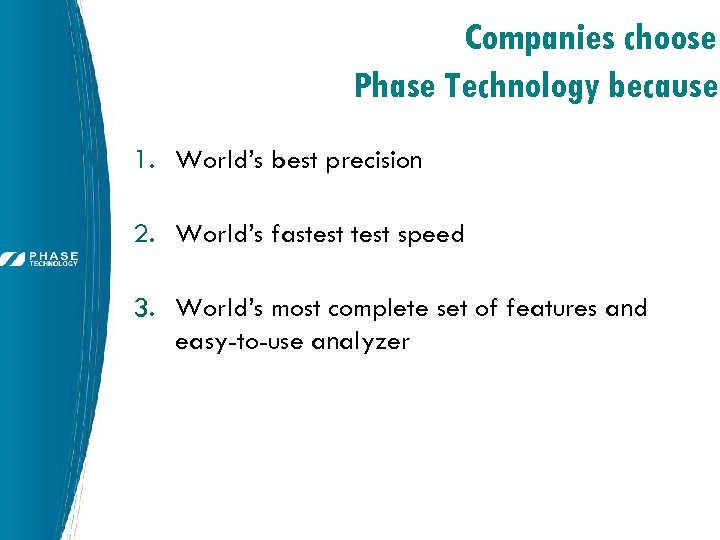

Companies choose Phase Technology because: 1. World’s best precision 2. World’s fastest speed 3. World’s most complete set of features and easy-to-use analyzer

Phase Technology 70 X

70 Xi analyzer benefits § Fastest speed of any automatic or manual method: w Average test duration 8 – 10 min w Average operator time 0. 5 – 2 min § Unsurpassed detection of contamination in jet fuels § Powerful cooling system; minimum sample temperature to below -88°C [-126°F]

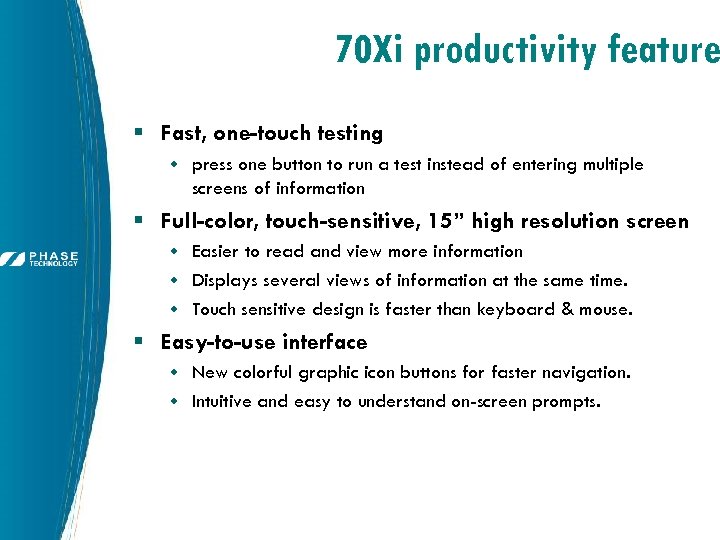

70 Xi productivity feature § Fast, one-touch testing w press one button to run a test instead of entering multiple screens of information § Full-color, touch-sensitive, 15” high resolution screen w Easier to read and view more information w Displays several views of information at the same time. w Touch sensitive design is faster than keyboard & mouse. § Easy-to-use interface w New colorful graphic icon buttons for faster navigation. w Intuitive and easy to understand on-screen prompts.

70 Xi productivity feature § USB and Ethernet connectivity w Quickly export analyzer data to a portable USB flash drive. w Ethernet port available for connecting to LIMS or internal computer network w Import and store any user documents (. doc, . pdf, . ppt and. pps) for customized operating procedures (SOP) or training § Reliability improvements w Modular component design – boards can be easily replaced in the field; no need to return to Canada for service w More stable cooler w Faster multiprocessor

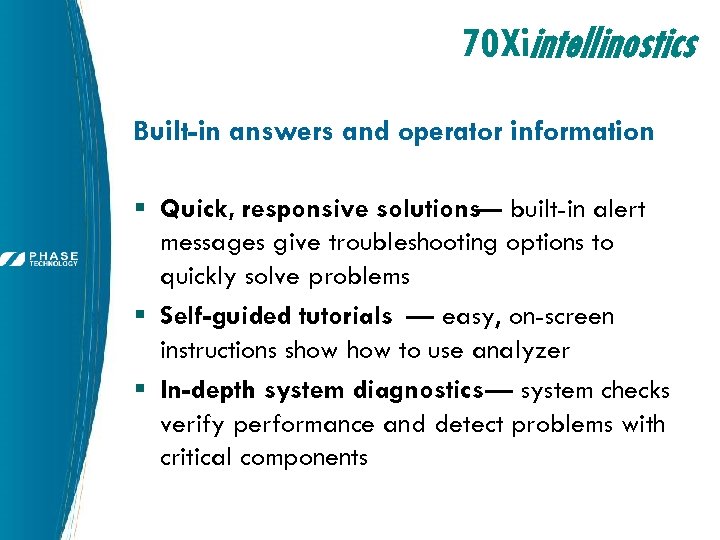

70 Xiintellinostics Built-in answers and operator information § Quick, responsive solutions built-in alert — messages give troubleshooting options to quickly solve problems § Self-guided tutorials — easy, on-screen instructions show to use analyzer § In-depth system diagnostics — system checks verify performance and detect problems with critical components

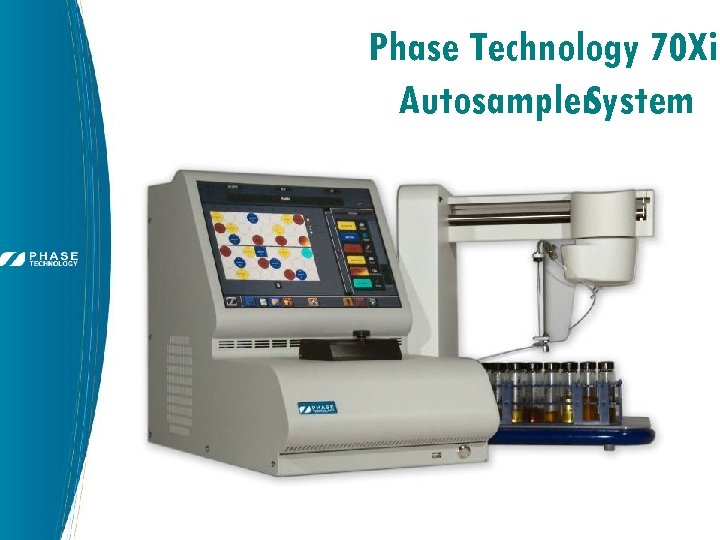

Phase Technology 70 Xi Autosampler System

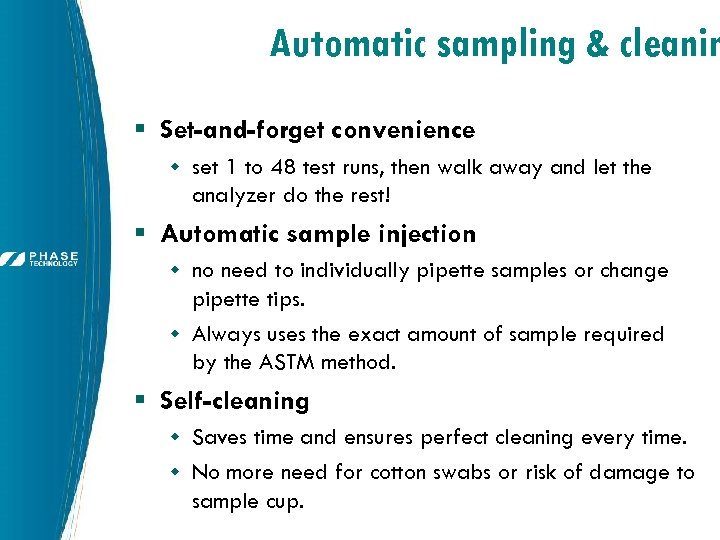

Automatic sampling & cleanin § Set-and-forget convenience w set 1 to 48 test runs, then walk away and let the analyzer do the rest! § Automatic sample injection w no need to individually pipette samples or change pipette tips. w Always uses the exact amount of sample required by the ASTM method. § Self-cleaning w Saves time and ensures perfect cleaning every time. w No more need for cotton swabs or risk of damage to sample cup.

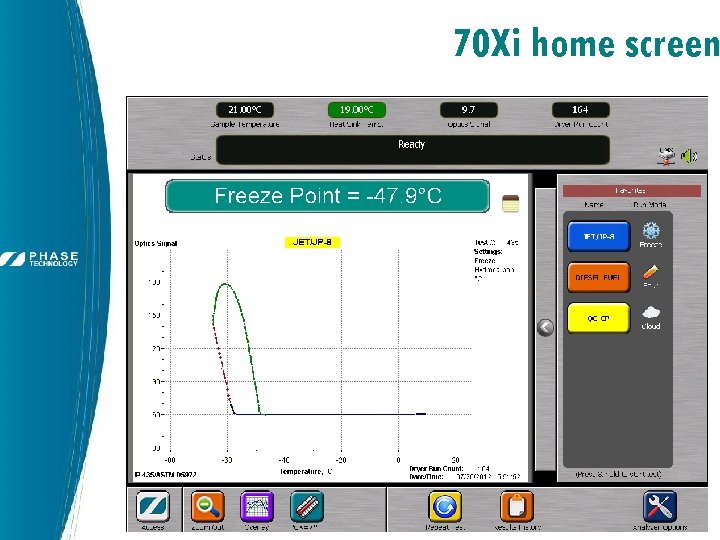

70 Xi home screen

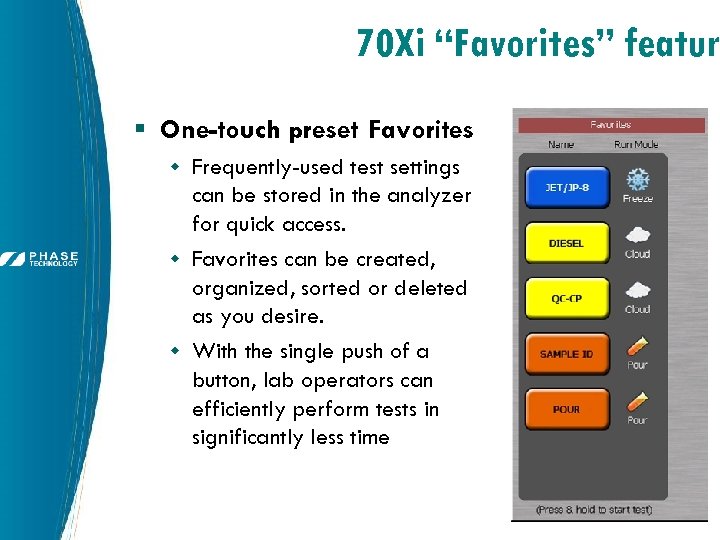

70 Xi “Favorites” featur § One-touch preset Favorites w Frequently-used test settings can be stored in the analyzer for quick access. w Favorites can be created, organized, sorted or deleted as you desire. w With the single push of a button, lab operators can efficiently perform tests in significantly less time

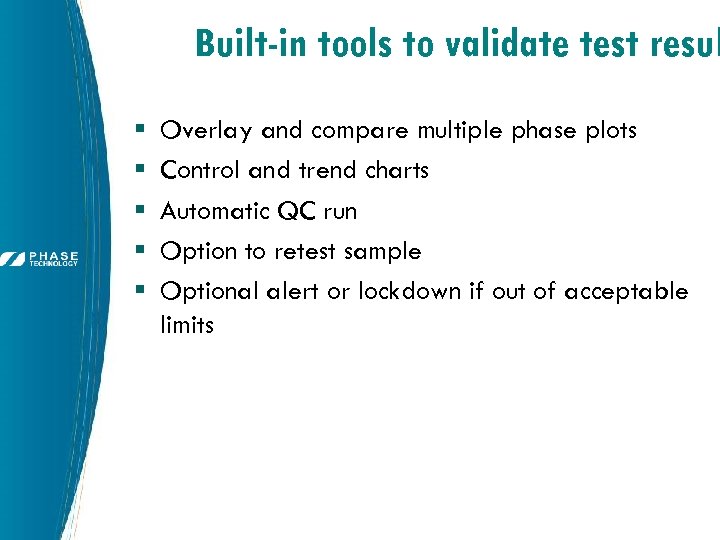

Built-in tools to validate test resul § § § Overlay and compare multiple phase plots Control and trend charts Automatic QC run Option to retest sample Optional alert or lockdown if out of acceptable limits

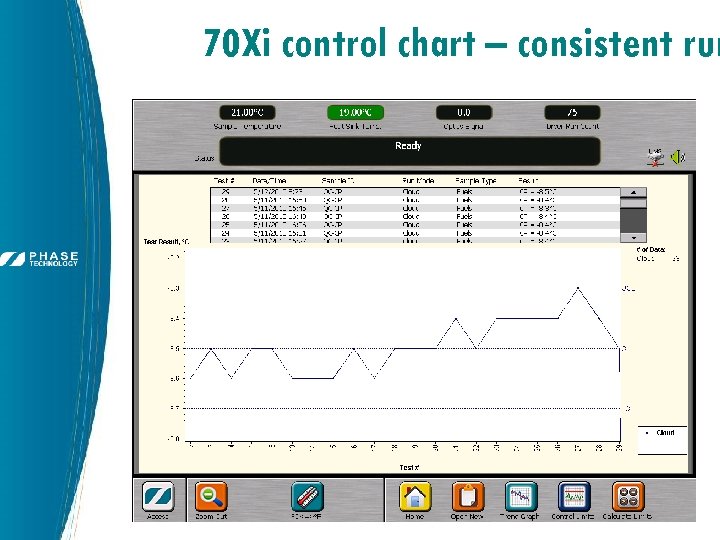

70 Xi control chart – consistent run

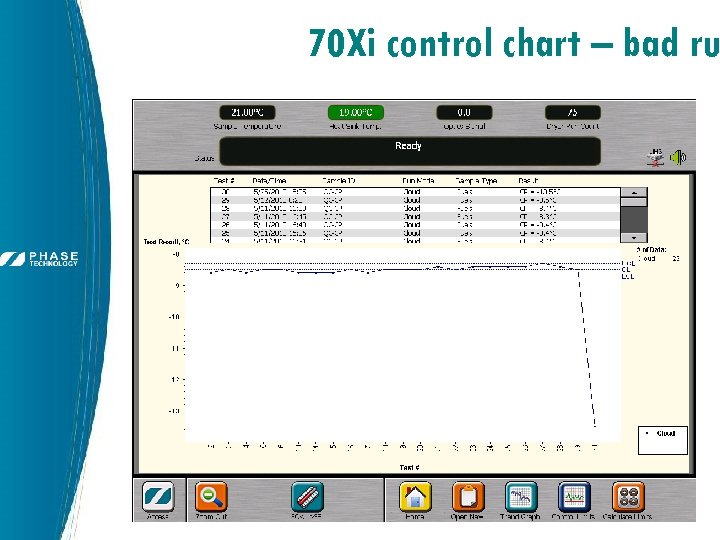

70 Xi control chart – bad ru

70 Xi plot overlay – consistent run

70 Xi plot overlay – bad run

On-screen freeze point phase plo

Understanding phase plots

Phase plot can tell you when there is a proble example of contaminated sample with “ta

ASTM Methods Comparison

FREEZE POINT ASTM Method Compariso Phase Technology 70 Xi ISL/PAC FZP 52 Gs Manual Method ASTM Freeze Point Method D 5972 D 7153 D 2386 Repeatability 0. 5°C 0. 6°C 1. 5°C Reproducibility 0. 8°C 0. 9°C 2. 5°C No Yes N/A 96% 88% 19% No yes 8 to 10 minutes 15 to 30 minutes 60 to 120 minutes Test bias relative to manual method Full coverage contamination detection (ASTM RR-1572) False warming Test duration -88°C to +55°C Varies depending on external bath Temperature range Sample volume External cooler or bath required 0. 15 ml 10 ml 25 ml no no Yes

FREEZE POINT ASTM Method Compariso § § ISL/PAC takes 2 to 3 times longer to run a freeze point test compared to Phase Technology ISL/PAC FZP 52 Gs freeze point analyzer has serious false warming issues • • Numerous studies have shown high incidence of false warming – as high as 60% in a BP study Shell Bulletin GLN 33 a (September 14, 2006) warned that ISL “can occasionally falsely show a failure if samples contain small amounts of high boiling point material”

The Phase Technology ADVANTAGE: § Phase Technology’s 70 X analyzer is 4 to 10 times faster than the competition! § Phase Technology’s 70 Xi analyzer has the world’s best precision, best detection of contamination, and zero bias! § The PSA-70 Xi requires much less sample: 4 to 14 ml less needed per test!

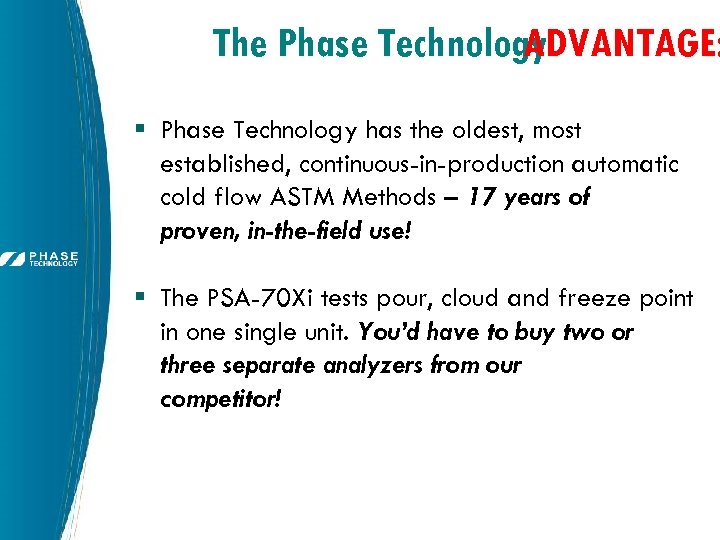

The Phase Technology ADVANTAGE: § Phase Technology has the oldest, most established, continuous-in-production automatic cold flow ASTM Methods – 17 years of proven, in-the-field use! § The PSA-70 Xi tests pour, cloud and freeze point in one single unit. You’d have to buy two or three separate analyzers from our competitor!

Thank you! For more information: phase-technology. com
