Pervasive / Wireless e-business IBM RFID Solutions IT Solutions for Business Value Jean-Michel Corrieu IBM Europe, Pervasive/Wireless e-Business Technical Sales Manager May 25 th
What is Wireless Computing “A billion people will interact with a million e-businesses via a trillion intelligent interconnected devices” – Louis V Gerstner, Jr. , 1999 2 e-business on demand
Any device 3 e-business on demand

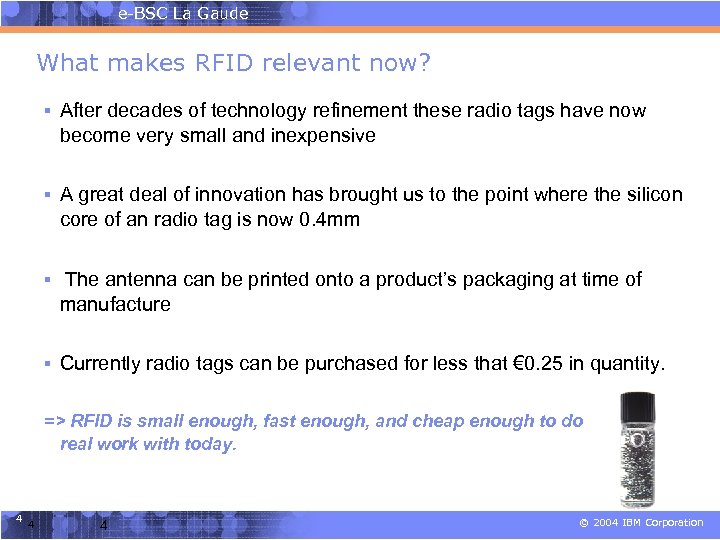

e-BSC La Gaude What makes RFID relevant now? § After decades of technology refinement these radio tags have now become very small and inexpensive § A great deal of innovation has brought us to the point where the silicon core of an radio tag is now 0. 4 mm § The antenna can be printed onto a product’s packaging at time of manufacture § Currently radio tags can be purchased for less that € 0. 25 in quantity. => RFID is small enough, fast enough, and cheap enough to do real work with today. 4 4 4 ©© 2004 IBM Corporation 2003 Copyright IBM Corporation

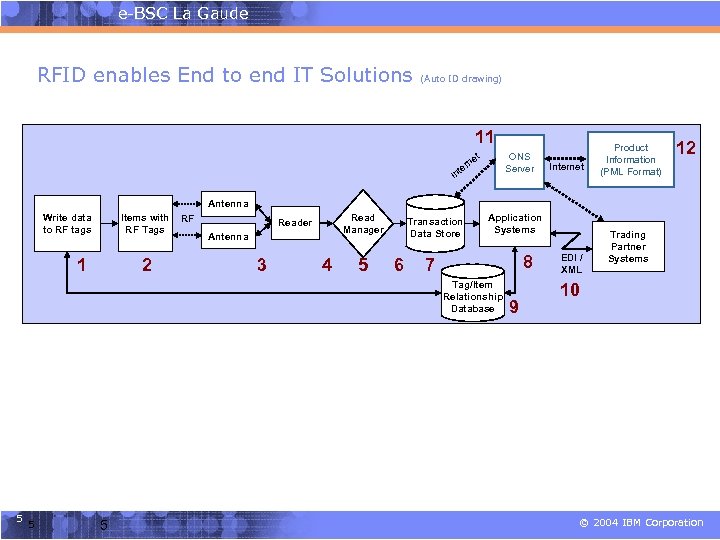

e-BSC La Gaude RFID enables End to end IT Solutions (Auto ID drawing) 11 t ne ONS Server r te In Internet Product Information (PML Format) 12 Antenna Items with RF Tags Write data to RF tags 1 2 RF Read Manager Reader Antenna 3 4 5 Transaction Data Store 6 Application Systems 8 7 Tag/Item Relationship Database 5 5 5 9 EDI / XML Trading Partner Systems 10 ©© 2004 IBM Corporation 2003 Copyright IBM Corporation

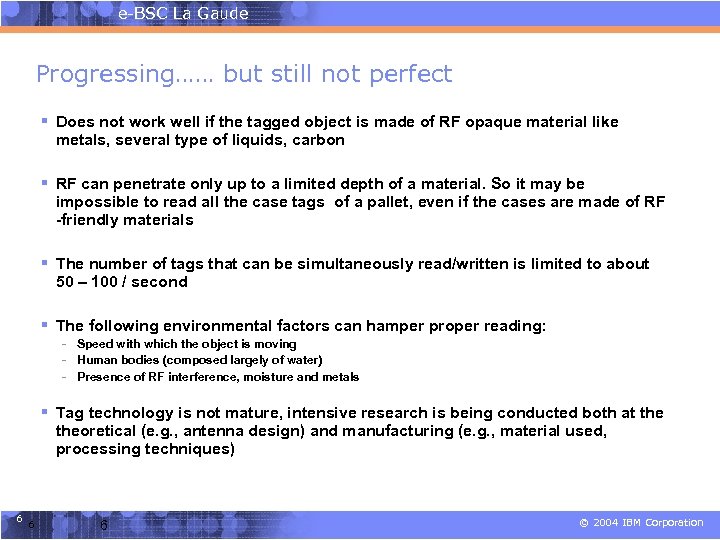

e-BSC La Gaude Progressing…… but still not perfect § Does not work well if the tagged object is made of RF opaque material like metals, several type of liquids, carbon § RF can penetrate only up to a limited depth of a material. So it may be impossible to read all the case tags of a pallet, even if the cases are made of RF -friendly materials § The number of tags that can be simultaneously read/written is limited to about 50 – 100 / second § The following environmental factors can hamper proper reading: - Speed with which the object is moving Human bodies (composed largely of water) Presence of RF interference, moisture and metals § Tag technology is not mature, intensive research is being conducted both at theoretical (e. g. , antenna design) and manufacturing (e. g. , material used, processing techniques) 6 6 6 ©© 2004 IBM Corporation 2003 Copyright IBM Corporation

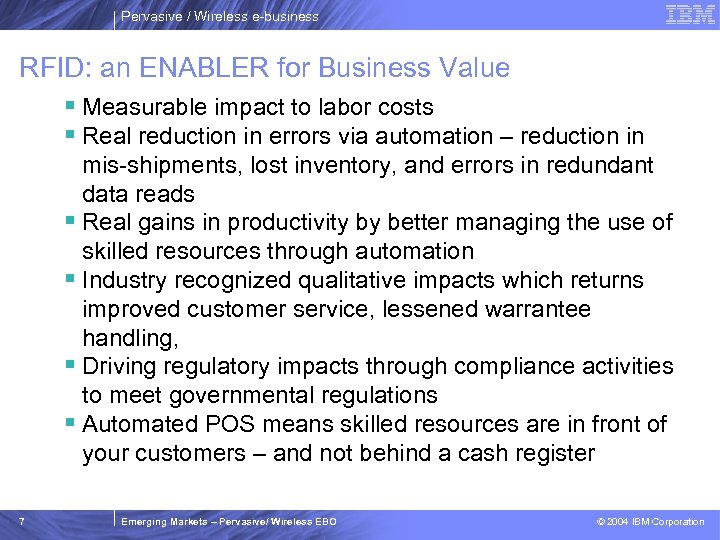

Pervasive / Wireless e-business RFID: an ENABLER for Business Value § Measurable impact to labor costs § Real reduction in errors via automation – reduction in mis-shipments, lost inventory, and errors in redundant data reads § Real gains in productivity by better managing the use of skilled resources through automation § Industry recognized qualitative impacts which returns improved customer service, lessened warrantee handling, § Driving regulatory impacts through compliance activities to meet governmental regulations § Automated POS means skilled resources are in front of your customers – and not behind a cash register 7 Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation

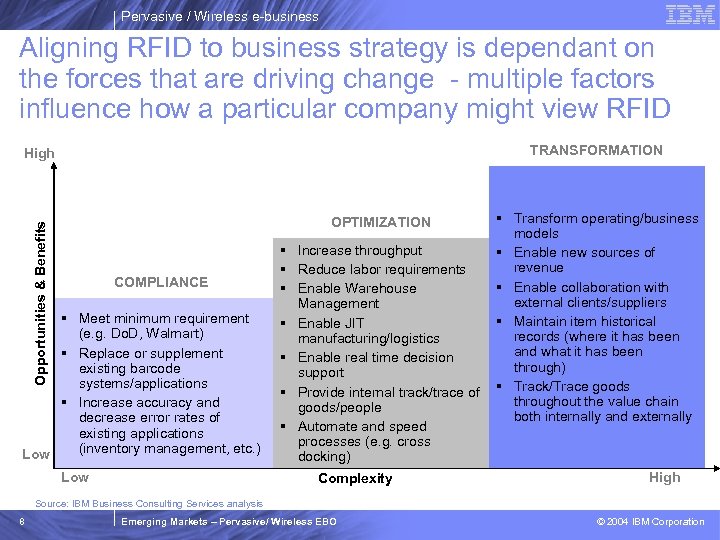

Pervasive / Wireless e-business Aligning RFID to business strategy is dependant on the forces that are driving change - multiple factors influence how a particular company might view RFID TRANSFORMATION High Opportunities & Benefits OPTIMIZATION COMPLIANCE § Meet minimum requirement (e. g. Do. D, Walmart) § Replace or supplement existing barcode systems/applications § Increase accuracy and decrease error rates of existing applications (inventory management, etc. ) Low § Increase throughput § Reduce labor requirements § Enable Warehouse Management § Enable JIT manufacturing/logistics § Enable real time decision support § Provide internal track/trace of goods/people § Automate and speed processes (e. g. cross docking) Complexity § Transform operating/business models § Enable new sources of revenue § Enable collaboration with external clients/suppliers § Maintain item historical records (where it has been and what it has been through) § Track/Trace goods throughout the value chain both internally and externally High Source: IBM Business Consulting Services analysis 8 Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation

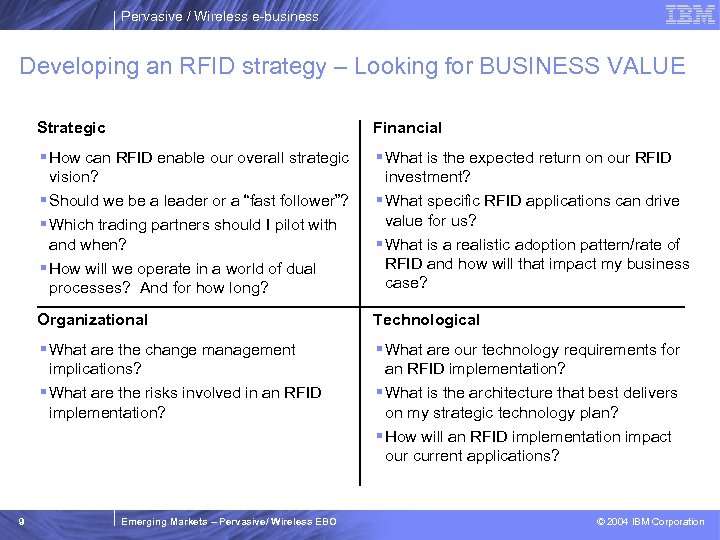

Pervasive / Wireless e-business Developing an RFID strategy – Looking for BUSINESS VALUE Strategic § How can RFID enable our overall strategic vision? § Should we be a leader or a “fast follower”? § Which trading partners should I pilot with and when? § How will we operate in a world of dual processes? And for how long? § What is the expected return on our RFID investment? § What specific RFID applications can drive value for us? § What is a realistic adoption pattern/rate of RFID and how will that impact my business case? Organizational Technological § What are the change management implications? § What are the risks involved in an RFID implementation? 9 Financial § What are our technology requirements for an RFID implementation? § What is the architecture that best delivers on my strategic technology plan? § How will an RFID implementation impact our current applications? Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation
Business Value Bu s. P es sin se es s Business Transformation roc Innovative business designs that sharpen focus and accelerate growth On Demand Operating Environment An IT operating environment optimized for flexibility and resilience Integrated, end-to-end business processes that are built to change Based on real customer cases with real business processes 10 e-business on demand

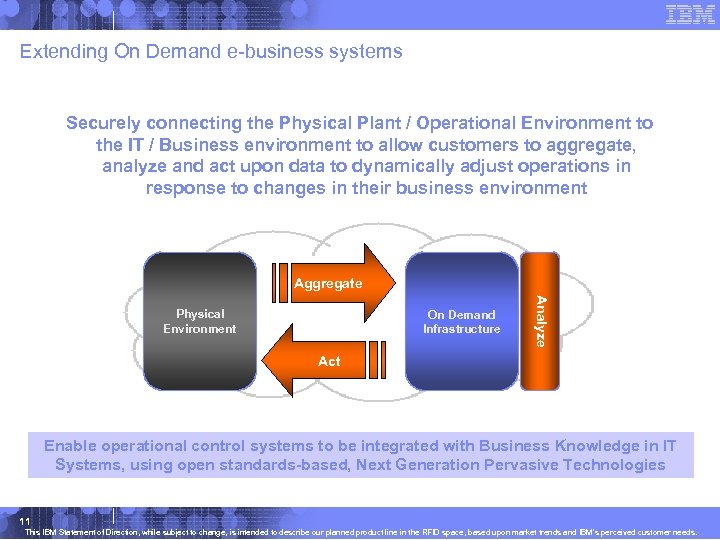

Extending On Demand e-business systems Securely connecting the Physical Plant / Operational Environment to the IT / Business environment to allow customers to aggregate, analyze and act upon data to dynamically adjust operations in response to changes in their business environment Aggregate On Demand Infrastructure Analyze Physical Environment Act Enable operational control systems to be integrated with Business Knowledge in IT Systems, using open standards-based, Next Generation Pervasive Technologies 11 This IBM Statement of Direction, while subject to change, is intended to describe our planned product line in the RFID space, based upon market trends and IBM’s perceived customer needs.
RFID Across All Sectors Pervasive / Wireless e-business RFID across industry sectors Industrial Healthcare Retail/CPG Government Logistics 12 Emerging Markets – Pervasive/ Wireless EBO Field Service © 2004 IBM Corporation

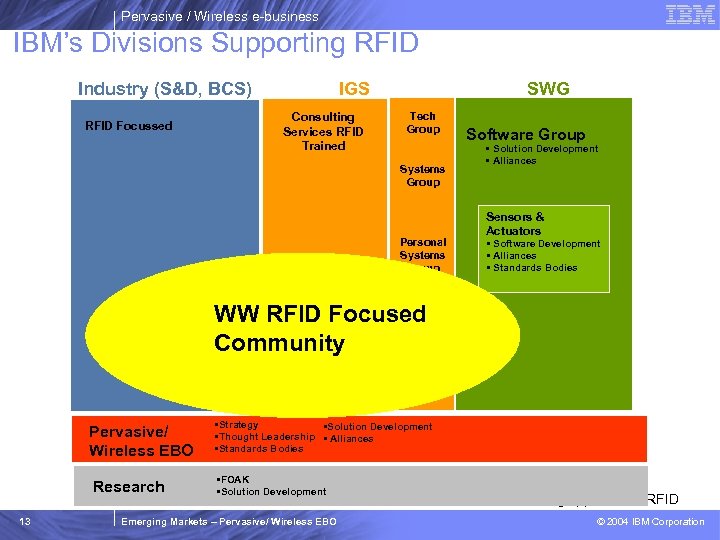

Pervasive / Wireless e-business IBM’s Divisions Supporting RFID Industry (S&D, BCS) RFID Focussed IGS Consulting Services RFID Trained SWG Tech Group Systems Group Personal Systems Group Software Group • Solution Development • Alliances Sensors & Actuators § Software Development § Alliances § Standards Bodies WW RFID Focused Community Pervasive/ Wireless EBO Research 13 §Strategy §Solution Development §Thought Leadership § Alliances §Standards Bodies §FOAK §Solution Development IBM has a matrix, non-hierarchical teaming approach to RFID Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation

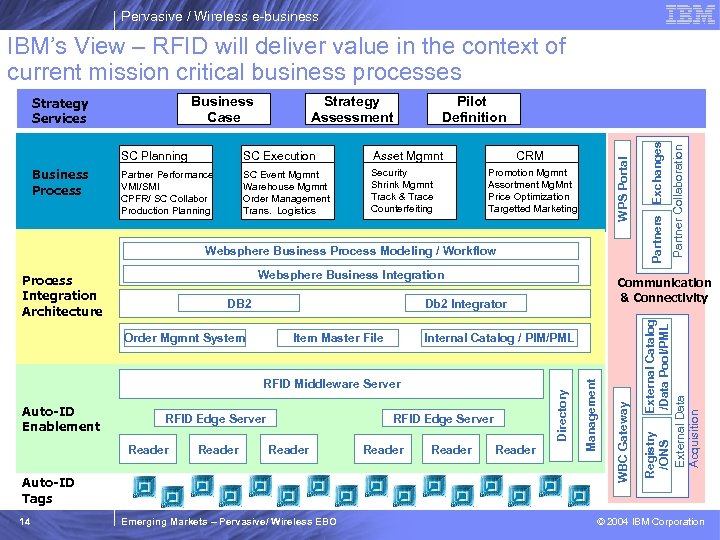

Pervasive / Wireless e-business IBM’s View – RFID will deliver value in the context of current mission critical business processes SC Event Mgmnt Warehouse Mgmnt Order Management Trans. Logistics Partner Performance VMI/SMI CPFR/ SC Collabor Production Planning Asset Mgmnt Security Shrink Mgmnt Track & Trace Counterfeiting CRM Promotion Mgmnt Assortment Mg. Mnt Price Optimization Targetted Marketing Websphere Business Process Modeling / Workflow Websphere Business Integration For Collaboration DB 2 Db 2 Integrator Item Master File Internal Catalog / PIM/PML RFID Edge Server Reader Auto-ID Tags 14 Directory RFID Middleware Server Emerging Markets – Pervasive/ Wireless EBO Reader WBC Gateway Order Mgmnt System Auto-ID Enablement Communication & Connectivity Management Process Integration Architecture Partner Collaboration SC Execution Partners Exchanges Business Process Pilot Definition Registry External Catalog /ONS /Data Pool/PML External Data Acquisition SC Planning Strategy Assessment WPS Portal Business Case Strategy Services © 2004 IBM Corporation

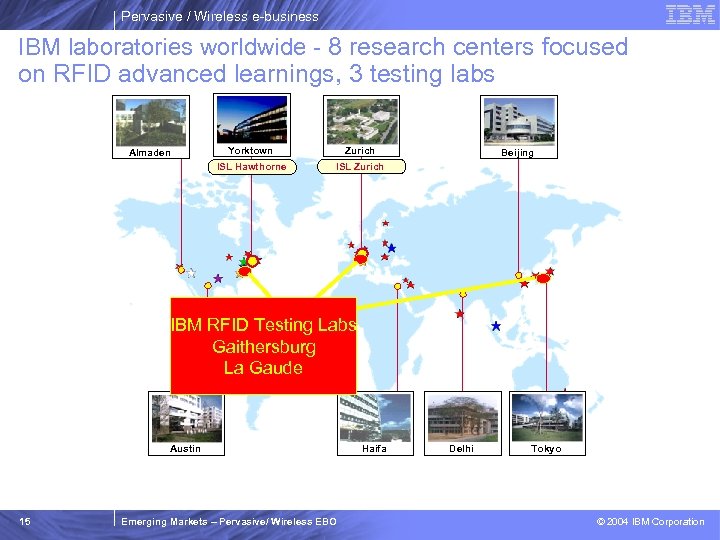

Pervasive / Wireless e-business IBM laboratories worldwide - 8 research centers focused on RFID advanced learnings, 3 testing labs Yorktown Zurich ISL Hawthorne Almaden ISL Zurich Beijing IBM RFID Testing Labs Gaithersburg La Gaude Austin 15 Emerging Markets – Pervasive/ Wireless EBO Haifa Delhi Tokyo © 2004 IBM Corporation

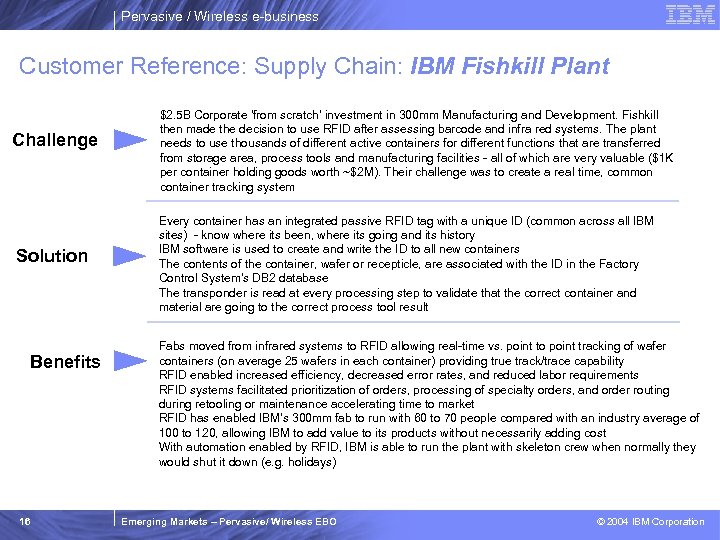

Pervasive / Wireless e-business Customer Reference: Supply Chain: IBM Fishkill Plant Challenge Solution Benefits 16 • $2. 5 B Corporate 'from scratch' investment in 300 mm Manufacturing and Development. Fishkill then made the decision to use RFID after assessing barcode and infra red systems. The plant needs to use thousands of different active containers for different functions that are transferred from storage area, process tools and manufacturing facilities - all of which are very valuable ($1 K per container holding goods worth ~$2 M). Their challenge was to create a real time, common container tracking system • Every container has an integrated passive RFID tag with a unique ID (common across all IBM sites) - know where its been, where its going and its history • IBM software is used to create and write the ID to all new containers • The contents of the container, wafer or recepticle, are associated with the ID in the Factory Control System's DB 2 database • The transponder is read at every processing step to validate that the correct container and material are going to the correct process tool result • Fabs moved from infrared systems to RFID allowing real-time vs. point to point tracking of wafer containers (on average 25 wafers in each container) providing true track/trace capability • RFID enabled increased efficiency, decreased error rates, and reduced labor requirements • RFID systems facilitated prioritization of orders, processing of specialty orders, and order routing during retooling or maintenance accelerating time to market • RFID has enabled IBM’s 300 mm fab to run with 60 to 70 people compared with an industry average of 100 to 120, allowing IBM to add value to its products without necessarily adding cost • With automation enabled by RFID, IBM is able to run the plant with skeleton crew when normally they would shut it down (e. g. holidays) Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation

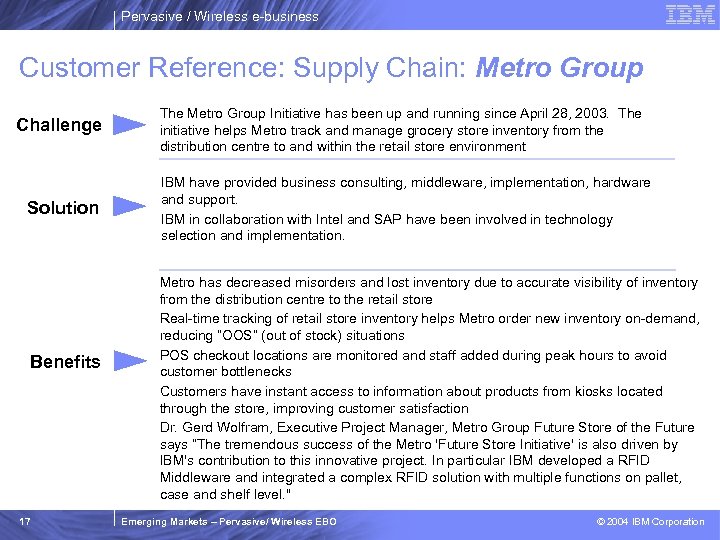

Pervasive / Wireless e-business Customer Reference: Supply Chain: Metro Group Challenge Solution Benefits 17 § The Metro Group Initiative has been up and running since April 28, 2003. The initiative helps Metro track and manage grocery store inventory from the distribution centre to and within the retail store environment § IBM have provided business consulting, middleware, implementation, hardware and support. § IBM in collaboration with Intel and SAP have been involved in technology selection and implementation. § Metro has decreased misorders and lost inventory due to accurate visibility of inventory from the distribution centre to the retail store § Real-time tracking of retail store inventory helps Metro order new inventory on-demand, reducing “OOS” (out of stock) situations § POS checkout locations are monitored and staff added during peak hours to avoid customer bottlenecks § Customers have instant access to information about products from kiosks located through the store, improving customer satisfaction § Dr. Gerd Wolfram, Executive Project Manager, Metro Group Future Store of the Future says “The tremendous success of the Metro 'Future Store Initiative' is also driven by IBM's contribution to this innovative project. In particular IBM developed a RFID Middleware and integrated a complex RFID solution with multiple functions on pallet, case and shelf level. " Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation
Pervasive / Wireless e-business Customer Reference: Supply Chain: Philips Semiconductors Challenge Solution Benefits 18 • The objective of the project was to help Philips increase inventory turns. The project provides near real-time inventory visibility to the Philips Semiconductors business units. It will also enable changes to policies in production and inventory planning systems which will, in turn, drive increased inventory turns • The project is initially between the Philips Semiconductors Kaohsiung (PSK) site and the Regional Distribution Center Hong Kong (RDC HK) on all packaged quantities and boxes, all customer direct ships (cartons) in AP from the PSK location, all cartons sent from the RDC HK to all destinations and for EXEL (3 PL) all outbound flows in Hong Kong • IBM provided an end-to-end solution that encompasses: • Services to support Philips Semiconductors in the STAR proof of concept project approach will be delivered during the following project phases (total duration 30 weeks), in particular: • Vendor selection • Design and validation • Construction and testing • Targeted launch • Evaluation • Intellectual property services components; IBM proprietary radio frequency identification (RFID) framework and documentation • IBM software licences: • DB 2 UDB Enterprise Edition (including one year maintenance) • 2 Websphere studio application developers for the proof of concept (including one year maintenance) § This project will help PSC to further optimize its supply chain and is another step in the route to become an on demand company. The savings will be used to reinvest in competitive advantage and growth. Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation
Pervasive / Wireless e-business Customer Reference: Supply Chain: US Department of Defense Challenge Solution Benefits 19 § The U. S. Department of Defense is dedicated to becoming an early adopter of Radio Frequency Identification (RFID) technology. The Do. D is currently preparing to read RFID tags at key sites within their supply chain. Beginning January 1, 2005, the Department of Defense has mandated that all suppliers place passive RFID tags at the case, pallet, and Defense Department Unique Identifier (UID) item packing level. IBM is working with the Department of Defense to: –Develop test pilot milestones and manage test pilot requirements –Create project metrics and reporting –Build a business case analysis of the overall RFID implementation –Monitor implementation issues and resolution –Assist in the development and release of RFID business rules –Establish commercial best practices –Provide Subject Matter Experts to develop the short term and long term implementation plan IBM seen as trusted brand for US Do. D Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation

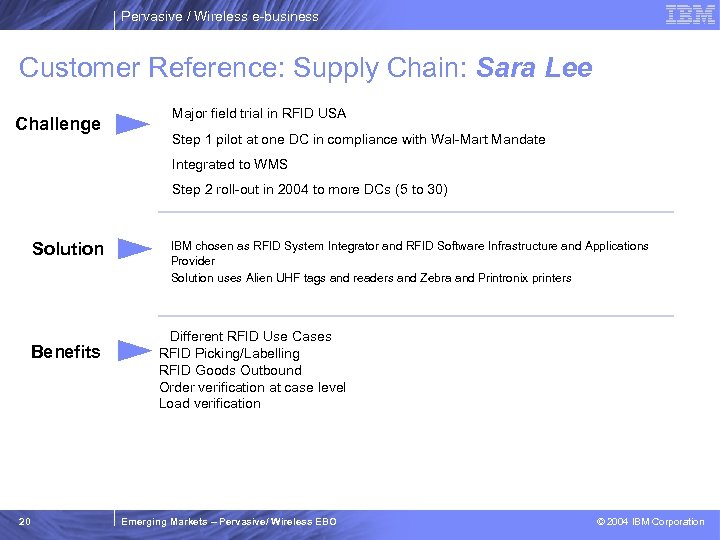

Pervasive / Wireless e-business Customer Reference: Supply Chain: Sara Lee Challenge § Major field trial in RFID USA § Step 1 pilot at one DC in compliance with Wal-Mart Mandate § Integrated to WMS § Step 2 roll-out in 2004 to more DCs (5 to 30) Solution Benefits IBM chosen as RFID System Integrator and RFID Software Infrastructure and Applications Provider Solution uses Alien UHF tags and readers and Zebra and Printronix printers Different RFID Use Cases RFID Picking/Labelling RFID Goods Outbound Order verification at case level Load verification Benefits 20 Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation

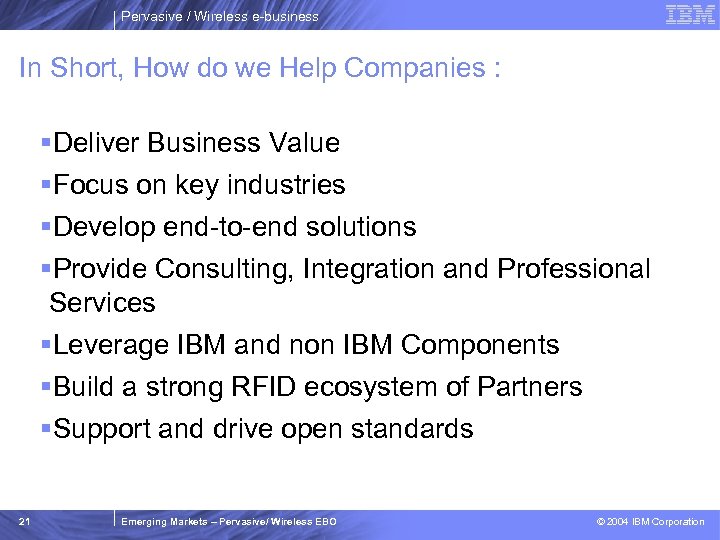

Pervasive / Wireless e-business In Short, How do we Help Companies : §Deliver Business Value §Focus on key industries §Develop end-to-end solutions §Provide Consulting, Integration and Professional Services §Leverage IBM and non IBM Components §Build a strong RFID ecosystem of Partners §Support and drive open standards 21 Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation
Pervasive / Wireless e-business IBM: a leader in mobile and wireless computing “IBM ranks first among the enablers of enterprise mobile computing solutions” A mid-2002 IDC report shows IBM and Pw. CC Wireless jointly have close to a 30% market share, and when combined, are over 5 times the nearest competitors. “IBM also boasts the most successful professional services business (IBM Global Services) in the mobile computing space” “IBM Global Services (IGS) is by far the leading provider of mobile and wireless professional services. One could be shocked by seeing how far ahead IGS is” The Yankee Group ranked IBM # 1 in March 2003 22 Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation

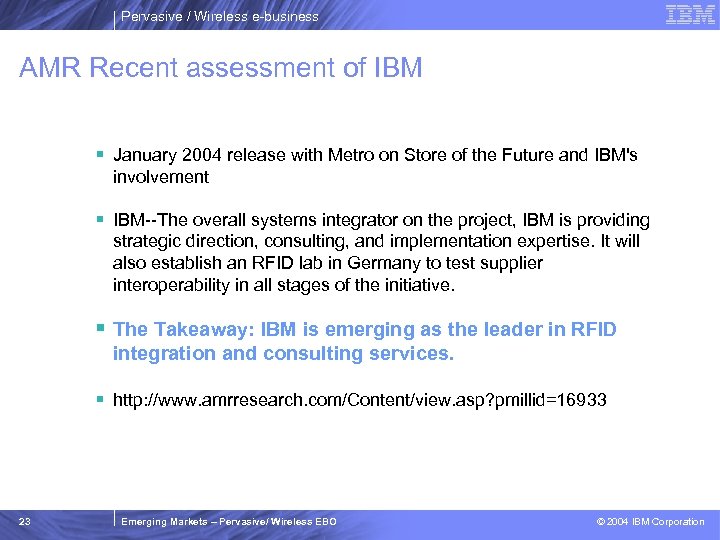

Pervasive / Wireless e-business AMR Recent assessment of IBM § January 2004 release with Metro on Store of the Future and IBM's involvement § IBM--The overall systems integrator on the project, IBM is providing strategic direction, consulting, and implementation expertise. It will also establish an RFID lab in Germany to test supplier interoperability in all stages of the initiative. § The Takeaway: IBM is emerging as the leader in RFID integration and consulting services. § http: //www. amrresearch. com/Content/view. asp? pmillid=16933 23 Emerging Markets – Pervasive/ Wireless EBO © 2004 IBM Corporation
