Peer-to-peer systems for autonomic Vo. IP and web hotspot handling Kundan Singh, Weibin Zhao and Henning Schulzrinne Internet Real Time Laboratory Computer Science Dept. , Columbia University, New York http: //www. cs. columbia. edu/IRT/p 2 p-sip http: //www. cs. columbia. edu/IRT/dotslash
P 2 P for autonomic computing • • • Autonomic at the application layer: – Robust against partial network faults – Resources grow as user population grows – Self-configuring Traditional p 2 p systems – file storage • motivation is often legal, not technical, efficiency – usually unstructured, optimized for Zipf-like popularity Other p 2 p applications: – Skype demonstrates usefulness for Vo. IP • identifier lookup • NAT traversal: media traversal – Open. DHT (and similar) as emerging common infrastructure? – Non-DHT systems with smaller scope web hotspot rescue – Network management (see our IRTF slides) IBM Delhi (Jan. 2006) 2

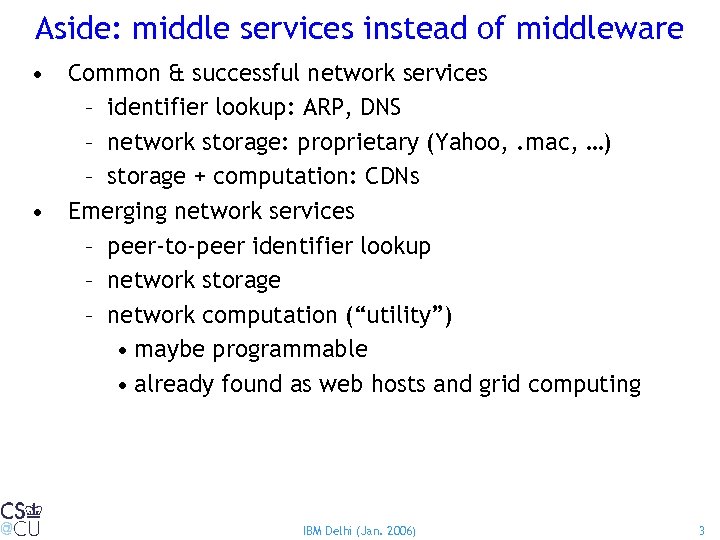

Aside: middle services instead of middleware • Common & successful network services – identifier lookup: ARP, DNS – network storage: proprietary (Yahoo, . mac, …) – storage + computation: CDNs • Emerging network services – peer-to-peer identifier lookup – network storage – network computation (“utility”) • maybe programmable • already found as web hosts and grid computing IBM Delhi (Jan. 2006) 3

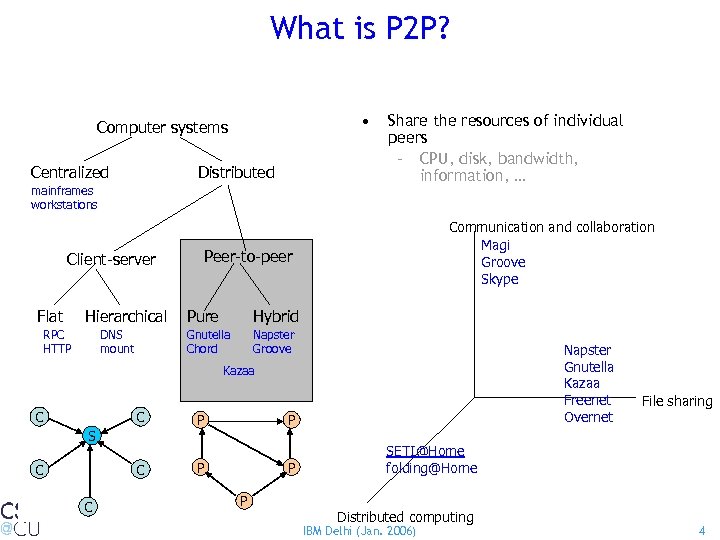

What is P 2 P? • Computer systems Centralized Distributed mainframes workstations Client-server Flat Hierarchical RPC HTTP Communication and collaboration Magi Groove Skype Peer-to-peer Pure Hybrid Gnutella Chord DNS mount Share the resources of individual peers – CPU, disk, bandwidth, information, … Napster Groove Napster Gnutella Kazaa Freenet Overnet Kazaa C C S C C C P P P File sharing SETI@Home folding@Home Distributed computing IBM Delhi (Jan. 2006) 4

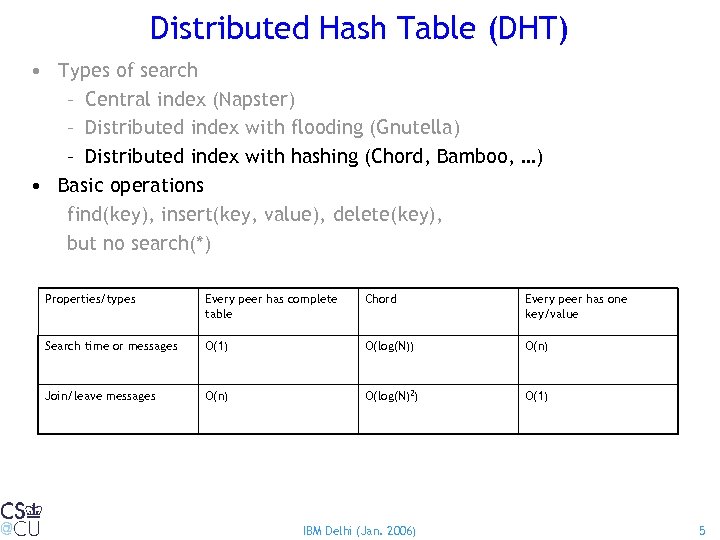

Distributed Hash Table (DHT) • Types of search – Central index (Napster) – Distributed index with flooding (Gnutella) – Distributed index with hashing (Chord, Bamboo, …) • Basic operations find(key), insert(key, value), delete(key), but no search(*) Properties/types Every peer has complete table Chord Every peer has one key/value Search time or messages O(1) O(log(N)) O(n) Join/leave messages O(n) O(log(N)2) O(1) IBM Delhi (Jan. 2006) 5

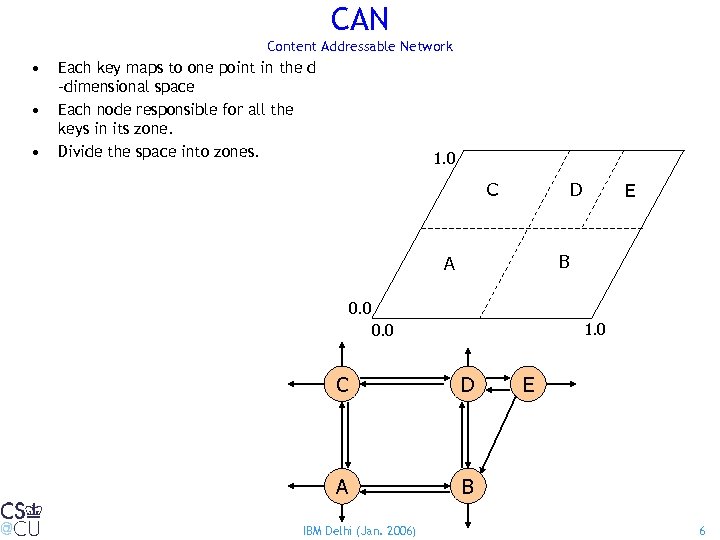

CAN Content Addressable Network • • • Each key maps to one point in the d -dimensional space Each node responsible for all the keys in its zone. Divide the space into zones. 1. 0 C D E B A 0. 0 1. 0 0. 0 C D A B IBM Delhi (Jan. 2006) E 6

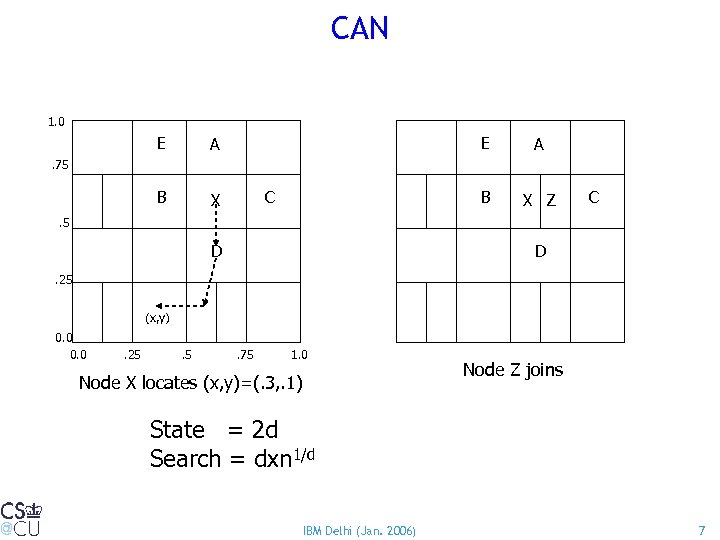

CAN 1. 0 E A B E X A B X Z . 75 C C . 5 D D . 25 (x, y) 0. 0 . 25 . 75 1. 0 Node X locates (x, y)=(. 3, . 1) Node Z joins State = 2 d Search = dxn 1/d IBM Delhi (Jan. 2006) 7
Chord • Identifier circle • Keys assigned to successor • Evenly distributed keys and nodes 1 54 8 58 10 14 47 21 42 38 32 38 24 30 1 IBM 0 Delhi (Jan. 2006) 2 3 4 5 6 7 88

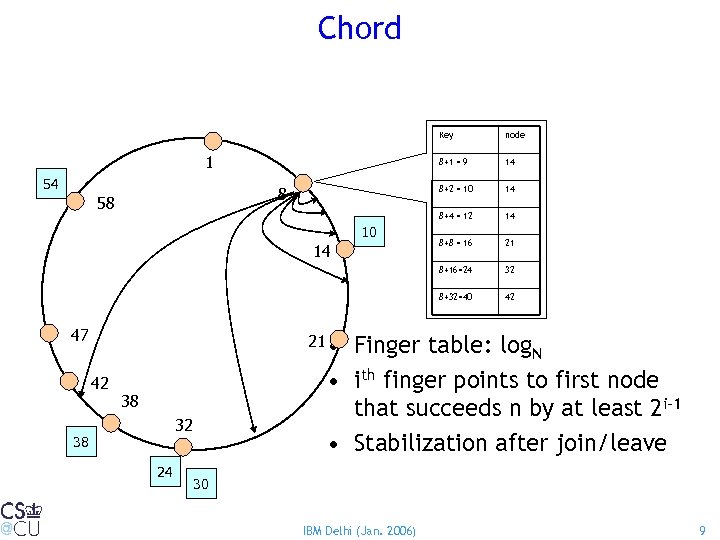

Chord Key 8+1 = 9 10 14 47 8+8 = 16 21 32 8+32=40 58 14 8+16=24 8 14 8+4 = 12 54 14 8+2 = 10 1 node 42 21 • 42 Finger table: log. N • ith finger points to first node that succeeds n by at least 2 i-1 • Stabilization after join/leave 38 32 38 24 30 IBM Delhi (Jan. 2006) 9

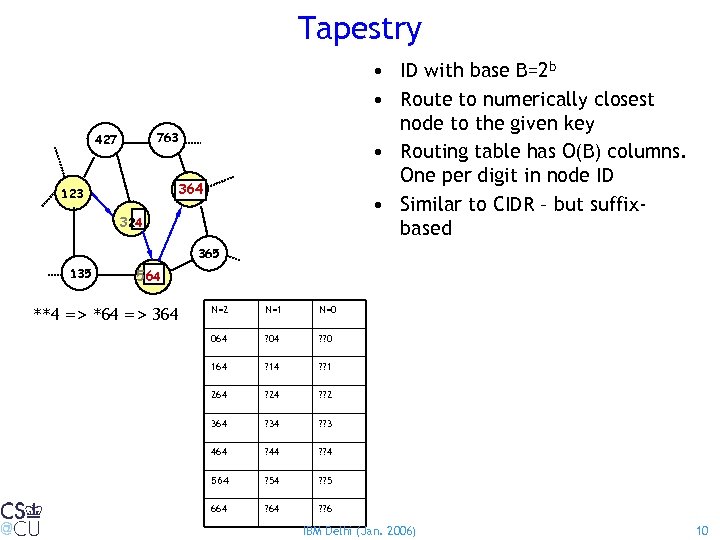

Tapestry • ID with base B=2 b • Route to numerically closest node to the given key • Routing table has O(B) columns. One per digit in node ID • Similar to CIDR – but suffixbased 763 427 364 123 324 365 135 564 **4 => *64 => 364 N=2 N=1 N=0 064 ? 04 ? ? 0 164 ? 14 ? ? 1 264 ? 24 ? ? 2 364 ? 34 ? ? 3 464 ? 44 ? ? 4 564 ? 54 ? ? 5 664 ? ? 6 IBM Delhi (Jan. 2006) 10

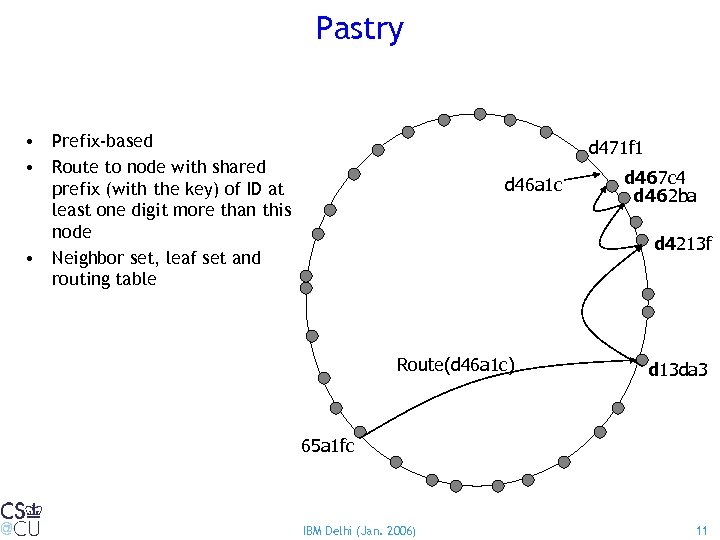

Pastry • Prefix-based • Route to node with shared prefix (with the key) of ID at least one digit more than this node • Neighbor set, leaf set and routing table d 471 f 1 d 46 a 1 c d 467 c 4 d 462 ba d 4213 f Route(d 46 a 1 c) d 13 da 3 65 a 1 fc IBM Delhi (Jan. 2006) 11
Other schemes • • • Distributed TRIE Viceroy Kademlia Skip. Graph Symphony … IBM Delhi (Jan. 2006) 12

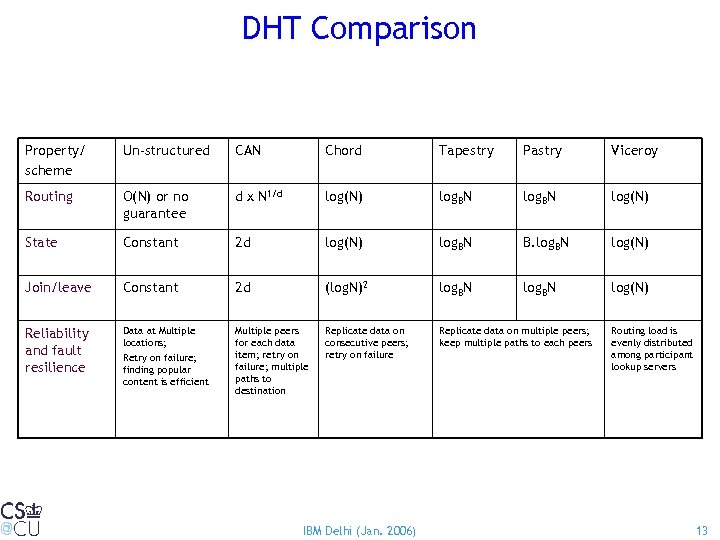

DHT Comparison Property/ scheme Un-structured CAN Chord Tapestry Pastry Viceroy Routing O(N) or no guarantee d x N 1/d log(N) log. BN log(N) State Constant 2 d log(N) log. BN B. log. BN log(N) Join/leave Constant 2 d (log. N)2 log. BN log(N) Reliability and fault resilience Data at Multiple locations; Retry on failure; finding popular content is efficient Multiple peers for each data item; retry on failure; multiple paths to destination Replicate data on consecutive peers; retry on failure Replicate data on multiple peers; keep multiple paths to each peers IBM Delhi (Jan. 2006) Routing load is evenly distributed among participant lookup servers 13
Server-based vs peer-to-peer Reliability, failover latency DNS-based. Depends on client retry timeout, DB replication latency, registration refresh interval DHT self organization and periodic registration refresh. Depends on client timeout, registration refresh interval. Scalability, number of users Depends on number of servers in the two stages. Depends on refresh rate, join/leave rate, uptime Call setup latency One or two steps. O(log(N)) steps. Security TLS, digest authentication, S/MIME Additionally needs a reputation system, working around spy nodes Maintenance, configuration Administrator: DNS, database, middle-box Automatic: one time bootstrap node addresses PSTN interoperability Gateways, TRIP, ENUM Interact with server-based infrastructure or colocate peer node with the gateway IBM Delhi (Jan. 2006) 14

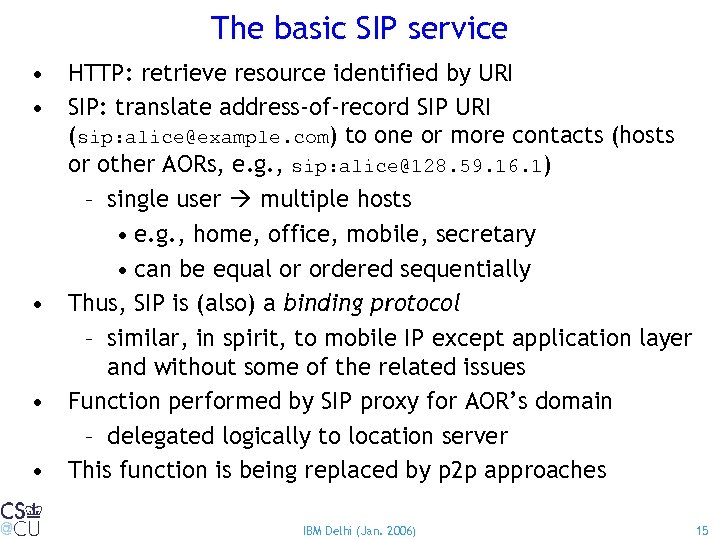

The basic SIP service • HTTP: retrieve resource identified by URI • SIP: translate address-of-record SIP URI (sip: alice@example. com) to one or more contacts (hosts or other AORs, e. g. , sip: alice@128. 59. 16. 1) – single user multiple hosts • e. g. , home, office, mobile, secretary • can be equal or ordered sequentially • Thus, SIP is (also) a binding protocol – similar, in spirit, to mobile IP except application layer and without some of the related issues • Function performed by SIP proxy for AOR’s domain – delegated logically to location server • This function is being replaced by p 2 p approaches IBM Delhi (Jan. 2006) 15

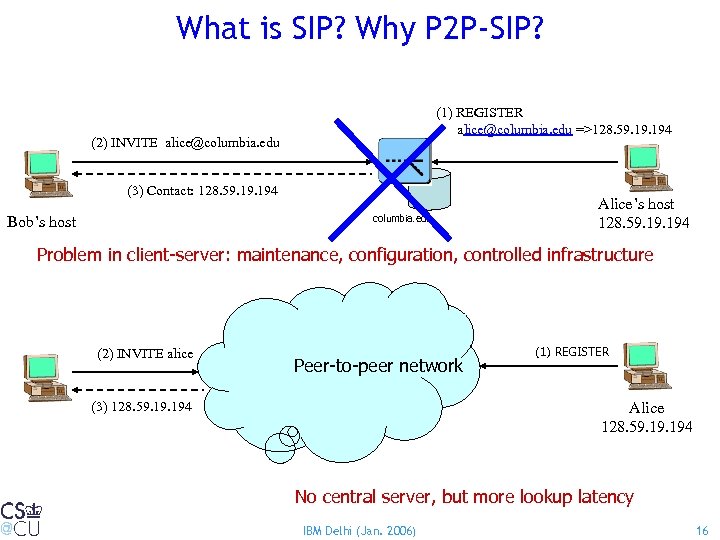

What is SIP? Why P 2 P-SIP? (1) REGISTER alice@columbia. edu =>128. 59. 194 (2) INVITE alice@columbia. edu (3) Contact: 128. 59. 194 columbia. edu Bob’s host Alice’s host 128. 59. 194 Problem in client-server: maintenance, configuration, controlled infrastructure (2) INVITE alice Peer-to-peer network (3) 128. 59. 194 (1) REGISTER Alice 128. 59. 194 No central server, but more lookup latency IBM Delhi (Jan. 2006) 16

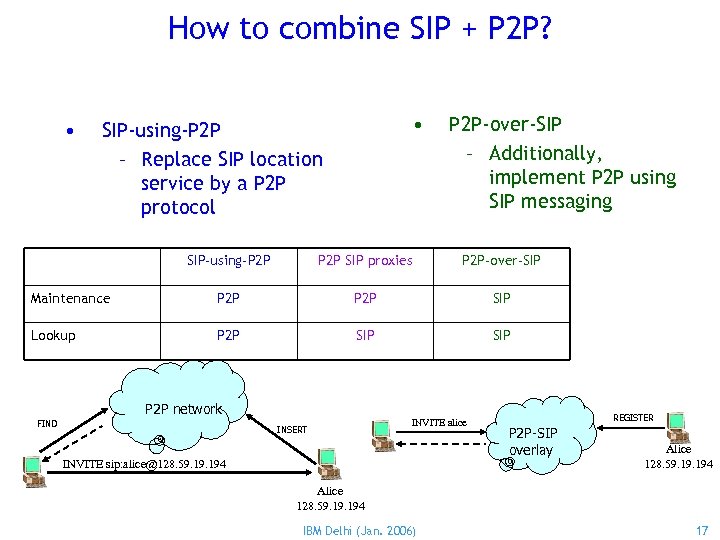

How to combine SIP + P 2 P? • • SIP-using-P 2 P – Replace SIP location service by a P 2 P protocol P 2 P-over-SIP – Additionally, implement P 2 P using SIP messaging SIP-using-P 2 P SIP proxies P 2 P-over-SIP Maintenance P 2 P SIP Lookup P 2 P SIP P 2 P network FIND INSERT INVITE alice INVITE sip: alice@128. 59. 194 REGISTER P 2 P-SIP overlay Alice 128. 59. 19. 194 IBM Delhi (Jan. 2006) 17

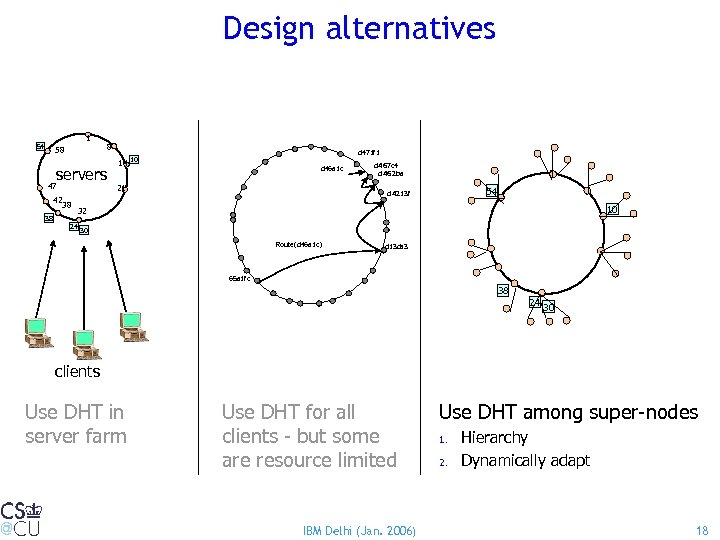

Design alternatives 1 54 58 servers 47 42 38 38 8 d 471 f 1 14 10 d 46 a 1 c 21 d 467 c 4 d 462 ba 1 54 d 4213 f 10 32 24 30 Route(d 46 a 1 c) d 13 da 3 65 a 1 fc 38 24 30 clients Use DHT in server farm Use DHT for all clients - but some are resource limited IBM Delhi (Jan. 2006) Use DHT among super-nodes 1. 2. Hierarchy Dynamically adapt 18

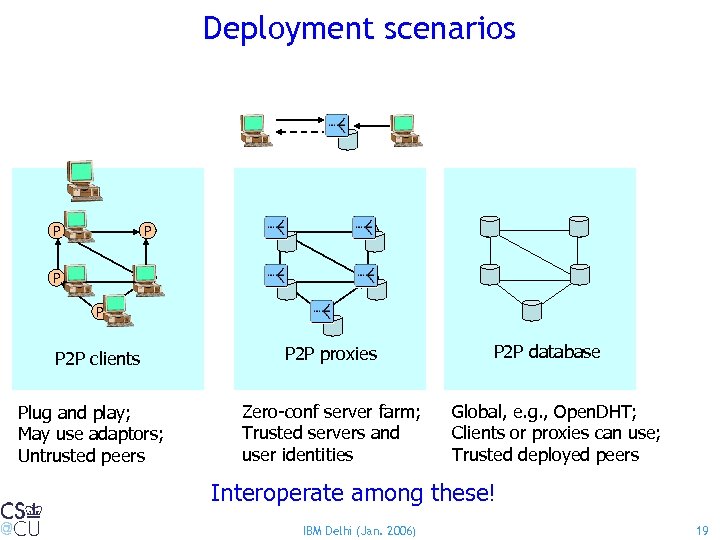

Deployment scenarios P P P P 2 P clients Plug and play; May use adaptors; Untrusted peers P P P 2 P proxies Zero-conf server farm; Trusted servers and user identities P 2 P database Global, e. g. , Open. DHT; Clients or proxies can use; Trusted deployed peers Interoperate among these! IBM Delhi (Jan. 2006) 19

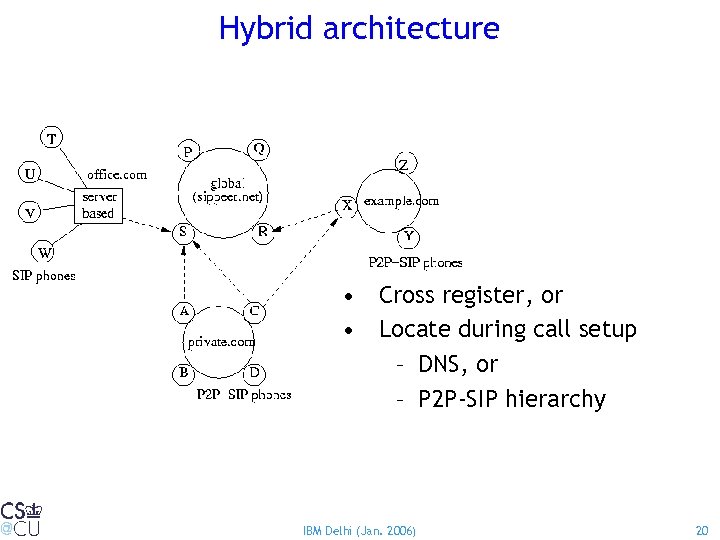

Hybrid architecture • Cross register, or • Locate during call setup – DNS, or – P 2 P-SIP hierarchy IBM Delhi (Jan. 2006) 20

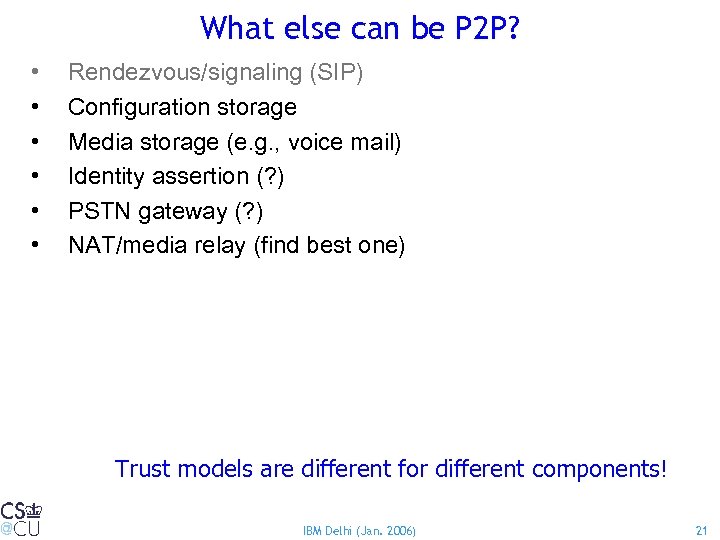

What else can be P 2 P? • • • Rendezvous/signaling (SIP) Configuration storage Media storage (e. g. , voice mail) Identity assertion (? ) PSTN gateway (? ) NAT/media relay (find best one) Trust models are different for different components! IBM Delhi (Jan. 2006) 21

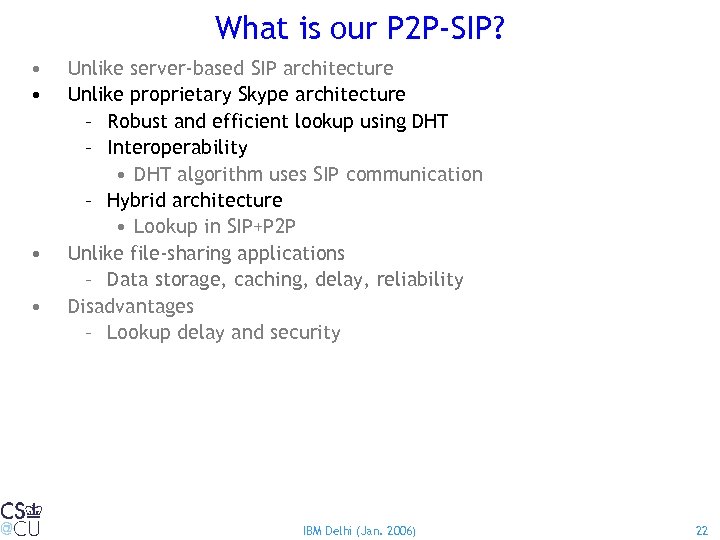

What is our P 2 P-SIP? • • Unlike server-based SIP architecture Unlike proprietary Skype architecture – Robust and efficient lookup using DHT – Interoperability • DHT algorithm uses SIP communication – Hybrid architecture • Lookup in SIP+P 2 P Unlike file-sharing applications – Data storage, caching, delay, reliability Disadvantages – Lookup delay and security IBM Delhi (Jan. 2006) 22

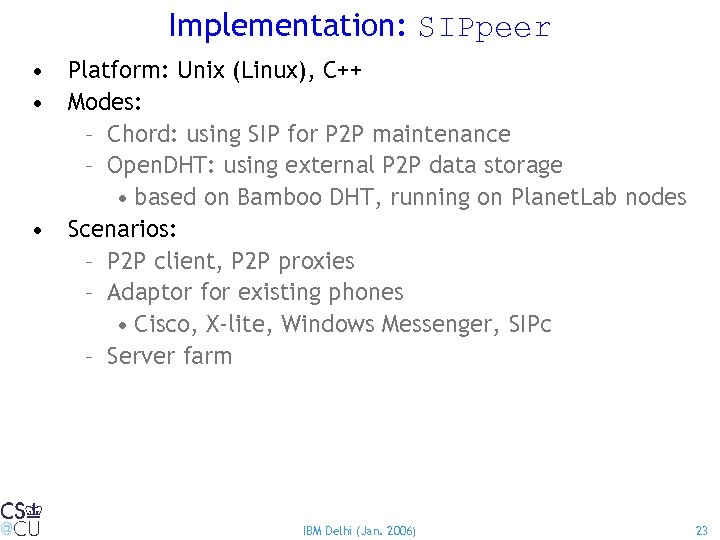

Implementation: SIPpeer • Platform: Unix (Linux), C++ • Modes: – Chord: using SIP for P 2 P maintenance – Open. DHT: using external P 2 P data storage • based on Bamboo DHT, running on Planet. Lab nodes • Scenarios: – P 2 P client, P 2 P proxies – Adaptor for existing phones • Cisco, X-lite, Windows Messenger, SIPc – Server farm IBM Delhi (Jan. 2006) 23

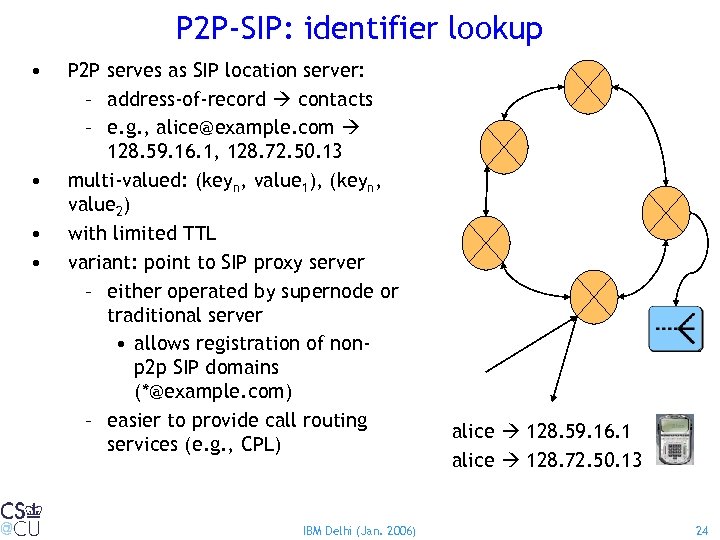

P 2 P-SIP: identifier lookup • • P 2 P serves as SIP location server: – address-of-record contacts – e. g. , alice@example. com 128. 59. 16. 1, 128. 72. 50. 13 multi-valued: (keyn, value 1), (keyn, value 2) with limited TTL variant: point to SIP proxy server – either operated by supernode or traditional server • allows registration of nonp 2 p SIP domains (*@example. com) – easier to provide call routing services (e. g. , CPL) IBM Delhi (Jan. 2006) alice 128. 59. 16. 1 alice 128. 72. 50. 13 24

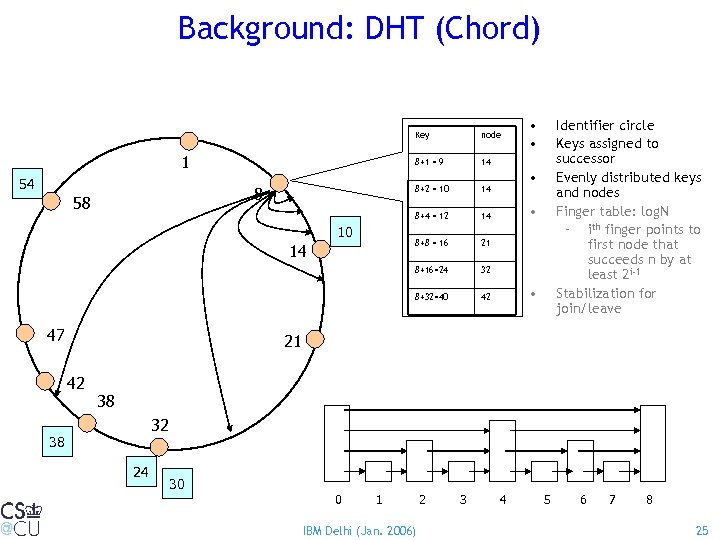

Background: DHT (Chord) Key 8+1 = 9 47 32 8+32=40 14 42 Identifier circle Keys assigned to successor Evenly distributed keys and nodes Finger table: log. N – ith finger points to first node that succeeds n by at least 2 i-1 Stabilization for join/leave 21 8+16=24 10 14 8+8 = 16 8 58 14 8+4 = 12 54 • • 14 8+2 = 10 1 node • • • 21 42 38 32 38 24 30 0 1 IBM Delhi (Jan. 2006) 2 3 4 5 6 7 8 25

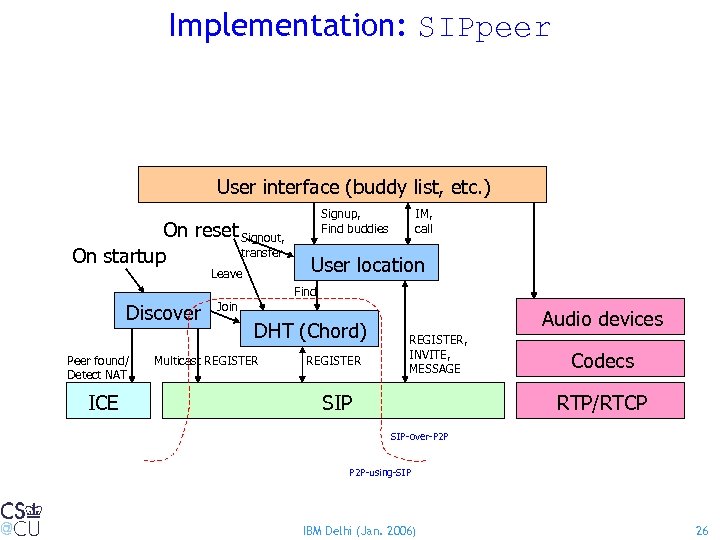

Implementation: SIPpeer User interface (buddy list, etc. ) On reset Signout, transfer On startup Leave Discover Peer found/ Detect NAT ICE Signup, Find buddies IM, call User location Find Join DHT (Chord) Multicast REGISTER Audio devices REGISTER, INVITE, MESSAGE SIP Codecs RTP/RTCP SIP-over-P 2 P-using-SIP IBM Delhi (Jan. 2006) 26

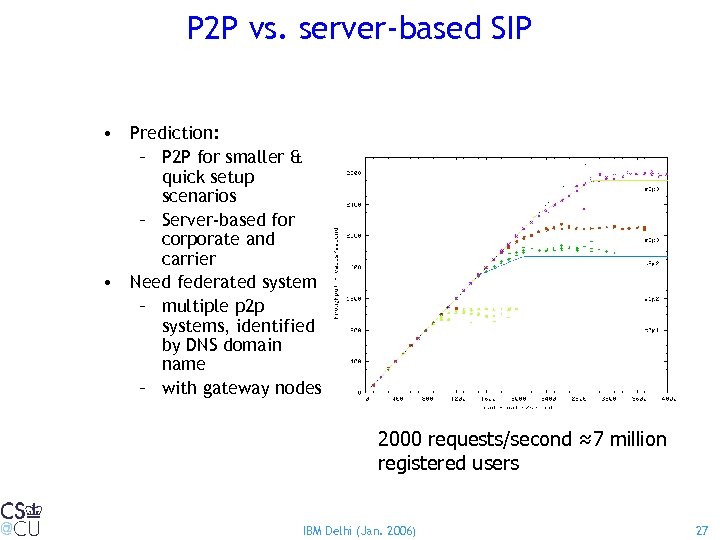

P 2 P vs. server-based SIP • Prediction: – P 2 P for smaller & quick setup scenarios – Server-based for corporate and carrier • Need federated system – multiple p 2 p systems, identified by DNS domain name – with gateway nodes 2000 requests/second ≈7 million registered users IBM Delhi (Jan. 2006) 27

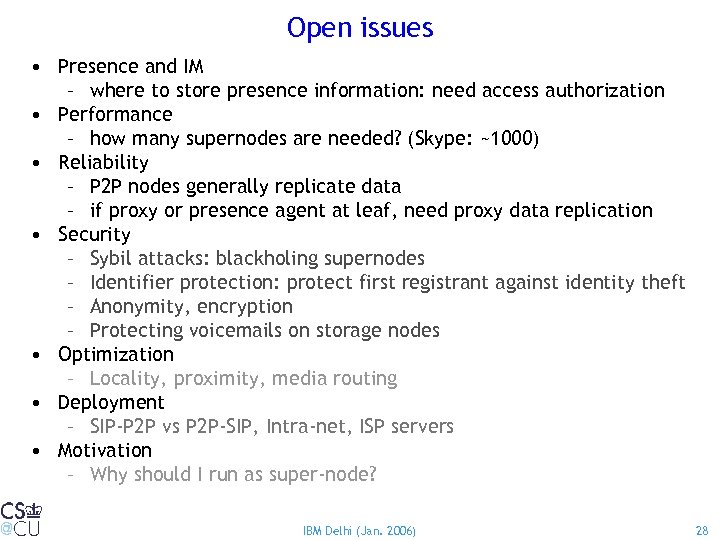

Open issues • Presence and IM – where to store presence information: need access authorization • Performance – how many supernodes are needed? (Skype: ~1000) • Reliability – P 2 P nodes generally replicate data – if proxy or presence agent at leaf, need proxy data replication • Security – Sybil attacks: blackholing supernodes – Identifier protection: protect first registrant against identity theft – Anonymity, encryption – Protecting voicemails on storage nodes • Optimization – Locality, proximity, media routing • Deployment – SIP-P 2 P vs P 2 P-SIP, Intra-net, ISP servers • Motivation – Why should I run as super-node? IBM Delhi (Jan. 2006) 28

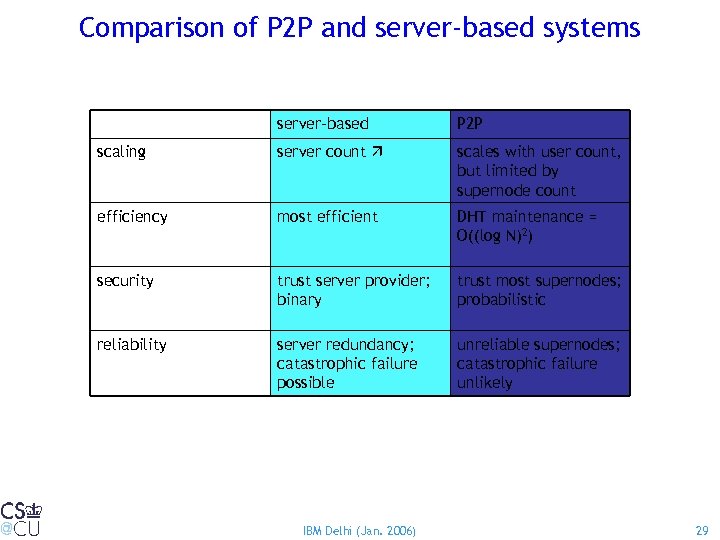

Comparison of P 2 P and server-based systems server-based P 2 P scaling server count scales with user count, but limited by supernode count efficiency most efficient DHT maintenance = O((log N)2) security trust server provider; binary trust most supernodes; probabilistic reliability server redundancy; catastrophic failure possible unreliable supernodes; catastrophic failure unlikely IBM Delhi (Jan. 2006) 29

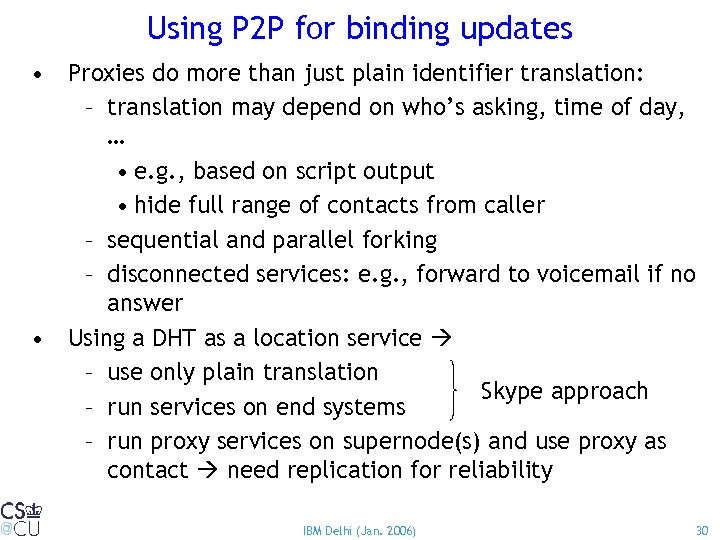

Using P 2 P for binding updates • Proxies do more than just plain identifier translation: – translation may depend on who’s asking, time of day, … • e. g. , based on script output • hide full range of contacts from caller – sequential and parallel forking – disconnected services: e. g. , forward to voicemail if no answer • Using a DHT as a location service – use only plain translation Skype approach – run services on end systems – run proxy services on supernode(s) and use proxy as contact need replication for reliability IBM Delhi (Jan. 2006) 30

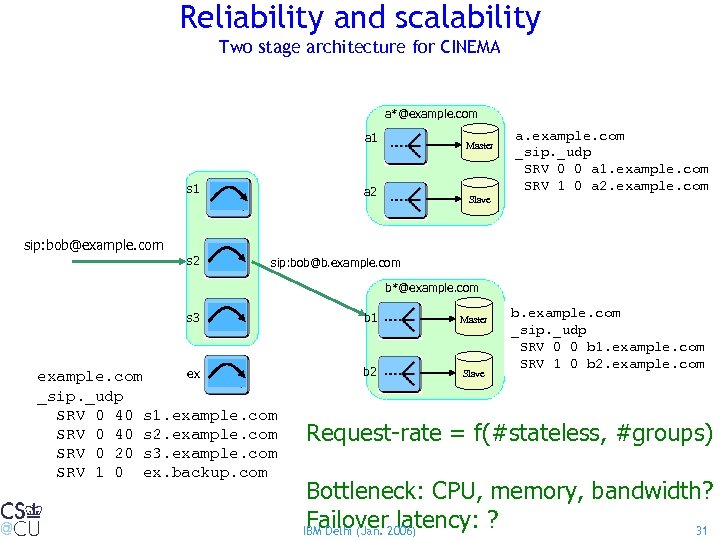

Reliability and scalability Two stage architecture for CINEMA a*@example. com a 1 s 1 Master a 2 Slave a. example. com _sip. _udp SRV 0 0 a 1. example. com SRV 1 0 a 2. example. com sip: bob@example. com s 2 sip: bob@b. example. com b*@example. com s 3 ex example. com _sip. _udp SRV 0 40 s 1. example. com SRV 0 40 s 2. example. com SRV 0 20 s 3. example. com SRV 1 0 ex. backup. com b 1 Master b 2 Slave b. example. com _sip. _udp SRV 0 0 b 1. example. com SRV 1 0 b 2. example. com Request-rate = f(#stateless, #groups) Bottleneck: CPU, memory, bandwidth? Failover latency: ? IBM Delhi (Jan. 2006) 31

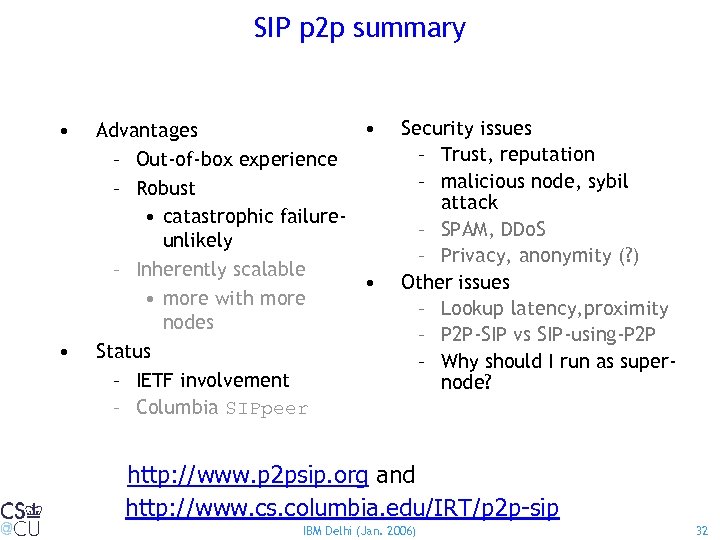

SIP p 2 p summary • • • Advantages – Out-of-box experience – Robust • catastrophic failureunlikely – Inherently scalable • • more with more nodes Status – IETF involvement – Columbia SIPpeer Security issues – Trust, reputation – malicious node, sybil attack – SPAM, DDo. S – Privacy, anonymity (? ) Other issues – Lookup latency, proximity – P 2 P-SIP vs SIP-using-P 2 P – Why should I run as supernode? http: //www. p 2 psip. org and http: //www. cs. columbia. edu/IRT/p 2 p-sip IBM Delhi (Jan. 2006) 32

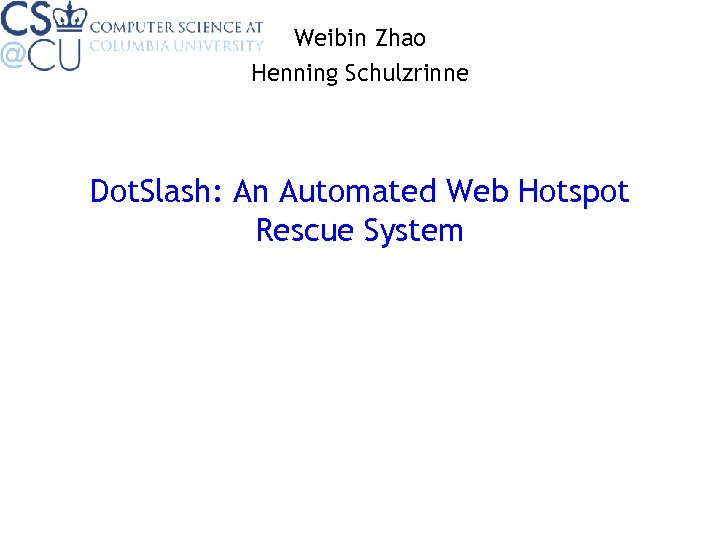

Weibin Zhao Henning Schulzrinne Dot. Slash: An Automated Web Hotspot Rescue System

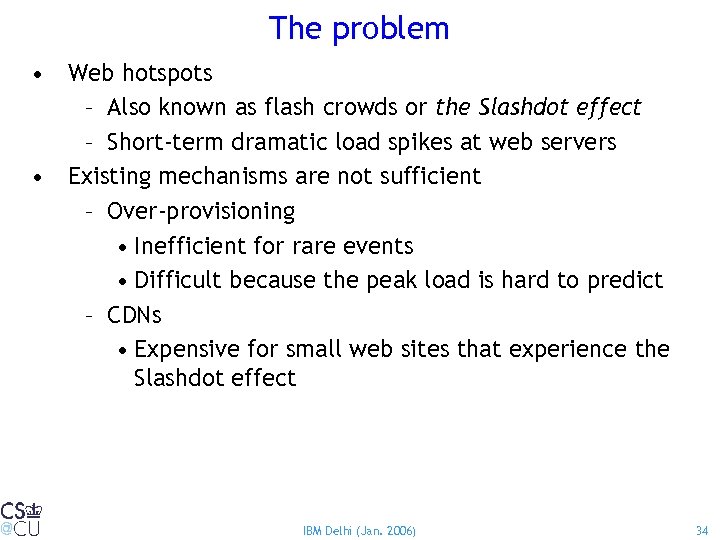

The problem • Web hotspots – Also known as flash crowds or the Slashdot effect – Short-term dramatic load spikes at web servers • Existing mechanisms are not sufficient – Over-provisioning • Inefficient for rare events • Difficult because the peak load is hard to predict – CDNs • Expensive for small web sites that experience the Slashdot effect IBM Delhi (Jan. 2006) 34
The challenges • Automate hotspot handling – Eliminate human intervention to react quickly – Improve availability during critical periods (“ 15 minutes of fame”) • Allocate resources dynamically – Static configuration is insufficient for unexpected dramatic load spikes • Address different bottlenecks – Access network, web server, application server, and database server IBM Delhi (Jan. 2006) 35

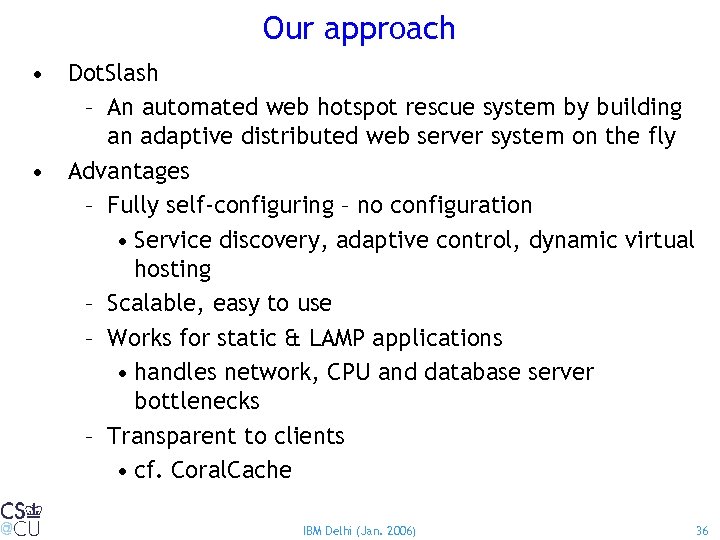

Our approach • Dot. Slash – An automated web hotspot rescue system by building an adaptive distributed web server system on the fly • Advantages – Fully self-configuring – no configuration • Service discovery, adaptive control, dynamic virtual hosting – Scalable, easy to use – Works for static & LAMP applications • handles network, CPU and database server bottlenecks – Transparent to clients • cf. Coral. Cache IBM Delhi (Jan. 2006) 36
Dot. Slash overview • Rescue model – Mutual aid community using spare capacity – Potential usage by web hosting companies • Dot. Slash components – Workload monitoring – Rescue server discovery – Load migration (request redirection) – Dynamic virtual hosting – Adaptive rescue and overload control IBM Delhi (Jan. 2006) 37

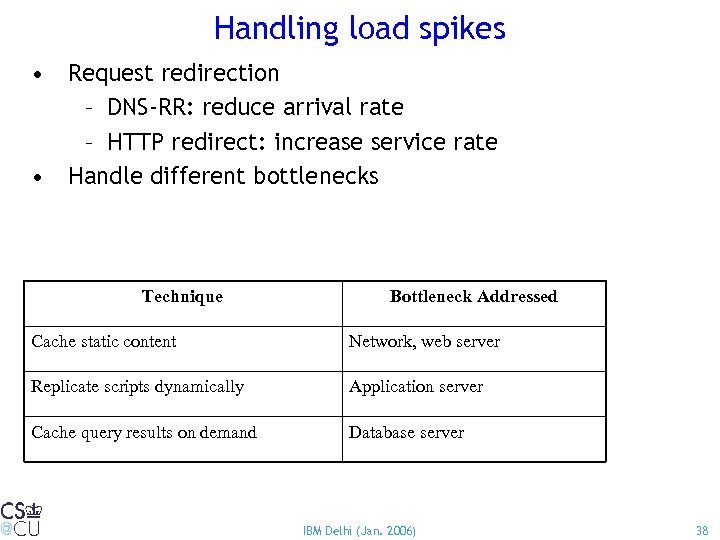

Handling load spikes • Request redirection – DNS-RR: reduce arrival rate – HTTP redirect: increase service rate • Handle different bottlenecks Technique Bottleneck Addressed Cache static content Network, web server Replicate scripts dynamically Application server Cache query results on demand Database server IBM Delhi (Jan. 2006) 38

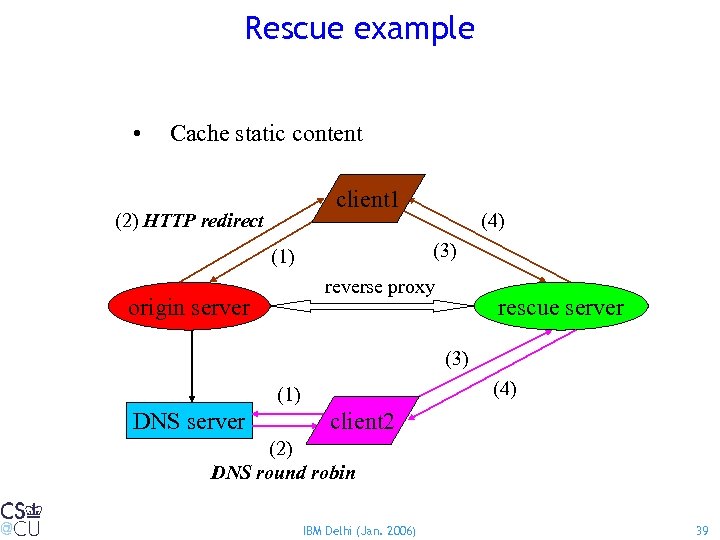

Rescue example • Cache static content client 1 (2) HTTP redirect (4) (3) (1) reverse proxy origin server rescue server (3) (4) (1) DNS server client 2 (2) DNS round robin IBM Delhi (Jan. 2006) 39

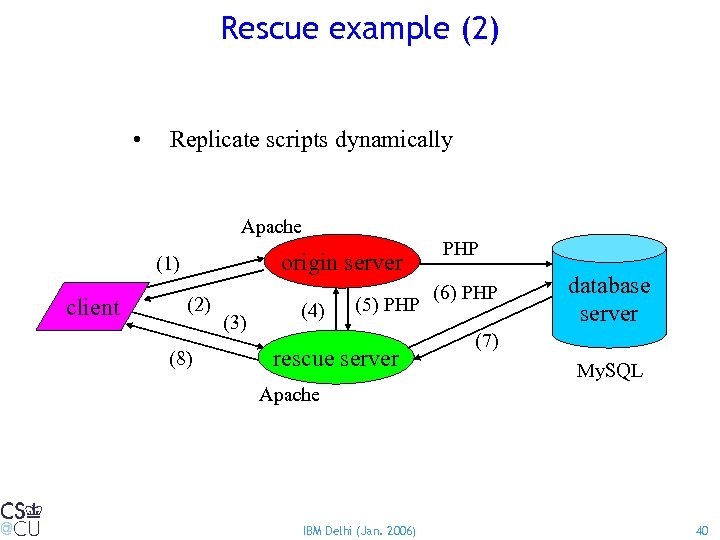

Rescue example (2) • Replicate scripts dynamically Apache origin server (1) client (2) (8) (3) (4) (5) PHP rescue server PHP (6) PHP database server (7) My. SQL Apache IBM Delhi (Jan. 2006) 40

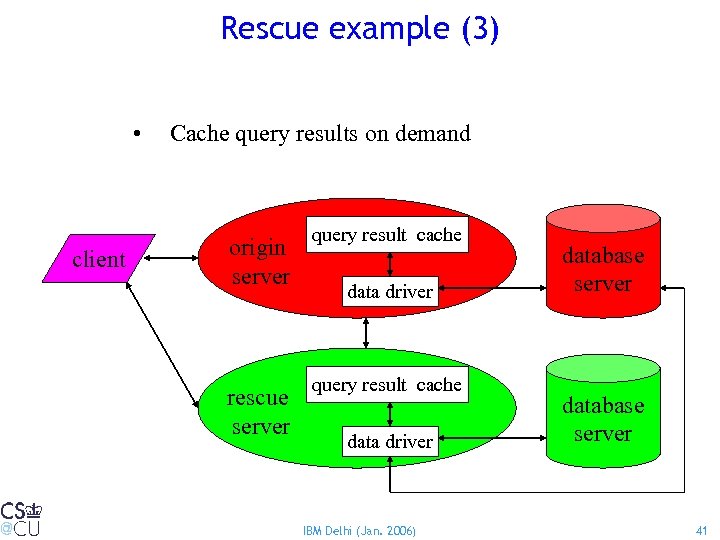

Rescue example (3) • client Cache query results on demand origin server query result cache rescue server query result cache data driver IBM Delhi (Jan. 2006) database server 41

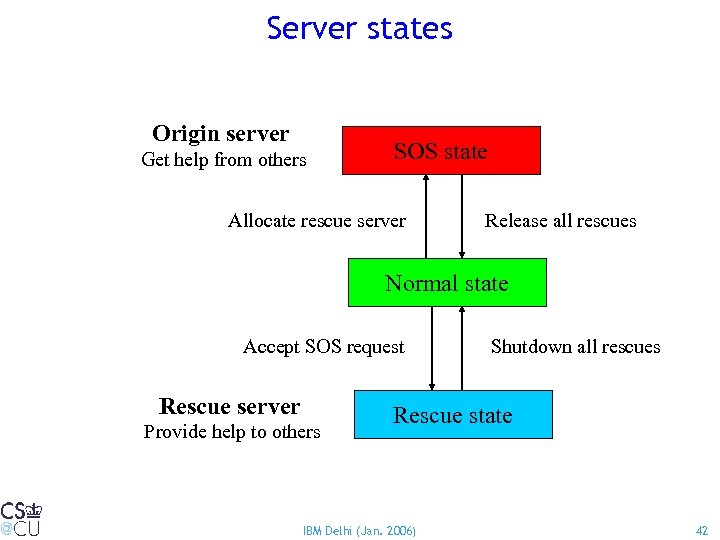

Server states Origin server Get help from others SOS state Allocate rescue server Release all rescues Normal state Accept SOS request Rescue server Provide help to others Shutdown all rescues Rescue state IBM Delhi (Jan. 2006) 42
Handling load spikes • Load migration – DNS-RR: reduce arrival rate – HTTP redirect: increase service rate – Both: increase throughput • Benefits – Reduce origin server network load by caching static content at rescue servers – Reduce origin web server CPU load by replicating scripts dynamically to rescue servers IBM Delhi (Jan. 2006) 43

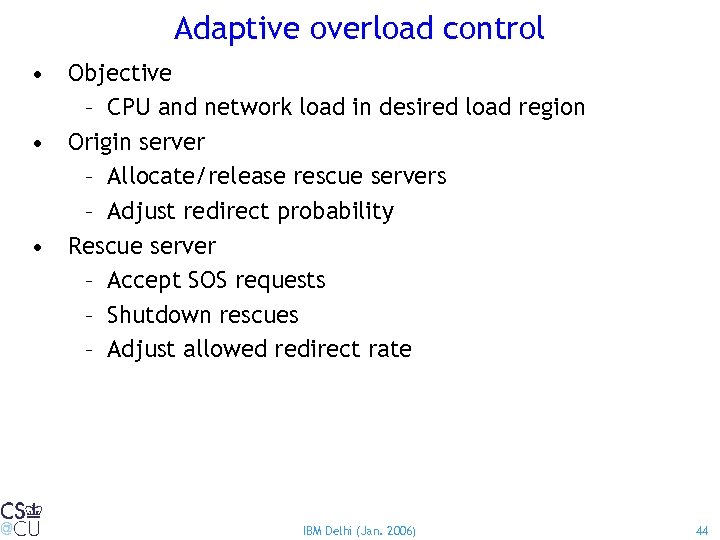

Adaptive overload control • Objective – CPU and network load in desired load region • Origin server – Allocate/release rescue servers – Adjust redirect probability • Rescue server – Accept SOS requests – Shutdown rescues – Adjust allowed redirect rate IBM Delhi (Jan. 2006) 44
Self-configuring • Rescue server discovery via SLP and DNS SRV • Dynamic virtual hosting: – Serving content of a new site on the fly – use “pre-positioned” Apache virtual hosts • Workload monitoring: network and CPU – take headers and responses into account • Adaptive rescue control – Don’t know precise load handling capacity of rescue servers • particularly for active content – Establish desired load region (typically, ~70%) – Periodically measure and adjust redirect probability • convey via protocol IBM Delhi (Jan. 2006) 45

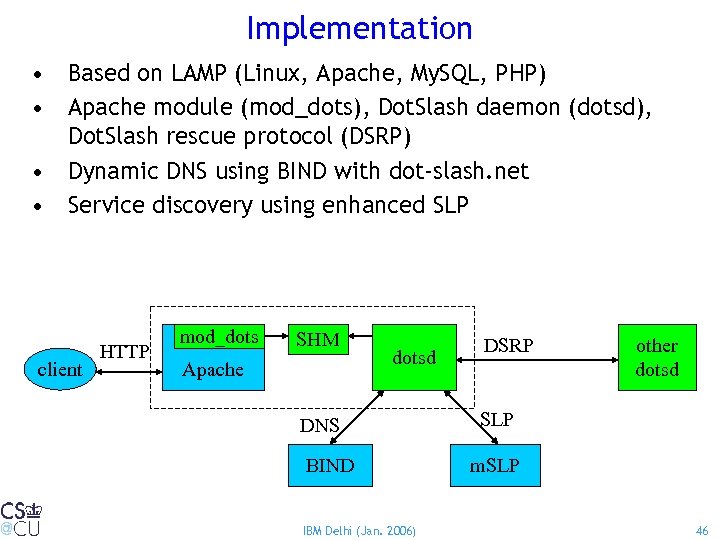

Implementation • Based on LAMP (Linux, Apache, My. SQL, PHP) • Apache module (mod_dots), Dot. Slash daemon (dotsd), Dot. Slash rescue protocol (DSRP) • Dynamic DNS using BIND with dot-slash. net • Service discovery using enhanced SLP client HTTP mod_dots SHM Apache dotsd DNS BIND IBM Delhi (Jan. 2006) DSRP other dotsd SLP m. SLP 46
Handling File Inclusions • The problem – A replicated script may include files that are located at the origin server – Assume: included files under Document. Root • Approaches – Renaming inclusion statements • Need to parse scripts: heavy weight – Customized error handler • Catch inclusion errors: light weight IBM Delhi (Jan. 2006) 47

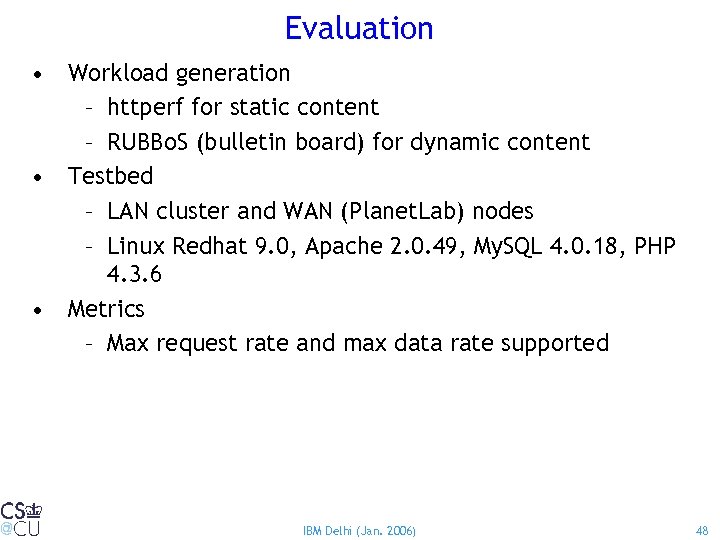

Evaluation • Workload generation – httperf for static content – RUBBo. S (bulletin board) for dynamic content • Testbed – LAN cluster and WAN (Planet. Lab) nodes – Linux Redhat 9. 0, Apache 2. 0. 49, My. SQL 4. 0. 18, PHP 4. 3. 6 • Metrics – Max request rate and max data rate supported IBM Delhi (Jan. 2006) 48

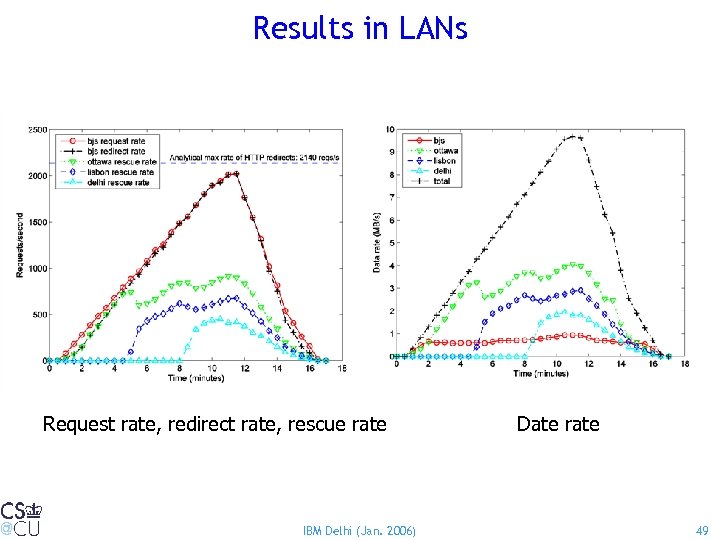

Results in LANs Request rate, redirect rate, rescue rate IBM Delhi (Jan. 2006) Date rate 49

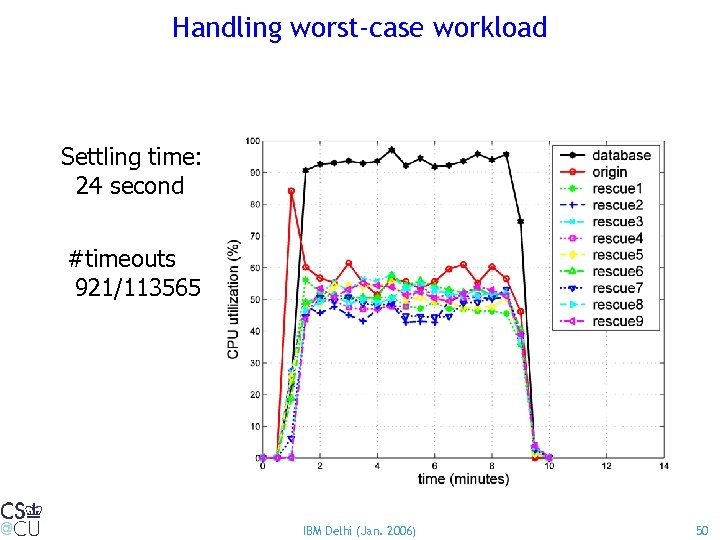

Handling worst-case workload Settling time: 24 second #timeouts 921/113565 IBM Delhi (Jan. 2006) 50
Results for dynamic content Configuration: Origin (HC) Rescue(LC) Rescue(LC) Rescue (LC) DB (HC) No rescue: R=118 CPU: Origin=100% DB=45% With rescue: R=245 #rescue servers: 9 CPU: Origin=55% DB=100% 245/118>2 IBM Delhi (Jan. 2006) 51

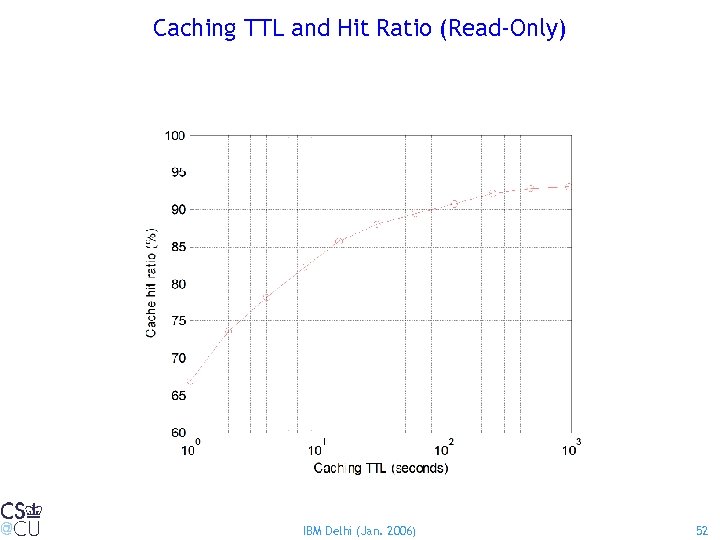

Caching TTL and Hit Ratio (Read-Only) IBM Delhi (Jan. 2006) 52

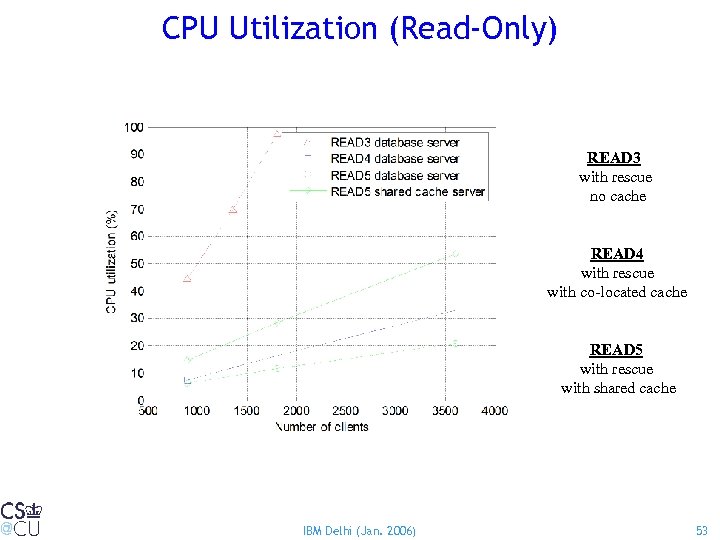

CPU Utilization (Read-Only) READ 3 with rescue no cache READ 4 with rescue with co-located cache READ 5 with rescue with shared cache IBM Delhi (Jan. 2006) 53
Request Rate (Read-Only) READ 3 with rescue no cache READ 4 with rescue with co-located cache READ 5 with rescue with shared cache IBM Delhi (Jan. 2006) 54
CPU Utilization (Submission) SUB 4 with rescue no cache SUB 5 with rescue with cache no invalidation SUB 6 with rescue with cache with invalidation IBM Delhi (Jan. 2006) 55

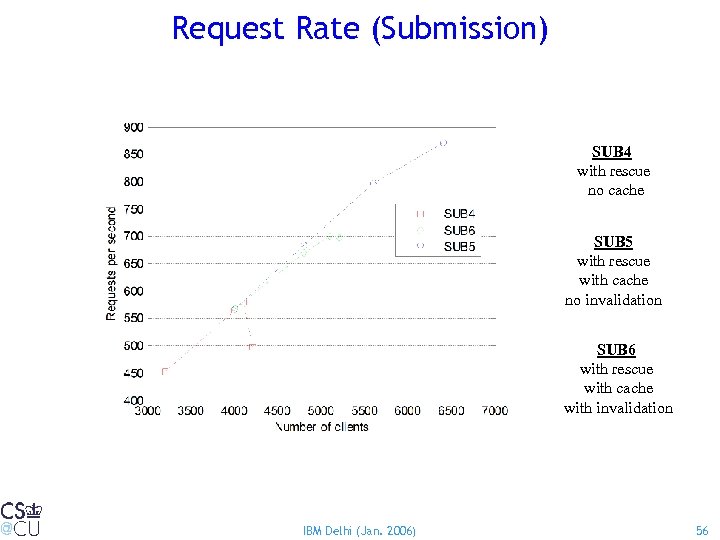

Request Rate (Submission) SUB 4 with rescue no cache SUB 5 with rescue with cache no invalidation SUB 6 with rescue with cache with invalidation IBM Delhi (Jan. 2006) 56

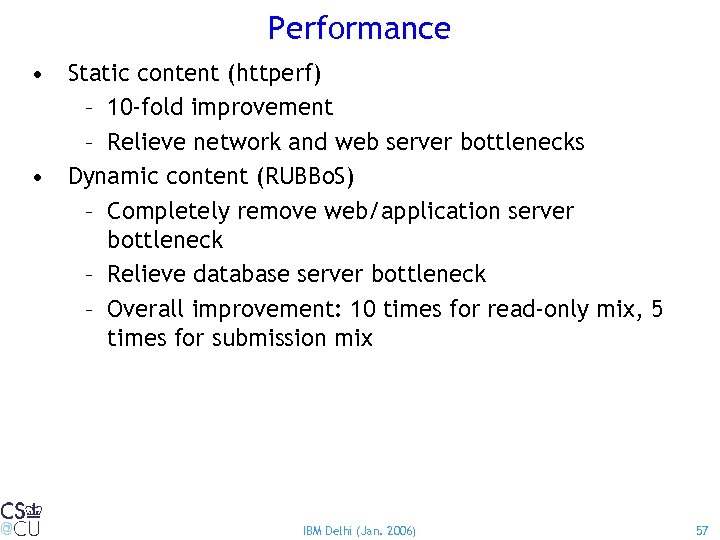

Performance • Static content (httperf) – 10 -fold improvement – Relieve network and web server bottlenecks • Dynamic content (RUBBo. S) – Completely remove web/application server bottleneck – Relieve database server bottleneck – Overall improvement: 10 times for read-only mix, 5 times for submission mix IBM Delhi (Jan. 2006) 57

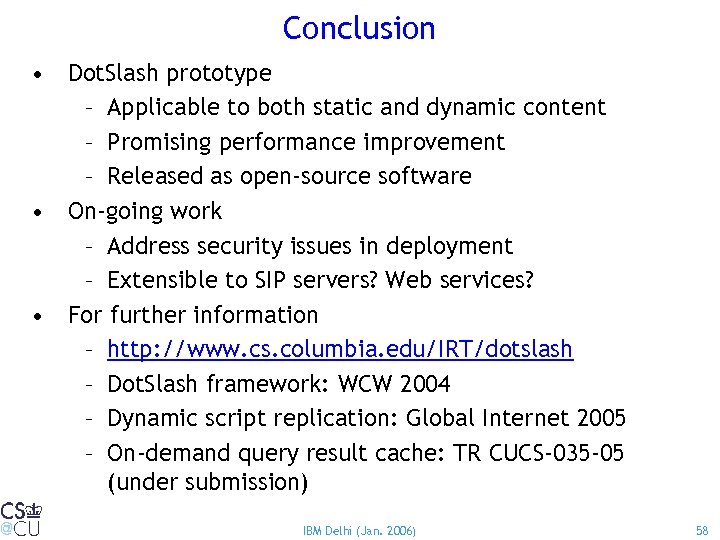

Conclusion • Dot. Slash prototype – Applicable to both static and dynamic content – Promising performance improvement – Released as open-source software • On-going work – Address security issues in deployment – Extensible to SIP servers? Web services? • For further information – http: //www. cs. columbia. edu/IRT/dotslash – Dot. Slash framework: WCW 2004 – Dynamic script replication: Global Internet 2005 – On-demand query result cache: TR CUCS-035 -05 (under submission) IBM Delhi (Jan. 2006) 58
