PDMLink Implementation at Los Alamos National Laboratory Introduction

PDMLink Implementation at Los Alamos National Laboratory Introduction to PDMLink Product Data Management System UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA §LA-UR 09 -03390 Slide 1

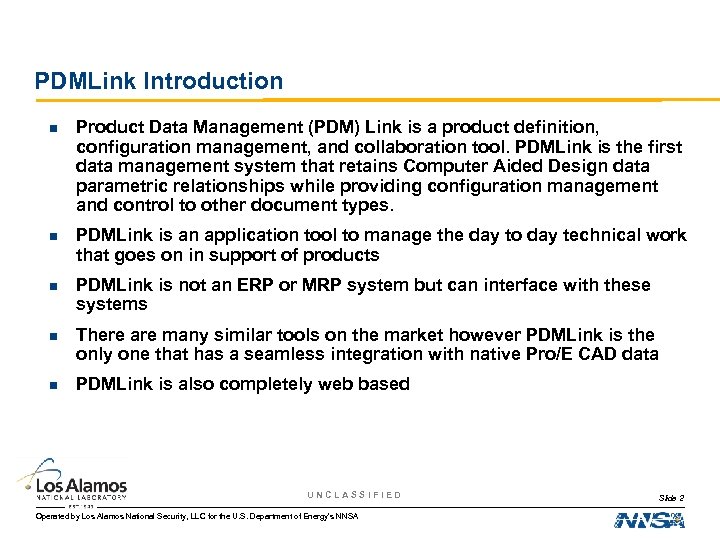

PDMLink Introduction n Product Data Management (PDM) Link is a product definition, configuration management, and collaboration tool. PDMLink is the first data management system that retains Computer Aided Design data parametric relationships while providing configuration management and control to other document types. n PDMLink is an application tool to manage the day to day technical work that goes on in support of products n PDMLink is not an ERP or MRP system but can interface with these systems n There are many similar tools on the market however PDMLink is the only one that has a seamless integration with native Pro/E CAD data n PDMLink is also completely web based UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 2

PDMLink Basic Architecture n Seven system elements constitute the application environment for Windchill PDMLink Indexing Server Oracle Server Client LDAP Server Web Server Mail Server UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 3

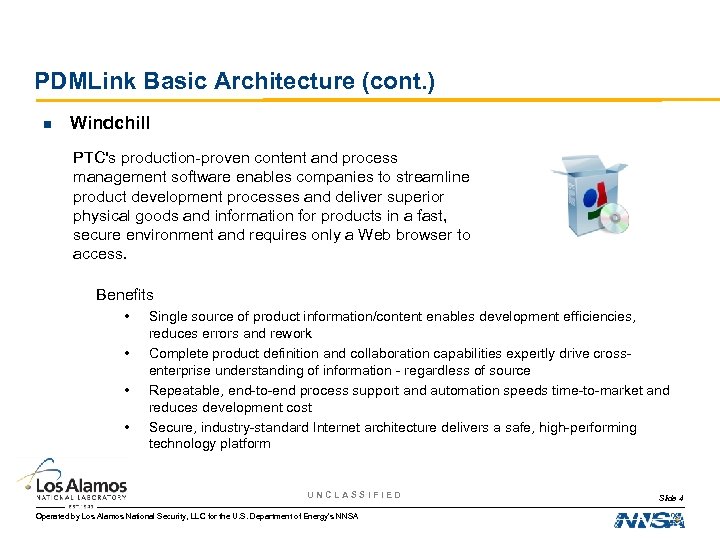

PDMLink Basic Architecture (cont. ) n Windchill PTC's production-proven content and process management software enables companies to streamline product development processes and deliver superior physical goods and information for products in a fast, secure environment and requires only a Web browser to access. Benefits • • Single source of product information/content enables development efficiencies, reduces errors and rework Complete product definition and collaboration capabilities expertly drive crossenterprise understanding of information - regardless of source Repeatable, end-to-end process support and automation speeds time-to-market and reduces development cost Secure, industry-standard Internet architecture delivers a safe, high-performing technology platform UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 4

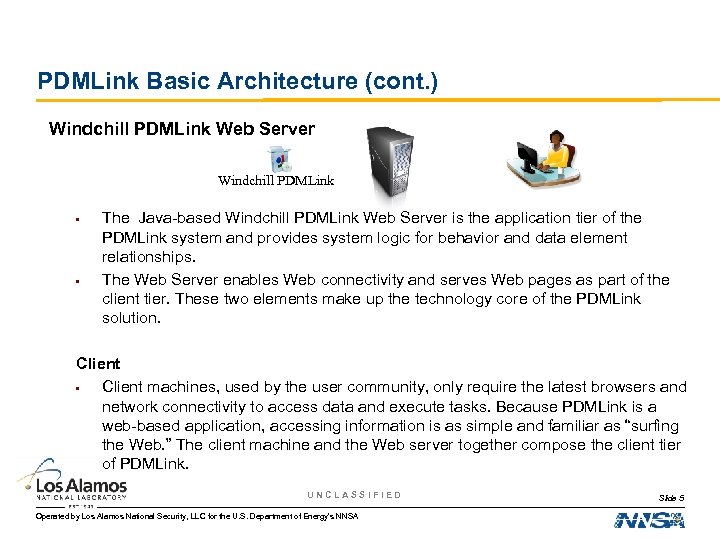

PDMLink Basic Architecture (cont. ) Windchill PDMLink Web Server Windchill PDMLink • • The Java-based Windchill PDMLink Web Server is the application tier of the PDMLink system and provides system logic for behavior and data element relationships. The Web Server enables Web connectivity and serves Web pages as part of the client tier. These two elements make up the technology core of the PDMLink solution. Client • Client machines, used by the user community, only require the latest browsers and network connectivity to access data and execute tasks. Because PDMLink is a web-based application, accessing information is as simple and familiar as “surfing the Web. ” The client machine and the Web server together compose the client tier of PDMLink. UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 5

PDMLink Basic Architecture (cont. ) Oracle Server PDMLink Web Server Client • The Oracle Server is used as the database repository for PDMLink metadata and creates a persistence tier for the PDMLink system. Content files may also be stored in the Oracle database, but they are often referenced and stored elsewhere on the network. • The Oracle Server, PDMLink Server, and client machines connected to the Web Server establish a three-tier architecture, which is scalable and easier to manage than traditional client server environments. UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 6

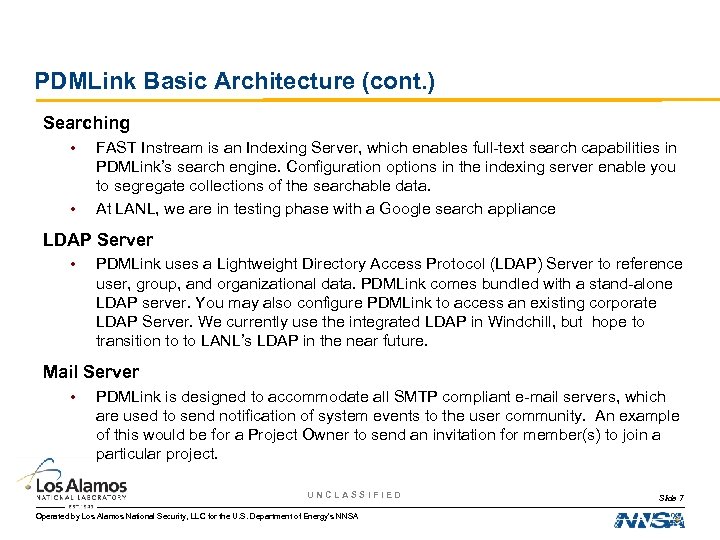

PDMLink Basic Architecture (cont. ) Searching • • FAST Instream is an Indexing Server, which enables full-text search capabilities in PDMLink’s search engine. Configuration options in the indexing server enable you to segregate collections of the searchable data. At LANL, we are in testing phase with a Google search appliance LDAP Server • PDMLink uses a Lightweight Directory Access Protocol (LDAP) Server to reference user, group, and organizational data. PDMLink comes bundled with a stand-alone LDAP server. You may also configure PDMLink to access an existing corporate LDAP Server. We currently use the integrated LDAP in Windchill, but hope to transition to to LANL’s LDAP in the near future. Mail Server • PDMLink is designed to accommodate all SMTP compliant e-mail servers, which are used to send notification of system events to the user community. An example of this would be for a Project Owner to send an invitation for member(s) to join a particular project. UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 7

PDMLink Infrastructure Team Process UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 8

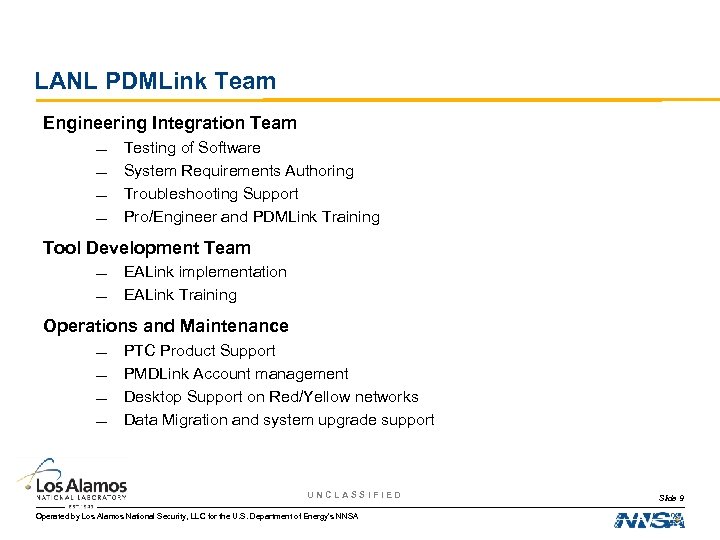

LANL PDMLink Team Engineering Integration Team — — Testing of Software System Requirements Authoring Troubleshooting Support Pro/Engineer and PDMLink Training Tool Development Team — — EALink implementation EALink Training Operations and Maintenance — — PTC Product Support PMDLink Account management Desktop Support on Red/Yellow networks Data Migration and system upgrade support UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 9

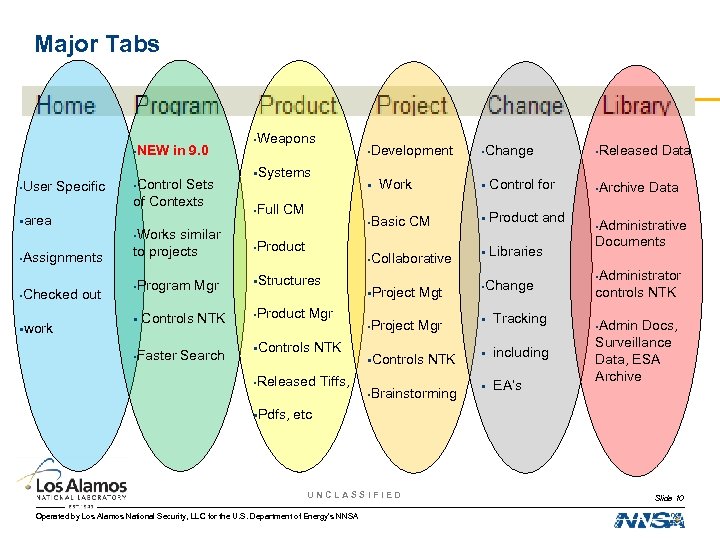

Major Tabs • NEW • User Specific §area • Assignments • Checked out §work in 9. 0 • Control Sets of Contexts • Works similar to projects • Program Mgr § Controls NTK • Faster Search • Weapons • Full CM • Product • Change • Released Data § Work § Control for • Archive Data • Basic CM §Systems • Development § Product and • Collaborative §Structures • Product Mgr §Controls NTK • Released Tiffs, §Project Mgt • Project Mgr §Controls NTK • Brainstorming § Libraries • Change § Tracking § including § EA’s • Administrative Documents • Administrator controls NTK • Admin Docs, Surveillance Data, ESA Archive §Pdfs, etc UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 10

Understanding PDMLink Terminology Common PDMLink terminology: Products, Libraries, Projects and Programs — Products provide an organizational context for product definition. Product context contain end items composed of structured assemblies of parts with associated CAD documents and documents as well as other end items. — Libraries provide an organizational context for similar, yet non-product specific data storage. Library contexts enable the association of administrative policies, such as access control, indexing, event notification, and external file faulting rules to the objects in the library. — Projects are for developmental work. Projects are easy to create and manage by any user. Projects have great collaboration tools. There is iteration control but no revision or full configuration management (A. 1, A. 2 but can’t go to B). When objects in a project mature they can be sent to a Product or Library for full configuration control. — Programs are new to PDMLink 9. 0. Programs are used for easier searching and access to multiple products, projects, or Libraries. UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 11

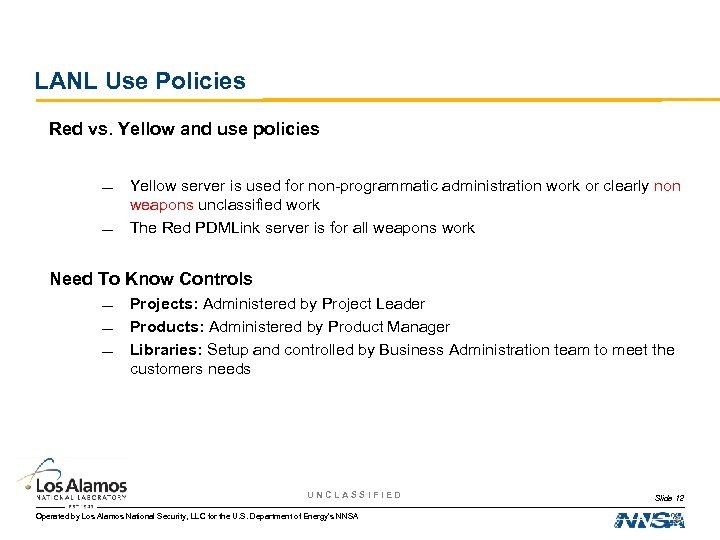

LANL Use Policies Red vs. Yellow and use policies — — Yellow server is used for non-programmatic administration work or clearly non weapons unclassified work The Red PDMLink server is for all weapons work Need To Know Controls — — — Projects: Administered by Project Leader Products: Administered by Product Manager Libraries: Setup and controlled by Business Administration team to meet the customers needs UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 12

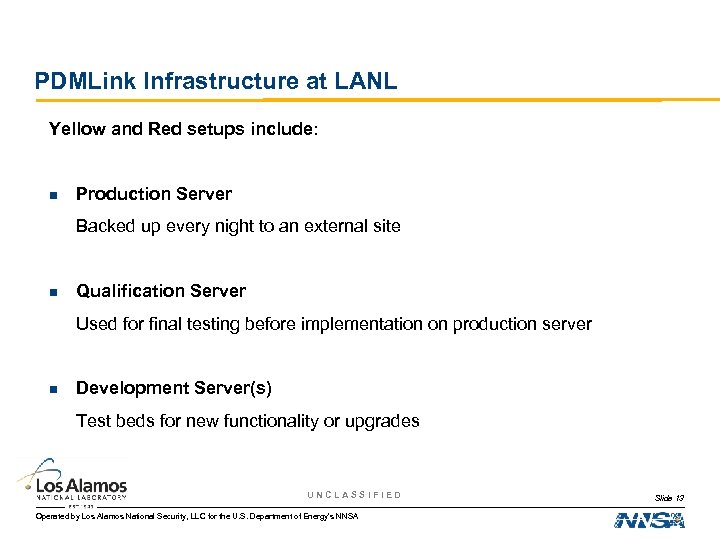

PDMLink Infrastructure at LANL Yellow and Red setups include: n Production Server Backed up every night to an external site n Qualification Server Used for final testing before implementation on production server n Development Server(s) Test beds for new functionality or upgrades UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 13

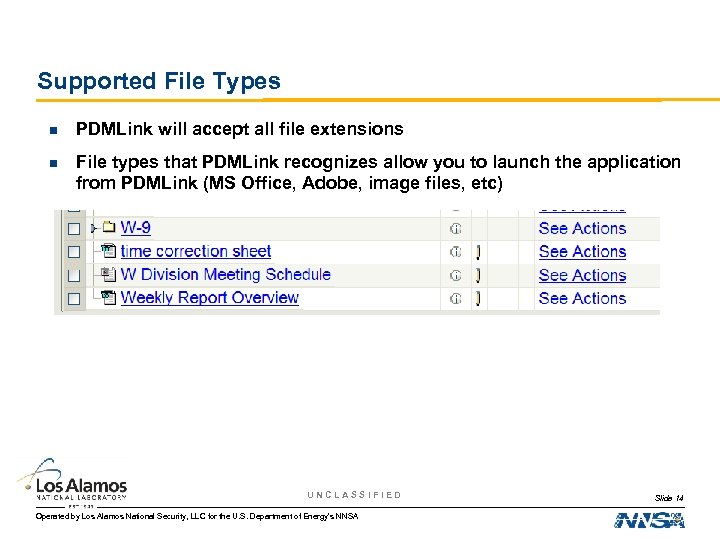

Supported File Types n PDMLink will accept all file extensions n File types that PDMLink recognizes allow you to launch the application from PDMLink (MS Office, Adobe, image files, etc) UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 14

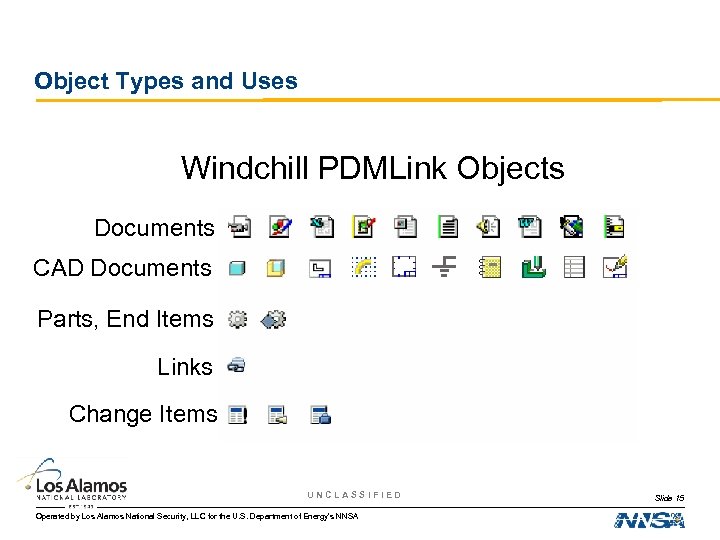

Object Types and Uses Windchill PDMLink Objects Documents CAD Documents Parts, End Items Links Change Items UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 15

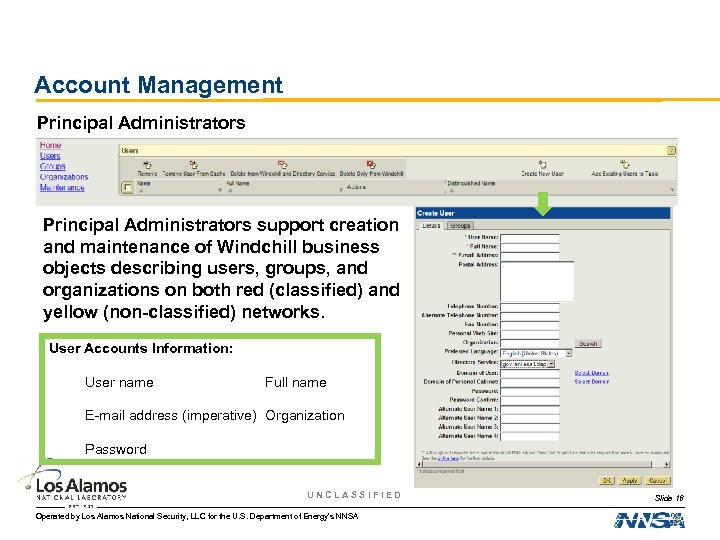

Account Management Principal Administrators support creation and maintenance of Windchill business objects describing users, groups, and organizations on both red (classified) and yellow (non-classified) networks. User Accounts Information: User name Full name E-mail address (imperative) Organization Password UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 16

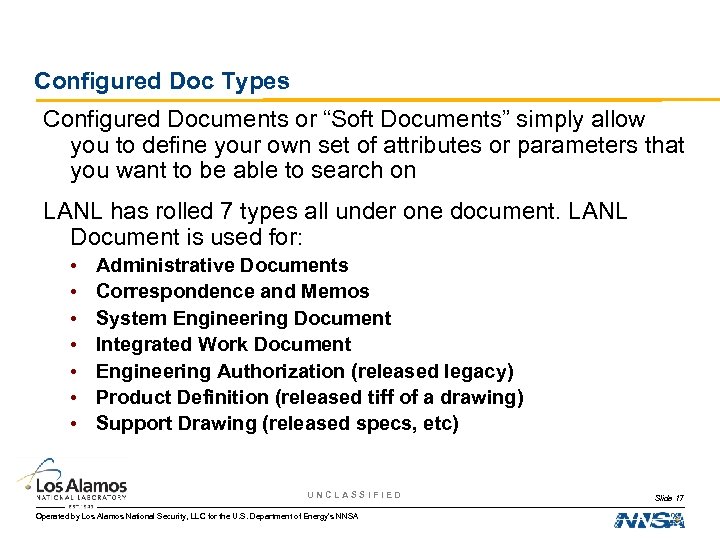

Configured Doc Types Configured Documents or “Soft Documents” simply allow you to define your own set of attributes or parameters that you want to be able to search on LANL has rolled 7 types all under one document. LANL Document is used for: • • Administrative Documents Correspondence and Memos System Engineering Document Integrated Work Document Engineering Authorization (released legacy) Product Definition (released tiff of a drawing) Support Drawing (released specs, etc) UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 17

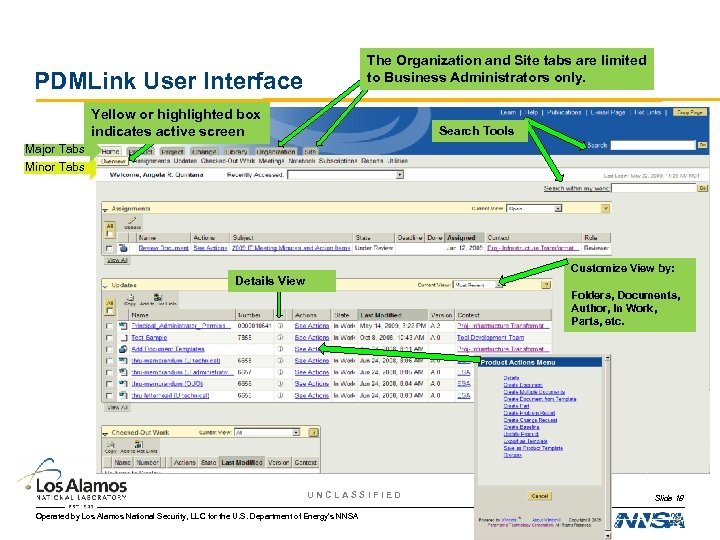

The Organization and Site tabs are limited to Business Administrators only. PDMLink User Interface Yellow or highlighted box indicates active screen Search Tools Major Tabs Minor Tabs Customize View by: Details View Folders, Documents, Author, In Work, Parts, etc. UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 18

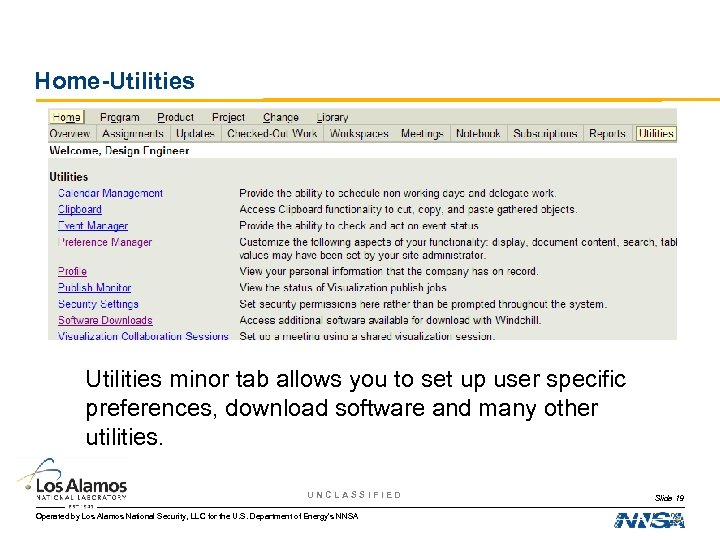

Home-Utilities n Utilities minor tab allows you to set up user specific preferences, download software and many other utilities. UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 19

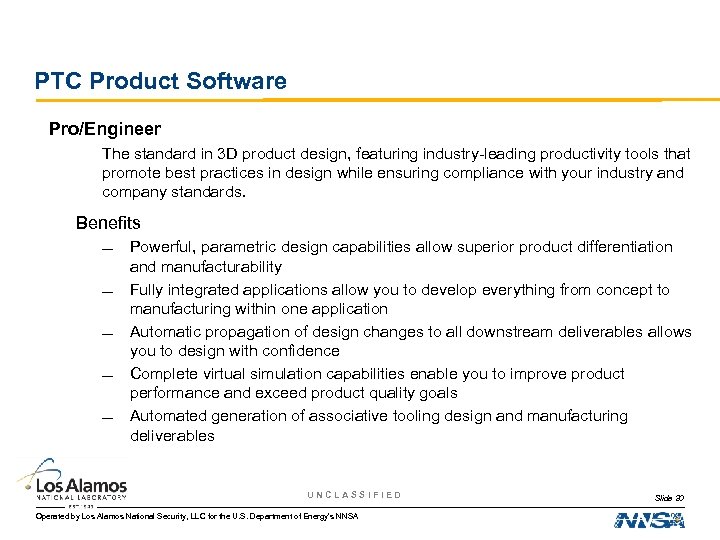

PTC Product Software Pro/Engineer The standard in 3 D product design, featuring industry-leading productivity tools that promote best practices in design while ensuring compliance with your industry and company standards. Benefits — — — Powerful, parametric design capabilities allow superior product differentiation and manufacturability Fully integrated applications allow you to develop everything from concept to manufacturing within one application Automatic propagation of design changes to all downstream deliverables allows you to design with confidence Complete virtual simulation capabilities enable you to improve product performance and exceed product quality goals Automated generation of associative tooling design and manufacturing deliverables UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 20

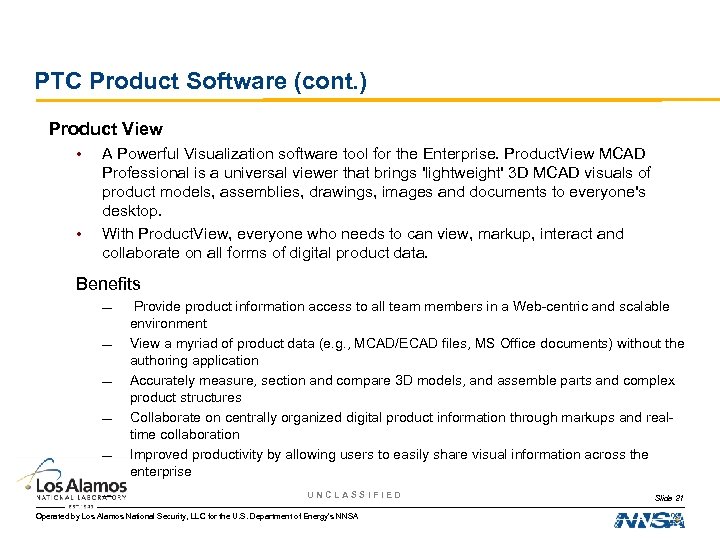

PTC Product Software (cont. ) Product View • • A Powerful Visualization software tool for the Enterprise. Product. View MCAD Professional is a universal viewer that brings 'lightweight' 3 D MCAD visuals of product models, assemblies, drawings, images and documents to everyone's desktop. With Product. View, everyone who needs to can view, markup, interact and collaborate on all forms of digital product data. Benefits — — — Provide product information access to all team members in a Web-centric and scalable environment View a myriad of product data (e. g. , MCAD/ECAD files, MS Office documents) without the authoring application Accurately measure, section and compare 3 D models, and assemble parts and complex product structures Collaborate on centrally organized digital product information through markups and realtime collaboration Improved productivity by allowing users to easily share visual information across the enterprise UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 21

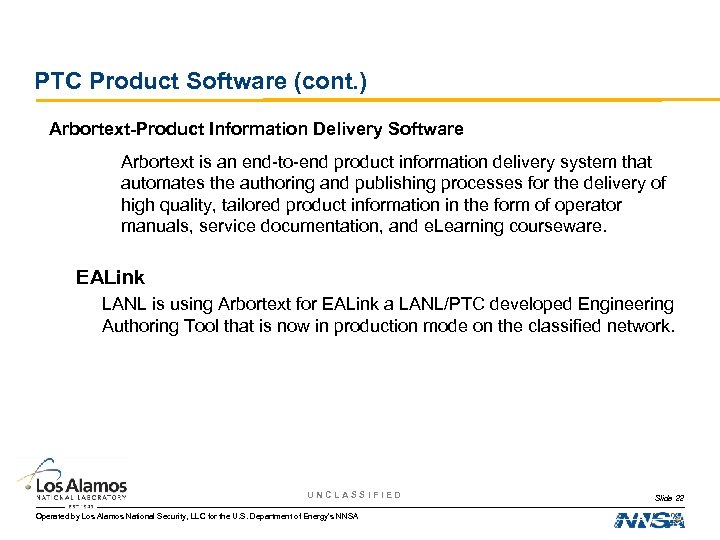

PTC Product Software (cont. ) Arbortext-Product Information Delivery Software Arbortext is an end-to-end product information delivery system that automates the authoring and publishing processes for the delivery of high quality, tailored product information in the form of operator manuals, service documentation, and e. Learning courseware. EALink LANL is using Arbortext for EALink a LANL/PTC developed Engineering Authoring Tool that is now in production mode on the classified network. UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 22

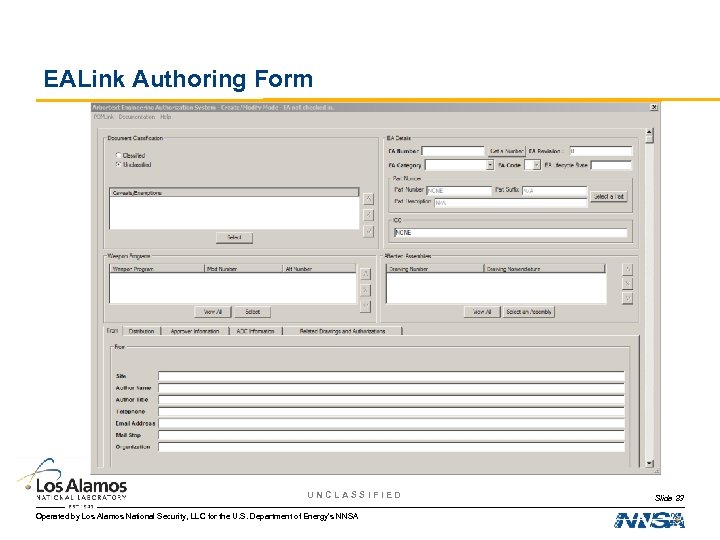

EALink Authoring Form UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 23

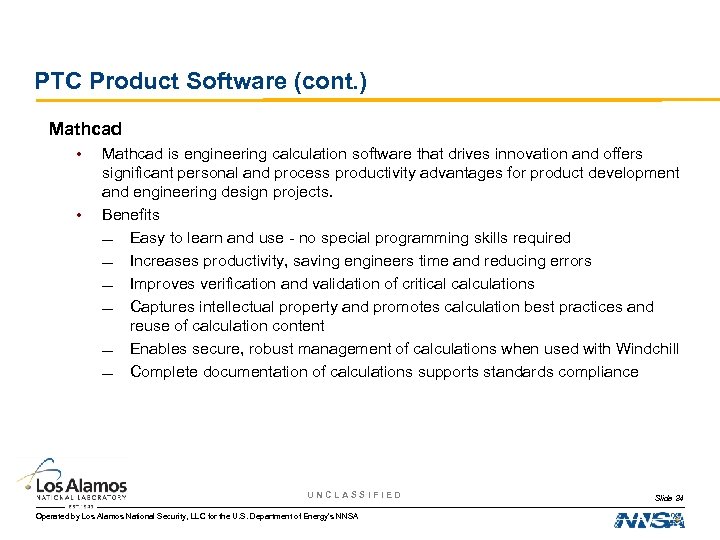

PTC Product Software (cont. ) Mathcad • • Mathcad is engineering calculation software that drives innovation and offers significant personal and process productivity advantages for product development and engineering design projects. Benefits — Easy to learn and use - no special programming skills required — Increases productivity, saving engineers time and reducing errors — Improves verification and validation of critical calculations — Captures intellectual property and promotes calculation best practices and reuse of calculation content — Enables secure, robust management of calculations when used with Windchill — Complete documentation of calculations supports standards compliance UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 24

Project Collaboration Tools - Routing UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 25

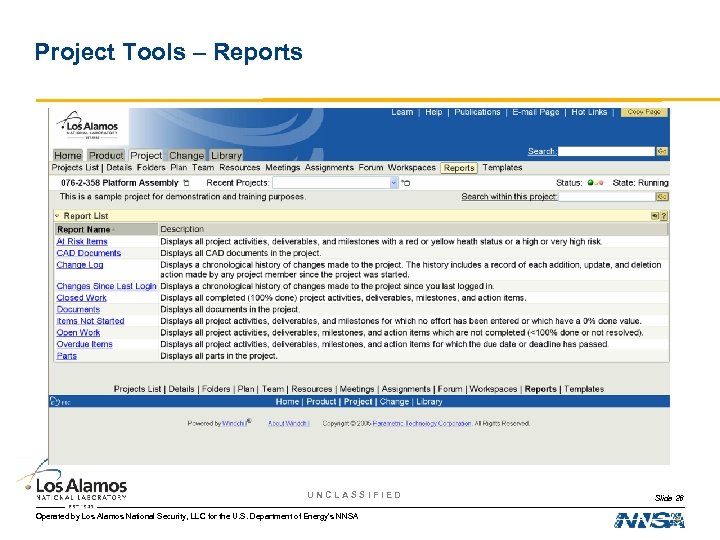

Project Tools – Reports UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 26

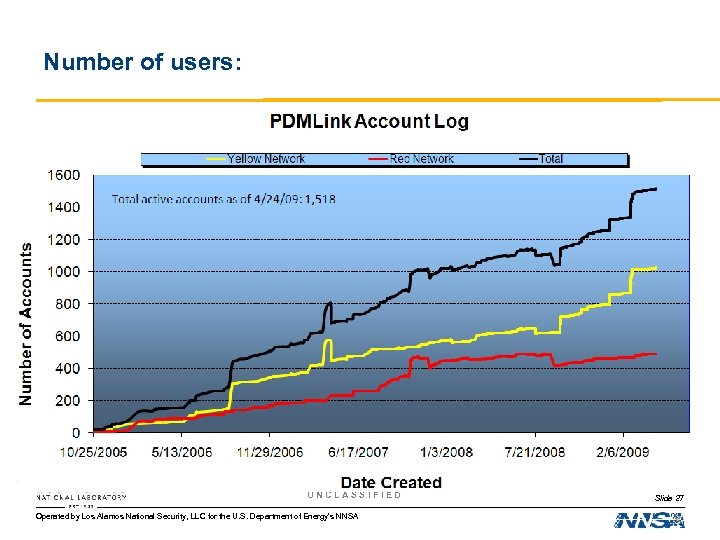

Number of users: UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 27

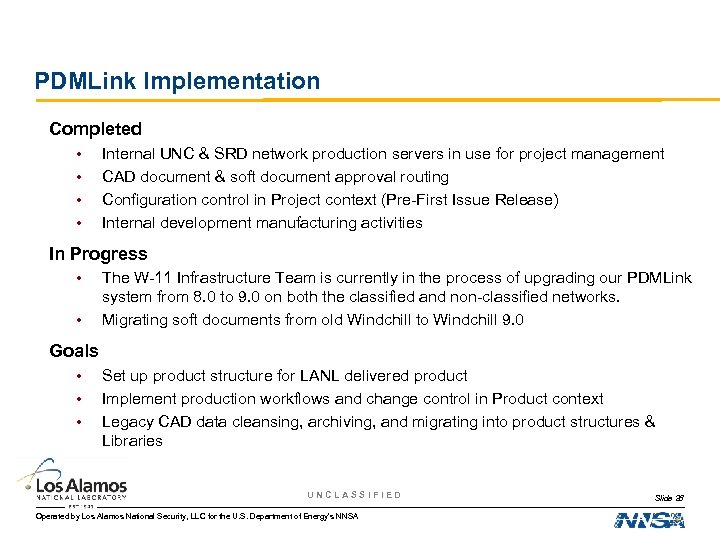

PDMLink Implementation Completed • • Internal UNC & SRD network production servers in use for project management CAD document & soft document approval routing Configuration control in Project context (Pre-First Issue Release) Internal development manufacturing activities In Progress • • The W-11 Infrastructure Team is currently in the process of upgrading our PDMLink system from 8. 0 to 9. 0 on both the classified and non-classified networks. Migrating soft documents from old Windchill to Windchill 9. 0 Goals • • • Set up product structure for LANL delivered product Implement production workflows and change control in Product context Legacy CAD data cleansing, archiving, and migrating into product structures & Libraries UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 28

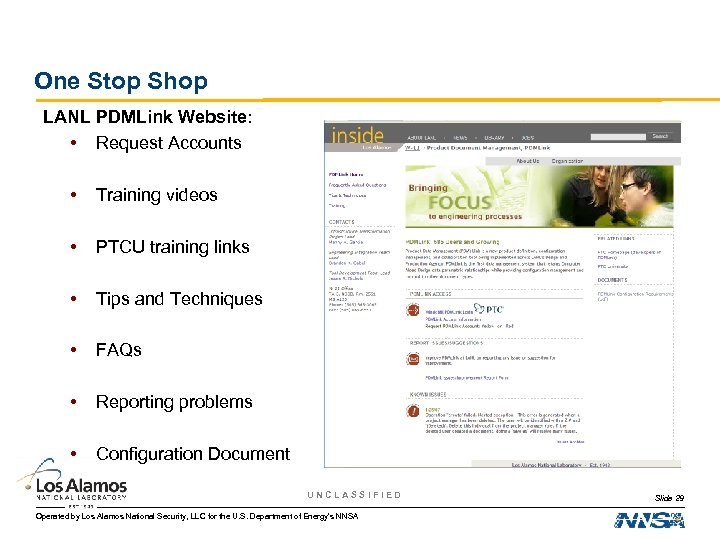

One Stop Shop LANL PDMLink Website: • Request Accounts • Training videos • PTCU training links • Tips and Techniques • FAQs • Reporting problems • Configuration Document UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 29

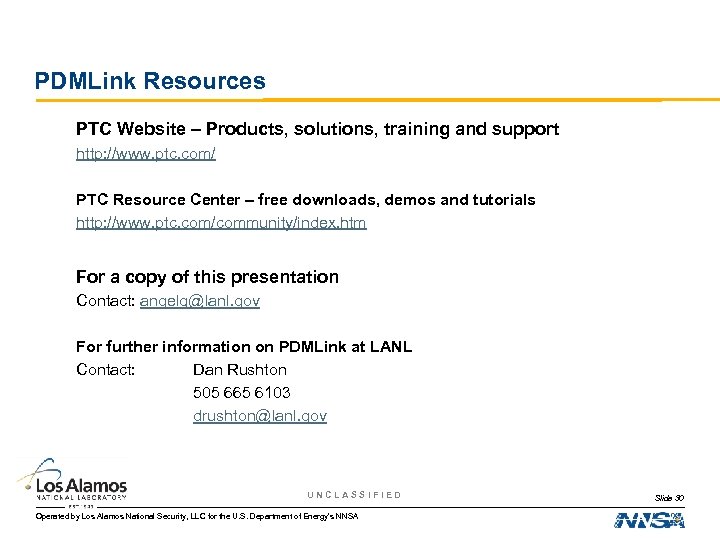

PDMLink Resources PTC Website – Products, solutions, training and support http: //www. ptc. com/ PTC Resource Center – free downloads, demos and tutorials http: //www. ptc. com/community/index. htm For a copy of this presentation Contact: angelq@lanl. gov For further information on PDMLink at LANL Contact: Dan Rushton 505 665 6103 drushton@lanl. gov UNCLASSIFIED Operated by Los Alamos National Security, LLC for the U. S. Department of Energy’s NNSA Slide 30
