PCA-6011 Sales kit G 41 ICH 7 ICH

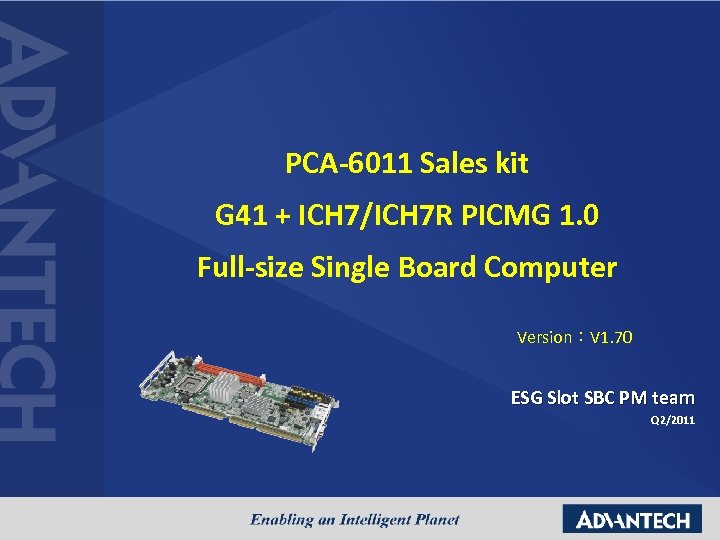

PCA-6011 Sales kit G 41 + ICH 7/ICH 7 R PICMG 1. 0 Full-size Single Board Computer Version：V 1. 70 ESG Slot SBC PM team Q 2/2011

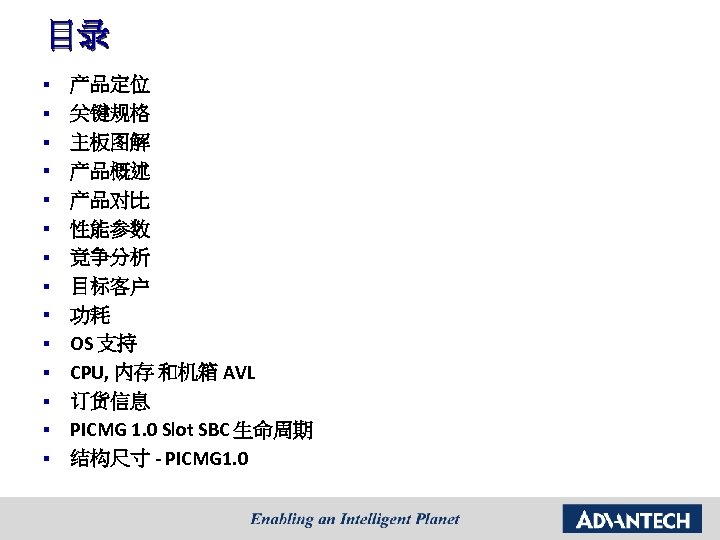

目录 § § § § 产品定位 关键规格 主板图解 产品概述 产品对比 性能参数 竞争分析 目标客户 功耗 OS 支持 CPU, 内存 和机箱 AVL 订货信息 PICMG 1. 0 Slot SBC 生命周期 结构尺寸 - PICMG 1. 0

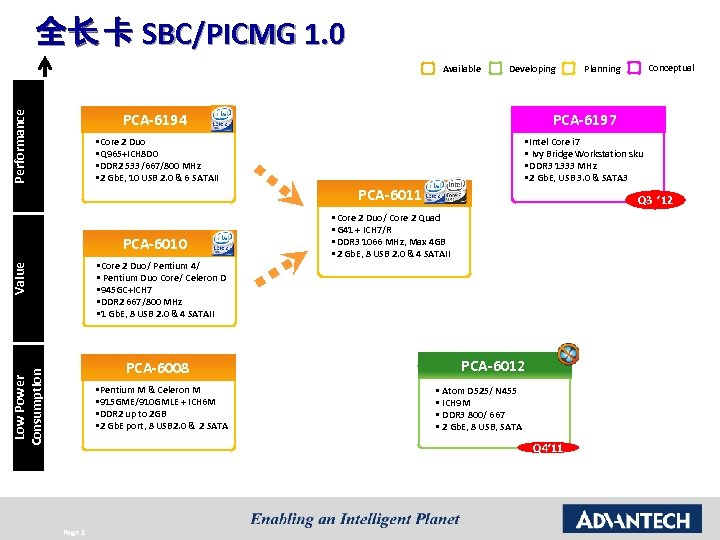

全长 卡 SBC/PICMG 1. 0 Performance Available Developing Conceptual Planning PCA-6194 PCA-6197 • Core 2 Duo • Q 965+ICH 8 DO • DDR 2 533/667/800 MHz • 2 Gb. E, 10 USB 2. 0 & 6 SATAII • Intel Core i 7 • Ivy Bridge Workstation sku • DDR 3 1333 MHz • 2 Gb. E, USB 3. 0 & SATA 3 PCA-6011 PCA-6010 Value • Core 2 Duo/ Pentium 4/ • Pentium Duo Core/ Celeron D • 945 GC+ICH 7 • DDR 2 667/800 MHz • 1 Gb. E, 8 USB 2. 0 & 4 SATAII Low Power Consumption PCA-6008 • Pentium M & Celeron M • 915 GME/910 GMLE + ICH 6 M • DDR 2 up to 2 GB • 2 Gb. E port, 8 USB 2. 0 & 2 SATA Q 3 ‘ 12 • Core 2 Duo/ Core 2 Quad • G 41 + ICH 7/R • DDR 3 1066 MHz, Max 4 GB • 2 Gb. E, 8 USB 2. 0 & 4 SATAII PCA-6012 • Atom D 525/ N 455 • ICH 9 M • DDR 3 800/ 667 • 2 Gb. E, 8 USB, SATA Q 4‘ 11 Page 3

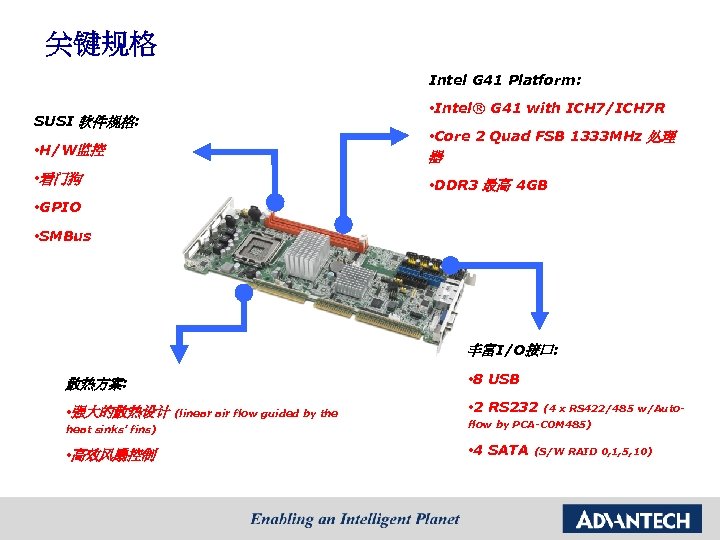

关键规格 Intel G 41 Platform: • Intel® G 41 with ICH 7/ICH 7 R SUSI 软件规格: • H/W监控 • Core 2 Quad FSB 1333 MHz 处理 器 • 看门狗 • DDR 3 最高 4 GB • GPIO • SMBus 丰富I/O接口: • 8 USB 散热方案: • 强大的散热设计 heat sinks’ fins) • 高效风扇控制 (linear air flow guided by the • 2 RS 232 (4 x RS 422/485 w/Auto- flow by PCA-COM 485) • 4 SATA (S/W RAID 0, 1, 5, 10)

Intel LGA 775 C 2 Q/C 2 D 1066/1333 MHz FSB 主板结构图 CRT DVI (Optional) Display port Channel A DDR 3 800/1066 Channel B G 41 GMCH DDR 3 800/1066 DMI VGA IDE or CF (Optional) PCIe x 1 300 MHz 8 USB Ports USB 2. 0/1. 1 HD Audio (Optional) PCI to ISA Bridge ITE 8888 PCI Bus 4 SATA II Ports G-LAN 2 Intel 82583 V PCI Bus DMA 33/66/100 G-LAN 1 Intel 82583 V Backplane (PICMG 1. 0) HD Audio SPI ICH 7/ ICH 7 R LPC Bus BIOS 2 COM Ports Super I/O Winbond 83627 DHG-P GPIO

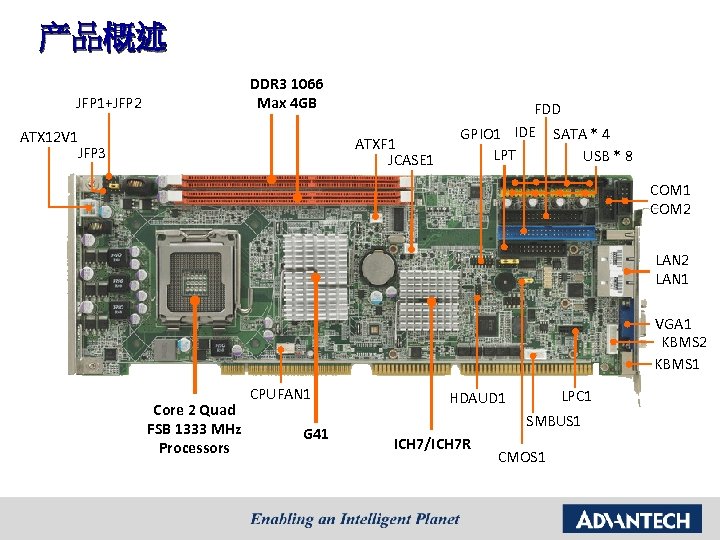

产品概述 DDR 3 1066 Max 4 GB JFP 1+JFP 2 ATX 12 V 1 JFP 3 ATXF 1 JCASE 1 FDD GPIO 1 IDE SATA * 4 LPT USB * 8 COM 1 COM 2 LAN 1 VGA 1 KBMS 2 KBMS 1 Core 2 Quad FSB 1333 MHz Processors CPUFAN 1 G 41 LPC 1 HDAUD 1 SMBUS 1 ICH 7/ICH 7 R CMOS 1

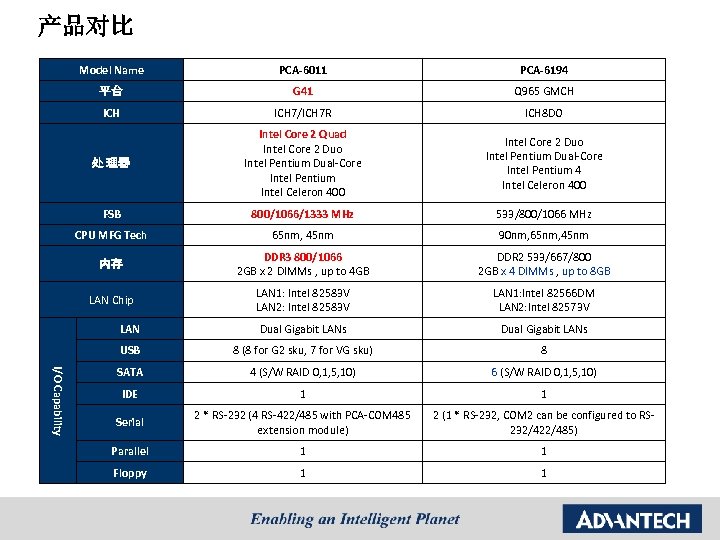

产品对比 PCA-6011 PCA-6194 平台 G 41 Q 965 GMCH ICH 7/ICH 7 R ICH 8 DO 处 理器 Intel Core 2 Quad Intel Core 2 Duo Intel Pentium Dual-Core Intel Pentium Intel Celeron 400 Intel Core 2 Duo Intel Pentium Dual-Core Intel Pentium 4 Intel Celeron 400 FSB 800/1066/1333 MHz 533/800/1066 MHz CPU MFG Tech 65 nm, 45 nm 90 nm, 65 nm, 45 nm 内存 DDR 3 800/1066 2 GB x 2 DIMMs , up to 4 GB DDR 2 533/667/800 2 GB x 4 DIMMs , up to 8 GB LAN Chip LAN 1: Intel 82583 V LAN 2: Intel 82583 V LAN 1: Intel 82566 DM LAN 2: Intel 82573 V LAN Dual Gigabit LANs USB I/O Capability Model Name 8 (8 for G 2 sku, 7 for VG sku) 8 SATA 4 (S/W RAID 0, 1, 5, 10) 6 (S/W RAID 0, 1, 5, 10) IDE 1 1 Serial 2 * RS-232 (4 RS-422/485 with PCA-COM 485 extension module) 2 (1 * RS-232, COM 2 can be configured to RS 232/422/485) Parallel 1 1 Floppy 1 1

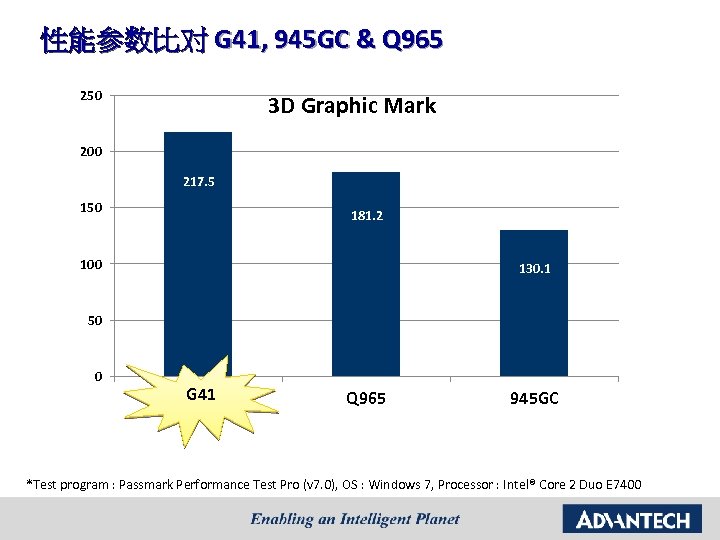

性能参数比对 G 41, 945 GC & Q 965 250 3 D Graphic Mark 200 217. 5 150 181. 2 100 130. 1 50 0 G 41 Q 965 945 GC *Test program : Passmark Performance Test Pro (v 7. 0), OS : Windows 7, Processor : Intel® Core 2 Duo E 7400

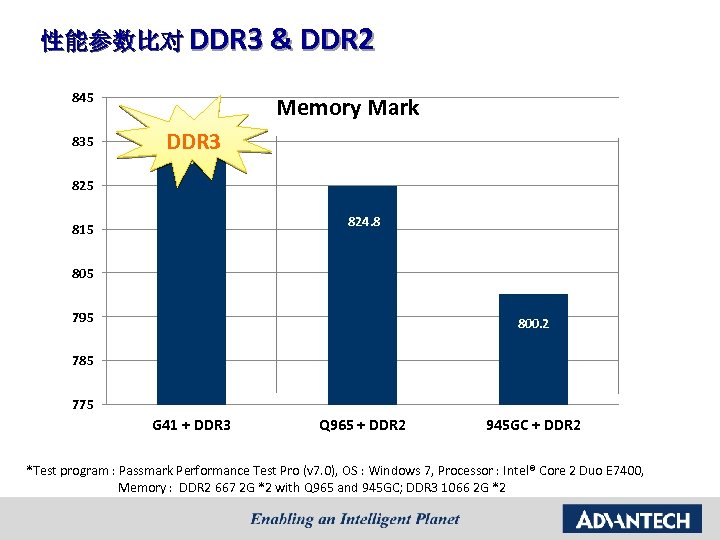

性能参数比对 DDR 3 & DDR 2 845 835 Memory Mark DDR 3 837. 4 825 824. 8 815 805 795 800. 2 785 775 G 41 + DDR 3 Q 965 + DDR 2 945 GC + DDR 2 *Test program : Passmark Performance Test Pro (v 7. 0), OS : Windows 7, Processor : Intel® Core 2 Duo E 7400, Memory : DDR 2 667 2 G *2 with Q 965 and 945 GC; DDR 3 1066 2 G *2

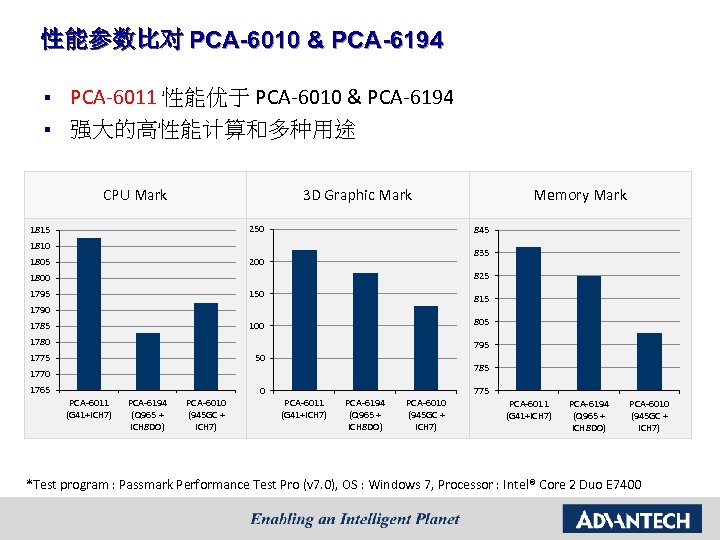

性能参数比对 PCA-6010 & PCA-6194 PCA-6011 性能优于 PCA-6010 & PCA-6194 § 强大的高性能计算和多种用途 § CPU Mark 3 D Graphic Mark 250 1815 845 1810 835 200 1805 Memory Mark 825 1800 150 1795 815 1790 805 100 1785 1780 795 1775 50 785 1770 1765 PCA-6011 (G 41+ICH 7) PCA-6194 (Q 965 + ICH 8 DO) PCA-6010 (945 GC + ICH 7) 0 775 PCA-6011 (G 41+ICH 7) PCA-6194 (Q 965 + ICH 8 DO) PCA-6010 (945 GC + ICH 7) *Test program : Passmark Performance Test Pro (v 7. 0), OS : Windows 7, Processor : Intel® Core 2 Duo E 7400

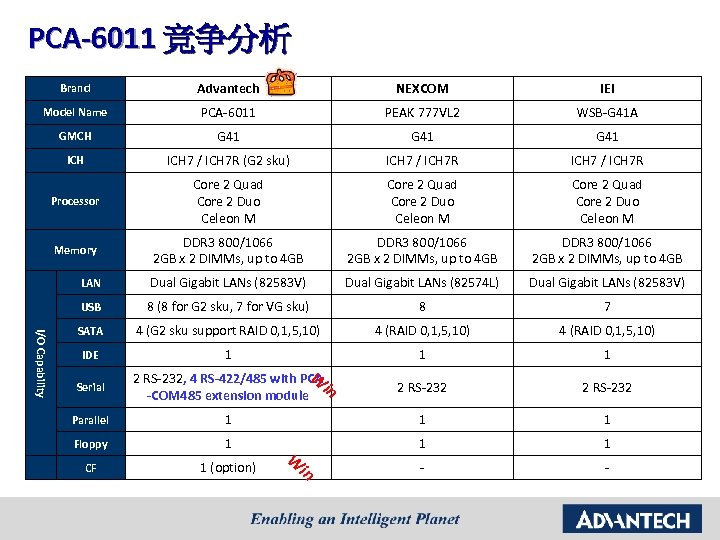

PCA-6011 竞争分析 Advantech NEXCOM IEI Model Name PCA-6011 PEAK 777 VL 2 WSB-G 41 A GMCH G 41 ICH 7 / ICH 7 R (G 2 sku) ICH 7 / ICH 7 R Processor Core 2 Quad Core 2 Duo Celeon M Memory DDR 3 800/1066 2 GB x 2 DIMMs, up to 4 GB LAN Dual Gigabit LANs (82583 V) Dual Gigabit LANs (82574 L) Dual Gigabit LANs (82583 V) USB 8 (8 for G 2 sku, 7 for VG sku) 8 7 SATA 4 (G 2 sku support RAID 0, 1, 5, 10) 4 (RAID 0, 1, 5, 10) IDE 1 1 1 2 RS-232 1 1 - - I/O Capability Brand Serial W 2 RS-232, 4 RS-422/485 with PCA i -COM 485 extension module n Parallel 1 Floppy 1 CF 1 (option) W in

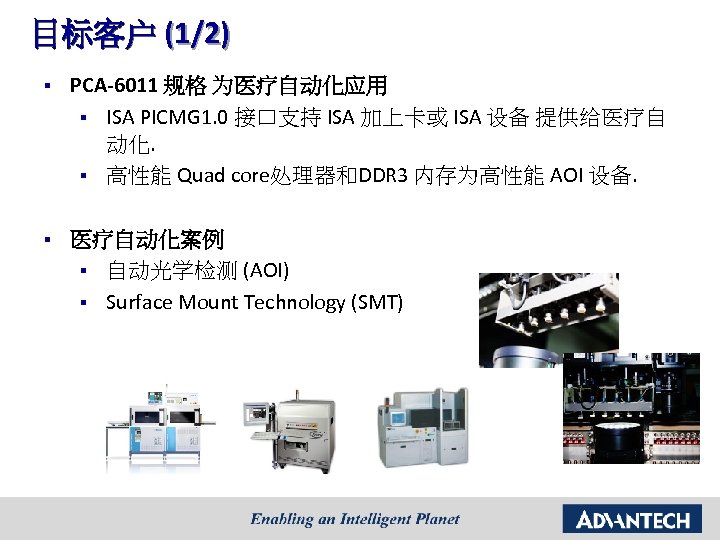

目标客户 (1/2) § PCA-6011 规格 为医疗自动化应用 § ISA PICMG 1. 0 接口支持 ISA 加上卡或 ISA 设备 提供给医疗自 动化. § 高性能 Quad core处理器和DDR 3 内存为高性能 AOI 设备. § 医疗自动化案例 § 自动光学检测 (AOI) § Surface Mount Technology (SMT)

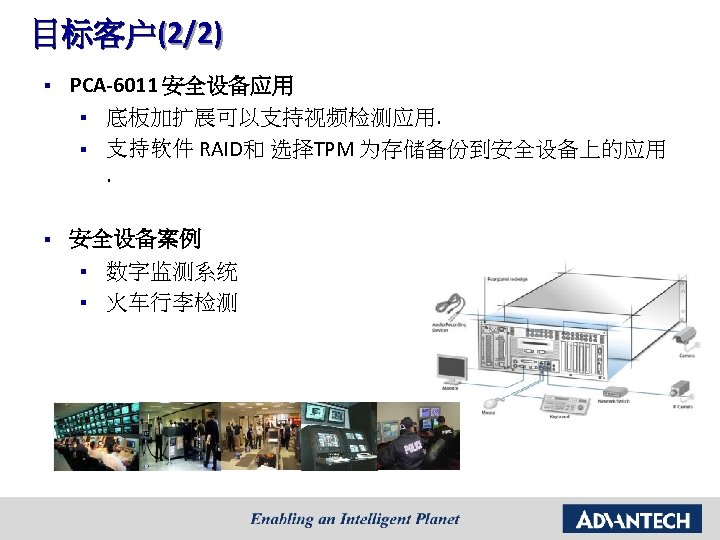

目标客户(2/2) § PCA-6011 安全设备应用 § 底板加扩展可以支持视频检测应用. § 支持软件 RAID和 选择TPM 为存储备份到安全设备上的应用. § 安全设备案例 § 数字监测系统 § 火车行李检测

能耗

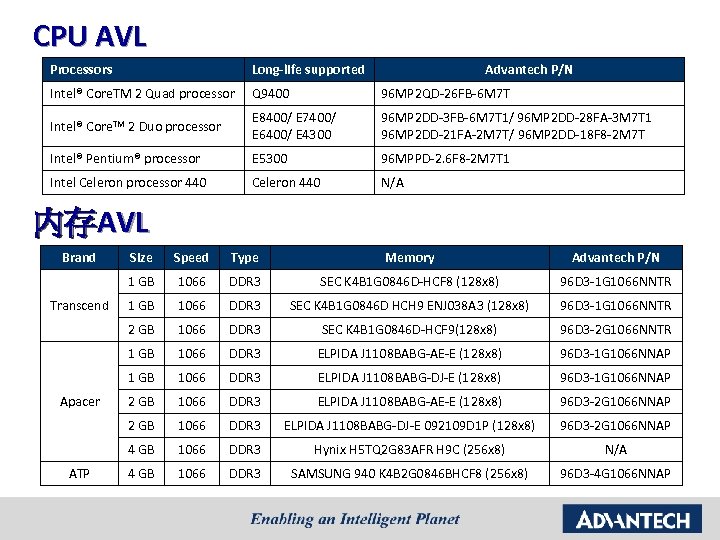

CPU AVL Processors Long-life supported Advantech P/N Intel® Core. TM 2 Quad processor Q 9400 96 MP 2 QD-26 FB-6 M 7 T Intel® Core. TM 2 Duo processor E 8400/ E 7400/ E 6400/ E 4300 96 MP 2 DD-3 FB-6 M 7 T 1/ 96 MP 2 DD-28 FA-3 M 7 T 1 96 MP 2 DD-21 FA-2 M 7 T/ 96 MP 2 DD-18 F 8 -2 M 7 T Intel® Pentium® processor E 5300 96 MPPD-2. 6 F 8 -2 M 7 T 1 Intel Celeron processor 440 Celeron 440 N/A 内存AVL Brand Memory Advantech P/N 1066 DDR 3 SEC K 4 B 1 G 0846 D-HCF 8 (128 x 8) 96 D 3 -1 G 1066 NNTR 1 GB 1066 DDR 3 SEC K 4 B 1 G 0846 D HCH 9 ENJ 038 A 3 (128 x 8) 96 D 3 -1 G 1066 NNTR 1066 DDR 3 SEC K 4 B 1 G 0846 D-HCF 9(128 x 8) 96 D 3 -2 G 1066 NNTR 1 GB 1066 DDR 3 ELPIDA J 1108 BABG-AE-E (128 x 8) 96 D 3 -1 G 1066 NNAP 1 GB 1066 DDR 3 ELPIDA J 1108 BABG-DJ-E (128 x 8) 96 D 3 -1 G 1066 NNAP 2 GB 1066 DDR 3 ELPIDA J 1108 BABG-AE-E (128 x 8) 96 D 3 -2 G 1066 NNAP 2 GB 1066 DDR 3 ELPIDA J 1108 BABG-DJ-E 092109 D 1 P (128 x 8) 96 D 3 -2 G 1066 NNAP 4 GB ATP Type 2 GB Apacer Speed 1 GB Transcend Size 1066 DDR 3 Hynix H 5 TQ 2 G 83 AFR H 9 C (256 x 8) N/A 4 GB 1066 DDR 3 SAMSUNG 940 K 4 B 2 G 0846 BHCF 8 (256 x 8) 96 D 3 -4 G 1066 NNAP

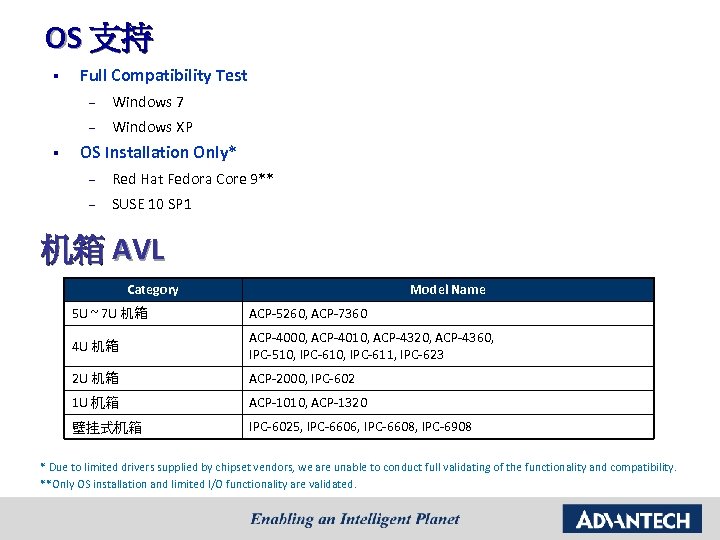

OS 支持 § Full Compatibility Test – – § Windows 7 Windows XP OS Installation Only* – Red Hat Fedora Core 9** – SUSE 10 SP 1 机箱 AVL Category Model Name 5 U ~ 7 U 机箱 ACP-5260, ACP-7360 4 U 机箱 ACP-4000, ACP-4010, ACP-4320, ACP-4360, IPC-510, IPC-611, IPC-623 2 U 机箱 ACP-2000, IPC-602 1 U 机箱 ACP-1010, ACP-1320 壁挂式机箱 IPC-6025, IPC-6606, IPC-6608, IPC-6908 * Due to limited drivers supplied by chipset vendors, we are unable to conduct full validating of the functionality and compatibility. **Only OS installation and limited I/O functionality are validated.

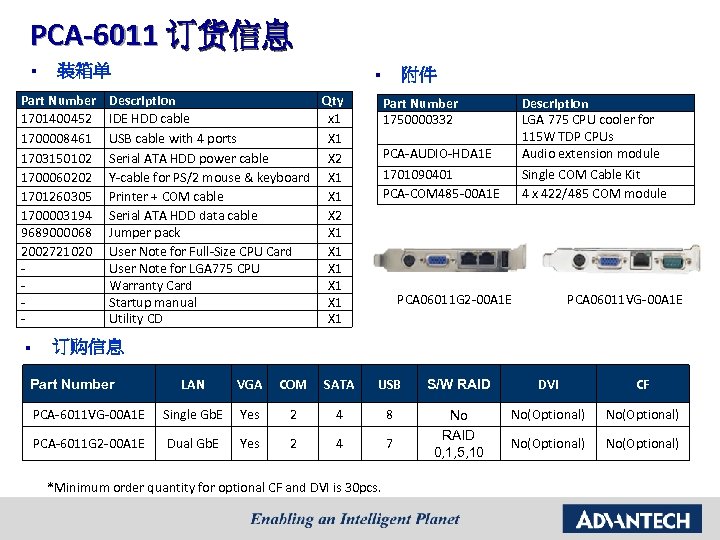

PCA-6011 订货信息 § 装箱单 Part Number 1701400452 1700008461 1703150102 1700060202 1701260305 1700003194 9689000068 2002721020 - § 附件 § Description Qty IDE HDD cable x 1 USB cable with 4 ports X 1 Serial ATA HDD power cable X 2 Y-cable for PS/2 mouse & keyboard X 1 Printer + COM cable X 1 Serial ATA HDD data cable X 2 Jumper pack X 1 User Note for Full-Size CPU Card X 1 User Note for LGA 775 CPU X 1 Warranty Card X 1 Startup manual X 1 Utility CD X 1 Part Number 1750000332 PCA-AUDIO-HDA 1 E Description LGA 775 CPU cooler for 115 W TDP CPUs Audio extension module 1701090401 PCA-COM 485 -00 A 1 E Single COM Cable Kit 4 x 422/485 COM module PCA 06011 VG-00 A 1 E PCA 06011 G 2 -00 A 1 E 订购信息 LAN VGA COM SATA USB S/W RAID DVI CF PCA-6011 VG-00 A 1 E Single Gb. E Yes 2 4 8 No(Optional) PCA-6011 G 2 -00 A 1 E Dual Gb. E Yes 2 4 7 No RAID 0, 1, 5, 10 No(Optional) Part Number *Minimum order quantity for optional CF and DVI is 30 pcs.

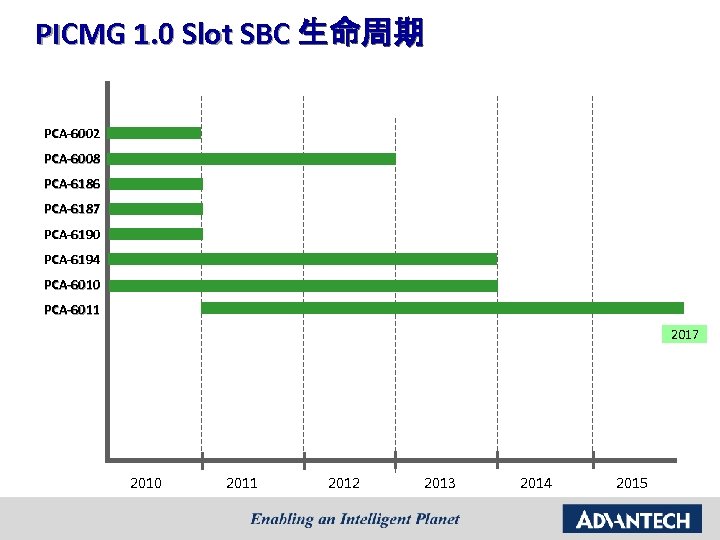

PICMG 1. 0 Slot SBC 生命周期 PCA-6002 PCA-6008 PCA-6186 PCA-6187 PCA-6190 PCA-6194 PCA-6010 PCA-6011 2017 2010 2011 2012 2013 2014 2015

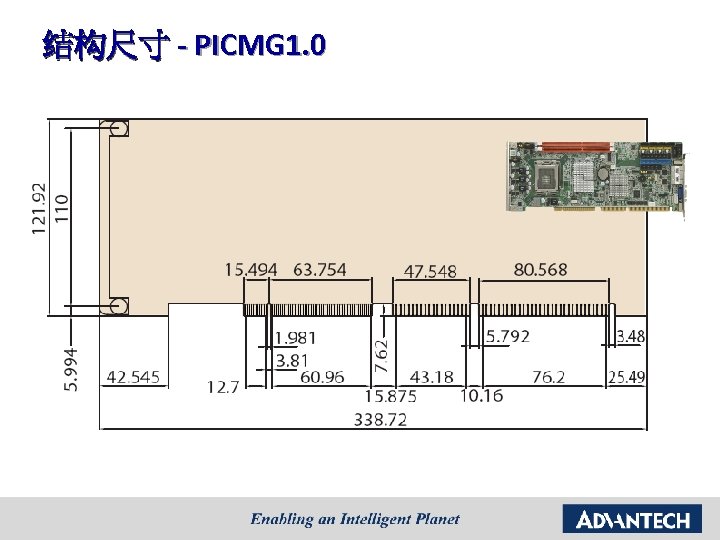

结构尺寸 - PICMG 1. 0
