Patton Smartnode Vo. IP eszközök használata § Unyi Gábor § Comfort-Netshare Kft. § 1139 Budapest, Teve u. 41. § Comfort@comfort. hu § http: www. comfort. hu § Tel: 239 -5373, Fax: 239 -5374

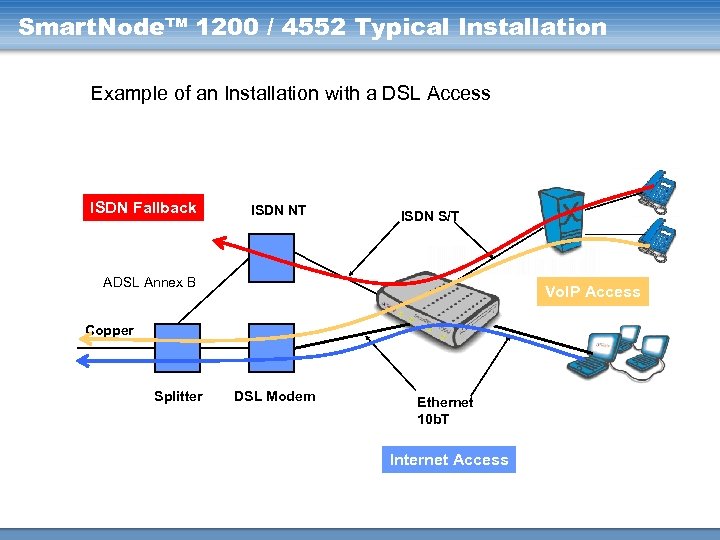

Smart. Node™ 1200 / 4552 Typical Installation Example of an Installation with a DSL Access ISDN Fallback ISDN NT ISDN S/T ADSL Annex B Vo. IP Access Copper Splitter DSL Modem Ethernet 10 b. T Internet Access

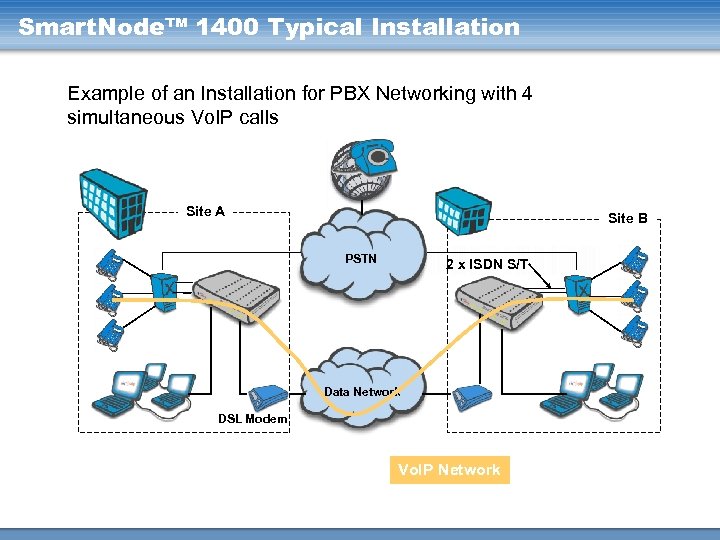

Smart. Node™ 1400 Typical Installation Example of an Installation for PBX Networking with 4 simultaneous Vo. IP calls Site A Site B PSTN 2 x ISDN S/T Data Network DSL Modem Vo. IP Network

Applications in the Provider Market § Multi-Service Broadband Access Internet Services § Bind Customers through Service Differentiation Application Services Voice Services PSTN § Bind Customers with Bundled Services § Cut Operation Costs through Converged Service Delivery Provider Backbone Power. Line BB Access WLL x. DSL CATV Leased Lines Smart. Node Customer Premises Gateways Customer Networks

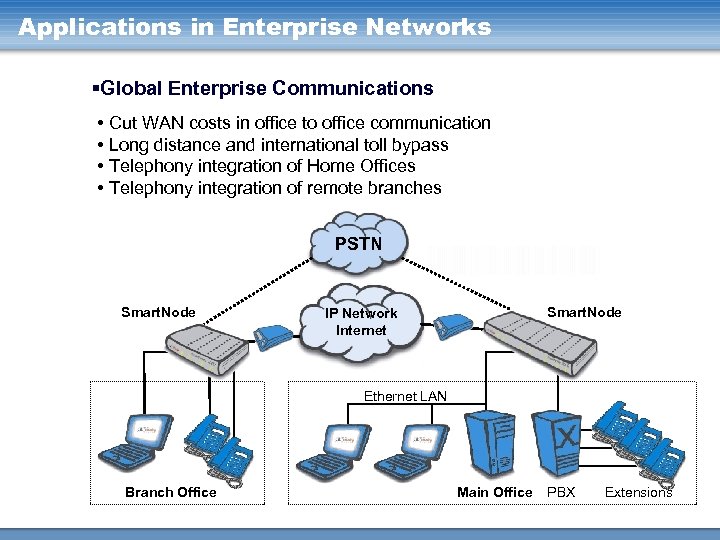

Applications in Enterprise Networks §Global Enterprise Communications • Cut WAN costs in office to office communication • Long distance and international toll bypass • Telephony integration of Home Offices • Telephony integration of remote branches PSTN Smart. Node IP Network Internet Ethernet LAN Branch Office Main Office PBX Extensions

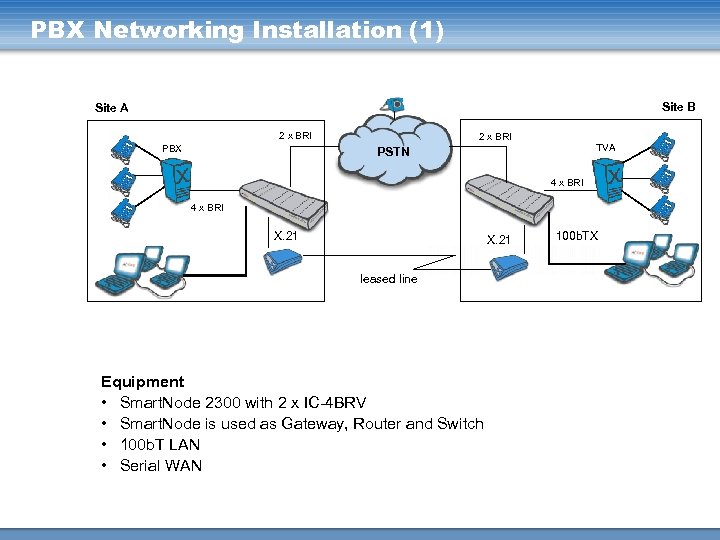

PBX Networking Installation (1) Site B Site A 2 x BRI PBX 2 x BRI TVA PSTN 4 x BRI X. 21 leased line Equipment • Smart. Node 2300 with 2 x IC-4 BRV • Smart. Node is used as Gateway, Router and Switch • 100 b. T LAN • Serial WAN 100 b. TX

PBX Networking Installation (2) SN 4528 SN 4114 IP/WAN/VPN WWW 8 -lines 4 -lines SN 4526 6 -lines Customer Benefits • Interoffice Toll Bypass based on legacy PBX installation • Telephony, Internet Access and VPN with a single device

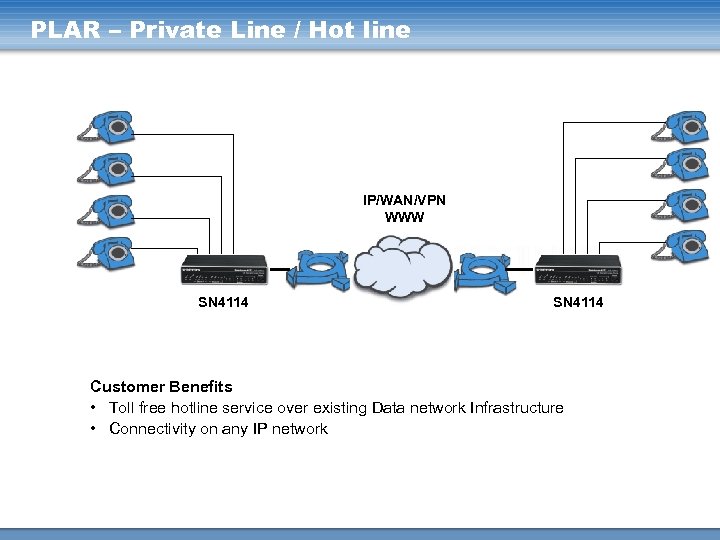

PLAR – Private Line / Hot line IP/WAN/VPN WWW SN 4114 Customer Benefits • Toll free hotline service over existing Data network Infrastructure • Connectivity on any IP network

Enterprise Home Office PBX Extension Main Office PSTN 5 x. BRI PBX Home Office 2 x. BRI SN 1200 Public Gateway SN 1400 Gatekeeper BRI LAN Router NAT Firewall Modem Internet Modem

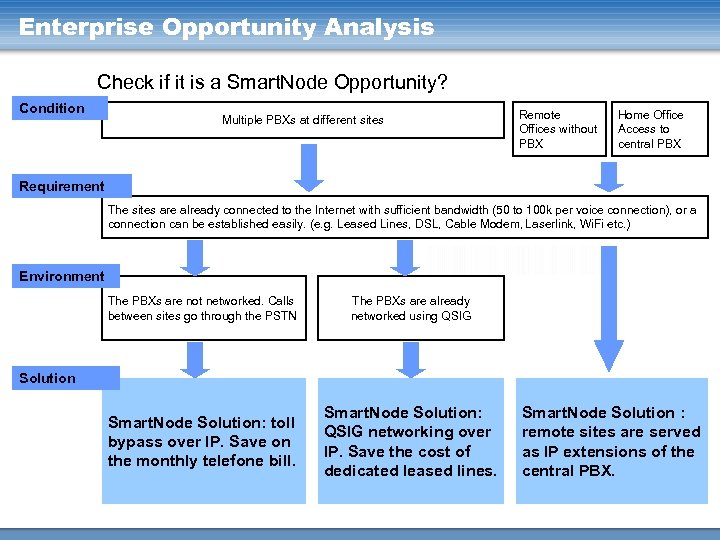

Enterprise Opportunity Analysis Check if it is a Smart. Node Opportunity? Condition Multiple PBXs at different sites Remote Offices without PBX Home Office Access to central PBX Requirement The sites are already connected to the Internet with sufficient bandwidth (50 to 100 k per voice connection), or a connection can be established easily. (e. g. Leased Lines, DSL, Cable Modem, Laserlink, Wi. Fi etc. ) Environment The PBXs are not networked. Calls between sites go through the PSTN The PBXs are already networked using QSIG Smart. Node Solution: toll bypass over IP. Save on the monthly telefone bill. Smart. Node Solution: QSIG networking over IP. Save the cost of dedicated leased lines. Solution Smart. Node Solution : remote sites are served as IP extensions of the central PBX.

The Patton-Inalp Vo. IP Intranet Inalp Switzerland Patton USA Ascotel Altigen 5 x BRI 2 x BRI SN 1400 PSTN T 1 DMZ LAN Gatekeeper LAN Router Firewall NAT Internet Modem 1024 Kb Modem 1544 Kb Regional Sales Office Home Office Cable or ADSL Modem >=128 Kb BRI SN 1200 Access Router NAPT Router Firewall SN 1200 PSTN ISDN Phone

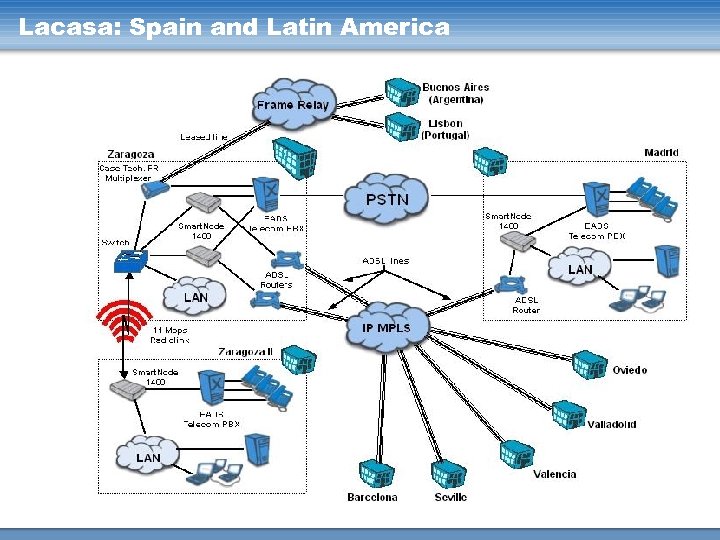

Lacasa: Spain and Latin America

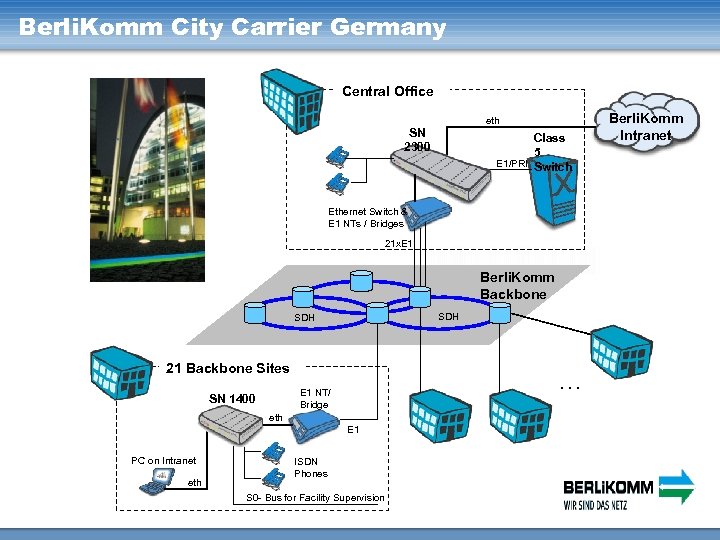

Berli. Komm City Carrier Germany Central Office eth SN 2300 Class 5 E 1/PRI Switch Ethernet Switch & E 1 NTs / Bridges 21 x. E 1 Berli. Komm Backbone SDH 21 Backbone Sites. . . E 1 NT/ Bridge SN 1400 eth E 1 PC on Intranet eth ISDN Phones S 0 - Bus for Facility Supervision Berli. Komm Intranet

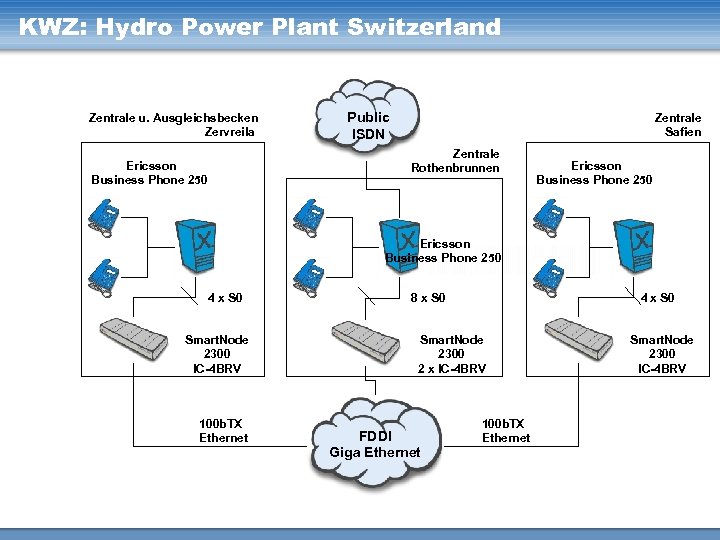

KWZ: Hydro Power Plant Switzerland Zentrale u. Ausgleichsbecken Zervreila Public ISDN Zentrale Safien Zentrale Rothenbrunnen Ericsson Business Phone 250 4 x S 0 Smart. Node 2300 IC-4 BRV 100 b. TX Ethernet 8 x S 0 4 x S 0 Smart. Node 2300 2 x IC-4 BRV FDDI Giga Ethernet 100 b. TX Ethernet Smart. Node 2300 IC-4 BRV

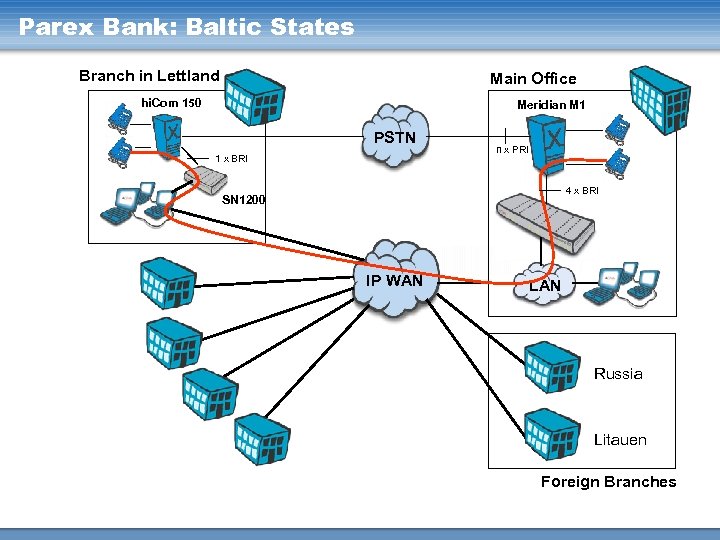

Parex Bank: Baltic States Branch in Lettland Main Office hi. Com 150 Meridian M 1 PSTN 1 x BRI n x PRI 4 x BRI SN 1200 IP WAN LAN Russia Litauen Foreign Branches

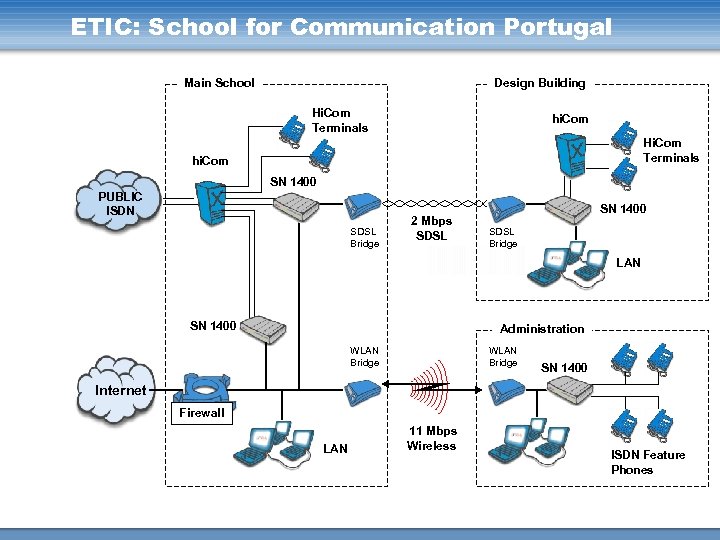

ETIC: School for Communication Portugal Main School Design Building Hi. Com Terminals hi. Com SN 1400 PUBLIC ISDN SDSL Bridge 2 Mbps SDSL SN 1400 SDSL Bridge LAN SN 1400 Administration WLAN Bridge SN 1400 Internet Firewall LAN 11 Mbps Wireless ISDN Feature Phones
