Parking Monitoring System Prepared by: Ali Al Misbah 200600302 Salman Al-Belaihi 200801405 Muneer Al-Hashem 200600086 Mustafa Al-Qurain 200800565
Outlines Introduction Objectives Block Diagram Selection Challenges Flow Chart Circuit Diagram Achievements Future Recommendations Demo
Introduction Definition ◦ Design a system to guide people in free parking spaces and has more features in terms of security, future planning and business profits. Applications ◦ Airports ◦ Malls ◦ Universities ◦ Hotels ◦ Companies
Objectives To count the number of automobiles to provide information about free parking lots Saving time looking for parking and saving energy and reducing CO 2 emissions Accurately identify and authorize vehicle movement >>>>> Relieve congestion Increase security within the parking facility Notifying users through email and SMS. All of these benefits, returns large revenues

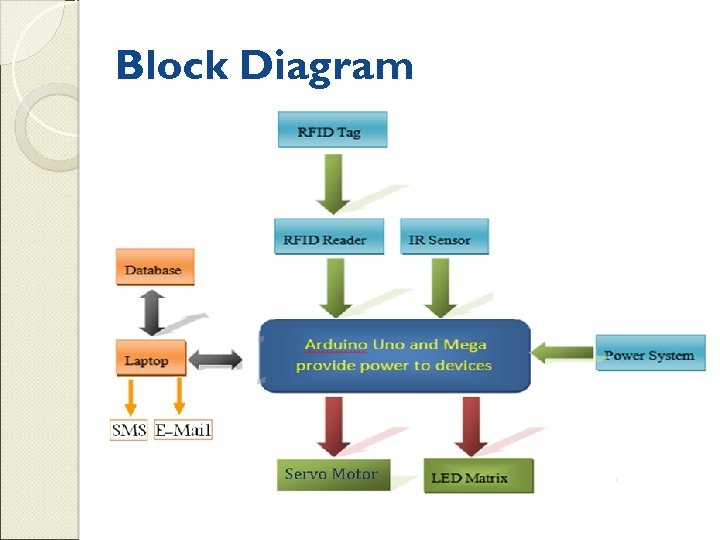

Block Diagram
Selection Arduino Mega 2560 microcontroller board. PID 555 16*24 LED Matrix Sharp IR Sensor type GP 2 Y 0 A 21 YK 0 F Servo motor type HS-485 HB RFID type ID-12

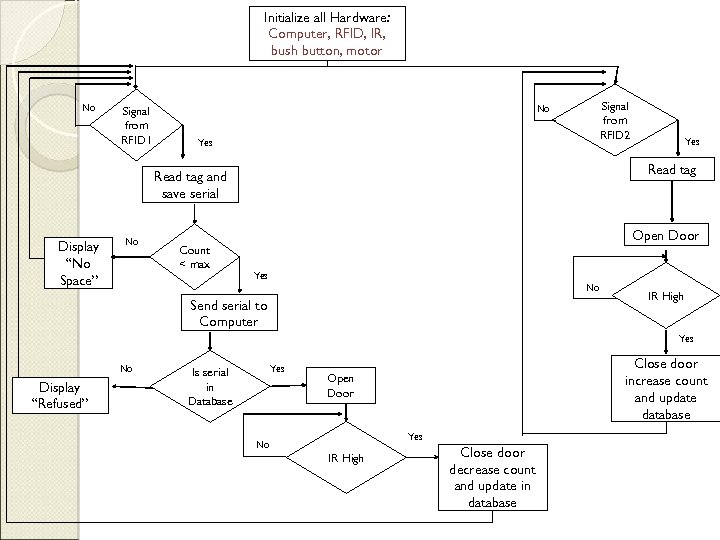

Initialize all Hardware: Computer, RFID, IR, bush button, motor No Signal from RFID 1 Signal from RFID 2 No Yes Read tag and save serial Display “No Space” No Count < max Yes Open Door Yes No Send serial to Computer IR High Yes No Display “Refused” Yes Is serial in Database Close door increase count and update database Open Door Yes No IR High Close door decrease count and update in database

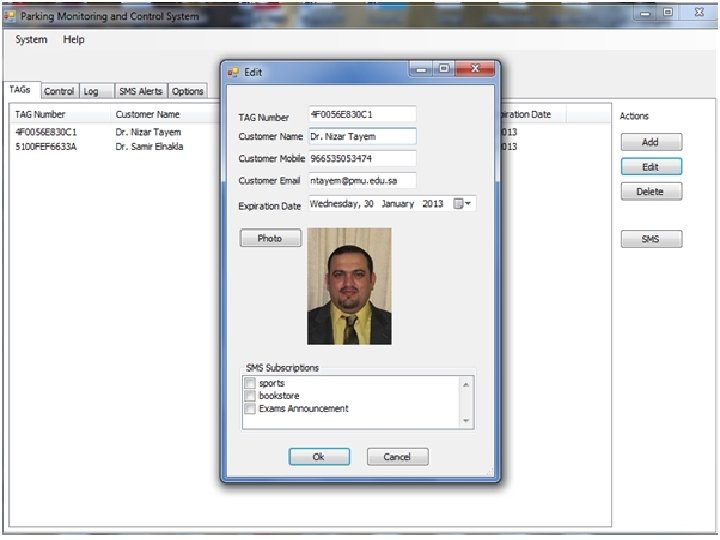

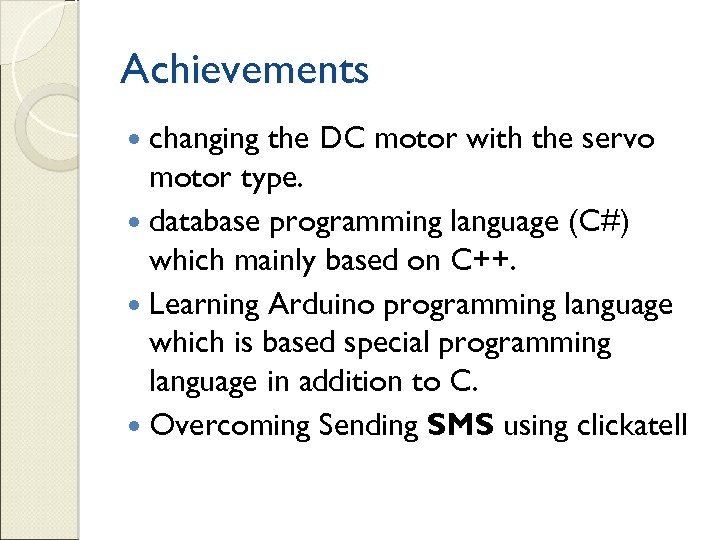

Achievements changing the DC motor with the servo motor type. database programming language (C#) which mainly based on C++. Learning Arduino programming language which is based special programming language in addition to C. Overcoming Sending SMS using clickatell
Recommendation Work A camera for more security precautions. The camera costs $75 (amazon) Wireless G Network Camera DCS 920

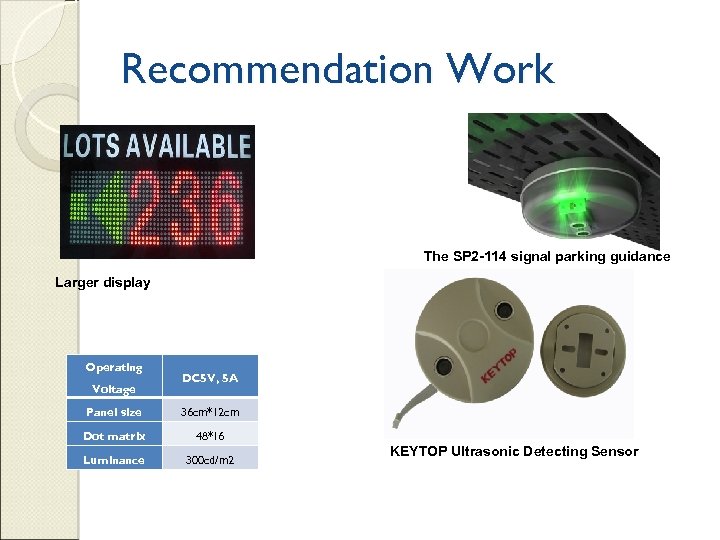

Recommendation Work The SP 2 -114 signal parking guidance sensor Larger display Operating Voltage DC 5 V, 5 A Panel size 36 cm*12 cm Dot matrix 48*16 Luminance 300 cd/m 2 KEYTOP Ultrasonic Detecting Sensor

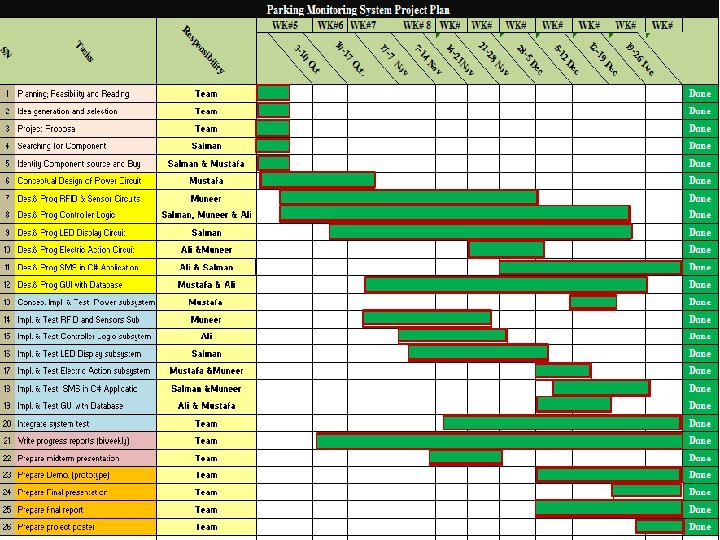

Tutorial Resources

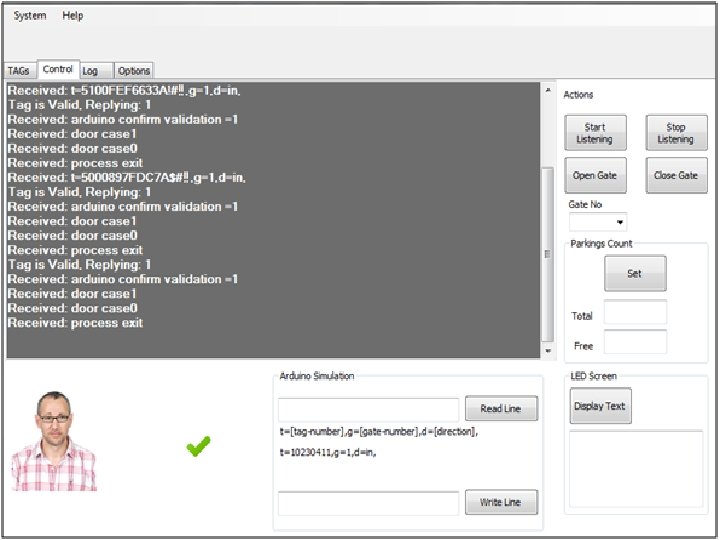

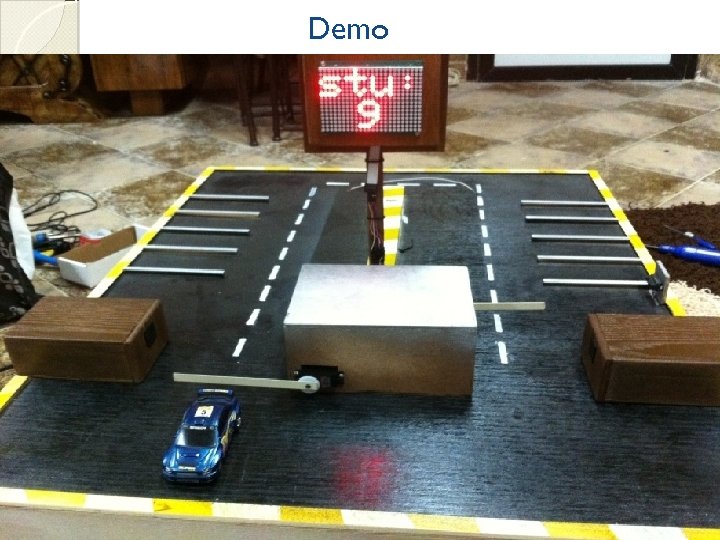

Demo
