Panasonic KX-TA 624 Advanced Hybrid PBX System OVERVIEW

Panasonic KX-TA 624 Advanced Hybrid PBX System OVERVIEW KX-TA 021200 TT

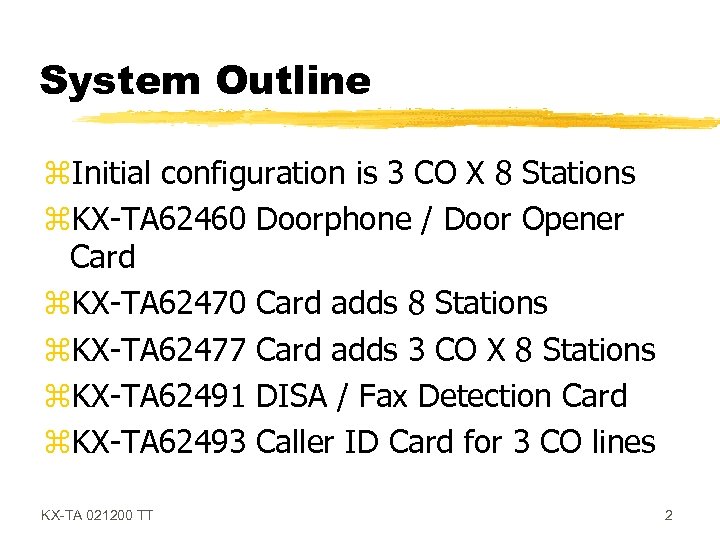

System Outline z. Initial configuration is 3 CO X 8 Stations z. KX-TA 62460 Doorphone / Door Opener Card z. KX-TA 62470 Card adds 8 Stations z. KX-TA 62477 Card adds 3 CO X 8 Stations z. KX-TA 62491 DISA / Fax Detection Card z. KX-TA 62493 Caller ID Card for 3 CO lines KX-TA 021200 TT 2

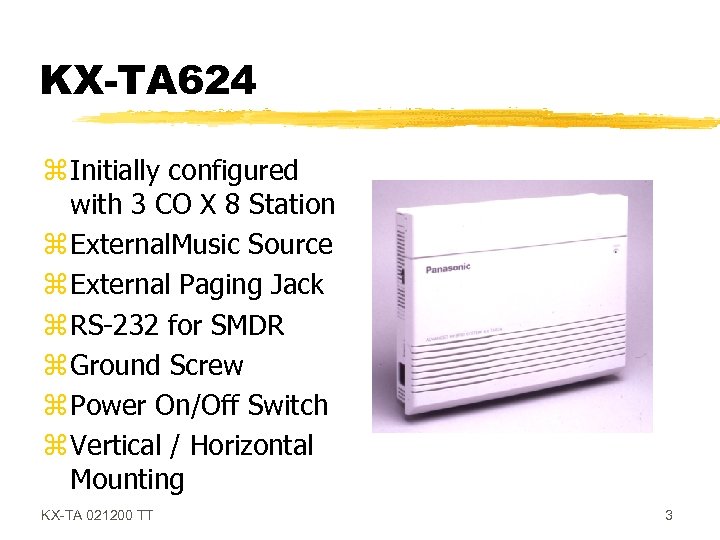

KX-TA 624 z Initially configured with 3 CO X 8 Station z External. Music Source z External Paging Jack z RS-232 for SMDR z Ground Screw z Power On/Off Switch z Vertical / Horizontal Mounting KX-TA 021200 TT 3

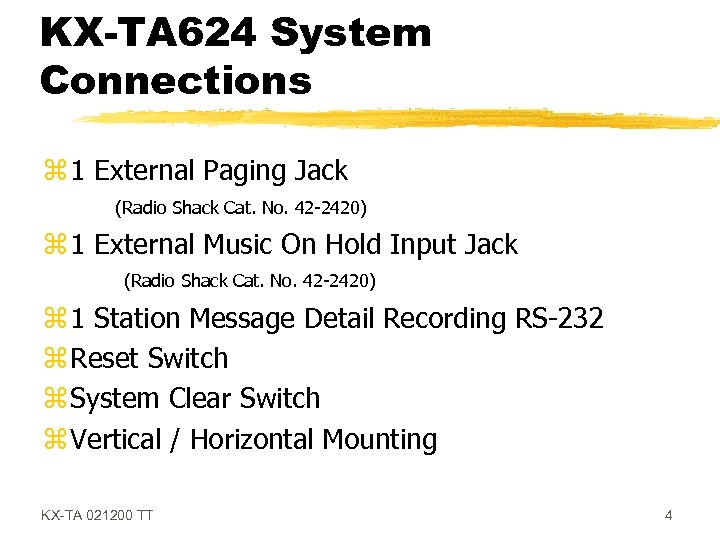

KX-TA 624 System Connections z 1 External Paging Jack (Radio Shack Cat. No. 42 -2420) z 1 External Music On Hold Input Jack (Radio Shack Cat. No. 42 -2420) z 1 Station Message Detail Recording RS-232 z Reset Switch z System Clear Switch z Vertical / Horizontal Mounting KX-TA 021200 TT 4

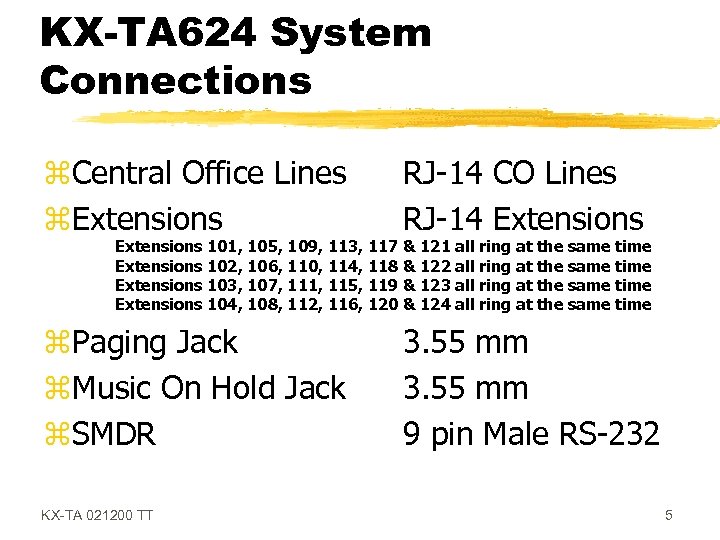

KX-TA 624 System Connections z. Central Office Lines z. Extensions RJ-14 CO Lines RJ-14 Extensions z. Paging Jack z. Music On Hold Jack z. SMDR 3. 55 mm 9 pin Male RS-232 Extensions 101, 105, 109, 113, 117 & 121 all ring at the same time Extensions 102, 106, 110, 114, 118 & 122 all ring at the same time Extensions 103, 107, 111, 115, 119 & 123 all ring at the same time Extensions 104, 108, 112, 116, 120 & 124 all ring at the same time KX-TA 021200 TT 5

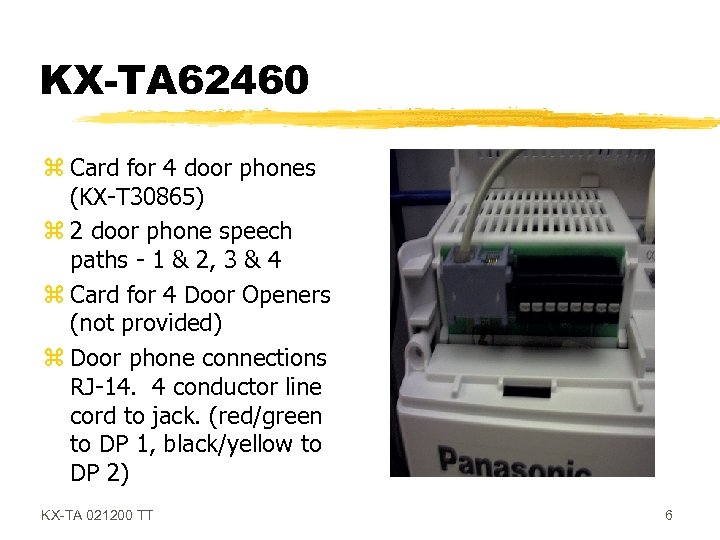

KX-TA 62460 z Card for 4 door phones (KX-T 30865) z 2 door phone speech paths - 1 & 2, 3 & 4 z Card for 4 Door Openers (not provided) z Door phone connections RJ-14. 4 conductor line cord to jack. (red/green to DP 1, black/yellow to DP 2) KX-TA 021200 TT 6

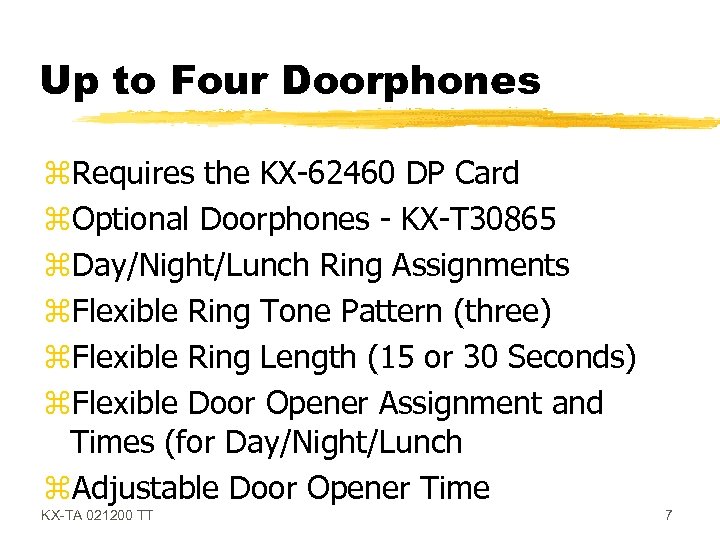

Up to Four Doorphones z. Requires the KX-62460 DP Card z. Optional Doorphones - KX-T 30865 z. Day/Night/Lunch Ring Assignments z. Flexible Ring Tone Pattern (three) z. Flexible Ring Length (15 or 30 Seconds) z. Flexible Door Opener Assignment and Times (for Day/Night/Lunch z. Adjustable Door Opener Time KX-TA 021200 TT 7

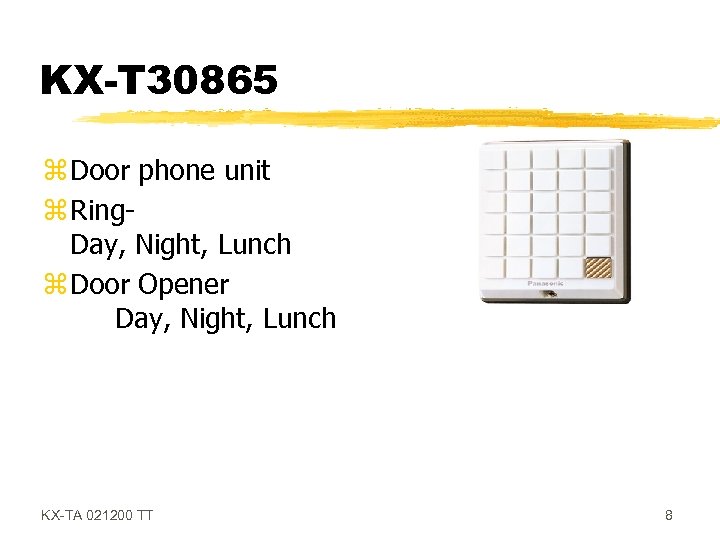

KX-T 30865 z Door phone unit z Ring. Day, Night, Lunch z Door Opener Day, Night, Lunch KX-TA 021200 TT 8

KX-TA 62470 z 8 Extension Expansion Card z This card can be installed directly to the system for a 3 CO X 16 station, or connected on the KX -TA 62477 for jacks 17 through 24. KX-TA 021200 TT 9

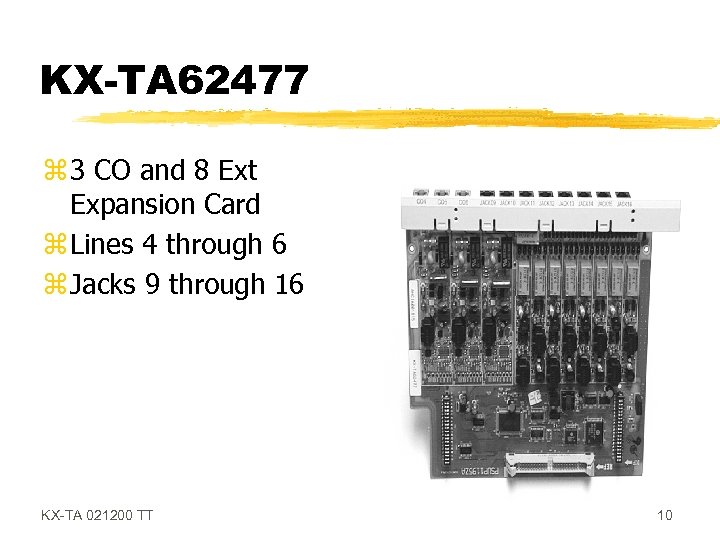

KX-TA 62477 z 3 CO and 8 Ext Expansion Card z Lines 4 through 6 z Jacks 9 through 16 KX-TA 021200 TT 10

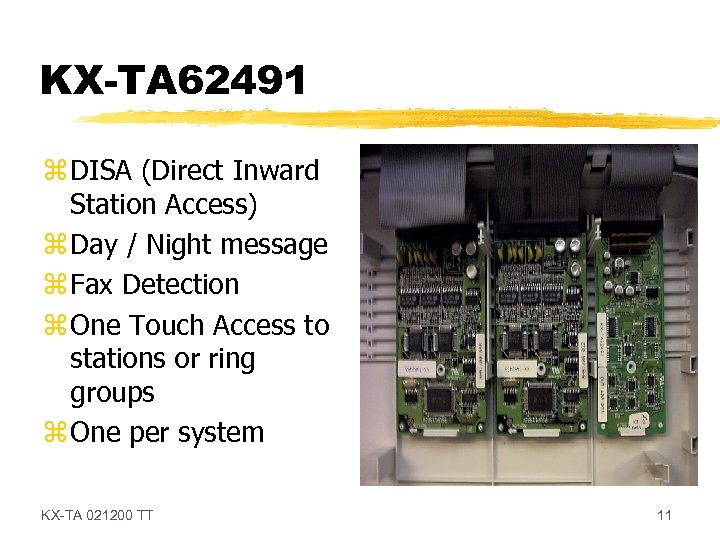

KX-TA 62491 z DISA (Direct Inward Station Access) z Day / Night message z Fax Detection z One Touch Access to stations or ring groups z One per system KX-TA 021200 TT 11

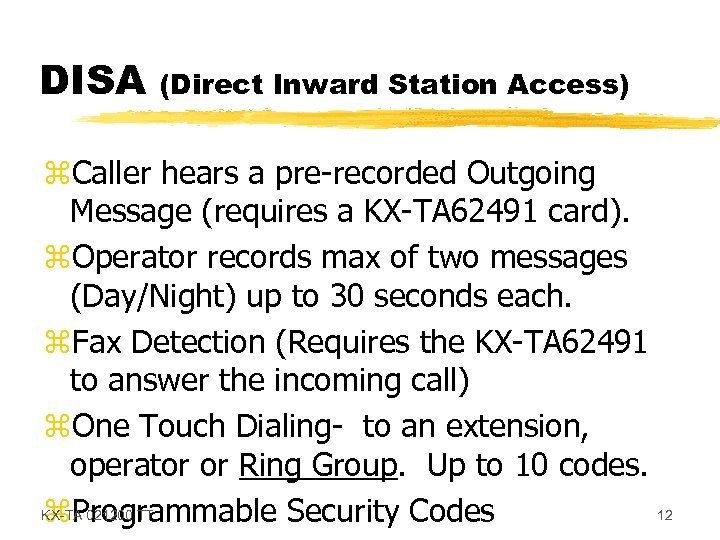

DISA (Direct Inward Station Access) z. Caller hears a pre-recorded Outgoing Message (requires a KX-TA 62491 card). z. Operator records max of two messages (Day/Night) up to 30 seconds each. z. Fax Detection (Requires the KX-TA 62491 to answer the incoming call) z. One Touch Dialing- to an extension, operator or Ring Group. Up to 10 codes. KX-TA 021200 TT 12 z. Programmable Security Codes

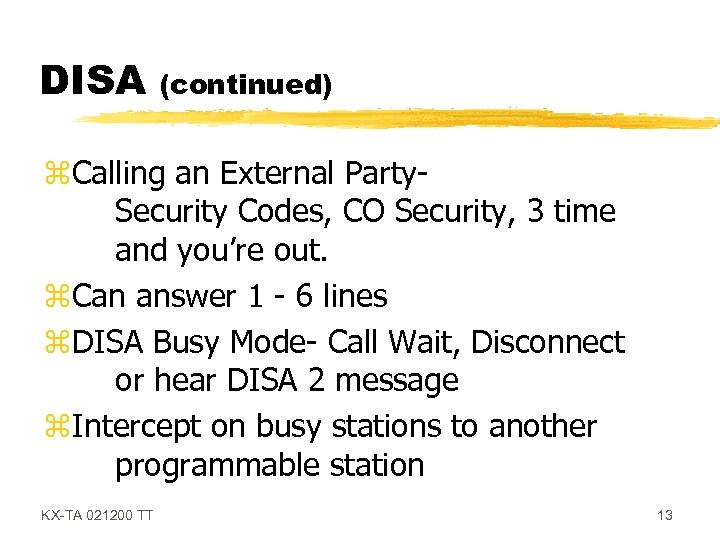

DISA (continued) z. Calling an External Party. Security Codes, CO Security, 3 time and you’re out. z. Can answer 1 - 6 lines z. DISA Busy Mode- Call Wait, Disconnect or hear DISA 2 message z. Intercept on busy stations to another programmable station KX-TA 021200 TT 13

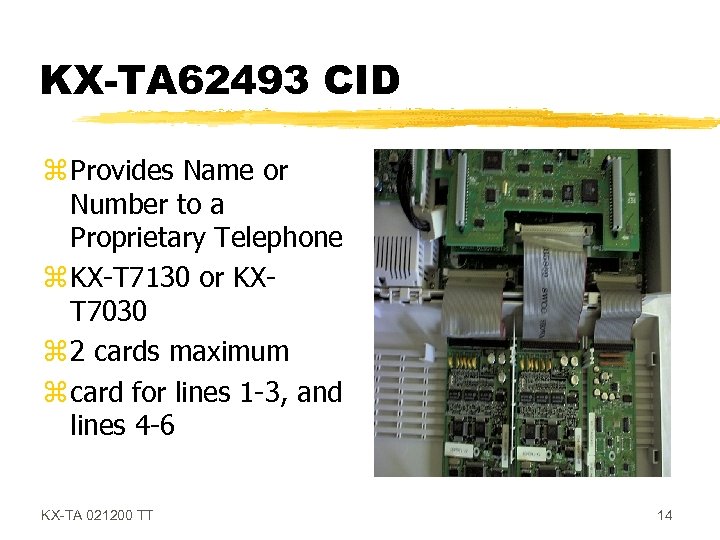

KX-TA 62493 CID z Provides Name or Number to a Proprietary Telephone z KX-T 7130 or KXT 7030 z 2 cards maximum z card for lines 1 -3, and lines 4 -6 KX-TA 021200 TT 14

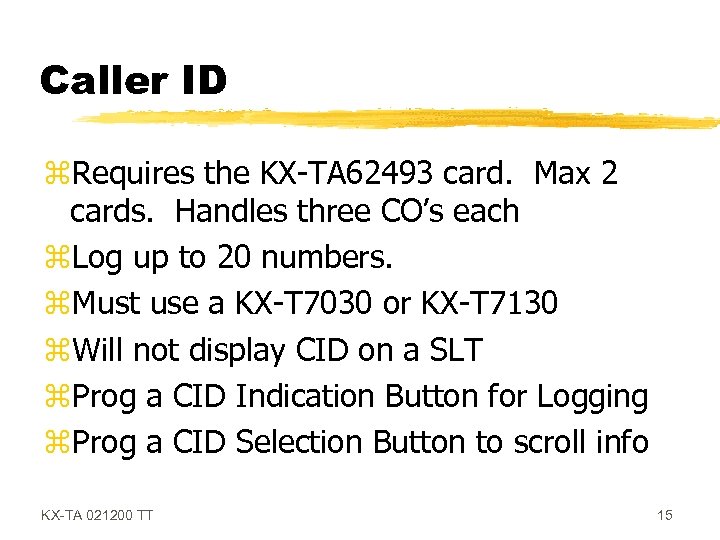

Caller ID z. Requires the KX-TA 62493 card. Max 2 cards. Handles three CO’s each z. Log up to 20 numbers. z. Must use a KX-T 7030 or KX-T 7130 z. Will not display CID on a SLT z. Prog a CID Indication Button for Logging z. Prog a CID Selection Button to scroll info KX-TA 021200 TT 15

KX-T Proprietary Devices z. KX-T 7130 z. KX-T 7020 z. KX-T 7055 z. KX-T 7040 z. KX-T 7885 KX-TA 021200 TT 16

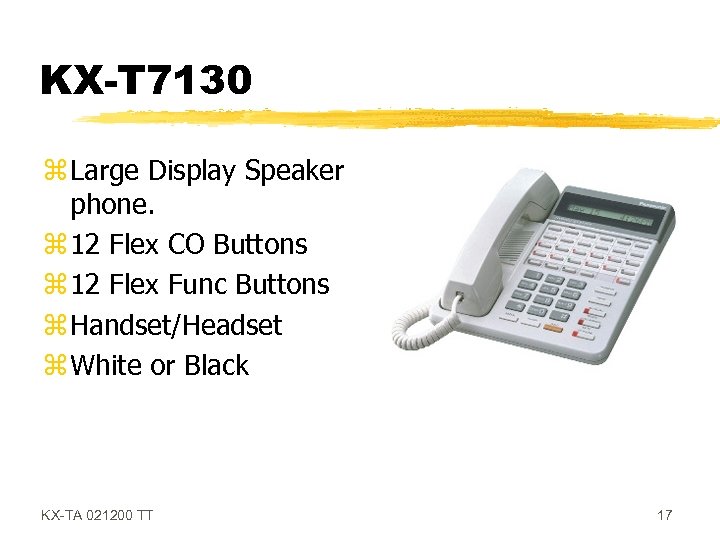

KX-T 7130 z Large Display Speaker phone. z 12 Flex CO Buttons z 12 Flex Func Buttons z Handset/Headset z White or Black KX-TA 021200 TT 17

KX-T 7030 z Display Speakerphone z 12 Flex CO Buttons z 4 Flex Function Buttons KX-TA 021200 TT 18

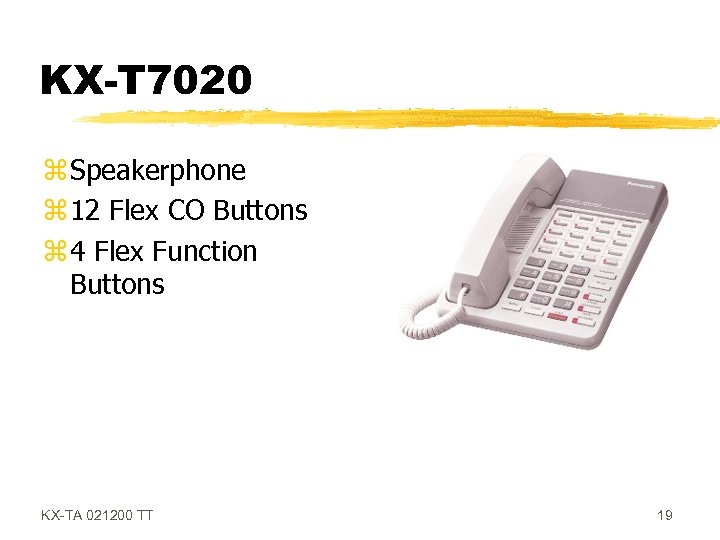

KX-T 7020 z Speakerphone z 12 Flex CO Buttons z 4 Flex Function Buttons KX-TA 021200 TT 19

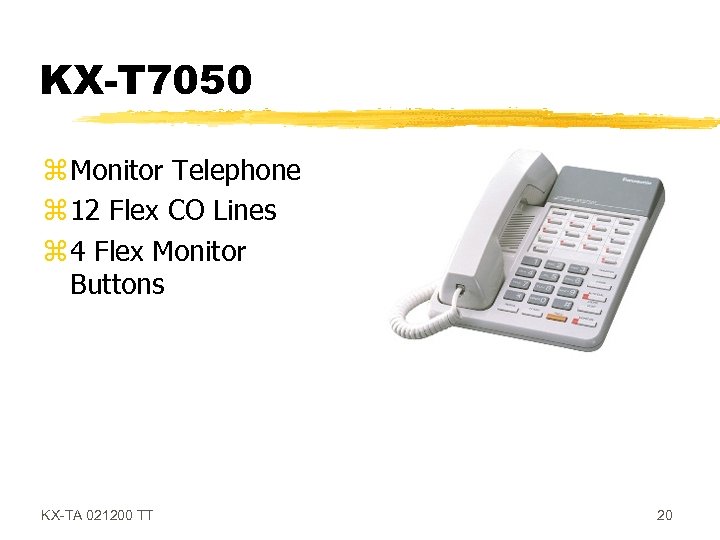

KX-T 7050 z Monitor Telephone z 12 Flex CO Lines z 4 Flex Monitor Buttons KX-TA 021200 TT 20

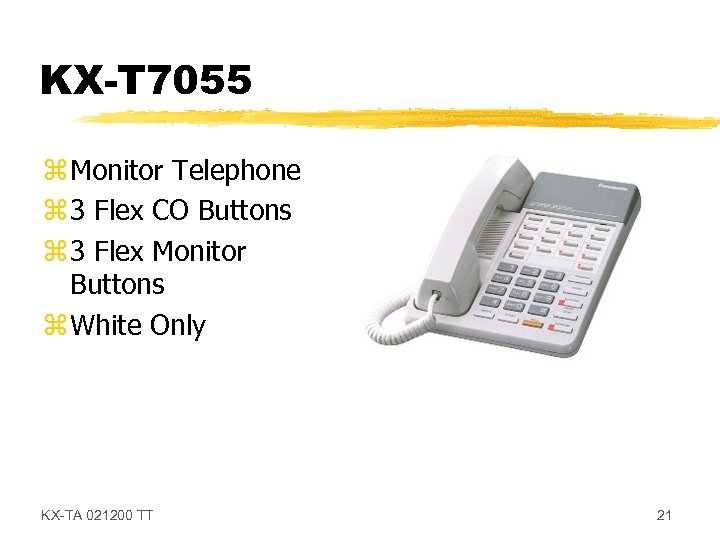

KX-T 7055 z Monitor Telephone z 3 Flex CO Buttons z 3 Flex Monitor Buttons z White Only KX-TA 021200 TT 21

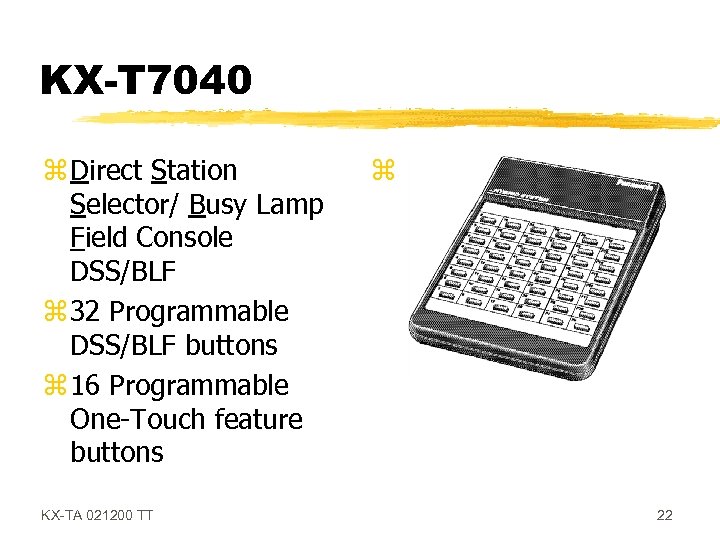

KX-T 7040 z Direct Station Selector/ Busy Lamp Field Console DSS/BLF z 32 Programmable DSS/BLF buttons z 16 Programmable One-Touch feature buttons KX-TA 021200 TT z 22

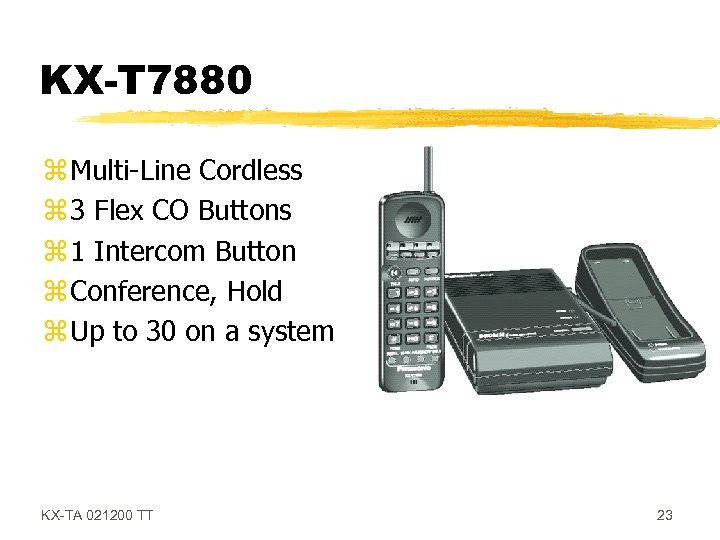

KX-T 7880 z Multi-Line Cordless z 3 Flex CO Buttons z 1 Intercom Button z Conference, Hold z Up to 30 on a system KX-TA 021200 TT 23

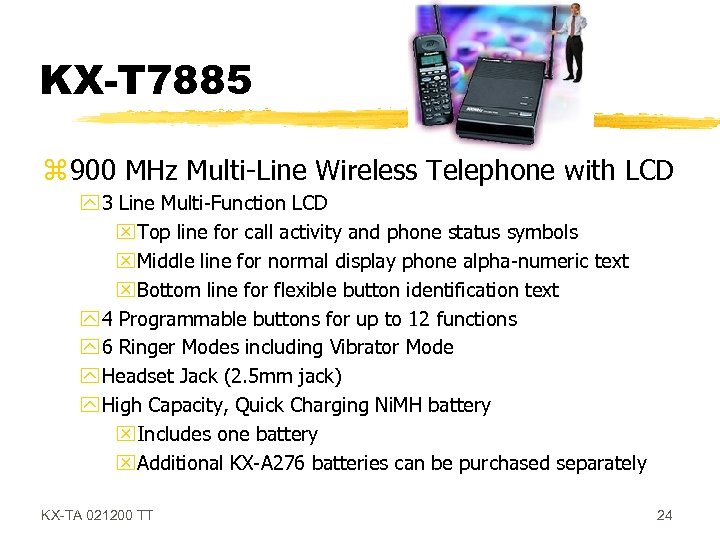

KX-T 7885 z 900 MHz Multi-Line Wireless Telephone with LCD y 3 Line Multi-Function LCD x. Top line for call activity and phone status symbols x. Middle line for normal display phone alpha-numeric text x. Bottom line for flexible button identification text y 4 Programmable buttons for up to 12 functions y 6 Ringer Modes including Vibrator Mode y Headset Jack (2. 5 mm jack) y High Capacity, Quick Charging Ni. MH battery x. Includes one battery x. Additional KX-A 276 batteries can be purchased separately KX-TA 021200 TT 24

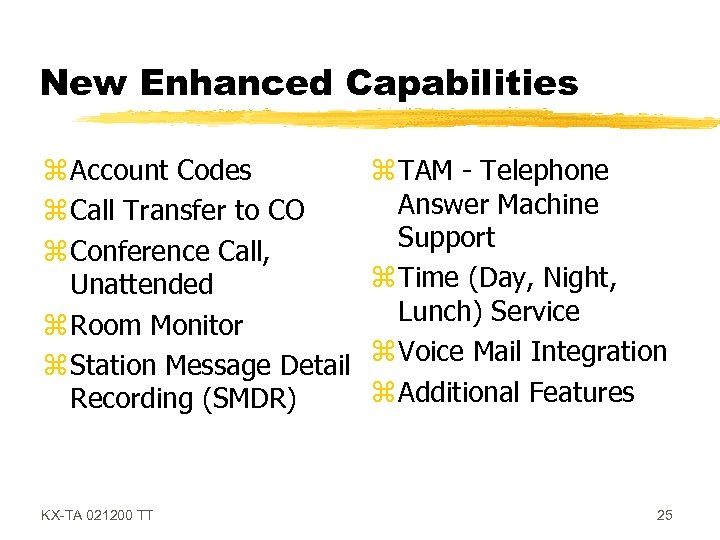

New Enhanced Capabilities z Account Codes z Call Transfer to CO z Conference Call, Unattended z Room Monitor z Station Message Detail Recording (SMDR) KX-TA 021200 TT z TAM - Telephone Answer Machine Support z Time (Day, Night, Lunch) Service z Voice Mail Integration z Additional Features 25

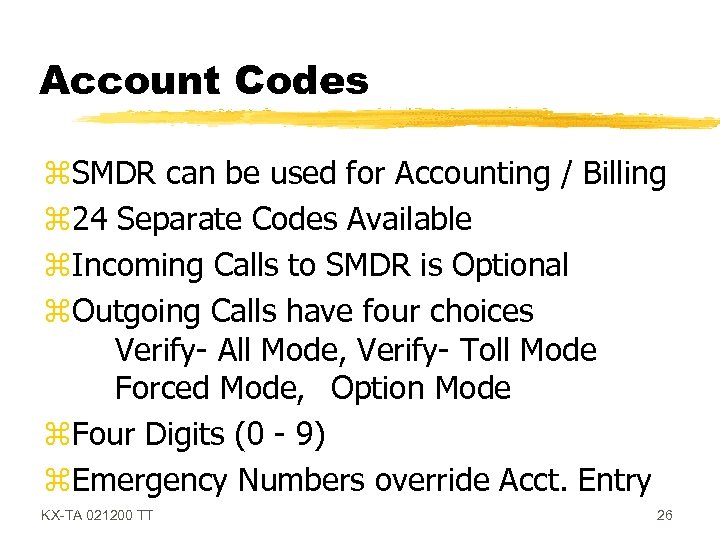

Account Codes z. SMDR can be used for Accounting / Billing z 24 Separate Codes Available z. Incoming Calls to SMDR is Optional z. Outgoing Calls have four choices Verify- All Mode, Verify- Toll Mode Forced Mode, Option Mode z. Four Digits (0 - 9) z. Emergency Numbers override Acct. Entry KX-TA 021200 TT 26

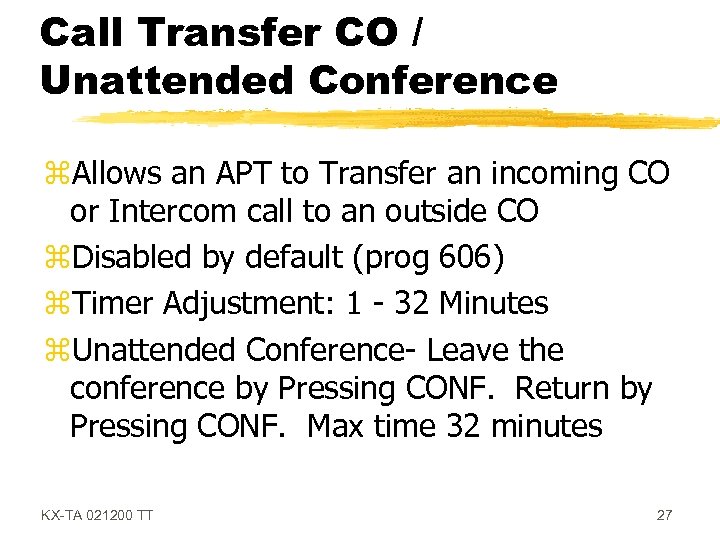

Call Transfer CO / Unattended Conference z. Allows an APT to Transfer an incoming CO or Intercom call to an outside CO z. Disabled by default (prog 606) z. Timer Adjustment: 1 - 32 Minutes z. Unattended Conference- Leave the conference by Pressing CONF. Return by Pressing CONF. Max time 32 minutes KX-TA 021200 TT 27

Room Monitor z. Monitor APT or Door phone w/o a tone z. Must be assigned (prog 612) z. Activate at phone (7351#) z. Can Not Use a KX-T 7050 or 7055 z. SLT with MUTE button can be used for monitoring KX-TA 021200 TT 28

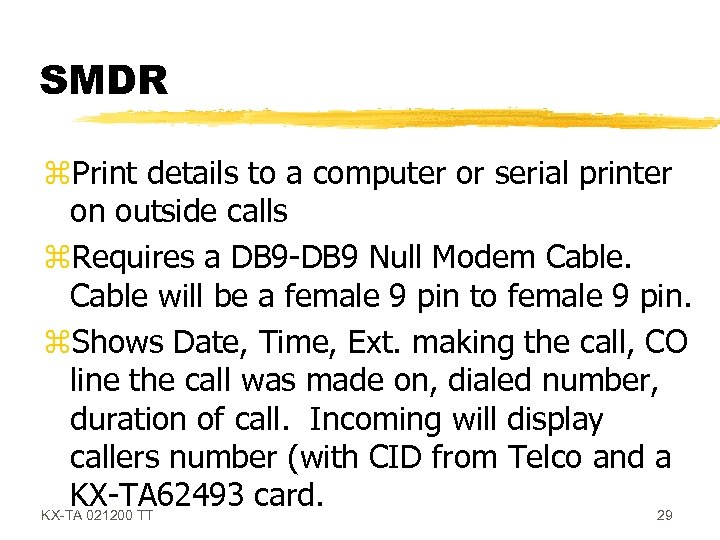

SMDR z. Print details to a computer or serial printer on outside calls z. Requires a DB 9 -DB 9 Null Modem Cable will be a female 9 pin to female 9 pin. z. Shows Date, Time, Ext. making the call, CO line the call was made on, dialed number, duration of call. Incoming will display callers number (with CID from Telco and a KX-TA 62493 card. KX-TA 021200 TT 29

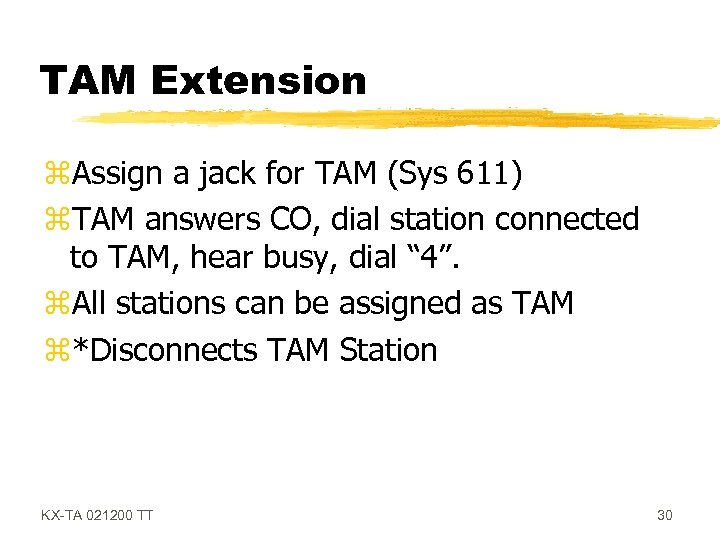

TAM Extension z. Assign a jack for TAM (Sys 611) z. TAM answers CO, dial station connected to TAM, hear busy, dial “ 4”. z. All stations can be assigned as TAM z*Disconnects TAM Station KX-TA 021200 TT 30

Time (Day, Night, Lunch) Service z. Automatic or Manual Mode - (006) z. Flexible Ringing- (408 -410) z. Delayed Ringing- (411 -413) z. Incoming Ring Service- (414 -416) Choice of DIL, DISA 1, DISA 2 z. Flexible Out Dial (405 -407) KX-TA 021200 TT 31

Voice Mail Integration z. Supports In-Band Signaling (follow on ID) z. Up to four ports z. Works with the KX-TVS 75/100/200 z. Activates the MW Light on 7000 Series z. Supports immediate answer, delayed answer and DISA Intercept Routing z. Flexible MW Button on 7000 Series KX-TA 021200 TT 32

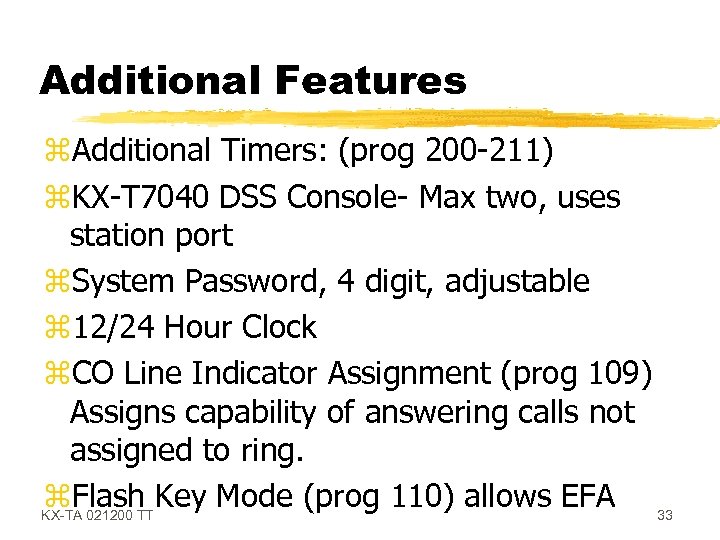

Additional Features z. Additional Timers: (prog 200 -211) z. KX-T 7040 DSS Console- Max two, uses station port z. System Password, 4 digit, adjustable z 12/24 Hour Clock z. CO Line Indicator Assignment (prog 109) Assigns capability of answering calls not assigned to ring. z. Flash Key Mode (prog 110) allows EFA 33 KX-TA 021200 TT

Additional Features z. Toll Restriction- Expanded to 5 Classes z. Electronic Station Lock/ Remote Station Lock z. Emergency Dial Number- allows up to five 4 digit phone numbers to override TRS, Account codes and Electronic Station Lock z. Host PBX Access Codes- Allows using the KXTA 624 in front of larger PBX. Ignores access codes in TRS tables z. Outside Line Ringing Pattern- Choice of 3 34 KX-TA 021200 TT

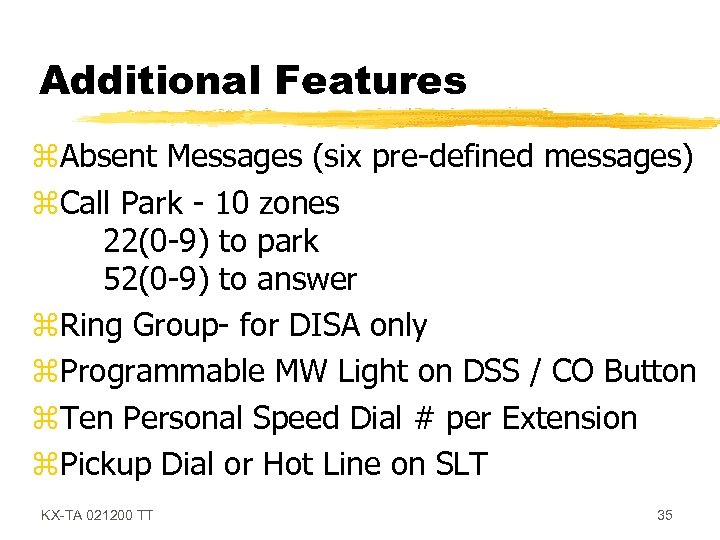

Additional Features z. Absent Messages (six pre-defined messages) z. Call Park - 10 zones 22(0 -9) to park 52(0 -9) to answer z. Ring Group- for DISA only z. Programmable MW Light on DSS / CO Button z. Ten Personal Speed Dial # per Extension z. Pickup Dial or Hot Line on SLT KX-TA 021200 TT 35

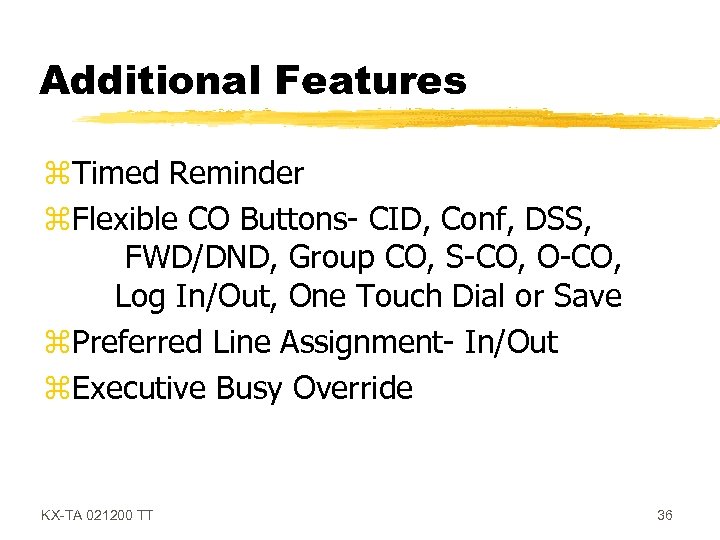

Additional Features z. Timed Reminder z. Flexible CO Buttons- CID, Conf, DSS, FWD/DND, Group CO, S-CO, O-CO, Log In/Out, One Touch Dial or Save z. Preferred Line Assignment- In/Out z. Executive Busy Override KX-TA 021200 TT 36
