Pan Asian E-Commerce Alliance s Global e-Trade Platform based

Pan Asian E-Commerce Alliance’s Global e-Trade Platform based on eb. XML Chaemee Kim e. Research KTNET cmkim@ktnet. com http: //www. GXMLHub. com/

Table of Contents ï Introduction of PAA ï PAA’s Technical Architecture ï PAA’s Interconnection Process ï PAA’s eb. XML Adoption ï PAA’s Pilot User ï Roadmap KTNET – Korea Trade Network 2 PAA’s Global e-Trade Platform

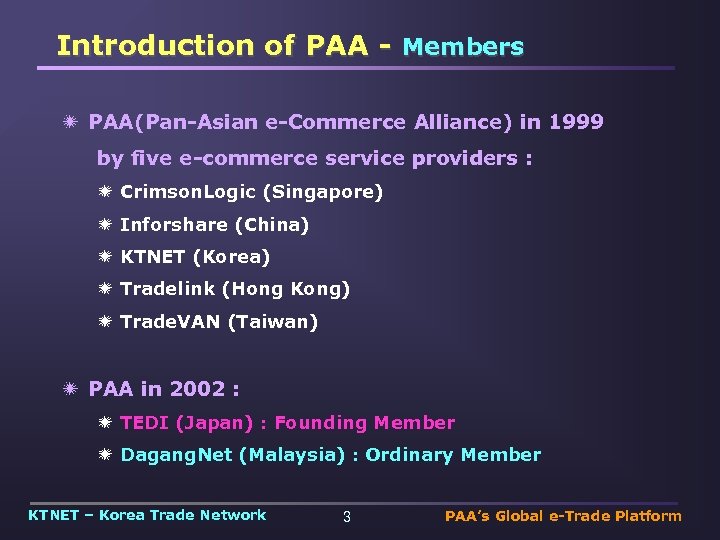

Introduction of PAA - Members ï PAA(Pan-Asian e-Commerce Alliance) in 1999 by five e-commerce service providers : ï Crimson. Logic (Singapore) ï Inforshare (China) ï KTNET (Korea) ï Tradelink (Hong Kong) ï Trade. VAN (Taiwan) ï PAA in 2002 : ï TEDI (Japan) : Founding Member ï Dagang. Net (Malaysia) : Ordinary Member KTNET – Korea Trade Network 3 PAA’s Global e-Trade Platform

Introduction of PAA - Vision ï Secure Cross Border e-Trading Service ï Globalization eb. XML Framework Ordinary Member Future Member KTNET – Korea Trade Network 4 PAA’s Global e-Trade Platform

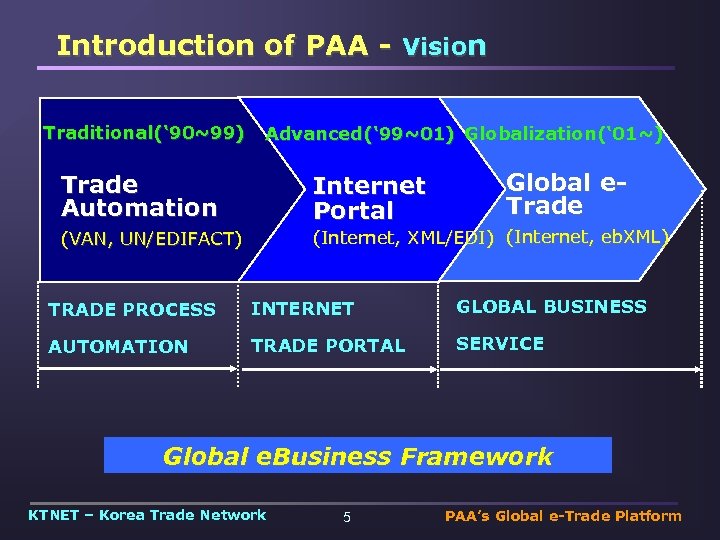

Introduction of PAA - Vision Traditional(‘ 90~99) Advanced(‘ 99~01) Globalization(‘ 01~) Trade Automation Internet Portal Global e. Trade (Internet, XML/EDI) (Internet, eb. XML) (VAN, UN/EDIFACT) TRADE PROCESS INTERNET GLOBAL BUSINESS AUTOMATION TRADE PORTAL SERVICE Global e. Business Framework KTNET – Korea Trade Network 5 PAA’s Global e-Trade Platform

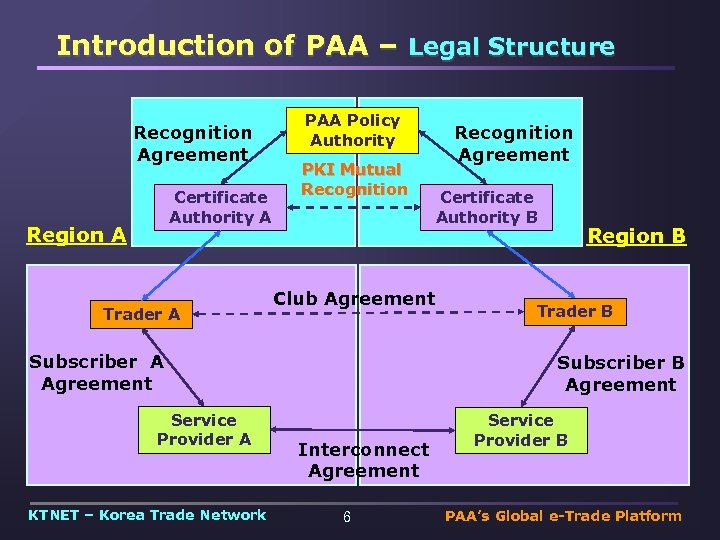

Introduction of PAA – Legal Structure Recognition Agreement Certificate Authority A Region A Trader A PAA Policy Authority PKI Mutual Recognition Club Agreement Subscriber A Agreement Service Provider A KTNET – Korea Trade Network Recognition Agreement Certificate Authority B Region B Trader B Subscriber B Agreement Interconnect Agreement 6 Service Provider B PAA’s Global e-Trade Platform

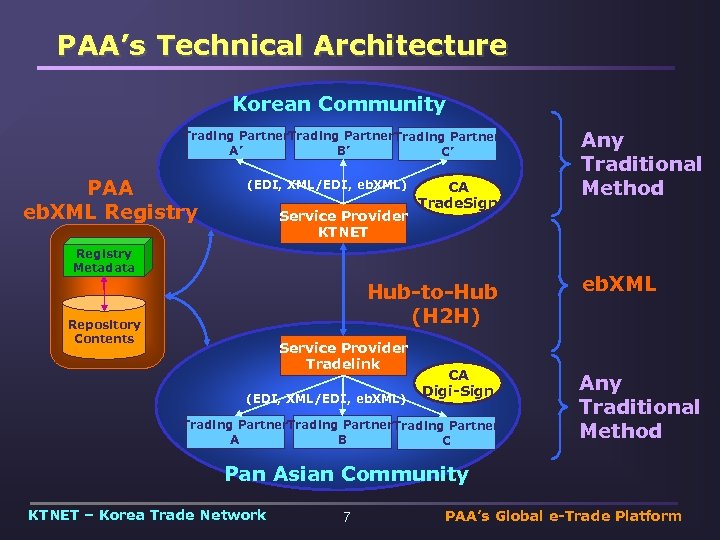

PAA’s Technical Architecture Korean Community Trading Partner A’ B’ C’ PAA eb. XML Registry (EDI, XML/EDI, eb. XML) Service Provider KTNET CA Trade. Sign Registry Metadata Hub-to-Hub (H 2 H) Repository Contents Service Provider Tradelink (EDI, XML/EDI, eb. XML) CA Digi-Sign Trading Partner A B C Any Traditional Method eb. XML Any Traditional Method Pan Asian Community KTNET – Korea Trade Network 7 PAA’s Global e-Trade Platform

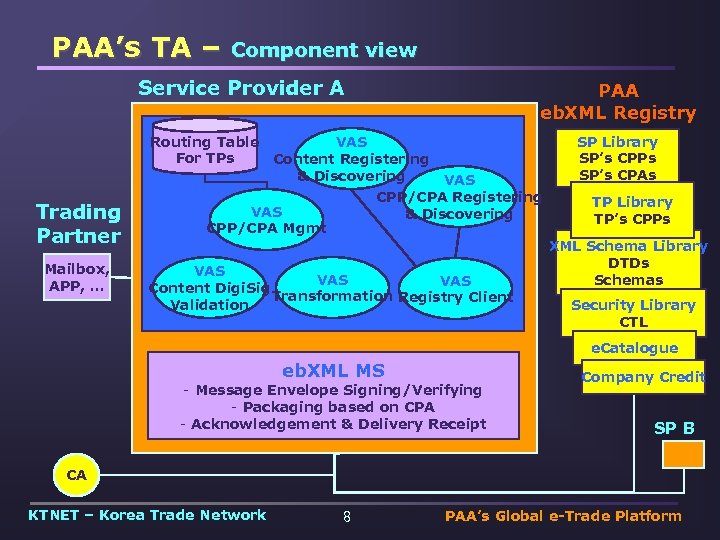

PAA’s TA – Component view Service Provider A Trading Partner Mailbox, APP, … PAA eb. XML Registry Routing Table VAS For TPs Content Registering & Discovering VAS CPP/CPA Registering VAS & Discovering CPP/CPA Mgmt VAS VAS Content Digi. Sig Transformation Registry Client Validation SP Library SP’s CPPs SP’s CPAs TP Library TP’s CPPs XML Schema Library DTDs Schemas Security Library CTL e. Catalogue eb. XML MS - Message Envelope Signing/Verifying - Packaging based on CPA - Acknowledgement & Delivery Receipt Company Credit SP B CA KTNET – Korea Trade Network 8 PAA’s Global e-Trade Platform

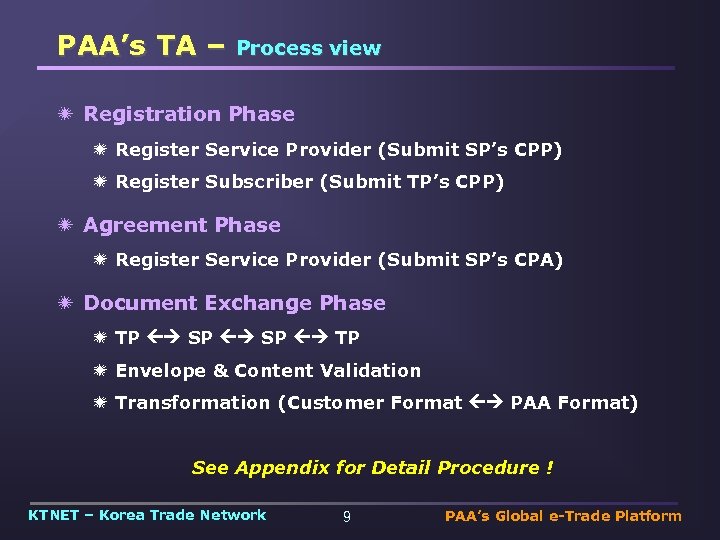

PAA’s TA – Process view ï Registration Phase ï Register Service Provider (Submit SP’s CPP) ï Register Subscriber (Submit TP’s CPP) ï Agreement Phase ï Register Service Provider (Submit SP’s CPA) ï Document Exchange Phase ï TP SP TP ï Envelope & Content Validation ï Transformation (Customer Format PAA Format) See Appendix for Detail Procedure ! KTNET – Korea Trade Network 9 PAA’s Global e-Trade Platform

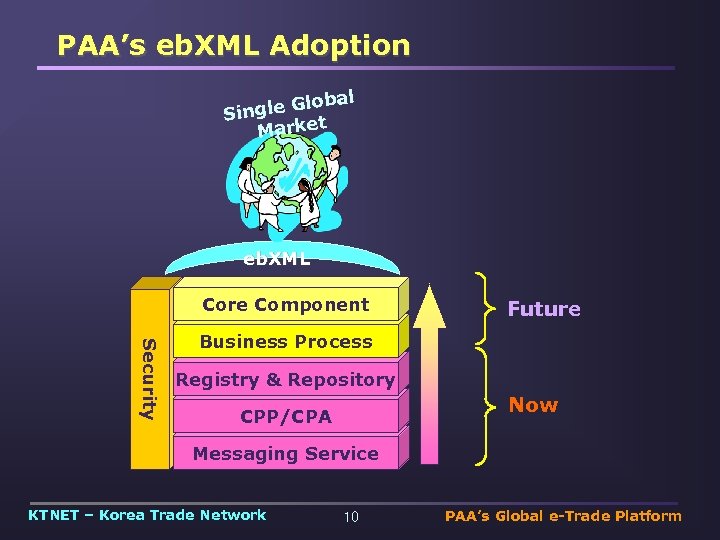

PAA’s eb. XML Adoption al le Glob Sing Market eb. XML Core Component Future Security Business Process Registry & Repository Now CPP/CPA Messaging Service KTNET – Korea Trade Network 10 PAA’s Global e-Trade Platform

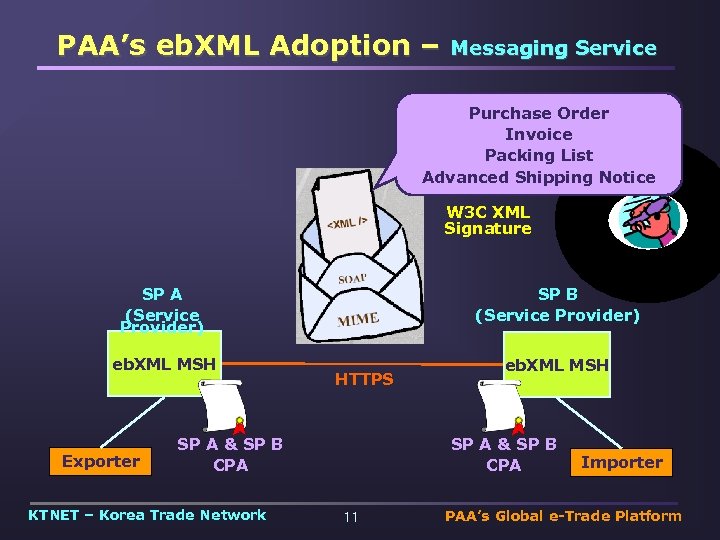

PAA’s eb. XML Adoption – Messaging Service Purchase Order Invoice Packing List Advanced Shipping Notice W 3 C XML Signature SP A (Service Provider) SP B (Service Provider) eb. XML MSH Exporter HTTPS SP A & SP B CPA KTNET – Korea Trade Network SP A & SP B CPA 11 Importer PAA’s Global e-Trade Platform

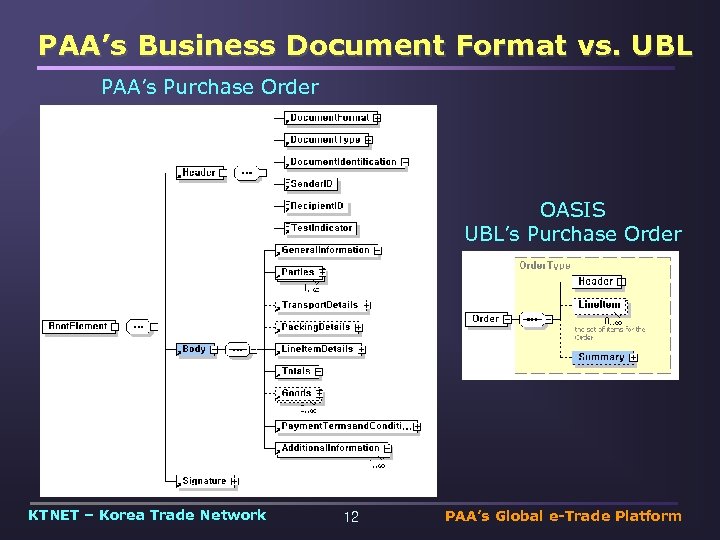

PAA’s Business Document Format vs. UBL PAA’s Purchase Order OASIS UBL’s Purchase Order KTNET – Korea Trade Network 12 PAA’s Global e-Trade Platform

PAA’s Business Document Format vs. OAG’s Purchase Order (Process. Purchase. Order) KTNET – Korea Trade Network 13 PAA’s Global e-Trade Platform

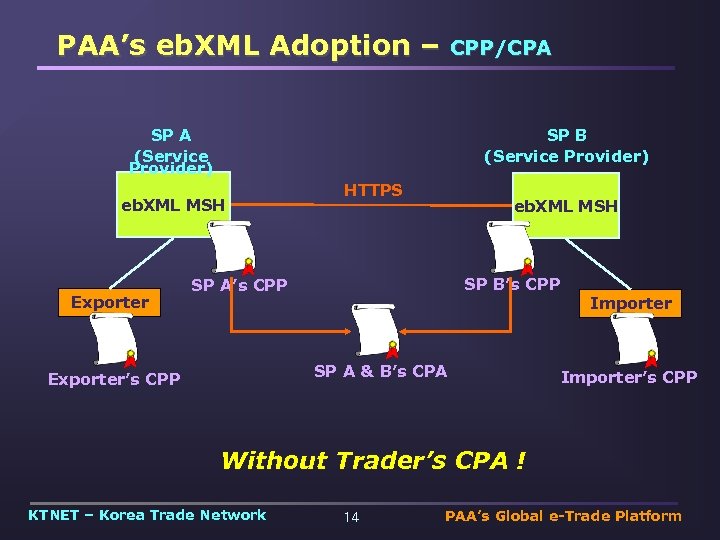

PAA’s eb. XML Adoption – CPP/CPA SP A (Service Provider) SP B (Service Provider) eb. XML MSH Exporter HTTPS eb. XML MSH SP B’s CPP SP A & B’s CPA Exporter’s CPP Importer’s CPP Without Trader’s CPA ! KTNET – Korea Trade Network 14 PAA’s Global e-Trade Platform

PAA’s eb. XML Adoption – Registry Market. Place, Hub Buyer / Seller Registry Client (SOAP, eb. XML MS) Web eb. XML Reg. Rep KTNET – Korea Trade Network 15 PAA’s Global e-Trade Platform

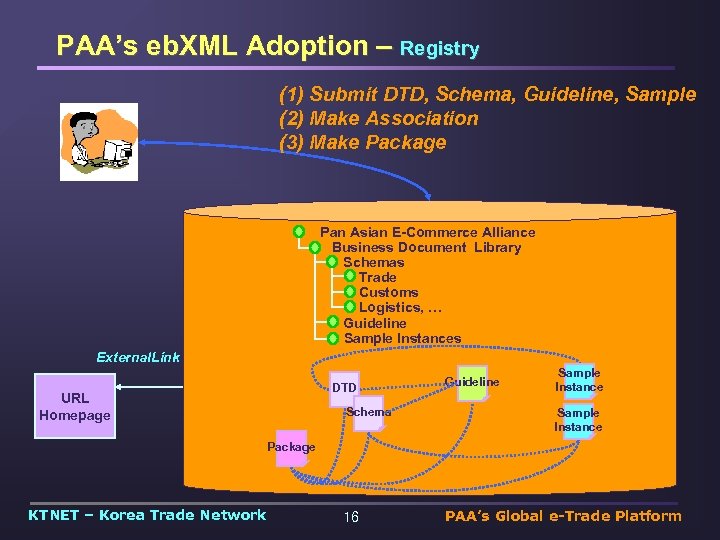

PAA’s eb. XML Adoption – Registry (1) Submit DTD, Schema, Guideline, Sample (2) Make Association (3) Make Package Pan Asian E-Commerce Alliance Business Document Library Schemas Trade Customs Logistics, … Guideline Sample Instances External. Link DTD URL Homepage Schema Guideline Sample Instance Package KTNET – Korea Trade Network 16 PAA’s Global e-Trade Platform

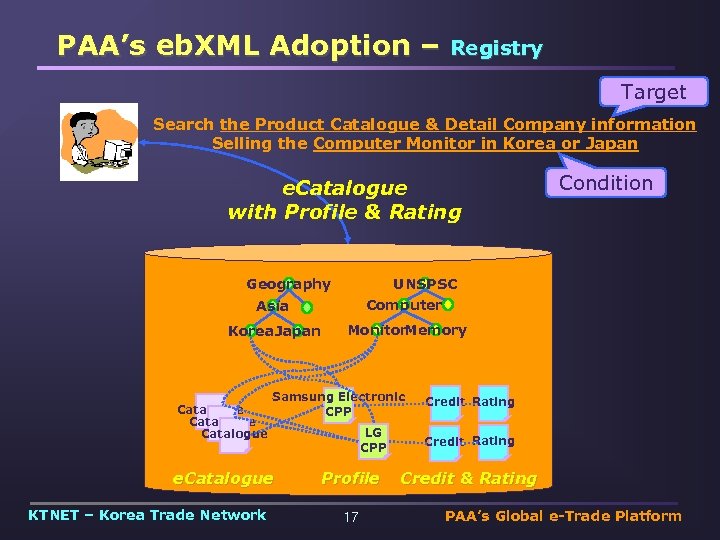

PAA’s eb. XML Adoption – Registry Target Search the Product Catalogue & Detail Company information Selling the Computer Monitor in Korea or Japan e. Catalogue with Profile & Rating Geography Asia UNSPSC Computer Korea. Japan Condition Monitor. Memory Catalogue Samsung Electronic CPP e. Catalogue KTNET – Korea Trade Network LG CPP Profile 17 Credit Rating Credit & Rating PAA’s Global e-Trade Platform

PAA’s eb. XML Adoption – PAA Registry & Repository Registry Client eb. XML MS Based Client Registry Web Based Client SOAP Based Client Registry PAA Registry Version 1. 0 Central Registry Central Repository eb. XML MS Based Registry Client Web Based Registry Client Repository Your Own Repository KTNET – Korea Trade Network PAA Registry Version 2. 0 Central Registry Distributed Repository eb. XML MS Based Registry Client Web Based Registry Client SOAP Based Registry Client Repository Your Own Repository 18 PAA’s Global e-Trade Platform

PAA’s Pilot User Tradelink (Service Provider) Reliable Delivery Validation Transformation TAL (Trading Partner) App. CA Registry Tai-Yuen (Trading Partner) Registry PAA KTNET Trade. VAN Daewoo Motor (Service Provider) Repository (Trading Partner) App. Reliable Delivery Validation Transformation App. Formosa Plastic (Trading Partner) App. Trade. Sign (CA) KTNET – Korea Trade Network Mutual Recognition 19 CA PAA’s Global e-Trade Platform

PAA’s Pilot Scenario 4. P/L, INV Freight Forwarder 3. INV, P/L 5. Customs Declaration Taiwan Customs 3. INV, P/L, ASN Daewoo Freight Forwarder 4. P/L, INV 1. PO Formosa Plastics Group Customs Broker KTNET – Korea Trade Network 3. INV, P/L, ASN 2. Sales Confirmation Formosa Motor 20 PAA’s Global e-Trade Platform

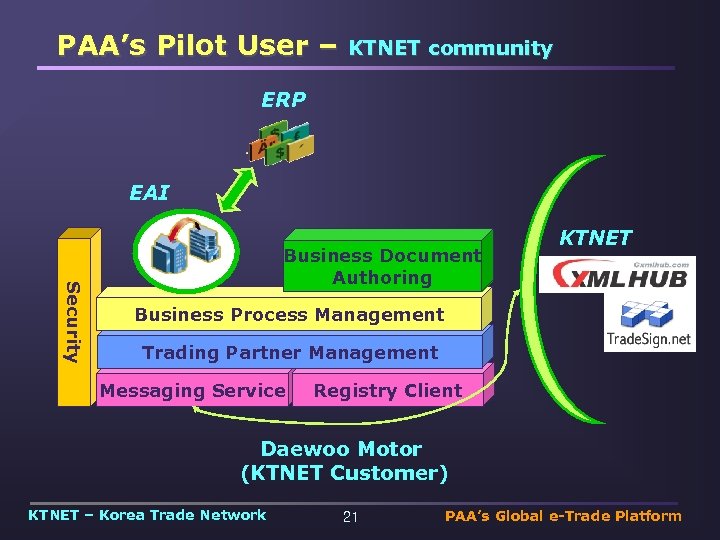

PAA’s Pilot User – KTNET community ERP EAI Security Business Document Authoring KTNET Business Process Management Trading Partner Management Messaging Service Registry Client Daewoo Motor (KTNET Customer) KTNET – Korea Trade Network 21 PAA’s Global e-Trade Platform

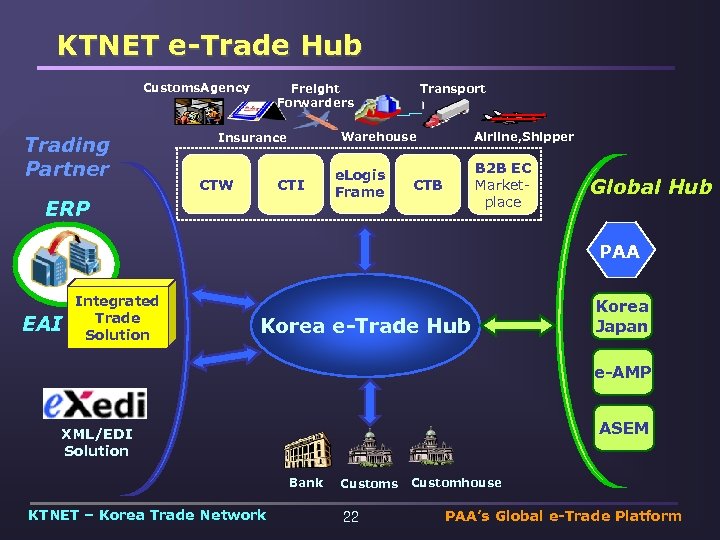

KTNET e-Trade Hub Customs. Agency Trading Partner Freight Forwarders Airline, Shipper Warehouse Insurance CTW Transport CTI ERP e. Logis Frame B 2 B EC Marketplace CTB Global Hub PAA EAI Integrated Trade Solution Korea e-Trade Hub Korea Japan e-AMP ASEM XML/EDI Solution Bank KTNET – Korea Trade Network Customs 22 Customhouse PAA’s Global e-Trade Platform

Q&A Deep Change or Slow Death based on eb. XML KTNET – Korea Trade Network 23 PAA’s Global e-Trade Platform

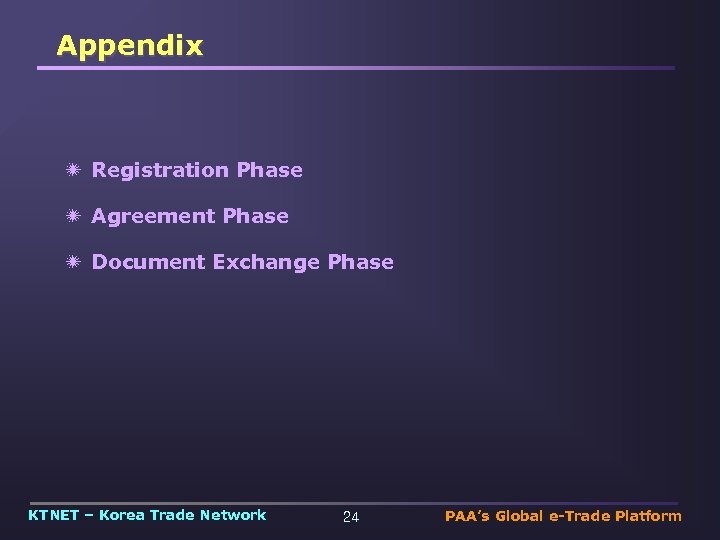

Appendix ï Registration Phase ï Agreement Phase ï Document Exchange Phase KTNET – Korea Trade Network 24 PAA’s Global e-Trade Platform

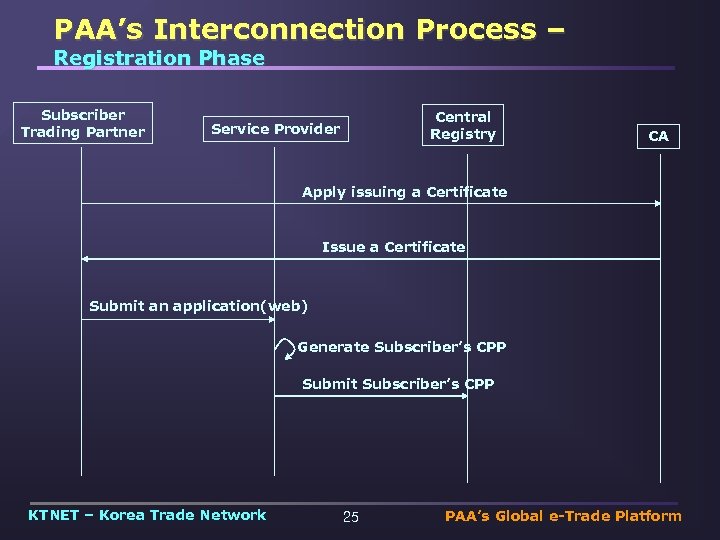

PAA’s Interconnection Process – Registration Phase Subscriber Trading Partner Central Registry Service Provider CA Apply issuing a Certificate Issue a Certificate Submit an application(web) Generate Subscriber’s CPP Submit Subscriber’s CPP KTNET – Korea Trade Network 25 PAA’s Global e-Trade Platform

PAA’s Interconnection Process – Agreement Phase ï TP SP : Subscriber Agreement, Club Agreement ï SP : Interconnect Agreement ï TP Registry : Default Agreement OFFLINE Negotiation KTNET – Korea Trade Network 26 PAA’s Global e-Trade Platform

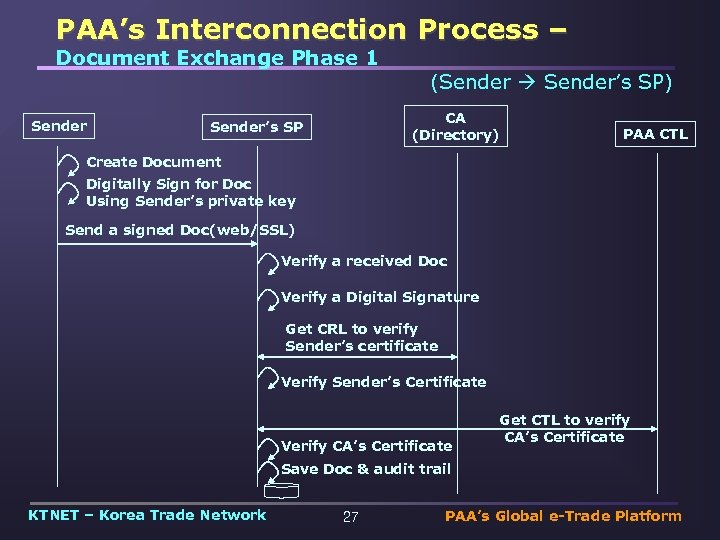

PAA’s Interconnection Process – Document Exchange Phase 1 Sender (Sender Sender’s SP) CA (Directory) Sender’s SP PAA CTL Create Document Digitally Sign for Doc Using Sender’s private key Send a signed Doc(web/SSL) Verify a received Doc Verify a Digital Signature Get CRL to verify Sender’s certificate Verify Sender’s Certificate Verify CA’s Certificate Get CTL to verify CA’s Certificate Save Doc & audit trail KTNET – Korea Trade Network 27 PAA’s Global e-Trade Platform

PAA’s Interconnection Process – Document Exchange Phase 2 (Sender’s SP Receiver’s SP) Sender’s SP Sender’s CA (Directory) Receiver’s SP PAA CTL Reformat Doc to PAA format & Save Digitally Sign for Reformated Doc Using Sender’s SP’s private key Create eb. XML envelope Digitally Sign for eb. XML envelope Using Sender’s SP’s private key Send a signed Doc Save audit trail Verify a received Doc Verify a Digital Signature Get CRL to verify Sender’s SP’s Certificate Verify Sender’s Certificate Get CTL to verify CA’s Certificate Verify CA’s Certificate Send a ACK for received Doc KTNET – Korea Trade Network Save Doc & audit trail 28 PAA’s Global e-Trade Platform

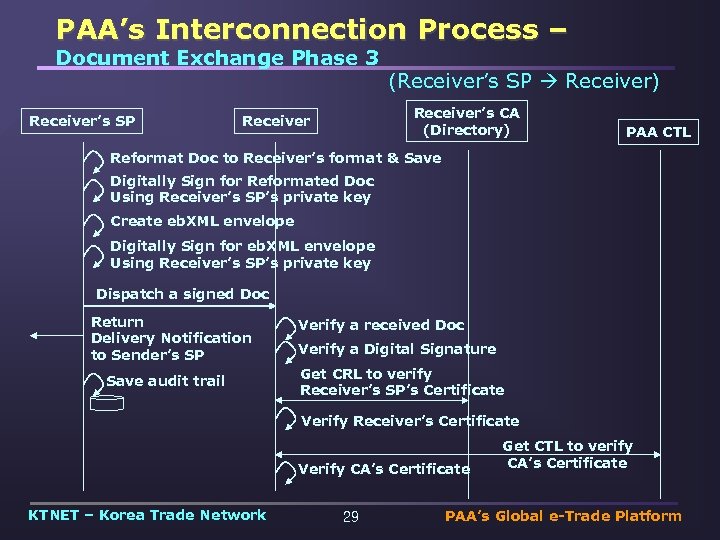

PAA’s Interconnection Process – Document Exchange Phase 3 Receiver’s SP (Receiver’s SP Receiver) Receiver’s CA (Directory) Receiver PAA CTL Reformat Doc to Receiver’s format & Save Digitally Sign for Reformated Doc Using Receiver’s SP’s private key Create eb. XML envelope Digitally Sign for eb. XML envelope Using Receiver’s SP’s private key Dispatch a signed Doc Return Delivery Notification to Sender’s SP Save audit trail Verify a received Doc Verify a Digital Signature Get CRL to verify Receiver’s SP’s Certificate Verify Receiver’s Certificate Verify CA’s Certificate KTNET – Korea Trade Network 29 Get CTL to verify CA’s Certificate PAA’s Global e-Trade Platform
