Palaeoclimate Change SOES 3015 Lecture 8 Tools

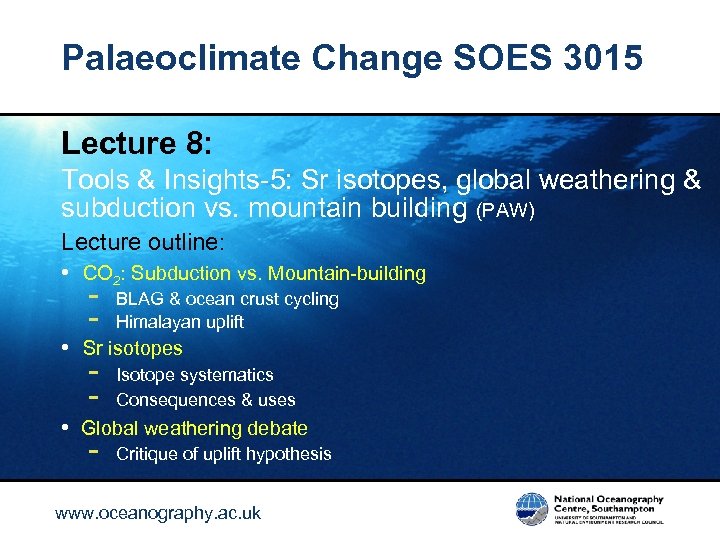

Palaeoclimate Change SOES 3015 Lecture 8: Tools & Insights-5: Sr isotopes, global weathering & subduction vs. mountain building (PAW) Lecture outline: • CO 2: Subduction vs. Mountain-building - BLAG & ocean crust cycling - Himalayan uplift • Sr isotopes - Isotope systematics - Consequences & uses • Global weathering debate - Critique of uplift hypothesis www. oceanography. ac. uk

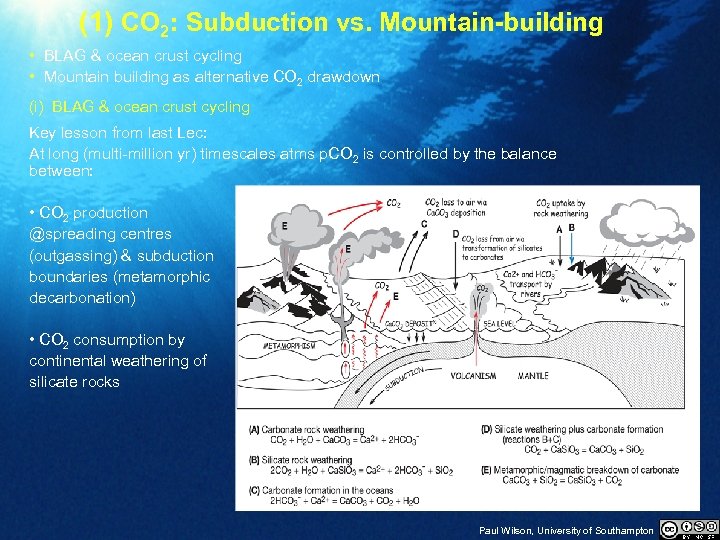

(1) CO 2: Subduction vs. Mountain-building • BLAG & ocean crust cycling • Mountain building as alternative CO 2 drawdown (i) BLAG & ocean crust cycling Key lesson from last Lec: At long (multi-million yr) timescales atms p. CO 2 is controlled by the balance between: • CO 2 production @spreading centres (outgassing) & subduction boundaries (metamorphic decarbonation) • CO 2 consumption by continental weathering of silicate rocks Paul Wilson, University of Southampton

Question: Does the system ever get out of balance? Answer: Yes - to an extent- look @Cretaceous spreading rates; high eustatic sea level-maximum; no ice Courtesy of Geological Society of America: Larson, R. L. , (1991), Geological consequences of superplumes. Geology October, v. 19, p. 963 -966.

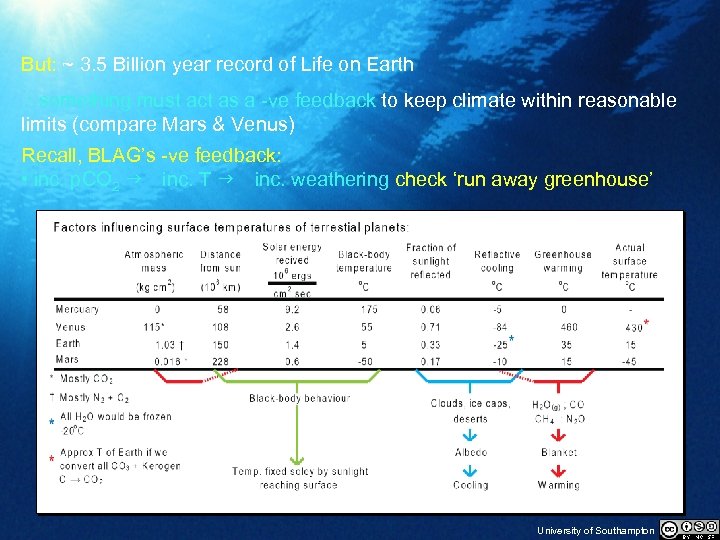

But: ~ 3. 5 Billion year record of Life on Earth something must act as a -ve feedback to keep climate within reasonable limits (compare Mars & Venus) Recall, BLAG’s -ve feedback: • inc. p. CO 2 inc. T inc. weathering check ‘run away greenhouse’ University of Southampton

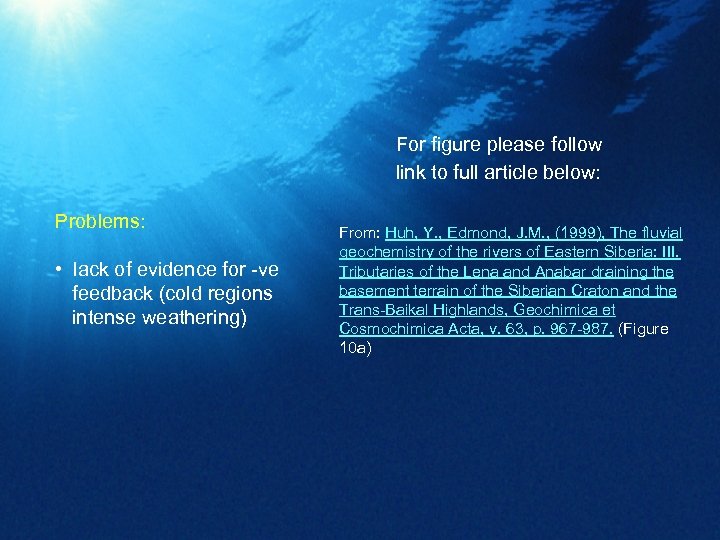

For figure please follow link to full article below: Problems: • lack of evidence for -ve feedback (cold regions intense weathering) From: Huh, Y. , Edmond, J. M. , (1999), The fluvial geochemistry of the rivers of Eastern Siberia: III. Tributaries of the Lena and Anabar draining the basement terrain of the Siberian Craton and the Trans-Baikal Highlands, Geochimica et Cosmochimica Acta, v. 63, p. 967 -987. (Figure 10 a)

OBSERVED COOLING LAGS BLAG PREDICTION • p. CO 2 & Temp • CCD (predicted vs. observed) GREEN HOUSE • mismatch in Cenozoic shifts ICE HOUSE Problems: From: Zachos, J. C. , Pagani, M. , Sloan, L. , Thomas, E. , Billups, K. , (2001) ‘Trends, rhythms, and aberrations in global climate 65 Ma to present’, Science, v. 292, p. 686– 693. Reprinted with permission from AAAS. This figure may be used for non-commercial, classroom purposes only. Any other uses requires the prior written permission from AAAS. Largest in p. CO 2, global temp For Composite of CCD curves for Indian, Pacific, & CCD: and Atlantic Oceans, Please see figure 4 in • BLAG- 100 to 50 Ma (pre-Eoc) • Palaeoceanog evidence- 50 to 0 Ma (post-Eoc) Andel, V. , (1975) Mesozoic and Cenozoic calcite compensation depth and the global distribution of calcarious sediments. Earth and Planetary Science letters, v. 26 p 187 -194.

(ii) Mountain building as alternative CO 2 draw-down Mountain uplift: Physical effects: • Phanerozoic-- glacials & orogenies associated • Cenozoic-- Himalayan Tibetan Plateau Uplift Courtesy of Geological Society of America: Raymo, M. E. , (1991), Geochemical evidence supporting T. C. Chamberlin's theory of glaciation, Geology, v. 19, p. 344 -347.

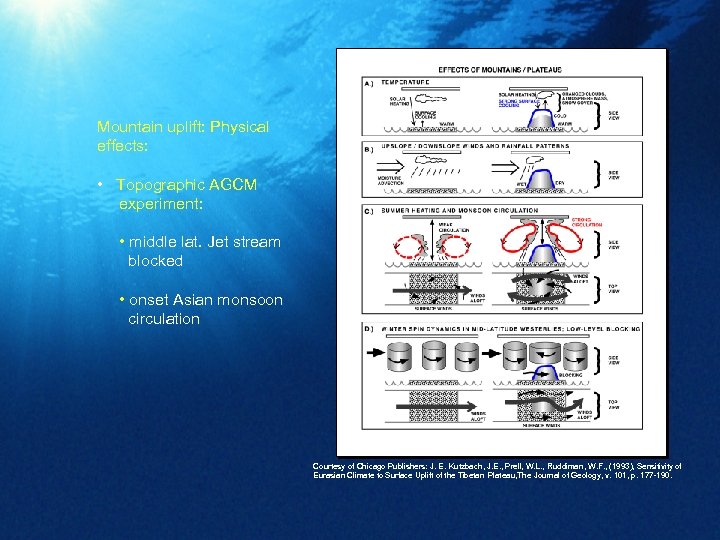

Mountain uplift: Physical effects: • Topographic AGCM experiment: • middle lat. Jet stream blocked • onset Asian monsoon circulation Courtesy of Chicago Publishers: J. E. Kutzbach, J. E. , Prell, W. L. , Ruddiman, W. F. , (1993), Sensitivity of Eurasian Climate to Surface Uplift of the Tibetan Plateau, The Journal of Geology, v. 101, p. 177 -190.

• Results: Qualitative fit w/ palaeotemp. record but too warm (esp high lat summer) HTP signif. but not whole story • Mountain uplift: Chemical effects: (MIT - Raymo & Edmond) • Uplift intense rains; fresh rocks; steep slopes inc. weathering rates CO 2 draw-down & global cooling • Evidence: • HTP ~25% global Total Dissolved Load • ‘transport-limited’ • Debate: • Yale school (BLAG): slow-down ocean crust cycling predicts: Temp Weathering CCD • MIT school: speed-up continental crust weathering predicts: Temp Weathering CCD Question: How can we test? Answer: We need a proxy for global weathering rates– …sea water 87 Sr/86 Sr?

(2) Sr isotopes • Isotope systematics • Consequences & uses (i) Isotope systematics 88 Sr 38 82. 53 87 Sr 86 Sr 38 7. 04 87 Rb 84 Sr 38 9. 87 37 87 Sr 38 + 0. 56 - + v + Q T 1/2 Rb ~ 48. 8 Ga Sr ~ 5 Ma • Ocean mixing: ~ 1. 5 ka • No fractionation pptn. CO 3’s Sr (Å = 1. 13) Ca (Å = 0. 99) Ca 0. 99 Sr 0. 1 CO 3 Rb (Å = 1. 48) Ca (Å = 0. 99) marine CO 3’s Rb incompatible 38 (all stable) %

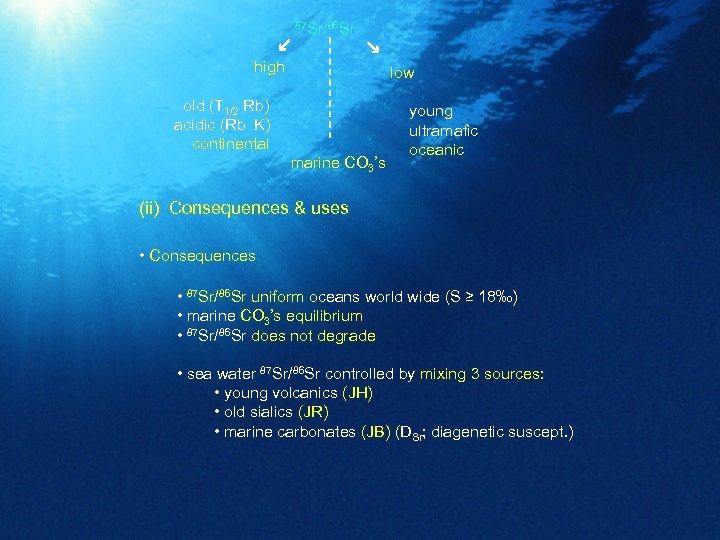

87 Sr/86 Sr high low old (T 1/2 Rb) acidic (Rb K) continental marine CO 3’s young ultramafic oceanic (ii) Consequences & uses • Consequences • 87 Sr/86 Sr uniform oceans world wide (S ≥ 18‰) • marine CO 3’s equilibrium • 87 Sr/86 Sr does not degrade • sea water 87 Sr/86 Sr controlled by mixing 3 sources: • young volcanics (JH) • old sialics (JR) • marine carbonates (JB) (DSr; diagenetic suscept. )

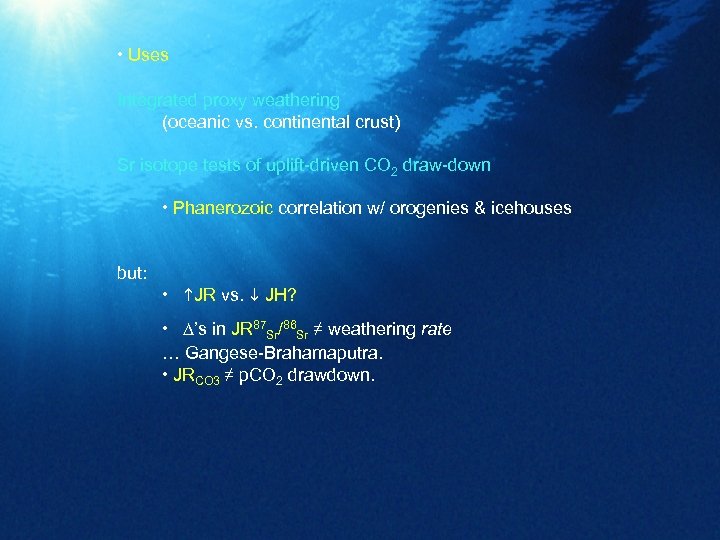

• Uses Integrated proxy weathering (oceanic vs. continental crust) Sr isotope tests of uplift-driven CO 2 draw-down • Phanerozoic correlation w/ orogenies & icehouses but: • JR vs. JH? • ’s in JR 87 Sr/86 Sr ≠ weathering rate … Gangese-Brahamaputra. • JRCO 3 ≠ p. CO 2 drawdown.

Courtesy of Geological Society of America: Raymo, M. E. , (1991), Geochemical evidence supporting T. C. Chamberlin's theory of glaciation, Geology, v. 19, p. 344 -347.

Figure is available by accessing the full article here: Richter, F. M. , Rowley, D. B. , De. Paolo D. J. , (1992), Sr isotope evolution of seawater: the role of tectonics, Earth and Planetary Science Letters, v. 109, p. 11 -23. (Figure 3 a)

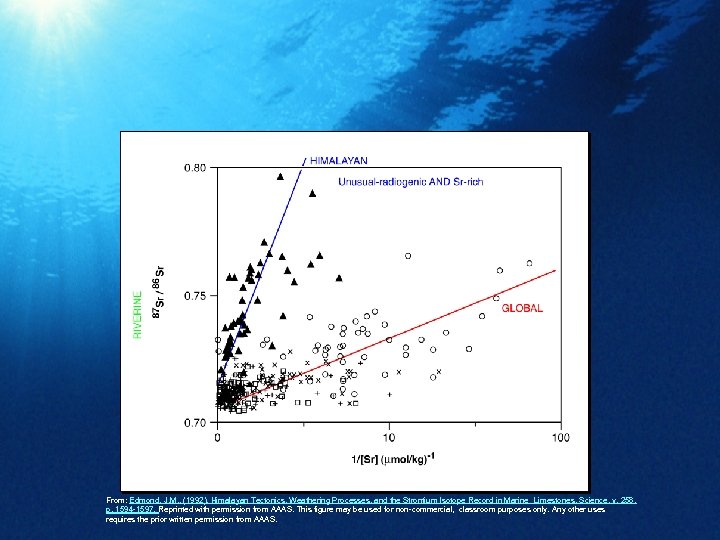

From: Edmond, J. M. , (1992), Himalayan Tectonics, Weathering Processes, and the Strontium Isotope Record in Marine Limestones, Science, v. 258, p. 1594 -1597. Reprinted with permission from AAAS. This figure may be used for non-commercial, classroom purposes only. Any other uses requires the prior written permission from AAAS.

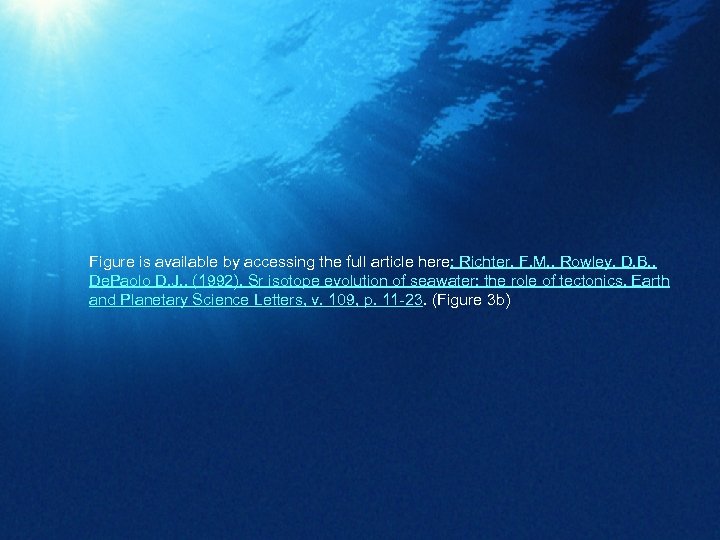

Figure is available by accessing the full article here: Richter, F. M. , Rowley, D. B. , De. Paolo D. J. , (1992), Sr isotope evolution of seawater: the role of tectonics, Earth and Planetary Science Letters, v. 109, p. 11 -23. (Figure 3 b)

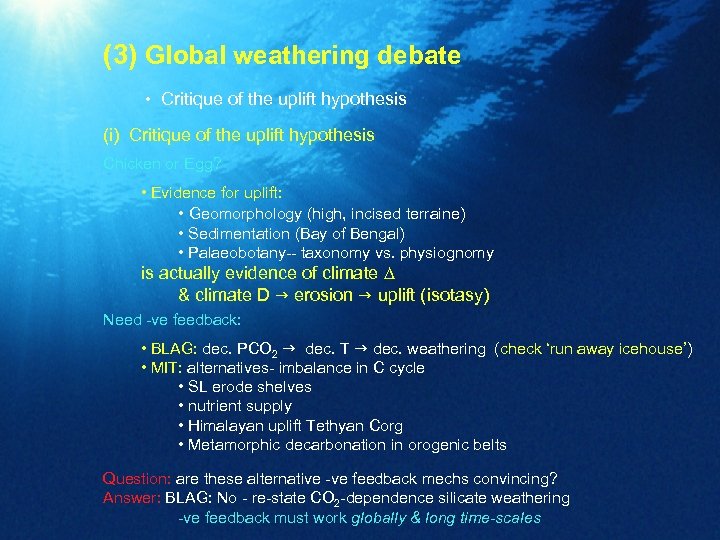

(3) Global weathering debate • Critique of the uplift hypothesis (i) Critique of the uplift hypothesis Chicken or Egg? • Evidence for uplift: • Geomorphology (high, incised terraine) • Sedimentation (Bay of Bengal) • Palaeobotany-- taxonomy vs. physiognomy is actually evidence of climate & climate D erosion uplift (isotasy) Need -ve feedback: • BLAG: dec. PCO 2 dec. T dec. weathering (check ‘run away icehouse’) • MIT: alternatives- imbalance in C cycle • SL erode shelves • nutrient supply • Himalayan uplift Tethyan Corg • Metamorphic decarbonation in orogenic belts Question: are these alternative -ve feedback mechs convincing? Answer: BLAG: No - re-state CO 2 -dependence silicate weathering -ve feedback must work globally & long time-scales

we need: • other weathering proxies (Ge/Si; Nd; Os) • better constraints on ’s in JR vs. JR 87 Sr/86 Sr Cenozoic sea water Sr/Ca • ~1. 5 x modern in late K • min = ~40 Ma • steady inc to Present Lear, C. , Pers. Comm. (2010), Data publicised in: Lear, C. H. , Elderfield, H. , Wilson, P. A. , (2003), A Cenozoic seawater Sr/Ca record from benthic foraminiferal calcite and its application in determining global weathering fluxes, Earth and Planetary Science Letters, v. 208, p. 69 -84.

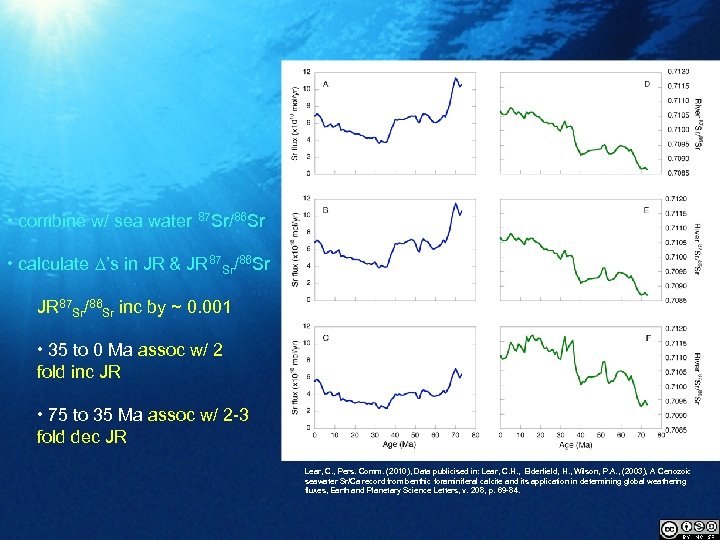

• combine w/ sea water 87 Sr/86 Sr • calculate ’s in JR & JR 87 Sr/86 Sr inc by ~ 0. 001 • 35 to 0 Ma assoc w/ 2 fold inc JR • 75 to 35 Ma assoc w/ 2 -3 fold dec JR Lear, C. , Pers. Comm. (2010), Data publicised in: Lear, C. H. , Elderfield, H. , Wilson, P. A. , (2003), A Cenozoic seawater Sr/Ca record from benthic foraminiferal calcite and its application in determining global weathering fluxes, Earth and Planetary Science Letters, v. 208, p. 69 -84.

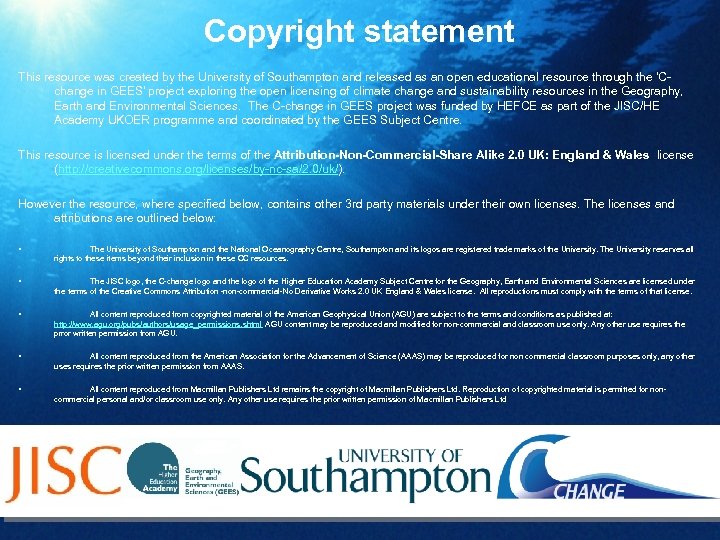

Copyright statement This resource was created by the University of Southampton and released as an open educational resource through the 'Cchange in GEES' project exploring the open licensing of climate change and sustainability resources in the Geography, Earth and Environmental Sciences. The C-change in GEES project was funded by HEFCE as part of the JISC/HE Academy UKOER programme and coordinated by the GEES Subject Centre. This resource is licensed under the terms of the Attribution-Non-Commercial-Share Alike 2. 0 UK: England & Wales license (http: //creativecommons. org/licenses/by-nc-sa/2. 0/uk/). However the resource, where specified below, contains other 3 rd party materials under their own licenses. The licenses and attributions are outlined below: • The University of Southampton and the National Oceanography Centre, Southampton and its logos are registered trade marks of the University. The University reserves all rights to these items beyond their inclusion in these CC resources. • The JISC logo, the C-change logo and the logo of the Higher Education Academy Subject Centre for the Geography, Earth and Environmental Sciences are licensed under the terms of the Creative Commons Attribution -non-commercial-No Derivative Works 2. 0 UK England & Wales license. All reproductions must comply with the terms of that license. • All content reproduced from copyrighted material of the American Geophysical Union (AGU) are subject to the terms and conditions as published at: http: //www. agu. org/pubs/authors/usage_permissions. shtml AGU content may be reproduced and modified for non-commercial and classroom use only. Any other use requires the prror written permission from AGU. • All content reproduced from the American Association for the Advancement of Science (AAAS) may be reproduced for non commercial classroom purposes only, any other uses requires the prior written permission from AAAS. • All content reproduced from Macmillan Publishers Ltd remains the copyright of Macmillan Publishers Ltd. Reproduction of copyrighted material is permitted for noncommercial personal and/or classroom use only. Any other use requires the prior written permission of Macmillan Publishers Ltd
