Packet Manuplation

Topics Covered

Network Protocol Headers: TCP, IP, UDP, ICMP, MAC

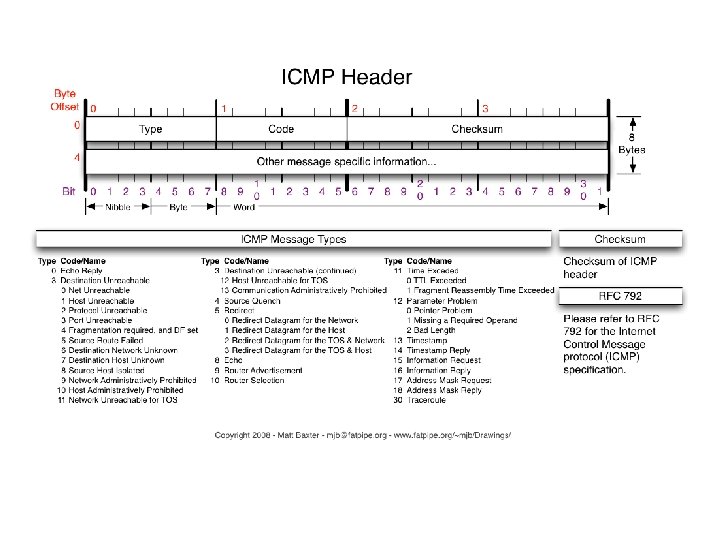

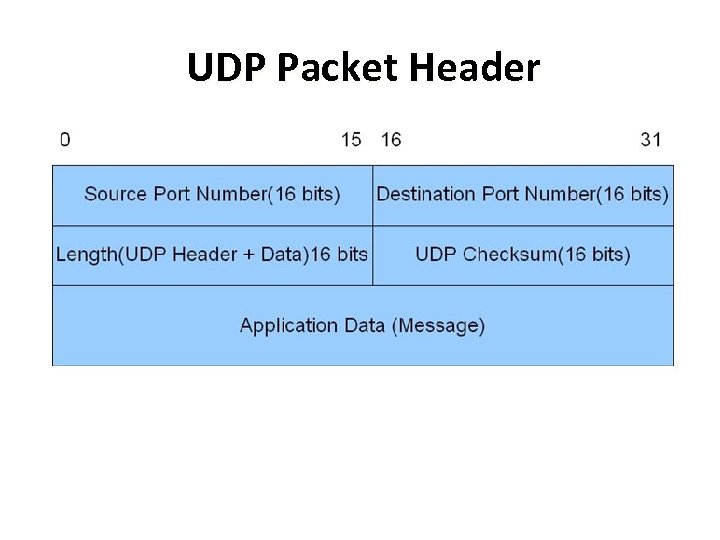

UDP Packet Header

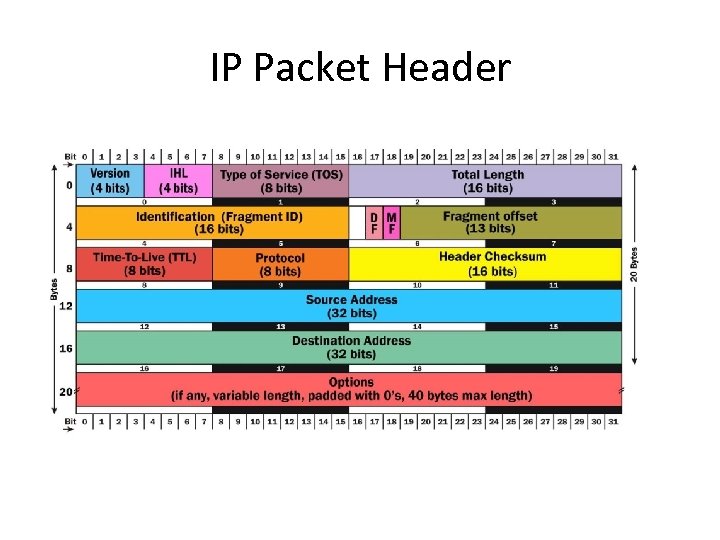

IP Packet Header

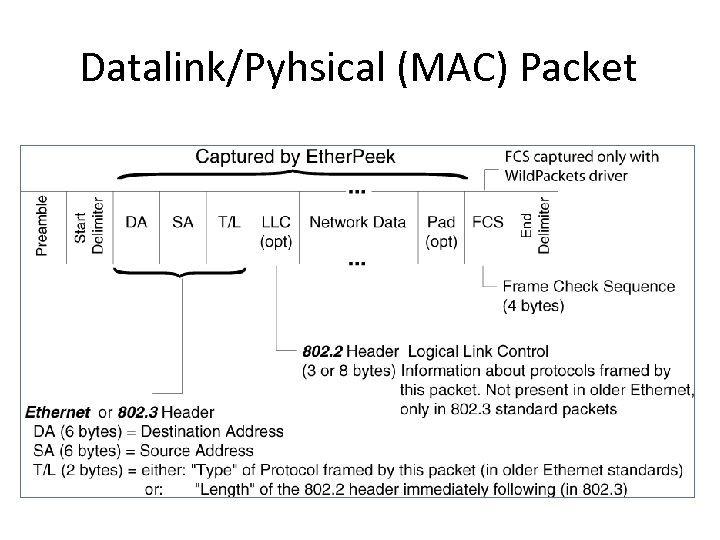

Datalink/Pyhsical (MAC) Packet

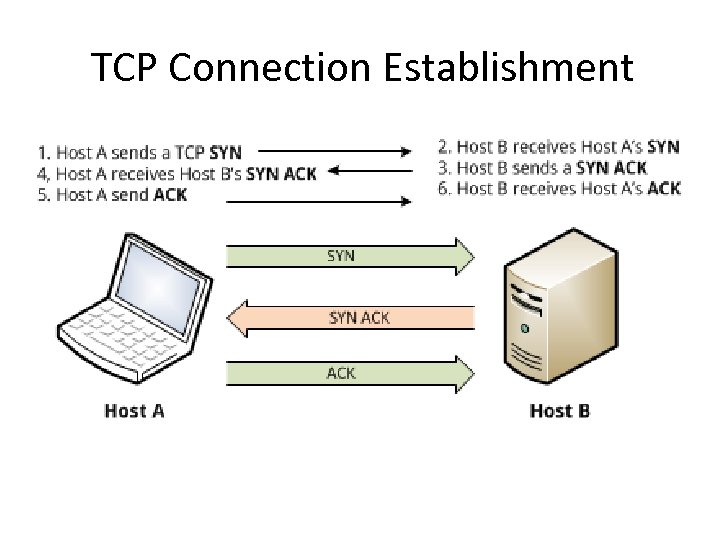

TCP Connection Establishment

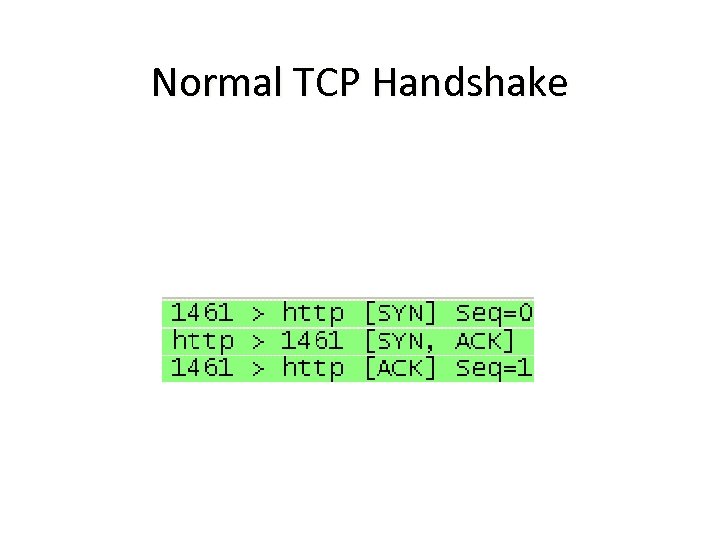

Normal TCP Handshake

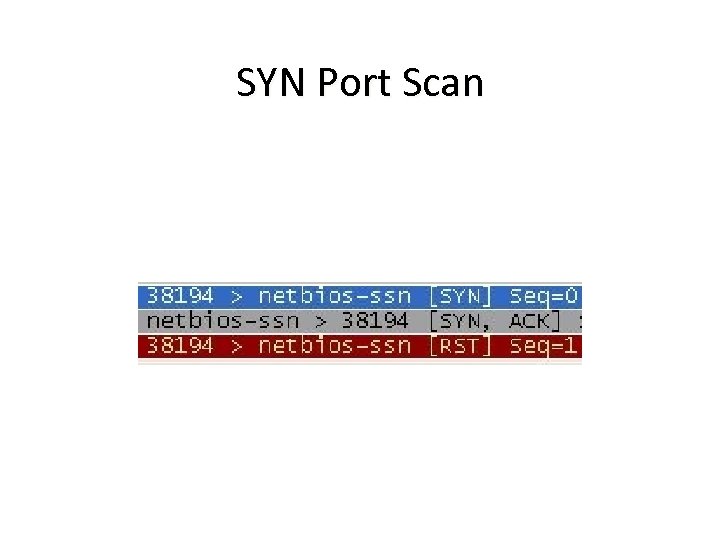

SYN Port Scan

Scapy Packet Manipulation

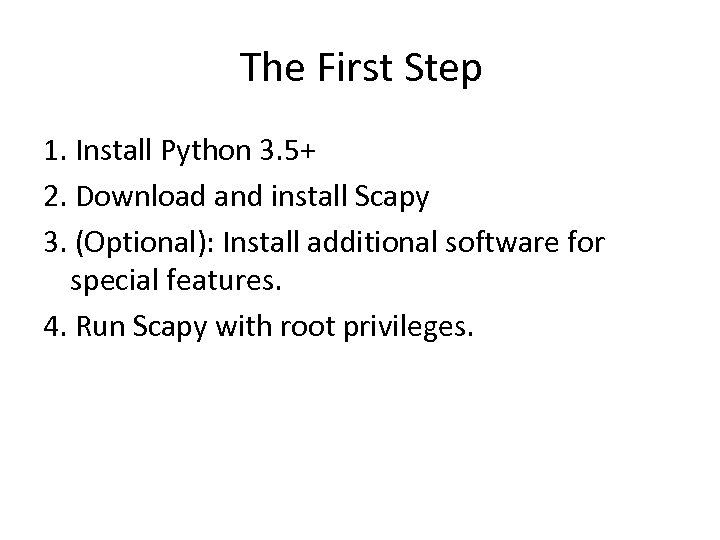

The First Step 1. Install Python 3. 5+ 2. Download and install Scapy 3. (Optional): Install additional software for special features. 4. Run Scapy with root privileges.

Hello World

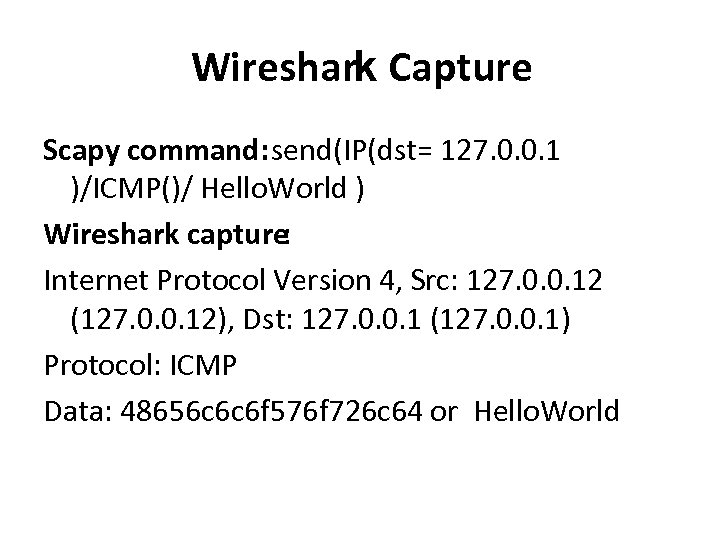

Wireshark Capture Scapy command: send(IP(dst= 127. 0. 0. 1 )/ICMP()/ Hello. World ) Wireshark capture: Internet Protocol Version 4, Src: 127. 0. 0. 12 (127. 0. 0. 12), Dst: 127. 0. 0. 1 (127. 0. 0. 1) Protocol: ICMP Data: 48656 c 6 c 6 f 576 f 726 c 64 or Hello. World

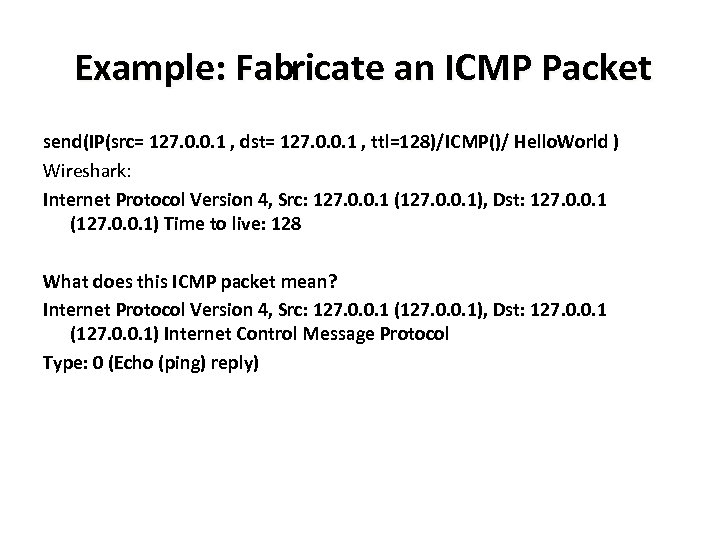

Example: Fabricate an ICMP Packet send(IP(src= 127. 0. 0. 1 , dst= 127. 0. 0. 1 , ttl=128)/ICMP()/ Hello. World ) Wireshark: Internet Protocol Version 4, Src: 127. 0. 0. 1 (127. 0. 0. 1), Dst: 127. 0. 0. 1 (127. 0. 0. 1) Time to live: 128 What does this ICMP packet mean? Internet Protocol Version 4, Src: 127. 0. 0. 1 (127. 0. 0. 1), Dst: 127. 0. 0. 1 (127. 0. 0. 1) Internet Control Message Protocol Type: 0 (Echo (ping) reply)

Sending a ping packet

Sending a ping packet with random source IP

Sending & Receiving Layer 3 and 2 Packets

Show the Packet Contents ###[ IP ]### version= 4 L ihl= 5 L tos= 0 x 0 len= 38 id= 7395 flags= frag= 0 L ttl= 64 proto= icmp chksum= 0 x 83 d 7 src= 127. 0. 0. 1 dst= 127. 0. 0. 1 options ###[ ICMP ]### type= echo-reply code= 0 chksum= 0 x 0 id= 0 x 0 seq= 0 x 0 ###[ Raw ]### load= 'Hello. World' ###[ Padding ]### load= 'x 00xe 7x 03 Nx 99' >>>

Show the TTL of the ICMP reply packet

Create an ARP request

UDP Scanning

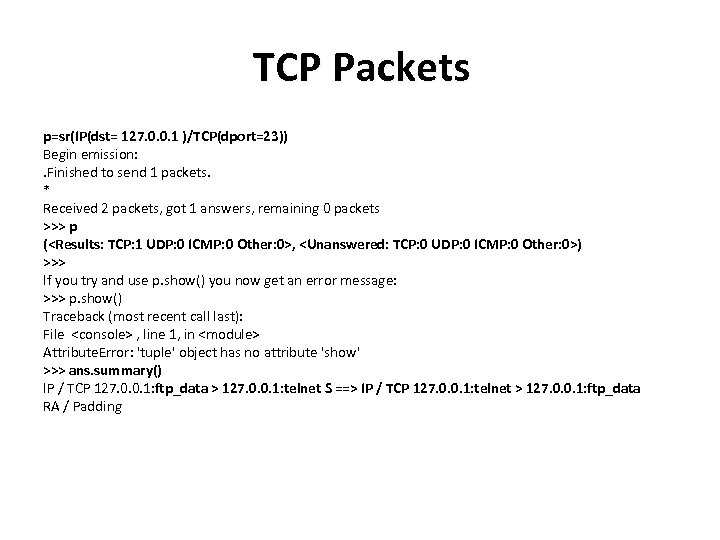

TCP Packets p=sr(IP(dst= 127. 0. 0. 1 )/TCP(dport=23)) Begin emission: . Finished to send 1 packets. * Received 2 packets, got 1 answers, remaining 0 packets >>> p (, ) >>> If you try and use p. show() you now get an error message: >>> p. show() Traceback (most recent call last): File , line 1, in Attribute. Error: 'tuple' object has no attribute 'show' >>> ans. summary() IP / TCP 127. 0. 0. 1: ftp_data > 127. 0. 0. 1: telnet S ==> IP / TCP 127. 0. 0. 1: telnet > 127. 0. 0. 1: ftp_data RA / Padding

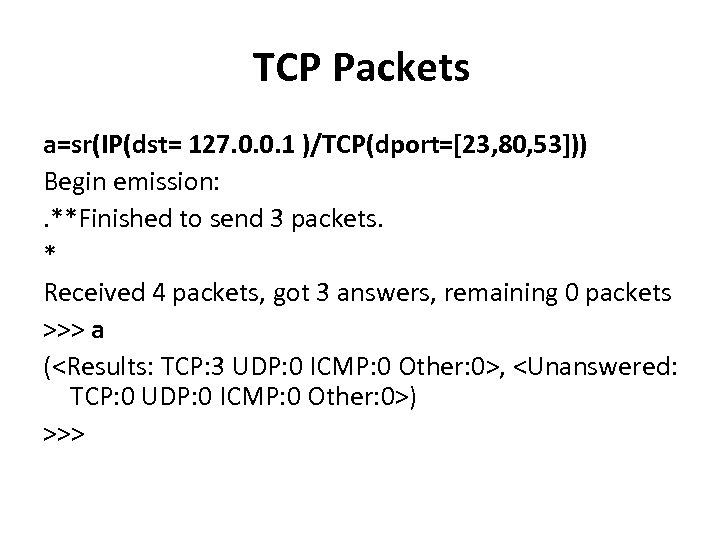

TCP Packets a=sr(IP(dst= 127. 0. 0. 1 )/TCP(dport=[23, 80, 53])) Begin emission: . **Finished to send 3 packets. * Received 4 packets, got 3 answers, remaining 0 packets >>> a (, ) >>>

TCP SYN to port 80

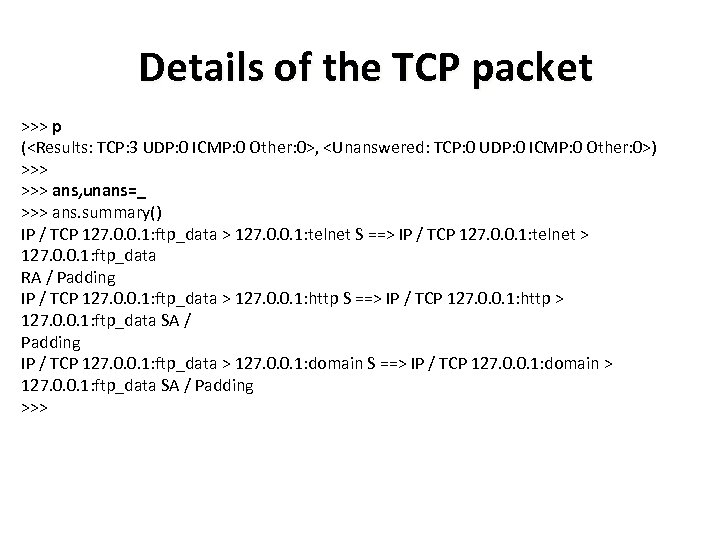

Details of the TCP packet >>> p (, ) >>> ans, unans=_ >>> ans. summary() IP / TCP 127. 0. 0. 1: ftp_data > 127. 0. 0. 1: telnet S ==> IP / TCP 127. 0. 0. 1: telnet > 127. 0. 0. 1: ftp_data RA / Padding IP / TCP 127. 0. 0. 1: ftp_data > 127. 0. 0. 1: http S ==> IP / TCP 127. 0. 0. 1: http > 127. 0. 0. 1: ftp_data SA / Padding IP / TCP 127. 0. 0. 1: ftp_data > 127. 0. 0. 1: domain S ==> IP / TCP 127. 0. 0. 1: domain > 127. 0. 0. 1: ftp_data SA / Padding >>>

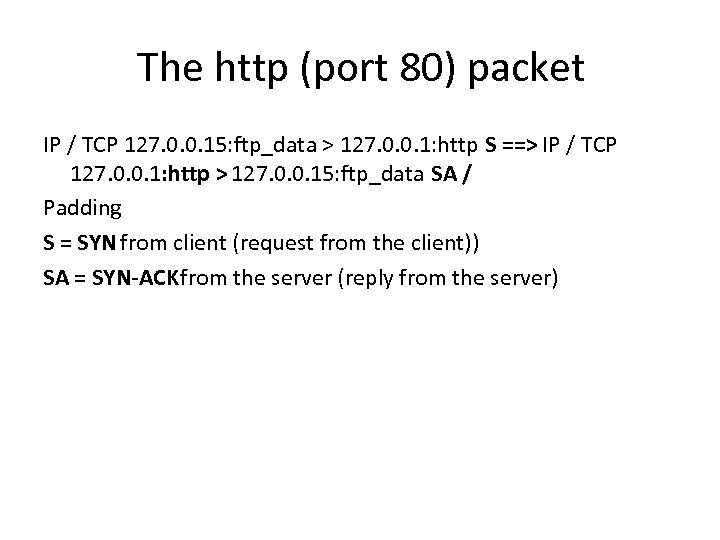

The http (port 80) packet IP / TCP 127. 0. 0. 15: ftp_data > 127. 0. 0. 1: http S ==> IP / TCP 127. 0. 0. 1: http > 127. 0. 0. 15: ftp_data SA / Padding S = SYN from client (request from the client)) SA = SYN-ACK from the server (reply from the server)

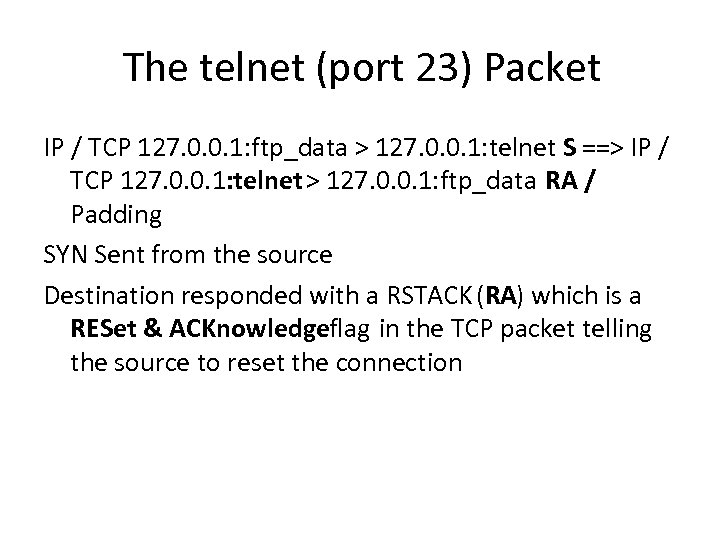

The telnet (port 23) Packet IP / TCP 127. 0. 0. 1: ftp_data > 127. 0. 0. 1: telnet S ==> IP / TCP 127. 0. 0. 1: telnet > 127. 0. 0. 1: ftp_data RA / Padding SYN Sent from the source Destination responded with a RSTACK (RA) which is a RESet & ACKnowledgeflag in the TCP packet telling the source to reset the connection

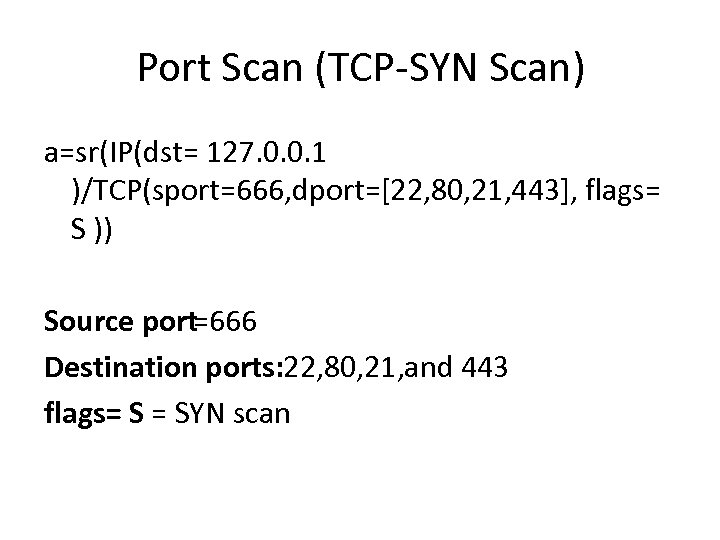

Port Scan (TCP-SYN Scan) a=sr(IP(dst= 127. 0. 0. 1 )/TCP(sport=666, dport=[22, 80, 21, 443], flags= S )) Source port=666 Destination ports: 22, 80, 21, and 443 flags= S = SYN scan

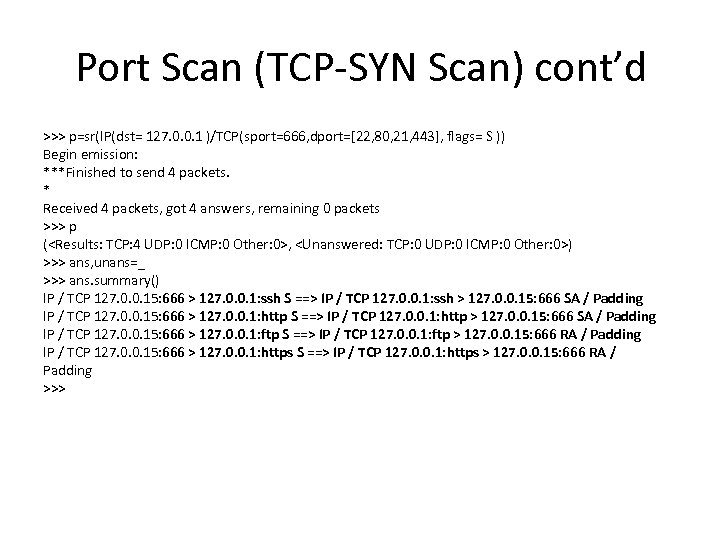

Port Scan (TCP-SYN Scan) cont’d >>> p=sr(IP(dst= 127. 0. 0. 1 )/TCP(sport=666, dport=[22, 80, 21, 443], flags= S )) Begin emission: ***Finished to send 4 packets. * Received 4 packets, got 4 answers, remaining 0 packets >>> p (, ) >>> ans, unans=_ >>> ans. summary() IP / TCP 127. 0. 0. 15: 666 > 127. 0. 0. 1: ssh S ==> IP / TCP 127. 0. 0. 1: ssh > 127. 0. 0. 15: 666 SA / Padding IP / TCP 127. 0. 0. 15: 666 > 127. 0. 0. 1: http S ==> IP / TCP 127. 0. 0. 1: http > 127. 0. 0. 15: 666 SA / Padding IP / TCP 127. 0. 0. 15: 666 > 127. 0. 0. 1: ftp S ==> IP / TCP 127. 0. 0. 1: ftp > 127. 0. 0. 15: 666 RA / Padding IP / TCP 127. 0. 0. 15: 666 > 127. 0. 0. 1: https S ==> IP / TCP 127. 0. 0. 1: https > 127. 0. 0. 15: 666 RA / Padding >>>

TCP ACK flag sent after SYN flag

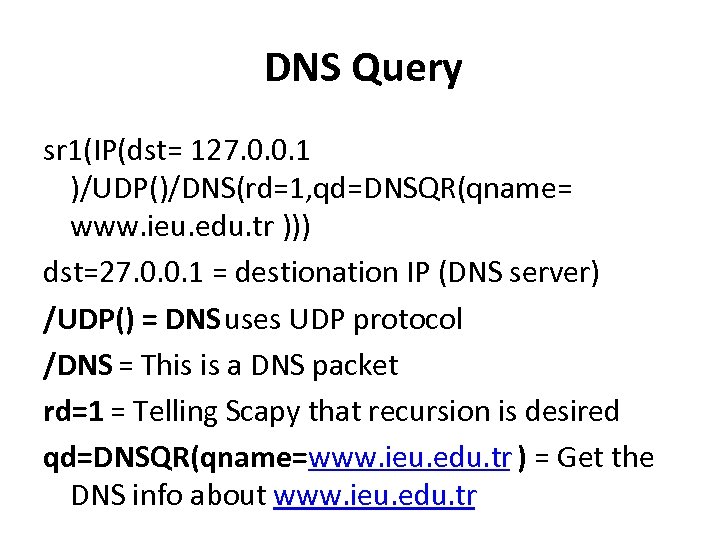

DNS Query sr 1(IP(dst= 127. 0. 0. 1 )/UDP()/DNS(rd=1, qd=DNSQR(qname= www. ieu. edu. tr ))) dst=27. 0. 0. 1 = destionation IP (DNS server) /UDP() = DNS uses UDP protocol /DNS = This is a DNS packet rd=1 = Telling Scapy that recursion is desired qd=DNSQR(qname=www. ieu. edu. tr ) = Get the DNS info about www. ieu. edu. tr

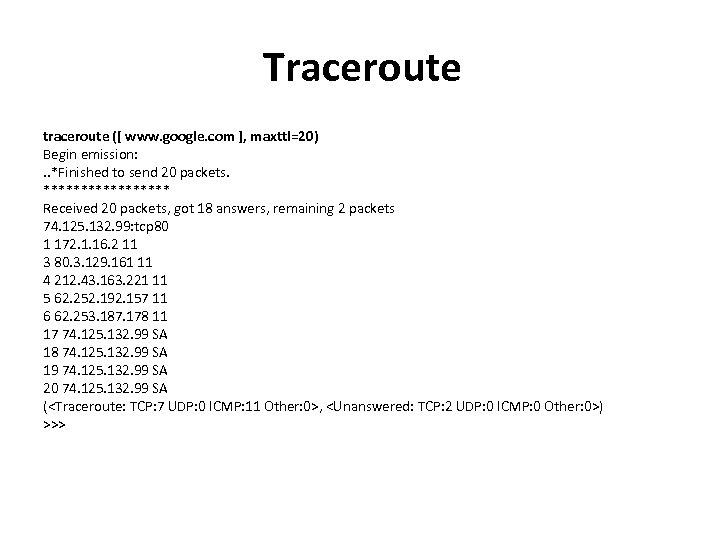

Traceroute traceroute ([ www. google. com ], maxttl=20) Begin emission: . . *Finished to send 20 packets. ********* Received 20 packets, got 18 answers, remaining 2 packets 74. 125. 132. 99: tcp 80 1 172. 1. 16. 2 11 3 80. 3. 129. 161 11 4 212. 43. 163. 221 11 5 62. 252. 192. 157 11 6 62. 253. 187. 178 11 17 74. 125. 132. 99 SA 18 74. 125. 132. 99 SA 19 74. 125. 132. 99 SA 20 74. 125. 132. 99 SA (, ) >>>

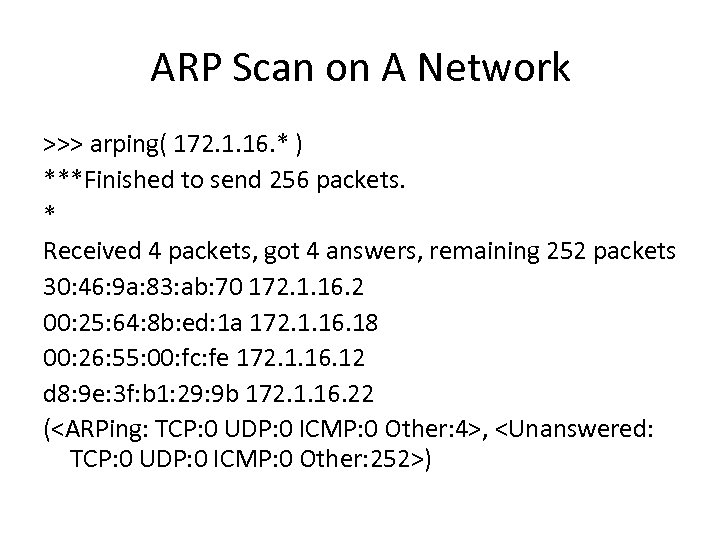

ARP Scan on A Network >>> arping( 172. 1. 16. * ) ***Finished to send 256 packets. * Received 4 packets, got 4 answers, remaining 252 packets 30: 46: 9 a: 83: ab: 70 172. 1. 16. 2 00: 25: 64: 8 b: ed: 1 a 172. 1. 16. 18 00: 26: 55: 00: fc: fe 172. 1. 16. 12 d 8: 9 e: 3 f: b 1: 29: 9 b 172. 1. 16. 22 (, )

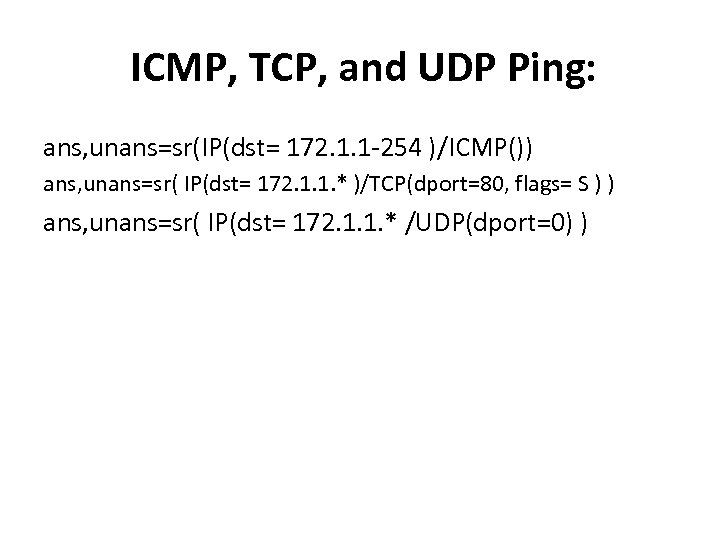

ICMP, TCP, and UDP Ping: ans, unans=sr(IP(dst= 172. 1. 1 -254 )/ICMP()) ans, unans=sr( IP(dst= 172. 1. 1. * )/TCP(dport=80, flags= S ) ) ans, unans=sr( IP(dst= 172. 1. 1. * /UDP(dport=0) )

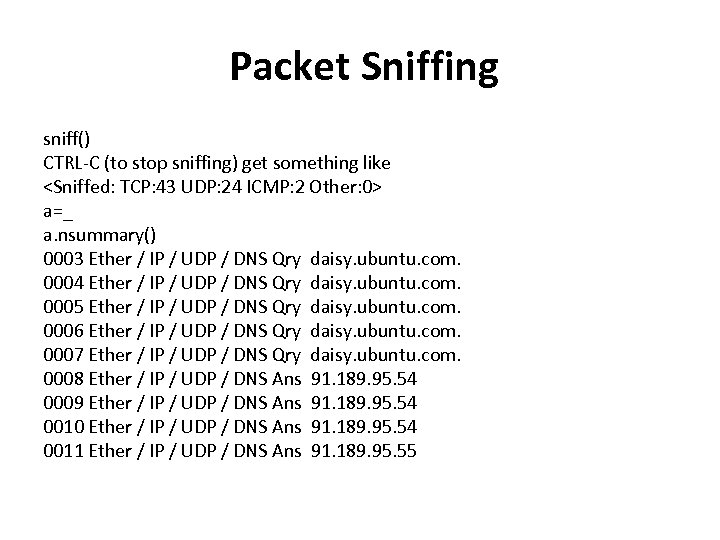

Packet Sniffing sniff() CTRL-C (to stop sniffing) get something like a=_ a. nsummary() 0003 Ether / IP / UDP / DNS Qry daisy. ubuntu. com. 0004 Ether / IP / UDP / DNS Qry daisy. ubuntu. com. 0005 Ether / IP / UDP / DNS Qry daisy. ubuntu. com. 0006 Ether / IP / UDP / DNS Qry daisy. ubuntu. com. 0007 Ether / IP / UDP / DNS Qry daisy. ubuntu. com. 0008 Ether / IP / UDP / DNS Ans 91. 189. 95. 54 0009 Ether / IP / UDP / DNS Ans 91. 189. 95. 54 0010 Ether / IP / UDP / DNS Ans 91. 189. 95. 54 0011 Ether / IP / UDP / DNS Ans 91. 189. 95. 55

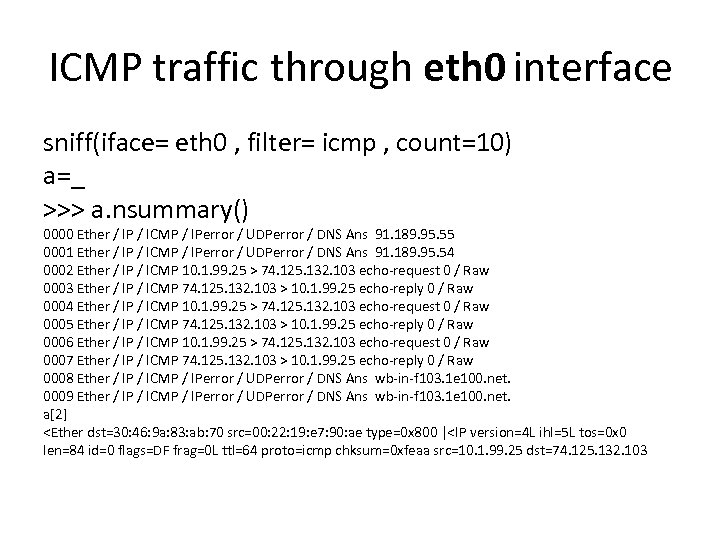

ICMP traffic through eth 0 interface sniff(iface= eth 0 , filter= icmp , count=10) a=_ >>> a. nsummary() 0000 Ether / IP / ICMP / IPerror / UDPerror / DNS Ans 91. 189. 95. 55 0001 Ether / IP / ICMP / IPerror / UDPerror / DNS Ans 91. 189. 95. 54 0002 Ether / IP / ICMP 10. 1. 99. 25 > 74. 125. 132. 103 echo-request 0 / Raw 0003 Ether / IP / ICMP 74. 125. 132. 103 > 10. 1. 99. 25 echo-reply 0 / Raw 0004 Ether / IP / ICMP 10. 1. 99. 25 > 74. 125. 132. 103 echo-request 0 / Raw 0005 Ether / IP / ICMP 74. 125. 132. 103 > 10. 1. 99. 25 echo-reply 0 / Raw 0006 Ether / IP / ICMP 10. 1. 99. 25 > 74. 125. 132. 103 echo-request 0 / Raw 0007 Ether / IP / ICMP 74. 125. 132. 103 > 10. 1. 99. 25 echo-reply 0 / Raw 0008 Ether / IP / ICMP / IPerror / UDPerror / DNS Ans wb-in-f 103. 1 e 100. net. 0009 Ether / IP / ICMP / IPerror / UDPerror / DNS Ans wb-in-f 103. 1 e 100. net. a[2]

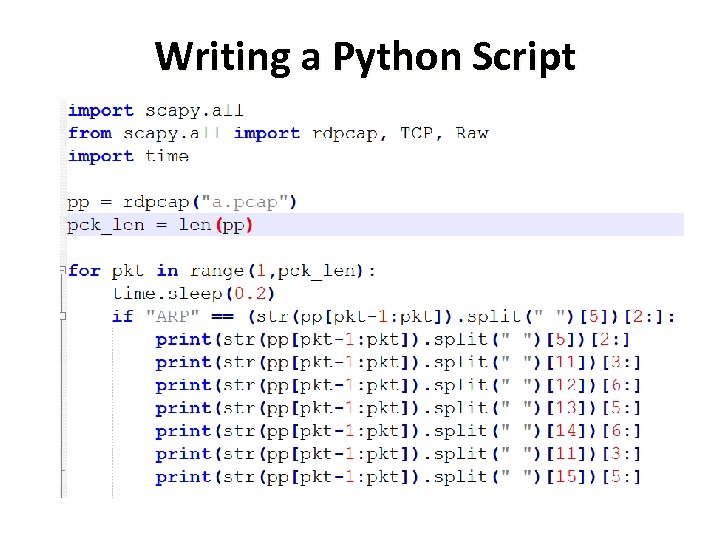

Writing a Python Script

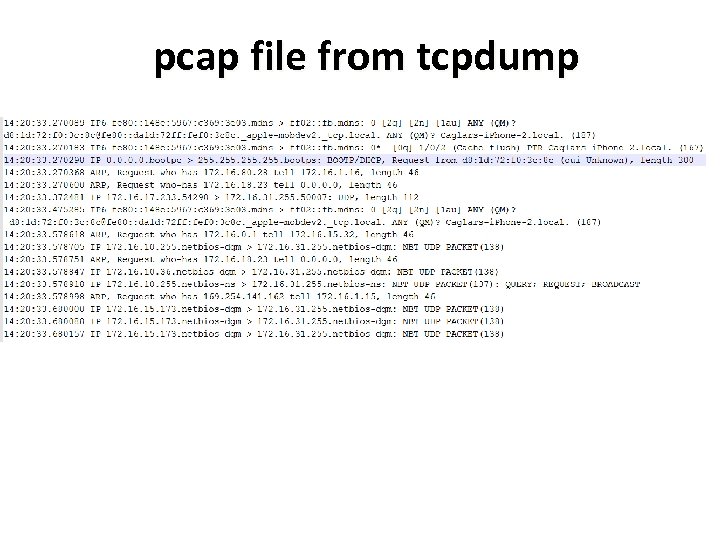

pcap file from tcpdump

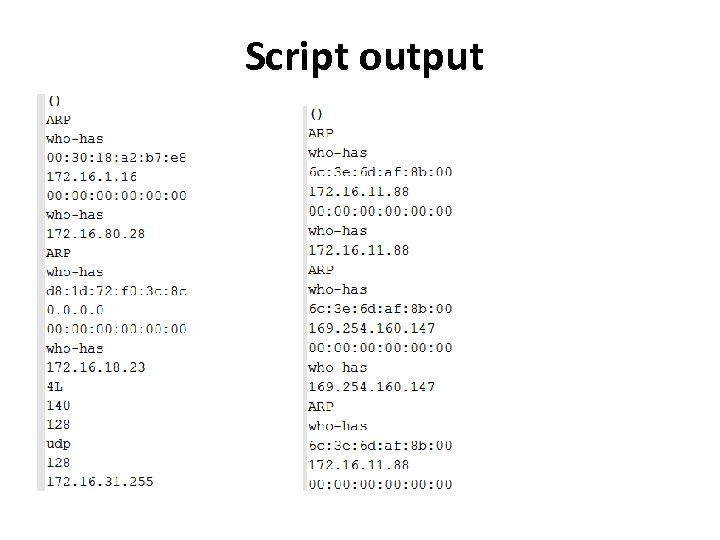

Script output

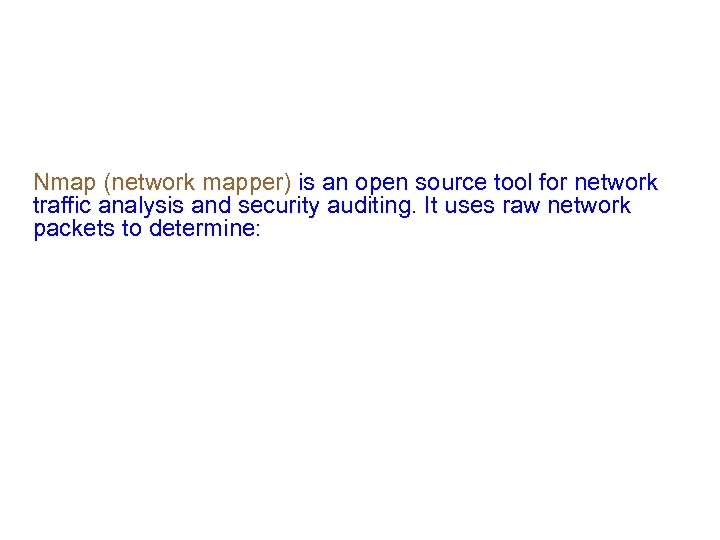

Nmap (network mapper) is an open source tool for network traffic analysis and security auditing. It uses raw network packets to determine:

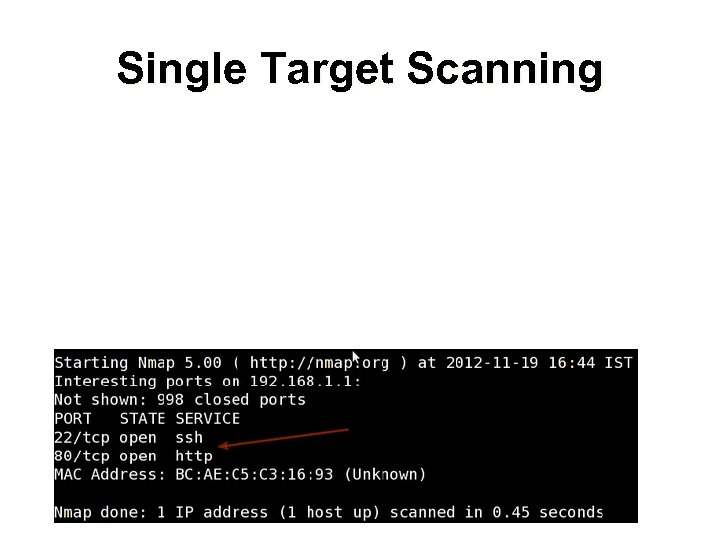

Single Target Scanning

Multiple Target Scanning

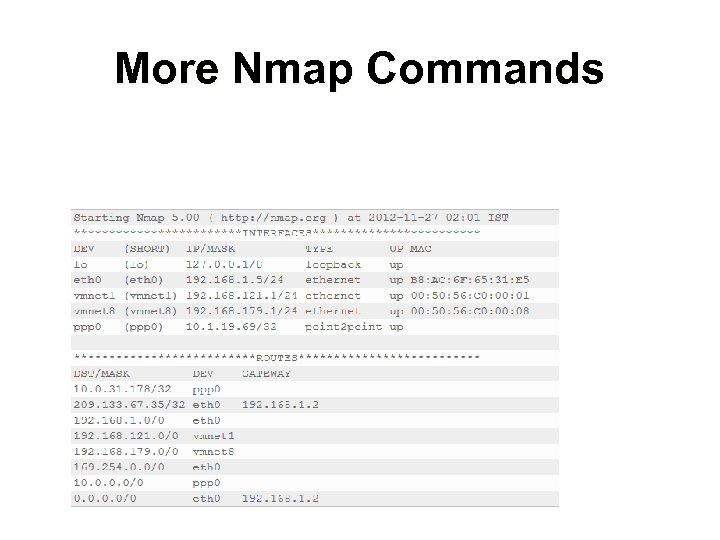

More Nmap Commands

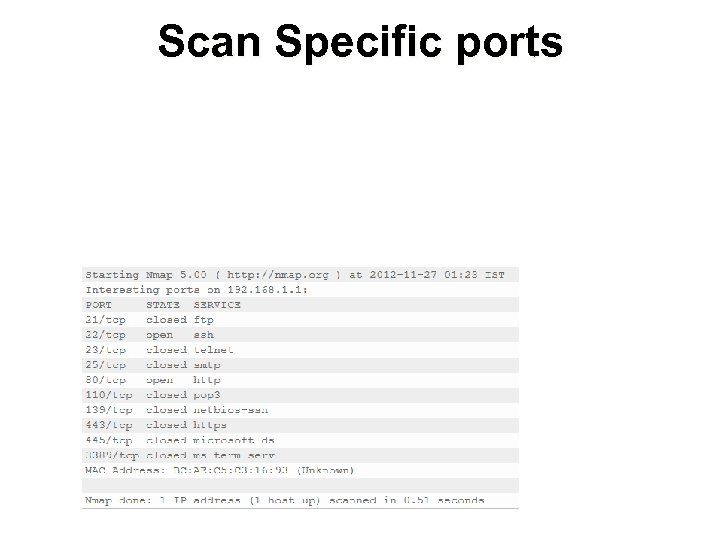

Scan Specific ports

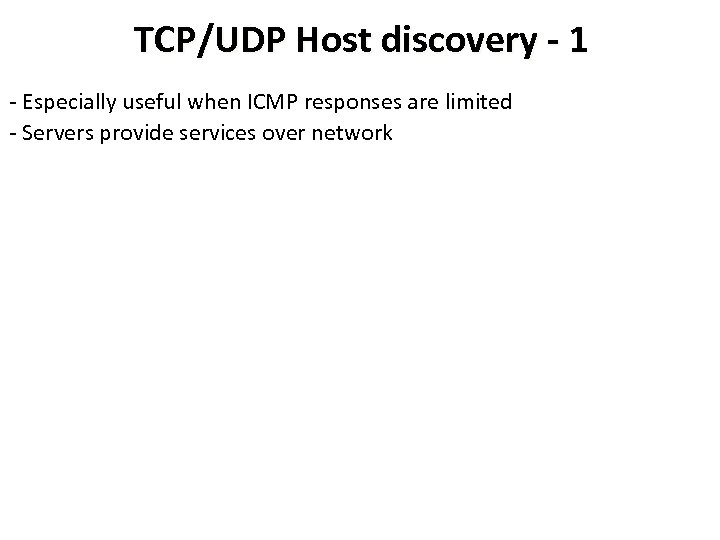

Host Discovery (1)

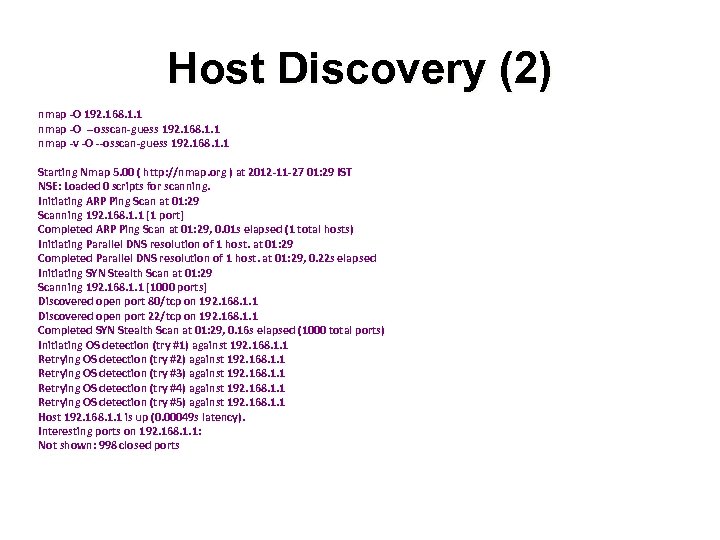

Host Discovery (2) nmap -O 192. 168. 1. 1 nmap -O --osscan-guess 192. 168. 1. 1 nmap -v -O --osscan-guess 192. 168. 1. 1 Starting Nmap 5. 00 ( http: //nmap. org ) at 2012 -11 -27 01: 29 IST NSE: Loaded 0 scripts for scanning. Initiating ARP Ping Scan at 01: 29 Scanning 192. 168. 1. 1 [1 port] Completed ARP Ping Scan at 01: 29, 0. 01 s elapsed (1 total hosts) Initiating Parallel DNS resolution of 1 host. at 01: 29 Completed Parallel DNS resolution of 1 host. at 01: 29, 0. 22 s elapsed Initiating SYN Stealth Scan at 01: 29 Scanning 192. 168. 1. 1 [1000 ports] Discovered open port 80/tcp on 192. 168. 1. 1 Discovered open port 22/tcp on 192. 168. 1. 1 Completed SYN Stealth Scan at 01: 29, 0. 16 s elapsed (1000 total ports) Initiating OS detection (try #1) against 192. 168. 1. 1 Retrying OS detection (try #2) against 192. 168. 1. 1 Retrying OS detection (try #3) against 192. 168. 1. 1 Retrying OS detection (try #4) against 192. 168. 1. 1 Retrying OS detection (try #5) against 192. 168. 1. 1 Host 192. 168. 1. 1 is up (0. 00049 s latency). Interesting ports on 192. 168. 1. 1: Not shown: 998 closed ports

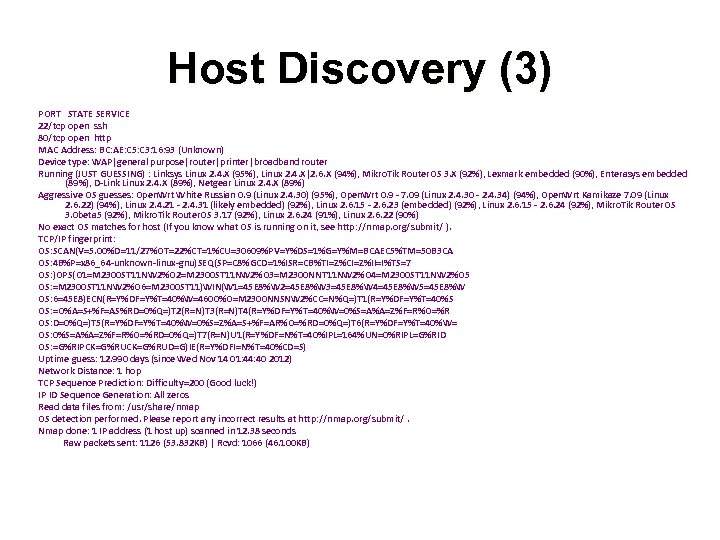

Host Discovery (3) PORT STATE SERVICE 22/tcp open ssh 80/tcp open http MAC Address: BC: AE: C 5: C 3: 16: 93 (Unknown) Device type: WAP|general purpose|router|printer|broadband router Running (JUST GUESSING) : Linksys Linux 2. 4. X (95%), Linux 2. 4. X|2. 6. X (94%), Mikro. Tik Router. OS 3. X (92%), Lexmark embedded (90%), Enterasys embedded (89%), D-Link Linux 2. 4. X (89%), Netgear Linux 2. 4. X (89%) Aggressive OS guesses: Open. Wrt White Russian 0. 9 (Linux 2. 4. 30) (95%), Open. Wrt 0. 9 - 7. 09 (Linux 2. 4. 30 - 2. 4. 34) (94%), Open. Wrt Kamikaze 7. 09 (Linux 2. 6. 22) (94%), Linux 2. 4. 21 - 2. 4. 31 (likely embedded) (92%), Linux 2. 6. 15 - 2. 6. 23 (embedded) (92%), Linux 2. 6. 15 - 2. 6. 24 (92%), Mikro. Tik Router. OS 3. 0 beta 5 (92%), Mikro. Tik Router. OS 3. 17 (92%), Linux 2. 6. 24 (91%), Linux 2. 6. 22 (90%) No exact OS matches for host (If you know what OS is running on it, see http: //nmap. org/submit/ ). TCP/IP fingerprint: OS: SCAN(V=5. 00%D=11/27%OT=22%CT=1%CU=30609%PV=Y%DS=1%G=Y%M=BCAEC 5%TM=50 B 3 CA OS: 4 B%P=x 86_64 -unknown-linux-gnu)SEQ(SP=C 8%GCD=1%ISR=CB%TI=Z%CI=Z%II=I%TS=7 OS: )OPS(O 1=M 2300 ST 11 NW 2%O 2=M 2300 ST 11 NW 2%O 3=M 2300 NNT 11 NW 2%O 4=M 2300 ST 11 NW 2%O 5 OS: =M 2300 ST 11 NW 2%O 6=M 2300 ST 11)WIN(W 1=45 E 8%W 2=45 E 8%W 3=45 E 8%W 4=45 E 8%W 5=45 E 8%W OS: 6=45 E 8)ECN(R=Y%DF=Y%T=40%W=4600%O=M 2300 NNSNW 2%CC=N%Q=)T 1(R=Y%DF=Y%T=40%S OS: =O%A=S+%F=AS%RD=0%Q=)T 2(R=N)T 3(R=N)T 4(R=Y%DF=Y%T=40%W=0%S=A%A=Z%F=R%O=%R OS: D=0%Q=)T 5(R=Y%DF=Y%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)T 6(R=Y%DF=Y%T=40%W= OS: 0%S=A%A=Z%F=R%O=%RD=0%Q=)T 7(R=N)U 1(R=Y%DF=N%T=40%IPL=164%UN=0%RIPL=G%RID OS: =G%RIPCK=G%RUD=G)IE(R=Y%DFI=N%T=40%CD=S) Uptime guess: 12. 990 days (since Wed Nov 14 01: 44: 40 2012) Network Distance: 1 hop TCP Sequence Prediction: Difficulty=200 (Good luck!) IP ID Sequence Generation: All zeros Read data files from: /usr/share/nmap OS detection performed. Please report any incorrect results at http: //nmap. org/submit/. Nmap done: 1 IP address (1 host up) scanned in 12. 38 seconds Raw packets sent: 1126 (53. 832 KB) | Rcvd: 1066 (46. 100 KB)

Nping Nping

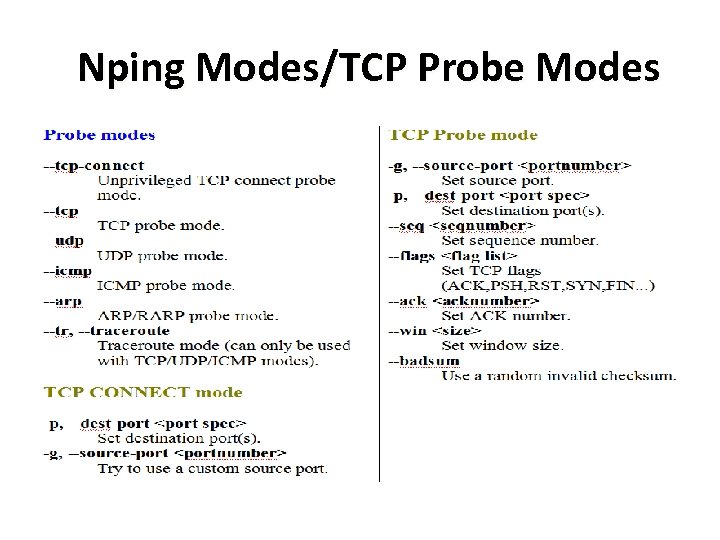

Nping Modes/TCP Probe Modes

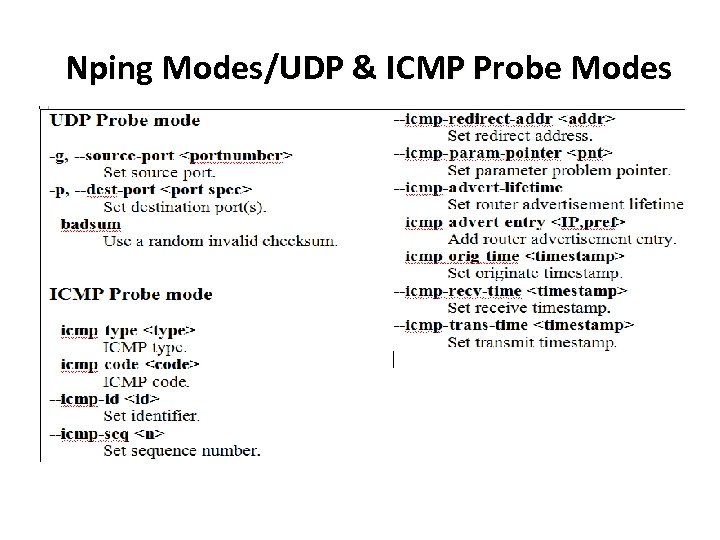

Nping Modes/UDP & ICMP Probe Modes

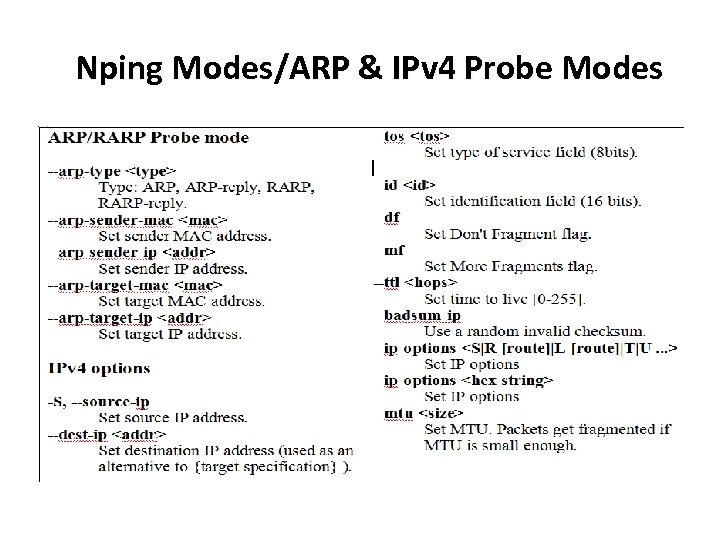

Nping Modes/ARP & IPv 4 Probe Modes

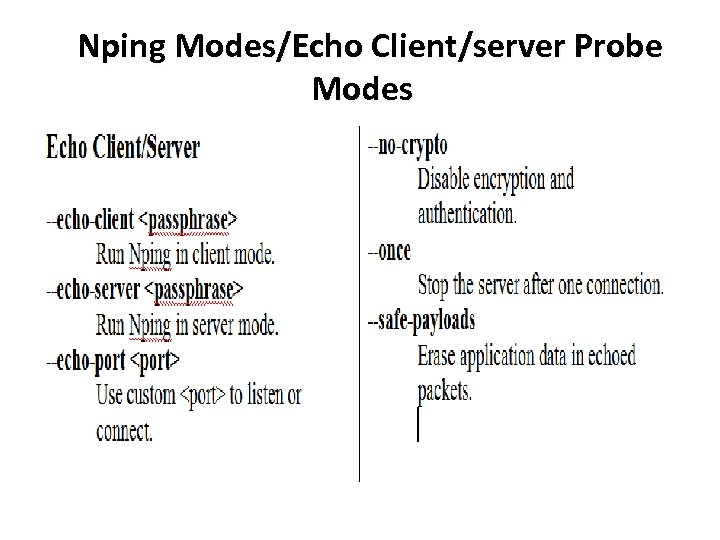

Nping Modes/Echo Client/server Probe Modes

Nping Output

Nping Using TCP Flags nping --tcp -p 80 --flags rst -c 3 aldeid. com

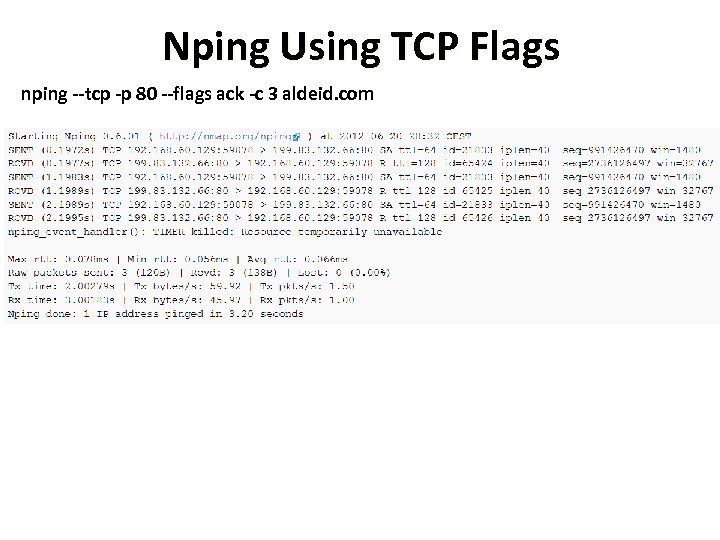

Nping Using TCP Flags nping --tcp -p 80 --flags ack -c 3 aldeid. com

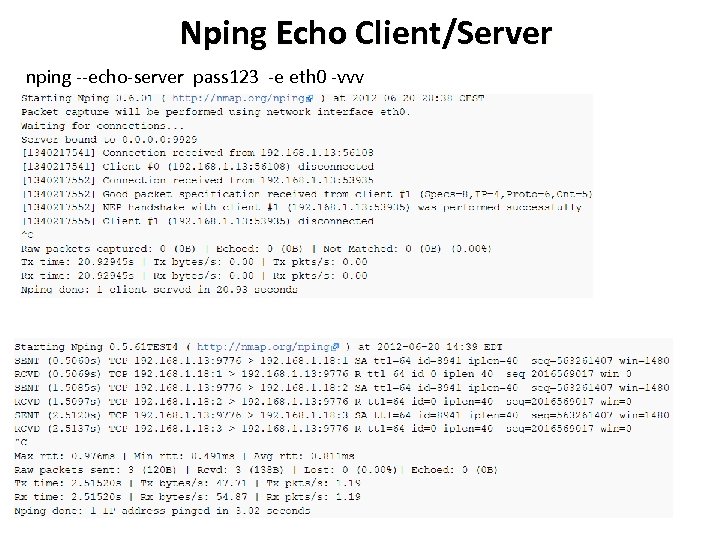

Nping Echo Client/Server nping --echo-server pass 123 -e eth 0 -vvv

tcpdump tcpdump

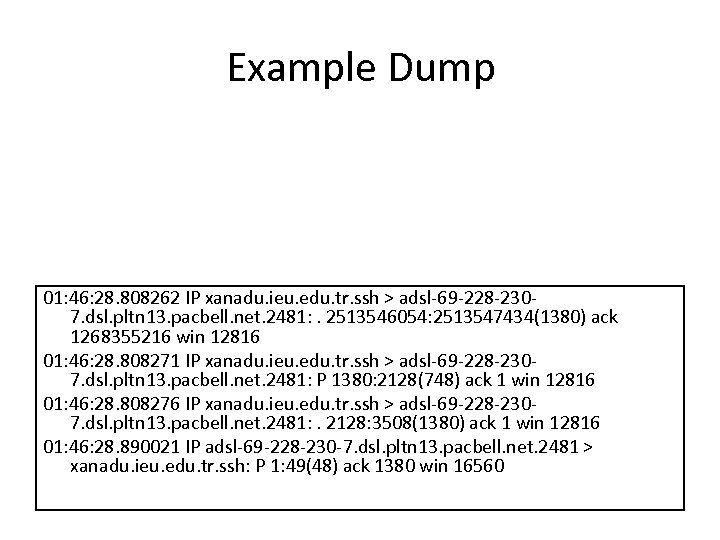

Example Dump 01: 46: 28. 808262 IP xanadu. ieu. edu. tr. ssh > adsl-69 -228 -2307. dsl. pltn 13. pacbell. net. 2481: . 2513546054: 2513547434(1380) ack 1268355216 win 12816 01: 46: 28. 808271 IP xanadu. ieu. edu. tr. ssh > adsl-69 -228 -2307. dsl. pltn 13. pacbell. net. 2481: P 1380: 2128(748) ack 1 win 12816 01: 46: 28. 808276 IP xanadu. ieu. edu. tr. ssh > adsl-69 -228 -2307. dsl. pltn 13. pacbell. net. 2481: . 2128: 3508(1380) ack 1 win 12816 01: 46: 28. 890021 IP adsl-69 -228 -230 -7. dsl. pltn 13. pacbell. net. 2481 > xanadu. ieu. edu. tr. ssh: P 1: 49(48) ack 1380 win 16560

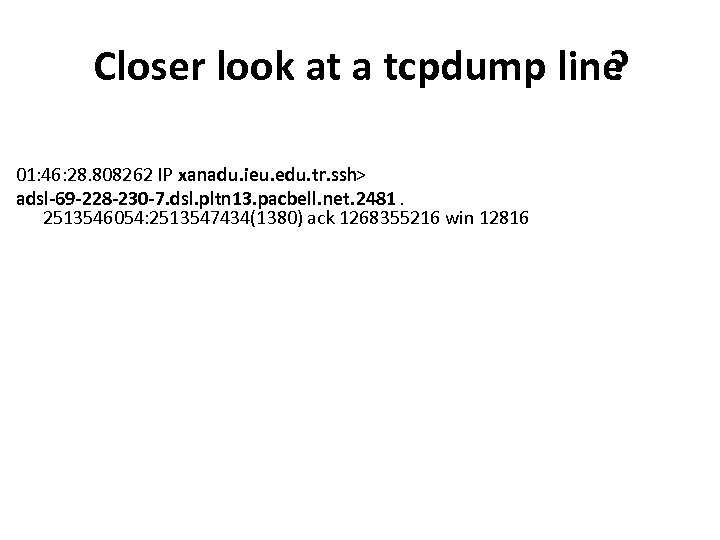

Closer look at a tcpdump line ? 01: 46: 28. 808262 IP xanadu. ieu. edu. tr. ssh> adsl-69 -228 -230 -7. dsl. pltn 13. pacbell. net. 2481. : 2513546054: 2513547434(1380) ack 1268355216 win 12816

Command line use

Simple Filters-I Use filters to capture only packets of interest. Example: Capture only packets given by protocol names tcpdump udp tcpdump ip tcpdump icmp tcpdump arp

Filters-II

Filters -III

Writing Filters

Combining Filters Options

Some Useful Options

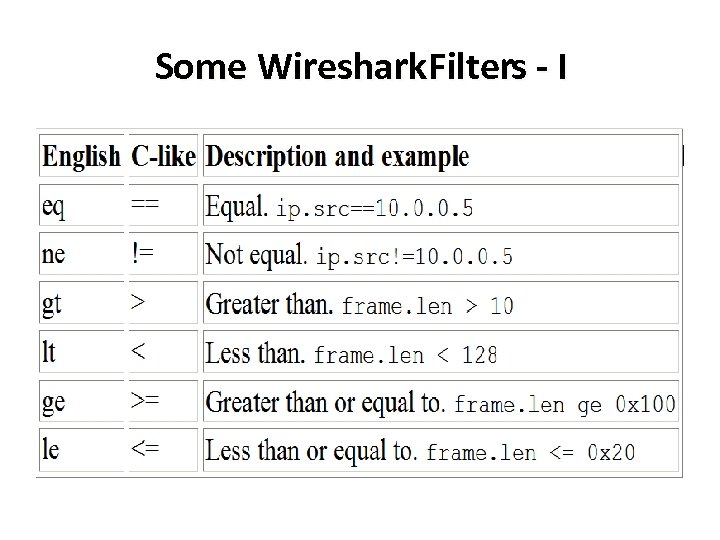

Some Wireshark. Filters - I

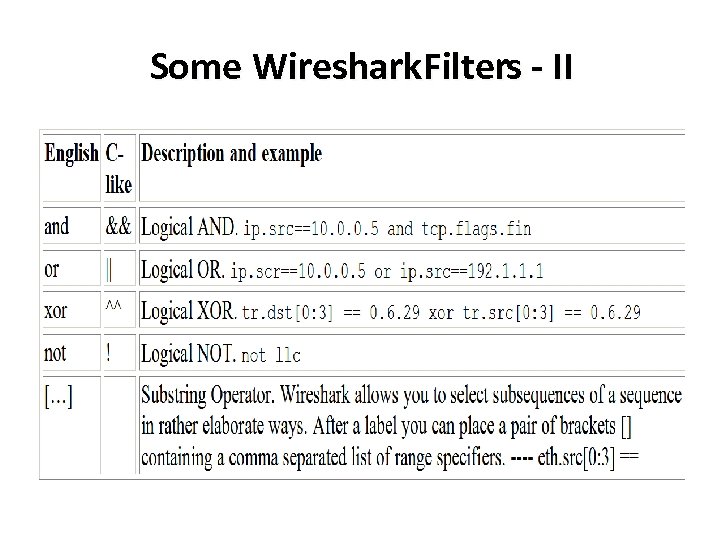

Some Wireshark. Filters - II

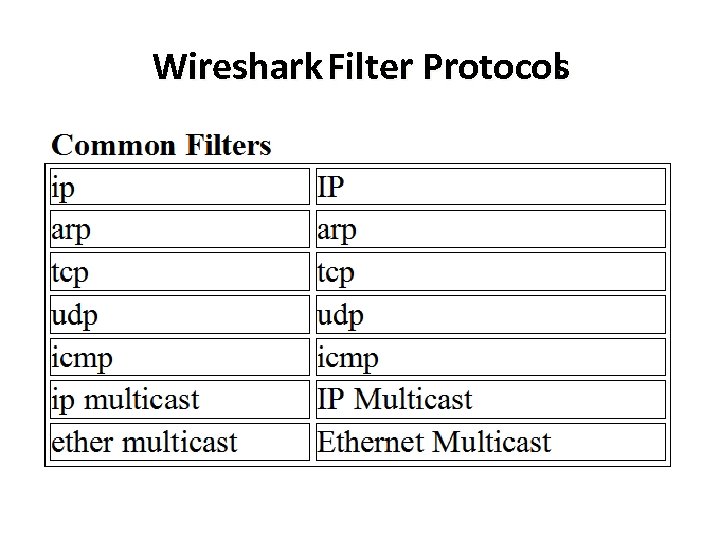

Wireshark Filter Protocol s

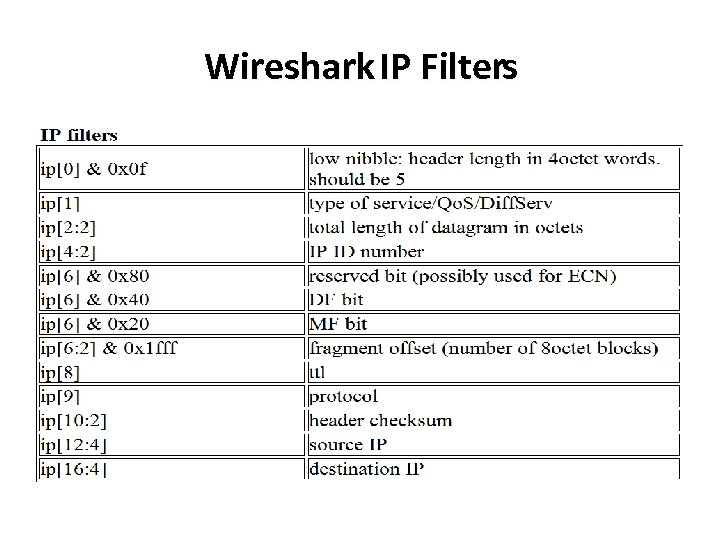

Wireshark IP Filters

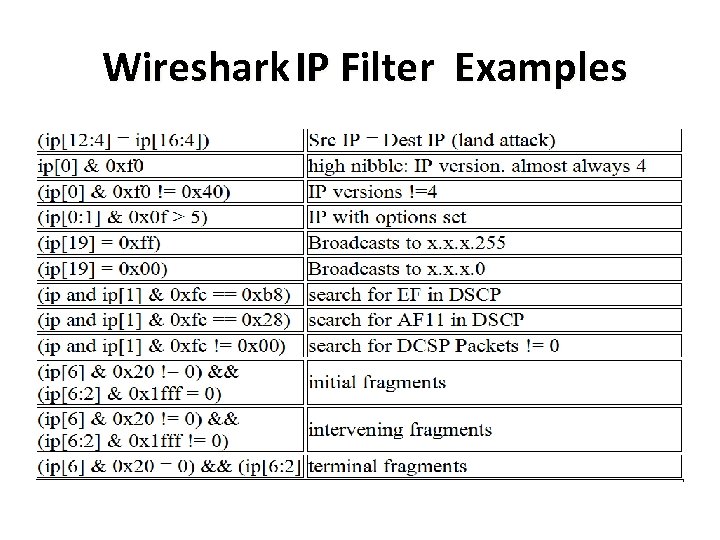

Wireshark IP Filter Examples

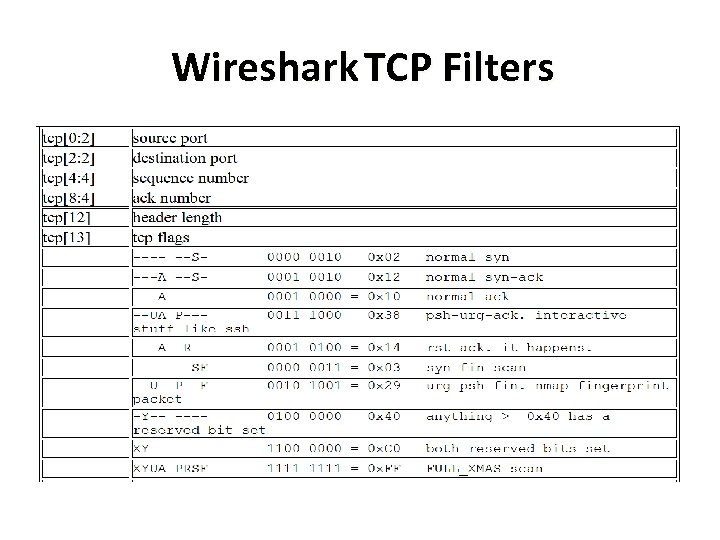

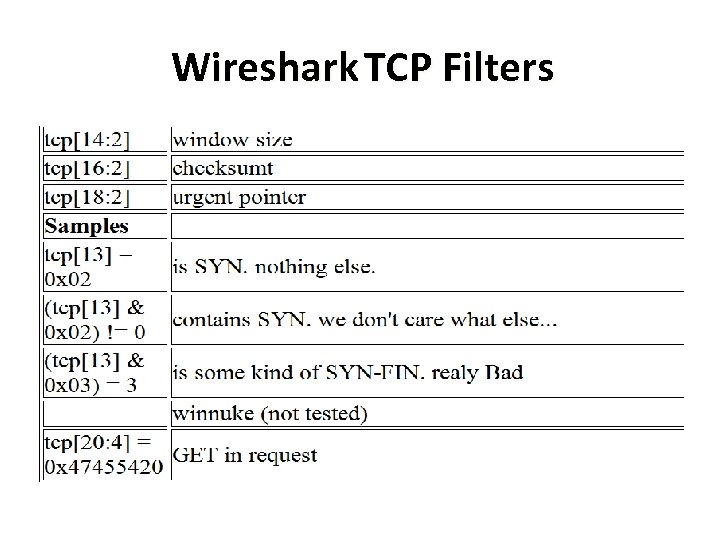

Wireshark TCP Filters

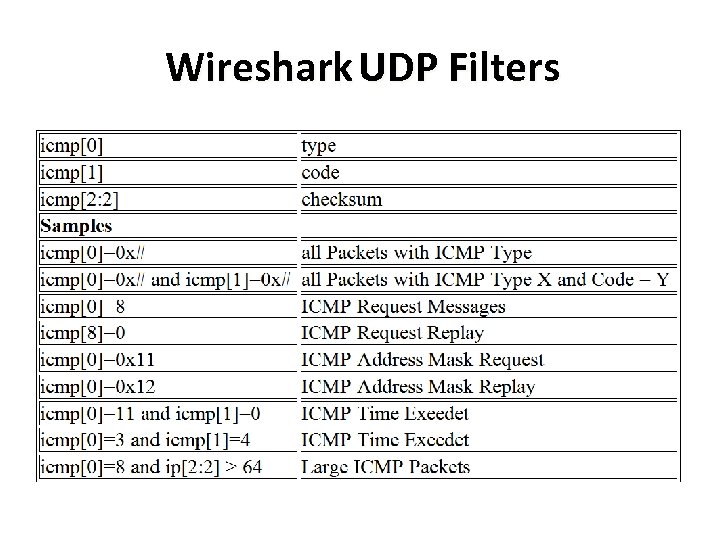

Wireshark UDP Filters

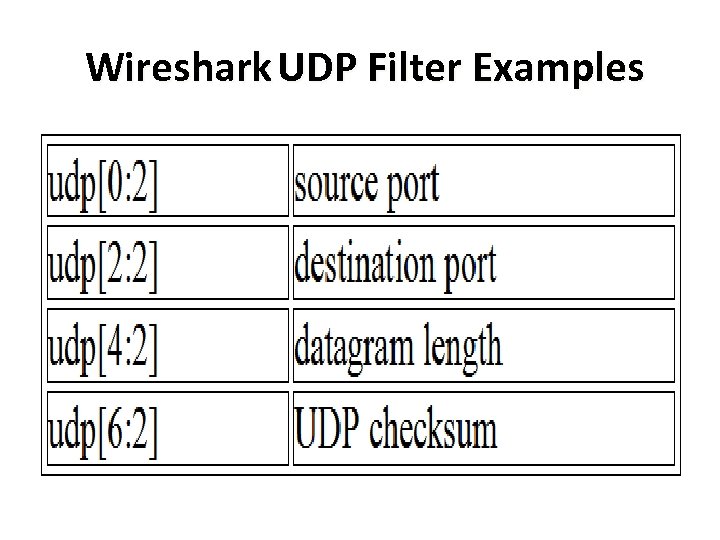

Wireshark UDP Filter Examples

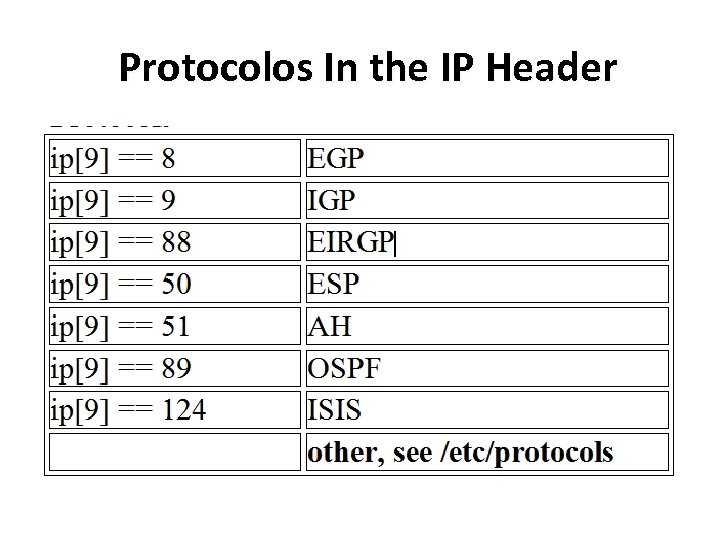

Protocolos In the IP Header

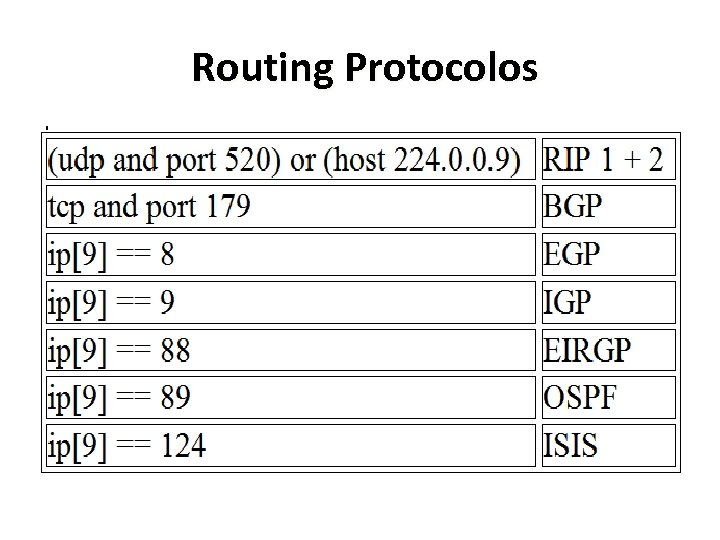

Routing Protocolos
