Overview of the PATENTSCOPE® search service Jerusalem 21 July 2010 Alex Riechel Associate Officer, Innovation and Technology Support Section

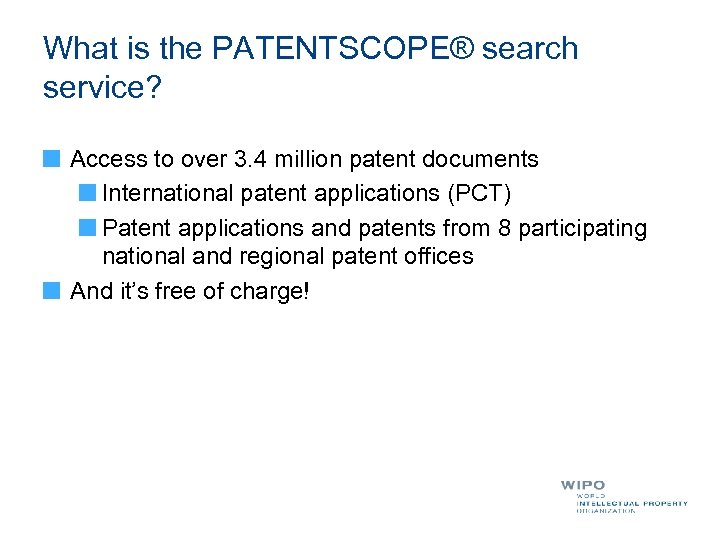

What is the PATENTSCOPE® search service? Access to over 3. 4 million patent documents International patent applications (PCT) Patent applications and patents from 8 participating national and regional patent offices And it’s free of charge!

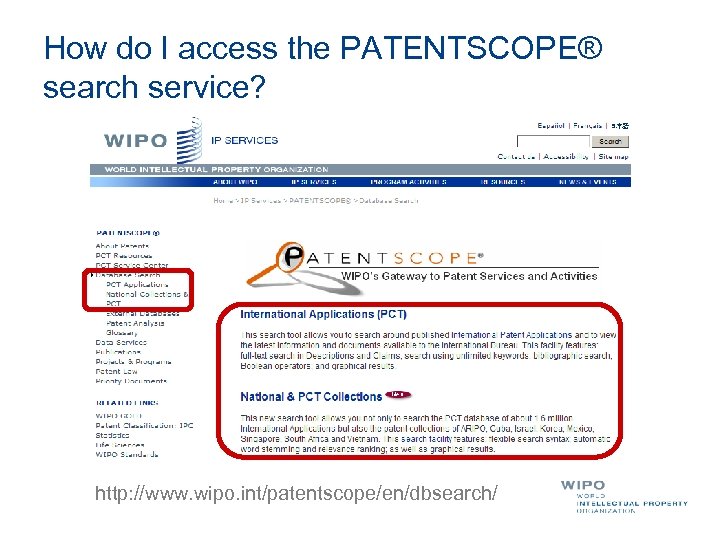

How do I access the PATENTSCOPE® search service? http: //www. wipo. int/patentscope/en/dbsearch/

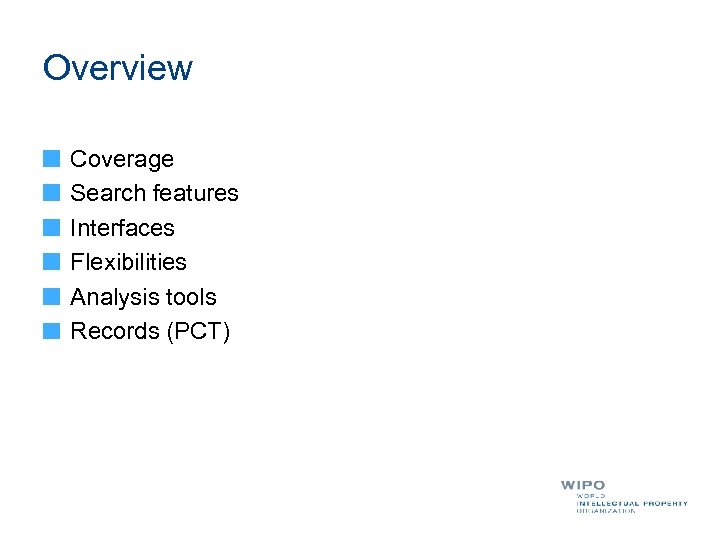

Overview Coverage Search features Interfaces Flexibilities Analysis tools Records (PCT)

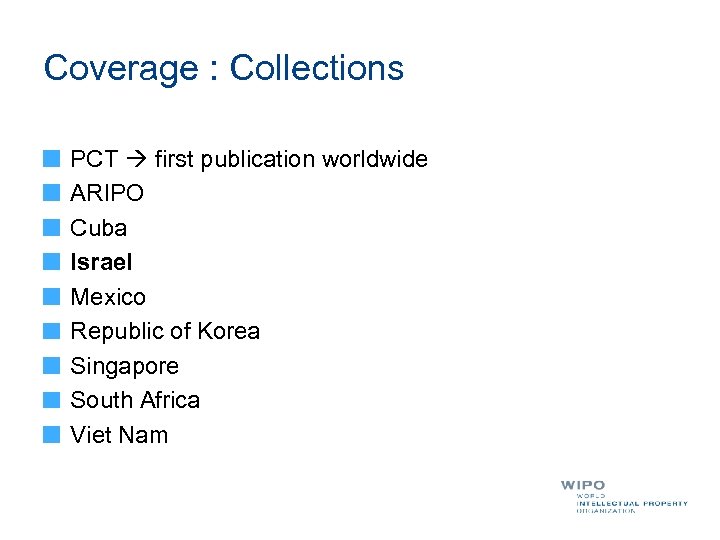

Coverage : Collections PCT first publication worldwide ARIPO Cuba Israel Mexico Republic of Korea Singapore South Africa Viet Nam

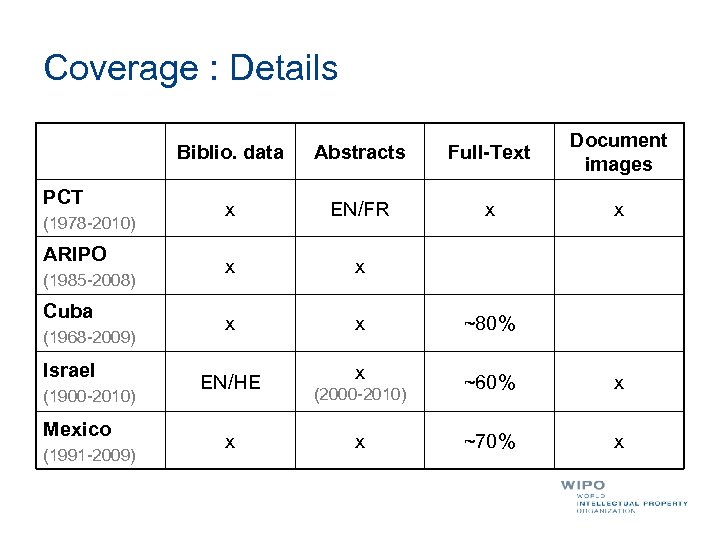

Coverage : Details Biblio. data PCT (1978 -2010) ARIPO (1985 -2008) Cuba (1968 -2009) Israel (1900 -2010) Mexico (1991 -2009) Abstracts Full-Text Document images x EN/FR x x x EN/HE x x (2000 -2010) x ~80% ~60% x ~70% x

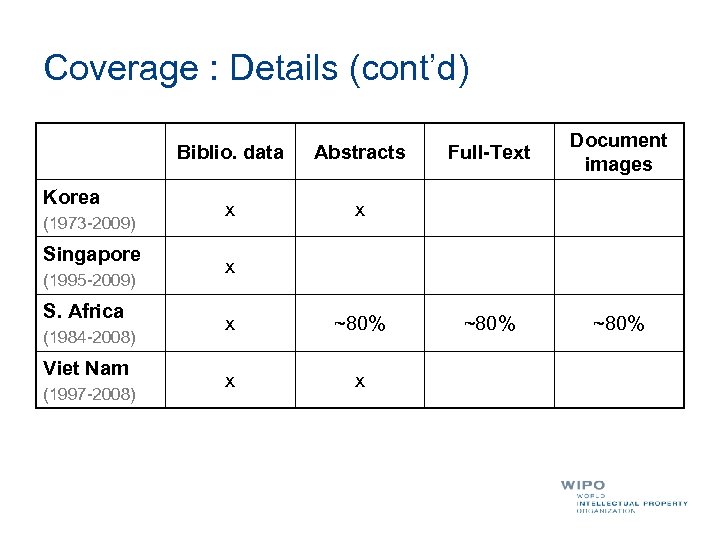

Coverage : Details (cont’d) Biblio. data Korea (1973 -2009) Singapore (1995 -2009) S. Africa (1984 -2008) Viet Nam (1997 -2008) Abstracts x Full-Text Document images ~80% x x x ~80% x x

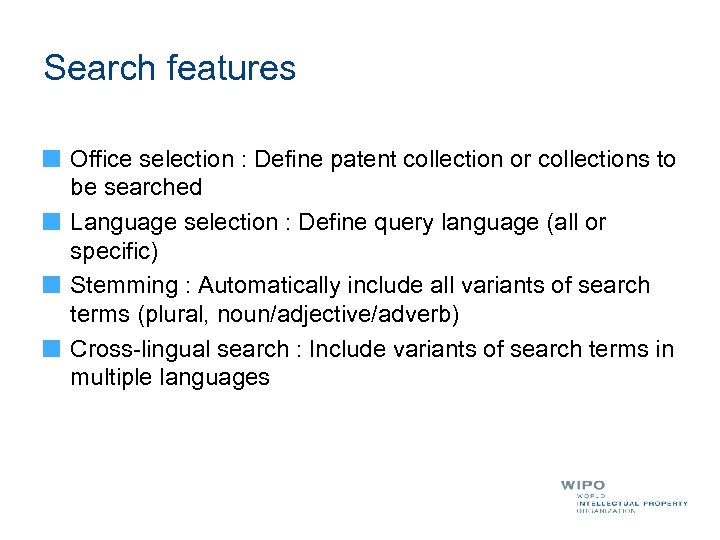

Search features Office selection : Define patent collection or collections to be searched Language selection : Define query language (all or specific) Stemming : Automatically include all variants of search terms (plural, noun/adjective/adverb) Cross-lingual search : Include variants of search terms in multiple languages

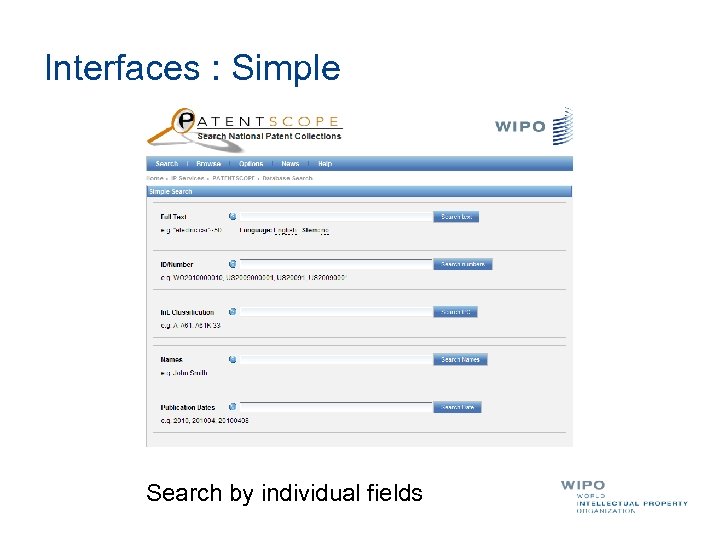

Interfaces : Simple Search by individual fields

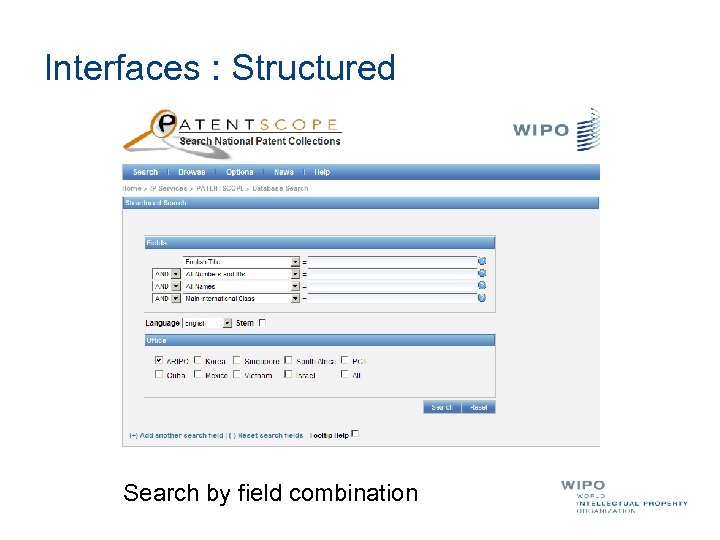

Interfaces : Structured Search by field combination

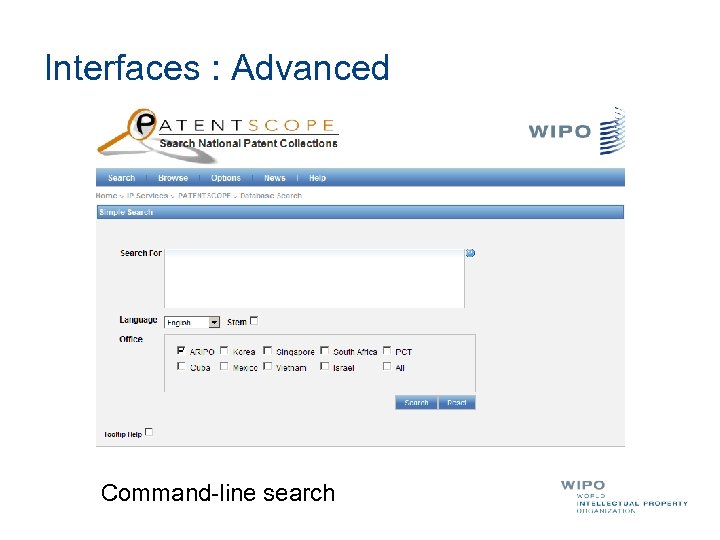

Interfaces : Advanced Command-line search

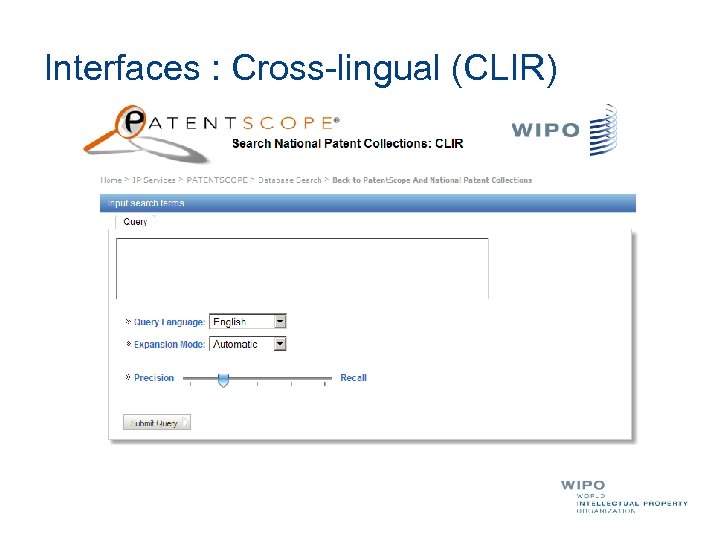

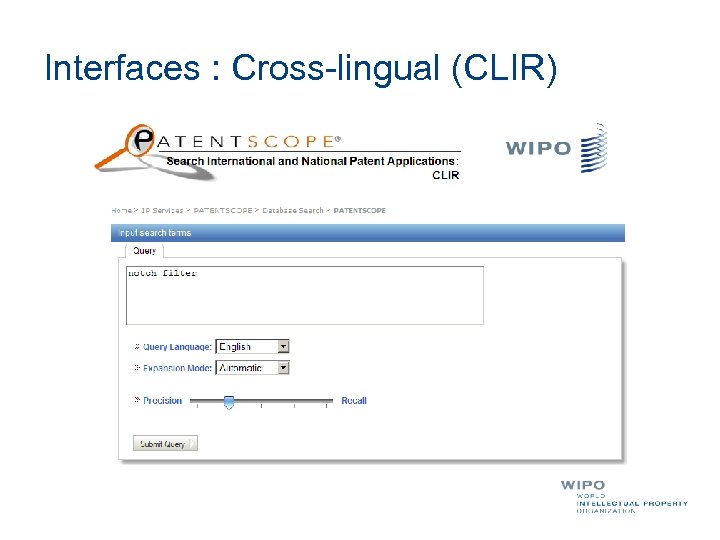

Interfaces : Cross-lingual (CLIR)

Interfaces : Cross-lingual (CLIR)

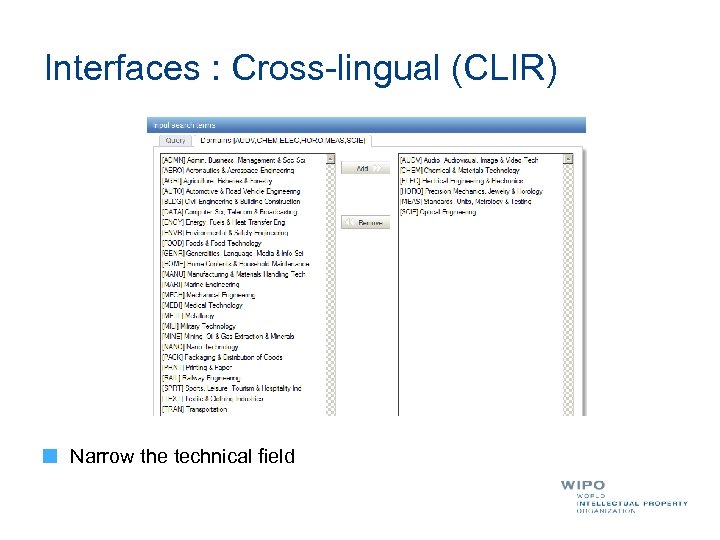

Interfaces : Cross-lingual (CLIR) Narrow the technical field

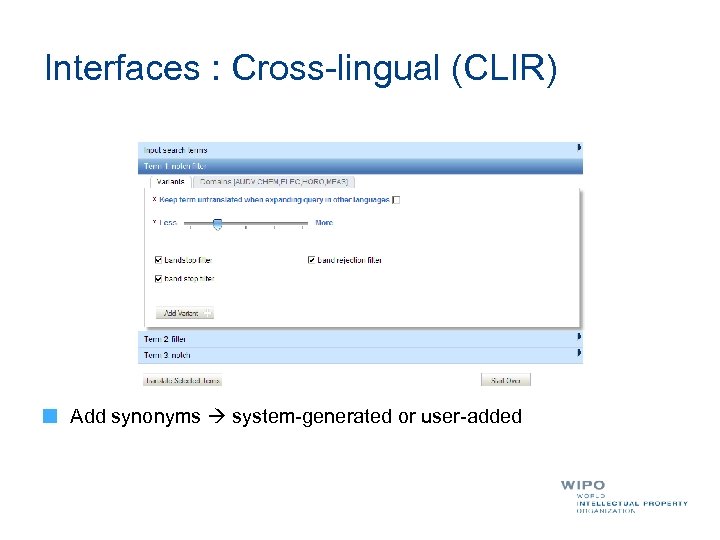

Interfaces : Cross-lingual (CLIR) Add synonyms system-generated or user-added

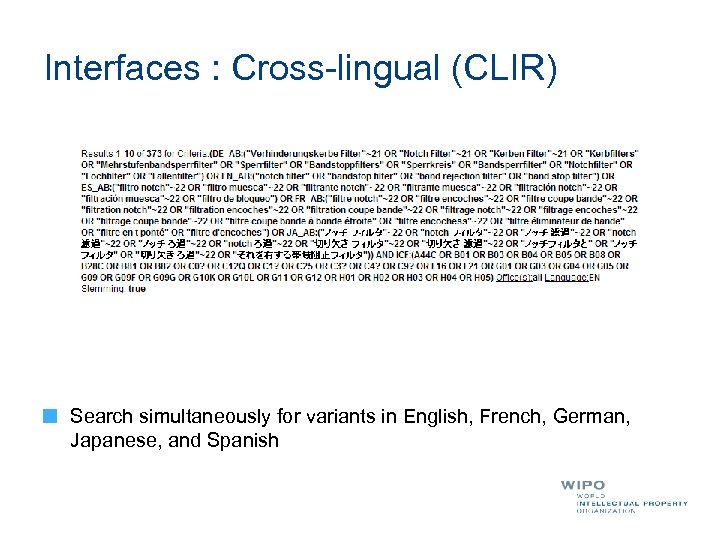

Interfaces : Cross-lingual (CLIR) Search simultaneously for variants in English, French, German, Japanese, and Spanish

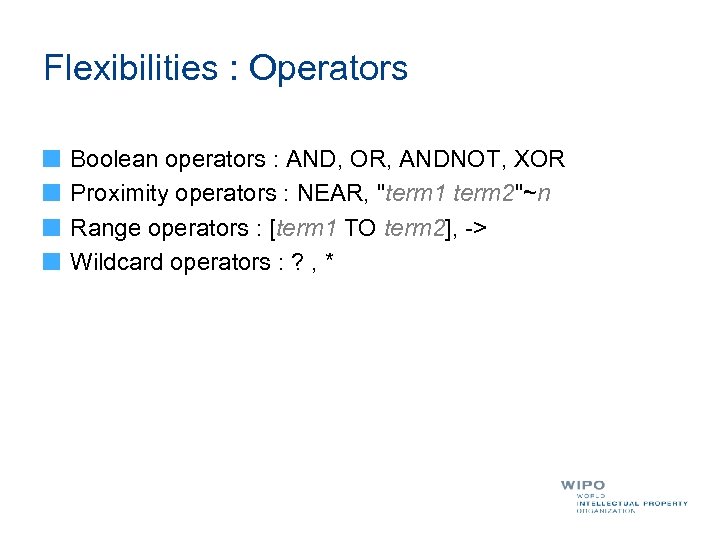

Flexibilities : Operators Boolean operators : AND, OR, ANDNOT, XOR Proximity operators : NEAR, "term 1 term 2"~n Range operators : [term 1 TO term 2], -> Wildcard operators : ? , *

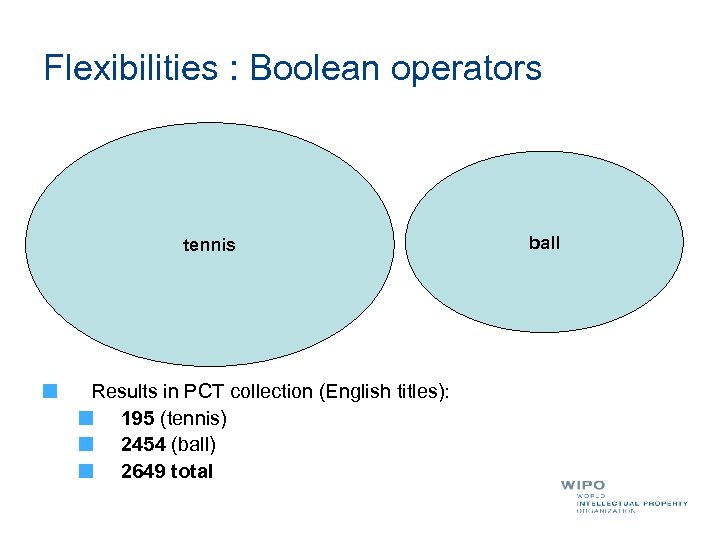

Flexibilities : Boolean operators tennis Results in PCT collection (English titles): 195 (tennis) 2454 (ball) 2649 total ball

Flexibilities : Boolean operators (AND) tennis AND balle Results in PCT collection (English titles) 34 (tennis AND ball)

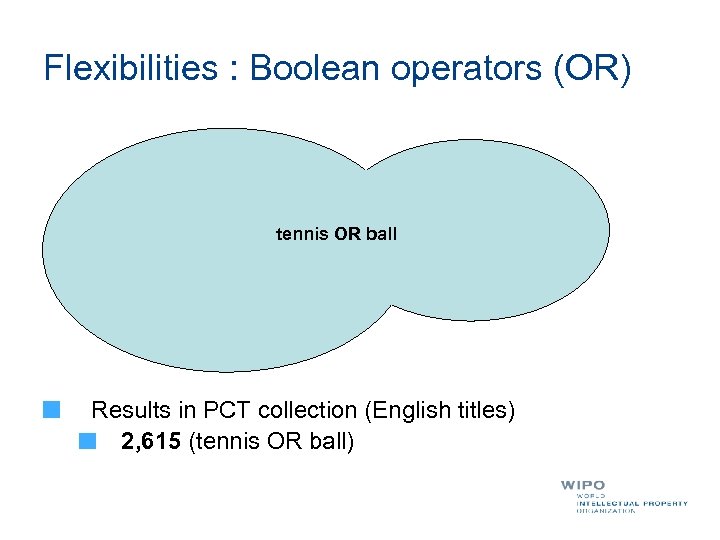

Flexibilities : Boolean operators (OR) tennis OR ball Results in PCT collection (English titles) 2, 615 (tennis OR ball)

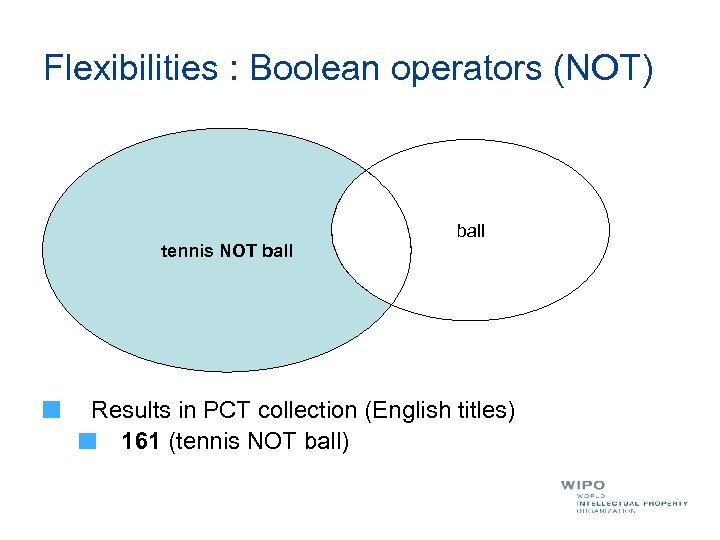

Flexibilities : Boolean operators (NOT) tennis NOT ball Results in PCT collection (English titles) 161 (tennis NOT ball)

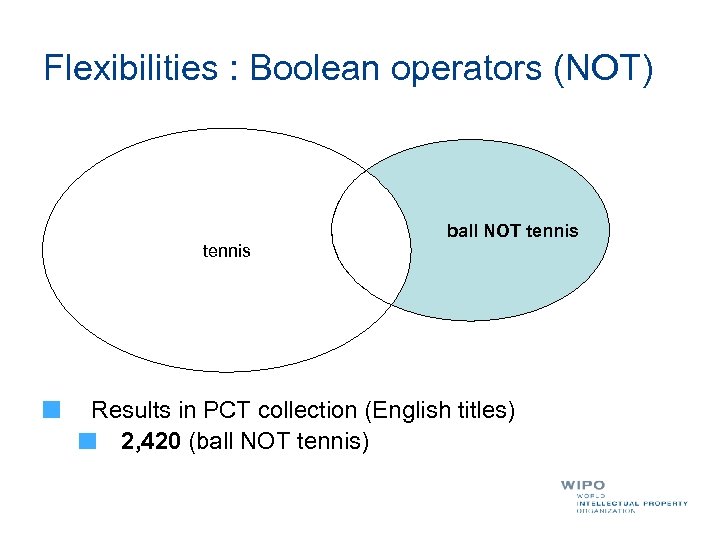

Flexibilities : Boolean operators (NOT) tennis ball NOT tennis Results in PCT collection (English titles) 2, 420 (ball NOT tennis)

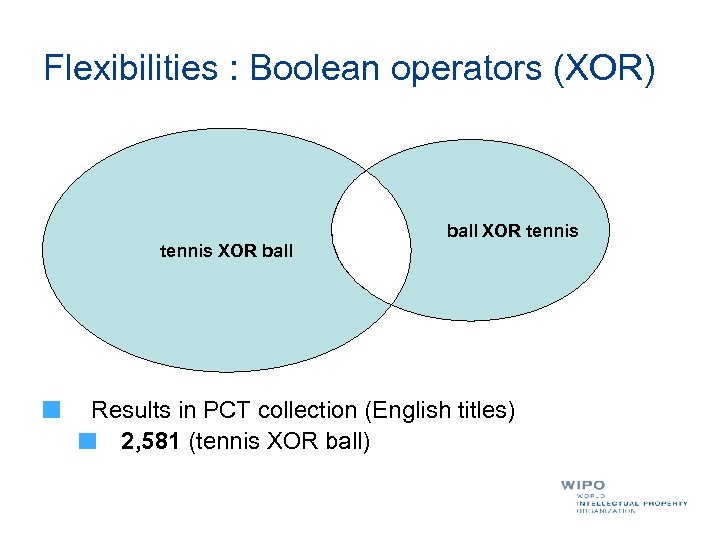

Flexibilities : Boolean operators (XOR) tennis XOR ball XOR tennis Results in PCT collection (English titles) 2, 581 (tennis XOR ball)

Flexibilities : Proximity operators Operators : NEAR, "term 1 term 2"~n Search terms within a certain range of each other (regardless of order) tool NEAR metal “tool metal"~5 metal tool to cut metal tool for determining metal quality NOT : tool for cutting wood and support frame made of metal Default for NEAR : 5 words (or other text units)

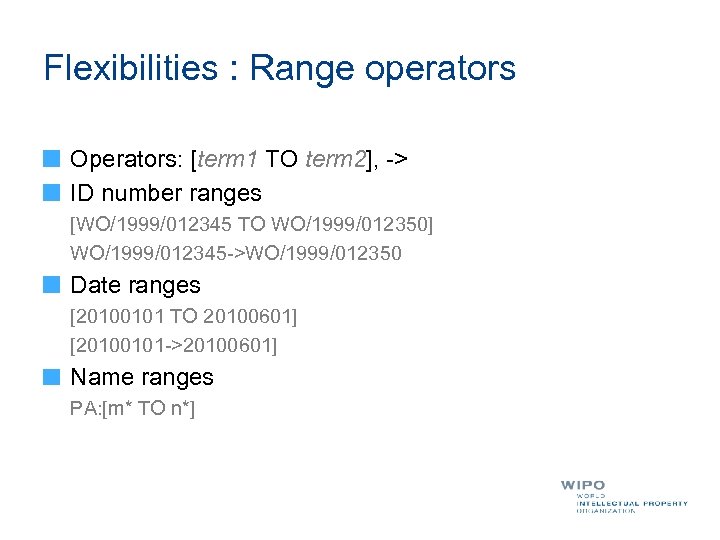

Flexibilities : Range operators Operators: [term 1 TO term 2], -> ID number ranges [WO/1999/012345 TO WO/1999/012350] WO/1999/012345 ->WO/1999/012350 Date ranges [20100101 TO 20100601] [20100101 ->20100601] Name ranges PA: [m* TO n*]

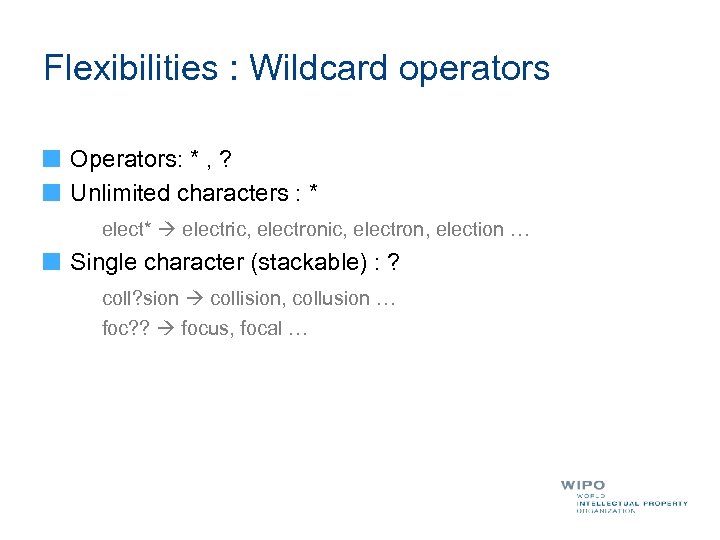

Flexibilities : Wildcard operators Operators: * , ? Unlimited characters : * elect* electric, electron, election … Single character (stackable) : ? coll? sion collision, collusion … foc? ? focus, focal …

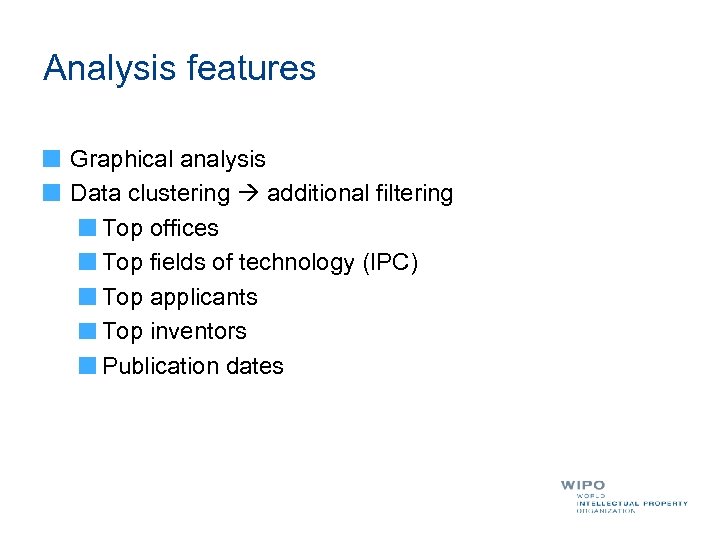

Analysis features Graphical analysis Data clustering additional filtering Top offices Top fields of technology (IPC) Top applicants Top inventors Publication dates

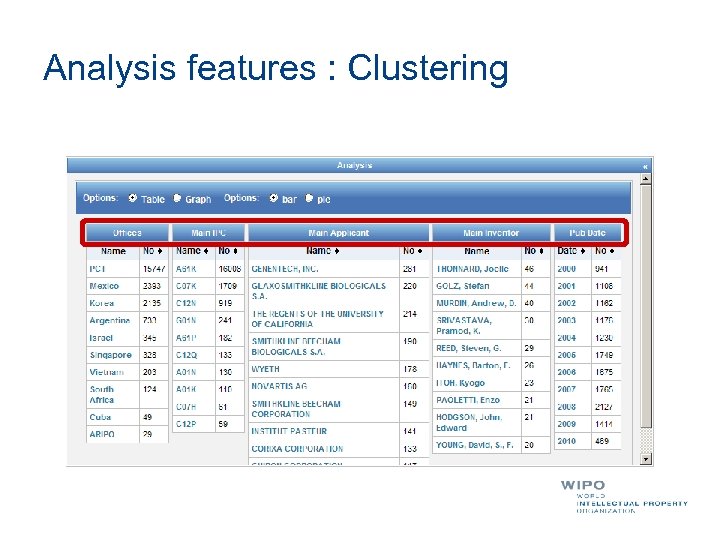

Analysis features : Clustering

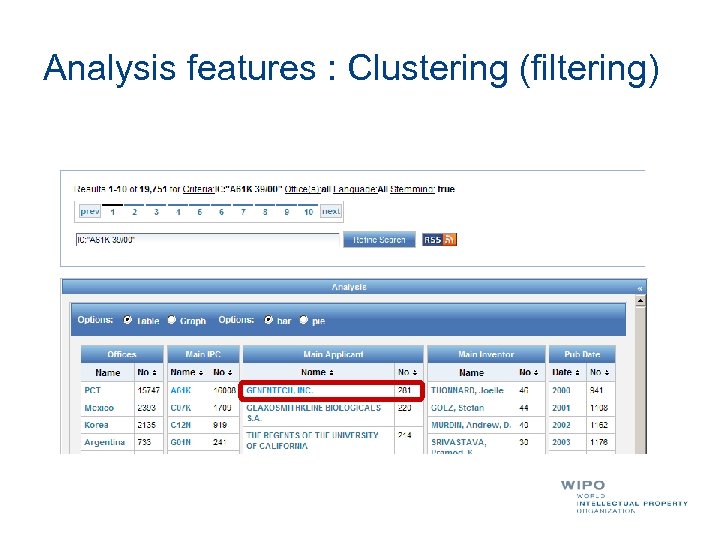

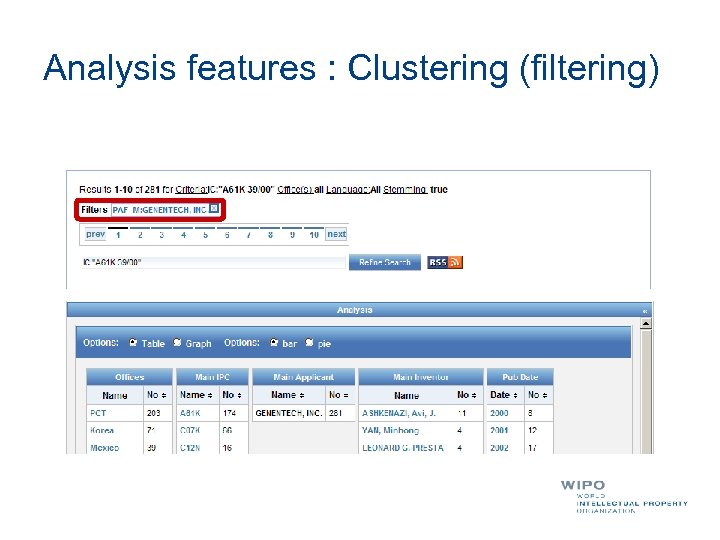

Analysis features : Clustering (filtering)

Analysis features : Clustering (filtering)

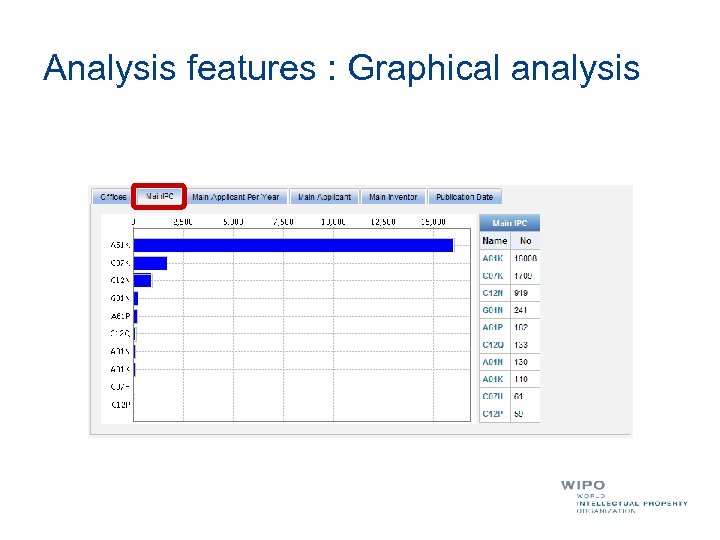

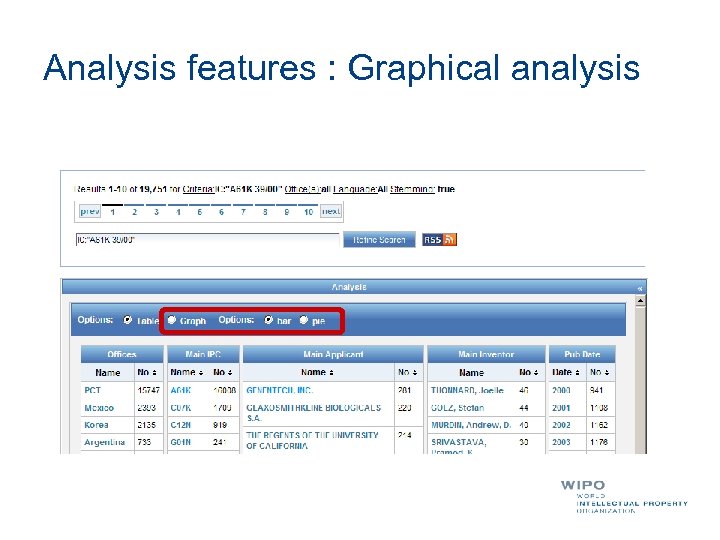

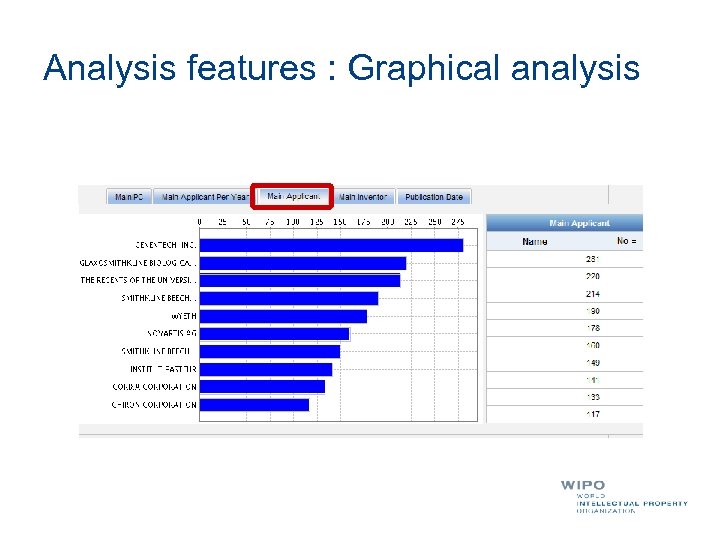

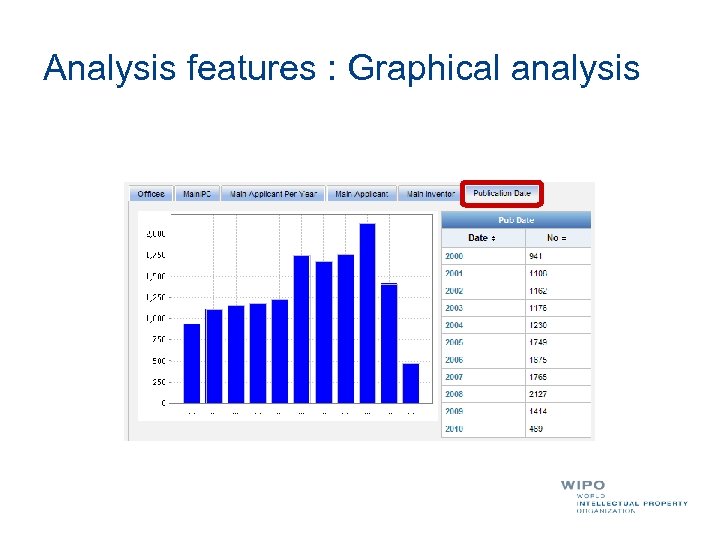

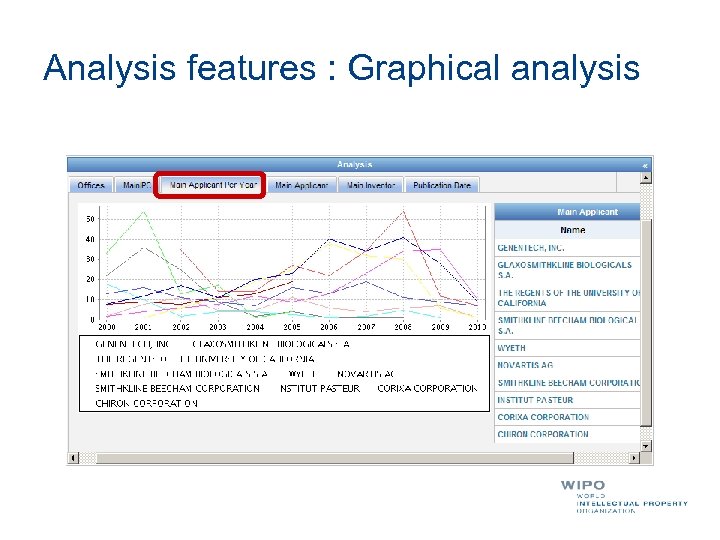

Analysis features : Graphical analysis

Analysis features : Graphical analysis

Analysis features : Graphical analysis

Analysis features : Graphical analysis

Analysis features : Graphical analysis

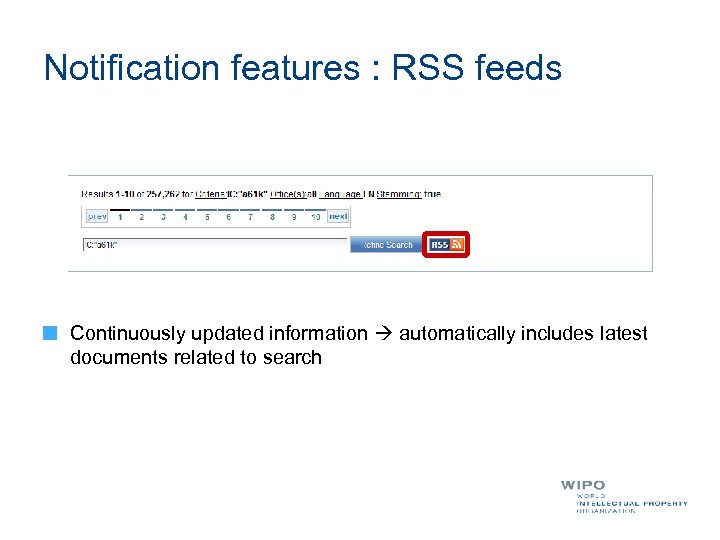

Notification features : RSS feeds Continuously updated information automatically includes latest documents related to search

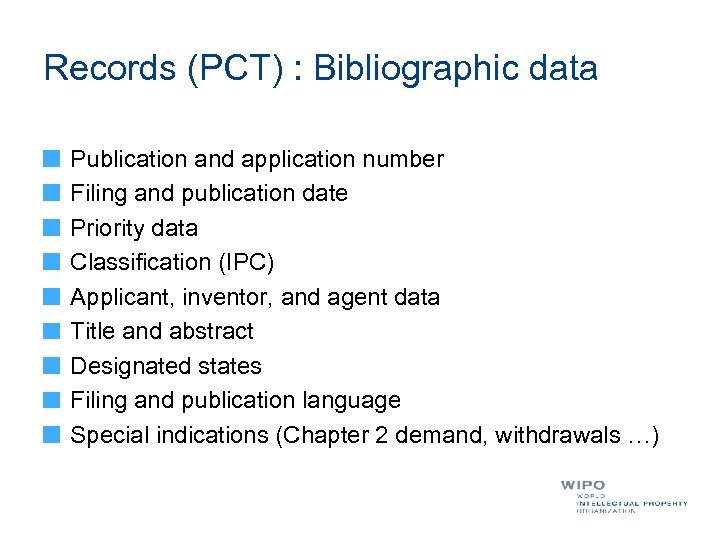

Records (PCT) : Bibliographic data Publication and application number Filing and publication date Priority data Classification (IPC) Applicant, inventor, and agent data Title and abstract Designated states Filing and publication language Special indications (Chapter 2 demand, withdrawals …)

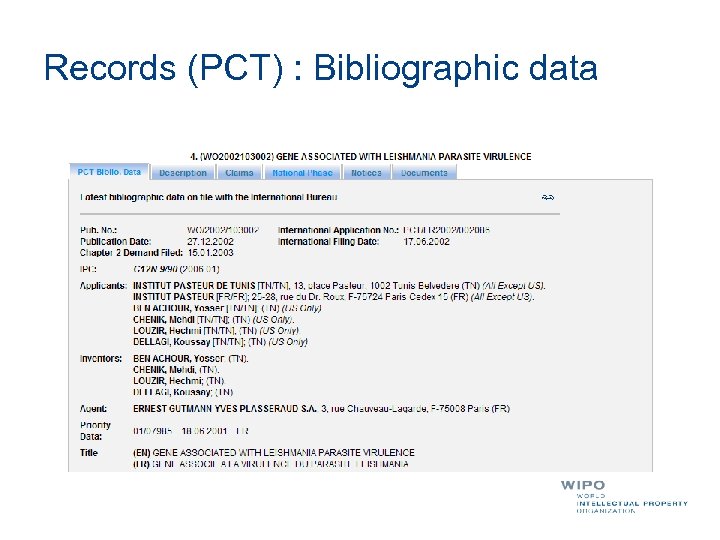

Records (PCT) : Bibliographic data

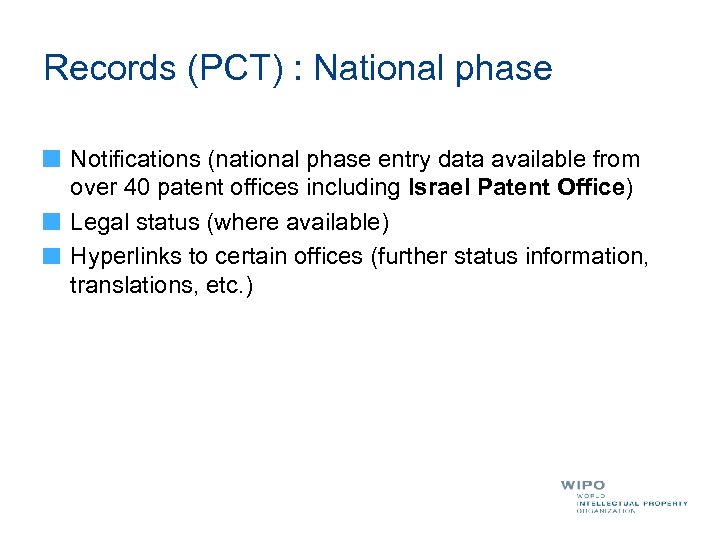

Records (PCT) : National phase Notifications (national phase entry data available from over 40 patent offices including Israel Patent Office) Legal status (where available) Hyperlinks to certain offices (further status information, translations, etc. )

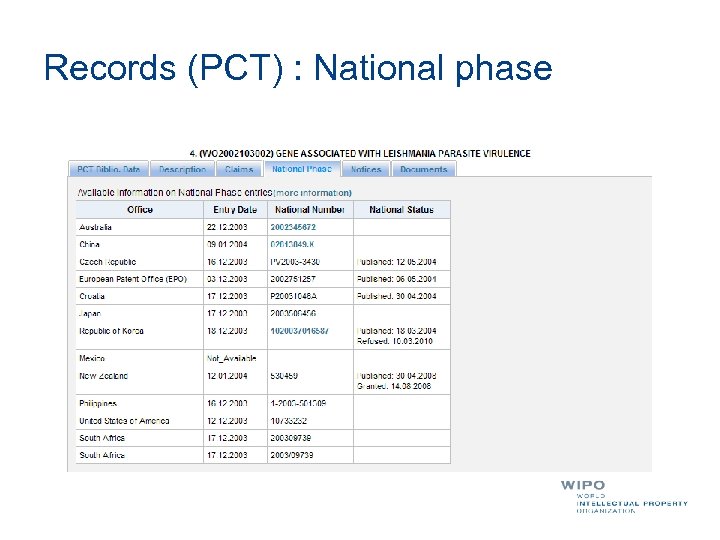

Records (PCT) : National phase

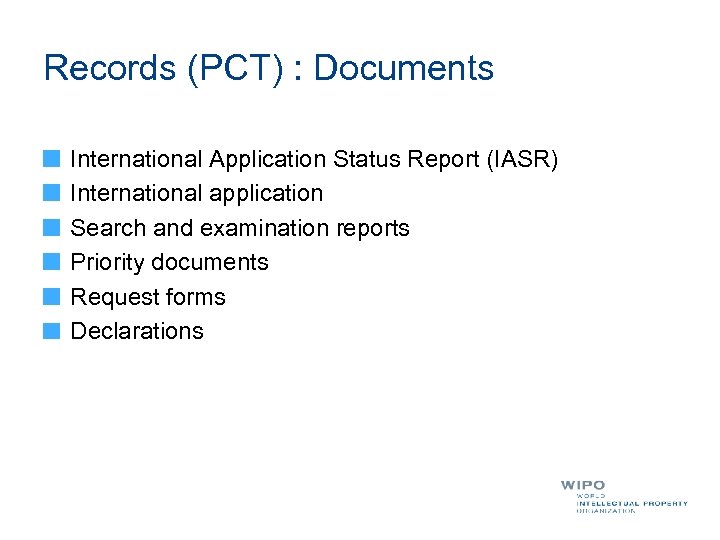

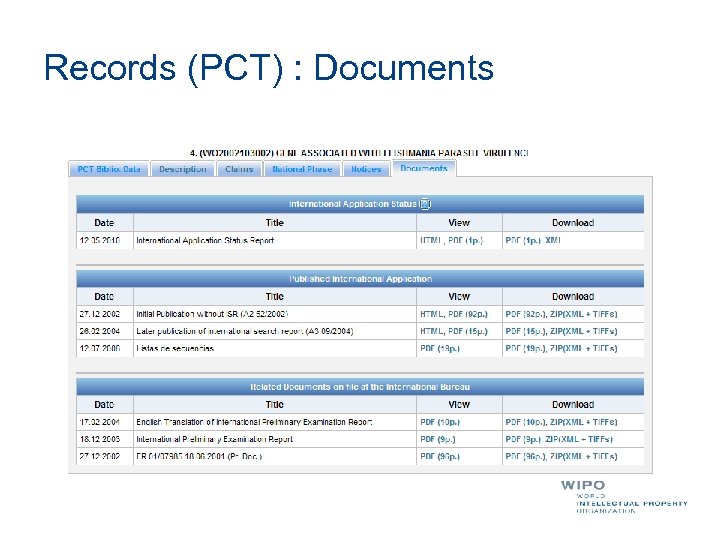

Records (PCT) : Documents International Application Status Report (IASR) International application Search and examination reports Priority documents Request forms Declarations

Records (PCT) : Documents

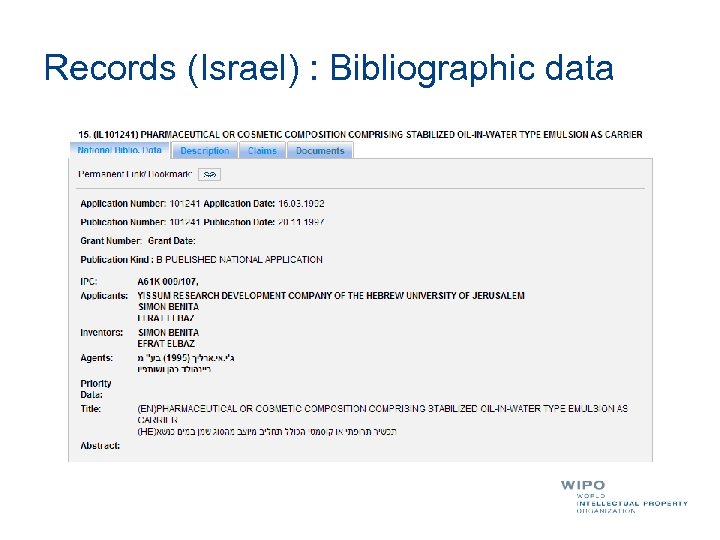

Records (Israel) : Bibliographic data

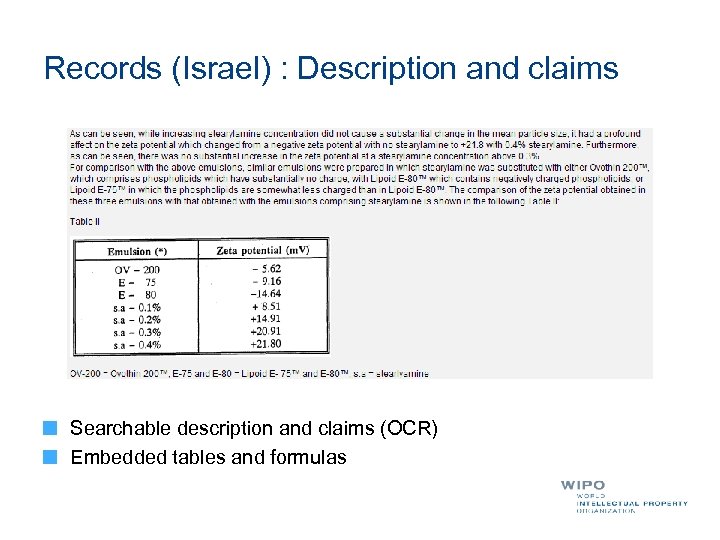

Records (Israel) : Description and claims Searchable description and claims (OCR) Embedded tables and formulas

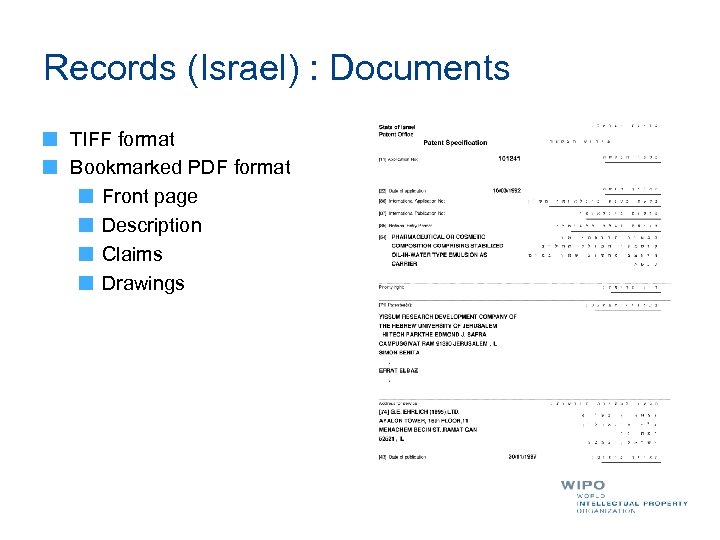

Records (Israel) : Documents TIFF format Bookmarked PDF format Front page Description Claims Drawings

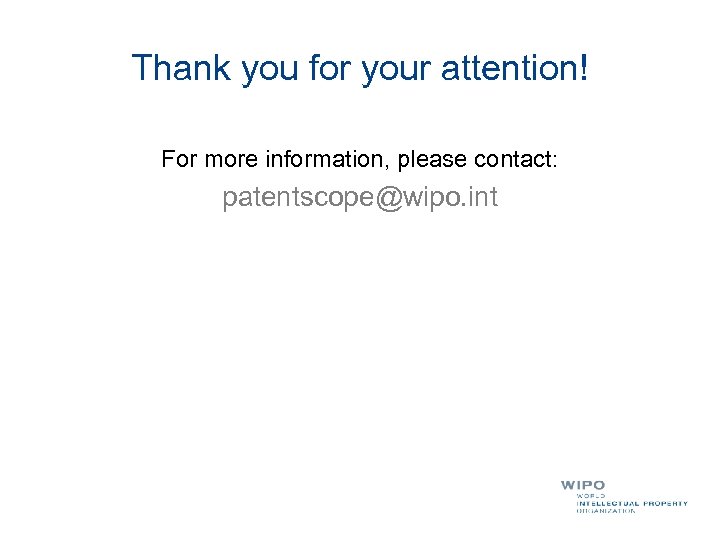

Thank you for your attention! For more information, please contact: patentscope@wipo. int
