Overview Fedora Architecture and Software Features Sandy Payette

Overview: Fedora Architecture and Software Features Sandy Payette, Executive Director UK Fedora Training London January 22 -23, 2009

Kudos to Mark Leggott of UPEI for this great slide!

Digital Content • Familiar content types • Complex, compound, dynamic content types

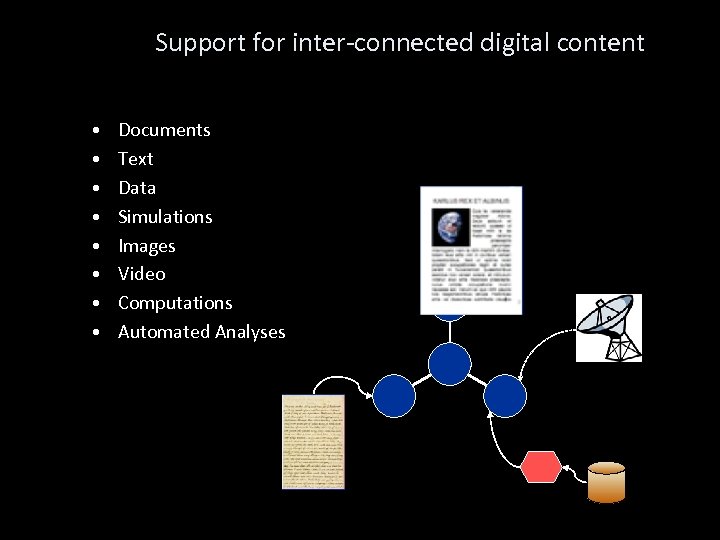

Support for inter-connected digital content • • Documents Text Data Simulations Images Video Computations Automated Analyses Data

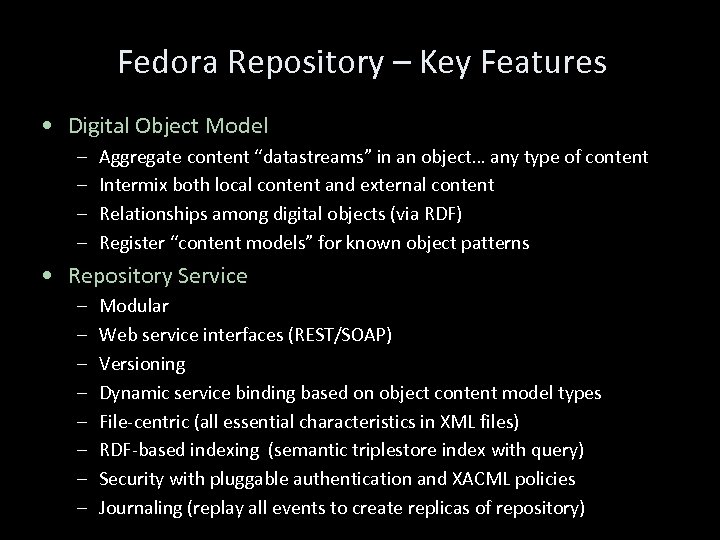

Fedora Repository – Key Features • Digital Object Model – – Aggregate content “datastreams” in an object… any type of content Intermix both local content and external content Relationships among digital objects (via RDF) Register “content models” for known object patterns • Repository Service – – – – Modular Web service interfaces (REST/SOAP) Versioning Dynamic service binding based on object content model types File-centric (all essential characteristics in XML files) RDF-based indexing (semantic triplestore index with query) Security with pluggable authentication and XACML policies Journaling (replay all events to create replicas of repository)

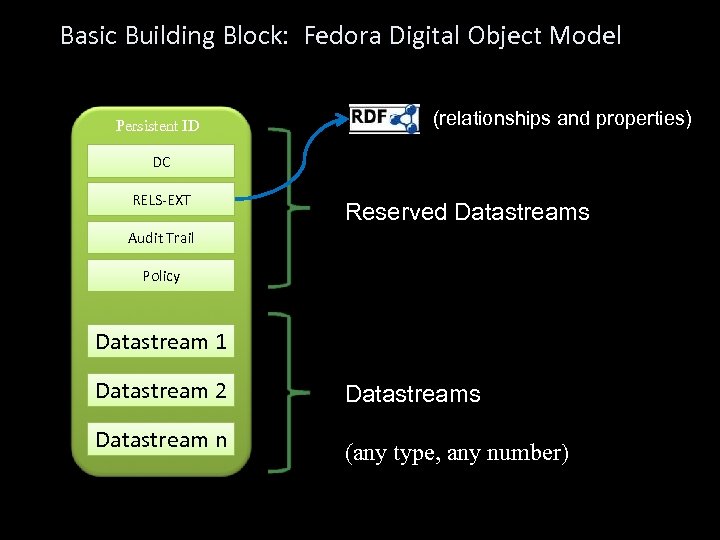

Basic Building Block: Fedora Digital Object Model Persistent ID (relationships and properties) DC RELS-EXT Reserved Datastreams Audit Trail Policy Datastream 1 Datastream 2 Datastreams Datastream n (any type, any number)

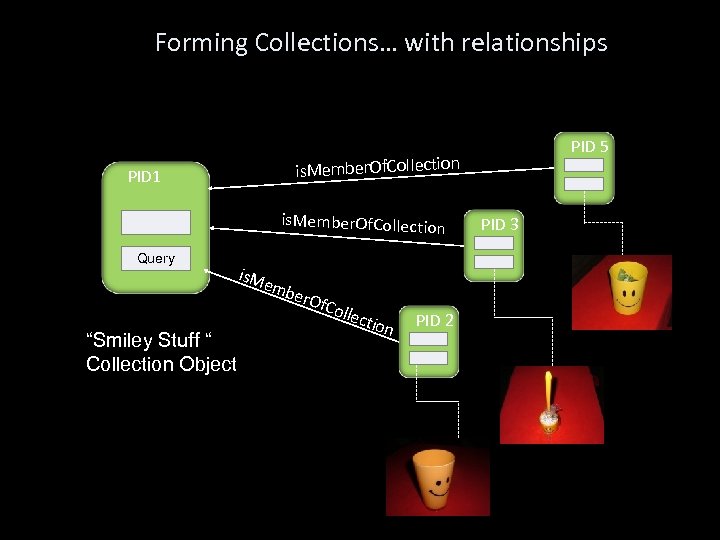

Forming Collections… with relationships is. Member. Of. Collection PID 1 is. Member. Of. Collection Query is. M emb “Smiley Stuff “ Collection Object PID 5 er. O f. Col lect ion PID 2 PID 3

Digital Objects. . . with compositional relationships

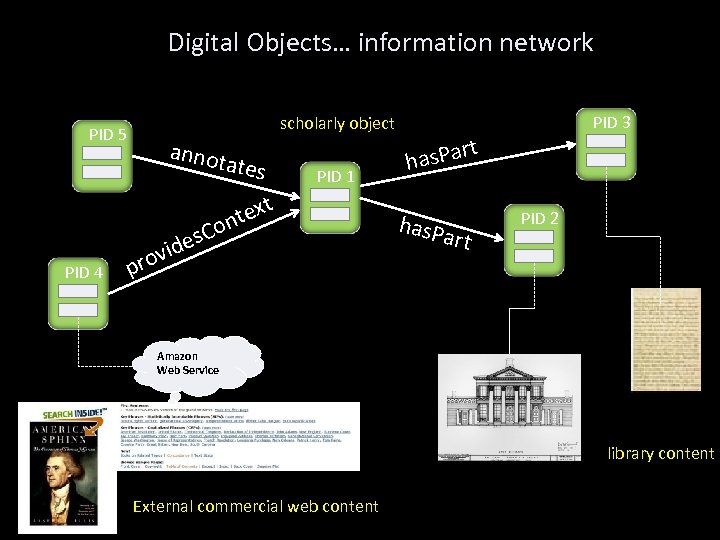

Digital Objects… information network scholarly object PID 5 annot ates PID 4 ext ont C s ide v pro PID 1 PID 3 as. Part h has. Pa rt PID 2 Amazon Web Service library content External commercial web content

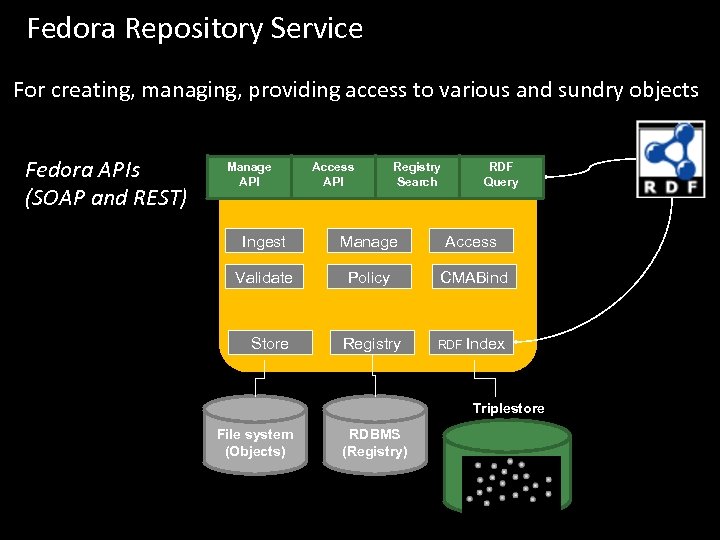

Fedora Repository Service For creating, managing, providing access to various and sundry objects Fedora APIs (SOAP and REST) Manage API Access API Registry Search RDF Query Ingest Manage Access Validate Policy CMABind Registry RDF Index Store Triplestore File system (Objects) RDBMS (Registry)

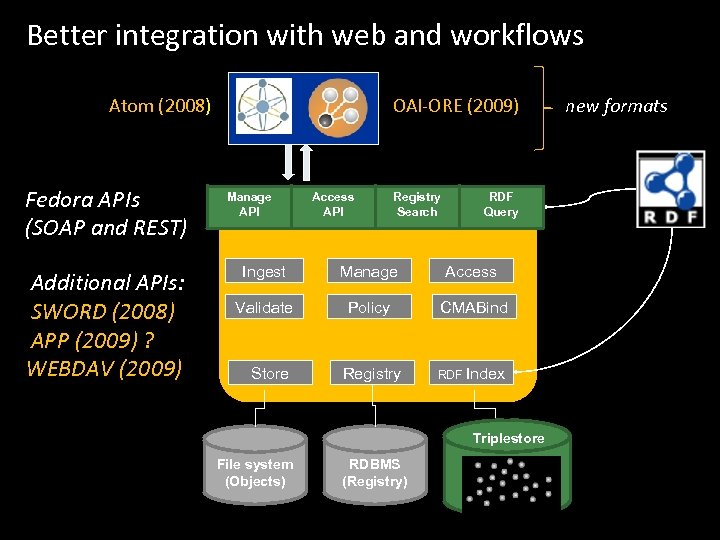

Better integration with web and workflows Atom (2008) Fedora APIs (SOAP and REST) Additional APIs: SWORD (2008) APP (2009) ? WEBDAV (2009) OAI-ORE (2009) Manage API Access API Registry Search RDF Query Ingest Manage Access Validate Policy CMABind Registry RDF Index Store Triplestore File system (Objects) RDBMS (Registry) new formats

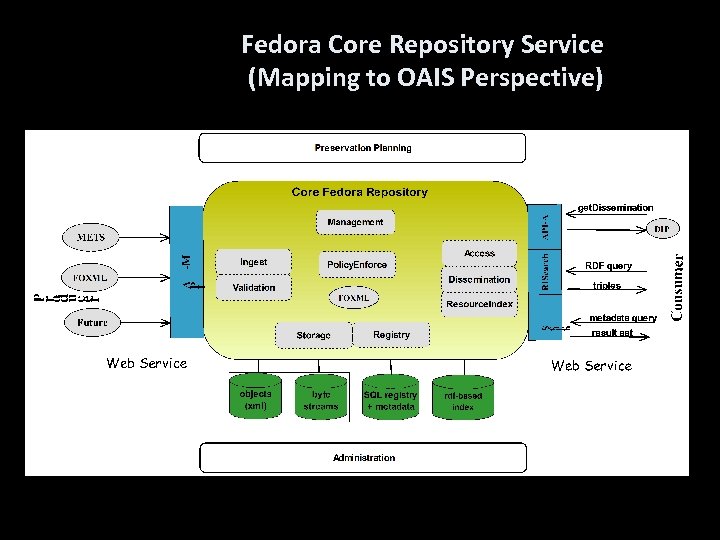

Fedora Core Repository Service (Mapping to OAIS Perspective)

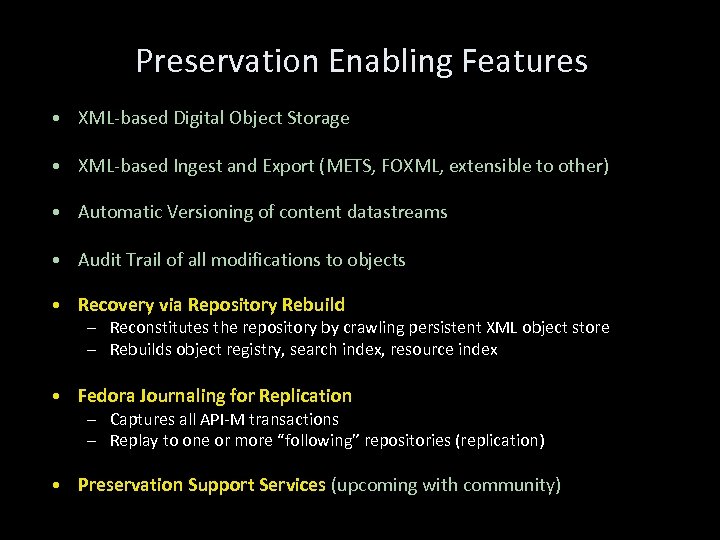

Preservation Enabling Features • XML-based Digital Object Storage • XML-based Ingest and Export (METS, FOXML, extensible to other) • Automatic Versioning of content datastreams • Audit Trail of all modifications to objects • Recovery via Repository Rebuild – Reconstitutes the repository by crawling persistent XML object store – Rebuilds object registry, search index, resource index • Fedora Journaling for Replication – Captures all API-M transactions – Replay to one or more “following” repositories (replication) • Preservation Support Services (upcoming with community)

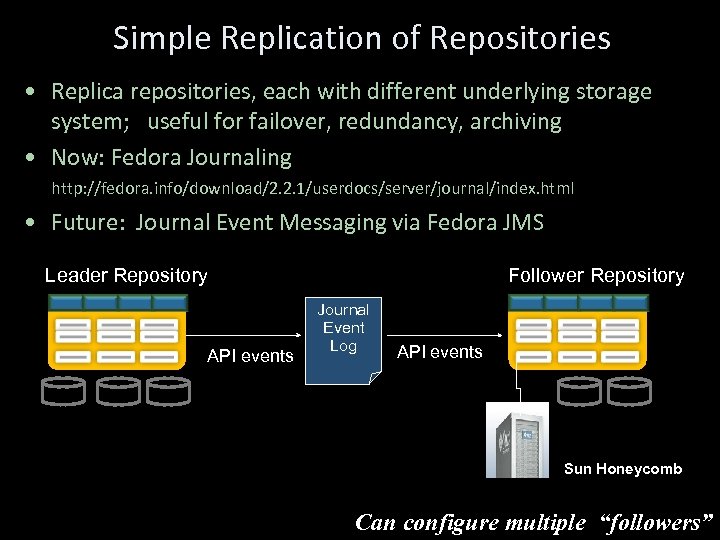

Simple Replication of Repositories • Replica repositories, each with different underlying storage system; useful for failover, redundancy, archiving • Now: Fedora Journaling http: //fedora. info/download/2. 2. 1/userdocs/server/journal/index. html • Future: Journal Event Messaging via Fedora JMS Leader Repository API events Follower Repository Journal Event Log API events Sun Honeycomb Can configure multiple “followers”

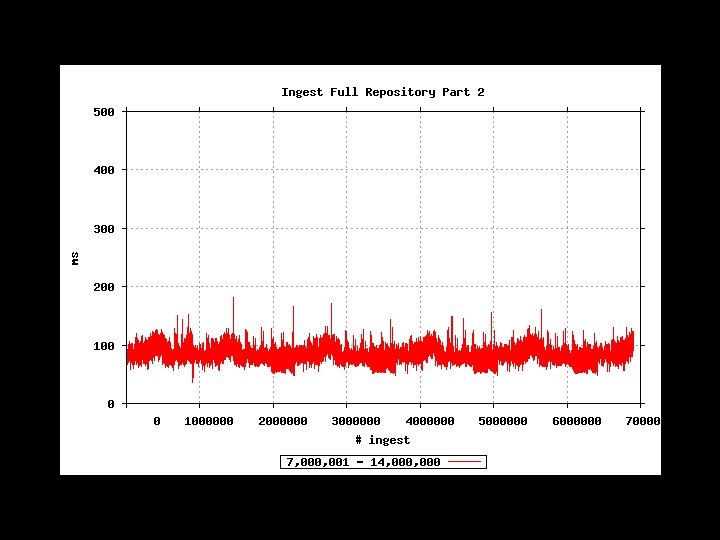

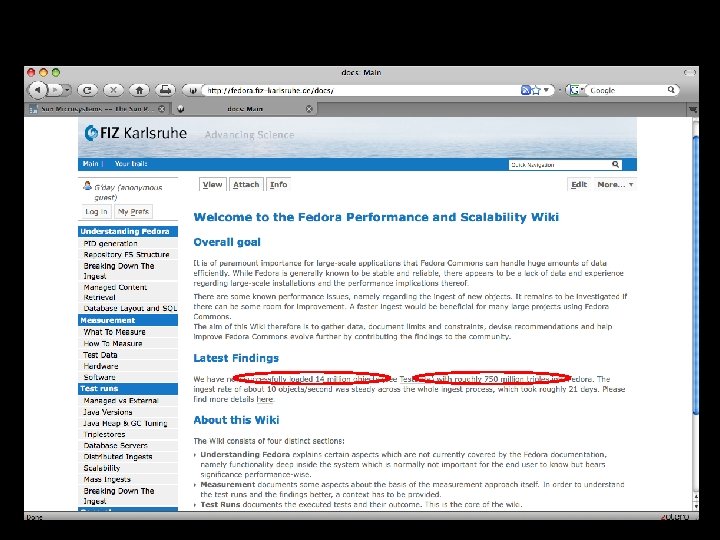

Performance/Scalability Measurement

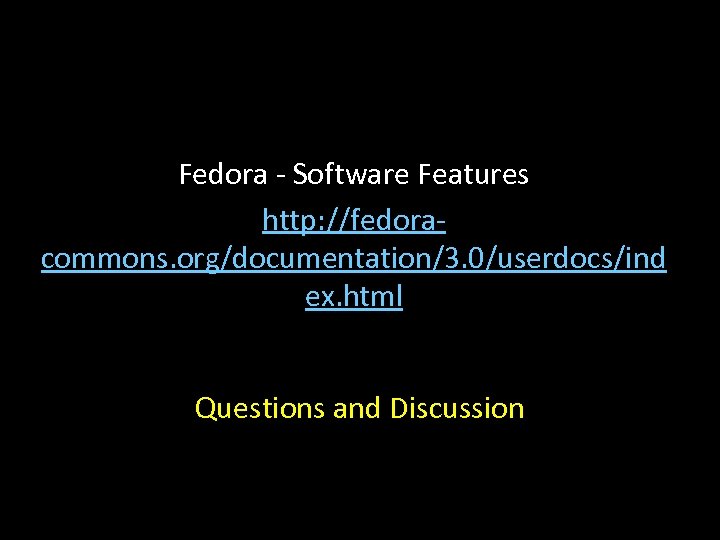

Fedora - Software Features http: //fedoracommons. org/documentation/3. 0/userdocs/ind ex. html Questions and Discussion
